RSC-900
Road Side Communicator
User Manual
NOTE:
This equipment has been tested and found to comply with the limits
for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own
expense.
DRAFT
DRAFT
Installation & Operation instructions
The RSC has to be installed on a horizontal pipe above the center of a road lane.
The pipe has to be 1.5” up to 2” in diameter, and its length has to be sufficient to locate the RSC
over the center of the lane. (The width of a standard lane is about 3.6m). For longer pipes and for
areas with extreme winds it is important to add additional supports (still cables, etc.) to prevent
bending of the pipe.
Installation of RSC on the pipe

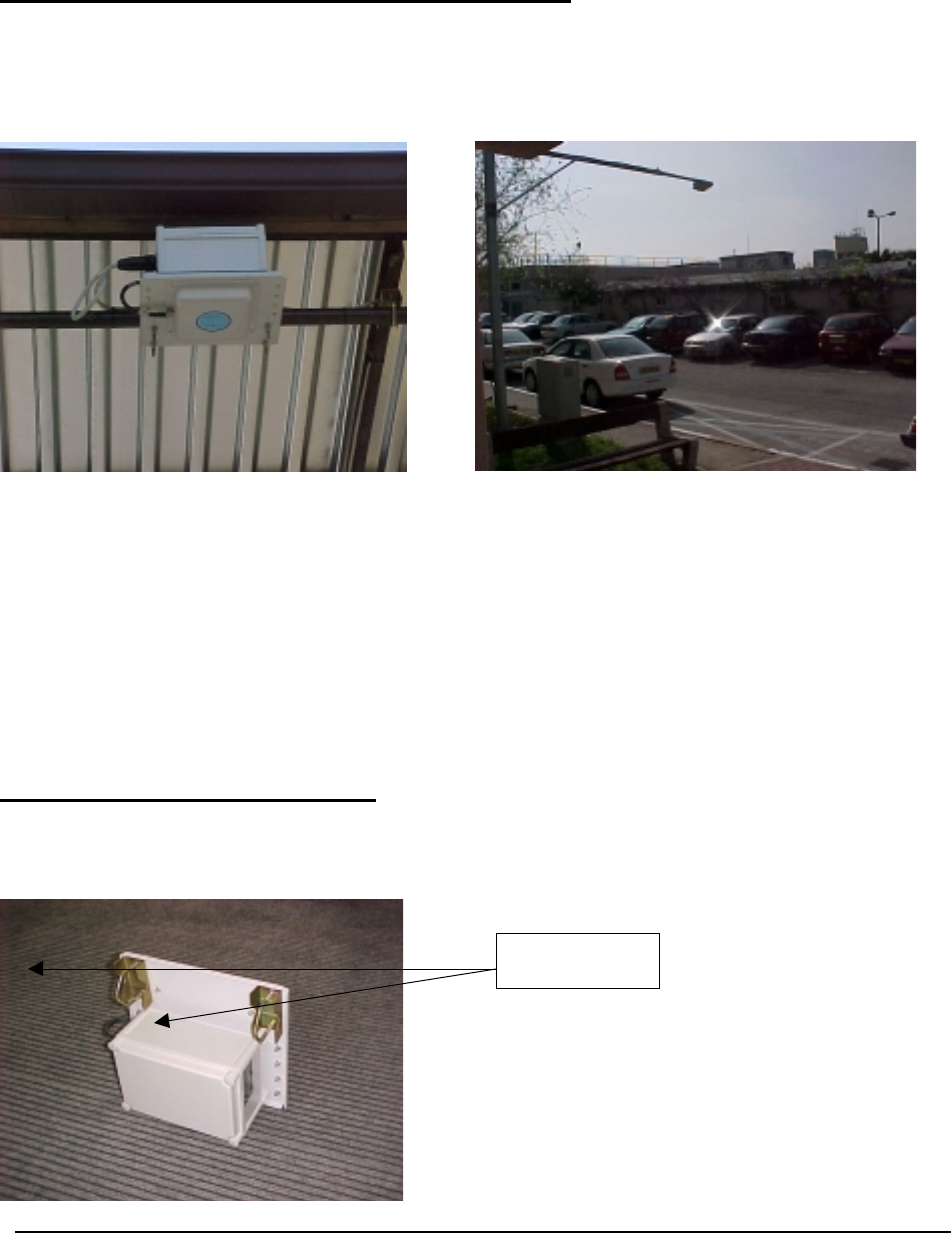

The unit has two U stretchers that are connecting the main plate to the horizontal pipe.
U stretchers
DRAFT
DRAFT
RSC cable connection
1. Connect the RSC Cable to RSC connector

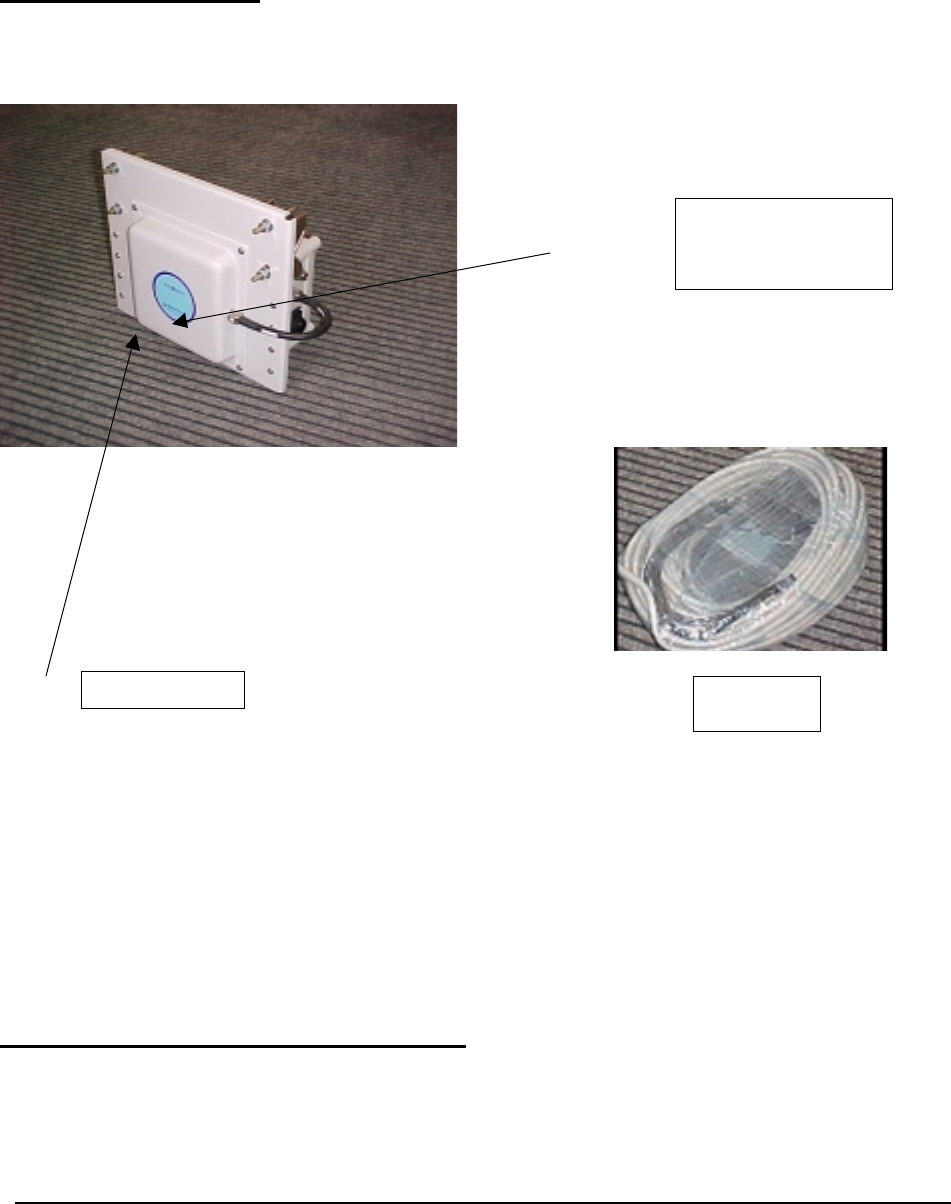

The RSC antenna and antenna cable are untegral part of the RSC-900.
The use of any antenna other than the one being an integral part of the RSC-900 is expressly
forbidden in accordance with FCC rules CFR47 part 15.204.
Power and communication connections
• Connect the main power (24 V) to the RSC cable to pins No 23/24 (+) and pins
No.21/22 (-)
RSC Connector
Antenna Cable RSC cable
DRAFT
DRAFT
• Connect the Communication line to the RSC cable to pins No: 11 (TXD), 10 (RXD),
and 21/22 (GND)
First operation test
Call operating center for communication test and unit remote initialization.
We will be happy to assist you at customer support center
Tel:
Fax:
Operating copany Name Logo and adress
Here we will add additional instructions according to the operating company requests
