Dialog - Booster Installation Instructions
Field Operations Factory Default Parameters
Booster Status FH Tx On
Buzzer On
Magnet
initialization Position the magnet on the
Booster cone for 3
seconds Magnet activation On
Learning the Pit
3G Meters Install the Booster into the
pit within 30 seconds
Booster is Ready
to Transmit This process is done
automatically. After 5-6
minutes The Booster is
ready to transmit
FCC ID: NTAWB1
The User and the Installer should be aware that changes and modifications to the equipment
not expressly approved by Master Meter could void warranty and the user's authority to operate
the equipment.
Professionally trained personnel should install the equipment.
ATTENTION:
ATTENTION:ATTENTION:
ATTENTION:
The digital portion of the transceiver has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1.) Reorient or relocate the receiving antenna.
2.) Increase the separation between the equipment and receiver.
3.) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4.) Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Note: Dialog Booster is designed only for Master Meter meters with Dialog registers.

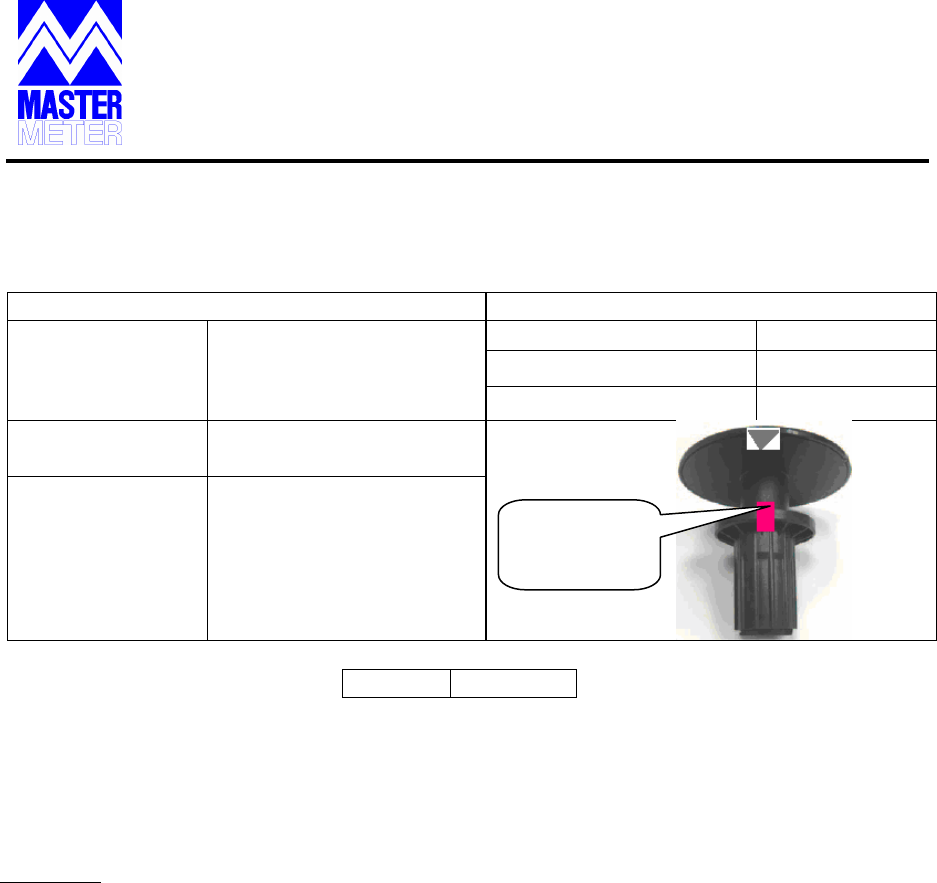

Magnet
Positioning
101 REGENCY PARKWAY
MANSFIELD, TX 76063
817-842-8000
FAX 817-842-8100

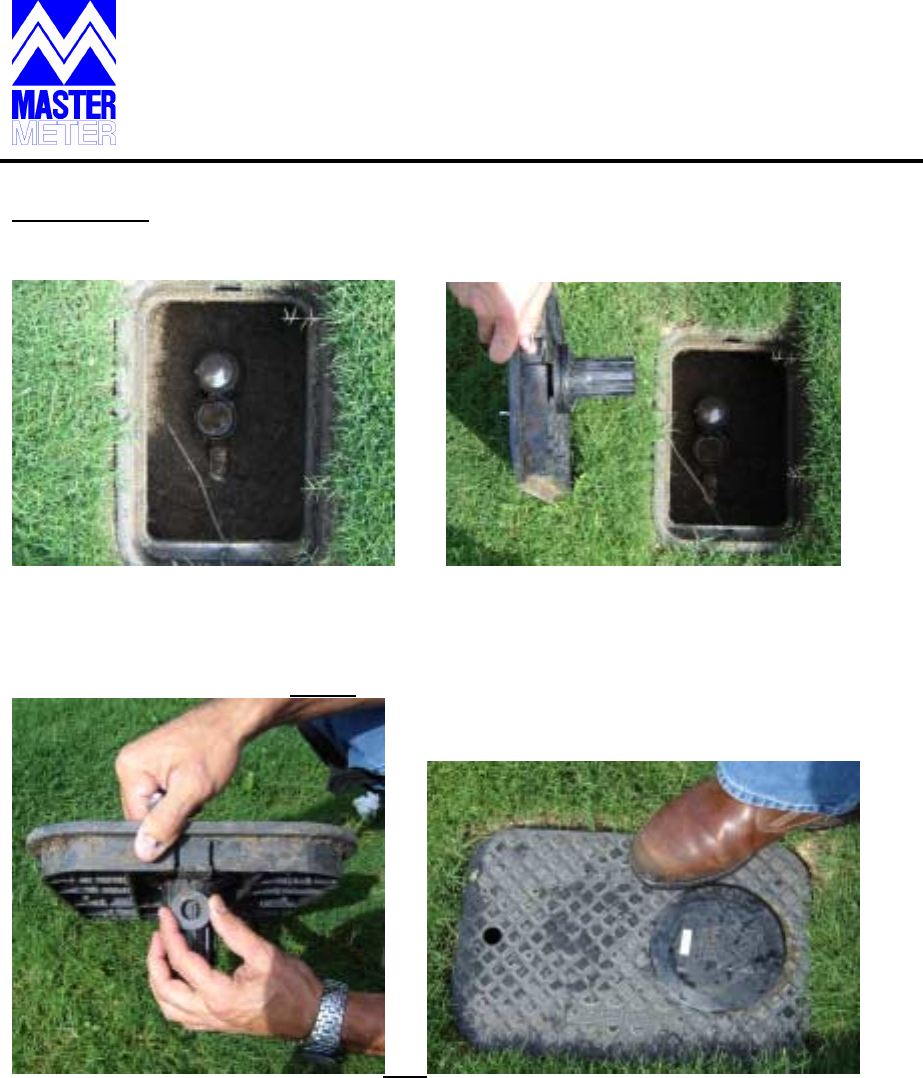

Installation
3G Meter in a Pit-set to be learned by Booster Insert and Install the Booster into the Pit-Set Lid
Locate the Booster Unit near the Pit-Set Position the assembled Pit-Set Lid with the
Face the Magnet on the Booster Cone Booster unit back on the Pit
Wait for 3 seconds until its Beep (After the Beep)
