Dialog - Booster
Installation
Instructions
FCC ID: NTAWB2
101 REGENCY PARKWAY
MANSFIELD, TX 76063
817-842-8000
FAX 817-842-8100
Field Operations
Factory Default Parameters

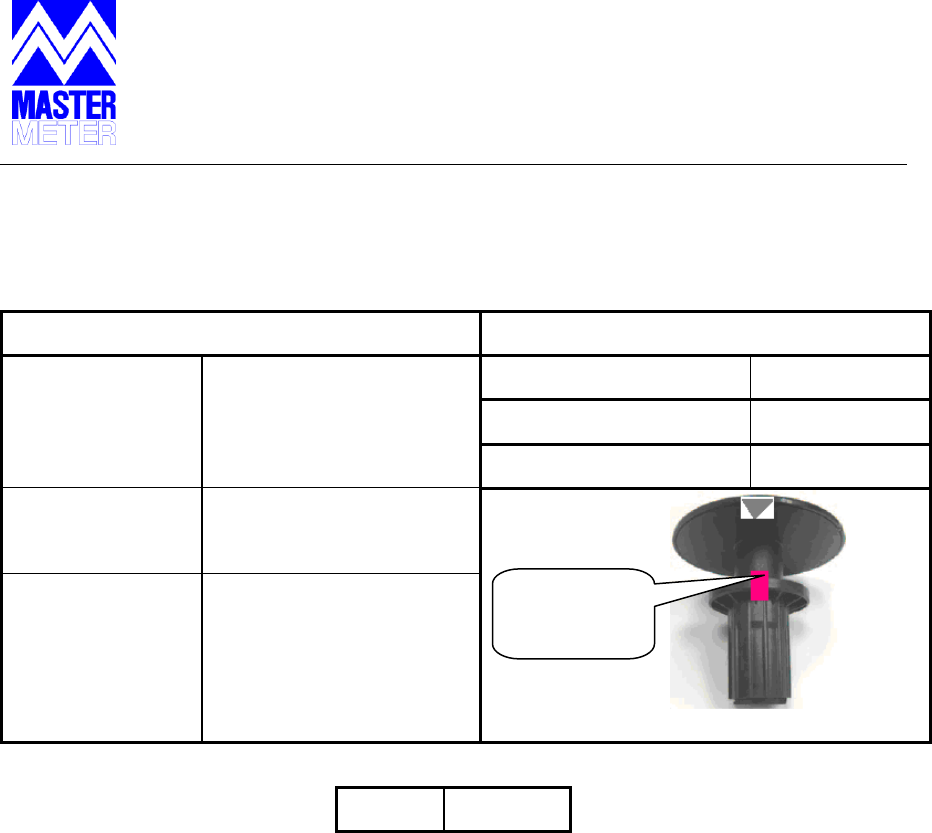

Magnet
initialization
Position the magnet on the
Booster cone for 5
seconds
Booster Status
FH Tx On
Buzzer
Off
Magnet Activation
On
Learning the Pit
3G Meters
Install the Booster into the
pit within 30 seconds
Booster is Ready
to Transmit
This process is done
automatically. After 6-10
minutes the Booster is
ready to transmit
FCC ID
NTAWB2
Magnet
Positioning
101 REGENCY PARKWAY
MANSFIELD, TX 76063
817-842-8000
FAX 817-842-8100
CAUTION
The User and the Installer should be aware that changes and modifications to the
equipment not expressly approved by Master Meter could void warranty and the
user's authority to operate the equipment.
Professionally trained personnel should install the equipment.
The antenna used for this transmitter must be installed to normally provide
minimum separation distance of at least 20 cm from all persons and must not be
co-located or operating in conjunction with any other antenna or transmitter
ATTENTION
The digital portion of the transceiver has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
1.) Reorient or relocate the receiving antenna.
2.) Increase the separation between the equipment and receiver.
3.) Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
4.) Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
Note: Dialog Booster is designed only for Master Meter meters with Dialog
registers.
101 REGENCY PARKWAY
MANSFIELD, TX 76063
817-842-8000
FAX 817-842-8100
Installation

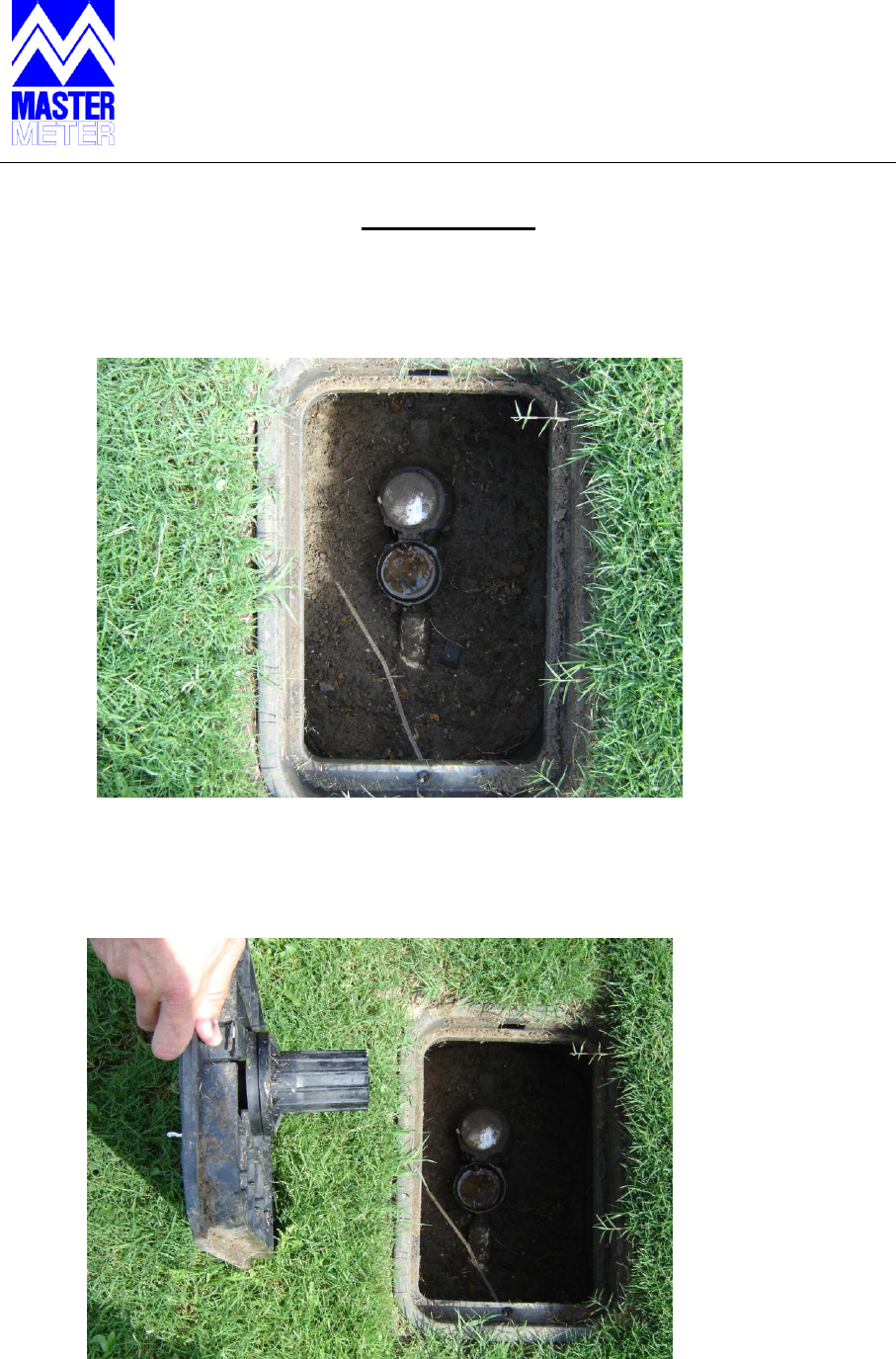

1. Remove the Pit-Set Lid
2. Insert and Install the Booster into the Pit-Set Lid
101 REGENCY PARKWAY
MANSFIELD, TX 76063
817-842-8000
FAX 817-842-8100
3. Locate the Booster Unit near the Pit-Set.
Face the Magnet on the Booster Cone
Wait for 5 seconds until its Beep
4. Position the assembled Pit-Set Lid with the Booster unit back on the Pit (after the Beep)
