ST Microelectronics S R L SPBT30DP2 SPBT3.0DP2 Bluetooth Module User Manual Bluetooth technology class 2 module
ST Microelectronics S.R.L. SPBT3.0DP2 Bluetooth Module Bluetooth technology class 2 module
Users manual
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
SPBT3.0DP2
Bluetooth® Classic
module
Datasheet – preliminary data
Features
• Bluetooth® radio
o Fully embedded Bluetooth® v3.0
with SPP and HID profiles
o Embedded support for MFI iAP2 profile
o Class 2 module
o Complete RF ready module
o 128-bit encryption security
o Integrated antenna
• ST micro Cortex-M4 microprocessor
o up to 100 MHz
o 512 KB Flash
o 128 KB RAM memory
• Supported transmission speed with SPP
o Up to 800KBits
• General I/O
o 8 general purpose I/Os
• User interface
o AT command Data Package (DP)
o Firmware upgrade over UART
• ETSI, FCC, IC and Bluetooth® qualified
• Single voltage supply: 3.3 V typical

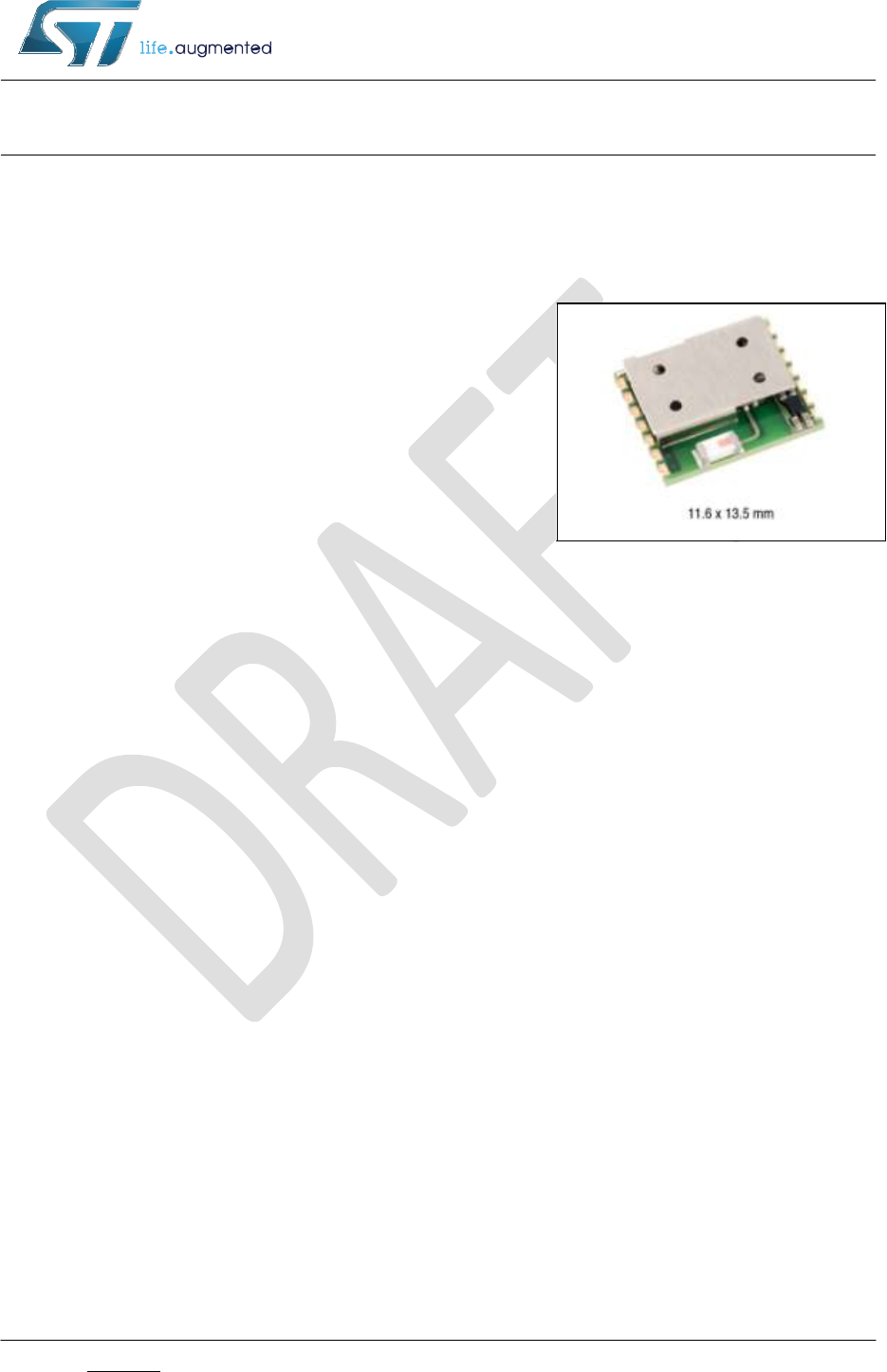

• Micro-sized form factor: 11.6 x 13.5 x 2.9 mm
• Operating temperature range: -40 °C to 85 °C
List of tables
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
Contents
1 Description .......................................................................................................................................... 5
2 RoHS compliance ............................................................................................................................... 6
3 Applications ........................................................................................................................................ 6
4 Software architecture ........................................................................................................................ 7
4.1 BT stack layers ................................................................................................................................ 7
4.2 Supported Profile ........................................................................................................................... 8
4.3 AT Command set: DATA PACKAGE .......................................................................................... 8
5 Hardware specifications ................................................................................................................... 8
5.1 Recommended operating conditions ........................................................................................ 8
5.2 Absolute maximum ratings .......................................................................................................... 8
5.3 High performance current consumption .................................................................................. 9
5.4 Balanced performance current consumption ......................................................................... 9
5.5 Pin assignment ............................................................................................................................. 10
5.6 Mechanical dimensions .............................................................................................................. 11
6 Hardware design ...................................................................................................................................... 13
6.1 Reflow soldering ................................................................................................................................ 13
6.2 UART interface .............................................................................................................................. 15
7 Regulatory compliance ................................................................................................................... 16
7.1 FCC certification .......................................................................................................................... 16
7.1.1 Labeling instructions ................................................................................................................. 16
7.1.2 Product manual instructions ..................................................................................................... 17
7.2 IC certification .................................................................................................................................. 18
7.2.1 Labeling instructions ................................................................................................................. 18
7.2.2 Product manual instructions ..................................................................................................... 19
7.3 Bluetooth certification ................................................................................................................. 19
7.4 CE certification .............................................................................................................................. 20
8
Traceability
......................................................................................................................................... 21
9 Ordering information ....................................................................................................................... 22
10 Revision history ................................................................................................................................ 23
List of tables
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
List of tables
Table 1: Recommended operating conditions ................................................................................... 8
Table 2: Absolute maximum ratings ..................................................................................................... 8
Table 3: High Performance Power Consumption .............................................................................. 9
Table 4: Balanced Performance Power Consumption ..................................................................... 9
Table 4: Pin assignment ......................................................................................................................... 10
Table 5: Soldering .................................................................................................................................... 13
Table 6: Traceability information ......................................................................................................... 21
Table 7: Ordering information .............................................................................................................. 22
Table 8: Document revision history .................................................................................................... 23
List of figures
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
List of figures
Figure 1: Software Architecture Overview .......................................................................................... 7

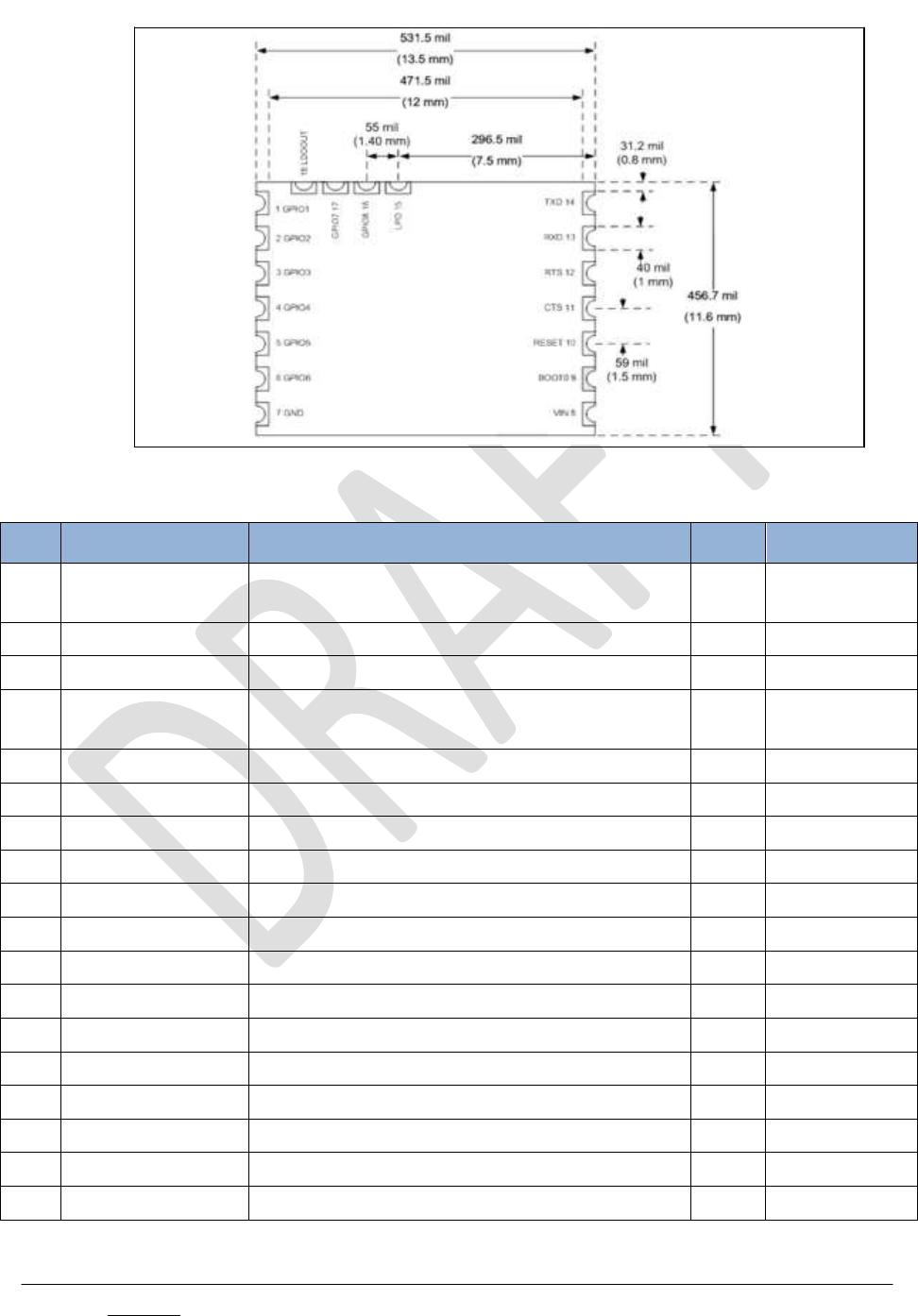

Figure 2: Pin connection ........................................................................................................................ 10

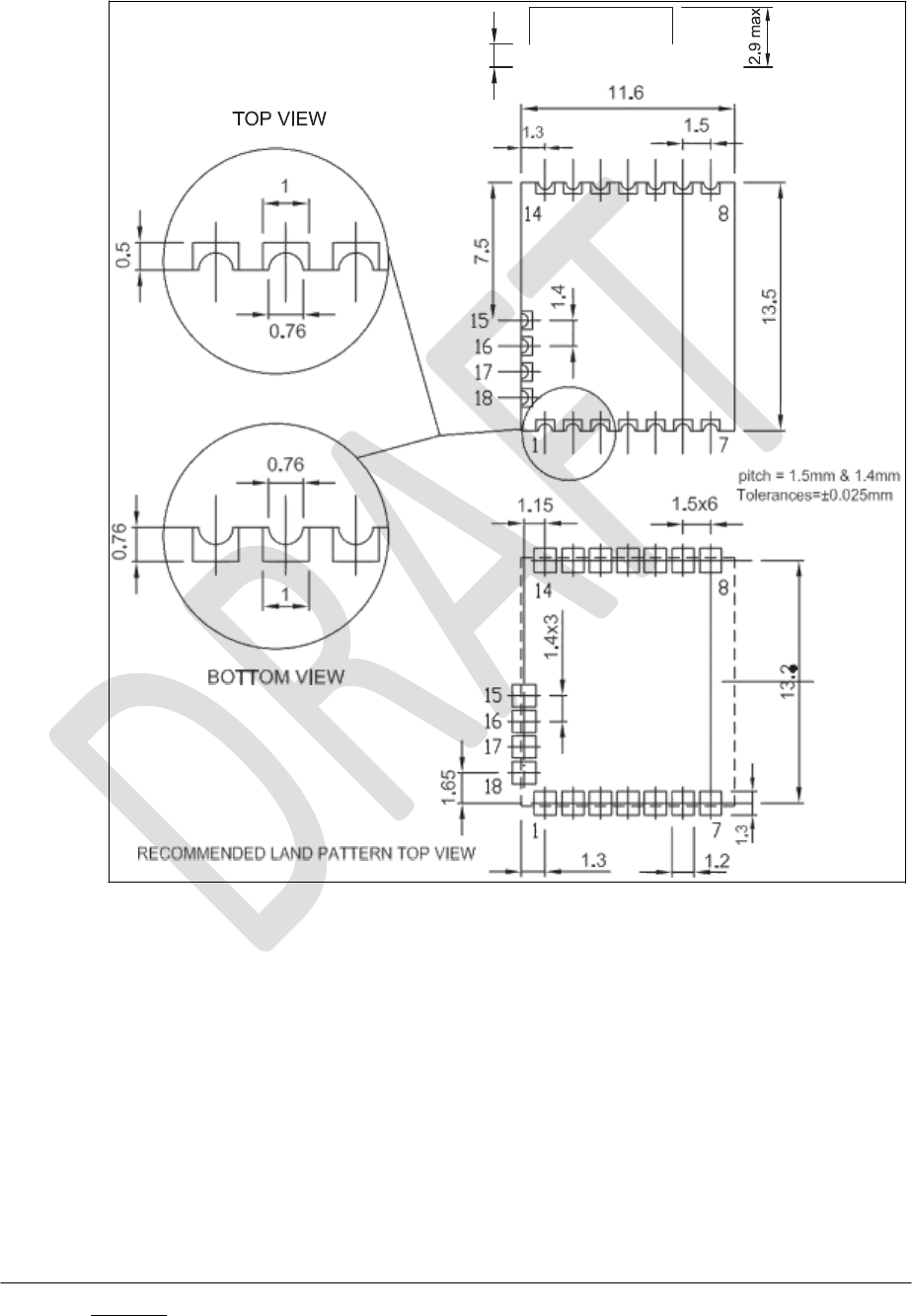

Figure 3: Mechanical dimensions ........................................................................................................ 11

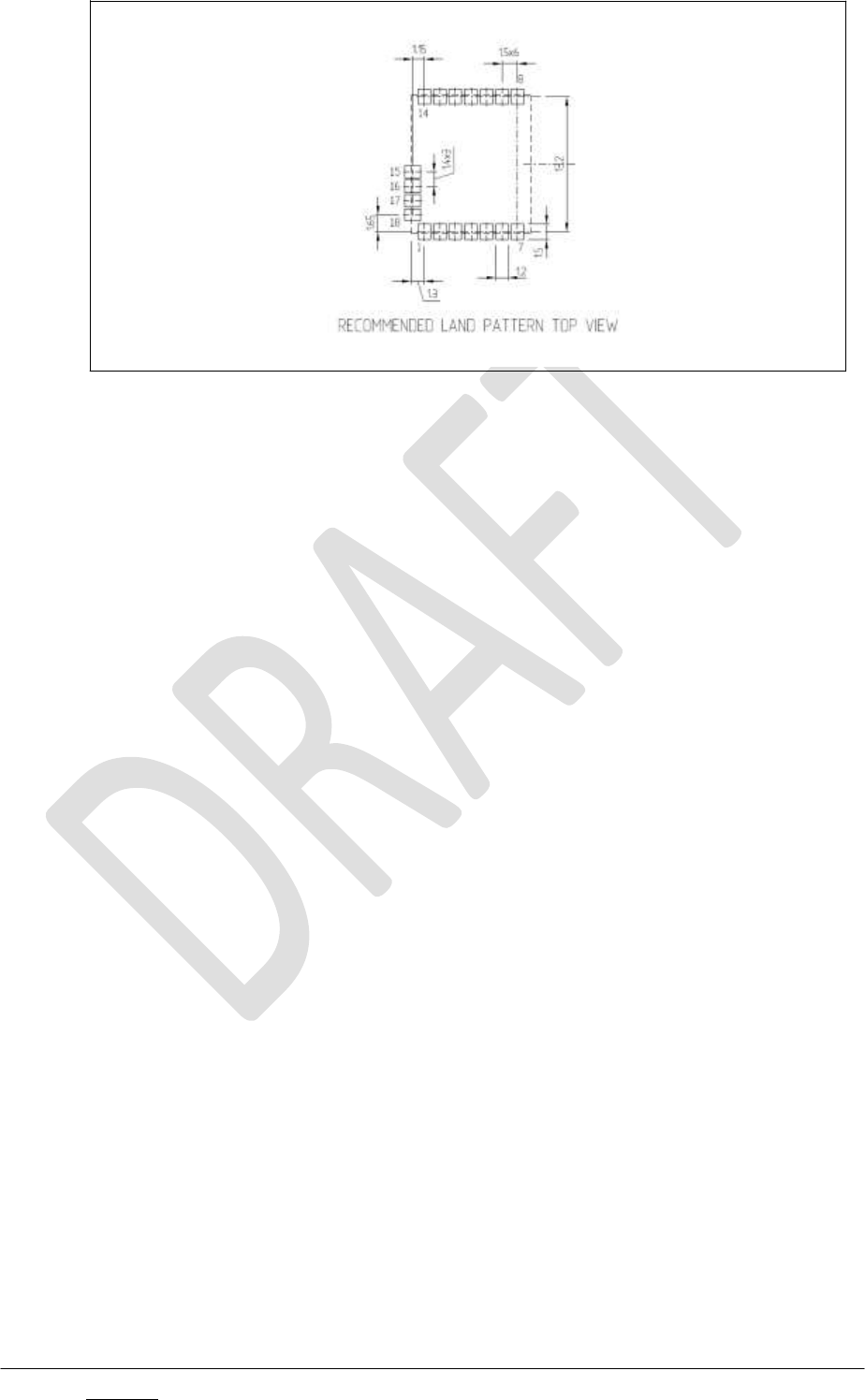

Figure 4: Recommend land pattern top view .................................................................................... 12
Figure 5: Soldering profile ..................................................................................................................... 14

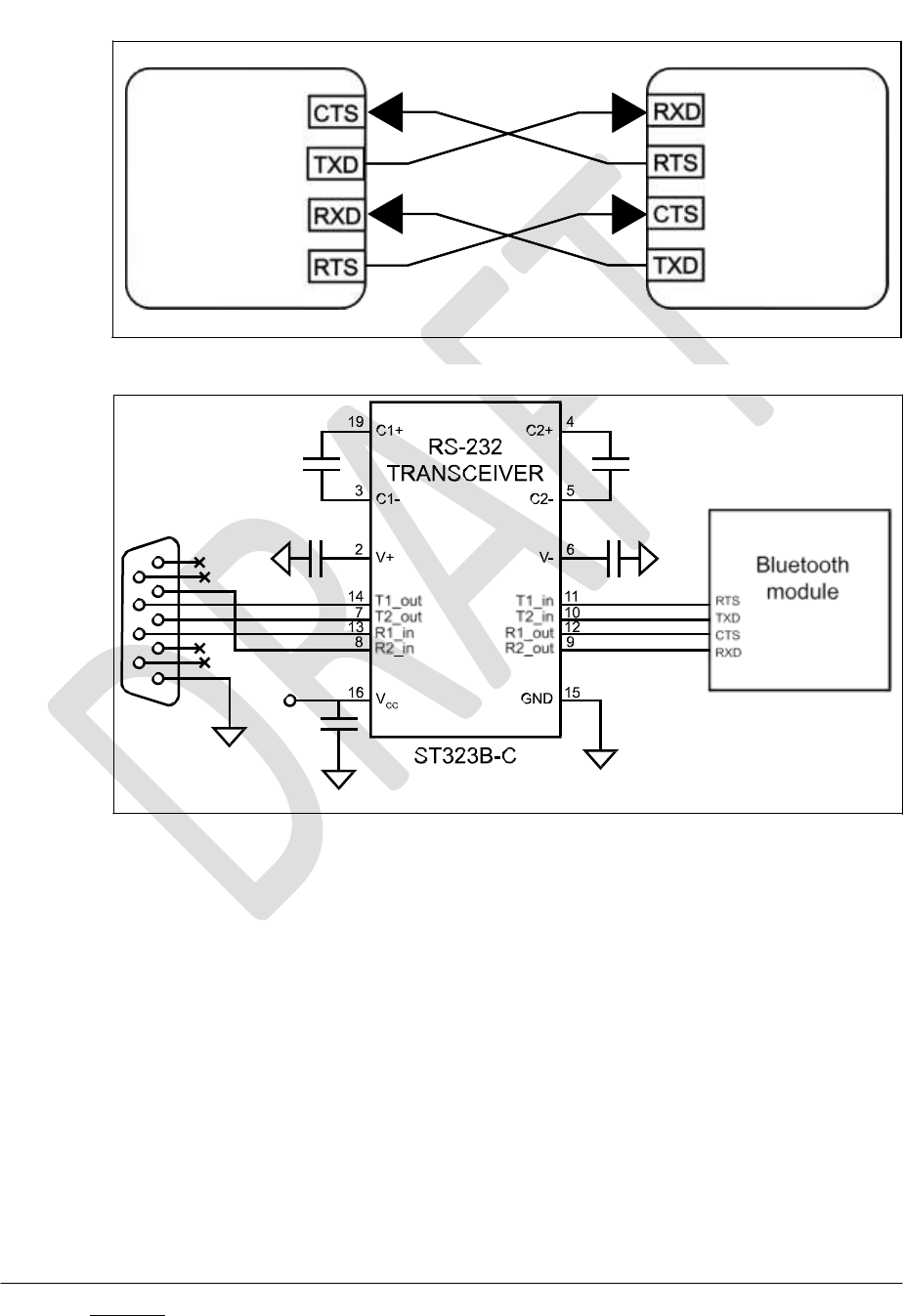

Figure 6: Connection to host device ................................................................................................... 15
Figure 7: Typical RS232 circuit ............................................................................................................ 15
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
1 Description
The SPBT3.0DP2 is an easy to use Bluetooth module, compliant with Bluetooth v3.0.
The module is among the smallest form factor available which provides a complete RF platform. The
SPBT3.0DP2 enables electronic devices with wireless connectivity, not requiring any RF experience or
expertise for integration into the final product. The SPBT3.0DP2 module, being a certified solution,
optimizes the time to market of the final applications.
The module is designed for maximum performance in a minimal space including fast speed UART and 8
general purpose I/O lines, several serial interface options, and up to 800 kbps transmission speed with
SPP service active, 250kbps with iAP2 service active.
Optimized design allows the integration of a complete working Bluetooth modem, including antenna, in
the minimum possible size;
Deep Sleep Modes allows to reduce power consumption when a Bluetooth connection is not established.
Current consumption in Deep Sleep Mode can be reduce even more adding an external LPO (low power
oscillator).
The SPBT3.0DP2 is a surface mount PCB module that provides fully embedded, ready to use Bluetooth
wireless technology. The reprogrammable Flash memory contains embedded firmware for serial cable
replacement using the Bluetooth SPP profile. Embedded Bluetooth DATA PACKAGE (DP) firmware is a
friendly interface, which realizes a simple control for cable replacement, enabling communication with
most Bluetooth enabled devices, provided that the devices support the SPP profile. The SPBT3.0DP2,
supporting iAP2 profile, provides communication with Android, smartphone, and the newest Apple® iOS
Bluetooth enabled devices.
An Apple authentication IC is required to exchange data with an Apple device or access an Apple device
application. The DP FW includes the Bluetooth iAP2 profile capable of recognizing the Apple
authentication chip.
Customers using the Apple authentication IC must register as developers to become an Apple certified
MFI member. License fees may apply, for additional information visit:
http://developer.apple.com/programs/which-program/index.html.
Certified MFI developers developing electronic accessories that connect to the iPod®, iPhone®, and
iPad® gain access to technical documentation, hardware components, technical support and
certification logos.
Customized firmware for peripheral device interaction, power optimization, security, and other proprietary
features may be supported and can be ordered pre-loaded and configured.
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
2 RoHS compliance
ST Bluetooth modules comply with the ECOPACK2 level of RoHS compliance grade.
3 Applications
The SPBT3.0DP2 is suitable for a wide range of application like:
•
Serial cable replacement
•
M2M industrial control
•
Service diagnostic
•
Data acquisition equipment
•
Machine control
•
Sensor monitoring
•
Security system
•
Mobile health
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
4 Software architecture
4.1 BT stack layers
• Bluetooth v3.0
• Device power modes: active, deep sleep
• Connection modes: active, sniff
• Wake on Bluetooth feature optimized power consumption of host CPU
• Authentication and encryption
• Encryption key length from 8 bits to 128 bits
• Persistent Flash memory for BD address and user parameter storage
• All ACL (asynchronous connection less) packet types
• Sniff mode: fully supported to maximum allowed intervals
Radio
Baseband
Link Manager
Bluetooth Controller
Bluetooth Profiles
STM32 Hardware Abstraction Layer
Operating System
HCI
L2CAP
RFCOMM
SDP
Bluetooth Stack
Bluetooth Profiles
SPP
HID
iAP2
STM32F4 controller
Bluetooth Profiles
Data Package with AT Command
Application

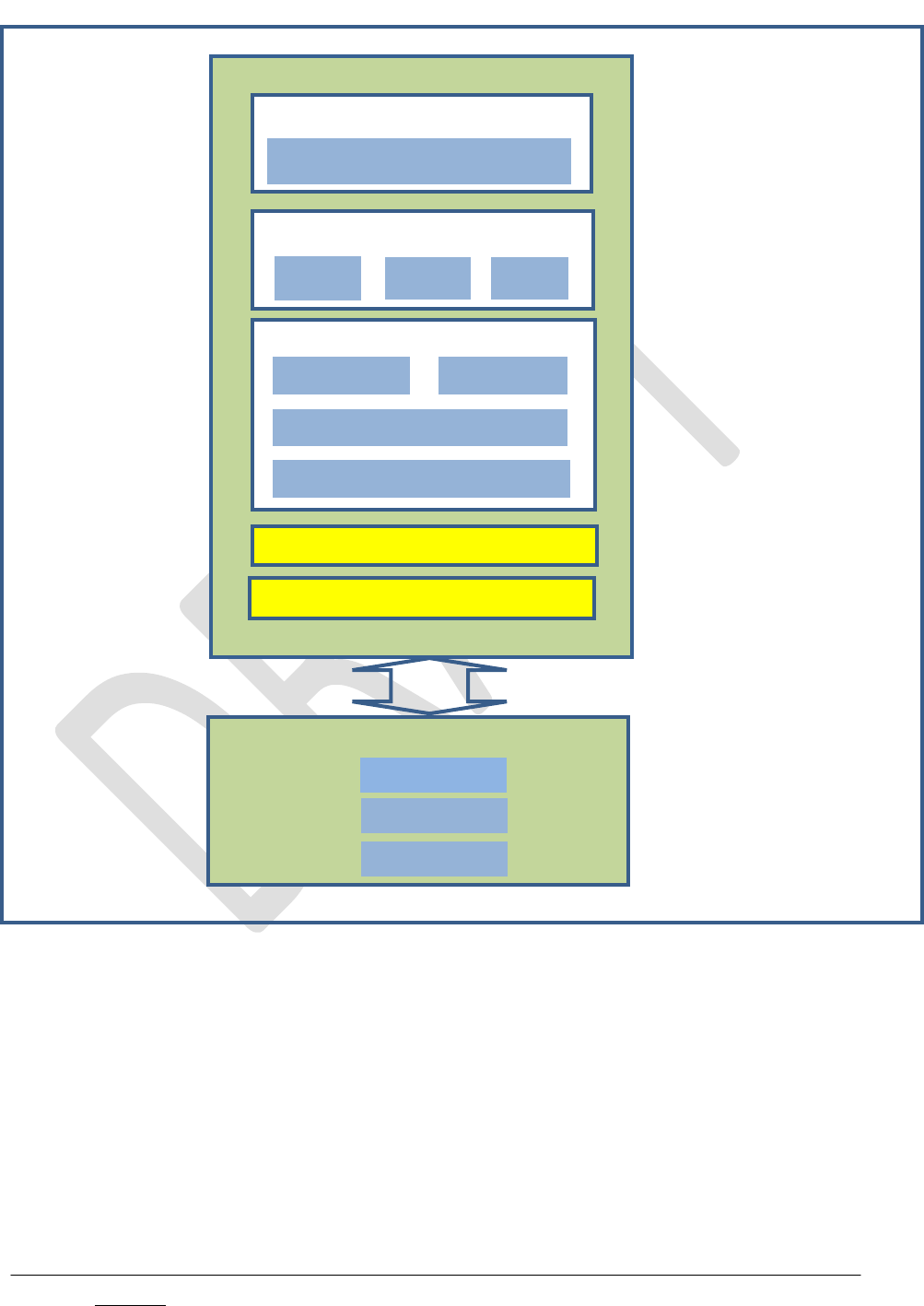

Figure 1: Software Architecture Overview
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
• Master slave switch supported during connection and post connection
• Dedicated inquiry access code for improved inquiry scan performance
• Dynamic packet selection channel quality driven data rate to optimize link performance
• Dynamic power control
• Bluetooth radio natively supports 802.11b co-existence AFH
• RFCOMM, SDP, and L2CAP supported
4.2 Supported Profile
• Serial Port Profile (SPP)
• Human Interface Device (HID)
• iPhone Accessory Profile 2 (iAP2)
4.3 AT Command set: DATA PACKAGE
The complete command list is reported in the AT Command DATA PACKAGE user manual.
5 Hardware specifications
General conditions (VIN = 3.3 V and 25
°C).
5.1 Recommended operating conditions
Table 1: Recommended operating conditions
Rating
Min.
Typical
Max.
Unit
Operating temperature range
-40
-
+ 85
°C
Supply voltage
V
IN
2.1
3.3
3.6
V
Signal pin voltage
-
1.8
-
V
RF frequency
2402
-
2480
MHz
5.2 Absolute maximum ratings
Table 2: Absolute maximum ratings
Rating
Min.
Typical
Max.
Unit
Storage temperature range
-40
-
+ 85
°C
Supply voltage,
V
IN
-0.3
-
+
5.5
V
I/O pin voltage,
V
IO
-0.3
+1.8
+ 1.84
V
RF max. input power GFSK
-
-
10
dBm
RF max. input power DQPSK
-
-
6
dBm
RF max. input power DPSK
-
-
-3
dBm
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
5.3 High performance current consumption
High performance configuration current consumption:
CPU: 84 MHz
UART: 115.2 Kbps
Data throughput up to 100 Kbps
Temperature: 25 °C
Table 3: High Performance Power Consumption
Modes (typical power consumption)
Average
Unit
No connection, Page/Inquiry Scan, no external LPO,
Deep Sleep Mode
4.75
mA
No connection, Page/Inquiry Scan, with external LPO,
Deep Sleep Mode
95
µA
No connection, Page/Inquiry Scan, no external LPO,
Active Mode
7.9
mA
No connection, Page/Inquiry Scan, with external LPO,
Active Mode
7.85
mA
No connection, No Page/Inquiry Scan, no external LPO,
Active Mode
7.65
mA
Connection, no data traffic, Master
8.85
mA
Connection, no data traffic, Slave
11.45
mA
Connection, Master, TX data
17.4
mA
Connection, Master, RX data
18.2
mA
Connection, Master, TX-RX data
20.8
mA
5.4 Balanced performance current consumption
Balanced performance configuration current consumption:
CPU: 16 MHz
UART: 115.2 Kbps
Data throughput up to 100 Kbps
Temperature: 25 °C
Table 4: Balanced Performance Power Consumption
Modes (typical power consumption)
Average
Unit
No connection, Page/Inquiry Scan, no external LPO,
Deep Sleep Mode
1.6
mA
No connection, Page/Inquiry Scan, with external LPO,
Deep Sleep Mode
85
µA
No connection, Page/Inquiry Scan, no external LPO,
Active Mode
4.1
mA
No connection, Page/Inquiry Scan, with external LPO,
Active Mode
4.1
mA
No connection, No Page/Inquiry Scan, no external LPO,
Active Mode
3.9
mA
Connection, no data traffic, Master
5.43
mA
Connection, no data traffic, Slave
6.95
mA
Connection, Master, TX data
14.5
mA
Connection, Master, RX data
15.1
mA
Connection, Master, TX-RX data
18.3
mA
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
5.5 Pin assignment
Table 5: Pin assignment
Pin
Name
Description
I/O
Note
1
GPIO1_BTCS
GPIO indicating BT Connection Status
- When high, BT connection is active
- When low, BT connection is not active
O
2
GPIO2
General purpose I/O
I/O
5V tolerant
3
GPIO3
General purpose I/O
I/O
5V tolerant
4
GPIO4_MLPS
GPIO indicating Module Low Power Status
- When high, device is in active mode
- When low, device is in low power mode
O
5
GPIO5 / I2C SDA
General purpose I/O or I2C_SDA line for MFI chip
I/O
5V tolerant
6
GPIO6 / I2C SCL
General purpose I/O or I2C_SCL line for MFI chip
I/O
5V tolerant
7
GND
Reference ground
NA
8
Vin
Main power supply input
NA
9
Boot 0
Boot 0 pin
I
5V tolerant
10
RESETn
Reset input (active low for 5ms)
I
11
CTS
Request to send (active low)
I
12
RTS
Clear to send (active low)
O
5V tolerant
13
RXD
Receive Data
I
5V tolerant
14
TXD
Transmit Data
O
15
LPO
Low power 32KHz oscillator input
I
16
GPIO7
General purpose I/O
I/O
5V tolerant
17
GPIO8
General purpose I/O
I/O
5V tolerant
18
+1.8V OUT
+1.8V out (max 10mA)
NA
Figure 2: Pin connection
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
6 Hardware design
SPBT3.0DP2 module with DP command embedded FW supports UART, I2C and GPIO
hardware interfaces.
Note: - All unused pins should be left floating; do not ground.
• All GND pins must be well grounded.
• The area around the module should be free of any ground planes, power planes, trace
routings, or metal for 6 mm from the module antenna position, in all directions.
• Traces should not be routed underneath the module.
6.1 Reflow soldering
The SPBT3.0DP2 is a high temperature strength surface mount Bluetooth® module supplied
on an 18 pin, 6-layer PCB. The final assembly recommended reflow profiles are indicated
here below.
Soldering phase must be executed with care: in order to avoid undesired melting
phenomenon, particular attention must be paid to the set-up of the peak temperature.
Here following some suggestions for the temperature profile based on the following
recommendations.
Table 6: Soldering
Profile
feature
PB-free assembly
Average ramp-up rate (TSMAX to
T
P
)
3 °C/sec max
Preheat:
– Temperature min. (TS min.)
– Temperature max. (TS max.)
– Time (ts min. to ts max.)(ts)
150
°C
200
°C
60-100
sec
Time maintained above:
– Temperature
T
L
– Temperature
T
L
217
°C
60-70
sec
Peak temperature (TP)
240 + 0
°C
Time within 5 °C of actual peak temperature (TP)
10-20
sec
Ramp-down rate
6
°C/sec
Time from 25 °C to peak temperature
8 minutes max.
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
6.2 UART interface
The UART is compatible with the 16550 industry standard. Four signals are provided with
the UART interface. The TXD and RXD pins are used for data while the CTS and RTS pins
are used for flow control.
Host
Bluetooth
module
$012027Y1
$012028Y1
Figure 6: Connection to host device
Figure 7: Typical RS232 circuit
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
7 Regulatory compliance
7.1 FCC certification
This module has been tested and found to comply with the FCC part 15 rules. These limits are
designed to provide reasonable protection against harmful interference in approved
installations. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference may not occur in a particular installation.
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
1 This device may not cause harmful interference,
and
2 this device must accept any interference received, including interference that may cause
undesired operation.
Modifications or changes to this equipment not expressly approved by STMicroelectronics
may render void the user's authority to operate this equipment.
The safe user distance, for RF Exposure, is ≥ 5mm (in compliance with 447498 D01 General
RF Exposure Guidance v06).
Modular approval
FCC ID: S9NSPBT30DP2
In accordance with FCC part 15, the SPBT3.0DP2 is listed as a modular transmitter device.
This module is evaluated for stand-alone use only. Finished products incorporating multiple
transmitters must comply with colocation and RF exposure requirements in accordance with
FCC multi-transmitter product procedures. Collocated transmitters operating in portable RF
Exposure conditions (e.g. <20 cm from persons including but not limited to body worn and
hand held devices) may require separate approval.
7.1.1 Labeling instructions
When integrating the SPBT3.0DP2 into the final product, the OEM must ensure that the FCC
labeling requirements are satisfied. A statement must be included on the exterior of the final
product which indicates the product includes a certified module. The label should state the
following (or similar wording that conveys the same meaning):
Contains FCC ID: S9NSPBT30DP2
OR
This product contains FCC ID: S9NSPBT30DP2
The OEM must include the following statements on the exterior of the final product unless
the product is too small (e.g. less than 4 x 4 inches)This device complies with Part 15 of the
FCC Rules. Operation is subject to the following two conditions:
1 this device may not cause harmful interference, and
2 this device must accept any interference received, including any interference that may
cause undesired operation.
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
7.1.2 Product manual instructions
This section applies to OEM final products containing the SPBT3.0DP2 module, subject to
FCC compliance. The final product manual must contain the following statement (or a similar
statement that conveys the same meaning):
Warning: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment. (Part. 15.21)
In the case where an OEM seeks Class B (residential) limits for the final product, the
following statement must be included in the final product manual:
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
In the case where an OEM seeks the lesser category of a Class A digital device for the final
product, the following statement must be included in the final product manual:
Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his expense.
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
7.2 IC certification
The SPBT3.0DP2 module has been tested and found compliant with the IC RSS-247 rules.
These limits are designed to provide reasonable protection against harmful interference in
approved installations. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference may not occur in a particular installation.
This device complies with RSS-247 of the IC rules. Operation is subject to the following two
conditions:
1 this device may not cause harmful interference, and
2 this device must accept any interference received, including interference that may cause
undesired operation.
Modifications or changes to this equipment not expressly approved by STMicroelectronics
may render void the user's authority to operate this equipment.
The safe user distance, for RF Exposure, is ≥ 15mm (in compliance with RSS-102 Issue 5).
Modular approval
IC: 8976C-SPBT302
In accordance with IC RSS-247, the SPBT3.0DP2 is listed as a modular transmitter device.
This module is evaluated for stand-alone use only. Finished products incorporating multiple
transmitters must comply with colocation and RF exposure requirements in accordance with
IC multi-transmitter product procedures. Collocated transmitters operating in portable RF
Exposure conditions (e.g. <20cm from persons including but not limited to body worn and
hand held devices) may require separate approval.
7.2.1 Labeling instructions
When integrating the SPBT3.0DP2 into the final product, the OEM must ensure that the IC
labeling requirements are satisfied. A statement must be included on the exterior of the final
product which indicates that the product includes a certified module. The label should state
the following (or similar wording that conveys the same meaning):
Contains IC: 8976C-SPBT302 OR This product contains IC: 8976C-SPBT302
The OEM must include the following statements on the exterior of the final product unless
the product is too small (e.g. less than 4 x 4 inches):
This device complies with RSS-247 of the IC Rules. Operation is subject to the following two
conditions:
1 this device may not cause harmful interference, and
2 this device must accept any interference received, including any interference that may
cause undesired operation.
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
7.2.2 Product manual instructions
This section applies to OEM final products containing the SPBT3.0DP2 module, subject to IC
compliance. The final product manual must contain the following statement (or a similar
statement that conveys the same meaning):
Warning: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment. (RSS-247)
In the case where an OEM seeks Class B (residential) limits for the final product, the
following statement must be included in the final product manual:
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to RSS-247 of the IC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
In the case where an OEM seeks the lesser category of a Class A digital device for the final
product, the following statement must be included in the final product manual:
Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to RSS-247 of the IC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be required to correct the
interference at his expense.
7.3 Bluetooth certification
Module with embedded stack and profile has been qualified according to SIG qualification
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
rules:
– Bluetooth SIG Declaration ID: zzzzzz
– Product type: End Product
– Core spec version: 3.0
– Product descriptions: Bluetooth module, spec V3.0
7.4 CE certification
Module has been certified according to following certification rules:
– CE Expert opinion: vvvvvv
– Measurements have been performed in accordance with (report available on
request):
– EN 300 328
– EN 301 489
-– EN 301 489
-– EN60950-

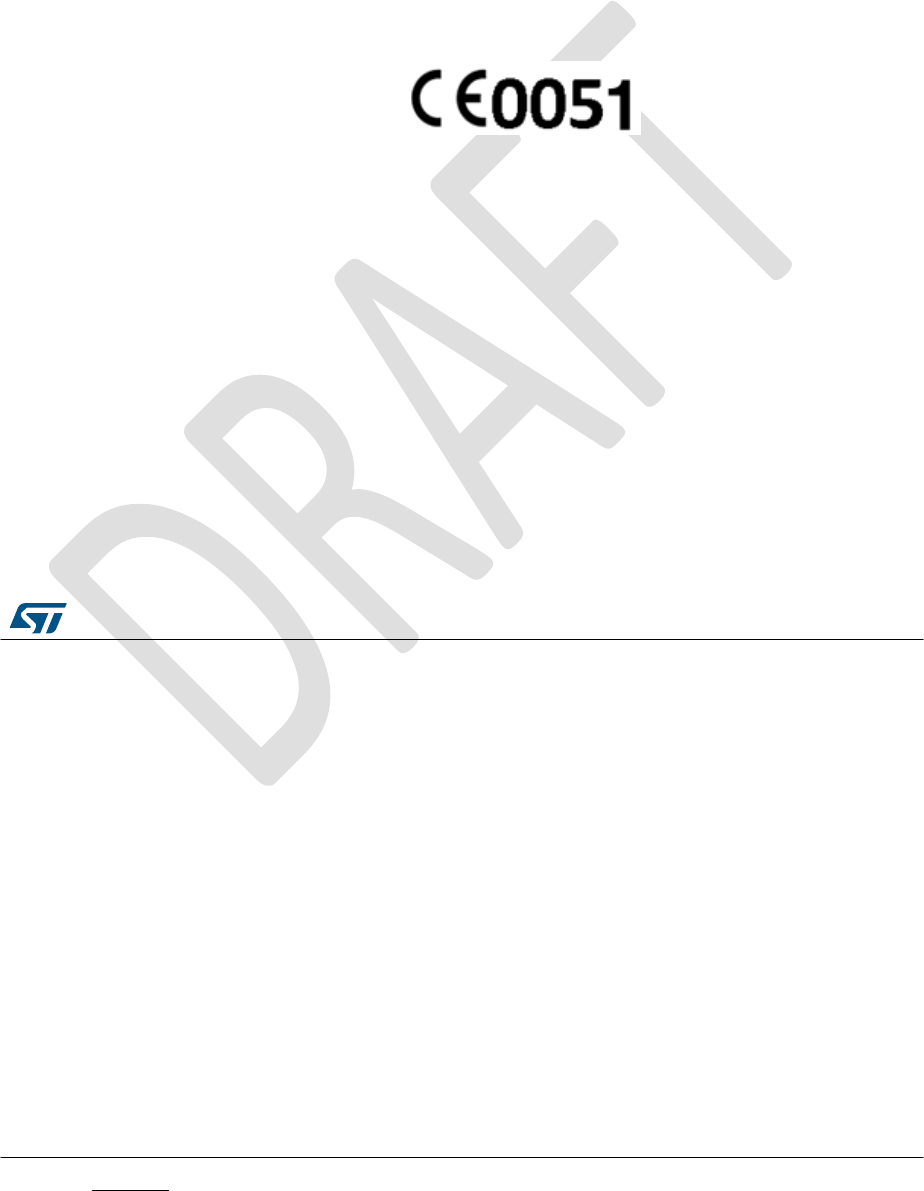

CE certified:
(See the A.1 at the bottom of this document for the French translation)
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
8
Traceability
Each module is univocally identified by serial number stored in a 2D data matrix laser
marked on the bottom side of the module itself.
The serial number has the following format: WW YY D FF NNN
Table 7: Traceability information
Letter
Meaning
WW
week
YY
year
D
Product ID number
FF
Production panel coordinate identification
NN
Progressive serial number
Each module bulk is identified by a bulk ID.
BULK ID and module 2D data matrix are linked by a reciprocal traceability link.
The module 2D data matrix traces the lot number of any raw material used.
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
9 Ordering information
Table 8: Ordering information
Order code
Description
Packing
MOQ
SPBT3.0DP2
Class 2 OEM Bluetooth antenna module
Jedec tray
2448 pcs
Regulatory compliance
SPBT3.0DP2
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
10 Revision history
Table 9: Document revision history
Date
Revision
Changes
07- July - 2015
0.14
First release
31 – July - 2015
0.15
Fixed typo (CTS,RTS) in table 3
08 - January - 2016
0.16
Added FW Architecture picture,
Power Consumption tables
08 - January - 2016
0.17
Updated to SPBT3.0DP2
Regulatory compliance
SPBT3.0DP2
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
Déclaration de conformité
A.1 Certification FCC
Le module SPBT3.0DP2 a été testé et déclaré conforme avec la section 15 de la
Règlementation FCC. Ces limitations sont stipulées afin de procurer une protection
raisonnable contre les interférences gênantes dans les installations approuvées. Cet
appareil génère, utilise et diffuse des ondes radio et, s’il n’est pas installé et utilisé en
conformité avec les instructions dont il fait l’objet, peut causer des interférences gênantes
sur les communications radio.
Il n’y a cependant pas de garantie qu’une interférence ne se produira pas dans une
installation particulière.
Cet appareil est en conformité avec la section 15 des règlements FCC. L’utilisation est
soumise aux deux conditions suivantes: (1) cet appareil ne doit pas causer
d'interférences nocives, et (2) Cet appareil doit supporter toute interférence reçue, y
compris des interférences qui peuvent provoquer un fonctionnement non désiré.
Tout changement ou modification fait(e) à cet appareil et non expressément
approuvé(e) par STMicroelectronics peut annuler l’autorisation pour l’utilisateur de faire
fonctionner l’appareil.
Approbation du module
FCC ID: S9NSPBT30DP2
Conformément à la section 15 des règlements FCC, le module SPBT3.0DP2 est répertorié
comme un dispositif émetteur modulaire.
Ce module n’est évalué que pour une utilisation autonome. Les produits finis incorporant
plusieurs émetteurs doivent être conformes à la colocation et aux exigences d'exposition
RF en concordance avec les procédures FCC multi-émetteurs. D’autres émetteurs
fonctionnant dans des dispositifs portables exposés aux RF (par exemple, situés à moins
de 20 cm des personnes avec dispositifs portatifs ou portés contre le corps) peuvent
nécessiter d'une approbation séparée.
Regulatory compliance
SPBT3.0DP2
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
A.1.1 Instructions d'étiquetage
Lors de l'intégration du module SPBT3.0DP2 dans le produit final, le fabricant doit
s’assurer que les exigences en matière d'étiquetage de la FCC sont satisfaites . Une
déclaration doit être placée sur l’étiquette extérieure du produit final indiquant que le
produit comprend un module certifié. L'étiquette doit comporter les informations suivantes
(ou une mention analogue que recouvre la même notion):
Contient FCC ID: S
9NSPBT30DP2
OU Ce produit contient FCC ID: S9NSPBT30DP2
Le sous-traitant doit inclure les énoncés suivants sur l’étiquette extérieure du produit final
à moins que le produit ne soit trop petit (par exemple moins de 4 x 4 pouces):
Cet appareil est en conformité avec la section 15 des règlements FCC. L’utilisation est
soumise aux deux conditions suivantes:
(1) cet appareil ne doit pas causer d'interférences nocives, et
(2) Cet appareil doit supporter toute interférence reçue, y compris des interférences qui
peuvent provoquer un fonctionnement non désiré.
A1 DocID temporary Rev1
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
A.1.2 Instructions pour l’utilisation du produit
La présente section concerne les produits finis contenant le module SPBT3.0DP2,
assujettis aux normes FCC. Le manuel du produit final doit contenir la déclaration
suivante (ou une mention analogue que recouvre la même notion):
“ Avertissement: Les changements ou modifications non expressément approuvés par
la partie responsable de la conformité pourraient annuler l'autorisation de l'utilisateur
de faire fonctionner cet équipement. (Section 15.21)”
Dans le cas où le produit finis d’un fabriquant OEM rentre dans les limites de la
Classe B (résidentiel), les énoncés suivants doivent être inclus dans le manuel du
produit finis:
“Remarque : Cet équipement a été testé et déclaré conforme aux limitations prévues dans
le cadre de la classe B des appareils numériques, définies par la section 15 du règlement
de la FCC. Ces limites sont conçues pour fournir une protection raisonnable contre toute
interférence dangereuse issue d'une installation résidentielle. Cet équipement produit,
utilise et peut émettre de l'énergie radio électrique et, s'il n'est pas installé et utilisé
conformément aux présentes instructions, peut causer des interférences nuisibles aux
communications radio. Cependant, il se peut que des interférences se produisent dans
une installation particulière. Si cet appareil cause des interférences nuisibles à la
réception des signaux de radio ou de télévision, ce qui peut être déterminé en allumant et
en éteignant l'appareil, on encourage l'utilisateur d'essayer de corriger ces interférences
par l'un des moyens suivants:
– Réorienter ou repositionner l'antenne de réception.
– Augmenter la distance séparant l’équipement du récepteur.
– Connecter l’équipement à une prise appartenant à un circuit différent de celui
sur lequel le récepteur est connecté.
– Consulter le revendeur ou un technicien radio/TV expérimenté pour obtenir de
l’aide.”
Dans le cas où le produit fini d’un sous-traitant rentre dans les limites imposées aux
appareils numériques de classe A, les énoncés suivants doivent être inclus dans le
manuel du produit finis:
“REMARQUE : Cet appareil a été testé et certifié conforme aux spécifications d'un
appareil électronique de classe A (class A digital device), conformément à la partie 15 du
règlement de la FCC. Ces contraintes sont destinées à fournir une protection raisonnable
contre les interférences nuisibles quand l'appareil est utilisé dans une installation
commerciale. Cet équipement produit, utilise et peut émettre de l'énergie radio électrique
et, s'il n'est pas installé et utilisé conformément aux présentes instructions, peut causer
des interférences nuisibles aux communications radio. L'utilisation de cet appareil dans
une installation résidentielle peut entraîner des interférences nuisibles et l'utilisateur devra
corriger les interférences à ses propres frais.”
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
A.2 Certification IC (a)
Le module SPBT3.0DP2 a été testé et déclaré conforme avec la Règlementation IC
CNR-210. Ces limitations sont stipulées afin de procurer une protection raisonnable
contre les interférences gênantes en installations approuvées. Cet appareil génère, utilise
et diffuse des ondes radio et, s’il n’est pas installé et utilisé en conformité avec les
instructions dont il fait l’objet, peut causer des interférences gênantes sur les
communications radio.
Il n’y a cependant pas de garantie qu’une interférence ne se produira pas dans une
installation particulière.
Ce produit répond aux exigences de la norme CNR-210 d'Industrie Canada. Son
fonctionnement est soumis aux deux conditions suivantes:
(1) cet appareil ne doit pas causer d'interférences nocives, et
(2) Cet appareil doit supporter toute interférence reçue, y compris des interférences qui
peuvent provoquer un fonctionnement non désiré.
Tout changement ou modification fait(e) à cet appareil et non expressément
approuvé(e) par STMicroelectronics peut annuler l’autorisation pour l’utilisateur de faire
fonctionner l’appareil.
Approbation du module
IC: 8976C-SPBT302
Conformément à IC CNR-210, le module SPBT3.0DP2 est répertorié comme un dispositif
émetteur modulaire
Ce module n’est évalué que pour une utilisation autonome. Les produits finis incorporant
plusieurs émetteurs doivent être conformes à la colocation et aux exigences d'exposition
RF en concordance avec les procédures FCC multi-émetteurs. D’autres émetteurs
fonctionnant dans des dispositifs portables exposés aux RF (par exemple, situés à moins
de 20 cm des personnes avec dispositifs portatifs ou portés contre le corps) peuvent
nécessiter d'une approbation séparée.
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
A.2.1 Instructions d'étiquetage
Lors de l'intégration du module SPBT3.0DP2 dans le produit final, le fabricant doit
s’assurer que les exigences en matière d'étiquetage de la IC sont satisfaites . Une
déclaration doit être placée sur l’étiquette extérieure du produit final indiquant que le
produit comprend un module certifié. L'étiquette doit comporter les informations suivantes
(ou une mention analogue que recouvre la même notion):
Contient IC ID: 8976C-SPBT302
OU Ce produit contient IC ID: 8976C-SPBT302
Le sous-traitant doit inclure les énoncés suivants sur l’étiquette extérieure du produit final
à moins que le produit ne soit trop petit (par exemple moins de 4 x 4 pouces):
Cet appareil est en conformité aux normes IC. L’utilisation est soumise aux deux
conditions suivantes:
(1) cet appareil ne doit pas causer d'interférences nocives, et
(2) Cet appareil doit supporter toute interférence reçue, y compris des interférences qui
peuvent provoquer un fonctionnement non désiré
A.2.2 Instructions pour l’utilisation du produit
La présente section concerne les produits finis contenant le module SPBT3.0DP2,
assujettis aux normes IC. Le manuel du produit final doit contenir la déclaration suivante
(ou une mention analogue que recouvre la même notion):
“Avertissement: Les changements ou modifications non expressément approuvés par la
partie responsable de la conformité pourraient annuler l'autorisation de l'utilisateur de
faire fonctionner cet équipement. (CNR-210)”
Dans le cas où le produit finis d’un fabriquant OEM rentre dans les limites de la
Classe B (résidentiel), les énoncés suivants doivent être inclus dans le manuel du
produit finis:
“ Remarque : Cet équipement a été testé et déclaré conforme aux limitations prévues dans
le cadre de la classe B des appareils numériques, définies par la norme CNR-210
d'Industrie Canada.
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
Ces limites sont conçues pour fournir une protection raisonnable contre toute
interférence dangereuse issue d'une installation résidentielle. Cet équipement produit,
utilise et peut émettre de l'énergie radio électrique et, s'il n'est pas installé et utilisé
conformément aux présentes instructions, peut causer des interférences nuisibles aux
communications radio. Cependant, il se peut que des interférences se produisent dans
une installation particulière. Si cet appareil cause des interférences nuisibles à la
réception des signaux de radio ou de télévision, ce qui peut être déterminé en allumant et
en éteignant l'appareil, nous encourageons l'utilisateur à essayer de corriger ces
interférences par l'un des moyens suivants:
– Réorienter ou repositionner l'antenne de réception.
– Augmenter la distance séparant l’équipement du récepteur.
– Connecter l’équipement à une prise appartenant à un circuit différent de celui
sur lequel le récepteur est connecté.
– Consulter le revendeur ou un technicien radio/TV expérimenté pour obtenir de
l’aide.”
Dans le cas où le produit finis d’un fabriquant OEM rentre dans le cadre des limites
imposées aux appareils numériques de classe A, les énoncés suivants doivent être inclus
dans le manuel du produit finis:
“ REMARQUE: Cet appareil a été testé et certifié conforme aux spécifications d'un appareil
électronique de classe A (class A digital device), conformément à la norme CNR-210
d'Industrie Canada. Ces contraintes sont destinées à fournir une protection raisonnable
contre les interférences nuisibles quand l'appareil est utilisé dans une installation
commerciale. Cet équipement produit, utilise et peut émettre de l'énergie radio électrique
et, s'il n'est pas installé et utilisé conformément aux présentes instructions, peut causer
des interférences nuisibles aux communications radio. L'utilisation de cet appareil dans
une installation résidentielle peut entraîner des interférences nuisibles et l'utilisateur devra
corriger les interférences à ses propres frais.”
A.3 Certification CE
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
Le module SPBT3.0DP2 a obtenu une certification de conformité aux normes suivantes:
– EN 300 328 V1.8.1 :2012
– EN 300 328 V1.9.1 :2015
– EN 301 489-17 V2.2.1 :2009
– EN 301 489-1 V1.9.2:2011
– EN 62479 :2010
– EN60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2 :2013
Le module est certifié CE:
January 2016 DocID0xxxxx Rev 0.17
This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change
without notice. www.st.com
IMPORTANT NOTICE - PLEASE READ CAREFULLY:
STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and
improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information
on
ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order
acknowledgement
Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or
the design of Purchasers’ products
No license, express or implied, to any intellectual property rights is granted by ST herein.
Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.
ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owner
s.
Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
© 2015 STMicroelectronics - All rights
reserved
www.st.com
