Every now and again, things come along that completely transform our
worldview, creating new benchmarks and challenging our well-worn
concepts.
With its new Architect® concept, STid has created the perfect blend of high
security and scalability.
STid is proud to present the first modular range of secure readers,
offering both flexibility and simplicity. By optimizing the design, we have
developed a common RFID core that can be connected to a set of additional
modules, such as a keyboard, biometrics or a touch screen…
Multi-technology
Ensure secure migration
design
Let your imagination flow
Vandal proof
Standing the test of time
High Security
Easy access to high security
Modular solution
Create your own scalable configuration

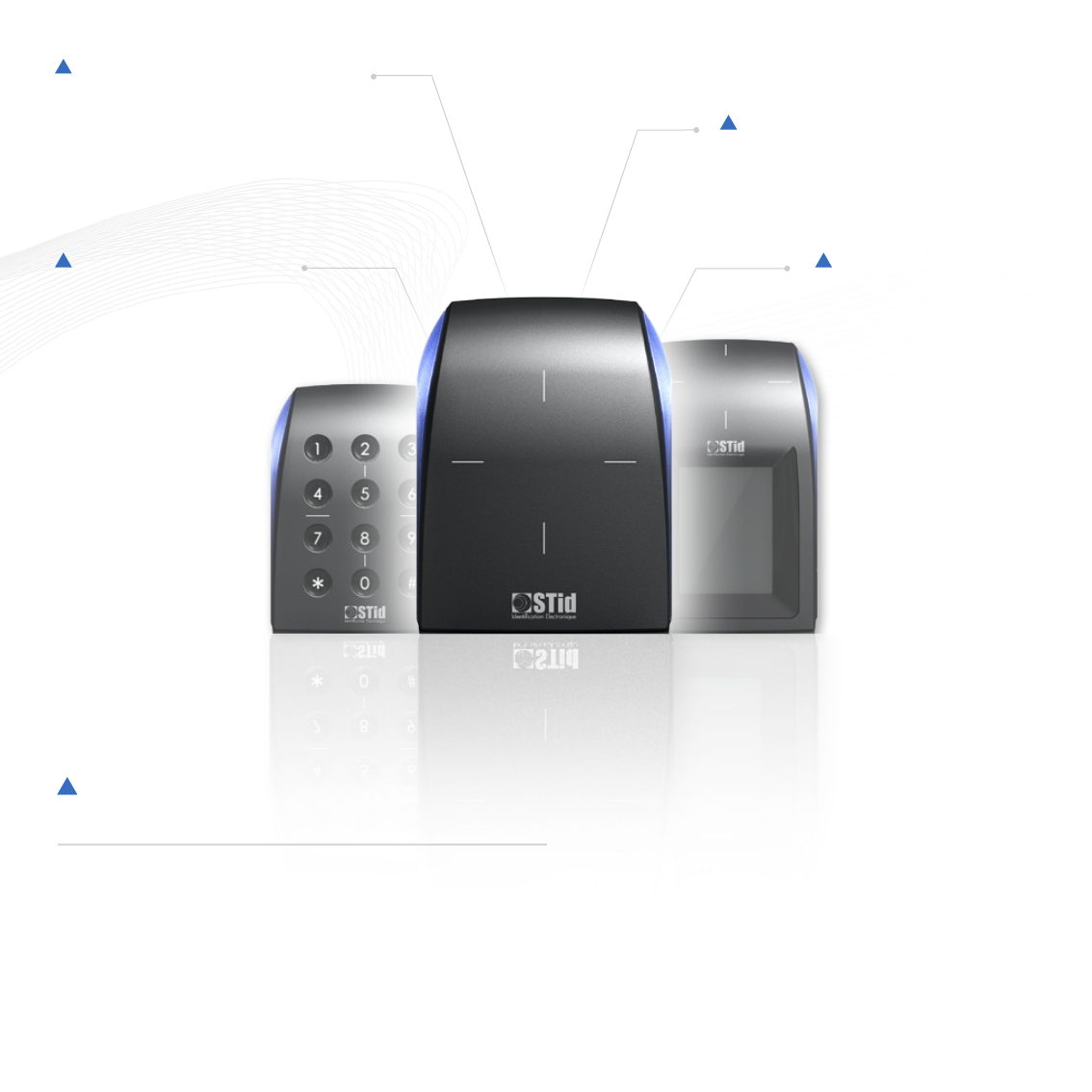

The first ever modular range - offering you maximum flexibility! The Architect® range is intuitive and dynamic, made up of smart, easy-
to-connect modules. The concept can be tailored to your needs, offering an optimum solution for any situation and enabling all the
functionalities and security levels to be upgraded across all your readers.
The modular nature of the range offers a greater degree of availability and services, whilst optimizing your inventory management by
reducing the catalogue size by 40%.
2
3
STid is the first RFID manufacturer to have received First Level Security
Certification (CSPN)*. This certification is a recognition of our
unique know-how and the technological and security expertise that is
implemented in your architecture, whether new or existing.
Architect® readers use the latest MIFARE® contactless chip technologies
with new data security mechanisms. They implement public encryption
algorithms (TDES, AES, RSA, HMAC-SHA-2, etc.), as recommended by official
data security bodies (such as the French national agency ANSSI).
The innovative tamper protection system protects sensitive data and gives the possibility to delete the authentication
keys. Unlike the current solutions on the market (mechanical switches, optical sensors, reed switches, etc.), the
reliability of the accelerometer-based technology avoids it being outsmarted.
High Security
Easy access to high security
(*) Certied reader: LXSW33EPH57AD1 - ANSSI-CSPN-2013/03 Certicate - March 19th and October 24th, 2013
Multi-technologY
Ensure secure migration
The multi-technology Architect® range makes it easy to manage extensions,
upgrades and technology migrations. Readers are compatible with leading market
standards: ISO14443 type A & B and ISO18092. They support simultaneous
reading of all chips in the NXP MIFARE® family: Ultralight®, Classic, Ultralight® C, MIFARE
Plus® (S & X), DESFire® and DESFire® EV1. They also support more specific products
such as iCLASS® and PicoPass® chips, the CPS3 card used by French health
professionals (IAS protocol), Moneo and NFC identification.
Readers in the Architect® range can also be reprogrammed on site to upgrade
to future technological options.
design and customization
Let your imagination flow
Encore plus de personnalisations :
logo société, messages personnalisés…
A signature reflects personal style choices.
The design of Architect® readers is immediately recognizable,
with a dynamic and elegant style, featuring clear pure lines.
By day or by night, the Architect® range displays its elegance
with its set of multi-colored, high-intensity LEDs.

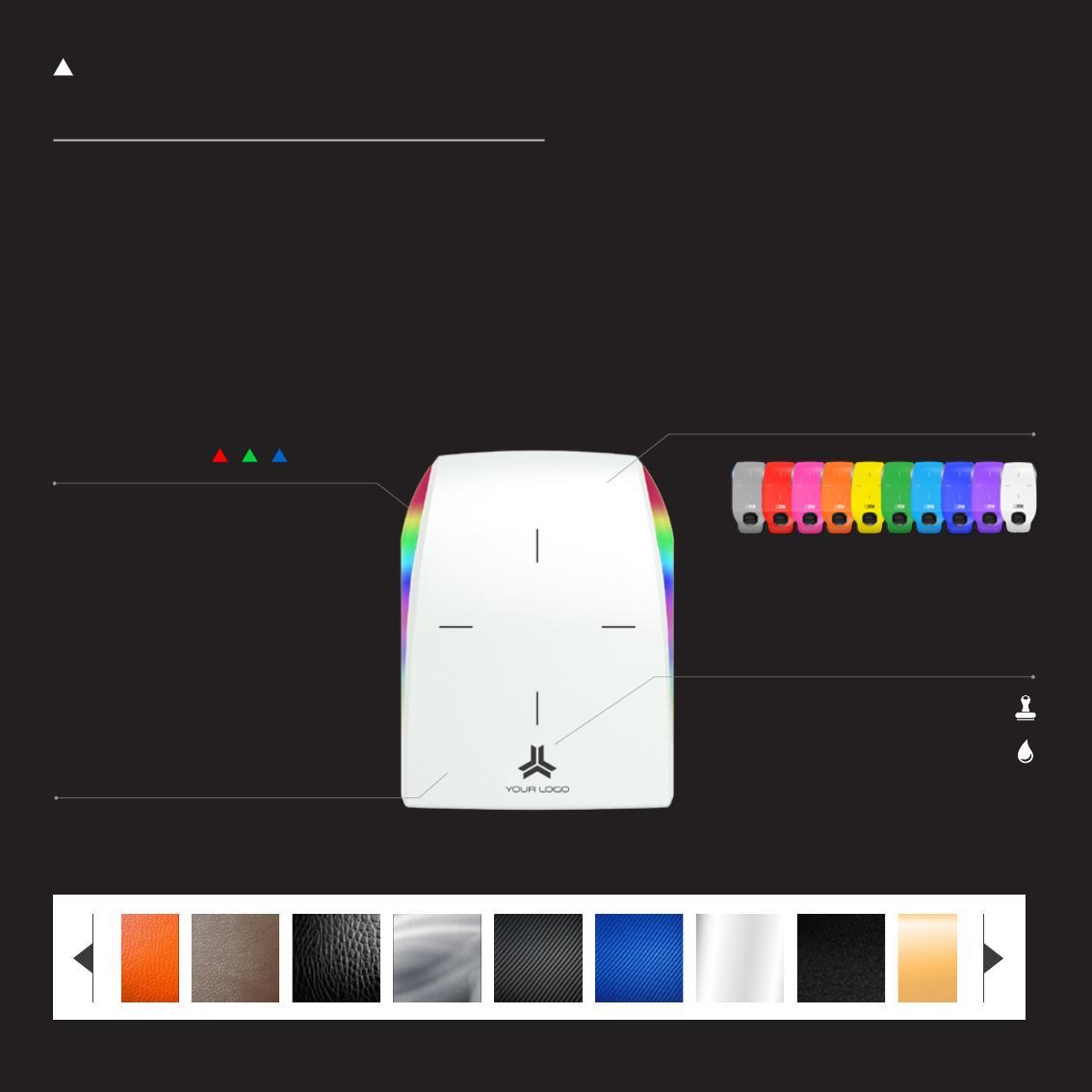

STid offers a range of customization options to tailor your
reader to your corporate image and integrate it fully in its
installation environment.
CASING COLOR CHOICE
CUSTOMIZABLE MULTI-COLORED LEDs
(RGB, 256 colors)
LOGO PRINTING
Tampography
Ink-jet printing HQ
CASING WITH MATERIAL-EFFECT
“Skin effect“
Choose from over 100 skin effects:
4
5
Specifications
RFID function
Keypad function
Operating frequency/Standards 13.56 MHz. ISO14443 type A, ISO14443 type B, ISO18092 (NFC)
Chip compatibility MIFARE Ultralight®, MIFARE Ultralight® C, MIFARE® Classic, MIFARE Plus®, MIFARE® DESFire®,
MIFARE® DESFire® EV1, NFC, SMART MX, CPS3, Moneo, iCLASS®, PicoPass®
Functions Read only: CSN or private ID (sector/file) / Secure Protocol (Secure Plus)
Read-Write (SSCP and SSCP2)
Reading distances* Up to 8 cm with a MIFARE® Classic card
Up to 6 cm with a MIFARE Plus®/DESFire® EV1 card
Communication interfaces
2 possibilities:
- TTL/RS232: Data Clock (ISO2), Wiegand (optional ciphered - S31) or RS232 (optional ciphered - S32)
- TTL/RS485: Data Clock (ISO2), Wiegand (optional ciphered - S31) or RS485 (optional ciphered - S33)
Connections 10-pin plug-in connector (5 mm)
2-pin plug-in connector (5 mm): O/F contact - Tamper detection signal
Integrated UHF chip EPC 1 Gen 2 for reader configuration
Light indicator
2 RGB LEDs
Card-configuration, UHF technology-configuration, software-configuration and external command (0V)
in R3x/S3x versions
Software-configuration in W32/W33 versions
Audio indicator
Internal buzzer - Card-configuration, UHF technology-configuration, software-configuration and
external command (0V) in R3x/S3x versions
Software-configuration in W32/W33 versions
Power requirement/«Eco» function Typical 100 mA/12VDC / 25% reduction in Energy-saving function
Power supply 7 VDC to 28 VDC
Material ABS-PC UL-V0
Dimensions (h x w x d) 107 x 80 x 26 mm
Operating temperatures - 20°C à + 70°C/Humidity: 0 - 95%
Tamper Switch Accelerometer-based tamper detection system with key deletion option
Protection/Resistance IP65 (excluding connectors)/Reinforced vandalproof structure IK10
Mounting Wall mount/Flush mount (European flushboxes 60 & 62 mm)
Compatible with any surfaces and metal walls
Keypad
Touch keypad (capacitive) - 12 backlit keys
Activated/deactivated by card and UHF technology in R3x and S3x versions and software-controlled
in W32/W33 versions
Dimensions (h x w x d) 107 x 80 x 26 mm
Operating temperatures - 20°C to + 70°C / Humidity: 0 - 95%
Resistance IP65 (excluding connectors)/Reinforced vandalproof structure
6

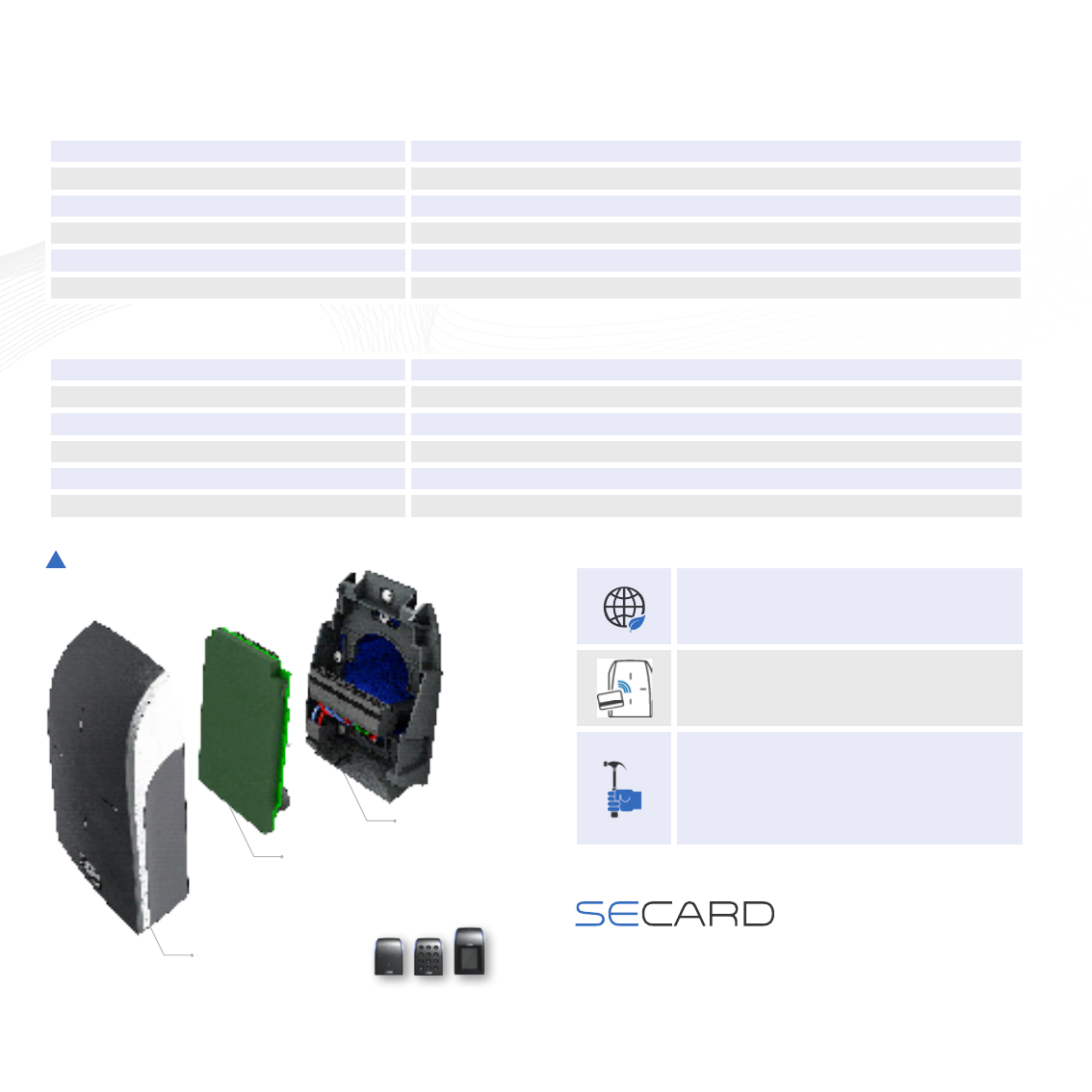

focus
Biometrics function
Legal statements: STid and Architect® are trademarks of STid SA. Mifare® is a NXP trademark. All other trademarks are property of their respective owners.
This document is the exclusive property of STid. STid reserves the right to stop any product or service for any reason and without any liability - Noncontractual photographs
*Caution: information about the distance of communication: measured from the centre of the antenna, depending on the type of identifier, size of the identifier, operating environment of the reader, power supply voltage and reading functions (secure reading).
Fingerprint sensor Optical (SAGEM MorphoSmart™)
Identification time ≤ 1 second
Collecting area 14 x 22 mm
Dimensions (h x w x d) 60 x 80 x 62 mm (biometric module)
Operating temperatures - 10°C to + 50°C
Resistance IP65 (excluding connectors)
Fully compatible with the high security S.I.S
range and SECard configuration software
“Smart fix” base
Compatible with
European flushboxes
(58 and 60 mm)
Switchable smart covers
RFID core
Touch screen function
Type Color touch screen
Touch screen size 2,8’’ - 240 x 320 pixels
Touch keypad 12 keys - Scramble pad function
Dimensions (h x w x d) 128 x 80 x 31 mm
Operating temperatures - 10°C to + 60°C
Resistance IP65 (excluding connectors)
Energy-saving function
Low energy consumption with “Eco” function
Easy multi-mode configuration
Card, UHF technology and secure connection
Vandalproof
High resistance - Inside/Outside uses
IP65 (excluding connectors)
