SUZHOU FOIF A30 GNSS Receiver User Manual A30 receiver V1 0
SUZHOU FOIF CO.,LTD GNSS Receiver A30 receiver V1 0
Users Manual
A30 GNSS Receiver
User Manual
Suzhou FOIF Co.,Ltd
Version 1.0
System from FOIF! GNSS has revolutionized control surveys, topographic data collection
and construction surveying. Purchasing the right tools for a professional job is essential in
today's competitive business environment. Learning to put these tools to work quickly and
efficiently will be the focus of the present manual. Compared with other GNSS products,
exclusive multi-constellation (GPS+GLONASS+SBAS) capabilities.
Congratulations! You have just acquired the latest dual-frequency A30 GNSS Surveying
Introduction
A30 is more compact and lightweight while integrating more technology, such as the
A30 performs a more advanced features than A20 such as designing and operating. You will
find many modifications in this instrument different from the generation A20. A30 keeps
the same RTK accuracy as A20, still it gives you the accuracy with horizontal 1cm+1ppm
and vertical 2cm+1ppm. Super bright OLED and voice message give you more convenience
through working time. Internal memory is enlarged from 256MB to 4GB which should be
enough for your whole project. There has a built-in sensor inside the instrument to help you
adjusting the tilt around 3 minutes automatically by software. The biggest modification is
the position of SIM slot has been changed from beside the battery to the bottom of it which
can give you a more stable wcdma signal than before.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
1 Summary
2 Unpacking the Container

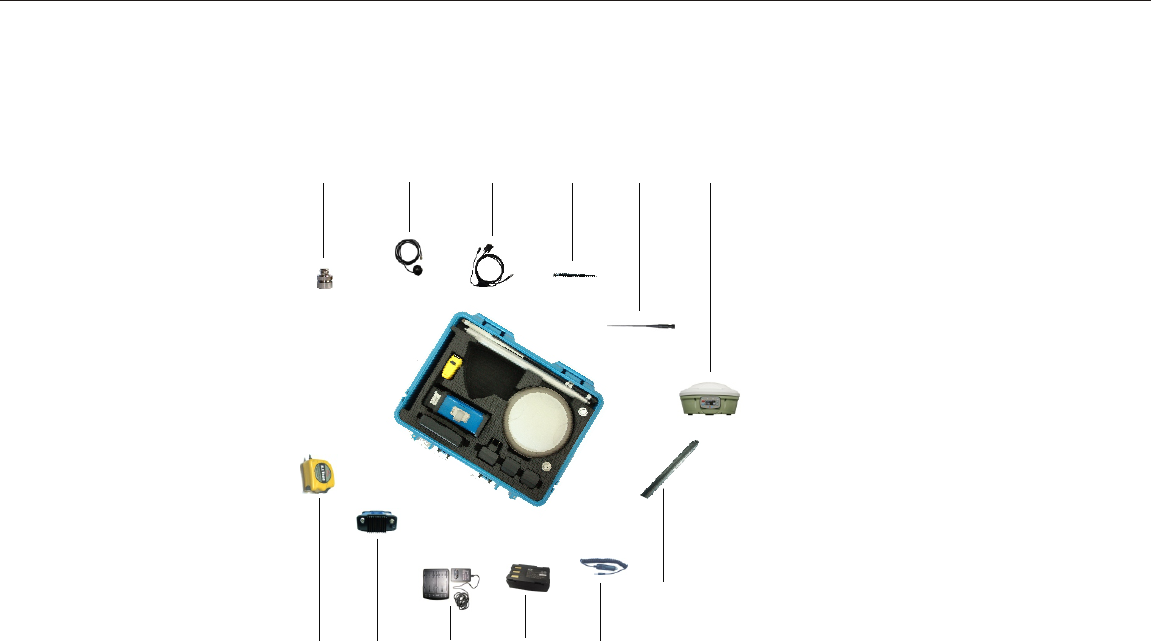

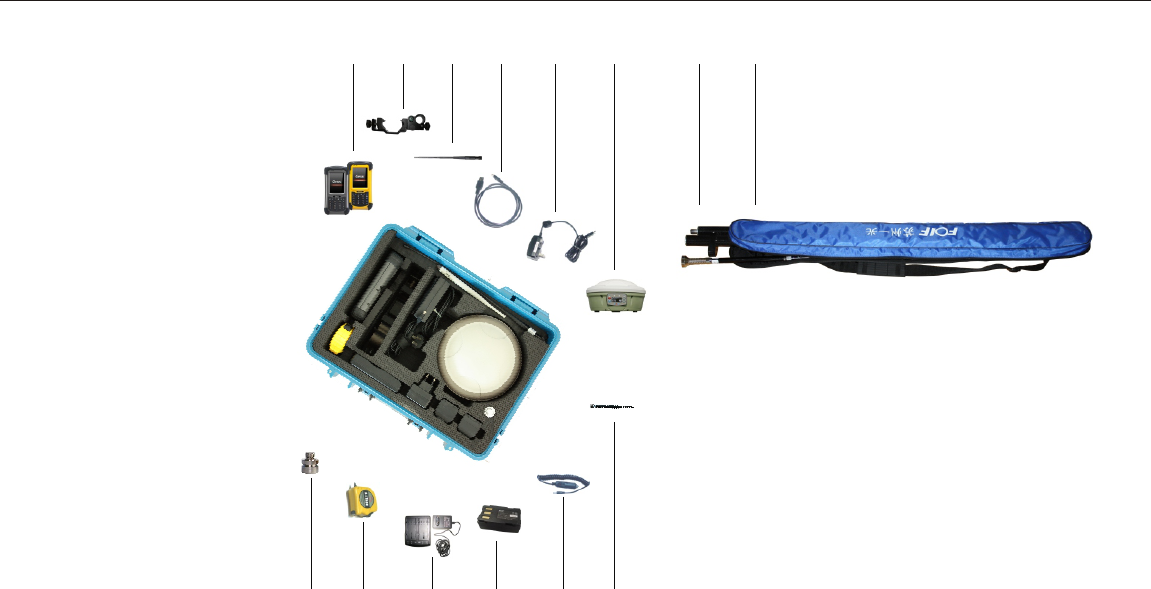

2.1 Container Contents

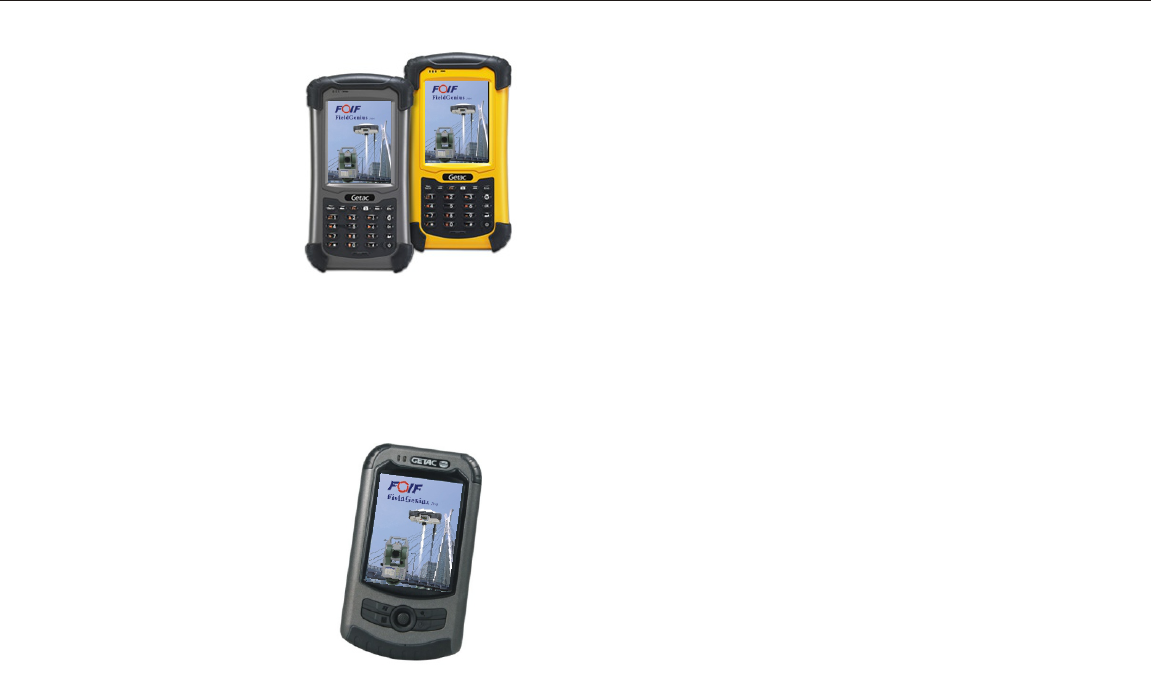

2.2 Controllers
3 Setting Up Receivers

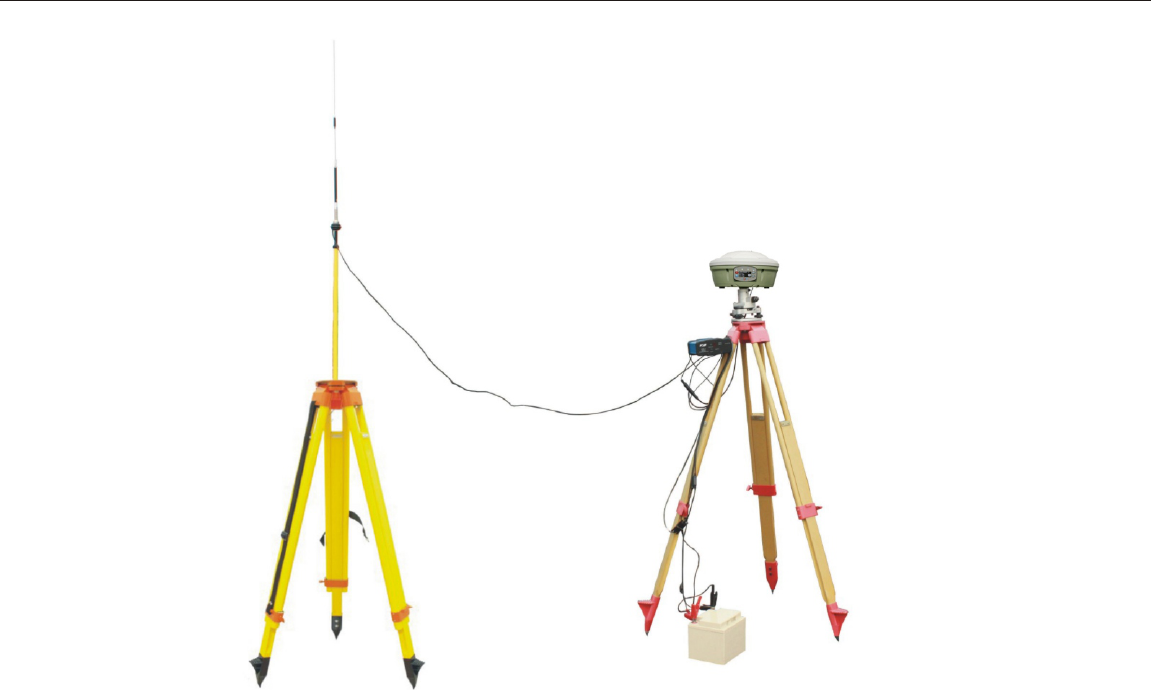

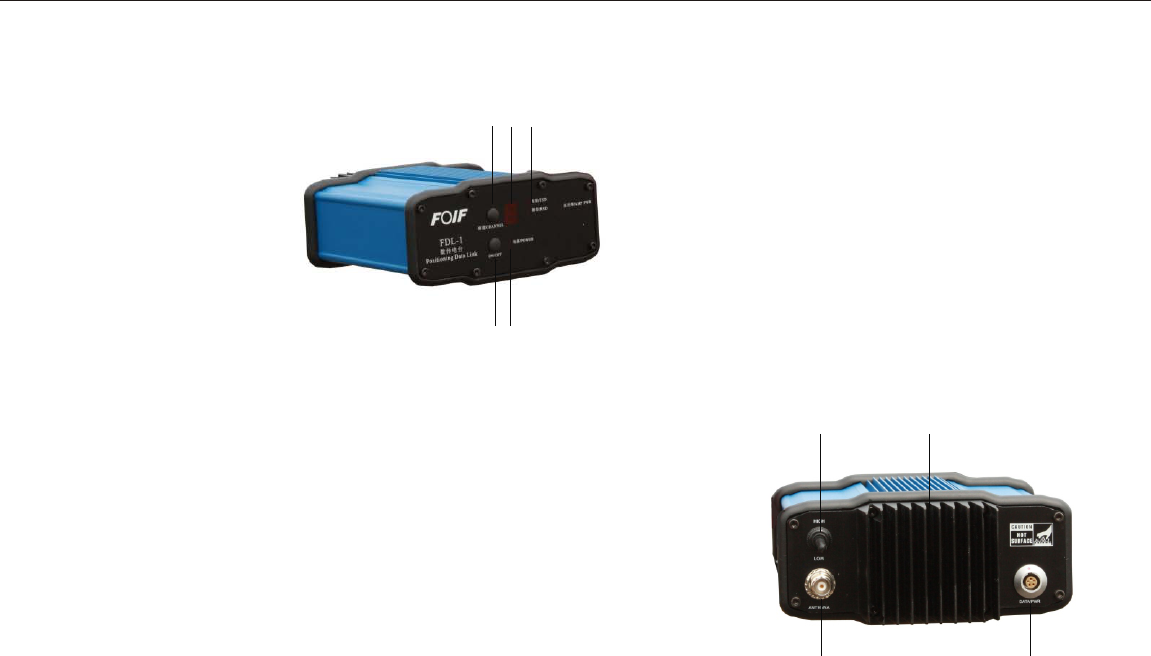

3.1 Base Station (External Radio)

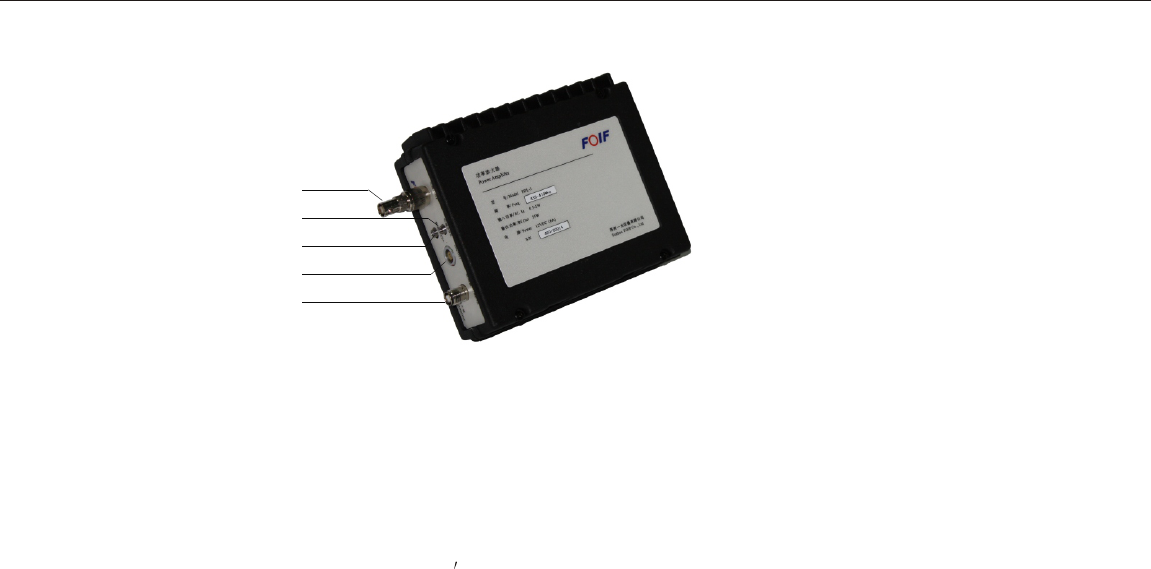

3.2 Base Station (Power Amplifer)
3.3 Setting Up Base Station by External Radio

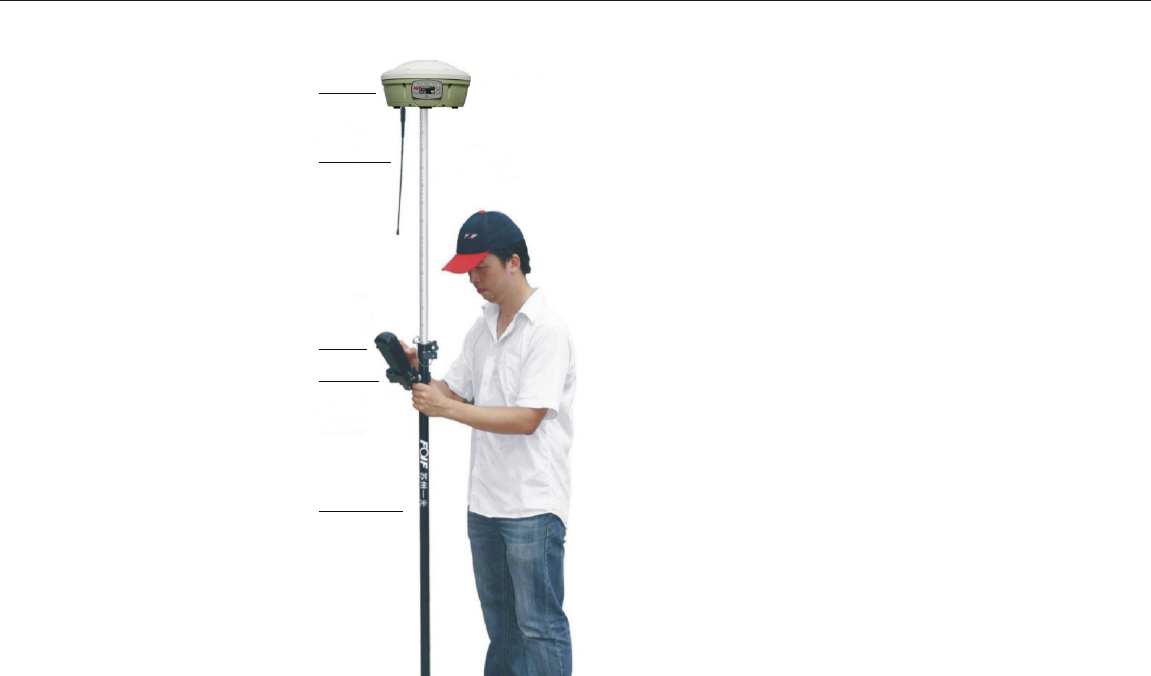

3.4 Rover Station
4 General Introduction

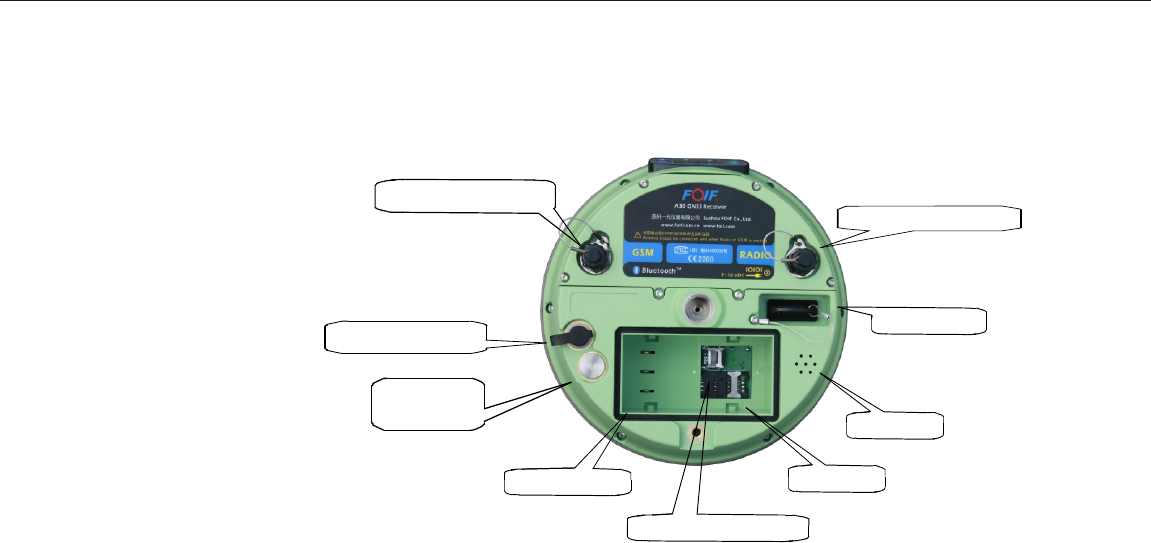

4.1 Nomenclature
4.2 Displayed Panel and Keyboard
4.3 Battery
5 Receiver Operation
Contents
5.1 Buttons
5.2 LED Indicating Lights
1
3
3
5
6
6
10
14
15
16
20
22
23
24
24
26
27
Safety Information
3.5 Measuring the A ntenna Heights
19
3.6 Controller Connecting
20

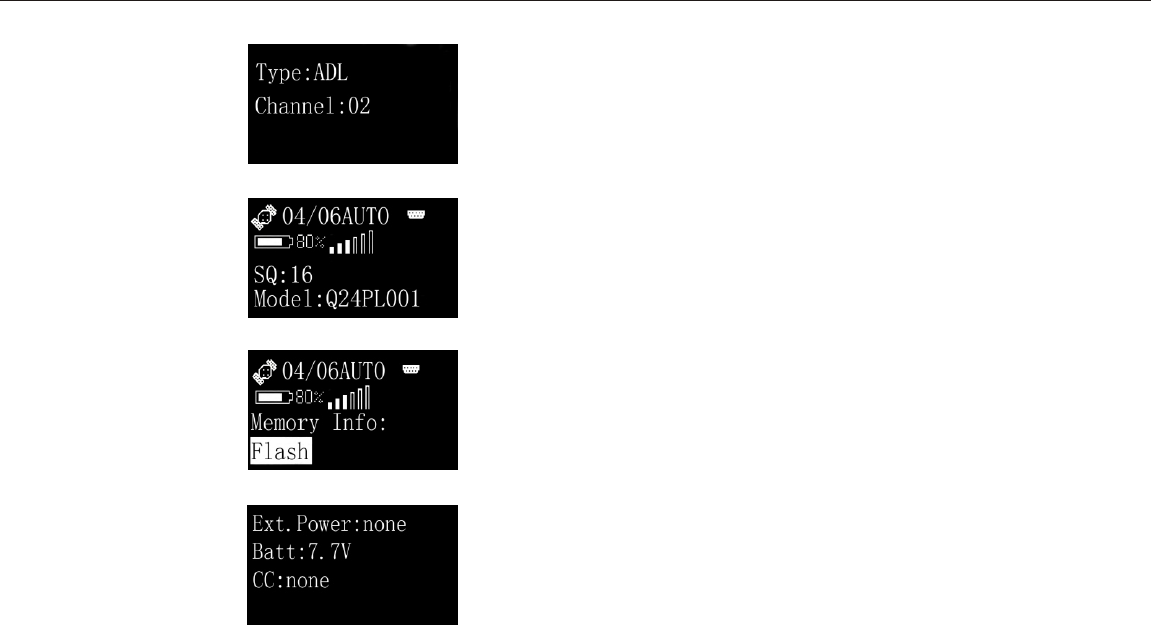

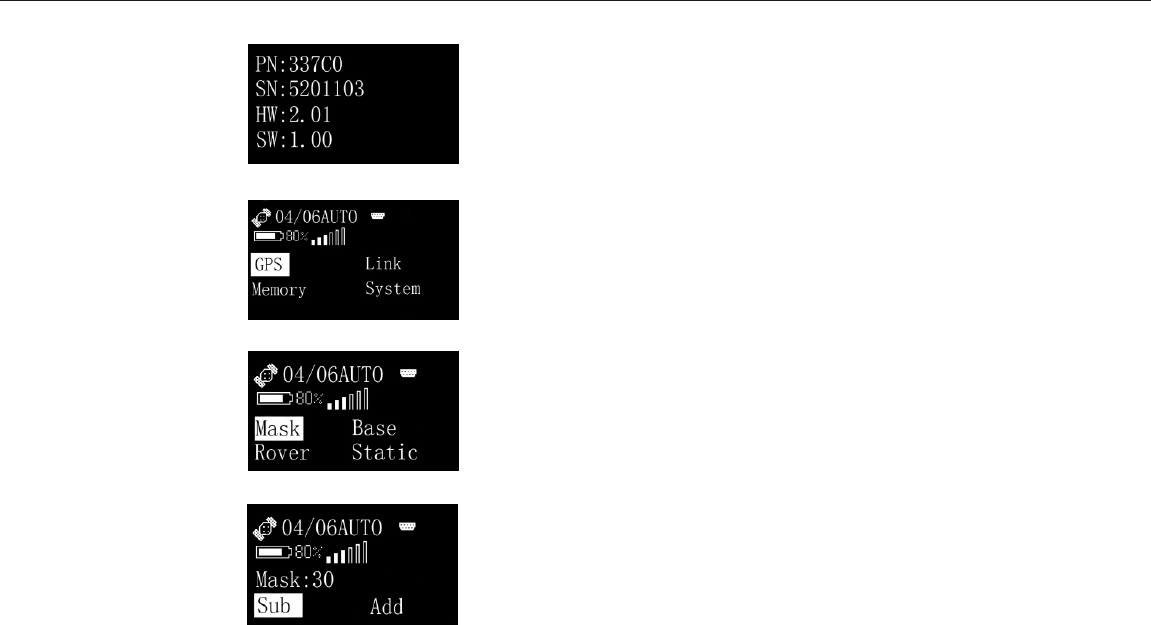

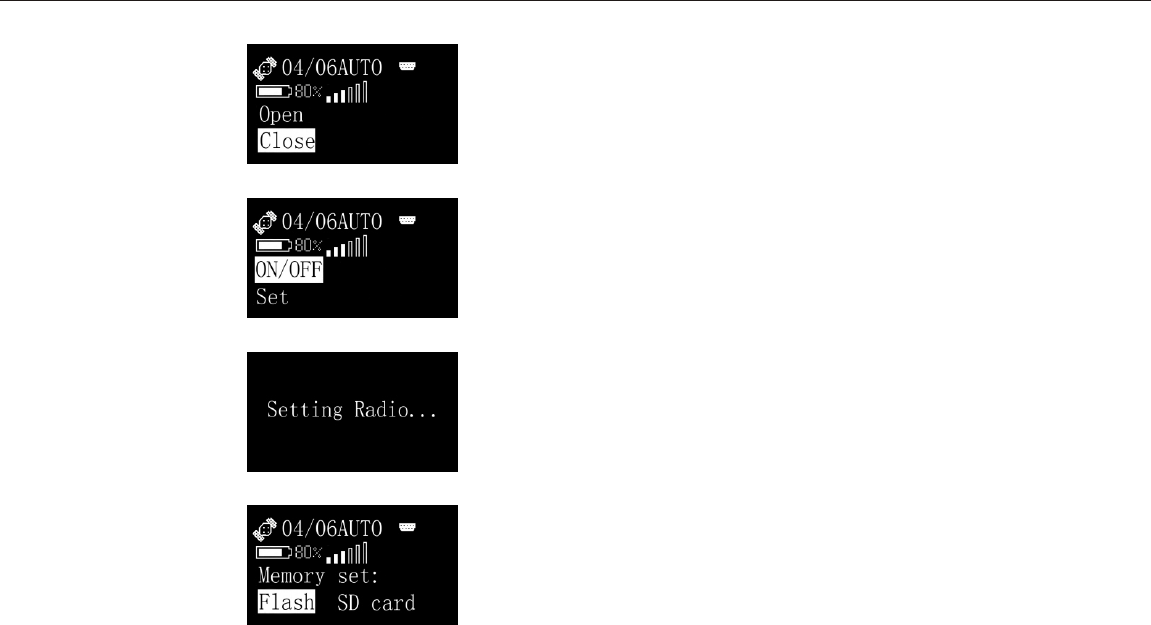

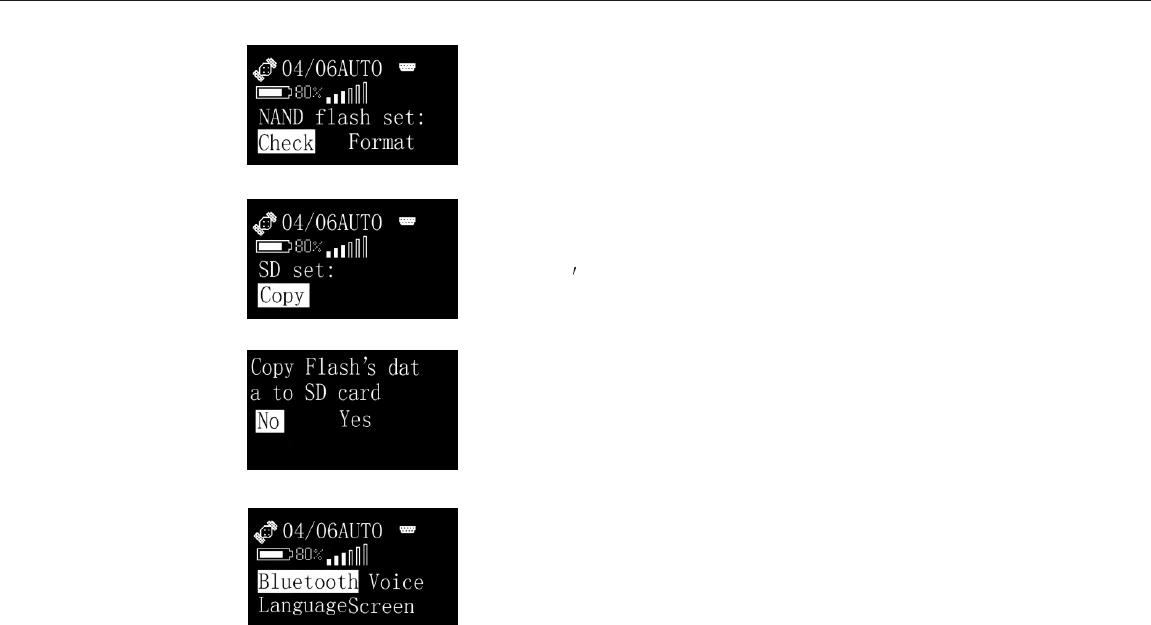

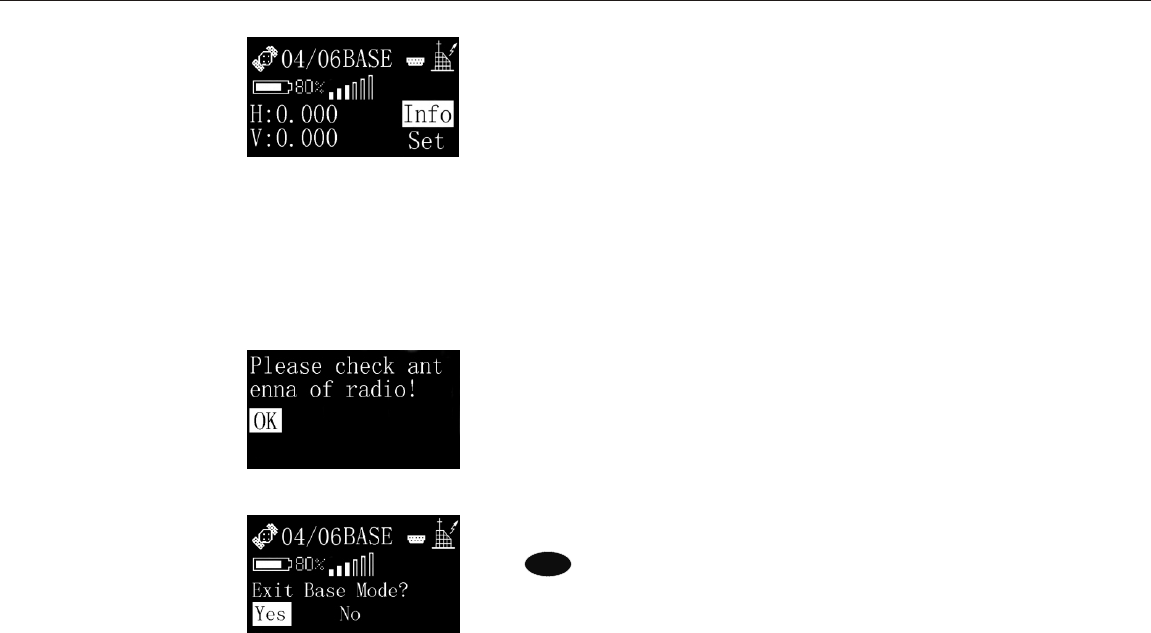

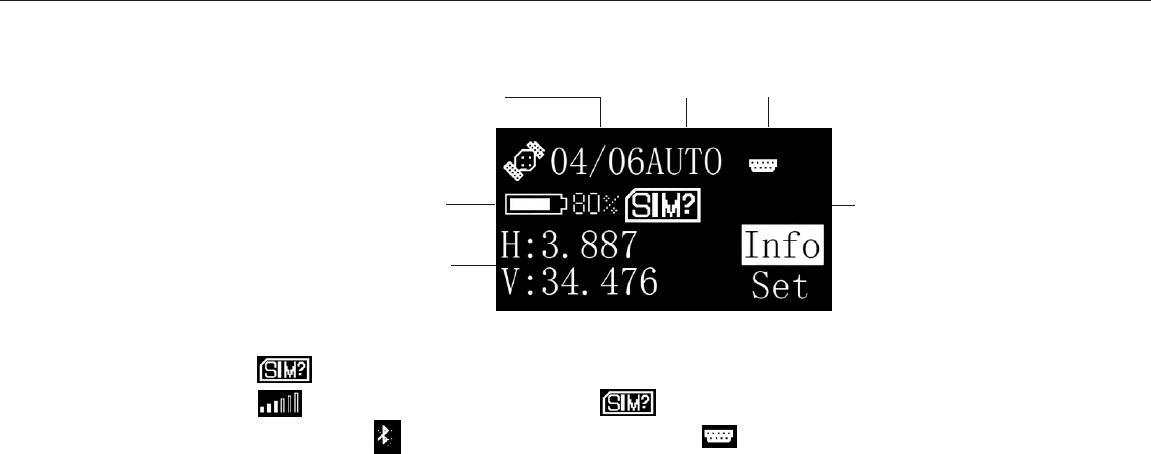

5.3 Displayed Menu
6 Static Surveying
6.1 Process

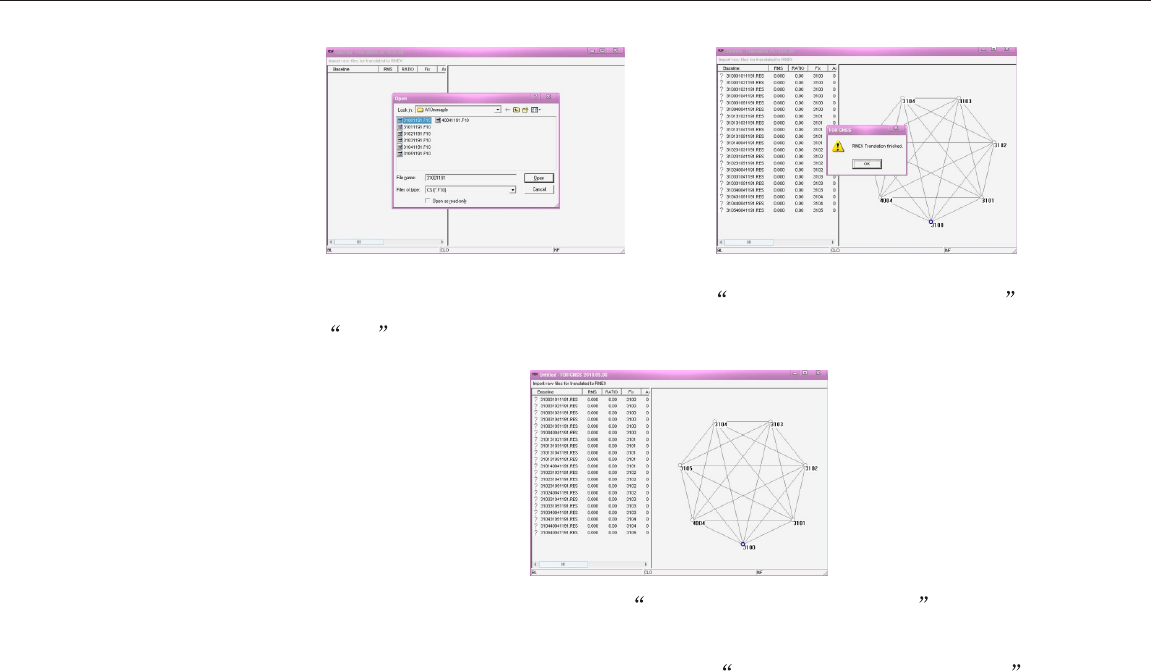

6.2 Data Downloading and Format Converting
6.3 Ways of Outdoors Working for Static Surveying

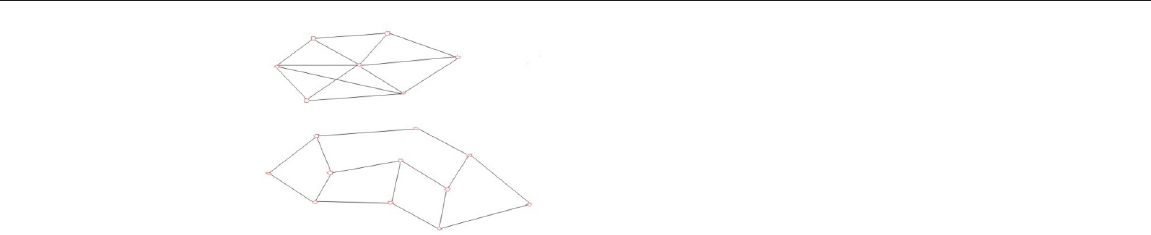

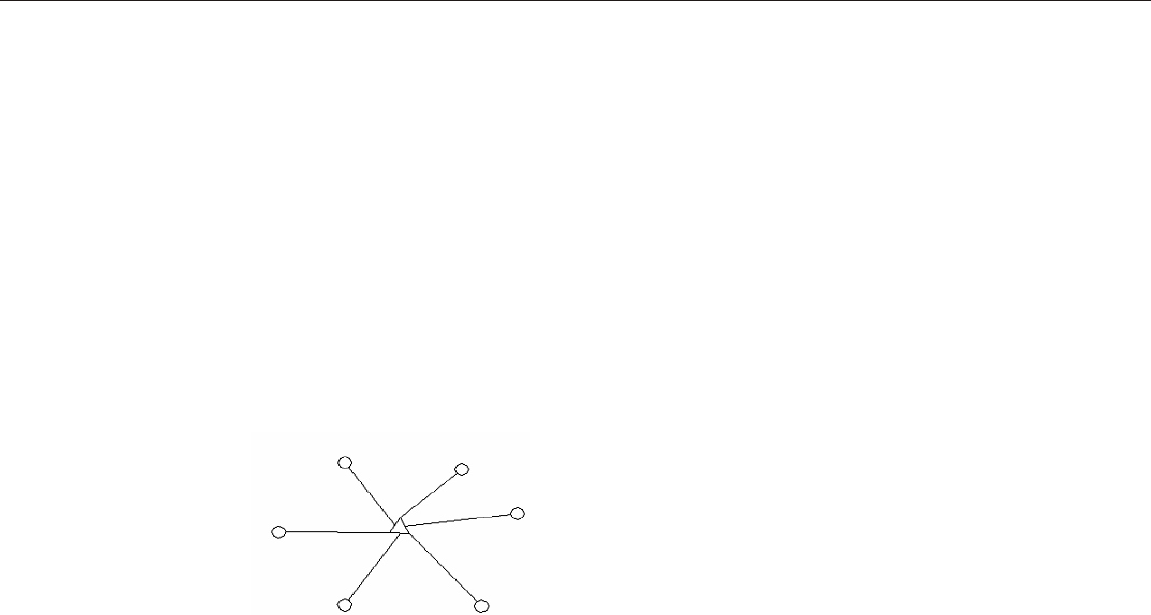

6.4 GPS Network
39
39
39
42
45
52
52
52
53

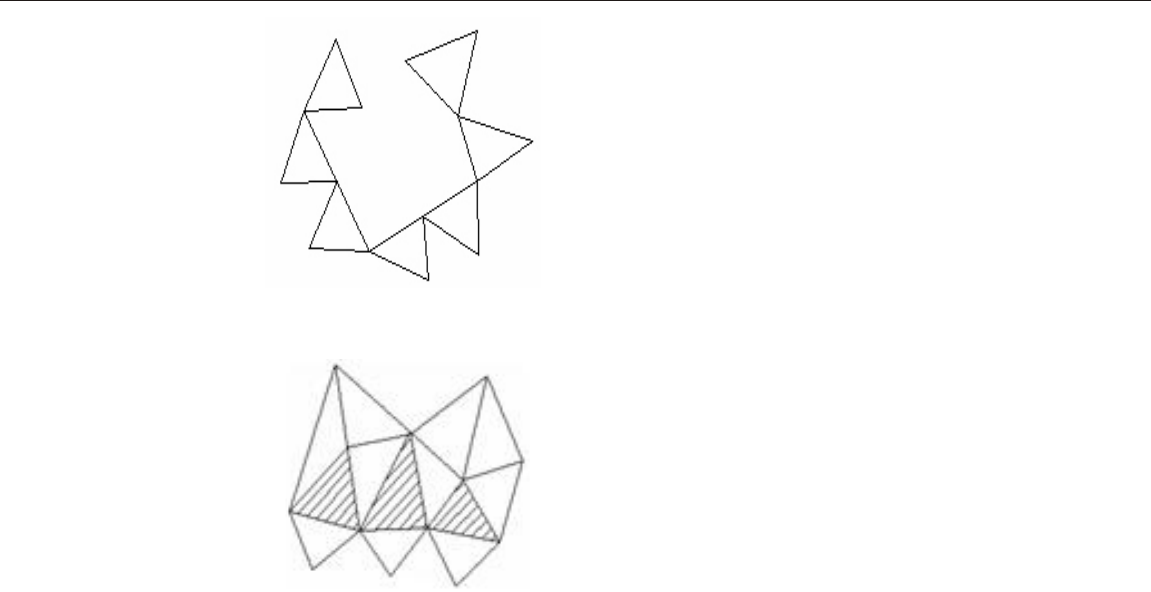

54
7 Specifications
7.1 Physical Specifications
7.2 Positioning Specifications
7.3 Technical Specifications
7.4 Technical Specifications for Controllers
Safety Information
This manual describes the A30 GNSS Receiver.
Before you use your receiver make sure that you have read and understood this manual, as
well as all safety requirements.
WARNING
CAUTION
Ignoring this indication and making an operation error could
possibly result in death or serious injury to the operator.
Ignoring this indication and making an operation error could
possibly result in personal injury or property damage.
Regulations and safety
The receivers contain integra Bluetooth wireless technology, and may also send radio
signal through the antenna of an internal radio-modern, or through an externally-connected
data communication radio. Regulations regarding the use of the 460MHz radio-modems
vary greatly from country to country. In some countries, the unit can be used without
obtaining an end-user license. Other countries require end-user licensing. For licensing
information, consult your local FOIF dealer. Bluetooth operates in license-free bands.
Exposure to radio frequency radiation
For radio (410~430MHz/430~450MHz/450~470MHz)(RX Only)
It is safety. Exposure to RF energy is an important safety consideration. Proper use of this
radio modem results in exposure below government limits.
The following precautions are recommended:
lDO NOT operate the transmitter when someone is within 20cm of the antenna.
lDO NOT collocate (place within 20cm) the radio antenna with any other transmitting
lDO NOT operate the transmitter unless all RF connectors are secure and any open
connectors are properly terminated.
lDO NOT operate the equipment near electrical blasting caps or in an explosive atmosphere.
lAll equipment must be properly grounded according to FOIF installation instructions for
safe operation.
lAll equipment should be serviced only by a qualified technician.
For wcdma radio
CAUTION
- For your own safety, always observe the precautions listed here.
- Always maintain a minimum separation distance of 20cm between
yourself and the radiating antenna on the radio-modem.
- Do not collocate (place within 20cm) the radio antenna with any
other transmitting antenna.
antenna.
For Bluetooth radio
The radiated output power of the internal Bluetooth wireless radio is far below radio fre-
quency exposure limits. Nevertheless, the wireless radio shall be used in such a manner
that the FOIF receiver is 20cm or further from the human body. The internal wireless radio
operates within guidelines found in radio frequency safety standards and recommendations,
which reflect the consensus of the scientific community. FOIF therefore believes the internal
wireless radio is safe for use by consumers. The level of energy emitted is far less than the
electromagnetic energy emitted by wireless devices such as mobile phones. However, the
use of wireless radios may be restricted in some situations or environments, such as on
aircraft. If you are unsure of restrictions, you are encouraged to ask for authorization before
Installing antennas
CAUTION
- For your own safety, always observe the precautions listed here.
- Always maintain a minimum separation distance of 20cm between
yourself and the radiating antenna.
- Do not collocate (place within 20cm) the radio antenna with any
other transmitting antenna.
turning on the wireless radio.
This device has been designed to operate with the antennas listed below.
UHF Antennas not included in this list, or that have a gain greater than 5dBi, are strictly
prohibited for use with this device. The required antenna impedance is 50 ohms.
The antennas that can be used (country dependent) with the 460 MHz radio are 0dBi and
5dBi whip antennas(only for UHF, RX only).
The antenna that can be used with the wcdma radio is the 5dBi whip antenna.
To reduce potential radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropic ally radiated power is not more than that permitted
for successful communication.
Rechargeable Lithium-ion batteries
These receivers use a rechargeable Lithium-ion battery.
WARNING
- Do not damages the rechargeable Lithium-ion battery. A damaged
battery can cause an explosion or fire, and can result in personal
injury and /or property damage. To prevent injury or damage:
- Do not use or charge the battery if it appears to be damaged. Signs
of damage include, but are not limited to, discoloration, warping,
and leaking battery fluid.
- Do not expose the battery to fire, high temperature, or direct sun-
- Do not immerse the battery in water.
- Do not use or store the battery inside a vehicle during hot weather.
- Do not drop or puncture the battery.
- Do not open the battery or short-circuit its contacts.
WARNING
- Avoid contact with the rechargeable Lithium-ion battery if it is
appears to be leaking. Battery fluid is corrosive, and contact with it
can result in personal injury and/or property damage.
To prevent injury or damage:
- If the battery leaks, avoid contact with the battery fluid.
- If battery fluid gets into your eyes, immediately rinse your eyes with
clean water and seek medical attention. Do not rub your eyes!
- If battery fluid gets onto your skin or clothing, immediately use
clean water to wash off the battery fluid.
WARNING
light.
WARNING
- Charge and use the rechargeable Lithium-ion battery only in strict
accordance with the instructions. Charging or using the battery in
unauthorized equipment can cause an explosion or fire, and can
result in personal injury and/or equipment damage.
To prevent injury or damage:
- Do not charge or use the battery of it appears to be damaged or
- Charge the Lithium-ion battery only in FOIF product that is spe-
cified to charge it. Be sure to follow all instructions that are pro-
vided with the battery charger.
- Discontinue charging a battery that gives off extreme heat or a burn-
ing odor.
- Use the battery only in FOIF equipment that is specified to use it.
- Use the battery only for its intended use and according to the
instructions in the product documentation.
Other Warning
WARNING
- Operating or storing the receiver outside the specified temperature
range can damage it.
For more information, refer to 7. SPECIFICATION.
leaking.
A30 is regarded as an highly integrated, semi-open structure and modular designed RTK
system independently researched by FOIF. GNSS antenna,data link, WCDMA,Li-Ion
which is convenient in the products maintainance and upgrade. Stable industry standard
two data transmission ways (WCDMA, data Link),we can use 3G function of the
With high accuracy, fast tracking function of inner GNSS mainboard,A30 can track the
satellite signal as more as 220 channels simultaneously.
Highly sealed, waterproof, dustproof, shockproof, low power consumption are its basic
inspecting rules. With super and weatherable OLED screen built on A30 receiver, the real
1 Summary
battery, memory device, bluetooth etc. are all focused in one receiver. Moreover, GNSS
antenna, datalink and battery are independently modules which are easy to replace thus
handheld for A30 has inner or external GPS antenna and camera for optional function to
upgrade this handheld to a GIS collector. 3G memory device is also optional for the hand-
held, thus can further upgrade to a highly accurate GIS collector. Meanwhile, besides the
mobile phone to do the RTK job, in this way, we can say A30 has already existed in 3G
time information of the receiver can be shown on the screen. 4 lights and 4 buttons are
easily used to set the receiver, and the voice aided is helpful to the outdoors surveying.
Downloading and backups of the static data could be convenient because of the inner SD
slot, thus resolves your trouble for the insuffcient memory.
A30 User Manual 1
period.
is no problem but also for the compatability in the CORS of other companies. In order to
fulfill the characteristic of compatibility in A30, inner radio can easily be upgraded to be
compatible with GNSS products of other companies in the RTK field. The electric power
design for A30 is also very advanced, large capacity of Li-Ion batteries(5800mAh) can
on both external and internal charging ways. A30 can also be used by external DC power
A30 is widely used for control survey,engineering survey,topography survey,GIS,boundries
location, area survey, deformation monitoring etc. And in the education subjects based on
also be used on the total station (810 series) made by FOIF. These batteries are available
GNSS products, you can also find A30.
A30 User Manual
2
Due to its advanced compatability, static surveying with GNSS products of other companies
(7-18V).
2 Unpacking the Container
2.1 Container Contents
The main components required for the cableless GNSS real-time system are combined in
one transport container.
A Base
B UHF antenna(RX)
E RF cable (6.0m)
F Connector
transferring and upgrading
H Charger (car)
I Battery (5800mAh)
J Charger
K RX Radio (Optional)
Description
Container for
A30
and delivered
accessories
part 1 of 2
A30 User Manual 3
D Y cable for both data
L Tape
A
B
C
DEF
G
HI
J
KL
C WCDMA antenna
G Supporting pole
Detailed information can check from A30 equipment list.
Container for
A30
and delivered
accessories
part 2 of 2
A30 User Manual
4
AB
C
DEF
G
H
I
JKL
A Rover
B Charger for controller
E Bracket
F Controller
H Charger (car)
I Battery (5800mAh)
J Charger
K Tape
L Connector
M Pole
C Data cable for controller
D UHF antenna(RX)
N Enhanced UHF antenna
MN
G WCDMA antenna
a) Microsoft Windows Mobile 6.1 OS
b) 3.5inch transflective sunlight readable LCD
c) Embedded high sensitivity GPS receiver
d) MIL-STD-810G and IP67 compliance
e) Long battery life provides all-day power
f) 3.5G WWAN optional (HSDPA/WCDMA/EDGE)
2.2 Controllers
PS236 series
A30 User Manual 5
a) Microsoft Windows Mobile 5.0/6.1 OS
b) 3.5inch transflective sunlight readable LCD
c) Embedded high sensitivity GPS receiver(PS535F)
d) MIL-STD-810F and IP54 compliance
e) Long battery life provides all-day power
PS535F series
(optional)
Base
Picture showing
real-time
base station
setup
Choose a suitable place for your base station setting up.
1) The place for base station setting up should be wide opened and easy to receive the
Higher place would be better for setting up, thus signal of UHF is easy to receive. If
is far from base, then the enhanced antenna should be raised by using bipod.
signal of satellites.
3) Base should be far away from the high power WiFi objects,e.g. radio,
MWS etc. Distance between them needs to be more than 200m. And
less than 50m from power lines is also forbidden to set up base.
Process:
1. Set up the tripod mount and level the tribrach onto the tripod.
2. Check that the tribrach is correctly centred over the marker.
3. Place and lock the receiver on the tribrach.
4. Check that the tribrach is still correctly positioned and leveled.
5. Choose external radio module from FOIF Survey_GPS software.
6. Fix the radio beside tripod, using cable FG-DB9-M to do the
*
7. Fix enhanced UHF antenna(RX).
connection work between radio and receiver.
A30 User Manual
3 Setting Up Receivers
3.1 Base Station (External Receive Radio)
6
rover
External Radio
2)
Notice:
lWhen plugging in an cable with LEMO plug, make sure that the red dots on the receiver
port and the cable connector line up. Do not use force to plug cables in, as this may da-
mage the connector pins.
lWhen disconnecting an cable with LEMO plug, grasp the cable by the sliding collar or
lanyard and then pull the cable connector straight out of the port. Do not twist the
connector or pull on the cable itself.
lTo securely connect a TNC antenna, align the antenna connector with the receiver
receptacle and then thread the antenna connector onto the receptacle until it is snug.
lAvoid the following sources of electrical and magnetic noise:
a) Gasoline engines (spark plugs) b) Televisions and PC monitors
c) Alternators and generators d) Electric motors
e) Equipment with DC-to-AC converters f) Fluorescent lights
g) Switching power supplies
lAvoid exposure to extreme environmental conditions, including:
a) Water b) Hot than 65
c) Cold less than -30 d) Corrosive fluids and gases
8. Connecting radio and storage with cable FDL-1-1 and cable FDL-1-2.
*
*check from A30 equipment list
A30 User Manual 7
Frontal panel (buttons and channel displayed )
Back panel (ports detailed)
External
Radio
A30 User Manual
A
IH
G
F
ED
CB
A Channel 0~9&A~F
B Channel displayed
E Power light
F Button for power setting
G Heat sink
H Data input&battery supplied
I Antenna port
C Signal light
D Power
8
External Receive Radio
Notice:
1) Connection should be tight between every part(cable,radio,receiver) to comfirm
the successful data transferring.
2) Storage battery used should distinguish the positive and negative poles to avoid
the electric short circuit.
3) Suggested brand of storage battery is Panasonic, other brands such as camel,
fengfan ect. are also accepted as long as the output voltage is 12V and power
comsumption is not less than 17Ah.
4) 5m pole is suggested in raising the UHF antenna for better signals.
5) Distance between UHF antenna and A30 should be more than 3m.
6) Considering the safety of yours, A30 is not suggested to be used at the weather
of thunder or storms.
A30 User Manual 9
Base
Picture showing
real-time
base station
setup Process:
1. Set up the tripod mount and level the tribrach onto the tripod.
2. Check that the tribrach is correctly centred over the marker.
3. Place and lock the receiver on the tribrach.
4. Check that the tribrach is still correctly positioned and leveled.
5. Choose internal radio module from FOIF Survey_GPS software.
6. Fix the power amplifer beside tripod, using cable FDL-3-2 to do
*
7. Fix enhanced UHF antenna(RX).
the connection work with receiver.
A30 User Manual
10
Power Amplifer
3.2 Base Station (Receiver Powerer Amplifer)
Choose a suitable place for your base station setting up.
1) The place for base station setting up should be wide opened and easy to receive the
2) Higher place would be better for setting up, thus signal of UHF is easy to receive. If
rover is far from base, then the enhanced antenna should be raised by using bipod.
signal of satellites.
3) Base should be far away from the high power WiFi objects,e.g. radio, MWS etc.
Distance between them needs to be more than 200m. And less than 50m from power
lines is also forbidden to set up base.
Notice:
lWhen plugging in an cable with LEMO plug, make sure that the red dots on the receiver
port and the cable connector line up. Do not use force to plug cables in, as this may da-
mage the connector pins.
lWhen disconnecting an cable with LEMO plug, grasp the cable by the sliding collar or
lanyard and then pull the cable connector straight out of the port. Do not twist the
connector or pull on the cable itself.
lTo securely connect a TNC antenna, align the antenna connector with the receiver
receptacle and then thread the antenna connector onto the receptacle until it is snug.
lAvoid the following sources of electrical and magnetic noise:
a) Gasoline engines (spark plugs) b) Televisions and PC monitors
c) Alternators and generators d) Electric motors
e) Equipment with DC-to-AC converters f) Fluorescent lights
g) Switching power supplies
lAvoid exposure to extreme environmental conditions, including:
a) Water b) Hot than 65
c) Cold less than -30 d) Corrosive fluids and gases
8. Connecting radio and storage with cable FDL-3-1 .
*
*check from A30 equipment list
A30 User Manual 11
A30 User Manual
Power
Amplifer
Power Amplifer
A Port for ANT
B PWR Light
C DATA Light
D PWR Port
E Port for RF.IN
Function:
Power Amplifer can enlarge transferring distance which is the same function as
external radio, but should work together with A30 which has inner emitting radio.
Because A30 has many Product Numbers for different configurations, so if your
A30 doesn
A
B
C
D
E
t have internal emitting radio, then Power Amplifer is not suitable,
only external radio.
12
Notice:
1) Connection should be tight between every part(cable, power amplifer, receiver)
to comfirm the successful data transferring.
2) Storage battery used should distinguish the positive and negative poles to avoid
the electric short circuit.
5) Comfirm that the antenna is connecting with the Power Amplifer before emitting
6) Finish working, make sure to stop emitting the data firstly, then remove the cable.
5) and 6) are all benefit for protecting the Power Amplifer.
the data.
3) Suggested brand of storage battery is Panasonic, other brands such as camel,
fengfan ect. are also accepted as long as the output voltage is 12V and power
comsumption is not less than 17Ah.
4) 5m pole is suggested in raising the UHF antenna for better signals.
7) Distance between UHF antenna and A30 should be more than 3m.
8) Considering the safety of yours, A30 is not suggested to be used at the weather
of thunder or storms.
A30 User Manual 13
Two tripods
supported
A30 User Manual
3.3 Setting Up Base Station by External Radio
14
A
D
E
F
C
B
A A30 receiver
B External Radio
C enhanced UHF antenna
D connecting line for serial data
E Y cable
F Storage Battery (12V)
G
G Supporting pole
Notice:
1. If telescopic pole is used, height of receiver
can be got directlly from the pole.
2. Comfirm that connection between bracket
and controller is tight to avoid that controller
dropping to the ground.
3. If network is used, then UHF antenna does not
need to fix on A30.
Picture showing
real-time
rover station
setup
A30 User Manual
Process:
1. Thread the receiver onto the pole.
2. Attach the controller bracket to the pole.
3. Insert the controller into the bracket.
3.4 Rover Station
A
E
D
C
B
A A30 receiver
B UHF antenna
C controller
D bracket
E telescopic pole
15
3.5 Measuring the Antenna Heights
3.5.1 Measuring the Antenna Heights for a Tripod Setup
Ways: Pay attention to the buckle of rubber fixing around the receiver, use your tapeline
from the buckle to the point where your base is setting up, thus the reading on
tapeline is the height of base.
A30 User Manual
Measuring the
antenna heights,
a quick overview
16
A30 User Manual
Calculation
(sketch shown)
17
3.5.2 Measuring the Antenna Heights for a Pole Setup
Height of rover=pole(2m)+h0
Considering the normal height of pole is 2m, so while setting the rover, you just only
choose vertical height and enter 2m , which is also the default choice, h0 could be
add automatically by software (FOIF Survey_GPS). If telescopic pole is used, then 2m
should be changed to the actual height of pole.
A30 User Manual
18
3.6 Controller Connecting
Two ways are supported connecting between controller and A30, bluetooth and RS232.
3.6.1 Bluetooth
1. Connecting work should be done first before start FOIF survey_GPS. Using controller
scan the bluetooth signal of A30.When bluetooth is found, the SN of A30 is shown in
controller, then select this SN to finish the connecting work.
2. Set port (No. of port can be searched from bluetooth settings in controller.) and baud rate
of controller to finish connecting.(More shown in FOIF_survey User Manual)
3.6.2 RS232
Using serial port cable to build the connection by setting the port with COM1 and baud rate
with 19200.
3.6.3 State of Connecting Shown
When connection is successful whether by bluetooth or RS232, you can comfirm from the
screen of A30. or would be displayed on the screen, means RS232 while
means bluetooth.
3.6.4 Disconnecting
Menus in FOIF Survey_GPS software, Configuration Com configuration, you can stop
the connecting work by selecting the other COM port. While doing so, A30 receiver is still
working normally, but you can not control the receiver by using your controller.
A30 User Manual 19
4 General Introduction
4.1 Nomenclature
Frontal panel
A30 User Manual
20
upper cover
lower cover
displayed/operating panel
shockproof rubber ring
antenna inside
Bottom of
panel
A30 User Manual 21
speaker
Radio antenna(RX) port
Battery place
wcdma
a ntenna port
MicroSD card slot
SIM slot
COM port
Upgrading port
Ext. Event
( Reserved )
A30 User Manual
OLED Screen
4.2 Displayed Panel and Keyboard
22
BAT SAT LINK REC
OLED
Up
Down
ENT
PWR/ESC
Two ways are supported in battery supplied: inner Li-Ion battery or external storage battery.
While using the inner Li-Ion battery mode, capacity of battery would be displayed on the
screen by real-time detection. Charging time for Li-Ion battery should normally be less
A30 User Manual
Working time for A30 is more than 10 hours due to its high capacity chargable Li-Ion battery.
(but actual using time mayhave certain difference because of different environments)
A30 can be supported by external storage using the Y cable standard in A30 equipment list
which can also be used in connecting A30 with computer.
4.3 Battery
4.3.1 Ways of Battery Supplied
4.3.2 Supplied by Inner Li-Ion Battery
4.3.3 Supplied by External Storage
than 6 hours.
23
5 Receiver Operation
5.1 Buttons
5.1.1
Power/Escape (red)
Function:
1 Turn on/off (Default:off)
Turn on
1)Confirm that A30 is at shutdown state.
2)Press ,then loosen it.
3)Start screen would be displayed on the screen of A30.
4)You can hear the voice while turning on A30.
5)Light(BATT) is on and light(GPS) is blinking.
6)Finish.
A30 User Manual
Turn off
1)Comfirm that A30 is at working state.
2)Press for about 3 seconds unless you hear the voice while the information lossen
the power button, the receiver will be closed ,then lossen button.
3)The screen and lights on it would all be closed.
4)Finish.
24
5.1.2 Enter
Function:
1)Comfirm the settings.
2)Go to the next menu.
5.1.3 Up and down.
1)Up or forward.
2)Down or backward.
A30 User Manual
Notice:
In order to avoid misoperating, you should press the button for about 1 second to achieve
your choice. If the item you want to choose is not the next item (e.g. 3 or 4 items after the
cursor s current position), then you can press without stop until the cursor switch to the
item you want.
OKOK
25
A30 User Manual
5.2 LED Indicating Lights
5.2.1 Battery (green)
Function: Power Indicator.
1)>60%, green light is on without blinking.
2)40% ~60%, flash one time for every second.
3)20% ~40%, flash two times for every second.
4)10% ~20%, flash four times for every second.
5.2.2 Satellite (green or red)
Function: Display the number of satellites tracked by A30.
1)While blinking in red, indicating that A30 is searching the signals of satellites.
2)While blinking in both red and green, the times that the light blinks in green shows the
number of satellites tracked by A30.
5) <10%, you will be mentioned by voice of A30.
5.2.3 Link (blue)
Function: Differential Signal Indicator.
1)OFF: no signals transferring.
2)Blink regularly: normally sending or receiving signals.
3)Blink unregularly: unreliable in difference link.
26
5.2.4 Record (green)
Function: Static working mode.
1)OFF: no static surveying.
2)Blinking regularly: Static surveying, the speed of blinking is the setting interval
5.3 Displayed Menu
5.3.1 Start Screen
A30 User Manual
recording.
27
5.3.2 Main Interface
number of satellites state of A30 COM/bluetooth
battery indicator
current accuracy
SIM card Info
indicates that SIM card is not in the receiver. If SIM card is put into the receiver,
would be displayed instead of . If receiver is connected to the controller by
bluetooth, would be displayed instead of which is the COM port symbol.
A30 User Manual
28
5.3.3 Menus in A30

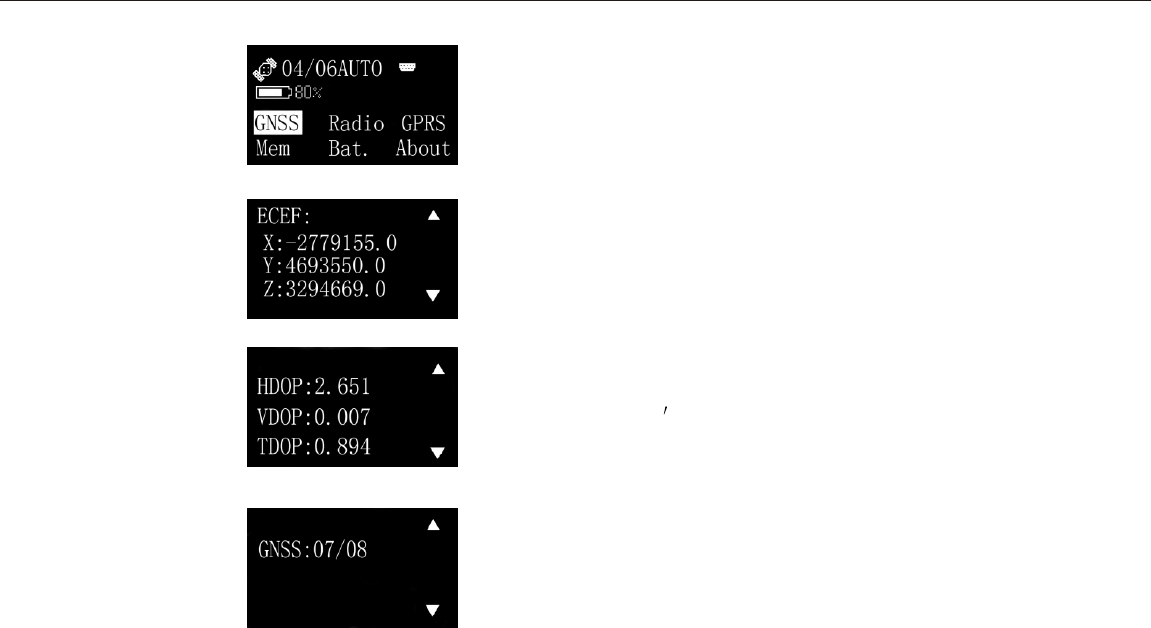

Select Info. at the main interface, you will see the options like GNSS,
Radio, WCDMA, Mem, Bat. and about.
Select GNSS, you will see the followed 3 interfaces. Switch them
Coordinate
Quality of satellites
by up or down arrow.
signals
Number of satellites tracked
A30 User Manual
Operating
Menu (1)
Info menu
Info/GNSS/P1
Info/GNSS/P2
Info/GNSS/P3
29
Select Radio, you will see the model and channel of radio.
Select WCDMA, you will see the model and signal of WCDMA.
Select Mem, you will see the Info. of memory.
Select Bat. , you will see the Info. of battery.
A30 User Manual
Operating
Menu (2)
Info/Radio
Info/WCDMA
Info/Mem
Info/Bat.
30
Select About, you will see the Info. of A30 such as PN, SN, edition
of software and hardware.
At the main interface, if you choose Set, you will see the setting
options for A30 such as GPS, Link, Memory and System.
Choose GPS, you will see four options for your setting such as Mask,
Base, Rover, Static.
Select Mask, here you can set the mask of A30.
A30 User Manual
Operating
Menu (3)
Info/About
Set menu
Set/GPS
Set/GPS/Mask
31

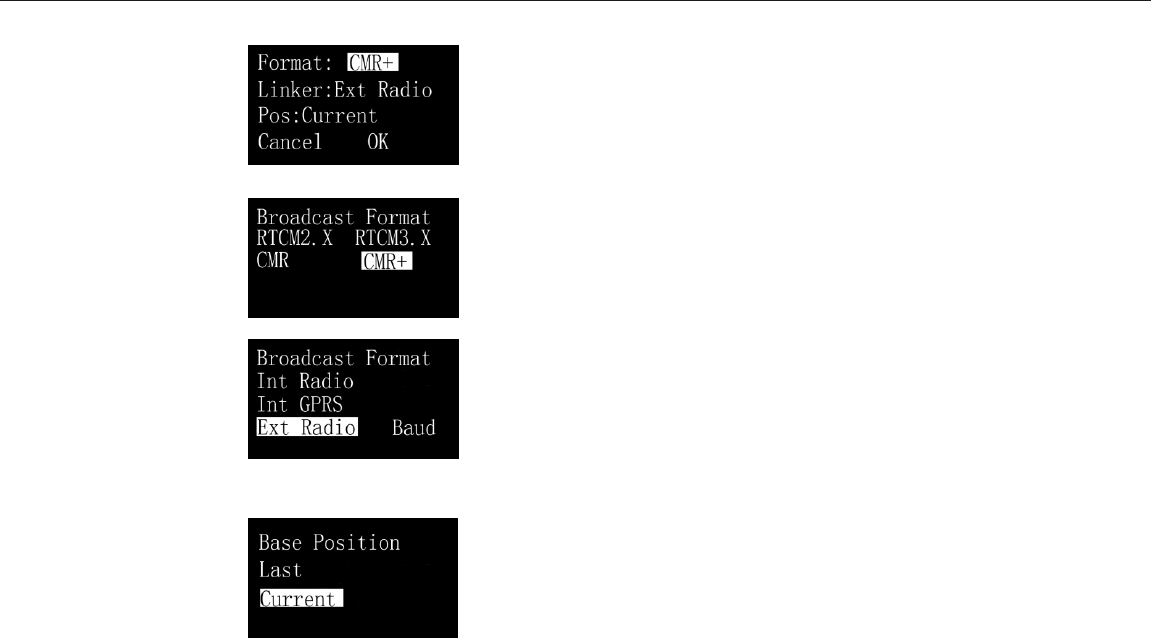

If you choose base, then you have many options for your base setting
such as Format, Linker and Position.
In the Format column, you can choose the most suitable format for
your surveying.
In the Linker column, you can choose the module of different linkers.
In the Pos. column, you can choose the coordinate of base position.
If the base has not moved, you can choose Last for the position of
base. Instead, you can choose Current for the position of base. But
be sure to do the coordinate converting because the accuracy of base
in current mode is 10m by AUTO state.(Please check the next picture
A30 User Manual
Operating
Menu (4)
Set/GPS/Base
Set/GPS/Base/Format
Set/GPS/Base/Linker
Set/GPS/Base/Pos
for reference.)
32
Left information to remind you connect the antenna for the base.
If you do not want this receiver still be the base mode, then you can
press button to exit the base mode.
A30 User Manual
Operating
Menu (5)
Now the base station setup is finished.
Radio is emitting.
Our base station would be emitted automatically if you just directly
power off the receiver without exiting the base mode and power on
again next time.
Notice: This is suggested to do in order to save you a lot of time for the base settings next
time. But you should remember to connect the antenna before power on the receiver,
otherwise, internal radio would be damaged.
Also, we have information displayed on the screen to remind you plug the antenna when you
power on the receiver again.
OKOK
33

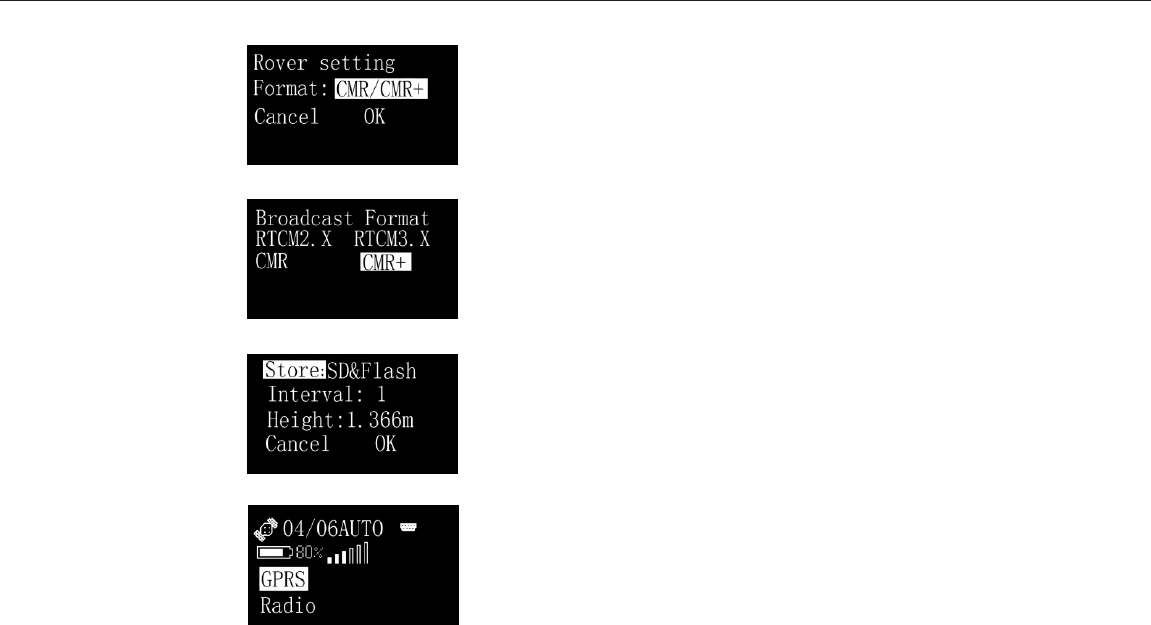

Choose Rover for your rover setting.
At the rover setting menu, you can select the format e.g. CMR etc.
If you choose Static, then 3 options for your setting such as Store
position, Interval and Antenna Height. Two ways are available for
your memory, NAND flash and SD card.
If you choose link, then you would have two ways for your data
transferring.(WCDMA)
A30 User Manual
Operating
Menu (6)
Set/GPS/Rover
Set/GPS/Rover/Format
Set/GPS/Static
Set/Link
34
You can either Open or Close the WCDMA linking.
This is the Radio(inner radio) setting interface.
Select Set, you would see the Setting Radio procedure.
You can also choose Memory to set it for storage medium.
(Flash or SD card)
A30 User Manual
Operating
Menu (7)
Set/Link/WCDMA
Set/Link/Radio
Set/Link/Radio/Set
Set/Memory
35
You can Check or Format NAND Flash.
If you choose SD card as memory, then you would be mentioned to
copy Flash s data to SD card.
This is the copying procedure.
In the System menu, you have 4 options to set.
Bluetooth, Voice, Language and Screen.
A30 User Manual
Operating
Menu (8)
Set/Memory/Flash
Set/Memory/SD card
Set/Memory/SD card/Copy
Set/System
36

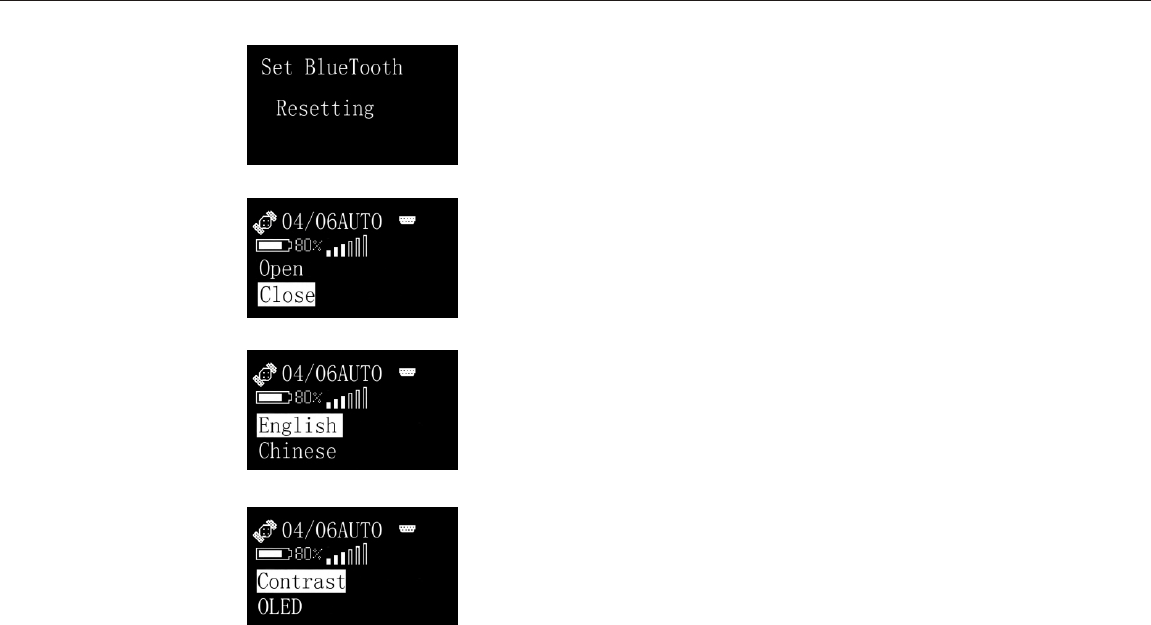

This is the Bluetooth Resetting procedure.
Here you can Open or Close the Voice.
Two options are available for language.
Screen to set Contrast and OLED.
A30 User Manual
Operating
Menu (9)
Set/System/Bluetooth
Set/System/Voice
Set/System/Language
Set/System/Screen
37
A30 User Manual

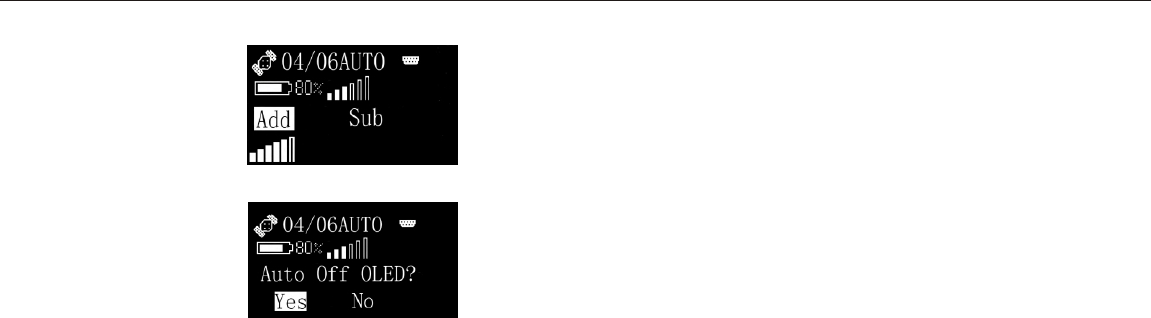

Choose Add or Sub to set the contrast of the screen.
This is power saving mode by choosing OLED, then you would be
asked whether auto off OLED or not. If you choose Yes, the screen
would be Off automatically after 1 minute without affecting your
Operating
Menu (10)
Set/System/Screen/Contrast
Set/System/Screen/OLED
surveying job.
38
6 Static Surveying
A30 also has static surveying function, which includes outdoors surveying and office
6.1 Process
1) Fix A30 on tripod.
2) Measure the height of A30.
3) Turn on A30 while more than 4 satellites are tracked by this instrument, then start the
static surveying from the buttons of A30 screen.
4) It is important to record the surveying time, SN of A30,height of A30, etc. on a notebook
5) When outdoors surveying is over, turn off A30.
Notice:
Normally, it is better to record the static data on SD card.
6.2 Data Downloading and Format Converting
1) Connecting A30 and PC for data downloading.
2) File name given should according to the notes of outdoors surveying made by yourself.
SN of A30, surveying time and point name should all be indicated in the file name for
your easy distinction. For example, A30, the detailed information is,A300000086(SN
A30 User Manual
while this receiver is doing the static surveying.
working.
39
surveying at 11am to 12am on CPI0027. So then we can give its name as 0027086B which
is different from 0023086A,although we use the same receiver to do the job.(The front 4
3) Convert these data to RINEX format and input the height of A30. You can finish this by
the software FOIFGNSS shown below.
numbers are point name, the later numbers are SN of receiver, the last capital letter is
can give its name as 0023086A. Further more, still this receiver for the second time
A30 User Manual
of receiver) for the first time surveying at 9am to 10am on CPI0023(point name), so we
surveying time.)
4) Click Import raw files for translated to RINEX , choose the files that need to be
converted.(These files are downloaded from receivers.) This software can convert as
much as 16 files at the same time.
5) Choose the files that you want to convert, then click Open . The converted files are
saved at the same path as your original files on your PC.
40
A30 User Manual
7) When you have seen the window information RINEX Translation finished , then
press OK , you can see the network and baselines for your static surveying.
Detailed pictures are shown below,
8) Using FOIF post processing software FOIF Geomatic Office 2008 to do the office
Detailed ways are shown in the user manual of FOIF Geomatics office 2008 .
work.
41
6.3 Ways of Outdoors Working for Static Surveying
1) Surveyors should give a general understanding about their surveying district e.g. point
position, difficulties of making point and also includes the economic level, culture
custom, traffic situation etc. at that place.

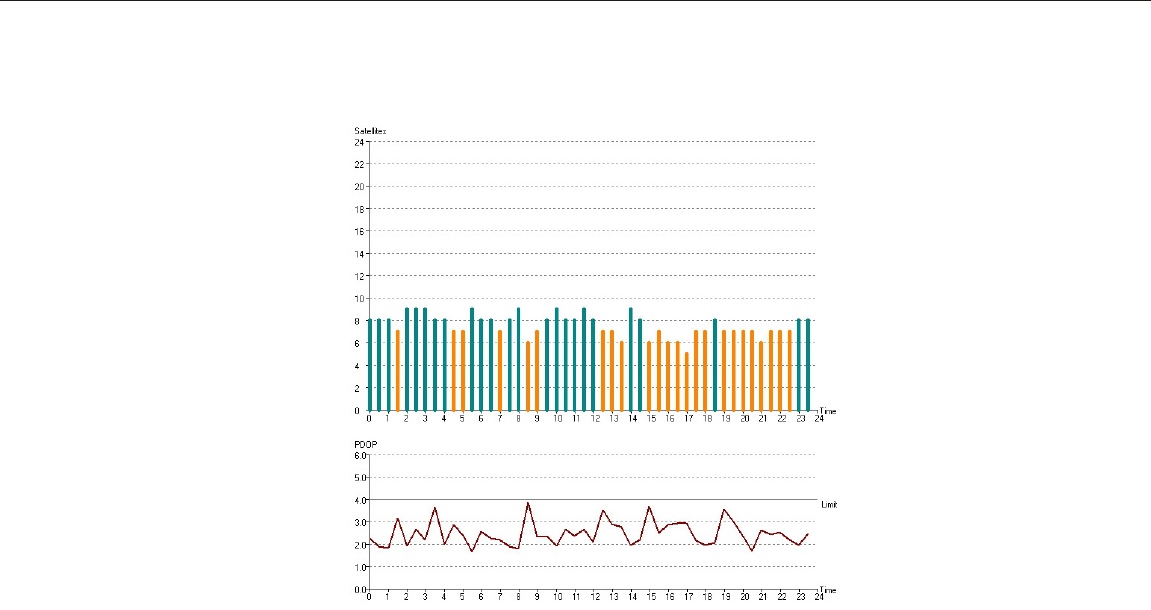

2) Ephemeris forecast: Good surveying opportunities should depend on the surveying
position and the latest satellite ephemeris. The satellite ephemeris includes many aspects
e.g. visibility of satellites, satellite constellation, PDOP etc. If big building is beside the
A30 User Manual
point, then you should give a conclude on whether this big object would influence the
effects of static surveyings on that point.
3) Give a detailed surveying precedure on the paper.
4) Outdoors surveying: Comply with the surveying procedure and related receiver manual
to lead your job.
5) Data transferring: Check the consistency between outdoors notes making and the files in
the receiver by PC.
6) Process baselines to determine the accuracy of your surveying thus leading your next
working plan.
7) Finish working if there has no problem in step 6) and then print your adjusted results
report.
42

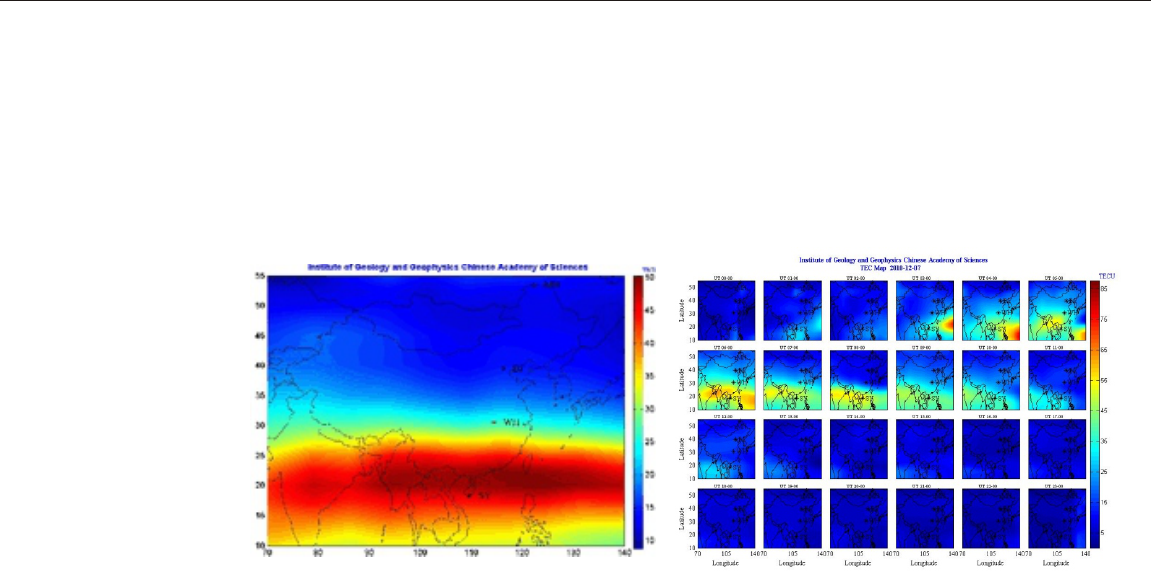

Notice:
To achieve a better accuracy and reliability of the project, it is asked that you should have a
knowledge of the ephemeris and the status of ionosphere to avoid the troubles from
surveying.
A30 User Manual
Followed pictures show you the detailed situation of ephemeris.
43
A30 User Manual
44
You can visit followed website to see the status of ionoshere. The status of ionosphere is
updated every 24 hours.
http://space.iggcas.ac.cn/TEC.asp
6.4 GPS Network
6.4.1 Network Designing
1) The baselines should be closed. Single baseline is not accepted in the designing.
2) It is not right to say that the more the baselines, the better the results are. Three baselines
for one point is suitable for the reliability of network.
3) For getting the higher accuracy of the point, one point for two times surveying is suggested.
4) In order to convert GPS system to your local coordinate system, you should have at least
3 to 5 higher accuracy known point that are equally spread in the survey district for your
good coordinate converting. At the same time, if you want to get your good elevation of
A30 User Manual
the surveying points, then you should have certain leveling points for your research on
the elevation of your surveying district.
5) Considering the convenience of static surveying, it is suggested for you to give your
points in the wild place where you are easy-going.
45

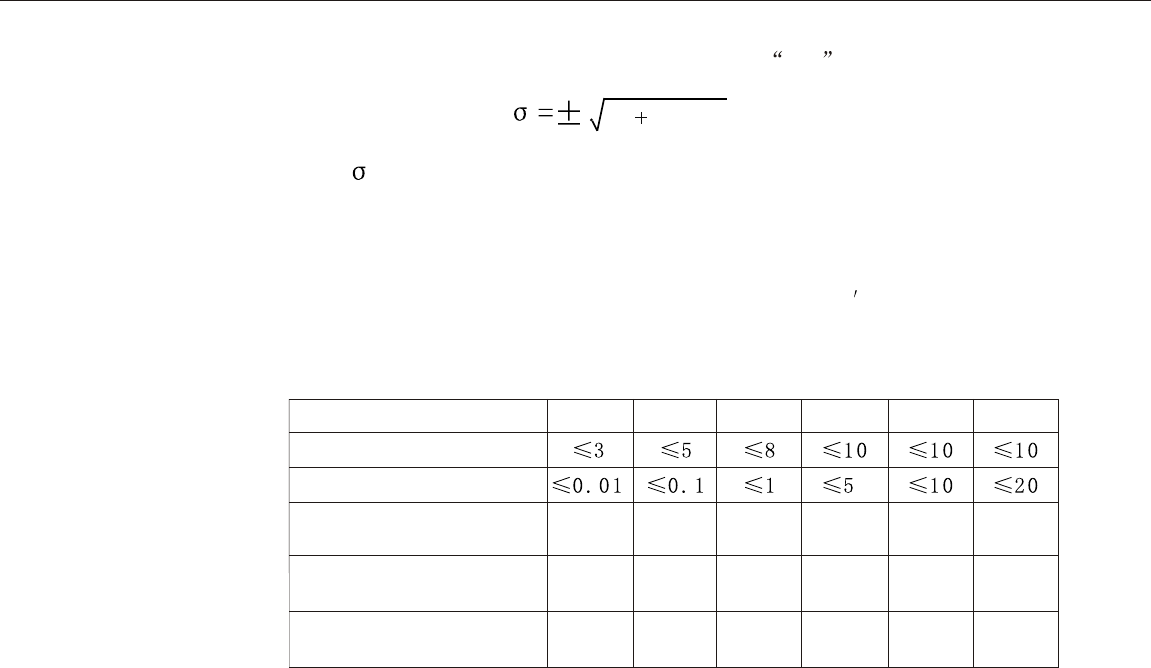

6.4.2 Accuracy Standard in Static Surveying
Accuracy standard in static surveying is judged by the rms of distance in the adjacent
two points.
22)*(dba+
: rms (mm) a
bd
: fixed error (mm)
: scale factor (ppm) : distance (km)
The surveying accuracy for GPS is divided into 6 levels by Surveying Standard for GPS
published in 2001 (AA, A, B, C, D, E). AA, A, B are for country s GPS control surveying.
Level C is mainly in engineering surveying of big or middle cities. D and E are for control
surveying in middle or small cities
A30 User Manual
Minimum distance for
Maximum distance for
Average distance for
Items AA ABCDE
Fixed error:a (mm)
Scale factor: b(ppm)
adjacent two points (km)
adjacent two points(km)
adjacent two points(km)
2
4
23
100
300 1
2036
210
9003000 8
10 15
70300
1000 ~0.2 5
~
5 10
~
46
A30 User Manual
6.4.3 GPS Network
There are many kinds of GPS network designing such as tracking, alternately observation,
Tracking: Several receivers fixing at the certain points for a long time observation (such
as 1 year without stop), which is suitable for level AA control survey or perma-
Alternately observation: Several receivers fixing at the points of certain district, they also
need long time surveying (several days), after this procedure, change the receivers
to the other points of this district, then use the same surveying way. This mean can
eliminate the influence of SA. It is suitable for the GPS network survey of level A
Multi-base: While several receivers are fixing at the base points (like CORS) with long time
surveying, then we can use other rovers working in this net simultaneously. It is
suitable for level C and D survey.
Single-base: Use one receiver fixing at the base point working continuously, then use rovers
to do the surveying job around base point. These rovers do not need synchron.
As a rover fix at one point, one baseline is formed. Several rovers then can form
many baselines which have the same base point like a star. It is suitable for level
D and E survey.
Normal: This way is just the general way for customers. You just follow the manual and do not
multi-base, single-base, normal.
nent monitoring survey.
and B survey.
47
A30 User Manual
simultaneously. This moment, one polygon is formed by these receivers. After the first
surveying time is over, move these receivers to other points doing the same surveying job
(another polygon is formed by the second time surveying) but make sure that the two
polygons should have common side. The whole GPS network is formed by these polygons.
6.4.4 Shapes of GPS Network
Depend on different applications, shapes of GPS network can be divided into several types:
Radial network, Point connecting network, Side connecting network, Polygon connecting
network and Mixed connecting network.
Radial network
Radial network is a simple geomatic figure, but it is not
easy to check the accuracy because all the sides of that
network are not closed. The advantages for this type is:
only need 2 receivers, which is regarded as an easy-working,
fast-tracking way. It is widely used in low precision
engineering surveying, cadastra survey, mapping and so on.
fixing on points to do the static surveying for a certain while (usually 40-60 minutes)
need to have many professional knowledge. Detailed way is, using 3 or more receivers
It is suitable for level C and D survey.
48
A30 User Manual
Point connecting network
Point connecting network is defined as a figure by connect-
ing two adjacent shapes by only one common point. The
advantages for this type is high efficiency, fast extending,
but it also can not confirm the high precision surveying. So
it is not suggested in precise working.
Side connecting network
Side connecting network is defined as a figure by connect
ing two adjacent shapes by their common side. It is as same
as normal GPS network designing shown in the last para-
graph and is widely used in the surveying field because of
On the left is 3 receivers working simultaneously in the
Point connecting network.
its high precision.
49
A30 User Manual
Polygon connecting network
Polygon connecting network is defined as a figure connect-
ing the two adjacent shapes by at least 3 common points.
So this network at least needs 4 receivers. It is better than side
connecting network in accuracy but not working time. So it is
only suggested for high precision control surveying.
Mixed connecting network
Because every type of network has its own disadvantage, so we can use Mixed connecting
network which can combine the advantages of these types to achieve higher efficiency
working but lower investment both in time and money.
Mixed connecting network is also the common type in doing the surveying job.
6.4.5 Principles of GPS Network Designing
Principles for GPS network designing include 3 parts, point position, reliability and
accuracy.
50
A30 User Manual
Point position
1)Widely place is suggested because of good satellites signals, big buildings are not
allowed at the range of 10 ~ 15 in elevation mask.
2)Keep 200m away from high power WiFi object, e.g. radio, powerline etc.
3)It is better to be removed from the large water area, high building etc. to avoid or reduce
the effects of multipath.
4)The place for point position should be easy-going and also steady for further applications.
Reliability
1)Longer surveying time.
2)Repeated station setting is suggested.
3)Comfirm that one point should be involved at least 3 baselines.
4)The sides for every part of the network should not exceed 6.
Precision
1)Synchronous surveying is suggested in the adjacent points.
2)GPS network designing is suggested.
3)The sides for every part of network should not exceed 6.
4)High precision EDM instrument is recommended to use together with GPS receivers.
5)Leveling points should be equally spread in the district for better elevation fitting.
6)Surveying time (times) could be added appropriately for higher precision surveying.
7)Known points should be equally spread in the district for better precision surveying.
51
A30 User Manual
7 Specifications
7.1 Physical Specifications
Feature Specification
Size 197mm*101mm ( *H)
Weight:with battery 1.5kg
Operating time 5.8Ah >13hrs optional
UHF rover at 20
Operating temperature
Storage temperature
Humidity
Water/Dust proof
Drops
-30 to +65 -22F to 149F
-40 to +75 -40F to 167F
Up to 100%
IP67,IEC529
2M pole drop
7.2 Positioning Specifications
D:distance Km
Feature Specification
Post processing
Horizontal
Vertical
Real-time(RMS)
Horizontal
Vertical
2.5mm+1ppm*D
5mm+1ppm*D
10mm+1ppm*D
20mm+1ppm*D
Static and fast static
RTK
52
A30 User Manual
7.3 Technical Specifications
120 channels, GPS 14L1,14L2,
GLONASS 12L1,12L2,2SBAS
220 channels, GPS: L1 C/A, L2E, L2C, L5
GLONASS: L1 C/A, L1P, L2 C/A, L2P
SBAS: L1 C/A, L5
GLOVE-A: L1 BOC, E5A, E5B, E5AltBOC
GLOVE-B: L1 CBOC, E5A, E5B, E5AltBOC
GALILEO: L1 CBOC, E5A, E5B, E5AltBOC
Communication
RS232*2 (LEMO&DB9), Bluetooth,
(optional):Ethernet, PPS, Ext Event
I/O Interface
Satel UHF-Link (403~473MHz) Rx only
UHF-Link (390~430MHz/430~450MHz/
1.Internal radio
GNSS Engine
450~470MHz) Rx only
Internal memory
Data formats
RTCM 2.x, RTCM 3.x, CMR, CMR+
NMEA0183
Operation
RTK rover/base, post-processing
RTK Network rover: VRS, FKP, MAC
Point-to-Point Circuit Switched Data (wcdma)
WCDMA mode through Real-time Data Server
Software(internal wcdma or external cell phone)
4GB
53
A30 User Manual
7.4 Technical Specifications for Controller
7.4.1 Getac PS236
Feature Specification
CPU
Operation system
Communication
Working distance
I/O Interface
Dimensions
Weight
Operating temp
Storage temp
Humidity
Water/Dust
Drops
Memory
Display
PXA310 806MHz, 32bit RISC CPU
3.5 TFT LCD VGA (640*480)
Microsoft Windows Mobile 6.1
128MB MDDR
Integrated bluetooth and RS232
10m (for bluetooth)
USB/RS232
178*89*30mm
0.5kg (Include battery)
-40 ~+70
95%
IP65, IEC529
1.52m (5ft) drops to polished concrete
-30 ~+60
256MB NAND Flash, 4GB iNAND
Camera 3 Megapixel Auto-focus camera
54
A30 User Manual
7.4.2 Getac PS236C
Feature Specification
CPU
Operation system
Communication
Working distance
I/O Interface
Dimensions
Weight
Operating temp
Storage temp
Humidity
Water/Dust
Drops
Memory
Display
PXA310 806MHz, 32bit RISC CPU
3.5 TFT LCD VGA (320*240)
Microsoft Windows Mobile 6.1
128MB MDDR
Integrated bluetooth and RS232
10m (for bluetooth)
USB/RS232
178*89*30mm
0.5kg (Include battery)
-40 ~+70
95%
IP65, IEC529
1.52m (5ft) drops to polished concrete
-30 ~+60
Camera 3 Megapixel Auto-focus camera
55
7.4.3 Getac PS236S
Feature Specification
CPU
Operation system
Communication
Working distance
I/O Interface
Dimensions
Weight
Operating temp
Storage temp
Humidity
Water/Dust
Drops
Memory
Display
PXA310 806MHz, 32bit RISC CPU
3.5 TFT LCD VGA (640*480)
Microsoft Windows Mobile 6.1
128MB MDDR
Integrated bluetooth and RS232
10m (for bluetooth)
USB/RS232
178*89*30mm
0.5kg (Include battery)
-40 ~+70
95%
IP65, IEC529
1.52m (5ft) drops to polished concrete
-30 ~+60
256MB NAND Flash, 4GB iNAND
A30 User Manual
56
SUZHOU FOIF CO., LTD.
ADD 18 Tong Yuan Road, Suzhou 215006, P.R. China
TEL: +86 512 65224904
FAX: +86 512 65220619
Http://www.foif.com
E-mail: internationalsales@foif.com.cn
