Four-axis structure is applied,which makes the quadcopter more flexible and rapid
when flying.It has the characteristics of wind-resistant and can be flied indoor or
outdoor.
Vehicle and aircraft is integrated as one, which not only can fly but also move on
the land.
Built-in 6 axis gyroscope for precise hovering in the sky.
Modular design structure is applied, more simple for assembly and convenient for
maintenance.
With 360°3D eversion function and throwing flight function .
Main characteristics
The materials and specification mentioned in this instruction manual or the parts
inside this package is for reference only.Our company won’t be responsible for any
adaption of the outer package.Nor shall we keep our customers informed in advance.
Any information updates or changes,please be subject to our website .
2
-1-
1. Please put smaller parts of the aircraft in the place where children can’t reach,
avoiding from accidents.
2. Power of this aircraft is adequate. Therefore, when flying for the first time, it
should push remote control’s right/left variable-speed joystick slowly, avoiding
from collisions caused by rising aircraft rapidly.
3. After flying, it should turn off remote control’s power supply and come close to
the aircraft to turn off its power supply.
4. Please don’t put battery in high-temperature and heated places(such as fire or
nearby electric heating devices).
5. When the aircraft flies, it should maintain 2-3 meters from the user or others,
avoiding from crashing into others’ head, face or body when it lands.
6. When children operate the aircraft, they should be accompanied with the adult
and guided by the adult. Ensure that the aircraft is controlled within the range
of operator’s (or instructor’s) visibility. It is convenient for controlling.
7. Non-rechargeable battery can’t charge. As installing or changing battery,
please pay attention to the polarity. Don’t use a mixture of old and new battery
or battery with different types.
8. When it isn’t used, it should turn off remote power supply of remote control and
aircraft, respectively, and take out the battery in remote control.
9. Power supply terminal can’t be short circuit.
Safety regulations
Instructions for use
1) Age classification: not suitable for children under 8 years of age
2) Before first use: read the user's information together with your child.
3) Flying the quadcopter requires skill and children must be trained under the
direct supervision of an adult.
4) For toys intended to be assembled by the child: Check if the toy is assembled
as instructed. The assembly shall be performed under the supervision of an
adult.
5) Hands, hair and loose clothes shall be kept away from the propeller (rotor).
6) Do not change or modify anything on the quadcopter!
7) Caution! The quadcopter should not be started when persons, animals or any
objects are within the flying range of the quadcopter.
8) Do not throw or hold any objects in the rotating rotor
-2-
1. Use clean soft cloth to clean this product frequently.
2. Avoid from exposure or heating in the sun.
3. Don’t put the toy in the water. Otherwise, it’ll damage electronic parts.
4. Please check the plug and other accessories at regular intervals. If there
is any damage, please stop using it immediately until it is repaired completely.
Maintenance
Contents
Product included following contents:
- Quadcopter
- 2.4G Remote controller
- USB charging wire
- Instruction manual
- Battery
- Blade(4 pieces)

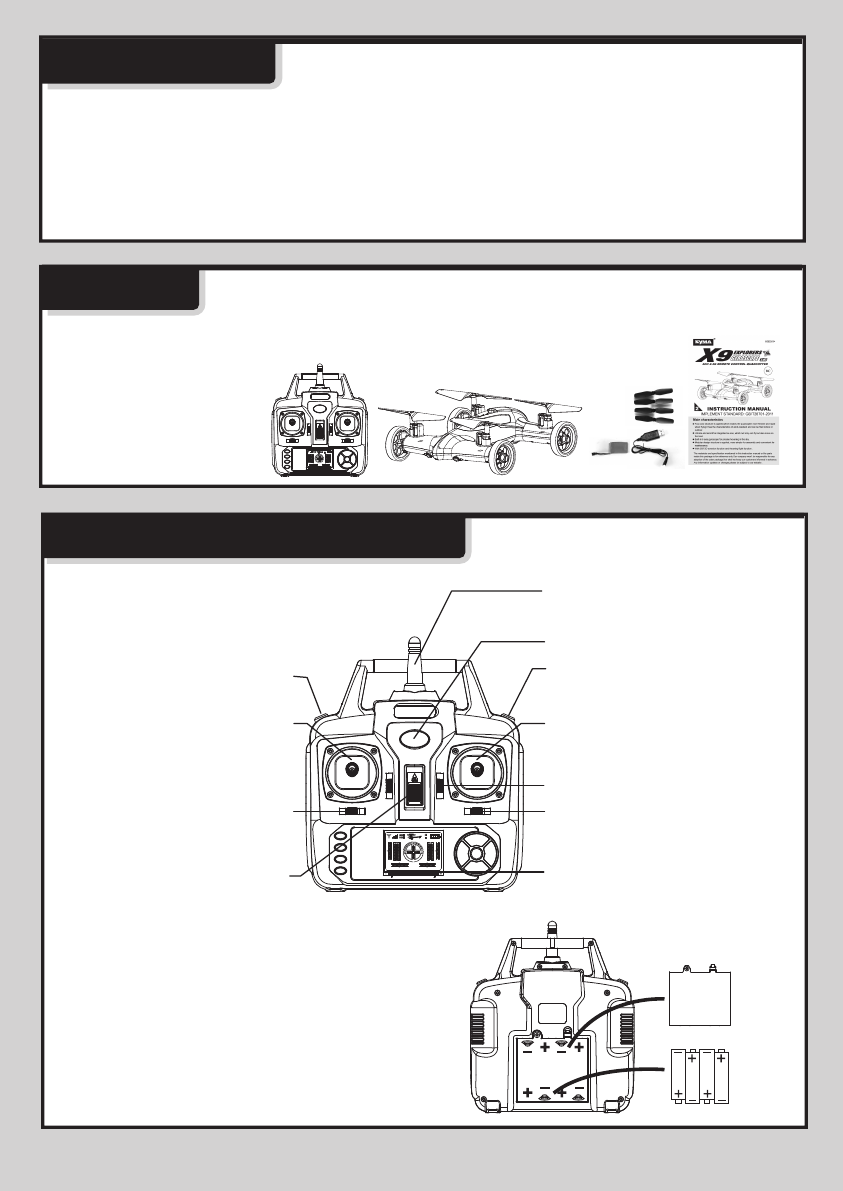

Get to know your transmitter
Introduction of transmitter:
High/Low
speed switch
Left Fine -
tuning(Mode 1)
Sideward Fine-
tuning (Mode 2)
Left control
lever (Accelerator)
Power ON/OFF
3D Eversion
Antenna
Right control lever
Mode switch
Sideward Fine-tuning (Mode 1)
Left Fine -tuning(Mode 2)
Forward and
backward
trimmer
Indicator
LCD Displayer
Remote control Installing the battery
Battery
Cover
4 X AA
(LR06)
1.5V
Batteries
Installation methods of battery:
Open back battery cover of remote control,
and put 4 No.5 alkaline batteries in the
middle place correctly, according to battery
box's pole indication (battery should be
available separately).
-3-
A
B
1.Install batteries with correct polarity.
2.Do not mix old and new batteries.
3.Do not mix different types of batteries.

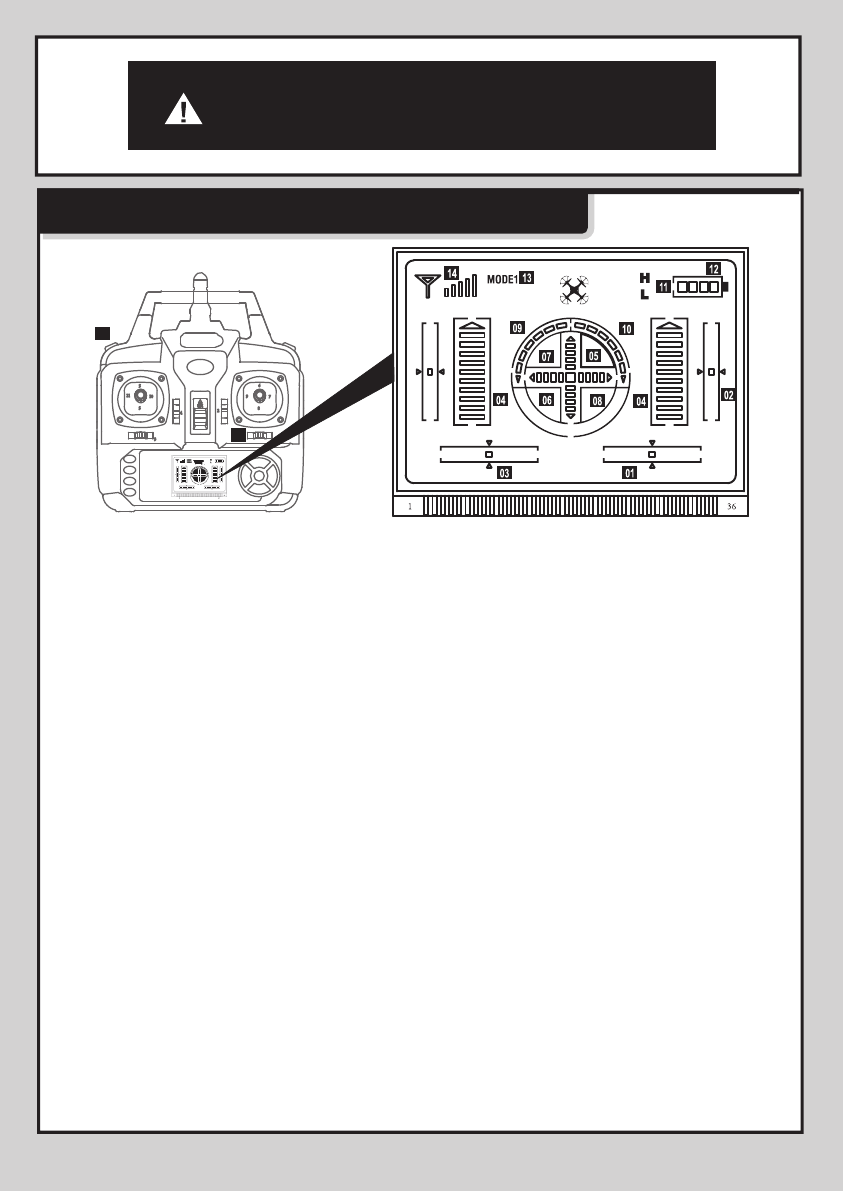

Remote control keypad and lcd manual
01.Sideward Fine-tuning :Power-on start in the centering.(Be turn Left/Right
Fine-tuning in Mode2)
02.Forward/Backward fine-tuning:Power-on start in the middle.
03.Turn Left/Right fine-tuning:Power-on start in centering.(Be Sidewoard Fly
Fine-tuning in Mode2)
04.Throttle show:Power-on start in lowest level.(Left and Right throttle shows
at one time)
05.Forward shows:Power-on start in the lowest level.(At the center spuare)
06.Backward shows:Power-on start in the lowest level.(At the center spuare)
07.Right sideward fly shows:Power-on start in the lowest level.(At the center
spuare)
08.Left sideward fly shows:Power-on start in the lowest level.(At the center
spuare)
09.Turn left: Pull left function lever to left, it will be higher, than quadcopter turn
left faster.
10.Turn right: Pull left function lever to right, it will be higher, than quadcopter
turn right faster.
11.High/Low speed: Press button “A” for seconds to switch between high speed
mode or low speed mode. “H” means high speed and “L” means low speed.
12.Power shows:According to the battery's energy for the controller.
13.Default mode when power-on.When change to MODE 2, please keep
pressing button "B" to right than return on the power of transmitter, the MODE
on LCD displayer will be changed. Same steps to change to MODE 1 again.
14.Signal shows:Normally to full frame.
