Function introduction
When four indicator lights on the bottom
of aircraft start to flicker, it means electric
quantity of the aircraft is insufficient. Please
control the aircraft to make a return voyage.
1.Low-voltage protection:
In the condition of rotating aircraft’s fan
blade, when being crashed or stuck,
aircraft’s circuit will conduct over-current
protection.
2.Over-current protection:

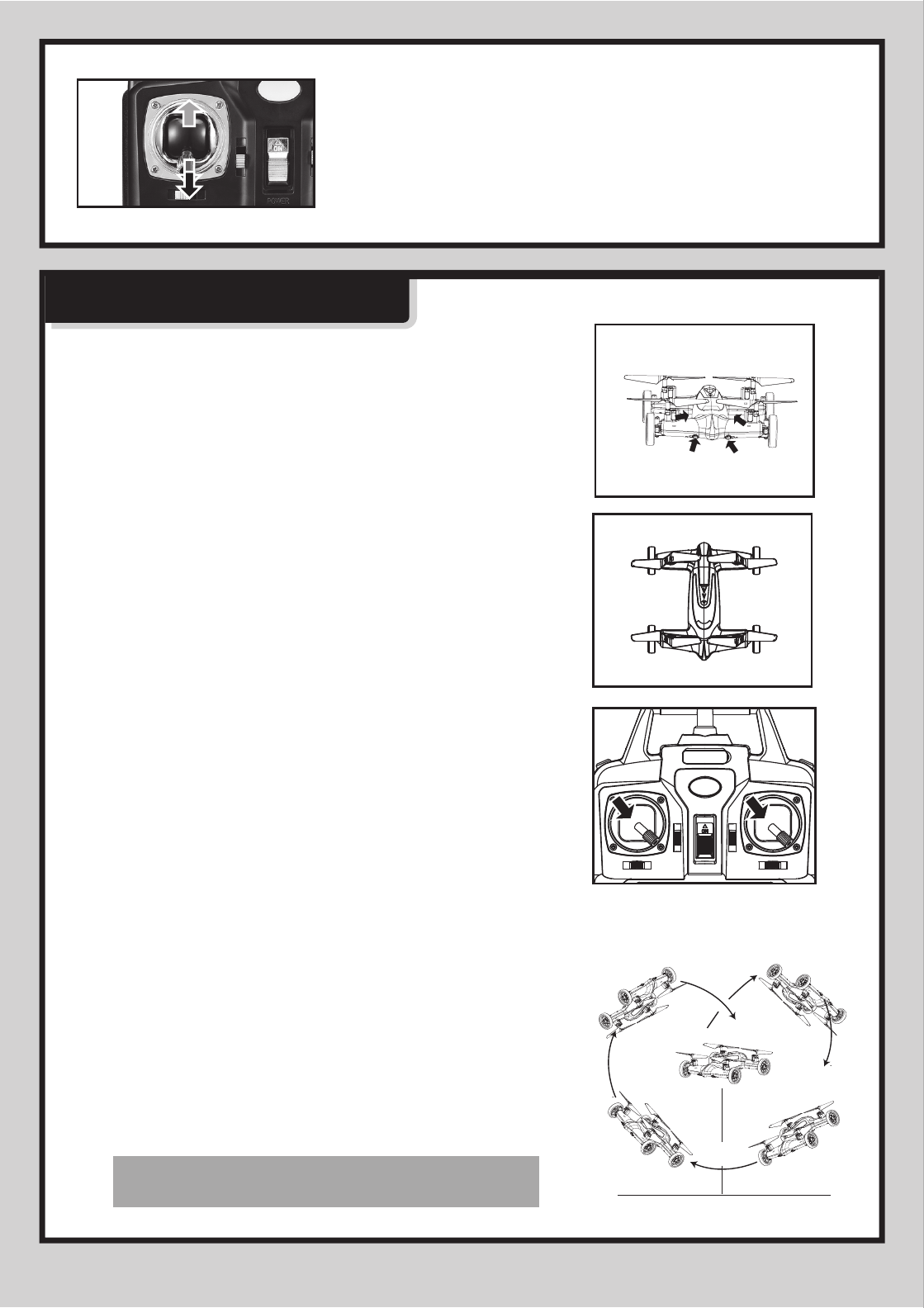

3.Horizontal correcting function:
4.3D eversion:
Place the quadcopter on a horizontal postion,
then push transmitter both left and right lever
to lowest right conner for about 2-3 second ,
indicator on the quadcopter changed from
normal lights up to quickly flashing ;After 2-3
second ,the indicator changed to normal lights,
it means the quadcopter restarted /reset successfully.
Tips:3D eversion goes better when battery
power is enough.
When you are familiar with the basic operation,
you can do some awesome& exciting tricks and
stunts! First of all,fly the aircraft to a height of
more than 3 meters, press the 3D Eversion
switch on the rear right side of the transmitter,
then push the right rudder(in any direction)
to make 360 degree flip.
Step 4:Push the throttle lever to the highest position,
and then pull it back to the lowest position.
There will be one clear sound from the transmitter,
this shows that the quadcopter has entered into
the pre-fly state.

 

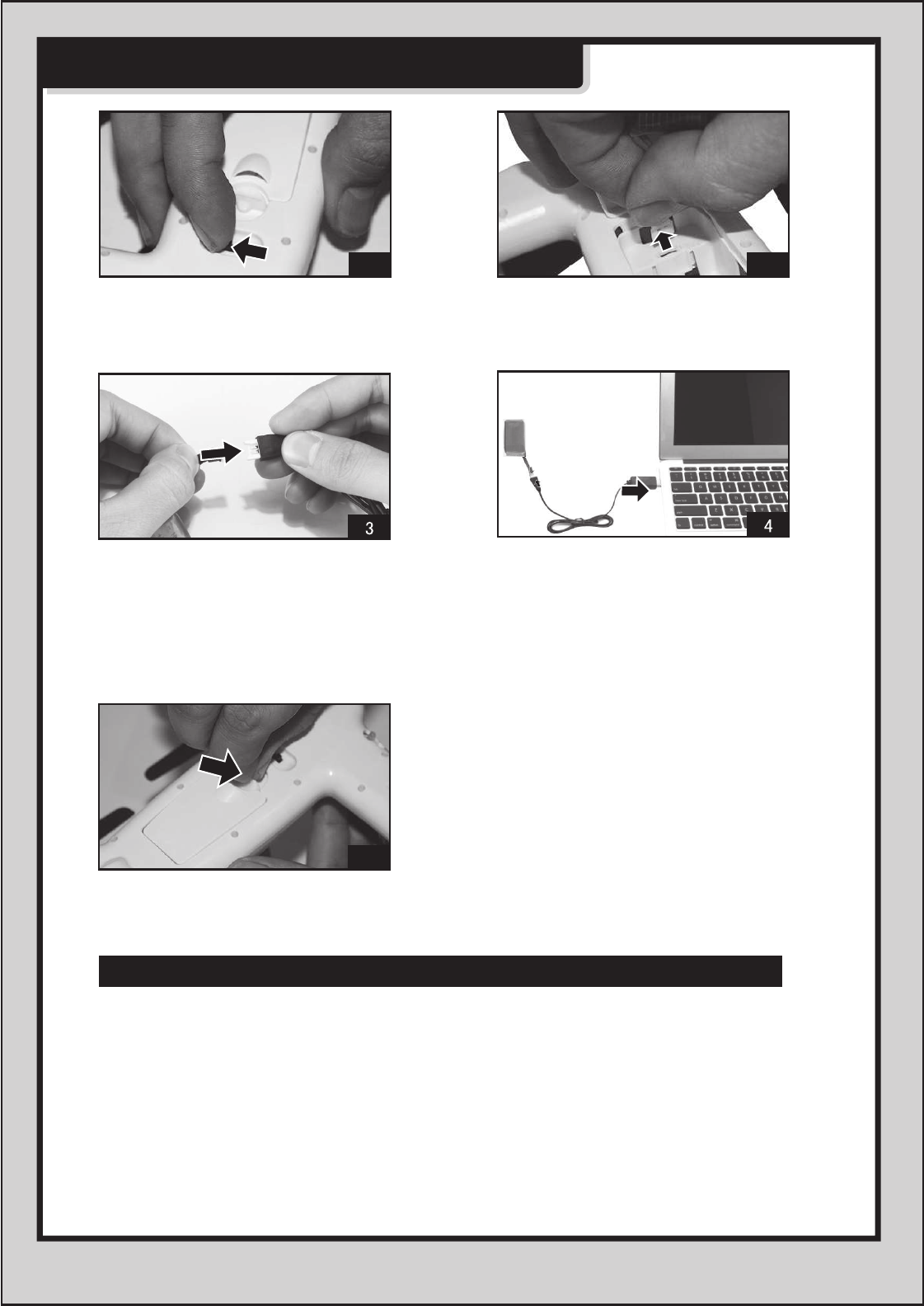

1.Push the on/off switch of
quadcopter to OFF position
than open the battery cover.
2.Pull out the battery wire from
the power port.
3.Take out the USB charging
cable, and insert the battery
power port to the small end
of it (Make sure the ports
connect tight and correct ).
5.Reconnect the battery wire to
power port than close the
battery cover.
Charging time: about 100 minutes — Flying time: about 5 minutes!
1.When charging, please put this product on a dried or ventilated area and keep
it far away from heat source or explosive product.
2.When charging, please remove the batteries from the quadcopter. Then
charging process should be supervised by an adult so as not to cause an
accident.
3.When finish flying, please do not charge the battery if the surface temperature
is still not cool. Otherwise it may cause a swollen battery or even a fire hazard.
Cautions when charging:
4.To charge battery, please insert
the USB port of provided USB
charging cable to anyone USB
port of computer.
The indicator on USB cable will
light ON during charging battery,
than it will light OFF when battery
fully charged.
Caution:
When using the computer for
charging,please remember to pull
out the charging cable before
shutting down the computer.
Take the battery cover ,and close
the battery cover on the quadcopter.
5
Change battery of quadcopter

;$ ;% ;& ; ;
; ;
Battery cover
; ; ;
4.Please make sure that you use the original USB charging cable provided.When
the battery has been used for a long time, or appears to be swollen, please
replace them.
5.A battery when not in use for a long time will lose its charge automatically.
Charging or discharging too often may reduce the life of the battery.

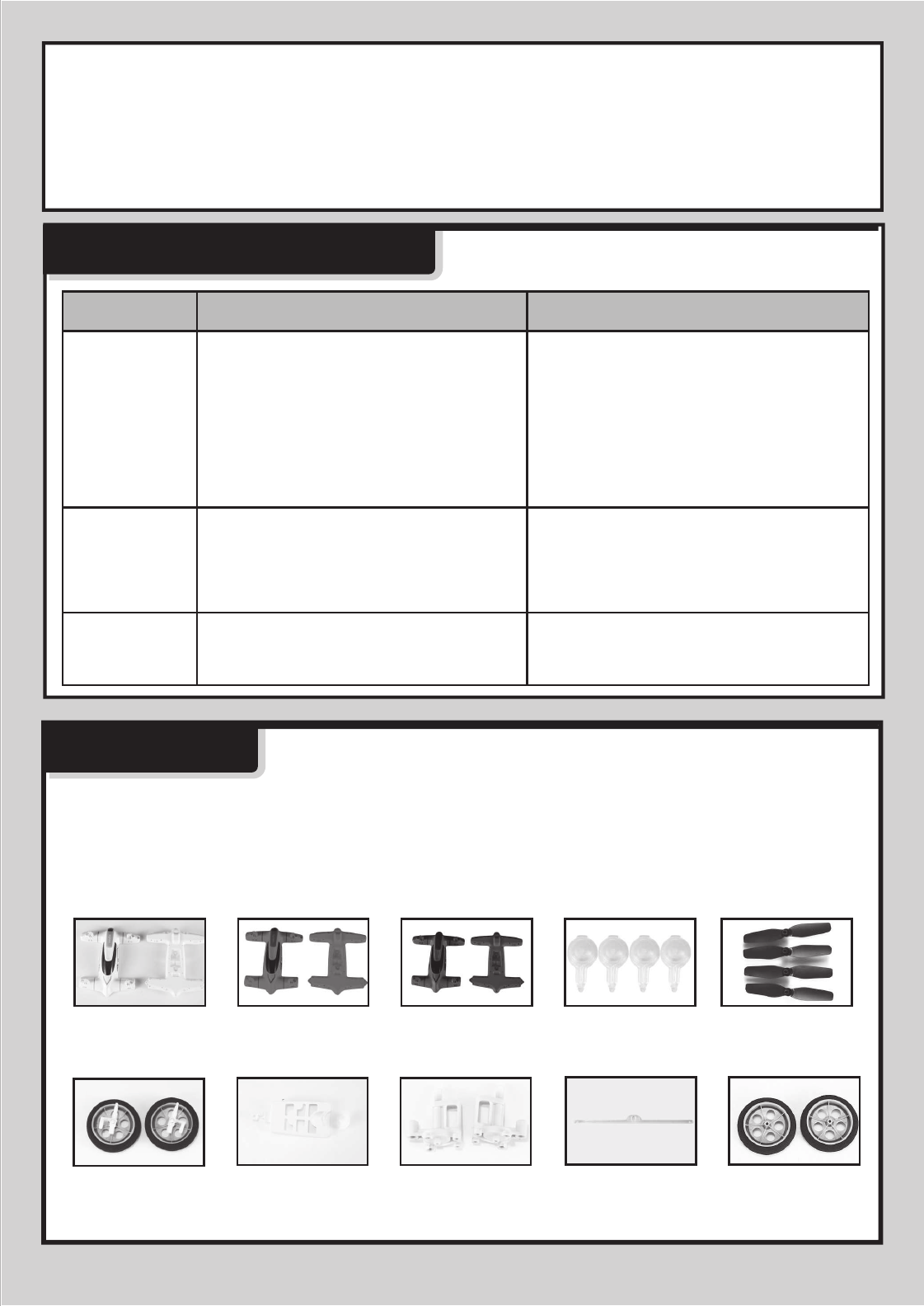

Maintenance procedure
Problems Causes Solutions
Aircraft has
no response
1. Aircraft enters into low-voltage
protection.
2. Electric quantity of remote control is
insufficient, power indicator light will
flicker.
3. Channel selection of remote control
is inconsistent with aircraft’s match
codes.
1. Insufficient remote control’s electric
quantity.
2. Remote control with the same
frequency is transmitting interference.
1. Have no horizontal correction.
1. Battery replacement.
2. Change the place where has no
transmitting interference of the
same frequency.
1. Conduct horizontal correction, as
shown in p.8(3)(correcting function)
1. Charge the aircraft.
2. Change remote control’s battery.
3. Adjust channels of remote control
and aircraft, and make them become
consistent.
Aircraft’s flying
response is
insensitive
When hovering,
side flight is
formed
Spare parts
Here are alternative accessories. In order to provide convenience
for customer purchasing, every component are marked. Accessories
can be purchased from local dealer. Please specify the color when
purchasing.
Fuselage-white
Front wheels
Fuselage-black
Motor case
Fuselage-red Blades
Rear wheels
Lampshades
Steering putter






  
 









;
Motor AB
;
Rear drive case Steering case
casting die
; ; ;
; ; ; ;
86%
;
Brerkdown&Dlagram
Light boards Steering case
Receiver
board
ON/OFF Battery Transmitter

 
PP
PP
PP
PP
Wheels
Steering putter
Receiver board
Code Description Quantity Code Description Quantity Code Description Quantity
Upper body
Lower body
Reversing blade Battery cover
Rear drive case Fiber lampshade
Battery cover knob
Carbon rod
casting die
Steering case
casting die
Battery
Steering case
Rotating blade
Motor case
Back lampshade
Maln parameter
Code of main engine: ∮8X4Length of fuselage:180mm
Width of fuselage215mm
Height of fuselage:65mm
Battery:3.7V 600mAh
The company has the right of final interpretation
of this instruction manual statement.
