Osmo Mobile 2
TheOSMOTMMobile2isanadvancedgimbalthatturnsyourmobilephoneintoasmartmotion
camerabystabilizingitwhileinmotion.Itiseasytouse,andpowerfulfeaturessuchasActiveTrack
andMotionTimelapseareavailablethroughtheDJIGOapp.
1. Mobile Phone Holder
2. Pan Motor
3. Joystick
4. Power/Mode Button
5. Charging Port (Micro USB)
6. Shutter/Record Button
7. System Status LED
8. Battery Level Indicators
9. Tilt Motor
10. Adjustable Arm
11. Balance Adjustment Knob
12. Holder Lock Knob
13. Roll Motor
14. USB Port
15. External Device Mount
16. Zoom In/Out Switch
1. Install the DJI GO App
2. Charging the Battery
To charge the Osmo Mobile 2, connect theUSB adapter (not included) to the chargingport using
the provided power cable.
The battery is fully charged when thesystem status LED become solid white.
USB Adapter Charging time : 2 hoursand 35 minutes ( when charging at 2 A)
Max Run-time: 15 hours
The Osmo Mobile 2 supports charging mobile device.
3. Mount and Balance the Mobile
Phone
Ensure to mount and balance the mobile phone with Osmo Mobile 2 powered off.
Place the mobile phone in the mobile phone holder while pulling out the holder.

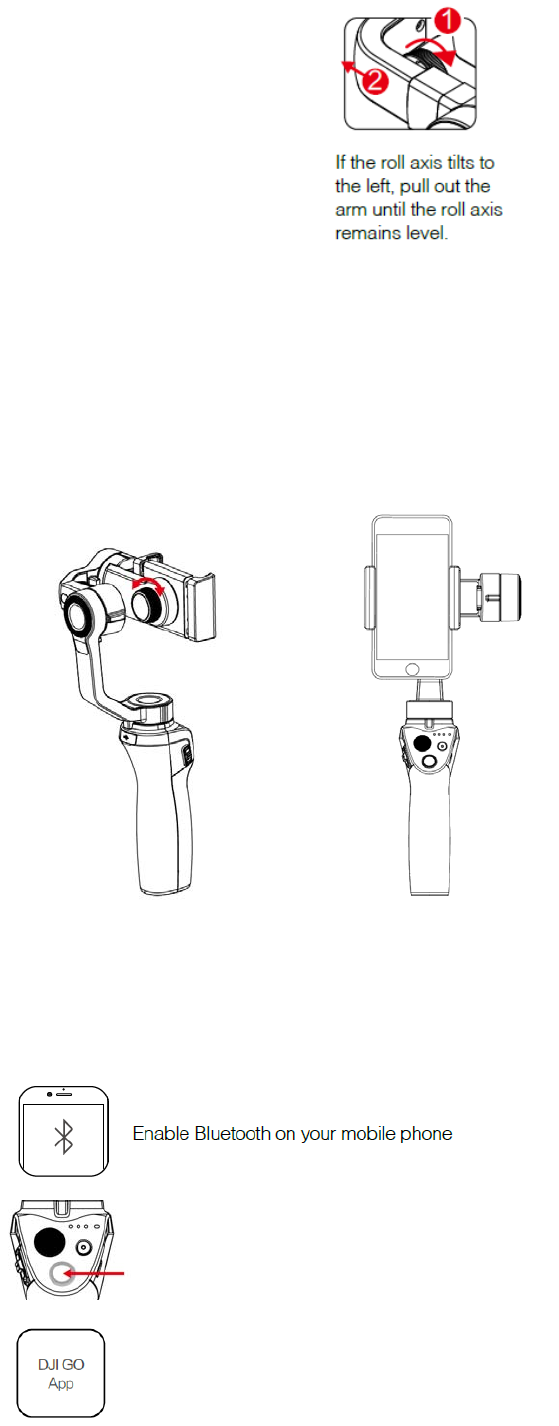

The system is balanced if the mobile phone remainslevel when released, balanced
only by the gimbal.
Osmo Mobile 2 supports mount the mobile phone vertically and horizontally. To
mount the mobile phone vertically, loosen the holder lock knob and adjust the
mobile device holder to mount and balance the mobile device.
4. Connect to the DJI GO App
To Power On: Press and hold the button
Launch the DJI GO app and then followthe instructions to connect to the
Osmo Mobile 2.
Activate the Osmo Mobile 2 when using it for the firsttime. This requires
an internet connection.
5.Controls

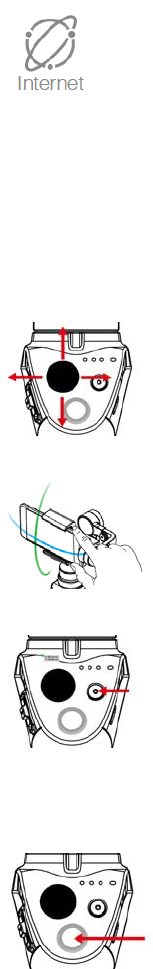

Use the joystick to pan ortilt the mobile phone.
Position the mobile phonedirectly by hand.
Press once to start/stop recording or take a photo (depending the
settings in the DJI GO app).
Tap once to switch the follow mode. Tap twice to center the mobile
phone. Tap three times to switch between the mobile phone’s front and rear
cameras.
Specifications
Gimbal
Name: OSMO MOBILE 2
Model: OM170
Dimensions: 295mm×113mm×72mm(folded)
Weight: 410g
Consumption:1.2W
Angular Vibration Range:±0.03°
Controllable RangePan: ±160°;Roll: ±25°;Tilt: ±160°
Mechanical RangePan:±170°;Roll:-90°to +70°; Tilt:±170°
Max Controllable Speed:120°/s
Mobile Phone Width Range:58.6 mm-85 mm
Wireless
Mode Bluetooth Low Energy:4.0
Intelligent Battery
Mode: l2ICR19/66
Type: 18650 LiPo
Capacity: 2600mAh
Energy: 18Wh
Voltage: 3.6V
Charging Temperature: 5℃to 40℃
Operating Temperature: 0℃to 45℃
Compliance Information
FCC Compliance Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
RF Exposure Information
This equipment complies with FCC radiation exposurelimits set forth for an
uncontrolled environment.
This transmitter must not be co-located or operating inconjunction with any other
antenna or transmitter.
ISEDC RSS Warning
This device complies with licence-exempt RSS standard (s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux
appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
ISEDC Radiation Exposure Statement:
This equipment complies with ISEDC RF radiation exposure limits set forth for an
uncontrolled environment. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
KCC Warning Message
“해당무선설비는운용중전파혼신가능성이있으므로인명안전과관련된서비스
는할수없습니다.”
“해당무선설비는운용중전파혼신가능성이있음”
