Ronin‐SQuickStartGuide



Introduction

DesignedforDSLRandmirrorlesscameras,theRonin‐Scombinesadvancedstabilization,

precisioncontrol,andmanualfocuscontrolcapabilitiesinacompact,single‐handedformfactor.

WiththeRonin‐S,creatorscanshootwiththefreedomofstabilizedshotsonthemove.



Ronin‐Scomeswithseveralbuttonsthatallowsswitchingbetweendifferentparametergroups

andoperatingmodeseasily.TheupdatedSmoothTracktechnologyandthenewSportmode

makesshootingmoreintelligently.TheRonin‐Ssupportsmountingonotherplatformliketripod,

etc.Theaccessoriesportsprovidingfullsupportforadd‐onssuchasamicrophone,LEDlights,

andevenawirelessvideotransmitter.Ronin‐SisalsocompatiblewithDJIcontroldevicessuchas

MasterWheelsandForcePro.





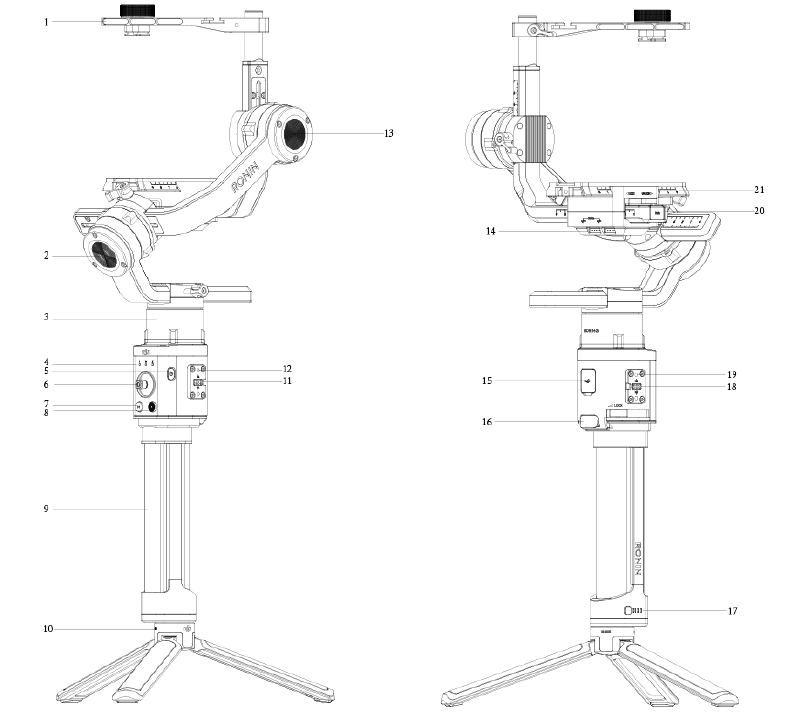

1. HotshoeModule

2. RollMotor

3. PanMotor

4. ProfileLEDIndicators

5. PowerButton

6. Joystick

7. MButton

8. RecordButton

9. BatteryGrip

10. Tripod

11. 8‐PinConnector

12. M4MountingHole

13. TiltMotor

14. 12VAccessoryPowerPort

15. USB‐CPort

16. Trigger

17. BatteryLevelButton/Indicators

18. 8‐PinConnector

19. M4MountingHole

20. CameraControlPort

21. CameraMountingBase

GettingStarted

A． DownloadtheRoninAppandWatchtheTutorials.

Searchfor“Ronin”intheAppStoreorGooglePlayandfollowtheinstructionsforinstallation.

WatchthetutorialontheofficialDJIwebsite.

https://www.dji.com/ronin‐s

B． ChargetheBattery

ChargethebatterygripusingtheprovidedUSBPowerAdapterandUSB‐Ccableby

connectingtotheUSB‐Cportonthegimbal.

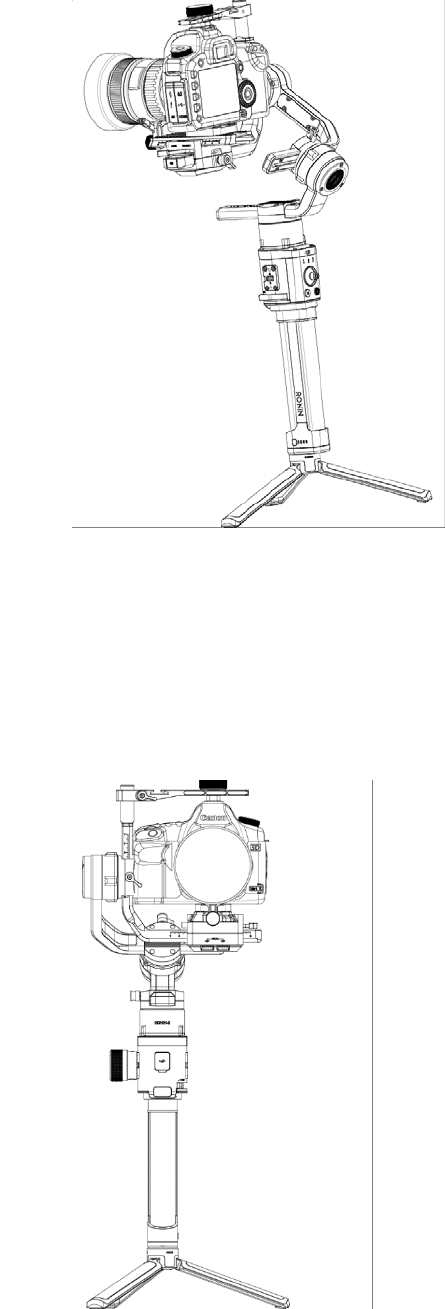

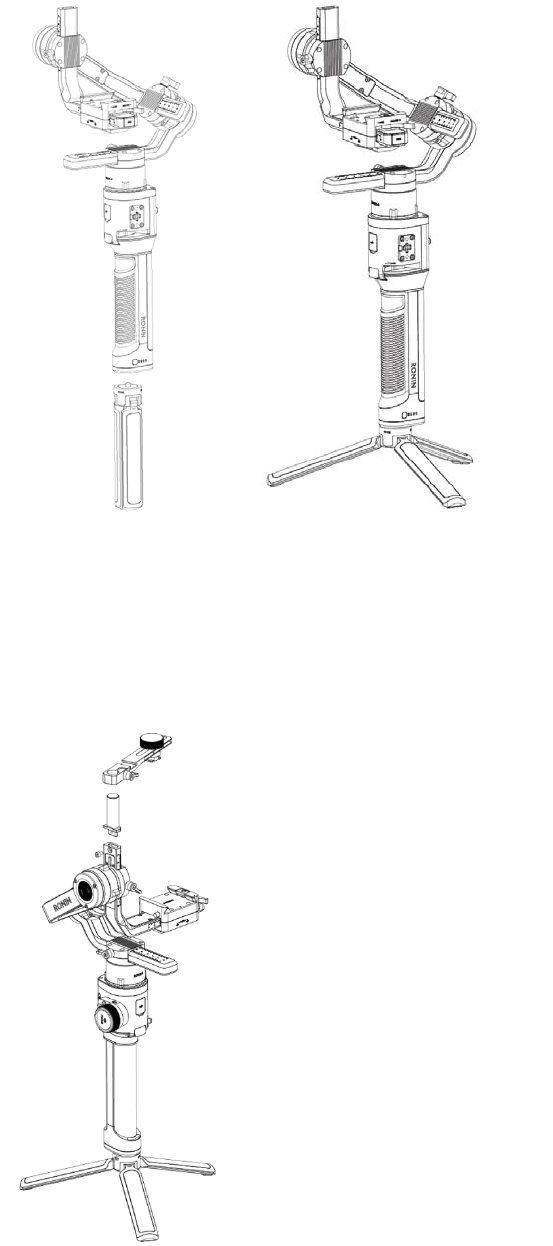

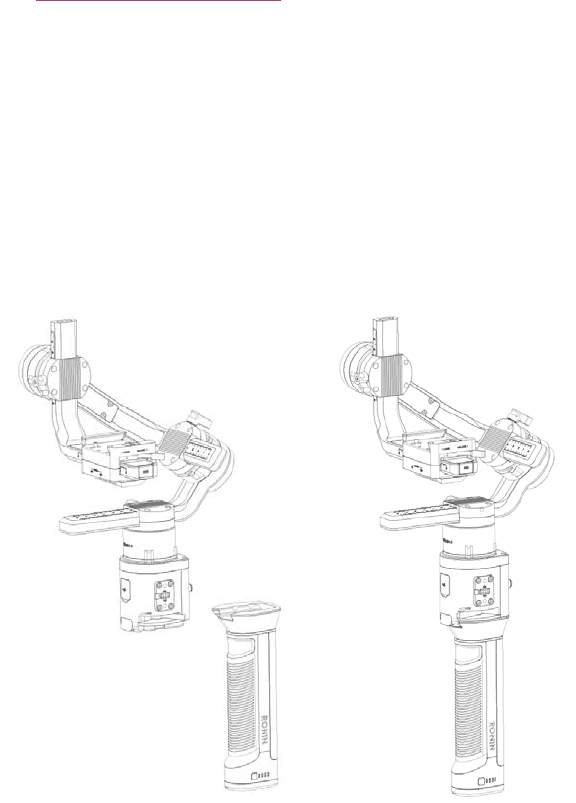

MountingtheBatteryGrip

Attachthegimbaltothebatterygripbyslidingintothedovetailmount.Togglethelevertothe

lockedpositionaftermountingfirmly.





AttachingtheTripod

Attachtheprovidedtripodtogimbal,togglethesafetylocktothelockedpositionaftertighten,

andthenextendthetripodasshown.



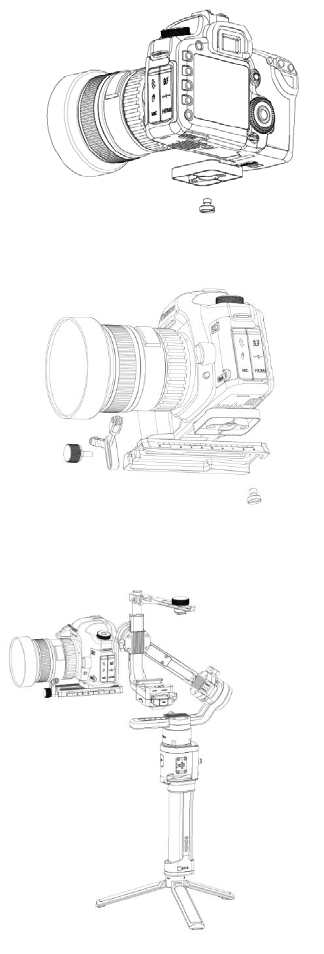

MountingtheCamera

1. AttachtheHotshoemoduletothegimbalasshown.



2. Attachtheriserplatetothebottomofthecamera.



3. Attachthecameradovetailplateandlenssupport.



4. Slidethecameratothecameramountingbase.Whenreacharoughlybackandforthbalance,

togglethelevertothelockedpositionafterthesafetylockisengaged.



5. Attachthehotshoemoduletothetopofthecamera.





Balancing

1. BalancingtheVerticalTilt

a. Rotatethetiltaxissothatthecameralensispointingup.Holdthetiltaxismotorto

ensuretherollaxismaintainshorizon,andfindthecamerawhetherit’sbottomheavyor

topheavy.

b. Loosentheknobonthetiltmotor,adjustthecamera’sbalanceuntilthecameraremains

stillwithouttiltingupordown.

c. Tightentheknob.



2. BalancingDepthfortheTiltAxis

a. Rotatethetiltaxissothatthecameralensispointingforward.Holdthetiltmotortofind

whetherit’sbottomheavyortopheavy.

b. Togglethelevertotheunlockedpositionandloosenthehotshoeknob,adjustthe

camera’sbalanceuntilthecameraremainsstillwhenrotatingthetiltaxis45degrees

upwardsordownwards.

c. Togglethelevertothelockedpositionandtightenthehotshoeknob.



3. BalancingtheRollAxis

a. Letgoofthetiltmotorandobserveinwhichdirectionthemotorswings.

b. Loosentherollaxisknobandadjustthecamera’sbalanceuntilthecameraremainsstill

whenrotatingthetiltaxis45degreestotheleftorright.

c. Tightentheknob.



4. BalancingthePanAxis

a. GrabthebatterygripthentilttheentireRonin‐Ssidewaysandobservehowthepanaxis

spins.

b. Loosentheknobonpanmotor,adjustthecamera’sbalanceuntilthecameraremains

stillwhenrotatingthepanaxis45degreeswhileliftingthegrip.

c. Tightentheknob.



ActivatingtheRonin‐S

1. PressandholdthePowerbuttontoturnontheRonin‐S.

2. Onyourmobiledevice,switchonBluetoothandlaunchtheRoninApp.

3. Withasecureinternetconnection,followtheonscreeninstructionstoactivateRonin‐Sfor

thefirsttime.



Operations

1. AutoTune:LaunchtheRoninAppandEntertheMotorsettingspageandselectAutoTune.

YoucanalsomanuallyadjusttheStiffness.Strength,Filter,andControlvaluesareadvanced

settingsandshouldonlybeadjustedwithproperknowledge.

2. EntertheSmoothTracksettingspagetoadjustSpeed,Deadband,andAccelerationvaluesfor

thepan,tilt,androllaxesseparately.Thereare3profilesintotalsoyoucaneasilyprepare

themostsuitablesettingssequentiallyandthenquicklyswitchinbetweenthemwitha

simplepressonthe‘M’button.

3. PushtheJoystickupordowntocontroltiltaxismovement.PushtheControlJoystickleftor

righttocontrolpanaxismovement.

4. Presstherecordbuttontostart/stoprecording.(Cameracontrolcableconnectionis

required)

5. Trigger:Pressandholdthetriggertoenterlockmode.Presstwicetorecenterthegimbal.

Pressthreetimestotakeaselfie.

Specifications

WeightApprox.2.04kg(gimbal,batterygripand

tripodincluded)

DimensionsApprox.293×256×590mm

InputPowerModel:RB1-2400mAh-14.4V

Type:LiPo

Capacity:2400mAh

Energy:34.56Wh

WorkingCurrentStaticCurrent:0.16A

OperatingFrequency2400MHzto2483.5MHz

TransmitterPower‐2.13dBm

Max.AntennaGain0.3dBi

OperatingTemperat u re‐4°to113° (‐20℃to45℃)


