User Manual

DAT AL I N K 3
Quick Start Guide
V1.0

Disclaimer
CongratulationsonpurchasingyournewDJI™ product.Theinformationinthisdocumentaffects
yoursafetyandyourlegalrightsandresponsibilities.Readthisentiredocumentcarefullytoensure
properconfigurationbeforeuse.Failuretoreadandfollowinstructionsandwarningsinthis
documentmayresultinseriousinjurytoyourselforothers,damagetoyourDJIproduct,ordamage
tootherobjectsinthevicinity.Thisdocumentandallothercollateraldocumentsaresubjectto
changeatthesolediscretionofDJI.
Byusingthisproduct,youherebysignifythatyouhavereadthisdisclaimerandwarningcarefully
andthatyouunderstandandagreetoabidebythetermsandconditionsherein.Youagreethatyou
aresolelyresponsibleforyourownconductwhileusingthisproduct,andforanyconsequences
thereof.
Youagreetousethisproductonlyforpurposesthatareproperandinaccordancewithall
applicablelaws,rules,andregulations,andallterms,precautions,practices,policiesandguidelines
DJIhasmadeandmaymakeavailable.
DJIacceptsnoliabilityfordamage,injuryoranylegalresponsibilityincurreddirectlyorindirectly
fromtheuseofthisproduct.Theusershallobservesafeandlawfulpracticesincluding,butnot
limitedto,thosesetforthinthisdocument.
Notwithstandingabove,yourstatutoryrightsunderapplicablenationallegislationarenotaffected
bythisdisclaimer.
Warning
1.AlwaysstayalertwhenusingtheDATALINK3.Carelessnessmayresultinseriousharmto
yourselfandotherpeople.
2.DJIprovidesUserManualforyoutounderstandDATALINK3.Besuretoreadtheusermanual
thoroughlyandthequickstartguidepriortooperatingyourDATALINK3.

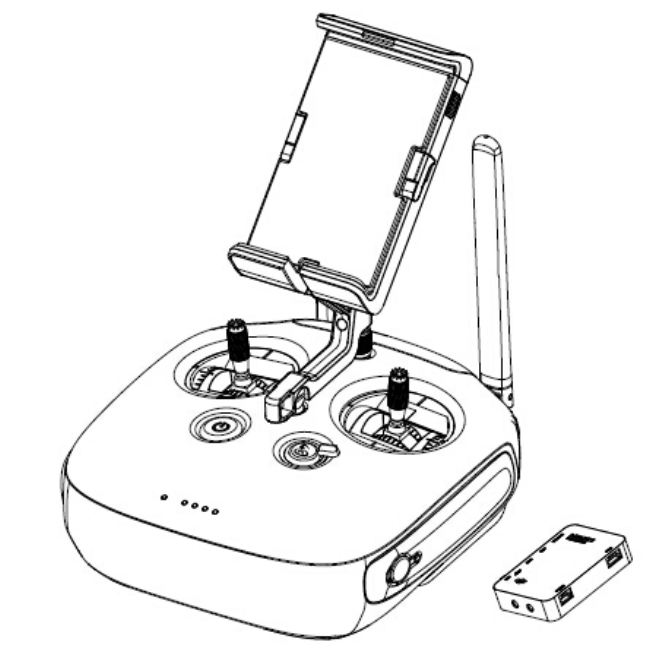

DJIDATALINK3isalongrangevideodownlinkcapableoftransmittingdataatdistancesupto3km*.
ItiscompatibletoDJIseriesflightcontrollers**andothernon‐DJIflightcontrollers***.DJIDATALINK
3includesagroundsystemandanairsystem,whichcanbeoperatedunderthefrequencyof2.4
GHz.Themulti‐functionalportsontheairsystemenableuserstosetSBUS,DBUS,CAN,andUART
aloneoraltogether,satisfyingvariousneedsandapplications.DATALINK3integratestheremote
controllermoduleintotheGroundSystem,whichcomeswithanumberofaircraftandgimbal
controlsaswellassomecustomizablebuttons.ByusingChannelSettings,i.e.DJIASSISTANT™ 2for
DJIseriesflightcontrollers,thebuttonsontheremotecontrollercanbecustomizedtomeet
differentrequirementsinphotography,mapping,agriculture,etc.WhenusedwitheitherMG‐FE™
DAT AL I N K 3
orGSPro*apps,userswillbeabletoseeandchangeliveparameters,completingcomplextasks
moreeasily.Theremotecontrollerboostsamaximumworkingtimeof24hours*.
*TheremotecontrollerisabletoreachitsmaximumtransmissiondistanceSRRCinawideopen
areawithnoElectro‐Magneticinterference,andatanaltitudeofabout100meters.
**RefertotheSpecificationsfordetailsonsupportedDJIflightcontrollerseries.
***Comingsoon
Ground System (C1 Remote Controller)

1.
1.PowerButton
2.RTHButton
3.SW2Switch*
4.StatusLED
5.BatteryLevelLEDs
6.PowerPort
7.ControlSticks
8.MobileDeviceHolder
9.SmallDevicePositioningTabs
10.Antennas
11.HandleBar
12.DialLW*
13.DialRW*
14.DButton*
15.SW1Switch*
16.AButton*
17.BButton*
18.C1Button*
19.MicroUSBPort
20.CAN/UARTPort
21.USBPort
22.C2Button*
*Customizableviachannel
setting.
Air System
1.DownloadingMG‐FEorGSPro
ScantheQRcodebeloworvisittheAppStoretodownloadDJI'sMG‐FEorGSProapps.
MG‐FEGSPro
*DJIMG‐FEonlysupportssomemobiledeviceswithAndroid4.4orabove.RefertoSpecifications
formoredetails.GSProisonlysupportedontheiPad.
1.FirmwareUpdatePortMicro
USB
2.CANPort
3.UARTPort
5.LinkingButton
6.AntennaPorts
7.PowerPort
8.DBUS/SBUSPort
2.BatteryLevelandCharging
Pressthepowerbuttononcetocheckthebatterylevel.Pressandholdfor2secondstopoweron
theremotecontroller.
Pleaseusetheincludedchargertochargetheremotecontroller,whenthepowerlevelislow.Itis
recommendedtochargetheremotecontrollerwiththepoweroff.Pleaserechargethebatteryat
leasteverythreemonthstoensureitremainsinafullychargedstate–thebatterywilldepletewhen
storedforlongperiods.
Ittakesabout4hourstofullychargetheremotecontroller.
3.Linking
Example:DJIN3FlightController.
a.Inserttheantennasintotheportsonthesideoftheairsystemandsnapintoplace.
b.ConnecttheDBUS/SBUSportontheairsystemwiththeRFportontheDJIflightcontrollerseries
usingtheprovidedDBUScable.
c.PowerontheremotecontrollerandpresstheC1,C2andDbuttonssimultaneously.TheStatus
LEDwillblinkblueandmakeawarningsound,indicatingthatlinkinghasstarted.
d.PresstheLinkingButtononairsystem.StatusLEDsonboththeremotecontrollerandtheair
systemwillbesolidgreenwhenlinkingiscomplete.
4.PreparingYourRemoteController
LowtoHigh
 Unfoldtheremotecontroller
Strong Weak
5.Flight
DJI'sseriesofFlightControllershaveadefaultflightmodeisknownasMode2.Theleftstick
controlstheaircraft'saltitudeandheading,whiletherightstickcontrolsforward,backward,and
leftandrightmovements.
a.Presstheclamponthemobile
deviceholder.
b.Adjustthemobiledevicehold
totightenthemobiledevice.
c.Connectthemobiledeviceand
theremotecontrollerviaaMicro
USBcable.
Combinationstickcommandtostart/stopthemotors
Pushtheleftstickupslowlyfortakeoff
Pulltheleftstickdownslowlyuntilyoutouchtheground.Holddownforafewsecondstostopthe
motors
RefertoDatalink3UserManualformoreoperationinformation.
6.IndustrialApplication
Withnumerouscustomizablebuttons,whichcanbechannelsetbyusingcompatibleflight
controllersoftware,theC1remotecontrollercanbeappliedtoagriculture,mappingand
photography,andwillsupportmoreindustrialapplications.
TheC1RemoteControllerdoesnotsupportimagetransmissionanddoesnothavea
GPSmodule.PleasemounttheGPSmoduleontheremotecontrollerwhennecessary.
RefertotheDJIDatalink3UserManual.
Specifications
General
• MaxTransmissionDistanceunobstructed,freeofinterference:3kmSRRC
• OperatingFrequency:2.400GHzto2.483GHz
• TransmitterPowerdBm:20dBm
• SupportedDJIFlightControllers:N3,A3,N3‐AG,A3‐AG
• SupportedAndroidMobileDevicesForMG‐FE:Android4.4andabove
Groun
d
•
•
•
•
•
AirSys
t
•
•
•
•
•
GPSM
o
•
•
•
•
Charg
e
•
•
SZ DJI
essenti
a
A copy
Forde
t
http:/
/
Thisc
o
System
Model:DL
G
Dimension
s
ChargingT
e
Built‐inbat
t
Operating
V
t
em
Model:DL
A
Dimension
s
Weightan
t
Operating
V
Operating
T
o
dule
SatellitePo
s
Max.Curre
n
Max.Volta
g
Weight:33.
r
Voltage：
1
RatedPow
e
TECHNOL
l requirem
of the EU
EU conta
c
ailedinfo
www.dji.c
ntentissu
C
1Remote
G
30A
s
182172
e
mperature
t
ery:6000
m
V
oltage:1.2
A
A
30A
s
antennas
t
ennasexcl
u
V
oltage:8V
~
T
emperatur
e
s
itioningS
y
n
t:125mA
g
e:5.3V
9g
1
7.4V
e
r：57W
OGY CO.,
ents and o
t
D
eclaration
c
t address:
r
mation,pl
e
o
m/cn/pr
o
bjecttoch
a
Controller
71mm
Range:32°
m
AhLiPo2S
A
@7.4V
excluded:
5
u
ded:23g
~
30V
e
Range:14
stems:GPS
/
LTD. here
b
t
her releva
n
of Confor
m
DJI GmbH
e
asevisitt
h
o
duct/xxx
x
a
nge.

to104°F
0.635
°to122°F
/
GLONASS
y declares
t provision
ity is avail
, Industries
t
ewebsite
x
xxxxxx
0°to40°C
10.7mm
‐10°to50
°
that this de
s
of the RE
a
ble online
a
t
rasse. 12,
anddown
l
°
C
vice is in c
D Directive
t www.dji.
97618, Nie
l
oadthela
t
o
mpliance
w
.
c
om/euro-c
o
d
erlauer,
G
t
estuser
m
w
ith the
o
mpliance
G
ermany.
m
anual.
FCC Compliance Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
RF Exposure Information
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
For Air System (DLA30A):
This device should be installed and operated with minimum distance of 20 cm between the radiator & your body.
For Remote controller (DLG30A):
This device has been tested and meets applicable FCC limits for radio frequency (RF) exposure. Specific Absorption
Rate (SAR) refers to the rate at which the body absorbs RF energy. During SAR testing, the device is set to the
highest transmission levels and placed in positions that simulate use near the body with 10 mm separation and
against the hand, with no separation. To ensure exposure levels remain at or below the as-tested levels, use the
accessories designated and tested with this product. Accessories with metal parts may change the RF performance of
the device, including its compliance with RF exposure guidelines, in a manner that has not been tested or certified.
