Users Manual

DJICINESSDSTATION(USBPort)

QuickStartGuide



V1.02016.10



Disclaimer

CongratulationsonpurchasingyournewDJI™product.Theinformationinthisdocumentaffectsyoursafetyandyourlegalrightsand

responsibilities.Readthisentiredocumentcarefullytoensureproperconfigurationbeforeuse.Failuretoreadandfollowinstructionsand

warningsinthisdocumentmayresultinseriousinjurytoyourselforothers,damagetoyourDJIproduct,ordamagetootherobjectsinthe

vicinity.ThisdocumentandallothercollateraldocumentsaresubjecttochangeatthesolediscretionofDJI.

Byusingthisproduct,youherebysignifythatyouhavereadthisdisclaimerandwarningcarefullyandthatyouunderstandandagreetoabide

bythetermsandconditionsherein.Youagreethatyouaresolelyresponsibleforyourownconductwhileusingthisproduct,andforany

consequencesthereof.Youagreetousethisproductonlyforpurposesthatareproperandinaccordancewithallapplicablelaws,rules,and

regulations,andallterms,precautions,practices,policiesandguidelinesDJIhasmadeandmaymakeavailable.

DJIacceptsnoliabilityfordamage,injuryoranylegalresponsibilityincurreddirectlyorindirectlyfromtheuseofthisproduct.Theusershall

observesafeandlawfulpracticesincluding,butnotlimitedto,thosesetforthinthisdocument.Notwithstandingabove,yourstatutoryrights

underapplicablenationallegislationarenotaffectedbythisdisclaimer.

DJIisatrademarkofSZDJITECHNOLOGYCO.,LTD.(abbreviatedas“DJI”)anditsaffiliatedcompanies.Namesofproducts,brands,etc.,

appearinginthisdocumentaretrademarksorregisteredtrademarksoftheirrespectiveownercompanies.Thisproductanddocumentare

copyrightedbyDJIwithallrightsreserved.Nopartofthisproductordocumentshallbereproducedinanyformwithoutpriorwrittenconsent

oforauthorizationfromDJI.



Warning

1.Onlyuseregulatedcablesspecifiedinthisguide.

2.OnlyusegenuineDJIpartsorpartscertifiedbyDJI.Unauthorizedpartsorpartsfromnon‐DJI‐certifiedmanufacturersmaycausesystem

malfunctionsandcompromisesafety.

3.EnsuretheDJICINESSDSTATIONanditscomponentsarefreefromcontamination(e.g.water,oil,soilandsand).



Introduction

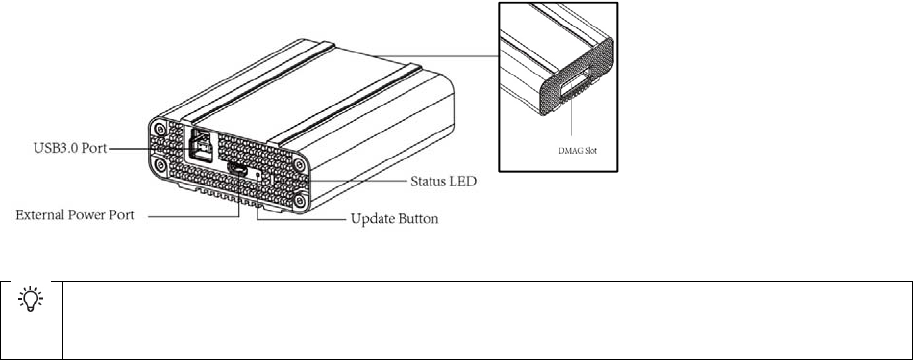

TheDJICINESSDSTATIONisusedtoexportdatafromtheDMAG.



Usage

InserttheDMAGintotheDMAGReader,thenconnecttheDJICINESSDSTATIONtoacomputerviaaUSB3.0cable.DJICINESSD

STATIONsupportsexternalpowersupplyandfirmwareupdate.



NoothersoftwareisneededwhenexportingdatafromtheDMAG.YoumayinstallthecorrespondingDJIsoftwareaccordingto

youroperationpreference:

• ForWindows:InstallDJICameraExporter.

• ForMac:InstallDJICineLight.

1.DJICINESSDSTATIONsupportsUSB2.0.However,theDJICINESSDSTATIONmaynotbeabletoworknormallywhenconnectingit

tothecomputerviaUSB2.0cablewithoutexternalpowersupply.

2.EnsuretoinserttheDMAGbeforeconnectingtheDJICINESSDSTATIONtothecomputer.

3.EnsuretouninstalltheDJICINESSDSTATIONbeforeunpluggingthecableafterexportingdata.

ExternalPowerSupply

UseexternalpowersupplywhenthecapacityoftheDMAGexceeds480GBorthepowersupplycapacityofcomputerisweak.ConnecttheDJI

CINESSDSTATIONtotheexternalpowersupplyasshownbelow.



1.EnsuretoconnecttheDJICINESSDSTATIONtotheexternalpowersupplybeforeconnectingittothecomputerviaaUSB3.0

cable,ortheexternalpowersupplymaynotwork.

2.TheACadaptershouldhaveavoltagehigherthan5V,andacurrenthigherthan1A.



FirmwareUpdate

ConnecttheDJICINESSDSTATIONtothecomputertoupdateitsfirmware.



Toactivatefirmwareupdate,pleasepresstheupdatebuttondownwhenconnectingtheDJICINESSDSTATIONtothecomputervia

aUSB3.0cable.



LEDDescription

LEDStatusDescription

SolidGreenConnectingtothecomputer

SolidYellowReadytoupdatefirmware

BlinkingGreenExportingdata



Specifications

Size90mm×71.2mm×27.5mm

Weight246g

OperationTemperatureRange0°to40°C



ComplianceInformation

NOTE:This

ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,and(2)Thisdevicemustacceptanyinterference

received,includinginterferencethatmaycauseundesiredoperation.

Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoid

theuser’sauthoritytooperatetheequipment.



equipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainst

harmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradio

frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful

interferencetoradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccur

inaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevision

reception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotry

tocorrecttheinterferencebyoneormoreofthefollowingmeasures:



—Reorientorrelocatethereceivingantenna.

—Increasetheseparationbetweentheequipmentandreceiver.

—Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

—Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

FCC Warning
