Users Manual
Disclaimer
Thank you for purchasing the Datalink Pro hereinafter referred to as “product”. Read this disclaimer
carefullybeforeusingthisproduct.Byusingthisproduct,you herebyagreeto thisdisclaimer and signify
thatyouhavereaditfully.PleaseinstallandusethisproductinstrictaccordancewiththeUserManual.SZ
DJITechnologyCo.,Ltd.anditsaffiliatedcompaniesassumenoliabilityfordamagesorinjuriesincurred
directlyorindirectlyfromusing,installingorrefittingthisproductimproperly,includingbutnotlimitedto
usingnon‐designatedaccessories.
DJI is the registered trademark of SZ DJI Technology Co., Ltd. abbreviated as “DJI”. Names of products,
brands, etc., appearing in this manualaretrademarksorregistered trademarks of their respective owner
companies.ThisproductandmanualarecopyrightedbyDJIwithallrightsreserved.Nopartofthisproduct
ormanualshallbereproducedinanyformwithoutthepriorwrittenconsentoforauthorizationfromDJI.
Thisdisclaimerisproducedinvariouslanguages.Intheeventof variance among different versions, the
ChineseversionshallprevailwhentheproductinquestionispurchasedinMainlandChina,andtheEnglish
versionshallprevailwhentheproductinquestionispurchasedinanyotherregion.
Warnings
1. OnlyusetheDatalinkProinthecorrespondingfrequencybandandinaccordancewithlocallawsand
regulations.
2. Ensureallmodulesareconnectedandthe parametersaresetcorrectlyin DJIAssistant2 whenusing
theDatalinkProforthefirsttime.
3. DONOTbendorfoldtheantennasexcessively.
4. EnsuretheantennasforboththemobilestationandtheBaseStationareunobstructedwhenused.
5. OnlyusetheDatalinkProinanopenenvironmentfreefromradiointerference.
6. OnlypairtheDatalinkProBaseStationwithamobilestationinthesamefrequencyband.Notethatthe
400MDatalinkProand900MDatalinkProarenotcompatible.
7. Whenupgradingthe firmware,togglethe 4‐positionswitchtothe COMBO_SW4position, connectthe
moduletothePC,andthenrunDJIAssistant2.
8. Toavoidinterference,DONOTuseatwo‐waytransceiverorwalkie‐talkieoperatingnearthe400MHz
bandwhenoperatingthe400MDatalinkPro.
9. OnlyusegenuineDJIpartsorpartscertifiedbyDJI.Unauthorizedpartsorpartsfromnon‐DJI‐certified
manufacturersmaycausesystemmalfunctionsandcompromisesafety.
10. EnsuretheDatalinkProanditscomponentsarefreefromcontaminatione.g.water,oil,soilandsand.
Contents
Disclaimer.....................................................................................................................................................................................................2
Warnings.......................................................................................................................................................................................................2
About...............................................................................................................................................................................................................4
PartDescription*......................................................................................................................................................................................4
InstallationandConnection..................................................................................................................................................................5
Usage...............................................................................................................................................................................................................6
LinkingProcedures.........................................................................................................................................................................6
ConfiguringParametersUsingtheDJIAssistant2.............................................................................................................6
UsingtheDJIGroundStation......................................................................................................................................................7
WorkingStatusLED........................................................................................................................................................................7
Appendix.......................................................................................................................................................................................................8
Specifications.....................................................................................................................................................................................8
ComplianceInformation.........................................................................................................................................................................9
FCCComplianceNotice..................................................................................................................................................................9
RFExposureInformation.............................................................................................................................................................9
ICRSSWarning................................................................................................................................................................................10
KCCWarningMessage..................................................................................................................................................................10
NCCWarningMessage.................................................................................................................................................................10
EUComplianceStatement..........................................................................................................................................................10
About
The Datalink Pro is used for wireless data transmission, including communication between the Mobile
StationandBaseStation.Thereare400Mand900Mversionstomeettherequirementsofdifferentregions.
The multi‐functional bidirectional transmission link is perfect for the DJI A3 flight control system, D‐RTK
andGroundStation.Usefrequencybandsofnear400MHzand900MHztoavoidradiointerferencewiththe
DJILightbridgeandremotecontroller.Supportformultipleinterfaces,suchas USB,CAN and UART,offers
additionalconnectivity.
PartDescription*
BaseStation
1. AntennaInterface
2. WorkingStatusIndicator
3. LinkingButton
4. MicroUSB
5. 8‐pinPort
A. CANportwithbaudrateof1Mbps.
A1:PowerDC9Vinput
A2:GND
A3:CAN‐H
A4:CAN‐L
B. UA
R
Tport withbaudrateupto115200
bps,workinginTTLlevellogicof3.0–3.3V
compatiblewith5V,butnotrecommended
toworkat5Vlongterm.
B1:PowerDC9Vinput
B2:GND
B3:UART‐RX
B4:UART‐TX
6. 4‐positionSwitch
C1:UART_SW1
C2:CAN_SW2
C3:USB_SW3
C4:COMBO_SW4
MobileStation
1. AntennaInterface
2. Linking Button
3. MicroUSB
4. 8‐pinPortDefinitionisthesameasthe
Base
Station
5. 4‐positionSwitchDefinitionisthesameasthe
BaseStation
6. WorkingStatusIndicator
BaseStation
Antenna*
400MAntenna1
900MAntenna1
MobileStation
Antenna *
400MAntenna31pcsforstandby
900M Antenna31pcsforstandby
Accessories
8‐pinCablex2 MicroUSB Cablex1
Double‐sidedtape
*The400Mand900MDatalinkProusedifferentantennasbuthavethesamefunctions.
InstallationandConnection
The following uses the 900M Datalink Pro, DJI Matrice 600, D‐RTK and DJI Intelligent Flight Battery to
illustrateatypicalinstallationandconnection.
1. AttachtheBaseStationantennaandinstallitontheD‐RTKGroundSystem’sbaseboardwithascrew
includedwiththeD‐RTKproduct.ThenconnecttheBaseStationandtheD‐RTKGroundSystemvia
an8‐pincable.

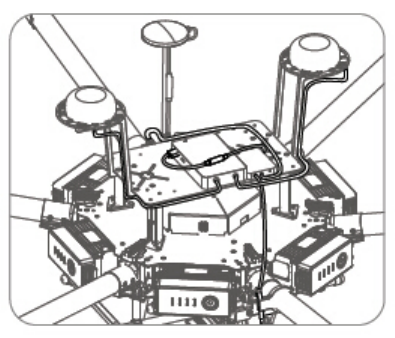

2. Install the Mobile Station to the DJI Matrice 600 with double‐sided tape. Attach the antennas to the
MobileStationandfixthemtothelandinggearswithtwoclips.ThenconnecttheMobileStationand
theD‐RTKAirSystemviaan8‐pincable.
Notes:
1. Besuretotogglethe4‐positionswitchtotheUART_SW1positionif usingthe D‐RTK, otherwisethe
D‐RTKmayfailtoreceivedatafromtheDatalinkPro.
2. Refertothe“D‐RTKQuickStartGuide”fordetailsifusingtheD‐RTK.
Usage
UsetheDatalinkProinanopenenvironmentfreefromradiointerference.
LinkingProcedures
BaseStationandMobileStationarelinkedbeforeleavingthefactory.
Notethatfrequencylinkingisrequiredifanydeviceischangedoradded.
1. EnabletheD‐RTKGroundSystem’sbatterytopowerontheDatalinkProBaseStation.
2. HoldtheBaseStation’sLinkingButtonforabout3secondstoenterthelinkingmodewiththeWorking
StatusLEDblinksredandgreenalternatively.
3. EnabletheD‐RTKGroundSystem’sbatterytopowerontheDatalinkProMobileStation.
4. HoldtheMobileStation’sLinkingButtonforabout3secondsandwaitforlinking.
5. TheBaseStationandMobileStationwillconnectwitheachotherifsuccessfullylinked.
6. Followprocedures2–5tolinkotherMobileStationstosetupasingle‐to‐multiplesystem.
ConfiguringParametersUsingtheDJIAssistant2
DJIAssistant2shouldbeusedtoupgradetheDatalinkPro.FullDuplexModeandBroadcastModecanbe
switchedinDJIAssistant2
1. DownloadDJIAssistant2fromwww.dji.comandinstallitonyourcomputer.
2. Togglethe4‐positionswitchtotheCOMBO_SW4position,connecttheBaseStationtothecomputer
withDJIAssistant2launched,andthenconfigureparametersaccordingtothemessageprompts.
3. ConfiguretheMobileStationinthesameway.IfmultipleMobileStationsareused,youmustconfigure
eachMobileStationonebyone.
Notes:
PowercycletheDatalinkPro,FlightControlSystemandD‐RTKafterupgrading.
SupportsWindows7orlaterorMacOSX10.9orlater.
UsingtheDJIGroundStation
EnsuretheA3FlightControlSystem,DatalinkProandD‐RTKareconnectedcorrectlybeforepoweringon.
1. ConnecttheBaseStationtothePCviaaMicroUSBcable,andthenruntheGroundStation.
2. EnabletheD‐RTKGroundSystem’sbatterytopowerontheDatalinkProBaseStationfirst.
3. EnabletheD‐RTKGroundSystem’sbatterytopowerontheDatalinkProMobileStation.
Note:
TheDJIGroundStationsupportsuptofiveAirSystemsinFullDuplexMode.The4‐positionswitchshouldbe
settotheCOMBO_SW4position.DownloadtheUserManualfromwww.dji.comtolearnmore.
Refertothe“DJIGroundStationUserManual”fordetailsifusingtheDJIGroundStation.
WorkingStatusLED
LED Description
BlinkingRed Parameter error after powering on. If not resolvedbypower
cycling, contactyourdealer.
BlinkingPurple Connected totheAssistant successfully.
BlinkingYellow Upgradingorpreparingforupgrade.
QuicklyBlinkingGreenfor1
Second
Currentsystemsettingissaved Runmodechangedsuccessfully,
orconnecteddeviceinformationisclear.
SolidBlue MobileStation:WorkinginBroadcast Mode.
Base Station: Working in Broadcast Mode and receiving the data
fromMobileStation.
SolidGreen MobileStation:Mobile Station connectedcorrectly inFullDuplex
Mode.
BaseStation:AtleastoneMobileStationconnectedtotheBase
StationinFullDuplex Mode.
SolidRed Mobile Station: All Mobile Stations are disconnected in both Run
Modes.
Base Station: All Mobile Stations are disconnected in Full Duplex
Mode.
BlinkingRedandGreen
Alternatively
Linkinginprogress.
BlinkingYellowTwice 4‐positionswitchistoggledsuccessfully.
SolidWhitefor1Second Deviceisinitializing,onlydisplays whenpoweringon.
Appendix
Specifications
Type DATALINKPRO400M DATALINKPRO 900M
Performance
Outdoor/RFLine‐of‐SightRange Approximately 2000m
TransmitPower China:10dBm
Taiwan:10dBm
SouthKorea:10dBm
CE:20dBm
FCC:25dBm
Canada:25dBm
Australia:25dBm
Japan:13dBm
PowerConsumption MobileStation: 0.65W
BaseStation: 2.1W
MobileStation: 0.65W
BaseStation: 1.2W
Features
FrequencyBandMHz China:430‐432
Taiwan:429.175‐429.2375
SouthKorea:
447.8625‐447.9875
CE: 869.525
FCC: 902‐928
Canada:902‐928
Australia:915‐928
Japan: 923.1‐926.3
SerialDataRate Max.115200bps
AntennaOptions Verticallypolarized
SupportedInterfaces USB,UART,CAN
SupportedDJIProducts A3,D‐RTK,GroundStation
OperatingTemperature 32° to 113°F0°to45°C
StorageTemperature‐40°to 185°F‐40°to85°C
Humidity5%to 95%,non‐condensing
DimensionwithoutAntennaBaseStation: 83mmx51mmx 14.5mm
MobileStation: 58mmx 42.3mmx 9.5mm
W
eightwithoutAntenna BaseStation: 24g
MobileStation: 53g
PowerSupply
VoltageBaseStation: DC9V
MobileStation: DC9V
Max.CurrentTransmitting
Signal
230mA 130mA
Max.CurrentReceivingSignal 70mA
