Sakar Internation IMW555 INMOTION PORTABLE WIRELESS BLUETOOTH SPEAKER User Manual IMW555 Manual 130723

Sakar Internation Inc. INMOTION PORTABLE WIRELESS BLUETOOTH SPEAKER IMW555 Manual 130723

User Manual

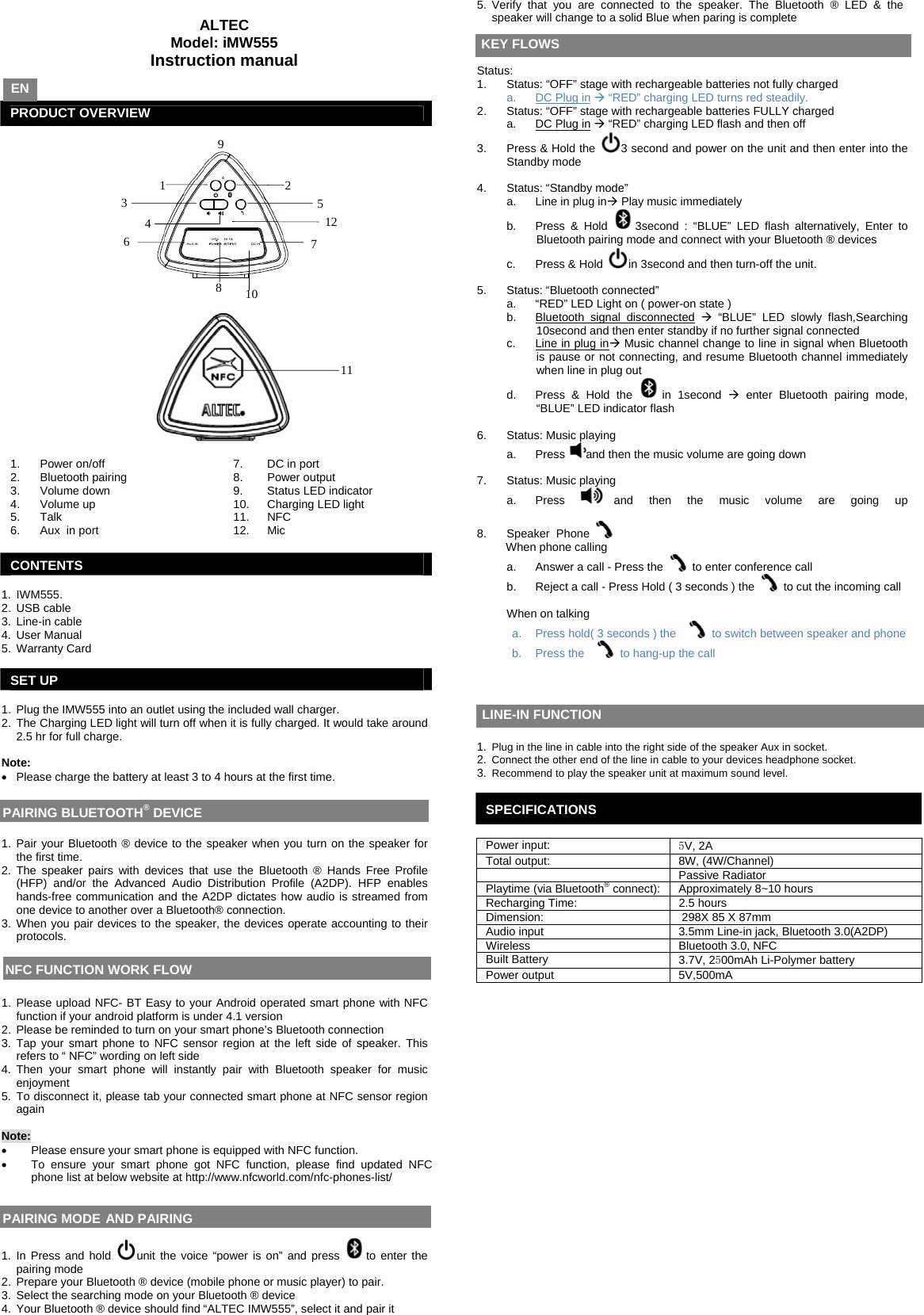

  ALTEC Model: iMW555 Instruction manual    PRODUCT OVERVIEW      1.  Power on/off   7.  DC in port 2.  Bluetooth pairing  8.  Power output 3.  Volume down   9.  Status LED indicator 4.  Volume up   10.  Charging LED light 5. 6.  Talk Aux  in port  11. 12.  NFC Mic  CONTENTS  1. IWM555. 2. USB cable 3. Line-in cable 4. User Manual 5. Warranty Card  SET UP  1.  Plug the IMW555 into an outlet using the included wall charger. 2.  The Charging LED light will turn off when it is fully charged. It would take around 2.5 hr for full charge.  Note:  •  Please charge the battery at least 3 to 4 hours at the first time.     1. Pair your Bluetooth ® device to the speaker when you turn on the speaker for the first time.  2. The speaker pairs with devices that use the Bluetooth ® Hands Free Profile (HFP) and/or the Advanced Audio Distribution Profile (A2DP). HFP enables hands-free communication and the A2DP dictates how audio is streamed from one device to another over a Bluetooth® connection.  3. When you pair devices to the speaker, the devices operate accounting to their protocols.      1. Please upload NFC- BT Easy to your Android operated smart phone with NFC function if your android platform is under 4.1 version  2.  Please be reminded to turn on your smart phone’s Bluetooth connection 3. Tap your smart phone to NFC sensor region at the left side of speaker. This refers to “ NFC” wording on left side 4. Then your smart phone will instantly pair with Bluetooth speaker for music enjoyment 5. To disconnect it, please tab your connected smart phone at NFC sensor region again  Note:  •  Please ensure your smart phone is equipped with NFC function.  •  To ensure your smart phone got NFC function, please find updated NFC phone list at below website at http://www.nfcworld.com/nfc-phones-list/     1. In Press and hold  unit the voice “power is on” and press  to enter the pairing mode 2.  Prepare your Bluetooth ® device (mobile phone or music player) to pair. 3.  Select the searching mode on your Bluetooth ® device  4.  Your Bluetooth ® device should find “ALTEC IMW555”, select it and pair it 5. Verify that you are connected to the speaker. The Bluetooth ® LED & the speaker will change to a solid Blue when paring is complete      Status:  1.  Status: “OFF” stage with rechargeable batteries not fully charged a.  DC Plug in Æ “RED” charging LED turns red steadily.  2.  Status: “OFF” stage with rechargeable batteries FULLY charged a.  DC Plug in Æ “RED” charging LED flash and then off  3.  Press & Hold the  3 second and power on the unit and then enter into the Standby mode   4. Status: “Standby mode” a.  Line in plug inÆ Play music immediately b. Press & Hold  3second : “BLUE” LED flash alternatively, Enter to Bluetooth pairing mode and connect with your Bluetooth ® devices c. Press & Hold  in 3second and then turn-off the unit.  5.  Status: “Bluetooth connected” a.  “RED” LED Light on ( power-on state ) b.  Bluetooth signal disconnected Æ “BLUE” LED slowly flash,Searching 10second and then enter standby if no further signal connected c.  Line in plug inÆ Music channel change to line in signal when Bluetooth is pause or not connecting, and resume Bluetooth channel immediately when line in plug out  d.  Press & Hold the  in 1second Æ enter Bluetooth pairing mode, “BLUE” LED indicator flash   6. Status: Music playing a. Press and then the music volume are going down   7. Status: Music playing a. Press  and then the music volume are going up   8. Speaker  Phone   When phone calling  a.  Answer a call - Press the   to enter conference call  b.  Reject a call - Press Hold ( 3 seconds ) the   to cut the incoming call  When on talking a.  Press hold( 3 seconds ) the  to switch between speaker and phone b. Press the  to hang-up the call        1.  Plug in the line in cable into the right side of the speaker Aux in socket.  2.  Connect the other end of the line in cable to your devices headphone socket. 3.  Recommend to play the speaker unit at maximum sound level.  SPECIFICATIONS  Power input:  5V, 2A Total output:  8W, (4W/Channel)  Passive Radiator Playtime (via Bluetooth® connect):  Approximately 8~10 hours  Recharging Time:  2.5 hours Dimension:   298X 85 X 87mm Audio input  3.5mm Line-in jack, Bluetooth 3.0(A2DP) Wireless  Bluetooth 3.0, NFC Built Battery  3.7V, 2500mAh Li-Polymer battery Power output  5V,500mA       EN NFC FUNCTION WORK FLOW  PAIRING MODE AND PAIRING  KEY FLOWS LINE-IN FUNCTION PAIRING BLUETOOTH® DEVICE 1      2     3     4     5     7     8     9     6     11     10     12

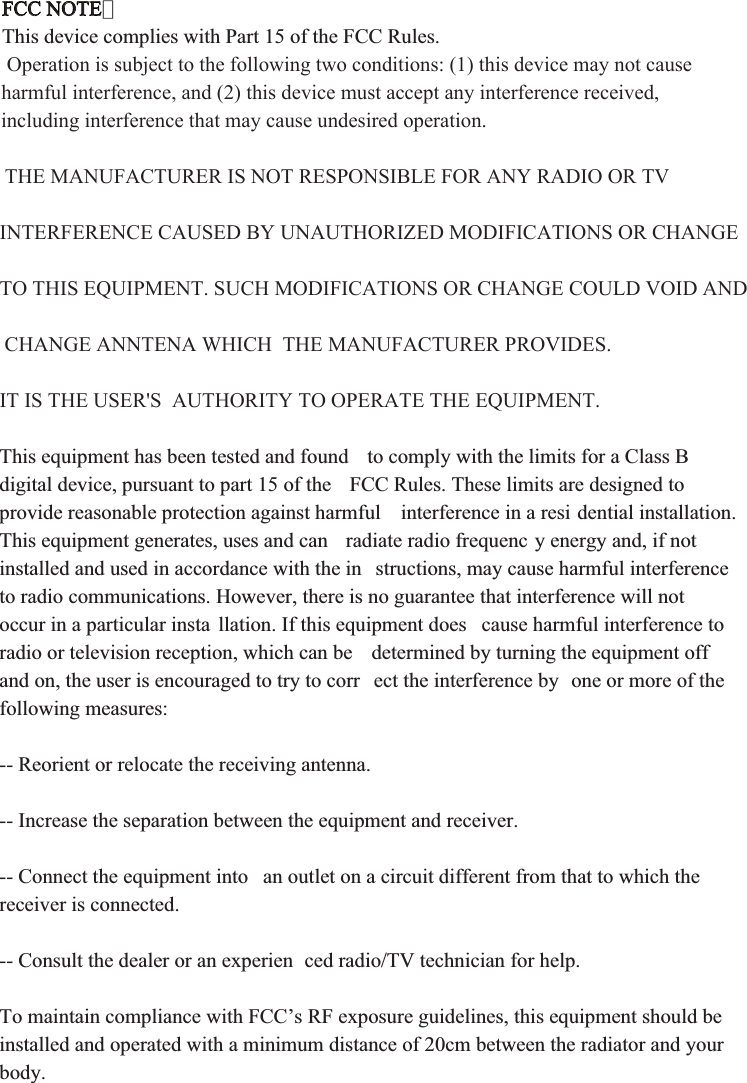

FCC NOTE:This device complies with Part 15 of the FCC Rules.  Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS OR CHANGE TO THIS EQUIPMENT. SUCH MODIFICATIONS OR CHANGE COULD VOID AND CHANGE ANNTENA WHICH  THE MANUFACTURER PROVIDES. IT IS THE USER'S  AUTHORITY TO OPERATE THE EQUIPMENT.This equipment has been tested and found  to comply with the limits for a Class B digital device, pursuant to part 15 of the  FCC Rules. These limits are designed to provide reasonable protection against harmful  interference in a resi dential installation. This equipment generates, uses and can  radiate radio frequenc y energy and, if not installed and used in accordance with the in structions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular insta llation. If this equipment does  cause harmful interference to radio or television reception, which can be  determined by turning the equipment off and on, the user is encouraged to try to corr ect the interference by  one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into  an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experien ced radio/TV technician for help. To maintain compliance with FCC’s RF exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
