USER MANUALCombo Heart Rate StrapBluetooth® Smart & 5 kHz Transmission

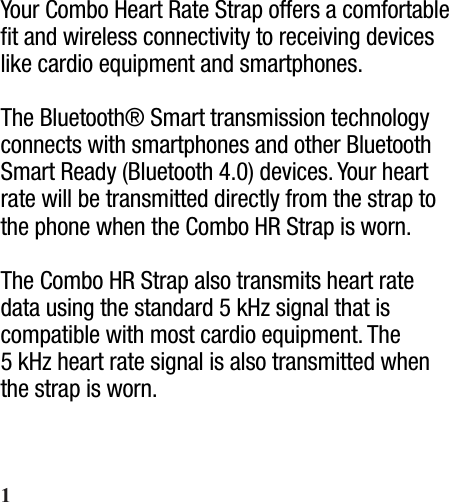

Your Combo Heart Rate Strap offers a comfortable fit and wireless connectivity to receiving devices like cardio equipment and smartphones.The Bluetooth® Smart transmission technology connects with smartphones and other Bluetooth Smart Ready (Bluetooth 4.0) devices. Your heart rate will be transmitted directly from the strap to the phone when the Combo HR Strap is worn.The Combo HR Strap also transmits heart rate data using the standard 5 kHz signal that is compatible with most cardio equipment. The 5 kHz heart rate signal is also transmitted when the strap is worn.1

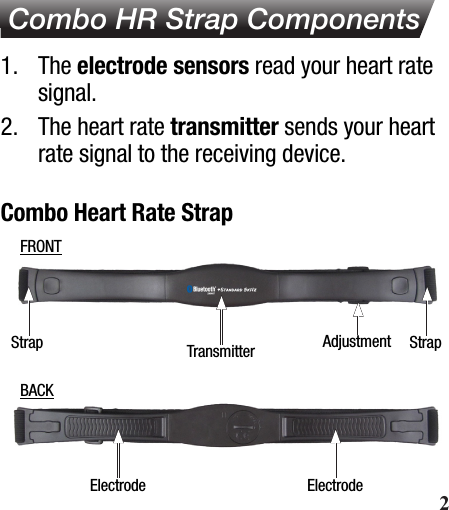

Combo Heart Rate StrapStrapAdjustmentStrapElectrode ElectrodeFRONTBACKTransmitter Combo HR Strap Components1. The electrode sensors read your heart rate signal.2. The heart rate transmitter sends your heart rate signal to the receiving device. 2

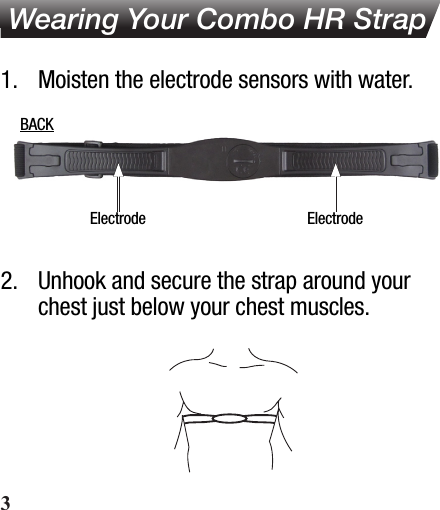

Wearing Your Combo HR Strap1. Moisten the electrode sensors with water.2. Unhook and secure the strap around your chest just below your chest muscles.Electrode ElectrodeBACK3

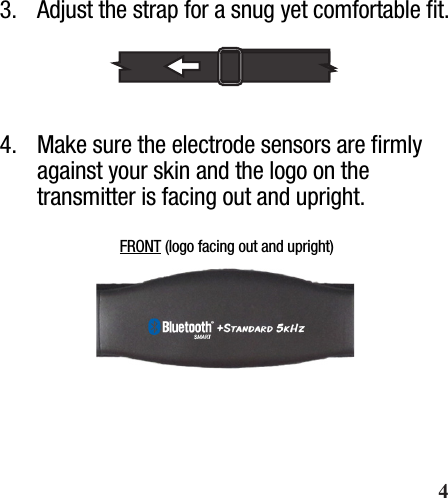

Wearing Your Heart Rate Strap3. Adjust the strap for a snug yet comfortable fit.4. Make sure the electrode sensors are firmly against your skin and the logo on the transmitter is facing out and upright.FRONT (logo facing out and upright) 4

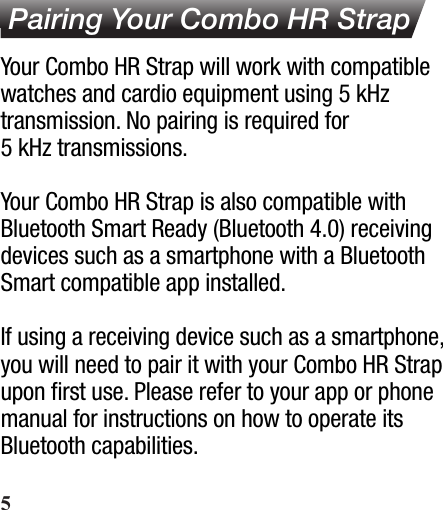

Pairing Your Combo HR StrapYour Combo HR Strap will work with compatible watches and cardio equipment using 5 kHz transmission. No pairing is required for 5 kHz transmissions.Your Combo HR Strap is also compatible with Bluetooth Smart Ready (Bluetooth 4.0) receiving devices such as a smartphone with a Bluetooth Smart compatible app installed.If using a receiving device such as a smartphone, you will need to pair it with your Combo HR Strap upon first use. Please refer to your app or phone manual for instructions on how to operate its Bluetooth capabilities.5

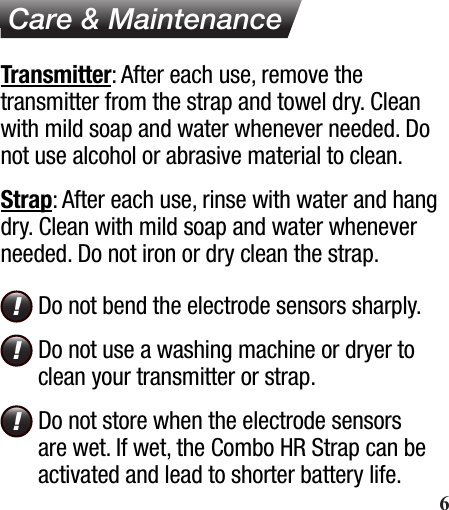

Care & MaintenanceTransmitter: After each use, remove the transmitter from the strap and towel dry. Clean with mild soap and water whenever needed. Do not use alcohol or abrasive material to clean.Strap: After each use, rinse with water and hang dry. Clean with mild soap and water whenever needed. Do not iron or dry clean the strap.Do not bend the electrode sensors sharply. Do not use a washing machine or dryer to clean your transmitter or strap.Do not store when the electrode sensors are wet. If wet, the Combo HR Strap can be activated and lead to shorter battery life.!!! 6

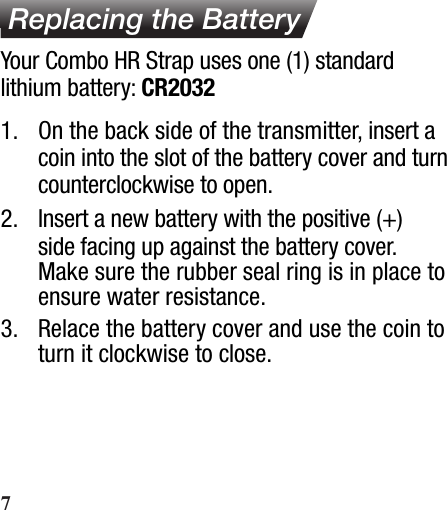

Replacing the Battery1. On the back side of the transmitter, insert a coin into the slot of the battery cover and turn counterclockwise to open.2. Insert a new battery with the positive (+) side facing up against the battery cover. Make sure the rubber seal ring is in place to ensure water resistance.3. Relace the battery cover and use the coin to turn it clockwise to close.Your Combo HR Strap uses one (1) standard lithium battery: CR20327

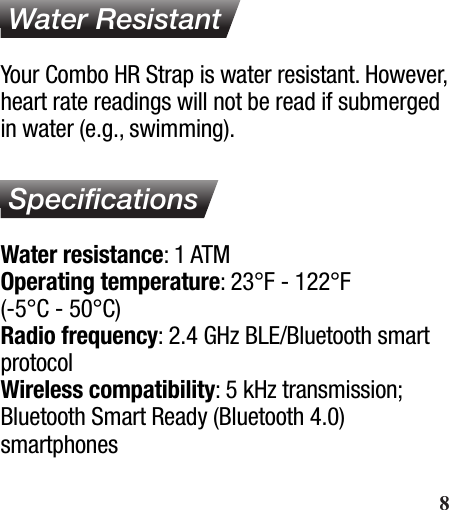

Water ResistantYour Combo HR Strap is water resistant. However, heart rate readings will not be read if submerged in water (e.g., swimming). SpecificationsWater resistance: 1 ATMOperating temperature: 23°F - 122°F (-5°C - 50°C)Radio frequency: 2.4 GHz BLE/Bluetooth smart protocolWireless compatibility: 5 kHz transmission; Bluetooth Smart Ready (Bluetooth 4.0)smartphones 8

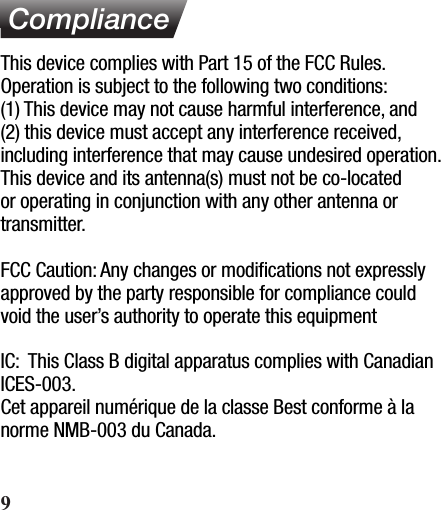

ComplianceThis device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipmentIC: This Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la classe Best conforme à la norme NMB-003 du Canada.9

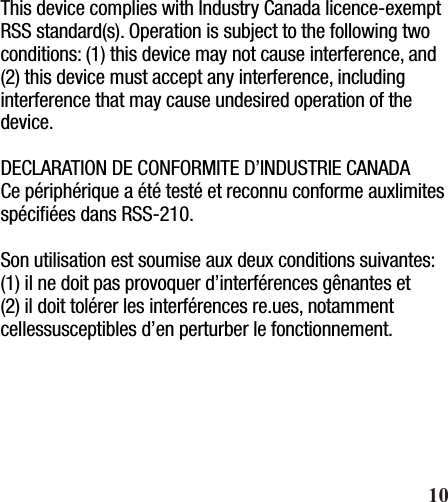

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.DECLARATION DE CONFORMITE D’INDUSTRIE CANADACe périphérique a été testé et reconnu conforme auxlimites spécifiées dans RSS-210. Son utilisation est soumise aux deux conditions suivantes:(1) il ne doit pas provoquer d’interférences gênantes et(2) il doit tolérer les interférences re.ues, notamment cellessusceptibles d’en perturber le fonctionnement. 10
