Users Manual

S-TAG Datasheet(ST-GM6000N)

Preliminary

REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 1/14

CUSTOMER APPROVAL SHEET

Company Name

MODEL ST-GM6000N

CUSTOMER

APPROVAL

□ APPROVAL FOR SPECIFICATIONS ONLY (Spec. Ver. 0.1)

□ CUSTOMER REMARK :

Issued By Checked By

Approved By

ES Kim DS Yoon JG Ryu

Samsung Electro-Mechanics

314, Maetan3-Dong, YoungTong-Gu, Suwon, Gyunggi-Do, Korea

Tel : 82-31-210-5114

S-TAG Datasheet(ST-GM6000N)

Preliminary

REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 2/14

S-TAG Datasheet

S-Label (Electronic Label System)

REV 0.1

Samsung Electro-Mechanics

2015-07-01

Summary

This datasheet presents the general performance and specifications of S-Tag for S-Label ESL (Electronic

Shelf Label) system, which is based on IEEE 802.15.4.

The names of actual companies and products mentioned herein

may be the trademarks of their respective owners.

No part of this document may be reproduced, stored in a

retrieval system, or transmitted in any form or by any means

without the express written consent of Samsung Electro-

Mechanics.

This document is subject to change without notice.

S-TAG Datasheet(ST-GM6000N)

Preliminary

REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 3/14

Table of Contents

1 GENERAL DESCRIPTION ..................................................................................................... 5

1.1 F

EATURES

......................................................................................................................... 6

1.2 T

YPICAL

PPLICATIONS

......................................................................................................... 6

1.3 A

PPEARANCE

...................................................................................................................... 6

2 SPECIFICATION .................................................................................................................. 7

2.1 P

RODUCT

PECIFICATION

....................................................................................................... 7

2.2 R

ADIO

(RF)

PECIFICATION

................................................................................................... 7

2.3 NFC

PECIFICATION

............................................................................................................. 8

2.4 M

ECHANICAL

RAWING

......................................................................................................... 8

2.5 L

ABELS

............................................................................................................................. 9

3 PACKAGE ........................................................................................................................... 11

4 CAUTIONS FOR TREATMENT............................................................................................. 12

4.1 U

SAGE

NVIRONMENT

.......................................................................................................... 12

4.2 S

TORAGE AND

.............................................................................................................. 12

4.3 B

ATTERY

EPLACEMENT

........................................................................................................ 13

4.4 FCC ............................................................................................................................... 14

S-TAG Datasheet(ST-GM6000N)

Preliminary

REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 4/14

Document History

Rev. Date Revision history Page

0.1 01 JUL 2015 Draft -

S-TAG Datasheet(ST-GM6000N)

Preliminary

REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 5/14

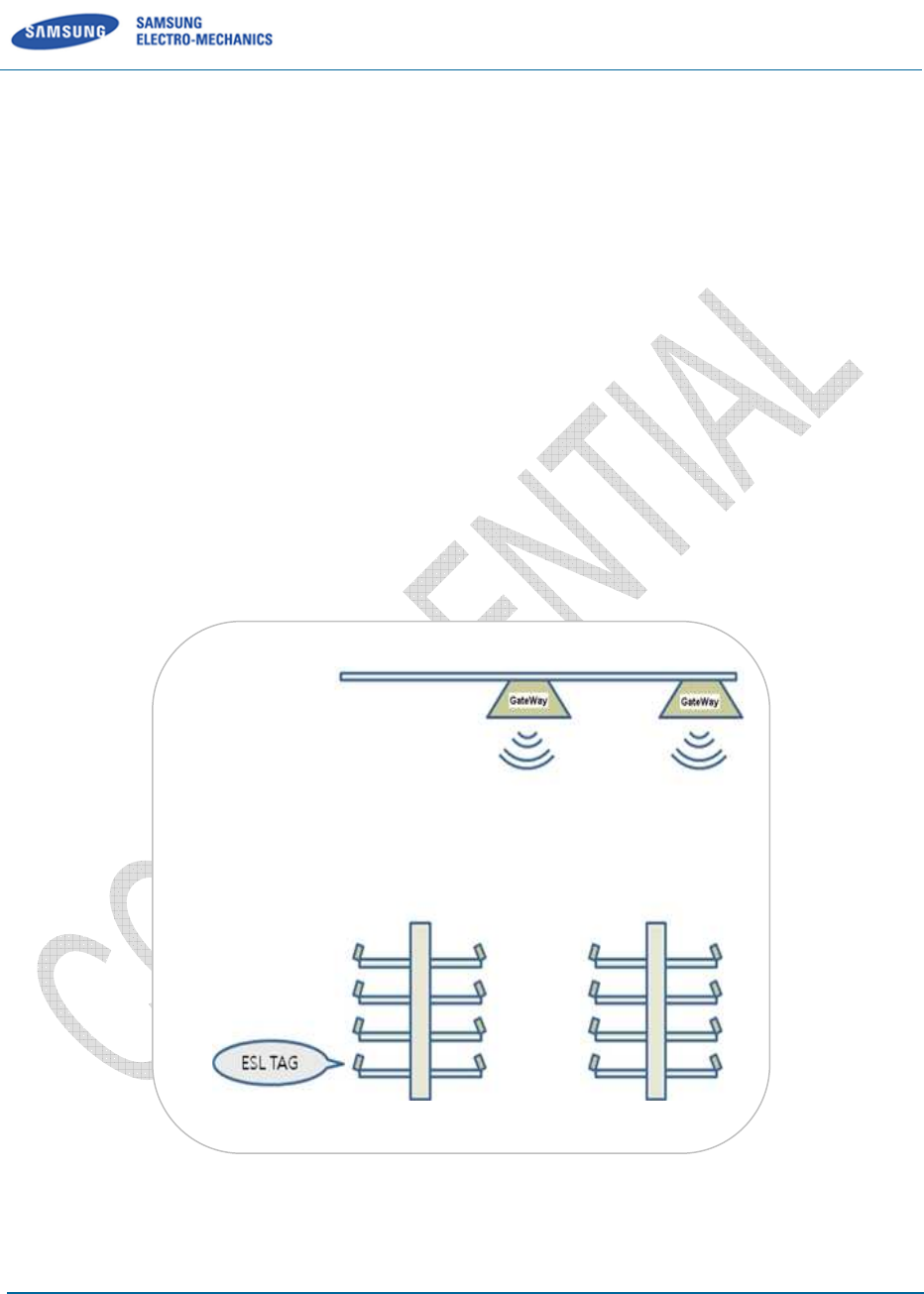

1 General Description

This S-Tag product is a part of Samsung S-Label (Electronic Shelf Label) system as well as S-Label

Gateway (S-Gate), Remote controller (S-RC). S-Label system make up a system that electronically

displays price and other product information on S-Tags, which has been traditionally printed or written on

paper in places like retail markets.

S-Tag receives product price/information updates from S-Gate and updates or changes its display of price

and other information.

S-Tag is the product based on IEEE standard 802.15.4 for low power wireless communication

applications. S-Tag consists of RF transceiver, RF circuitry and 8051-compatible MCU offering IEEE

802.15.4 based network protocol and MAC protocol and other peripheral devices.

S-TAG Datasheet(ST-GM6000N)

Preliminary

REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 6/14

1.1 Features

Display : E-Paper active type Display (6.0 Inch, 128 Dpi, 600 * 448 Pixel)

Communication : Wireless communication based on IEEE 802.15.4 (2405~2480MHz)

Operating on 2.4GHz Unlicensed ISM band for ZigBee

Low Power Consumption

External Wakeup : RF Wakeup (Using ISM Band(2.4GHz))

Outline Dimension : 134.4 mm x 109.5 mm x 14.2 mm

Working condition: Indoor where wireless communication is available.

NFC(13.56MHz) Available

1.2 Typical Applications

- Retail industry with electronic displays, platforms, solutions and services.

- Intelligently communicating, managing, and optimizing price and product information.

1.3 Appearance

Figure 1 Appearance

S-TAG Datasheet(ST-GM6000N)

Preliminary

REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 7/14

2 Specification

2.1 Product Specification

Item

Description

Size

134.4 mm x 109.5 mm x 14.2 mm

Battery

CR2450 Lithiu

m Battery (3V, 4PCS)

2.5 ~ 3.3Vdc(condition : In active status)

Display

Paper active type

isplay

(118.80 * 88.26 mm, 128 Dpi, 600 * 448 Pixel)

Housing Color

White

Information display

Price, Unit,

Symbol

etc.

Communication

Wireless communication based on IEEE 802.15.4 (2405~2480MHz)

Communication

Distance

Radius

20m (Line of Sight)

Operation Temp. 0 ~ 40 ℃ (@20~60% RH)

Etc.

No additional anti

theft locking structure : Rail Mounted only

2.2 Radio (RF)

Specification

Item

Parameter

SPEC

Unit

Condition

Min

Typ

Max

Transmit Power

dBm

Error Vector Magnitude

When measured for 100 chips

Tx Current

Total current at max Tx Power

Receiver Sensitivity

dBm

PER <

1 Test Channel : 2480MHz

S-TAG Datasheet(ST-GM6000N)

Preliminary

REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 8/14

2.3 NFC Specification

Items

Parameter spec.

Units

Condition

Min

Typ

Max

NFC

Read/Write Distance - 40 - mm PCB status

NFC

Read/Write Distance - 30 - mm Final Assy status

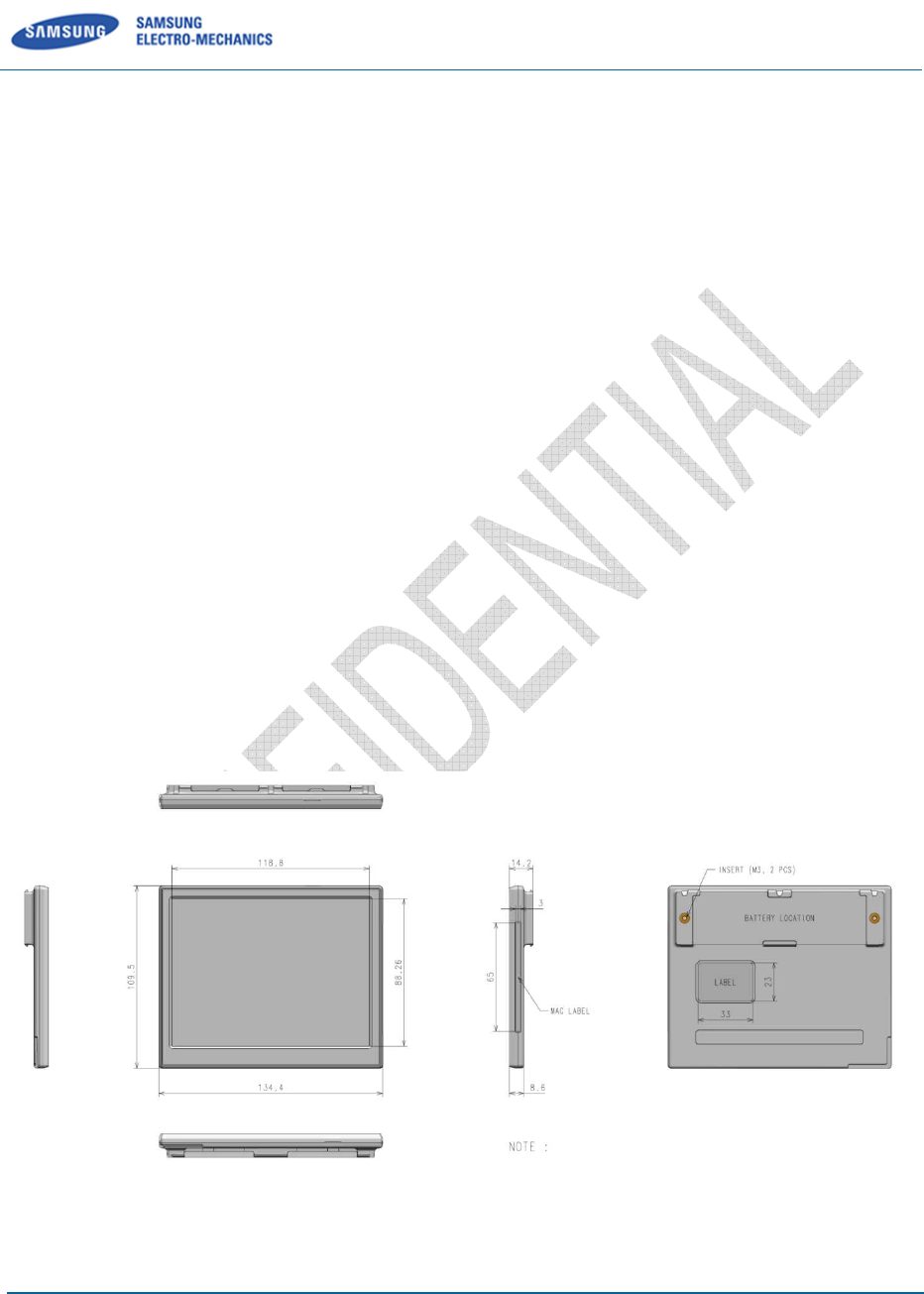

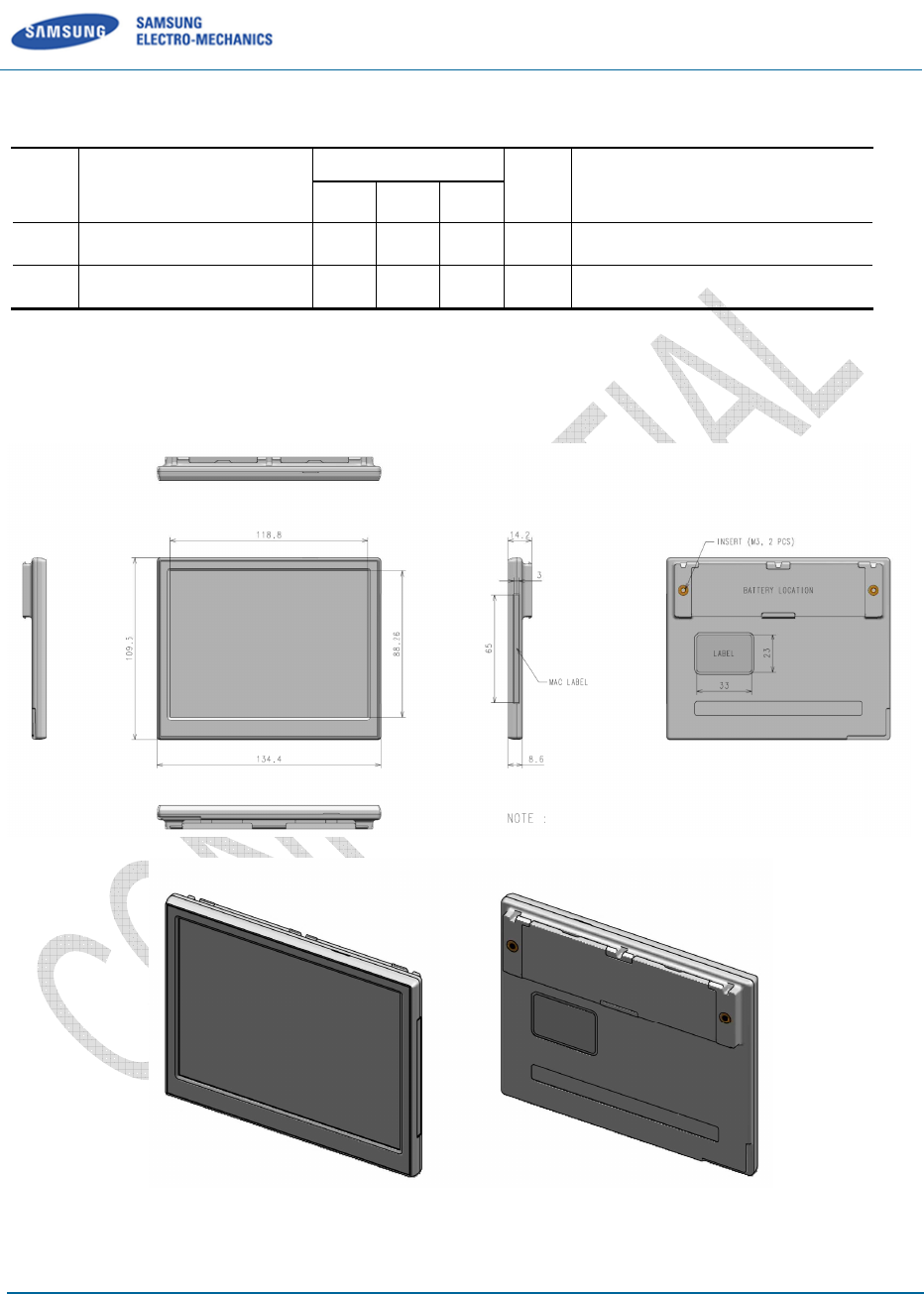

2.4 Mechanical Drawing

Figure 2 Mechanical Dimension

S-TAG Datasheet(ST-GM6000N)

Preliminary

REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 9/14

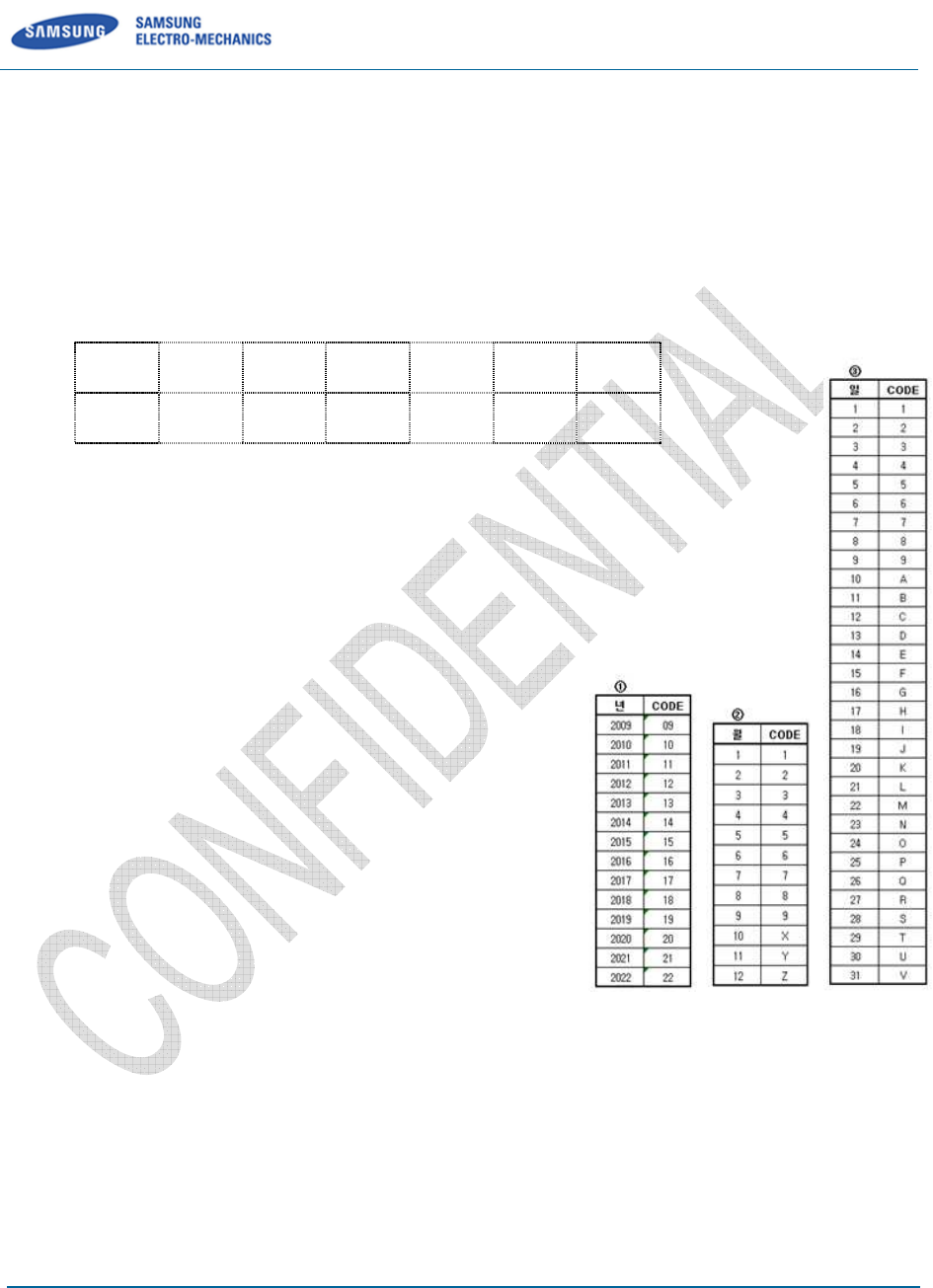

2.5 Labels

2.5.1 Code Information

Serial 1, 2 Code Value

13 Y 5 S A A 2JW

① ② ③ ④ ⑤ ⑥ ⑦

①Year : Last two digits of manufacturing year.

(00 ~ 99, Example : 2013 is '13')

Month : Manufacturing month②

(1 ~ 9, X(10), Y(11), Z(12))

Date : Manufacturing date③

(1 ~ 9, A(10) ~ V(31))

Vendor : Manufacturing v④endor

(S : SEMTHAI, T : TSEM, etc)

Line number : Manufacturing Line number⑤

('A', 'B', 'C', etc)

Revision : Product revision number⑥

(A : First, B : Second, C : Third, etc.)

ZigBee IC Lot Number⑦ : Last 3 characters of Lot Number

(Example : YME06862JW is ‘2JW’)

S-TAG Datasheet(ST-GM6000N)

Preliminary

REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 10/14

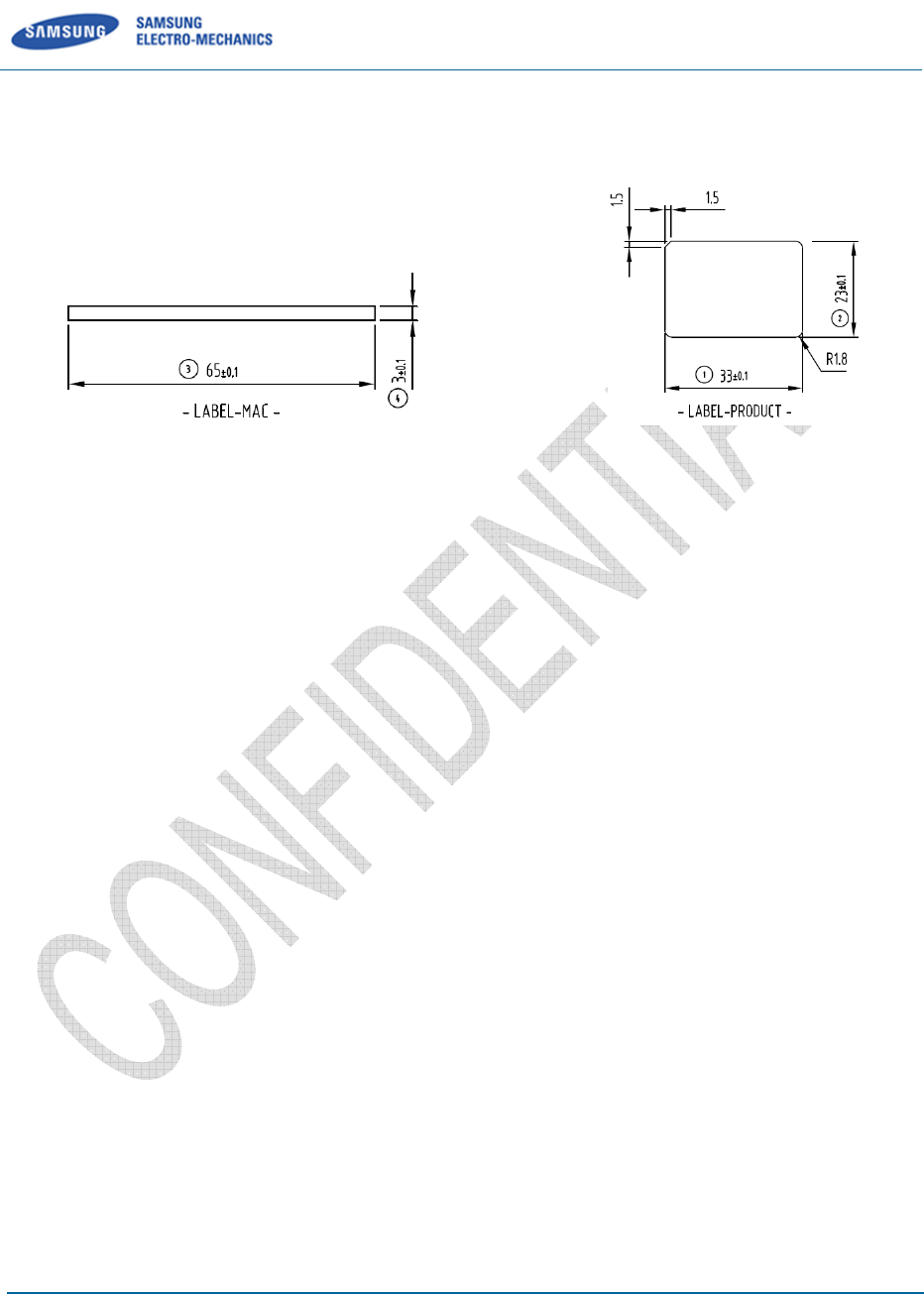

2.5.2 Mac Label Drawings

Front Mac label (65 X 3 mm) Back Label (33 X 23 mm)

Figure 3 Mac Labels

Product information is indicated in a printed sticker label. The information consists of MODEL (model

name), MFD (manufacturing date), S/N (serial number), MAC (MAC address), certification mark, and

Manufacture (SEMCO).

1) FCC ID : E2X-ST-GM6000N

2) Model Name : ST-GM6000N

3) MFD : (Month).(Date).(Year) ex) MAY.16.2013

4) S/N : Daily Production quantity (5 digits) & Serial Number Information (hexadecimal 10 digits)

5) MAC : barcode & barcode number(hexadecimal 12 digits)

- 8 digits (1st ~ 8th) : : XXXXXXXX (Extension ID)

(Increasing number : 00000000~FFFFFFFF)

- 2 digits (9th~10th) : 64 (Tag size & type)

- 1 digits (11th) : 3 (Attribute, 3 : Ultra IC & NFC IC)

- 1 digits (12th) : X (Checksum : XOR calculation value 1~11 digits, 0~F)

S-TAG Datasheet(ST-GM6000N)

Preliminary

REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 11/14

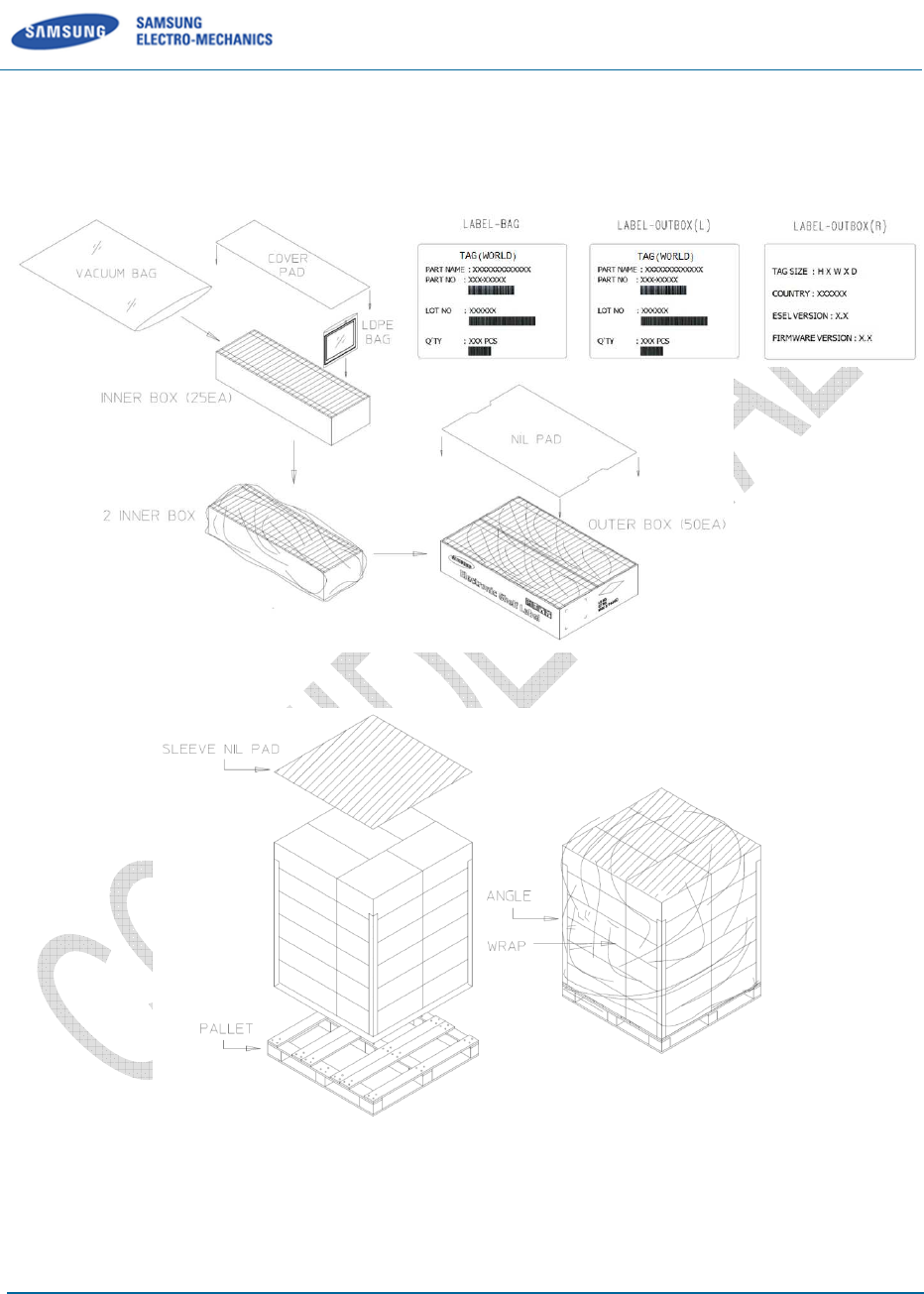

3 Package

VACUUM BAG : LABEL – BAG 1EA / OUTBOX : LABEL – OUTBOX 4EA (L,R 2SETS)

Pallet : 1,200 X 1,000 (mm)

S-TAG Datasheet(ST-GM6000N)

Preliminary

REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 12/14

4 Cautions for Treatment

Provisions should be made to protect against any damage to the product caused by improper handling.

It is highly recommended that the product should be installed within 3 months from the date of arrival in

the logistics hub. Recommended storage condition is in 0-40 Celsius degree, 20-60% RH environment.

This RF device operates on the 2.4GHz frequency band and can produce radio interference. The device,

therefore, may not be used for applications where safety of human lives is concerned.

4.1 Usage Environment

Take extra cautions when using this RF device in the vicinity of other electronic devices and appliances.

Most electronic devices and appliances use electromagnetic waves. Electromagnetic waves emitted by this

RF device can affect other electronic devices and appliances.

If using the device in an explosion hazard area, follow all safety regulations, instructions, and signals.

4.2 Storage and Use

Moisture and liquids can damage internal parts and circuit boards if allowed to enter into the device

itself.

Do not place or store the product on a sloped surface. The product may slide and fall off the

surface and damaged.



Use the product in temperatures ranging from +0℃ to +40℃. Parts and circuits may be damaged if

used or stored under temperature extremes.

The display panel needs extra care when handling.

- Do not apply any impacts on outside since e-Paper display is fragile.

- Continuous exposure to excessive moisture (over 60% RH) or UV makes display lifetime

shortened.

- Ghosting image may be appeared in temperature conditions of less than 15 Celsius degree.

Avoid areas with strong magnetism or subject to magnetism. Contact between the device and a

magnetic object can lead to malfunctions.

Do not place the product near heat-producing kitchen appliances like a stove or a microwave or in

S-TAG Datasheet(ST-GM6000N)

Preliminary

REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 13/14

the vicinity of highly pressurized containers.

External impact to the product, such as from being dropped, can damage the product or battery

casing can be separated.

Twisting and bending the product can damage the exterior casing and the internal components.

If this product operates abnormally in eliminating battery vinyl or replacing battery, you should

discharge it by contacting battery terminal (+) and (-).

This product uses 2.4GHz frequency band for wireless communication network. Radio

communications can be limited or affected by other applications which share same frequency band,

such as Wi-Fi, Bluetooth, ZigBee, etc.

Frequent communications, updates and screen renewals may reduce battery life time.

4.3 Battery Replacement

4.3.1 Audience

Authorized persons with the following knowledge are allowed to replace the battery.

Battery

Electronic assemblies like circuit board

Compliance of the instruction

※ Note : If not authorized person, it will not give any warranty.

4.3.2 Instructions

Risk of explosion through incorrect battery replacement.

Keep attention that your hands are dry before you start with replacement.

When replace the battery, please contact right person and get a instructions.

※ Note : Battery rarely has a little stain or leak.

S-TAG Datasheet(ST-GM6000N)

REV 0.1 Samsung Electro-Mechanics Proprietary and Confidential 14/14

4.3.3 Steps

1. Open the battery cover.

2. Take out the batteries.

3. Put in the new batteries.

4. Check the batteries direction.

5. Put the battery cover.

4.4 FCC

FCC ID : E2X-ST-GM6000N

WARNING : This equipment may generate or use radio frequency energy. Changes or modifications to

this equipment may cause harmful interference unless the modifications are expressly approved in the

instruction manual. The user could lose the authority to operate this equipment if an unauthorized change

or modification is made.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, Including interference that may cause undesired operation.

NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications, However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.
