Samsung Electronics Co 04OMEGA211 Digital Video Camcorder User Manual 00811B SCD907 USA 01 27

Samsung Electronics Co Ltd Digital Video Camcorder 00811B SCD907 USA 01 27

Contents

Users Manual 1

ENGLISHDigital Video CamcorderOwner’s Instruction BookBefore operating the unit, please read thisinstruction book thoroughly, and retain it forfuture reference. AF Auto FocusCCD Charge Coupled DeviceLCD Liquid Crystal DisplaySCD907ELECTRONICSSTART/STOPSELFTIMERA.DUBZEROMEMORYPHOTO DISPLAYX2SLOWF.ADV PHOTOSEARCHDATE/ TIMEUS PATENT 441584400811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 101
ENGLISHNotices and Safety InstructionsSafety InstructionsRISK OF ELECTRICSHOCKDO NOT OPENCAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOTREMOVE COVER(OR BACK). NO USER SERVICEABLEPARTS INSIDE, REFER SERVICING TO QUALIFIEDSERVICE PERSONNEL.This symbol is intended to alert the user to the presence of uninsulateddangerous voltage within the product’s enclosure that may be ofsufficient magnitude to constitute a risk of fire or electric shock.This symbol is intended to alert the user to the presence of importantoperating and maintenance instructions in the literature accompanyingthis product.To prevent electric shock, match wide blade of plugto wide slot and fully insert.1. READ INSTRUCTIONS: All the safety and operating instructions should be read before the CAMCORDER is operated.2. RETAIN INSTRUCTIONS:The safety and operating instructions should be retained for future reference.3. HEED WARNINGS:All warnings on the CAMCORDER and in the operating instructions should be adhered to.4. FOLLOW INSTRUCTIONS: All operating and maintenance instructions should be followed.5. CLEANING: Unplug this CAMCORDER from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a dry cloth used for dusting cabinets.6. ATTACHMENTS:Do not use attachments not recommended by the CAMCORDER product manufacturer as they may be hazardous.7. WATER AND MOISTURE: Do not use this CAMCORDER near water; for example, near a bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool or lake.8. ACCESSORIES: Do not place this CAMCORDER on an unstable cart, stand, tripod,bracket or table. The CAMCORDER may fall, causing serious injuryto a child or adult, and serious damage to the unit. Use only with a cart, stand, tripod, bracket, or table recommendedby the manufacturer or sold with the CAMCORDER. Any mountingof the unit should follow the manufacturer’s instructions and shoulduse a mounting accessory recommended by the manufacturer.A. An appliance and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the appliance and cart combination to overturn. PORTABLE CART WARNING(Symbol provided by RETAC)CAUTION00811B SCD907 USA-SAFETY 8/23/04 11:41 AM Page 100

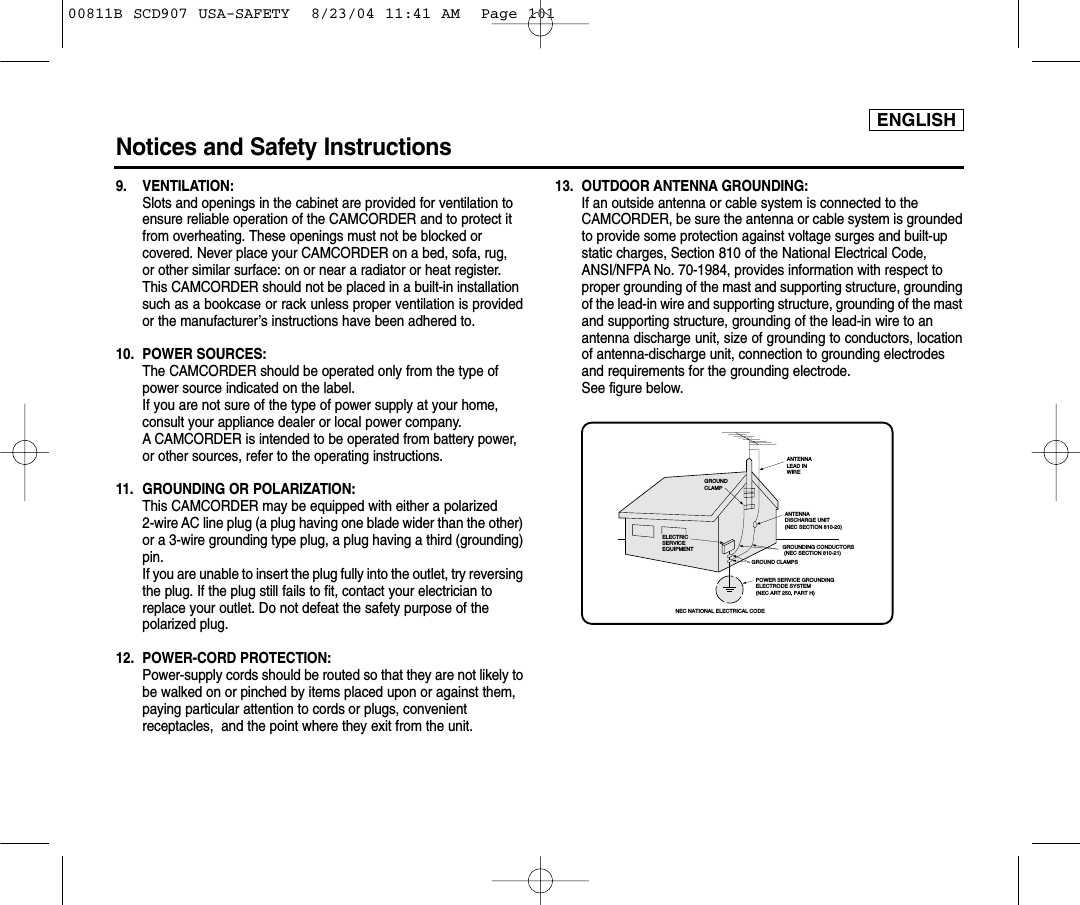

ENGLISHNotices and Safety Instructions9. VENTILATION: Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the CAMCORDER and to protect it from overheating. These openings must not be blocked or covered. Never place your CAMCORDER on a bed, sofa, rug, or other similar surface: on or near a radiator or heat register. This CAMCORDER should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is providedor the manufacturer’s instructions have been adhered to.10. POWER SOURCES: The CAMCORDER should be operated only from the type of power source indicated on the label.If you are not sure of the type of power supply at your home, consult your appliance dealer or local power company. A CAMCORDER is intended to be operated from battery power, or other sources, refer to the operating instructions.11. GROUNDING OR POLARIZATION: This CAMCORDER may be equipped with either a polarized 2-wire AC line plug (a plug having one blade wider than the other)or a 3-wire grounding type plug, a plug having a third (grounding)pin.If you are unable to insert the plug fully into the outlet, try reversingthe plug. If the plug still fails to fit, contact your electrician to replace your outlet. Do not defeat the safety purpose of the polarized plug.12. POWER-CORD PROTECTION: Power-supply cords should be routed so that they are not likely tobe walked on or pinched by items placed upon or against them, paying particular attention to cords or plugs, convenient receptacles, and the point where they exit from the unit. 13. OUTDOOR ANTENNA GROUNDING: If an outside antenna or cable system is connected to the CAMCORDER, be sure the antenna or cable system is groundedto provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, groundingof the lead-in wire and supporting structure, grounding of the mastand supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding to conductors, locationof antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode.See figure below.GROUNDING CONDUCTORS (NEC SECTION 810-21)GROUND CLAMPSPOWER SERVICE GROUNDINGELECTRODE SYSTEM(NEC ART 250, PART H)NEC NATIONAL ELECTRICAL CODEELECTRICSERVICEEQUIPMENTGROUNDCLAMPANTENNALEAD INWIREANTENNADISCHARGE UNIT(NEC SECTION 810-20)00811B SCD907 USA-SAFETY 8/23/04 11:41 AM Page 101
ENGLISHNotices and Safety Instructions14. LIGHTNING:For added protection of this CAMCORDER during a lightning storm or when it is left unattended and unused for long periods oftime, unplug it from the wall outlet and disconnect the antenna orcable system. This will prevent damage to the CAMCORDER due to lightning and power-line surges.15. POWER LINES:An outside antenna system should not be located in the vicinity ofoverhead power lines or other electric light or power circuits whereit can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.16. OVERLOADING:Do not overload wall outlets and extension cords as this can resultin a risk of fire or electric shock.17. OBJECTS AND LIQUIDS:Never push objects of any kind into this CAMCORDER through openings as they may touch dangerous voltage points or short outa part that could result in a fire or electric shock. Never spill liquids of any kind onto the CAMCORDER. Should spillage occur, unplug unit and have it checked by a technician before use.18. SERVICING:Do not attempt to service this CAMCORDER yourself. Opening orremoving covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.19. DAMAGE REQUIRING SERVICE:Unplug this CAMCORDER from the wall outlet and refer servicingto qualified service personnel under the following conditions: a. When the power-supply cord or plug is damaged. b. If any liquid has been spilled onto, or objects have fallen intothe CAMCORDER.c. If the CAMCORDER has been exposed to rain or water.d. If the CAMCORDER does not operate normally by following theoperating instructions, adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the CAMCORDER to its normal operation.e. If the CAMCORDER has been dropped or the cabinet has beendamaged.f. When the CAMCORDER exhibits a distinct change in performance, this indicates a need for service.20. REPLACEMENT PARTS:When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer and having the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.21. SAFETY CHECK:Upon completion of any service or repairs to this CAMCORDER, ask the service technician to perform safety checks to determine that the CAMCORDER is in safe operating order.00811B SCD907 USA-SAFETY 8/23/04 11:41 AM Page 102
ENGLISHNotices and Safety Instructions22. To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture.23. If this power supply is used at 240V ac, a suitable plug adaptershould be used.NOTE TO CATV SYSTEM INSTALLER:This reminder is provided to call the CATV system installer’s attentionto Article 820-40 of the NEC that provides guidelines for propergrounding and, in particular, specifies that the cable ground shall beconnected to the grounding system of the building as close to the pointof cable entry as practical.USER INSTALLER CAUTION:Your authority to operate this FCC certified equipment could be voidedif you make changes or modifications not expressly approved by thisparty responsible for compliance to part 15 FCC rules.NOTE:NOTE: This equipment has been tested and found to comply withthe limits for a Class B digital device, pursuant to part 15 of theFCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequencyenergy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interferencewill not occur in a particular installation. If this equipment doescause harmful interference to radio or television reception, whichcan be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of thefollowing measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different fromthat to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for helpand for additional suggestions. The user may find the following booklet prepared by the FederalCommunications Commission helpful : “How to Identify andResolve Radio-TV Interference Problems.” This Booklet is available from the U.S. Government PrintingOffice, Washington, D.C. 20402, Stock No. 004-000-00345-4. FCC WarningThe user is cautioned that changes or modifications not expresslyapproved by the manufacturer could void the user’s authority tooperate the equipment.FCC ID : A3L04OMEGA211This device complies with Part 15 of FCC Rules.Operation is subject to the following two conditions;(1) This device may not cause harmful interference, and(2) This device must accept any interference received,including interference that may cause undesired operation.Hg LAMP(S) INSIDE THIS PRODUCT CONTAINMERCURY AND MUST BE RECYCLED ORDISPOSED OF ACCORDING TO LOCAL, STATE OR FEDERAL LAWS For detailssee lamprecycle.org, eiae.org, or call 1-800-Samsung00811B SCD907 USA-SAFETY 8/23/04 11:41 AM Page 103
ENGLISHContents22ENGLISHFeatures ......................................................................................................................................................................................................................................................11Accessories Supplied with camcorder ....................................................................................................................................................................................................... 12Front & Left View ....................................................................................................................................................................................................................................... 13Left side View ............................................................................................................................................................................................................................................. 14Right & Top View ........................................................................................................................................................................................................................................ 15Rear & Bottom View .................................................................................................................................................................................................................................. 16Remote control ........................................................................................................................................................................................................................................... 17OSD (On Screen Display in CAMERA and PLAYER modes) .................................................................................................................................................................. 18OSD (On Screen Display in M.REC/M.PLAY (Memory Stick) modes)...................................................................................................................................................... 19Turning the OSD on/off (On Screen Display) ..................................................................................................................................................................................... 19How to use the Remote Control ............................................................................................................................................................................................................... 20Battery Installation for the Remote Control ........................................................................................................................................................................................ 20Self Record using the Remote Control ............................................................................................................................................................................................... 20Lithium Battery Installation...........................................................................................................................................................................................................................21Adjusting the Hand Strap .......................................................................................................................................................................................................................... 22Hand strap ........................................................................................................................................................................................................................................... 22Attaching the Lens Cover......................................................................................................................................................................................................................22Connecting a Power Source ...................................................................................................................................................................................................................... 23To use the AC Power adapter and DC Cable ................................................................................................................................................................................... 23To select the CAMCORDER mode ......................................................................................................................................................................................................23Using the Lithium Ion Battery Pack .......................................................................................................................................................................................................... 24Charging the Lithium Ion Battery Pack ............................................................................................................................................................................................... 24Table of continuous recording time based on model and battery type ............................................................................................................................................. 25Battery level display ............................................................................................................................................................................................................................ 26Inserting and Ejecting a Cassette ............................................................................................................................................................................................................. 27Making your First Recording ...................................................................................................................................................................................................................... 28To select the CAMCORDER mode ........................................................................................................................................................................................................... 29To select the DSC (Digital Still Camera) mode ...........................................................................................................................................................................................29 Selecting OSD LANGUAGE ....................................................................................................................................................................................................................... 30 Record Search (REC SEARCH) ........................................................................................................................................................................................................ 31Hints for Stable Image Recording ............................................................................................................................................................................................................. 32Recording with the LCD monitor ......................................................................................................................................................................................................... 32Recording with the Viewfinder ........................................................................................................................................................................................................... 32Adjusting the LCD monitor ......................................................................................................................................................................................................................... 33Using the VIEWFINDER ........................................................................................................................................................................................................................... 34Adjusting the Focus ............................................................................................................................................................................................................................. 34Playing back a tape you have recorded on the LCD monitor ................................................................................................................................................................... 35Controlling Sound from the Speaker ........................................................................................................................................................................................................ 36BASIC Recording ...................................................................................................................................................28Preparation............................................................................................................................................................20Notes and Safety Instructions ................................................................................................................................ 6Getting to Know Your Camcorder ....................................................................................................................... 1100811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 2
Use of various Functions ........................................................................................................................................................................................................................... 37Setting menu items ............................................................................................................................................................................................................................. 37Set the camcorder to CAMERA or PLAYER mode and M.REC or M.PLAY mode ............................................................................................................................ 38Availability of functions in each mode ................................................................................................................................................................................................. 39CLOCK SET ....................................................................................................................................................................................................................................... 40WL. REMOTE .................................................................................................................................................................................................................................... 41BEEP SOUND .................................................................................................................................................................................................................................... 42SHUTTER SOUND ............................................................................................................................................................................................................................. 43USB CONNECT ................................................................................................................................................................................................................................... 44DEMONSTRATION ............................................................................................................................................................................................................................ 45PROGRAM AE ................................................................................................................................................................................................................................... 46Setting the PROGRAM AE ................................................................................................................................................................................................................. 47WHT. BALANCE (WHITE BALANCE) ................................................................................................................................................................................................ 48Zooming In and Out ............................................................................................................................................................................................................................ 49Tele MACRO......................................................................................................................................................................................................................................... 49Zooming In and Out with DIGITAL ZOOM .......................................................................................................................................................................................... 50Digital Zoom ....................................................................................................................................................................................................................................... 50EIS (Electronic Image Stabilizer) .........................................................................................................................................................................................................51DSE (Digital Special Effects) SELECT ............................................................................................................................................................................................... 52Selecting an Digital Special Effect ....................................................................................................................................................................................................... 53MEMORY MIX...................................................................................................................................................................................................................................... 54Recording Superimposed images on a tape ....................................................................................................................................................................................... 55REC MODE ........................................................................................................................................................................................................................................ 56AUDIO MODE .................................................................................................................................................................................................................................... 57WIND CUT ......................................................................................................................................................................................................................................... 58DATE/TIME ......................................................................................................................................................................................................................................... 59TV DISPLAY ....................................................................................................................................................................................................................................... 60Using Quick Menu .................................................................................................................................................................................................................................... 61Setting the Quick menu ....................................................................................................................................................................................................................... 62SHUTTER SPEED & EXPOSURE .................................................................................................................................................................................................... 63SLOW SHUTTER(Low Shutter Speed) ................................................................................................................................................................................................... 64EASY Q Mode (for Beginners) .................................................................................................................................................................................................................. 65MF/AF (Manual Focus/Auto Focus) .......................................................................................................................................................................................................... 66Auto Focusing ..................................................................................................................................................................................................................................... 66Manual Focusing ................................................................................................................................................................................................................................. 66Using the Built-in Flash ............................................................................................................................................................................................................................... 67FLASH SELECT....................................................................................................................................................................................................................................67BLC (Back Light Compensation) ............................................................................................................................................................................................................... 68Fade In and Out ......................................................................................................................................................................................................................................... 69To Start Recording .............................................................................................................................................................................................................................. 69To Stop Recording (use FADE IN / FADE OUT) ................................................................................................................................................................................ 69Audio dubbing ............................................................................................................................................................................................................................................70Dubbing sound. .................................................................................................................................................................................................................................... 70Dubbed Audio Playback ...................................................................................................................................................................................................................... 71PHOTO Image Recording .......................................................................................................................................................................................................................... 72Advanced Recording ........................................................................................................................................... 37Contents33ENGLISH00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 3
ENGLISH44Searching for a PHOTO picture .......................................................................................................................................................................................................... 72Various Recording Techniques .................................................................................................................................................................................................................. 73Tape Playback ............................................................................................................................................................................................................................................ 74Playback on the LCD .......................................................................................................................................................................................................................... 74Playback on a TV monitor ................................................................................................................................................................................................................... 74Connecting to a TV which has Audio/Video input jacks ..................................................................................................................................................................... 74Connecting to a TV which has no Audio and Video input jacks ........................................................................................................................................................ 75Playback .............................................................................................................................................................................................................................................. 75Various Functions while in PLAYER mode ................................................................................................................................................................................................ 76Playback pause ................................................................................................................................................................................................................................... 76Picture search (Forward/Reverse) ...................................................................................................................................................................................................... 76Slow playback (Forward/Reverse) ...................................................................................................................................................................................................... 76Frame advance (To play back frame by frame) ................................................................................................................................................................................. 77X2 Playback (Forward/Reverse ) ........................................................................................................................................................................................................ 77Reverse playback................................................................................................................................................................................................................................. 77ZERO MEMORY ....................................................................................................................................................................................................................................... 78PB ZOOM ................................................................................................................................................................................................................................................... 79Transferring IEEE1394 (i.LINK)-DV standard data connections .............................................................................................................................................................. 81Connecting to a DV device ................................................................................................................................................................................................................. 81Connecting to a PC ............................................................................................................................................................................................................................. 81System requirements .......................................................................................................................................................................................................................... 81Recording with a DV connection cable................................................................................................................................................................................................ 82Transferring a Digital Image through a USB Connection ...........................................................................................................................................................................83System Requirements ................................................................................................................................................................................................................................ 83Installing DVC Media 7.0 Software............................................................................................................................................................................................................. 84Connecting to a PC .................................................................................................................................................................................................................................... 85MEMORY STICK ........................................................................................................................................................................................................................................ 86Memory Stick Functions....................................................................................................................................................................................................................... 86Inserting and ejecting the Memory Stick ............................................................................................................................................................................................ 87Structure of folders and files on the Memory Stick ............................................................................................................................................................................ 88Image Format ...................................................................................................................................................................................................................................... 88Selecting the image quality ........................................................................................................................................................................................................................ 89Select the photo quality ...................................................................................................................................................................................................................... 89Number of images on the Memory Stick ............................................................................................................................................................................................ 89Selecting the recording image size............................................................................................................................................................................................................. 90Selecting the moving picture size ............................................................................................................................................................................................................... 91Recording images continuously...................................................................................................................................................................................................................92Select the CONTINUOUS SHOT ........................................................................................................................................................................................................ 92ContentsPlayback ...............................................................................................................................................................74USB interface ..................................................................................................................................................... 83Digital Still Camera mode .................................................................................................................................... 86Recording in PLAYER mode ................................................................................................................................. 80IEEE 1394 Data Transfer ...................................................................................................................................... 8100811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 4
Recording Still images to a Memory Stick in M.REC Mode ......................................................................................................................................................................93Recording images to a Memory Stick ..................................................................................................................................................................................................93Recording an image from a cassette as a still image ....................................................................................................................................................................... 94Copying still images from a cassette to Memory Stick .............................................................................................................................................................................. 95MJPEG RECORDING ............................................................................................................................................................................................................................... 96Recording moving pictures onto a MEMORY STICK ................................................................................................................................................................................ 96Viewing still images/moving pictures ......................................................................................................................................................................................................... 98To view a Single image ........................................................................................................................................................................................................................ 98To view a slide show ............................................................................................................................................................................................................................ 99To view the Multi Display...................................................................................................................................................................................................................... 99Marking still images for printing ................................................................................................................................................................................................................. 99Printing Your Pictures - Using the PictBridge (DIRECT PRINT) ............................................................................................................................................................ 101Connecting to a Printer ......................................................................................................................................................................................................................101Printing Images ................................................................................................................................................................................................................................ 102To print the date on the image ............................................................................................................................................................................................................103Protection from accidental erasure........................................................................................................................................................................................................... 104Deleting Still images/Moving pictures ...................................................................................................................................................................................................... 105Deleting images in the menu ............................................................................................................................................................................................................. 105Deleting images using the DELETE button....................................................................................................................................................................................... 106Deleting images in MULTI DISPLAY mode ....................................................................................................................................................................................... 106Formatting the Memory Stick and setting the File Number ..................................................................................................................................................................... 107Formatting the Memory Stick ............................................................................................................................................................................................................ 107Attention ............................................................................................................................................................................................................................................ 107Setting the File Number ..................................................................................................................................................................................................................... 108Using the Smart Shoe ....................................................................................................................................................................................................................... 109After finishing a recording ......................................................................................................................................................................................................................... 111Cleaning and Maintaining the Camcorder ................................................................................................................................................................................................ 112Cleaning the Video Heads ................................................................................................................................................................................................................ 112Using Your Camcorder Abroad ................................................................................................................................................................................................................ 113Power sources ................................................................................................................................................................................................................................... 113Color system ...................................................................................................................................................................................................................................... 113Troubleshooting ........................................................................................................................................................................................................................................ 114Self Diagnosis Display ....................................................................................................................................................................................................................... 114Moisture Condensation ..................................................................................................................................................................................................................... 114Self Diagnosis Display in M.REC, M.PLAY mode ............................................................................................................................................................................ 115ContentsENGLISHMaintenance....................................................................................................................................................... 111Troubleshooting.................................................................................................................................................. 114Specifications...................................................................................................................................................... 116INDEX ................................................................................................................................................................ 117Warranty(SEA users only) ................................................................................................................................... 120Smart Shoe ......................................................................................................................................................... 1095500811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 5
ENGLISHNotes and Safety Instructions66ENGLISHNotes regarding the rotation of the LCD monitorPlease rotate the LCD monitor carefully as illustrated. Over rotation may cause damage to the inside of the hinge that connects the LCD monitor to the Camcorder.1. LCD monitor closed.2. Standard recording using the LCD monitor.■A LCD Monitor is opened applying a finger to LCD open knob.3. Recording when looking at the LCD monitor from the top.4. Recording when looking at the LCD monitor from the front.5. Recording when looking at the LCD monitor from the left.12345LCD monitor open knob00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 6
Television programs, video tapes, DVD titles, films and other program materials may be copyrighted. Unauthorized copying of copyrighted material may be against the law.1. A sudden rise in atmospheric temperature may cause condensation to form inside the camcorder.for example:- When you move the camcorder from a cold location to a warm location (e.g. from outside to inside during winter.)- When you move the camcorder from a cool location to a hot location (e.g. from inside to outside during the summer.)2. If the (DEW) protection feature is activated, leave the camcorder for at least two hours in a dry, warm room with thecassette compartment opened and the battery pack removed.1. Do not leave the camcorder exposed to high temperature (above 60°C or 140°F). For example, in a parked car in the sun or exposed to direct sunlight.2. Do not let the camcorder get wet.Keep the camcorder away from rain, sea water, and any other form of moisture. If the camcorder gets wet, it may getdamaged.Sometimes a malfunction due to exposure to liquids cannot be repaired.Notes regarding CAMCORDERNotices regarding COPYRIGHT Notes regarding moisture condensationNotes and Safety Instructions77ENGLISH00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 7
- Make sure that the battery pack is fully charged before starting to record.- To preserve battery power, keep your camcorder turned off when you are not operating it.- If your camcorder is in CAMERA mode and it is left in STBY mode without being operated formore than 5 minutes with a tape installed, it will automatically turn itself off to protect againstunnecessary battery discharge.- Make sure that the battery pack is located correctly and firmly in place.Dropping the battery pack may damage it.- A brand new battery pack is not charged.Before using the battery pack, you need to charge it completely.- It is a good idea to use the viewfinder rather than the LCD monitor when making longrecordings, because the LCD monitor uses up more battery power.* When the battery reaches the end of its life, please contact your local dealer.The batteries have to be dealt with as chemical waste. * Be careful not to drop the battery pack when you release it from the camcorder.- To ensure normal recording and a clear picture, clean the video heads regularly. If a square block-shape distorts playback, or only a blue screen is displayed, the video heads may be dirty. If this happens,clean the video heads with a dry type cleaning cassette.- Do not use a wet-type cleaning cassette. It may damage the video heads.ENGLISHNotes and Safety Instructions88ENGLISHNotes regarding the battery packNotes regarding the Video Head Cleaning00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 8
- Do not film with the camera lens pointing directly at the sun.Direct sunlight can damage the CCD(Charge Coupled Device).1. Do not position the camcorder so that the viewfinder points towards the sun. Direct sunlight can damage the inside of the viewfinder. Be careful when placing the camcorder under sunlight or near awindow exposed to sunlight.2. Do not pick up the camcorder using the viewfinder.3. Excessive force when pulling the viewfinder out may damage it.1. The LCD monitor has been manufactured using high precision technology. However, there may be tiny dots (red, blue or green incolor) that appear on the LCD monitor.These dots are normal and do not affect the recorded picture in anyway.2. When you use the LCD monitor under direct sunlight or outdoors, it may be difficult to see the picture clearly. If this occurs, we recommend using the viewfinder.3. Direct sunlight can damage the LCD monitor.- To ensure a steady picture during filming, check that the hand strap is properly adjusted.- Do not force your hand into the hand strap as you could damage it.Note regarding the LENSNotes regarding electronic viewfinderNotes regarding ‘Record’ or ‘Playback’ using the LCD monitorNotes regarding the hand strapNotes and Safety Instructions99ENGLISH00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 9
ENGLISHNotes and Safety Instructions1010ENGLISHPrecautions regarding the Lithium battery1. The lithium battery maintains the clock function and user settings; even if the battery pack or AC adapter is removed.2. The lithium battery for the camcorder lasts about 6 months under normal operation from time of installation.3. When the lithium battery becomes weak or dead, the date/time indicator will display “---” when you set the DATE/TIME to ON.When this occurs, replace the lithium battery with a new one(type CR2025).4. There is a danger of explosion if battery is incorrectly replaced.Replace only with the same or equivalent type.Warning: Keep the LITHIUM BATTERY out of reach of children. Should a battery be swallowed, consult a doctor immediately.SERVICINGDo not attempt to service this CAMCORDER yourself. Opening or removing covers may expose you to dangerous voltage or other hazards.Refer all servicing to qualified service personnel.REPLACEMENT PARTS When replacement parts are required, be sure the service technician has used replacement parts specified by themanufacturer and having the same characteristics as the original part.Unauthorized substitutions may result in fire, electric shock or other hazards.00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 10
Features•MULTI OSD LANGUAGEYou can select the desired OSD Language among English, French, Spanish, Portuguese, German and Italian.•Digital data transfer function with IEEE1394By incorporating the IEEE 1394 (i.LINK™ : i.LINK is a serial data transfer protocol and inter-connectivity system, used to transmitDV data) high speed data transport port, both moving and still images can be transferred to a PC, making it possible to produce oredit various images. •USB interface for digital image data transferYou can transfer still images/movies to a PC using the USB interface without an add-on card.•900x Digital zoomAllows you to magnify an image up to 900 times its original size.•Color TFT LCD monitorA high-resolution color TFT LCD monitor gives you clean, sharp images as well as the ability to review your recordings immediately.•Electronic Image Stabilizer (EIS) The EIS compensates for any handshake, reducing unstable images, particularly at high magnification.•Various digital effectsThe DSE (Digital Special Effects) allows you to give your films a special look by adding various special effects.•Back Light Compensation (BLC)The BLC function compensates for the bright background behind a subject you're recording.•Program AEThe Program AE enables you to alter the shutter speed and aperture to suit the type of scene/action to be filmed.•Digital Still Camera function■Using Memory Stick, you can easily record and playback standard still images.■You can transfer standard still images on the Memory Stick to your PC using the USB interface.•Direct PrintYou can print still images by connecting to a printer with PictBridge function.•MJPEG (Moving picture) RecordingMJPEG recording makes it possible to record video onto a Memory Stick.•Mega-pixel CCDYour camcorder incorporates a 2.11 mega-pixel CCD. High-resolution still images can be recorded to a Memory Stick.•Built-in FlashYou can take natural-looking flash pictures with appropriate illumination using the built-in Flash.Getting to Know Your Camcorder1111ENGLISH00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 11
Make sure that the following basic accessories are supplied with your digital video camera.Basic Accessories1. Lithium Ion Battery pack2. AC Power Adapter (AA-E7 TYPE)3. AC Cord 4. Multi-AV Cable (AUDIO/VIDEO/S-VIDEO)5. Instruction Book 6. Lithium batteries for Remote Control and Clock.(TYPE: CR2025, 2 EA)7. Remote Control8. Memory Stick9. USB cable10.Software CD11. Lens coverENGLISHGetting to Know Your Camcorder1212ENGLISHAccessories Supplied with camcorder1. Lithium Ion Battery pack4. Multi-AV Cable (AUDIO/VIDEO/S-VIDEO)7. Remote Control 8. Memory Stick 3. AC cord6. Lithium batteries(CR2025, 2 EA)5. Instruction Book10. Software CD2. AC Power Adapter (AA-E7 TYPE)AD43-00128AAD39-00001AAD59-00085AAD44-00090A AD39-00076AAD43-10130HAD39-00073A11. Scart adapter9. USB cable 00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 12
Front & Left ViewGetting to Know Your Camcorder1313ENGLISH2. Ring FOCUS (see page 66)3. Lens 4. Built-in FLASH (see page 67)5. Handstrap ring6. LED LIGHT (see page 64)7. Remote sensor8. Internal MIC9. Viewfinder (see page 34)10. LCD monitor open11. TFT LCD monitor1. Function buttonsPLAYER CAMERA M.PLAY- EASY Q MULTI DISP.: (REW) REC SEARCH – REV: (FF) REC SEARCH + MJPEG PLAY/STILL: (PLAY/STILL) FADE MJPEG PLAY/STILL: (STOP) BLC MJPEG STOP6. LED LIGHT8. Internal MIC7. Remote sensor3. Lens9. Viewfinder11. TFT LCD monitor4. Built-in FLASH2. Ring Focus1. Function buttonsREC SEARCH FADE BLCREV FWDEASY MULTI DISP.10. LCD monitor open5. Handstrap ring00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 13
ENGLISHGetting to Know Your Camcorder1414ENGLISHLeft Side View1. MENU button2. MENU Selector6. Mode switch7. FLASH/PB ZOOM8. MEMORY MIX/S.SHOW10. DISPLAY9. Speaker11. MACRO/DELETE 3. External MIC in4. DC jack5. Charging indicatior1. MENU button2. MENU Selector (MENU/VOLUME)3. External MIC in4. DC jack5. Charging indicatior (see page 24)6. Mode switch (MEMORY/TAPE) (see page 29)7. FLASH (CAMERA, M.REC) (see page 67)/PB ZOOM (PLAYER) (see page 79)8. MEMORY MIX (CAMERA) (see page 54)/S.SHOW (M.PLAY) (see page 99)9. Speaker (see page 36)10.DISPLAY (see page 19)11.MACRO (CAMERA, M.REC) (see page 49)/ DELETE (M.PLAY) (see page 106)00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 14
Right & Top ViewGetting to Know Your Camcorder1515ENGLISH10. DV jack11. USB jack12. Hook for handstrap8. Slow shutter1. Zoom lever 2. PHOTO button4. START/STOP button5. Power switch3. Focus adjustment knob7. MF/AF9. Multi-AV jack6. SMART SHOE COVER1. Zoom lever (see page 49)2. PHOTO button (see page 93)3. Focus adjustment knob (see page 34)4. START/STOP button5. Power switch (CAMERA/PLAYER) (see page 29)6. SMART SHOE COVER (see page 109)7. MF/AF (see page 66)8. Slow shutter (see page 64)9. Multi-AV jack10.DV jack (see page 81)11.USB jack (see page 85)12.Hook for handstrap (see page 22)00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 15
ENGLISHGetting to Know Your Camcorder1616ENGLISHRear & Bottom View1. LITHIUM Battery Cover (see page 21)2. Memory Stick slot (see page 87)3. Battery Release4. Tripod receptacle5. TAPE EJECT (see page 27)5. TAPE EJECT4. Tripod receptacle2. Memory Stick slot 1. LITHIUM Battery Cover3. Battery Release00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 16
1. PHOTO2. START/STOP3. SELF TIMER (see page 20)4. ZERO MEMORY (see page 78)5. PHOTO Search (see page 72)6. A.DUB (see page 70)7. (FF)8. (REW)9. (PLAY)10. Direction ( , ) (see page 76)11. F. ADV (see page 77)12. (STOP)13. (STILL) 14. (SLOW) (see page 76)15. DATE/TIME16. X2 (see page 77)17. Zoom18. DisplayRemote control1. PHOTO2. START/STOP3. SELF TIMER4. ZERO MEMORY5. PHOTO SEARCH6. A.DUB7. (FF)8. (REW)9. (PLAY)10. Direction18. DISPLAY17. Zoom16. X215. DATE/TIME14. (SLOW)13. (STILL)11. F. ADV12. (STOP)Getting to Know Your Camcorder1717ENGLISH00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 17
ENGLISHGetting to Know Your Camcorder1818ENGLISHOSD (On Screen Display in CAMERA and PLAYER modes)1. Battery level (see page 26)2. Easy Q mode (see pages 65)3. DSE (Digital Special Effects) mode (see page 52)4. Program AE (see page 46)5. White Balance mode (see page 48)6. BLC (Back Light Compensation) (see page 68)7. Manual focus (see page 66) 8. EXPOSURE and Shutter speed (see page 63)9. Zoom position (see page 49)10.Memory Mix (see page 54)11.DATE/TIME (see page 59)12.USB (see page 83)13.WL. REMOTE (see page 41)14.WIND CUT (see page 58)15.Audio recording mode (see page 57)16.Zero memory indicator (see page 78)17.Remaining Tape (measured in minutes) 18.Tape Counter19.Operating mode20.Record speed mode21.PHOTO mode22.Self recording and waiting timer (see page 20)23.EIS (see page 51)24.Volume control (see page 36)25.Audio playback channel (see page 71)26.DV IN(DV data transfer mode) (see page 81)27.DEW (see page 7)28.Message Line29.FLASH mode (see page 67)30.SLOW SHUTTER (see page 64)31. Tele MACRO (see page 49)32. AV IN (see page 80)OSD in CAMERA modeTAPE !MFM.OVERLAPMIRRORSHUTTEREXPOSURES1/30EASY M - 0 : 0 0 : 0 0 5 5 min1 6 bit10 : 00 PM J A N . 10 , 2 0 0 4RECBLCZOOMSHUTTEREXPOSUREWW123465107309823 22 21 20 19181716151413291128OSD in PLAYER mode. . . CSOUND [ 2 ] M - 0 : 0 0 : 0 0 5 5 min1 6 bitVOL. [ 1 1 ]DV10 : 00 PM J A N . 10 , 2 0 0 4AV IN25282721 20 1926241131123200811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 18

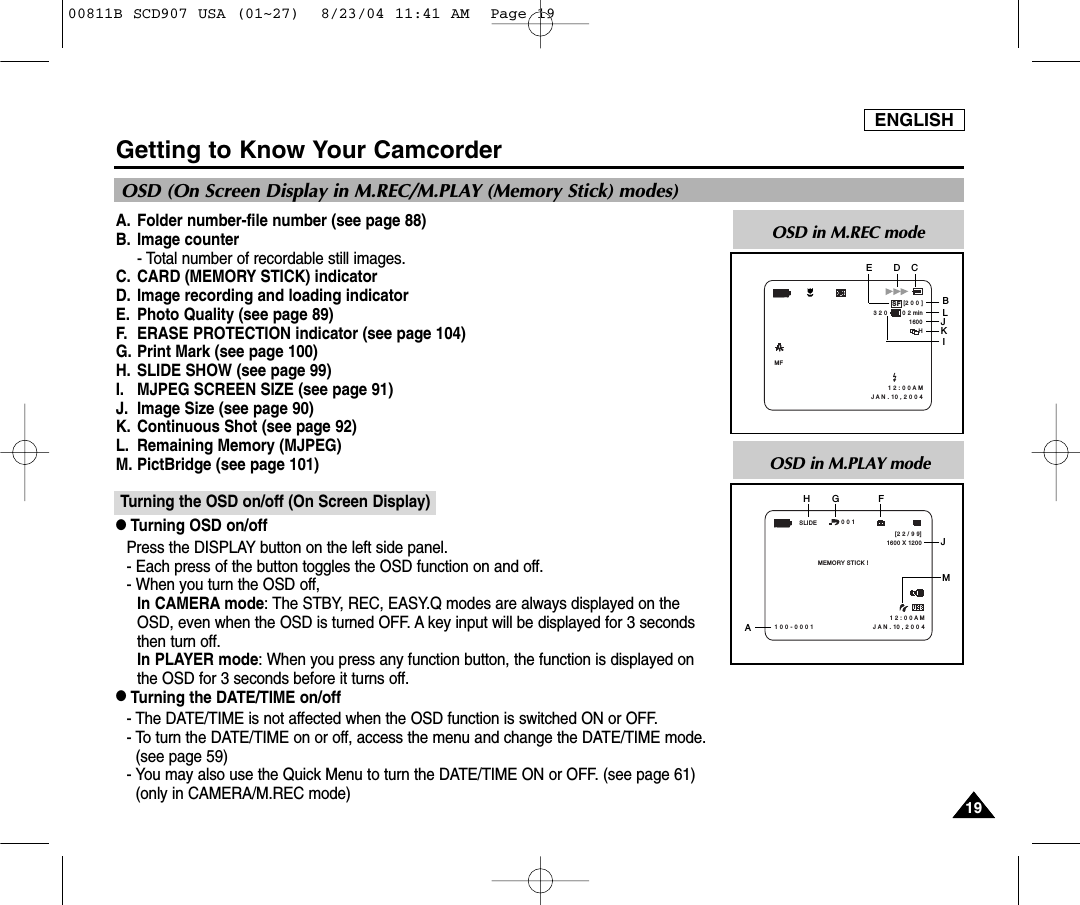

A. Folder number-file number (see page 88)B. Image counter- Total number of recordable still images.C. CARD (MEMORY STICK) indicatorD. Image recording and loading indicator E. Photo Quality (see page 89)F. ERASE PROTECTION indicator (see page 104)G. Print Mark (see page 100)H. SLIDE SHOW (see page 99)I. MJPEG SCREEN SIZE (see page 91)J. Image Size (see page 90)K. Continuous Shot (see page 92)L. Remaining Memory (MJPEG)M. PictBridge (see page 101)Turning the OSD on/off (On Screen Display)●Turning OSD on/offPress the DISPLAY button on the left side panel.- Each press of the button toggles the OSD function on and off.- When you turn the OSD off, In CAMERA mode: The STBY, REC, EASY.Q modes are always displayed on theOSD, even when the OSD is turned OFF. A key input will be displayed for 3 secondsthen turn off. In PLAYER mode: When you press any function button, the function is displayed onthe OSD for 3 seconds before it turns off. ●Turning the DATE/TIME on/off - The DATE/TIME is not affected when the OSD function is switched ON or OFF.- To turn the DATE/TIME on or off, access the menu and change the DATE/TIME mode.(see page 59)- You may also use the Quick Menu to turn the DATE/TIME ON or OFF. (see page 61)(only in CAMERA/M.REC mode)OSD (On Screen Display in M.REC/M.PLAY (Memory Stick) modes)Getting to Know Your Camcorder1919ENGLISHOSD in M.REC mode3 2 0 0 2 minH1 2 : 0 0 A M J A N . 10 , 2 0 0 4MF [2 0 0 ]1600SFOSD in M.PLAY modeMEMORY STICK !SLIDE1 0 0 - 0 0 0 10 0 11 2 : 0 0 A M J A N . 10 , 2 0 0 4[2 2 / 9 9]1600 X 1200EBLIDCFHAJKJGM00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 19
Battery Installation for the Remote Control✤You need to insert or replace the lithium battery when : - You purchase the camcorder.- The remote control doesn’t work.✤Ensure that you insert the lithium cell correctly, following the + and - markings.✤Be careful not to reverse the polarity of the battery.Self Record using the Remote ControlWhen you use the Self Timer function on the remote control, the recording begins automaticallyin 10 seconds.1. Set the camcorder to CAMERA mode.2. Press the SELF TIMER button until the appropriate indicator is displayed in the LCD monitor.3. Press the START/STOP button to start the timer.- Self Timer starts counting down from 10 with a beep sound.- In the last one second of the countdown, the beep sound gets faster, then recording startsautomatically.- If you want to cancel the Self Timer function before recording, press the SELF TIMERbutton.4. Press START/STOP again when you wish to stop recording.ENGLISHPreparation2020ENGLISHHow to use the Remote ControlSTART/STOPSELFTIMERA.DUBZEROMEMORYPHOTO DISPLAYX2SLOWF.ADV PHOTOSEARCHDATE/ TIMESelf Timer00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 20
✤The lithium battery maintains the clock function and preset contents of the memory; even if the battery pack or AC poweradapter is removed.✤The lithium battery for the camcorder lasts about 6 months under normal operation from the time of installation.✤When the lithium battery becomes weak or dead, the date/time indicator will display “---” when you set the DATE/TIME to ON.When this occurs, replace the lithium battery with type CR2025.1. Open the lithium battery cover from the camcorder.2. Position the Lithium cell in the holder, with the positive ( ) terminal faceoutward.3. Close the lithium battery cover.Note ■The lithium battery must be inserted in the correct direction.■Do not pick up the battery using tweezers or other metal tools - this will cause a short circuit.■Do not recharge, disassemble, heat or immerse the battery in water, to avoid the risk of explosion.Warning: Keep the LITHIUM BATTERY out of the reach of the children.Should any battery be swallowed, consult a doctor immediately.Lithium Battery InstallationPreparation2121ENGLISH00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 21
ENGLISHPreparation2222ENGLISHAdjusting the Hand StrapIt is very important to ensure that the Hand strap has been correctly adjusted before you begin your recording.The hand strap enables you to :- Hold the camcorder in a stable, comfortable position.- Press the Zoom and START/STOP buttons without having to change the position of your hand.Hand strapWhen you are recordinga. Pull and Open the Hand Strap cover to release the Hand Strap. b. Adjust its length.c. Close the Hand Strap cover again.When you carry your camcordera. Pull and Open the Hand Strapcover to release the Hand Strap. b. Remove it from the ring andadjust its length.c. Close the Hand Strap coveragain.Attaching the Lens Covera bb c1 2 3a00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 22
Connecting a Power SourceThere are two types of power source that can be connected to your camcorder.- The AC Power Adapter and AC cord : used for indoor recording.- The Battery Pack : used for outdoor recording.To use the AC Power adapter and DC Cable1. Connect the AC Power adapter to the AC cord.2. Connect the AC cord to a wall socket.Notes ■You must use the AA-E7 type AC Power adapter.■The plug and wall socket type may differ according to your resident country.3. Connect the DC cable to the DC jack socket of the camcorder. (You should keep outside the projection of the DC cable.)4. Set the camcorder to the desired mode by holding down thetab on the power switch and turning it to the CAMERA orPLAYER mode.To select the CAMCORDER mode ✤If you want to use this unit as a camcorder, set the mode switch to TAPE position.✤If you want to use this unit as a DSC (Digital Still Camera), set the mode switch to MEMORY position.Preparation2323ENGLISHPower Switch< CAMERA mode > < PLAYER mode >00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 23
ENGLISHPreparation2424ENGLISHUsing the Lithium Ion Battery Pack✤The amount of continuous recording time available depends on- The type and capacity of the battery pack you are using.- How often the Zoom function is used.It is recommended that you have several batteries available.Charging the Lithium Ion Battery Pack1.Attach the battery pack to the camcorder.2. Connect the AC Power adapter to an AC cord and connect theAC cord to a wall socket.3. Connect the DC cable to the DC jack socket on thecamcorder.4. Turn the power switch to off, and the charging indicator willstart to flash, showing that the battery is charging.5. When the battery is fully charged, disconnect the battery pack and the AC Power adapter from thecamcorder.■Even with the power switched off, the battery pack will still discharge if it is left connected to thecamcorder.Notes■The battery pack may be charged a little at the time of purchase.■To prevent reduction in the life and capacity of the battery pack, always remove it from the camcorder after it is fully charged.Blinking time Charging rateOnce per second Less than 50%Twice per second 50% ~ 75% Three times per second 75% ~ 90%Blinking stops and stays on 90% ~ 100%On for a second and Error - Reset the battery pack and off for a second the DC cable 4Power Switch00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 24
Using the Lithium Ion Battery PackTable of continuous recording time based on model and battery type.✤If you close the LCD monitor, it switches off and the viewfinder switches on automatically.✤The continuous recording times given in the table above are approximations.Actual recording time depends on usage.Notes■The battery pack should be recharged in an environment of between 32°F (0°C) and 104°F (40°C). ■The battery pack should never be charged in a room temperature that is below 32°F (0°C).■The life and capacity of the battery pack will be reduced if it is used in temperatures below 32°F (0°C) or left in temperaturesabove 104°F (40°C) for a long period, even when it is fully recharged.■Do not put the battery pack near any heat source (fire or flames, for example).■Do not disassemble, process, pressure, or heat the Battery Pack.■Do not allow the + and - terminals of the battery pack to be short-circuited. It may cause leakage, heat generation, induce fireand overheating. Preparation2525ENGLISHBattery SB-LS110SB-LS220ChargingtimeApprox. 1hr 40minApprox. 3hr 30minLCD ON VIEWFINDER ONContinuous recording timeTimeApprox. 1hr 30min Approx. 3hrApprox. 2hrApprox. 4hr 10min00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 25
ENGLISHPreparation2626ENGLISHBattery level display•The battery level display indicates the amount of power remaining in the battery pack.a. Fully chargedb. 20~40% usedc. 40~80% usedd. 80~95% used e. Completely used (flickers) (The camcorder will turn off soon, change the battery as soon as possible)✤Please refer to the table on page 25 for approximate continuous recording time.✤The recording time is affected by environmental temperature and conditions. The recording time becomes very short in a cold environment. The continuous recording time in the operating instructions are measured using a fully charged battery pack at 77°F(25°C). As the environmental temperature and conditions may differ when you actually use the camcorder, the remaining batterytime may not be the same as the approximate continuous recording time given in these instructions.✤The gray bar shown here to indicate battery level, is actually white in the LCD monitor (or viewfinder). For example, on theLCD monitor (or viewfinder), "a" (full) will be displayed as a full white bar, and "e" (empty) will be displayed as a battery outlinewith the background image behind it. Tips for Battery IdentificationA charge mark is provided on the battery pack to help you remember whether it has beencharged or not.Two colors are provided (red and gray). You may choose which one indicates charged and which indicates discharged.Note■The charge mark setting does not affect the battery's charge status.abcde00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 26
Inserting and Ejecting a Cassette✤When inserting a tape or closing a cassette holder, do not apply excessiveforce. This may cause a malfunction. ✤Do not use any tape other than Mini DV cassettes.1. Connect a power source and slide the TAPE EJECT switch and open thecassette door.■If Multi-AV and USB or DV cable are not connected with camcorder, closethe jack cover surely.- The cassette holding mechanism rises automatically. 2. Insert a tape into the cassette holder with the tape window facing outward and the protection tab toward the top.3. Press the area labelled PUSH on the cassette holding mechanism until it clicksinto place.- The cassette is loaded automatically.4. Close the cassette door.- Close the door completely until you can hear a “click”. NoteWhen you have recorded something that you wish to keep, you can protect it so that it will not be accidentally erased.a. Protecting a tape : Push the safety tab on the cassette so that the hole is uncovered.b. Removing the tape protection : If you no longer wish to keep the recording on the cassette, push the write-protect tab back so that it covers the hole.•How to store a tape a. Avoid places with magnets or magnetic interference.b. Avoid humidity and dust prone places. c. Keep the tape in an upright position and avoid storing it in direct sunlight.d. Avoid dropping or knocking your tapes.Preparation2727ENGLISHa. SAVEb. REC1324pushjack cover00811B SCD907 USA (01~27) 8/23/04 11:41 AM Page 27
Basic RecordingENGLISH2828Making your First Recording1. Connect a Power source to the camcorder. (see page 23)(A battery pack or a AC power adapter) ■Insert a cassette. (see page 27)2. Remove the LENS COVER.3. Set the power switch to the CAMERA position.■Open the LCD monitor. ■Set the mode switch to the TAPE position. Make sure that STBY is displayed. ■If the protection tab of the cassette is open, STOP andPROTECTION! will be displayed.■Make sure the image you want to record appears in theLCD monitor or viewfinder.■Make sure the battery level indicates that there is enoughremaining power for your expected recording time.4. To start recording, press the START/STOP button.■REC is displayed in the LCD monitor.To stop recording, press the START/STOP button again.■STBY is displayed in the LCD monitor.413200811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 28
ENGLISH2929To select the CAMCORDER mode✤If you want to use this unit as a camcorder, set the modeswitch to TAPE position.■CAMERA mode (TAPE record mode)1. Set the mode switch to TAPE.2. Set the power switch to CAMERA.■PLAYER mode (TAPE playback mode)1. Set the mode switch to TAPE.2. Set the power switch to PLAYER.✤If you want to use this unit as a DSC (Digital Still Camera), set the mode switch to MEMORY position.■M.REC mode (MEMORY record mode)1. Set the mode switch to MEMORY.2. Set the power switch to CAMERA.■M.PLAY mode (MEMORY playback mode)1. Set the mode switch to MEMORY.2. Set the power switch to PLAYER.Basic RecordingTo select the DSC (Digital Still Camera) mode+: CAMERAmode+: PLAYERmode+: M.REC mode+: M.PLAYmode00811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 29
ENGLISH3030Basic RecordingSelecting the OSD LANGUAGE✤Select the appropriate OSD Language among English, French, Spanish, Portuguese, German and Italian.✤The Language Function works in CAMERA, PLAYER, M.REC, M.PLAY modes.1. Press the MENU button.■The menu list will appear.2. Move the MENU SELECTOR to highlight INITIAL and push the MENU SELECTOR.3. Select LANGUAGE from the sub-menu and push the MENU SELECTOR.■The available language options are listed.4. Select a LANGUAGE for OSD using the MENU SELECTOR, then push the MENU SELECTOR.■The OSD is refreshed in selected language.5. To exit, press the MENU button.■The OSD changes to the selected language.Note■“LANGUAGE” is always indicated in ENGLISH.CAM MODEINITIAL CLOCK SETWL. REMOTEBEEP SOUND SHUT. SOUNDLANGUAGE DEMOCAMERAA/VMEMORYVIEWER USB CONNECTCAM MODELANGUAGE INITIAL SETENGLISHCAM MODEINITIAL SETCLOCK SET SET TIME!WL.REMOTEBEEP SOUNDSHUTTER SOUNDUSB CONNECTLANGUAGEDEMONSTRATIONENGLISH00811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 30

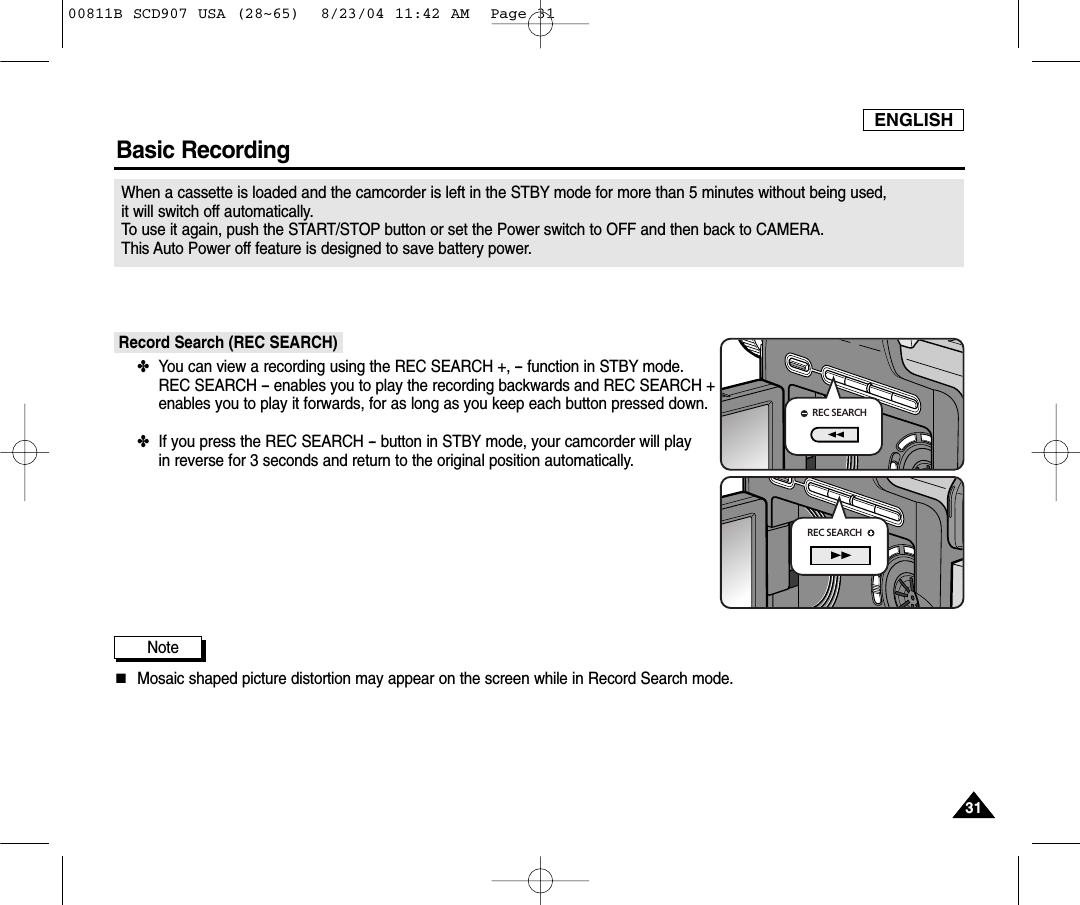

ENGLISH3131Basic RecordingWhen a cassette is loaded and the camcorder is left in the STBY mode for more than 5 minutes without being used, it will switch off automatically. To use it again, push the START/STOP button or set the Power switch to OFF and then back to CAMERA. This Auto Power off feature is designed to save battery power.Record Search (REC SEARCH)✤You can view a recording using the REC SEARCH +, -- function in STBY mode.REC SEARCH -- enables you to play the recording backwards and REC SEARCH +enables you to play it forwards, for as long as you keep each button pressed down.✤If you press the REC SEARCH -- button in STBY mode, your camcorder will play in reverse for 3 seconds and return to the original position automatically.Note ■Mosaic shaped picture distortion may appear on the screen while in Record Search mode.REC SEARCHREC SEARCH00811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 31
ENGLISH3232Basic Recording■While recording, it is very important to hold the camcorder correctly.■Fix the LENS cover firmly by clipping it to the hand strap. (see page 22) Recording with the LCD monitor1. Hold the camcorder firmly using the hand strap. 2. Place your right elbow against your side.3. Place your left hand under or beside the LCD monitor to support and adjust it. Do not touch the built-in microphone.4. Choose a comfortable, stable position for the shots that you are taking. You can lean against a wall or on a table for greater stability. Do not forget to breathe gently.5. Use the LCD monitor frame as a guide to determine the horizontal plane.6. Whenever possible, use a tripod.Recording with the Viewfinder1. Hold the camcorder firmly using the hand strap. 2. Place your right elbow against your side.3. Place your left hand under the camcorder to support it. Avoid touching the built-in microphone.4. Choose a comfortable, stable position for the shots that you are taking. You can lean against a wall or on a table for greater stability. Do not forget to breathe gently.5. To view an object through the viewfinder, pull it out until you hear the ‘click’sound. Excessive force may cause damage to the viewfinder. 6. Place your eye firmly against the viewfinder eyecup.7. Use the viewfinder frame as a guide to determine the horizontal plane.8. Whenever possible, use a tripod.Hints for Stable Image Recording00811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 32
ENGLISH3333Basic Recording✤Your camcorder is equipped with a 2.5 inch color Liquid Crystal Display(LCD) screen, which enables you to view what youare recording or playing back directly.✤Depending on the conditions under which you are using the camcorder (indoors or outdoors for example), you can adjust ;■BRIGHT SELECT■BRIGHT ADJUST■COLOR ADJUST1. Set the POWER switch to CAMERA or PLAYER position.■In the PLAYER mode, you may only setup the LCD monitor while the tape is playing. 2. Open the LCD monitor and the LCD monitor switches on.3. Press the MENU button.4. Move the MENU SELECTOR so that VIEWER is highlighted and then push the MENU SELECTOR. 5. Move the MENU SELECTOR so that LCD ADJUST is highlighted.6. Push the MENU SELECTOR to enter the sub-menu.7. Move the MENU SELECTOR so that it highlights the menu item you want to adjust (BRIGHT SELECT, BRIGHT ADJUST, COLOR ADJUST).CAM MODEVIEWER SETLCD ADJUSTDATE / TIMETV DISPLAYCAM MODEINITIALLCD ADJUSTDATE/TIMETV DISPLAYCAMERAA/VMEMORYVIEWERCAM MODELCD ADJUSTVIEWER SETBRIGHT SELECT NORMALBRIGHT ADJUST [ 1 8 ]COLOR ADJUST [ 1 8 ]Adjusting the LCD00811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 33
ENGLISH3434Basic Recording8. Push the MENU SELECTOR again.■The BRIGHT SELECT setting switches between NORMAL/SUPER each time you push the MENU SELECTOR. ■Use the MENU SELECTOR to adjust the value of BRIGHT ADJUST and COLOR ADJUST. ■Available adjustment range for BRIGHT ADJUST and COLOR ADJUST is 00 ~ 35.9. Press the MENU button to finish the setting.✤In the PLAYER mode, the VIEWFINDER will work when the LCD monitor is closed.✤In the CAMERA mode, the VIEWFINDER will work when the LCD monitor is closed or rotated counterclockwise 180°.Adjusting the FocusUse the focus adjustment knob of the VIEWFINDER to focus the picture. (refer to figure )Using the VIEWFINDER00811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 34
ENGLISH3535Basic Recording✤You can monitor the playback picture on the LCD monitor.✤Make sure that the battery pack is in place.1. Set the mode switch to TAPE.2. Hold down the power switch tab and turn it to the PLAYER.■A confirmation sound beeps.3. Insert the tape you wish to view. (see page 27)4. Open the LCD monitor and adjust the angle of the LCD monitor.5. Press the (REW) button to rewind the tape to the starting point.■To stop rewinding, press the (STOP) button.■The camcorder stops automatically after rewinding is complete.6. Press the (PLAY/STILL) button to start playback.■You can view the picture you recorded on the LCD monitor.■To stop the PLAY operation, press the (STOP) button.■Set the brightness or color of the LCD monitor if necessary. (see page 33) Notes■You can also view the picture on a TV screen, after connecting the camcorder to a TV or VCR.(see page 74) ■Various functions are available in PLAYER mode. (see page 76) Playing back a tape you have recorded on the LCD monitor213500811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 35
ENGLISH3636The Speaker works in PLAYER and M.PLAY mode.■When you use the LCD monitor for playback, you can hear recorded sound from the built-inSpeaker.- Follow the instructions below to decrease or mute speaker volume in the PLAYER or M.PLAYmode. 1. Set the power switch to PLAYER.2. Press (PLAY/STILL) to play the tape or moving picture.3. When you hear sounds once the tape is in play, use the MENU SELECTOR to adjust thevolume.■A volume level display will appear on the LCD. Levels may be adjusted from anywhere between 00 to 19. ■If you close the LCD while playing, you will not hear sound from the speaker.Notes■When the cable is connected to the Multi AV jack, you cannot hear sound from the speaker andcannot adjust the volume. ■If a cable is connected to the Multi AV jack, you can hear sound from the speaker when AV IN/OUT MODE on MENU is set to AV IN or S-VIDEO IN.■You can hear sound from speaker by removing the connected cable from the Multi AV jack.Basic RecordingControlling Sound from the Speaker5 5 min1 0 : 0 0 A MJ A N . 10 , 2 0 0 4VOL. [ 1 1 ] 0 : 2 3 : 4 7 : 1 3 <3-2>23-1VOL. [ 1 1 ]MJPEGDCAM0047. AVI0 0 : 0 8 / 0 0 : 2 1 1 0 : 0 0 A MJ A N . 10 , 2 0 0 4<3-3><PLAYER MODE><M.PLAY MODE>00811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 36
ENGLISH3737Advanced Recording●Setting menu itemsUse of various FunctionsMENU SUB MENU FUNCTIONS PageM.PLAYM.RECPLAYERCAMERAINITIALCLOCK SETSetting the time 40WL. REMOTE Using the Remote Control 41LANGUAGE Selecting the OSD language 30CAMERAAVD. ZOOM Selecting Digital Zoom 50EISDSE SELECTSelecting the Digital Image Stabilizing 51Setting the Digital special effect 52REC MODE Selecting the recording speed 56PHOTO SEARCH Searching pictures recorded in TAPE 72PHOTO COPY Copying pictures from TAPE onto theMemory Card 95AUDIO MODE Selecting Sound Quality for recording 57AUDIO SELECT Selecting the Audio playback channel 71WIND CUT Minimizing wind noise 58DEMONSTRATION Demonstration 45PROGRAM AE Selecting the PROGRAM AE Function 46WHT. BALANCE Setting White Balance 4880✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔AV IN/OUT Selecting Analog A/V in or out✔Available modeBEEP SOUNDUSB CONNECTMEMORY MIXSHUTTER SOUNDPlay Various Sound EffectsSound Effects for the photo buttonSetting the USB CONNECTIONSetting the MEMORY MIX effect424344✔✔✔✔✔✔✔54✔00811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 37
ENGLISH3838Advanced Recording●Set the camcorder to CAMERA or PLAYER mode and M.REC or M.PLAY mode1. Press the MENU button.The MENU OSD is displayed. The cursor ( HIGHLIGHT ) indicates the feature you are currently adjusting.2. Use the MENU SELECTOR and push the MENU SELECTOR on the LCD monitor panel to select and activate the item.3. You can exit the menu mode by pressing the MENU button.MENU SUB MENU FUNCTIONS PageM. PLAYM. RECPLAYERCAMERAMEMORYPHOTO QUALITY Selecting Image Quality 89MPEG4 SIZE Selecting MJPEG Resolution 91VIEWERPRINT MARK Print images recorded on a Memory Stick 100FORMAT Formatting the Memory Stick and Setting thefile norming options 107LCD ADJUSTDATE/TIMESetting the Brightness and color Tonesof the LCD monitor 33Setting the Date and Time 59TV DISPLAY Selecting OSD on/off of TV 60PROTECT Preventing Accidental Erasure 104DELETE Deleting Files 105✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔✔Available modeIMAGE SIZE Selecting Image Resolution 90✔✔CONTINUOUS SHOT Recording images continuosly 92✔00811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 38
ENGLISH3939Advanced RecordingO : The requested function will work in this operating mode.✕: You can not change the requested mode.: The operating function will be released and the requested one will work.* : The operating function will be released and the requested one will work. (the data during the operating mode will be backed up)Notes■When a menu item on the LCD is marked with an , that item cannot be activated. ■When you select an item that cannot be changed, an error message will be displayed. ●Availability of functions in each modeXEISD.ZOOMPHOTOSLOW SHUTTERDigital Special EffectsDigital functionsRequestedModeOperatingModeEISOOOO✕✕✕OD.ZOOM PHOTO(TAPE) SLOWSHUTTERDigital special effectsOOOOO✕✕✕✕*✕00811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 39
ENGLISHAdvanced Recording●CLOCK SET✤CLOCK setup works in CAMERA, PLAYER, M.REC and M.PLAY modes.✤The DATE/TIME is automatically recorded onto a tape.Before recording, please set the DATE/TIME.1. Press the MENU button.■The menu list will appear.2. Move the MENU SELECTOR to highlight INITIAL and push the MENU SELECTOR.3. Use the MENU SELECTOR to select CLOCK SET from the submenu.4. Push the MENU SELECTOR to enter SETTING mode.■A blinking item indicates the item to be changed. The year will blink first.5. Using the MENU SELECTOR, change the year setting.6. Push the MENU SELECTOR.■The month will blink.7. Using the MENU SELECTOR, change the month setting.8. Push the MENU SELECTOR.■The day will blink.9. You can set the day, hour and minute following the same procedure for setting the year and month.10.Push the MENU SELECTOR after setting the minutes.■The word COMPLETE! will appear, and a few seconds later, the menu screen will automatically return to the sub menu.11. To exit, push the MENU button.4040CAM MODEINITIAL CLOCK SETWL. REMOTEBEEP SOUNDSHUT. SOUNDUSB CONNECTLANGUAGEDEMOCAMERAA/VMEMORYVIEWERCAM MODEINITIAL SETCLOCK SETWL.REMOTEUSB CONNECTSET TIME!BEEP SOUNDSHUTTER SOUNDLANGUAGE ENGLISHDEMONSTRATIONCAM MODEINITIAL SETCLOCK SET1 0 : 0 0 A M J A N . 1 , 2 0 0 400811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 40
ENGLISH4141Advanced Recording●WL. REMOTE✤The WL.REMOTE function works in CAMERA, PLAYER, M.REC, M.PLAY modes.✤The WL.REMOTE option allows you to enable or disable the remote control for use with the camcorder.1. Press the MENU button.■The menu list will appear.2. Move the MENU SELECTOR to highlight INITIAL and push the MENU SELECTOR.3. Use the MENU SELECTOR to select WL.REMOTE from the submenu.4. Push the MENU SELECTOR to enable or disable the remote control. ■The setting switches between ON/OFF each time you push the MENU SELECTOR. 5. To exit, press the MENU button.■If you set the remote to OFF in the menu and try to use it, the remote icon will blink for 3 seconds and disappear on the LCD. CAM MODEINITIAL CLOCK SETWL. REMOTEBEEP SOUNDSHUT. SOUNDUSB CONNECTLANGUAGEDEMOCAMERAA/VMEMORYVIEWERCAM MODEINITIAL SETCLOCK SETWL.REMOTEBEEP SOUNDSHUTTER SOUNDUSB CONNECTLANGUAGE ENGLISHDEMONSTRATION00811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 41
Advanced RecordingENGLISH●BEEP SOUND✤The BEEP SOUND function works in CAMERA, PLAYER, M.REC, M.PLAY modes.✤Use the MENU to setup the BEEP SOUND function. Select whether or not you want to hear a beep sound whenever you change a setup value.1. Press the MENU button.■The menu list will appear.2. Move the MENU SELECTOR to highlight INITIAL and push the MENU SELECTOR.3. Use the MENU SELECTOR to select BEEP SOUND from the submenu.4. Push the MENU SELECTOR to enable or disable the BEEP SOUND.■The setting switches between ON/OFF each time you push the MENU SELECTOR.■You will hear a beep sound when you select the ON setup.5. To exit, press the MENU button.Note■When you are recording, the BEEP SOUND is automatically set to OFF. So you can not hear it until you stop the recording. CAM MODEINITIAL CLOCK SETWL.REMOTEBEEP SOUNDSHUT SOUNDUSB CONNECTLANGUAGEDEMOCAMERAA/VMEMORYVIEWERCAM MODEINITIAL SETCLOCK SETBEEP SOUNDSHUTTER SOUNDWL.REMOTEUSB CONNECTLANGUAGE ENGLISHDEMONSTRATION424200811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 42
ENGLISH4343Advanced Recording●SHUTTER SOUND✤You will only hear the SHUTTER SOUND when the PHOTO function is working.✤Sets the SHUTTER SOUND On/Off when using the DSC feature.1. Set the camcorder to M.REC or PLAYER mode (see page 29).2. Press the MENU button.■The menu list will appear.3. Move the MENU SELECTOR to highlight INITIAL and push the MENU SELECTOR.4. Use the MENU SELECTOR to select SHUTTER SOUND from the submenu.5. Push the MENU SELECTOR to enable on disable the SHUTTER SOUND. The setting switches between ON/OFF each time you push the MENU SELECTOR.■If the SHUTTER SOUND is set to on, you will hear a shutter sound when you press PHOTObutton in M.REC or PLAYER mode.6. To exit, press the MENU button.M.REC MODEINITIAL CLOCK SETWL.REMOTEBEEP SOUNDSHUT.SOUNDUSB CONNECTLANGUAGEDEMOCAMERAA/VMEMORYVIEWERM.REC MODEINITIAL SETCLOCK SETWL.REMOTEBEEP SOUNDSHUTTER SOUNDUSB CONNECT COMPUTERLANGUAGE ENGLISHDEMONSTRATION00811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 43
ENGLISH4444Advanced Recording●USB CONNECT✤Before connecting the camcorder to a PC or PRINTER with USB cable, USB CONNECT setting is required.✤The USB CONNECT function works in M.PLAY mode only.✤The USB CONNECT setting is automatically set to “COMPUTER” and can not be set to “PRINTER” in PLAYER andM.REC mode.1. Set the mode switch to MEMORY.2. Set the power switch to PLAYER mode.3. Press the MENU button.4. Move the MENU SELECTOR to highlight INITIAL and push the MENU SELECTOR.5. Move the MENU SELECTOR to highlight USB CONNECT.6. Push the MENU SELECTOR to select COMPUTER or PRINTER.■The setting switches between COMPUTER/PRINTER each time you push the MENUSELECTOR.Notes■If the USB CONNECT is set to “COMPUTER”, PictBridge function is not available.■In Camera mode, USB CONNECT function is disable.M.PLAY MODEINITIAL CLOCK SETWL.REMOTEBEEP SOUNDSHUT.SOUNDUSB CONNECTLANGUAGEDEMOCAMERAA/VMEMORYVIEWERM.PLAY MODEINITIAL SETCLOCK SETWL.REMOTEBEEP SOUNDSHUTTER SOUNDUSB CONNECT COMPUTERLANGUAGE ENGLISHDEMONSTRATION00811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 44
ENGLISH4545Advanced Recording●DEMONSTRATION✤Demonstration automatically shows you the major functions that are included with your camcorder so that you may usethem more easily.✤The DEMONSTRATION function may only be used in the CAMERA mode without a tape inserted in the camcorder. ✤The demonstration operates repeatedly until the DEMONSTRATION mode is switched OFF.1. Set the camcorder to CAMERA mode. (see page 29)(The mode switch must be in the TAPE position.)2. Press the MENU button.■The menu list will appear.3. Move the MENU SELECTOR to highlight INITIAL and push the MENU SELECTOR.4. Select DEMONSTRATION from the submenu and push the MENU SELECTOR.5. To activate the DEMONSTRATION, set DEMONSTRATION ON.■Press the MENU button to quit the menu.■The demonstration will begin.6. To deactivate the DEMONSTRATION, set the DEMONSTRATION to OFF.Notes■The DEMONSTRATION function only works without a TAPE installed.■The DEMONSTRATION mode is automatically activated when the camcorder is left idle for more than 10 minutes afterswitching to the CAMERA mode (no tape is inserted in the camcorder). ■If you press other buttons (FADE, BLC, PHOTO, EASY Q) during the DEMONSTRATION mode, the DEMONSTRATIONstops temporarily and resumes 10 minutes later if you do not operate any other functions.CAM MODEINITIAL CLOCK SETWL. REMOTEBEEP SOUNDSHUT. SOUNDUSB CONNECTLANGUAGEDEMOCAMERAA/VMEMORYVIEWERCAM MODEINITIAL SETCLOCK SETWL.REMOTEUSB CONNECTBEEP SOUNDSHUTTER SOUNDLANGUAGEDEMONSTRATIONENGLISH00811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 45
ENGLISH4646Advanced Recording●PROGRAM AE✤The PROGRAM AE function works in CAMERA mode only.✤The PROGRAM AE mode allows you to adjust shutter speeds and apertures to suit different recording conditions.✤They give you creative control over the depth of field.■AUTO mode ( )- Automatically balances the exposure between the subject and the background.- To be used in normal conditions.- The shutter speed automatically varies from 1/60 to 1/250 per second, depending on the scene.■SPORTS mode ( )- For recording people or objects moving quickly.■PORTRAIT mode ( )- For focusing on the background of the subject, when the background is out of focus.- The PORTRAIT mode is most effective when used outdoors.- The shutter speed automatically varies from 1/60 to 1/1000 per second.■SPOTLIGHT mode ( )- For recording correctly when there is only light on the subject and not the rest of the picture.■SAND/SNOW mode ( )- For recording when people or objects are darker than the background because of reflected light from sand or snow.■HIGH S. SPEED (High Shutter Speed) mode ( )- For recording fast-moving subjects such as players in golf or tennis games.00811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 46
ENGLISH4747Advanced RecordingSetting the PROGRAM AE1. Set the camcorder to CAMERA mode. (see page 29)2. Press the MENU button.■The menu list will appear.3. Move the MENU SELECTOR to highlight CAMERA and push the MENUSELECTOR.4. Select PROGRAM AE from the submenu.5. Push the MENU SELECTOR to enter the sub-menu.6. Using the MENU SELECTOR, select the PROGRAM AE mode.(see page 46)■Push the MENU SELECTOR to confirm the PROGRAM AEmode.7. To exit, press the MENU button.Notes■The PROGRAM AE function will not operate in EASY Q mode.■When recording with a PROGRAM AE mode, the Flash function and Video Light (optional) Auto function do not work.CAM MODEPROGRAM AEAUTOSPORTSPORTRAITSPOTLIGHTSAND / SNOWHIGH S. SPEEDCAMERA SETCAM MODEPROGRAM AEWHT. BALANCED.ZOOMEISDSE SELECTMEMORY MIXCAMERA SETCAM MODEINITIALPROGRAM AEWHT. BALANCED.ZOOMEISDSE SELECTMEMORY MIXCAMERAA/VMEMORYVIEWER00811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 47
ENGLISH4848Advanced Recording●WHT. BALANCE (WHITE BALANCE)✤The WHITE BALANCE function works in CAMERA or M.REC mode.✤The WHITE BALANCE is a recording function that preserves the unique image color of the object in any recordingcondition.✤You may select the appropriate WHITE BALANCE mode to obtain good quality image color.■AUTO ( ) : This mode is generally used to control the WHITE BALANCE automatically.■HOLD ( ) :This fixes the current WHITE BALANCE value.■INDOOR ( ) : This controls the WHITE BALANCE according to the indoor ambience.- Under halogen or studio/video lighting- Subject is of one dominant color- Close ups■OUTDOOR ( ) : This controls the WHITE BALANCE according to the outdoor ambientlight.- In daylight, especially for close ups and where the subject is of one dominant color.1. Set the camcorder to CAMERA mode. (see page 29)2. Press the MENU button.■The menu list will appear.3. Move the MENU SELECTOR to highlight CAMERA and push the MENU SELECTOR.4. Select WHT.BALANCE from the submenu.5. Push the MENU SELECTOR to enter the sub-menu.6. Using the MENU SELECTOR, select the WHITE BALANCE mode.■Push the MENU SELECTOR to confirm the WHITE BALANCE mode.7. To exit, press the MENU button.Notes■The WHT.BALANCE function will not operate in EASY Q mode.■Turn the digital zoom off (if necessary) to set a more accurate white balance.■Reset the white balance if lighting conditions change. ■During normal outdoor recording, setting to AUTO may provide better results.CAM MODEPROGRAM AEWHT. BALANCED.ZOOMEISDSE SELECTMEMORY MIXCAMERA SETCAM MODEINITIALPROGRAM AEWHT. BALANCED.ZOOMEISDSE SELECTMEMORY MIXCAMERAA/VMEMORYVIEWERCAM MODEAUTOHOLDWHT. BALANCEINDOOROUTDOORCAMERA SET00811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 48
ENGLISH4949Advanced RecordingZooming In and Out✤Zooming is a recording technique that lets you change the size of the subject in a scene.For more professional looking recordings, do not use the zoom function too often.✤You can zoom using variable zoom speeds.✤Use these features for different shots. Please note that over-use of the zoom feature can compromise your video resultsand a reduction of battery usage time.1. Move the zoom lever slightly for a gradual zoom, move it further for a high-speed zoom. Your zooming is monitored on the OSD.2. T(Telephoto) side: Subject appears closer.3. W(Wide angle) side: Subject appears farther away.■You can record a subject that is about 10mm (about 0.5inch) away from the lens surface in the WIDE position.Tele MACRO✤Tele Macro Function works in both CAMERA and M.REC mode.✤Effective focal distance in TELE MACRO mode is 50 cm (19.7 inches) ~ 100 cm (39.4 inches).1. Press the MACRO button.MACRO Icon ( ) will be displayed.2. If you want to cancel the Tele Macro function, press the MACRO button again.Notes■When recording in TELE MACRO Mode, the FOCUS speed may be slow.■When you operate the ZOOM function in the TELE MACRO mode, then the recording subject may be out of focus.■Use a tripod to prevent hand shake in the TELE MACRO mode.■Avoid shadows when recording in the TELE MACRO mode.■As the distance to the subject decreases, focusing area narrows.■When you can not get proper focus, use the Zoom Lever. 0 : 2 3 : 4 7 STBY5 4 minTELEWIDE1-1 1-200811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 49
ENGLISH5050Advanced RecordingZooming In and Out with DIGITAL ZOOM✤Digital Zoom works in CAMERA mode only.Digital Zoom✤Camera is capable of 10x optical zoom.✤Zooming more than 10x is performed digitally.✤The picture quality may deteriorate depending on how much you zoom in on the subject.✤We recommend that you use the EIS feature with DIGITAL ZOOM for picture stability.(see page 51)1. Set the camcorder to CAMERA mode. (see page 29)2. Press the MENU button.■The menu list will appear.3. Move the MENU SELECTOR to CAMERA and push the MENU SELECTOR.4. Select D.ZOOM from the submenu and push the MENU SELECTOR to enter the sub-menu.5. Push the MENU SELECTOR to setup the 100x, 200x, 400x, 900x digital zoom function or to turn the feature OFF.6. To exit, press the MENU button.CAM MODEPROGRAM AEWHT. BALANCED.ZOOMEISDSE SELECTMEMORY MIXCAMERA SETCAM MODED . ZOOM100x200x400x900xCAMERA SETCAM MODEINITIALPROGRAM AEWHT. BALANCED.ZOOMEISDSE SELECTMEMORY MIXCAMERAA/VMEMORYVIEWER00811B SCD907 USA (28~65) 8/23/04 11:42 AM Page 50
