User Manual

12345 User GuideGetting StartedUsing the ComputerSettings and UpgradeBackup/RestorationAppendixContentsStart

1Chapter 1 Getting Started Contents Chapter 1. Getting Started3 Tips4 Before You Start7 Safety Precautions22 Proper Posture During Computer Use25 Overview30 Turning the Computer On and O Chapter 2. Using the Computer33 Keyboard36 Touchpad42 CD Drive (ODD, Optional)44 Multi Card Slot (Optional)47 Connecting an External Display Device53 Connecting an External Digital Device54 Adjusting the Volume57 Wired Network61 Wireless Network (Optional) Chapter 3. Settings and Upgrade66 LCD Brightness Control68 Easy Settings (Optional)69 BIOS Setup71 Setting a Boot Password74 Changing the Boot Priority75 Upgrading Memory (Optional)78 Battery83 Using the Security Slot Chapter 4. Backup/Restore85 Samsung Recovery Solution (Optional) Chapter 5. Appendix98 Important Safety Information100 Replacement Parts and Accessories102 Regulatory Compliance Statements117 WEEE Symbol Information118 Product Speci cations120 Glossary124 Index

Tips 3Before You Start 4Safety Precautions 7Proper Posture During Computer Use 22Overview 25Turning the Computer On and O 30 Chapter 1. Getting Started

4Chapter 1 Getting StartedBefore You StartBefore reading the User Guide,  rst check the following information.Optional items, some devices and software referred to in t the User Guide may not be provided and/or changed by upgrade.Note that the computer environment referred in the User Guide may not be the same as your own environment. The pictures used for the cover and the main body in the t User Manual are those of the representative model of each series and may di er from the actual appearance of the product.This guide decribes procedures for using both the mouse t and the touchpad.This manual has been written for the Windows operating t system. The descriptions and  gures may di er depending on the installed operating system.The User guide supplied with this computer may vary t depending on your model.Using the software The software described in the main text can be launched t using the following menu path. - Start > All Programs- Start > All Programs > SamsungWhen the programs are not installed, select t Samsung Recovery Solution > System Software to install the programs. (Only for models supplied with Samsung Recovery Solution)Safety Precaution NotationsIcon Notation DescriptionWarningFailure to follow instructions marked with this symbol, may cause personal injury and or fatality.CautionFailure to follow instructions marked with this symbol, may cause slight injury to yourself or damage your property.Text NotationsIcon Notation DescriptionCaution Content included in this section includes information required about the function.Note Content included in this section includes helpful information to use the function.

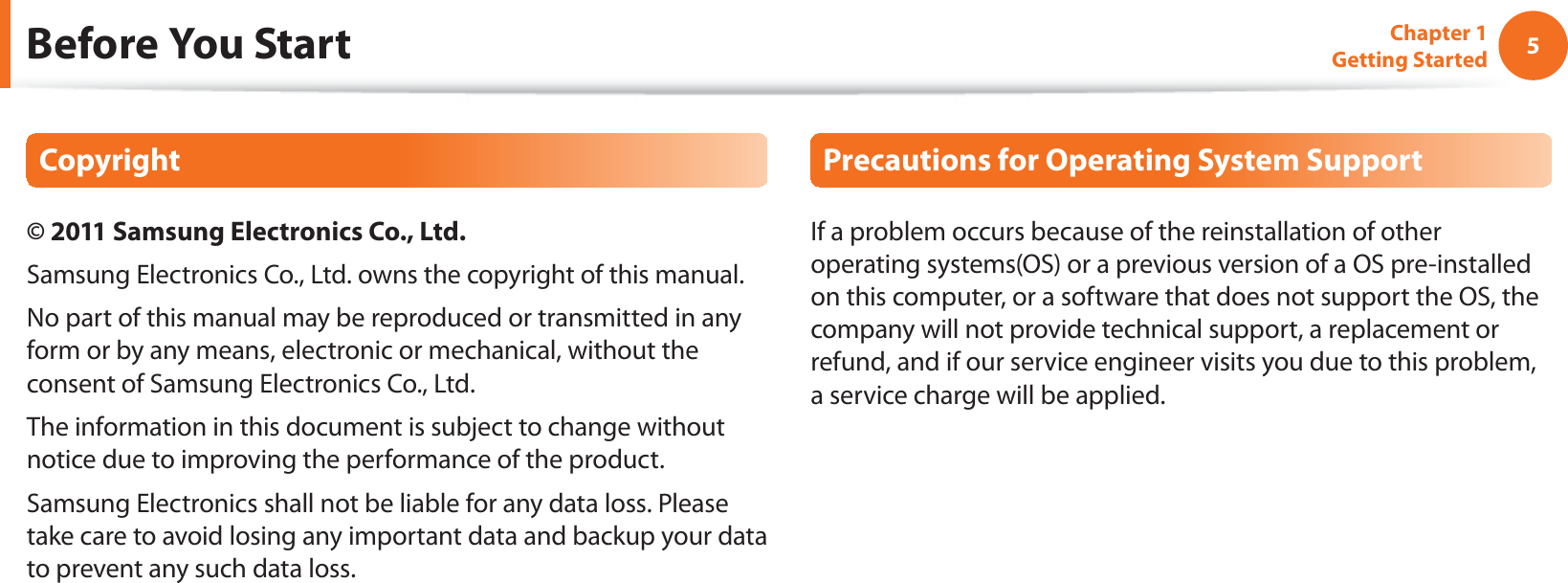

5Chapter 1 Getting StartedBefore You StartCopyright© 2011 Samsung Electronics Co., Ltd.Samsung Electronics Co., Ltd. owns the copyright of this manual.No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, without the consent of Samsung Electronics Co., Ltd. The information in this document is subject to change without notice due to improving the performance of the product.Samsung Electronics shall not be liable for any data loss. Please take care to avoid losing any important data and backup your data to prevent any such data loss.Precautions for Operating System SupportIf a problem occurs because of the reinstallation of other operating systems(OS) or a previous version of a OS pre-installed on this computer, or a software that does not support the OS, the company will not provide technical support, a replacement or refund, and if our service engineer visits you due to this problem, a service charge will be applied.

6Chapter 1 Getting StartedAbout the Product Capacity Representation StandardAbout the capacity representation of the storageThe capacity of the storage device (HDD, SSD) of the manufacturer is calculated assuming that 1KB=1,000 Bytes.However, the operating system (Windows) calculates the storage device capacity assuming that 1KB=1,024 Bytes, and therefore the capacity representation of the HDD in Windows is smaller than the actual capacity due to the dierence in capacity calculation. (E.g. For a 80GB HDD, Windows represents the capacity as 74.5GB, 80x1,000x1,000x1,000 byte/(1,024x1,024x1,024)byte = 74.505GB)In addition, the capacity representation in Windows may be even smaller because some programs such as Recovery Solution may reside in a hidden area of the HDD.About Memory Capacity RepresentationThe memory capacity reported in Windows is less than the actual capacity of memory.This is because BIOS or a video adapter uses a portion of memory or claims it for further use. (E.g. For 1GB(=1,024MB) memory installed, Windows may report the capacity as 1,022MB or less)For more information, refer to the Samsung Recovery Solution section.Before You Start

7Chapter 1 Getting StartedInstallation RelatedDo not install the product in places exposed to humidity such as a bathrooms.There is a danger of electric shock. Use the product within the operating conditions speci ed in the Manufacturers User Guide.Keep the plastic bags out of the reach of children.There is a danger of su ocation. Safety PrecautionsKeep a distance of 15cm or more between the computer and the wall and do not place any objects between them.This may increase the internal temperature of the computer and may cause an injury.Do not install the computer on a slant or a place prone to vibrations, or avoid using the computer in that location for a long time.This increases the risk that a malfunction or damage to the product will occur.Avoid exposing any part of your body to the heat from the computer vent or AC adapter for a long time when the computer is on.Exposing a part of your body close to the heat from the vent or AC adapter for long periods of time may cause a burn.Avoid blocking the vent at the bottom or side of the computer when using it on a bed or cushion.If the vent is blocked, there is a danger of damaging the computer or overheating the inside of the computer.For your security and to prevent damage, please read the following safety instructions carefully.Since this is commonly applied to Samsung Computers, some pictures may di er from actual products. WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.Ver 2.9

8Chapter 1 Getting StartedGIf the power cord or power outlet makes a noise, disconnect the power cord from the wall outlet and contact a service center.There is a danger of electric shock or  re hazard.Do not use a damaged or loose main plug or power cord or power outlet.There is a danger of electric shock or  re hazard.Plug the power cord  rmly into the power outlet and AC adapter.Failure to do so may cause  re hazard.Do not unplug the power cord by pulling the cable only.If the cord is damaged, it may cause electric shock.Do not bend the power cord excessively or do not place a heavy object over the power cord. It is especially important to keep the power cord out of reach of infants and pets.If the cord is damaged, it may cause electric shock or  re.Power RelatedThe power plug and wall outlet  gures may di er depending on the country speci cations and the product model.Do not touch the main plug or power cord with wet hands.There is a danger of electric shock.Do not exceed the standard capacity (voltage/current) of a multiplug or power outlet extension when using it for the product.There is a danger of electric shock or  re hazard.Safety Precautions WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.

9Chapter 1 Getting StartedConnect the power cord to an outlet or multiple power plug (extended cable) with a ground terminal.Failure to do so may result in electric shock.If water or another substance enters the power input jack, AC adapter or the computer, disconnect the power cord and contact the service center.If the notebook computer has an external type (removable) battery, separate the battery also.Damage to the device within the computer may cause electric shock or re hazard.Keep the power cord or outlet clean so that they are not covered with dust.Failure to do so may result in re.AC Adapter Usage PrecautionsConnect the power cord to the AC adapter rmly.Otherwise, there is a danger of re due to an incomplete contact.Use only the AC adapter supplied with the product.Using another adapter may cause the screen to icker.Do not place heavy objects or step onto the power cord or AC adapter to avoid damaging the power cord or AC adapter.If the cord is damaged, there is a danger of electric shock or re. WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.Safety Precautions

10Chapter 1 Getting StartedBattery Usage RelatedPlease charge the battery fully before using the computer for the rst time.Keep the battery out of the reach of infants and pets, as they could put the battery into their mouths.There is a danger of electric shock or choking.Use an authorized battery and AC adapter only.Please use an authorized battery and adapter approved by Samsung Electronics.Unauthorized batteries and adapters may not meet the proper safety requirements and may cause problems or malfunctions and result in an explosion or re. WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.Safety PrecautionsDo not use the computer in a badly ventilated location such as on bedding, on a pillow or cushion, etc, and do not use it in a location such as room with oor heating as it may cause the computer to overheat.Take care that the computer vents (on the side or the bottom) are not blocked especially in these environments. If the vents are blocked, the computer may overheat and it may cause a computer problem, or even an explosion.Do not use the computer in a humid location such as a bathroom or sauna.Please use the computer within the recommended temperature and humidity range (10~32ºC, 20~80% RH).Do not close the LCD panel and put the computer into your bag to move it when it is still turned on.If you put the computer into your bag without turning it o, the computer may overheat and there is a danger of re. Shut the computer down properly before moving it.

11Chapter 1 Getting StartedCutting the power to the internal battery (for corresponding models only.)For products with built-in batteries, customers cannot remove t the battery. In the case of ooding, lightning or explosions, you can cut t the battery power by inserting an object such as a paper clip into the [Emergency Hole] at the bottom of the computer. Disconnect the AC adapter and insert an object such as a t paper clip into the hole at the bottom of the computer to cut the battery power. In the case of ooding, lightning or explosions, cut the battery power, do not reconnect the AC adapter, and immediately contact Samsung Electronics so that the appropriate countermeasures can be taken.Never heat the product(or battery) or put the product(or battery) into a re. Do not put or use the product(or battery) in a hot location such as a sauna, inside a vehicle exposed to the heat, and so on.There is a danger of an explosion or re.Take care not to allow metal objects such as a key or clip to touch the battery terminal (metal parts).If a metal object touches the battery terminals, it may cause excessive current ow and it may damage the battery, or result in a re.If liquid leaks out of the product(or battery) or there is a funny smell coming from the product(or battery), remove the the product(or battery) the computer and contact a service center.There is a danger of an explosion or re.To use the computer safely, replace a dead battery with a new, authorized battery.Safety Precautions WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.

12Chapter 1 Getting StartedSafety Precautions WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.Thereafter, if you connect the AC adapter, the battery power t will be supplied again.Do not cut the battery power under normal t conditions.This may result in data loss or a product t malfunction.The location of the Emergency Hole may di er depending on the model.Usage RelatedDisconnect all cables connected to the computer before cleaning it. If your notebook is external & removable battery type, remove the external battery.There is a danger of electric shock or damage to the product.Do not connect a phone line connected to a digital phone to the modem.There is a danger of a electric shock,  re or damage to the product.Do not place any container  lled with water or chemicals over or near the computer.If water or chemicals enter the computer, this may cause  re or electric shock.

13Chapter 1 Getting StartedUpgrade RelatedNever disassemble the power supply or AC adapter.There is a danger of electric shock.When removing the RTC (Real Time Clock) battery, keep it out of the reach of children as they could touch and/or swallow it.There is a danger of choking. If a child has swallowed it, contact a doctor immediately.Use only authorized parts (multi-plug, battery and memory) and never disassemble parts.There is a danger of damaging the product, electric shock or re hazard.Shut down the computer and disconnect all cables before disassembling the computer. If there is a modem, disconnect the phone line. If your notebook is external & removable battery type, remove the external battery.Failure to do so, may cause electric shock.If the computer is broken or dropped, disconnect the power cord and contact a service center for a safety check.If the notebook computer has an external type (removable) battery, separate the battery also.Using a broken computer may cause electric shock or re hazard.Avoid direct sunlight when the computer is in an air-tight location such as inside a vehicle.There is a danger of a re hazard. The computer may overheat and also present opportunity to thieves.Do not use your notebook PC for long periods of time while any part of your body is making direct contact with it. The temperature of the product may increase during normal operation.This may result in harming or burning your skin.Safety Precautions WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.

14Chapter 1 Getting StartedWhen carrying the notebook computer with other items, such as the adapter, mouse, books etc, take care not to press anything against the notebook computer.If a heavy object is pressed against the notebook computer, a white spot or stain may appear on the LCD. Therefore, take care not to apply any pressure to the notebook.In this case, place the notebook computer in a separate compartment away from the other objects.Security and Movement RelatedFollow the instructions for the relevant location (e.g. airplane, hospital, etc.) when using a wireless communication device (wireless LAN, Bluetooth, etc.).Avoid exposing a drive to magnetic elds. Security devices with magnetic elds in-clude airport walk-through devices and se-curity wands.The airport security devices that check car-ry-on luggage, such as conveyor belts, use x-rays instead of magnetism and will not damage a drive.Safety Precautions WarningFailure to follow instructions marked with this symbol may cause personal injury and even fatality.

15Chapter 1 Getting StartedSafety PrecautionsInstallation RelatedDo not block the ports (holes), vents, etc. of the product and do not insert objects.Damage to a component within the computer may cause electric shock or re.When using the computer with it lying on its side, place it so that the vents face upwards.Failure to do so, may cause the internal temperature of the computer to rise and the computer to malfunction or halt.Do not place a heavy object over the product.This may cause a problem with the computer. In addition, the object may fall and cause injury, or damage the computer.Battery Usage RelatedDispose of worn-out batteries properly.There is a danger of re or explosion.t The battery disposal method may dier depending on t your country and region. Dispose of the used battery in an appropriate way.Do not throw or disassemble the battery and do not put it into water.This may cause an injury, re or explosion.Use only a battery authorized by Samsung Electronics.Failure to do so may cause an explosion.Avoid contact with metal objects such as car keys or clips when keeping or carrying a battery.Contact with a metal may cause excessive current and a high temperature and may damage the battery or cause a re.Charge the battery according to the instructions in the manual.Failure to do so, may cause an explosion or re from damage to the product.Do not heat the product(or battery) or expose it to heat (e.g. inside a vehicle during the summer).There is a danger of explosion or re. CautionFailure to follow instructions marked with this symbol may cause slight injury or damage to the product.

16Chapter 1 Getting StartedUsage RelatedDo not place a candle, light cigar, etc. over or on the product.There is a danger of re.Use a wall outlet or multi-plug with a grounding part.Failure to do so may cause electric shock hazard.Make sure to have the product tested by a safety service engineer after repairing the product.Authorized Samsung Repair Centers will carry out safety checks after a repair. Using a repaired product without testing it for safety may cause an electric shock or re.In case of lightning, immediately turn the system o, disconnect the power cord from the wall outlet and phone line from modem. Do not use a modem or phone.There is a danger of electric shock or re.Do not use your computer and AC-Adapter on your lap or soft surfaces.If the computer temperature increases, there is a danger of burning yourself.Connect only permitted devices to the connectors or ports of the computer.Failure to do so, may cause electric shock and re.Close the LCD panel only after checking if the notebook computer is turned o.The temperature may rise and it may cause overheating and deformation of the product.Do not press the Eject Button while the Floppy Disk/CD-ROM drive is in operation.You might lose data and the disk might be suddenly ejected and could cause an injury.Take care not to drop the product while using it.This may cause personal injury or loss of data.Do not touch the antenna with electricity facility such as the power outlet.There is a danger of electric shock.When handling computer parts, follow the instructions on the manual supplied with the parts.Failure to do so, may cause damage to the product.Safety Precautions CautionFailure to follow instructions marked with this symbol may cause slight injury or damage to the product.

17Chapter 1 Getting StartedIf the computer emits smoke, or there is a burning smell, disconnect the power plug from the wall outlet and contact a service center immediately. If your notebook is external & removable battery type, remove the external battery.There is a danger of re.Do not use a damaged or modied CD/Floppy Disk.There is a danger of damaging the product or personal injury.Do not insert your ngers into the PC Card Slot.There is a danger of injury or electric shock.Use recommended computer cleansing solution when cleaning the product and only use the computer when it is completely dried.Failure to do so may cause electric shock or re.Emergency disk eject method using paperclip should not be used while the disk is in motion. Make sure to use the emergency disk eject method only when the Optical Disk Drive has stopped.There is a danger of injury.Do not place your face close to the Optical Disk Drive tray when it is operating.There is a danger of injury due to an abrupt ejection.Check CDs for cracks and damage prior to use.It may damage the disc and cause disorder of device and injury of user.Safety Precautions CautionFailure to follow instructions marked with this symbol may cause slight injury or damage to the product.

18Chapter 1 Getting StartedUpgrade RelatedTake care when touching the product or parts.The device may be damaged or you may be injured.Take care not to throw or drop a computer part or device.This may cause injury or damage to the product.Make sure to close the computer cover before connecting the power after a reassembly.There is a danger of electric shock if your body touches an internal part.Use parts authorized by Samsung Electronics only.Failure to do so, may cause re or damage the product.Never disassemble or repair the product by yourself.There is a danger of electric shock or re.To connect a device that is not manufactured or authorized by Samsung Electronics, enquire at your service center before connecting the device.There is a danger of damaging the product.Security and Movement RelatedWhen moving the product, turn the power o and separate all connected cables rst.The product might be damaged or users may trip over the cables.For long periods of not using the notebook computer, discharge the battery and preserve as it is detached. (For external & removable battery type)The battery will be preserved at its best condition.Do not operate or watch the computer while driving a vehicle.There is a danger of a trac accident. Please concentrate on driving.Safety Precautions CautionFailure to follow instructions marked with this symbol may cause slight injury or damage to the product.

19Chapter 1 Getting StartedCautions on Preventing Data Loss (Hard Disk Management)Take care not to damage the data on a hard disk drive.A hard disk drive is so sensitive to external impact that an t external impact may cause loss of data on the surface of the disk.Take extra care, because moving the computer or an impact t on the computer when it is turned on may damage the data of the hard disk drive.The company is not liable for any loss of data on the hard disk t drive.Causes that may damage the data of a hard disk drive and the hard disk drive itself.The data may be lost when an external impact is applied to the t disk while disassembling or assembling the computer.The data may be lost when the computer is turned o or reset t by a power failure while the hard disk drive is operating.The data may be lost and irrecoverable due to a computer virus t infection.The data may be lost if the power is turned o while running a t program.Sudden impact or movement to the computer while the hard t disk drive is operating, may cause les to be corrupted or bad sectors on the hard disk.To prevent data loss due to damage to the hard disk drive, please backup your data frequently.Safety Precautions CautionFailure to follow instructions marked with this symbol may cause slight injury or damage to the product.

20Chapter 1 Getting StartedSafety PrecautionsUsing the power supply in an airplaneSince the power outlet type di ers depending on the type of airplane, connect the power appropriately. Since the representative  gures of the power plug and the auto adapter are used, they may di er from the actual parts.When using the AC power plugConnect the power plug pins perpendicular into the center of the power outlet.If the plug pins are not inserted into the center of the holes, the t plug pins are only inserted up to half their length. In this case, reconnect the power plug. You have to insert the power plug into the outlet when the t power indicator (LED) of the power outlet is lit green. If the power is connected properly, the power indicator (LED) remains green. Otherwise, the power indicator (LED) is turned o . In this case, unplug the power, check if the power indicator (LED) is green, and then reconnect the power plug.Wrong Example Good Example 220V Power Plug 110V Power PlugCenter HolesPower Indicator (LED)

21Chapter 1 Getting StartedSafety PrecautionsWhen using the auto adapterWhen the cigar socket is provided, you have to use the auto adapter (optional). Insert the cigar plug of the auto adapter into the cigar socket and connect the DC plug of the auto adapter to the power input port of the computer.Auto AdapterIn- ight Cigar SocketCigar PlugDC PlugWhen using the Airplane Charging ConverterDepending on the airplane, you have to use the auto adapter and charging converter. Connect the airplane charging converter (optional) to the auto adapter (optional) and then insert the airplane power input jack into the power outlet.Charging Converter 1Connect this end to the auto adapter.Connect the airplane power input jack to the power outlet of the airplane.2

22Chapter 1 Getting StartedProper Posture During Computer UseMaintaining a proper posture during computer use is very important to prevent physical harm.The following instructions are about maintaining a proper posture during computer use developed through human engineering. Please read and follow them carefully when using the computer.Otherwise, the probability of (RSI: Repetitive Strain Injury) from repeated operations may increase and serious physical harm may be caused.The instructions in this manual have been prepared so that t they can be applied within the coverage of general users. If the user is not included in the coverage, the t recommendation is to be applied according to the user’s needs.Proper PostureAdjust the heights of desks and chairs appropriate to your height.The heights are to be adjusted so that your arm forms a right angle when you place your hand over the keyboard while sitting down on a chair.Adjust the height of chair so that your heel is comfortably placed on the  oor.Do not use the computer while you are lying down, but only t while you are sitting down.Do not use the computer on your lap. If the computer t temperature increases, there is a danger of burning yourself.Work while keeping your waist straight.t Use a chair with a comfortable back.t Keep the center of your leg weight not on the chair but on t your feet when you are sitting on a chair.To use the computer while talking over the telephone, use a t headset. Using the computer with the phone on your shoulder is bad for posture.Keep frequently used items within a comfortable work range t (where you can reach them with your hands).

23Chapter 1 Getting StartedProper Posture During Computer UseEye PositionKeep the monitor or LCD away from your eyes by at least 50cm.Adjust the height of the monitor and the LCD screen so that its t top height is equal to or lower than your eyes.Avoid setting the monitor and LCD excessively bright.t Keep the monitor and LCD screen clean.t If you wear glasses, clean them before using the computer.t When entering contents printed on a paper into the computer, t use a static paper holder so that the height of the paper is almost equal to that of the monitor.Hand PositionKeep your arm at a right angle as shown by the  gure.Keep the line from your elbow to your hand straight.t Do not place your palm over the keyboard while typing.t Do not hold the mouse with excessive force.t Do not press the keyboard, touchpad or mouse with excessive t force.It is recommended connecting an external keyboard and t mouse when using the computer for long periods of time.

24Chapter 1 Getting StartedProper Posture During Computer UseVolume Control (Headphones and Speakers)Check your volume  rst to listen to music.Check your volume!Check if the volume is too loud before using headphones.t It is not recommended using headphones for long periods of t time.Any deviation from the equalizer default setting could cause t hearing impairment.The default setting can be changed through software and t driver updates without your intervention. Please check the equalizer default setting before  rst usage.Use Time (Break Time)Take a break for 10 minutes or more after a 50-minute period t when working for more than one hour.IlluminationDo not use the computer in dark locations. The illumination t level for computer use must be as bright so for reading a book.Indirect illumination is recommended. Use a curtain to prevent t re ection on the LCD screen.Operation ConditionDo not use the computer in hot and humid locations.t Use the computer within the allowed temperature and t humidity range speci ed in the User Guide.

25Chapter 1 Getting Started OverviewFront ViewThe pictures used for the cover and the main body in the t User Manual are those of the representative model of each series. Therefore the colors and appearance of the pictures may di er from the actual appearance of the product depending on the model.The actual color and appearance of the computer may t di er from the pictures used in this guide.This may not be supported for some devices.t 1342567891Camera (Optional) Using this camera, you can take still pictures and record video.2LCD The screen images are displayed here.3Speaker A device used to generate sound.4Status IndicatorsShows the operating status of the computer.The corresponding operating LED is lit when the corresponding function operates.5Power Button Turns the computer on and o .6Keyboard A device to enter data by pressing the keys.7Touchpad/Touchpad ButtonsThe touchpad and touchpad buttons provide functions similar to the mouse ball and buttons.8Multi Card Slot (Optional) A card slot supports multi cards.9Microphone You can use the built-in microphone.Using the camera, web cam (Optional)Using the Cyberlink YouCam program (optional), you can take pictures or record video by using the computer’s built-in camera by adding the balloon talk or frame e ect.

26Chapter 1 Getting StartedOverview Status Indicators12341Illumination Sensor (Optional)This sensor detects the ambient illumination of the PC.If the ambient illumination becomes dark, the LCD becomes dimmer and the keyboard backlight is lit.On the contrary, if the ambient illumination becomes brighter, the LCD becomes brighter and the keyboard backlight is turned o . Press the + keys simultaneously, select the Easy Settings > Display, and select or unselect the check box to turn the illumination sensor ON/OFF.2HDD/ODD This turns on when the hard disk is or ODD being accessed.3Charge Status This shows the power source and the battery charge status. Green: When the battery is fully charged or the battery is not installed./ Red or orange: When the battery is being charged. O : When the computer is running on battery power without being connected to AC adapter.4Power This shows the computer operating status.On: When the computer is operating.Blinks: When the computer is in Sleep mode.

27Chapter 1 Getting StartedOverviewRight View211USB Port (Optional)You can connect USB devices to the USB port such as a keyboard/mouse, digital camera, etc.2CD Drive (ODD) (Optional)Plays CD or DVD titles.Since an ODD(Optical Disk Drive) is optional, the installed drive depends on the computer model.

28Chapter 1 Getting StartedOverviewLeft View4123 5 67What is a chargeable USB port?USB device accessing and charging functions are t supported.The USB charging function is supported regardless of t whether the power is turned on or o .Charging a device through a chargeable USB port may take t longer than general charging.Using the Chargeable USB function when the computer is t running on battery power reduces the battery usage time.The user cannot evaluate the charging status of the USB t device from the computer.This may not be supported for some USB devices.t You can turn the Chargeable USB function t ON/OFF by selecting the Easy Settings > General > USB Charging option. (Optional)1Security Slot You can secure the computer by connecting a lock and cable to the Security Slot.2DC Jack A jack to connect the AC adapter that supplies power to the computer.3Digital Video/Audio Port (HDMI) (Optional)You can connect an HDMI cable to this port. Using this port, you can enjoy digital video and audio on the TV. 4Wired LAN Port Connect the Ethernet cable to this port.5USB 3.0 Port or Chargeable USB 3.0 Port (Optional)USB ports to which you can connect USB devices as well as a chargeable USB port are provided.Using a chargeable USB port, you can access or charge a USB device. The port can be distinguished by the  gure ( or ) printed on the port of the product.6Monitor Port A port used to connect a monitor, TV or projector supporting a 15pin D-SUB interface. You can connect a VGA adapter (optional).7Ear-set / headset Jack This is the jack for connecting an ear-set or headset.

29Chapter 1 Getting StartedBottom View1321Speaker A device used to generate sound.2Memory Compartment CoverThe main memory is installed inside the cover.3Battery Emergency HoleThis hole is to cut the power supply to the battery. Insert and press one end of an unfolded paper clip into the hole it to cut the power to the battery. For more information, refer to About the function to cut the power supply to the internal battery in the Safety Precautions. For more information, refer to About the function to cut the power supply to the internal battery in the Safety Precautions. The location of the Emergency Battery Hole may di er depending on the model.If you replace the bottom of the product, the model name, serial number and some logos etched into the bottom of the product will no longer be there.For more information, please ask for assistance from the service center.Overview

30Chapter 1 Getting StartedTurning the Computer On and O Turning the computer on1 Connect the AC adapter.2 Lift the LCD panel up.3 Press the Power button to turn the computer on.4 If the power is turned on, the power LED is lit.About Windows ActivationWhen you turn the computer on for the  rst time, the Windows activation screen appears.Follow the activation procedures according to the instructions on the screen to use the computer.Entering Sleep modeWhen the computer is turned on, press the computer’s power button once brie y.Adjusting the screen brightnessWhen the computer runs on battery power, the LCD brightness is automatically set to low.Press the + key combination to increase the screen brightness.

31Chapter 1 Getting StartedTurning the computer o Since the procedures to turn the computer o may di er t depending on the installed operating system, please turn the computer o according to the procedures for the purchased operating system.Save all your data before clicking on t Shut down.If t Easy Settings is installed, the system shutdown location may di er.► For Windows 7 Click Start > Shut down mode to shutdown the computer.12► For Windows XP1 Click the Start button on the taskbar.Click Turn O Computer.1 22 Click Turn O .If the system cannot be shut down due to a system error, turn it o by pressing and holding the Power Button for a minimum of 4 seconds.Please note that turning the computer o by this method may cause a system problem. Thereafter, when turning the computer back on, the disk checking program may launch to check for and correct any disk errors.Turning the Computer On and O

Keyboard 33Touchpad 36CD Drive (ODD, Optional) 42Multi Card Slot (Optional) 44Connecting an External Display Device 47Connecting an External Digital Device 53Adjusting the Volume 54Wired Network 57Wireless Network (Optional) 61 Chapter 2. Using the computer

33Chapter 2. Using the computer KeyboardShortcut key functions and procedures are discussed in the following sections.The keyboard image may di er from the actual keyboard.t The keyboard may di er depending on your country. The following mainly describes the shortcut keys.t Shortcut KeysYou can use the following functions by pressing the keys below with the Fn key.► A type model► B type model

34Chapter 2. Using the computerKeyboardFn Name Function +Easy Settings The Samsung software control program, the Easy Settings, is launched.Screen Brightness Control Controls the screen brightness.CRT/LCD Switches the screen output to the LCD or external monitor when an external monitor (or TV) is connected to the computer.Touchpad Turns the Touchpad function on or o.When using an external mouse only, you can turn the Touchpad o.Mute Press this button to turn the audio on or o.Volume Control Controls the volume.Keyboard Backlight Brightness Control (Optional)Controls the brightness of the keyboard backlight. This function is only available for models that support the keyboard backlight feature.Silent Mode Reduces the Fan noise so that users can use the computer without hearing noise. Wireless network In models with a wireless network device, press this key to turn the wireless network device on or o. (Only for models with a wireless network device.)

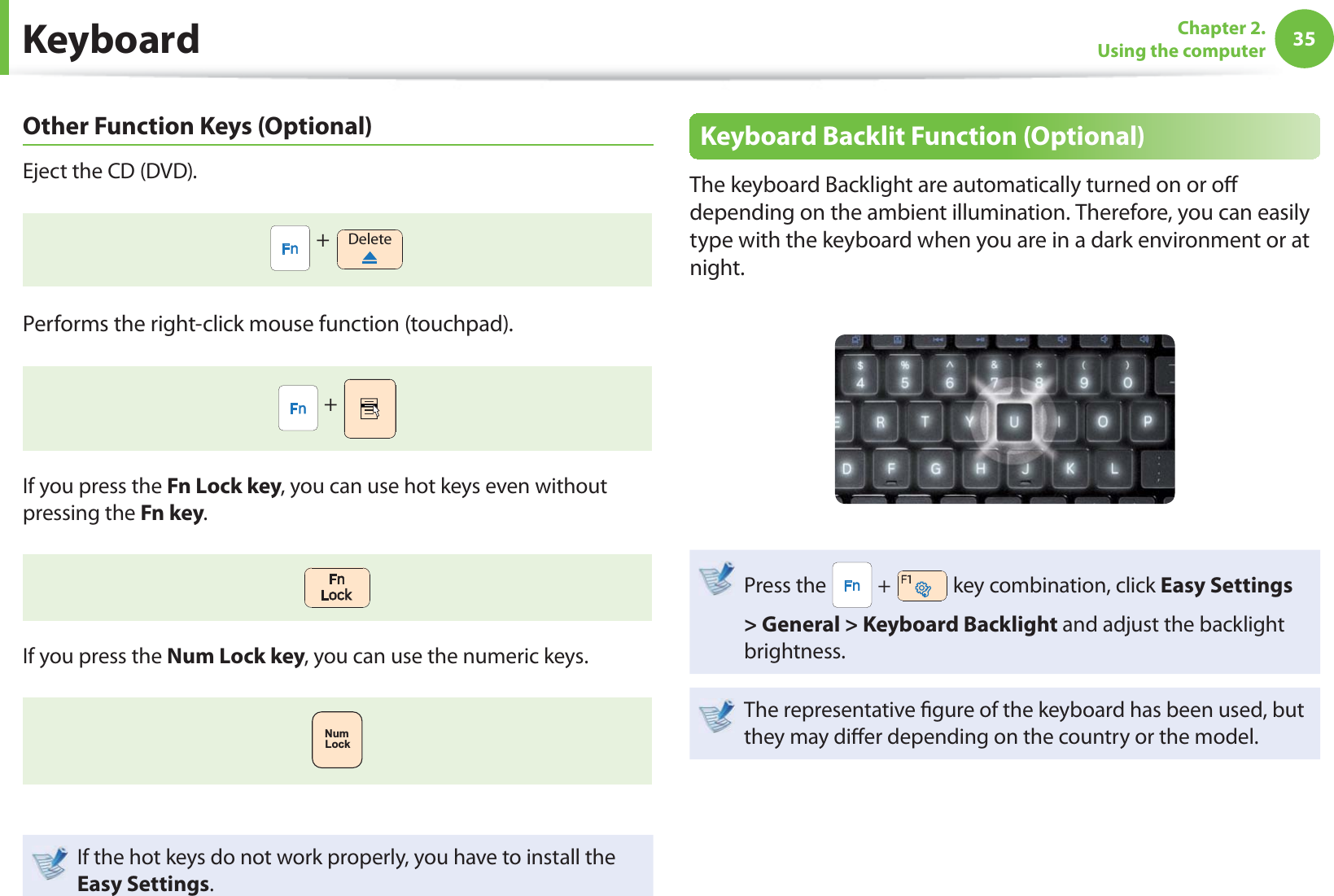

35Chapter 2. Using the computerOther Function Keys (Optional)Eject the CD (DVD). + DeletePerforms the right-click mouse function (touchpad). + If you press the Fn Lock key, you can use hot keys even without pressing the Fn key.If you press the Num Lock key, you can use the numeric keys.NumLockIf the hot keys do not work properly, you have to install the Easy Settings.Keyboard Backlit Function (Optional)The keyboard Backlight are automatically turned on or o depending on the ambient illumination. Therefore, you can easily type with the keyboard when you are in a dark environment or at night.Press the + key combination, click Easy Settings > General > Keyboard Backlight and adjust the backlight brightness.The representative  gure of the keyboard has been used, but they may di er depending on the country or the model. Keyboard

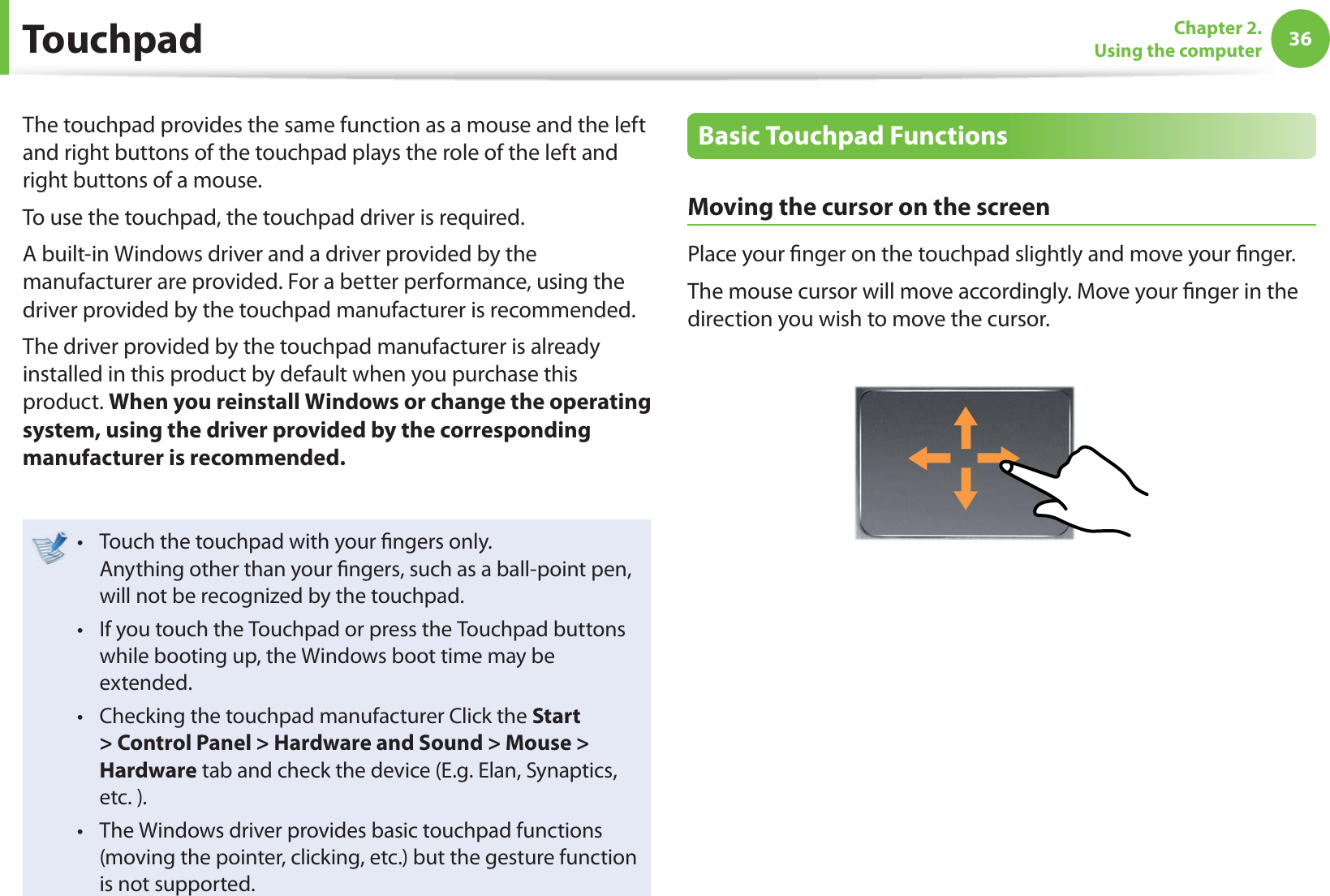

36Chapter 2. Using the computer TouchpadThe touchpad provides the same function as a mouse and the left and right buttons of the touchpad plays the role of the left and right buttons of a mouse.To use the touchpad, the touchpad driver is required.A built-in Windows driver and a driver provided by the manufacturer are provided. For a better performance, using the driver provided by the touchpad manufacturer is recommended.The driver provided by the touchpad manufacturer is already installed in this product by default when you purchase this product. When you reinstall Windows or change the operating system, using the driver provided by the corresponding manufacturer is recommended.Touch the touchpad with your  ngers only. t Anything other than your  ngers, such as a ball-point pen, will not be recognized by the touchpad.If you touch the Touchpad or press the Touchpad buttons t while booting up, the Windows boot time may be extended.Checking the touchpad manufacturer Click the t Start > Control Panel > Hardware and Sound > Mouse > Hardware tab and check the device (E.g. Elan, Synaptics, etc. ).The Windows driver provides basic touchpad functions t (moving the pointer, clicking, etc.) but the gesture function is not supported.Basic Touchpad FunctionsMoving the cursor on the screenPlace your  nger on the touchpad slightly and move your  nger.The mouse cursor will move accordingly. Move your  nger in the direction you wish to move the cursor.

37Chapter 2. Using the computerClick FunctionPlace a nger on the touchpad and click on an item once. Alternatively, press the left button once quickly and release it.TapClickorDouble-Click FunctionPut your nger on the touchpad and quickly tap twice with your nger on an item you want.Alternatively, press the left touchpad button twice quickly.ClickClickTapTaporRight Button FunctionThis corresponds to clicking the right mouse button.Press the right touchpad button once. The corresponding pop-up menu appears.ClickDrag FunctionDragging refers to moving an item to another place after selecting it.Press and hold down the left touchpad button over an item you want to drag and move the item to the new location.Holding down the left touchpad buttonMoveTouchpad

38Chapter 2. Using the computerThe Gesture Function of the Touchpad (Optional)The Touchpad Gesture function may not be provided and t the version of the function may di er depending on the model. Some usage procedures may di er depending on the version.For detailed usage procedures, refer to the description in t the Touchpad Settings window.Since these descriptions are written on the basis of the t latest operating system, Windows 7, some of the content and the  gures of the descriptions may di er depending on the operating system. Since the procedures for other Windows operating systems are similar, use the computer referring to these descriptions.Using the Touchpad, you can use the following additional Gesture functions.Scroll functiont Zoom functionst Page Move Functiont Con guring the Gesture FunctionSome gesture functions may not be con gured.In this case, you can con gure them using the following path.1 ► When using the Elan driver Click the Start > Control Panel > Hardware and Sound > Mouse > ELAN > Options button.► When using the Synaptics driverClick the Start > Control Panel > Hardware and Sound > Mouse > Device Settings tab > Settings button.2 The Touchpad Settings window appears. Click over the corresponding item to select the item in the Select an item and click OK.To cancel the Gesture function, unselect the corresponding item in the Touchpad Settings window and click OK.Touchpad

39Chapter 2. Using the computerThe Scroll FunctionThis function is the same as the scroll area of the Touchpad.If you place two ngers over the Touchpad and move them up, down, left or right, the screen is scrolled up, down, left or right accordingly.orZoom FunctionsIf you place two ngers over the Touchpad together or apart, the current image or text is zoomed in or out.Zoom-outZoom-inorPage Move FunctionYou can move to the previous or next page when you are looking at a photo or surng the Internet.For example, if you lightly brush three ngers to the left while you are looking at a web site, you will return to the previous page.Touchpad

40Chapter 2. Using the computerSetting the Touchpad SensitivityIf the touchpad reacts too sensitively or the pointer moves unintentionally, please adjust the touchpad pointer speed and sensitivity.Adjusting the Touchpad Pointer SpeedClick Start > Control Panel > Hardware and Sound > Mouse > Pointer Options and then adjust the pointer speed.Adjusting the Touchpad Palm Detection FunctionThe palm detection function is to avoid malfunctions when the palm touches the touchpad by mistake.This function is provided by the touchpad driver provided by the manufacturer.► When using the Elan driver Click Start > Control Panel > Hardware and Sound > Mouse > ELAN > Options > PalmTracking and then adjust the sensitivity.► When using the Synaptics driver Click Start > Control Panel > Hardware and Sound > Mouse > Device Settings > Settings > SmartSense and then adjust the sensitivity. Minimum MaximumWhen the touchpad pointer moves unintentionally (excessively): Slide the bar appropriately in the direction of Maximum.When the touchpad pointer does not move smoothly: Slide the bar appropriately in the direction of Minimum.Touchpad

41Chapter 2. Using the computerTouchpadTouchpad On/O FunctionLocking with shortcut keysIf you want to use the mouse only without using the touchpad, you can turn the touchpad o .To lock the touchpad function, press the + keys.You can set the touchpad and touchpad button settings in the tabs that appear when clicking Start > Control Panel > Hardware and Sound > Mouse.Auto-locking when connecting USB mouse► When using the Elan driver Click Start > Control Panel > Hardware and Sound > Mouse > ELAN, and check the Disable When external USB mouse plug in option. This will turn the touchpad o when a USB mouse is connected.► When using the Synaptics driver Click Start > Control Panel > Hardware and Sound > Mouse > Device Settings, and check the Disable internal pointing device when external USB pointing device is attached in option. This will turn the touchpad o when a USB mouse is connected.In case of some touch-screen model, checking option locks touchpad even though you did not connect a USB mouse.This auto-locking function is not provided for some models.

42Chapter 2. Using the computerCD Drive (ODD, Optional)An optical disk drive is optional and may dier depending on your computer model. For detailed specications, refer to the catalogue.Do not insert a cracked or scratched CD. t Otherwise, the CD may break and damage the optical disk drive when the CD rotates at a high speed.When you clean a CD or DVD title, wipe with a soft cloth t from inside to outside.The gures used for the description are of a representative t model. Therefore the gures may dier from the real ones.Using a CD that is not in the shape of a circle is not t recommended.The Slot Load ODD does not support mini discs (8cm).t Inserting and Ejecting a CD1 Insert the disc into the CD Drive so that the top of the disc faces upwards.When 90% of the disc is inserted into the drive, the disc is automatically loaded into the drive.CD DriveDo not pull or push the disc by force when the disc is t being automatically ejected or inserted. This may cause a problem when ejecting or inserting a disc.To insert a disc, insert the disc into the center of the drive t with the appropriate pressure. If you insert a disc and apply excessive force to one side of the tray, it may result in a problem.

44Chapter 2. Using the computerMulti Card Slot (Optional)Using the multi card slot, you can read and write data to cards. You can use a card as a removable disk and conveniently exchange data with digital devices such as a digital camera, digital camcorder, MP3, etc..Supported Cards : SD Card, SDHC Card, SDXC Card, MMC t Card (The MMC Card may not be supported depending on your model.)You have to additionally purchase a multi card with the t necessary capacity depending on your requirements.You can use a multi card just like any data storage device. t A copyright protection function is not supported.Since you can lose a card when moving the computer, t keep the card separately.The  gures used for the description are of a representative t model. Therefore the  gures may di er from the real ones.If a slot protection dummy card is inserted into your t computer, remove the dummy card before using the computer.These descriptions are written based on Windows 7, the t latest operating system. Therefore, some descriptions and  gures may di er from your operating system. But as the usage is similar to other Windows operating systems, you can use these descriptions for reference. Using the card1 Insert the card into the multi card slot in the indicated direction.Example) SD Card

45Chapter 2. Using the computerMulti Card Slot (Optional)2 The card drive appears. Click Open folder and view  les.If the window does not appear, click Start > Computer.If a window asking to scan and change appears, click Continue Without Scanning. This will proceed to Step 2 above.3 You can save, move and delete data by double-clicking the corresponding drive.You can only use the card after formatting it.The device name of the card drive may di er depending on your computer model.Using a Mini SD and RS-MMCSince the above cards are too small, you cannot insert the cards into the slot directly.Insert the card into the dedicated adapter (available from most electronic retailers) and then insert the adapter into the multi card slot.However, depending on the adapter’s body material, some RS-MMC cards may not be recognized properly. Samsung recommend that you check the card is recognized correctly prior to purchasing.

46Chapter 2. Using the computerTo remove a memory cardTake hold of the end of the card and remove the card.To format a memory cardWhen using the memory card for the rst time, you must format the card before using it.Formatting a card deletes all data saved on the card. If the card includes data, backup the data before formatting it.1 Click Start > Computer.2 Right-click over a card drive with the touchpad and select Format.3 Click Start to the formatting.To use a card to exchange data with a digital device such t as a digital camera, formatting the data using the digital device is recommended.When you try to use a card, which is formatted in the t computer, in another digital device, you may have to format the card again in the device.You cannot format, write or delete data from a SD, or SDHC t card with a write protection tab when it is in the Lock position.Inserting and removing a memory card repeatedly may t damage the memory card.Multi Card Slot (Optional)

47Chapter 2. Using the computerConnecting an External Display DeviceIf you connect an external display device such as a monitor, TV, projector, etc., you can view the picture on the wider screen of the external device when you give a presentation or watch a video or movie.The computer provides an analog monitor port (RGB) and a digital video/audio port (HDMI).The visual quality is sharper when a display device is connected through the HDMI port rather than the analog monitor port (RGB) port. Therefore, when multiple ports are supported, connect a display device to a port that provides the better visual quality.Before you start, check the port and cable of the external t display device and then connect the display device to the computer.Due to restrictions of the operating system the DualView t function is not supported for Windows 7 Starter.About the connection cableUsers should additionally purchase the necessary connection cables.Analog Monitor (RGB) CableHDMI Cable Connecting to the monitor port (Optional)You can experience a wider screen by connecting the computer to a monitor, TV or projector with a monitor port.You can give better presentations by connecting the computer to a projector.The VGA adapter is optional and may not be provided depending on the model.1 Connect the VGA adapter to the monitor port of the computer.

48Chapter 2. Using the computer2 Connect the VGA cable (15-pin) to the connected VGA adapter and then connect the other end of the VGA cable to the VGA port of the monitor or the TV.lExternal Monitor TVProjectornVGA Adapter3 Connect the power cord of the connected monitor, TV or projector and turn the power on.4 Press the + key combination once. Then the setting screen appears where you can select the monitor mode.Since pressing the key while holding down the key changes the selection, select a display device.LCDCRTLCD+CRT CloneLCD+CRT Dual ViewIf the screen is not switched even if you press the t + key combination, you have to install the Easy Settings program.Alternatively, to set up dual view:t Open the Display Settings window in the Control Panel, select Monitor 2 and select the Expand to  t to this monitor checkbox to set dual view. For more detailed information, refer to the Windows online help.Connecting an External Display Device

49Chapter 2. Using the computerConnecting through the HDMI port (Optional)By connecting the computer to a TV with a HDMI port, you can enjoy both a high visual quality and a high sound quality.After connecting a TV through HDMI, you have to con gure the screen and sound.1 Connect the HDMI cable to the HDMI port of the TV.External Monitor TVProjectorThis is only supported for models that support a TV output t port (HDMI).When a TV provides more than one HDMI port, connect t the computer to the DVI IN port.When connecting the computer to a TV, switch the t external input mode of the TV to HDMI.2 Press the + key combination once. Then the setting screen appears where you can select the monitor mode.Since pressing the key while holding down the key changes the selection, select a display device.HDMILCD+HDMI CloneLCD+HDMI Dual ViewExternal Monitor / TV is not supported in the DOS t Command Prompt window.Simultaneous output to all 3 (LCD + CRT + HDMI) is not t supported.If the screen is not switched even if you press the t + key combination, you have to install the Easy Settings program.Connecting an External Display Device

50Chapter 2. Using the computerSetting up HDMI TV video (Optional)If the Desktop screen displayed on the TV does not  t to the TV screen, con gure it as follows depending on the graphics card.You can view the graphics card type by selecting t Device Manager > Display adapters and then clicking the + symbol.The screen images and terms may di er from actual product t depending on the computer model and driver version.► For Intel graphics cards1 Right-click over the Desktop and select Graphics Properties.If a window appears where you can select the mode, select Basic Mode and click OK.2 Click Display > General Settings, select Customize Aspect Ratio in the Scaling  eld,  t the Desktop to the TV screen and click OK.Connecting an External Display Device

51Chapter 2. Using the computerSetting up HDMI TV audio (Optional)You can con gure the sound of the computer to be played through the HDMI TV. You have to con gure the sound device in the Control Panel whenever you connect the HDMI TV in order to hear sound from the computer on the TV.The screen images and terms may di er from actual product depending on the computer model.1 Right-click over the Volume Control icon in the noti cation area at the bottom right of the Desktop and select Playback Devices.(Alternatively, click the Control Panel > Hardware and Sound > Sound.)2 Change the setting to Digital Audio (HDMI), HDMI Device or Digital Output Device, click Set Default and click OK. HDMI Output Device may not appear on the playback device list depending on the computer model. In this case, turn on the TV, connect the TV to the computer using a HDMI cable and then switch to HDMI or LCD+HDMI Clone or LCD+HDMI DualView mode using the Shortcut Key( + ).To listen to sound on the computer after disconnecting the HDMI TV, you have to set the Playback Device to Speakers.Connecting an External Display Device

53Chapter 2. Using the computerConnecting an External Digital DeviceYou can save a  le stored on a device onto the computer by connecting a digital device such as a camera, camcorder or mobile phone to the computer and using the  le management functions.Connecting and using a camera or camcorderIf a digital device such as a camera or camcorder is connected with the computer, it is recognized as a removable disk so that you can copy or move the  les on the device.1 Connect the USB port of the notebook computer and the USB port of the digital device such as a camera using the USB cable.Both the computer and the digital device must be turned t on.You have to additionally purchase the USB cable necessary t to connect the computer and the device.Camera Camcorder2 The Auto run window appears. Click Open folder and view  les.If the window does not appear, click Start > Computer.3 Double-click the corresponding drive. You can then save, move or delete data.The device name of the card drive may di er depending on the model.

54Chapter 2. Using the computer Adjusting the VolumeYou can adjust the volume using the keyboard and the volume control program.Adjusting the Volume using the Keyboard + or + Alternatively, press the + key combination to turn the volume on or o .Adjusting the Volume using the Volume Adjustment ProgramClick the Volume icon on the taskbar and slide the volume control bar to adjust the volume.MuteWindows XPWindows 7Using the Sound RecorderThe procedures to record sound using the Windows Recorder are described below.► For Windows 71 Connect a microphone to the microphone jack.You can also use the internal MIC.2 Right-click over the Volume icon on the taskbar and select Recording Device.3 Check if the microphone is set as the default recording device.If this is the case, it is already set as the default device. If not, right-click over the microphone and select Set default.4 Click Start > All Programs > Accessories > Sound Recorder and click Start recording to start a recording.

55Chapter 2. Using the computer► For Windows XP1 Connect a microphone to the microphone jack.You can also use the internal MIC.2 Click Start > Control Panel > Sounds, Speech, and Audio Devices > Sounds and Audio Devices.3 Click Advanced from Volume and then, click Options > Properties.4 Select Realtek HD Audio input from the mixer device to select Recording from Adjust Volume for.5 Select Mic Volume from Show the following volume controls and click OK.6 When Recording Control window appears, check the Select checkbox.Increase the recording volume to increase the recording sensitivity and close the window.7 Click Start > All Programs > Accessories > Entertainment > Sound Recorder.8 Click the Record button to perform recording.The default recording duration of Windows XP is 60 seconds.Download a dedicated recording program from the Internet to record audio data for a long time.Adjusting the Volume

56Chapter 2. Using the computerUsing SoundAlive (Optional)The SoundAlive function enables you to experience more stereophonic sound using stereo speakers.SoundAlive is only supported in Windows 7.t The software programs provider may vary, depending on t your computer model. In addition, some pictures may di er from actual product t depending on the computer model and software version. 1 Right-click over the Volume Control icon in the noti cation area at the bottom right of the Desktop and select Playback Devices. (Alternatively, click the Control Panel > Hardware and Sound > Sound.) 2 Right-click over the Speakers and select Properties. 3 Select the SoundAlive tab and select one of the modes. ► Basic ModeMusic Select this mode to listen to music. Movie Select this mode to watch a movie. Speech Emphasizes voice over other sounds.Silver Silver mode is for people who have di culty in hearing. ► Advanced ModeFinely tuned 25 presets are arranged on a square according to their relative sound characteristics.► User ModeYou can control a variety of sound e ects.Adjusting the Volume

57Chapter 2. Using the computer Wired NetworkA wired network is a network environment used for a company network or broadband internet connection at home.Since these descriptions are written on the basis of the t latest operating system, Windows 7, some of the content and the  gures of the descriptions may di er depending on the operating system. Since the procedures for other Windows operating systems are similar, use the computer referring to these descriptions.The  gures used for the description are of a representative t model. Therefore the  gures may di er from the real ones.Connecting to a Wired LAN through Windows1 Open the wired LAN port cover and connect the LAN cable to the LAN port.2 ► For Windows 7Click Start > Control Panel > Network and Internet > Network and Sharing Center and click on Change adapter settings in the left menu pane.► For Windows XPClick Start > Control Panel > Network and Internet Connections > Network Connection.

58Chapter 2. Using the computer3 Select Local Area Connection and click the right button of the touch pad and select Properties.The LAN Device name may di er depending on your computer’s Network Device.4 ► For Windows 7Select Internet Protocol Version 4(TCP/IPv4) from the list of Network Components and click Properties.► For Windows XPClick General tab and select a LAN driver from Connect using:. Select Internet Protocol(TCP/IP) and click Properties.The Network Component name may di er depending on t the Operating System Installed.To add a network component, click Install in the screen t shown in the  gure above. You can add clients, services, and protocols.Wired Network

59Chapter 2. Using the computerWired Network5 Con gure the IP settings.When using DHCP, select Obtain an IP address automatically. To use a static IP address, select Use the following IP address, and set the IP address manually.When not using DHCP, ask your network administrator for the IP address.6 When you have completed the settings, click the OK button.The network settings have been completed.Using the WOL (Wake On LAN) function<Wake On LAN> is a function that activates the system from Sleep mode when a signal (such as a ping or magic packet command) arrives over the network (wired LAN).1 ► For Windows 7Click Start > Control Panel > Network and Internet > Network and Sharing Center and click on Change adapter settings in the left menu pane.► For Windows XPClick Start > Control Panel > Network and Internet Connections > Network Connection.2 Right-click on the Local Area Connection and select Properties.

60Chapter 2. Using the computerWired Network3 Click Con gure > Power Management tab. Select Allow this device to bring the computer out of standby, then click OK. Restart the system.- If the system wakes up from Sleep mode even though there is no received signal, use the system after disabling the <Wake On LAN> function.- The LAN LED may not be turned o if System is shoutdown without disabling the WOL (Wake on LAN) option.- Connecting a wired LAN while using a wireless LAN may not activate the <Wake On LAN> function. Set the Wireless LAN to Disable to use the <Wake On LAN> function.- <Wake On LAN> feature may not work while using Hybrid power saving feature. For Win7, Wake On LAN is not supported by Ping.When connected to a 100Mbps/1Gbps wired LAN and the computer exits Sleep/hibernation mode, a message appears informing you of a connection to a 10Mbps/100Mbps wired LAN. This happens because when the computer exits standby/hibernate mode, restoring the network takes about 3 seconds. When the network is restored, it operates at 100Mbps/1Gbps.When system is running on battery, some time it takes about 20sec after inserting LAN cable to be able to connect to internet. This symptom happen as a result of power saving feature to reduce battery consumption.When system is running on battery, the Wired LAN speed is decreased automatically to reduce battery consumption. In such case, a 1Gbps /100Mbps LAN would function at 100Mbps/10Mbps speed.

61Chapter 2. Using the computerA wireless network (Wireless LAN) environment is a network environment that enables communicating between multiple computers at home or a small-size o ce through wireless LAN devices.The screen  gures and terms may di er depending on the t model.Depending on the program version, some functions may t not be provided or di erent functions may be provided.The descriptions below are for computer models with t a Wireless LAN card or device. A Wireless LAN device is optional.The pictures in this manual may di er from the actual product depending on your wireless LAN device model.If the wireless LAN is turned o , press the t + key combination to turn it on.What is an Access Point ( AP)?An AP is a network device that bridges wired and wireless LANs, and corresponds to a wireless hub in a wired network. You can connect multiple wireless LAN installed computers to an AP. Wireless Network (Optional)

62Chapter 2. Using the computerWireless Network (Optional)Connecting to a Wireless LAN through WindowsIf there is an AP, you can connect to the Internet via the AP using the Wireless LAN connection method provided by Windows.► For Windows 71 If you click the Network Connections icon in the system tray, a list of available APs appears. If you select an AP to connect to, the Connect button appears.AP List2 Click Connect.If a network key is set for the AP, enter the network key and then click Connect.For the network key, please ask your network administrator.3 When Connected to the AP is displayed, click the Close button.You can access the network.

63Chapter 2. Using the computerWireless Network (Optional)► For Windows XP1 Click the Wireless Network Connection icon from the Taskbar using the right button of the touch pad. Then, click View Available Wireless Networks.2 Select an AP to be connected and click Connect.If a network key is set in the AP, the network key input window will appear. Enter the network key in the input window and click OK.For a network key, contact the network administrator.3 Once Connected to AP is displayed, you can use a wireless network.Normal Wireless LAN StatusIf the wireless LAN icon is displayed in the system tray of the Taskbar, it indicates that the computer is connected to the Internet properly (see below).[Windows 7] [Windows XP]

64Chapter 2. Using the computerWireless Network (Optional)Abnormal Wireless LAN StatusWhen the wireless LAN is not connectedIf the wireless LAN icon is displayed with an “X” in the system tray of the Taskbar, it indicates that the wireless LAN device is turned o or that there are no available APs. Or the wireless LAN is disconnected.[Windows 7] [Windows XP]If the wireless LAN is turned o , press the + key combination to turn it on.When you are not connected to the InternetThis is indicated by the wireless LAN icon in the system tray of the Taskbar. In this case, you have to check the IP address settings.Please contact your network administrator and recon gure the IP address.[Windows 7] [Windows XP]When APs are found but your computer is not connected to the InternetThis is the case when an AP with a weak signal has been set to a high priority. Connect to an AP with a strong signal by clicking it.An AP with a strong signal strengthThe currently connected AP. The signal strength is low.Click[Windows 7][Windows XP]An AP with a strong signal strengthThe currently connected AP. The signal strength is low.Click

LCD Brightness Control 66Easy Settings (Optional) 68BIOS Setup 69Setting a Boot Password 71Changing the Boot Priority 74Upgrading Memory (Optional) 75Battery 78Using the Security Slot 83 Chapter 3. Settings and Upgrade

66 Chapter 3.Settings and Upgrade LCD Brightness ControlYou can adjust the LCD brightness in 8 levels.The screen brightness is automatically set to the brightest level when AC power is connected and the brightness is automatically set dimmer when the computer runs on battery power to extend the battery use time.Controlling the Brightness Using the KeyboardAdjust the LCD brightness by pressing the + key or the + key.The LCD brightness can change up to 8 levels and the brightness increases by 1 level when pressing the + key once.Maintaining the changed LCD brightness even after t turning the computer on again To maintain the LCD brightness set by using the brightness control keys or through the Power Options, follow the procedures below. ► For Windows 7 1. Click Control Panel > Hardware and Sound > Power Options. 2. Click Change the settings of the currently con gured mode. 3. Adjust the display brightness adjustment menu bar and click the Save the changes button.Saving battery power consumptiont Decreases the LCD brightness when the computer is running on battery power to save battery power consumption.

67 Chapter 3.Settings and UpgradeLCD Brightness ControlLCD bad pixels principle of computert Samsung observes the speci cations regarding strict quality and reliability of LCD. But in spite of that, it is inevitable that there might be a small number of bad pixels. A large number of bad pixels can cause problems in appearance, but a small number of pixels doesn’t a ect the computer performance. Therefore Samsung observes and manages the following dot principles: - Bright dot : 2 or less- Black dot : 4 or less- Combination of Bright and Dark : 4 or lessInstructions for Cleaning the LCDClean the LCD panel with a soft cloth lightly moistened with computer cleansing detergent moving in one direction. Cleaning the LCD panel with excessive force can damage the LCD.

68 Chapter 3.Settings and UpgradeThe Easy Settings is the integrated Samsung software control program that allows users to con gure various settings.This description is for models that support this function t running on Windows 7.The screen image and terminology may change depending t on the model.Depending on the program version, some functions may t not be provided or di erent functions may be provided.1 Press the + key combination to launch the Easy Settings.2 Select an item to con gure the corresponding function.FunctionsGeneralYou can con gure the USB Charging, Battery Life Extender, Fast Start, Silent Mode, Keyboard backlit, Speed Boot and User Account Control.Express cache (Optional)This solution improves the system boot and application loading performance. A Fast Start function is only provided for models that support the Express Cache function. Take care not to delete the Express Cache area.Power ManagementYou can con gure the Power Plan (high-performance, power-saving, Samsung optimal mode), Eco Mode, the power-saving settings and the display settings.Wireless NetworkYou can con gure whether to use the Bluetooth and Wi-Fi options.Wired Network You can select automatic or  xed IP settings.Display You can con gure external display devices, and the screen brightness/color.Desktop Background / Screen SaverYou can con gure the Desktop background and the screen saver.SoundAlive You can con gure the sound mode (Music, Movie, Speech, Silver Mode etc.).Easy Settings (Optional)

70 Chapter 3.Settings and UpgradeThe BIOS Setup ScreenThe BIOS Setup menus and items may di er depending on your computer model.Setup MenuSetup ItemsHelpHelp for the selected item appears automatically.Setup Menu DescriptionSysInfo This is a description about the basic speci cations of the computer.Advanced Using this menu, you can con gure the major chipsets and additional functions.Security Used to con gure security functions, including passwords.Boot This menu enables you to con gure peripherals and booting related settings such as the boot priority.Exit Used to exit the Setup either saving the changes or not.System Setup KeysIn the Setup, you have to use the keyboard.F1 Press to view the Setup Help.Up & Down KeysPress to move up and down.F5/F6Press to change the item value.F9 Press to load the default Setup settings.ESC Press to return to a higher level menu or to move to the Exit menu.Left & Right KeysPress to move to another menu.Enter Press to select an item or to enter a sub menu.F10 Press to save the changes and exit Setup.The keyboard image may di er from the actual keyboard.BIOS Setup

71 Chapter 3.Settings and UpgradeSetting a Boot PasswordWhen setting a password, you have to enter a password to use the computer or enter the BIOS Setup. By con guring a password, you can restrict system access to authorized users only and protect data and  les saved on the computer.Do not lose or forget your password. t If you have forgotten your password, contact a Samsung t service center. In this case, a service fee will be charged.The screen images and terms may di er from actual t product depending on the computer model and driver version.Setting a Supervisor PasswordA Supervisor Password is required to turn the computer on or to start the System Setup.When setting a Supervisor Password, users other than a supervisor cannot use the computer.1 Select the Security menu in the BIOS Setup.2 In the Set Supervisor Password item, press <Enter>.3 Enter a password, press <Enter>, re-enter the password for con rmation, and press <Enter> again.The password can be up to 8 alphanumeric characters. Special characters are not allowed.4 The supervisor password has been set. The supervisor password is required to turn the computer on or to enter the BIOS Setup.For some models, if the password entered message appears in the Setup Notice window, the settings are not complete until the <Enter> key is pressed.

72Chapter 3. Settings and UpgradeSetting a Boot PasswordSetting a User PasswordUsers can start the system with a user password, but cannot enter the System Setup. By doing this, you can prevent other users from entering Setup.Before conguring a user password, a supervisor password must have been congured. Deactivating the supervisor password also deactivates the user password.In the Set User Password item, press <Enter> and complete the procedures from Step 3 of Setting a Supervisor Password.Setting Up a Boot PasswordTo setup a boot password, the administrator password (Set Supervisor Password) should be set in advance.Set the Password on boot item to Enabled. Once a boot password is set, you have to enter a password to boot up the computer.Setting up a Hard Disk Drive Password (Optional)If you set a password for a hard disk drive, it cannot be accessed from another computer.Press <Enter> in the Set HDD Password item and dene a password as described in Step 3 of the Setting up the Supervisor Password.The hard disk drive password setting function is not t provided for some models.Changing the hard disk drive passwordt For security purposes, you can only change a hard disk drive password after restarting the computer by pressing the computer Power button. If you cannot change the hard disk drive password or the HDD Password Frozen message appears when entering the BIOS Setup and then selecting Security > HDD Password, press the Power button to turn the computer on again.

73 Chapter 3.Settings and UpgradeSetting a Boot PasswordDeactivating the Password1 Press <Enter> on the password to be deactivated. For example, to deactivate a supervisor password in the Set Supervisor Password item, press <Enter>.2 In the Enter Current Password item, enter the currently con gured password and press <Enter>.3 Leave the Enter New Password item  eld empty, and press <Enter>.4 Leave the Con rm New Password  eld empty, and press <Enter>.The password is deactivated.For some models the password is only canceled if the <Enter> key is pressed in the Setup Notice window.

74 Chapter 3.Settings and UpgradeChanging the Boot PriorityBy default, the highest boot priority device is set to the CD-ROM/DVD drive. As an example, the procedures to change the highest boot priority device to the hard disk drive are described below.The screen images and terms may di er from actual product depending on the computer model and driver version. 1 Select the Boot menu in the BIOS Setup.2 Press <Enter> on the Boot Device Priority item.0WO.QEM =1HH?'PCDNG-G[RCF =$[0WO.QEM?6QWEJ2CF/QWUG ='PCDNGF?+PVGTPCN.#0 ='PCDNGF?2:'1241/ =&KUCDNGF?5OCTV$CVVGT[%CNKDTCVKQP3 Press the down key (↓) to move to the SATA HDD item and press the F6 key to move up to the top item. Boot Menu[Boot Priority Order]1. SATA CD : XXXXXXXXXXXX2. SATA HDD : XXXXXXXXXXXX3. USB CD : N/A4. USB FDD : N/A5. USB HDD : N/A6. NETWORK : N/A4 Press the F10 key to save the settings and exit Setup. The highest boot priority device is now set to the Hard Drive.

75 Chapter 3.Settings and UpgradeUpgrading Memory (Optional)These descriptions are for models with a memory compartment cover. For the replacement or upgrade procedures for the memory of models that do not have a memory compartment cover, please ask for assistance from your service center.There are 1 or 2 memory slots according to the model’s speci cation and users can replace the installed memory or add a new memory.Replace or install a new memory module only after shutting the computer down completely and separating the AC adapter from the computer. It is recommended to add memory with the same t speci cations (the same manufacturer and capacity) as that of the installed memory.The images used for the illustration are of a representative t model, therefore the images may di er from the the actual product. Adding or Replacing Memory Modules1 Disconnect the AC power adapter after turning o the computer.2 Insert an object, such as a paper clip, into the Emergency Hole at the bottom of the computer to cut the battery power.If the Power button does not work anymore, that means you successfully shut the power o .If you proceed without pressing the Emergency Hole, the main board and the memory module may be damaged.Emergency HoleThe location of the Emergency Battery Hole may di er depending on the model.

76 Chapter 3.Settings and UpgradeUpgrading Memory (Optional)3 Remove the screw on the memory compartment cover at the bottom of the computer using a screw driver.Fixing ScrewMemory Compartment Cover4 Insert a new memory module into the memory slot at an angle of approximately 30 degrees aligning it to the angle of the memory slot.Memory Slot5 Push the memory module down so that it is completely  xed. If the memory does not  t easily, push the memory module down while pulling the memory module latches outward.Memory Module Latches6 Close the memory compartment cover and fasten the screw.7 Connect the AC adapter and press the power button to turn the computer on.If you do not connect the AC adapter, the computer will not be turned on even if you press the power button.

77 Chapter 3.Settings and UpgradeUpgrading Memory (Optional)Removing a memory modulePull the memory module latches outward.The memory module will pop up.Remove the memory module out at an angle of 30 degrees.

78 Chapter 3.Settings and Upgrade BatteryPlease refer to the following instructions when running the computer on battery power without connecting the AC power. This computer is equipped with an internal battery. PrecautionsUsers cannot remove or replace the internal battery. t To remove or replace the battery, use an authorized t service center in order to protect the product and users. You will be charged for this service.Use only chargers speci ed in the User Manual.t Never heat the battery pack, put it near or in a  re or use at t a temperature higher than 60°C, as this may cause  re.Please refer to the system operation environment of t this manual and operate and store the battery at room temperature.Before using the computer for the  rst time, make sure to t connect the AC adapter and charge the battery completely.The images used for the illustration are of a representative t model, therefore the images may di er from the the actual product.The location of the internal battery Charging the Battery1 An internal battery is embedded. Connect the AC adapter to the power input jack of the computer. The battery will start charging.2 When charging is complete, the Charge LED turns green.Status Charge LEDCharging Red or orangeCharging complete GreenAC adapter not connected O

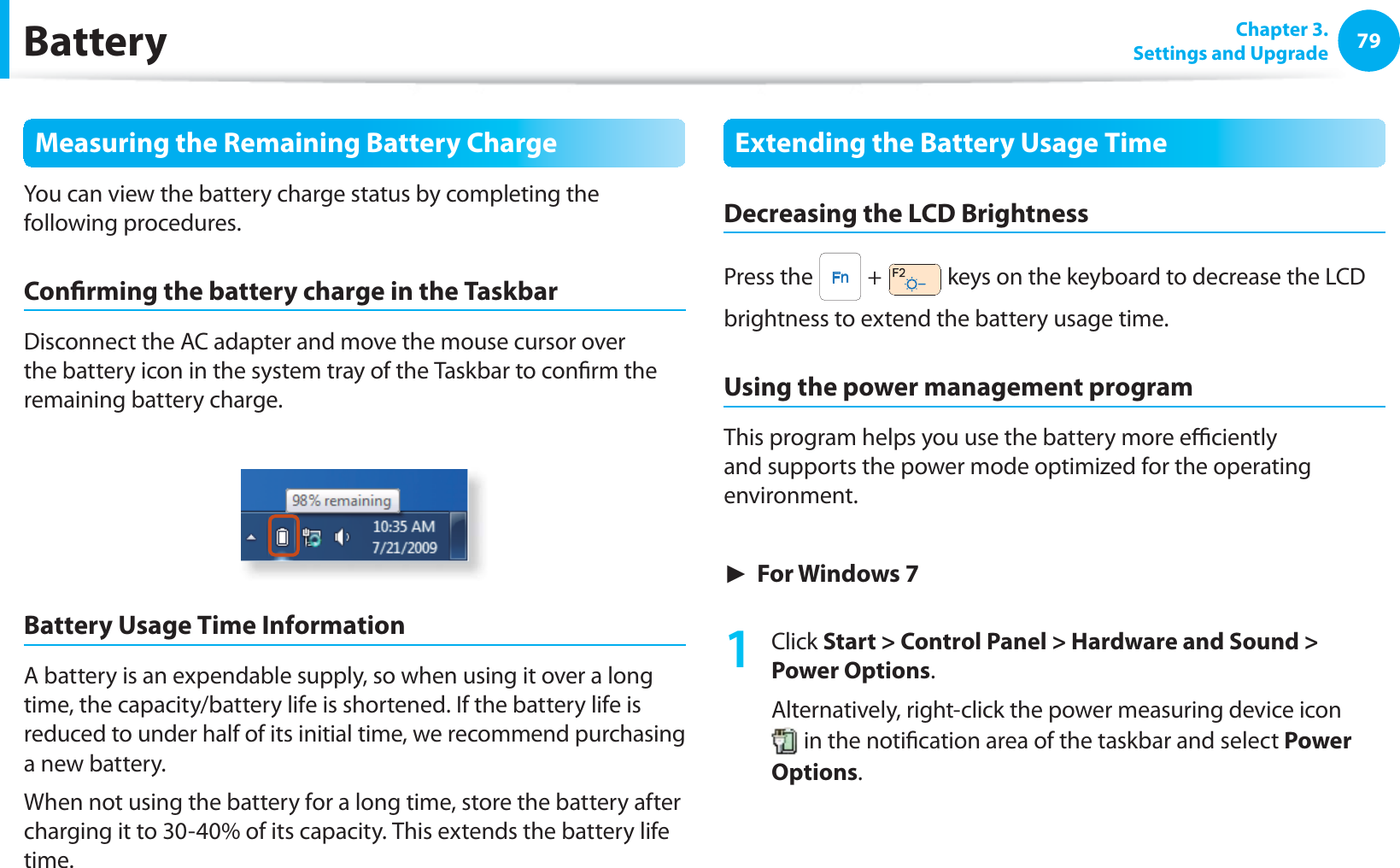

79 Chapter 3.Settings and UpgradeBatteryMeasuring the Remaining Battery ChargeYou can view the battery charge status by completing the following procedures.Con rming the battery charge in the TaskbarDisconnect the AC adapter and move the mouse cursor over the battery icon in the system tray of the Taskbar to con rm the remaining battery charge.Battery Usage Time InformationA battery is an expendable supply, so when using it over a long time, the capacity/battery life is shortened. If the battery life is reduced to under half of its initial time, we recommend purchasing a new battery.When not using the battery for a long time, store the battery after charging it to 30-40% of its capacity. This extends the battery life time.Extending the Battery Usage TimeDecreasing the LCD BrightnessPress the + keys on the keyboard to decrease the LCD brightness to extend the battery usage time.Using the power management programThis program helps you use the battery more e ciently and supports the power mode optimized for the operating environment.► For Windows 71 Click Start > Control Panel > Hardware and Sound > Power Options.Alternatively, right-click the power measuring device icon in the noti cation area of the taskbar and select Power Options.

80 Chapter 3.Settings and UpgradeBattery2 If the following screen appears, select one of the modes.► For Windows XPClick Samsung Battery Manager.Select Power ModePower-saving E ectMaximum Battery ModeThis mode is appropriate for the environment that requires maximum battery lifetime. The system performance may be degraded in this mode.What is the Power-saving E ect?t This product displays the battery life in each power mode. The higher the power saving e ect increases, the longer the graph bar is displayed.When Using Games or Multimediat The system may not operate properly in maximum battery mode. It is recommended to connect the AC adapter to the system or to use the system in general mode.Usage Mode of Samsung Battery Managert - The maximum battery mode optimizes the system operation speed to increase the battery run time, so the program execution time may get longer. - If you change the power settings, the properties in Power Options window will also be changed.

82 Chapter 3.Settings and UpgradeBattery3 Move to the Boot > Smart Battery Calibration item using the direction keys and press <Enter>.0WO.QEM =1HH?'PCDNG-G[RCF =$[0WO.QEM?6QWEJ2CF/QWUG ='PCDNGF?+PVGTPCN.#0 ='PCDNGF?2:'1241/ =&KUCDNGF?5OCTV$CVVGT[%CNKDTCVKQP4 Highlight Yes in the Battery Calibration Con rmation window and press <Enter>.The Battery Calibration function is activated and the battery is forcefully discharged. To stop the operation, press the <Esc> button.This operation requires 3~5 hours depending on the battery capacity and the remaining battery charge.

83Chapter 3. Settings and UpgradeUsing the Security SlotYou can secure the computer by connecting a lock and cable to the Security Slot.To use this feature, you have to purchase the lock and cable additionally. To use the lock and cable, refer to the product manual.Tie the lock and cable to a xed object and install the other end of the cable to the security slot.

Chapter 4. Backup / RestoreSamsung Recovery Solution (Optional) 85

85Chapter 4. Backup / RestoreSamsung Recovery Solution (Optional)Samsung Recovery Solution is a program that enables restoring or backing up the hard disk drive for when a problem occurs with the computer.If the computer fails to boot up, you can restore the computer by pressing the key in the booting screen.Samsung Recovery Solution may not be provided or the t version may di er depending on the model. In addition, some functions may not be provided or may di er depending on the version. For more information on using Samsung Recovery Solution, please refer to the online help of the program.The screen images in this document may di er from actual t product.If your computer does not have an internal ODD, you need t an external ODD connected to your computer to use the Backup Function or Restore Function using DVDs.The System Software function may not be provided t depending on the program version.Samsung Recovery Solution FunctionsBackup/Restore FunctionsBackup FunctionBacks up drive C or required folders and  les.Complete Backupt Backs up drive C.Data Backupt Backs up important folders and  les.A problem occursVIRUSRestore FunctionRestores major Windows  les, drive C, or folders and  les to the previous state.Basic Restoret Restores only major Windows  les in a short time.Complete Restoret Restores drive C to the previous, normal state.Data Restoret Restores important  les or folders to the previously backed up state.

86Chapter 4. Backup / RestoreSystem Software FunctionsSamsung Recovery Solution provides system software so that you can reinstall or copy the device drivers and system software necessary for normal operations onto a separate storage device.Restore FunctionNot only can you use Samsung Recovery Solution when Windows is running, but also when you are unable to boot up into Windows. Let’s learn how to use Samsung Recovery Solution.Optional functions such as Initial State Image, Initial Status Backup, and Partitioning are only available in some models.If the image of the initial state is saved on a DVD or removable storage device, connect the DVD drive or removable storage device to the computer before using the function.Partition Setup & Initial Status BackupIf you turn your computer on for the  rst time, the Initial Status Backup function is performed after registering Windows. This function saves an image of the Initial Status of the C drive to a secure location so that users can restore the computer to the Initial Status using the Complete Restore function. An Initial Status Backup is only performed once immediately after the computer is purchased.1 If you turn the power on for the  rst time, the Register Windows screen appears. If you register Windows according to the instructions on the screen, the computer will be restarted.2 After the computer has been restarted, the Partition Setup screen appears. To resize the C and D drives, adjust the partition size using the slide bar and the click Next.The Partition Setup function is only available when the computer is turned on for the  rst time and will not be available afterwards. Once you have completed the partitioning, it cannot be resized. Partition the disk carefully.3 The Initial Status Backup screen appears. To continue the Initial Status Backup, click Restart Now. The computer will restart.4 The Initial Status Backup is performed to backup the initial status of the C drive to a secure location. This backup image is used for the Complete Restore function that restores your computer to the initial status.5 When the Initial Status Backup is complete, restart Windows.Samsung Recovery Solution (Optional)

88Chapter 4. Backup / Restore3 Select either Basic Restore or Complete Restore from the Restore menu.To restore the computer to the initial state, click Computer Initial State and perform the restoration process according to the instructions that appear on the screen.Run Complete Restore if the computer does not work even after Basic Restore has been completed.In the Advanced menu, you can change the size of the hard drive partitions (e.g. C: and D:).Make sure to backup your data in advance, as all data will t be deleted after the partition size is changed.The t Advanced menu is only activated when the computer boots up in the restoration area. (by pressing the key during the booting sequence.)Since a Complete Restore deletes all user data as well as additionally installed programs, please backup your important data  rst using the Data Backup function, before running Complete Restore.4 The computer boots up into restoration mode and the restoration progress message appears. If you click OK, the restoration begins. The restoration may take some time, please wait for a moment.5 When the ‘Restart the System’ message appears after the restoration is complete, click OK to restart the system.Make sure that the power cord is connected while the restoration is in process. The  rst time the computer boots up after a Complete Restore has been performed, the speed of the boot process may be slowed down due to the system optimization process. At this time, do not shut the computer down by force.Samsung Recovery Solution (Optional)

89Chapter 4. Backup / RestoreComplete Backup/RestoreA Complete Backup saves the complete image of the C drive onto another drive or DVD. A Complete Restore restores the image  le saved by the Complete Backup onto the C drive.Complete BackupIf you perform the Complete Backup function onto a DVD or removable storage device, you can restore your computer even when a problem occurs with the hard disk or when the restoration area is removed.To create a backup, a removable storage device with at least 15 GB of free space is required.1 Click Backup in the start screen of the Samsung Recovery Solution.2 Enter a description of the current status of the computer and click Next.After connecting a DVD drive or removable storage device, you can specify the DVD drive or removable storage device as the Save Path.Select Drive D. Select the DVD drive.3 When the option selection item appears, select an option and click Next.The LiveImaging and System Software Backup functions are supported as options for the Complete Backup operation.LiveImaging:t Performs the Complete Backup operation while Windows is running. The backup operation using LiveImaging may slow down if the hard disk drive is accessed frequently by other applications.System Software Backup: t This function backs up the system software on to the DVD after the completion of the Complete Backup operation.Samsung Recovery Solution (Optional)

90Chapter 4. Backup / Restore4 When the system restarts in Restoration Mode, the Complete Backup operation begins. Continue with the backup by following the instructions.Samsung Recovery Solution supports the DVD+R, DVD-R, t DVD+RW and DVD-RW formats.If the LiveImaging option has been selected, the Complete t Backup operation begins without the computer being restarted. 5 Continue with the Complete Backup operation by following the instructions.6 When the ‘Restart the System’ message appears after the backup is complete, click OK to restart the system.If the LiveImaging option has been selected, the computer is not restarted.Samsung Recovery Solution (Optional)

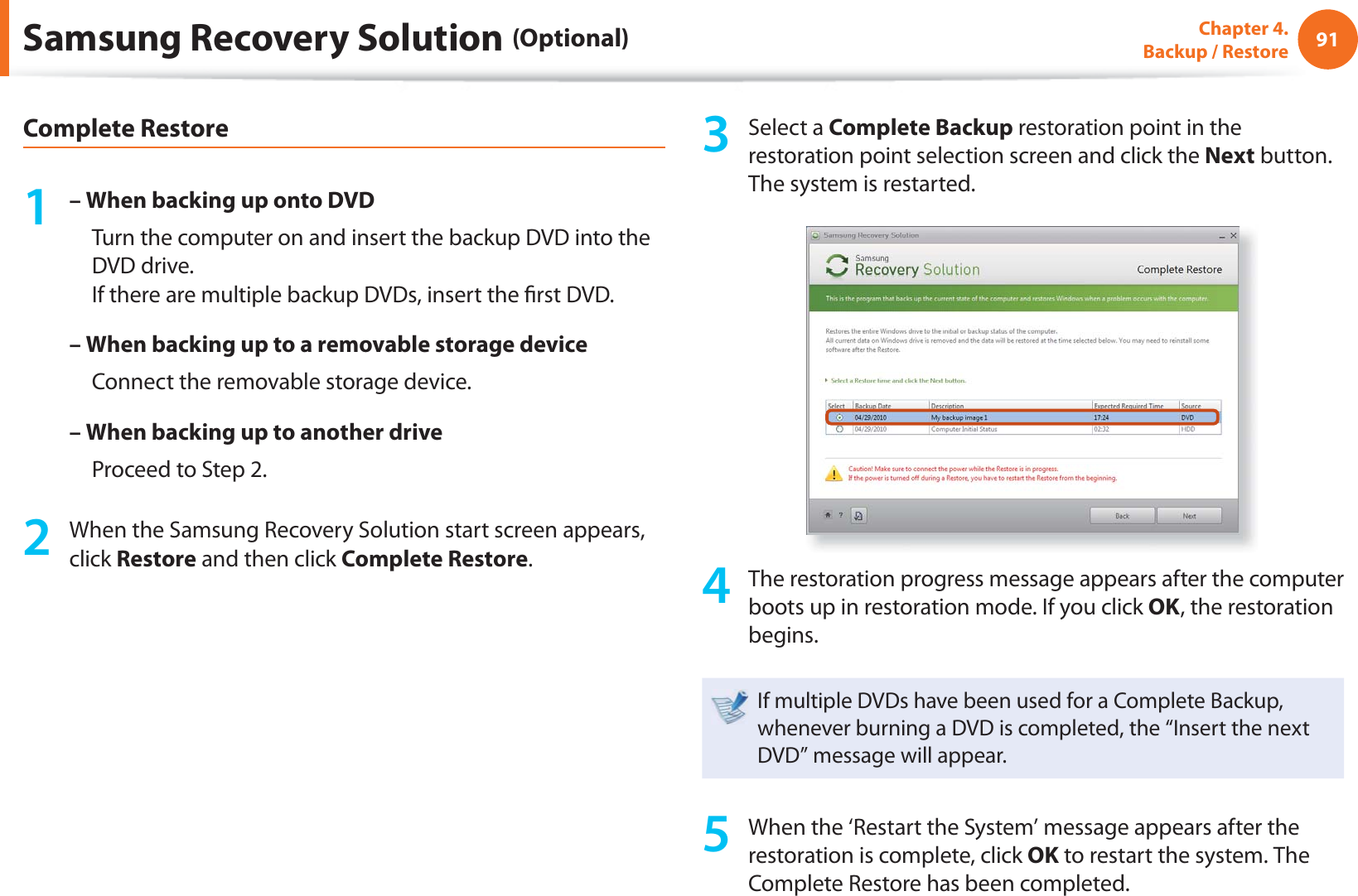

91Chapter 4. Backup / RestoreComplete Restore1 – When backing up onto DVD Turn the computer on and insert the backup DVD into the DVD drive.If there are multiple backup DVDs, insert the  rst DVD.– When backing up to a removable storage device Connect the removable storage device.– When backing up to another drive Proceed to Step 2.2 When the Samsung Recovery Solution start screen appears, click Restore and then click Complete Restore.3 Select a Complete Backup restoration point in the restoration point selection screen and click the Next button. The system is restarted.4 The restoration progress message appears after the computer boots up in restoration mode. If you click OK, the restoration begins.If multiple DVDs have been used for a Complete Backup, whenever burning a DVD is completed, the “Insert the next DVD” message will appear.5 When the ‘Restart the System’ message appears after the restoration is complete, click OK to restart the system. The Complete Restore has been completed.Samsung Recovery Solution (Optional)

$92Chapter 4. Backup / RestoreData Backup/RestoreThe Data Backup function enables you to backup speci c  les and folders to another drive, DVD or removable storage device. Data Restore enables you to restore data using the data saved by a Data Backup when data is lost. This guide describes the Backup and Restore procedures on the basis of backing up and restoring by using DVD.Data Backup1 When the Samsung Recovery Solution start screen appears, click Backup and then click Data Backup.2 In the data selection screen, select either Basic Selection or Select from all, select a folder or  le to be backed up, and then click the Next button.3 Enter a description for the backup in the Description  eld so that you can easily recognize it later and specify the Save Path. If your computer has a DVD-Writer, you can specify the DVD drive as the Save Path.Select Drive D. Select the DVD drive.If you have speci ed a hard disk drive or a removable disk as the Save Path, the SamsungRecovery\SamsungData folder is created on the corresponding drive (e.g. D:\) and the data is saved to the folder. Take care to not delete the folder by mistake or on purpose.4 If you click the Next button, the Data Backup begins. If you have selected the DVD drive as the Save Path, the “Insert a blank DVD” message appears. Insert a blank DVD and click the OK button.5 The “Backup is completed” message appears.Samsung Recovery Solution (Optional)$

93Chapter 4. Backup / RestoreData Restore1 – When backing up onto DVD Turn the computer on and insert the backup DVD into the DVD drive.– When backing up to a removable storage device Connect the removable storage device.– When backing up to another drive Proceed to Step 2.2 When the initial menu screen appears, click Restore and then click Data Restore.3 Select a backup item to be restored in the backup list and click the Next button.4 Select a folder for the restoration and click the Next button. Data Restore begins.5 When Data Restore is completed, check if the data has been restored to the specied folder.Samsung Recovery Solution (Optional)

94Chapter 4. Backup / RestoreSystem Software FunctionThe System Software function is a function that enables you to reinstall device drivers and System Software Programs or back up those programs. The system software function is supported by Samsung Recovery Solution version 4 or later. Therefore, the function may not be supported depending on the version.The System Software Installation Function only works in Microsoft Windows.Installing System Software1 When the initial menu screen appears, click System Software > System Software Installation.2 Move to the Easy Software Manager. Using the Easy Software Manager, you can install device drivers and applications.3 After the installation is complete, the computer will restart.Samsung Recovery Solution (Optional)

$95Chapter 4. Backup / RestoreSamsung Recovery Solution (Optional)System Software Backup1 When the initial menu screen appears, click System Software > System Software Backup.2 Specify the Save Path. If your computer has a DVD-Writer, you can specify the DVD drive as the Save Path.Select Drive D. Select the DVD drive.If you have speci ed a hard disk drive or a removable disk as the Save Path, the SamsungSoftware folder is created on the corresponding drive (e.g. D:\) and the system software programs are saved to that folder. Take care to not delete the folder. 3 If you click the Next button, the Software Backup begins. If you have selected the DVD drive as the Save Path, the “Insert a blank DVD” message appears. Insert a blank DVD and click the OK button.4 After the backup, the System Software Backup is completed message appears.If you want to install the System Software Programs backed t up on the drive, run the SecSWMgrGuide.exe  le in the SystemSoftware folder.When installing System Software Programs from the t backed-up DVD, insert the DVD and follow the System Software Installation directions.To delete Samsung Recovery Solution, refer to the Help t section of the program.$
