Owner’s InstructionsLCD TELEVISION .....................................................................................................................................LTM295WLTM405WBN68-00275D-00SERVICE DIVISION400 Valley Road, Suite 201Mount Arlington, NJ 07856TEL: 1-800-SAMSUNG (1-800-726-7864)www.samsungusa.com
Warning! ImportantSafety InstructionsCAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOTREMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.This symbol indicates high voltage is present inside. It is dangerous to make any kind of contact with any inside part ofthis product.This symbol alerts you that important literature concerningoperation and maintenance has been included with this product.Note to CATV system installer: This reminder is provided to call CATV systeminstaller’s attention to Article 820-40 of the National Electrical Code (Section 54 ofCanadian Electrical Code, Part I), that provides guidelines for proper groundingand, in particular, specifies that the cable ground shall be connected to thegrounding system of the building as close to the point of cable entry as practical.Caution: FCC/CSA regulations state that any unauthorized changes or modifica-tions to this equipment may void the user’s authority to operate it.Caution: To prevent electric shock, match the wide blade of plug to the wide slot,and fully insert the plug.Attention: pour eviter les chocs electriques, introduire la lame le plus large de lafiche dans la borne correspondante de la prise et pousser jusqu’au fond.Important: One Federal Court has held that unauthorized recording of copyrighted TV programs is an infringement of U.S. copyright laws.Certain Canadian programs may also be copyrighted and any unauthorizedrecording in whole or in part may be in violation of these rights. To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPEN
ENG 1Thank You for Choosing SamsungThank you for choosing Samsung! Your new Samsung TV represents the latest in televisiontechnology. We designed it with easy-to-use on-screen menus and closed captioning capabili-ties, making it one of the best products in its class. We are proud to offer you a product thatwill provide convenient, dependable service and enjoyment for years to come.Important Safety InformationAlways be careful when using your TV receiver. To reduce the risk of fire, electrical shock,and other injuries, keep these safety precautions in mind when installing, using, and maintaining your machine.• Read all safety and operating instructions before operating your TV.• Keep the safety and operating instructions for future reference.• Heed all warnings on the TV receiver and in the operating instructions.• Follow all operating and use instructions.• Unplug the TV receiver from the wall outlet before cleaning. Use a damp cloth; do not useliquid or aerosol cleaners.• Never add any attachments and/or equipment without approval of the manufacturer. Suchadditions can increase the risk of fire, electric shock, or other personal injury.• Do not use the TV receiver where contact with or immersion in water is a possibility, such asnear bath tubs, sinks, washing machines, swimming pools, etc.• Do not place the TV on an unstable cart, stand, tripod, bracket, ortable where it can fall. A falling TV can cause serious injury to achild or adult, and serious damage to the appliance. Use only witha cart, stand, tripod, bracket, or table recommended by the manu-facturer or sold with the TV. Follow the manufacturer’s instruc-tions when mounting the unit, and use a mounting accessory rec-ommended by the manufacturer. Move the TV and cart with care.Quick stops, excessive force, and uneven surfaces can make theunit and cart unsteady and likely to overturn.• Provide ventilation for the TV receiver. The unit is designed withslots in the cabinet for ventilation to protect it from overheating. Do not block these openingswith any object, and do not place the TV receiver on a bed, sofa, rug, or other similar sur-face. Do not place it near a radiator or heat register. If you place the TV receiver on a rack orbookcase, ensure that there is adequate ventilation and that you’ve followed the manufactur-er’s instructions for mounting.• Operate your TV receiver only from the type of power source indicated on the marking label.If you are not sure of the type of power supplied to your home, consult your appliance dealeror local power company.• Use only a grounded or polarized outlet. For your safety, this TV is equipped with a polarizedalternating current line plug having one blade wider than the other. This plug will fit into thepower outlet only one way. If you are unable to insert the plug fully into the outlet, tryreversing the plug. If the plug still does not fit, contact your electrician to replace your outlet.
ENG 2• Protect the power cord. Power supply cords should be routed so that they won’t be walkedon or pinched by objects placed on or against them. Pay particular attention to cords atplugs, convenience receptacles, and the point where they exit from the unit.• Unplug the TV from the wall outlet and disconnect the antenna or cable system during alightning storm or when left unattended and unused for long periods of time. This will pre-vent damage to the unit due to lightning and power-line surges.• Avoid overhead power lines. An outside antenna system should not be placed in the vicinityof overhead power lines or other electric light or power circuits or where it can fall into suchpower lines or circuits. When installing an outside antenna system, be extremely careful tokeep from touching the power lines or circuits. Contact with such lines can be fatal.• Do not overload the wall outlet or extension cords. Overloading can result in fire or electricshock.• Do not insert anything through the openings in the unit, where they can touch dangerousvoltage points or damage parts. Never spill liquid of any kind on the TV.• Ground outdoor antennas. If an outside antenna orcable system is connected to the TV, be sure theantenna or cable system is grounded so as to providesome protection against voltage surges and built-upstatic charges. Section 810 of the National ElectricalCode, ANSI/NFPA No.70-1984, provides informationabout proper grounding of the mast and supportingstructure, grounding of the lead-in wire to an antennadischarge unit, size of grounding conductors, locationof antenna discharge unit, connection to groundingelectrodes, and requirements for the grounding elec-trode.• Do not attempt to service the TV yourself. Refer all servicing to qualified service personnel.Unplug the unit from the wall outlet and refer servicing to qualified service personnel underthe following conditions:- when the power-supply cord or plug is damaged- if liquid has been spilled on the unit or if objects have fallen into the unit- if the TV has been exposed to rain or water- if the TV does not operate normally by following the operating instructions- if the TV has been dropped or the cabinet has been damaged- when the TV exhibits a distinct change in performance• If you make adjustments yourself, adjust only those controls that are covered by the operat-ing instructions. Adjusting other controls may result in damage and will often require exten-sive work by a qualified technician to restore the TV to normal.• When replacement parts are required, be sure the service technician uses replacement partsspecified by the manufacturer or those that have the same characteristics as the original part.Unauthorized substitutions may result in additional damage to the unit.• Upon completion of any service or repairs to this TV, ask the service technician to perform safety checks to determine that the TV is in a safe operating condition.ANTENNALEAD IN WIREANTENNADISCHARGE UNIT(NEC SECTION 810-20)GROUNDINGCONDUCTORS(NEC SECTION 810-21)GROUND CLAMPSPOWER SERVICE GROUNDINGELECTRODE SYSTEM(NEC ART 250, PART H)GROUND CLAMPELECTRICSERVICEEQUIPMENTNEC — NATIONAL ELECTRICAL CODEEXAMPLE OF ANTENNA GROUNDINGThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference that may cause undesired operation.This television receiver provides display of television closed captioning in accordancewith §15.119 of the FCC rules.
ENG 3CONTENTSChapter 1: Your New TV . . . . . . . . . . . . . . .1.1List of Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.1Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.1Familiarizing Yourself with The TV . . . . . . . . . . . . . . . . . . . . . . . . . .1.2Front Panel Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.2Rear Panel Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.3Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.4Chapter 2: Installation . . . . . . . . . . . . . . . . 2.1Connecting VHF and UHF Antennas . . . . . . . . . . . . . . . . . . . . . . . . .2.1Antennas with 300-ohm Flat Twin Leads . . . . . . . . . . . . . . .2.1Antennas with 75-ohm Round Leads . . . . . . . . . . . . . . . . . .2.2Separate VHF and UHF Antennas . . . . . . . . . . . . . . . . . . . .2.2Connecting Cable TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.2Cable without a Cable Box . . . . . . . . . . . . . . . . . . . . . . . . . .2.2Connecting to a Cable Box that Descrambles All Channels .2.3Connecting to a Cable Box that Descrambles Some Channels . .2.3Connecting a VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.5Connecting an S-VHS VCR . . . . . . . . . . . . . . . . . . . . . . . . .2.6Connecting a DVD Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.7Connecting a Digital TV Set-Top Box . . . . . . . . . . . . . . . . . . . . . . . . .2.7Connecting a Camcorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2.8Installing Batteries in the Remote Control . . . . . . . . . . . . . . . . . . . . .2.9Chapter 3: Operation . . . . . . . . . . . . . . . . . .3.1Turning the TV On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.1Viewing the Menus and On-Screen Displays . . . . . . . . . . . . . . . . . . .3.1Viewing the Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.1Viewing the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.1Selecting a Menu Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.2Memorizing the Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.3Selecting the Video Signal-source . . . . . . . . . . . . . . . . . . . . .3.3Storing Channels in Memory (Automatic Method) . . . . . . . .3.4Adding and Erasing Channels (Manual Method) . . . . . . . . .3.5Changing Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.5Using the Channel Buttons . . . . . . . . . . . . . . . . . . . . . . . . .3.5Directly Accessing Channels . . . . . . . . . . . . . . . . . . . . . . . .3.5Using the Pre-CH Button to select the Previous Channel . . .3.5Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.6Using Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.6Customizing the Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.7Using Automatic Picture Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.8Customizing the Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3.9Using Automatic Sound Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .3.10Viewing an External Signal Source . . . . . . . . . . . . . . . . . . . . . . . . . .3.11Chapter 4: Special Features . . . . . . . . . . . .4.1Fine Tuning Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.1LNA (Low Noise Amplifier) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.2Changing the Screen Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.3Freezing the Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.3
ENG 4CONTENTSChapter 4: Special Features (cont.) . . . . . .4.4Special Sound Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.4Choosing a Multichannel Television Stereo (MTS) Soundtrack .4.4Dolby . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.5Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.6Viewing Closed Captions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.7Viewing Picture-in-Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.8Activating Picture-in-Picture . . . . . . . . . . . . . . . . . . . . . . . .4.8Selecting a Signal Source (External A/V) for PIP . . . . . . . . . .4.9Changing the Location of the PIP Window . . . . . . . . . . . . .4.9Changing the Size of the PIP Window . . . . . . . . . . . . . . . . .4.9Using the V-Chip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4.10Setting Up Your Personal ID Number (PIN) . . . . . . . . . . . .4.10How to Enable/Disable the V-Chip . . . . . . . . . . . . . . . . . . .4.11How to Set up Restrictions Using the “TV guidelines” . . . .4.11How to Set up Restrictions using the MPAA Ratings:G, PG, PG-13, R, NC-17, X . . . . . . . . . . . . . . . . . . . . . . . .4.13How to Reset the TV after the V-ChipBlocks a Channel (“Emergency Escape”) . . . . . . . . . . . . . .4.14Chapter 5: PC Display . . . . . . . . . . . . . . . . .5.1Using Your TV as a Computer (PC) Display . . . . . . . . . . . . . . . . . . . .5.1How to Connect Your PC to the TV . . . . . . . . . . . . . . . . . . .5.1How to Set up Your PC display Optimizing . . . . . . . . . . . . .5.2How to Set up Your PC Software (Windows only) . . . . . . . .5.2Adjusting the Screen Quality . . . . . . . . . . . . . . . . . . . . . . . .5.3Changing the Screen Position . . . . . . . . . . . . . . . . . . . . . . .5.4Changing the Screen Color Standard . . . . . . . . . . . . . . . . . .5.5Adjusting the Screen Color Settings . . . . . . . . . . . . . . . . . . .5.6To Initialize the Screen Position or Color Settings . . . . . . . .5.7Chapter 6: Troubleshooting . . . . . . . . . . . .6.1Identifying Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6.1Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . .A.1Installing VESA compliant mounting devices . . . . . . . . . . . . . . . . . . .A.1Attaching a Wall or Arm mounting device . . . . . . . . . . . . . . . . . . . . .A.2Retractable Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A.3Using the Anti-Theft Kensington Lock . . . . . . . . . . . . . . . . . . . . . . . .A.3Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A.4Display Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A.5Cleaning and Maintaining Your TV . . . . . . . . . . . . . . . . . . . . . . . . . .A.6Using Your TV in Another Country . . . . . . . . . . . . . . . . . . . . . . . . . .A.6Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A.7
ENG 1.1List of FeaturesYour TV was designed with the latest technology. This TV is a high-performance unit thatincludes the following special features:• Easy-to-use remote control• Easy-to-use on-screen menu system • Adjustable picture and sound settings that can be stored in the TV’s memory• Automatic channel tuning for up to 181 channels• A special filter to reduce or eliminate reception problems• Fine tuning control for the sharpest picture possible• A built-in multi-channel sound decoder for stereo and bilingual listening• Built-in, dual channel speakers• A special sleep timer• Headphone jack for private listeningAccessoriesPlease make sure the following items are included with your LCD TV. If any items aremissing, contact your dealer.Chapter 1YOUR NEW TVRemote Control(BN59-00000A) &Batteries (AAA x 2) (4301-000121)Owner’s Instructions(BN68-00000A)DC Adapter(BN44-00000A) DVI Cable(DVI-D+DVI-D, DVI-I+D-sub)(BN39-00000A)Power Cord(BH39-10339X) PC Stereo cable(BH39-00000))
ENG 1.2Familiarizing Yourself with The TVFront Panel ButtonsThe buttons on the front panel control your TV’s basic features, including the on-screenmenu. To use the more advanced features, you must use the remote control.YOUR NEW TVŒTV/VIDEOPress to display all of the available videosources.´MENUPress to see an on-screen menu of your TV's features.ˇVOL(VOLUME) – , +Press to increase or decrease the volume. Also used to select items on the on-screenmenu.¨CH ▼and CH ▲Press to change channels. Also press to high-light various items on the on-screen menu.ˆIndicatorYellow: Normal operation.Yellow, Blinking: Disconnected signal cable. ØRemote Control SensorAim the remote control towards this spot on theTV.’POWERPress to turn the TV on and off.
ENG 1.3YOUR NEW TVŒPOWER INPUT´RF Connect to an antenna or to a cable TV system.ˇSUPER VIDEO INPUTConnects S-Video signal from a camcorder orVCR.¨VIDEO/AUDIO INPUTConnects Video/Audio signal from a camcorderor VCR.ˆCOMPONENT 2 (DTV)Connects component Video/Audio from a Set-TopBox.ØCOMPONENT 1 (DVD)Connects component Video/Audio from a DVDplayer.∏PCVIDEO INPUT (DVI-I)Connect to the video output port on your PC.”PC AUDIO INPUTConnect to the audio output jacks on your PC.’HEADPHONEConnect a set of external headphones to this jackfor private listening.˝AUDIO/WOOFER OUTPUT•Connect to the speaker (amp built-in) input jack.•Connect to the Sub-woofer speaker input jack.ÔSPEAKER OUTPUTConnect to the speaker (amp built-in) input jack.Kensington lock (See page A.2)Rear Panel JacksUse the rear panel jacks to connect an A/V component that will be connected continuously, such as a VCR or a DVD player. For more information on connecting equipment, see pages 2.1 – 2.9.LTM295WLTM405W
ENG 1.4YOUR NEW TVRemote ControlYou can use the remote control up to about 23 feet from the TV. When using the remote,always point it directly at the TV.You can also use your remote control to operate your VCR and cable box. See page 4.1for details.ŒPOWERTurns the TV on and off.´Number buttonsPress to select channels directlyon the TV.+100Press to select channels over 100.For example, to select channel121, press “+100,” then press “2”and “1.”ˇTV/VIDEOPress to display all of the avail-able video sources.¨VOL -, VOL + Press to increase or decrease thevolume. (Also used to make selec-tions on the on-screen menus.)CH▲ and CH▼(Channel Up/Down)Press CH▲or CH▼to changechannels. (Also used to highlightselections on the on-screenmenus.)ˆMUTEPress to temporarily cut off the sound.ØP.SIZEPress to change the screen size. ∏DISPLAYPress to display the current chan-nel and the audio-video settings.”P.MODEAdjust the TV picture by selectingone of the preset factory settings(or select your personal, cus-tomized picture settings).’S.MODEAdjust the TV sound by selectingone of the preset factory settings(or select your personal, cus-tomized sound settings).˝MODESelects a target device to be con-trolled by the Samsung remotecontrol (i.e., TV, VCR, Cable box, orDVD). ÔPRE-CHTunes to the previous channel.EXITPress the menu to exit.ÒMENUDisplays the main on-screenmenu.ÚSLEEPPress to select a preset time inter-val for automatic shutoff.ÆPIPPress this button to control the PIPwindow. ıMTS (MultichannelTelevision Stereo)Press to choose stereo, mono orSeparate Audio Program (SAPbroadcast).˜V.DOLBYThis feature allows the TV’s L/Rspeakers to provide a home The-ater-like Dolby effect. The centerand surround sounds are mixedinto the L/R speakers.
ENG 1.5Remote Control¯RESETIf your remote control is not func-tioning properly, take out the bat-teries and press the reset buttonfor about 2~3 seconds. Re-insertthe batteries and try using theremote control again. ˘CAPTIONPress to set caption on/off.¿AUTOPress to self-adjust to the incom-ing video signal. The values offine, coarse and position areadjusted automatically.¸VCR ControlsStopPress this button to stop a tapeduring play, record, rewind orfast forward. If the button ispressed during Full-Automaticplay, the function will be can-celled.REW (Rewind)Press to rewind a tape in yourVCR.Play/PausePress the Play/Pausebutton toplay back prerecorded tapes orpause the tape.FFPress to fast forward the tape inyour VCR.˛SETUse this button when you are set-ting up your remote control tooperate your VCR, Cable box, orDVD). ◊CH.SCANPress to memorize (scan) theavailable channels.±ADD/ERASEPress to add or erase channels inthe TV’s memory.≠PIP ControlsSWAPExchanges the video signal that iscurrently displayed on the main screen with the signal in the PIPwindow.SIZEPress to make the PIP windowsmall, large, double screen orstock ticker window.LOCATEPress to move the PIP window toany of the four corners of the TVscreen.CHDisplays the available channels insequence (These buttons changechannels in the PIP window only).–STILLPress to stop the action during a particular scene. Press again toresume normal video.Note: The still function doesn’toperate in Component 1, 2 mode.YOUR NEW TV
ENG 2.1Connecting VHF and UHF AntennasIf your antenna has a set of leads that look like this, see “Antennas with 300-ohm Flat Twin Leads,” below.If your antenna has one lead that looks like this, see “Antennas with 75-ohm Round Leads,” on page 2.2.If you have two antennas, see “Separate VHF and UHF Antennas,” on page 2.2.Antennas with 300-ohm Flat Twin LeadsIf you are using an off-air antenna (such as a roof antenna or “rabbit ears”) that has 300-ohm twin flat leads, follow the directions below.Chapter 2INSTALLATION1Place the wires from thetwin leads under thescrews on a 300-75 ohmadaptor (not supplied).Use a screwdriver totighten the screws.2Plug the adaptor into theTV ANTENNA terminalon the bottom of theback panel.2
ENG 2.2Connecting Cable TVTo connect to a cable TV system, follow the instructions below.Cable without a Cable Box▼1Plug the incoming cableinto the TV ANTENNA antenna terminal onback of the TV.Because this TV is cable-ready, you do not need a cable box to view unscrambled cablechannels.2Plug the combinerinto the TV ANTEN-NA terminal on thebottom of the rearpanel.INSTALLATIONAntennas with 75-ohm Round Leads1Plug the antenna leadinto the TV ANTENNAterminal on the bottomof the back panel.Separate VHF and UHF AntennasIf you have two separate antennas for your TV (one VHF and one UHF), you must combine the two antenna signals before connecting the antennas to the TV. This procedure requires an optional combiner-adaptor (available at most electronics shops).1Connect both antennaleads to the combiner.
ENG 2.3INSTALLATIONConnecting to a Cable Box that Descrambles All Channels▼1Find the cable that isconnected to theANTENNA OUT terminalon your cable box.This terminal might be labeled“ANT OUT,” “VHF OUT,” or simply,“OUT.”2Connect the other end ofthis cable to the TVANTENNA terminal onthe back of the TV. Connecting to a Cable Box that Descrambles Some ChannelsIf your cable box descrambles only some channels (such as premium channels), follow theinstructions below. You will need a two-way splitter, an RF (A/B) switch, and four lengths ofcoaxial cable. (These items are available at most electronics stores.)▼1Find and disconnect thecable that is connectedto the ANTENNA IN terminal on your cable box.This terminal might be labeled“ANT IN,” “VHF IN,”or simply,“IN.”2Connect this cable to atwo-way splitter. 3Connect a coaxial cablebetween an OUTPUT ter-minal on the splitter andthe IN terminal on thecable box.
ENG 2.44Connect a coaxialcable between theANTENNA OUT termi-nal on the cable boxand the B–IN terminalon the A/B switch.5Connect another cablebetween the otherOUT terminal on thesplitter and the A–INterminal on the RF(A/B) switch. 6Connect the last coax-ial cable between theOUT terminal on the RF(A/B) switch and theVHF/UHF terminal onthe rear of the TV.INSTALLATIONAfter you’ve made this connection, set the A/B switch to the “A” position for normal viewing.Set the A/B switch to the “B” position to view scrambled channels. (When you set the A/Bswitch to “B,” you will need to tune your TV to the cable box’s output channel, which is usu-ally channel 3 or 4.)
ENG 2.5INSTALLATION3Connect a coaxial cablebetween the ANTENNAOUT terminal on the VCRand the antenna terminalon the TV.4Connect a set of audiocables between theAUDIO OUT jacks onthe VCR and theAUDIO jacks on the TV.5Connect a video cablebetween the VIDEOOUT jack on the VCRand the VIDEO jack onthe TV.Follow the instructions in “Viewing a VCR or Camcorder Tape” to view your VCR tape.A coaxial cable is usually included with a VCR. (If not, check your local electronicsstore).If you have a “mono” (non-stereo) VCR, use the Y-connector (not supplied) to hook upto the left and right audio input jacks of the TV. If your VCR is stereo, you must connecttwo cables.Connecting a VCRThese instructions assume that you have already connected your TV to an antenna or a cableTV system (according to the instructions on pages 2.1-2.3). Skip step 1if you have not yetconnected to an antenna or a cable system. 1Unplug the cable orantenna from the backof the TV.2Connect the cable orantenna to the ANTENNAIN terminal on the back ofthe VCR.
ENG 2.6INSTALLATION3Connect an S-Video cablebetween the S-VIDEO OUTjack on the VCR and the S-VIDEO INPUT jack onthe TV.An S-video cable is usually included with an S-VHS VCR. (If not, check your local electronics store.)1To begin, follow steps 1–3 in the previous section to connect theantenna or cable toyour VCR and your TV.Connecting an S-VHS VCRYour Samsung TV can be connected to an S-Video signal from an S-VHS VCR. (This connection delivers a better picture as compared to a standard VHS VCR.)2Connect a set of audiocables between theAUDIO OUT jacks on theVCR and the AUDIOINPUT jacks on the TV.
ENG 2.7INSTALLATIONNote: For an explanation of Component video, see your DVD player owner's manual. Connecting a DVD Player (480i, 480p)The rear panel jacks on your TV make it easy to connect a DVD player to your TV.1Connect a set of audiocables between theCOMPONENT1(DVD) L, RAUDIO INPUT jacks onthe TV and the AUDIOOUT jacks on the DVDplayer.2Connect a video cablebetween the COMPO-NENT1(DVD) Y, Pb, Prjacks on the TV and theY, Pb, Pr jacks on theDVD player. Note: For an explanation of Component video, see your Set-Top Box owner's manual. Connecting a Digital TV Set-Top Box (480p, 720p, 1080i)The connections for a typical set-top box are shown below.1Connect a set of audiocables between theCOMPONENT2(DTV) L, RAUDIOINPUT jacks onthe TV and the AUDIOOUT jacks on the Set-TopBox.2Connect a video cablebetween the COMPO-NENT2(DTV) Y, Pb, Prjacks on the TV and theY, Pb, Pr jacks on theSet-Top Box.
ENG 2.8INSTALLATIONConnecting SpeakersConnecting 1Connecting 2Connect the speaker audiocable to the external speakeroutput jack on the rear of theTV matching the “+” and “-”ends of the cable with thediagram on the TV. Connect a set of audiocables between the AUX L, Rjacks on the AUDIO SYSTEMand the AUDIO OUTPUT L, Rjacks on the TV.Connect a audio cablebetween the INPUT jack onthe WOOFER SPEAKER andthe WOOFER OUT jack on theTV.
ENG 2.92Connect a set of audiocables between theAUDIO OUTPUT jacks onthe camcorder and theAUDIO jacks on theTV.3Connect a video cablebetween the VIDEOOUTPUT jack on thecamcorder and theVIDEO jack on the TV.1Locate the A/V outputjacks on the camcorder.They are usually found onthe side or back of thecamcorder.Connecting a CamcorderThe jacks on your TV make it easy to connect a camcorder. They allow you to view thecamcorder tapes without using a VCR. (Also see “Viewing a VCR or Camcorder Tape” onpage 3.17)The audio-video cables shown here are usually included with a Camcorder. (If not, checkyour local electronics store.) If your camcorder is stereo, you need to connect a set of twocables.INSTALLATION
ENG 2.10INSTALLATION▼3Replace the cover.Remove the batteries and storethem in a cool, dry place if you won’tbe using the remote control for along time.The remote control can be used upto about 23 feet from the TV.(Assuming typical TV usage, the bat-teries last for about one year.)▼2Install two AAA sizebatteries.Make sure to match the “+” and“–” ends of the batteries with thediagram inside the compartment.Installing Batteries in the Remote Control1Slide the cover outcompletely.
ENG 3.1Chapter 3OPERATIONTurning the TV On and OffPress the POWER button on the remote control.You can also use the Power button on the top panel.Viewing the DisplayThe display identifies the current channel and the statusof certain audio-video settings. ▼The on-screen displays disappear after about ten seconds.Viewing the Menus and On-Screen DisplaysViewing the Menus▼1With the power on, pressthe MENU button.The main menu appearson the screen. Its left sidehas five icons: Picture,Sound, Channel, Functionand PC.The on-screen menus disappearfrom the screen after about thirtyseconds.PictureMove Select MenuMode  Dynamic Contrast Brightness Sharpness Color TintColor tone  Cool 2▼You can also use the MENU,CHANNEL, and VOLUME buttonson the control panel of the TV tomake selections.1Press the DISPLAY button on the remote control.The TV will display thechannel, the type ofsound, and the status ofcertain picture and soundsettings. 2Use the CH▲and CH▼buttons to select one of the 5 icons.Then press the VOL+ button to access the icon’s sub-menu. 3Press the MENU button to exit the menu.Ant 4Picture Mode : CustomSound Mode : CustomMTS : StereoSignal : MonoCaption : OffV-Chip : No
ENG 3.2OPERATIONSelecting a Menu Language3Press the VOL + button to select the appropriate language:English, Español, or Français. 4Press the MENU button to exit the menu.2Press the CH ▼ button toselect Language.FunctionMove Select MenuTime Prefered Ch. ANT 3 On time Vol. 14PIPCaptionV-ChipLanguage English1Press the MENU button todisplay the menu.Press the CH ▼button toselect “Function”, thenpress the VOL + button.FunctionMove Select MenuTime Prefered Ch. ANT 3 On time Vol. 14PIPCaptionV-ChipLanguage English
ENG 3.3OPERATIONMemorizing the ChannelsYour TV can memorize and store all of the available channels for both “off-air” (antenna)and cable channels. After the available channels are memorized, use the CH ▲and CH ▼buttons to scan through the channels. This eliminates the need to change channelsby entering the channel digits. There are three steps for memorizing channels: selecting abroadcast source, memorizing the channels (automatic) and adding and deleting channels(manual).Selecting the Video Signal-sourceBefore your television can begin memorizing the available channels, you must specify thetype of signal source that is connected to the TV (i.e., an antenna or a cable system).1Press the MENU button todisplay the menu.Press the CH ▼button toselect “Channel”, thenpress the VOL + button. ChannelMove Select MenuANT/CATV ANTAuto programFine tune    00Add/Erase : Erased LNA : Off2Repeatedly press the VOL + button to cyclethrough these choices:ANT (antenna), STD, HRCor IRC (all cable TV).ChannelMove Select MenuANT/CATV STDAuto programFine tune    00Add/Erase : Erased LNA : OffNote: STD, HRC and IRC identify various types of cable TVsystems. Contact your local cable company to identify the typeof cable system that exists in your particular area.At this point the signal source has been selected. Proceed to“Storing Channels in Memory” (next page).
ENG 3.43Press the VOL + button. The TV will begin memo-rizing all of the availablechannels and displaythem in the PIP window.OPERATIONStoring Channels in Memory (Automatic Method)▼The TV automatically cyclesthrough all of the available channelsand stores them in memory. Thistakes about one to two minutes. Press VOL+ at any time to interruptthe memorization process and returnto the CHANNEL menu.2Press the CH ▼button toselect “Auto program”.ChannelMove Select MenuANT/CATV ANTAuto programFine tune    00Add/Erase : Erased LNA : Off1First, select the correctsignal source (ANT, STD,HRC, IRC). See steps 1~4on previous page. Press the MENU button.Press the CH ▼button toselect “Channel”, thenpress the VOL + button.ChannelMove Select MenuANT/CATV ANTAuto programFine tune    00Add/Erase : Erased LNA : OffAuto program ANT 30 70% Menu4After all the available channels are stored, the Auto programmenu reappears. Press the MENU button to exit the menu.
ENG 3.5OPERATIONChanging ChannelsUsing the Channel Buttons1Press the CH ▲or CH ▼buttons to change channels.When you press the CH ▲or CH ▼ buttons, the TV changes channels insequence. You will see all the channels that the TV has memorized. (The TVmust have memorized at least three channels.) You will not see channels thatwere either erased or not memorized.Directly Accessing ChannelsUse the number buttons to quickly tune to any channel.1Press the number buttons to go directly to a channel. For example, to select channel 27, press “2,”then “7.” The TV will change channelswhen you press the second number.When you use the number buttons, you can directly select channels that wereeither erased or not memorized.To select a channel over 100, press the +100 button. (For channel 122, press“+100,” then “2,” then “2.”)To change to single-digit channels (0–9) faster, press “0” before the single digit. (For channel “4,” press “0,” then “4.”)2Press the ADD/ERASE button.Repeatedly pressing this button will alternate between “Added” and “Erased.”You can view any channel (including an erased channel) by using the numberbuttons on the remote control.1Use the number buttons to directly select the channel that will be added or erased.Adding and Erasing Channels (Manual Method)Using the Pre-CH Button to select the Previous Channel1Press the PRE-CH button.The TV will switch to the last channel viewed.To quickly switch between two channels that are far apart, tune to one channel,then use the number button to select the second channel. Then, use the PRE-CHbutton to quickly alternate between them.
ENG 3.6OPERATIONAdjusting the Volume1Press the VOL + or VOL – buttons to increase or decrease the volume. 1Press MUTE and the sound cuts off. The word “Mute” will appear in the lower-right corner of the screen.2To turn mute off, press the MUTE button again, or simplypress either the VOL + or VOL – button.Using MuteAt any time, you can temporarily cut off the sound using the Mute button.
ENG 3.7Setting the ClockSetting the clock is necessary in order to use the various timer features of the TV. Also, you can check the time while watching the TV. (Just press DISPLAY.)1Press the MENU button todisplay the on-screenmenu.Press the CH ▼button toselect “Function”, thenpress the VOL + button.FunctionMove Select MenuTime Prefered Ch. ANT 3 On time Vol. 14PIPCaptionV-ChipLanguage English3Press the VOL + button.Press the CH ▲or CH ▼buttons repeatedly untilthe correct hour appears.After the hour is entered,press the VOL + button.FunctionMove Select MenuTime Clock 06 : 00pm On time 12 : 00 am Off Off time 12 : 00 am Off Sleep : Off2Press the VOL + button toselect “Time”. FunctionMove Select MenuTime Clock 12 : 00 am On time 12 : 00 am Off Off time 12 : 00 am Off Sleep : Off4Press the VOL + buttonagain. Press the CH ▲orCH ▼buttons repeatedlyuntil the correct minutesappear.After the minutes areentered, press the VOL +button.Press the MENU button toexit.▼When selecting the hours, be sureto select the proper time of day (AMor PM). You can change the hours by pressingthe CH ▲or CH ▼buttons repeated-ly (or by holding down either of thesebuttons).The time will appear every time youpress the Display button.FunctionMove Select MenuTime Clock 06 : 30pm On time 12 : 00 am Off Off time 12 : 00 am Off Sleep : OffOPERATION

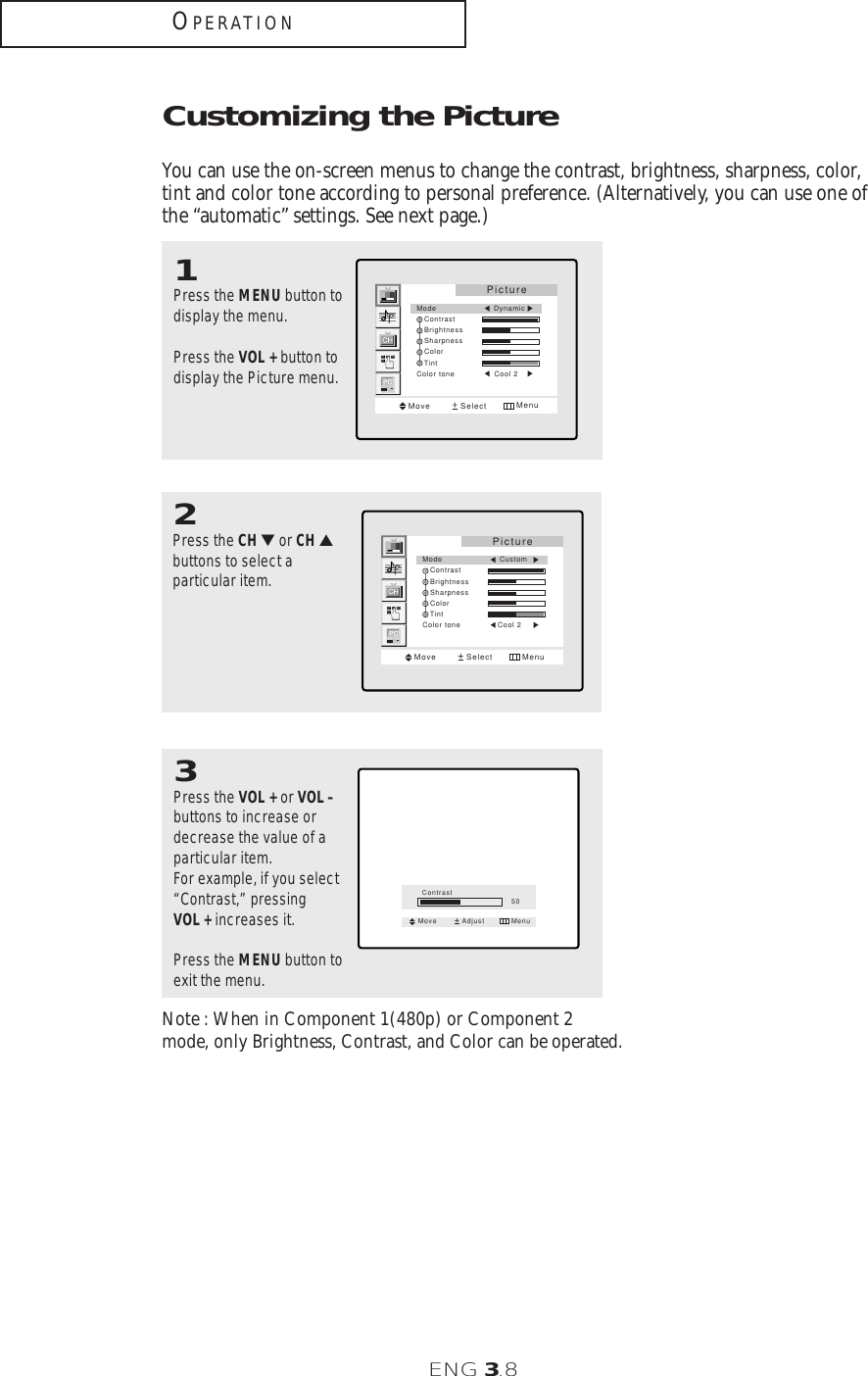

ENG 3.8OPERATION1Press the MENU button todisplay the menu. Press the VOL + button todisplay the Picture menu. PictureMove Select MenuMode  Dynamic Contrast Brightness Sharpness Color TintColor tone  Cool 2Customizing the PictureYou can use the on-screen menus to change the contrast, brightness, sharpness, color,tint and color tone according to personal preference. (Alternatively, you can use one ofthe “automatic” settings. See next page.)2Press the CH ▼or CH ▲buttons to select a particular item.PictureMove Select MenuMode  Custom Contrast Brightness Sharpness Color TintColor tone  Cool 23Press the VOL + or VOL –buttons to increase ordecrease the value of aparticular item. For example, if you select“Contrast,” pressing VOL + increases it.Press the MENU button toexit the menu. Contrast50Adjust MenuMoveNote : When in Component 1(480p) or Component 2mode, only Brightness, Contrast, and Color can be operated.
ENG 3.9OPERATIONUsing Automatic Picture SettingsYour TV has four automatic picture settings (“Dynamic”, “Standard”, “Movie” and “Cus-tom”) that are preset at the factory. You can activate either Dynamic, Standard or Movieby pressing P.STD (or by making a selection from the menu). Or, you can select “Cus-tom” which automatically recalls your personalized picture settings. Note: This function operates only in the TV, Video and S-Video modes.• Choose Dynamic for viewing the TV during the day or when there is bright-light in the room.• Choose Standard for the standard factory settings.• Choose Movie when viewing the movie.• Choose Custom if you want to adjust the settings accordings to personalpreference (see “Customizing the Picture, page 3.7).1Press the MENU button to display the menu.Press the VOL + button todisplay the Picture menu. PictureMove Select MenuMode  Dynamic Contrast Brightness Sharpness Color TintColor tone  Cool 22Press the VOL +or VOL -buttons to select the“Dynamic”, “Standard”,“Movie” or “Custom” pic-ture setting.PictureMove Select MenuMode Standard Contrast Brightness Sharpness Color TintColor tone  Cool 2Alternate method:Simply press the P.MODE button on the remote control toselect one of the standard picture settings.
ENG 3.10OPERATION2Press the CH ▲or CH ▼button to select a particu-lar item to be changed.SoundMove Select MenuModeVirtual dolby : OffMTS Setting : AutoMTS MonoSound select : MainAuto volume : OnSub woofer : Off1Press the MENU button todisplay the menu. Press the CH ▼button toselect “Sound”, thenpress the VOL+ button.SoundMove Select MenuModeVirtual dolby : OffMTS Setting : AutoMTS MonoSound select : MainAuto volume : OnSub woofer : OffCustomizing the SoundThe sound settings can be adjusted to suit your personal preference. (Alternatively, youcan use one of the “automatic” settings. See next page.)3Press the VOL+ or VOL-button to increase ordecrease the value of aparticular item.Press the MENU button toexit the menu.SoundMove Select MenuModeVirtual dolby : OnMTS Setting : AutoMTS MonoSound select : MainAuto volume : OnSub woofer : Off
ENG 3.11Using Automatic Sound SettingsYour TV has four automatic sound settings (“Standard,” “Music,” “Movie” and “Speech”)that are preset at the factory. You can activate any of them by pressing the S.STD button (or by making a selection from the on-screen menu).• Choose Standard for the standard factory settings.• Choose Music when watching music videos or concerts.• Choose Movie when watching movies.• Choose Speech when watching a show that is mostly dialogue (i.e., news).• Choose Custom to recall your personalized settings.2Press the VOL + or VOL -buttons repeatedly toselect the “Standard,”“Music,” “Movie,”“Speech” or “Custom”sound setting.SoundMove Select MenuMode Custom Bass Treble Balance1Press the MENU button todisplay the menu. Press the CH ▼button toselect “Sound”, thenpress the VOL+ button.OPERATIONSoundMove Select MenuModeVirtual dolby : OffMTS Setting : AutoMTS MonoSound select : MainAuto volume : OnSub woofer : OffAlternate method:Simply press the the S.MODE button on the remote controlto select one of the standard sound settings.
ENG 3.12OPERATIONViewing an External Signal SourceYou must select the appropriate mode in order to view the external signal on the TV.Press the TV/VIDEO but-ton.You will switch betweenviewing the signals com-ing from equipment con-nected to the TV’s A/Vjacks, and the TV signal.Video
ENG 4.1Chapter 4SPECIAL FEATURESCustomizing Your Remote ControlYour TV comes equipped with a “universal” remote control. In addition to controlling the TV, the universal remote can also operate a VCR, DVD and a cable box(even if your VCR and cable box are made by manufacturers other than Samsung). Note: The remote control might not be compatible with all DVD Players, VCRs and Cable boxes.Setting Up Your Remote Control to Operate Your VCR (or DVD)1Turn off your VCR (orDVD.)2Press the MODE button and make sure that the VCR (orDVD) LED is illuminated.3On your Samsung remote control, press the SET button.▼The remote control has four“modes”: “TV,” “VCR”, “Cable” and“DVD.” Press the “MODE” buttonto switch the remote control to the“VCR” (or DVD) mode.▼4Enter 3 digits of the VCR (or DVD) code listed on the nextpage for your brand of VCR (or DVD).Make sure you enter 3 digits of thecode, even if the first digit is a “0.”If more than one code listed, try thefirst one.▼5Press the POWER button on the remote control. Your VCR (or DVD) should turn on. If your VCR (or DVD) turns on, yourremote control is now set correctly.If your VCR (or DVD) does notturn on, repeat steps 2, 3, and 4, buttry one of the other codes listed forthe brand of your particular VCR (orDVD).If no other codes are listed, try eachcode, 000 through 089.▼6Once your remote control is set up, press the MODE buttonany time you want to use the remote to operate your VCR (orDVD).When your remote control is inthe “VCR” (or DVD) mode, the volumebuttons still control your TV’s volume.When your remote is in the “TV”mode, the VCR control buttons (PLAY,PAUSE, etc.) will still operate yourVCR.
ENG 4.2VCR CodesDVD CodesSPECIAL FEATURES
ENG 4.3SPECIAL FEATURESCable Box Codes▼4Enter 3 digits of the cable box code listed below for yourbrand of cable box.Make sure you enter 3 digits ofthe code, even if the first digit is a“0.” (If more than one code listed,try the first one.)▼5Press the POWER button. Your cable box should turn on. If yourcable box turns on, your remote control is now “set up” correctly.If your cable box does not turnon, repeat steps 2, 3, and 4, but tryone of the other codes listed for yourparticular brand of cable box. (If noother codes are listed, try each cablebox code, 000 through 077.)▼6Once your remote control is set up, press the MODE buttonany time you want to use the remote to operate your cablebox.When your remote control is in the “CABLE” mode, the volumebuttons still control your TV’s vol-ume. Also, the VCR control buttons(PLAY, PAUSE, etc.) will still operateyour VCR.3On your Samsung remote control, press the SET button.▼2Press the MODE button and make sure that the CABLE LEDis illuminated.The remote control has four“modes”: “TV,” “VCR,” “Cable” and“DVD.”Press the “MODE” button to switchthe remote control to the “Cable”mode.1Turn off yourcable box.Setting Up Your Remote Control to Operate Your Cable Box
ENG 4.4Fine Tuning ChannelsUse fine tuning to manually adjust a particular channel for optimal reception.1Select the appropriatechannel.2Press the MENU button todisplay the menu.Press the CH ▼button toselect “Channel”, thenpress the VOL + button.ChannelMove Select MenuANT/CATV ANTAuto programFine tune    00Add/Erase : Erased LNA : Off3Press the CH ▼button toselect “Fine tune.”ChannelMove Select MenuANT/CATV ANTAuto programFine tune    00Add/Erase : Erased LNA : Off4Press the VOL + and VOL –buttons to adjust the finetuning.ChannelAdd/Erase Adjust MenuANT/CATV ANTAuto programFine tune    +03Add/Erase : Erased LNA : Off5To store the fine tuningsetting in the TV’s memo-ry, press the CH ▲button.(A heart icon will appear.)To reset the fine tuning to“00,”press the CH ▼ but-ton. Press the MENU button toexit the menu.▼After you adjust the fine tuning,the “heart icon” will appear whenyou press Display while watchingthis channel.ChannelAdd/Erase Adjust MenuANT/CATV ANTAuto programFine tune    +03Add/Erase : Erased LNA : OffSPECIAL FEATURES
ENG 4.5SPECIAL FEATURESLNA (Low Noise Amplifier)If the TV is operating in a weak-signal area, sometimes the LNA function can improve the reception (a low-noise preamplifier boosts the incoming signal). 2Press the CH ▼ button toselect “LNA.”ChannelMove Select MenuANT/CATV ANTAuto programFine tune    00Add/Erase : Erased LNA : Off3Press the VOL + button toset LNA “On.”Press the MENU button toexit the menu.ChannelMove Select MenuANT/CATV ANTAuto programFine tune    00Add/Erase : Erased LNA : OnChannelMove Select MenuANT/CATV ANTAuto programFine tune    00Add/Erase : Erased LNA : Off1Press the MENU button todisplay the menu.Press the CH ▼button toselect “Channel”, thenpress the VOL + button.Pressing VOL - or VOL + will alter-nate between “On” and “Off.” ▼
ENG 4.6SPECIAL FEATURESSelecting the Color Tone1Press the MENU button to display the menu.Press the VOL + button todisplay the Picture menu. PictureMove Select MenuMode  Dynamic Contrast Brightness Sharpness Color TintColor tone  Cool 22Press the CH ▼button toselect “Color tone.”PictureMove Select MenuMode  Custom Contrast Brightness Sharpness Color TintColor tone  Cool 23Press the VOL + or VOL -buttons to select “Cool2”, “Cool 1”, “Warm 1”,“Standard” or “Warm 2”according to personalpreference.Press the MENU button toexit the menu.PictureMove Select MenuMode  Custom Contrast Brightness Sharpness Color TintColor tone  Warm 1
ENG 4.7Freezing the Picture1Press the STILL button to freeze the mainpicture.• Not available if V-Chip is turned on.• Normal sound will still be heard.Press again to cancel.SPECIAL FEATURESChanging the Screen Size1Press the P.SIZE button to change the screen size.•Wide: Sets the picture to 16:9 wide mode. •Panorama:Use this mode for the wide aspect ratio of a panoramic picture. •Zoom 1: Expands the picture with a 4:3 aspect ratio. Use the Channel Up/Down buttonsto move the screen. •Zoom 2: Expands the Zoom 1 format picture. Use the Channel Up/Down buttons tomove the screen.•Normal 1: Set the picture to 4:3(16:9 for DTV) normal mode. This is standard TV(DTV)screen size.•Normal 2: Original screen size.Note: The screen format depends on the input signal.• When TV, VIDEO, S-VIDEO, DVD (480i) signal is input, the following screen formats areavailable: Wide ➝Panorama ➝Zoom 1 ➝Zoom 2 ➝Normal 1 ➝Normal 2.• When DTV signal is input: Wide ➝Normal 1 ➝Normal 2.• When PC signal is input: Zoom 1 ➝Zoom 2 ➝Normal.• When DVD (480p) signal is input: Wide ➝Zoom 1 ➝Zoom 2 ➝Normal 1 ➝Normal 2.
ENG 4.8Special Sound OptionsSetting a Multichannel Television Stereo (MTS) SoundtrackWhen MTS is set to “Auto”, MTS will be set automatically to "Mono" or "Stereo", accord-ing to the signal transmitted from the broadcasting company. If a channel is selected inan area where reception is poor, the sound might be distorted. When this occurs, setMTS Setting to "Manual" and MTS to "Mono".2Press the CH▼buttonfive times to select“MTS Setting”.SoundMove Select MenuModeVirtual dolby : OffMTS Setting : AutoMTS MonoSound select : MainAuto volume : OnSub woofer : Off3Press the VOL + buttonrepeatedly to select“Manual” or “Auto.”Press the MENU button toexit.SoundMove Select MenuModeVirtual dolby : OffMTS Setting : AutoMTS MonoSound select : MainAuto volume : OnSub woofer : Off1Press the MENU button todisplay the menu. Press the CH▼button toselect “Sound”, thenpress the VOL + button SoundMove Select MenuModeVirtual dolby : OffMTS Setting : AutoMTS MonoSound select : MainAuto volume : OnSub woofer : OffSPECIAL FEATURES
ENG 4.9SPECIAL FEATURESChoosing a Multichannel Television Stereo (MTS) SoundtrackDepending on the particular program being broadcast, you can listen to stereo, mono, ora Separate Audio Program. (SAP audio is usually a foreign-language translation. Some-times SAP has unrelated information like news or weather.) 2Press the CH▼buttonfour times to select“MTS”.SoundMove Select MenuModeVirtual dolby : OffMTS Setting : AutoMTS MonoSound select : MainAuto volume : OnSub woofer : Off3Press the VOL + buttonrepeatedly to select“Mono,” “SAP,” or“Stereo.”Press the MENU button toexit the menuSoundMove Select MenuModeVirtual dolby : OffMTS Setting : AutoMTS StereoSound select : MainAuto volume : OnSub woofer : Off▼The text at the bottom of themenu tells you if the incoming audio is stereo, SAP, or mono.1Press the MENU button todisplay the menu. Press the CH▼button toselect “Sound”, thenpress the VOL + button SoundMove Select MenuModeVirtual dolby : OffMTS Setting : AutoMTS MonoSound select : MainAuto volume : OnSub woofer : Off• Choose Stereo for channels that are broadcasting in stereo.• Choose Mono for channels that are broadcasting in mono, or if you are having difficulty receiving a stereo signal.• Choose SAP to listen to the Separate Audio Program, which is usually a foreign-language translation.You can also change the MTS setting by pressing the “MTS” button on the remotecontrol. (When you change channels, MTS is set to “Stereo” automatically. To listen in ‘SAP’ or ‘Mono,’ change the MTS setting.)
ENG 4.10SPECIAL FEATURESVirtual DolbyThis feature allows the TV’s L/R speakers to provide a Home Theater-like Dolby effect. The center and surround sounds are mixed into the L/R speakers.2Press the CH▼button toselect “Virtual dolby”.SoundMove Select MenuModeVirtual dolby : OffMTS Setting : AutoMTS MonoSound select : MainAuto volume : OnSub woofer : Off3Press the VOL + button toselect “On”.Press the MENU button toexit the menu.SoundMove Select MenuModeVirtual dolby : OnMTS Setting : AutoMTS MonoSound select : MainAuto volume : OnSub woofer : Off1Press the MENU button todisplay the menu. Press the CH▼button toselect “Sound”, thenpress the VOL + button SoundMove Select MenuModeVirtual dolby : OffMTS Setting : AutoMTS MonoSound select : MainAuto volume : OnSub woofer : OffPressing VOL - or VOL + will alter-nate between “On” and “Off.” ▼Alternate method:Press the V.DOLBY button to alternate between “On” and“Off”.
ENG 4.11SPECIAL FEATURESAuto VolumeEach broadcasting station has its own signal conditions, and it is inconvenient to adjustthe volume every time the channel is changed. “Auto volume” automatically adjusts thevolume of the desired channel by lowering the sound output when the modulation sig-nal is high or by raising the sound output when the modulation signal is low.2Press the CH▼button toselect “Auto volume”.SoundMove Select MenuModeVirtual dolby : OffMTS Setting : AutoMTS MonoSound select : MainAuto volume : OffSub woofer : Off3Press the VOL + button toselect “On”.Press the MENU button toexit.SoundMove Select MenuModeVirtual dolby : OffMTS Setting : AutoMTS MonoSound select : MainAuto volume : OnSub woofer : Off1Press the MENU button todisplay the menu. Press the CH▼button toselect “Sound”, thenpress the VOL + button SoundMove Select MenuModeVirtual dolby : OffMTS Setting : AutoMTS MonoSound select : MainAuto volume : OnSub woofer : OffPressing VOL - or VOL + will alter-nate between “On” and “Off.” ▼
ENG 4.12SPECIAL FEATURES▼Note: Sound Select canalso be used to select the Mainor Sub sound over the speak-ers.Selecting the Sound SourceYou can select either Main or Sub when PIP is On.1Press the MENU button todisplay the menu. Press the CH▼button toselect “Sound”, thenpress the VOL + button 2Press the CH▼button toselect “Sound select”.SoundMove Select MenuModeVirtual dolby : OffMTS Setting : AutoMTS MonoSound select : MainAuto volume : OnSub woofer : OffSoundMove Select MenuModeVirtual dolby : OffMTS Setting : AutoMTS MonoSound select : MainAuto volume : OnSub woofer : Off3Press the VOL + button toselect “Main” or “Sub”.Select “Main” to hear themain TV sound and select“Sub” to hear the PIP win-dow sound.Press the MENU button toexit.SoundMove Select MenuModeVirtual dolby : OffMTS Setting : AutoMTS MonoSound select : SubAuto volume : OnSub woofer : Off
ENG 4.13SPECIAL FEATURESSubwooferAn attached subwoofer can be turned on or off in the menu.1Press the MENU button todisplay the menu. Press the CH▼button toselect “Sound”, thenpress the VOL + button 2Press the CH▼button toselect “Sub woofer”.SoundMove Select MenuModeVirtual dolby : OffMTS Setting : AutoMTS MonoSound select : MainAuto volume : OffSub woofer : OffSoundMove Select MenuModeVirtual dolby : OffMTS Setting : AutoMTS MonoSound select : MainAuto volume : OnSub woofer : Off3Press the VOL + button toselect “on”.Press the MENU button toexit.SoundMove Select MenuModeVirtual dolby : OffMTS Setting : AutoMTS MonoSound select : MainAuto volume : OffSub woofer : OnPressing VOL - or VOL + will alter-nate between “On” and “Off.” ▼
ENG 4.14SPECIAL FEATURESSetting the On/Off Timer1Press the MENU button todisplay the on-screenmenu.Press the CH ▼buttonthree times to select“Function”, then pressthe VOL + button.FunctionMove Select MenuTime Prefered Ch. ANT 3 On time Vol. 14PIPCaptionV-ChipLanguage English▼Before using the timer, you mustset the TV’s clock. (See “Setting theClock” on page 3.7)2Press the VOL + button toselect “Time”.FunctionMove Select MenuTime Clock 06 : 30 pm On time 07 : 00 am Off Off time 12 : 00 am Off Sleep : Off3Press the CH ▼button toselect “On time”, thenpress the VOL + button. Press the CH ▲or CH ▼buttons repeatedly toselect the appropriatehours (i.e., the hour whenthe TV will turn on.)FunctionMove Select MenuTime Clock 06 : 30 pm On time 07 : 00 am Off Off time 12 : 00 am Off Sleep : Off▼When you set the hours, makesure the correct time of day (AM orPM) appears to the left of the hour.4Press the VOL + button toselect the “On time” min-utes.Press the CH ▲or CH ▼buttons repeatedly toselect the appropriateminutes.FunctionMove Select MenuTime Clock 06 : 30 pm On time 07 : 30 am Off Off time 12 : 00 am Off Sleep : Off
ENG 4.15SPECIAL FEATURES5Press the VOL + button toselect “On/Off.”Press the CH ▲or CH ▼buttons to turn the on-timer “On.” (Repeatedlypressing the CH ▲orCH ▼ buttons will alter-nate between on and off.)When finished, press theVOL + button. FunctionMove Select MenuTime Clock 06 : 30 pm On time 07 : 30 am On Off time 12 : 00 am Off Sleep : Off▼To deactivate the “On time,”select “Off” during this step.6To set the Off time, pressthe CH ▼button to select“Off time.”Press the VOL + buttonand set the hours andminutes. (Follow the sameprocedure as in steps 1~5above.)FunctionMove Select MenuTime Clock 06 : 30 pm On time 07 : 30 am On Off time 12 : 00 am Off Sleep : Off7When finished setting the timer, press the MENU button toexit.
ENG 4.16SPECIAL FEATURESSetting the Preferred Channel Volume Level1Press the MENU button todisplay the on-screenmenu.Press the CH ▼button toselect “Function”, thenpress the VOL + button.FunctionMove Select MenuTime Prefered Ch. ANT 3 On time Vol. 14PIPCaptionV-ChipLanguage English2Press the CH ▼button toselect “Prefered Ch.”, Press the VOL + or VOL -button to select channel.FunctionMove Adjust MenuTime Prefered Ch. ANT 3 On time Vol. 14PIPCaptionV-ChipLanguage English3Press the CH ▼button toselect “ On time Vol.”, Press the VOL + or VOL -button to adjust volumelevel.Press the MENU button toexit.FunctionMove Adjust MenuTime Prefered Ch. ANT 3 On time Vol. 14PIPCaptionV-ChipLanguage English
ENG 4.17SPECIAL FEATURESSetting the Sleep TimerThe sleep timer automatically shuts off the TV after a preset time(from 10 to 240 minutes).1Press the MENU button todisplay the on-screenmenu.Press the CH ▼buttonthree times to select“Function”, then pressthe VOL + button.FunctionMove Select MenuTime Prefered Ch. ANT 3 On time Vol. 14PIPCaptionV-ChipLanguage English2Press VOL + repeatedlyuntil the appropriate timeinterval appears (any ofthe preset values from“Off” to “240 Minute”).FunctionMove Select MenuTime Clock 06 : 30 pm On time 07 : 00 am Off Off time 12 : 00 am Off Sleep : 30 MinuteAlternate method:Press the SLEEP button repeatedly until the appropriatetime interval appears (any of the preset values from “Off” to“240 Minute”).
ENG 4.18SPECIAL FEATURES▼Misspellings and unusual characters sometimes occur duringclosed caption transmissions, especial-ly those of live events. There may be asmall delay before captions appearwhen you change channels. These arenot malfunctions of the TV.3Press the VOL+ or VOL –buttons to turn closedcaptioning on/off.FunctionMove Select MenuCaption : On Mode Caption Channel 1 Field 1▼In caption mode, captionsappear at the bottom of the screen,and they usually cover only a smallportion of the picture. In text mode, information unrelatedto the program, such as news orweather, is displayed. Text often covers a large portion of the screen.4Press the CH ▼button to select “Mode.”Press the VOL + or VOL –buttons to select “Cap-tion” or “Text.” FunctionMove Select MenuCaption : On Mode Text Channel 1 Field 1Viewing Closed CaptionsYour TV decodes and displays the closed captions that are broadcast with certain TV shows.These captions are usually subtitles for the hearing impaired or foreign-language trans-lations. All VCRs record the closed caption signal from television programs, so home-recordedvideo tapes also provide closed captions. Most pre-recorded commercial video tapes provideclosed captions as well. Check for the closed caption symbol in your television schedule andon the tape’s packaging: . Note: The Caption feature does not work with DVD or DTV signals.1Press the MENU button todisplay the menu.Press the CH ▼button toselect “Function”, thenpress the VOL+ button.FunctionMove Select MenuTime Prefered Ch. ANT 3 On time Vol. 14PIPCaptionV-ChipLanguage English2Press the CH ▼button toselect “Caption”, thenpress the VOL+ button. FunctionMove Select MenuTime Prefered Ch. ANT 3 On time Vol. 14PIPCaptionV-ChipLanguage English▼5Depending on the particular broadcast, it might be necessary tomake changes to “Channels” and “Field”:Use the CH ▲, CH ▼, VOL + and VOL - buttons to make thechanges. (Follow the same procedure as in steps 3~4 above.)Press the MENU button to exit the menu. Different channels and fields display different information: Field 2 carries additional information thatsupplements the information inField 1. (For example, Channel 1may have subtitles in English, whileChannel 2 has subtitles in Spanish.)Note: If you select PIP fuction, thecaption will disappear▼Quick way to access Caption: Sim-ply press CAPTION button on theremote control.
ENG 4.19SPECIAL FEATURESViewing Picture-in-PictureYou can use the PIP feature to simultaneously watch two video sources.Note: While V-Chip is in operation, PIP function cannot be used.Activating Picture-in-Picture3Press the VOL + button toselect PIP “On.” ▼If you turn the TV off whilewatching and turn it on again, the PIPwindow will disappear.▼Quick way to access PIP: Simplypress PIP button on the remote con-trol.4Press the MENU button to exit the menu.FunctionMove Select MenuPIP : On TV/Video TV Swap Size PIP ANT/CATV ANT Ch. No.  ANT 3 1Press the MENU button todisplay the menu.Press the CH ▼button toselect “Function”, thenpress the VOL+ button.FunctionMove Select MenuTime Prefered Ch. ANT 3 On time Vol. 14PIPCaptionV-ChipLanguage English2Press the CH ▼button toselect “PIP”, then pressthe VOL+ button.FunctionMove Select MenuTime Prefered Ch. ANT 3 On time Vol. 14PIPCaptionV-ChipLanguage EnglishPIP Settings
ENG 4.201Press the MENU button todisplay the menu.Press the CH ▼button toselect “Function”, thenpress the VOL+ button.FunctionMove Select MenuTime Prefered Ch. ANT 3 On time Vol. 14PIPCaptionV-ChipLanguage English3Press the CH ▼button toselect “TV/Video”.FunctionMove Select MenuPIP : On TV/Video Video Swap Size PIP ANT/CATV ANT Ch. No.  ANT 3 2Press the CH ▼button toselect “PIP”, then pressthe VOL+ button.FunctionMove Select MenuTime Prefered Ch. ANT 3 On time Vol. 14PIPCaptionV-ChipLanguage English4Press the VOL+ or VOL-button repeatedly to cyclethrough all of the availablesignal sources:“TV,” “VIDEO ,” “S-VIDEO“.Press the MENU button toexit the menu.FunctionMove Select MenuPIP : On TV/Video Video Swap Size PIP ANT/CATV ANT Ch. No.  ANT 3 Selecting a Signal Source (External A/V) for PIPSPECIAL FEATURES
ENG 4.21SPECIAL FEATURES1Press the MENU button todisplay the menu.Press the CH ▼button toselect “Function”, thenpress the VOL+ button.FunctionMove Select MenuTime Prefered Ch. ANT 3 On time Vol. 14PIPCaptionV-ChipLanguage English3Press the CH ▼button toselect “ANT/CATV”.FunctionMove Select MenuPIP : On TV/Video TV Swap Size PIP ANT/CATV ANT Ch. No.  ANT 3 2Press the CH ▼button toselect “PIP”, then pressthe VOL+ button.FunctionMove Select MenuTime Prefered Ch. ANT 3 On time Vol. 14PIPCaptionV-ChipLanguage EnglishSelecting a Signal Source (Antenna or Cable) for PIP4If an antenna is con-nected, the setting is“ANT.” If a Cable TV system isproviding the signal,press the VOL+ or VOL-button until the appro-priate type of cable sys-tem is is displayed(“STD,” “HRC,” or“IRC”).Press the MENU button toexit the menu.FunctionMove Select MenuPIP : On TV/Video TV Swap Size PIP ANT/CATV ANT Ch. No.  ANT 3
ENG 4.22SPECIAL FEATURESWhen you press the LOCATE button repeatedly, the PIP win-dow moves from corner to corner on the TV screen.Changing the Location of the PIP WindowPress the PIP CH▲or CH▼ button to change the channelthat appears in the PIP window.Changing the PIP Channel (LTM405W)Press the SIZE button to alternate between a PIP, Doublescreen1, Double screen2 window.Note: The Double screen2 window doesn’t work in the PCmode.Changing the Size of the PIP WindowWhen you press the SWAP button, the image in the PIP win-dow will appear on the main screen, and vice versa. Swapping the Contents of the PIP image andMain image (TV, VIDEO and S-VIDEO mode only)
ENG 4.23Using the V-ChipThe V-Chip feature automatically locks out programming that is deemed inappropriate forchildren. The user must first enter a PIN (personal ID number) before any of the V-Chiprestrictions can be set up or changed. Note: While V-Chip is in operation, PIP function cannot be used.If PIP does not operate, please check whether V-chip is in operation.Setting Up Your Personal ID Number (PIN)1Press the MENU button todisplay the menu.Press the CH ▼ button toselect “Function”, thenpress the VOL + button.FunctionMove Select MenuTime Prefered Ch. ANT 3 On time Vol. 14PIPCaptionV-ChipLanguage English2Press the CH ▼ button toselect “V-chip”, thenpress the VOL+ button.FunctionV-Chip Enter pin * * * *3After entering a valid PINnumber, the “V-chip”screen will appear. Press the CH ▼button toselect “Change Pin.” FunctionV-Chip lock : Yes TV guidelines MPAA ratingChange pinMove Select Menu4Press the VOL+ button.The Change pin screenwill appear. Choose any4-digits for your PIN andenter them. FunctionChange pin Enter pin * * * *FunctionChange pin Enter pin * * * * Confirm New PinIf you forget the PIN, press theremote-control's EXIT button while5 seconds which resets the pin to 0-0-0-0.▼SPECIAL FEATURESAs soon as the 4 digits are entered, the “Confirm new Pin”screen appears. Re-enter the same 4 digits. When the Con-firm screen disappears, your PIN has been memorized. Press the MENU button to exit the menu. The “Enter Pin” screen will appear. Enter your 4-digit PINnumber. Note: The default PIN number for a new TV set is“0-0-0-0.”➜
ENG 4.24How to Set up Restrictions Using the “TV guidelines”First, set up a personal identification number (PIN), and enable the V-Chip. (See previoussection.) Parental restrictions can be set up using either of two methods: The TV guide-lines or the MPAA rating.How to Enable/Disable the V-Chip1Press the MENU button todisplay the menu.Press the CH ▼ button toselect “Function”, thenpress the VOL + button.FunctionMove Select MenuTime Prefered Ch. ANT 3 On time Vol. 14PIPCaptionV-ChipLanguage English2Press the CH ▼button toselect “V-chip”, thenpress the VOL+ button.The “Enter pin” screenwill appear. Enter your 4-digit PIN number. Function0~9 Select MenuV-Chip Enter pin * * * *3The “V-Chip” screen willappear, and “V-Chip lock”will be selected.To enable the V-Chip feature,press the VOL+ button sothat the “V-Chip Lock” is setto Yes. (Pressing the VOL+ buttonwill alternate between Yesand No.)FunctionV-Chip lock : Yes TV guidelines MPAA ratingChange pinMove Select Menu1Press the MENU button todisplay the menu.Press the CH ▼ button toselect “Function”, thenpress the VOL + button.FunctionMove Select MenuTime Prefered Ch. ANT 3 On time Vol. 14PIPCaptionV-ChipLanguage EnglishSPECIAL FEATURES
ENG 4.252Press the CH ▼button toselect “V-chip”, thenpress the VOL+ button.The “Enter pin” screenwill appear. Enter your 4-digit PIN number. Function0~9 Select MenuV-Chip Enter pin * * * *3Press the CH ▼button, toselect “TV Guidelines”,then press the VOL+ button. FunctionV-Chip lock : Yes TV guidelines MPAA ratingChange pinMove Select Menu4The “TV guidelines”screen will appear. Press the the CH ▲, CH ▼buttons to select one ofthe six age-based cate-gories:TV-Y Young childrenTV-Y7 Children 7 and over--------------------------------------TV-G General audienceTV-PG Parental guidanceTV-14 Viewers 14 and overTV-MA Mature audience5At this point, one of the TV-Ratings is selected.Press the VOL+ button: Depending on your existing setup, a letter “U” or “B” will be highlighted.(U= Unblocked, B= Blocked)While the “U” or ”B” is highlighted, press the CH ▲or CH ▼buttons to block or unblock the category.Press the MENU button once to save the TV guidelines. To menu this screen, press the MENU again. To select a different TV-Rating, press the CH ▲or CH ▼buttons and then repeat the process.Note 1: The TV-Y7, TV-PG, TV-14 and TV-MA have additional options. See the next step to change any of the following sub-ratings:FV: Fantasy violenceD: Sexual suggestive dialogL: Adult languageS: Sexual situationV: ViolenceNote 2: The V-Chip will automatically block certain categories that are “more restrictive.” For example, if you block“TV-Y” category, then TV-Y7 will automatically be blocked. Similarly, if you block the TV-G category, then all thecategories in the “young adult” group will be blocked (TV-G, TV-PG, TV-14 and TV-MA). The sub-ratings (D, L, S, V)work together similarly. (See next section.)Note: These categories consist oftwo separate groups: TV-Y and TV-Y7(young children through age 7), andTV-G through TV-MA (everybodyelse). The restrictions for these two groupswork independently: If a householdincludes very young children as wellas young adults, the TV guidelinesmust be set up separately for each agegroup. (See next step.)▼SPECIAL FEATURES
ENG 4.26How to Set up Restrictions using the MPAA Ratings: G, PG, PG-13, R, NC-17, XThe MPAA rating system uses the Motion Picture Association of America (MPAA) system, andits main application is for movies. (Eventually, movie videocassettes will be encoded withMPAA ratings.) When the V-Chip lock is on, the TV will automatically block any programsthat are coded with objectionable ratings (either MPAA or TV-Ratings).6How to set the FV, D, L, S and V sub-ratings.First, highlight one of these TV-Ratings: TV-Y7, TV-PG, TV-14 or TV-MA (See Step 4, on previous page).Next, while the TV-Rating is selected, repeatedly press the VOL+ button. This will cycle through the avail-able sub-ratings (FV,L, S, D or V).A letter (“U” or “B”) will be displayed for each sub-rating. While the “U” or “B” is highlighted, press the CH▲or CH ▼buttons to change the sub-rating.Press MENU once to save the TV guidelines. To menu this screen, press the MENU button again. To select adifferent TV-Rating, press the CH ▲or CH ▼buttons and then repeat the process.Note: The V-chip will automatically block certain categories that are “More restrictive”. For example, if youblock “L” sub-rating in TV-PG, then the “L” sub-ratings in TV-14 and TV-MA will automatically be blocked.7Press the MENU button to clear all the screens. (Or proceed to the next section, and set up additionalrestrictions based on the MPAA codes).1Press the MENU button todisplay the menu.Press the CH ▼button toselect “Function”, thenpress the VOL + button.FunctionMove Select MenuTime Prefered Ch. ANT 3 On time Vol. 14PIPCaptionV-ChipLanguage English2Press the CH ▼button toselect “V-chip”, thenpress the VOL+ button.The “Enter pin” screenwill appear. Enter your 4-digit PIN number. Function0~9 Select MenuV-Chip Enter pin * * * *SPECIAL FEATURES
ENG 4.27How to Reset the TV after the V-Chip Blocks a Channel (“Emergency Escape”)If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following message will appear: “Excessive rating.” To resume normal viewing, tune to a different channel using the number buttons. Under certain conditions(depending on the rating of the local TV programs) the V-Chip might lock out all the channels.In this case, use the V.Chip button for an “emergency escape”:Press the V.chip button on the remote control. Enter your PIN number, and press the VOL+ button to temporarilydisable the V-Chip Lock. 4Repeatedly press the CH▼ button to select a par-ticular MPAA category. (When a category is selected, its colorchanges to blue.) Pressingthe CH ▼button will cyclethrough the MPAA cate-gories:GGeneral audience (no restrictions).PG Parental guidance suggested.PG-13 PG-13 (Parents strongly cautioned).RR (Restricted. Children under 17 should be accompanied by an adult).NC-17 No children under age 17. XX (Adults only).NR Not rated.3Press the CH ▼button toselect “MPAA rating”,then press the VOL+ but-ton. FunctionV-Chip lock : Yes TV guidelines MPAA ratingChange pinMove Select MenuSPECIAL FEATURESWhile a particular category is highlighted, press the VOL+ button to activate it. A letter (“U” or “B”) will be displayed. Press the CH ▲or CH ▼buttons to select “U”or ”B”.Press the MENU button three times to save the settings and to clear all screens.Note: The V-Chip will automatically block any category that is “more restrictive.” For example, if you block the “PG-13” category, then “R,” “NC-17,” and “X” will auto-matically be blocked also.
ENG 5.1Chapter 5PC DISPLAYUsing Your TV as a Computer (PC) DisplayHow to Connect Your PC to the TVNote: This figure shows the Standard Connector-jack panel. The actual configuration onyour TV may be different, depending on the model.• PC AUDIO INPUTConnect these to the audio-output jacks on your PC.• PC VIDEO INPUTConnect to the video output port on your PC.TV rear panel PC rearHow to Set up Your PC display“Auto” allows the TV to self-adjust to the incoming video signal. The values of fine,coarse and position are adjusted automatically.Press the TV/VIDEO button on the remote control to select the PC Analog mode.1Press the AUTO button on the remote control or top panel.(refer to pages 5.3~5.4).Note: PC connec-tions may depend onthe user’s PC.Note: When a PC digital signal is input, Contrast, PictureAdjustment, Position Adjustment, Color Adjustment, SettingDefault in PC screen setting will not operate.
ENG 5.2PC DISPLAYHow to Set up Your PC Software (Windows only)The Windows display-settings for a typical computer are shown below. However, the actu-al screens on your PC will probably look different, depending upon your particular versionof Windows and your particular video card. Even if your actual screens look different, thesame, basic set-up information will apply in most cases. (If not, contact your computermanufacturer or Samsung Dealer.)First, click on “Settings” on the Win-dows start menu.While “Settings” is highlighted, movethe cursor so that “Control Panel” ishighlighted.When the control panel screenappears, click on “Display” and a dis-play dialog-box will appear. Navigate to the “settings” tab on thedisplay dialog-box. The two key variables that apply the TV-PC interface are “resolution” and “col-ors.” The correct settings for these twovariables are:• Size (sometimes called “resolution”): 1280 x 768 pixels.If a vertical-frequency option exists onyour display settings dialog box, the cor-rect value is “75” or “75 Hz.” Otherwise,just click “OK” and exit the dialog box.
ENG 5.3Adjusting the Screen QualityThe purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by fine tuning alone, then do the frequency adjustments tothe utmost and fine tune again. After the noise has been reduced, re-adjust the picture sothat it is aligned on the center of screen.Press the TV/VIDEO button on the remote control to select the PC Analog mode.1Press the MENU button todisplay the menu.Press the CH ▼button toselect “PC”, then pressthe VOL + button.PCMove Select MenuImageImage lockPositionColor adjustRecall1024x768 48.3kHz 59.9Hz3Press the CH ▼button toselect “Coarse” or “Fine”.Press the VOL + or VOL -button to adjust thescreen quality, verticalstripes appear or the pic-ture may be blurry.PCMove Select MenuImage lock Coarse Fine2Press the CH ▼button toselect “Image lock”, thenpress the VOL + button.PCMove Select MenuImageImage lockPositionColor adjustRecall1024x768 48.3kHz 59.9Hz4When you are satisfied with the settings, press the MENU but-ton repeatedly to return to normal viewing.PC DISPLAYCoarse 1043Adjust MenuMove<Adjusting Coarse>Fine50Adjust MenuMove<Adjusting Fine>
ENG 5.4Changing the Screen PositionPress the TV/VIDEO button on the remote control to select the PC Analog mode.PC DISPLAY1Press the MENU button todisplay the menu.Press the CH ▼button toselect “PC”, then pressthe VOL + button.PCMove Select MenuImageImage lockPositionColor adjustRecall1024x768 48.3kHz 59.9Hz3Press the CH ▼button toselect “H-Position” or “V-Position”.Press the VOL + or VOL -button to adjust.Press the MENU button toexit.PCMove Select MenuPosition H-Position V-Position2Press the CH ▼button toselect “Position”, thenpress the VOL + button.PCMove Select MenuImageImage lockPositionColor adjustRecall1024x768 48.3kHz 59.9HzH-Position50Adjust MenuMove<Adjusting the H-Position>V-Position50Adjust MenuMove<Adjusting the V-Position>Note: When a PC digital signal is input, Contrast, PictureAdjustment, Position Adjustment, Color Adjustment, SettingDefault in PC screen setting will not operate.
ENG 5.5PC DISPLAYChanging the Screen Color Standard Press the TV/VIDEO button on the remote control to select the PC Analog mode.1Press the MENU button todisplay the menu.Press the CH ▼button toselect “PC”, then pressthe VOL + button.PCMove Select MenuImageImage lockPositionColor adjustRecall1024x768 48.3kHz 59.9Hz2Press the CH ▼button toselect “Color adjust”.PCMove Select MenuImageImage lockPositionColor adjustRecall1024x768 48.3kHz 59.9HzPCMove Select MenuColor mode++ Color1 Red++++++ + Green+++++ + + Blue++++++ + 3Press the VOL +or VOL -buttons to select “Custom”, “Color1”,“Color2” or “Color3”. Press the MENU button toexit.Note: When a PC digital signal is input, Contrast, PictureAdjustment, Position Adjustment, Color Adjustment, SettingDefault in PC screen setting will not operate.
ENG 5.6Adjusting the Screen Color SettingsPress the TV/VIDEO button on the remote control to select the PC Analog mode.1Press the MENU button todisplay the menu.Press the CH ▼button toselect “PC”, then pressthe VOL + button.PCMove Select MenuImageImage lockPositionColor adjustRecall1024x768 48.3kHz 59.9Hz2Press the CH ▼button toselect “Color adjust”, thenpress the VOL + button.Repeatedly press VOL + tochoose between Color 1,2,and 3 auto settings andCustom.PCMove Select MenuImageImage lockPositionColor adjustRecall1024x768 48.3kHz 59.9HzPCMove Select MenuColor mode++ Custom Red++++++ + Green+++++ + + Blue++++++ + 3If Custom is selected,press the CH ▼or CH ▲button to select the itemyou want to adjust, thenpress the VOL + or VOL -button to adjust thecolor(R, G, B).Press the MENU button toexit.PC DISPLAYNote: When a PC digital signal is input, Contrast, PictureAdjustment, Position Adjustment, Color Adjustment, SettingDefault in PC screen setting will not operate.
ENG 5.7To Initialize the Screen Position or Color Settings1Press the MENU button todisplay the menu.Press the CH ▼button toselect “PC”, then pressthe VOL + button.PCMove Select MenuImageImage lockPositionColor adjustRecall1024x768 48.3kHz 59.9Hz3Press the CH ▼button toselect “Image recall” or “Color recall”.Press the VOL + or VOL -button to return positionor color to their defaultsettings.Press the MENU button toexit.PCMove Select MenuRecall Image recall Color recall2Press the CH ▼button toselect “Recall”, thenpress the VOL + button.PCMove Select MenuImageImage lockPositionColor adjustRecall1024x768 48.3kHz 59.9HzPC DISPLAYNote: When a PC digital signal is input, Contrast, PictureAdjustment, Position Adjustment, Color Adjustment, SettingDefault in PC screen setting will not operate.
ENG 6.1If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, call your nearest Samsung authorized servicecenter.Identifying ProblemsChapter SixTROUBLESHOOTINGProblemPoor picturePoor sound quality.No picture or sound.No color, wrong colors ortints.Picture rolls vertically.The TV operates erratically.The TV won’t turn on.Blurred or snowy picture,distorted soundRemote control malfunctions“Check Signal Cable” message.Possible SolutionTry another channel.Adjust the antenna.Check all wire connections.Try another channel.Adjust the antenna.Try another channel.Press the TV/VIDEO button.Make sure the TV is plugged in.Check the antenna connections.Make sure the program is broadcast in color.Adjust the picture settings.If the set is moved or turned in a different direction, thepower should be OFF for at least 30 minutes.Adjust the antenna.Check all wire connections.Unplug the TV for 30 seconds, then try operating itagain.Make sure the wall outlet is working.Check the direction, location and connections of yourantenna.This interference is often due to the use of an indoorantenna.Replace the remote control batteries.Clean the upper edge of the remote control(transmission window).Check the battery terminals.Ensure that the signal cable is firmly connected to thePC or video sources.Ensure that the PC or video sources are turned on.
ENG 6.2Problem“Not Supported Mode!” mes-sage.The image is too light or toodark.Horizontal bars appear toflicker, jitter or shimmer onthe image.Vertical bars appear to flicker,jitter or shimmer on theimage.Screen is black and powerindicator light blinks steadily.Image is not stable and mayappear to vibrate.Image is not centered on thescreen.You need the Monitor driversoftware.Possible SolutionCheck the maximum resolution and the frequency ofthe video Adapter.Compare these values with the data in the DisplayModes Timing Chart.Adjust the Brightness and Contrast.Adjust the Fine function.Adjust the Coarse function and then adjust the Finefunction.The TV is using its power management system.Move the computer’s mouse or press a key on thekeyboard.Check that the display resolution and frequency fromyour PC or video board is an available mode for yourTV. On your computer check: Control Panel, Display,Settings.If the setting is not correct, use your computer utilityprogram to change the display settings. NOTE: Your TV supports multiscan display functionswithin the following frequency domain:• Horizontal frequency: 30kHz ~ 60kHz • Vertical frequency: 56 Hz ~ 75 Hz• Maximum refresh rate: 1280 x 768 @ 75HzAdjust the horizontal and vertical position.Download the driver from WWW pages:http://www.samsungusa.com/monitorhttp://www.samsung-monitor.comTROUBLESHOOTING
ENG A.1APPENDIXSetting the StandNote: A 29-inch TV set will be shipped with a stand attached, and a 40-inch TV set willbe shipped with a stand detached. For 40-inch TV sets, assemble the stand in the follow-ing steps.1Fasten the stand support top ontoboth ends of the stand-swivelusing screws (M4x12, yellow).2Fit the stand to the TV set by fac-ing the arrow mark on the standforward (LCD panel).3Fasten the stand into the TV setusing screws (Mx25, black).Stand accessoriesStand support top (2EA) Stand Swivel Screw M4x12(Yellow):8EA/Screw M4x25(Black):4EAScrewM4x12 (Yellow)ScrewM4x25(Black)
ENG A.2APPENDIXUsing the Anti-Theft Kensington LockFigure 2Figure 1CableThe Kensington lock is a device used to physically fix the system when using it in a public place. The lockingdevice has to be purchased separately. The appearance and locking method may differ from the illustrationdepending on the manufacturer. Please refer to the manual provided with the Kensington lock for proper use.1Insert the locking device into the Kensington slot on the LCD TV(figure 1), and turn it in the lockingdirection(figure 2).2Connect the Kensington lock cable.3Fix the Kensington lock to a desk or a heavy stationary object.<Optional>
ENG A.3Pin AssignmentsPin D-Sub ConnectionAPPENDIXPIN123456789101112131415Separate H/VRedGreenBlueGNDGND (DDC Return)GND-RedGND-GreenGND-BlueNo ConnectionGND-Sync/Self TestGNDDDC-SDAH_SyncV_SyncDDC-SCLComposite H/VRedGreenBlueGNDGND (DDC Return)GND-RedGND-GreenGND-BlueNo ConnectionGND-Sync/Self TestGNDDDC-SDAH/V_SyncNot usedDDC-SCL
ENG A.4APPENDIXDisplay ModesIf the signal from the system equals the standard signal mode, the screen is adjustedautomatically. If the signal from the system doesn’t equal the standard signal mode,adjust the mode by referring to your Videocard user guide; otherwise there may be novideo. For the display modes listed below, the screen image has been optimized duringmanufacture.Preset timing modesMode Resolution HorizontalFrequency(kHz)VerticalFrequency(Hz)PixelClockFrequency(MHz)Sync Polarity(H/V)640 X 480640 X 480640 X 480640 X 480720 X 400800 X 600800 X 600800 X 600832 X 6241024 X 7681024 X 7681024 X 7681280 X 76831.46935.00037.86137.50031.46937.87948.07746.87549.72648.36356.47660.02347.70059.94066.66772.80975.00070.08760.31772.18875.00074.55160.00470.06975.02960.00025.17530.24031.50031.50028.32240.00050.00049.50057.28465.00075.00078.75080.136-/--/--/--/--/++/++/++/+-/--/--/-+/+-/-MACMACVESAVESAIBMVESAVESAVESAMACVESAVESAVESAGTFNTSC Broadcasting SystemsColorSystem SoundSystem StereoSystem ChannelSystem CountriesMNTSCA2*BTSC (SAP)EIAJUSUSJapan* Note : This Model is set up for BTSC (SAP).KoreaUSA, Canada, Chile,Venezuela, Cuba, Colombia,Jamaica, Mexico, Panama,Peru, Philippines, Puerto-Rico,TaiwanJapan
ENG A.5APPENDIXCleaning and Maintaining Your TVWith proper care, your TV unit will give you many years of service. Please follow theseguidelines to get the maximum performance from your TV.Placement•Do not place the TV near extremely hot, cold, humid or dusty places.•Do not place the TV near appliances with electric motors that create magnetic fields,such as vacuum cleaners.•Keep the ventilation openings clear; do not place the TV on a soft surface, such ascloth or paper.•Place the TV in a vertical position only. Liquids•Do not handle liquids near or on the TV. Liquids that spill into it can cause serious damage.Cabinet•Never open the cabinet or touch the parts inside.•Wipe your TV with a clean, dry cloth. Never use water, cleaning fluids, wax, orchemicals.•Do not put heavy objects on top of the cabinet.Temperature•If your TV is suddenly moved from a cold to a warm place, unplug the power cord,and allow at least two hours for moisture that may have formed inside the unit to drycompletely.Using Your TV in Another CountryIf you plan to take your TV with you to a foreign country, please be aware of the differenttelevision systems that are in use around the world. A TV designed for one system maynot work properly with another system due to differences in the TV channel frequencies.
ENG A.6.SpecificationsAPPENDIXLTM295 LTM405* Referring to Preset timing modes, page A.4Panel*FrequencyDisplayResolutionInput SignalVideoComponentPower Supply PowerConsumptionDimensions/WeightEnvironmentalConsiderationsAudioCharacteristicsSize Pixel PitchType Display areaViewing AngleHorizontalVerticalDisplay ColorOptimum ModeMaximum ModeSync.Video signalColor systemVideo systemVideo InAudio InInputOutputMaximumPower SavingUnit (WxDxH) :TV bodyWith speakerOperating TemperatureOperating HumidityStorage TemperatureStorage HumidityAudio Input 1Audio Input 2DVDDTVHeadphone outFrequencyResponse29.0” Diagonal 0.4935(H) X 0.4935(V)mm a-si TFT active matrix 631.68(H) X 397.01(V)mm85/85/85/85 (L/R/U/D)30~60 kHz56~75 Hz16,777,216 color1024 X 768 @ 75 Hz1280 X 768 @ 75 HzH/V Separate, TTL, P. or N.0.7 Vp-p @ 75 ohmNTSCCVBS, S-VHS, RGB1.0 Vp-p @ 75 ohm500mVrmsAC 90~264 V, 1.0~0.5A (50/60Hz)DC 28 V/8A160W< 7 W29.9 x 7.7 x 22.3 inches/39.7 lbs(759.6 x 195.0 x 568.5 mm/18.0 kg)37.8 x 7.7 x 22.4 inches(961.2 x195.0 x568.5 mm)50 °F to 104 °F (10 °C to 40 °C)10% to 80%-13 °F to 113 °F (-25 °C to 45 °C)5% to 95%RCA Jack Red(R) White(L), 0.5Vrms (-9dB)3.5ø Stereo Jack, 0.5Vrms (-9dB)RCA Jack Red(R) White(L), 0.5Vrms (-9dB)RCA Jack Red(R) White(L), 0.5Vrms (-9dB)Max. 10mW Output (3.5ø Stereo Jack 32)RF: 80Hz ~ 15kHz (at- 3dB)A/V: 80Hz ~ 20kHz (at - 3dB)40.0” Diagonal 0.6735(H) X 0.6735(V)mm a-si TFT active matrix 862.080(H) x 517.248(V)mm85/85/85/85 (L/R/U/D)30~60 kHz56~75 Hz16,777,216 color1024 X 768 @ 75 Hz1280 X 768 @ 75 HzH/V Separate, TTL, P. or N.0.7 Vp-p @ 75 ohmNTSCCVBS, S-VHS, RGB1.0 Vp-p @ 75 ohm500mVrmsAC 90~264 V, 1.0~0.5A (50/60Hz)DC 28 V/8A220 W< 7 W39.6 X 11.8 X 29.4 inches/61.7 lbs(1006.0 X 300.0 X 746.5 mm/28.0 kg)49.1 x 11.8 x 29.4 inches(1247.6 x 300.0 x 746.5 mm)50 °F to 104 °F (10 °C to 40 °C)10% to 80%-13 °F to 113 °F (-25 °C to 45 °C)5% to 95%RCA Jack Red(R) White(L), 0.5Vrms (-9dB)3.5ø Stereo Jack, 0.5Vrms (-9dB)RCA Jack Red(R) White(L), 0.5Vrms (-9dB)RCA Jack Red(R) White(L), 0.5Vrms (-9dB)Max. 10mW Output (3.5ø Stereo Jack 32)RF: 80Hz ~ 15kHz (at- 3dB)A/V: 80Hz ~ 20kHz (at - 3dB)
