Your New Wide TVSAMSUNG
Your New Wide TV6• For replacement, you will need a 5.91 Inches-long Phillips screwdriver and a pair of gloves.Replacing the Lamp• Why do I need to replace the lamp?The lamp used in a projection TV has a limited lifespan. For the best screen quality it needs to bereplaced periodically. After replacing the lamp, the screen quality will be bright and clear as new.•When do I need to replace it?It should be replaced when the screen becomes darker, less clear or when all three LEDs on the front(Timer, Lamp, & Temp.) are flashing.•Check before lamp replacement 1. The lamp must be the same code number and type. 2. The lamp type is indicated on the right side of the TV. It is also indicated on the lamp case. 3. After checking the code number for the lamp, give the code number to the store where youpurchased the TV or to a Samsung Service center. •Caution1. Replace with the correct code numbered lamp to avoid damage to the TV. 2. Turn the power off and wait for 30 minutes before replacing the lamp as it will be hot. 3. Do not touch the glass part of the lamp with your bare hands nor insert any foreign object insidethe cover as it may cause poor screen quality, electric shock or fire.4. Do not place the old lamp near flammable objects or within the reach of children. NOTES• Be sure the replacement Lamp is the same type.• After replacing the lamp, align the lamp cover with the groove and secure the screw. • The TV will not turn on if the lamp cover is not correctly closed (as this will activate theprotective circuit).1Unplug TV, then remove thescrew.2Remove the Lamp cover.3Remove the screws securingthe Lamp.4Separate the Lamp from theengine by holding the handleand pulling it out.5To reinstall the Lamp, followthese steps in reverse order.7
98Front Panel ButtonsThe buttons on the front panel control your TV’s basic features, including the on-screen menu system. To usethe more advanced features, you must use the remote control.List of FeaturesYour TV was designed and engineered using the latest technology. It is a full-featured, high-performanceunit that exceeds industry standards. In addition, it has these special features:• Easy-to-operate remote control• Easy-to-use on-screen menu system you can access from the side panel or remote control• Automatic timer to turn the TV on and off at any time you choose• Adjustable picture and sound settings and the ability to memorize your favorite settings• Automatic channel tuning for up to 181 channels• A special filter to reduce or eliminate reception problems• Fine tuning control for the sharpest picture possible• A built-in multi-channel sound decoder for stereo and bilingual listening• Built-in, dual channel speakers• A special sleep timer• Picture-in-Picture capability that lets you watch two channels at once• Widescreen TV with adjustable image size• Life-like clear images provided by DNle technology• MCC (My Color Control) Mode for corresponding with your color style• Color weakness ModeAccessoriesOnce you have unpacked your TV, check to make sure that you have all the parts shown here. If anypiece is missing or broken, call your dealer. Your New Wide TVRemote Control(BP59-00048B)/AAA Batteries(4301-000103)Instruction Manual/Safety Guide Manual/Quick Guide ManualWarranty Cards (2)/Registration Card (1)Press to switch between viewing TV programs andsignals from connected components.Auto Timer ON/OFF has been set and the set willautomatically be turned on in about 25 seconds.Press to change channels and move between items onthe on-screen menu.Press to activate (or change) a particular item.Press to turn the TV on and off.Standby state.Aim the remote control towards this spot on the TV.Press to lower or raise the volume and to select itemswhen using the on-screen menu.Press to see the on-screen menu.
11Your New Wide TV10Front Panel Information Window Rear Panel JacksUse the rear panel jacks to connect components such as a VCR. You can connect different componentssuch as VCRs, Set-Top Box and a DVD player etc., because there are two sets of video input jacks andthree set of component video input jacks on the rear panel of your TV. For more information, please see“Connections”.ŒANTENNA terminalsTwo independent cables or antennas can be connected to these terminals. Use“ANT 1 IN” and “ANT 2 IN” terminals to receive a signal from VHF/UHFantennas or your cable system. Use the “ANT 1 OUT” terminal to send the signalbeing received by the “ANT 1 IN” terminal out to another component (such as aCable Set-Top Box). The PIP channel can be received only when a signal source isconnected to “ANT 1 IN”.´S-VIDEO INPUT jacksConnects an S-Video signal from an S-VHS VCR or DVD player. ˇVIDEO/AUDIO INPUT jacks (VCR1, VCR2) Connect video/audio signals from external sources, such as a VCR or DVDplayers.¨ VIDEO/AUDIO OUTPUT jacks Sends a video signal from the TV to an external source, such as a VCR.Note: It is available only in RF, Video and S-Video modes. ˆComponent1, 2 jacks (Y, PB, PR, L, R) Use these jacks to connect the component video/audio signals from a DVDplayer or a set top box when using the component video input jacks.ØPC AUDIO INPUT jacksConnect these to the audio output jacks on your PC.∏PC VIDEO INPUT jackConnect these to the video output jack on your PC .”DVI (Digital Video Interface) AUDIO INPUT jacksConnect to the digital audio output jacks for device with DVI output.’DVI (Digital Video Interface) VIDEO INPUT jack Connect to the digital video output jack for device with DVI output.˝HDMI (High Definition Multimedia Interface)VIDEO/AUDIO INPUT jackConnect to the HDMI jack for device with HDMI output.ÔSERVICEThis jack is for repair and software upgrades.Your TV is turned on normally.Lamp may be defective. Please contact acertified technician.Check if the ventilation hole on the rear ofthe set is blocked, because if the innertemperature is too high, the power will shutoff.A cooling fan inside the set is not operatingnormally.NOTES•It takes about 30 seconds for the TV to warmup, so normal brightness may not appear immediately.• The TV has a fan to keep the inside lamp fromoverheating. You’ll occasionally hear it working.
Installing Batteries in the Remote ControlWith normal use, the batteries in the remote control should last about a year. If you notice a performancedegradation while using the remote, the batteries may need to be replaced. Make sure you replace bothbatteries and do not mix old and new batteries in the remote control. If you won’t be using the remotecontrol for a long time, remove the batteries and store them in a cool dry place.1Slide the back cover all the way outto open the battery compartment ofthe remote control.2Install two AAA size batteries.Make sure to match the “+” and“–” ends of the batteries with thediagram inside the compartment.3Slide the cover back into place.13Remote ControlYou can use the remote control up to about 23 feet from the TV. When using the remote control, alwayspoint it directly at the TV. You can also use your remote control to operate your Set-Top box, VCR, Cablebox or DVD player. See pages 46~47 for details.Your New Wide TV121. POWERTurns the TV on and off.2. S.MODEAdjust the TV sound by selecting one of thepreset factory settings (or select your personal,customized sound settings.)3. P.MODEAdjust the TV picture by selecting one of thepreset factory settings (or select your personal,customized picture settings.)4. +100Press to select cable channels over 100 on TV.5. VOL +, VOL -Press to increase or decrease the volume.6. MUTEPress to mute the TV sound.7. FAV.CH (Favorite Channel)Press to switch between your favorite channels.8. MENUDisplays the main on-screen menu.9. STILLPress to stop the action during a particularscene. Press again to resume normal video.10. P.SIZEPress to change the picture size.11. MODESelects a target device to be controlled by theSamsung remote control (i.e., TV, STB, VCR,CABLE, or DVD).12. PRE-CHTunes to the previous channel.13. TV/VIDEOPress to display all of the available videosources (i.e., TV, Set-Top box, VCR, DVD, DTV,PC).14. CH , CHPress to change channels.15. INFOPress to display information on the TV screen.16. EXITPress to exit the menu.17. ▲, ▼, œ, √, ENTERPress to select highlight up, down, left, or right.While using the on-screen menus, press theENTER to activate (or change) a particular item.18. MTS (MultichannelTelevision Stereo)Press to choose Stereo, Mono or SAP (SecondaryAudio Program).19. SRSActivates TruSurround.20. ADD/DELPress to add or erase channels in the TV’smemory.Use the ADD/DEL button to memorize and erasethe fine tuning after fine tuning channels.21. SLEEPPress to select a preset time interval forautomatic shutoff.22. PIP (Picture In Picture)Activates PIP.23. SETUsed during set up of this remote control, sothat it will work compatibly with other devices(Set-Top box, VCR, Cable box, DVD, etc.)24. DNIe (Digital NaturalImage engine)Activates DNIe.25. PIP ControlsSIZE; Press to select the size of PIP window.SWAP; Press to exchange the video signal thatis currently displayed on the main screen withthe signal in the PIP window.CH / ; Press to display the availablechannels in sequence. (These buttons changechannels in the PIP window only.)26. VCR/DVD ControlsControls VCR or DVD functions: Rewind, Stop,Play/Pause, Fast Forward.27. RESETIf your remote control is not functioningproperly, take out the batteries and press thereset button for about 2~3 seconds. Re-insertthe batteries and try using the remote controlagain.
ConnectionsSAMSUNG
16 17ConnectionsConnecting VHF and UHF AntennasIf you do not have a cable system, you will need to connect an antenna to your TV. Antennas with 300-ohm Flat Twin LeadsIf your antenna looks like this: it has 300-ohm flat twin leads.1Place the wires from the twinleads under the screws on the300-75 ohm adaptor (notsupplied). Use a screwdriverto tighten the screws.2Plug the adapter into the“ANT 1 IN” terminal on therear panel. Antennas with 75-ohm Round LeadsIf your antenna looks like this: it is an antenna with 75-ohm round leads.1Plug the antenna lead into the“ANT 1 IN” terminal on therear panel.Separate VHF and UHF AntennasIf you have two separate antennas for your TV (one VHF and one UHF), you must combine thetwo antenna signals before connecting the antennas to the TV. This procedure requires an optionalcombiner-adaptor (available at most electronics shops).1Connect both antennaleads to the combiner. 2Plug the combiner into the“ANT 1 IN” terminal onthe rear panel.

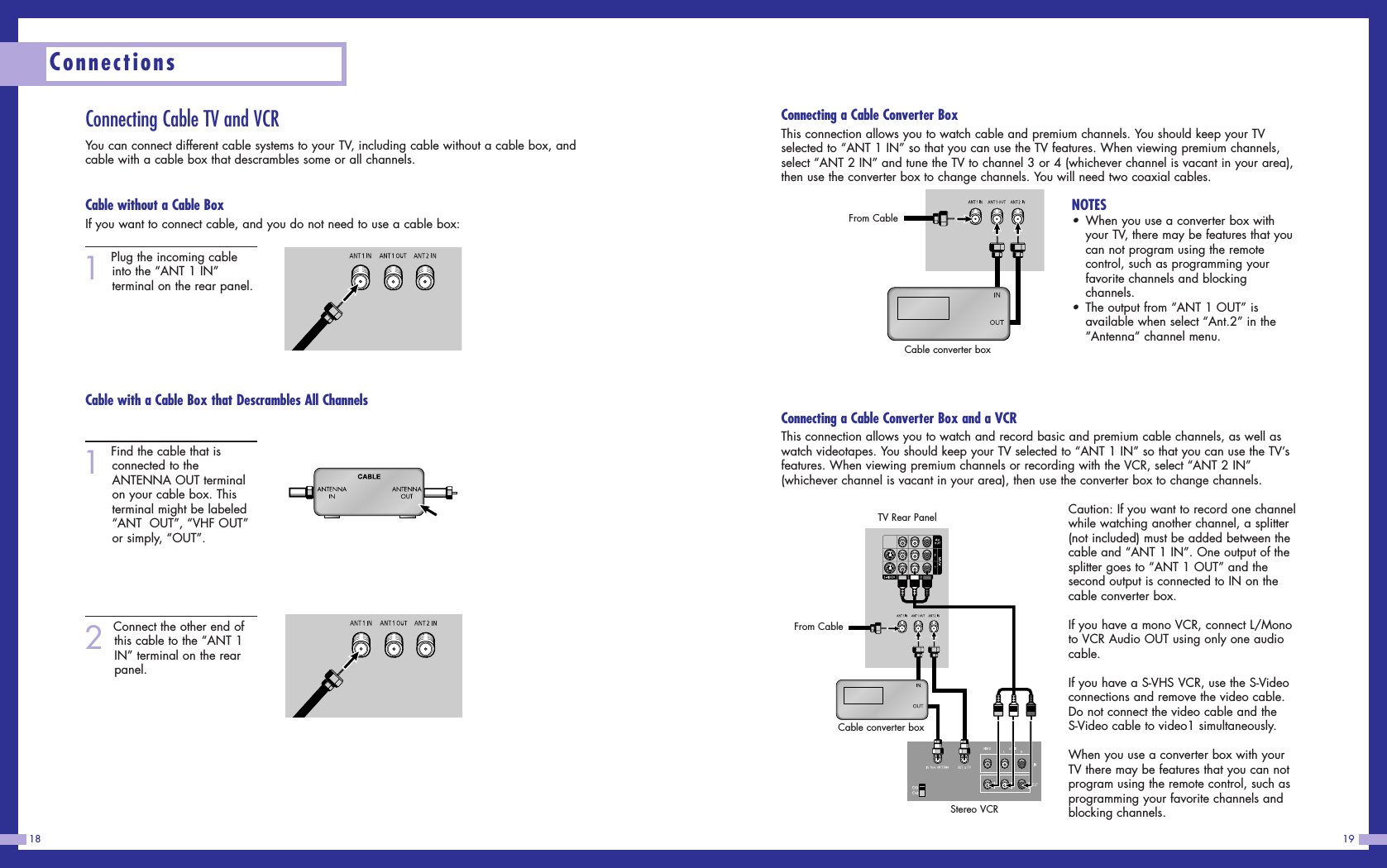

19Connections18Connecting Cable TV and VCRYou can connect different cable systems to your TV, including cable without a cable box, andcable with a cable box that descrambles some or all channels.Cable without a Cable BoxIf you want to connect cable, and you do not need to use a cable box:1Plug the incoming cableinto the “ANT 1 IN”terminal on the rear panel.Cable with a Cable Box that Descrambles All Channels1Find the cable that isconnected to theANTENNA OUT terminalon your cable box. Thisterminal might be labeled“ANT OUT”, “VHF OUT”or simply, “OUT”.2Connect the other end ofthis cable to the “ANT 1IN” terminal on the rearpanel. Connecting a Cable Converter BoxThis connection allows you to watch cable and premium channels. You should keep your TVselected to “ANT 1 IN” so that you can use the TV features. When viewing premium channels,select “ANT 2 IN” and tune the TV to channel 3 or 4 (whichever channel is vacant in your area),then use the converter box to change channels. You will need two coaxial cables.NOTES•When you use a converter box withyour TV, there may be features that youcan not program using the remotecontrol, such as programming yourfavorite channels and blockingchannels.•The output from “ANT 1 OUT” isavailable when select “Ant.2” in the“Antenna“ channel menu.Connecting a Cable Converter Box and a VCRThis connection allows you to watch and record basic and premium cable channels, as well aswatch videotapes. You should keep your TV selected to “ANT 1 IN” so that you can use the TV’sfeatures. When viewing premium channels or recording with the VCR, select “ANT 2 IN”(whichever channel is vacant in your area), then use the converter box to change channels. Caution: If you want to record one channelwhile watching another channel, a splitter(not included) must be added between thecable and “ANT 1 IN”. One output of thesplitter goes to “ANT 1 OUT” and thesecond output is connected to IN on thecable converter box.If you have a mono VCR, connect L/Monoto VCR Audio OUT using only one audiocable.If you have a S-VHS VCR, use the S-Videoconnections and remove the video cable.Do not connect the video cable and the S-Video cable to video1 simultaneously.When you use a converter box with yourTV there may be features that you can notprogram using the remote control, such asprogramming your favorite channels andblocking channels.From CableTV Rear PanelFrom CableStereo VCRCable converter boxCable converter box
Connecting a DVD PlayerThe rear panel jacks on your TV make it easy to connect a DVD player to your TV.Connecting to Y,PB,PR1Connect a set of audio cablesbetween the COMPONENT (1 or 2)AUDIO (L,R) IN jacks on the TV andthe AUDIO OUT jacks on the DVDplayer.2To enable Component videoviewing, connect a set of videocables between the COMPONENT(1 or 2) VIDEO (Y, PB, PR) IN jackson the TV and VIDEO (Y/PB/PRorY/CB/CR) OUT jacks on the DVDplayer.Note: For an explanation of Componentvideo, see your DVD player's owner'smanual.Connecting to audio and video jacks1Connect a set of audio cablesbetween the AUDIO IN (1 or 2)jacks on the TV and the AUDIOOUT jacks on the DVD player.2Connect a video cable between theVIDEO IN (1 or 2) jack on the TVand the VIDEO OUT jack on theDVD player.21Connecting a CamcorderThe rear panel jacks on your TV make it easy to connect a camcorder to your TV.You can use your camcorder to view tapes without using a VCR.1Locate the A/V output jacks on thecamcorder. They are usually found onthe side or back of the camcorder. 2Connect a set of audio cables betweenthe AV (1 or 2) AUDIO (L,R) IN jackson the TV and the AUDIO OUT jackson the camcorder. If you have monocamcorder, connect L(mono) tocamcorder audio out using only oneaudio cable.3Connect a video cable between the AV(1 or 2) VIDEO IN (or S-VIDEO IN)jack on the TV and the VIDEO OUTjack on the camcorder. The audio-video cables shown here are usuallyincluded with a Camcorder. (If not,check your local electronics store.)If your camcorder is stereo, you needto connect a set of two cables.Connections20Camcorder Output JacksTV Rear PanelCamcorderTV Rear PanelDVD PlayerIncoming Cable or AntennaTV Rear PanelDVD PlayerIncoming Cable or Antenna
Connecting a DTV Set-Top BoxConnecting to Y,PB,PR1Connect a set of audiocables between theCOMPONENT (1 or 2)AUDIO (L,R) IN jacks on theTV and the AUDIO OUTjacks on the Set-Top Box.2Connect a set of videocables between theCOMPONENT (1 or 2)VIDEO (Y, PB, PR) IN jackson the TV and VIDEO(Y/PB/PRor Y/CB/CR) OUTjacks on the Set-Top Box.Note: For an explanation ofComponent video, see yourSet Top Box owner'smanual.Connecting to DVI (Digital Visual Interface)1Connect a set of audiocables between the DVIAUDIO (L,R) IN jacks on theTV and the AUDIO OUTjacks on the Set-Top Box.2Connect a video cablebetween the DVI IN jack onthe TV and the DVI OUTjack on the Set-Top Box.23Connections22Connecting to R,G,B1Connect a set of audiocables between the PCAUDIO (L,R) IN jacks on theTV and the AUDIO OUTjacks on the Set-Top Box.2Connect a video cablebetween the PC IN jack onthe TV and the R.G.B OUTjack on the Set-Top Box.Connecting to HDMI (High Definition Multimedia Interface)1Connect a HDMI cablebetween the HDMI IN jackon the TV and the HDMI OUTjack on the Set-Top Box.NOTE•Please check if the power ofHDMI source is on, in case thatyou fail to select HDMI from the“Source List” even after youconnected the cable of HDMIsource (DTV Set-Top Box, DVD,etc.) to TV.TV Rear Panel DTV Set-Top BoxIncoming Cableor AntennaTV Rear PanelDTV Set-Top BoxIncoming Cableor AntennaTV Rear PanelDTV Set-Top BoxIncoming Cableor AntennaTV Rear PanelDTV Set-Top BoxIncoming Cableor Antenna
OperationSAMSUNG
Viewing the Menus1Press the MENU button.The main menu is displayed.There are five menu groups:“Input”, “Picture”, “Sound”,“Channel” and “Setup”.2Press the …or †button toselect to an item you want inthe menu. Press the œ, √or ENTERbutton to display, change, oruse the selected items.Use the ENTER button toenter items in the menu.3Press the EXIT button to exit.Viewing the DisplayPress the INFO button on theremote control. The TV displays the currentchannel, the status of certainpicture and sound settings andthe current time.Operation26 27Turning the TV On and OffPress the POWER button on the remote control.You can also use the POWER button on the front panel.Viewing the Menus and On-Screen DisplaysThe on-screen menu system allows you to control the settings of your TV. Access the on-screen menusystem by pressing the MENU button on the remote control. Once the on-screen menu appears, usethe …/†/œ/√/ENTER on your remote control to select menu items and make adjustments. You can also view the on-screen menu system and make some adjustments using the TV’s sidepanel buttons.Selecting the Menu LanguageChoose a language for the on-screen menus: English, Spanish or French.InputSource List : TV√Edit Name√Move Enter ExitInputPictureSoundChannelSetupPictureMode : Standard√Color Tone : Warm1√Size√Digital NR : Off√DNIe : On√MCC√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetup1Press the MENU button.Press the …or †button toselect “Setup”, then press theENTER button.2Press the ENTER button toselect “Language”.Press the …or †button toselect the appropriatelanguage, then press ENTERbutton.Press the EXIT button to exit.SetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupSetupLanguage : EnglishTimeV-ChipCaptionBlue Screen : OffMelody : OnColor WeaknessPCMove Enter ReturnInputPictureSoundChannelSetupEnglishEspañolFrançaisSelecting the Antenna InputYou can connect to two different signal sources by choosing the antenna input(1 or 2).1Press the MENU button. Press the …or †button to select“Channel”, then press the ENTER button. 2Press the ENTER button to select“Antenna”.Press the …or †button to select “Ant.1”or “Ant.2”, then press ENTER button.Press the EXIT button to exit.ChannelAntenna : Ant.1√Air/CATV : Air√Auto Program√Add/Delete√Favorite Channels√Name√Fine Tune√▼ MoreMove Enter ReturnInputPictureSoundChannelSetupChannelAntenna : Ant.1Air/CATV : AirAuto ProgramAdd/DeleteFavorite ChannelsNameFine Tune▼ MoreMove Enter ReturnInputPictureSoundChannelSetupAnt.1Ant.2Air 12Signal MonoV-ChipPicture DynamicSound StandardSRS TSXT Stereo MTS Stereo- - : - - am
Storing Channels in Memory (Automatic Method)First, select the correct signal source (“Air”, “STD”, “HRC” or “IRC”) asdescribed on the previous page.1Press the MENU button.Press the …or †button to select“Channel”, then press the ENTER button.2Press the …or †button to select “AutoProgram”, then press the ENTER button.Press the ENTER button to start the autoprogram.The TV begins memorizing all of theavailable stations.Press the ENTER button at any time tointerrupt the memorization process.Press the EXIT button to exit.Adding and Erasing ChannelsYou can add channels that were not memorized or delete unwanted channelsfrom memory.1Press the MENU button. Press the …or †button to select“Channel”, then press the ENTER button.2Press the …or †button to select“Add/Delete”, then press the ENTERbutton.Repeatedly pressing the ENTER button willalternate between add channel and deletechannel.Press the CH or CH button (ornumber buttons) to switch to theappropriate channel, then repeat above.Press the EXIT button to exit.Alternate methodSimply press the ADD/DEL button on the remote control to add or delete channels.29Operation28Memorizing the ChannelsYour TV can memorize and store all of the available channels for both “off-air” (antenna) andcable channels. After the available channels are memorized, use the CH and CH buttons toscan through the channels. This eliminates the need to change channels by entering the channeldigits. There are three steps for memorizing channels: selecting a broadcast source, memorizingthe channels (automatic) and adding/deleting channels (manual).ChannelAntenna : Ant.1√Air/CATV : Air√Auto Program√Add/Delete√Favorite Channels√Name√Fine Tune√▼ MoreMove Enter ReturnInputPictureSoundChannelSetupChannelAntenna : Ant.1√Air/CATV : Air√Auto Program√Add/Delete√Favorite Channels√Name√Fine Tune√▼ MoreMove Enter ReturnInputPictureSoundChannelSetup1Press the MENU button.Press the …or †button toselect “Channel”, then pressthe ENTER button.2Press the …or †button toselect “Air/CATV”, thenpress the ENTER button. If you are connected to anantenna, press the …or †button to select “Air”.If you connected cable,press the …or †button toselect the type of cablesystem: “STD”, “HRC” or“IRC”.Press the EXIT button to exit.NOTES• “STD”, “HRC” and “IRC” identify various types of cable TVsystems. Contact your local cable company to identify the typeof cable system that exists in your particular area. At this pointthe signal source has been selected. Proceed to “StoringChannels in Memory”.• Subscription cable services require service-specific requirementfor viewing.ChannelAntenna : Ant.1√Air/CATV : Air√Auto Program√Add/Delete√Favorite Channels√Name√Fine Tune√▼ MoreMove Enter ReturnInputPictureSoundChannelSetupChannelAntenna : Ant.1Air/CATV : AirAuto ProgramAdd/DeleteFavorite ChannelsNameFine Tune▼ MoreMove Enter ReturnInputPictureSoundChannelSetupAirSTDHRCIRCStartEnterAuto ProgramReturnAir 12 Not In MemoryChangeAdd/DeleteEnter ReturnAddSelecting the Video Signal SourceBefore your TV can begin memorizing the available channels, youmust specify the type of signal source that is connected to the TV(i.e., an antenna or a cable system).
Selecting Your Favorite ChannelsYou can store your favorite channels for each available input source (such as TV and CATV). This allows you to quickly and easily find frequently watched channels by pressing the FAV.CHbutton on the remote control.Changing ChannelsYou can change channels on your TV by using the CH and CH buttons, or by directselection using the number buttons. You can use the number buttons to tune to any channel (evenone that has been erased or has not been memorized). 30 31OperationTo Store Your Favorite Channels:1Press the MENU button.Press the …or †button toselect “Channel”, then pressthe ENTER button.2Press the …or †button toselect “Favorite Channels”,then press the ENTER button.Press the …or † button toselect a channel, then pressthe ENTER button.Press the ENTER buttonagain to deselect theselected channel.Press the EXIT button to exit.To View Your Favorite Channels:Press the FAV.CH button repeatedly to jump from one favoritechannel to another.NOTE•Only memorized channels can be set as Favorite channels.ChannelAntenna : Ant.1√Air/CATV : Air√Auto Program√Add/Delete√Favorite Channels√Name√Fine Tune√▼ MoreMove Enter ReturnInputPictureSoundChannelSetupUsing the Channel ButtonsPress the CH or CH button to change channels.When you press the CH or CH button, the TV changeschannels in sequence. You will see all the channels that the TV hasmemorized. (The TV must have memorized at least threechannels.) You will not see channels that were either erased or notmemorized.Using the Number ButtonsPress the number buttons to go directly to a channel.When you use the number buttons, you can directly selectchannels that were either erased or not memorized.For example, to select channel “27”, press the “2”, then “7”. The TV will change channels when you press the second number.To change to single-digit channels (0–9) faster, press the “0”before the single digit. (For channel “4”, press the “0”, then “4”.)To select a channel over 100, press the +100 button. (For channel“122”, press the +100 button, then “2”, then “2”.)Using the Previous ChannelPress the PRE-CH button.The TV changes to the last channel you were watching.Favorite ChannelsEnterInputPictureSoundChannelSetup ReturnAir 2 - - - - ✔Air 3 - - - -Air 4 - - - -Air 5 - - - -Air 6 - - - -Air 7 - - - -Air 8 - - - -▼Move
Scanning the ChannelsThe TV automatically scan all of the channels it has memorized. 33Labeling the ChannelsUse this feature to assign an easy-to-remember label to any channel (i.e., “CBS”, “ESPN”,“PBS2”, CNN1”, etc.) A label consists of five fields, where each field is a letter, a number or ablank. When the INFO button is pressed, the channel label will appear next to the channelnumber.Operation321Press the MENU button.Press the …or †button toselect “Channel”, then pressthe ENTER button.2Press the …or †button toselect “Scan”, then press theENTER button.The TV scans all of thechannels memorized.Press the EXIT button to exit.NOTE•When the “ANT 2 IN” mode is selected, the channel scanfunction works on the main picture only.Air 3Air 4ReturnScanChannelAntenna : Ant.1√Air/CATV : Air√Auto Program√Add/Delete√Favorite Channels√Name√Fine Tune√▼ MoreMove Enter ReturnInputPictureSoundChannelSetupChannel▲ MoreLNA : On√Scan√Move Enter ReturnInputPictureSoundChannelSetupReturnEnter1Press the CH or CH button to tune to the channel thatwill be labeled. 2Press the MENU button.Press the …or †button toselect “Channel”, then pressthe ENTER button.Press the …or †button toselect “Name”, then pressthe ENTER button.3Press the …/†/œ/√buttonto move to the channel to beassigned to a new name,then press the ENTER button.Press the …or †button toselect a letter, a number or ablank. (Results in thissequence: A...Z, ✽, blank,0...9, -).4Press the √button to switchto the next field, which willbe selected. Select a second letter or digitpressing …or †button, asabove.Repeat the process to selectthe last two digits.When you have finished,press the ENTER button.To erase the assigned newname, select “Clear” bypressing the …/†/œ/√button, then press the ENTERbutton.Press the EXIT button to exit.ChannelAntenna : Ant.1√Air/CATV : Air√Auto Program√Add/Delete√Favorite Channels√Name√Fine Tune√▼ MoreMove Enter ReturnInputPictureSoundChannelSetupNOTE•If you add or deletethe TV channel, thelabeled channels listwill also be added ordeleted.NameMove Adjust ReturnInputPictureSoundChannelSetupClearClearClearClearClear▼Air 2 A Air 3----Air 4----Air 5----Air 6----▲▼NameMove Enter ReturnInputPictureSoundChannelSetupClearClearClearClearClear▼Air 2 CNN2Air 3----Air 4----Air 5----Air 6----
Picture ControlYou can use the on-screen menus to change the “Contrast”, “Brightness”, “Sharpness”, “Color”and “Tint” according to personal preference. (Alternatively, you can use one of the automaticsettings. See next page.)Using Automatic Picture SettingsYour TV has automatic picture settings (“Dynamic”, “Standard” and “Cinema”)that are preset at the factory. You can activate either “Dynamic”, “Standard” or“Cinema” by pressing the P.MODE button (or by making a selection from themenu). Or, you can select “Custom” which automatically recalls yourpersonalized picture settings.1Press the MENU button. Press the …or †button to select“Picture”, then press the ENTER button.2Press the ENTER button to select “Mode”.3Press the ENTER button again to select“Mode”.Press the …or †button to select aparticular item, then press the ENTERbutton.Press the EXIT button to exit.Alternate methodPress the P.MODE button on the remote controlrepeatedly to select one of the standard picturesettings.•Choose “Dynamic” for viewing the TV during the day or when there is abright light in the room.•Choose “Standard” for the standard factory settings.•Choose “Cinema” when viewing a movie.35Operation34StandardCustomizing the Picture1Press the MENU button.Press the …or †button toselect “Picture”, then pressthe ENTER button.2Press the ENTER button toselect “Mode”.3Press the …or †button toselect a particular item, thenpress the ENTER button.Press the œor √button toincrease or decrease thevalue of a particular item.Resetting the Picture Settings to the Factory DefaultsYou can return to the factory default picture settings.4Press the MENU button todisplay the “Mode” menu.Press the …or †button toselect “Reset”, then press theENTER button.The previously adjustedpicture settings will be resetto the factory defaults.▲Contrast▼90PictureMode : Standard√Color Tone : Warm1√Size√Digital NR : Off√DNIe : On√MCC√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupModeMode : Standard√Contrast 90Brightness 50Sharpness 50Color 60Tint 50 50ResetMove Enter ReturnInputPictureSoundChannelSetupPictureMode : Standard√Color Tone : Warm1√Size√Digital NR : Off√DNIe : On√MCC√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupModeMode : Standard√Contrast 90Brightness 50Sharpness 50Color 60Tint 50 50ResetMove Enter ReturnInputPictureSoundChannelSetupModeMode : StandardContrast 90Brightness 50Sharpness 50Color 60Tint 50 50ResetMove Enter ReturnInputPictureSoundChannelSetupDynamicStandardCinemaNOTE•“Tint” doesn’t operatein PC, DVI, HDMI or480p-Component orhigher modes.ModeMode : Standard√Contrast 90Brightness 50Sharpness 50Color 60Tint 50 50ResetMove Enter ReturnInputPictureSoundChannelSetup
3Press the œor √button to select aparticular item to be changed.Press the …or †button to increase ordecrease the value of a particular item.Press the EXIT button to exit.Using Automatic Sound SettingsYour TV has automatic sound settings (“Standard”, “Music”, “Movie” and “Speech”) that arepreset at the factory. You can activate these sound settings by pressing the S.MODE button (or bymaking a selection from the menu), or you can select “Custom”, which automatically recalls yourpersonalized sound settings.1Press the MENU button. Press the …or †button to select “Sound”,then press the ENTER button.2Press the ENTER button to select “Mode”.Press the …or †button to select aparticular item, then press the ENTERbutton.Press the EXIT button to exit.Alternate methodPress the S.MODE button on the remote controlrepeatedly to select one of the standard soundsettings.•Choose “Standard” for the standard factory settings.•Choose “Music” when watching music videos or concerts.•Choose “Movie” when watching movies.•Choose “Speech” when watching a show that is mostly dialogue (i.e., news).•Choose “Custom” to recall your personalized settings.Sound ControlYou can control and customize the sound levels and settings of the TV with the remote control.36 37OperationStandardEqualizerMove Adjust ReturnInputPictureSoundChannelSetupAdjusting the VolumePress the VOL+ or VOL– buttons to increase or decrease thevolume.Using the MUTE ButtonAt any time, you can temporarilycut off the sound.Press the MUTE button on theremote control.The message “Mute” is displayedand the sound cuts off.To turn mute off press the MUTEbutton again or, press either theVOL+ or VOL–button.Customizing the SoundThe sound settings can be adjusted to suit your personalpreference. (Alternatively, you can use one of the automaticsettings. See next page.)1Press the MENU button.Press the …or †button toselect “Sound”, then pressthe ENTER button.2Press the …or †button toselect “Equalizer”, thenpress the ENTER button.Continued...MuteSoundMode : Standard√Equalizer√SRS TSXT : Off√MTS : Stereo√Auto Volume : Off√Internal Mute : Off√Move Enter ReturnInputPictureSoundChannelSetupSoundMode : Standard√Equalizer√SRS TSXT : Off√MTS : Stereo√Auto Volume : Off√Internal Mute : Off√Move Enter ReturnInputPictureSoundChannelSetupBalance 100Hz 300Hz 1KHz 3KHz 10KHzR L+0-+0-SoundMode : Standard√Equalizer√SRS TSXT : Off√MTS : Stereo√Auto Volume : Off√Internal Mute : Off√Move Enter ReturnInputPictureSoundChannelSetupSoundMode : StandardEqualizerSRS TSXT : OffMTS : StereoAuto Volume : OffInternal Mute : OffMove Enter ReturnInputPictureSoundChannelSetupStandardMusicMovieSpeechCustom
Setting the TimersThis TV can be set to turn on or off automatically at specific times that youchoose. Before using the timers, you must set the TV’s clock, as describedpreviously.Setting the On/Off Timer1Press the MENU button. Press the …or †button to select “Setup”,then press the ENTER button.2Press the …or †button to select “Time”,then press the ENTER button.Press the …or †button to select “OnTimer”, then press the ENTER button.3Press the …or †button to adjust “Hour”,then press the √button to move to thenext step.Set other items using the same method asabove.When finished, press the MENU button toreturn.4Press the …or †button to select “OffTimer”, then press the ENTER button.5Press the …or †button to adjust “Hour”,then press the √button to move to thenext step.Set other items using the same method asabove.Press the EXIT button to exit.39Setting the ClockSetting the clock is necessary in order to use the various timer features of the TV. Also, you cancheck the time while watching the TV. (Just press the INFO button.)Operation38SetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupTimeClock Set 10 : 30 am√Sleep Timer Off√On Timer Off√Off Timer Off√Move Enter ReturnInputPictureSoundChannelSetup1Press the MENU button.Press the …or †button toselect “Setup”, then press theENTER button. Press the …or †button toselect “Time”, then press theENTER button. 2Press the ENTER button toselect “Clock Set”.3Press the œor √button tomove to “Hour”, “Min” or“am/pm”.Set the clock you want bypressing the …or †button,then press the ENTER button.Press the EXIT button to exit.NOTE•The current time will appear every time you press the INFObutton.SetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupTimeClock Set - - : - - am√Sleep Timer Off√On Timer Off√Off Timer Off√Move Enter ReturnInputPictureSoundChannelSetupClock SetMove Adjust ReturnInputPictureSoundChannelSetupHour Min am/pm12 00 am▲▼On TimerMove Adjust ReturnInputPictureSoundChannelSetupHour Min am/pm12 00 am▲▼Ch Vol.Activation03 10 NoTimeClock Set 10 : 30 am√Sleep Timer Off√On Timer 06 : 30 am√Off Timer Off√Move Enter ReturnInputPictureSoundChannelSetupOff TimerMove Adjust ReturnInputPictureSoundChannelSetupHour Min am/pm12 00 am▲▼ActivationNoAbsent Power OffWhen you set the timer “On”, your television will eventually be turned off, if you do not operate anycontrols during the 3 hours after the TV is turned on by timer. This function is available in only thetimer “On” mode and will prevent a leakage accident or overheating, caused by your TV left on fora long time due to the timer “On” (when you are away on holiday, for example).
Setting the Sleep TimerThe sleep timer automatically shuts off the TV after a preset time (from 30 to 180 minutes).4140Operation1Press the MENU button.Press the …or †button toselect “Setup”, then press theENTER button.2Press the …or †button toselect “Time”, then press theENTER button.Press the …or †button toselect “Sleep Timer”, thenpress the ENTER button.3Press the …or †button toselect “Sleep Timer”, thenpress the ENTER button.Press the …or †button toselect the preset time youwant, then press the ENTERbutton.Press the EXIT button to exit.Alternate methodPress the SLEEP button on theremote control repeatedly until theappropriate time interval appears(any of the preset values from “30Min.” to “180 Min.”).NOTE•If no signal is received for 15 minutes, the TV will beautomatically turned off.SetupLanguage : English√Time√V-Chip√Caption√Blue Screen : Off√Melody : On√Color Weakness√PC√Move Enter ReturnInputPictureSoundChannelSetupTimeClock Set 10 : 30 am√Sleep Timer Off√On Timer 06 : 30 am√Off Timer 11 : 30 pm√Move Enter ReturnInputPictureSoundChannelSetupTimeClock Set 10 : 30 amSleep Timer OffOn Timer 06 : 30 amOff Timer 11 : 30 pmMove Enter ReturnInputPictureSoundChannelSetupOff30609012015018030 Min.Viewing an External Signal SourceUse the remote control to switch between viewing signals from connected equipment, such asVCR, DVD, Set-Top box and the TV source (broadcast or cable).Setting the Signal Source1Press the MENU button.Press the ENTER button toselect “Input”.2Press the ENTER button toselect “Source List”.Press the …or †button toselect a signal source, thenpress the ENTER button.Press the EXIT button to exit.Alternate methodPress the TV/VIDEO button on theremote control repeatedly toselect an external signal source.InputSource List : TV√Edit Name√Move Enter ReturnInputPictureSoundChannelSetupSource ListTVAV1 : - - - -AV2 : - - - -S-Video1 : - - - -S-Video2 : - - - -Component1 : - - - -Component2 : - - - -▼ MoreMove Enter ReturnInputPictureSoundChannelSetupAV1
Assigning Names to External Input ModeThis feature enables you to name the input source you have connected.43Operation421Press the MENU button.Press the ENTER button toselect “Input”.2Press the …or †button toto select “Edit Name”, thenpress the ENTER button.3Press the …or †button toselect a signal source, thenpress the ENTER button.Press the …or †button toselect an external device,then press the ENTER button.Press the EXIT button to exit.InputSource List : TV√Edit Name√Move Enter ReturnInputPictureSoundChannelSetupInputSource List : TV√Edit Name√Move Enter ReturnInputPictureSoundChannelSetupEdit NameAV1 : - - - -AV2 : - - - -S-Video1 : - - - -S-Video2 : - - - -Component1 : - - - -Component2 : - - - -PC : - - - -▼ MoreMove Enter ReturnInputPictureSoundChannelSetup- - - -VCRDVDCable STBHD STBSatellite STBAV Receiver▼Freezing the Current PictureYou can freeze the picture when watching a television programme simply by pressing the STILLbutton. To return to normal viewing, press it again.NOTE•In the PIP mode, the main and sub pictures are stilled at thesame time.Remote Control VCR/DVD ButtonsFlip the cover of the remote control up to access buttons that can control the tape functions of aconnected VCR or DVD, including Rewind, Stop, Play/Pause and Fast Forward.Slide the cover of your remote control unit for access to the tapefunction controls. Press the appropriate buttons to control yourVCR or DVD.
Special FeaturesSAMSUNG
Special Features46Customizing Your Remote ControlYour TV comes equipped with a universal remote control. In addition to controlling the TV, theuniversal remote control can also operate a VCR, Cable box, DVD and Set-Top Box made bySamsung (even if your VCR, Cable box and DVD are made by manufacturers other than Samsung). NOTE• The remote control might not be compatible with all VCRs, DVD players and Cable boxes.Setting Up Your Remote Control to Operate Your VCR (Cable box orDVD player)1Turn off your VCR (Cable box or DVD player).2Press the MODE button to switch the remote control to the VCR(CABLE or DVD) mode.The remote control has five modes: TV, STB, VCR, CABLE andDVD.3On your Samsung remote control, press the SET button.4Enter 3 digits of the VCR (Cable box or DVD player) code listedon next page for your brand of VCR (Cable box or DVDplayer).Make sure you enter 3 digits of the code, even if the first digit isa “0”. (If more than one code listed, try the first one.)5Press the POWER button. Your VCR (Cable box or DVD player)should turn on. If your VCR (Cable box or DVD player) turns on,your remote control is now set correctly.If your VCR (Cable box or DVD player) does not turn on, repeatsteps 2, 3, and 4, but try one of the other codes listed for thebrand of your particular VCR (Cable box or DVD player).6Once your remote control is set up, press the MODE button anytime you want to use the remote to operate your VCR (Cablebox or DVD player).NOTES•When your remote is in the TV mode, the VCR (or DVD player)control buttons (REW, STOP, PLAY/PAUSE and FF) will still operateyour VCR (or DVD player).•When your remote control is in the STB, VCR, CABLE or DVDmode, the volume buttons still control your TV’s volume.47Remote Control CodesVCR CodesDVD CodesCable Box Codes
LNA (Low Noise Amplifier)When a weak broadcast signal causes unclear noisy picture the “LNA” feature improves thepicture quality by setting to “On”. If you experience noise on a certain channel, set the “LNA” to“On” or “Off” for this channel, to obtain the optimum picture.Fine Tuning ChannelsThe Fine Tuning function lets you manually adjust the TV’s tuner if you have difficulty tuningchannels.48 49Special Features1Using the number buttons on the remote control, select thechannel you want to fine tune.2Press the MENU button.Press the …or †button toselect “Channel”, then pressthe ENTER button.3Press the …or †button toselect “Fine Tune”, thenpress the ENTER button.4Press the œor √button toadjust the fine tuning.To store the fine tuningsetting in the TV’s memory,press the ENTER button. The symbol “*” is displayed.To reset the fine tuning to“0”, select “Reset” bypressing the …or †button,then press the ENTER button.Press the EXIT button to exit.ChannelAntenna : Ant.1√Air/CATV : Air√Auto Program√Add/Delete√Favorite Channels√Name√Fine Tune√▼ MoreMove Enter ReturnInputPictureSoundChannelSetupChannelAntenna : Ant.1√Air/CATV : Air√Auto Program√Add/Delete√Favorite Channels√Name√Fine Tune√▼ MoreMove Enter ReturnInputPictureSoundChannelSetup1Press the MENU button.Press the …or †button toselect “Channel”, then pressthe ENTER button.2Press the …or †button toselect “LNA”, then press theENTER button.3Press the …or †button toselect “On” or “Off”, thenpress the ENTER button.Press the EXIT button to exit.NOTE•This function works in “ANT 1 IN” mode only (not available in“ANT 2 IN” mode).Channel▲ MoreLNA : OffScanMove Enter ReturnInputPictureSoundChannelSetupOffOnChannelAntenna : Ant.1√Air/CATV : Air√Auto Program√Add/Delete√Favorite Channels√Name√Fine Tune√▼ MoreMove Enter ReturnInputPictureSoundChannelSetupChannel▲ MoreLNA : Off√Scan√Move Enter ReturnInputPictureSoundChannelSetupFine TuneAir 123Move Save ReturnFine TuneResetAir 12*3AdjustMove Enter ReturnFine TuneResetAir 120Move Enter ReturnReset
Changing the Picture SizeYou can select the picture size which best corresponds to your viewing requirements.5150Special FeaturesSelecting the Color Tone1Press the MENU button.Press the …or †button toselect “Picture”, then pressthe ENTER button.2Press the …or †button toselect “Color Tone”, thenpress the ENTER button.3Press the …or †button toselect “Cool2”, “Cool1”,“Normal”, “Warm1” or“Warm2”, then press theENTER button.Press the EXIT button to exit.NOTE•Not available in the “Cinema” picture mode.PictureMode : StandardColor Tone : Warm1SizeDigital NR : OffDNIe : OnMCCFilm Mode : OffPIPMove Enter ReturnInputPictureSoundChannelSetupCool2Cool1NormalWarm1Warm2PictureMode : Standard√Color Tone : Warm1√Size√Digital NR : Off√DNIe : On√MCC√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetup1Press the MENU button.Press the …or †button toselect “Picture”, then pressthe ENTER button.Press the …or †button toselect “Size”, then press theENTER button.2Press the œor √button toselect the screen format youwant, then press the ENTERbutton.Press the EXIT button to exit.Alternate methodPress the P.SIZE button on the remote control repeatedly to selectone of the picture size settings.•“Wide”: Sets the picture to 16:9 wide mode.•“Panorama”: Use this mode for the wide aspect ratio of apanoramic picture.•“Zoom1”: Magnifies the size of the picture on screen. You canalso move the picture on screen using the scroll function. Pressthe …or †button to scroll the picture.•“Zoom2”: Magnifies the size of the picture more than“Zoom1”. You can also move the picture on screen using thescroll function. Press the …or †button to scroll the picture.•“4:3”: Sets the picture to 4:3 normal mode. This is a standardTV screen size.NOTES•You can select only Wide, 4:3 screen size in the Component(480p, 720p, 1080i) Mode.•With PIP On, the screen automatically becomes wide in the Antenna, AV (1~3), S-Video (1~3)or Component (480i) mode. With PIP Off, it returns to original screen size.•The picture size can’t be changed when the “PIP” is active in the TV or AV mode. SizeMove Enter ReturnInputPictureSoundChannelSetupPictureMode : Standard√Color Tone : Warm1√Size√Digital NR : Off√DNIe : On√MCC√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupPictureMode : Standard√Color Tone : Warm1√Size√Digital NR : Off√DNIe : On√MCC√Film Mode : Off√PIP√Move Enter ReturnInputPictureSoundChannelSetupWide Panorama Zoom1 Zoom2 4:3
