User Manual_antenna
Where do the antennas go?
There are four antennas included in the developer kit - three long antennas and one
short antenna.
The short antenna is used on the Low-Power, Wide-Area (SigFox) antenna
connector.
The three long antennas are used on the Wi-Fi, Wi-Fi/Bluetooth, and ZigBee
antenna connectors.
The three long antennas are identical – the red stripes are removable rubber bands.

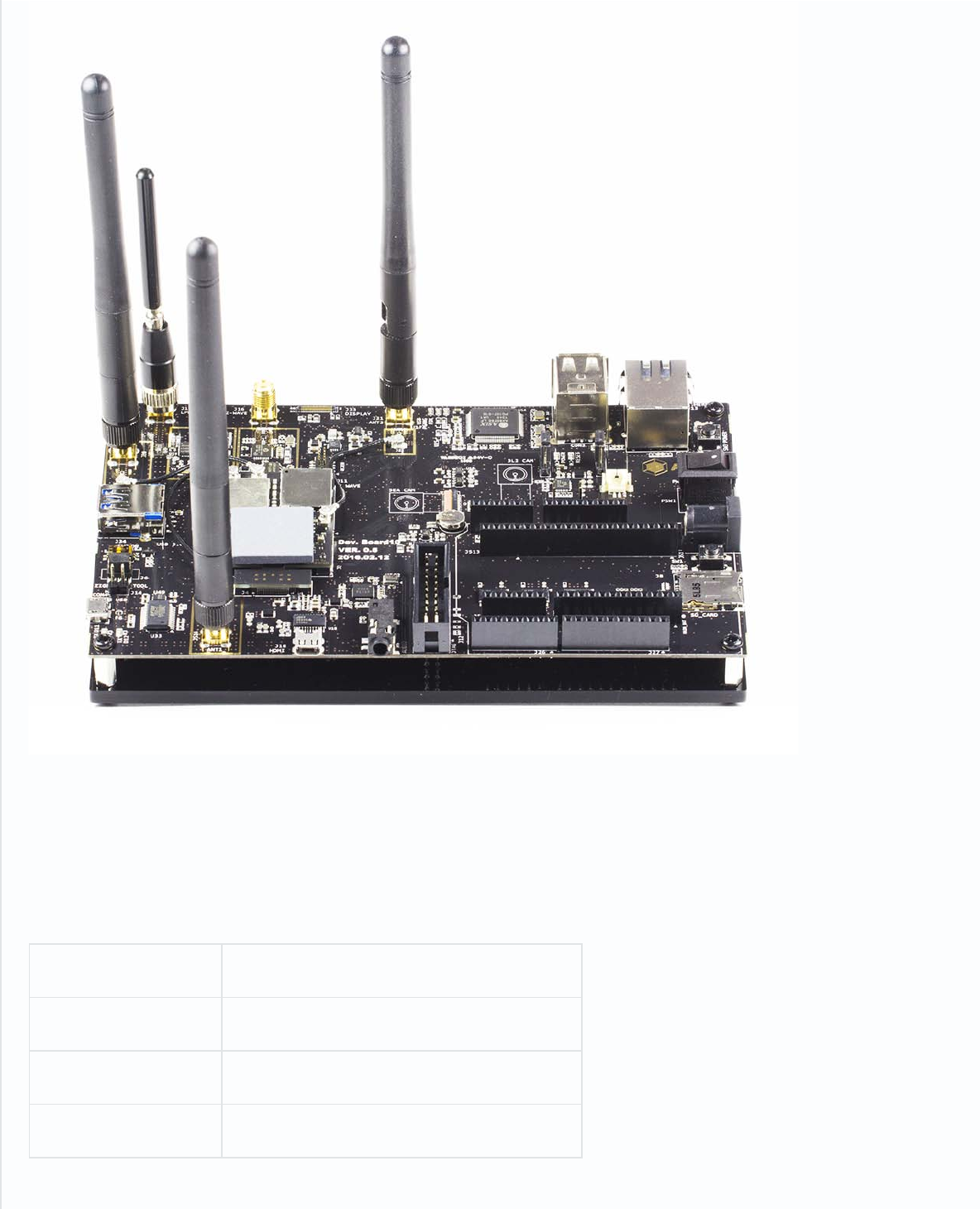

Here are the antenna locations for the ARTIK 5, Ver. 0.5 developer board:
↓
We use cookies on our website as described in our Privacy Policy, to enhance your browsing experience
and we process personal information in the United States which, for users outside the United States,
may have a lower standard of data privacy laws compared to your country of residence. Please click
Accept to confirm your acceptance to our use of cookies. By continuing to use the website you are
deemed to have consented to our use of cookies.
Accept

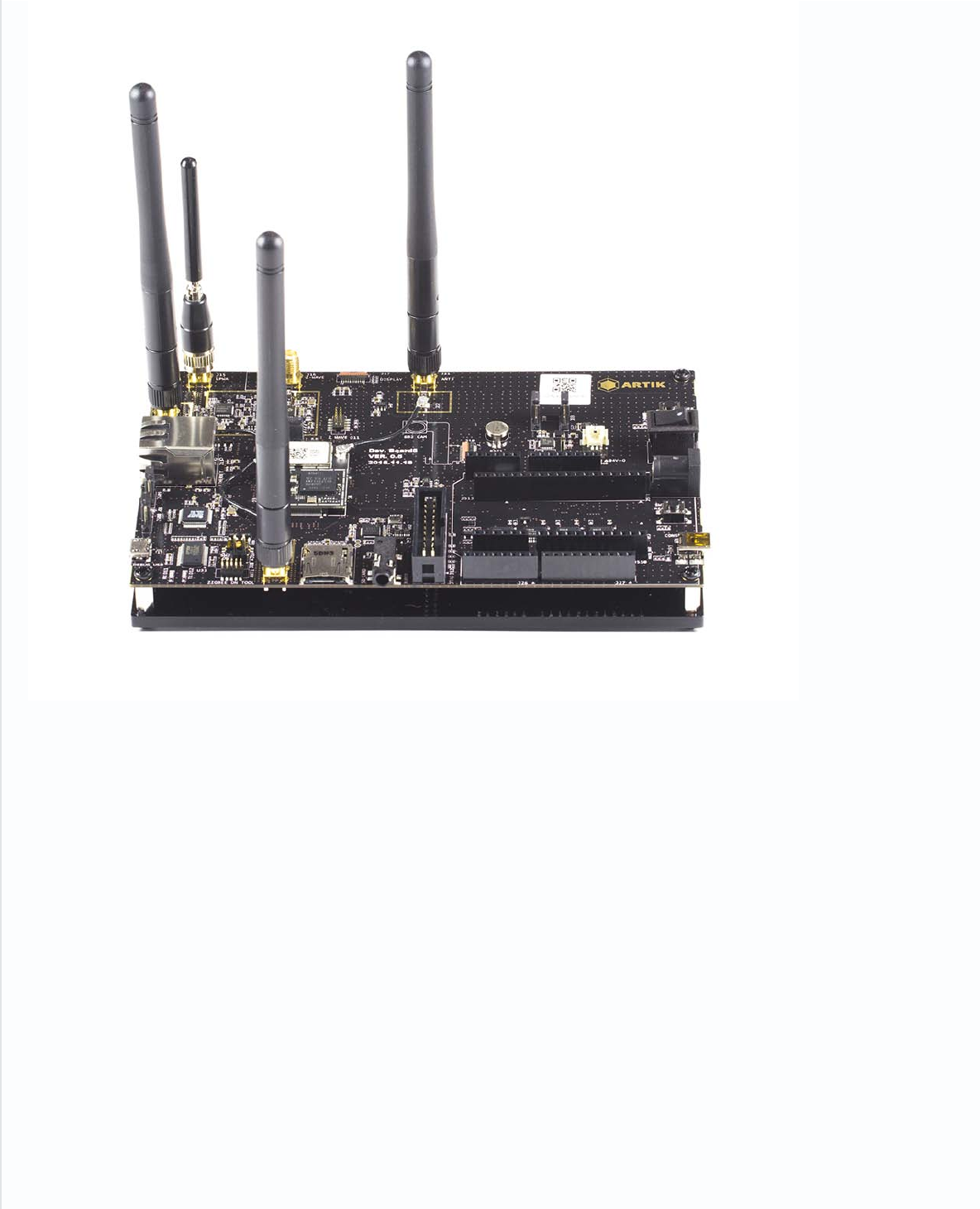

Here are the antenna locations for the ARTIK 10, Ver. 0.5 developer board:
Antenna Specifications
The antennas supplied with the ARTIK developer kit are of the following specifications.
Antenna type Dipole Antenna
Antenna peak gain 2.7dBi
Frequency 2.4GHz, 5GHz (for Wi-Fi, BT, ZigBee)
Connector type SMA-M
FCC (United States) Compliance Statement
Replacement antennas must be of the same type, must be of equal or
less gain than an antenna previously authorized under the same grant of
certification (A3LATKM052000 for ARTIK 5), and must have similar in-
band and out-of-band characteristics (consult specification sheet for
cutoff frequencies). Any new antenna type, or higher gain antenna,
approved under Part 15 requires a Class II permissive change, and the
requirements of § 15.203 must be met.
IC (Canada) Compliance Statement
This radio transmitter (A3LATKM052000 for ARTIK 5) has been approved
by Industry Canada to operate with the antenna types listed above with
the maximum permissible gain indicated. Antenna types not included in
this list, having a gain greater than the maximum gain indicated for that
type, are strictly prohibited for use with this device. (RSS-GEN clause 8.3)
