Samsung Electronics Co BSP1000 Bluetooth Stereo Speaker User Manual BSP1000

Samsung Electronics Co Ltd Bluetooth Stereo Speaker BSP1000

User manual

World Wide Webhttp://www.samsungmobile.comPrinted in KoreaCode No.:GH68-XXXXXAEU A. 02/2009. Rev. 1.0
English ............................................................. 1
English1ContentsGetting startedYour speaker overview ....................................................4Button functions .............................................................6Icons ............................................................................8Charging the speaker ......................................................9Mounting the speaker in your vehicle .............................. 11Using your speakerTurning the speaker on or off ......................................... 12Pairing and connecting the speaker ................................. 13Using call functions ....................................................... 15Using music control functions ......................................... 17Setting a DNSe sound effect .......................................... 19Using the speaker as an FM transmitter ........................... 20Using the Text to Speech (TTS) feature ............................ 21Connecting the speaker to a music player ........................ 22Using Power saving mode .............................................. 23
2AppendixFrequently asked questions ............................................ 24Warranty and parts replacement ..................................... 26Correct disposal of this product ...................................... 27Specifications ............................................................... 28
English3Take the time to read through this user manual before using the BSP1000 Bluetooth SPEAKER.Bluetooth® is a registered trademark of the Bluetooth SIG, Inc. worldwide—Bluetooth QD ID: BxxxxxxMore information about Bluetooth is available at www.bluetooth.com.Safety precautionsNever disassemble or modify your speaker for any reason. Doing this may cause the speaker to malfunction or become combustible. Bring the speaker to an authorised service centre for repairs.When using your speaker while driving, follow local regulations in the country or region you are in.Avoid storage at high temperatures (above 50° C/122° F), such as in a hot place or in direct sunlight, as this can damage performance and reduce battery life.Do not expose the speaker or any of its parts to rain or other liquids.Do not use the speaker in humid places or handle it with wet hands.•••••
4Getting startedThis section explains the proper use of your Bluetooth speaker.Your speaker overview 2 4 5 7 1 9 10 6 3 8
English5 1 Power switch 6 Mounting bracket 2 Charger jack 7 Speaker 3 Microphone 8 Volume control buttons 4 DNSe button 9 Display 5 Music control buttons 10 Talk buttonMake sure that you have the following items with your speaker: charger and user manual.The items supplied with your speaker may vary depending on your region.
6Button functionsButton Functions Power Slide to turn the speaker on or off.TalkPress to make or answer a call.Press to end a call.Press and hold to enter Pairing mode.•••DNSeTouch to select a DNSe sound effect.Touch and hold to activate the FM transmitter feature.Touch to activate or deactivate the TTS feature.•••REW Touch to skip backward.Touch and hold to scan backward in a file.••
English7Button FunctionsPlay/Pause/Stop Touch to begin or pause playback.Touch and hold to stop playback.••FF Touch to skip forward.Touch and hold to scan forward in a file.••Volume control Press to adjust the volume.Press and hold both of the buttons at the same time to reverse the direction of the display.During a call, press and hold both of the buttons at the same time to mute the microphone.•••
8IconsIcon DescriptionsConnected to a Bluetooth deviceMusic player connectedDNSe sound effect activatedTTS feature activatedTTS feature deactivatedSaved radio station 1 (for FM transmitter)Saved radio station 2 (for FM transmitter)Saved radio station 3 (for FM transmitter)Battery power level
English9Charging the speakerThis speaker has a rechargeable internal battery which is non-removable. Charge the battery completely before using the speaker for the first time.Using the charger1 Open the cover to the charger jack on the top of the speaker.2 Plug the small end of the charger into the charger jack.
103 Plug the large end of the charger into a power outlet.While the speaker is charging, the icon will appear on the display.4 When the speaker is fully charged (the icon is no longer moving), unplug the charger from the power outlet and the speaker.When the battery power is lowThe speaker will emit a warning tone. If the speaker powers off during a call, the call will automatically transfer to your phone.
English11Mounting the speaker in your vehicle1 Slide the mounting bracket with the slot in the back of the speaker.2 Slide the speaker onto a sun visor in your vehicle.
12Using your speakerThis section explains how to turn the speaker on, pair and connect to the phone, and use various functions.Available functions and features may differ depending on your type of phone.Some devices, especially those that are not tested or approved by the Bluetooth SIG, may be incompatible with your speaker.••Turning the speaker on or offTo turn the speaker on, slide [ ] to the on position. You will hear an alert and the display will turn on.To turn the speaker off, slide [ ] to the off position.••
English13Pairing and connecting the speakerPairing will create a unique and encrypted wireless link between two Bluetooth enabled devices, such as a Bluetooth phone and your Bluetooth speaker.To use the speaker with other Bluetooth devices, the devices must be paired. When trying to pair the two devices, keep the speaker and the phone reasonably close together. After pairing, you can connect the two devices.Pairing and connecting the speaker to a phone1 To enter Pairing mode, press and hold [ ].When you turn on the speaker, it automatically enters Pairing mode.2 Activate the Bluetooth feature on your phone and search for the speaker (see your phone’s user manual).3 Select the speaker (BSP1000) from the list of devices found by your phone.
144 Enter the Bluetooth PIN (0000, 4 zeros) to pair and connect the speaker to your phone.Your speaker supports the Simple Pairing feature which allows the speaker to be paired with a phone without requesting a PIN. This feature is available for phones that are compliant with Bluetooth version 2.1 or higher.Disconnecting the speakerTo disconnect the speaker from your phone,Slide [ ] to the off position to turn the speaker off.Use the Bluetooth menu on your phone.Reconnecting the speakerWhen the speaker is paired with a phone, it will attempt to automatically reconnect each time you turn the power on.If the speaker does not automatically attempt to reconnect,Press [ ].Use the Bluetooth menu on your phone.••••
English15Using call functionsMaking a callRedialling the last numberPress and hold [ ] to redial the last number.For some phones, pressing [ ] opens the call log list. Press [ ] again to dial the selected number.Dialling a number by voicePress [ ] and say a name to dial a number by voice.Answering a callWhen you hear incoming call tones, press [ ] to answer a call .Ending a callPress [ ] to end a call.Rejecting a callWhen a call comes in, press and hold [ ] to reject a call .
16Using options during a callYou can use the following functions to control your call:Adjusting the volumePress [ / ] to adjust the volume.Muting the microphonePress both volume buttons at the same time to mute the microphone.Transferring a call between the phone and the speakerPress [ ] to transfer a call from the phone to the speaker.Press and hold [ ] to transfer a call from the speaker to the phone.Placing a call on holdTouch [ ] to place the current call on hold.Answering a second callWhen you hear call waiting tones, touch [ ] to end the first call and answer a second call.When you hear waiting tones, touch [ ] to place the first call on hold and answer a second call .To switch between the current call and a held call, touch [ ].Rejecting a second callWhen you hear call waiting tones, touch [ ] to reject a second call.•••••

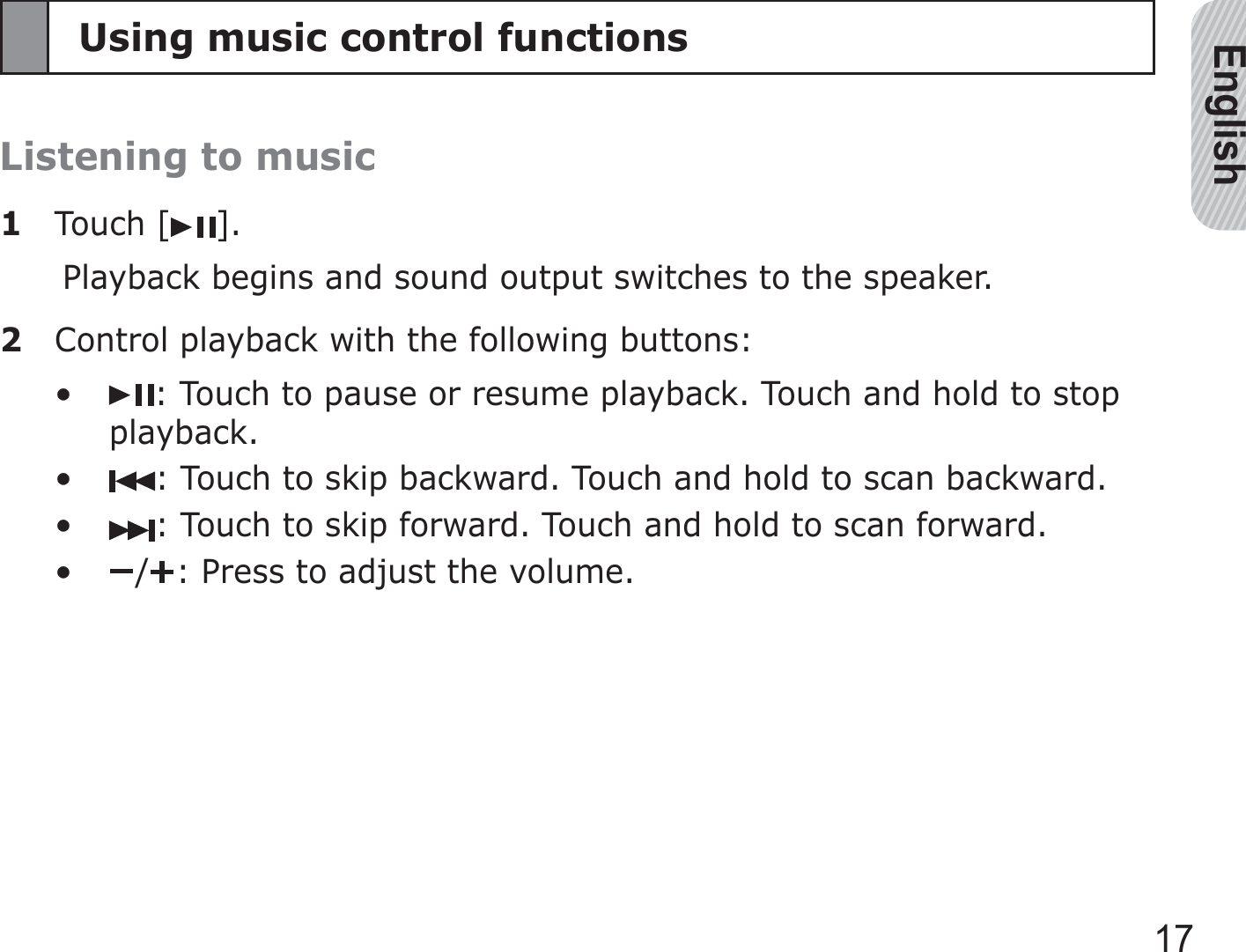

English17Using music control functionsListening to music1 Touch [ ].Playback begins and sound output switches to the speaker.2 Control playback with the following buttons:: Touch to pause or resume playback. Touch and hold to stop playback.: Touch to skip backward. Touch and hold to scan backward.: Touch to skip forward. Touch and hold to scan forward./ : Press to adjust the volume.••••

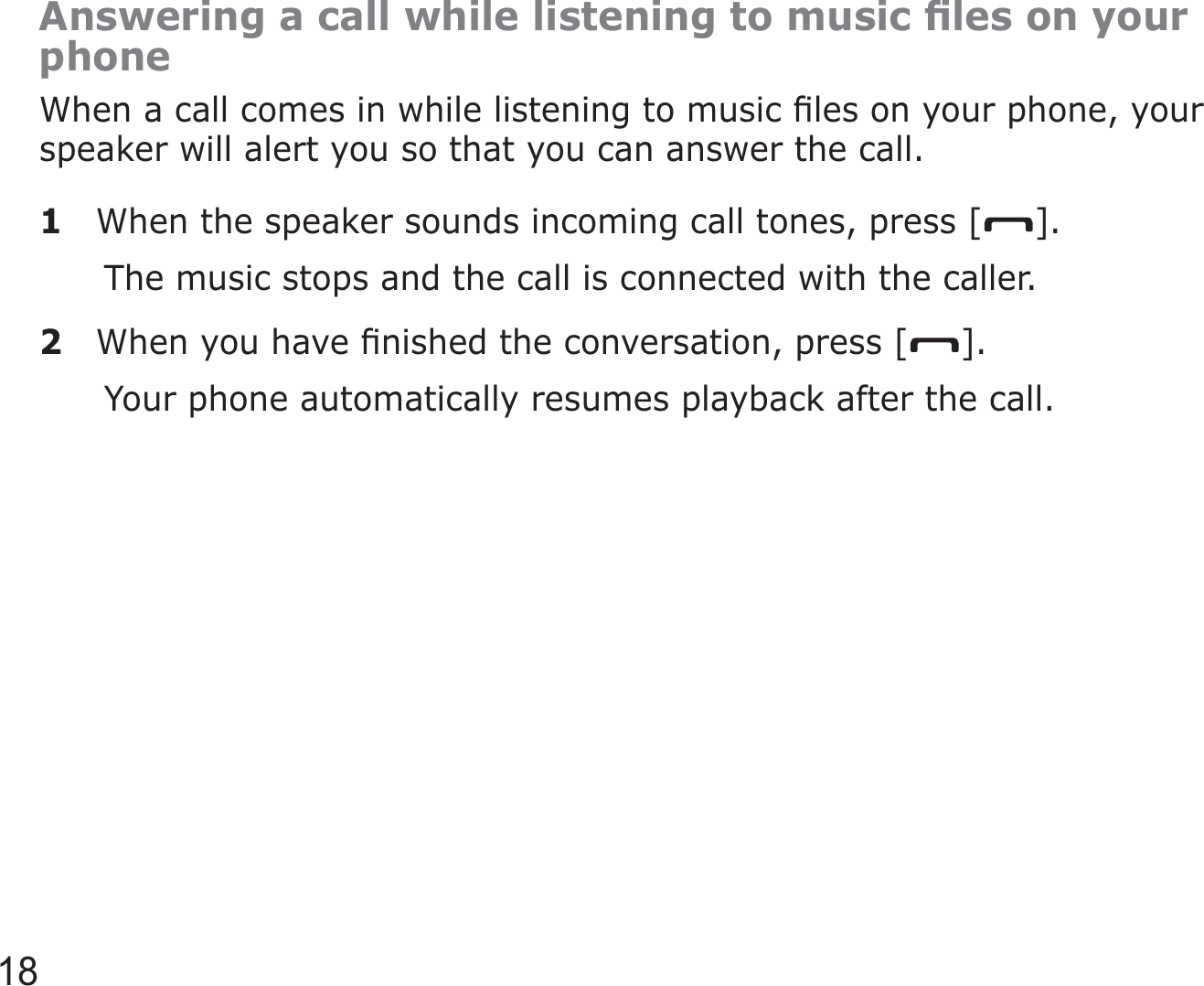

18Answering a call while listening to music files on your phoneWhen a call comes in while listening to music files on your phone, your speaker will alert you so that you can answer the call.1 When the speaker sounds incoming call tones, press [ ].The music stops and the call is connected with the caller.2 When you have finished the conversation, press [ ].Your phone automatically resumes playback after the call.
English19Setting a DNSe sound effectDNSe (Digital Natural Sound Engine) is a technology that enhances your listening experience.1 Before setting a DNSe sound effect, make sure that the FM transmitter is deactivated. To deactivate it, touch and hold [ ].2 While listening to music, touch [ ] to select one of the following sound effects:Studio modeRock modeSpeech Enhance modeConcert Hall mode••••

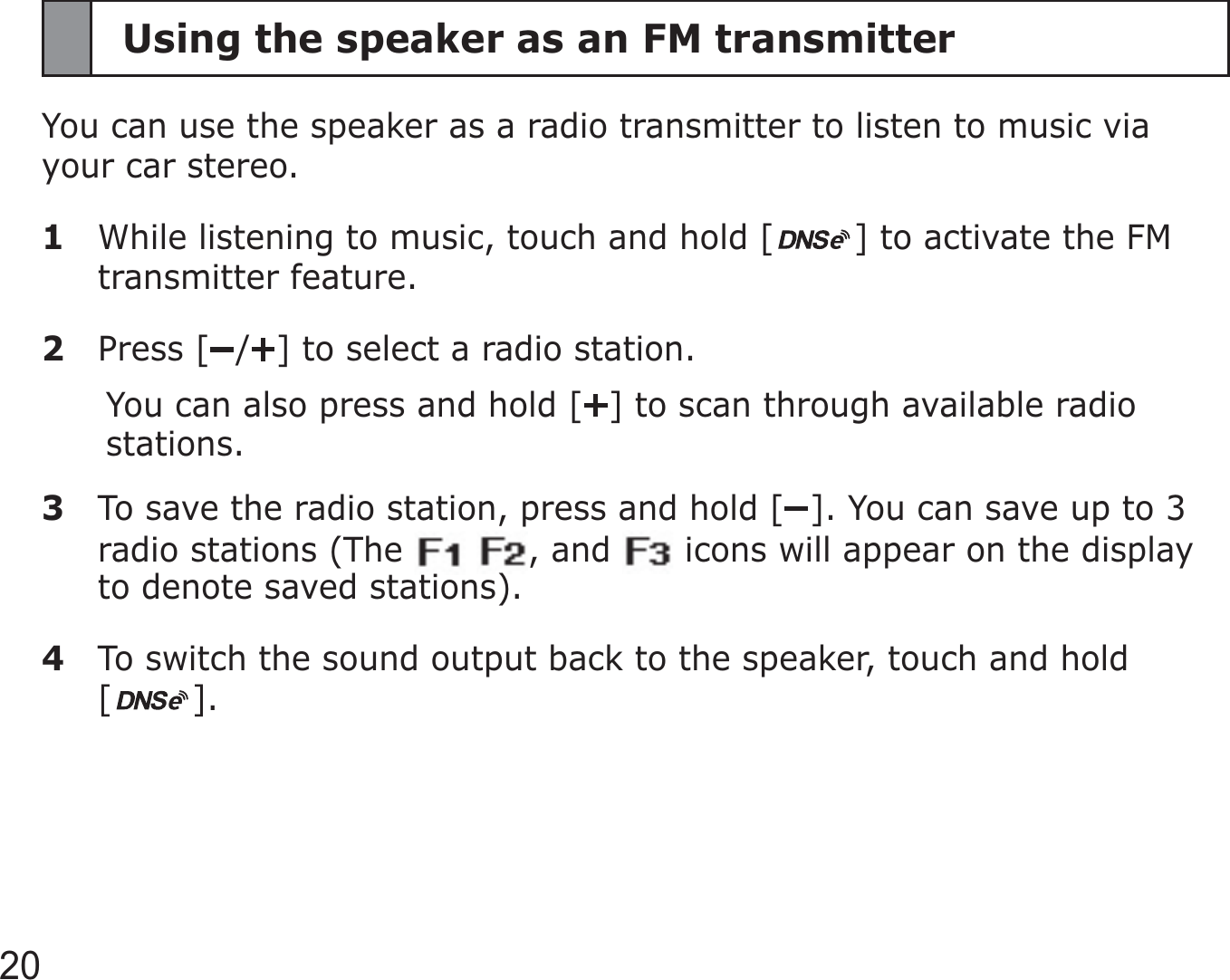

20Using the speaker as an FM transmitterYou can use the speaker as a radio transmitter to listen to music via your car stereo. 1 While listening to music, touch and hold [ ] to activate the FM transmitter feature.2 Press [ / ] to select a radio station.You can also press and hold [ ] to scan through available radio stations.3 To save the radio station, press and hold [ ]. You can save up to 3 radio stations (The , and icons will appear on the display to denote saved stations).4 To switch the sound output back to the speaker, touch and hold [].
English21Using the Text to Speech (TTS) featureWhen the Text to Speech (TTS) feature is activated, your speaker will read a caller’s number aloud when a call comes in.Activating or deactivating the TTS featureTouch [ ] to activate or deactivate the TTS feature.Selecting a TTS language1 Slide [ ] to the off position. 2 Press and hold [ ], then slide [ ] to the on position.The display shows the current language.3 Press [ / ] to select a language.4 When you are finished, press [ ] to save the setting. The speaker will restart automatically.
22Connecting the speaker to a music playerYou can use your speaker with a phone and a Bluetooth-enabled music player at the same time.1 First, pair the speaker with a phone. See page 13.2 When successful, press and hold [ ]. The speaker will sound an alert.3 Search for, pair, and connect to the music player by following the instructions in the music player’s user manual.4 Press and hold [ ] to connect to the paired phone.5 When the phone and the music player are successfully connected to the speaker, you can make or answer a call while listening to music.You must use the music player to start, pause, and resume playback, and scan backward and forward in a music file.
English23Using Power saving modeWhen the speaker remains idle for more than 5 minutes except when the speaker is charging, the speaker will enter Power saving mode. To return to Normal mode, touch or press any button.
24AppendixFrequently asked questionsWill my speaker work with laptops, PCs, and PDAs?Your speaker will work with devices that support the same Bluetooth version and profiles. For specifications, see page 28.Why do I hear static or interference while on a call?Appliances such as cordless phones and wireless networking equipment may cause interference, which usually sounds like static. To reduce any interference, keep the speaker away from other devices that use or produce radio waves.
English25Will my speaker interfere with my radio or computer?Your speaker emits signals that are in compliance with the international Bluetooth standard. Therefore, you should not expect any interference with standard, consumer-grade electronic equipment.Why do I hear an echo while on a call?Adjust the speaker volume, or move away from the speaker and try again.How do I clean my speaker?Wipe it with a soft dry cloth.

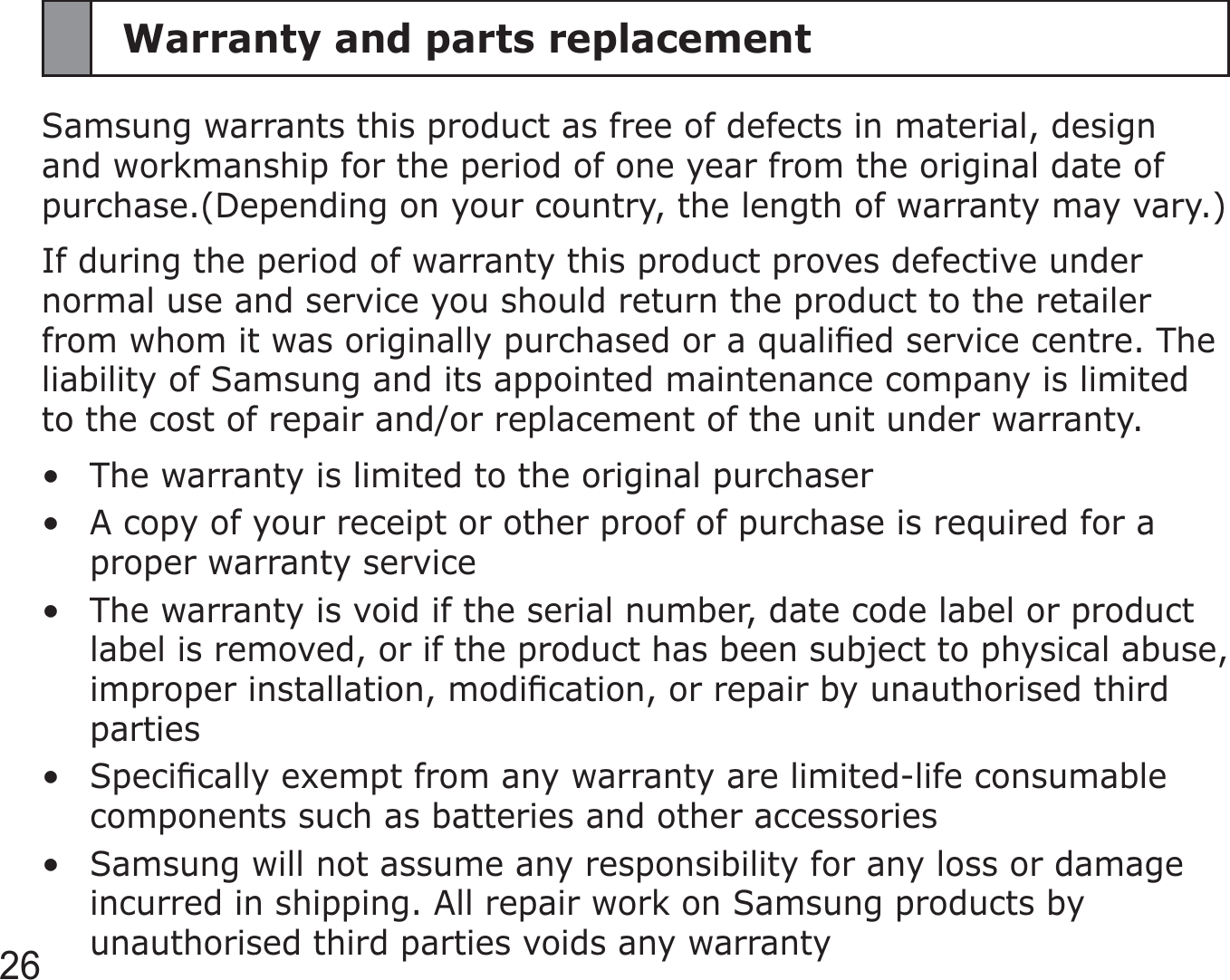

26Warranty and parts replacementSamsung warrants this product as free of defects in material, design and workmanship for the period of one year from the original date of purchase.(Depending on your country, the length of warranty may vary.)If during the period of warranty this product proves defective under normal use and service you should return the product to the retailer from whom it was originally purchased or a qualified service centre. The liability of Samsung and its appointed maintenance company is limited to the cost of repair and/or replacement of the unit under warranty.The warranty is limited to the original purchaserA copy of your receipt or other proof of purchase is required for a proper warranty serviceThe warranty is void if the serial number, date code label or product label is removed, or if the product has been subject to physical abuse, improper installation, modification, or repair by unauthorised third partiesSpecifically exempt from any warranty are limited-life consumable components such as batteries and other accessoriesSamsung will not assume any responsibility for any loss or damage incurred in shipping. All repair work on Samsung products by unauthorised third parties voids any warranty•••••
English27Correct disposal of this product(Waste Electrical & Electronic Equipment)This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

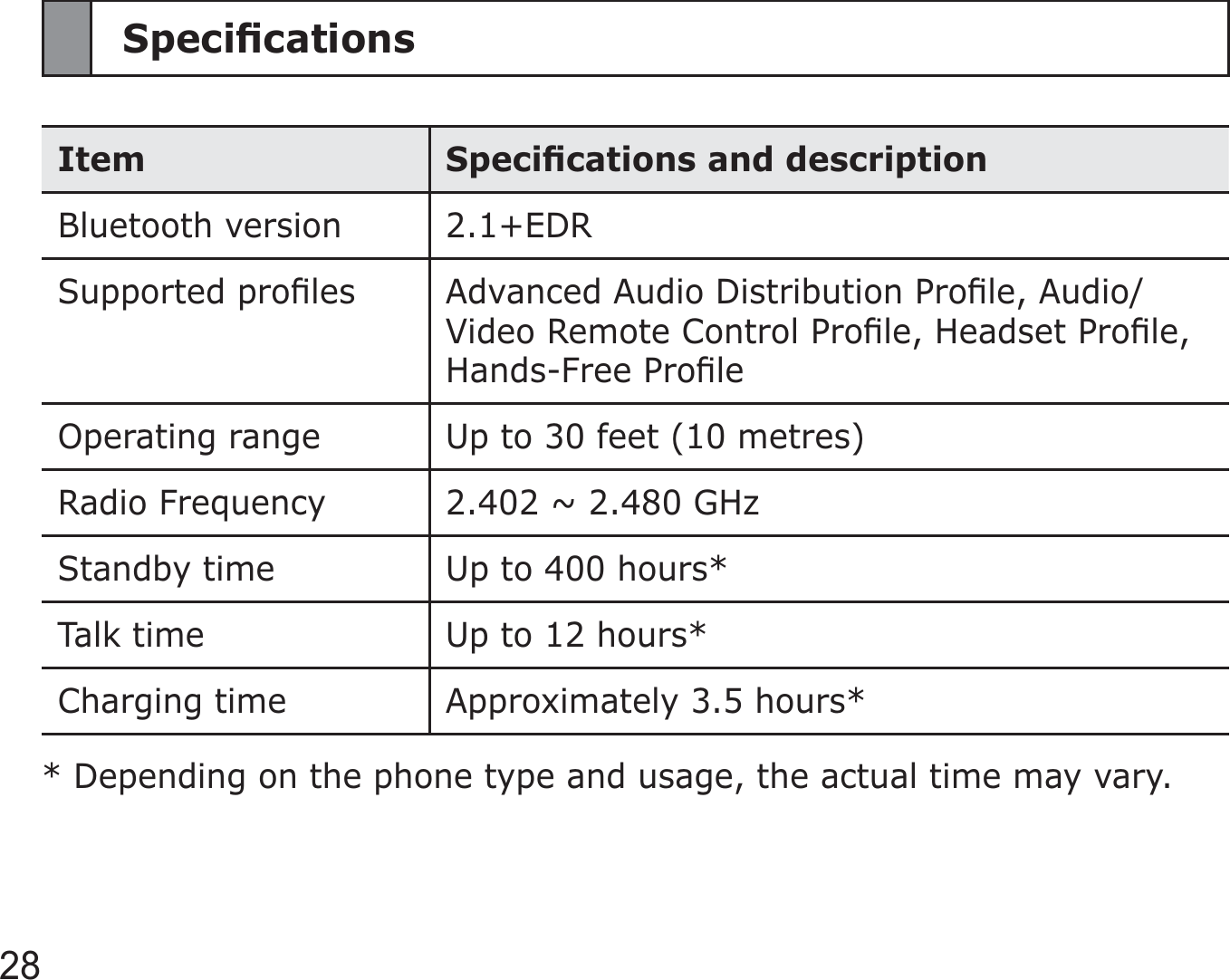

28SpecificationsItem Specifications and descriptionBluetooth version 2.1+EDRSupported profiles Advanced Audio Distribution Profile, Audio/Video Remote Control Profile, Headset Profile, Hands-Free ProfileOperating range Up to 30 feet (10 metres)Radio Frequency 2.402 ~ 2.480 GHzStandby time Up to 400 hours*Talk time Up to 12 hours*Charging time Approximately 3.5 hours** Depending on the phone type and usage, the actual time may vary.
