Samsung Electronics Co Ltd Bluetooth Stereo Speaker BSP1000
User manual
World Wide Web
http://www.samsungmobile.com
Printed in Korea
Code No.:GH68-XXXXXA
EU A. 02/2009. Rev. 1.0
English ............................................................. 1
English
1
Contents
Getting started
Your speaker overview ....................................................4
Button functions .............................................................6
Icons ............................................................................8
Charging the speaker ......................................................9
Mounting the speaker in your vehicle .............................. 11
Using your speaker
Turning the speaker on or off ......................................... 12
Pairing and connecting the speaker ................................. 13
Using call functions ....................................................... 15
Using music control functions ......................................... 17
Setting a DNSe sound effect .......................................... 19
Using the speaker as an FM transmitter ........................... 20
Using the Text to Speech (TTS) feature ............................ 21
Connecting the speaker to a music player ........................ 22
Using Power saving mode .............................................. 23
2
Appendix
Frequently asked questions ............................................ 24
Warranty and parts replacement ..................................... 26
Correct disposal of this product ...................................... 27
Specifications ............................................................... 28
English
3
Take the time to read through this user manual before using the
BSP1000 Bluetooth SPEAKER.
Bluetooth
® is a registered trademark of the Bluetooth SIG, Inc.
worldwide—Bluetooth QD ID: Bxxxxxx
More information about Bluetooth is available at www.bluetooth.com.
Safety precautions
Never disassemble or modify your speaker for any reason. Doing this
may cause the speaker to malfunction or become combustible. Bring
the speaker to an authorised service centre for repairs.
When using your speaker while driving, follow local regulations in the
country or region you are in.
Avoid storage at high temperatures (above 50° C/122° F), such as in
a hot place or in direct sunlight, as this can damage performance and
reduce battery life.
Do not expose the speaker or any of its parts to rain or other liquids.
Do not use the speaker in humid places or handle it with wet hands.
•
•
•
•
•
4
Getting started
This section explains the proper use of your Bluetooth speaker.
Your speaker overview
2
4
5
7
1
9
10
6
3 8
English
5
1
Power switch
6
Mounting bracket
2
Charger jack
7
Speaker
3
Microphone
8
Volume control buttons
4
DNSe button
9
Display
5
Music control buttons
10
Talk button
Make sure that you have the following items with your speaker:
charger and user manual.
The items supplied with your speaker may vary depending on your region.
6
Button functions
Button Functions
Power Slide to turn the speaker on
or off.
Talk
Press to make or answer a call.
Press to end a call.
Press and hold to enter Pairing mode.
•
•
•
DNSe
Touch to select a DNSe sound effect.
Touch and hold to activate the FM
transmitter feature.
Touch to activate or deactivate the TTS
feature.
•
•
•
REW Touch to skip backward.
Touch and hold to scan backward in a file.
•
•
English
7
Button Functions
Play/Pause/
Stop
Touch to begin or pause playback.
Touch and hold to stop playback.
•
•
FF Touch to skip forward.
Touch and hold to scan forward in a file.
•
•
Volume
control
Press to adjust the volume.
Press and hold both of the buttons at the
same time to reverse the direction of the
display.
During a call, press and hold both of the
buttons at the same time to mute the
microphone.
•
•
•
8
Icons
Icon Descriptions
Connected to a Bluetooth device
Music player connected
DNSe sound effect activated
TTS feature activated
TTS feature deactivated
Saved radio station 1 (for FM transmitter)
Saved radio station 2 (for FM transmitter)
Saved radio station 3 (for FM transmitter)
Battery power level
English
9

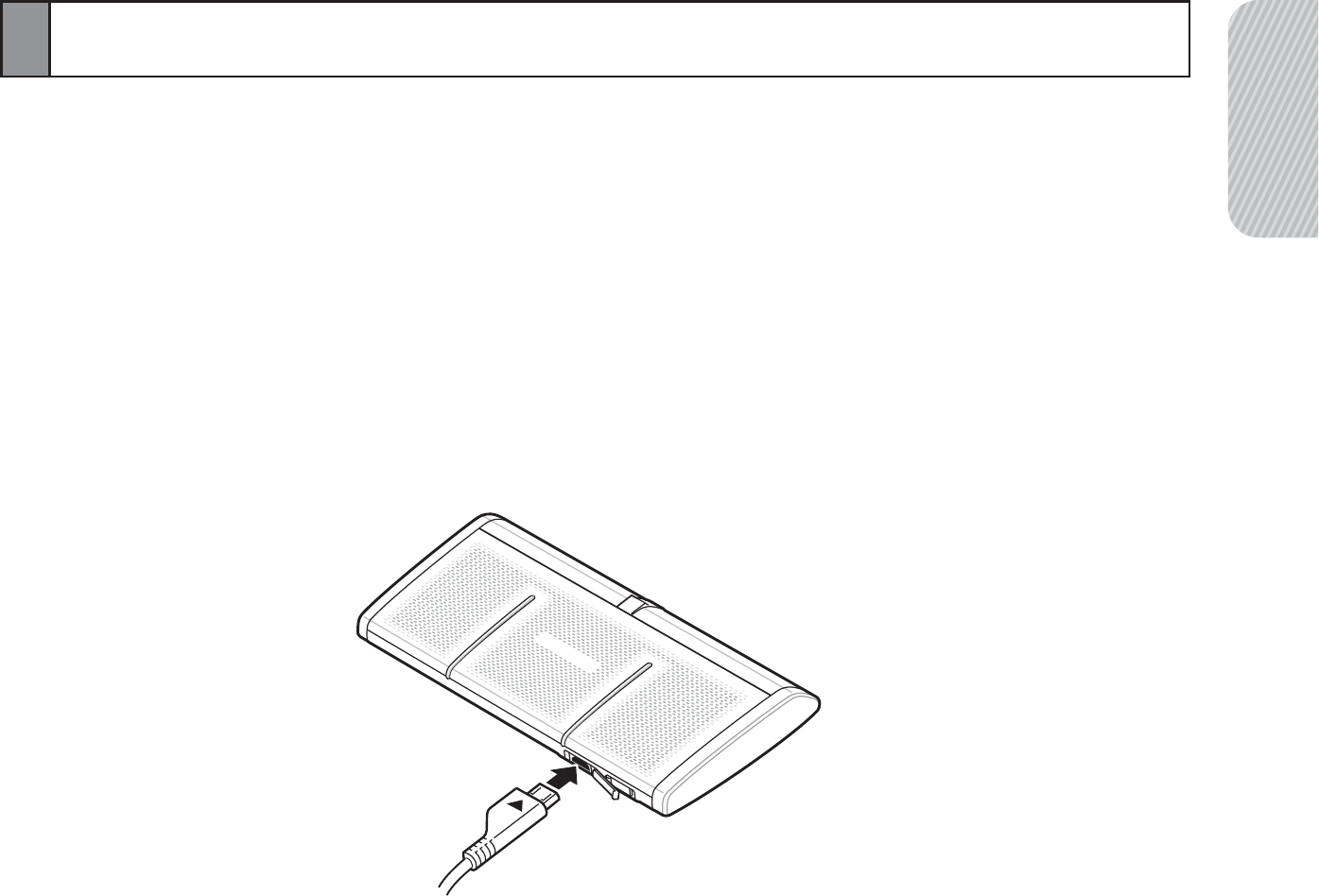

Charging the speaker
This speaker has a rechargeable internal battery which is non-
removable. Charge the battery completely before using the speaker for
the first time.
Using the charger
1 Open the cover to the charger jack on the top of the speaker.
2 Plug the small end of the charger into the charger jack.
10
3 Plug the large end of the charger into a power outlet.
While the speaker is charging, the icon will appear on the display.
4 When the speaker is fully charged (the icon is no longer moving),
unplug the charger from the power outlet and the speaker.
When the battery power is low
The speaker will emit a warning tone. If the speaker powers off during a
call, the call will automatically transfer to your phone.
English
11

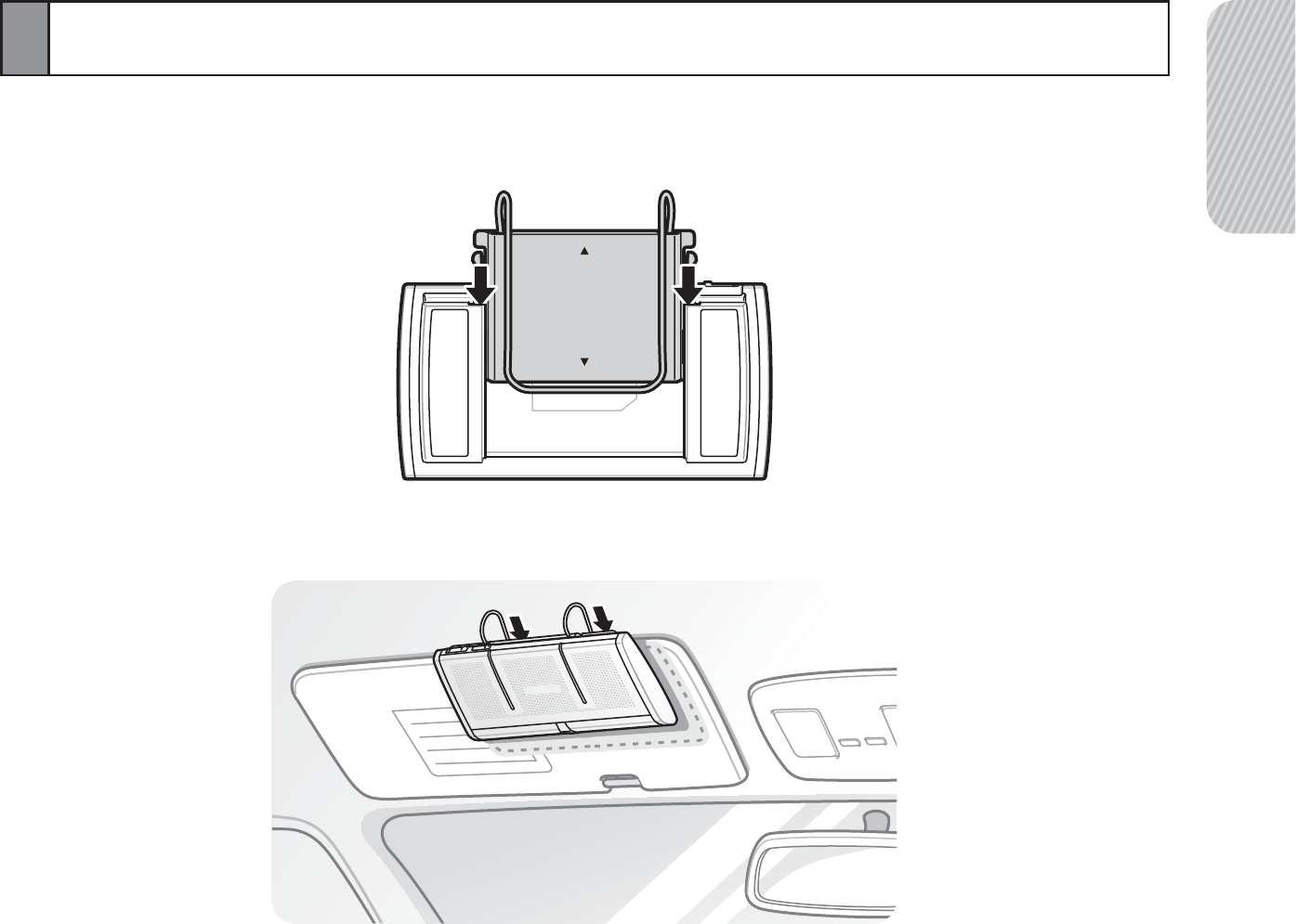

Mounting the speaker in your vehicle
1 Slide the mounting bracket with the slot in the back of the speaker.
2 Slide the speaker onto a sun visor in your vehicle.
12
Using your speaker
This section explains how to turn the speaker on, pair and connect to
the phone, and use various functions.
Available functions and features may differ depending on your type of
phone.
Some devices, especially those that are not tested or approved by the
Bluetooth SIG, may be incompatible with your speaker.
•
•
Turning the speaker on or off
To turn the speaker on, slide [ ] to the on position. You will hear an
alert and the display will turn on.
To turn the speaker off, slide [ ] to the off position.
•
•
English
13
Pairing and connecting the speaker
Pairing will create a unique and encrypted wireless link between
two Bluetooth enabled devices, such as a Bluetooth phone and your
Bluetooth speaker.
To use the speaker with other Bluetooth devices, the devices must be
paired. When trying to pair the two devices, keep the speaker and the
phone reasonably close together. After pairing, you can connect the two
devices.
Pairing and connecting the speaker to a phone
1 To enter Pairing mode, press and hold [ ].
When you turn on the speaker, it automatically enters Pairing mode.
2 Activate the Bluetooth feature on your phone and search for the
speaker (see your phone’s user manual).
3 Select the speaker (BSP1000) from the list of devices found by your
phone.
14
4 Enter the Bluetooth PIN (0000, 4 zeros) to pair and connect the
speaker to your phone.
Your speaker supports the Simple Pairing feature which allows the
speaker to be paired with a phone without requesting a PIN. This feature
is available for phones that are compliant with Bluetooth version 2.1 or
higher.
Disconnecting the speaker
To disconnect the speaker from your phone,
Slide [ ] to the off position to turn the speaker off.
Use the Bluetooth menu on your phone.
Reconnecting the speaker
When the speaker is paired with a phone, it will attempt to automatically
reconnect each time you turn the power on.
If the speaker does not automatically attempt to reconnect,
Press [ ].
Use the Bluetooth menu on your phone.
•
•
•
•
English
15
Using call functions
Making a call
Redialling the last number
Press and hold [ ] to redial the last number.
For some phones, pressing [ ] opens the call log list. Press [ ] again
to dial the selected number.
Dialling a number by voice
Press [ ] and say a name to dial a number by voice.
Answering a call
When you hear incoming call tones, press [ ] to answer a call .
Ending a call
Press [ ] to end a call.
Rejecting a call
When a call comes in, press and hold [ ] to reject a call .
16
Using options during a call
You can use the following functions to control your call:
Adjusting the volume
Press [ / ] to adjust the volume.
Muting the microphone
Press both volume buttons at the same time to mute the microphone.
Transferring a call between the phone and the speaker
Press [ ] to transfer a call from the phone to the speaker.
Press and hold [ ] to transfer a call from the speaker to the phone.
Placing a call on hold
Touch [ ] to place the current call on hold.
Answering a second call
When you hear call waiting tones, touch [ ] to end the first call and
answer a second call.
When you hear waiting tones, touch [ ] to place the first call on
hold and answer a second call .
To switch between the current call and a held call, touch [ ].
Rejecting a second call
When you hear call waiting tones, touch [ ] to reject a second call.
•
•
•
•
•
English
17
Using music control functions
Listening to music
1 Touch [ ].
Playback begins and sound output switches to the speaker.
2 Control playback with the following buttons:
: Touch to pause or resume playback. Touch and hold to stop
playback.
: Touch to skip backward. Touch and hold to scan backward.
: Touch to skip forward. Touch and hold to scan forward.
/ : Press to adjust the volume.
•
•
•
•
18
Answering a call while listening to music files on your
phone
When a call comes in while listening to music files on your phone, your
speaker will alert you so that you can answer the call.
1 When the speaker sounds incoming call tones, press [ ].
The music stops and the call is connected with the caller.
2 When you have finished the conversation, press [ ].
Your phone automatically resumes playback after the call.
English
19
Setting a DNSe sound effect
DNSe (Digital Natural Sound Engine) is a technology that enhances your
listening experience.
1 Before setting a DNSe sound effect, make sure that the FM
transmitter is deactivated. To deactivate it, touch and hold [ ].
2 While listening to music, touch [ ] to select one of the following
sound effects:
Studio mode
Rock mode
Speech Enhance mode
Concert Hall mode
•
•
•
•
20
Using the speaker as an FM transmitter
You can use the speaker as a radio transmitter to listen to music via
your car stereo.
1 While listening to music, touch and hold [ ] to activate the FM
transmitter feature.
2 Press [ / ] to select a radio station.
You can also press and hold [ ] to scan through available radio
stations.
3 To save the radio station, press and hold [ ]. You can save up to 3
radio stations (The , and icons will appear on the display
to denote saved stations).
4 To switch the sound output back to the speaker, touch and hold
[].
English
21
Using the Text to Speech (TTS) feature
When the Text to Speech (TTS) feature is activated, your speaker will
read a caller’s number aloud when a call comes in.
Activating or deactivating the TTS feature
Touch [ ] to activate or deactivate the TTS feature.
Selecting a TTS language
1 Slide [ ] to the off position.
2 Press and hold [ ], then slide [ ] to the on position.
The display shows the current language.
3 Press [ / ] to select a language.
4 When you are finished, press [ ] to save the setting.
The speaker will restart automatically.
22
Connecting the speaker to a music player
You can use your speaker with a phone and a Bluetooth-enabled music
player at the same time.
1 First, pair the speaker with a phone. See page 13.
2 When successful, press and hold [ ]. The speaker will sound an
alert.
3 Search for, pair, and connect to the music player by following the
instructions in the music player’s user manual.
4 Press and hold [ ] to connect to the paired phone.
5 When the phone and the music player are successfully connected to
the speaker, you can make or answer a call while listening to music.
You must use the music player to start, pause, and resume playback, and
scan backward and forward in a music file.
English
23
Using Power saving mode
When the speaker remains idle for more than 5 minutes except when
the speaker is charging, the speaker will enter Power saving mode.
To return to Normal mode, touch or press any button.
24
Appendix
Frequently asked questions
Will my speaker work
with laptops, PCs, and
PDAs?
Your speaker will work with devices that
support the same Bluetooth version and
profiles. For specifications, see page 28.
Why do I hear static
or interference while
on a call?
Appliances such as cordless phones and
wireless networking equipment may cause
interference, which usually sounds like
static. To reduce any interference, keep
the speaker away from other devices that
use or produce radio waves.
English
25
Will my speaker
interfere with my
radio or computer?
Your speaker emits signals that are
in compliance with the international
Bluetooth standard. Therefore, you should
not expect any interference with standard,
consumer-grade electronic equipment.
Why do I hear an
echo while on a call?
Adjust the speaker volume, or move away
from the speaker and try again.
How do I clean my
speaker?
Wipe it with a soft dry cloth.
26
Warranty and parts replacement
Samsung warrants this product as free of defects in material, design
and workmanship for the period of one year from the original date of
purchase.(Depending on your country, the length of warranty may vary.)
If during the period of warranty this product proves defective under
normal use and service you should return the product to the retailer
from whom it was originally purchased or a qualified service centre. The
liability of Samsung and its appointed maintenance company is limited
to the cost of repair and/or replacement of the unit under warranty.
The warranty is limited to the original purchaser
A copy of your receipt or other proof of purchase is required for a
proper warranty service
The warranty is void if the serial number, date code label or product
label is removed, or if the product has been subject to physical abuse,
improper installation, modification, or repair by unauthorised third
parties
Specifically exempt from any warranty are limited-life consumable
components such as batteries and other accessories
Samsung will not assume any responsibility for any loss or damage
incurred in shipping. All repair work on Samsung products by
unauthorised third parties voids any warranty
•
•
•
•
•
English
27
Correct disposal of this product
(Waste Electrical & Electronic Equipment)
This marking shown on the product or its literature, indicates
that it should not be disposed with other household wastes at
the end of its working life.
To prevent possible harm to the environment or human health
from uncontrolled waste disposal, please separate this from
other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where
they purchased this product, or their local government office,
for details of where and how they can take this item for
environmentally safe recycling.
Business users should contact their supplier and check the
terms and conditions of the purchase contract. This product
should not be mixed with other commercial wastes for disposal.
28
Specifications
Item Specifications and description
Bluetooth version 2.1+EDR
Supported profiles Advanced Audio Distribution Profile, Audio/
Video Remote Control Profile, Headset Profile,
Hands-Free Profile
Operating range Up to 30 feet (10 metres)
Radio Frequency 2.402 ~ 2.480 GHz
Standby time Up to 400 hours*
Talk time Up to 12 hours*
Charging time Approximately 3.5 hours*
* Depending on the phone type and usage, the actual time may vary.
