Modular installation manual WARNING i. We recommend to keep 20cm distance when installing this module. ii. This module should not be installed and operating simultaneously with other radio without additional evaluation or FCC filing. iii. The host system should have proper label showing that it "Contains FCC ID : A3LBTM730B"

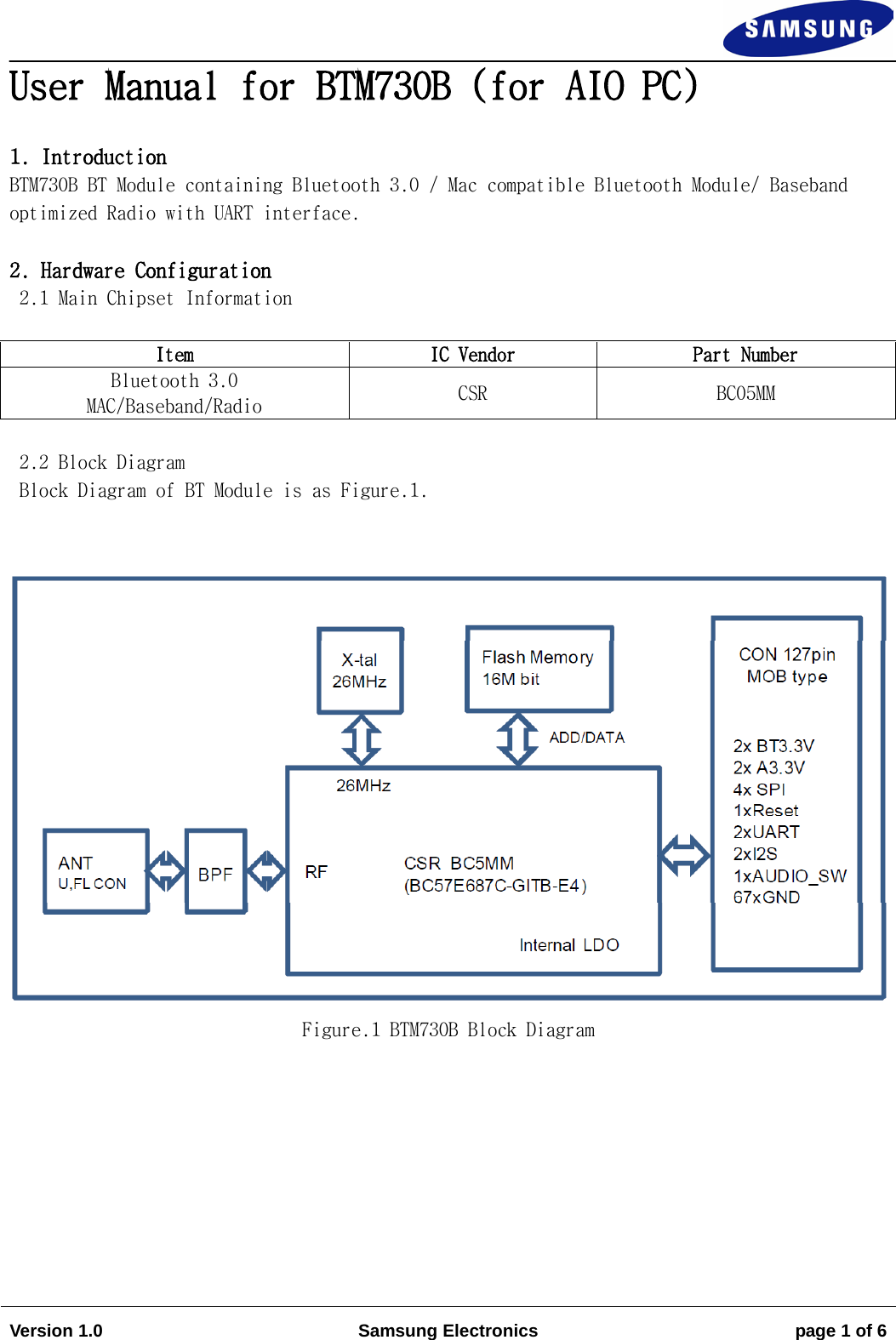

Version 1.0 Samsung Electronics page 1 of 6 User Manual for BTM730B (for AIO PC) 1. Introduction BTM730B BT Module containing Bluetooth 3.0 / Mac compatible Bluetooth Module/ Baseband optimized Radio with UART interface. 2. Hardware Configuration 2.1 Main Chipset Information Item IC Vendor Part Number Bluetooth 3.0 MAC/Baseband/Radio CSR BC05MM 2.2 Block Diagram Block Diagram of BT Module is as Figure.1. Figure.1 BTM730B Block Diagram
Version 1.0 Samsung Electronics page 2 of 6 3. Operational Description BTM730B BT Module is RF communication controller which is equipped with AIO PC for the users who use wireless devices. A number of channels are 79 which are based on IEEE 802.15.1/1a and frequency range is 2402MHz ~ 2480MHz. Each channel has a bandwidth of 1 MHz. - Transmitter Baseband processor uses FFHS (Frequency Hopping Spread Spectrum) scheme to avoid interference from other signals by hopping to a new frequency after transmitting or receiving a packet. BTM740B BT Module provides 1Mbps, 2Mbps (EDR), 3Mbps (EDR) data rate and 2FSK/DQPSK/8DPSK modulation. Tx signal is modulated as Tx IQ by DAC (Digital-Analog Convertor) inside of baseband IC then it is transmitted through internal PA (Power Amplifier). - Receiver Transceiver IC is insulated by Low Noise Amplifier (LNA) to avoid undesirable noise interferences. RF signal is converted and demodulated as RX IQ by through intermediate frequency and RF filter then it is input to the processing unit. - Power Class BTM730B BT Module operate as BT Power Class 1 of IEEE 802.15.1/1a Standard. - Interface BTM730B BT Module supports standard UART interface and UART setting values are as Table.1. Table.1 UART Setting

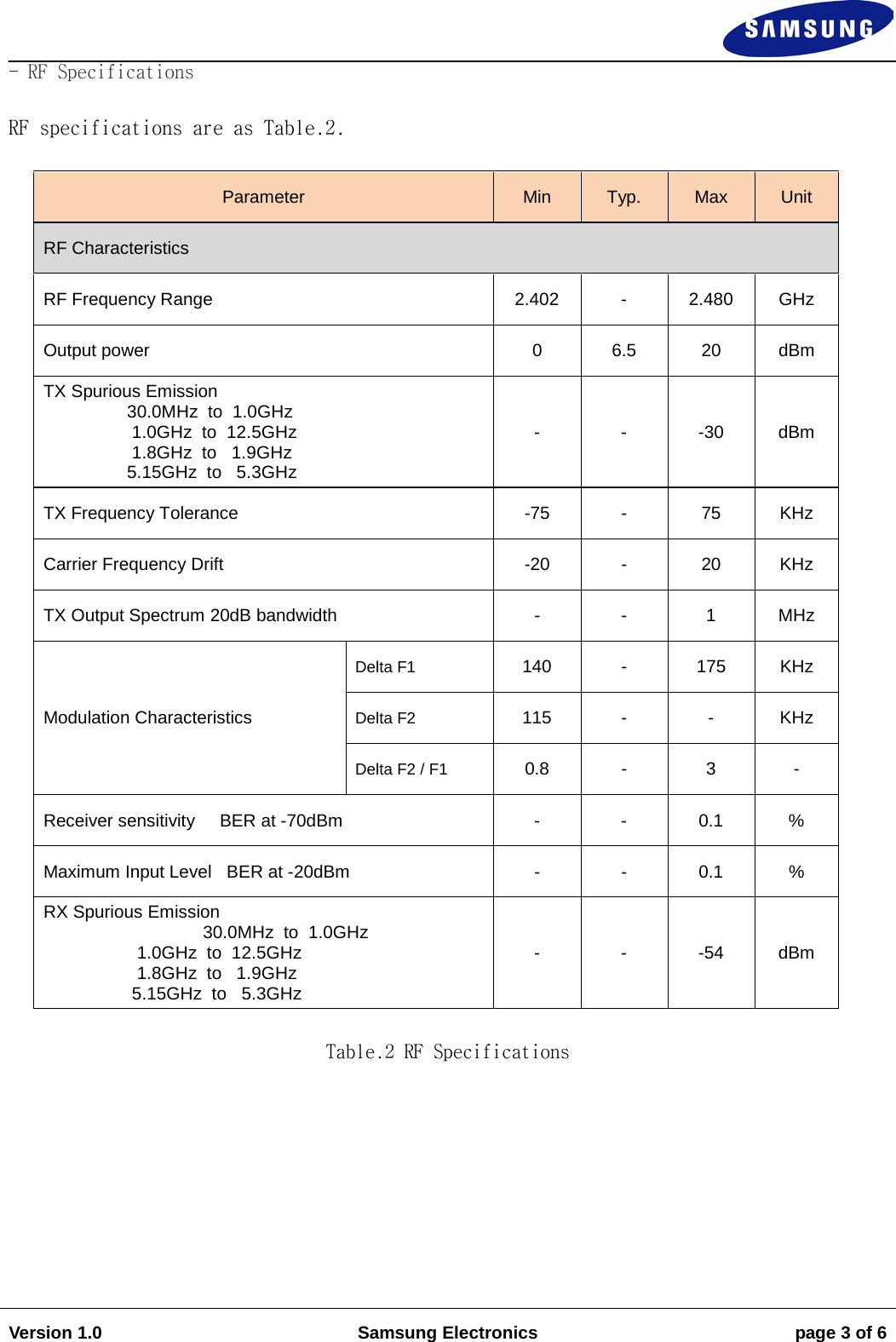

Version 1.0 Samsung Electronics page 3 of 6 - RF Specifications RF specifications are as Table.2. Parameter Min Typ. Max Unit RF Characteristics RF Frequency Range 2.402 - 2.480 GHz Output power 0 6.5 20 dBm TX Spurious Emission 30.0MHz to 1.0GHz 1.0GHz to 12.5GHz 1.8GHz to 1.9GHz 5.15GHz to 5.3GHz - - -30 dBm TX Frequency Tolerance -75 - 75 KHz Carrier Frequency Drift -20 - 20 KHz TX Output Spectrum 20dB bandwidth - - 1 MHz Modulation Characteristics Delta F1 140 - 175 KHz Delta F2 115 - - KHz Delta F2 / F1 0.8 - 3 - Receiver sensitivity BER at -70dBm - - 0.1 % Maximum Input Level BER at -20dBm - - 0.1 % RX Spurious Emission 30.0MHz to 1.0GHz 1.0GHz to 12.5GHz 1.8GHz to 1.9GHz 5.15GHz to 5.3GHz - - -54 dBm Table.2 RF Specifications
Version 1.0 Samsung Electronics page 4 of 6 4. Pin Description Pin descriptions are as Table.3. Table.3 Pin Description

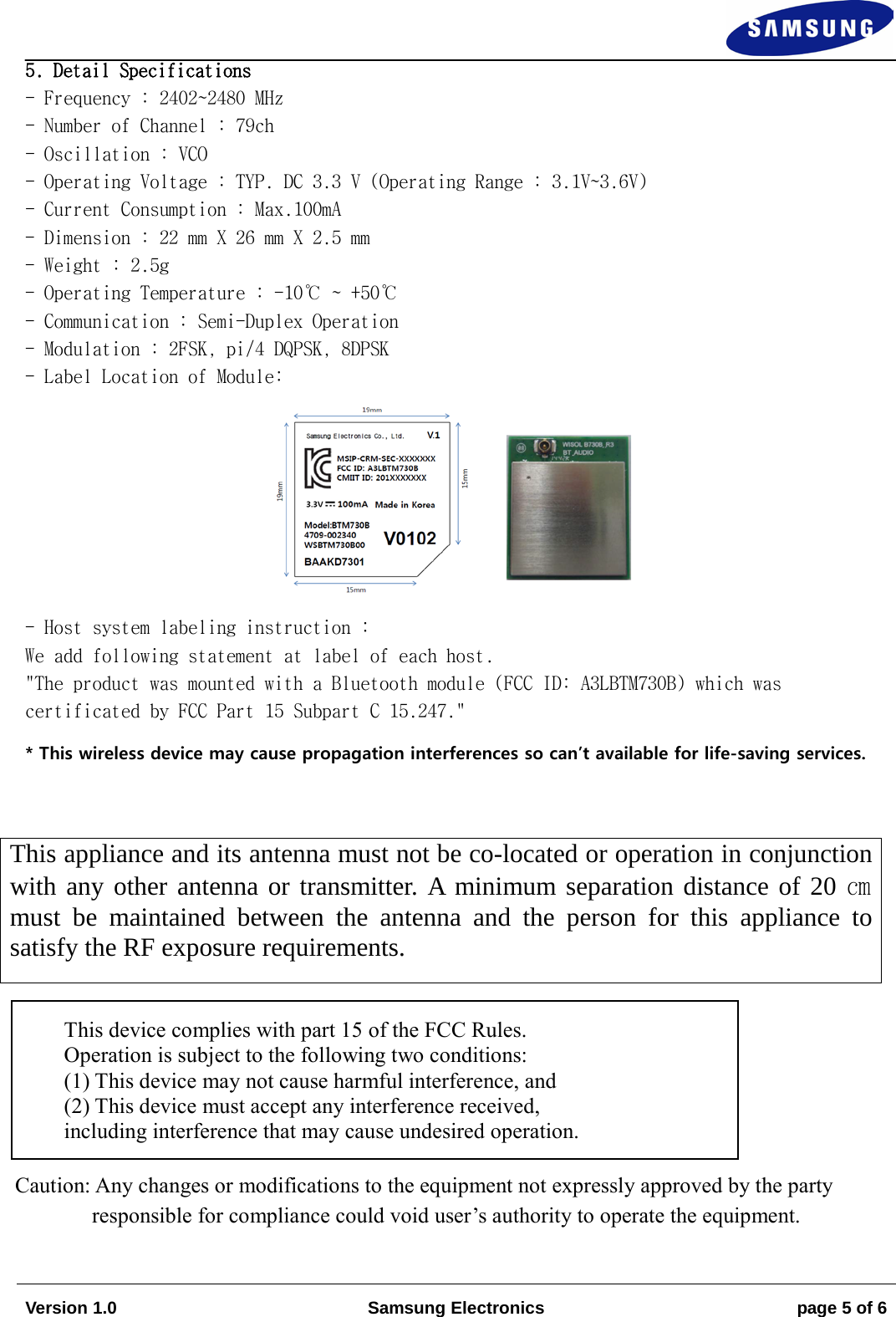

Version 1.0 Samsung Electronics page 5 of 6 5. Detail Specifications - Frequency : 2402~2480 MHz - Number of Channel : 79ch - Oscillation : VCO - Operating Voltage : TYP. DC 3.3 V (Operating Range : 3.1V~3.6V) - Current Consumption : Max.100mA - Dimension : 22 mm X 26 mm X 2.5 mm - Weight : 2.5g - Operating Temperature : -10℃ ~ +50℃ - Communication : Semi-Duplex Operation - Modulation : 2FSK, pi/4 DQPSK, 8DPSK - Label Location of Module: - Host system labeling instruction : We add following statement at label of each host. "The product was mounted with a Bluetooth module (FCC ID: A3LBTM730B) which was certificated by FCC Part 15 Subpart C 15.247." * This wireless device may cause propagation interferences so can’t available for life-saving services. This appliance and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter. A minimum separation distance of 20 ㎝ must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment.
Version 1.0 Samsung Electronics page 6 of 6 * Please use only allowed PIFA antenna below. * Use other antenna may subject to additional testing and filing to FCC.
