User Manual for BTM730B (for AIO PC)
1. Introduction
BTM730B BT Module containing Bluetooth 3.0 / Mac compatible Bluetooth Module/ Baseband
optimized Radio with UART interface.
2. Hardware Configuration
2.1 Main Chipset Information
Item
IC Vendor
Part Number
Bluetooth 3.0
MAC/Baseband/Radio
CSR BC05MM
2.2 Block Diagram

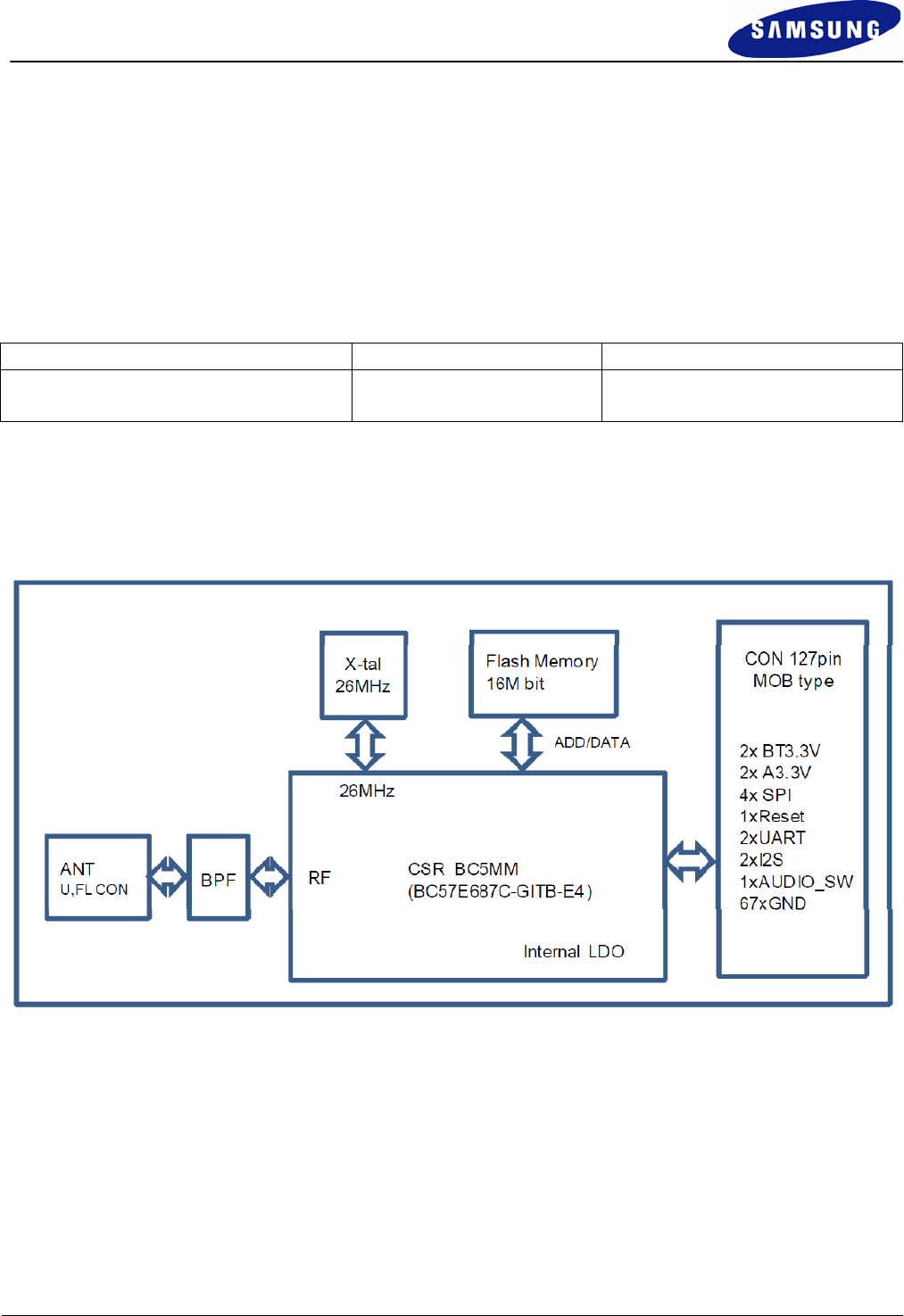

Block Diagram of BT Module is as Figure.1.
Figure.1 BTM730B Block Diagram
Version 1.0
Samsung Electronics
page 2 of 6
3. Operational Description
BTM730B BT Module is RF communication controller which is equipped with AIO PC for the
users who use wireless devices.
A number of channels are 79 which are based on IEEE 802.15.1/1a and frequency range is
2402MHz ~ 2480MHz. Each channel has a bandwidth of 1 MHz.
- Transmitter
Baseband processor uses FFHS (Frequency Hopping Spread Spectrum) scheme to avoid
interference from other signals by hopping to a new frequency after transmitting or
receiving a packet.
BTM740B BT Module provides 1Mbps, 2Mbps (EDR), 3Mbps (EDR) data rate and 2FSK/DQPSK/8DPSK
modulation.
Tx signal is modulated as Tx IQ by DAC (Digital-Analog Convertor) inside of baseband IC
then it is transmitted through internal PA (Power Amplifier).
- Receiver
Transceiver IC is insulated by Low Noise Amplifier (LNA) to avoid undesirable noise
interferences. RF signal is converted and demodulated as RX IQ by through intermediate
frequency and RF filter then it is input to the processing unit.
- Power Class
BTM730B BT Module operate as BT Power Class 1 of IEEE 802.15.1/1a Standard.
- Interface

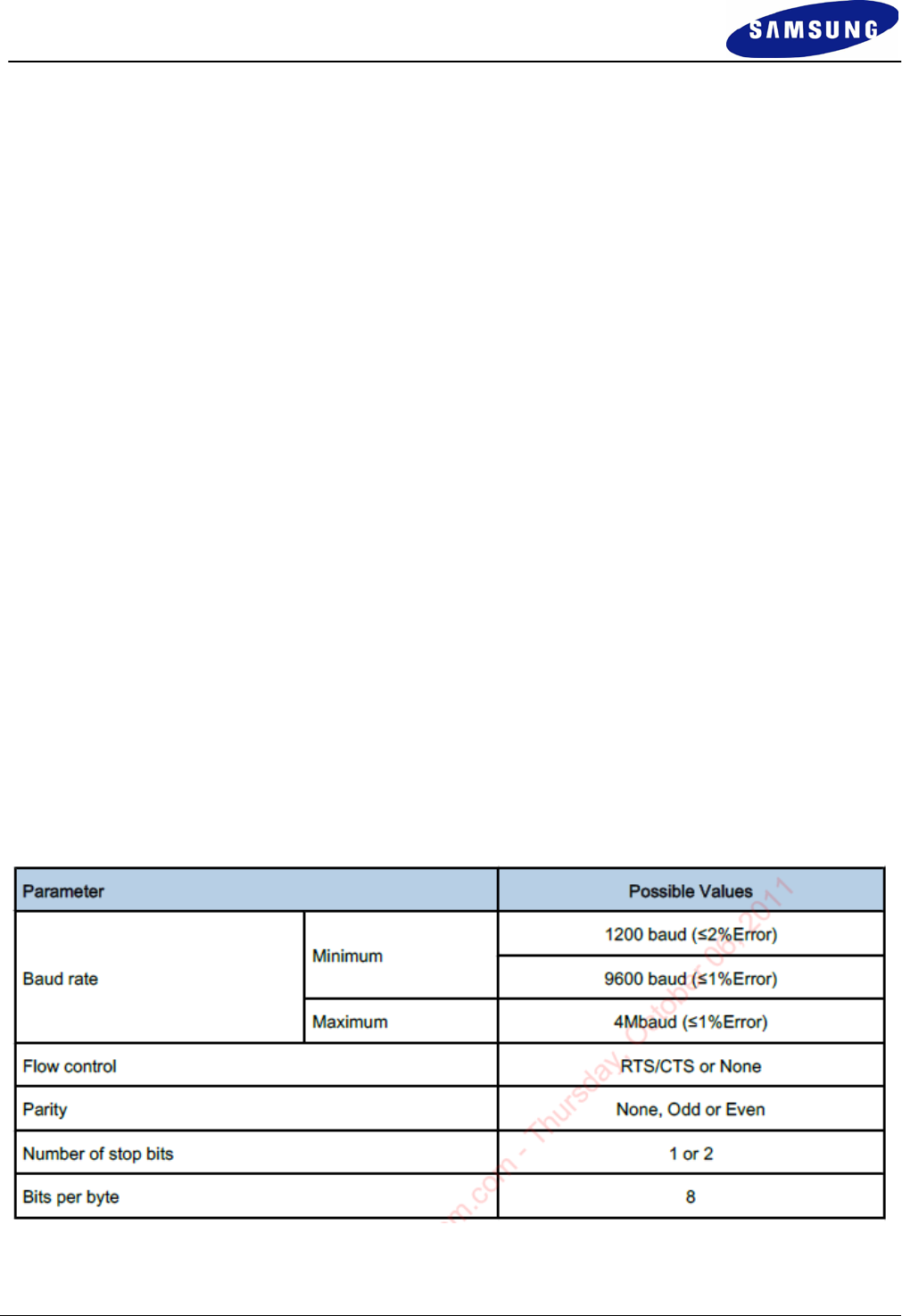

BTM730B BT Module supports standard UART interface and UART setting values are as Table.1.
Table.1 UART Setting
Version 1.0
Samsung Electronics
page 3 of 6
- RF Specifications
RF specifications are as Table.2.
Parameter Min Typ. Max Unit
RF Characteristics
RF Frequency Range 2.402 - 2.480 GHz
Output power 0 6.5 20 dBm
TX Spurious Emission
30.0MHz to 1.0GHz
1.0GHz to 12.5GHz
1.8GHz to 1.9GHz
5.15GHz to 5.3GHz
- - -30 dBm
TX Frequency Tolerance -75 - 75 KHz
Carrier Frequency Drift -20 - 20 KHz
TX Output Spectrum 20dB bandwidth - - 1 MHz
Modulation Characteristics
Delta F1 140 - 175 KHz
Delta F2 115 - - KHz
Delta F2 / F1 0.8 - 3 -
Receiver sensitivity BER at -70dBm - - 0.1 %
Maximum Input Level BER at -20dBm - - 0.1 %
RX Spurious Emission
30.0MHz to 1.0GHz
1.0GHz to 12.5GHz
1.8GHz to 1.9GHz
5.15GHz to 5.3GHz
- - -54 dBm
Table.2 RF Specifications
Version 1.0
Samsung Electronics
page 4 of 6
4. Pin Description

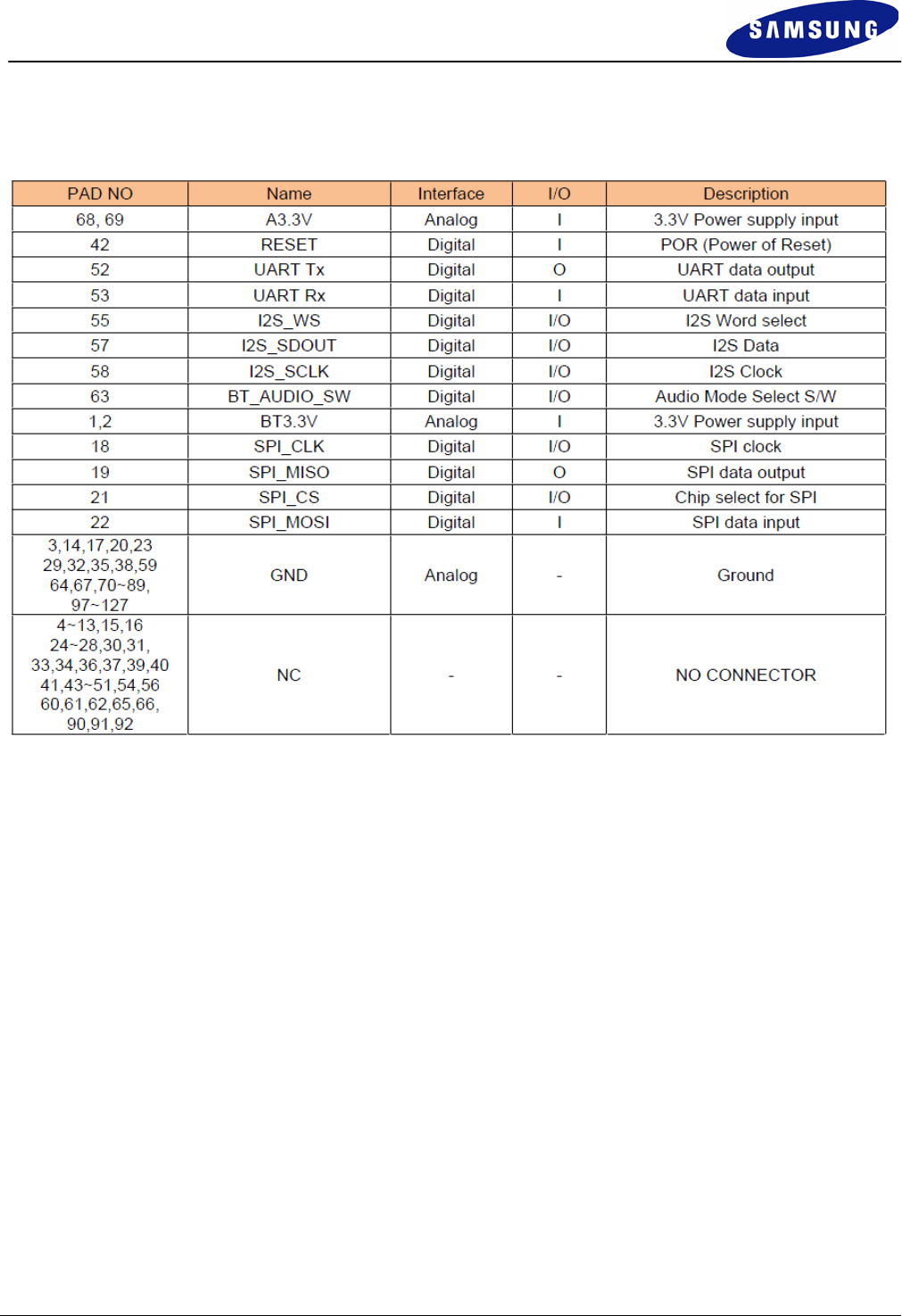

Pin descriptions are as Table.3.
Table.3 Pin Description
Version 1.0
Samsung Electronics
page 5 of 6
5. Detail Specifications
- Frequency : 2402~2480 MHz
- Number of Channel : 79ch
- Oscillation : VCO
- Operating Voltage : TYP. DC 3.3 V (Operating Range : 3.1V~3.6V)
- Current Consumption : Max.100mA
- Dimension : 22 mm X 26 mm X 2.5 mm
- Weight : 2.5g
- Operating Temperature : -10℃ ~ +50℃
- Communication : Semi-Duplex Operation
- Modulation : 2FSK, pi/4 DQPSK, 8DPSK

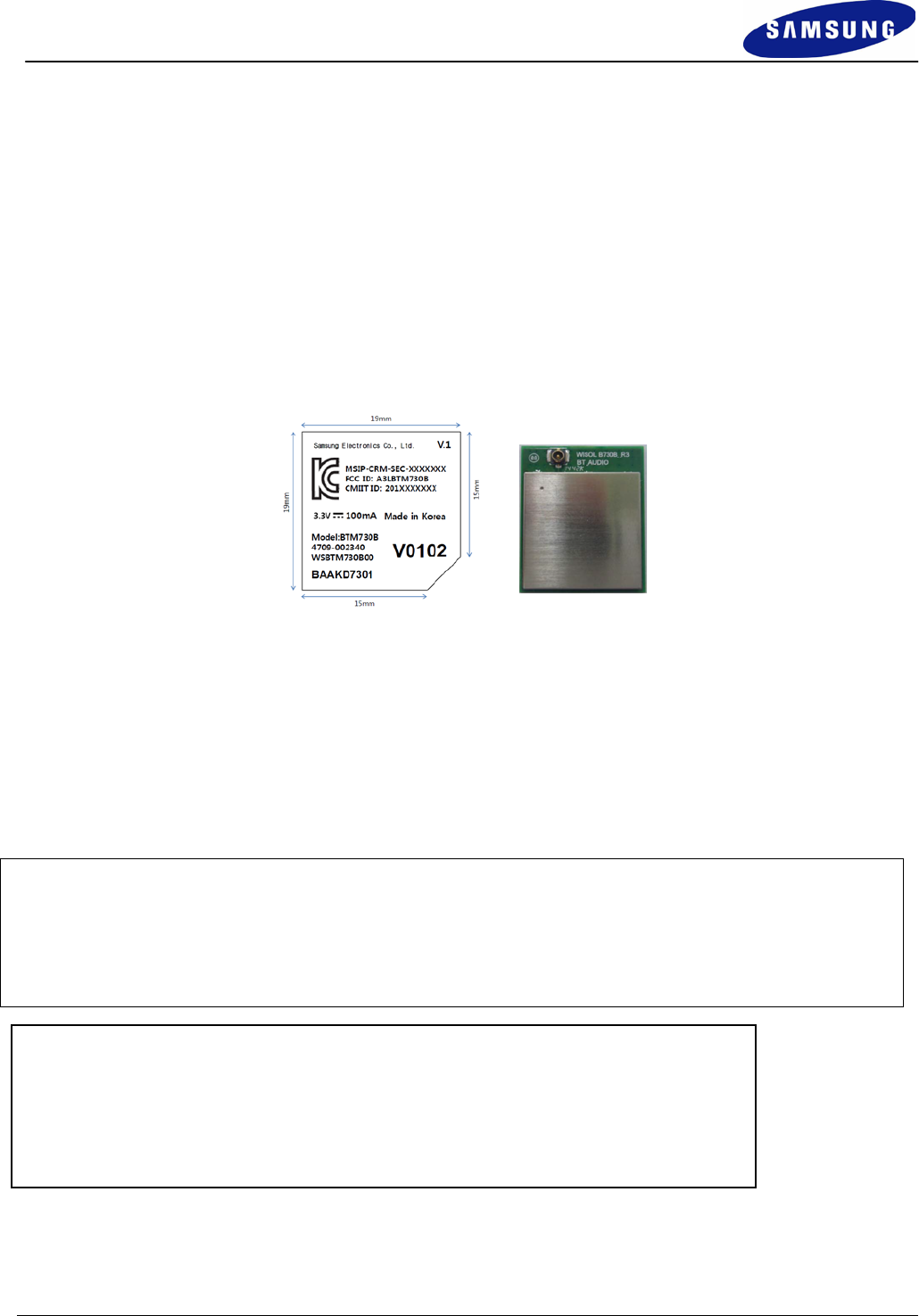

- Label Location of Module:
- Host system labeling instruction :
We add following statement at label of each host.
"The product was mounted with a Bluetooth module (FCC ID: A3LBTM730B) which was
certificated by FCC Part 15 Subpart C 15.247."
* This wireless device may cause propagation interferences so can’t available for life-saving services.
This appliance and its antenna must not be co-located or operation in conjunction
with any other antenna or transmitter. A minimum separation distance of 20 ㎝
must be maintained between the antenna and the person for this appliance to
satisfy the RF exposure requirements.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
Caution: Any changes or modifications to the equipment not expressly approved by the party
responsible for compliance could void user’s authority to operate the equipment.
Version 1.0
Samsung Electronics
page 6 of 6

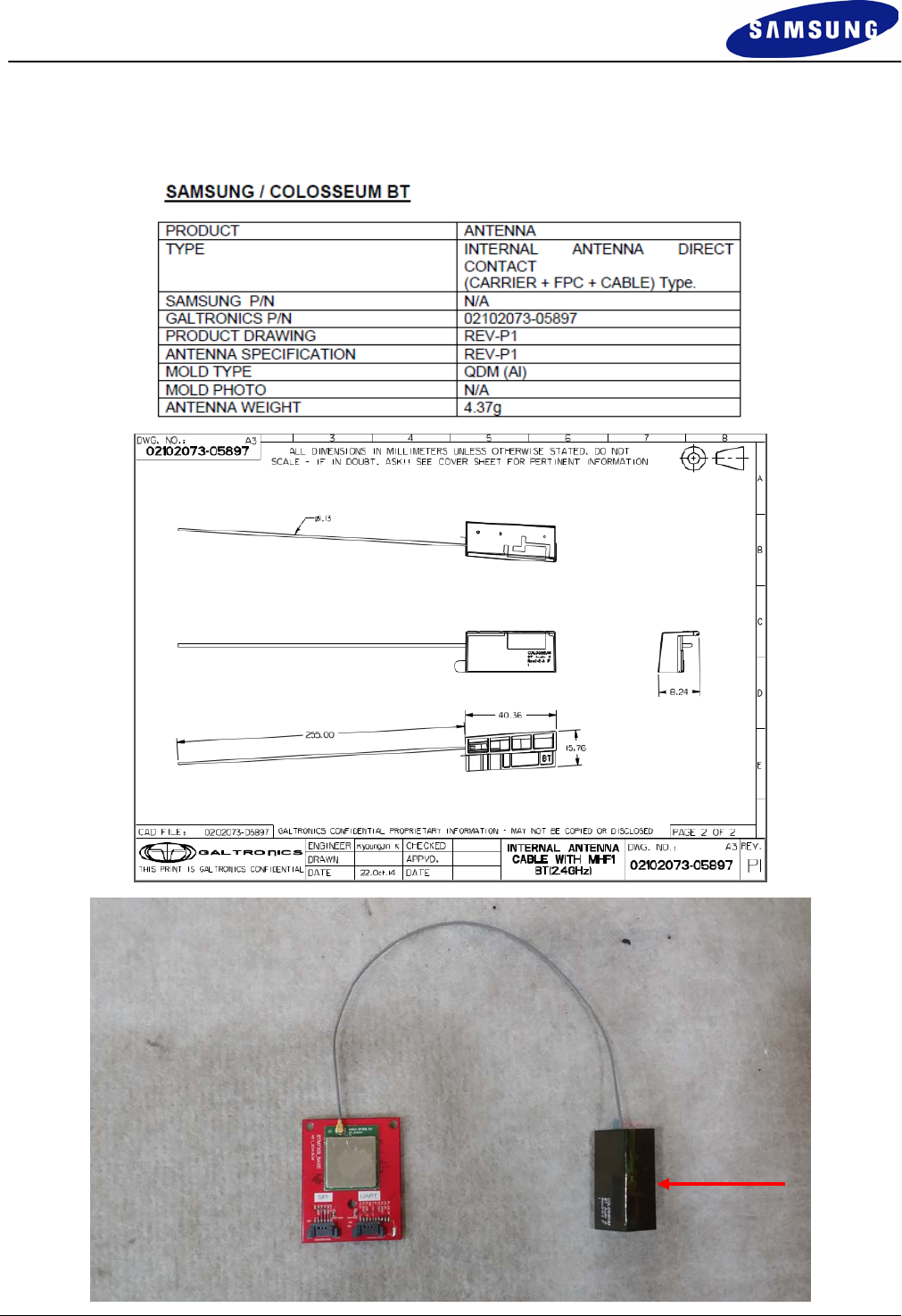

* Please use only allowed PIFA antenna below.
* Use other antenna may subject to additional testing and filing to FCC.
