3. Maintenance

Replacing the imaging unit

When the life span of the imaging unit has expired, the Smart Panel program window appears on the computer, indicating the imaging unit needs to be placed.

Otherwise, your machine stops printing.

• Don’t use sharp objects such as a knife or scissors to open the imaging unit package. You could damage the surface of the imaging unit.

• Be careful not to scratch the surface of the imaging unit.

• To prevent damage, do not expose the imaging unit to light for more than a few minutes. Cover it with a piece of paper to protect it if necessary.

• Before closing the front cover, make sure all toner cartridges are installed properly.

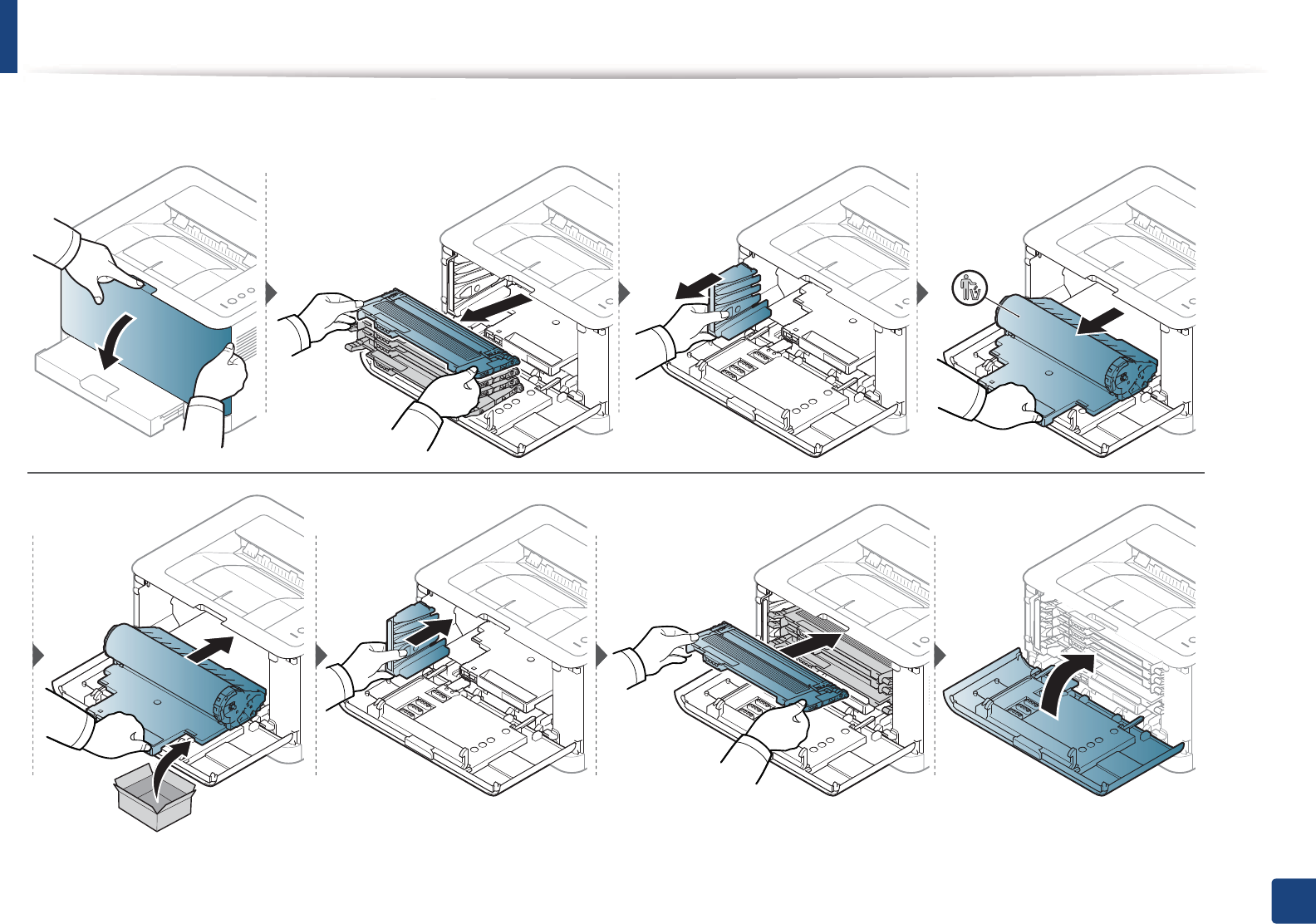

Replacing the imaging unit

3. Maintenance

Cleaning the machine

If printing quality problems occur or if you use your machine in a dusty environment, you need to clean your machine regularly to keep it in the best printing

condition and use your machine longer.

• Cleaning the cabinet of the machine with cleaning materials containing large amounts of alcohol, solvents, or other strong substances can discolor or distort the

cabinet.

• If your machine or the surrounding area is contaminated with toner, we recommend you use a cloth or tissue dampened with water to clean it. If you use a vacuum

cleaner, toner blows in the air and might be harmful to you.

• During the printing process, paper, toner, and dust particles can accumulate inside the machine. This buildup can cause print quality problems, such as toner

specks or smearing. Cleaning the inside of the machine clears and reduces these problems.

Cleaning the outside

Clean the machine cabinet with a soft, lint-free cloth. Dampen the cloth slightly with water, but be careful not to let any water drip onto or into the machine.

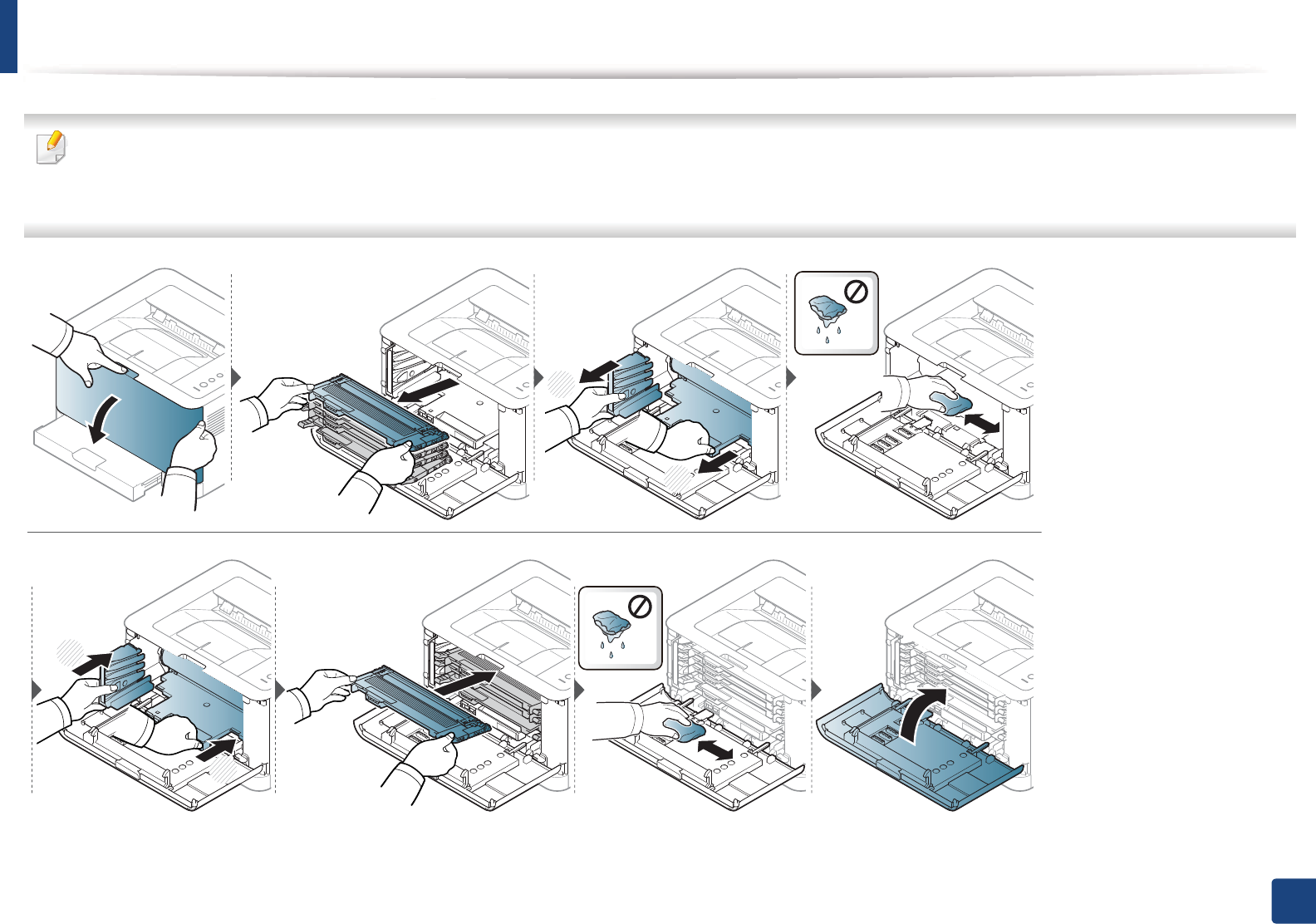

Cleaning the inside

During the printing process, paper, toner, and dust particles can accumulate inside the machine. This buildup can cause print quality problems, such as toner specks

or smearing. Cleaning the inside of the machine clears and reduces these problems.

Cleaning the machine

3. Maintenance

• Use a dry lint-free cloth to clean the machine.

• If your machine has a power switch, turn the power switch off before cleaning the machine.

• Before opening the top cover, close the output support first.

3. Maintenance

Tips for moving & storing your machine

• When moving the machine, do not tilt or turn it upside down. Otherwise, the inside of the machine may be contaminated by toner, which can cause damage to

the machine or reduce print quality.

• When moving the machine, make sure at least two people are holding the machine securely.

4. Troubleshooting

This chapter gives helpful information for what to do if you encounter an error.

• Tips for avoiding paper jams 57

• Clearing paper jams 58

• Understanding the status LED 61

This chapter gives helpful information for what to do if you encounter an error.

If your machine has a display screen, check the message on the display screen first to solve the

error. If you cannot find a solution to your problem in this chapter, refer to the

Troubleshooting chapter in the Advanced User's Guide (see "Troubleshooting" on page 163).

If you cannot find a solution in the User's Guide or the problem persists, call for service.

4. Troubleshooting

Tips for avoiding paper jams

By selecting the correct media types, most paper jams can be avoided. To avoid paper jams, refer to the following guidelines:

• Ensure that the adjustable guides are positioned correctly (see "Tray overview" on page 26).

• Do not overload the tray. Ensure that the paper level is below the paper capacity mark on the inside of the tray.

• Do not remove paper from the tray while your machine is printing.

• Flex, fan, and straighten paper before loading.

• Do not use creased, damp, or highly curled paper.

• Do not mix paper types in a tray.

• Use only recommended print media (see "Print media specifications" on page 67).

4. Troubleshooting

Clearing paper jams

To avoid tearing the paper, pull the jammed paper out slowly and gently.

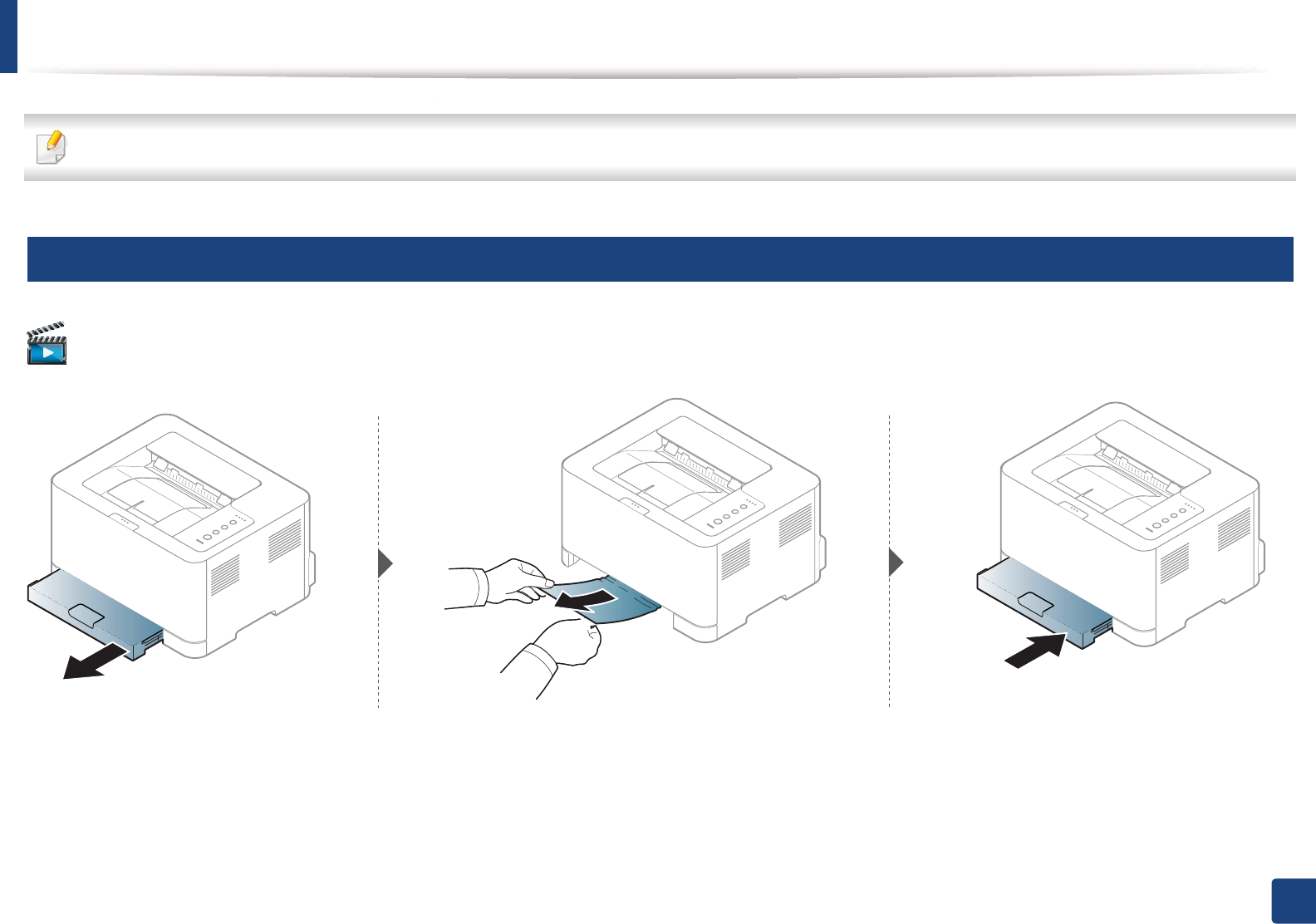

In tray

Click this link to open an animation about clearing a jam.

Clearing paper jams

4. Troubleshooting

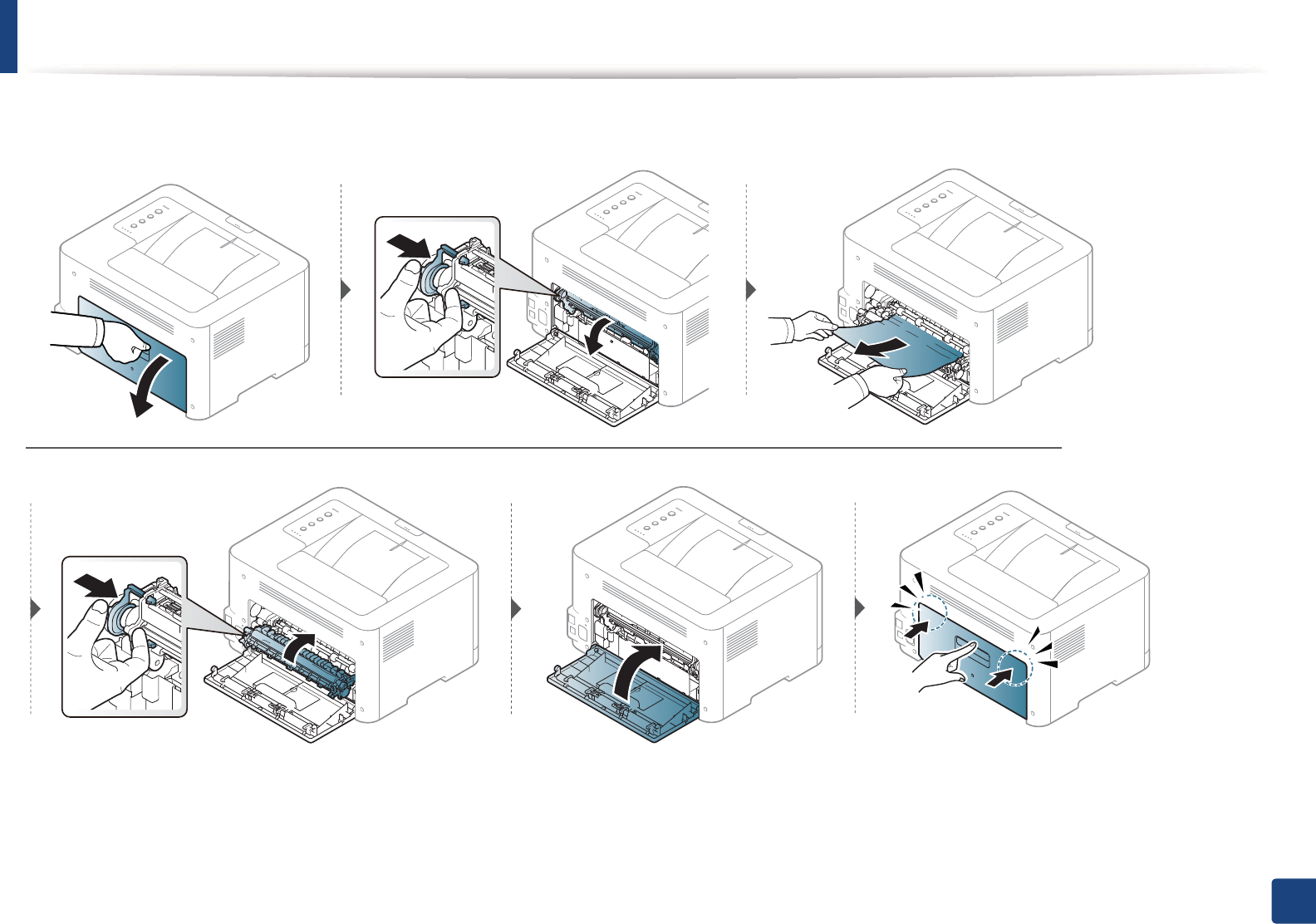

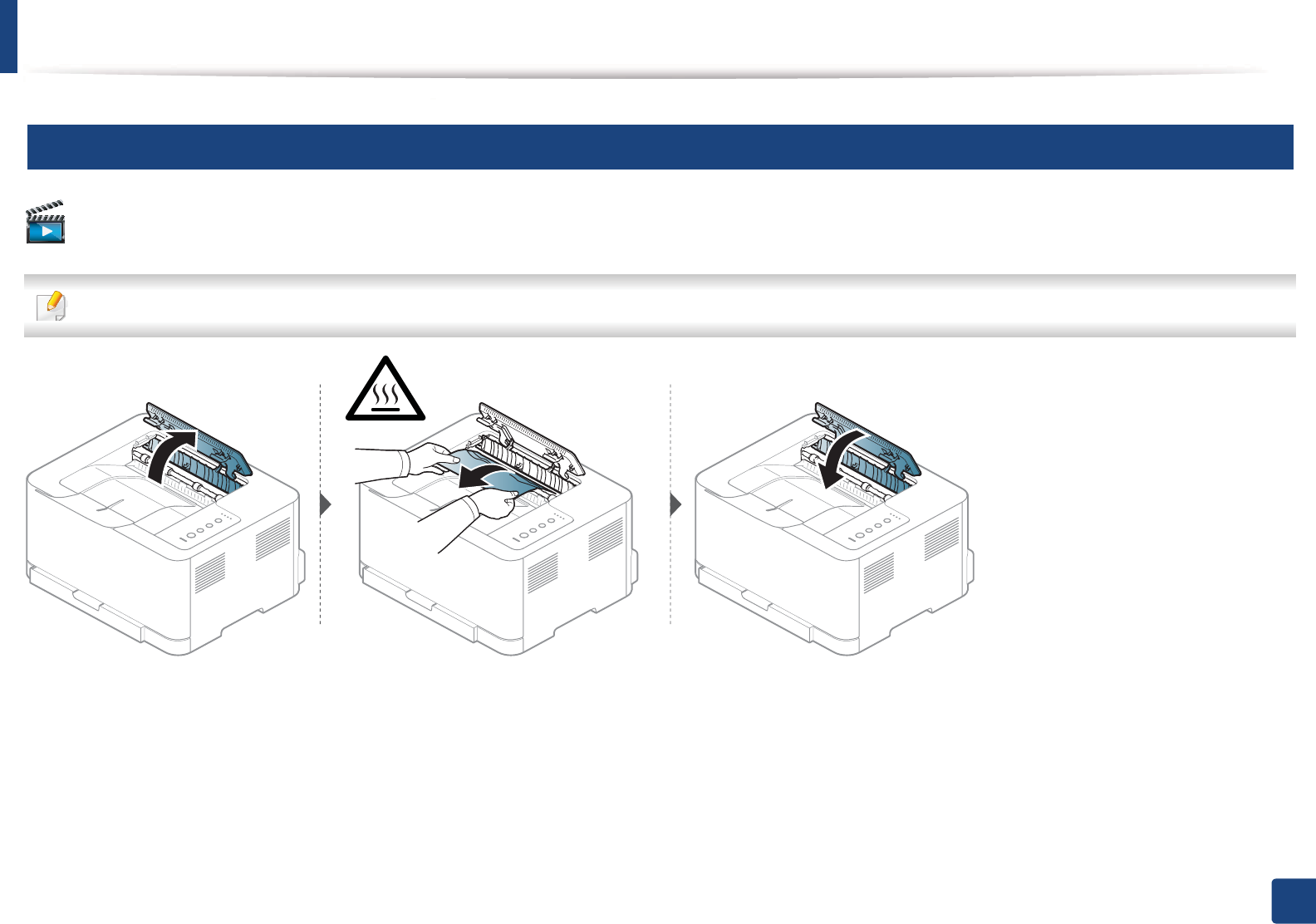

Inside the machine

Click this link to open an animation about clearing a jam.

• The fuser area is hot. Take care when removing paper from the machine.

Clearing paper jams

4. Troubleshooting

If you do not see the paper in this area, stop and go to next step:

4. Troubleshooting

Understanding the status LED

The color of the LED indicates the machine's current status.

• Some LEDs may not be available depending on model or country (see "Control panel overview" on page 19).

• To resolve the error, look at the error message and its instructions from the troubleshooting part (see "Troubleshooting" on page 163).

• You also can resolve the error with the guideline from the computers’s Samsung Printing Status program window (see "Using Samsung Printer Status" on page

158).

• If the problem persists, call a service representative.

Understanding the status LED

4. Troubleshooting

Status LED

Status Description

(Status LED)

Off The machine is off-line or save mode.

Green

Blinking • The machine is receiving data from the computer.

• The machine is printing data.

On The machine is on-line and can be used.

Red

Blinking The machine is on manual printing or manual duplex printing.

• The cover is opened. Close the cover (see "Machine overview" on page 16).

• There is no paper in the tray when receiving or printing data. Load paper in the tray (see "Loading paper in the

tray" on page 27).

• The machine has stopped due to a major error.

Orange

Blinking Upgrading firmware.

On A paper jam has occurred (see "Clearing paper jams" on page 58).

Understanding the status LED

4. Troubleshooting

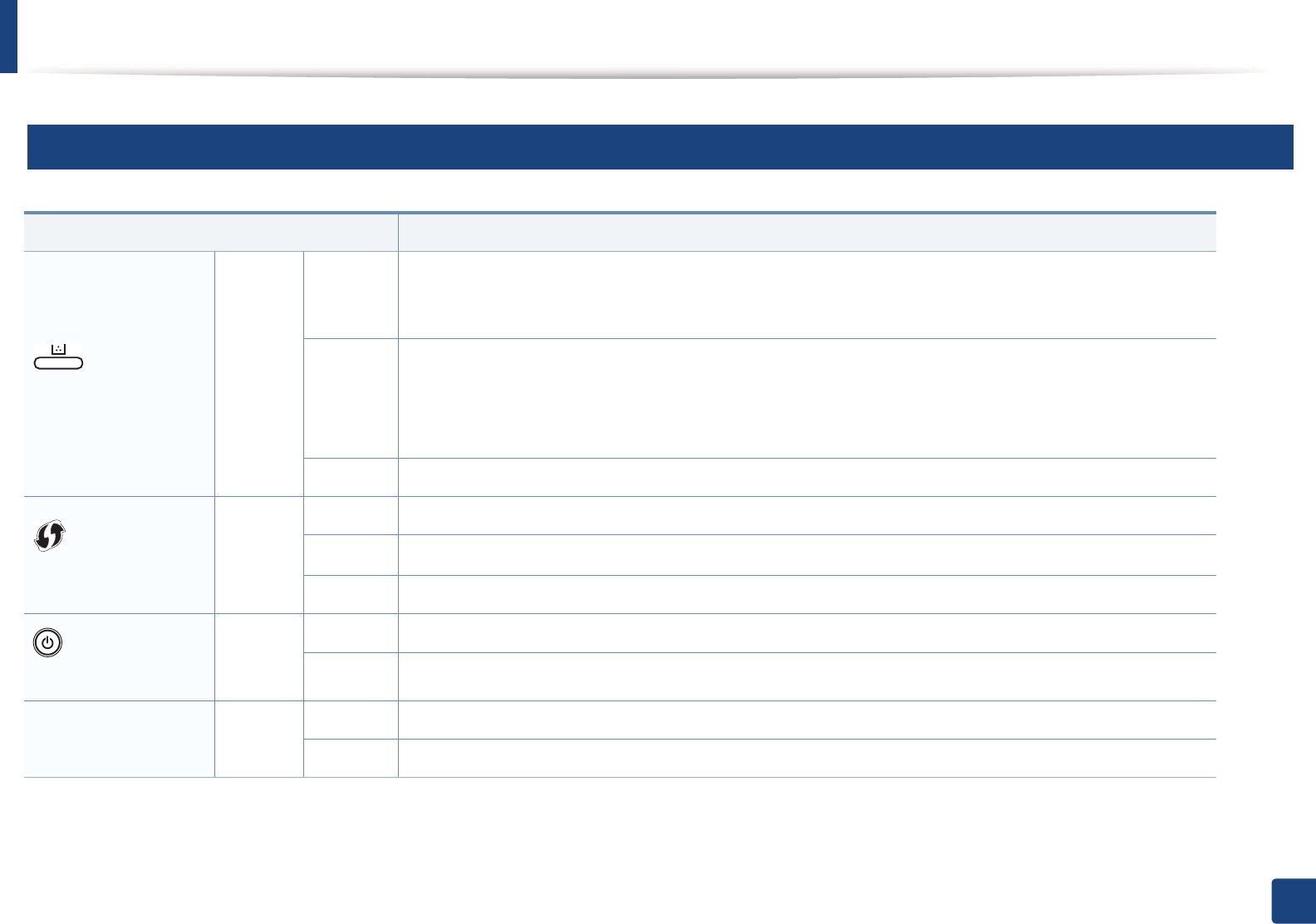

Toner / WPS

Power / Eco LED

Status Description

(Toner LED)

Orange

Blinking

Small amount of toner is left in the cartridge. The estimated cartridge life of toner is close. Prepare a new

cartridge for replacement. You may temporarily increase the printing quality by redistributing the toner (see

"Redistributing toner" on page 45).

• A toner cartridge has almost reached its estimated cartridge lifea. It is recommended to replace the toner

cartridge (see "Replacing the toner cartridge" on page 47).

• The toner cartridge is not installed or the wrong toner cartridge is installed (see "Replacing the toner

cartridge" on page 47).

a. Estimated cartridge life means the expected or estimated toner cartridge life, which indicates the average capacity of print-outs and is designed pursuant to ISO/IEC 197`_. The

number of pages may be affected by operating environment, printing interval, graphics, media type and media size. Some amount of toner may remain in the cartridge even when

red LED is on and the printer stops printing.

Off All toner cartridges are at normal capacity.

(WPS LED)b

b. Wireless model only (see "Features by models" on page 6).

Blue

Blinking The machine is connecting to a wireless network.

On The machine is connected to a wireless networkGOsee "Using the WPS button" on page 108).

Off The machine is disconnected from a wireless network.

(Power/Wakeup LED)

Blue

On The machine is in power save mode.

Off The machine is in ready modeGor the machine’s power is off.

Eco Green

On Eco mode is on (see "Eco printing" on page 36).

Off Eco mode is off.

5. Appendix

This chapter provides product specifications and information concerning applicable regulations.

•Specifications 65

• Regulatory information 74

•Copyright 84

5. Appendix

Specifications

General specifications

The specification values listed below are subject to change without notice. See www.samsung.com for possible changes in information.

Items Description

Dimension Width x Length x Height 388 x 313 x 243 mm (15.3 x 12.3 x 9.6 inches)

Weight Machine with consumables 11 kg (24.3 lbs)

Noise Levela

Ready mode Less than 26 dB (A)

Print mode • color printing: Less than 46 dB (A)

• black and white printing: Less than 48 dB (A)

Temperature Operation 10 to 32°C (50 to 90°F)

Storage (packed) -20 to 40°C (-4 to 104°F)

Humidity Operation 10 to 80% RH

Storage (packed) 20 to 95% RH

Power ratingb110 volt models AC 110 - 127 V

220 volt models AC 220 - 240 V

Specifications

5. Appendix

Power consumption Average operating mode Less than 290W

Ready mode Less than 60 W

Power save mode Less than 1.0 W (CLP-36x Series), Less than 1.4 W (CLP-36xW Series)

Power off mode 0.45 W

Wireless cModule SPW-B4319S

a. Sound Pressure Level, ISO 7779. Configuration tested: basic machine installation, A4 paper, simplex printing.

b. See the rating label on the machine for the correct voltage (V), frequency (hertz) and type of current (A) for your machine.

c. Wireless model only (see "Features by models" on page 6).

Items Description

Specifications

5. Appendix

Print media specifications

Type Size Dimensions

Print media weight/Capacitya

Tray Manual feeding in trayb

Plain paper

Letter 216 x 279 mm (8.5 x 11 inches) 60 to 85 g/m2 (16 to 23 lbs

bond)

• 130 sheets of 80 g/m2 (21 lbs

bond)

60 to 85 g/m2 (16 to 23 lbs bond)

• 1 sheet

Legal 216 x 356 mm (8.5 x 14 inches)

US Folio 216 x 330 mm (8.5 x 13 inches)

A4 210 x 297 mm (8.27 x 11.69 inches)

Oficio 216 x 343 mm (8.5 x 13.5 inches)

JIS B5 182 x 257 mm (7.17 x 10.12 inches)

ISO B5 176 x 250 mm (6.93 x 9.84 inches)

Executive 184 x 267 mm (7.25 x 10.5 inches)

A5 148 x 210 mm (5.83 x 8.27 inches)

A6 105 x 148 mm (4.13 x 5.83 inches)

Thick paper Refer to the Plain

paper section

Refer to the Plain paper section 86 to 120 g/m2 (23 to 32 lbs

bond)

• 50 sheets of 120 g/m2 (32 lbs

bond)

86 to 120 g/m2 (23 to 32 lbs bond)

• 1 sheet

Specifications

5. Appendix

Thin paper Refer to the Plain

paper section

Refer to the Plain paper section 60 to 70 g/m2 (16 to 19 lbs bond)

• 150 sheets of 60 g/m2 (16 lbs

bond)

60 to 70 g/m2 (16 to 19 lbs bond)

• 1 sheet

Cotton Refer to the Plain

paper section

Refer to the Plain paper section 75 to 90 g/m2 (20 to 24 lbs bond)

• 130 sheets of 80 g/m2 (21 lbs

bond)

75 to 90 g/m2 (20 to 24 lbs bond)

• 1 sheet

Colored,

Pre-printed,

Recycled

Refer to the Plain

paper section

Refer to the Plain paper section 60 to 85 g/m2 (16 to 24 lbs bond)

• 130 sheets of 80 g/m2 (21 lbs

bond)

60 to 85 g/m2 (16 to 24 lbs bond)

• 1 sheet

Labelsc

Letter, Legal, Oficio,

US Folio, A4, JIS B5,

ISO B5, Executive,

Refer to the Plain paper section 120 to 150 g/m2 (32 to 40 lbs

bond)

• 5 sheets

120 to 150 g/m2 (32 to 40 lbs bond)

• 1 sheet

Card stock

Letter, Legal, Oficio,

US Folio, A4, JIS B5,

ISO B5, Executive,

A5,

Postcard 4x6

Refer to the Plain paper section 121 to 163 g/m2 (32 to 43 lbs

bond)

• 5 sheets

121 to 163 g/m2 (32 to 43 lbs bond)

• 1 sheet

Bond paper Refer to the Plain

paper section

Refer to the Plain paper section 105 to 120 g/m2 (28 to 32 lbs

bond)

• 10 sheets

• 1 sheet

Type Size Dimensions

Print media weight/Capacitya

Tray Manual feeding in trayb

Specifications

5. Appendix

If media weight is over 120 g/m2 (32 lbs bond), load a paper into the tray one by one.

Archive Refer to the Plain

paper section

Refer to the Plain paper section 70 to 90 g/m2 (18.6 to 24 lbs

bond)

• 100 sheets

• 1 sheet

Glossy

Photo,Matte


Letter, A4,

Postcard 4x6

Refer to the Plain paper section 111 to 220 g/m2 (30 to 58 lbs

bond)

• 1 sheets

111 to 220 g/m2 (30 to 58 lbs bond)

• 1 sheet

Minimum size (custom) 76 x 152 mm (3 x 6 inches) 60 to 120 g/m2 (16 to 32 lbs bond)

Maximum size (custom) 216 x 356 mm (8.5 x 14 inches)

a. Maximum capacity may differ depending on media weight, thickness, and environmental conditions.

b. Feed one sheet at a time.

c. The smoothness of the labels used in this machine is 100 to 250 (sheffield). This means the numeric level of smoothness.

Type Size Dimensions

Print media weight/Capacitya

Tray Manual feeding in trayb

Specifications

5. Appendix

System requirements

Microsoft® Windows®

Operating system

Requirement (recommended)

CPU RAM free HDD space

Windows® XP Intel® Pentium® III 933 MHz (Pentium IV 1 GHz) 128 MB (256 MB) 1.5 GB

Windows Server® 2003 Intel® Pentium® III 933 MHz (Pentium IV 1 GHz) 128 MB (512 MB) 1.25 GB to 2 GB

Windows Server® 2008 Intel® Pentium® IV 1 GHz (Pentium IV 2 GHz) 512 MB (2 GB) 10 GB

Windows Vista® Intel® Pentium® IV 3 GHz 512 MB (1 GB) 15 GB

Windows® 7

Intel® Pentium® IV 1 GHz 32-bit or 64-bit processor or higher 1 GB (2 GB) 16 GB

• Support for DirectX® 9 graphics with 128 MB memory (to enable the Aero theme).

•DVD-R/W Drive

Windows Server® 2008 R2 Intel® Pentium® IV 1 GHz (x86) or 1.4 GHz (x64) processors (2 GHz or faster) 512 MB (2 GB) 10 GB

Specifications

5. Appendix

• Internet Explorer 6.0 or higher is the minimum requirement for all Windows operating systems.

• Users who have administrator rights can install the software.

•Windows Terminal Services is compatible with your machine.

Macintosh

Operating system

Requirements (Recommended)

CPU RAM Free HDD space

Mac OS X 10.4

• Intel® processors

•PowerPC G4/ G5

• 128 MB for a powerPC based Mac

(512 MB)

• 512 MB for an Intel-based Mac (1 GB)

1 GB

Mac OS X 10.5

• Intel® processors

• 867 MHz or faster Power PC G4/

512 MB (1 GB) 1 GB

Mac OS X 10.6 • Intel® processors 1 GB (2 GB) 1 GB

Mac OS X 10.7 • Intel® processors 2 GB 4 GB

Specifications

5. Appendix

Linux

Items Requirements

Operating system

Fedora 5~13 (32/ 64 bit)

OpenSuSE® 10.2, 10.3, 11.0, 11.1, 11.2 (32/64 bit)

SuSE 10.1 (32 bit)

Ubuntu 6.06, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10, 10.04 (32/64 bit)

Mandriva 2007, 2008, 2009, 2009.1, 2010 (32/64 bit)

Debian 4.0, 5.0 (32/64 bit)

Redhat® Enterprise Linux WS 4, 5 (32/64 bit)

SuSE Linux Enterprise Desktop 10, 11 (32/64 bit)

CPU Pentium IV 2.4GHz (Intel Core™2)

RAM 512 MB (1 GB)

Free HDD space 1 GB (2 GB)

Specifications

5. Appendix

Network environment

Network and wireless models only (see "Features by models" on page 6).

You need to set up the network protocols on the machine to use it as your network machine. The following table shows the network environments supported by the

machine.

Items Specifications

Network interface •802.11b/g/n Wireless LAN

Network operating system

•Windows

® XP, Windows Server® 2003, Windows Vista®, Windows® 7, Windows Server® 2008 R2

•Various Linux OS

• Mac OS X 10.4 ~ 10.7

Network protocols

•TCP/IPv4

• DHCP, BOOTP

• DNS, WINS, Bonjour, SLP, UPnP

• Standard TCP/IP Printing (RAW), LPR, IPP, WSD

• SNMPv 1/2/3, HTTP

• TCP/IPv6 (DHCP, DNS, RAW, LPR, SNMPv 1/2/3, HTTP)

Wireless security • Authentication: Open System, Shared Key, WPA Personal, WPA2 Personal (PSK)

• Encryption: WEP64, WEP128, TKIP, AES

5. Appendix

Regulatory information

This machine is designed for a normal work environment and certified with

several regulatory statements.

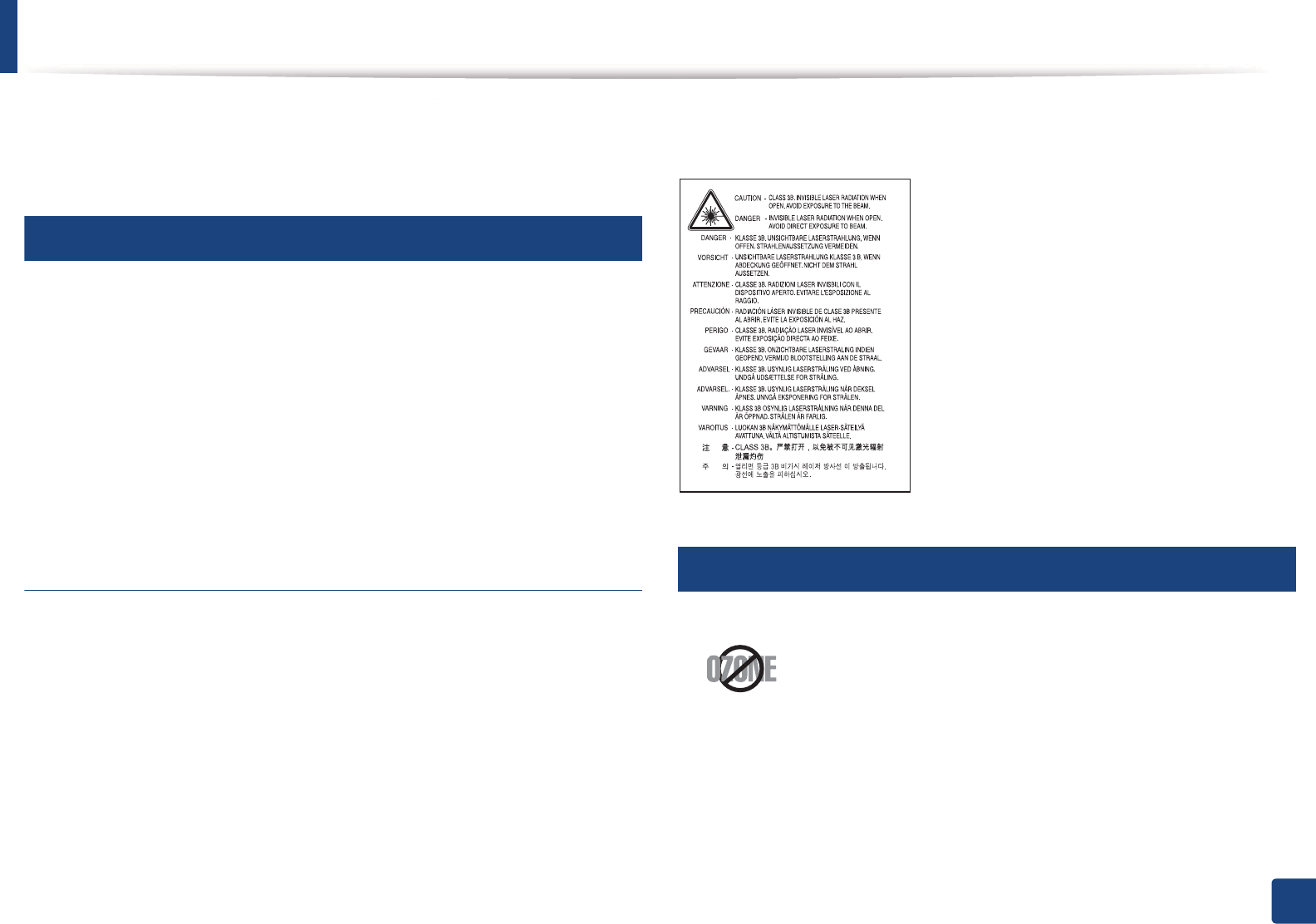

Laser safety statement

The printer is certified in the U.S. to conform to the requirements of DHHS 21

CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is

certified as a Class I laser product conforming to the requirements of IEC 60825-

1 : 2007.

Class I laser products are not considered to be hazardous. The laser system and

printer are designed so there is never any human access to laser radiation above

a Class I level during normal operation, user maintenance or prescribed service

condition.

Warning

Never operate or service the printer with the protective cover removed from

laser/scanner assembly. The reflected beam, although invisible, can damage

your eyes.

When using this product, these basic safety precautions should always be

followed to reduce risk of fire, electric shock, and injury to persons:

Ozone safety

This product's ozone emission rate is under 0.1 ppm. Because

ozone is heavier than air, keep the product in a place with good

ventilation.

Regulatory information

5. Appendix

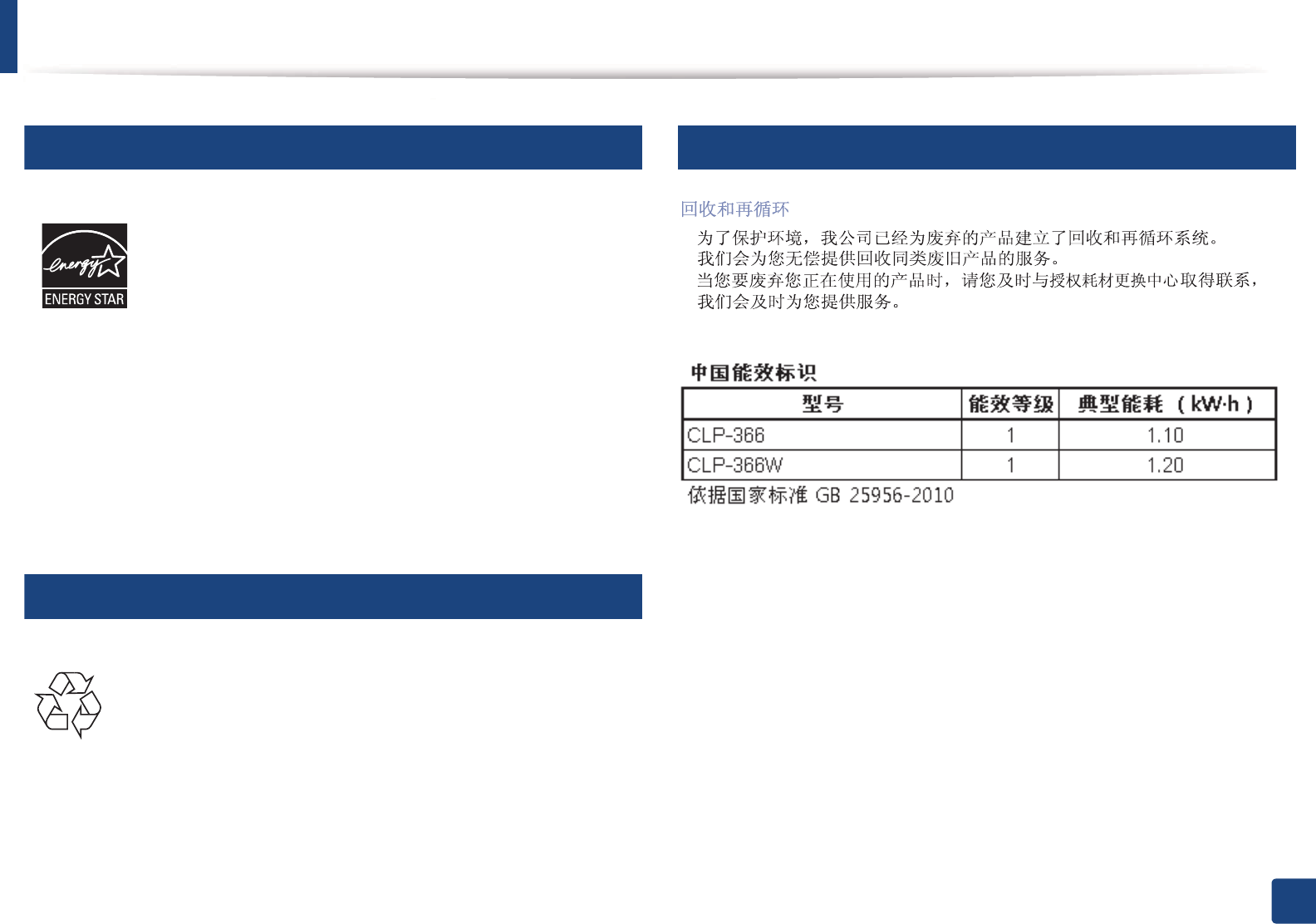

Power saver

Recycling

China only

This printer contains advanced energy conservation technology

that reduces power consumption when it is not in active use.

When the printer does not receive data for an extended period of

time, power consumption is automatically lowered.

ENERGY STAR and the ENERGY STAR mark are registered U.S.

marks.

For more information on the ENERGY STAR program see http://

www.energystar.gov

For ENERGY STAR certified models, the ENERGY STAR label will be

on your machine. Check if your machine is ENERGY STAR

certified.

Recycle or dispose of the packaging material for this product in an

environmentally responsible manner.

Regulatory information

5. Appendix

Correct disposal of this product (Waste electrical &

electronic equipment)

(Applicable in the european union and other

european countries with separate collection

systems)

The United States of America only

Dispose unwanted electronics through an approved recycler. To find the nearest

recycling location, go to our website:www.samsung.com/recyclingdirect Or call,

(877) 278 - 0799

Radio frequency emissions

FCC information to the user

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference

that may cause undesired operation.

This marking on the product, accessories or literature indicates that the

product and its electronic accessories (e.g. charger, headset, USB cable)

should not be disposed of with other household waste at the end of

their working life. To prevent possible harm to the environment or

human health from uncontrolled waste disposal, please separate these

items from other types of waste and recycle them responsibly to

promote the sustainable reuse of material resources.

Household users should contact either the retailer where they

purchased this product, or their local government office, for details of

where and how they can take these items for environmentally safe

recycling.

Business users should contact their supplier and check the terms and

conditions of the purchase contract. This product and its electronic

accessories should not be mixed with other commercial wastes for

disposal.

Regulatory information

5. Appendix

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or experienced radio TV technician for help.

Change or modifications not expressly approved by the manufacturer

responsible for compliance could void the user's authority to operate the

equipment.

Canadian radio interference regulations

This digital apparatus does not exceed the Class B limits for radio noise

emissions from digital apparatus as set out in the interference-causing

equipment standard entitled “Digital Apparatus”, ICES-003 of the Industry and

Science Canada.

Cet appareil numérique respecte les limites de bruits radioélectriques

applicables aux appareils numériques de Classe B prescrites dans la norme sur le

matériel brouilleur: “Appareils Numériques”, ICES-003 édictée par l’Industrie et

Sciences Canada.

United states of america

Federal communications commission (FCC)

Intentional emitter per FCC Part 15

Low power, Radio LAN type devices (radio frequency (RF) wireless

communication devices), operating in the 2.4 GHz/5 GHz Band, may be present

(embedded) in your printer system. This section is only applicable if these

devices are present. Refer to the system label to verify the presence of wireless

devices.

Wireless devices that may be in your system are only qualified for use in the

United States of America if an FCC ID number is on the system label.

Regulatory information

5. Appendix

The FCC has set a general guideline of 20 cm (8 inches) separation between the

device and the body, for use of a wireless device near the body (this does not

include extremities). This device should be used more than 20 cm (8 inches)

from the body when wireless devices are on. The power output of the wireless

device (or devices), which may be embedded in your printer, is well below the

RF exposure limits as set by the FCC.

This transmitter must not be collocated or operation in conjunction with any

other antenna or transmitter.

Operation of this device is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired

operation of the device.

Wireless devices are not user serviceable. Do not modify them in any way.

Modification to a wireless device will void the authorization to use it.

Contact manufacturer for service.

FCC statement for wireless LAN use:

While installing and operating this transmitter and antenna combination

the radio frequency exposure limit of 1m W/cm2 may be exceeded at

distances close to the antenna installed. Therefore, the user must maintain

a minimum distance of 20cm from the antenna at all times. This device

cannot be colocated with another transmitter and transmitting antenna.

Russia only

Germany only

Regulatory information

5. Appendix

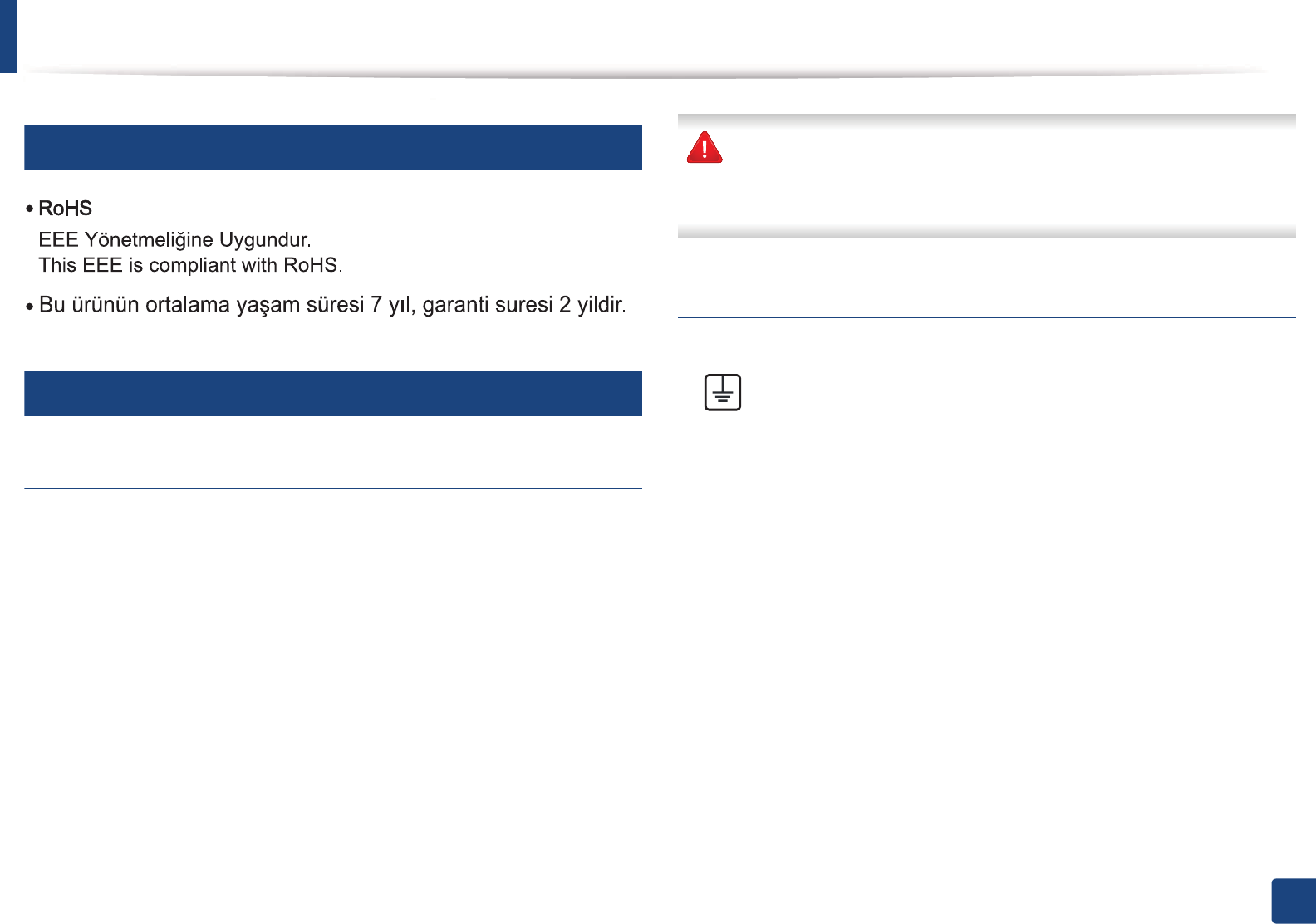

Turkey only

Replacing the fitted plug (for UK only)

Important

The mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug

and has a 13 amp fuse. When you change or examine the fuse, you must re-fit

the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost

the fuse cover, do not use the plug until you have another fuse cover.

Contact the people from you purchased the machine.

The 13 amp plug is the most widely used type in the UK and should be suitable.

However, some buildings (mainly old ones) do not have normal 13 amp plug

sockets. You need to buy a suitable plug adaptor. Do not remove the moulded

plug.

If you cut off the moulded plug, get rid of it straight away.

You cannot rewire the plug and you may receive an electric shock if you

plug it into a socket.

Important warning:

If the wires in the mains lead do not match the colors marked in your plug, do

the following:

You must connect the green and yellow wire to the pin marked by the letter “E”

or by the safety ‘Earth symbol’ or colored green and yellow or green.

You must connect the blue wire to the pin which is marked with the letter “N” or

colored black.

You must connect the brown wire to the pin which is marked with the letter “L”

or colored red.

You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.

You must earth this machine.

The wires in the mains lead have the following color code:

•Green and Yellow: Earth

•Blue: Neutral

•Brown: Live

Regulatory information

5. Appendix

Declaration of conformity (European countries)

Approvals and Certifications

January 1, 1995: Council Directive 2006/95/EC Approximation of the laws of

the member states related to low voltage equipment.

January 1, 1996: Council Directive 2004/108/EC, approximation of the laws of

the Member States related to electromagnetic compatibility.

March 9, 1999: Council Directive 1999/5/EC on radio equipment and

telecommunications terminal equipment and the mutual recognition of their

conformity. A full declaration, defining the relevant Directives and referenced

standards can be obtained from your Samsung Electronics Co., Ltd.

representative.

EC Certification

Certification to 1999/5/EC Radio Equipment & Telecommunications Terminal

Equipment Directive (FAX)

This Samsung product has been self-certified by Samsung for pan-European

single terminal connection to the analogue public switched telephone network

(PSTN) in accordance with Directive 1999/5/EC. The product has been designed

to work with the national PSTNs and compatible PBXs of the European

countries:

In the event of problems, you should contact the Euro QA Lab of Samsung

Electronics Co., Ltd. in the first instance.

The product has been tested against TBR21. To assist in the use and application

of terminal equipment which complies with this standard, the European

Telecommunication Standards Institute (ETSI) has issued an advisory document

(EG 201 121) which contains notes and additional requirements to ensure

network compatibility of TBR21 terminals. The product has been designed

against, and is fully compliant with, all of the relevant advisory notes contained

in this document.

• Hereby, Samsung Electronics, declares that this [CLP-36x Series] is

in compliance with the essential requirements and other relevant

provisions of Low Voltage Directive (2006/95/EC), EMC Directive

(2004/108/EC).

• Hereby, Samsung Electronics, declares that this [CLP-36xW Series]

is in compliance with the essential requirements and other

relevant provisions of R&TTE Directive 1999/5/EC.

The declaration of conformity may be consulted at

www.samsung.com, go to Support > Download center and enter

your printer (MFP) name to browse the EuDoC.

Regulatory information

5. Appendix

European radio approval information (for products

fitted with EU-approved radio devices)

Low power, Radio LAN type devices (radio frequency (RF) wireless

communication devices), operating in the 2.4 GHz/5 GHz band, may be present

(embedded) in your printer system which is intended for home or office use. This

section is only applicable if these devices are present. Refer to the system label

to verify the presence of wireless devices.

The power output of the wireless device or devices that may be embedded in

you printer is well below the RF exposure limits as set by the European

Commission through the R&TTE directive.

European states qualified under wireless approvals:

EU countries

European states with restrictions on use:

In France, this equipment may only be used indoors.

EEA/EFTA countries

No limitations at this time

Regulatory compliance statements

Wireless guidance

Low power, Radio LAN type devices (radio frequency (RF) wireless

communication devices), operating in the 2.4 GHz/5 GHz Band, may be present

(embedded) in your printer system. The following section is a general overview

of considerations while operating a wireless device.

Additional limitations, cautions, and concerns for specific countries are listed in

the specific country sections (or country group sections). The wireless devices in

your system are only qualified for use in the countries identified by the Radio

Approval Marks on the system rating label. If the country you will be using the

wireless device in, is not listed, contact your local Radio Approval agency for

requirements. Wireless devices are closely regulated and use may not be

allowed.

The power output of the wireless device or devices that may be embedded in

your printer is well below the RF exposure limits as known at this time. Because

the wireless devices (which may be embedded into your printer) emit less

energy than is allowed in radio frequency safety standards and

recommendations, manufacturer believes these devices are safe for use.

Regardless of the power levels, care should be taken to minimize human contact

during normal operation.

Wireless devices that may be in your system are only

qualified for use in the European Union or associated

areas if a CE mark with a Notified Body Registration

Number and the Alert Symbol is on the system label.

Regulatory information

5. Appendix

As a general guideline, a separation of 20 cm (8 inches) between the wireless

device and the body, for use of a wireless device near the body (this does not

include extremities) is typical. This device should be used more than 20 cm (8

inches) from the body when wireless devices are on and transmitting.

This transmitter must not be collocated or operation in conjunction with any

other antenna or transmitter.

Some circumstances require restrictions on wireless devices. Examples of

common restrictions are listed below:

Israel only

Radio frequency wireless communication can interfere with equipment

on commercial aircraft. Current aviation regulations require wireless

devices to be turned off while traveling in an airplane. IEEE 802.11 (also

known as wireless Ethernet) and Bluetooth communication devices are

examples of devices that provide wireless communication.

In environments where the risk of interference to other devices or

services is harmful or perceived as harmful, the option to use a wireless

device may be restricted or eliminated. Airports, Hospitals, and Oxygen

or flammable gas laden atmospheres are limited examples where use of

wireless devices may be restricted or eliminated. When in environments

where you are uncertain of the sanction to use wireless devices, ask the

applicable authority for authorization prior to use or turning on the

wireless device.

Every country has different restrictions on the use of wireless devices.

Since your system is equipped with a wireless device, when traveling

between countries with your system, check with the local Radio

Approval authorities prior to any move or trip for any restrictions on the

use of a wireless device in the destination country.

If your system came equipped with an internal embedded wireless

device, do not operate the wireless device unless all covers and shields

are in place and the system is fully assembled.

Wireless devices are not user serviceable. Do not modify them in any

way. Modification to a wireless device will void the authorization to use

it. Contact manufacturer for service.

Only use drivers approved for the country in which the device will be

used. See the manufacturer System Restoration Kit, or contact

manufacturer Technical Support for additional information.

Regulatory information

5. Appendix

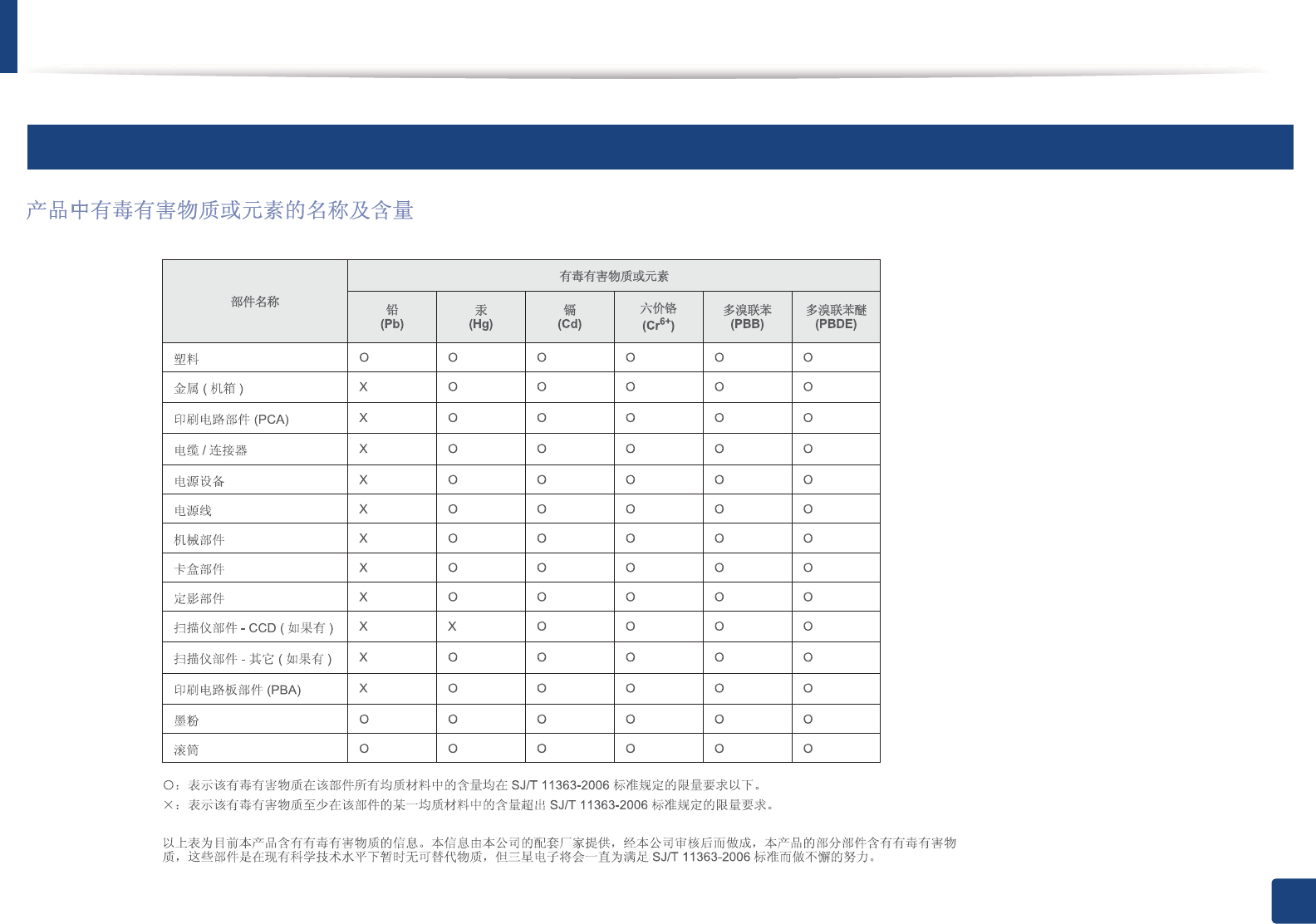

China only

5. Appendix

This user’s guide is provided for information purposes only. All information included herein is subject to change without notice.

Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this user’s guide.

• Samsung and the Samsung logo are trademarks of Samsung Electronics Co., Ltd.

• Microsoft, Windows, Windows Vista, Windows 7, and Windows Server 2008 R2 are either registered trademarks or trademarks of Microsoft Corporation.

• Microsoft, Internet Explorer, Excel, Word, PowerPoint, and Outlook are either registered trademarks or trademarks of Microsoft Corporation in the United States

and other countries.

• Google, Picasa, Google Docs, Android and Gmail are either registered trademarks or trademarks of Google Inc.

• Google Cloud Print is a trademark of Google Inc.

• iPad, iPhone, iPod touch, TrueType, Mac and Mac OS are trademarks of Apple Inc., registered in the U.S and other countries.

• AirPrint and the AirPrint logo are trademarks of Apple Inc.

• TrueType, LaserWriter, and Macintosh are trademarks of Apple Computer, Inc.

• All other brand or product names are trademarks of their respective companies or organizations.

Refer to the 'LICENSE.txt' file in the provided CD-ROM for the open source license information.

REV. 1.00

ADVANCED

User’s Guide

CLP-36x Series

CLP-36xW Series

ADVANCED

User’s Guide

This guide provides information about installation, advanced configuration,

operation and troubleshooting on various OS environments.

Some features may not be available depending on models or countries.

BASIC

This guide provides information concerning installation, basic operation and troubleshooting

on windows.

ADVANCED

1. Software installation

Installation for Macintosh 88

Reinstallation for Macintosh 89

Installation for Linux 90

Reinstallation for Linux 91

2. Using a network-connected

machine

Useful network programs 93

Wired network setup 94

Installing driver over the network 97

IPv6 configuration 103

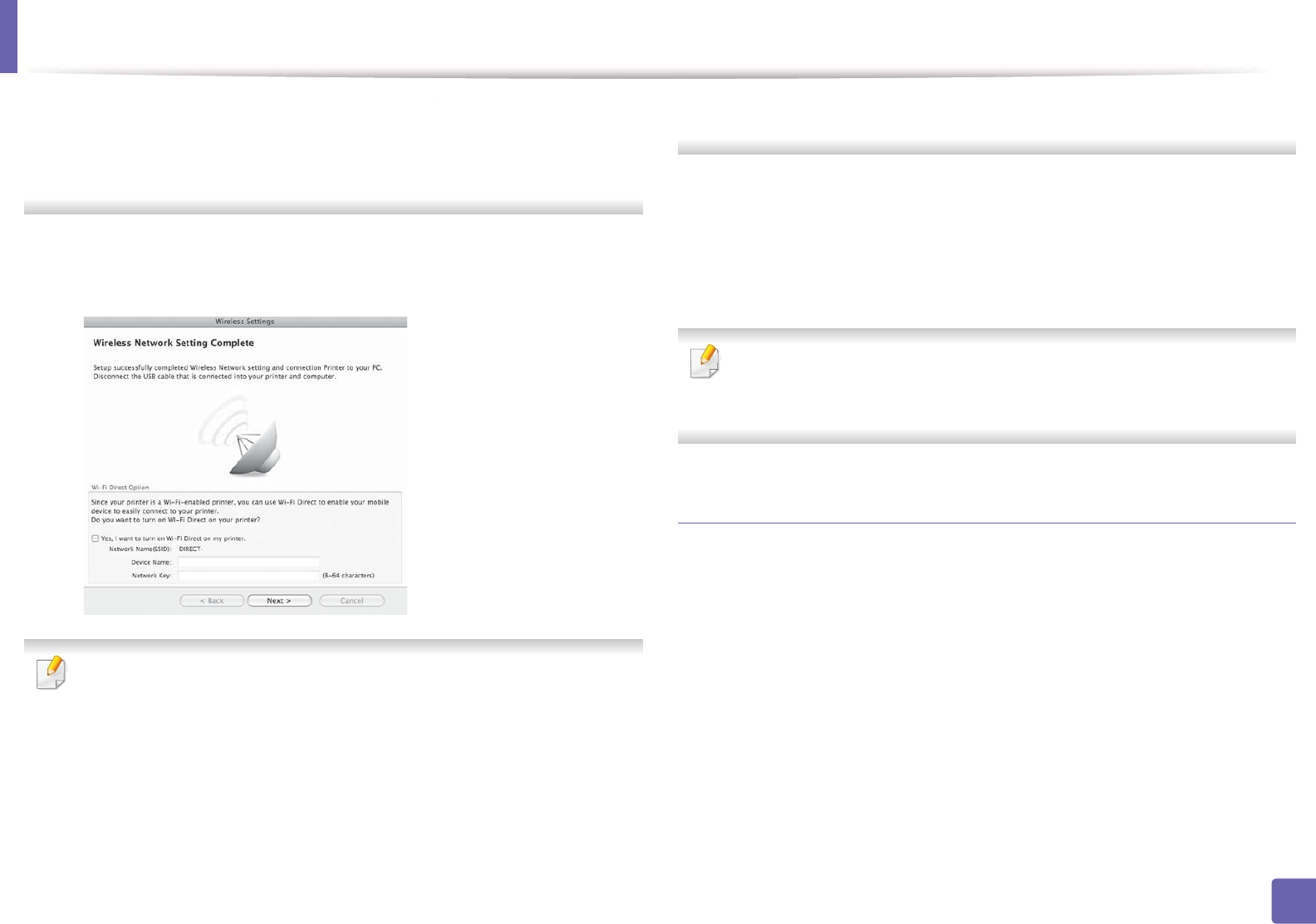

Wireless network setup 106

Samsung MobilePrint 129

Google Cloud Print 130

3. Special features

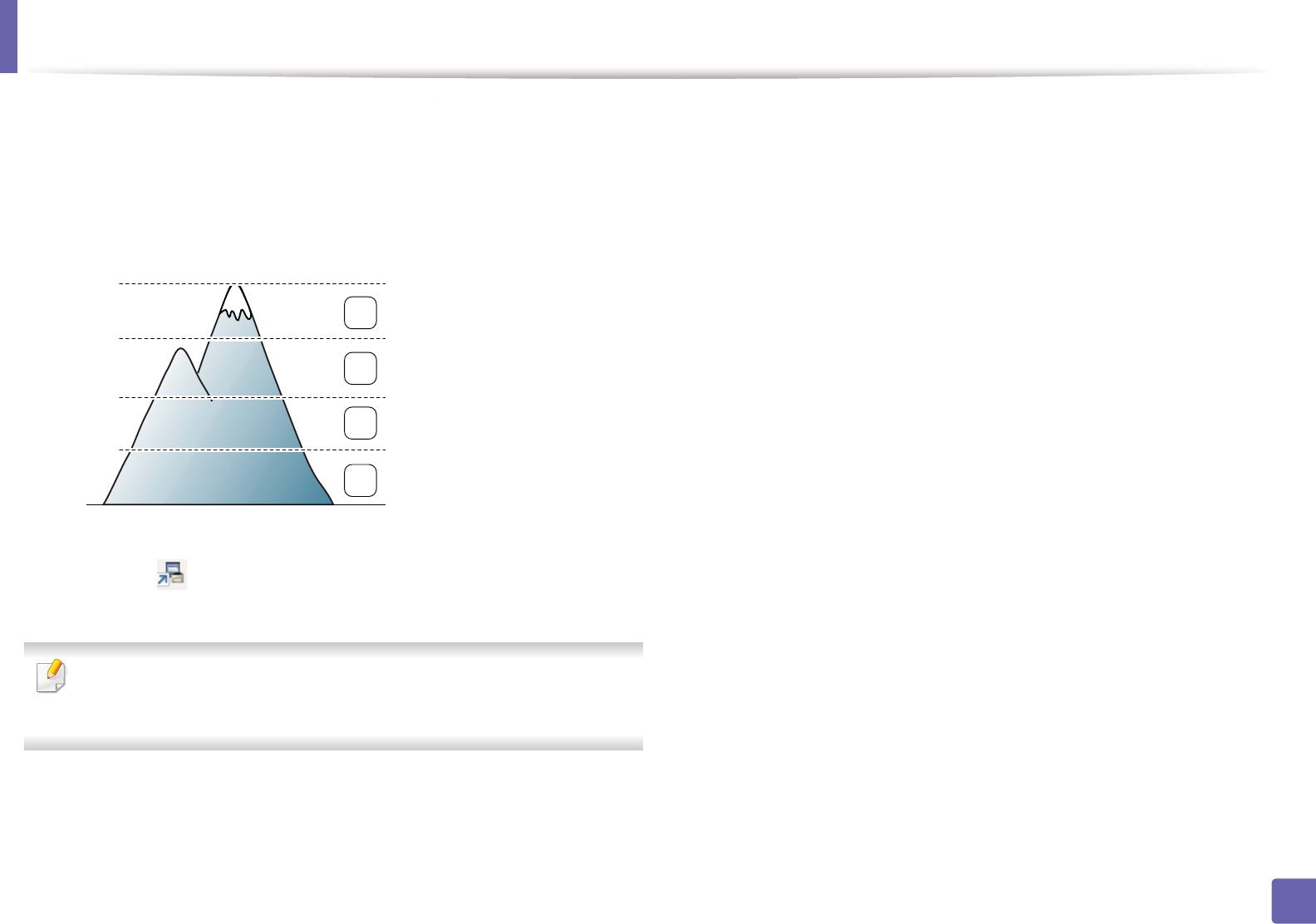

Altitude adjustment 133

Changing the default print settings 134

Setting your machine as a default machine 135

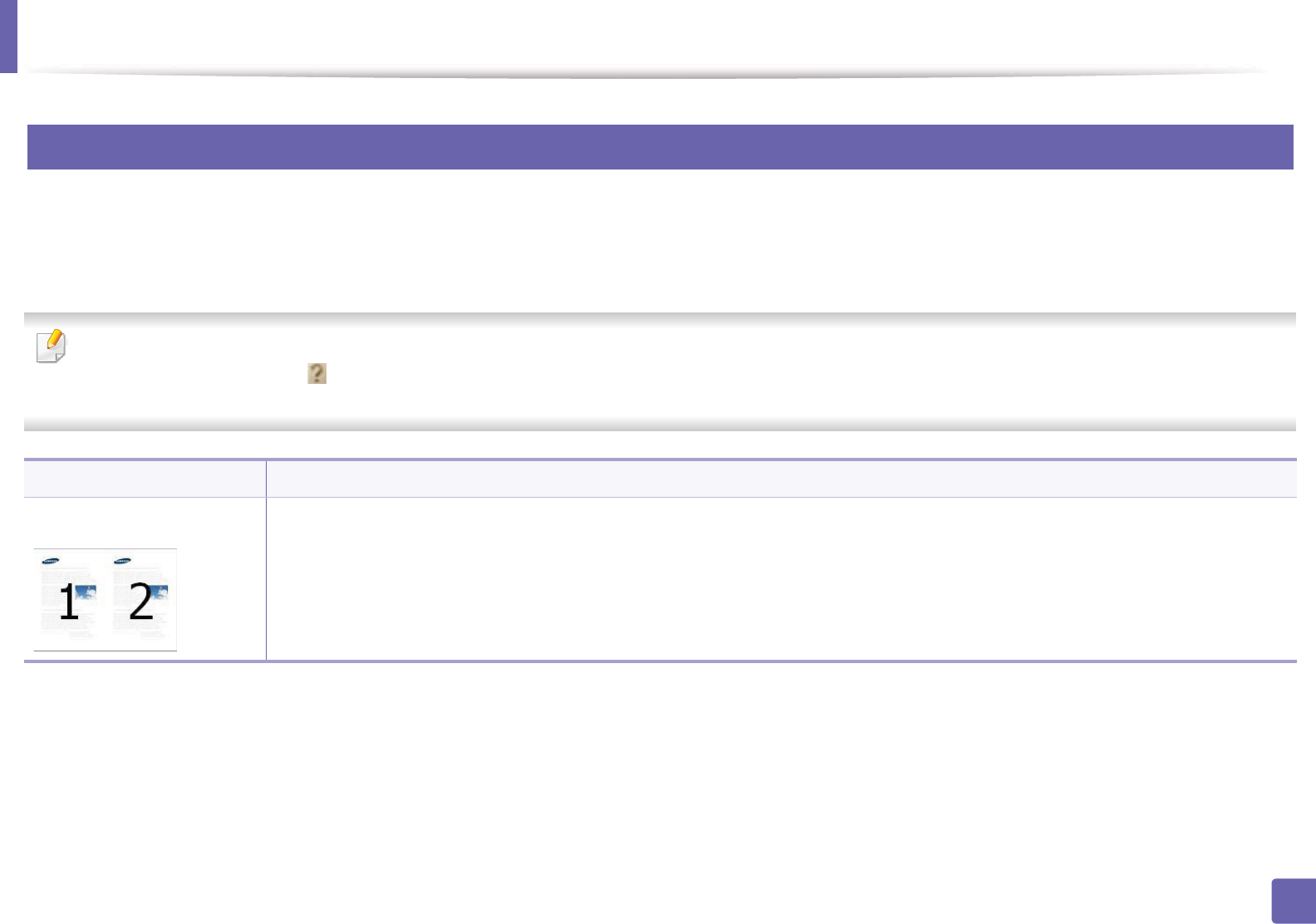

Using advanced print features 136

Macintosh printing 143

Linux printing 145

4. Useful management tools

Easy Capture Manager 148

Samsung Easy Color Manager 149

Samsung AnyWeb Print 150

Easy Eco Driver 151

Using SyncThru™ Web Service 152

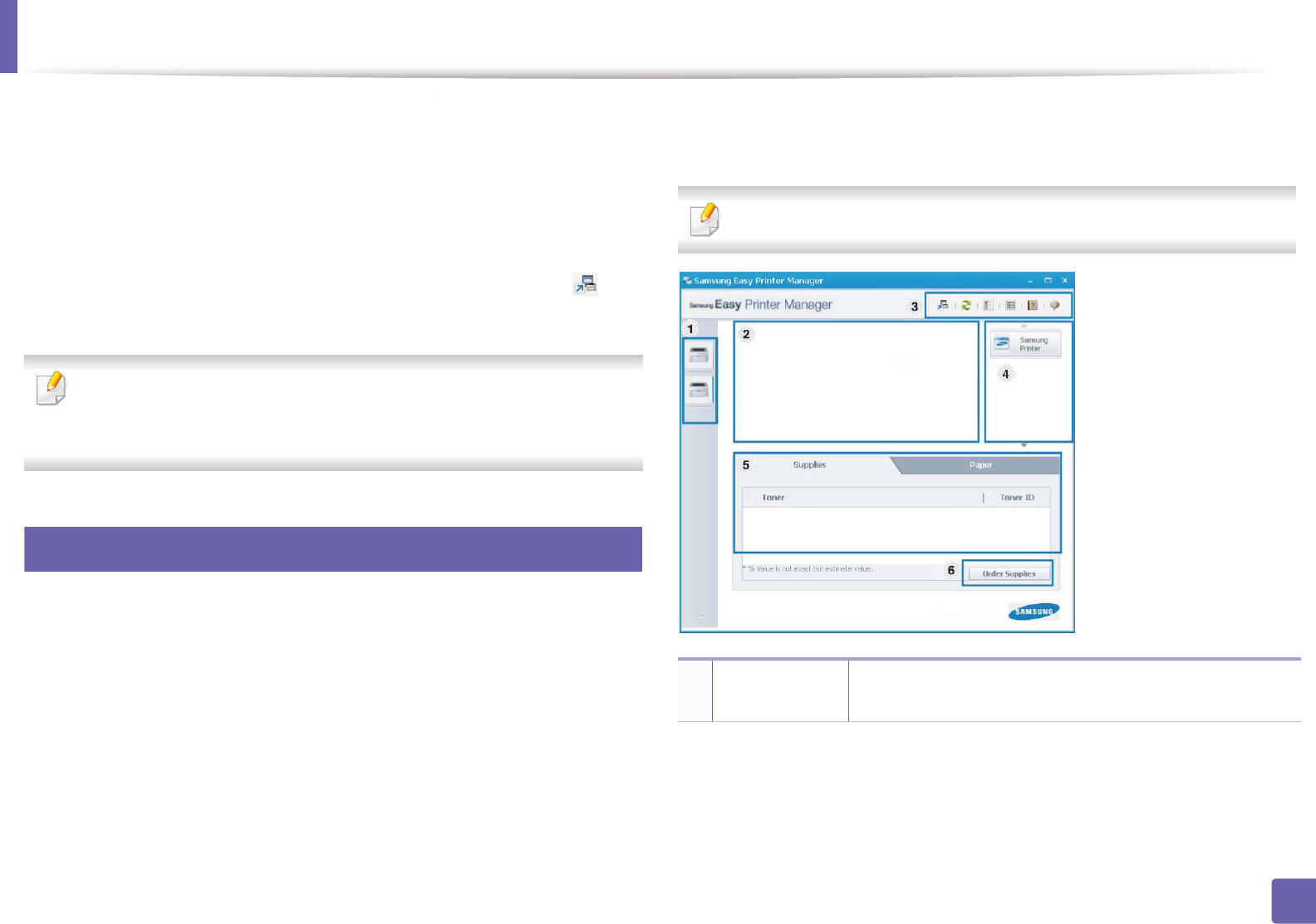

Using Samsung Easy Printer Manager 155

Using Samsung Printer Status 158

Using the Linux Unified Driver Configurator 160

5. Troubleshooting

Paper feeding problems 164

Power and cable connecting problems 165

Printing problems 166

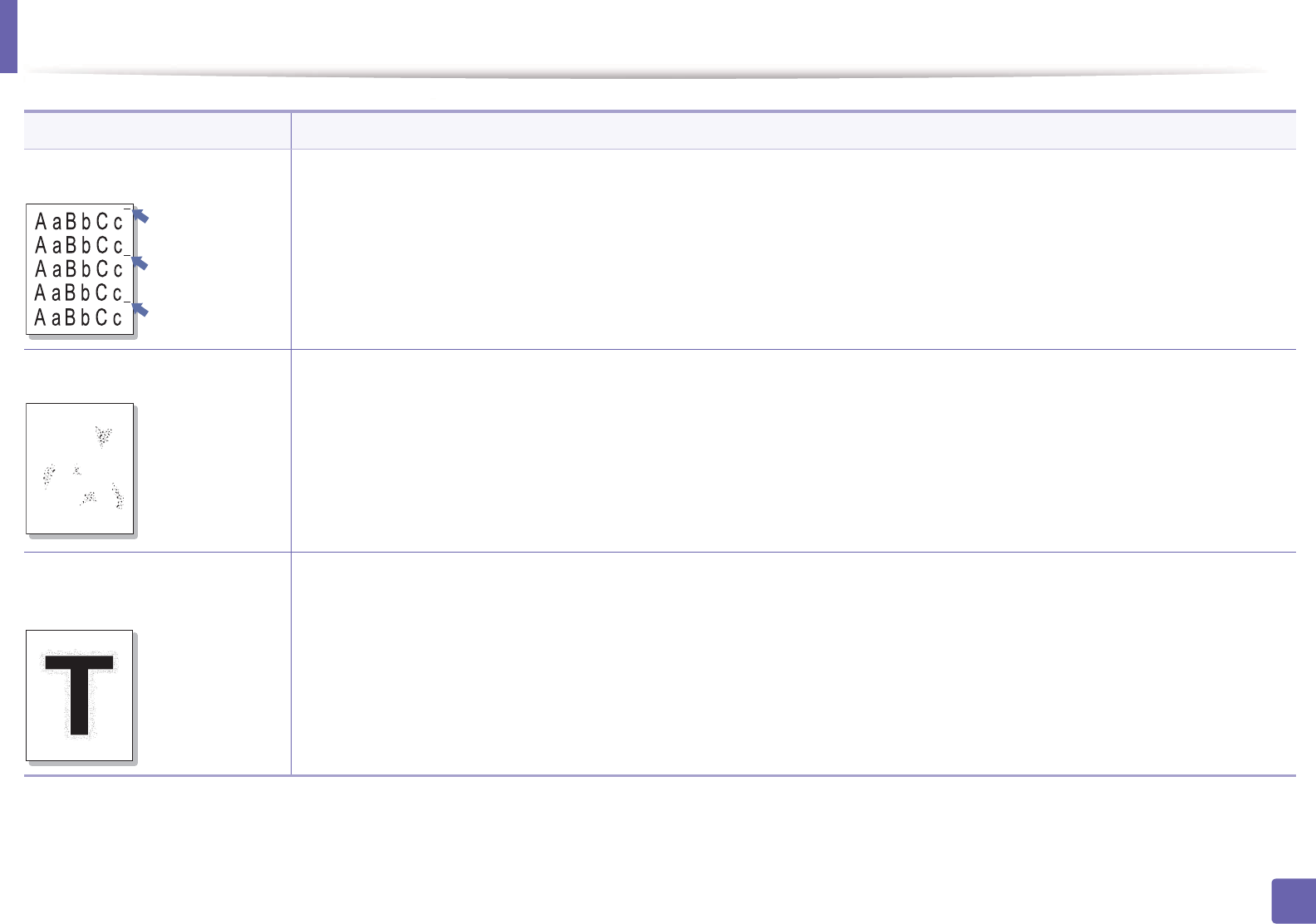

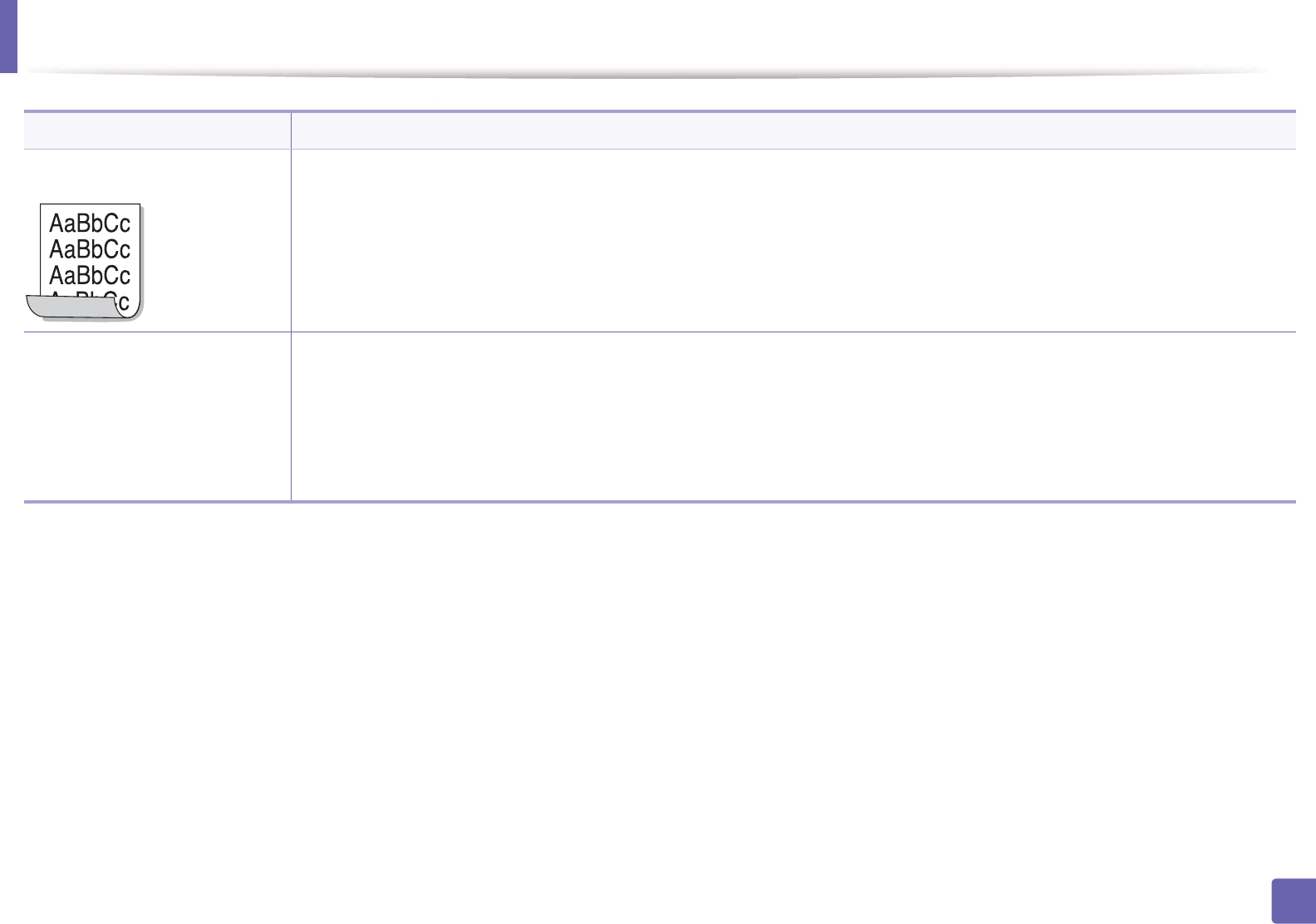

Printing quality problems 170

Operating system problems 178

1. Software installation

This chapter provides instructions for installing essential and helpful software for use in an environment where the

machine is connected via a cable. A locally connected machine is a machine directly attached to your computer using

the cable. If your machine is attached to a network, skip the following steps below and go on to installing a network

connected machine’s driver (see Installing driver over the network97).

• Installation for Macintosh 88

• Reinstallation for Macintosh 89

• Installation for Linux 90

• Reinstallation for Linux 91

• If you are a Windows OS user, refer to the "Installing the driver locally" on page 22 for

installing the machine’s driver.

• Only use a USB cable no longer then 3 meter (118 inches).

1. Software installation

Installation for Macintosh

1Make sure that the machine is connected to your computer and

powered on.

2 Insert the supplied software CD into your CD-ROM drive.

3 Double-click the CD-ROM icon that appears on your Macintosh desktop.

4 Double-click the MAC_Installer folder > Installer OS X icon.

5 Click Continue.

6 Read the license agreement and click Continue.

7 Click Agree to agree to the license agreement.

8 When the message that warns that all applications will close on your

computer appears, click Continue.

9 Click Continue on the User Options Pane.

10 Click Install. All components necessary for machine operations will be

installed.

If you click Customize, you can choose individual components to install.

11 Enter the password and click OK.

12 Installing software requires you to restart your computer. Click Continue

Installation.

13 After the installation is finished, click Close.

14 Open the Applications folder > Utilities > Print Setup Utility.

• For Mac OS X 10.5 -10.7, open the Applications folder > System

Preferences and click Print & Fax.

15 Click Add on the Printer List.

• For Mac OS X 10.5 -10.7, click the “+” folder icon; a display window

will pop up.

16 Click Default Browser and find the USB connection.

• For Mac OS X 10.5-10.7, click Default and find the USB connection.

17 For Mac OS X 10.4, if Auto Select does not work properly, select Samsung

in Print Using and your machine name in Model.

• For Mac OS X 10.5-10.7, if Auto Select does not work properly, select

Select a driver to use... and your machine name in Print Using.

Your machine appears on the Printer List, and is set as the default

machine.

18 Click Add.

1. Software installation

Reinstallation for Macintosh

If the printer driver does not work properly, uninstall the driver and reinstall it.

1Make sure that the machine is connected to your computer and

powered on.

2 Insert the supplied software CD into your CD-ROM drive.

3 Double-click the CD-ROM icon that appears on your Macintosh desktop.

4 Double-click the MAC_Installer folder > Uninstaller OS X icon.

5 Enter the password and click OK.

6 When the uninstall is done, click OK.

If a machine has already been added, delete it from the Print Setup Utility

or Print & Fax.

1. Software installation

Installation for Linux

You need to download Linux software packages from the Samsung website to

install the printer software (http://www.samsung.com > find your product >

Support or Downloads).

Installing the Unified Linux Driver

1Make sure that the machine is connected to your computer and

powered on.

2 When the Administrator Login window appears, type “root” in the

You must log in as a super user (root) to install the machine software. If you

are not a super user, ask your system administrator.

3 From the Samsung website, download the Unified Linux Driver package

to your computer.

4 Right-click the Unified Linux Driver package and extract the package.

5 Double click cdroot > autorun.

6 When the welcome screen appears, click Next.

7 When the installation is complete, click Finish.

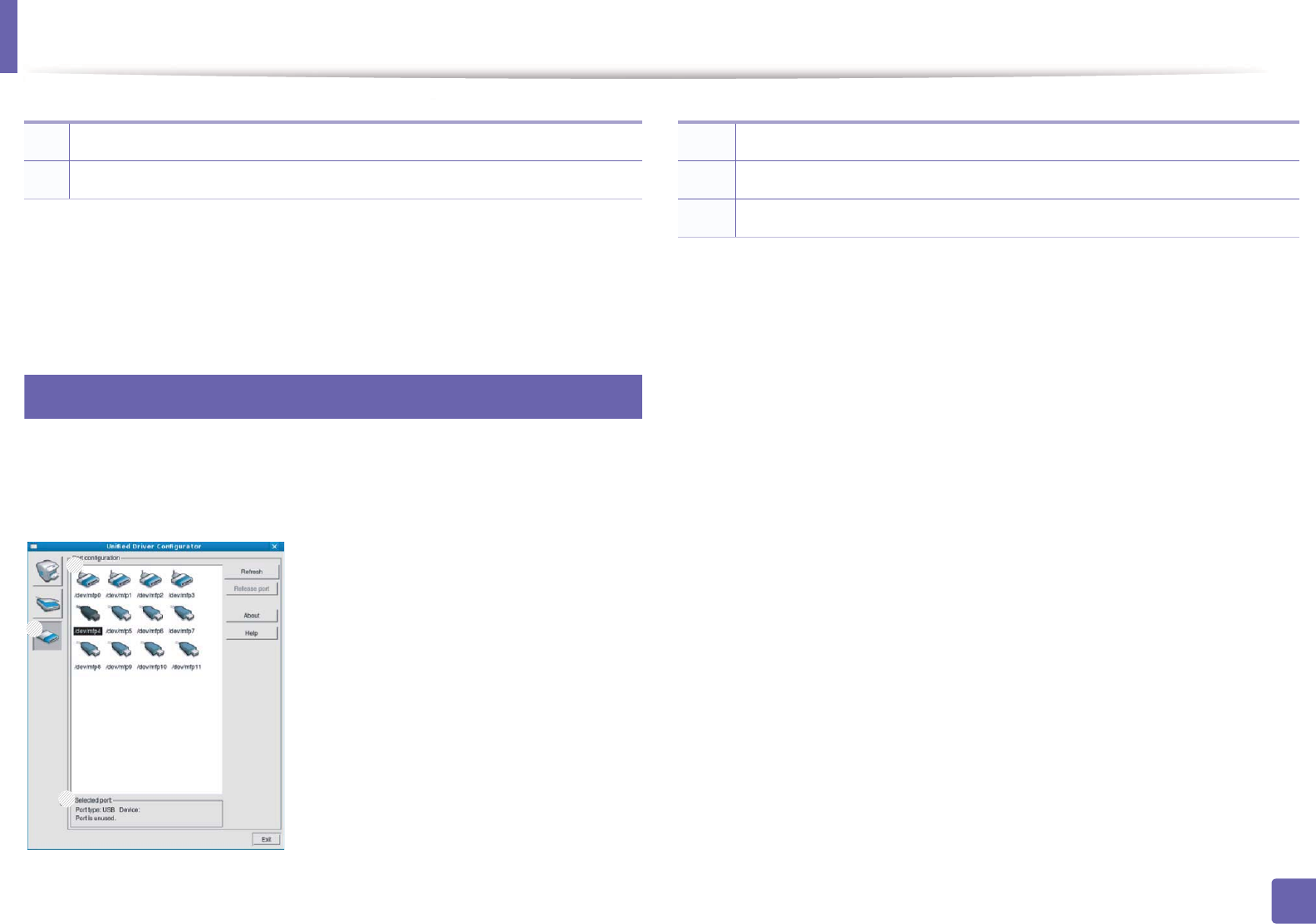

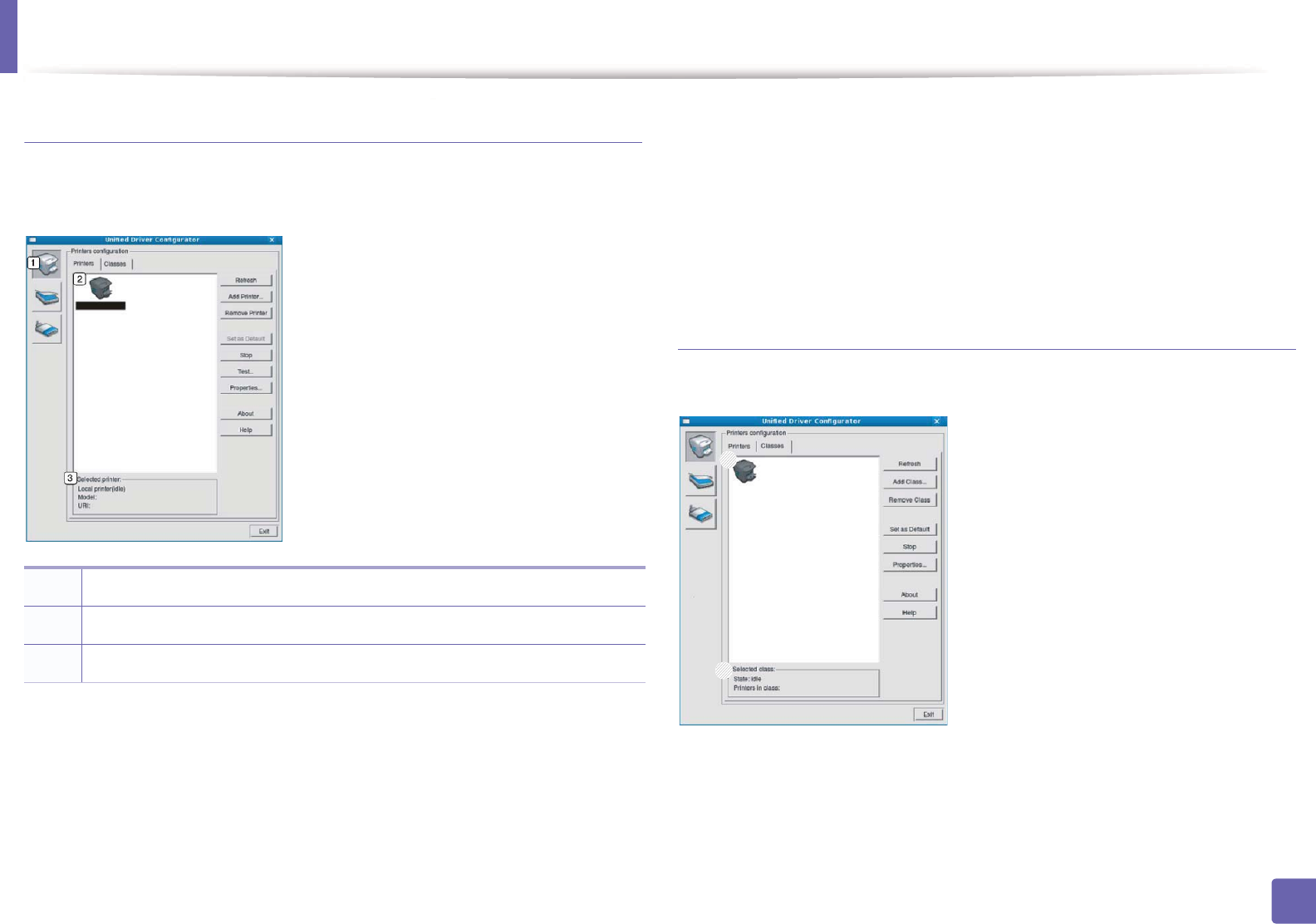

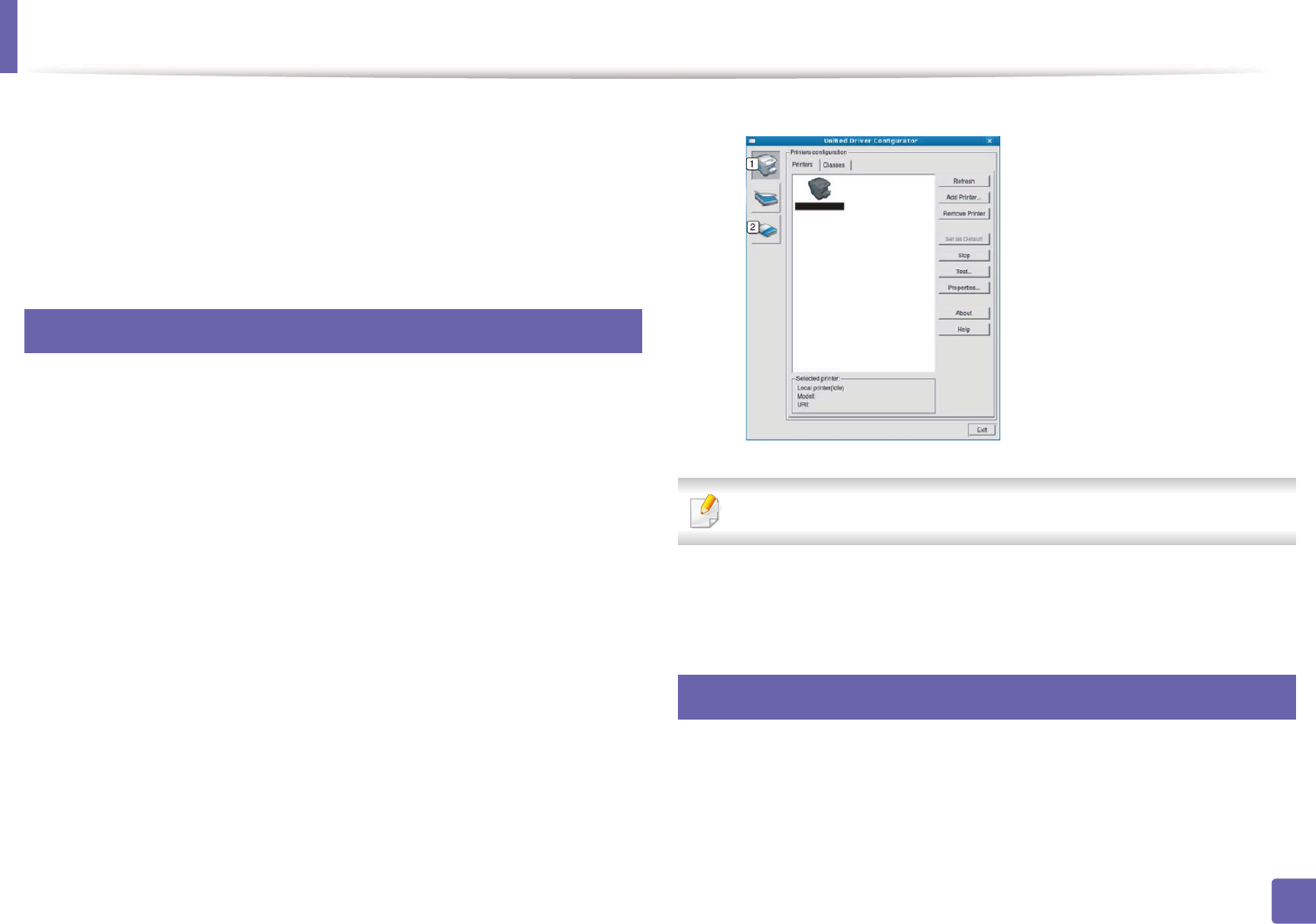

The installation program added the Unified Driver Configurator desktop icon

and the Unified Driver group to the system menu for your convenience. If you

have any difficulties, consult the on-screen help that is available through your

system menu or from the driver package Windows applications, such as Unified

Driver Configurator or Image Manager.

1. Software installation

Reinstallation for Linux

If the printer driver does not work properly, uninstall the driver and reinstall it.

1Make sure that the machine is connected to your computer and

powered on.

2 When the Administrator Login window appears, type “root” in the

You must log in as a super user (root) to uninstall the printer driver. If you

are not a super user, ask your system administrator.

3 Open the Terminal program. When the Terminal screen appears, type in

the following.

[root@localhost root]#cd /opt/Samsung/mfp/uninstall/

[root@localhost uninstall]#./uninstall.sh

4 Click Next.

5 Click Finish.

2. Using a network-

connected machine

This chapter gives you step-by-step instructions for setting up a network connected machine and software.

• Useful network programs 93

• Wired network setup 94

• Installing driver over the network 97

• IPv6 configuration 103

• Wireless network setup 106

• Samsung MobilePrint 129

• Google Cloud Print 130

Supported optional devices and features may differ according to your model (see "Features by

models" on page 6).

2. Using a network-connected machine

Useful network programs

There are several programs available to setup the network settings easily in a

network environment. For the network administrator especially, managing

several machines on the network is possible.

• Before using the programs below, set the IP address first.

• Some features and optional goods may not be available depending on

model or country (see "Features by models" on page 6).

SyncThru™ Web Service

The web server embedded on your network machine allows you to do the

following tasks (see "Using SyncThru™ Web Service" on page 105):

• Check the supplies information and status.

• Customize machine settings.

• Set the email notification option. When you set this option, the machine

status (toner cartridge shortage or machine error) will be sent to a certain

person's email automatically.

• Configure the network parameters necessary for the machine to connect to

various network environments.

SyncThru™ Web Admin Service

Web-based machine management solution for network administrators.

SyncThru™ Web Admin Service provides you with an efficient way of managing

network devices and lets you remotely monitor and troubleshoot network

machines from any site with corporate internet access.

• Download this program from http://solution.samsungprinter.com.

SetIP

This utility program allows you to select a network interface and manually

configure the IP addresses for use with the TCP/IP protocol.

• See "IPv4 configuration using SetIP (Windows)" on page 94.

• See "IPv4 configuration using SetIP (Macintosh)" on page 95.

• See "IPv4 configuation using SetIP (Linux)" on page 96.

• The machine that does not support the network interface, it will not

be able to use this feature (see "Rear view" on page 18).

• TCP/IPv6 is not supported by this program.

2. Using a network-connected machine

Wired network setup

You must set up the network protocols on your machine to use it on your

network.

You can use network after connecting network cable to a corresponding port on

your machine.

• For models that do not have the display screen on the control panel, use the

SyncThru™ Web Service or SetIP program.

- See "Using SyncThru™ Web Service" on page 152.

- See "Setting IP address" on page 94.

Printing a network configuration report

You can print Network Configuration Report from the machine’s control panel

that will show the current machine’s network settings. This will help you to set

up a network.

•The machine does not have the display screen: Press the (Cancel or

Stop/Clear) button for two seconds on the control panel.

Using this Network Configuration Report, you can find your machine’s MAC

address and IP address.

For example:

• MAC Address: 00:15:99:41:A2:78

• IP Address: 165.254.192.192

Setting IP address

• The machine that does not support the network interface, it will not

be able to use this feature (see "Rear view" on page 18)

• TCP/IPv6 is not supported by this program.

First, you have to set up an IP address for network printing and managements.

In most cases a new IP address will be automatically assigned by a DHCP

(Dynamic Host Configuration Protocol) server located on the network.

IPv4 configuration using SetIP (Windows)

Before using the SetIP program, disable the computer firewall from Control

Panel > Security Center > Windows Firewall.

1Install this program from the supplied CD-ROM by double-click

Application > SetIP > Setup.exe.

2 Follow the instructions in the installation window.

3 Connect your machine to the network with a network cable.

4 Turn on the machine.

Wired network setup

2. Using a network-connected machine

5 From the Windows Start menu, select All Programs > Samsung

Printers > SetIP > SetIP.

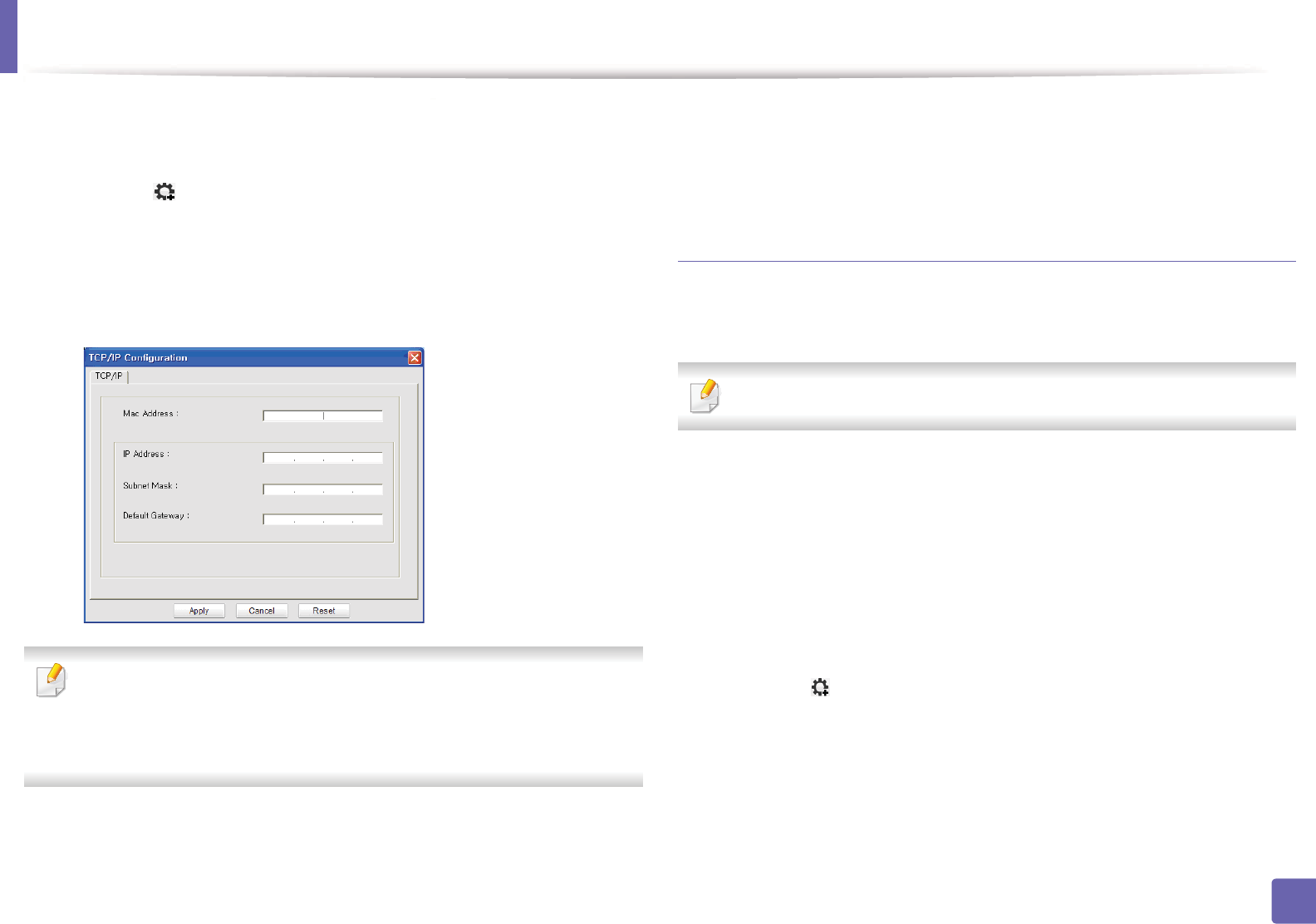

6 Click the icon (third from left) in the SetIP window to open the TCP/IP

configuration window.

7 Enter the machine’s new information into the configuration window as

follows. In a corporate intranet, you may need to have this information

assigned by a network manager before proceeding.

Find the machine’s MAC address from the Network Configuration Report

(see "Printing a network configuration report" on page 94) and enter it

without the colons. For example, 00:15:99:29:51:A8 becomes

0015992951A8.

8 Click Apply, and then click OK. The machine will automatically print the

Network Configuration Report. Confirm that all the settings are

correct.

IPv4 configuration using SetIP (Macintosh)

Before using the SetIP program, disable the computer firewall from System

Preferences > Security > Firewall.

The following instructions may differ for your model.

1Connect your machine to the network with a network cable.

2 Insert the Installation CD-ROM, and open the disk window, select

MAC_Installer > MAC_Printer > SetIP > SetIPapplet.html.

3 Double-click the file and Safari will automatically open, then select

Trust. The browser will open the SetIPapplet.html page that shows the

printer’s name and IP address information.

4 Click the icon (third from left) in the SetIP window to open the TCP/

IP configuration window.

5 Enter the machine’s new information into the configuration window. In

a corporate intranet, you may need to have this information assigned by

a network manager before proceeding.

Wired network setup

2. Using a network-connected machine

Find the machine’s MAC address from the Network Configuration Report

(see "Printing a network configuration report" on page 94) and enter it

without the colons. For example, 00:15:99:29:51:A8 becomes

0015992951A8.

6 Select Apply, then OK, and OK again.

7 Quit Safari.

IPv4 configuation using SetIP (Linux)

Before using the SetIP program, disable the computer firewall from System

Preferences or Administrator.

The following instructions may vary from your model or operating systems.

1Open /opt/Samsung/mfp/share/utils/.

2 Double-click the SetIPApplet.html file.

3 Click to open the TCP/IP configuration window.

4 Enter the machine’s new information into the configuration window. In

a corporate intranet, you may need to have this information assigned by

a network manager before proceeding.

Find the machine’s MAC address from the Network Configuration Report

(see "Printing a network configuration report" on page 94) and enter it

without the colons. For example, 00:15:99:29:51:A8 becomes

0015992951A8.

5 The machine will automatically print the Network Configuration

Report.

2. Using a network-connected machine

Installing driver over the network

• Some features and optional goods may not be available depending

on model or country (see "Features by models" on page 6).

• The machine that does not support the network interface, it will not

be able to use this feature (see "Rear view" on page 18).

• You can install the printer driver and software when you insert the

software CD into your CD-ROM drive.

For windows, select the printer driver and software in the Select

Software to Install window.

Windows

1Make sure that the machine is connected to the network and powered

on. Also, your machine’s IP address should have been set (see "Setting IP

address" on page 94).

2 Insert the supplied software CD into your CD-ROM drive.

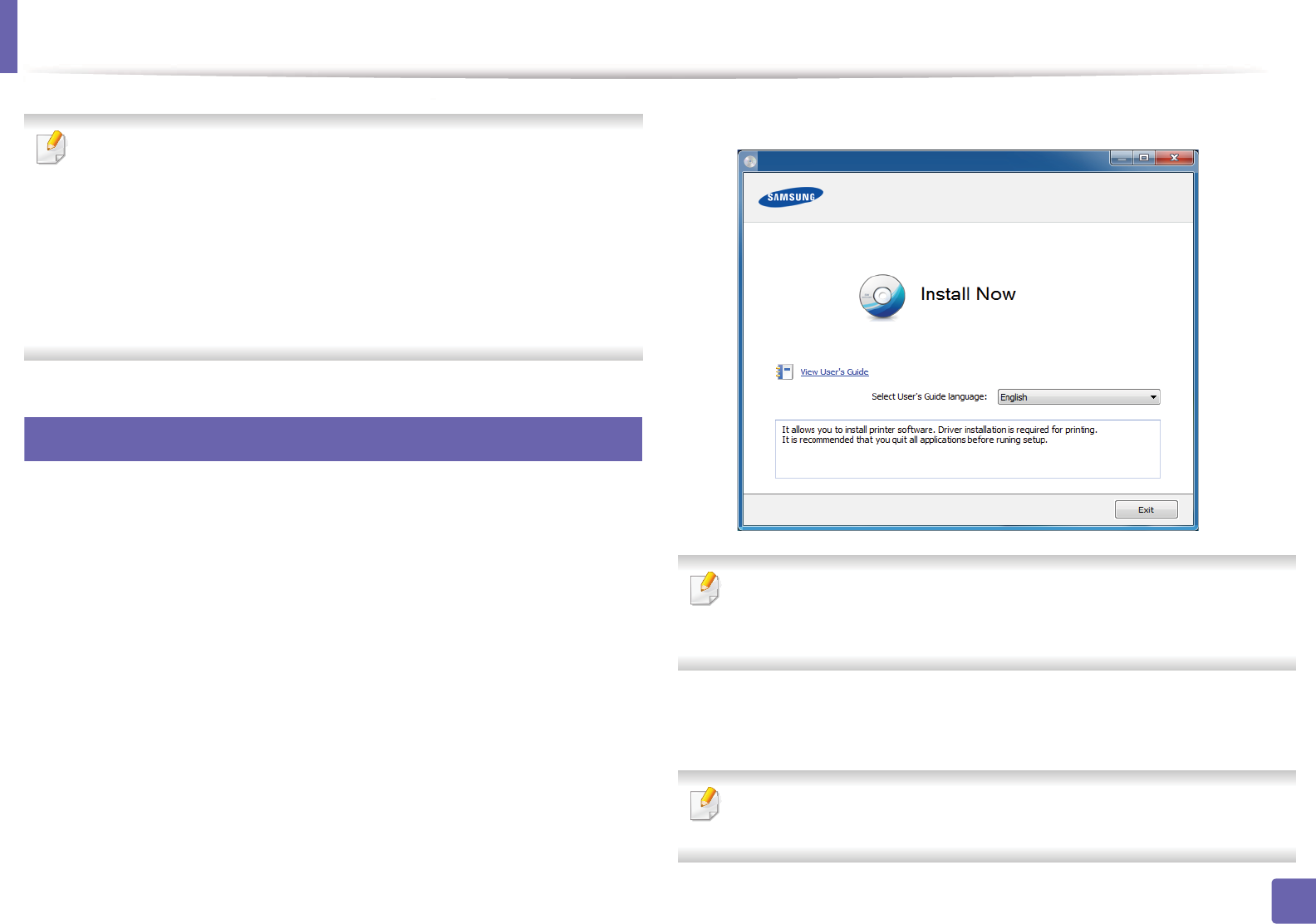

3 Select Install Now.

The Custom Installation allows you to select the machine’s connection and

choose individual components to install. Follow the instructions on the

window.

4 Read License Agreement, and select I accept the terms of the License

Agreement. Then, click Next.

If your machine is not found on the network or locally, an error message

appears. Select the option you want and click Next.

Installing driver over the network

2. Using a network-connected machine

5 Choose the option in Using Enhanced Features and Participating in

Printer Usage Information Collection Program. Then, click Next.

6 Select Network connection on the Printer Connection Type screen.

7 If the Connect Device window appears, check that the machine is

connected to your network. Then, click Next.

The firewall software might be blocking network communication. Before

connecting the device to the network, disable the computer’s firewall.

8 The searched machines will be shown on the screen. Select the one you

wish to use and click OK.

9 Follow the instructions in the installation window.

Silent installation Mode

Silent installation mode is an installation method that does not require any user

intervention. Once you start the installation, the machine driver and software

are automatically installed on you computer. You can start the silent installation

by typing /s or /S in the command window.

Command-line Parameters

Following table shows commands that can be used in the command window.

Following command-line are effective and operated when command is

used with /s or /S. But /h, /H or /? are exceptional commands that can be

operated solely.

Command- line Definition Description

/s or

Starts silent installation. Installs machine drivers

without prompting any UIs

or user intervention.

/p”<port name>” or

/P”<port name>”

Specifies printer port.

Network Port will

be created by use

of Standard TCP/

IP Port monitor.

For local port, this

port must exist on

system before

being specified

by command.

Printer port name can be

specified as IP address,

hostname, USB local port

name or IEEE1284 port

name.

For example

• /p”xxx.xxx.xxx.xxx” in

where, “xxx.xxx.xxx.xxx”

means IP address for

network printer. /

p”USB001”, /P”LPT1:”, /

p”hostname”

Installing driver over the network

2. Using a network-connected machine

/a”<dest_path>” or

/A”<dest_path>”

Specifies destination path

for installation.

The destination

path should be a

fully qualified

path.

Since machine drivers

should be installed on the OS

specific location, this

command applies to only

application software.

/n”<Printer name>”

/N”<Printer name>”

Specifies printer name.

Printer instance shall be

created as specified

printer name.

With this parameter, you can

add printer instances as your

wishes.

/nd or

/ND

Commands not to set the

installed driver as a

default machine driver.

It indicates installed machine

driver will not be the default

machine driver on your

system if there are one or

more printer drivers

installed. If there is no

installed machine driver on

your system, then this option

won’t be applied because

Windows OS will set installed

printer driver as a default

machine driver.

Command- line Definition Description

/x or

Uses existing machine

driver files to create

printer instance if it is

already installed.

This command provides a

way to install a printer

instance that uses installed

printer driver files without

installing an additional

driver.

/up”<printer name>”

/UP”<printer name>”

Removes only specified

printer instance and not

the driver files.

This command provides a

way to remove only specified

printer instance from your

system without effecting

other printer drivers. It will

not remove printer driver

files from your system.

/d or

Uninstalls all device

drivers and applications

from your system.

This command will remove

all installed device drivers

and application software

from your system.

/v”<share name>” or

/V”<share name>”

Shares installed machine

and add other available

platform drivers for Point

& Print.

It will install all supported

Windows OS platform’s

machine drivers to system

and share it with specified

<share name> for point and

print.

/o or

Opens Printers and

Faxes folder after

installation.

This command will open

Printers and Faxes folder

after the silent installation.

Command- line Definition Description

Installing driver over the network

100

2. Using a network-connected machine

Macintosh

1Make sure that the machine is connected to your network and powered

on.

2 Insert the supplied software CD into your CD-ROM drive.

3 Double-click the CD-ROM icon that appears on your Macintosh desktop.

4 Double-click the MAC_Installer folder > Installer OS X icon.

5 Click Continue.

6 Read the license agreement and click Continue.

7 Click Agree to agree to the license agreement.

8 When the message which warns that all applications will close on your

computer appears, click Continue.

9 Click Continue on the User Options Pane.

If you have not set the IP address yet, click Set IP address and refer to "IPv4

configuration using SetIP (Macintosh)" on page 95. If you want to set the

wireless setting, refer to "Setup using Macintosh" on page 116.

10 Click Install. All components necessary for machine operations will be

installed.

If you click Customize, you can choose individual components to install.

11 Enter the password and click OK.

12 Installing software requires you to restart your computer. Click Continue

Installation.

13 After the installation is finished, click Close.

/f”<log filename>” or

/F”<log filename>”

Specifies log filename.

The default log file is

created in the system

temp folder if not

specified.

It will create a log file to a

specified folder.

/h, /H or /? Shows Command-line

Usage.

Command- line Definition Description

Installing driver over the network

101

2. Using a network-connected machine

14 Open the Applications folder > Utilities > Print Setup Utility.

• For Mac OS X 10.5-10.7, open the Applications folder > System

Preferences and click Print & Fax.

15 Click Add on the Printer List.

• For Mac OS X 10.5-10.7, click the “+” icon. A display window will pop

up.

16 For Mac OS X 10.4, click IP Printer.

• For Mac OS X 10.5-10.7, click IP.

17 Select HP Jetdirect - Socket in Protocol.

When printing a document containing many pages, printing performance

may be enhanced by choosing Socket for Printer Type option.

18 Enter the machine’s IP address in the Address input field.

19 Enter the queue name in the Queue input field. If you cannot determine

the queue name for your machine server, try using the default queue

first.

20 For Mac OS X 10.4, if Auto Select does not work properly, select Samsung

in Print Using and your machine name in Model.

• For Mac OS X 10.5-10.7, if Auto Select does not work properly, choose

Select Printer Software and your machine name in Print Using.

21 Click Add.

Your machine appears in the Printer List, and is set as the default

machine.

Linux

You need to download Linux software packages from the Samsung website to

install the printer software (www.samsung.com > find your product > Support

or Downloads).

Install the Linux driver and add network printer

1Make sure that the machine is connected to your network and powered

on. Also, your machine’s IP address should have been set.

2 Download the Unified Linux Driver package from the Samsung website.

3 Extract the Unified Linux Driver package and open the new directory.

4 Double-click the cdroot folder > autorun.

Installing driver over the network

102

2. Using a network-connected machine

5 The Samsung installer window opens. Click Next.

6 The add printer wizard window opens. Click Next.

7 Select network printer and click Search button.

8 The machine’s IP address and model name appears on list field.

9 Select your machine and click Next.

10 Input the printer description and Next.

11 After the machine is added, click Finish.

12 When installation is done, click Finish.

Add a network printer

1Double-click the Unified Driver Configurator.

2 Click Add Printer.

3 The Add printer wizard window opens. Click Next.

4 Select Network printer and click the Search button.

5 The printer’s IP address and model name appears on list field.

6 Select your machine and click Next.

7 Enter the printer description and click Next.

8 After the machine is added, click Finish.

103

2. Using a network-connected machine

IPv6 configuration

IPv6 is supported properly only in Windows Vista or higher.

If the IPv6 network seems to not be working, set all the network setting to

the factory defaults and try again using Clear Setting.

In the IPv6 network environment, follow the next procedure to use the IPv6

address.

From the control panel

1Connect your machine to the network with a network cable.

2 Turn on the machine.

3 Print a Network Configuration Report that will check IPv6 addresses

(see "Printing a network configuration report" on page 94).

4 Select Start > Control Panel > Printers and Faxes.

5 Click Add a printer in the left pane of the Printers and Faxes windows.

6 Click Add a local printer in the Add Printer windows.

7 The Add Printer Wizard window appears. Follow the instructions in the

window.

If the machine does not work in the network environment, activate IPv6.

Refer to the next section followed by.

Activating IPv6

1Press the (Menu) button on the control panel.

2 Press Network > TCP/IP (IPv6) > IPv6 Activate.

3 Select On and press OK.

4 Turn the machine off and turn it on again.

5 Reinstall your printer driver.

IPv6 configuration

104

2. Using a network-connected machine

Setting IPv6 addresses

The machine supports the following IPv6 addresses for network printing and

managements.

•Link-local Address: Self-configured local IPv6 address (Address starts with

FE80).

•Stateless Address: Automatically configured IPv6 address by a network

router.

•Stateful Address: IPv6 address configured by a DHCPv6 server.

•Manual Address: Manually configured IPv6 address by a user.

DHCPv6 address configuration (Stateful)

If you have a DHCPv6 server on your network, you can set one of the following

options for default dynamic host configuration.

1Press the (Menu) button on the control panel.

2 Press Network > TCP/IP (IPv6) > DHCPv6 Config.

3 Press OK to select the required value you want.

•DHCPv6 Addr.: Always use DHCPv6 regardless of router request.

•DHCPv6 Off: Never use DHCPv6 regardless of router request.

•Router: Use DHCPv6 only when requested by a router.

From the SyncThru™ Web Service

For models that do not have the display screen on the control panel, you

need to access SyncThru™ Web Service first using the IPv4 address and

follow the below procedure to use IPv6.

1Access a web browser, such as Internet Explorer, from Windows.GEnter

the machine IP address (http://xxx.xxx.xxx.xxx) in the address field and

press the Enter key or click Go.

2 If it’s your first time logging into SyncThru™ Web Service you need to

log-in as an administrator.GType in the below default ID and passwordU

We recommend you to change the default password for security

reasons.

•ID: admin

•Password: sec00000

3 When the SyncThru™ Web Service window opens, move the mouse

cursor over the Settings of the top menu bar and then click Network

Settings.

4 Click TCP/IPv6 on the left pane of the website.

5 Check the IPv6 Protocol check box to activate IPv6.

IPv6 configuration

105

2. Using a network-connected machine

6 Check the Manual Address check box. Then, the Address/Prefix text

box is activated.

7 Enter the rest of the address (e.g.,:3FFE:10:88:194::AAAA. “A” is the

hexadecimal 0 through 9, A through F).

8 Choose the DHCPv6 configuration.

9 Click the Apply button.

Using SyncThru™ Web Service

1Start a web browser, such as Internet Explorer, that supports IPv6

addressing as a URL.

2 Select one of the IPv6 addresses (Link-local Address, Stateless

Address, Stateful Address, Manual Address) from Network

Configuration Report (see "Printing a network configuration report" on

page 94).

3 Enter the IPv6 addresses (e.g.,: http://[FE80::215:99FF:FE66:7701]).

Address must be enclosed in '[ ]' brackets.

106

2. Using a network-connected machine

Wireless network setup

• Make sure your machine supports wireless networking. Wireless

networking may not be available depending on the model (see "Features

by models" on page 6).

• If the IPv6 network seems to not be working, set all the network settings

to the factory defaults and try again using Clear Setting.

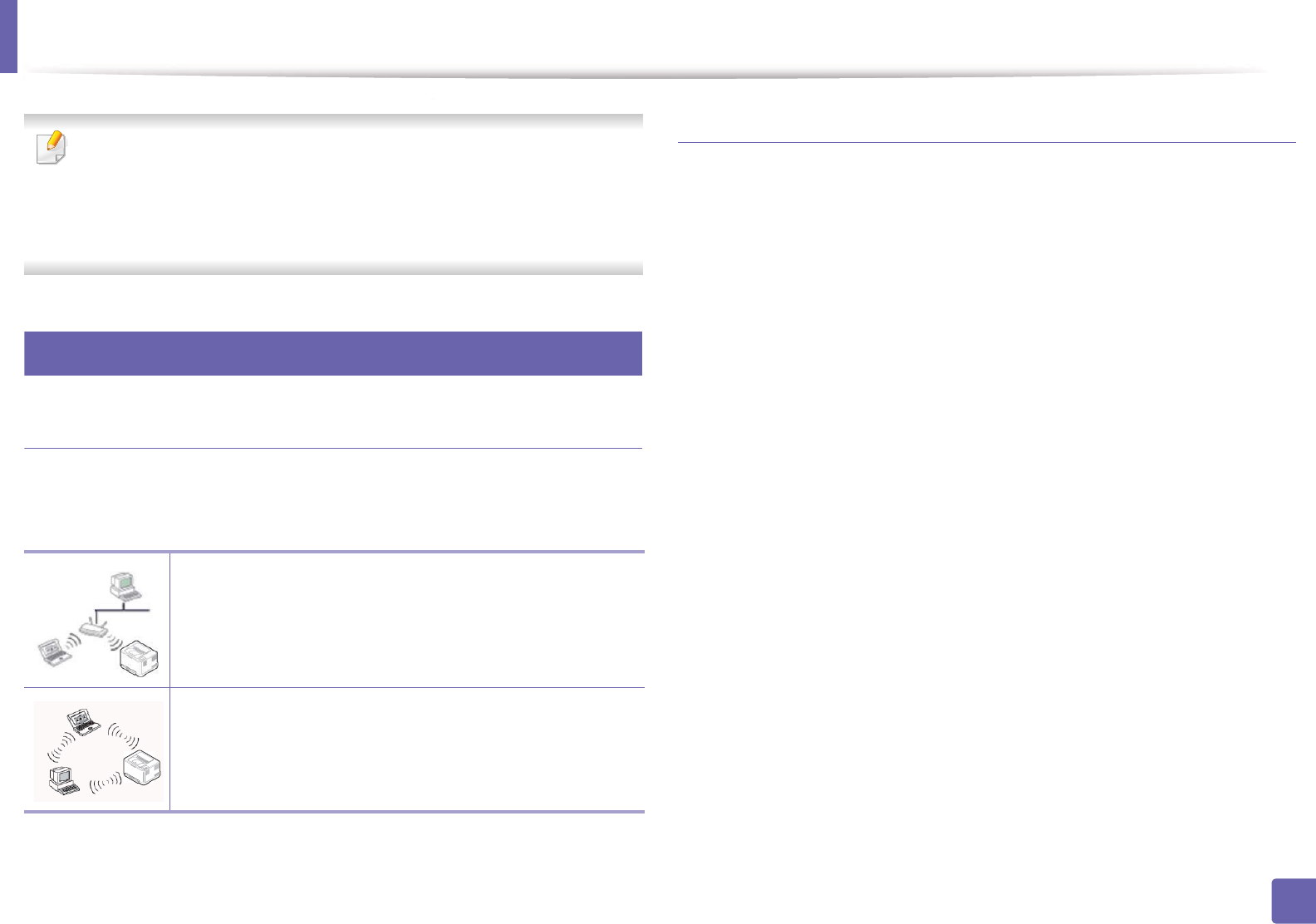

Getting started

Understanding your network type

Typically, you can only have one connection between your computer and the

machine at a time.

Wireless network name and network password

Wireless networks require higher security, so when an access point is first set up,

a network name (SSID), the type of security used, and a Network Password are

created for the network. Ask your network administrator about this information

before proceeding with the machine installation.

Infrastructure mode

This is an environment generally used for homes and SOHOs

(Small Office/ Home Office). This mode uses an access point to

communicate with the wireless machine.

Ad hoc mode

This mode does not use an access point. The wireless

computer and wireless machine communicate directly.

Wireless network setup

107

2. Using a network-connected machine

Introducing wireless set up methods

You can set wireless settings either from the machine or the computer. Choose the setting method from the below table.

Some wireless network installation types may not be available depending on the model or country.

If problems occur during wireless set up or driver installation, refer to the troubleshooting chapter (see "Troubleshooting" on page 125).

Set up method Connecting method Description & Reference

With Access Point

From th computer Windows user, see "Access point via USB cable (recommended)" on page 112. A

Mac user, see "Access point via USB cable (recommended)" on page 117. B

See "Using a network cable" on page 120. C

From th machine’s control panel • See "Machines with a display screen" on page 109.

• See "Machines without a display screen" on page 110.

See "Using the menu button" on page 111. E

Without Access Point From th computer Windows user, see "Ad hoc via USB cable" on page 114. F

Mac user, see "Ad hoc via USB cable" on page 118. G

Wi-Fi Direct setup See "Setting up Wi-Fi Direct" on page 124. H

Wireless network setup

108

2. Using a network-connected machine

Using the WPS button

If your machine and an access point (or wireless router) support Wi-Fi Protected

Setup™ (WPS), you can easily configure the wireless network settings by

pressing the (WPS) button on the control panel without a computer.

• If you want to use the wireless network using the infrastructure mode,

make sure that the network cable is disconnected from the machine.

Using the WPS (PBC) button or entering the PIN from the computer to

connect to the access point (or wireless router) varies depending on the

access point (or wireless router) you are using. Refer to the user's guide

of the access point (or wireless router) you are using.

• When using the WPS button to set the wireless network, security settings

may change. To prevent this, lock the WPS option for the current wireless

security settings. The option name may differ depending on the access

point (or wireless router) you are using.

Items to prepare

• Check if the access point (or wireless router) supports Wi-Fi Protected

Setup™ (WPS).

• Check if your machine supports Wi-Fi Protected Setup™ (WPS).

• Networked computer (PIN mode only)

Choosing your type

There are two methods available to connect your machine to a wireless network

using the (WPS) button on the control panel.

The Push Button Configuration (PBC) method allows you to connect your

machine to a wireless network by pressing both the (WPS) button on the

control panel of your machine and the WPS (PBC) button on a Wi-Fi Protected

Setup™ WPS-enabled access point (or wireless router) respectively.

The Personal Identification Number (PIN) method helps you connect your

machine to a wireless network by entering the supplied PIN information on a Wi-

Fi Protected Setup™ WPS-enabled access point (or wireless router).

Factory default in your machine is PBC mode, which is recommended for a

typical wireless network environment.

You can change the WPS mode in control panel ( (Menu) > NetworkG>G

Wireless > OK > WPS Setting).

Wireless network setup

109

2. Using a network-connected machine

Machines with a display screen

Connecting in PBC mode

1Press and hold the (WPS) button on the control panel for more than

2 seconds.

The machine starts waiting for up to two minutes until you press the WPS

(PBC) button on the access point (or wireless router).

2 Press the WPS (PBC) button on the access point (or wireless router).

The messages are displayed on the display screen in the order below:

a Connecting: The machine is connecting to the access point (or

wireless router).

b Connected: When the machine is successfully connected to the

wireless network, the WPS LED light stays on.

c AP SSID: After completing the wireless network connection process,

the AP’s SSID information appears on the display.

3 Insert the supplied software CD into your CD-ROM drive, and follow the

instructions in the window to set up the wireless network.

Connecting in PIN mode

1Press and hold the (WPS) button on the control panel for more than

2 seconds.

2 The eight-digit PIN appears on the display.

You need to enter the eight-digit PIN within two minutes on the

computer that is connected to the access point (or wireless router).

The messages are displayed on the display screen in the order below:

a Connecting: The machine is connecting to the wireless network.

b Connected: When the machine is successfully connected to the

wireless network, the WPS LED light stays on.

c SSID Type: After completing the wireless network connection

process, the AP’s SSID information is displayed on the LCD display.

3 Insert the supplied software CD into your CD-ROM drive, and follow the

instructions in the window to set up the wireless network.

Wireless network setup

110

2. Using a network-connected machine

Machines without a display screen

Connecting in PBC mode

1Press and hold the (WPS) button on the control panel for about 2 - 4

seconds until the status LED blinks quickly.

The machine starts connecting to the wireless network. The LED blinks

slowly for up to two minutes until you press the PBC button on the

access point (or wireless router).

2 Press the WPS (PBC) button on the access point (or wireless router).

a The light blinks fast on the WPS LED. The machine is connecting to

the access point (or wireless router).

b When the machine is successfully connected to the wireless

network, the WPS LED light stays on.

3 Insert the supplied software CD into your CD-ROM drive, and follow the

instructions in the window to set up the wireless network.

Connecting in PIN mode

1The network configuration report, including PIN, must be printed (see

"Printing a network configuration report" on page 94).

In ready mode, Press the (Cancel or Stop/Clear) button for more than

five seconds on the control panel.

The machine without the (Cancel or Stop/Clear) button: Press the

(WPS) button formore than ten seconds on the control panel.

You can find your machine’s PIN.

2 Press and hold the (WPS) button on the control panel for more than

4 seconds until the status LED stays on.

The machine starts connecting to the access point (or wireless router).

3 You need to enter the eight-digit PIN within two minutes on the

computer that is connected to the access point (or wireless router).

The LED blinks slowly for up to two minutes until you enter the eight-

digit PIN.

The WPS LED blinks in the order below:

a The light blinks fast on the WPS LED. The machine is connecting to

the access point (or wireless router).

b When the machine is successfully connected to the wireless

network, the WPS LED light stays on.

4 Insert the supplied software CD into your CD-ROM drive, and follow the

instructions in the window to set up the wireless network.

Wireless network setup

111

2. Using a network-connected machine

Re-connecting to a network

When the wireless function is off, the machine automatically tries to re-connect

to the access point (or wireless router) with the previously used wireless

connection settings and address.

In the following cases, the machine automatically re-connects to the

wireless network:

• The machine is turned off and on again.

• The access point (or wireless router) is turned off and on again.

Canceling the connection process

To cancel the wireless network connection when the machine is connecting to

the wireless network, press and release the (Cancel or Stop/Clear) or

(Power/Wakeup) button on the control panel. You need to wait 2 minutes to

re-connect to the wireless network.

Disconnecting from a network

To disconnect the wireless network connection, press the (WPS) button on

the control panel for more than two seconds.

•When the Wi-Fi network is in idle mode: The machine is immediately

disconnected from the wireless network and the WPS LED turns off.

•When the Wi-Fi network is being used: While the machine waits until the

current job is finished, the light blinks fast on the WPS LED. Then, the

wireless network connection is automatically disconnected and the WPS

LED turns off.

Using the menu button

Some menus may not appear in the display depending on options or

models. If so, it is not applicable to your machine

Before starting, you will need to know the network name (SSID) of your wireless

network and the network key if it is encrypted. This information was set when

the access point (or wireless router) was installed. If you do not know about your

wireless environment, please ask the person who set up your network.

Wireless network setup

112

2. Using a network-connected machine

After completing the wireless network connection, you need to install a

machine driver to print from an application (see "Installing driver over the

network" on page 97).

1Press the (Menu) button on the control panel.

2 Press Network > Wireless > WLAN Settings.

3 Press the OK to select the setup method you want.

•Wizard (recommended): In this mode, the setup is automatic. The

machine will display a list of available networks from which to

choose. After a network is chosen then printer will prompt for the

corresponding security key.

•Custom: In this mode, users can give or edit manually their own SSID

, or choose the security option in detail.

Setup using Windows

Shortcut to the Wireless Setting program without the CD: If you have

installed the printer driver once, you can access the Wireless Setting

program without the CD. From the Start menu, select Programs or All

Programs > Samsung Printers > your printer driver name > Wireless

Setting Program.

Access point via USB cable (recommended)

Items to prepare

• Access point

• Network-connected computer

• Software CD that was provided with your machine

• A machine installed with a wireless network interface

• USB cable

Creating the infrastructure network

1Check whether the USB cable is connected to the machine.

2 Turn on your computer, access point, and machine.

3 Insert the supplied software CD into your CD-ROM drive.

4 Click Install Now.

5 Read the License Agreement, and select I accept the terms of the

License Agreement. Then, click Next.

6 Choose the option in Using Enhanced Features and Participating in

Printer Usage Information Collection Program. Then, click Next.

Wireless network setup

113

2. Using a network-connected machine

7 Select Configure the wireless network connection using USB cable

on the Printer Connection Type screen. Then click Next.

8 After searching, the window shows the wireless network devices. Select

the name (SSID) of the access point you want to use and click Next.

If the wireless network is already set up, the Wireless Network

Information window appears. Select I want to install software with

the current settings. (Recommended). Then, click Next.

If you cannot find the network name you want to choose, or if you want to

set the wireless configuration manually, click Advanced Setting.

•Enter the wireless Network Name: Enter the SSID of the access point

(SSID is case-sensitive).

•Operation Mode: Select Infrastructure.

•Authentication: Select an authentication type.

Open System: Authentication is not used, and encryption may or may

not be used, depending on the need for data security.

Shared Key: Authentication is used. A device that has a proper WEP key

can access the network.

WPA Personal or WPA2 Personal: Select this option to authenticate the

print server based on a WPA Pre-Shared Key. This uses a shared secret key

(generally called Pre Shared Key pass phrase), which is manually

configured on the access point and each of its clients.

•Encryption: Select the encryption (None, WEP64, WEP128, TKIP, AES,

TKIP AES).

•Network Password: Enter the encryption network password value.

•Confirm Network Password: Confirm the encryption network

password value.

•WEP Key Index: If you are using WEP Encryption, select the appropriate

WEP Key Index.

The wireless network security window appears when the access point has

security settings.

Enter the Network Password of the access point (or router).

9 When the network connection window appears, disconnect the network

cable. Then, click Next. The network cable connection can interfere with

searching for wireless devices.

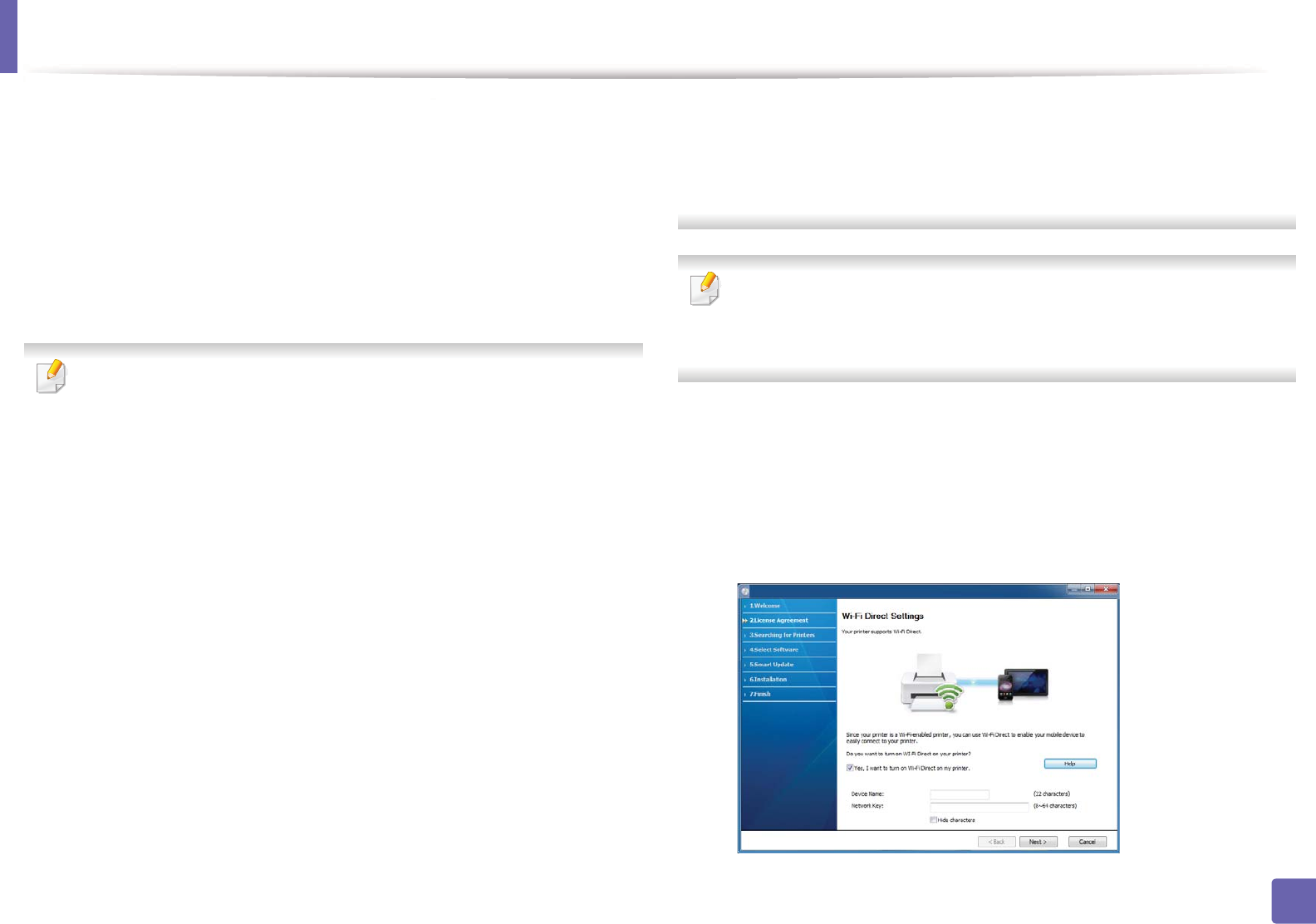

10 If your printer supports Wi-Fi Direct, the following screen appears.

Click Next.

Wireless network setup

114

2. Using a network-connected machine

• Can start to build Wi-Fi Direct by using Samsung Easy Printer Manager

(see "Setting up Wi-Fi Direct" on page 124).

•Network Name(SSID): The default Network Name is the model name

and the maximum length is 22 characters (not including "DIRECT-XX-").

•Network Password is the numeric string, and the size is 8 ~ 64

characters.

11 When the wireless network set up is completed, disconnect the USB

cable between the computer and machine. Click Next.

12 Click Next when the Printers Found window appears.

13 Select the components to be installed. Click Next.

14 After selecting the components, you can also change the machine name,

set the machine to be shared on the network, set the machine as the

default machine, and change the port name of each machine. Click Next.

15 If you want to register your machine with the Samusng web site and

receive useful information, click On-line Registration. If not, click

Finish.

Ad hoc via USB cable

If you do not have an access point (AP), you may still connect the machine

wirelessly to your computer by setting up an ad-hoc wireless network by

following the simple steps below.

Items to prepare

• Network-connected computer

• Software CD that was provided with your machine

• A machine installed with a wireless network interface

• USB cable

Creating the ad hoc network in Windows

1Check whether the USB cable is connected to the machine.

2 Turn on your computer and the wireless network machine.

3 Insert the supplied software CD into your CD-ROM drive.

4 Click Install Now.

5 Read the License Agreement, and select I accept the terms of the

License Agreement. Then, click Next.

6 Choose the option in Using Enhanced Features and Participating in

Printer Usage Information Collection Program. Then, click Next.

Wireless network setup

115

2. Using a network-connected machine

7 Select Configure the wireless network connection using USB cable

on the Printer Connection Type screen. Then click Next.

8 After searching the wireless networks, a list of wireless networks your

machine has searched appears. Click Advanced Setting.

•Enter the wireless Network Name: Enter the SSID name you want (SSID

is case-sensitive).

•Operation Mode: Select ad hoc.

•Channel: Select the channel. (Auto Setting or 2412 MHz to 2467 MHz).

•Authentication: Select an authentication type.

Open System: Authentication is not used, and encryption may or may

not be used, depending on the need for data security.

Shared Key: Authentication is used. A device that has a proper WEP key

can access the network.

•Encryption: Select the encryption (None, WEP64, WEP128).

•Network Password: Enter the encryption network password value.

•Confirm Network Password: Confirm the encryption network

password value.

•WEP Key Index: If you are using WEP Encryption, select the appropriate

WEP Key Index.

The wireless network security window appears when the ad hoc network

has security enabled.

Select Open System or Shared Key for the authentication and click Next.

• WEP (Wired Equivalent Privacy) is a security protocol preventing

unauthorized access to your wireless network. WEP encrypts the data

portion of each packet exchanged on a wireless network using a 64-bit

or 128-bit WEP encryption key.

9 The window showing the wireless network setting appears. Check the

settings and click Next.

Wireless network setup

116

2. Using a network-connected machine

Before entering the IP address for the machine, you must know the

computer’s network configuration information. If the computer’s network

configuration is set to DHCP, the wireless network setting should also be

DHCP. Likewise, if the computer’s network configuration is set to Static, the

wireless network setting should also be Static.

If your computer is set to DHCP and you want to use the Static wireless

network setting, you must contact the network administrator to get the

static IP address.

•For the DHCP method

If the IP address assignment method is DHCP, check if DHCP is shown in

the Wireless Network Setting Confirm window. If it shows Static, click

Change TCP/IP to change the assignment method to Receive IP

address automatically (DHCP).

•For the Static method

If the IP address assignment method is Static, check if Static is shown in

the Wireless Network Setting Confirm window. If it shows DHCP, click

Change TCP/IP to enter the IP address and other network configuration

values for the machine.

For example,

If the computer’s network information is as shown follows:

- IP address: 169.254.133.42

- Subnet Mask: 255.255.0.0

Then, the machine’s network information should be as below:

- IP address: 169.254.133.43

- Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)

- Gateway: 169.254.133.1

10 The Wireless Network Setting Complete window appears. Click Next.

11 When the wireless network settings are completed, disconnect the USB

cable between the computer and machine. Click Next.

12 Click Next when the Printers Found window appears.

13 Select the components to be installed. Click Next.

14 After selecting the components, you can also change the machine name,

set the machine to be shared on the network, set the machine as the

default machine, and change the port name of each machine. Click Next.

15 If you want to register your machine with the Samusng web site and

receive useful information, click On-line Registration. If not, click

Finish.

Setup using Macintosh

Items to prepare

• Access point

• Network-connected computer

• Software CD that was provided with your machine

• A machine installed with a wireless network interface

Wireless network setup

117

2. Using a network-connected machine

• USB cable

Access point via USB cable (recommended)

1Check whether the USB cable is connected to the machine.

2 Turn on your computer, access point, and machine.

3 Insert the supplied software CD into your CD-ROM drive.

4 Double-click the CD-ROM icon that appears on your Macintosh desktop.

5 Double-click the MAC_Installer folder > Installer OS X icon.

6 Click Continue.

7 Read the license agreement and click Continue.

8 Click Agree to agree to the license agreement.

9 When the message that warns that all applications will close on your

computer appears, click Continue.

10 Click Wireless Network Setting button on the User Options Pane.

11 After searching, the window shows the wireless network devices. Select

the name (SSID) of the access point you want to use and click Next.

If the wireless network is already set up, the Wireless Network

Information window appears. Select I want to install software with

the current settings. (Recommended). Then, click Next.

When you set the wireless configuration manually, click Advanced Setting.

•Enter the wireless Network Name: Enter the SSID of the access point

(SSID is case-sensitive).

•Operation Mode: Select Infrastructure.

•Authentication: Select an authentication type.

Open System: Authentication is not used, and encryption may or may

not be used, depending on the need for data security.

Shared Key: Authentication is used. A device that has a proper WEP key

can access the network.

WPA Personal or WPA2 Personal: Select this option to authenticate the

print server based on the WPA Pre-Shared Key. This uses a shared secret

key (generally called Pre Shared Key pass phrase) that is manually

configured on the access point and each of its clients.

•Encryption: Select the encryption. (None, WEP64, WEP128, TKIP, AES,

TKIP, AES)

•Network Password: Enter the encryption network password value.

•Confirm Network Password: Confirm the encryption network

password value.

•WEP Key Index: If you are using WEP Encryption, select the appropriate

WEP Key Index.

Wireless network setup

118

2. Using a network-connected machine

The wireless network security window appears when the access point has

security enabled.

Enter the Network Password of the access point (or router).

12 If your printer supports Wi-Fi Direct, the following screen appears.

Click Next.

• Can start to build Wi-Fi Direct by using Samsung Easy Printer Manager

(see "Setting up Wi-Fi Direct" on page 124).

•Network Name(SSID): The default Network Name is the model name

and the maximum length is 22 characters (not including "DIRECT-").

•Network Password is the numeric string, and the size is 8 ~ 64

characters.

13 When the wireless network settings are completed, disconnect the USB

cable between the computer and machine.

14 Wireless network set up is completed. After the installation is finished,

click Quit.

After completing the wireless network connection, you need to install a

machine driver to print from an application (see "Installation for Macintosh"

on page 88).

Ad hoc via USB cable

If you do not have an access point (AP), you may still connect the machine

wirelessly to your computer by setting up an ad hoc wireless network by

following these simple directions.

Items to prepare

• Network-connected computer

• Software CD that was provided with your machine

• A machine installed with a wireless network interface

• USB cable

Wireless network setup

119

2. Using a network-connected machine

Creating the ad hoc network in Macintosh

1Check whether the USB cable is connected to the machine.

2 Turn on your computer and the wireless network machine.

3 Insert the supplied software CD into your CD-ROM drive.

4 Double-click the CD-ROM icon that appears on your Macintosh desktop.

5 Double-click the MAC_Installer folder > Installer OS X icon.

6 Click Continue.

7 Read the license agreement and click Continue.

8 Click Agree to agree to the license agreement.

9 When the message that warns that all applications will close on your

computer appears, click Continue.

10 Click Wireless Network Setting button on the User Options Pane.

11 After searching the wireless networks, a list of wireless networks your

machine has searched appears. Click Advanced Setting.

•Enter the wireless Network Name: Enter the SSID name (SSID is case-

sensitive).

•Operation Mode: Select ad hoc.

•Channel: Select the channel (Auto Setting or 2412 MHz to 2467 MHz).

•Authentication: Select an authentication type.

Open System: Authentication is not used, and encryption may or may

not be used, depending on the need for data security.

Shared Key: Authentication is used. A device that has a proper WEP key

can access the network.

•Encryption: Select the encryption (None, WEP64, WEP128).

•Network Password: Enter the encryption network password value.

•Confirm Network Password: Confirm the encryption network

password value.

•WEP Key Index: If you are using WEP Encryption, select the appropriate

WEP Key Index.

The wireless network security window appears when the ad hoc network

has security setting.

Select Open System or Shared Key for the authentication and click Next.

• WEP (Wired Equivalent Privacy) is a security protocol preventing

unauthorized access to your wireless network. WEP encrypts the data

portion of each packet exchanged on a wireless network using a 64-bit

or 128-bit WEP encryption key.

12 The window showing the wireless network settings appears. Check the

settings and click Next.

Wireless network setup

120

2. Using a network-connected machine

Before entering the IP address for the machine, you must know the

computer’s network configuration information. If the computer’s network

configuration is set to DHCP, the wireless network setting should also be

DHCP. Likewise, if the computer’s network configuration is set to Static, the

wireless network setting should also be Static.

If your computer is set to DHCP and you want to use Static wireless network

setting, you must contact the network administrator to get the static IP

address.

•For the DHCP method

If the IP address assignment method is DHCP, check if DHCP is shown in

the Wireless Network Setting Confirm window. If it shows Static, click

Change TCP/IP to change the assignment method to Receive IP

address automatically (DHCP).

•For the Static method

If the IP address assignment method is Static, check if Static is shown in

the Wireless Network Setting Confirm window. If it shows DHCP, click

Change TCP/IP to enter the IP address and other network configuration

values for the machine.

For example,

If the computer’s network information is shown as follows:

- IP address: 169.254.133.42

- Subnet Mask: 255.255.0.0

Then, the machine’s network information should be as shown below:

- IP address: 169.254.133.43

- Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)

- Gateway: 169.254.133.1

13 When the window that tells you that the network cable connection is

confirmed appears, disconnect the network cable and click Next.

If the network cable is connected, it may have trouble finding the

machine when configuring the wireless network.

14 The wireless network connects according to the network configuration.

15 Wireless network set up is completed. After installation is finished, click

Quit.

After completing the wireless network connection, you need to install a

machine driver to print from an application (see "Installation for Macintosh"

on page 88).

Using a network cable

Machines that do not support the network interface will not be able to use

this feature (see "Rear view" on page 18).

Your machine is a network compatible machine. To enable your machine to

work with your network, you will need to perform some configuration

procedures.

Wireless network setup

121

2. Using a network-connected machine

• After completing the wireless network connection, you need to install a

machine driver to print from an application (see "Installing driver over

the network" on page 97).

• See your network administrator, or the person that set up your wireless

network, for information about your network configuration.

Items to prepare

• Access point

• Network-connected computer

• Software CD that was provided with your machine

• A machine installed with a wireless network interface

• Network cable

Printing a network configuration report

You can identify the network settings of your machine by printing a network

configuration report.

See "Printing a network configuration report" on page 94.

IP setting using SetIP Program (Windows)

This program is used to manually set the network IP address of your machine

using its MAC address to communicate with the machine. The MAC address is

the hardware serial number of the network interface and can be found in the

Network Configuration Report.

See "Setting IP address" on page 94.

Configuring the machine’s wireless network

Before starting you will need to know the network name (SSID) of your wireless

network and the network key if it is encrypted. This information was set when

the access point (or wireless router) was installed. If you do not know about your

wireless environment, please ask the person who set up your network.

To configure wireless parameters, you can use SyncThru™ Web Service.

Using SyncThru™ Web Service

Before starting wireless parameter configuration, check the cable connection

status.

Wireless network setup

122

2. Using a network-connected machine

1Check whether or not the network cable is connected to the machine. If

not, connect the machine with a standard network cable.

2 Start a web browser such as Internet Explorer, Safari, or Firefox and enter

your machine’s new IP address in the browser window.

For example,

3 Click Login on the upper right of the SyncThru™ Web Service website.

4 If it’s your first time logging into SyncThru™ Web Service you need to

log-in as an administrator.GType in the below default ID and passwordU

We recommend you to change the default password for security

reasons.

•ID: admin

•Password: sec00000

5 When the SyncThru™ Web Service window opens, click Network

Settings.

6 Click Wireless > Wizard.

Wizard will help you setup the wireless network configuration. However, if

you want to set the wireless network directly, select Custom.

7 Select the one Network Name(SSID) in the list.

•SSID: SSID (Service Set Identifier) is a name that identifies a wireless

network, access points, and wireless devices attempting to connect

to a specific wireless network must use the same SSID. The SSID is

case sensitive.

•Operation Mode: Operation Mode refers to the type of wireless

connections (see "Wireless network name and network password"

on page 106).

-Ad-hoc: Allows wireless devices to communicate directly with

each other in a peer-to-peer environment.

-Infrastructure: Allows wireless devices to communicate with

each other through an access point.

If your network’s Operation Mode is Infrastructure, select the SSID of the

access point. If the Operation Mode is Ad-hoc, select the machine’s SSID.

Note that “portthru” is the default SSID of your machine.

8 Click Next.

If the wireless security setting window appears, enter the registered

password (network password) and click Next.

9 The confirmation window appears, please check your wireless setup. If

the setup is right, click Apply.

Wireless network setup

123

2. Using a network-connected machine

Disconnect the network cable (standard or network). Your machine should

then start communicating wirelessly with the network. In case of Ad-hoc

mode, you can use a wireless LAN and wired LAN simultaneously.

10 Insert the supplied software CD into your CD-ROM drive, and follow the

instructions in the window to set up the wireless network.

Turning the Wi-Fi network on/off

If your machine has a display, you can also turn on/off the Wi-Fi from the

machine’s control panel using the Network menu.

1Check whether the network cable is connected to the machine. If not,

connect the machine with a standard network cable.

2 Start a web browser such as Internet Explorer, Safari, or Firefox and enter

your machine’s new IP address in the browser window.

For example,

3 Click Login on the upper right of the SyncThru™ Web Service website.

4 If it’s your first time logging into SyncThru™ Web Service you need to

log-in as an administrator.GType in the below default ID and passwordU

We recommend you to change the default password for security

reasons.

•ID: admin

•Password: sec00000

5 When the SyncThru™ Web Service window opens, click Network

Settings.

6 Click Wireless > Custom.

You can also turn the Wi-Fi network on/off.

Setting the Wi-Fi Direct for mobile printing

Wi-Fi Direct is an easy-to-setup peer-to-peer connection method between the

Wi-Fi Direct certified printer and a mobile device that provides a secure

connection and better throughput than ad hoc mode.

With Wi-Fi Direct, you can connect your printer to a Wi-Fi Direct network while

concurrently connecting to an access point, You can also use a wired network

and a Wi-Fi Direct network simultaneously so multiple users can access and print

documents both from Wi-Fi Direct and from a wired network.

Wireless network setup

124

2. Using a network-connected machine

• You cannot connect your mobile device to the internet through the

printer’s Wi-Fi Direct.

• The supported protocol list may differ from your model, Wi-Fi Direct

networks do NOT support IPv6, network filtering, IPSec, WINS, and SLP

services.

• The maximum number of devices that can be connected via Wi-Fi Direct

is 3.

Setting up Wi-Fi Direct

You can enable Wi-Fi Direct feature by one of the following methods.

From the USB cable-connected computer(recommended)

After the driver installation is complete, Samsung Easy Printer Manager can be

set and changes in the Wi-Fi Direct can be made.

Samsung Easy Printer Manager is Available for Windows

and Mac OS users only.

• From the Start menu, select Programs or All Programs > Samsung

Printers > Samsung Easy Printer Manager > Device Settings > Network.

-Wi-Fi Direct On/Off: Select On to enable.

-Device Name: Enter the printer’s name for searching for your printer on

a wireless network. By default, the device name is the model name.

-IP Address: Enter the IP address of the printer. This IP address is used

only for the local network and not for the infrastructure wired or wireless

network. We recommend using the default local IP address (the default

local IP address of the printer for Wi-Fi Direct is 192.168.3.1 )

-Group Owner: Activate this option to assign the printer the Wi-Fi Direct

group’s owner. The Group Owner acts similar to a wireless access point.

We recommend activating this option.

-Network Password: If your printer is a Group Owner, a Network

Password is required for other mobile devices to connect to your

printer. You can configure a network password yourself, or can

remember the given Network Password that is randomly generated by

default.

From the machine (Machines with a display screen)

• Select Network > Wireless > Wi-Fi Direct from the control panel.

•Enable Wi-Fi Direct.

From the network-connected computer

If your printer is using a network cable or a wireless access point, you can enable

and configure Wi-Fi Direct from SyncThru™ Web Service.

• Access SyncThru™ Web Service, select Settings > Network Settings >

Wireless > Wi-Fi Direct.

• Enable or disable Wi-Fi Direct and set other options.

Wireless network setup

125

2. Using a network-connected machine

•For Linux OS users,

- Print an IP network configuration report to check the output (see

"Printing a network configuration report" on page 94).

- Access SyncThru Web Service, select Settings > Network Settings

> Wireless > Wi-Fi Direct.

- Enable or disable Wi-Fi Direct.

Setting up the mobile device

• After setting up Wi-Fi Direct from the printer, refer to the user manual of the

mobile device you are using to set its Wi-Fi Direct.

• After setting up Wi-Fi Direct, you need to download the mobile printing

application (For example: Samsung Mobile printer) to print from your

smartphone.

• When you have found the printer you want to connect to from your

mobile device, select the printer and the printer's LED will blink. Press the

WPS button on the printer and it will be connected to your mobile

device.

• If your mobile device does not support WPS, you need to enter the

"Network Key" of a printer instead of pushing the WPS button.

Troubleshooting

Problems during setup or driver installation

Printers Not Found

• Your machine may not be turned on. Turn on your computer and the

machine.

• USB cable is not connected between your computer and machine. Connect

the machine to your computer using the USB cable.

• The machine does not support wireless networking. Check the machine's

user's guide included on the software CD supplied with your machine and

prepare a wireless network machine.

Connecting Failure - SSID Not Found

• The machine is unable to find the network name (SSID) you have selected or

entered. Check the network name (SSID) on your access point and try

connecting again.

• Your access point is not turned on. Turn on your access point.

Wireless network setup

126

2. Using a network-connected machine

Connecting Failure - Invalid Security

• Security is not configured correctly. Check the configured security on your

access point and machine.

Connecting Failure - General Connection Error

• Your computer is not receiving a signal from your machine. Check the USB

cable and your machine’s power.

Connecting Failure - Connected Wired Network

• Your machine is connected with a wired network cable. Remove the wired

network cable from your machine.

Connecting Failure - Assigning the IP address

• Cycle the power for the access point (or wireless router) and machine.

PC Connection Error

• The configured network address is unable to connect between your

computer and machine.

- For a DHCP network environment

The receives the IP address automatically (DHCP) when computer is

configured to DHCP.

If the printing job is not working in DHCP mode, the problem may be caused

by the automatically changed IP address. Compare the IP address between

the product's IP address and the printer port's IP address.

How to compare:

1 Print the network information report of your printer, and then check the

IP address (see "Printing a network configuration report" on page 94).

2 Check the printer port's IP address from your computer.

a Click the Windows Start menu.

b For Windows XP/Server 2003, select Printer and Faxes.

• For Windows Server 2008/Vista, select Control Panel > Hardware

and Sound > Printers.

• For Windows 7, select Control Panel > Devices and Printers.

• For Windows Server 2008 R2, select Control Panel > Hardware >

Devices and Printers.

c Right-click your machine.

d For Windows XP/2003/2008/Vista, press Properties.

For Windows 7 and Windows Server 2008 R2, from context menus,

select the Printer properties.

If Printer properties item has  mark, you can select other printer

drivers connected with selected printer.

Wireless network setup

127

2. Using a network-connected machine

e Click Port tab.

f Click Configure Port.. button.

g Check if Printer Name or IP Address: is the IP address on the network

configuration Sheet.

3 Change the printer port's IP address if it is different from the network

information report's.

If you want to use the software installation CD to change the port IP,

connect to a network printer. Then reconnect the IP address.

- For a Static network environment

The machine uses the static address when the computer is configured

to static address.

For example,

If the computer’s network information is as shown below:

IP address: 169.254.133.42

Subnet Mask: 255.255.0.0

Then the machine’s network information should be as below:

IP address: 169.254.133.43

Subnet Mask: 255.255.0.0 (Use the computer’s subnet mask.)

Gateway: 169.254.133.1

Other problems

If problems occur while using the machine on a network, check the following:

For information on the access point (or wireless router), refer to its own

user's guide.

• You cannot enable wired and wireless networks at the same time.

• Your computer, access point (or wireless router), or machine may not be

turned on.

• Check the wireless reception around the machine. If the router is far from

the machine or there is an obstacle, you might have difficulty receiving the

signal.

• Cycle the power for the access point (or wireless router), machine, and

computer. Sometimes cycling the power can recover network

communication.

• Check whether firewall software (V3 or Norton) is blocking the

communication.

If the computer and the machine are connected on the same network and it

cannot be found when searching, firewall software might be blocking the

communication. Refer to the user's guide for the software to turn it off and

try searching for the machine again.

• Check whether the machine's IP address is allocated correctly. You can

check the IP address by printing the network configuration report.

• Check whether the access point (or wireless router) has a configured

security (password). If it has a password, refer to the access point (or wireless

router) administrator.

Wireless network setup

128

2. Using a network-connected machine

• Check the machine's IP address. Reinstall the machine driver and change the

settings to connect to the machine on the network. Due to the

characteristics of DHCP, the allocated IP address could change if the

machine is not used for a long time or if the access point has been reset.

on the access point (or wireless router). Then you can always use the IP

address that is set with the MAC address. You can identify the Mac address

of your machine by printing a network configuration report (see "Printing a

network configuration report" on page 94).

• Check the wireless environment. You might not be able to connect to the

network in the infrastructure environment where you need to type in a

user's information before connecting to the access point (or wireless router).

• This machine only supports IEEE 802.11 b/g/n and Wi-Fi. Other wireless

communication types (e.g., Bluetooth) are not supported.

• When using the ad hoc mode, in operating systems such as Windows Vista,

you might need to set the wireless connection setting every time you use

the wireless machine.

• You cannot use infrastructure mode and ad hoc mode at the same time for

Samsung wireless network machines.

• The machine is within the range of the wireless network.

• The machine is located away from obstacles that could block the wireless

signal.

Remove any large metal objects between the access point (or wireless

router) and the machine.

Make sure the machine and wireless access point (or wireless router) are not

separated by poles, walls, or support columns containing metal or concrete.

• The machine is located away from other electronic devices that may

interfere with the wireless signal.

Many devices can interfere with the wireless signal, including a microwave

oven and some Bluetooth devices.

• Whenever the configuration of your access point (or wireless router)

changes, you must do the product's wireless network setup again.

• The maximum number of device that can be connected via Wi-Fi Direct is 3.

•If Wi-Fi Direct is ON, the connection between the AP and the machine will

be the 802.11 b/g interface.

129

2. Using a network-connected machine

Samsung MobilePrint

What is Samsung MobilePrint?

Samsung MobilePrint is a free application that enables users to print photos,

documents, and web pages directly from your smartphone or tablet. Samsung

MobilePrint is not only compatible with your Android, Windows and iOS smart

phones but also with your iPod Touch and tablet PC. It connects your mobile

device to a network connected Samsung printer or to a wireless printer through

a Wi-Fi access point. Installing a new driver or configuring network settings isn’t

necessary – just simply install the Samsung MobilePrint application, and it will

automatically detect compatible Samsung printers. Besides printing photos,

web pages, and PDFs, scanning is also supported. If you have Samsung

multfunction printer, scan any document into a JPG, PDF, or PNG format for

quick and easy viewing on your mobile device.

Downloading Samsung MobilePrint

To download Samsung MobilePrint, go to the application store (Samsung

Apps, Android Market, App Store, Marketplace) on your mobile device, and just

search for “Samsung MobilePrint.” You can also visit iTunes for Apple devices

or Marketplace for Windows devices on your computer.

Supported Mobile OS

• Android OS 2.1 or higher

• iOS 4.0 or higher

• Windows Phone 7 or higher

Supported devices

•iOS 4.0 or higher: iPod Touch, iPhone, iPad

•Android 2.1 or higher: Galxy S, Galaxy S2, Galaxy Tab, and Android mobile

devices

•Windows Phone 7 or higher: Samsung Focus, Omnia7, and OminaW, and

Windows mobile devices

130

2. Using a network-connected machine

Google Cloud Print

Google Cloud Print™ is a service that allows you to print to a printer using your

mobile phone, tabletS or any other web-connected devices. Just register your

Google account with the printer, and you are ready to use the Google Cloud

Print service. You can print your document or email with Chrome OS, Chrome

browser, or a Gmail/ GOOGLE DOCS application on your mobile device, so you

don’t need to install the printer driver on the mobile device.GRefer to the Google

website (http://support.google.com/cloudprint) for more information about

Google Cloud Print™.

Registering your Google account to the printer

• Make sure the printer machine is turned on and connected to a wired or

wireless network that has access to the Internet.

•You should create your Google account in the advance.

1Open the Chrome browser.

2 Visit www.google.com.

3 Sign in to the Google website with your Gmail™ address.

4 Start ChromeGand enter your printer’s IP address in the browser window.

5 Click Login in the upper right corner of the SyncThru™ Web Service

website.

6 If it’s your first time logging into SyncThru™ Web Service you need to

log-in as an administrator. Type in the below default ID and Password.

We recommend you to change the default password for security

reasons.

•ID: admin

•Password: sec00000

If the network environment is using a proxy server, you need to configure

the proxy’s IP and port number from Settings > Network Settings >

Google Cloud PrintGeGProxy Setting. Contact your network service

provider or network administrator for more information.

7 When the SyncThru™ Web Service window opens, click Settings >

Network Settings > Google Cloud Print.

8 Enter your printer’s name and description.

9 Click Register.

The confirmation pop-up window appears.

If you set the browser to block pop-ups, the confirmation window will not

appear. Allow the site to show pop-ups.

10 Click Finish printer registration.

Google Cloud Print

131

2. Using a network-connected machine

11 Click Manage your printers.

Now your printer is registered with Google Cloud Print service.

Google Cloud Print-ready devices will appear in the list.

Printing with Google Cloud Print

The printing procedure varies depending on the applica[tion or the device you

are using.GYou can see the application list that supports Google Cloud Print

service.

Make sure the printer is turned on and connected to a wired or wireless

network that has access to the Internet.

Printing from an application on mobile device

The following steps are an example of using the GOOGLE DOCS app from

Android mobile phone.

1Install the Cloud Print application on your mobile device.

If you do not have the application, download it from the application storeG

such as Android Market or App Store.

2 Access the GOOGLE DOCS application from your mobile device.

3 Tap the option button of the document that you want to print.

4 Tap the send button.

5 Tap the Cloud Print ( button.

6 Set the printing options if you want.

7 Tap Click here to Print.

Printing from the Chrome browser

The following steps are an example of using the Chrome browser.

1Run Chrome.

2 Open the document or email that you want to print.

3 Click the wrench icon ( ) in the browser’s top right corner.

4 Click Print. A new tab for printing appears.

5 Select Print with Google Cloud Print.

6 Click the Print button.

3. Special features

This chapter explains special printing features.

• Altitude adjustment 133

• Changing the default print settings 134

• Setting your machine as a default machine 135

• Using advanced print features 136

• Macintosh printing 143

• Linux printing 145

The procedures in this chapter are mainly based on Windows 7.

133

3. Special features

Altitude adjustment

Print quality is affected by atmospheric pressure, which is determined by the

height of the machine above sea level. The following information will guide you

on how to set your machine for the best print quality.

Before you set the altitude value, determine the altitude where you are.

• For Windows and Macintosh users, you set from Samsung Easy Printer

Manager! (Switch to advanced mode)!Device Settings. See

"Device Settings" on page 156.

• If your machine is connected to the network, you can set the altitude via

SyncThru™ Web Service (see "Using SyncThru™ Web Service" on page

152).

1High 3

2High 2

3High 1

4Normal

4,000 m

(13,123 ft)

3,000 m

(9,842 ft)

2,000 m

(6,561 ft)

1,000 m

(3,280 ft)

134

3. Special features

Changing the default print settings

1Click the Windows Start menu.

2 For Windows XP/Server 2003, select Printer and Faxes.

• For Windows Server 2008/Vista, select Control Panel > Hardware

and Sound > Printers.

• For Windows 7, select Control Panel > Devices and Printers.

• For Windows Server 2008 R2, select Control Panel > Hardware >

Devices and Printers.

3 Right-click on your machine.

4 For Windows XP/Server 2003/Server 2008/Vista, select Printing

Preferences.

For Windows 7 or Windows Server 2008 R2, from context menus, select

Printing preferences.

If Printing preferences has a , you can select other printer drivers

connected to the selected printer.

5 Change the settings on each tab.

6 Click OK.

If you want to change the settings for each print job, change it in Printing

Preferences.

135

3. Special features

Setting your machine as a default machine

1Click the Windows Start menu.

2 For Windows XP/Server 2003, select Printer and Faxes.

• For Windows Server 2008/Vista, select Control Panel > Hardware

and Sound > Printers.

• For Windows 7, select Control Panel > Devices and Printers.

• For Windows Server 2008 R2, select Control Panel > Hardware >

Devices and Printers.

3 Select your machine.

4 Right-click your machine and select Set as Default Printer.

For Windows 7 or Windows Server 2008 R2, if Set as default printer has a

, you can select other printer drivers connected to the selected printer.

136

3. Special features

Using advanced print features

XPS printer driver: used to print XPS file format.

• See "Features by models" on page 6.

• The XPS printer driver can be installed only on Windows Vista OS or

higher.

• Install optional memory when an XPS job does not print because the

printer is out of memory.

• You can install the XPS printer driver when you insert the software CD

into your CD-ROM drive. When the installation window appears, select

Custom Installation. You can select the XPS printer driver in the Select

Software window.

• For models that provide XPS driver from the Samsung website,

www.samsung.com > find your product> Support or downloads.

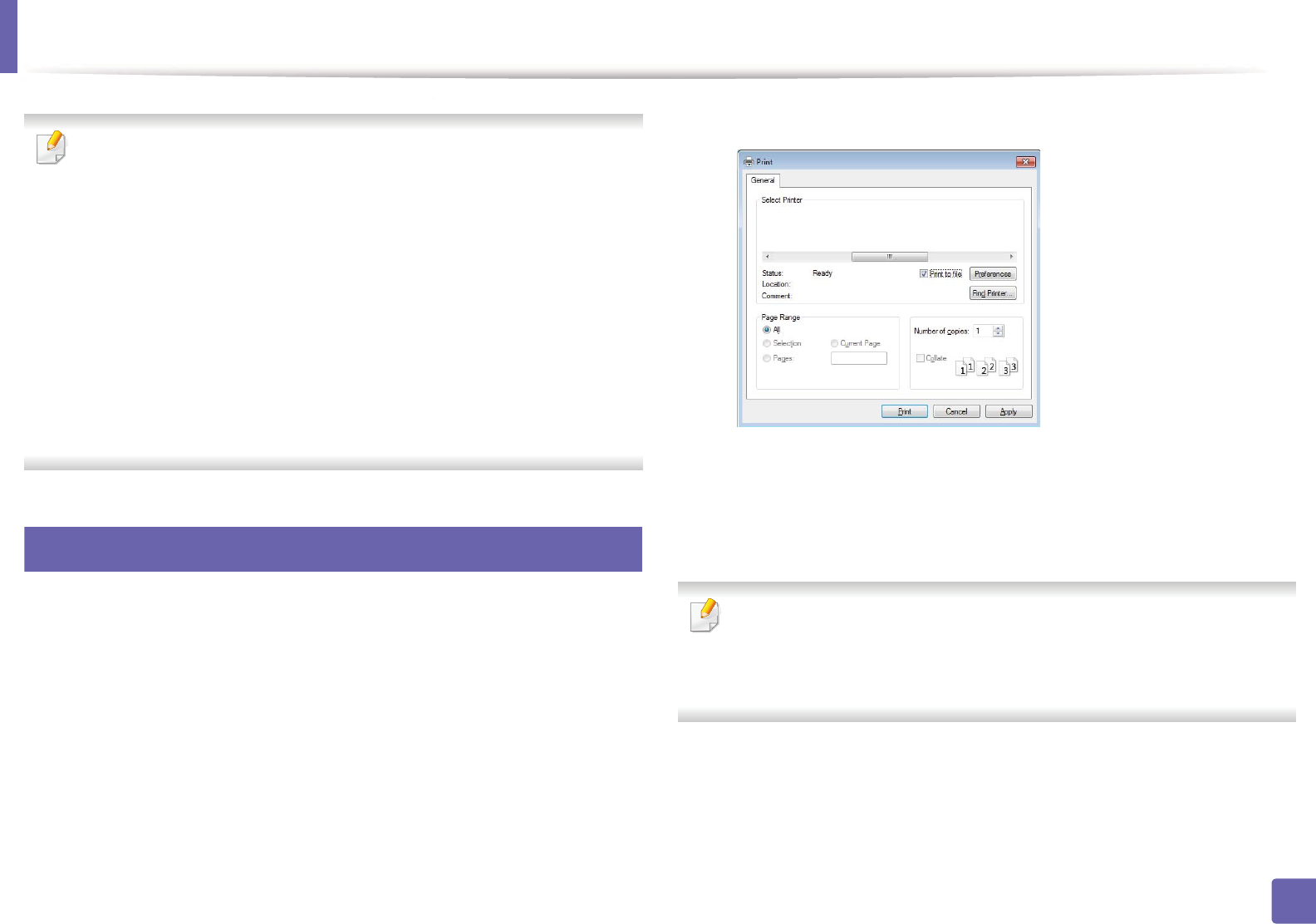

Printing to a file (PRN)

You will sometimes need to save the print data as a file.

1Check the Print to file box in the Print window.

2 Click Print.

3 Type in the destination path and the file name, and then click OK.

For example, c:\Temp\file name.

If you type in only the file name, the file is automatically saved in My

Documents, Documents and Settings, or Users. The saved folder may

differ, depending on your operating system or the application you are

using.

Using advanced print features

137

3. Special features

Understanding special printer features

You can use advanced printing features when using your machine.

To take advantage of the printer features provided by your printer driver, click Properties or Preferences in the application’s Print window to change the print

settings. The machine name, that appears in the printer properties window may differ depending on the machine in use.

• Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.

• Select the Help or click the button from the window or press F1 on your keyboard and click on any option you want to know about (see "Using help" on page

36).

Item Description

Multiple Pages per Side Selects the number of pages to print on a single sheet of paper. To print more than one page per sheet, the pages will be reduced in size

and arranged in the order you specify. You can print up to 16 pages on one sheet.

Using advanced print features

138

3. Special features

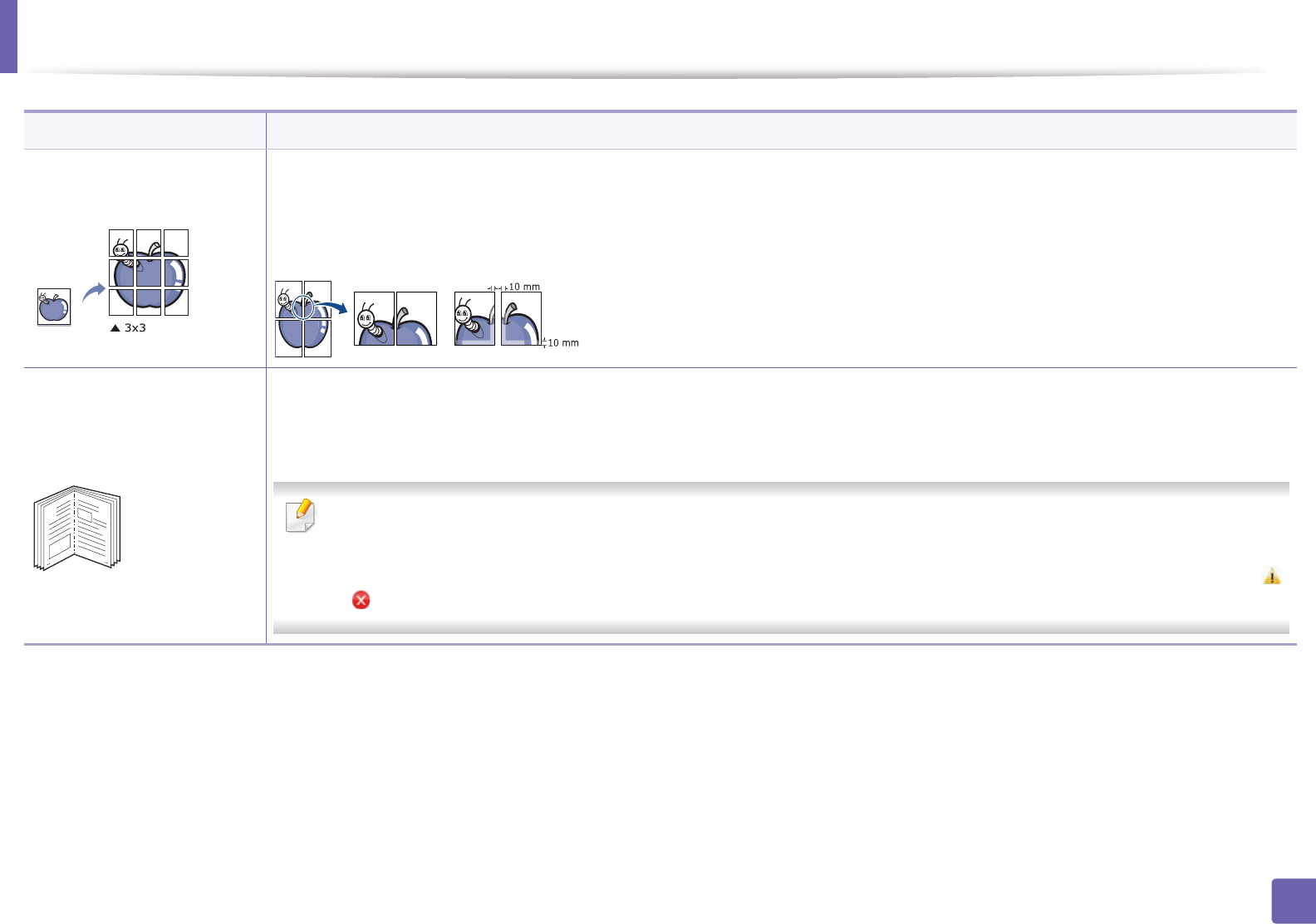

Poster Printing

Prints a single-page document onto 4 (Poster 2x2), 9 (Poster 3x3), or 16 (Poster 4x4) sheets of paper, for the purpose of pasting the sheets

together to form one poster-size document.

Select the Poster Overlap value. Specify Poster Overlap in millimeters or inches by selecting the radio button on the upper right of Basic

tab to make it easier to paste the sheets together.

Booklet Printinga

Prints your document on both sides of a sheet of paper and arranges the pages so that the paper can be folded in half after printing to

produce a booklet.

If you want to make a booklet, you need to print on Letter, Legal, A4, US Folio, or Oficio sized print media.

The Booklet Printing option is not available for all paper sizes. Select the available paper Size option under the Paper tab to see

what paper sizes are available.

If you select an unavailable paper size, this option can be automatically canceled. Select only available paper (paper without

or mark).

Item Description

Using advanced print features

139

3. Special features

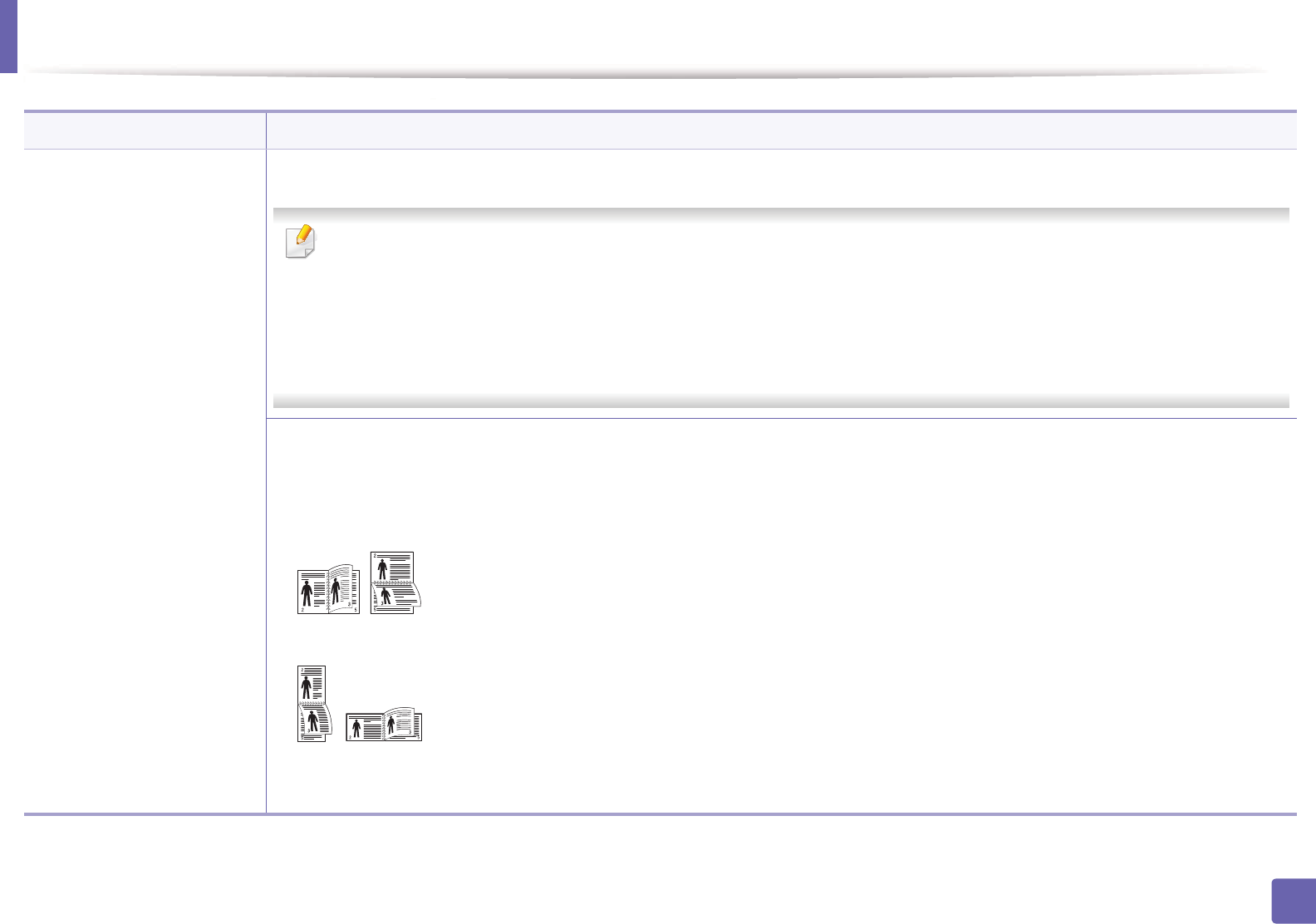

•Double-sided Printinga

•Double-sided Printing

(Manual)a

Print on both sides of a sheet of paper (duplex). Before printing, decide how you want your document oriented.

• You can use this feature with Letter, Legal, A4, US Folio or Oficio sized paper

• If your machine does not have a duplex unit, you should complete the printing job manually. The machine prints every other

page of the document first. After that, a message appears on your computer.

•Skip Blank Pages feature does not work when you select the duplex option.

• We recommend not to print on both sides of the special media, such as labels, envelopes, or thick paper. It may cause a paper

jam or damage the machine.

•Printer Default: If you select this option, this feature is determined by the settings you have selected on the control panel of the

machine. This option is available only when you use the PCL / XPS printer driver (see "Features by models" on page 6).

•None: Disables this feature.

•Long Edge: This option is the conventional layout used in bookbinding.

•Short Edge: This option is the conventional layout used in calendars.

•Reverse Double-Sided Printing: Check this option to reverse the print order when duplex printing. This option is

not available when you use the Reverse Double-Sided Printing (Manual).

Item Description

Using advanced print features

140

3. Special features

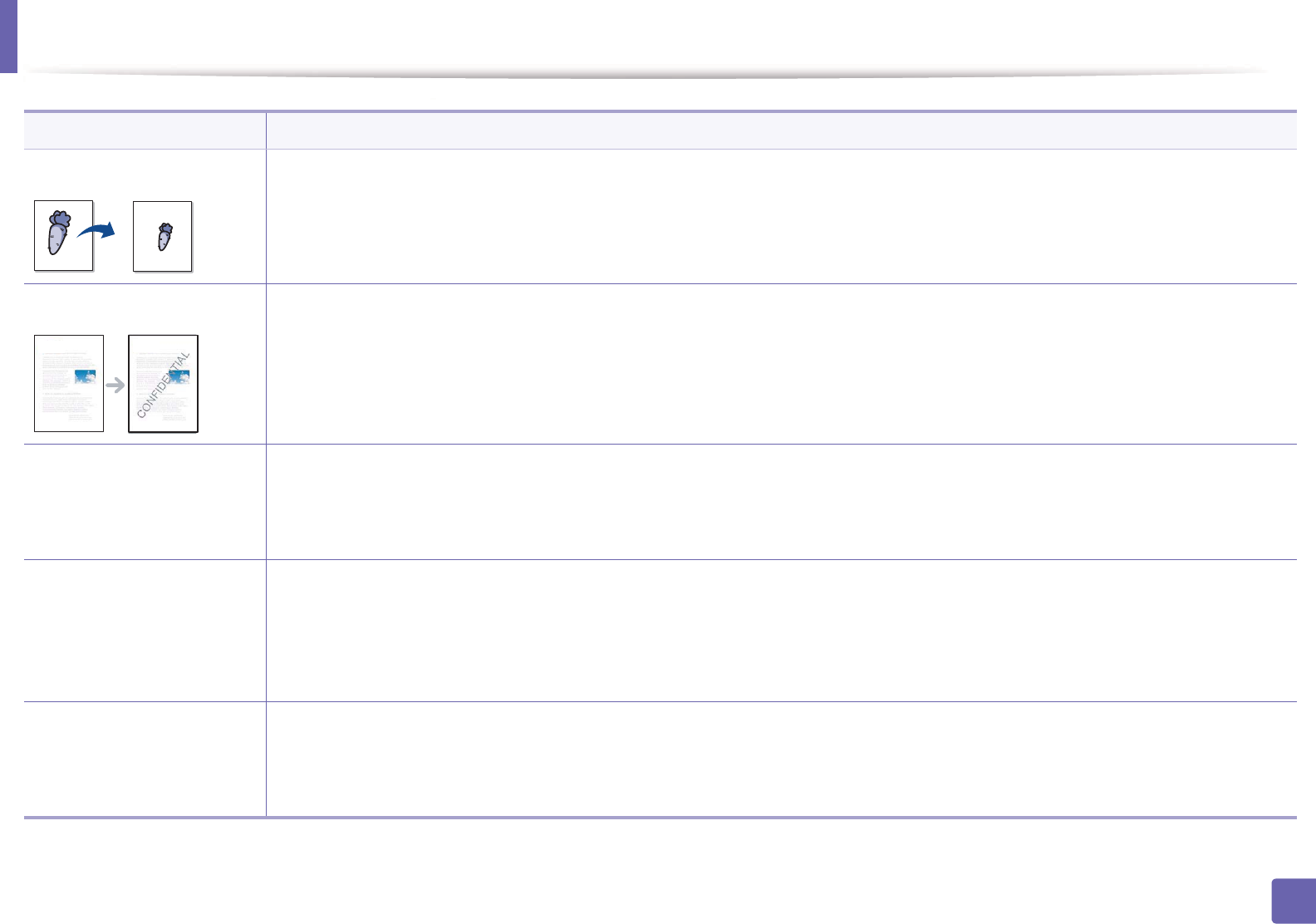

Paper Options Changes the size of a document to appear larger or smaller on the printed page by entering in a percentage by which to enlarge or

decrease the document.

Watermark The watermark option allows you to print text over an existing document. For example, you use it when you want to have large gray letters

reading “DRAFT” or “CONFIDENTIAL” printed diagonally across the first page or all pages of a document.

Watermark

(Creating a watermark)

a To change the print settings from your software application, access Printing Preferences.

b Click the Advanced tab, select Edit from the Watermark drop-down list. The Edit Watermarks window appears.

c Enter a text message in the Watermark Message box.

You can enter up to 256 characters. The message displays in the preview window.

Watermark

(Editing a watermark)

a To change the print settings from your software application, access Printing Preferences.

b Click the Advanced tab, select Edit from the Watermark drop-down list. The Edit Watermarks window appears.

c Select the watermark you want to edit from the Current Watermarks list and change the watermark message and options.

d Click Update to save the changes.

e Click OK or Print until you exit the Print window.

Watermark

(Deleting a watermark)

a To change the print settings from your software application, access Printing Preferences.

b Click the Advanced tab, select Edit from the Watermark drop-down list. The Edit Watermarks window appears.

c Select the watermark you want to delete from the Current Watermarks list and click Delete.

d Click OK or Print until you exit the Print window.

Item Description

Using advanced print features

141

3. Special features

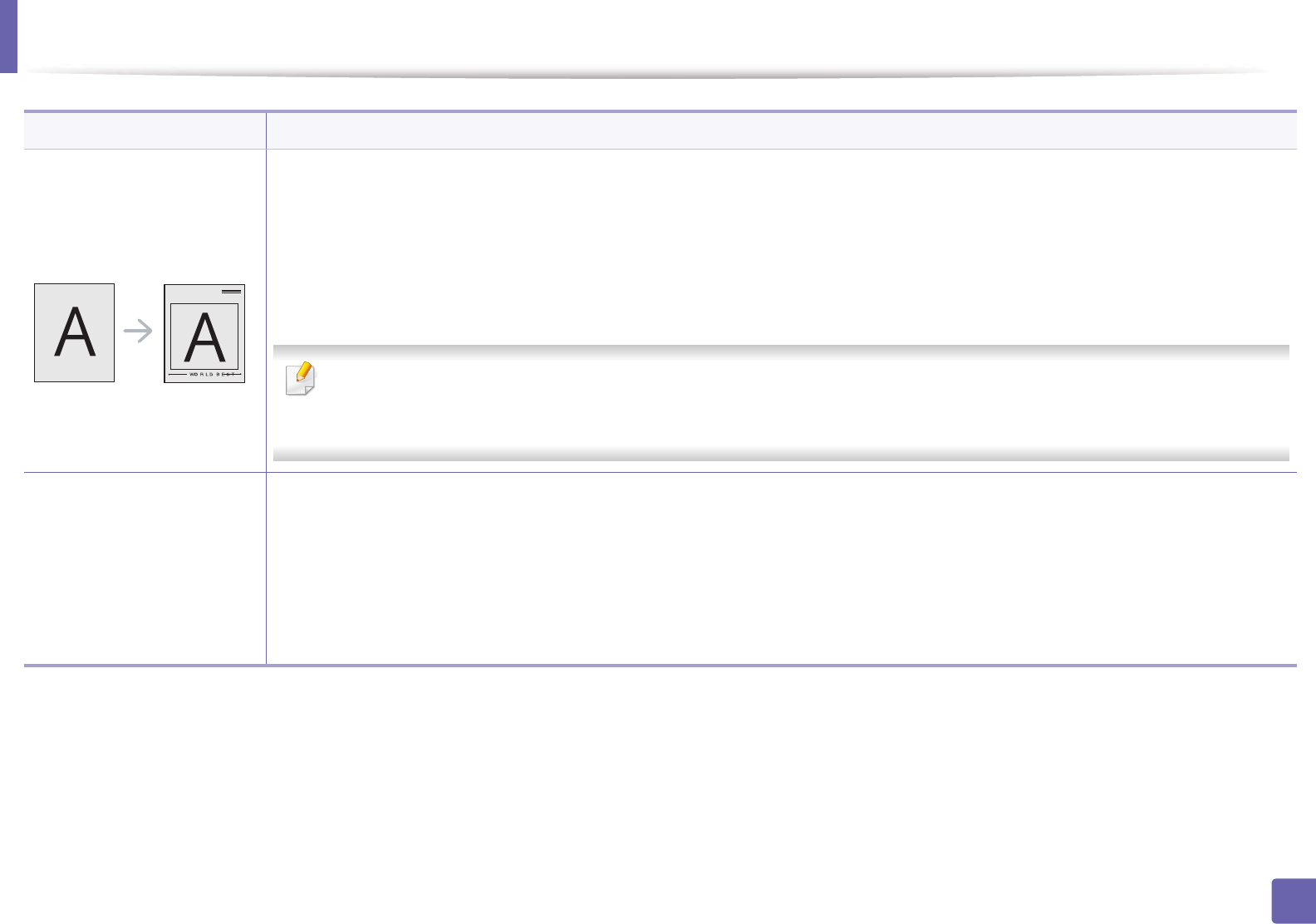

Overlaya

This option is available when you use the PCL/SPL printer driver (see "Software" on page 7).

An overlay is text and/or images stored in the computer hard disk drive (HDD) as a special file format that can be printed on any document.

Overlays are often used to take the place of letterhead paper. Rather than using preprinted letterhead, you can create an overlay

containing exactly the same information that is currently on your letterhead. To print a letter with your company’s letterhead, you do not

need to load preprinted letterhead paper in the machine: just print the letterhead overlay on your document.

To use a page overlay, you must create a new page overlay containing your logo or image.

• The overlay document size must be the same as the document you print with the overlay. Do not create an overlay with a

watermark.

• The resolution of the overlay document must be the same as that of the document you will print with the overlay.

Overlay

(Creating a new page

overlay)

a To save the document as an overlay, access Printing Preferences.

b Click the Advanced tab, and select Edit from the Text drop-down list. Edit Overlay window appears.

c In the Edit Overlay window, click Create.

d In the Save As window, type a name in the File name box. Select the destination path, if necessary (The default is C:\Formover).

e Click Save. The name appears on the Overlay List.

f Click OK or Print until you exit the Print window.

The file is not printed. Instead, it is stored on your computer hard disk drive.

Item Description

Using advanced print features

142

3. Special features

Overlay

(Using a page overlay)

a Click the Advanced tab.

b Select the desired overlay from the Text drop-down list.

c If the overlay file you want does not appear in the Text drop-down list, select Edit... from the list and click Load. Select the overlay file

you want to use.

If you have stored the overlay file you want to use in an external source, you can also load the file when you access the Open window.

After you select the file, click Open. The file appears in the Overlay List box and is available for printing. Select the overlay from the

Overlay List box.

d If necessary, check Confirm Page Overlay When Printing box. If this box is checked, a message window appears each time you submit

a document for printing, asking you to confirm printing an overlay on your document.

If this box is not checked and an overlay has been selected, the overlay automatically prints with your document.

e Click OK or Print until you exit the Print window.

Overlay

(Deleting a page overlay)

a In the Printing Preferences window, click the Advanced tab.

b Select Edit in the Text drop down list.

c Select the overlay you want to delete from the Overlay List box.

d Click Delete.

e When a confirming message window appears, click Yes.

f Click OK or Print until you exit the Print window. You can delete page overlays that you no longer use.

a. This option is not available when you use XPS driver.

Item Description

143

3. Special features

Macintosh printing

Some features may not be available depending on models or options. It

means that the features are not supported.

Printing a document

When you print with a Macintosh, you need to check the printer driver settings

in each application you use. Follow the steps below to print from a Macintosh:

1Open the document to print.

2 Open the File menu and click Page Setup (Document Setup in some

applications).

3 Choose your paper size, orientation, scaling, other options, and make

sure that your machine is selected. Click OK.

4 Open the File menu and click Print.

5 Choose the number of copies and indicate which pages to print.

6 Click Print.

Changing printer settings

You can use advanced printing features when using your machine.

Open an application and select Print from the File menu. The machine name,

which appears in the printer properties window, may differ depending on the

machine in use. Except for the name, the composition of the printer properties

window is similar to the following.

Printing multiple pages on one sheet

You can print more than one page on a single sheet of paper. This feature

provides a cost-effective way to print draft copies.

1Open an application, and select Print from the File menu.

2 Select Layout from the drop-down list under Orientation. In the Pages

per Sheet drop-down list, select the number of pages you want to print

on one sheet of paper.

3 Select the other options to use.

4 Click Print.

The machine prints the selected number of pages to print on one sheet

of paper.

Macintosh printing

144

3. Special features

Printing on both sides of the paper

Some features may not be available depending on models or options. It

means that the features are not supported.

Before printing in the duplex mode, decide on which edge you will be binding

your finished document. The binding options are, as follows:

•Long-Edge Binding: This option is the conventional layout used in book

binding.

•Short-Edge Binding: This option is the type often used with calendars.

1From your Macintosh application, select Print from the File menu.

2 Select Layout from the drop-down list under Orientation.

3 Select a binding orientation from the Two-Sided option.

4 Select the other options to use.

5 Click Print and the machine prints on both sides of the paper.

If you print more than 2 copies, the first copy and the second copy might

print on the same sheet of paper. Avoid printing on both sides of paper

when you are printing more than 1 copy.

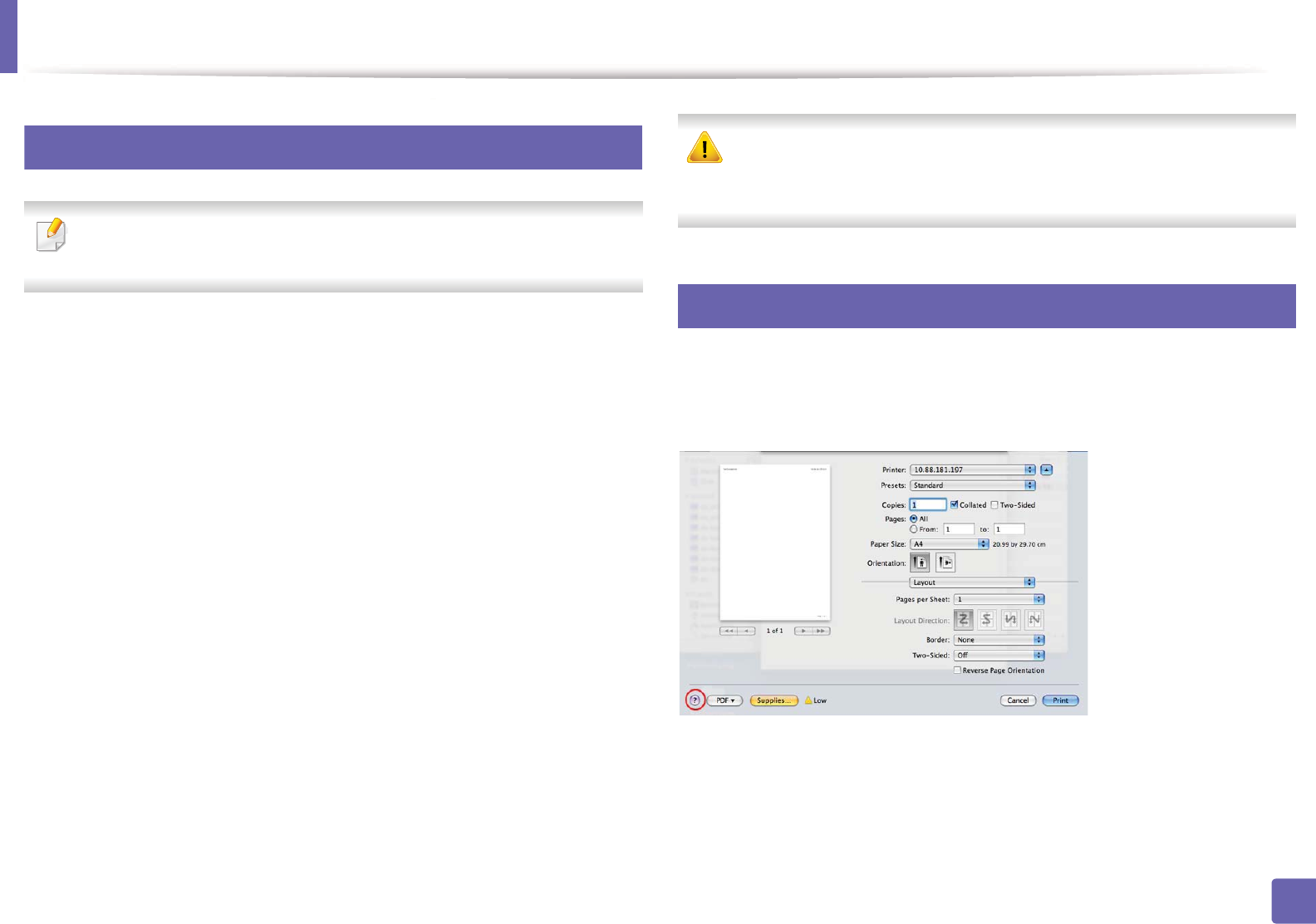

Using help

Click the question mark on the bottom-left corner of the window and click on

the topic you want to know about. A pop-up window appears with information

about that option's feature, which is provided from the driver.

145

3. Special features

Linux printing

Some features may not be available depending on models or options. It

means that the features are not supported.

Printing from applications

There are a lot of Linux applications that allow you to print using Common UNIX

Printing System (CUPS). You can print on your machine from any such

application.

1Open an application, and select Print from the File menu

2 Select Print directly using lpr.

3 In the LPR GUI window, select the model name of your machine from the

printer list and click Properties.

4 Change the print job properties using the following four tabs displayed

at the top of the window.

•General: Changes the paper size, the paper type, and the

orientation of the documents. It enables the duplex feature, adds

start and end banners, and changes the number of pages per sheet.

Automatic/manual duplex printing may not be available depending on

models. You can alternatively use the lpr printing system or other

applications for odd-even printing.

•Text: Specifies the page margins and set the text options, such as

spacing or columns.

•Graphics: Sets image options that are used when printing image

files, such as color options, image size, or image position.

•Advanced: Sets the print resolution, paper source, and destination.

5 Click Apply to apply the changes and close the Properties window.

6 Click OK in the LPR GUI window to start printing.

7 The Printing window appears, allowing you to monitor the status of your

print job.

To abort the current job, click Cancel.

Linux printing

146

3. Special features

Printing files

You can print many different types of files on your machine using the standard

CUPS, directly from the command line interface. The CUPS lpr utility allows you

to do that, but the driver’s package replaces the standard lpr tool by a much

more user-friendly LPR GUI program.

To print any document file:

1Enter lpr <file_name> from the Linux shell command line and press

Enter. The LPR GUI window appears.

When you type only lpr and press Enter, the Select file(s) to print

window appears first. Just select any files you want to print and click

Open.

2 In the LPR GUI window, select your machine from the list, and change

the print job properties.

3 Click OK to start printing.

Configuring Printer Properties

Using the Printer Properties window provided by the Printers configuration,

you can change the various properties for your machine as a printer.

1Open the Unified Driver Configurator.

If necessary, switch to Printers configuration.

2 Select your machine on the available printers list and click Properties.

3 The Printer Properties window appears.

The following five tabs display at the top of the window:

•General: Allows you to change the printer location and name. The

name entered in this tab displays on the printer list in Printers

configuration.

•Connection: Allows you to view or select another port. If you change

the machine port from USB to parallel or vice versa while in use, you

must re-configure the machine port in this tab.

•Driver: Allows you to view or select another machine driver. By

clicking Options, you can set the default device options.

•Jobs: Shows the list of print jobs. Click Cancel job to cancel the

selected job and select the Show completed jobs check box to see

previous jobs on the job list.

•Classes: Shows the class that your machine is in. Click Add to Class

to add your machine to a specific class or click Remove from Class

to remove the machine from the selected class.

4 Click OK to apply the changes and close the Printer Properties window.

4. Useful management

tools

This chapter introduces management tools provided to help you make full use of your machine.

• Easy Capture Manager 148

• Samsung Easy Color Manager 149

• Samsung AnyWeb Print 150

• Easy Eco Driver 151

• Using SyncThru™ Web Service 152

• Using Samsung Easy Printer Manager 155

• Using Samsung Printer Status 158

• Using the Linux Unified Driver Configurator 160

148

4. Useful management tools

Easy Capture Manager

• This feature may not be available depending on model or optional goods (see "Software" on page 7).

• Available for Windows OS users only (see "Software" on page 7).

Capture your screen and launch Easy Capture Manager by simply pressing the Print Screen key. Now you can easily print your captured screen as captured or edited.

149

4. Useful management tools

Samsung Easy Color Manager

Samsung Easy Color Manager helps users do fine adjustments with 6 color tones and other properties, such as brightness, contrast, and saturation. Color tone

changes can be saved as a profile and can be used from the driver or from inside of the machine.

• This feature may not be available depending on model or optional goods (see "Software" on page 7).

• Available for Windows and Macintosh OS users only (see "Software" on page 7).

Helps Samsung color laser printer users to adjust color as they like.

Download the software from the Samsung website then unpack and install it: (http://www.samsung.com > find your product > Support or Downloads).

150

4. Useful management tools

Samsung AnyWeb Print

Available for Windows and Macintosh OS users only.

This tool helps you screen-capture, preview, scrap, and print pages more easily, than when you use an ordinary program.

Download the software from the Samsung website then unpack and install it: (http://www.samsung.com > find your product > Support or Downloads).

151

4. Useful management tools

Easy Eco Driver

With the Easy Eco Driver, you can apply Eco features to save paper and toner before printing. To use this application, Start Easy Eco Driver before printing job

checkbox in the printer properties should be checked.

Easy Eco Driver also allows you simple editing such as removing images and texts, changing fonts, and more. You can save frequently used settings as a preset.

Available for Windows OS users only.

How to use:

1 Open a document to print.

2 Print the document.

A preview window appears.

3 Select the options you want to apply to the document.

You can see the preview of the applied features.

4 Click Print.

152

4. Useful management tools

Using SyncThru™ Web Service

• Internet Explorer 6.0 or higher is the minimum requirement for

SyncThru™ Web Service.

•SyncThru™ Web Service explanation in this user’s guide may differ from

your machine depending on its options or models.

• Network model only.

Accessing SyncThru™ Web Service

1Access a web browser, such as Internet Explorer, from Windows.

Enter the machine IP address of your printer (http://xxx.xxx.xxx.xxx) in

the address field and press the Enter key or click Go.

2 Your machine’s embedded website opens.

Logging into SyncThru™ Web Service

Before configuring options in SyncThru™ Web Service, you need to log-in as an

administrator. You can still use SyncThru™ Web Service without logging in but

you won’t have access to Settings tab and Security tab.

1Click Login on the upper right of the SyncThru™ Web Service website.

2 If it’s your first time logging into SyncThru™ Web Service you need to

log-in as an administrator.GType in the below default ID and passwordU

We recommend you to change the default password for security

reasons.

•ID: admin

•Password: sec00000

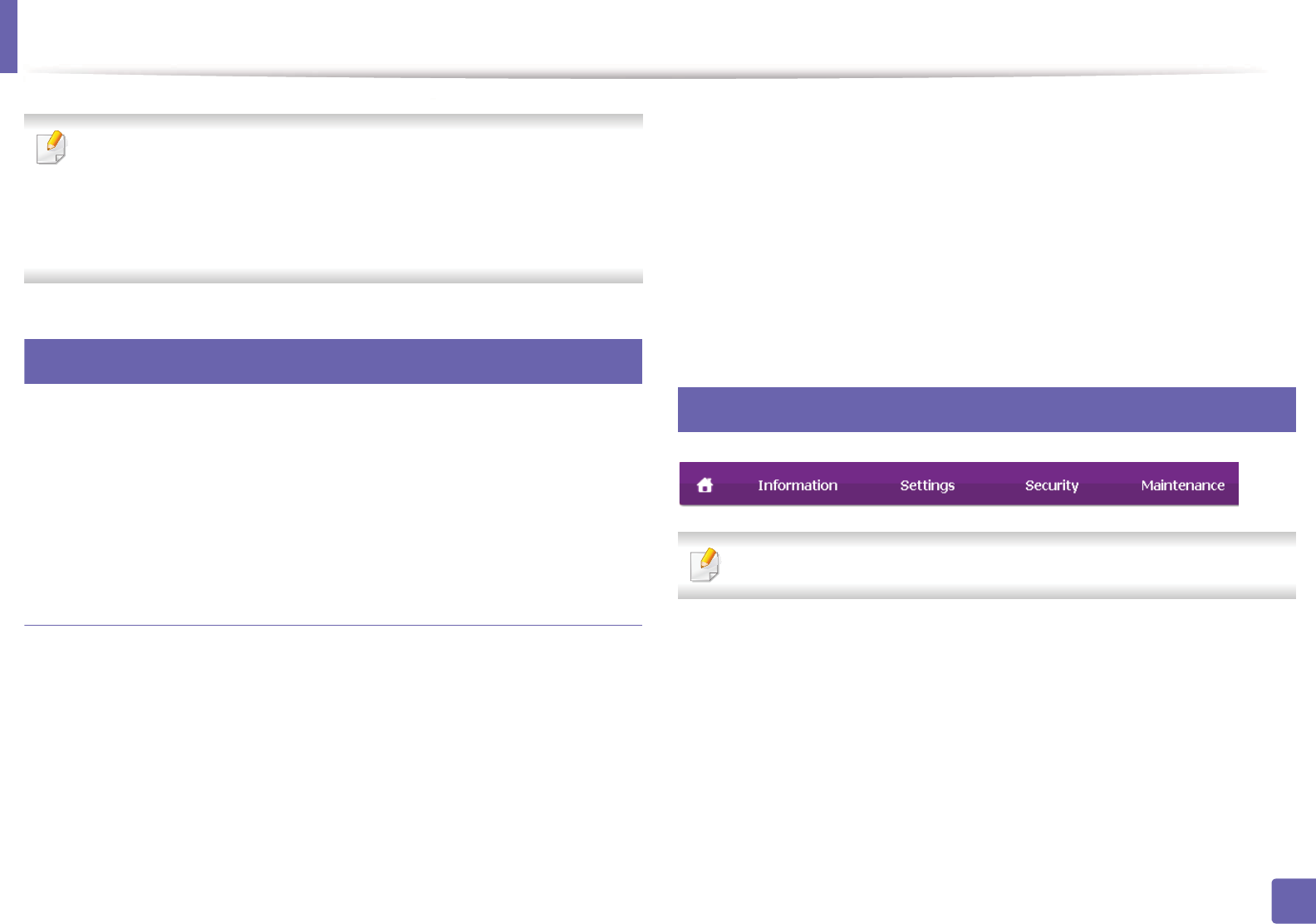

SyncThru™ Web Service overview

Some tabs may not appear depending on your model.

Using SyncThru™ Web Service

153

4. Useful management tools

Information tab

This tab gives you general information about your machine. You can check

things, such as remaining amount of toner. You can also print reports, such as an

error report.

•Active Alerts: Shows the alerts that have occurred in the machine and their

severity.

•Supplies: Shows how many pages are printed and amount of toner left in

the cartridge.

•Usage Counters: Shows the usage count by print types: simplex and

duplex.

•Current Settings: Shows the machine’s and network’s information.

•Print information: Prints reports such as system related reports and font

reports.

Settings tab

This tab allows you to set configurations provided by your machine and

network. You need to log-in as an administrator to view this tab.

•Machine Settings tab: Sets options provided by your machine.

•Network Settings tab: Shows options for the network environment. Sets

options such as TCP/IP and network protocols.

Security tab

This tab allows you to set system and network security information. You need to

log-in as an administrator to view this tab.

•System Security: Sets the system administrator’s information and also

enables or disables machine features.

•Network Security: Sets settings for IPv4/IPv6 filtering.

Maintenance tab

This tab allows you to maintain your machine by upgrading firmware and

setting contact information for sending emails. You can also connect to

Samsung website or download drivers by selecting the Link menu.

•Firmware Upgrade: Upgrade your machine’s firmware.

•Contact Information: Shows the contact information.

•Link: Shows links to useful sites where you can download or check

information.

Setting the system administrator’s information

This setting is necessary for using the e-mail notification option.

Using SyncThru™ Web Service

154

4. Useful management tools

1Start a web browser, such as Internet Explorer, from Windows.

Enter the machine IP address (http://xxx.xxx.xxx.xxx) in the address field

and press the Enter key or click Go.

2 Your machine’s embedded website opens.

3 From the Security tab, select System Security > System Administrator

4 Enter the name of the administrator, phone number, location, and email

address.

5 Click Apply.

155

4. Useful management tools

Using Samsung Easy Printer Manager

Samsung Easy Printer Manager is an application that combines Samsung

machine settings into one location. Samsung Easy Printer Manager combines

device settings as well as printing environments, settings/actions and

launching. All of these features provide a gateway to conveniently use your

Samsung machine. Samsung Easy Printer Manager provides two different user

interfaces for the user to choose from: the basic user interface and the advanced

user interface. Switching between the two interfaces is easy: just click

button.

• Availabe for Windows or Macintosh OS users only.

• For Windows, Internet Explorer 6.0 or higher is the minimum

requirement for Samsung Easy Printer Manager.

Understanding Samsung Easy Printer Manager

To open the program:

For Windows,

Select Start > Programs or All Programs > Samsung Printers > Samsung

Easy Printer Manager > Samsung Easy Printer Manager.

For Macintosh,

Open the Applications folder > Samsung folder > Samsung Easy Printer

Manager.

The Samsung Easy Printer Manager interface is comprised of various basic

sections as described in the table that follows:

The screenshot may differ depending on operating system you are using.

1Printer List The printer list displays the installed printer icons on your

computer.

Using Samsung Easy Printer Manager

156

4. Useful management tools

Click the Help ( ) button from the upper-right corner of the window and

click on any option you want to know about.

Advanced settings user interface overview

The advanced user interface is intended to be used by the person responsible

for managing the network and machines.

Device Settings

You can configure various machine settings such as machine setup, paper,

layout, emulation, network, and print information.

Printer

Information

This area gives you general information about your

machine. You can check information, such as the machine’s

model name, IP address (or Port name), and machine

status.

User’s Guide button: This button opens

Troubleshooting Guide when an error occurs.

You can directly open the necessary section in the

user’s guide.

Application

information

Includes links for changing to the advancedG

settings(switching UI), refresh, preference setting,G

summary,Ghelp, and about.

The button is used to change the user

interface to the advanced settings user interface.

Quick links Displays Quick links to machine specific functions. This

section also includes links to applications in the advanced

settings.

If you connect your machine to a networt, the

SyncThru™ Web Service icon is enabled.

Contents Area Displays information about the selected machine,

remaining toner level, and paper. The information will vary

based on the machine selected. Some machines do not

have this feature.

Order Supplies Click on the Order button from the supply ordering

window. You can order replacement toner cartridge(s)

from online.

Using Samsung Easy Printer Manager

157

4. Useful management tools

Alert Settings (Windows only)

This is menu includes settings related to error alerting.

•Printer Alert: Provides settings related to when alerts will be received.

•Email Alert: Povides options relating to receiving alerts via email.

•History Alert: Provides a history of device and toner related alerts.

Job Accounting

Provides querying of quota information of the specified job accounting user.

This quota information can be created and applied to devices by job accounting

software such as SyncThru™ or CounThru™ admin software.

158

4. Useful management tools

Using Samsung Printer Status

The Samsung Printer Status is a program that monitors and informs you of the

machine status.

• Available for Windows users.

• The Samsung Printer Status window and its contents shown in this user’s

guide may differ depending on the machine or operating system in use.

• Check the operating system(s) that are compatible with your machine

(see "System requirements" on page 70).

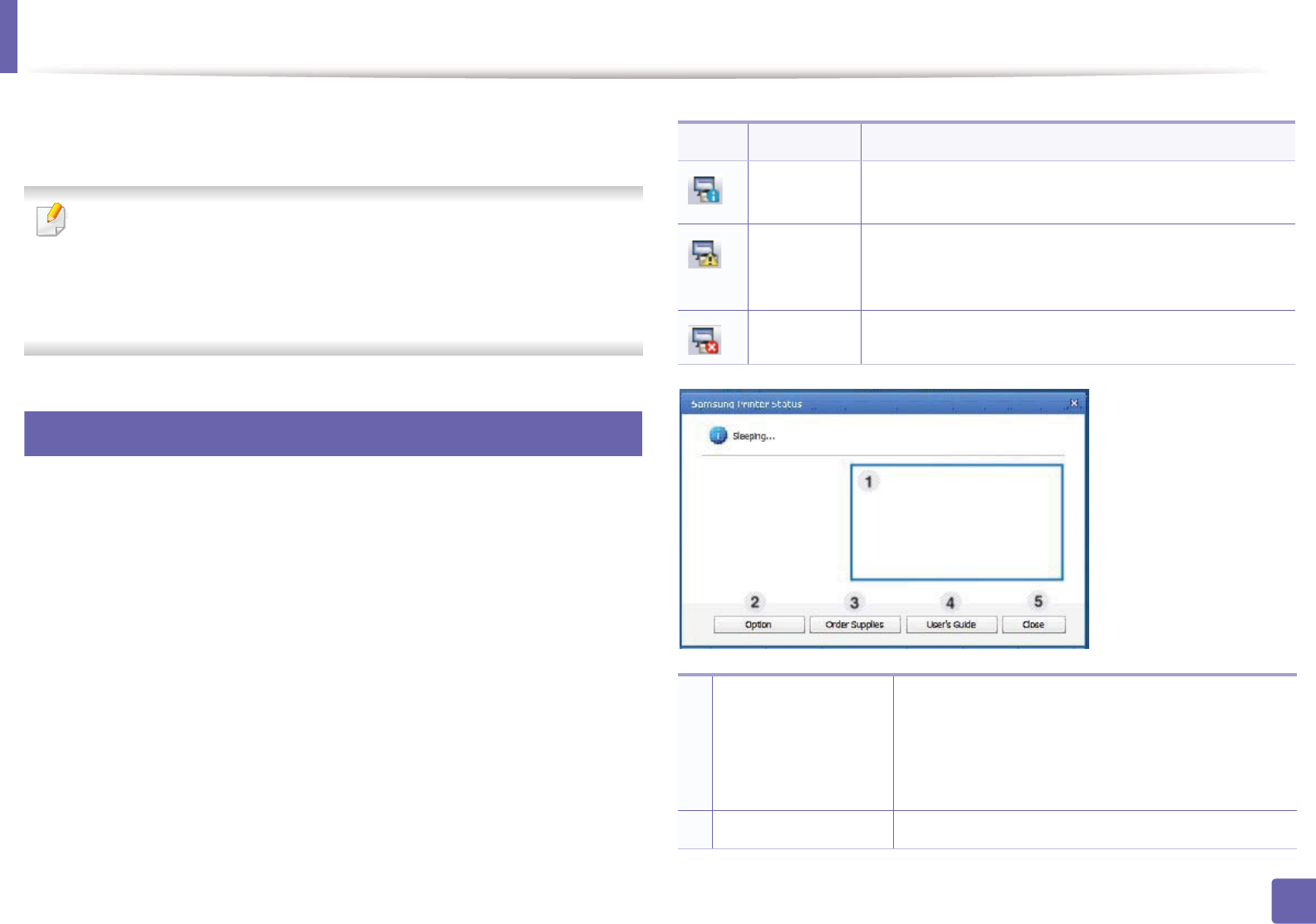

Samsung Printer Status overview

If an error occurs while operating, you can check the error from the Samsung

Printer Status. Samsung Printer Status is installed automatically when you install

the machine software.

You can also launch Samsung Printer Status manually. Go to the Printing

Preferences , click the Basic tab > Printer Status button.

These icons appear on the Windows task bar:

Icon Mean Description

Normal The machine is in ready mode and experiencing no

errors or warnings.

Warning The machine is in a state where an error might occur in

the future. For example, it might be in toner low status,

which may lead to toner empty status.

Error The machine has at least one error.

Toner Level You can view the level of toner remaining in each

toner cartridge. The machine and the number of

toner cartridge(s) shown in the above window may

differ depending on the machine in use. Some

machines do not have this feature.

2Option You can set Printing Job Alert related settings.

Using Samsung Printer Status

159

4. Useful management tools

3Order Supplies You can order replacement toner cartridge(s) from

online.

4Troubleshooting You can directly open the troubleshooting section in

the user’s guide.

5Close Close the window.

160

4. Useful management tools

Using the Linux Unified Driver Configurator

The Unified Driver Configurator is a tool primarily intended for configuring

machine devices. You need to install Unified Linux Driver to use Unified Driver

Configurator (see "Installation for Linux" on page 90).

After the driver is installed on your Linux system, the Unified Driver Configurator

icon will automatically be created on your desktop.

Opening Unified Driver Configurator

1Double-click the Unified Driver Configurator on the desktop.

You can also click the Startup Menu icon and select Samsung Unified

Driver > Unified Driver Configurator.

2 Click each button on the left to switch to the corresponding

configuration window.

To use the on screen help, click Help.

3 After changing the configurations, click Exit to close the Unified Driver

Configurator.

Printers configuration

Printers configuration has the two tabs: Printers and Classes.

1Printer Configuration

2Port Configuration

Using the Linux Unified Driver Configurator

161

4. Useful management tools

Printers tab

View the current system’s printer configuration by clicking on the machine icon

button on the left side of the Unified Driver Configurator window.

The printer control buttons are, as follows:

•Refresh: Renews the available machines list.

•Add Printer: Allows you to add a new machines.

•Remove Printer: Removes the selected machine.

•Set as Default: Sets the current selected machine as a default machine.

•Stop/Start: Stops/starts the machine.

•Test: Allows you to print a test page to ensure the machine is working

properly.

•Properties: Allows you to view and change the printer’s properties.

Classes tab

The Classes tab shows a list of available machine classes.

1Switches to Printers configuration.

2Shows all of the installed machines.

3Shows the status, model name, and URI of your machine.

Using the Linux Unified Driver Configurator

162

4. Useful management tools

•Refresh: Renews the classes list.

•Add Class: Allows you to add a new machine class.

•Remove Class: Removes the selected machine class.

Ports configuration

In this window, you can view the list of available ports, check the status of each

port and release a port that is stalled in a busy state when its owner has

terminated the job for any reason.

•Refresh: Renews the available ports list.

•Release port: Releases the selected port.

1Shows all of the machine classes.

2Shows the status of the class and the number of machines in the class.

1Switches to Ports configuration.

2Shows all of the available ports.

3Shows the port type, device connected to the port, and status.

5. Troubleshooting

This chapter gives helpful information for what to do if you encounter an error.

• Paper feeding problems 164

• Power and cable connecting problems 165

• Printing problems 166

• Printing quality problems 170

• Operating system problems 178

164

5. Troubleshooting

Paper feeding problems

Condition Suggested solutions

Paper jams during printing. Clear the paper jam.

Paper sticks together. • Check the maximum paper capacity of the tray .

• Make sure that you are using the correct type of paper.

• Remove paper from the tray and flex or fan the paper.

• Humid conditions may cause some paper to stick together.

Multiple sheets of paper do not feed. Different types of paper may be stacked in the tray. Load paper of only one type, size, and weight.

Paper does not feed into the machine. • Remove any obstructions from inside the machine.

• Paper has not been loaded correctly. Remove paper from the tray and reload it correctly.

• There is too much paper in the tray. Remove excess paper from the tray.

• The paper is too thick. Use only paper that meets the specifications required by the machine.

The paper keeps jamming. • There is too much paper in the tray. Remove excess paper from the tray. If you are printing on special materials, feed

manually in the tray.

• An incorrect type of paper is being used. Use only paper that meets the specifications required by the machine.

• There may be debris inside the machine. Open the top cover and remove any debris.

165

5. Troubleshooting

Power and cable connecting problems

Click this link to open an animation about solving power problems.

Condition Suggested solutions

The machine is not receiving power,

or the connection cable between the

computer and the machine is not

connected properly.

• Connect the machine to the electricity supply first and press the (Power/Wakeup) button on the control panel.

• Disconnect the machine’s cable and reconnect it.

166

5. Troubleshooting

Printing problems

Condition Possible cause Suggested solutions

The machine does not

print.

The machine is not receiving power. Check the power cord connections. Check the power switch and the power source.

The machine is not selected as the default

machine.

Select your machine as your default machine in Windows.

Check the machine for the following:

• The top cover is not closed. Close the top cover.

• Paper is jammed. Clear the paper jam (see "Clearing paper jams" on page 58).

• No paper is loaded. Load paper (see"Loading paper in the tray" on page 27).

• The toner cartridge is not installed. Install the toner cartridge (see "Replacing the toner cartridge" on page 47).

• Make sure the protect cover and sheets are removed from the toner cartridge (see "Replacing the toner cartridge" on page 47).

If a system error occurs, contact your service representative.

The connection cable between the computer and

the machine is not connected properly.

Disconnect the machine cable and reconnect it (see "Rear view" on page 18).

The connection cable between the computer and

the machine is defective.

If possible, attach the cable to another computer that is working properly and print a job.

You can also try using a different machine cable.

The port setting is incorrect. Check the Windows printer settings to make sure that the print job is sent to the correct

port. If the computer has more than one port, make sure that the machine is attached to

the correct one.

The machine may be configured incorrectly. Check the Printing Preferences to ensure that all of the print settings are correct.

Printing problems

167

5. Troubleshooting

The machine does not

print.

The printer driver may be incorrectly installed. Uninstall and reinstall the machine’s driver.

The machine is malfunctioning. Check the display message on the control panel to see if the machine is indicating a

system error. Contact a service representative.

The document size is so big that the hard disk

space of the computer is insufficient to access the

print job.

Get more hard disk space and print the document again.

The output tray is full. Once the paper is removed from the output tray, the machine resumes printing.

The machine selects print

materials from the wrong

paper source.

The paper option that was selected in the

Printing Preferences may be incorrect.

For many software applications, the paper source selection is found under the Paper tab

within the Printing Preferences (see "Opening printing preferences" on page 34).

Select the correct paper source. See the printer driver help screen (see "Using help" on

page 36).

A print job is extremely

slow.

The job may be very complex. Reduce the complexity of the page or try adjusting the print quality settings.

Half the page is blank. The page orientation setting may be incorrect. Change the page orientation in your application (see "Opening printing preferences" on

page 34). See the printer driver help screen (see "Using help" on page 36).

The paper size and the paper size settings do not

match.

Ensure that the paper size in the printer driver settings matches the paper in the tray.

Or, ensure that the paper size in the printer driver settings matches the paper selection

in the software application settings you use (see "Opening printing preferences" on

page 34).

Condition Possible cause Suggested solutions

Printing problems

168

5. Troubleshooting

The machine prints, but

the text is wrong,

garbled, or incomplete.

The machine cable is loose or defective. Disconnect the machine cable and reconnect. Try a print job that you have already

printed successfully. If possible, attach the cable and the machine to another computer

that you know works and try a print job. Finally, try a new machine cable.

The wrong printer driver was selected. Check the applicatinon’s printer selection menu to ensure that your machine is selected.

The software application is malfunctioning. Try printing a job from another application.

The operating system is malfunctioning. Exit Windows and reboot the computer. Turn the machine off and back on again.

Pages print, but they are

blank.

The toner cartridge is defective or out of toner. Redistribute the toner, if necessary.

If necessary, replace the toner cartridge.

• See "Redistributing toner" on page 45.

• See "Replacing the toner cartridge" on page 47.

The file may have blank pages. Check the file to ensure that it does not contain blank pages.

Some parts, such as the controller or the board,

may be defective.

Contact a service representative.

The machine does not

print PDF files correctly.

Some parts of graphics,

text, or illustrations are

missing.

Incompatibility between the PDF file and the

Acrobat products.

Printing the PDF file as an image may enable the file to print. Turn on Print As Image

from the Acrobat printing options.

It will take longer to print when you print a PDF file as an image.

The print quality of

photos is not good.

Images are not clear.

The resolution of the photo is very low. Reduce the photo size. If you increase the photo size in the software application, the

resolution will be reduced.

Condition Possible cause Suggested solutions

Printing problems

169

5. Troubleshooting

Before printing, the

machine emits vapor near

the output tray.

Using damp paper can cause vapor during

printing.

This is not a problem. Just keep printing.

The machine does not

print special-sized paper,

such as billing paper.

Paper size and paper size setting do not match. Set the correct paper size in the Custom in Paper tab in Printing Preferences (see

"Opening printing preferences" on page 34).

The printed billing paper

is curled.

The paper type setting does not match. Change the printer option and try again. Go to Printing Preferences , click Paper tab,

and set type to Thick (see "Opening printing preferences" on page 34).

Condition Possible cause Suggested solutions

170

5. Troubleshooting

Printing quality problems

If the inside of the machine is dirty or paper has been loaded improperly, there might be a reduction in print quality. See the table below to clear the problem.

Condition Suggested Solutions

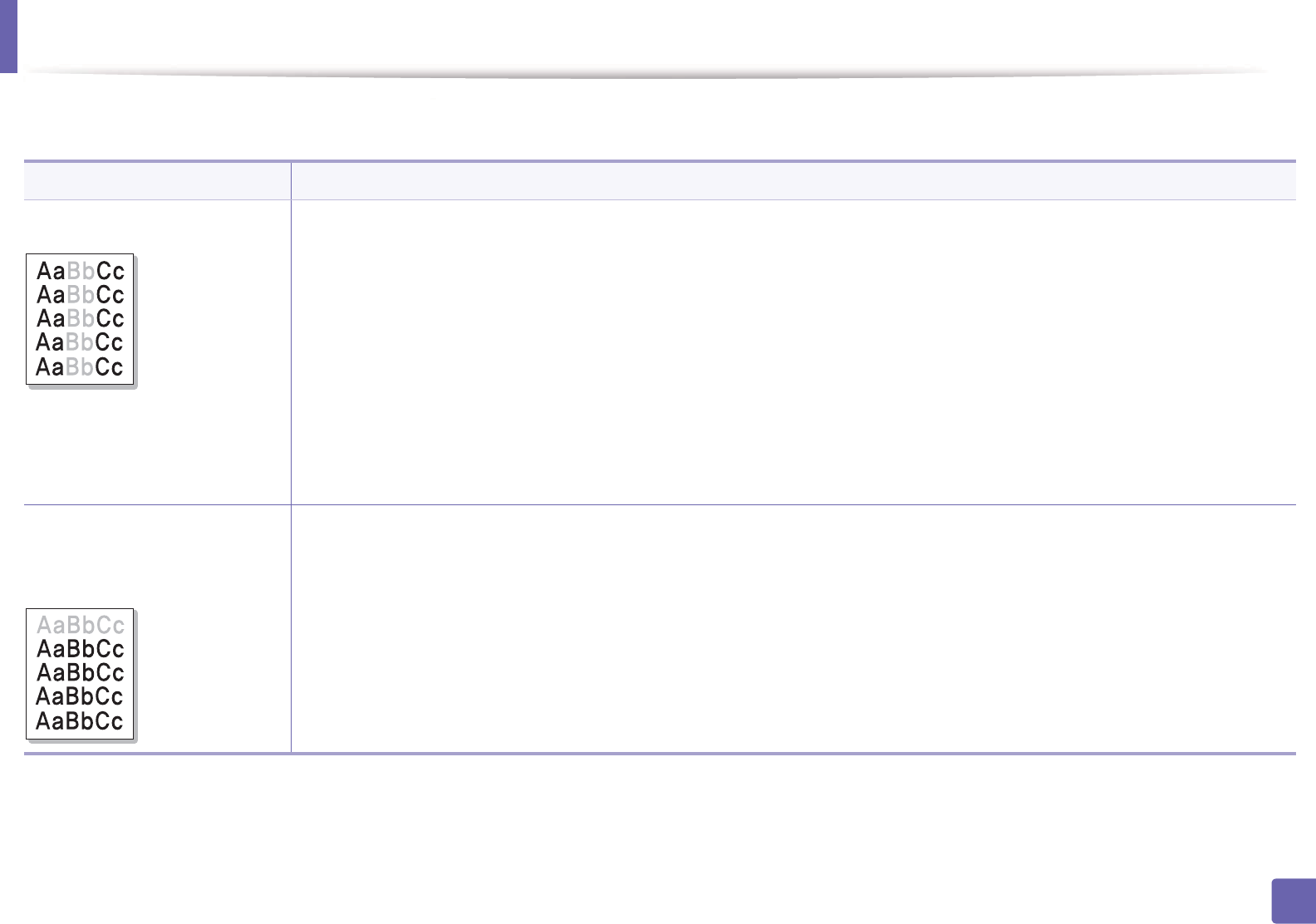

Light or faded print • If a vertical white streak or faded area appears on the page, the toner supply is low. Install a new toner cartridge (see "Replacing the

toner cartridge" on page 47).

• If a vertical white streak or faded area still appears on the page even though the machine has enough toner supply, open and close

the front door 3 ~ 4 times (see "Machine overview" on page 16).

• The paper may not meet paper specifications; for example, the paper may be too moist or rough.

• If the entire page is light, the print resolution setting is too low or the toner save mode is on. Adjust the print resolution and turn

the toner save mode off. See the help screen of the printer driver.

• A combination of faded or smeared defects may indicate that the toner cartridge needs cleaning. Clean the inside of your machine

(see "Cleaning the machine" on page 53).

• The surface of the LSU part inside the machine may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page

53). If these steps do not correct the problem, contact a service representative.

The top half of the paper is

printed lighter than the rest of

the paper

The toner might not adhere properly to this type of paper.

• Change the printer option and try again. Go to Printing Preferences , click the Paper tab, and set the paper type to Recycled (see

"Opening printing preferences" on page 34).

Printing quality problems

171

5. Troubleshooting

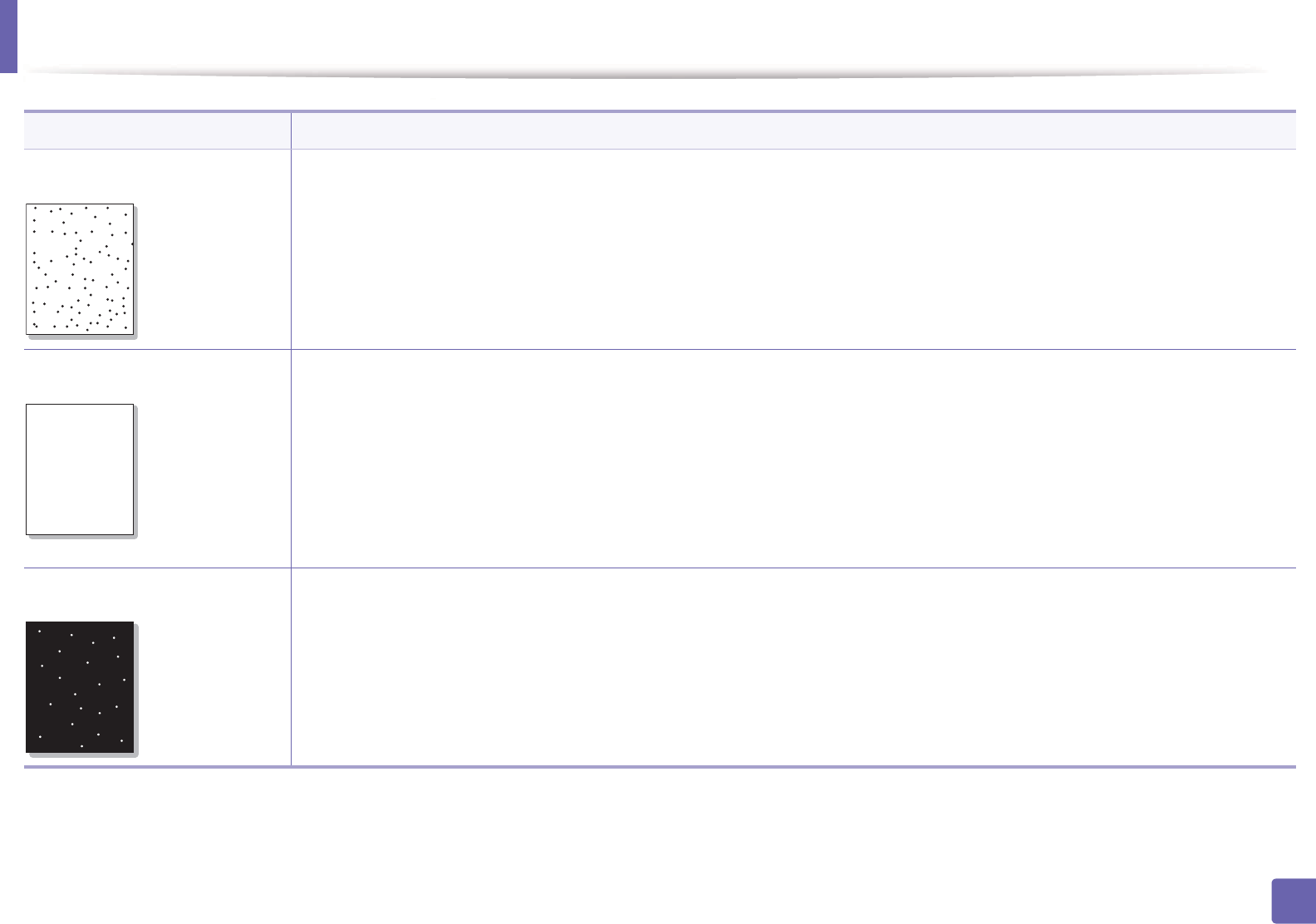

Toner specks • The paper may not meet specifications; for example, the paper may be too moist or rough.

• The transfer roller may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page 53).

• The paper path may need cleaning. Contact a service representative (see "Cleaning the machine" on page 53).

Dropouts If faded areas, generally rounded, occur randomly on the page:

• A single sheet of paper may be defective. Try reprinting the job.

• The moisture content of the paper is uneven or the paper has moist spots on its surface. Try a different brand of paper.

• The paper lot is bad. The manufacturing processes can cause some areas to reject toner. Try a different kind or brand of paper.

• Change the printer option and try again. Go to Printing Preferences, click the Paper tab, and set type to ThickGor Thicker (see

"Opening printing preferences" on page 34).

If these steps do not correct the problem, contact a service representative.

White Spots If white spots appear on the page:

• The paper is too rough and a lot of dirt from paper falls to the inner components within the machine, so the transfer roller may be

dirty. Clean the inside of your machine (see "Cleaning the machine" on page 53).

• The paper path may need cleaning. Clean the inside of your machine (see "Cleaning the machine" on page 53).

If these steps do not correct the problem, contact a service representative.

Condition Suggested Solutions

AaBbCc

AaBbC

Printing quality problems

172

5. Troubleshooting

Vertical lines If black vertical streaks appear on the page:

• The surface (drum part) of the imaging unit inside the machine has probably been scratched. Remove the toner cartridge and install

a new one (see "Replacing the imaging unit" on page 51).

If white vertical streaks appear on the page:

• The surface of the LSU part inside the machine may be dirty. Clean the inside of your machine (see "Cleaning the machine" on page

53). If these steps do not correct the problem, contact a service representative.

Black background If the amount of background shading becomes unacceptable:

• Change to a lighter weight paper.

• Check the environmental conditions: very dry conditions or a high level of humidity (higher than 80% RH) can increase the amount

of background shading.

• Remove the old imaging unit and install a new one (see "Replacing the imaging unit" on page 51).

• Thoroughly redistribute the toner (see "Redistributing toner" on page 45).

Toner smear • Clean the inside of the machine (see "Replacing the toner cartridge" on page 47).

• Check the paper type and quality.

• Remove the old imaging unit and install a new one (see "Replacing the imaging unit" on page 51).

Condition Suggested Solutions

Printing quality problems

173

5. Troubleshooting

Vertical repetitive defects If marks repeatedly appear on the printed side of the page at even intervals:

• The imaging unit may be damaged. If you still have the same problem, remove the imaging unit and, install a new one (see

"Replacing the imaging unit" on page 51).

• Parts of the machine may have toner on them. If the defects occur on the back of the page, the problem will likely correct itself after

a few more pages.

• The fusing assembly may be damaged. Contact a service representative.

Background scatter Background scatter results from bits of toner randomly distributed on the printed page.

• The paper may be too damp. Try printing with a different batch of paper. Do not open packages of paper until necessary so that

the paper does not absorb too much moisture.

• If background scatter covers the entire surface area of a printed page, adjust the print resolution through your software application

or in Printing Preferences (see "Opening printing preferences" on page 34).GEnsure the correct paper type is selected. For

example: If Thicker Paper is selected, but Plain Paper actually used, an overcharging can occur causing this copy quality problem.

• If you are using a new toner cartridge, redistribute the toner first (see "Redistributing toner" on page 45).

Toner particles are around bold

characters or pictures

The toner might not adhere properly to this type of paper.

• Change the printer option and try again. Go to Printing Preferences, click the Paper tab, and set the paper type to Recycled (see

"Opening printing preferences" on page 34).

• Ensure the correct paper type is selected. For example: If Thicker Paper is selected, but Plain Paper actually used, an overcharging

can occur causing this copy quality problem.

Condition Suggested Solutions

Printing quality problems

174

5. Troubleshooting

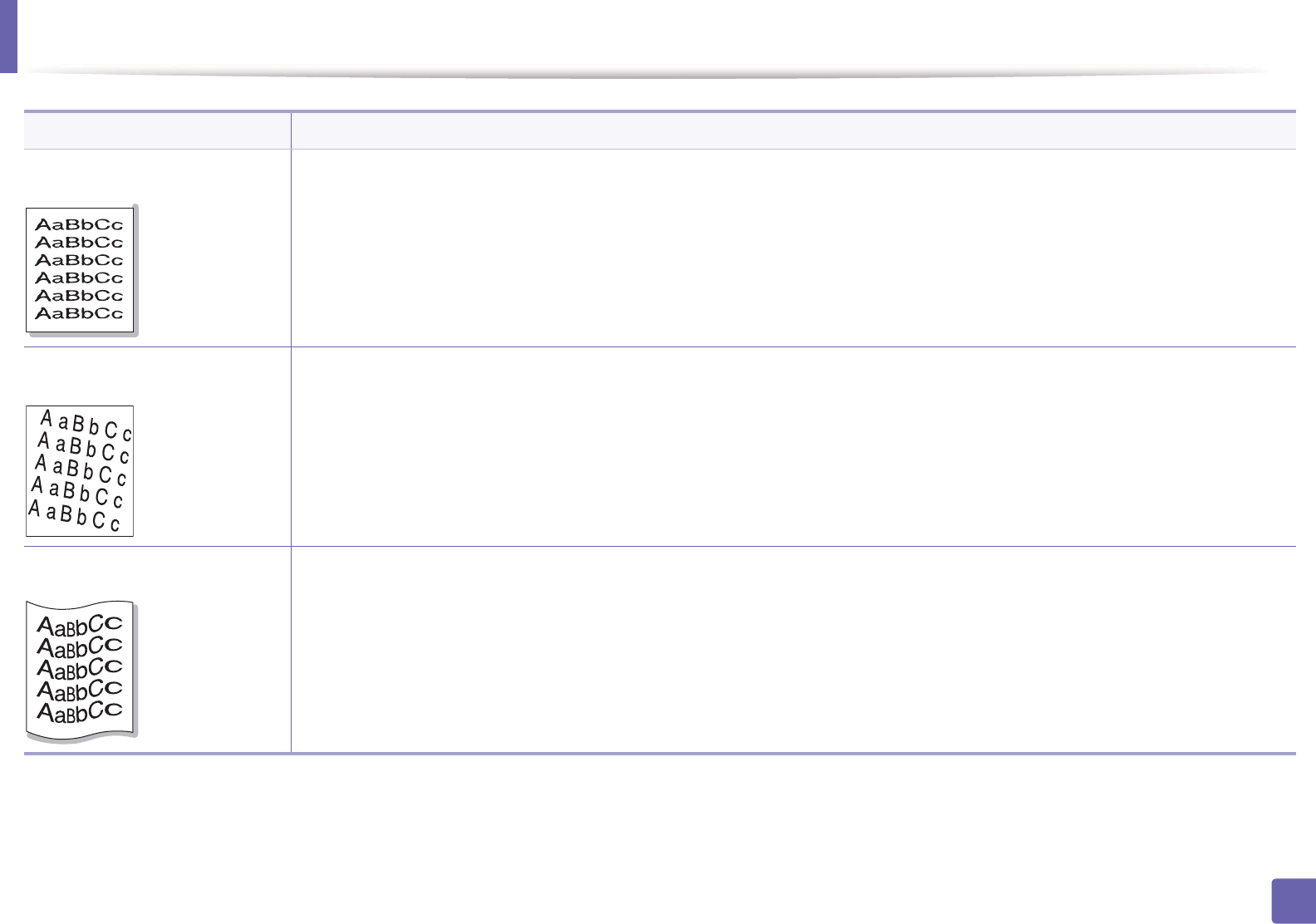

Misformed characters • If characters are improperly formed and producing hollow images, the paper stock may be too slick. Try different paper.

Page skew • Ensure that the paper is loaded properly.

• Check the paper type and quality.

• Ensure that the guides are not too tight or too loose against the paper stack.

Curl or wave • Ensure that the paper is loaded properly.

• Check the paper type and quality. Both high temperature and humidity can cause paper curl.

• Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.

Condition Suggested Solutions

Printing quality problems

175

5. Troubleshooting

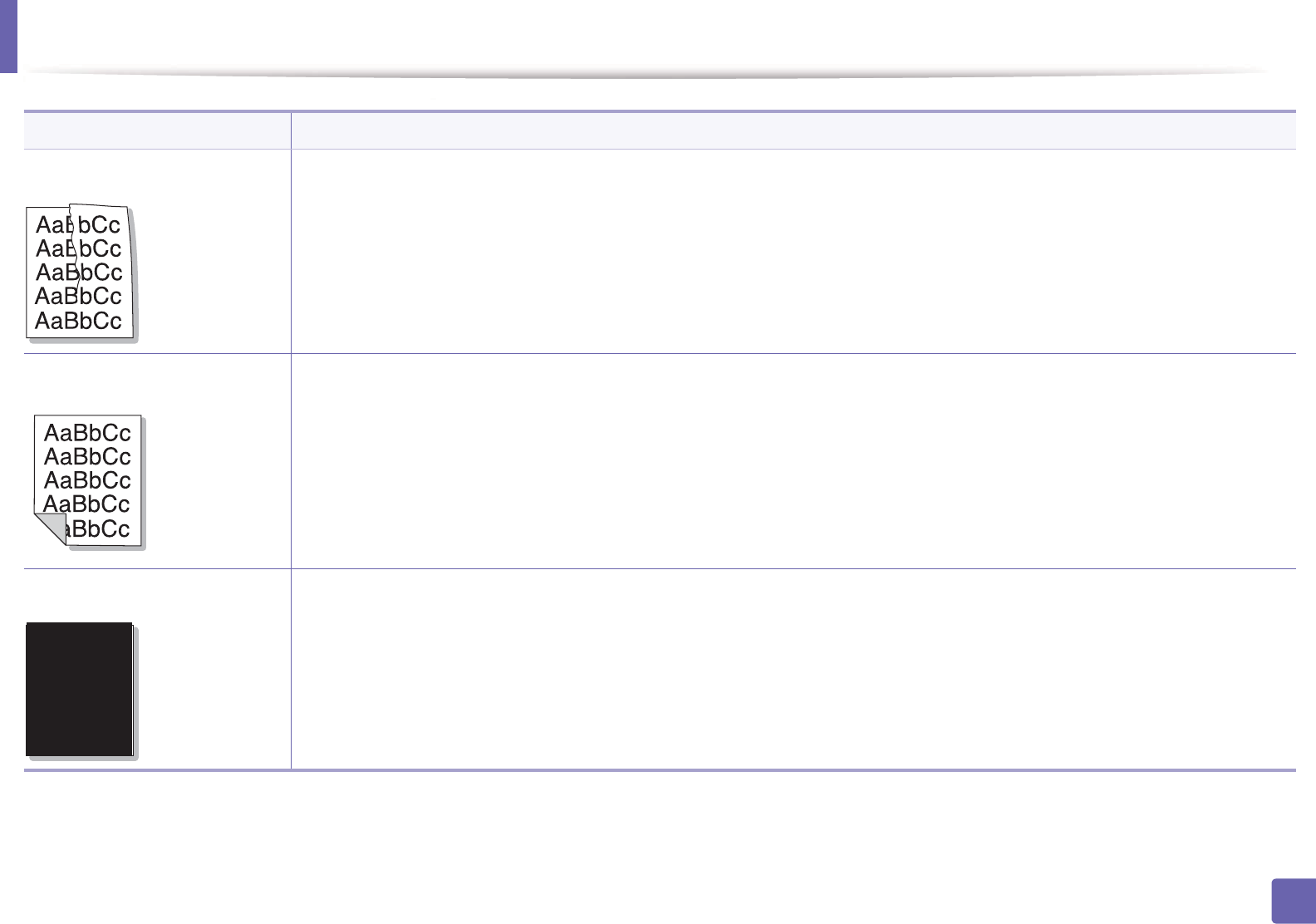

Wrinkles or creases • Ensure that the paper is loaded properly.

• Check the paper type and quality.

• Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.

Back of printouts are dirty • Check for leaking toner. Clean the inside of the machine (see "Cleaning the machine" on page 53).

Solid color or black pages • The imaging unit may not be installed properly. Remove the imaging unit and reinsert it.

• The imaging unit may be defective. Remove the imaging unit and install a new one (see "Replacing the imaging unit" on page 51).

• The machine may require repairing. Contact a service representative.

Condition Suggested Solutions

Printing quality problems

176

5. Troubleshooting

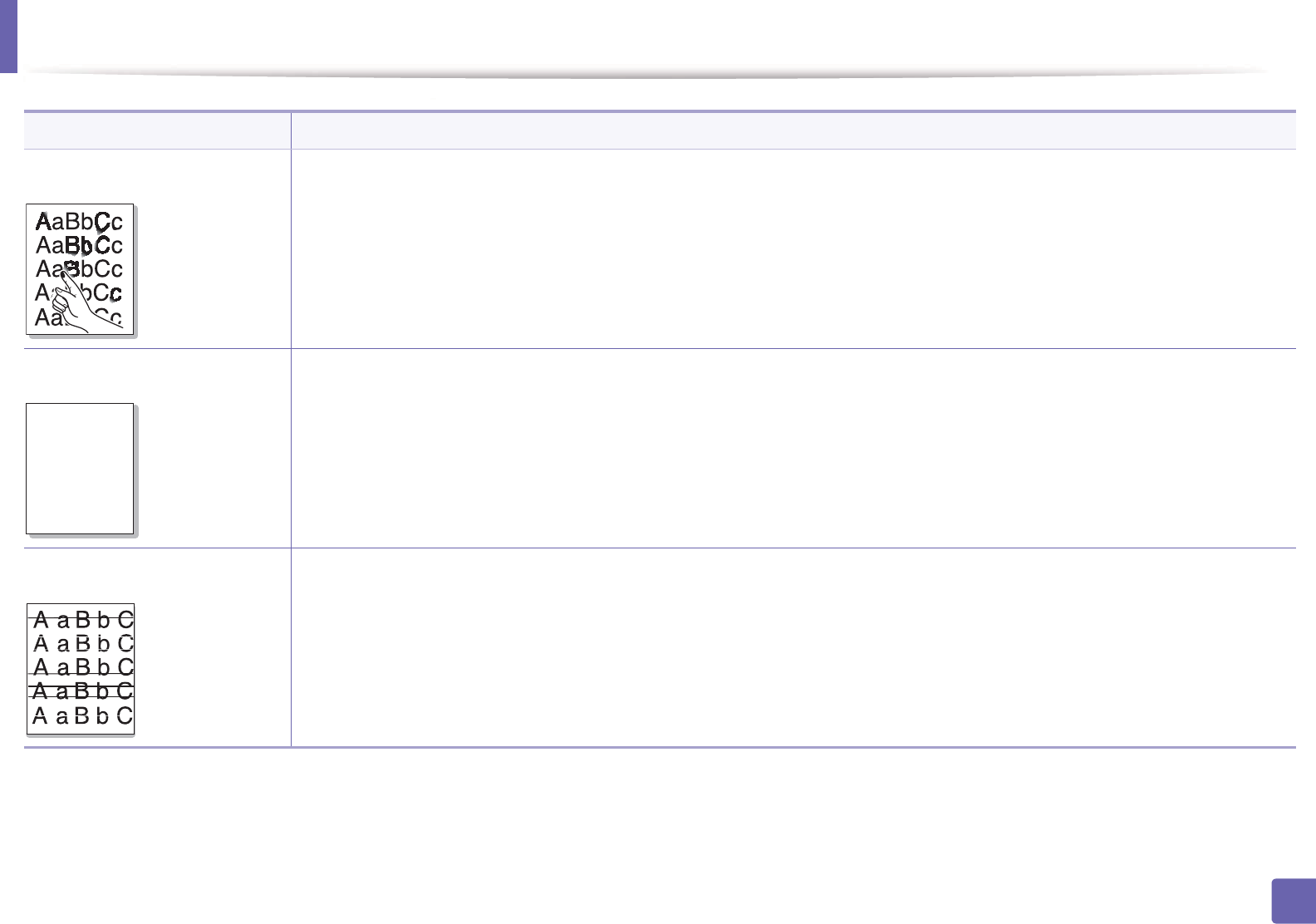

Loose toner • Clean the inside of the machine (see "Cleaning the machine" on page 53).

• Check the paper type and quality.

• Remove the imaging unit and then, install a new one (see "Replacing the imaging unit" on page 51).

If the problem persists, the machine may require repair. Contact a service representative.

Character voids Character voids are white areas within parts of characters that should be solid black:

• You may be printing on the wrong surface of the paper. Remove the paper and turn it around.

• The paper may not meet paper specifications.

Horizontal stripes If horizontally aligned black streaks or smears appear:

• The imaging unit may be installed improperly. Remove the imaging unit and reinsert it.

• The imaging unit may be defective. Remove the imaging unit and install a new one (see "Replacing the imaging unit" on page 51).

If the problem persists, the machine may require repairing. Contact a service representative.

Condition Suggested Solutions

Printing quality problems

177

5. Troubleshooting

Curl If the printed paper is curled or paper does not feed into the machine:

• Turn the stack of paper over in the tray. Also try rotating the paper 180° in the tray.

• Change the printer’s paper option and try again. Go to Printing Preferences, click the Paper tab, and set type to Thin (see

"Opening printing preferences" on page 34).

•An unknown image

repetitively appears on a few

sheets

•Loose toner

•Light print

or contamination

occurs

Your machine is probably being used at an altitude of 1,000 m (3,281 ft) or above.

The high altitude may affect the print quality, such as loose toner or light imaging. Change the altitude setting for your machine (See

"Altitude adjustment" on page 133).

Condition Suggested Solutions

178

5. Troubleshooting

Operating system problems

Common Windows problems

Refer to the Microsoft Windows User’s Guide that came with your computer for further information on Windows error messages.

Condition Suggested solutions

“File in Use” message appears

during installation.

Exit all software applications. Remove all software from the startup group, then restart Windows. Reinstall the printer driver.

“General Protection Fault”,

“Exception OE”, “Spool 32”, or

“Illegal Operation” messages

appear.

Close all other applications, reboot Windows and try printing again.

“Fail To Print”, “A printer

timeout error occurred”

message appear.

These messages may appear during printing. Just keep waiting until the machine finishes printing. If the message appears in ready

mode or after printing has completed, check the connection and/or whether an error has occurred.

Operating system problems

179

5. Troubleshooting

Common Macintosh problems

Refer to the Macintosh User’s Guide that came with your computer for further information on Macintosh error messages.

Condition Suggested solutions

The machine does not print PDF files

correctly. Some parts of graphics, text, or

illustrations are missing.

Printing the PDF file as an image may enable the file to print. Turn on Print As Image from the Acrobat printing options.

It will take longer to print when you print a PDF file as an image.

Some letters are not displayed normally

during cover page printing.

Mac OS cannot create the font while printing the cover page. The English alphabet and numbers are displayed normally on

the cover page.

When printing a document in Macintosh

with Acrobat Reader 6.0 or higher, colors

print incorrectly.

Make sure that the resolution setting in your machine driver matches the one in Acrobat Reader.

Operating system problems

180

5. Troubleshooting

Common Linux problems

Condition Suggested solutions

The machine does not print. • Check if the printer driver is installed in your system. Open Unified Driver Configurator and switch to the Printers tab in Printers

configuration window to look at the list of available machines. Make sure that your machine is displayed on the list. If not, open

Add new printer wizard to set up your device.

• Check if the machine is started. Open Printers configuration and select your machine on the printers list. Look at the description

in the Selected printer pane. If its status contains Stopped string, press the Start button. After that normal operation of the

machine should be restored. The “stopped” status might be activated when some problems in printing occur. For instance, this

could be an attempt to print a document when the port is claimed by a scanning application.

• Ensure the port is not busy. Since functional components of machine (printer and scanner) share the same I/O interface (port), the

situation of simultaneous access of different user applications to the same port is possible. To avoid possible conflicts, only one of

them at a time is allowed to gain control over the device. The other user will encounter “device busy” response. You should open

ports configuration and select the port assigned to your machine. In the Selected port pane you can see if the port is occupied

by some other application. If this is the case, you should either wait for completion of the current job or press the Release port

button, if you are sure that the present application is not functioning properly.

• Check if your application has special print option such as “-oraw”. If “-oraw” is specified in the command line parameter, then

remove it to print properly. For Gimp front-end, select “print” -> “Setup printer” and edit command line parameter in the

command item.

• The CUPS (Common UNIXPrinting System) version distributed with SuSE Linux 9.2 (cups-1.1.21) has a problem with ipp (Internet

Printing Protocol) printing.Use the socket printing instead of ipp or install a later version of CUPS (cups-1.1.22 or higher).

Some color images come out all

black.

This is a known bug in Ghostscript (until GNU Ghostscript version 7.05) when the base color space of the document is indexed color

space and it is converted through CIE color space. Because Postscript uses CIE color space for Color Matching System, you should

upgrade Ghostscript on your system to at least GNU Ghostscript version 7.06 or later. You can find recent Ghostscript versions at

www.ghostscript.com.

Operating system problems

181

5. Troubleshooting

Refer to the Linux User’s Guide that came with your computer for further information on Linux error messages.

Some color images come out in

unexpected color.

This is a known bug in Ghostscript (until GNU Ghostscript version 7.xx) when the base color space of the document is indexed RGB

color space and it is converted through CIE color space. Because Postscript uses CIE color space for Color Matching System, you

should upgrade Ghostscript on your system to at least GNU Ghostscript version 8.xx or later. You can find recent Ghostscript versions

at www.ghostscript.com.

The machine does not print

whole pages, and output is

printed on half the page.

It is a known problem that occurs when a color machine is used on version 8.51 or earlier of Ghostscript, 64-bit Linux OS, and has been

reported to bugs.ghostscript.com as Ghostscript Bug 688252.The problem is solved in AFPL Ghostscript v. 8.52 or above. Download

the latest version of AFPL Ghostscript from http://sourceforge.net/projects/ghostscript/ and install it to solve this problem.

“Cannot open port device file”

error message appears when

printing a document.

Avoid changing print job parameters (via LPR GUI, for example) while a print job is in progress. Known versions of CUPS server break

the print job whenever print options are changed and then try to restart the job from the beginning. Since Unified Linux Driver locks

the mfp port while printing, the abrupt termination of the driver keeps the port locked and unavailable for subsequent print jobs. If

this situation occurs, try to release the mfp port by selecting Release port in Port configuration window.

Condition Suggested solutions

182

Glossary

The following glossary helps you get familiar with the product by

understanding the terminologies commonly used with printing as well as

mentioned in this user’s guide.

802.11

802.11 is a set of standards for wireless local area network (WLAN)

communication, developed by the IEEE LAN/MAN Standards Committee (IEEE

802).

802.11b/g/n

802.11b/g/n can share same hardware and use the 2.4 GHz band. 802.11b

supports bandwidth up to 11 Mbps, 802.11n supports bandwidth up to 150

Mbps. 802.11b/g/n devices may occasionally suffer interference from

microwave ovens, cordless telephones, and Bluetooth devices.

Access point

Access Point or Wireless Access Point (AP or WAP) is a device that connects

wireless communication devices together on wireless local area networks

(WLAN), and acts as a central transmitter and receiver of WLAN radio signals.

ADF

An Automatic Document Feeder (ADF) is a scanning unit that will automatically

feed an original sheet of paper so that the machine can scan some amount of the

paper at once.

AppleTalk

AppleTalk is a proprietary suite of protocols developed by Apple, Inc for

computer networking. It was included in the original Macintosh (1984) and is

now deprecated by Apple in favor of TCP/IP networking.

BIT Depth

A computer graphics term describing the number of bits used to represent the

color of a single pixel in a bitmapped image. Higher color depth gives a broader

range of distinct colors. As the number of bits increases, the number of possible

colors becomes impractically large for a color map. 1-bit color is commonly

called as monochrome or black and white.

BMP

A bitmapped graphics format used internally by the Microsoft Windows

graphics subsystem (GDI), and used commonly as a simple graphics file format

on that platform.

Glossary

183

Glossary

BOOTP

Bootstrap Protocol. A network protocol used by a network client to obtain its IP

address automatically. This is usually done in the bootstrap process of

computers or operating systems running on them. The BOOTP servers assign

the IP address from a pool of addresses to each client. BOOTP enables 'diskless

workstation' computers to obtain an IP address prior to loading any advanced

operating system.

CCD

Charge Coupled Device (CCD) is a hardware which enables the scan job. CCD

Locking mechanism is also used to hold the CCD module to prevent any damage

when you move the machine.

Collation

Collation is a process of printing a multiple-copy job in sets. When collation is

selected, the device prints an entire set before printing additional copies.

Control Panel

A control panel is a flat, typically vertical, area where control or monitoring

instruments are displayed. They are typically found in front of the machine.

Coverage

It is the printing term used for a toner usage measurement on printing. For

example, 5% coverage means that an A4 sided paper has about 5% image or text

on it. So, if the paper or original has complicated images or lots of text on it, the

coverage will be higher and at the same time, a toner usage will be as much as

the coverage.

CSV

Comma Separated Values (CSV). A type of file format, CSV is used to exchange

data between disparate applications. The file format, as it is used in Microsoft

Excel, has become a de facto standard throughout the industry, even among

non-Microsoft platforms.

DADF

A Duplex Automatic Document Feeder (DADF) is a scanning unit that will

automatically feed and turn over an original sheet of paper so that the machine

can scan on both sides of the paper.

Default

The value or setting that is in effect when taking a printer out of its box state,

reset, or initialized.

Glossary

184

Glossary

DHCP

A Dynamic Host Configuration Protocol (DHCP) is a client-server networking

protocol. A DHCP server provides configuration parameters specific to the DHCP

client host requesting, generally, information required by the client host to

participate on an IP network. DHCP also provides a mechanism for allocation of

IP addresses to client hosts.

DIMM

Dual Inline Memory Module (DIMM), a small circuit board that holds memory.

DIMM stores all the data within the machine like printing data, received fax data.

DLNA

The Digital Living Network Alliance (DLNA) is a standard that allows devices on

a home network to share information with each other across the network.

DNS

The Domain Name Server (DNS) is a system that stores information associated

with domain names in a distributed database on networks, such as the Internet.

Dot Matrix Printer

A dot matrix printer refers to a type of computer printer with a print head that

runs back and forth on the page and prints by impact, striking an ink-soaked

cloth ribbon against the paper, much like a typewriter.

DPI

Dots Per Inch (DPI) is a measurement of resolution that is used for scanning and

printing. Generally, higher DPI results in a higher resolution, more visible detail

in the image, and a larger file size.

DRPD

Distinctive Ring Pattern Detection. Distinctive Ring is a telephone company

service which enables a user to use a single telephone line to answer several

different telephone numbers.

Duplex

A mechanism that will automatically turn over a sheet of paper so that the

machine can print (or scan) on both sides of the paper. A printer equipped with

a Duplex Unit can print on both sides of paper during one print cycle.

Duty Cycle

Duty cycle is the page quantity which does not affect printer performance for a

month. Generally the printer has the lifespan limitation such as pages per year.

The lifespan means the average capacity of print-outs, usually within the

warranty period. For example, if the duty cycle is 48,000 pages per month

assuming 20 working days, a printer limits 2,400 pages a day.

Glossary

185

Glossary

ECM

Error Correction Mode (ECM) is an optional transmission mode built into Class 1

fax machines or fax modems. It automatically detects and corrects errors in the

fax transmission process that are sometimes caused by telephone line noise.

Emulation

Emulation is a technique of one machine obtaining the same results as another.

An emulator duplicates the functions of one system with a different system, so

that the second system behaves like the first system. Emulation focuses on exact

reproduction of external behavior, which is in contrast to simulation, which

concerns an abstract model of the system being simulated, often considering its

internal state.

Ethernet

Ethernet is a frame-based computer networking technology for local area

networks (LANs). It defines wiring and signaling for the physical layer, and frame

formats and protocols for the media access control (MAC)/data link layer of the

OSI model. Ethernet is mostly standardized as IEEE 802.3. It has become the most

widespread LAN technology in use during the 1990s to the present.

EtherTalk

A suite of protocols developed by Apple Computer for computer networking. It

was included in the original Macintosh (1984) and is now deprecated by Apple

in favor of TCP/IP networking.

FDI

Foreign Device Interface (FDI) is a card installed inside the machine to allow a

third party device such as a coin operated device or a card reader. Those devices

allow the pay-for-print service on your machine.

FTP

A File Transfer Protocol (FTP) is a commonly used protocol for exchanging files

over any network that supports the TCP/IP protocol (such as the Internet or an

intranet).

Fuser Unit

The part of a laser printer that fuses the toner onto the print media. It consists of

a heat roller and a pressure roller. After toner is transferred onto the paper, the

fuser unit applies heat and pressure to ensure that the toner stays on the paper

permanently, which is why paper is warm when it comes out of a laser printer.

Glossary

186

Glossary

Gateway

A connection between computer networks, or between a computer network

and a telephone line. It is very popular, as it is a computer or a network that

allows access to another computer or network.

Grayscale

A shades of gray that represent light and dark portions of an image when color

images are converted to grayscale; colors are represented by various shades of

gray.

Halftone

An image type that simulates grayscale by varying the number of dots. Highly

colored areas consist of a large number of dots, while lighter areas consist of a

smaller number of dots.

HDD

Hard Disk Drive (HDD), commonly referred to as a hard drive or hard disk, is a

non-volatile storage device which stores digitally-encoded data on rapidly

rotating platters with magnetic surfaces.

IEEE

The Institute of Electrical and Electronics Engineers (IEEE) is an international

non-profit, professional organization for the advancement of technology

related to electricity.

IEEE 1284

The 1284 parallel port standard was developed by the Institute of Electrical and

Electronics Engineers (IEEE). The term "1284-B" refers to a specific connector

type on the end of the parallel cable that attaches to the peripheral (for example,

a printer).

Intranet

A private network that uses Internet Protocols, network connectivity, and

possibly the public telecommunication system to securely share part of an

organization's information or operations with its employees. Sometimes the

term refers only to the most visible service, the internal website.

IP address

An Internet Protocol (IP) address is a unique number that devices use in order to

identify and communicate with each other on a network utilizing the Internet

Protocol standard.

Glossary

187

Glossary

IPM

The Images Per Minute (IPM) is a way of measuring the speed of a printer. An IPM

rate indicates the number of single-sided sheets a printer can complete within

one minute.

IPP

The Internet Printing Protocol (IPP) defines a standard protocol for printing as

well as managing print jobs, media size, resolution, and so forth. IPP can be used

locally or over the Internet to hundreds of printers, and also supports access

control, authentication, and encryption, making it a much more capable and

secure printing solution than older ones.

IPX/SPX

IPX/SPX stands for Internet Packet Exchange/Sequenced Packet Exchange. It is a

networking protocol used by the Novell NetWare operating systems. IPX and

SPX both provide connection services similar to TCP/IP, with the IPX protocol

having similarities to IP, and SPX having similarities to TCP. IPX/SPX was

primarily designed for local area networks (LANs), and is a very efficient protocol

for this purpose (typically its performance exceeds that of TCP/IP on a LAN).

ISO

The International Organization for Standardization (ISO) is an international

standard-setting body composed of representatives from national standards

bodies. It produces world-wide industrial and commercial standards.

ITU-T

The International Telecommunication Union is an international organization

established to standardize and regulate international radio and

telecommunications. Its main tasks include standardization, allocation of the

radio spectrum, and organizing interconnection arrangements between

different countries to allow international phone calls. A -T out of ITU-T indicates

telecommunication.

ITU-T No. 1 chart

Standardized test chart published by ITU-T for document facsimile

transmissions.

JBIG

Joint Bi-level Image Experts Group (JBIG) is an image compression standard with

no loss of accuracy or quality, which was designed for compression of binary

images, particularly for faxes, but can also be used on other images.

JPEG

Joint Photographic Experts Group (JPEG) is a most commonly used standard

method of lossy compression for photographic images. It is the format used for

storing and transmitting photographs on the World Wide Web.

Glossary

188

Glossary

LDAP

The Lightweight Directory Access Protocol (LDAP) is a networking protocol for

querying and modifying directory services running over TCP/IP.

LED

A Light-Emitting Diode (LED) is a semiconductor device that indicates the status

of a machine.

MAC address

Media Access Control (MAC) address is a unique identifier associated with a

network adapter. MAC address is a unique 48-bit identifier usually written as 12

hexadecimal characters grouped in pairs (e. g., 00-00-0c-34-11-4e). This address

is usually hard-coded into a Network Interface Card (NIC) by its manufacturer,

and used as an aid for routers trying to locate machines on large networks.

MFP

Multi Function Peripheral (MFP) is an office machine that includes the following

functionality in one physical body, so as to have a printer, a copier, a fax, a

scanner and etc.

Modified Huffman (MH) is a compression method for decreasing the amount of

data that needs to be transmitted between the fax machines to transfer the

image recommended by ITU-T T.4. MH is a codebook-based run-length

encoding scheme optimized to efficiently compress white space. As most faxes

consist mostly of white space, this minimizes the transmission time of most

faxes.

MMR

Modified Modified READ (MMR) is a compression method recommended by ITU-

T T.6.

Modem

A device that modulates a carrier signal to encode digital information, and also

demodulates such a carrier signal to decode transmitted information.

Modified Read (MR) is a compression method recommended by ITU-T T.4. MR

encodes the first scanned line using MH. The next line is compared to the first,

the differences determined, and then the differences are encoded and

transmitted.

Glossary

189

Glossary

NetWare

A network operating system developed by Novell, Inc. It initially used

cooperative multitasking to run various services on a PC, and the network

protocols were based on the archetypal Xerox XNS stack. Today NetWare

supports TCP/IP as well as IPX/SPX.

OPC

Organic Photo Conductor (OPC) is a mechanism that makes a virtual image for

print using a laser beam emitted from a laser printer, and it is usually green or

rust colored and has a cylinder shape.

An imaging unit containing a drum slowly wears the drum surface by its usage

in the printer, and it should be replaced appropriately since it gets worn from

contact with the cartridge development brush, cleaning mechanism, and paper.

Originals

The first example of something, such as a document, photograph or text, etc,

which is copied, reproduced or translated to produce others, but which is not

itself copied or derived from something else.

OSI

Open Systems Interconnection (OSI) is a model developed by the International

Organization for Standardization (ISO) for communications. OSI offers a

standard, modular approach to network design that divides the required set of

complex functions into manageable, self-contained, functional layers. The layers

are, from top to bottom, Application, Presentation, Session, Transport, Network,

Data Link and Physical.

PABX

A private automatic branch exchange (PABX) is an automatic telephone

switching system within a private enterprise.

PCL

Printer Command Language (PCL) is a Page Description Language (PDL)

developed by HP as a printer protocol and has become an industry standard.

Originally developed for early inkjet printers, PCL has been released in varying

levels for thermal, dot matrix printer, and laser printers.

PDF

Portable Document Format (PDF) is a proprietary file format developed by

Adobe Systems for representing two dimensional documents in a device

independent and resolution independent format.

Glossary

190

Glossary

PostScript

PostScript (PS) is a page description language and programming language used

primarily in the electronic and desktop publishing areas. - that is run in an

interpreter to generate an image.

Printer Driver

A program used to send commands and transfer data from the computer to the

printer.

Print Media

The media like paper, envelopes, labels, and transparencies which can be used

in a printer, a scanner, a fax or, a copier.

PPM

Pages Per Minute (PPM) is a method of measurement for determining how fast

a printer works, meaning the number of pages a printer can produce in one

minute.

PRN file

An interface for a device driver, this allows software to interact with the device

driver using standard input/output system calls, which simplifies many tasks.

Protocol

A convention or standard that controls or enables the connection,

communication, and data transfer between two computing endpoints.

See PostScript.

PSTN

The Public-Switched Telephone Network (PSTN) is the network of the world's

public circuit-switched telephone networks which, on industrial premises, is

usually routed through the switchboard.

RADIUS

Remote Authentication Dial In User Service (RADIUS) is a protocol for remote

user authentication and accounting. RADIUS enables centralized management

of authentication data such as usernames and passwords using an AAA

(authentication, authorization, and accounting) concept to manage network

access.

Resolution

The sharpness of an image, measured in Dots Per Inch (DPI). The higher the dpi,

the greater the resolution.

Glossary

191

Glossary

SMB

Server Message Block (SMB) is a network protocol mainly applied to share files,

printers, serial ports, and miscellaneous communications between nodes on a

network. It also provides an authenticated Inter-process communication

mechanism.

SMTP

Simple Mail Transfer Protocol (SMTP) is the standard for e-mail transmissions

across the Internet. SMTP is a relatively simple, text-based protocol, where one

or more recipients of a message are specified, and then the message text is

transferred. It is a client-server protocol, where the client transmits an email

message to the server.

SSID

Service Set Identifier (SSID) is a name of a wireless local area network (WLAN). All

wireless devices in a WLAN use the same SSID in order to communicate with

each other. The SSIDs are case-sensitive and have a maximum length of 32

characters.

Subnet Mask

The subnet mask is used in conjunction with the network address to determine

which part of the address is the network address and which part is the host

address.

TCP/IP

The Transmission Control Protocol (TCP) and the Internet Protocol (IP); the set of

communications protocols that implement the protocol stack on which the

Internet and most commercial networks run.

TCR

Transmission Confirmation Report (TCR) provides details of each transmission

such as job status, transmission result and number of pages sent. This report can

be set to print after each job or only after failed transmissions.

TIFF

Tagged Image File Format (TIFF) is a variable-resolution bitmapped image

format. TIFF describes image data that typically come from scanners. TIFF

images make use of tags, keywords defining the characteristics of the image that

is included in the file. This flexible and platform-independent format can be

used for pictures that have been made by various image processing

applications.

Toner Cartridge

A kind of bottle or container used in a machine like a printer which contains

toner. Toner is a powder used in laser printers and photocopiers, which forms

the text and images on the printed paper. Toner can be fused by by a

combination of heat/pressure from the fuser, causing it to bind to the fibers in

the paper.

Glossary

192

Glossary

TWAIN

An industry standard for scanners and software. By using a TWAIN-compliant

scanner with a TWAIN-compliant program, a scan can be initiated from within

the program. It is an image capture API for Microsoft Windows and Apple

Macintosh operating systems.

UNC Path

Uniform Naming Convention (UNC) is a standard way to access network shares

in Window NT and other Microsoft products. The format of a UNC path is:

\\<servername>\<sharename>\<Additional directory>

URL

Uniform Resource Locator (URL) is the global address of documents and

resources on the Internet. The first part of the address indicates what protocol to

use, the second part specifies the IP address or the domain name where the

resource is located.

USB

Universal Serial Bus (USB) is a standard that was developed by the USB

Implementers Forum, Inc., to connect computers and peripherals. Unlike the

parallel port, USB is designed to concurrently connect a single computer USB

port to multiple peripherals.

Watermark

A watermark is a recognizable image or pattern in paper that appears lighter

when viewed by transmitted light. Watermarks were first introduced in Bologna,

Italy in 1282; they have been used by papermakers to identify their product, and

also on postage stamps, currency, and other government documents to

discourage counterfeiting.

WEP

Wired Equivalent Privacy (WEP) is a security protocol specified in IEEE 802.11 to

provide the same level of security as that of a wired LAN. WEP provides security

by encrypting data over radio so that it is protected as it is transmitted from one

end point to another.

WIA

Windows Imaging Architecture (WIA) is an imaging architecture that is originally

introduced in Windows Me and Windows XP. A scan can be initiated from within

these operating systems by using a WIA-compliant scanner.

WPA

Wi-Fi Protected Access (WPA) is a class of systems to secure wireless (Wi-Fi)

computer networks, which was created to improve upon the security features of

WEP.

Glossary

193

Glossary

WPA-PSK

WPA-PSK (WPA Pre-Shared Key) is special mode of WPA for small business or

home users. A shared key, or password, is configured in the wireless access point

(WAP) and any wireless laptop or desktop devices. WPA-PSK generates a unique

key for each session between a wireless client and the associated WAP for more

advanced security.

WPS

The Wi-Fi Protected Setup (WPS) is a standard for establishing a wireless home

network. If your wireless access point supports WPS, you can configure the

wireless network connection easily without a computer.

XPS

XML Paper Specification (XPS) is a specification for a Page Description Language

(PDL) and a new document format, which has benefits for portable document

and electronic document, developed by Microsoft. It is an XML-based

specification, based on a new print path and a vector-based device-

independent document format.

194

Index

cleaning

insideG53

outsideG53

cleaning a machineG53

control panelG19

conventionG10

eco printingG36

favorites settings, for printingG35

featuresG4

print media featureG67

front viewG17

general iconsG10

glossaryG182

google cloud printingG130

jam

clearing paperG58

tips for avoiding paper jamsG57

Linux

common Linux problemsG180

driver installation for network connectedG

101

driver installation for USB cable connectedG

driver reinstallation for USB cable connectedG

printer propertiesG146

printingG145

unifled driver configuratorG160

using SetIPG96

paper in the tray1G27

special mediaG30

local

driver installationG22

driver reinstallingG23

Macintosh

common Macintosh problemsG179

driver installation for network connectedG

100

driver installation for USB cable connectedG

driver reinstallation for USB cable connectedG

printingG143

system requirementsG71

using SetIPG95

maintenance partsG42

manual feeder/multi-purpose tray

using special mediaG30

network

driver installation

LinuxG101

MacintoshG100

WindowsG97

installing environmentG73

introducing network programsG93

IPv6 configurationG103

SetIP programG94SG95SG96SG121

wireless network setupG106

Index

195

Index

N-up printing

MacintoshG143

overlay printing

createG141

deleteG142

printG142

placing a machine

adjusting the altitudeG133

mobile OSG129

mobileprintG129

print media

card stockG31

labelsG31

output supportG67

preprinted paperG32

special mediaG30

print resolution set

LinuxG145

printer preferences

LinuxG146

Printer Status

general informationG158

PrintingG33

printing

changing the default print settingsG134

LinuxG145

MacintoshG143

multiple pages on one sheet of paper

MacintoshG143

printing a document

WindowsG33

printing on both sides of paper

MacintoshG144

printing to a fileG136

printing a document

LinuxG145

MacintoshG143

problems

paper feeding problemsG164

power problemsG165

printing problemsG166

printing quality problemsG170

rear viewG18

regulatiory informationG74

safety

informationG11

symbolsG11

service contact numbersG197

SetIP programG94SG121

special print featuresG132

specificationsG65

print mediaG67

stop buttonG20

supplies

available suppliesG40

estimated toner cartridge lifeG44

orderingG40

replacing toner cartridgeG47

SyncThru Web Service

general informationG152

Index

196

Index

toner cartridge

estimated lifeG44

handling instructionsG44

non-Samsung and refilledG44

redistributing tonerG45

replacing the cartridgeG47

storingG43

tray

adjusting the width and lengthG26

changing the tray sizeG26

understanding the status LEDG61

Unix

system requirementsG72

USB cable

driver installationG88SG90

driver reinstallationG89SG91

using helpG36SG144

watermark

createG140

deleteG140

editG140

Windows

common Windows problemsG178

driver installation for network connectedG97

driver installation for USB cable connectedG

22SG 23

system requirementsG70

using SetIPG94SG121

wireless

ad hoc modeG106

Infrastructure modeG106

USB cableG112

WPS

disconnectiongG109

PBC modeG109

WPS (the machine does not have a display

screen)

PBCG110

PING110

wireless network

network cableG120

197

Contact SAMSUNG worldwide

If you have any comments or questions regarding Samsung products, contact

the Samsung customer care center.

Country/Region Customer Care Center Web Site

ALBANIA 42 27 5755

ARGENTINE 0800-333-3733 www.samsung.com

ARMENIA 0-800-05-555

AUSTRALIA 1300 362 603 www.samsung.com

AUSTRIA 0810-SAMSUNG (7267864, €

0.07/min)

www.samsung.com

AZERBAIJAN 088-55-55-555

BAHRAIN 8000-4726 www.samsung.com

BELARUS 810-800-500-55-500

BELGIUM

02-201-24-18 www.samsung.com/be

(Dutch)

www.samsung.com/

be_fr (French)

BOSNIA 05 133 1999

BRAZIL 0800-124-421

4004-0000

www.samsung.com

BULGARIA 07001 33 11 www.samsung.com

CANADA 1-800-SAMSUNG (726-7864) www.samsung.com

CHILE 800-SAMSUNG (726-7864) www.samsung.com

CHINA 400-810-5858 www.samsung.com

COLOMBIA 01-8000112112 www.samsung.com

COSTA RICA 0-800-507-7267 www.samsung.com

CROATIA 062 SAMSUNG (062 726 7864) www.samsung.com

CZECH REPUBLIC

800-SAMSUNG (800-726786) www.samsung.com

Samsung Zrt., česká organizační složka, Oasis Florenc,

Sokolovská394/17, 180 00, Praha 8

DENMARK 70 70 19 70 www.samsung.com

DOMINICA 1-800-751-2676 www.samsung.com

ECUADOR 1-800-10-7267 www.samsung.com

EGYPT 0800-726786 www.samsung.com

EIRE 0818 717100 www.samsung.com

EL SALVADOR 800-6225 www.samsung.com

ESTONIA 800-7267 www.samsung.com

FINLAND 030-6227 515 www.samsung.com

FRANCE 01 48 63 00 00 www.samsung.com

GERMANY 01805 - SAMSUNG (726-7864 €

0,14/min)

www.samsung.com

Country/Region Customer Care Center Web Site

Contact SAMSUNG worldwide

198

Contact SAMSUNG worldwide

GEORGIA 8-800-555-555

GREECE

IT and Mobile : 80111-SAMSUNG

(80111 7267864) from land line,

local charge/ from mobile, 210

6897691

Cameras, Camcorders,

Televisions and Household

Appliances

From mobile and fixed

2106293100

www.samsung.com

GUATEMALA 1-800-299-0013 www.samsung.com

HONDURAS 800-27919267 www.samsung.com

HONG KONG

(852) 3698-4698 www.samsung.com/hk

www.samsung.com/

hk_en/

HUNGARY 06-80-SAMSUNG (726-7864) www.samsung.com

INDIA 3030 8282

1800 3000 8282

www.samsung.com

INDONESIA 0800-112-8888

021-5699-7777

www.samsung.com

IRAN 021-8255 www.samsung.com

ITALY 800-SAMSUNG (726-7864) www.samsung.com

Country/Region Customer Care Center Web Site

JAMAICA 1-800-234-7267 www.samsung.com

JAPAN 0120-327-527 www.samsung.com

JORDAN 800-22273 www.samsung.com

KAZAKHSTAN 8-10-800-500-55-500 (GSM:7799) www.samsung.com

KOSOVO +381 0113216899

KUWAIT 183-2255 www.samsung.com

KYRGYZSTAN 00-800-500-55-500 www.samsung.com

LATVIA 8000-7267 www.samsung.com

LITHUANIA 8-800-77777 www.samsung.com

LUXEMBURG 261 03 710 www.samsung.com

MALAYSIA 1800-88-9999 www.samsung.com

MACEDONIA 023 207 777

MEXICO 01-800-SAMSUNG (726-7864) www.samsung.com

MOLDOVA 00-800-500-55-500

MONTENEGRO 020 405 888

MOROCCO 080 100 2255 www.samsung.com

NIGERIA 080-SAMSUNG(726-7864) www.samsung.com

NETHERLANDS 0900-SAMSUNG (0900-7267864)

(€ 0,10/min)

www.samsung.com

Country/Region Customer Care Center Web Site

Contact SAMSUNG worldwide

199

Contact SAMSUNG worldwide

NEW ZEALAND 0800 SAMSUNG (0800 726 786) www.samsung.com

NICARAGUA 00-1800-5077267 www.samsung.com

NORWAY 815-56 480 www.samsung.com

OMAN 800-SAMSUNG (726-7864) www.samsung.com

PANAMA 800-7267 www.samsung.com

PERU 0-800-777-08 www.samsung.com

PHILIPPINES

1800-10-SAMSUNG (726-7864)

1-800-3-SAMSUNG (726-7864)

1-800-8-SAMSUNG (726-7864)

02-5805777

www.samsung.com

POLAND 0 801 1SAMSUNG (172678)

022-607-93-33

www.samsung.com

PORTUGAL 80820-SAMSUNG (726-7864) www.samsung.com

PUERTO RICO 1-800-682-3180 www.samsung.com

RUMANIA

08010 SAMSUNG (08010 726

7864) only from landline, local

network Romtelecom - local tariff

021 206 01 10 for landline and

mobile, normal tariff.

www.samsung.com

Country/Region Customer Care Center Web Site

RUSSIA 8-800-555-55-55 www.samsung.com

SAUDI ARABIA 9200-21230 www.samsung.com

SERBIA 0700 SAMSUNG (0700 726 7864) www.samsung.com

SINGAPORE 1800-SAMSUNG (726-7864) www.samsung.com

SLOVAKIA 0800-SAMSUNG (726-7864) www.samsung.com

SOUTH AFRICA 0860 SAMSUNG (726-7864) www.samsung.com

SPAIN 902-1-SAMSUNG(902 172 678) www.samsung.com

SWEDEN 0771 726 7864 (SAMSUNG) www.samsung.com

SWITZERLAND

0848-SAMSUNG (7267864, CHF

0.08/min)

www.samsung.com/ch

www.samsung.com/

ch_fr/

TADJIKISTAN 8-10-800-500-55-500 www.samsung.com

TAIWAN 0800-329-999 www.samsung.com

THAILAND 1800-29-3232

02-689-3232

www.samsung.com

TRINIDAD &

TOBAGO

1-800-SAMSUNG (726-7864) www.samsung.com

TURKEY 444 77 11 www.samsung.com

U.A.E 800-SAMSUNG (726-7864) www.samsung.com

Country/Region Customer Care Center Web Site

Contact SAMSUNG worldwide

200

Contact SAMSUNG worldwide

U.K 0330 SAMSUNG (726-7864) www.samsung.com

U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com

UKRAINE

0-800-502-000 www.samsung.com/ua

www.samsung.com/

ua_ru

UZBEKISTAN 8-10-800-500-55-500 www.samsung.com

VENEZUELA 0-800-100-5303 www.samsung.com

VIETNAM 1 800 588 889 www.samsung.com

Country/Region Customer Care Center Web Site

Samsung Electronics Co CLP365W Color Laser Printer User Manual Carlsen english

Samsung Electronics Co Ltd Color Laser Printer Carlsen english

Contents

Users Manual 2

Navigation menu

Namespaces

Views

Navigation
