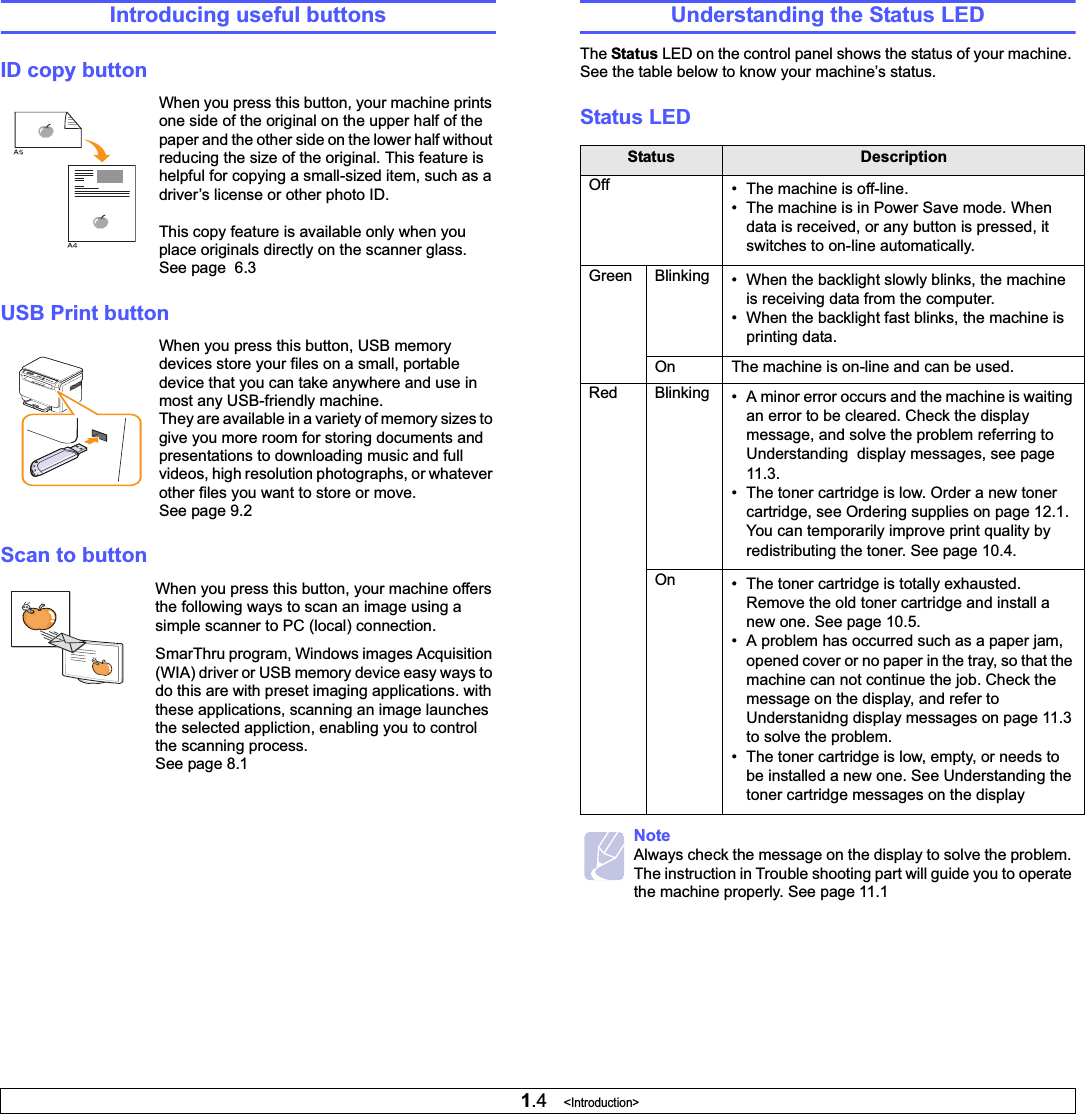

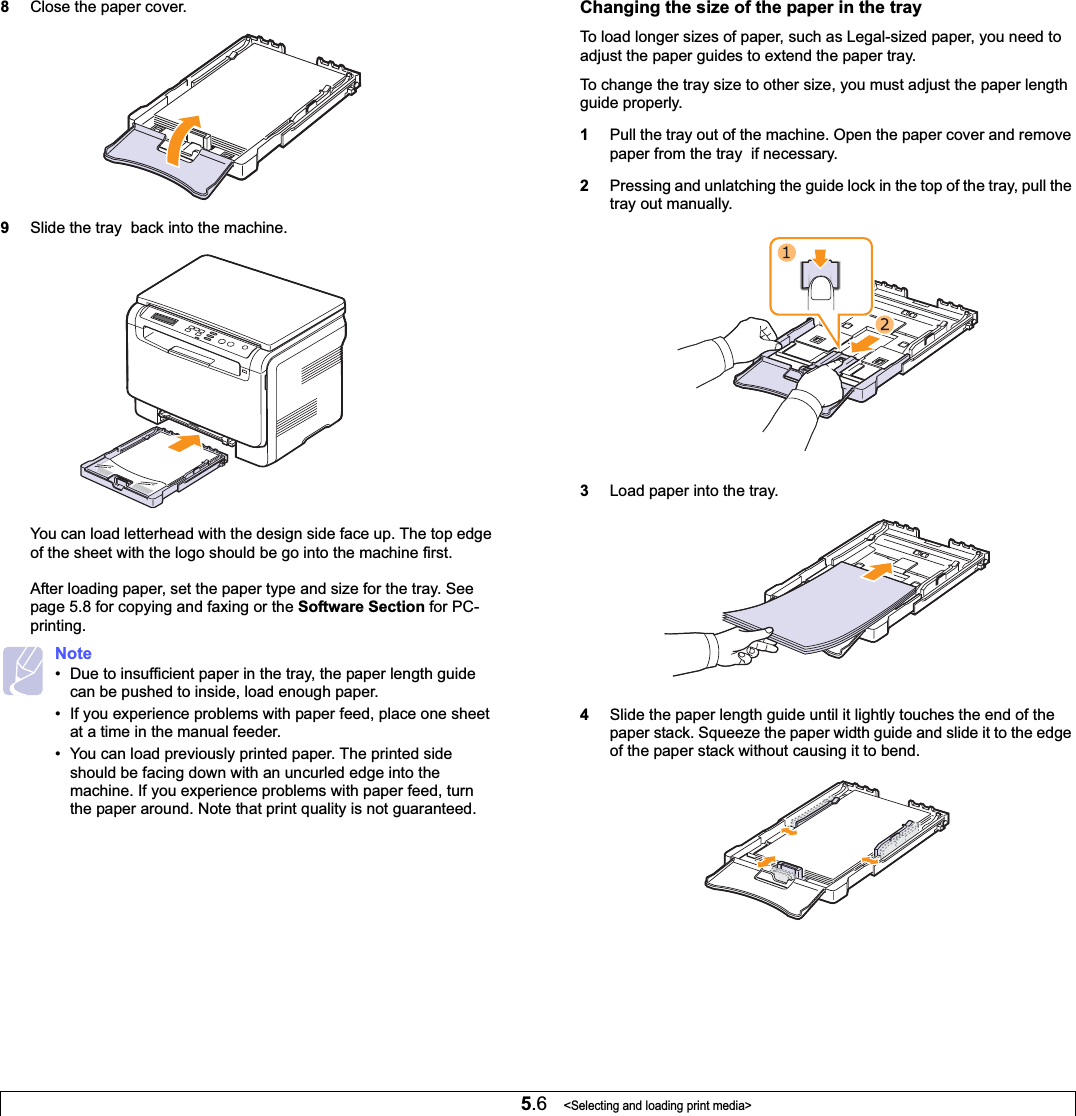

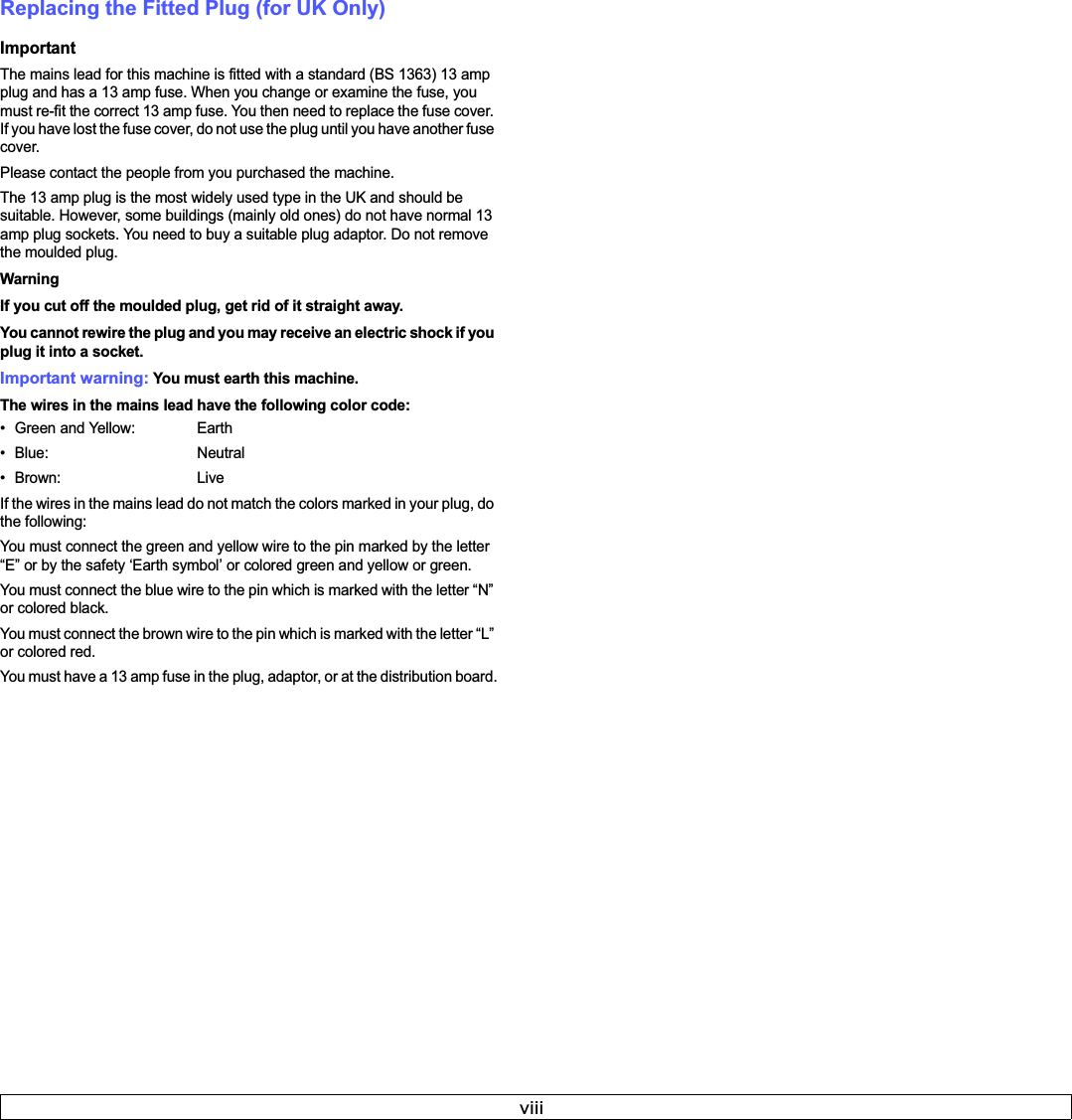

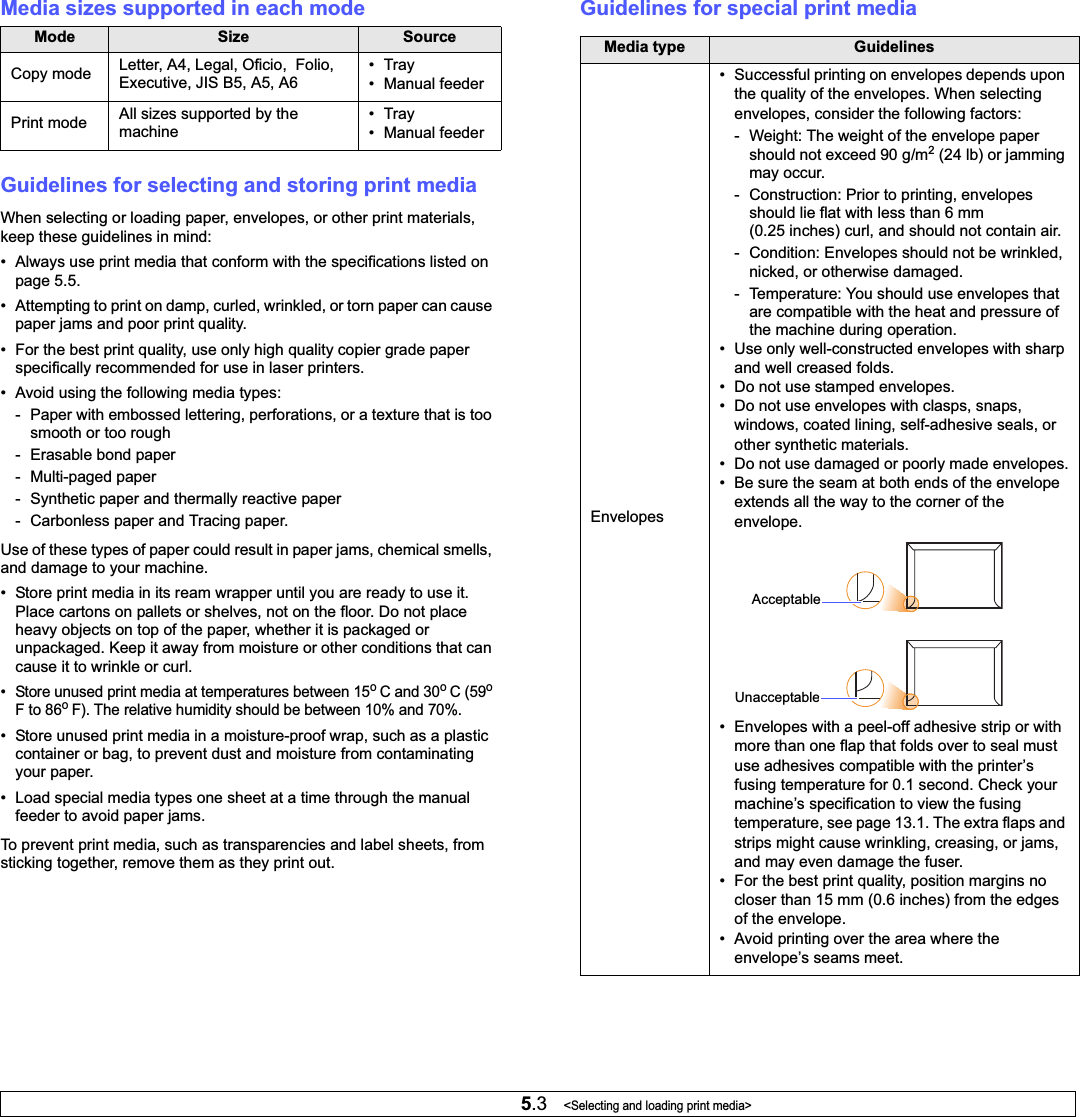

![6.3 <Copying>ID card copyingYour machine can print 2-sided originals on one sheet of A4-, Letter-, Legal-, Folio-, Oficio-, Executive-, B5-, A5-, or A6-sized paper. When you copy using this feature, the machine prints one side of the original on the upper half of the paper and the other side on the lower half without reducing the size of the original. This feature is helpful for copying a small-sized item, such as a name card. This copy feature is available only when you place originals on the scanner glass.1Press ID Copy.2Place a single original face down on the scanner glass. For details about loading an original, see page 5.1.3 Place Front page and Press[Start] appears on the display.4Press OK,Color Start or Black Start.Your machine begins scanning the front side and shows Place Back Page and Press[Start].5Open the scanner lid and turn the original over.6Press Color Start to begin color copying. Or, press Black Start to begin black and white copying.NoteIf you press Stop/Clear or if no buttons are pressed for approximately 30 seconds, the machine cancels the copy job and returns to Standby mode.NoteIf the original is larger than the printable area, some portions may not be printed.Using special copy features2-up or 4-up copyingYour machine can print 2 or 4 original images reduced to fit onto one sheet of paper.1Place the document to be copied on the scanner glass, and close the scanner lid. For details about loading an original, see page 5.1.2Press Menu until Copy Menu appears on the bottom line of the display and press OK.3Press Scroll buttons until Copy Feature appears and press OK.4Press the Scroll buttons until 2-Up or 4-Upappears and press OK.5Press the Scroll buttons to select the color mode you want.There are two types of mode as following:•Yes-Color: Color copy•Yes-Mono: Black and White copy6Press OK to begin copying.7Your machine begins scanning the front side and will then display Another Page?.If an original is placed on the scanner glass, select Yes to add another pages. 8Place the second document to be copied on the scanner glass.9Press OK to begin copying.1 23 41 2 2-up copying 4-up copyingNoteYou cannot adjust the copy size using the Reduce/Enlarge button for making a 2- or 4-up copy.Note2- or 4-up copying reduces your original document by 50%.](https://usermanual.wiki/Samsung-Electronics-Co/CLX2160N/User-Guide-773252-Page-33.png)

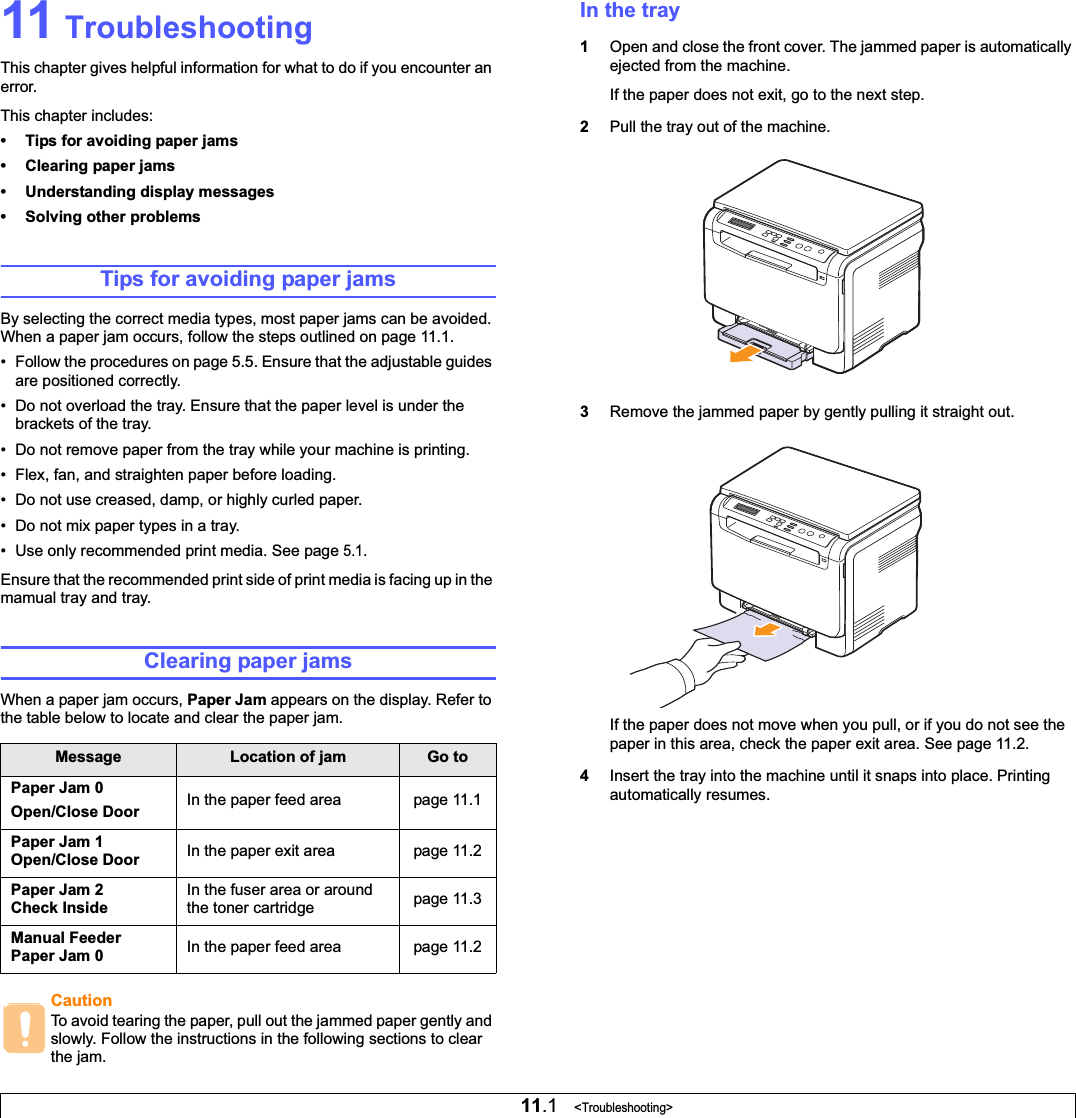

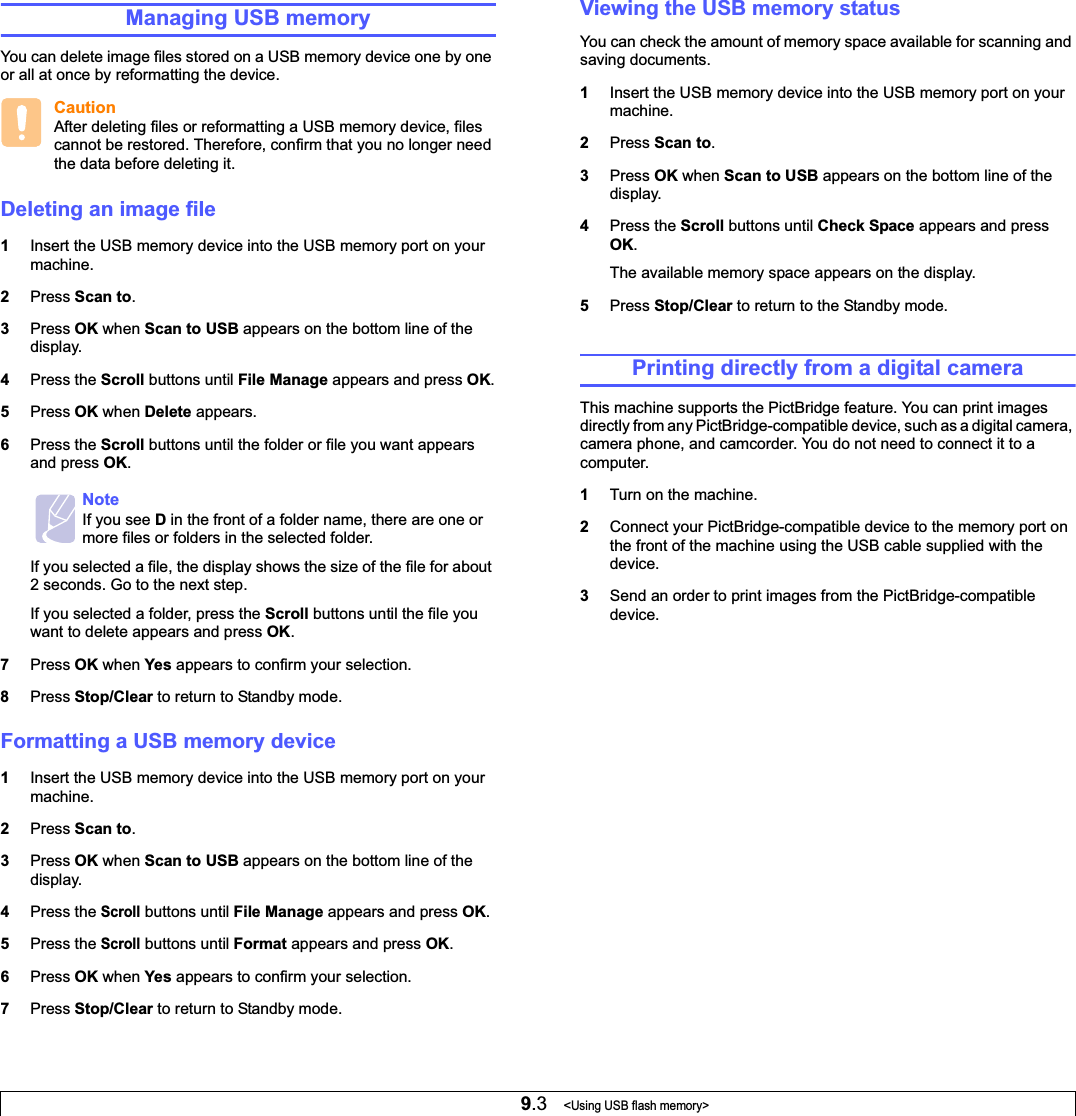

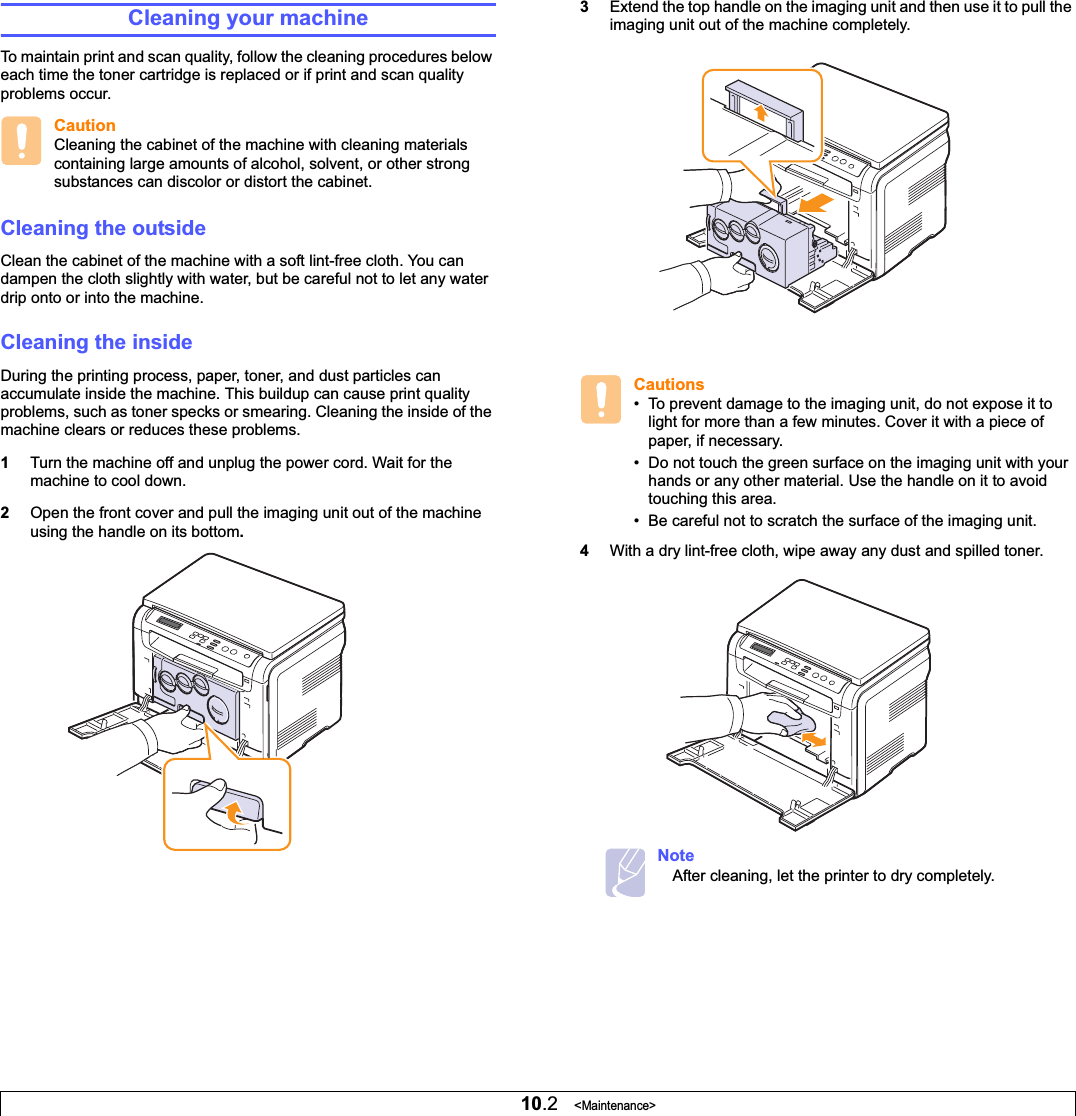

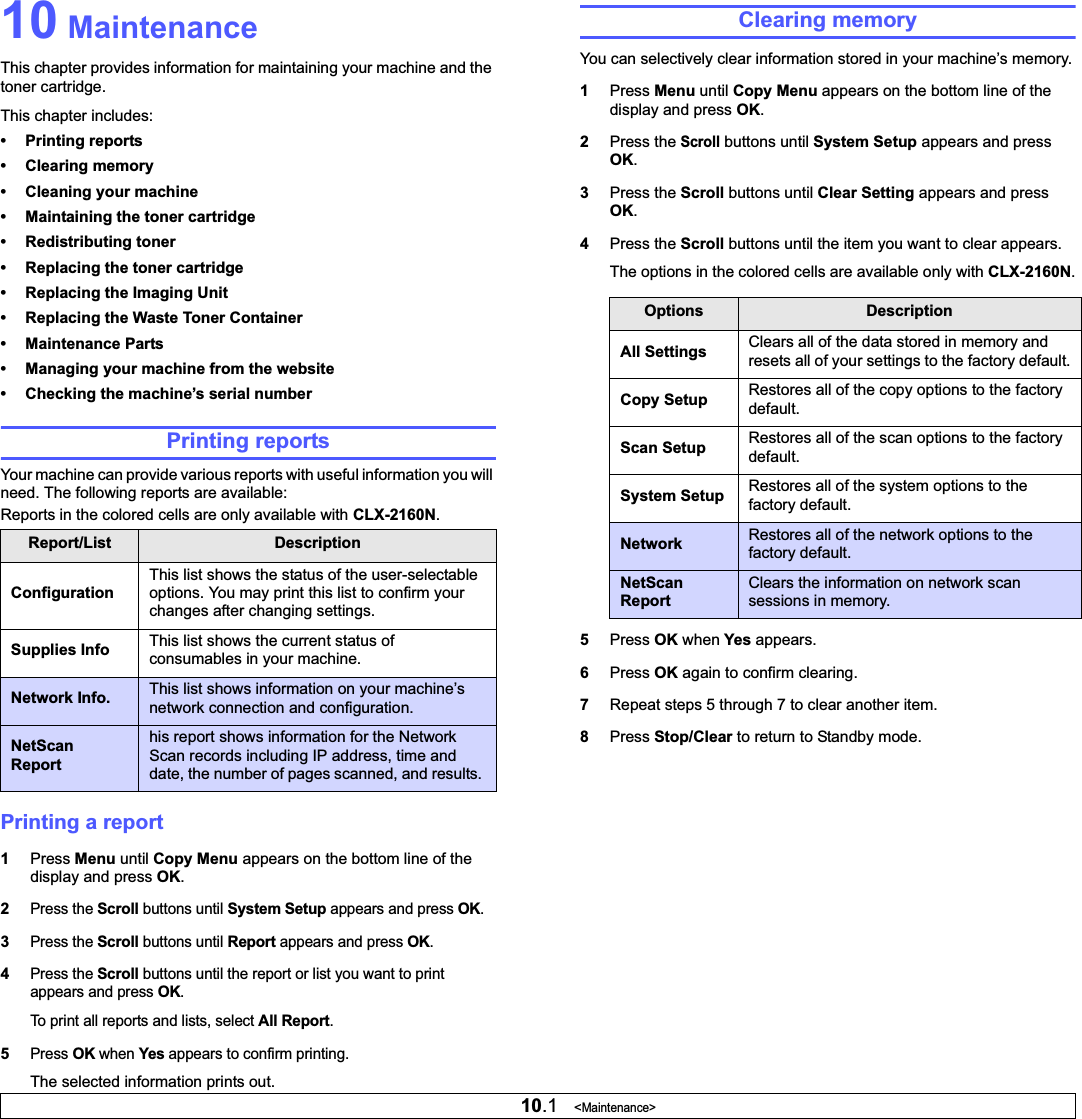

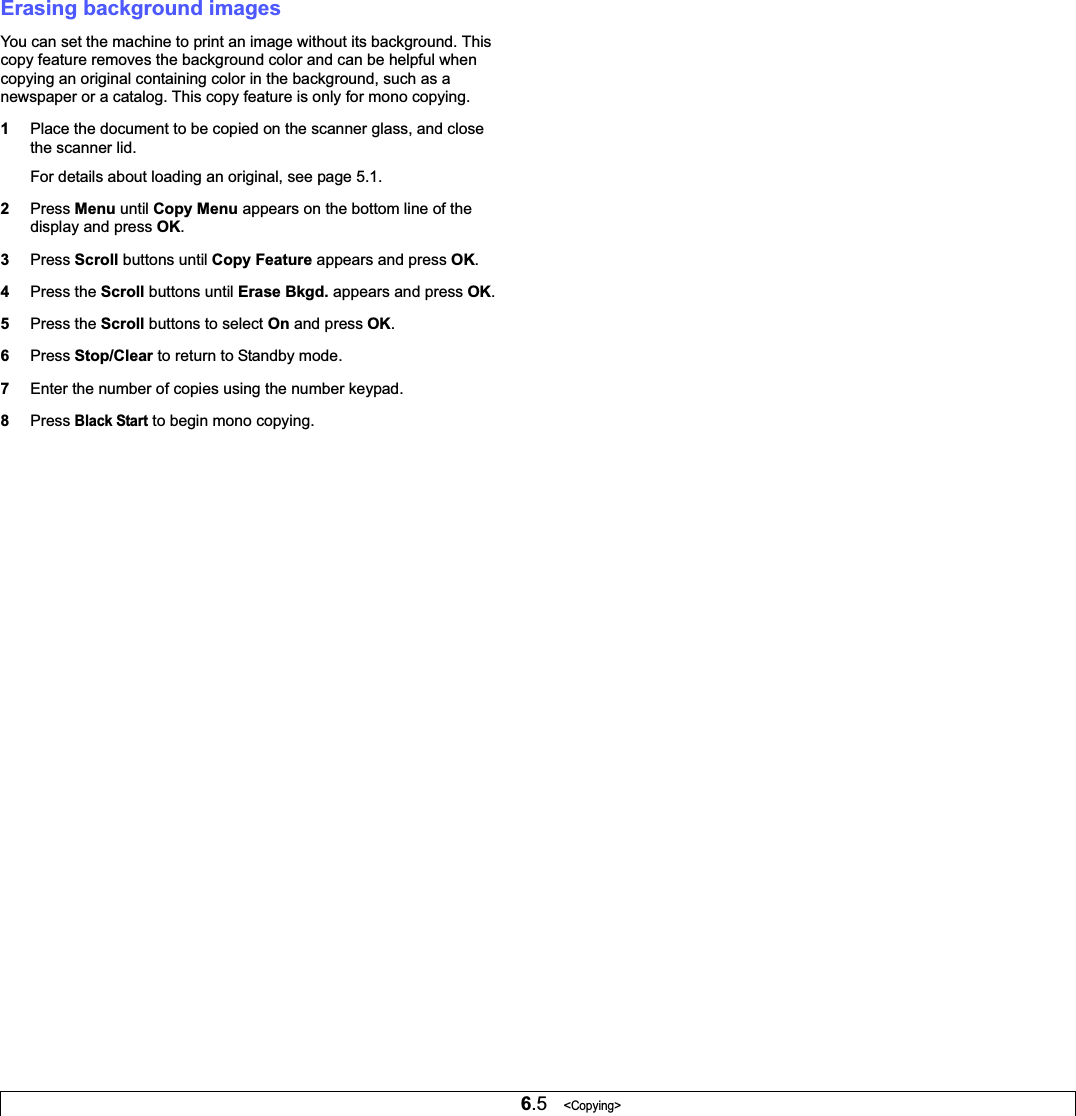

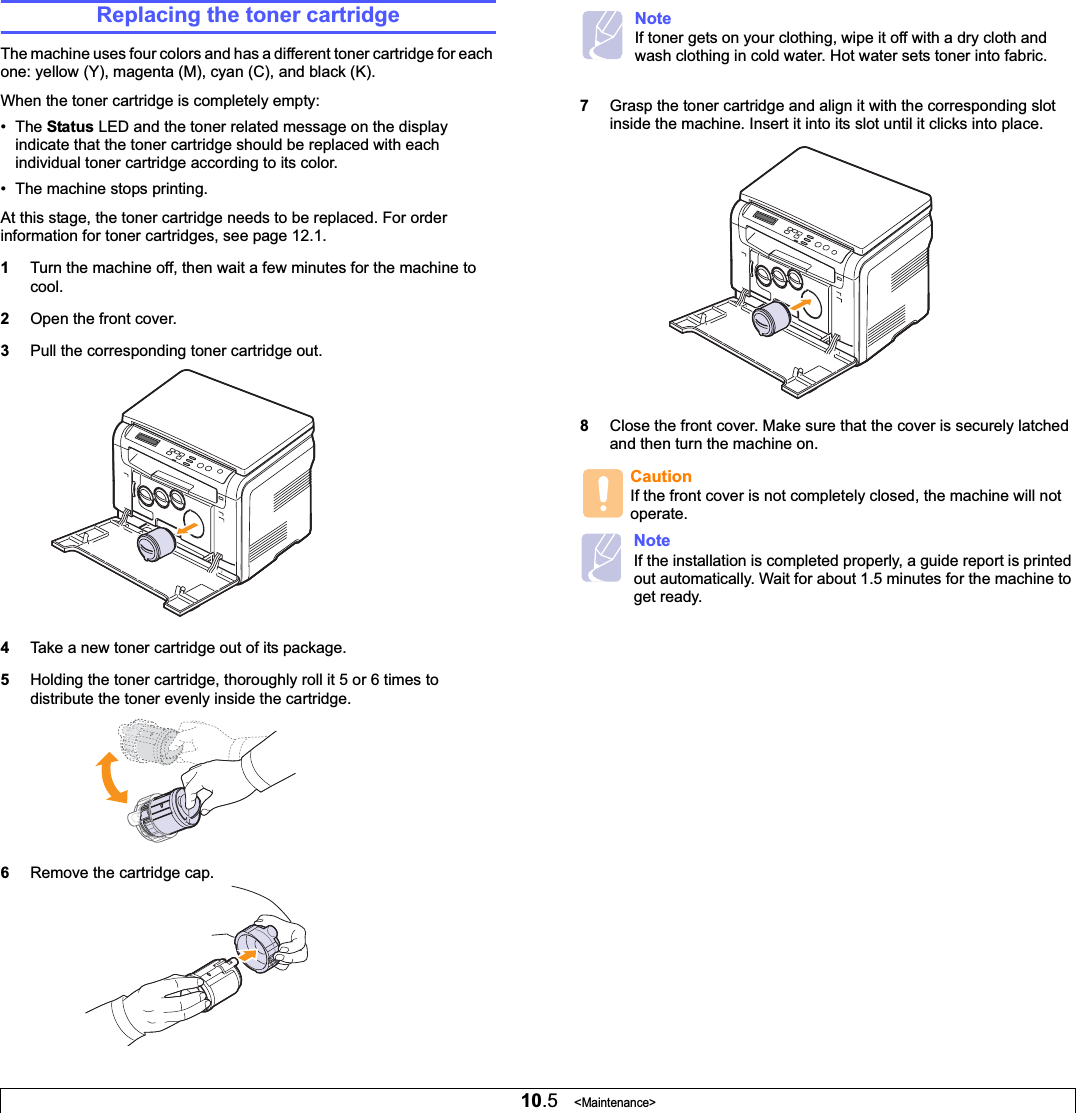

![11.4 <Troubleshooting>Install Toner The color toner cartridge is not installed. The arrow indicates which color toner cartridge.Install the color toner cartridge.Install Imaging UnitThe corresponding Imaging Unit of the machine is not installed.Install Imaging Unit into your machine.Invalid Toner The color toner cartridge you have installed is not for your machine. The arrow indicates which color toner cartridge.Install the a Samsung-genuine color toner cartridge designed for your machine.Invalid Imaging UnitThe Imaging Unit of the machine is not for your machine. Install the a Samsung-genuine part designed for your machine.Low Heat ErrorCycle PowerThere is a problem in the fuser unit.Unplug the power cord and plug it back in. If the problem persists, please call for service.LSU Hsync ErrorCycle PowerA problem has occurred in the LSU (Laser Scanning Unit).Unplug the power cord and plug it back in. If the problem persists, please call for service.LSU Motor ErrorCycle PowerA problem has occurred in the LSU (Laser Scanning Unit).Unplug the power cord and plug it back in. If the problem persists, please call for service.Main Motor LockedThere is a problem in the main motor.Open and then close the front cover.Manual Feeder Paper EmptyThere is no paper in the manual feeder.Load paper in the manaul feeder.Manual Feeder Paper Jam 0Paper has jammed in the feeding area of the manual feeder.Clear the jam. See page 11.2.Not Enough SpaceIn USB MemoryThe space for USB memory device is not enough, which is for scanning and saving.Check the available USB memory space. See page 9.3.Message Meaning Suggested solutionsOpen Heat ErrorCycle PowerThere is a problem in the fuser unit.Unplug the power cord and plug it back in. If the problem persists, please call for service.Out-Bin Full The output tray of the machine is full of paper.Remove paper.Over Heat ErrorCycle PowerThere is a problem in the fuser unit.Unplug the power cord and plug it back in. If the problem persists, please call for service.Paper Jam 0Open/Close DoorPaper has jammed in the feeding area of the tray.Clear the jam. See page 11.1, 11.2.Paper Jam 1Open/Close DoorPaper has jammed in the paper exit area.Clear the jam. See page 11.2.Paper Jam 2Check InsidePaper has jammed In the fuser area or around the toner cartridgeClear the jam. See page 11.2.Tray Paper MismatchThe paper size specified in the printer properties does not match the paper you are loading.Load the correct paper in the tray 1.Refilled Toner The toner cartridge you have installed is not genuine or refilled. The arrow indicates which color toner cartridge.The print quality may get poor if the refilled toner cartridge is installed, since its characteristics may significantly differ from the genuine. We recommend Samsung-genuine color toner cartridge.Replace Toner This message appears between Toner Empty and Toner Low status. The arrow indicates which color toner cartridge.Replace the toner cartridge with a new one. See page 10.5.Replace [zzz]* zzz indicates the part of the machine.The life of the part expires totally.Replace the part with a new one. Call for service.Message Meaning Suggested solutions](https://usermanual.wiki/Samsung-Electronics-Co/CLX2160N/User-Guide-773252-Page-55.png)

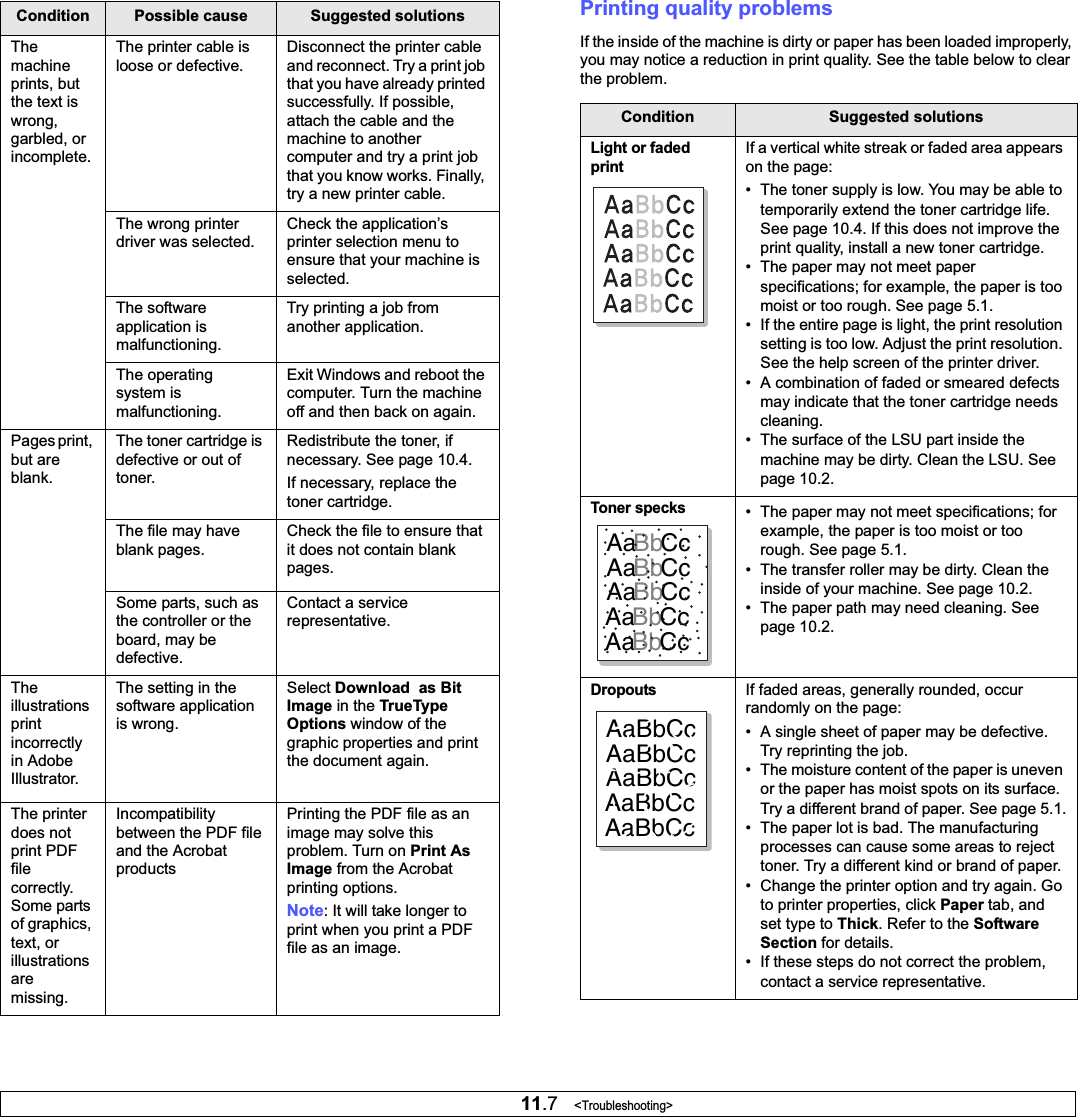

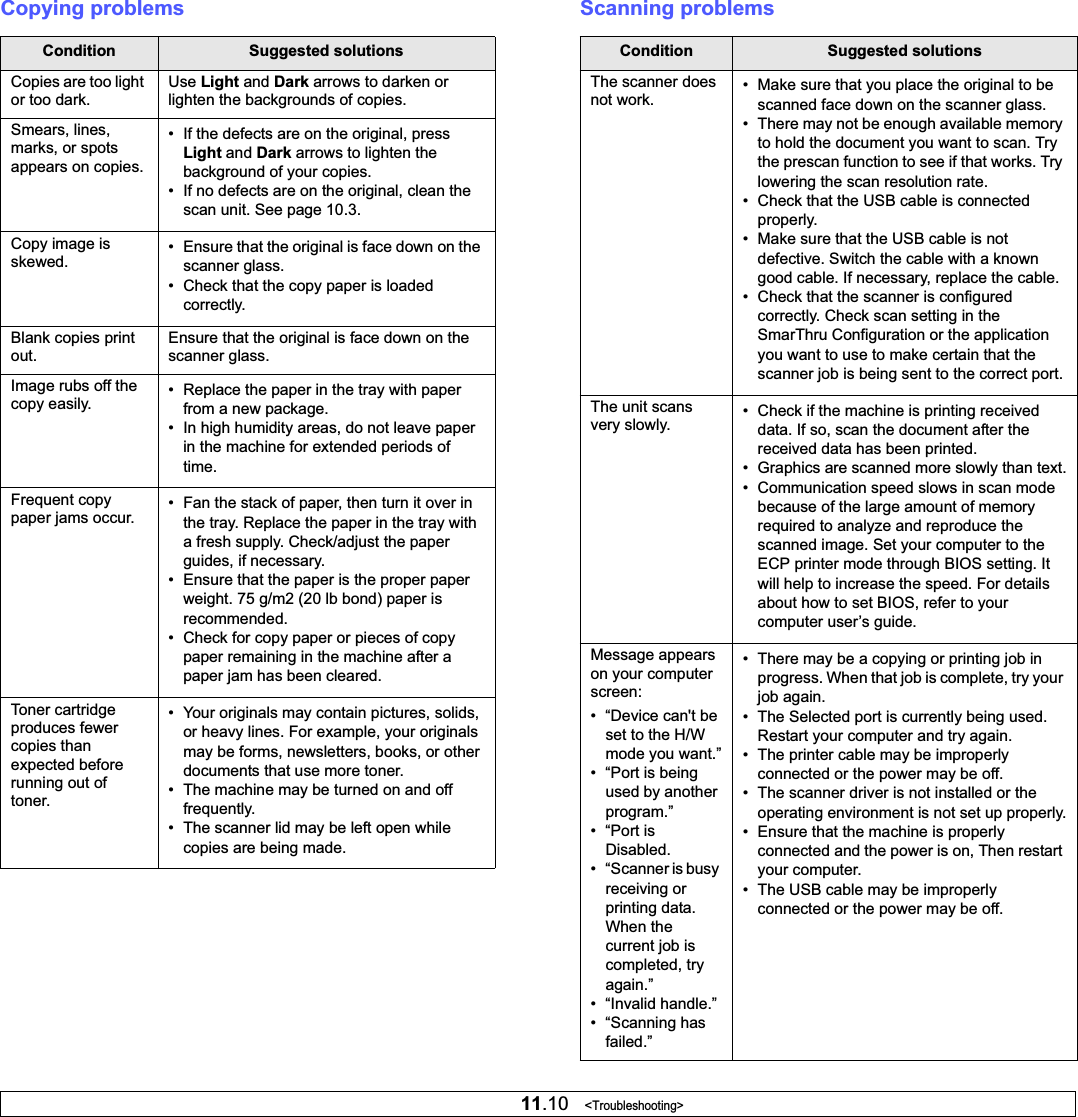

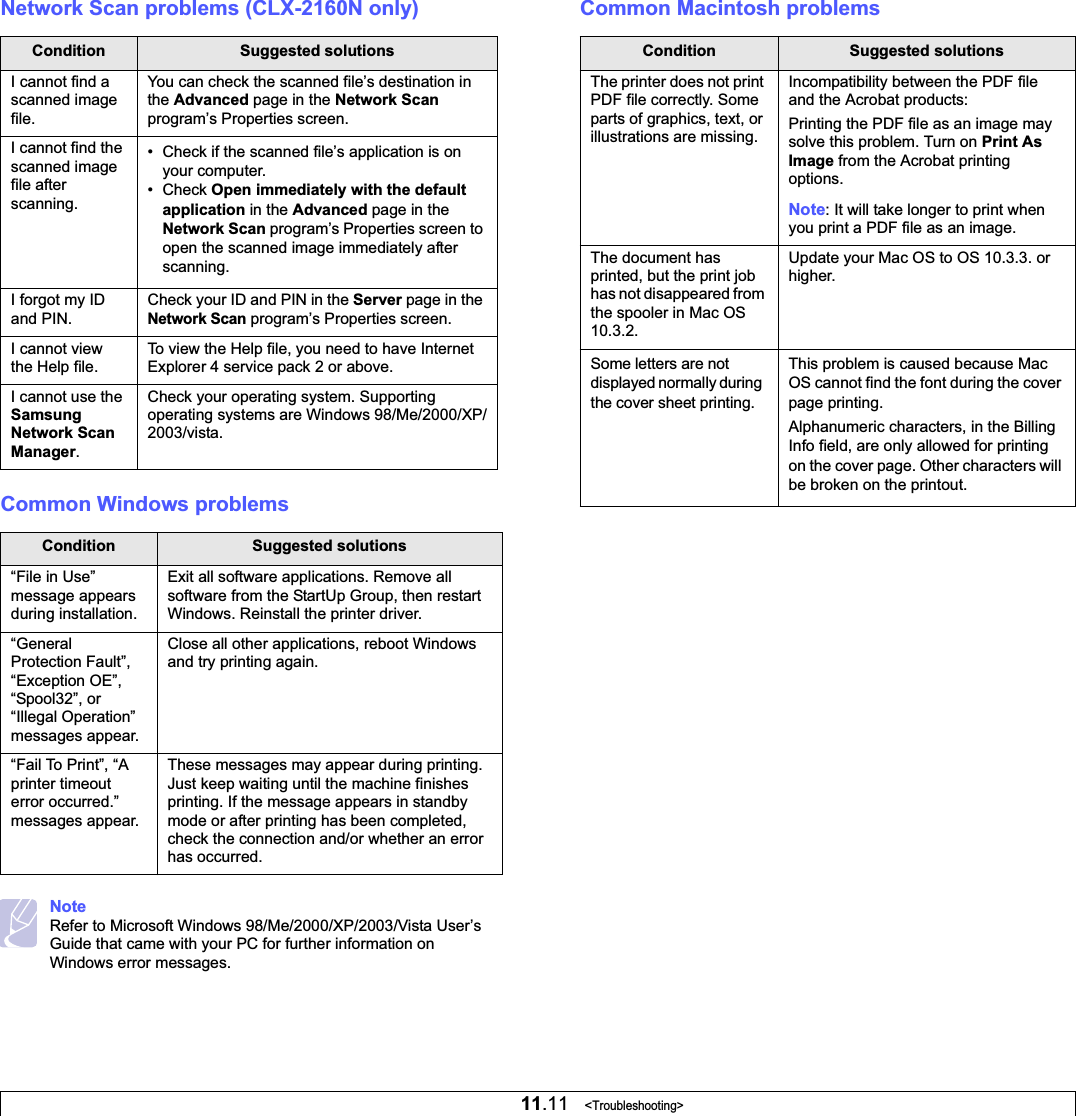

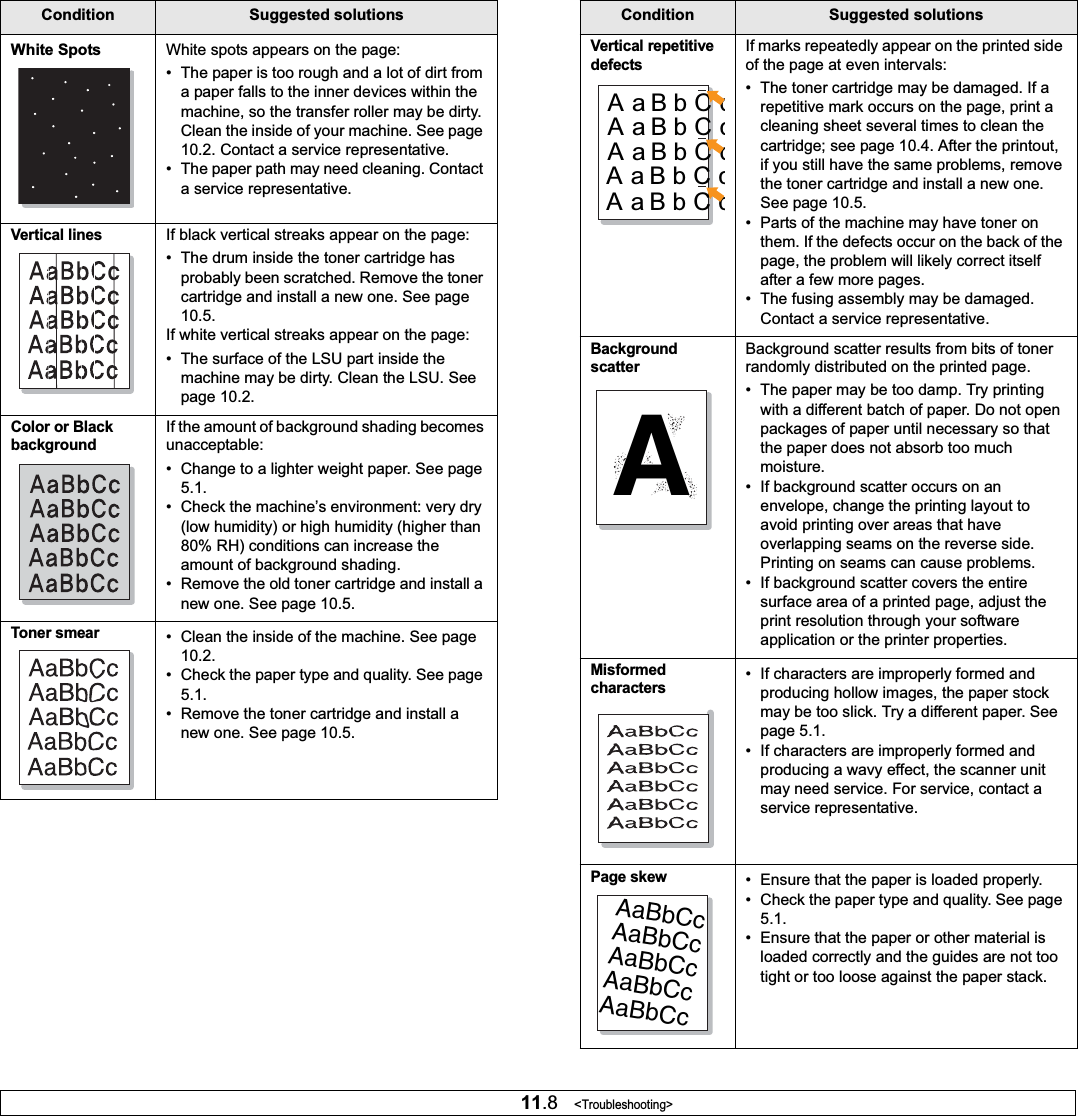

![11.5 <Troubleshooting>Replace [zzz] Soon* xxx indicates the part of the machine.The life of the part expires soon.See page 10.9 and call for service.Replace/Install Waste Toner TankThe life span of the waste toner tank has expired and the printer will stop printing until a new waste toner tank is placed into the printer.See page 10.8Scanner locked The scanner module is lockedUnlock the scanner and press Stop/Clear.Transfer Belt ErrorA problem has occurred in the transfer belt in the machine.Unplug the power cord and plug it back in. If the problem persists, please call for service.Tray Paper EmptyThere is no paper in the tray 1.Load paper in the tray 1. See page 5.5.Message Meaning Suggested solutions Solving other problemsThe following chart lists some conditions that may occur and the recommended solutions. Follow the suggested solutions until the problem is corrected. If the problem persists, please call for service.Paper feeding problemsCondition Suggested solutionsPaper is jammed during printing.Clear the paper jam. See page 11.1.Paper sticks together.• Ensure that there is not too much paper in the tray. The tray can hold up to 150 sheets of paper, depending on the thickness of your paper.• Make sure that you are using the correct type of paper. See page 5.3.• Remove paper from the tray and flex or fan the paper.• Humid conditions may cause some paper to stick together.Multiple sheets of paper do not feed.• Different types of paper may be stacked in the tray. Load paper of only one type, size, and weight.• If multiple sheets have caused a paper jam, clear the paper jam. See page 11.1.Paper does not feed into the machine.• Remove any obstructions from inside the machine.• Paper has not been loaded correctly. Remove paper from the tray and reload it correctly.• There is too much paper in the tray. Remove excess paper from the tray.• The paper is too thick. Use only paper that meets the specifications required by the machine. See page 5.1.The paper keeps jamming.• There is too much paper in the tray. Remove excess paper from the tray. If you are printing on special materials, use the mamual tray.• An incorrect type of paper is being used. Use only paper that meets the specifications required by the machine. See page 5.1.• There may be debris inside the machine. Open the front cover and remove the debris.Transparencies stick together in the paper exit.Use only transparencies specifically designed for laser printers. Remove each transparency as it exits from the machine.Envelopes skew or fail to feed correctly.Ensure that the paper guides are against both sides of the envelopes.](https://usermanual.wiki/Samsung-Electronics-Co/CLX2160N/User-Guide-773252-Page-56.png)

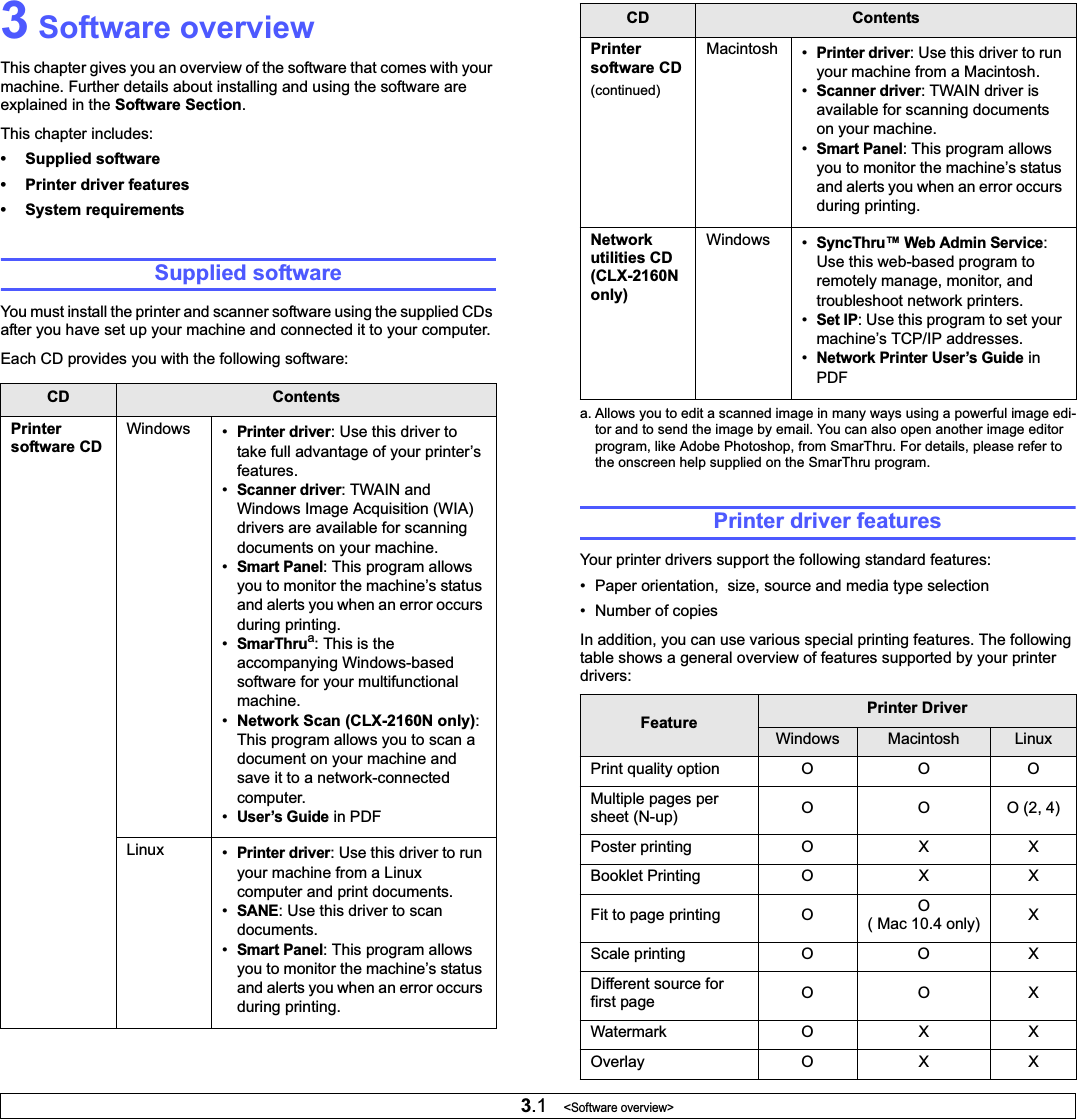

![Installing Printer Software in Windows63Click Next.• If necessary, select a language from the drop-down list.•View User’s Guide: Allows you to view the User’s Guide. If your computer doesn’t have Adobe Acrobat, click on this option and it will automatically install Adobe Acrobat Reader for you.4Select Custom installation. Click Next.5Select your printer and click Next.NOTE: If your printer is not already connected to the computer, the following window will appear.• After connecting the printer, click Next.• If you don’t want to connect the printer at this time, click Next, and No on the following screen. Then the installation will start and a test page will not be printed at the end of the installation.• The installation window that appears in this User’s Guide may differ depending on the printer and interface in use.6Select the components to be installed and click Next.NOTE: You can change the desired installation folder by clicking [Browse].7After the installation is finished, a window asking you to print a test page appears. If you choose to print a test page, select the checkbox and click Next.Otherwise, just click Next and skip to step 9.8If the test page prints out correctly, click Yes.If not, click No to reprint it.](https://usermanual.wiki/Samsung-Electronics-Co/CLX2160N/User-Guide-773252-Page-77.png)
![Installing Printer Software in Windows85The list of printers available on the network appears. Select the printer you want to install from the list and then click Next.• If you do not see your printer on the list, click Update to refresh the list, or select Add TCP/IP Port to add your printer to the network. To add the printer to the network, enter the port name and the IP address for the printer.To verify your printer’s IP address or the MAC address, print a Network Configuration page.• To find a shared network printer (UNC Path), select Shared Printer [UNC] and enter the shared name manually or find a shared printer by clicking the Browsebutton.NOTE: If you cannot find your machine in network, please turn off the firewall and click Update.6After the installation is finished, a window appears asking you to print a test page and to register yourself as a user of Samsung Printers in order to receive information from Samsung. If you so desire, select the corresponding checkbox(es) and click Finish.Otherwise, just click Finish.NOTE: After setup is complete, if your printer driver doesn’t work properly, reinstall the printer driver. See “Reinstalling Printer Software” on page 10.Custom InstallationYou can choose individual components to install and set a specific IP address.1Make sure that the printer is connected to your network and powered on. For details about connecting to the network, see the supplied printer’s User’s Guide.2Insert the supplied CD-ROM into your CD-ROM drive.The CD-ROM should automatically run, and an installation window appears.If the installation window does not appear, click Start and then Run. Type X:\Setup.exe, replacing “X” with the letter which represents your drive and click OK.If you use Windows Vista, click Start and type X:\Setup.exeinStart Search input box.3Click Next.• If necessary, select a language from the drop-down list.•View User’s Guide: Allows you to view the User’s Guide. If your computer doesn’t have Adobe Acrobat, click on this option and it will automatically install Adobe Acrobat Reader for you.](https://usermanual.wiki/Samsung-Electronics-Co/CLX2160N/User-Guide-773252-Page-79.png)
![Installing Printer Software in Windows94Select Custom installation. Click Next.5The list of printers available on the network appears. Select the printer you want to install from the list and then click Next.• If you do not see your printer on the list, click Update to refresh the list, or select Add TCP/IP Port to add your printer to the network. To add the printer to the network, enter the port name and the IP address for the printer.To verify your printer’s IP address or the MAC address, print a Network Configuration page.• To find a shared network printer (UNC Path), select Shared Printer [UNC] and enter the shared name manually or find a shared printer by clicking the Browsebutton.NOTE: If you cannot find your machine in network, please turn off the firewall and click Update.TIP: If you want to set a specific IP address on a specific network printer, click the Set IP Address button. The Set IP Address window appears. Do as follows:a. Select a printer to be set with a specific IP address from the list.b. Configure an IP address, subnet mask, and gateway for the printer manually and click Configure to set the specific IP address for the network printer.c. Click Next.6Select the components to be installed. After selecting the components, the following window appears. You can also change the printer name, set the printer to be shared on the network, set the printer as the default printer, and change the port name of each printer. Click Next.To install this software on a server, select the Setting up this printer on a server checkbox.7After the installation is finished, a window appears asking you to print a test page and to register yourself as a user of Samsung Printers in order to receive information from Samsung. If you so desire, select the corresponding checkbox(es) and click Finish.](https://usermanual.wiki/Samsung-Electronics-Co/CLX2160N/User-Guide-773252-Page-80.png)
![Installing Printer Software in Windows10Otherwise, just click Finish.NOTE: After setup is complete, if your printer driver doesn’t work properly, reinstall the printer driver. See “Reinstalling Printer Software” on page 10.Reinstalling Printer SoftwareYou can reinstall the software if installation fails.1Start Windows.2From the Start menu select Programs or All Programsoyour printer driver name oMaintenance.3Select Repair and click Next.4The list of printers available on the network appears. Select the printer you want to install from the list and then click Next.• If you do not see your printer on the list, click Update to refresh the list, or select Add TCP/IP Port to add your printer to the network. To add the printer to the network, enter the port name and the IP address for the printer.• To find a shared network printer (UNC Path), select Shared Printer [UNC] and enter the shared name manually or find a shared printer by clicking the Browsebutton.You will see a component list so that you can reinstall any item individually.NOTE: If your printer is not already connected to the computer, the following window will appear.• After connecting the printer, click Next.• If you don’t want to connect the printer at this time, click Next, and No on the following screen. Then the installation will start and a test page will not be printed at the end of the installation.• The reinstallation window that appears in this User’s Guide may differ depending on the printer and interface in use.5Select the components you want to reinstall and click Next.If you installed the printer software for local printing and you select your printer driver name, the window asking you to print a test page appears. Do as follows:a. To print a test page, select the check box and click Next.b. If the test page prints out correctly, click Yes.If it doesn’t, click No to reprint it.6When the reinstallation is done, click Finish.](https://usermanual.wiki/Samsung-Electronics-Co/CLX2160N/User-Guide-773252-Page-81.png)

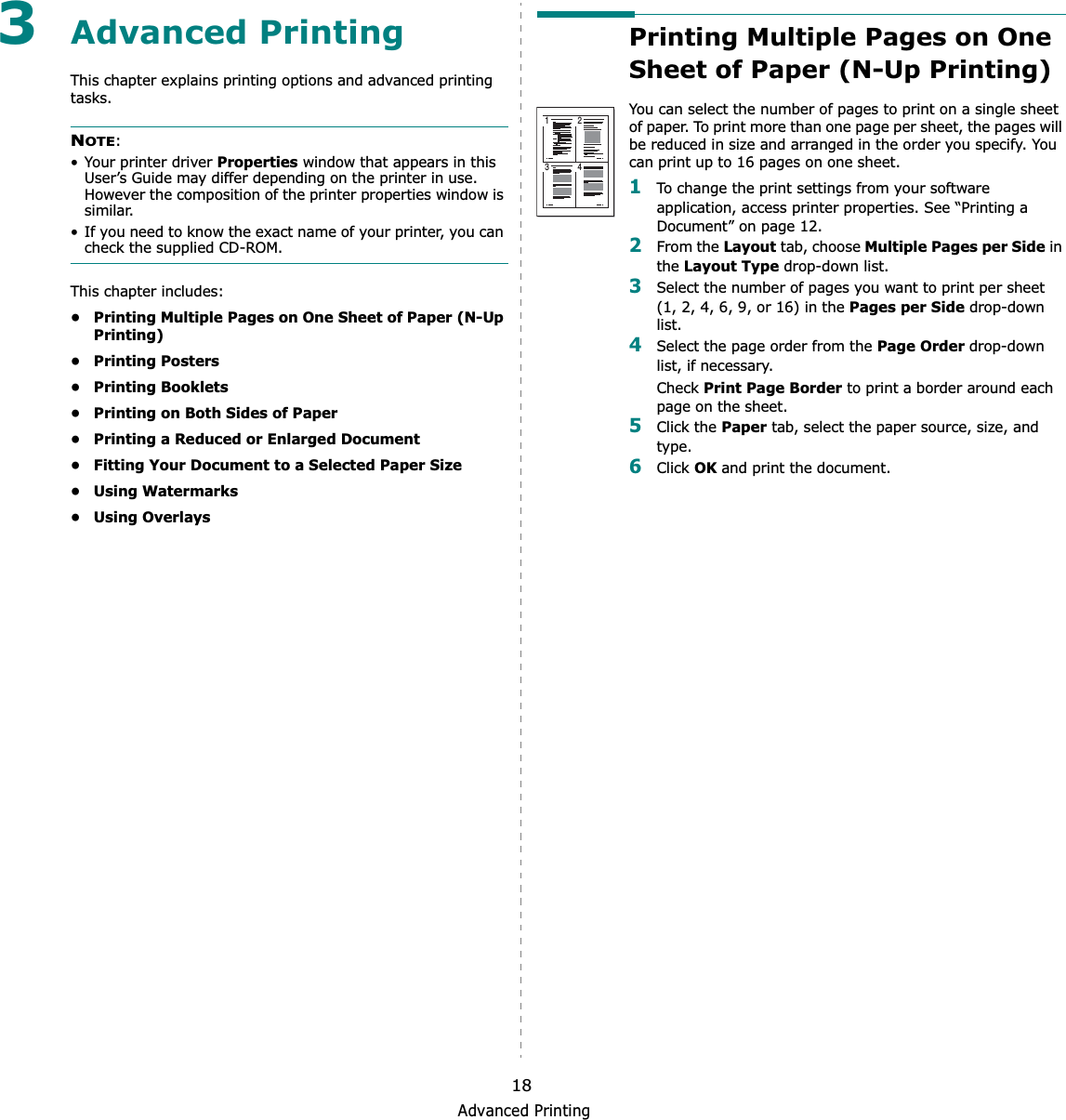

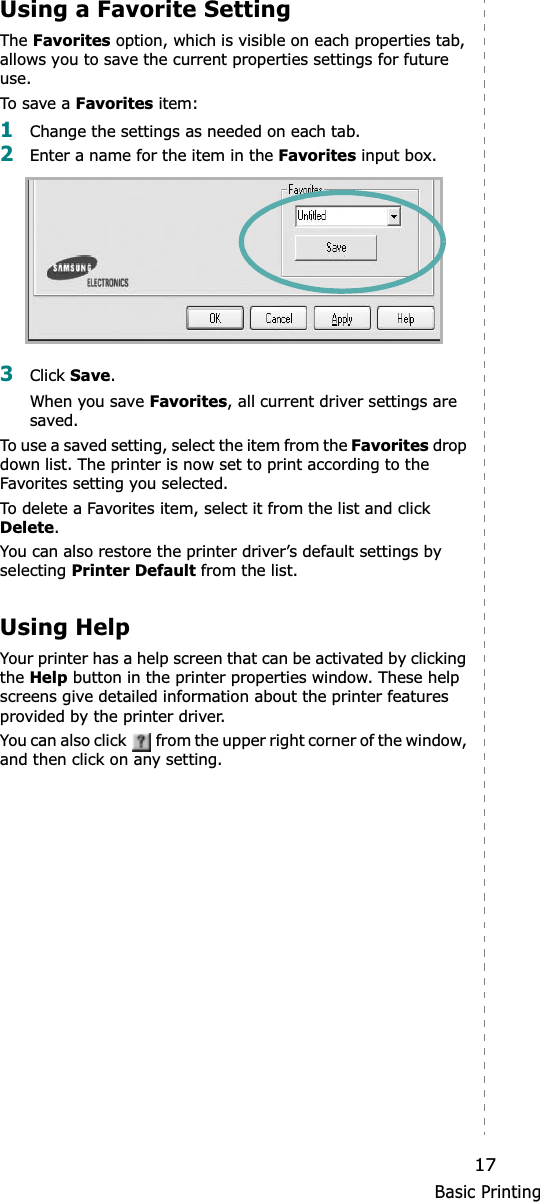

![Using Your Printer in Linux297Using Your Printer in LinuxYou can use your machine in a Linux environment. This chapter includes:• Getting Started• Installing the Unified Linux Driver• Using the Unified Driver Configurator• Configuring Printer Properties• Printing a Document• Scanning a DocumentGetting StartedThe supplied CD-ROM provides you with Samsung’s Unified Linux Driver package for using your machine with a Linux computer.Samsung’s Unified Linux Driver package contains printer and scanner drivers, providing the ability to print documents and scan images. The package also delivers powerful applications for configuring your machine and further processing of the scanned documents.After the driver is installed on your Linux system, the driver package allows you to monitor a number of machine devices via fast ECP parallel ports and USB simultaneously. The acquired documents can then be edited, printed on the same local or network machine devices, sent by e-mail, uploaded to an FTP site, or transferred to an external OCR system.The Unified Linux Driver package is supplied with a smart and flexible installation program. You don't need to search for additional components that might be necessary for the Unified Linux Driver software: all required packages will be carried onto your system and installed automatically; this is possible on a wide set of the most popular Linux clones.Installing the Unified Linux DriverInstalling the Unified Linux Driver1Make sure that you connect your machine to your computer. Turn both the computer and the machine on.2When the Administrator Login window appears, type in root in the Login field and enter the system password.NOTE: You must log in as a super user (root) to install the printer software. If you are not a super user, ask your system administrator.3Insert the printer software CD-ROM. The CD-ROM will automatically run.If the CD-ROM does not automatically run, click the icon at the bottom of the desktop. When the Terminal screen appears, type in:If the CD-ROM is secondary master and the location to mount is /mnt/cdrom,[root@localhost root]#mount -t iso9660 /dev/hdc /mnt/cdrom[root@localhost root]#cd /mnt/cdrom/Linux[root@localhost root]#./install.sh NOTE: The installation program runs automatically if you have an autorun software package installed and configured.4When the welcome screen appears, click Next.](https://usermanual.wiki/Samsung-Electronics-Co/CLX2160N/User-Guide-773252-Page-100.png)

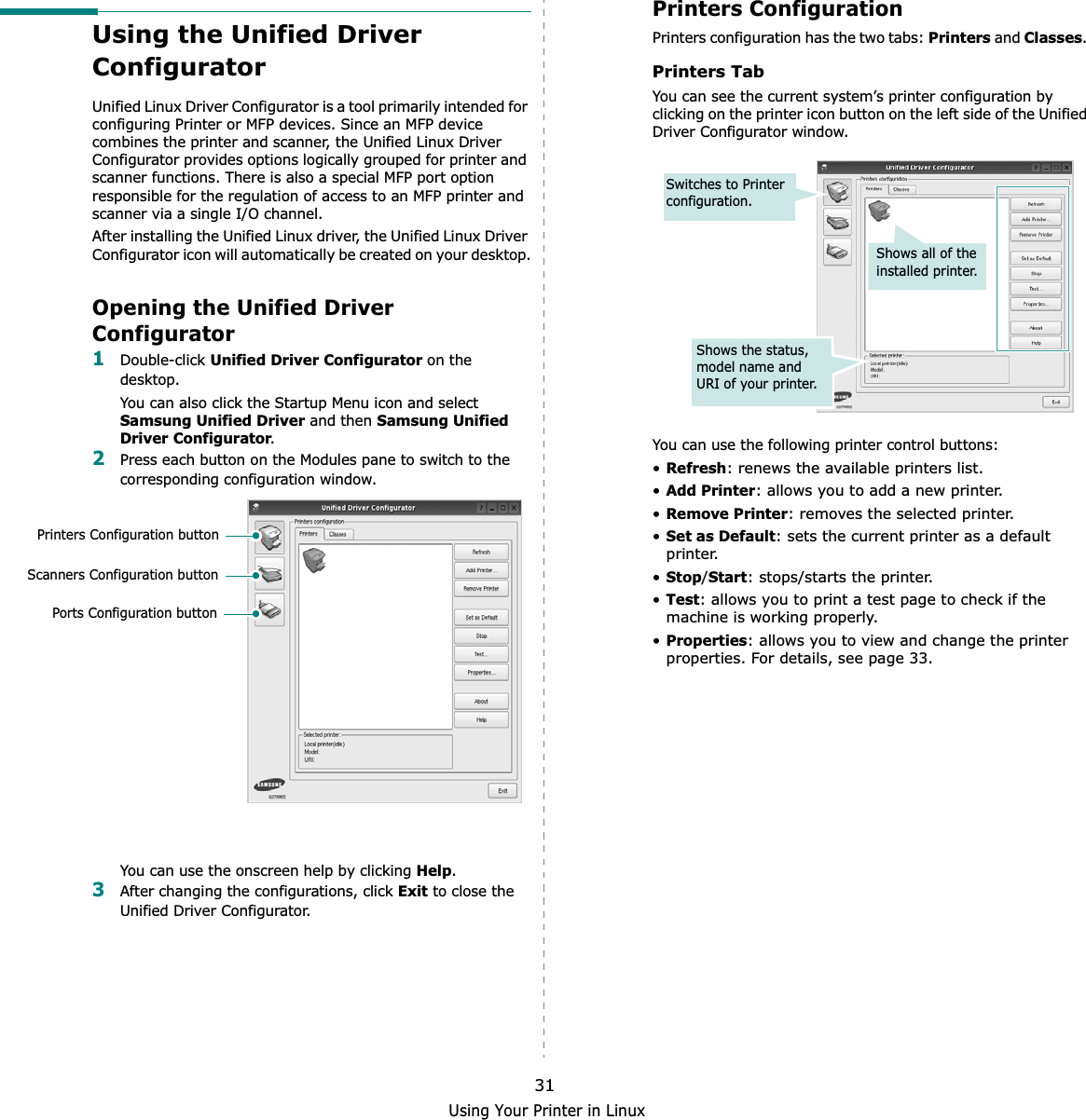

![Using Your Printer in Linux305When the installation is complete, click Finish.The installation program has added the Unified Driver Configurator desktop icon and Samsung Unified Driver group to the system menu for your convenience. If you have any difficulties, consult the onscreen help that is available through your system menu or can otherwise be called from the driver package windows applications, such as Unified Driver Configurator or Image Manager.Uninstalling the Unified Linux Driver1When the Administrator Login window appears, type in root in the Login field and enter the system password.NOTE: You must log in as a super user (root) to install the printer software. If you are not a super user, ask your system administrator.2Insert the printer software CD-ROM. The CD-ROM will automatically run.If the CD-ROM does not automatically run, click the icon at the bottom of the desktop. When the Terminal screen appears, type in:If the CD-ROM is secondary master and the location to mount is /mnt/cdrom,[root@localhost root]#mount -t iso9660 /dev/hdc /mnt/cdrom[root@localhost root]#cd /mnt/cdrom/Linux[root@localhost root]#./uninstall.sh NOTE: The installation program runs automatically if you have an autorun software package installed and configured.3Click Uninstall.4Click Next.5Click Finish.](https://usermanual.wiki/Samsung-Electronics-Co/CLX2160N/User-Guide-773252-Page-101.png)
