CSE 7839LColor MonitorOwner’sInstructionsCSH7839-E 10/8/98 10:29 AM Page i

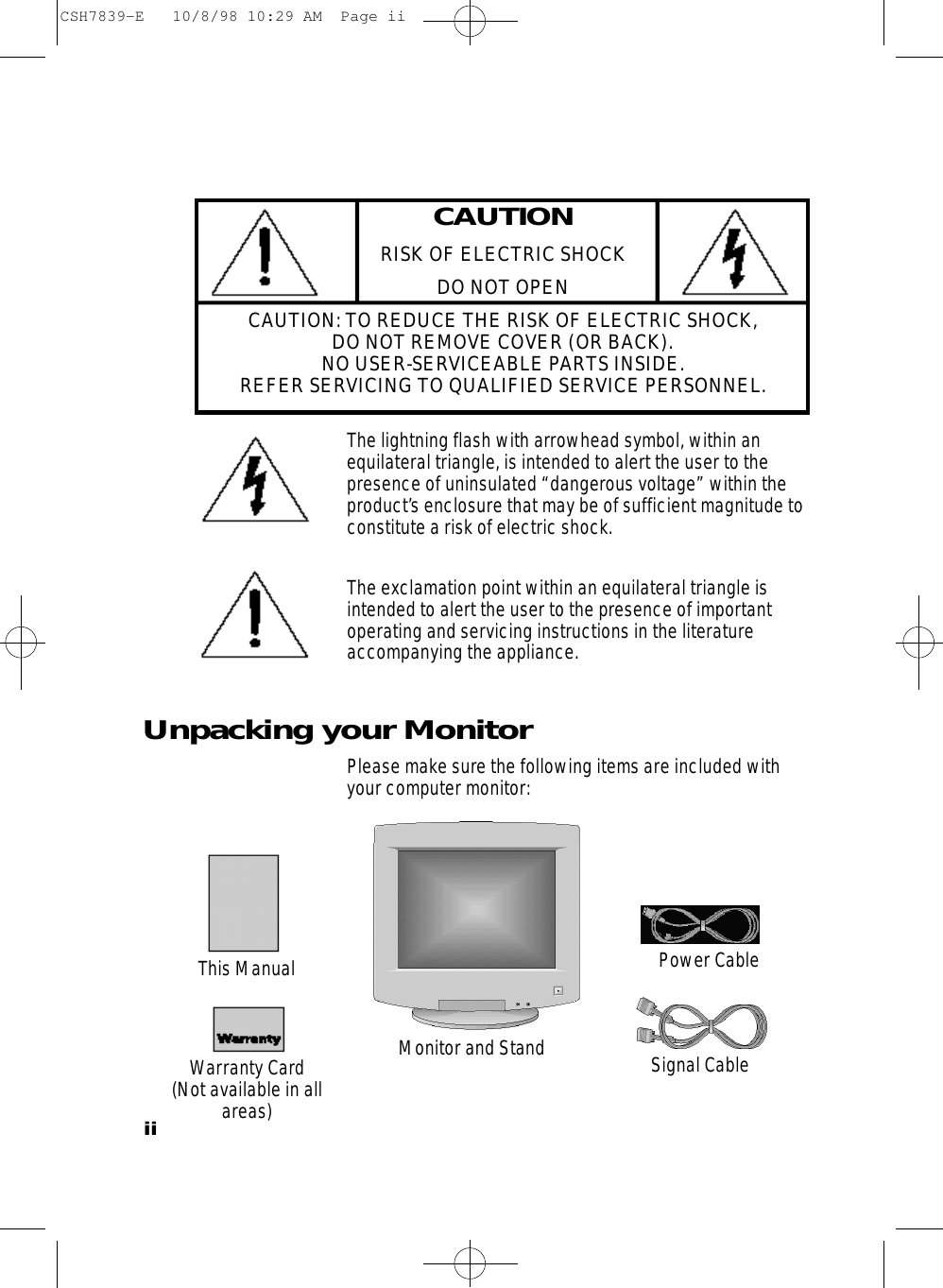

iiC A U T I O NRISK OF ELECTRIC SHOCKDO NOT OPENCAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to thepresence of uninsulated “dangerous voltage” within theproduct’s enclosure that may be of sufficient magnitude toconstitute a risk of electric shock.The exclamation point within an equilateral triangle isintended to alert the user to the presence of importantoperating and servicing instructions in the literatureaccompanying the appliance.Unpacking your MonitorPlease make sure the following items are included withyour computer monitor:Monitor and StandPower CableThis ManualWarranty Card (Not available in allareas)Signal CableCSH7839-E 10/8/98 10:29 AM Page ii

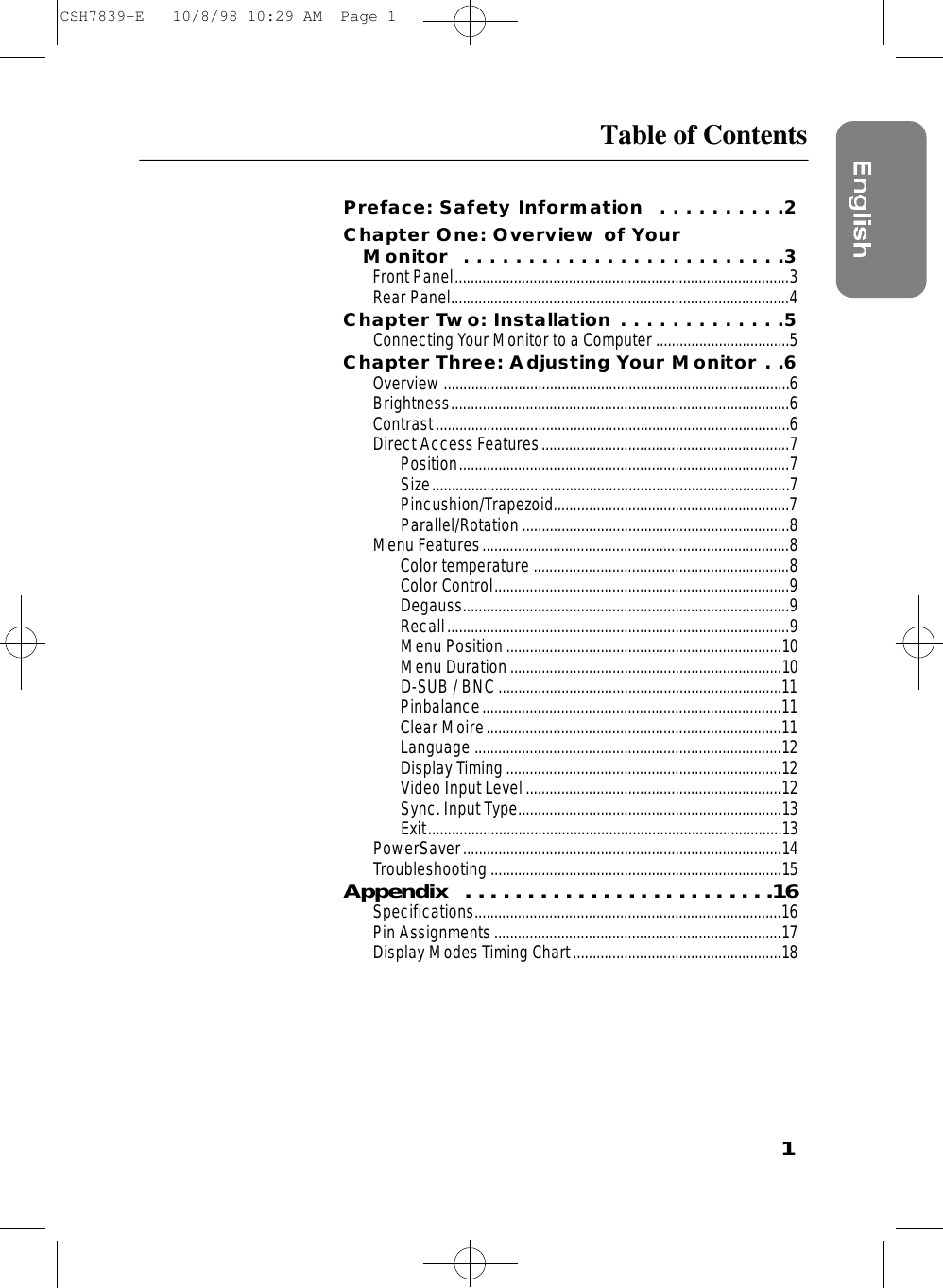

1Table of ContentsPreface: Safety Information . . . . . . . . . .2Chapter One: Overview of Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . .3Front Panel.....................................................................................3Rear Panel......................................................................................4Chapter Two: Installation . . . . . . . . . . . . .5Connecting Your Monitor to a Computer ..................................5Chapter Three: Adjusting Your Monitor . .6Overview........................................................................................6Brightness......................................................................................6Contrast..........................................................................................6Direct Access Features...............................................................7Position....................................................................................7Size...........................................................................................7Pincushion/Trapezoid............................................................7Parallel/Rotation....................................................................8Menu Features..............................................................................8Color temperature .................................................................8Color Control...........................................................................9Degauss...................................................................................9Recall.......................................................................................9Menu Position......................................................................10Menu Duration.....................................................................10D-SUB / BNC ........................................................................11Pinbalance............................................................................11Clear Moire...........................................................................11Language ..............................................................................12Display Timing ......................................................................12Video Input Level.................................................................12Sync. Input Type...................................................................13Exit..........................................................................................13PowerSaver.................................................................................14Troubleshooting..........................................................................15A p p e n d i x . . . . . . . . . . . . . . . . . . . . . . . . .1 6Specifications..............................................................................16Pin Assignments.........................................................................17Display Modes Timing Chart.....................................................18CSH7839-E 10/8/98 10:29 AM Page 1

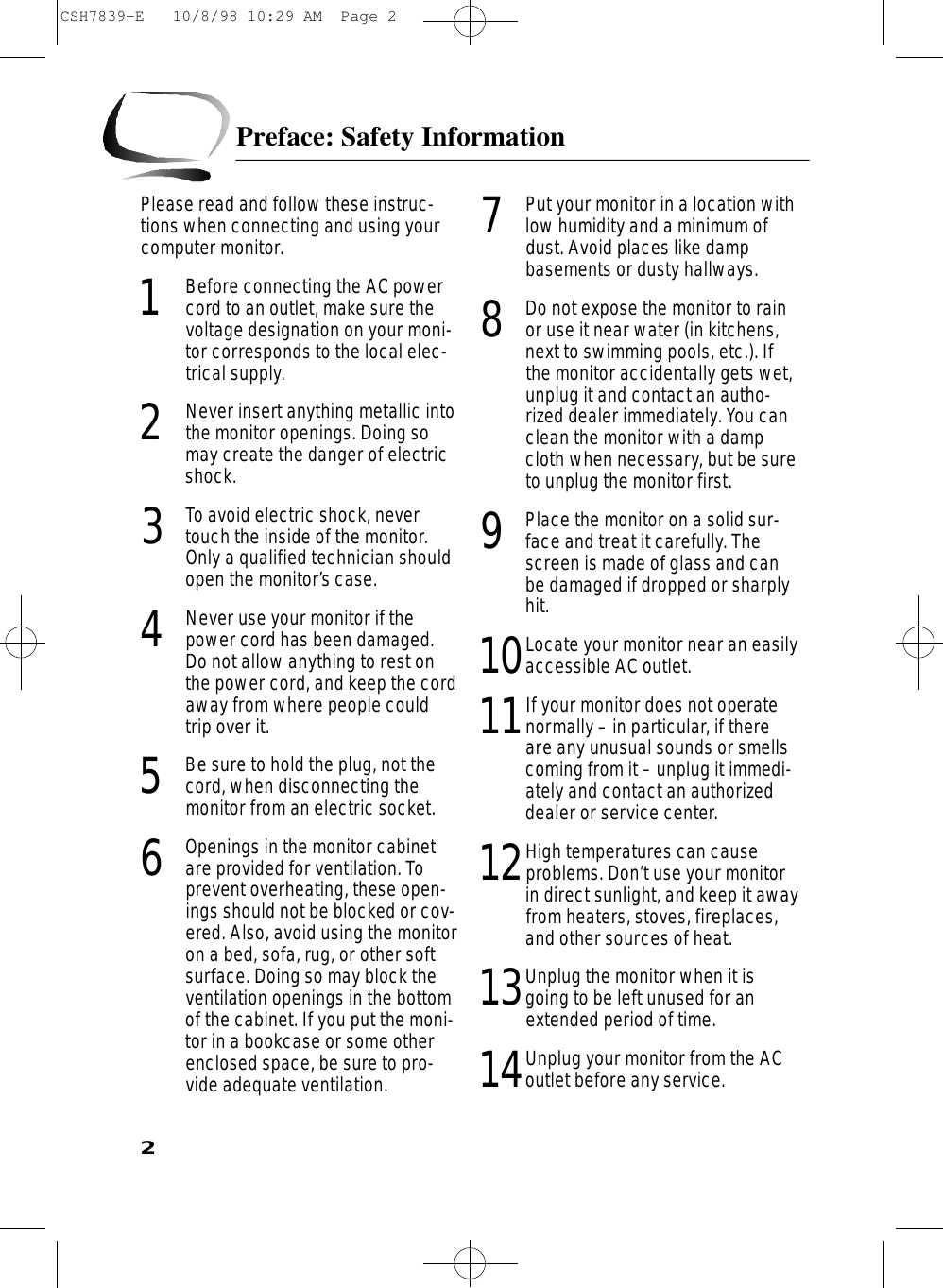

Preface: Safety Information2Please read and follow these instruc-tions when connecting and using yourcomputer monitor.1Before connecting the AC powercord to an outlet, make sure thevoltage designation on your moni-tor corresponds to the local elec-trical supply.2Never insert anything metallic intothe monitor openings. Doing somay create the danger of electricshock.3To avoid electric shock, nevertouch the inside of the monitor.Only a qualified technician shouldopen the monitor’s case.4Never use your monitor if thepower cord has been damaged.Do not allow anything to rest onthe power cord, and keep the cordaway from where people couldtrip over it.5Be sure to hold the plug, not thecord, when disconnecting themonitor from an electric socket.6Openings in the monitor cabinetare provided for ventilation. Toprevent overheating, these open-ings should not be blocked or cov-ered. Also, avoid using the monitoron a bed, sofa, rug, or other softsurface. Doing so may block theventilation openings in the bottomof the cabinet. If you put the moni-tor in a bookcase or some otherenclosed space, be sure to pro-vide adequate ventilation.7Put your monitor in a location withlow humidity and a minimum ofdust. Avoid places like damp basements or dusty hallways.8Do not expose the monitor to rainor use it near water (in kitchens,next to swimming pools, etc.). Ifthe monitor accidentally gets wet,unplug it and contact an autho-rized dealer immediately. You canclean the monitor with a dampcloth when necessary, but be sureto unplug the monitor first.9Place the monitor on a solid sur-face and treat it carefully. Thescreen is made of glass and canbe damaged if dropped or sharplyhit. 10Locate your monitor near an easilyaccessible AC outlet.11If your monitor does not operatenormally – in particular, if thereare any unusual sounds or smellscoming from it – unplug it immedi-ately and contact an authorizeddealer or service center.12High temperatures can causeproblems. Don’t use your monitorin direct sunlight, and keep it awayfrom heaters, stoves, fireplaces,and other sources of heat.13Unplug the monitor when it isgoing to be left unused for anextended period of time.14Unplug your monitor from the ACoutlet before any service.CSH7839-E 10/8/98 10:29 AM Page 2
Chapter One: Overview of Your Monitor3Front Panel1,buttonUse this button to adjust the position or size.2, buttonUse this button to adjust the pincushion/trapezoidor parallel/rotation.3▲,▼,$, % buttonsUse these buttons to choose or adjust items in theon-screen display.4, MENU buttonUse this button to activate the on-screen display, toenter a selection in the on-screen display, or to exitthe on-screen displays.5Power indicatorThis light glows green during normal operation, andblinks amber once as your adjustments are saved.6Power buttonUse this button to turn the monitor on and off.1 2 3 45 6CSH7839-E 10/8/98 10:29 AM Page 3
4Chapter One: Overview of Your MonitorRear Panel1Power portConnect the power cable here.2Signal portConnect your signal cable here.3BNC signal portConnect a BNC signal cable here. (BNC signalcable not included) 312CSH7839-E 10/8/98 10:29 AM Page 4

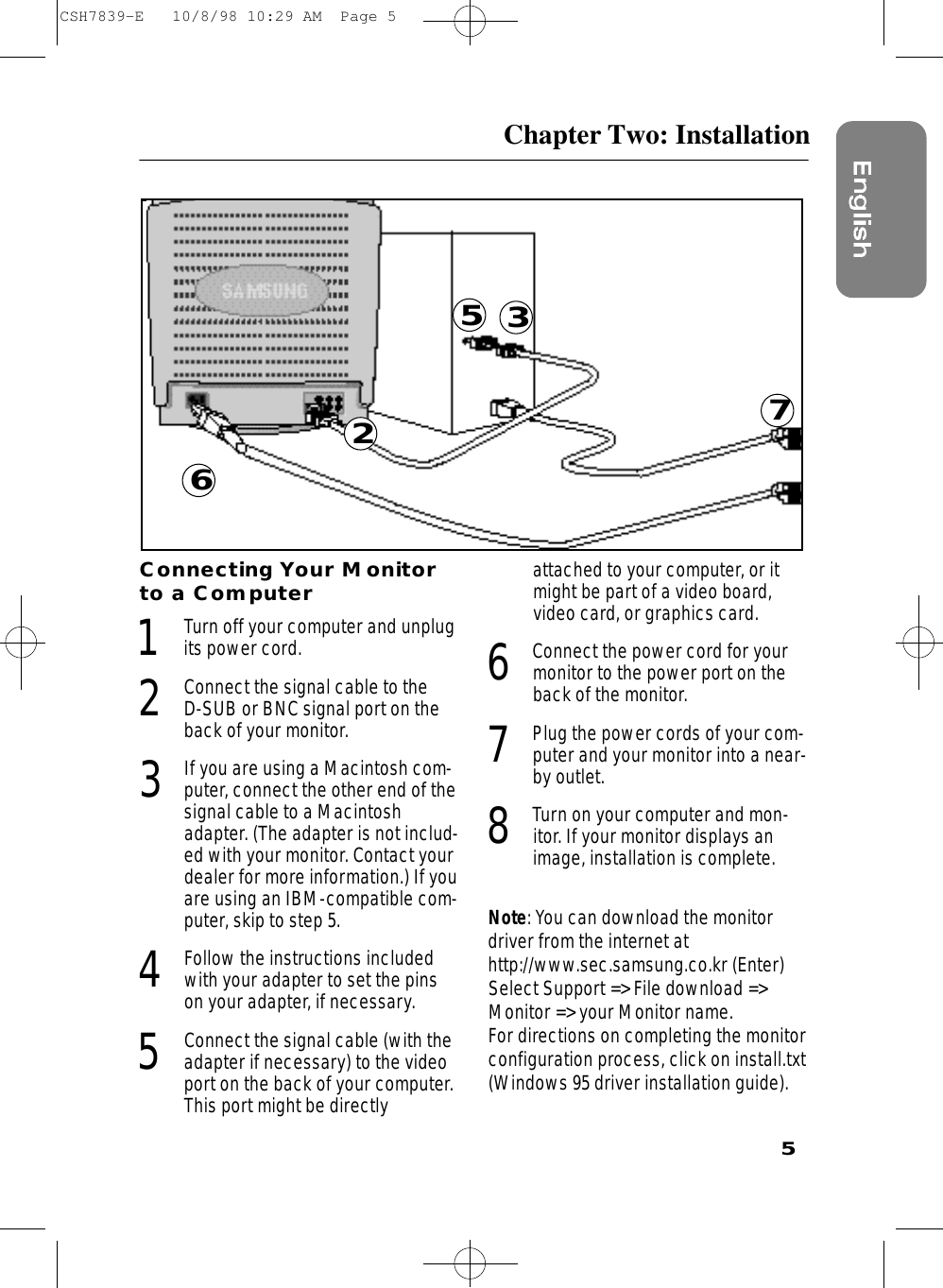

5Chapter Two: InstallationConnecting Your Monitorto a Computer1Turn off your computer and unplugits power cord.2Connect the signal cable to the D-SUB or BNC signal port on theback of your monitor.3If you are using a Macintosh com-puter, connect the other end of thesignal cable to a Macintoshadapter. (The adapter is not includ-ed with your monitor. Contact yourdealer for more information.) If youare using an IBM-compatible com-puter, skip to step 5.4Follow the instructions includedwith your adapter to set the pinson your adapter, if necessary.5Connect the signal cable (with theadapter if necessary) to the videoport on the back of your computer.This port might be directly attached to your computer, or itmight be part of a video board,video card, or graphics card.6Connect the power cord for yourmonitor to the power port on theback of the monitor.7Plug the power cords of your com-puter and your monitor into a near-by outlet.8Turn on your computer and mon-itor. If your monitor displays animage, installation is complete.Note: You can download the monitor driver from the internet athttp://www.sec.samsung.co.kr (Enter)Select Support => File download =>Monitor => your Monitor name.For directions on completing the monitorconfiguration process, click on install.txt(Windows 95 driver installation guide).26735CSH7839-E 10/8/98 10:29 AM Page 5

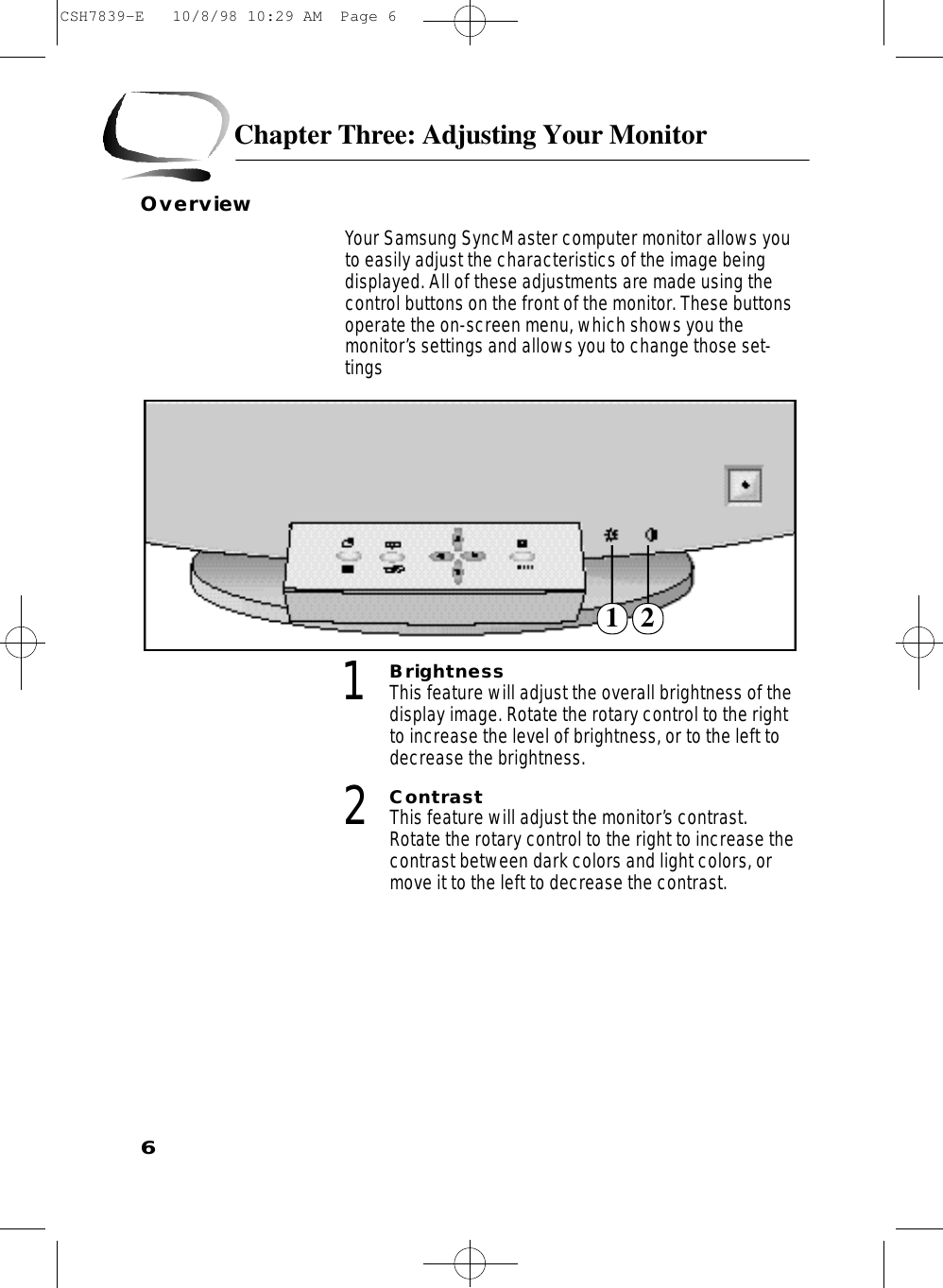

6OverviewYour Samsung SyncMaster computer monitor allows youto easily adjust the characteristics of the image being displayed. All of these adjustments are made using thecontrol buttons on the front of the monitor. These buttonsoperate the on-screen menu, which shows you the monitor’s settings and allows you to change those set-tings1BrightnessThis feature will adjust the overall brightness of thedisplay image. Rotate the rotary control to the rightto increase the level of brightness, or to the left todecrease the brightness.2ContrastThis feature will adjust the monitor’s contrast.Rotate the rotary control to the right to increase thecontrast between dark colors and light colors, ormove it to the left to decrease the contrast.Chapter Three: Adjusting Your Monitor1 2CSH7839-E 10/8/98 10:29 AM Page 6
7Chapter Three: Adjusting Your MonitorDirect-Access FeaturesThe features described on this page can be accessedquickly, at the touch of one button. Once you have adjust-ed one of these features, push the button once or twiceto turn off the display.PositionFollow these instructions to change the position of themonitor’s entire display.1With the menu off, push the button. The posi-tion display will appear.2Use the ▲and ▼buttons to change the verticalposition of the monitor’s entire display; use the $and %buttons to change the horizontal position ofthe monitor’s entire display.Size Follow these instructions to change the size of the moni-tor’s entire display.1With the menu off, push the button twice. Thesize display will appear.2Push the ▲or ▼buttons to change the vertical sizeof the monitor’s display; push the $or %buttons tochange the horizontal size of the monitor’s display.Pincushion/Trapezoid Adjust the pincushion setting when the sides of the dis-play are bowed in or bowed out; adjust the trapezoid set-ting when the top or bottom of the display is too large ortoo small.1With the menu off, push the button. ThePincushion/Trapezoid display will appear.2Use the $button or %button to adjust the pincush-ion setting; use the ▲button or ▼button to adjustthe trapezoid setting.CSH7839-E 10/8/98 10:29 AM Page 7
8Chapter Three: Adjusting Your MonitorParallel/RotationAdjust the parallelogram setting when the display is lean-ing left or right; adjust the rotation setting when the entiredisplay is tilted left or right.1With the menu off, push the button twice.The parallelogram/rotation display will appear.2Use the $button or %button to adjust the parallelsetting; use the ▲button or ▼button to adjust therotation setting.Menu FeaturesThe following features can all be accessed using yourmonitor’s on-screen menu system. Follow the instructionsbelow to adjust the features. Once you are finished making adjustments to a feature,push the MENU button to return to the Main Menu, thenpush MENU again to turn off the menu.Color TemperatureFollow these steps to change the color temperature set-ting. Color temperature is a measure of the “warmth” ofthe image colors.1With the menu off, push the MENU button. Push the$button or %button until the “Color Temperature”screen is displayed.2Push the button. The color temperature adjustment screen will appear.3Use the $button or %button to adjust the colortemperature.CSH7839-E 10/8/98 10:30 AM Page 8
9Chapter Three: Adjusting Your MonitorColor ControlYou can change the settings of the saturation and hue ofthe monitor’s display.1With the menu off, push the MENU button. Push the$button or %button until the “Color Control”screen is displayed.2Push the button. The color control adjustscreen will appear.3Use the $button or %button to adjust the satura-tion setting; use the ▲button or ▼button to adjust the hue.DegaussThe Degauss feature will remove color impurities causedby magnetic fields. Do not use the Degauss feature morethan once within a 30-minute period.1With the menu off, push the MENU button. Push the$button or %button until the “Degauss” screen isdisplayed.2Push the button. The monitor will execute thedegauss function, then display the degaussingscreen.3After a few seconds, the degauss main menu willappear.Note: The monitor may buzz momentarily, the imagecolors may change and the image will jiggle for afew seconds. These effects are normal.RecallUse the recall feature to reset these monitor settings to theiroriginal levels: position, size, pincushion, trapezoid, parallel-ogram, pinbalance, rotation, and clear moire .1With the menu off, push the MENU button. Push the$button or %button until the “Recall” screen isdisplayed.CSH7839-E 10/8/98 10:30 AM Page 9
102Push the button. The recall select screen willappear.3Push the $button to select “YES.” If you don’t wantto reset the monitor, use the %button to select“NO.”NOTE: If you have selected “YES,” all settings listedabove will be reset. All other settings will remainthe same.CAUTION: This operation resets all of the data in theuser memory area for the current timing signal.Menu PositionYou can change the position where the menu appears onyour monitor.1With the menu off, push the MENU button. Push the$button or %button until the “Menu Position”screen is displayed2Push the button. The menu position adjustmentscreen will appear.3Use the ▲,▼,$or %buttons to place the menu inthe position you prefer.Menu DurationThe menu will automatically turn off if no adjustments aremade for a certain time period. You can set the amount oftime the menu will wait before it turns off.1With the menu off, push the MENU button. Push the$button or %button until the “Menu Duration”screen is displayed.2Push the button. The menu duration selectionscreen will appear.3Use the $or %buttons to select 3, 7, 10, 20, or 50seconds.Chapter Three: Adjusting Your MonitorCSH7839-E 10/8/98 10:30 AM Page 10
11D-SUB / BNCUse this menu to choose between the signal source con-nected to the BNC connector input and the signal sourceconnected to the D-SUB connector input. 1With the menu off, push the MENU button. Push the$button or %button until the “D-SUB / BNC”screen is displayed.2Push the button. The D-SUB / BNC selectscreen will appear.3Use the $botton or %buttons to select “BNC” or“D-SUB”.NOTE: When you are finished, wait few seconds andthe screen will blank then display the image fromthe new signal source (other computer). An con-nected to both inputs to use this function.PinbalanceAdjust the pinbalance setting when the sides of the dis-play are bowed towards the left or right.1With the menu off, push the MENU button. Push the$button or %button until the “Pinbalance” screenis displayed.2Push the button. The pinbalance adjustmentscreen will appear.3Use the $button or %button to adjust the pinbal-ance setting.Clear MoireA “moire” pattern can appear on your screen, looking likea series of concentric circles or arcs. To eliminate thispattern, adjust the clear moire.1With the menu off, push the MENU button. Push the$button or %button until the “Clear Moire”screen is displayed.2Push the button. The clear moire adjustmentscreen will appear.3Use the ▲,▼, $or %buttons to adjust moire iscleared.Chapter Three:Adjusting Your MonitorCSH7839-E 10/8/98 10:30 AM Page 11
123LanguageFollow these steps to change the language used in themenu. This adjustment only changes the language of themonitor’s menu; it does not change the language of anyother software.1With the menu off, push the MENU button. Push the$button or %button until the “7 Languages”screen is displayed.2Push the button. The language selectionscreen will appear.3Use the ▲button or ▼ button to select the lan-guage you would like to use.Display TimingThis screen displays the settings that are available toyour monitor. This screen only displays this information;you cannot select a new setting.1With the menu off, push the MENU button. Push the$button or %button until the “Display Timing”screen is displayed.2Push the button. The Factory Timing screen willappear.3Use the ▲button or ▼ button to display the userand factory timing.Video Input LevelThis feature will select the video signal level.1With the menu off, push the MENU button. Push the$button or %button until the “Video Input Level”screen is displayed.2Push the button. The video input level selectscreen will appear.Chapter Three: Adjusting Your MonitorCSH7839-E 10/8/98 10:30 AM Page 12
133Use the $or %buttons to select 0.7V or 1.0V.NOTE: Some video cards use video singals higherthan 1.0V which causes the display to be very bright.For those video cards should be selected 1.0V.Sync. Input TypeUse this menu to set your monitor to the correct type ofsynchronization. Select “Separate”if the computer issending a separate synchronization signal. Select “Sync.On Green” if the computer expects the monitor to syn-chronize with the green signal it sends. Refer to yourcomputer or video card user’s manual to determine thecorrect setting. 1With the menu off, push the MENU button. Push the$button or %button until the “Sync. Input Type”screen is displayed.2Push the button. The sync input type selectionscreen will appear.3Use the ▲button or ▼button to select “Separate”or “Sync. On Green.”ExitOnce you are finished making adjustments to a feature,use this menu to turn off the menu.1Once you are finished making adjustments to a fea-ture, push the MENU button.2Push the $button or %button until the “Exit”screen is displayed.3Push the MENU button to turn off the menu.Chapter Three:Adjusting Your MonitorCSH7839-E 10/8/98 10:30 AM Page 13

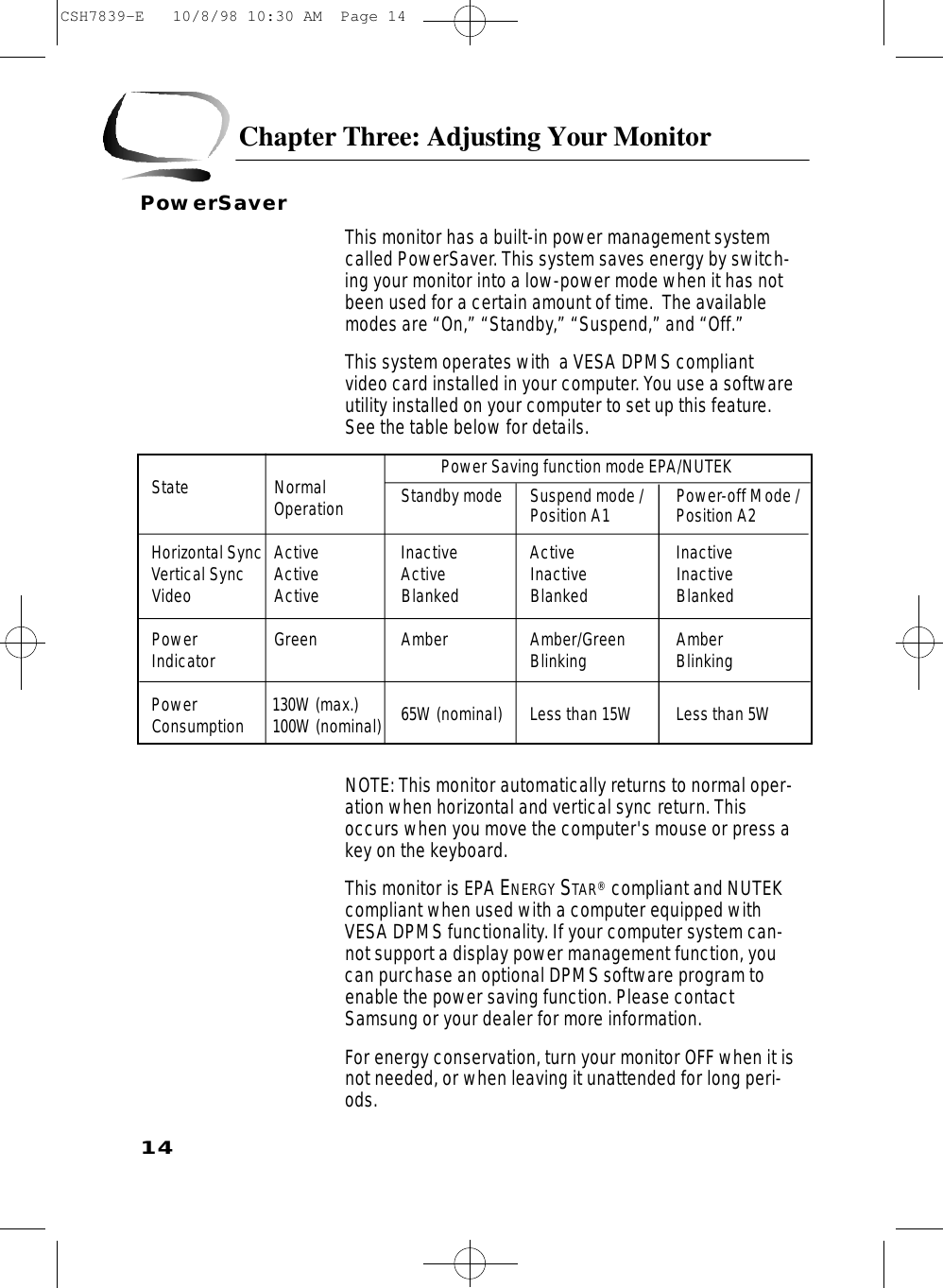

143Chapter Three: Adjusting Your MonitorPowerSaverThis monitor has a built-in power management systemcalled PowerSaver. This system saves energy by switch-ing your monitor into a low-power mode when it has notbeen used for a certain amount of time. The availablemodes are “On,” “Standby,” “Suspend,” and “Off.”This system operates with a VESA DPMS compliantvideo card installed in your computer. You use a softwareutility installed on your computer to set up this feature.See the table below for details.Power Saving function mode EPA/NUTEKState Normal Standby mode Suspend mode / Power-off Mode /Operation Position A1 Position A2Horizontal Sync Active Inactive Active InactiveVertical Sync Active Active Inactive InactiveVideo Active Blanked Blanked BlankedPower Green Amber Amber/Green AmberIndicator Blinking BlinkingPower 130W (max.) 65W (nominal) Less than 15W Less than 5WConsumption 100W (nominal)NOTE: This monitor automatically returns to normal oper-ation when horizontal and vertical sync return. Thisoccurs when you move the computer's mouse or press akey on the keyboard.This monitor is EPA ENERGY STAR®compliant and NUTEKcompliant when used with a computer equipped withVESA DPMS functionality. If your computer system can-not support a display power management function, youcan purchase an optional DPMS software program toenable the power saving function. Please contactSamsung or your dealer for more information.For energy conservation, turn your monitor OFF when it isnot needed, or when leaving it unattended for long peri-ods.CSH7839-E 10/8/98 10:30 AM Page 14
15Chapter Three: Adjusting Your MonitorTroubleshootingBefore calling for service, check the information in thissection to see if you can remedy any problems yourself.If you do need assistance, please call the phone numberon the warranty card, the phone number on the backcover of this manual, or contact your dealer.There is no screen image.• Check to see that both the monitor and the computer are plugged in and turned on.Image area is lightened but No imageappears.• Check the signal cable connection between thecomputer and the monitor.The image is too light or too dark.• Adjust the Brightness or Contrast settings.The image is too large or too small.• Adjust the Size settings.The colors are distorted with dark or shadowed areas.• Activate the Degauss feature.The power indicator is amber,amber/green, or blinking.• The monitor is using its power management system.Check the power management utility on your computer.CSH7839-E 10/8/98 10:30 AM Page 15
163A p p e n d i xSpecificationsPicture Tube •43 cm (17") Full square type [40.6cm (16") viewable]• Flat face, 90˚ deflection• 0.26 Dot pitch• Anti-reflection coating with anti-electrostatic properties• Medium-short persistence phosphorSynchronization • Horizontal: 30 kHz to 96 kHz (automatic)• Vertical: 50 Hz to 160 Hz (automatic)Display Color • Unlimited colorsMaximum Resolution • Horizontal: 1600 dots• Vertical: 1200 linesActive Display • Horizontal: 306 ± 3 mm (12.05" ± 0.12") • Vertical: 230 ± 3 mm (9.06" ± 0.12")(Active display size is dependent upon signal timing)Input Signal,Terminated • Video signal: Analog 0.714 Vpp positive at 75 Ω• Separate sync: TTL Level, positive or negative• Composite sync: TTL Level, positive or negative• Sync-on-Green: Composite sync 0.286 Vpp negative ( Video 0.714 Vpp positive )Maximum Pixel Clock • 205 MHzPower Supply • AC 100-240 Volt ± 10%, 60 Hz/50 Hz ± 3 HzPower Consumption • 130 Watt maximumDimensions/Weight • Unit: 415 x 445.7 x 437.3 mm; 18.5 kg16.3 x 17.5 x 17.2 in (W x D x H); 40.8 lbs• Carton: 535 x 566 x 549 mm; 22.5 kg21 x 22.3 x 21.6 in (W x D x H); 49.6 lbs(All measurements are approximate.)Environmental Considerations• Operating Temperature: 32˚F to 104˚F (0˚C to 40˚C)Humidity: 10% to 80%• Storage Temperature: -4˚F to 113˚F (-20˚C to 45˚C)Humidity: 5% to 95%NOTE: Design and specifications are subject to change without prior notice.CSH7839-E 10/8/98 10:30 AM Page 16
17A p p e n d i xPin AssignmentsSync 15 Pin Side of the Signal Cable Cable AdapterType (Figure 1) (Figure 2)Separate Composite Sync on ApplePin No. Green MAC II1 Red Red Red GND-R2 Green Green Green+Sync Red3 Blue Blue Blue H/V Sync4 GND GND GND Sense 05 DDC Return DDC Return DDC Return Green6 GND-R GND-R GND-R GND-G7 GND-G GND-G GND-G Sense 18 GND-B GND-B GND-B Reserved9 Reserved Reserved Reserved Blue10 GND-Sync/Self-Raster GND-Sync/Self-Raster GND-Sync/Self-Raster Sense 211 GND GND GND GND12 DDC Data DDC Data DDC Data V-Sync13 H-Sync H/V-Sync Not Used GND-B14 V-Sync Not Used Not Used GND15 DDC Clock DDC Clock DDC Clock H-SyncCSH7839-E 10/8/98 10:30 AM Page 17

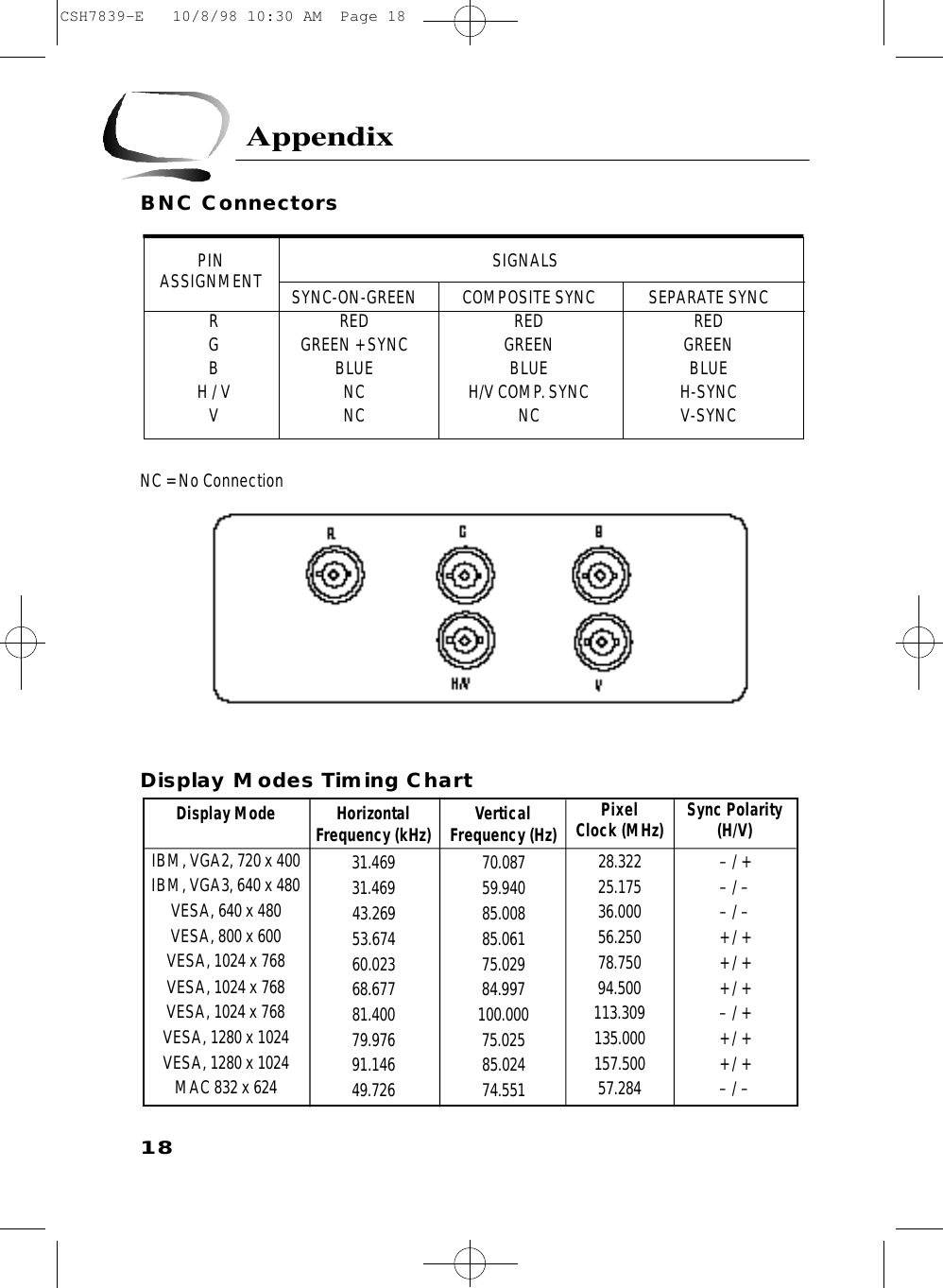

BNC ConnectorsNC = No ConnectionDisplay Modes Timing Chart183A p p e n d i xSYNC-ON-GREEN COMPOSITE SYNC SEPARATE SYNCR RED RED REDG GREEN + SYNC GREEN GREENB BLUE BLUE BLUEH / V NC H/V COMP. SYNC H-SYNCV NC NC V-SYNCSIGNALSPIN ASSIGNMENTDisplay ModeIBM, VGA2, 720 x 400IBM, VGA3, 640 x 480VESA, 640 x 480VESA, 800 x 600VESA, 1024 x 768VESA, 1024 x 768VESA, 1024 x 768VESA, 1280 x 1024VESA, 1280 x 1024MAC 832 x 624HorizontalFrequency (kHz)31.46931.46943.26953.67460.02368.67781.40079.97691.14649.726VerticalFrequency (Hz)70.08759.94085.00885.06175.02984.997100.00075.02585.02474.551PixelClock (MHz)28.32225.17536.00056.25078.75094.500113.309135.000157.50057.284Sync Polarity(H/V)– / +– / –– / –+ / ++ / ++ / +– / ++ / ++ / +– / –CSH7839-E 10/8/98 10:30 AM Page 18
FCC InformationUser InstructionsThe Federal Communications Commission RadioFrequency Interference Statement includes the followingwarning:NOTE: This equipment has been tested and found to complywith the limits for a Class B digital device, pursuant to Part 15of the FCCRules. These limits are designed to provide re a s o n -able protection against harmful interf e rence in a re s i d e n t i a linstallation. This equipment generates, uses, and can radiateradio frequency energy and, if not installed and used in accor-dance with the instructions, may cause harmful interf e re n c eto radio communications. However, there is no guarantee thati n t e rf e rence will not occur in a particular installation.If this equipment does cause harmful interf e r ence to radio ortelevision receptions, which can be determined by turning theequipment off and on, the user is encouraged to try to corre c tthe interf e rence by one or more of the following measure s :• Reorient or relocate the receiving antenna.• Increase the separation between the equipment andreceiver.• Connect the equipment into an outlet on a circuit dif-ferent from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV techni-cian for help.User InformationChanges or modifications not expressly approved by thep a rty responsible for compliance could void the user’sauthority to operate the equipment.If necessary, consult your dealer or an experiencedradio/television technician for additional suggestions. Yo umay find the booklet called How to Identify and ResolveRadio/TV Interf e rence Pro b l e m shelpful. This booklet wasp re p a red by the Federal Communications Commission. Itis available from the U.S. Government Printing Off i c e ,Washington, DC 20402, Stock Number 004-000-00345-4.WarningUser must use shielded signal interface cables to main-tain FCC compliance for the product.Declaration of conformity for prod-ucts Marked with FCC LogoThis device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1)this device may not cause harmful interf e rence, and (2)this device must accept any interf e r ence received, includ-ing interference that may cause undesired operation.The party responsible for product compliance:SAMSUNG ELECTRONICS CO., LTDQA Lab of Samsung America85 West Tasman Drive San Jose, CA 95134 USATel) 408-544-5124Fax) 408-544-5191Provided with this monitor is a detachable power supplycord with IEC320 style terminations. It may be suitable forconnection to any UL Listed personal computer with simi-lar configuration. Before making the connection, makesure the voltage rating of the computer convenience out-let is the same as the monitor and that the ampere ratingof the computer convenience outlet is equal to orexceeds the monitor voltage rating. For 120 Volt applications, use only UL Listed detachablepower cord with NEMA configuration 5-15P type (parallelblades) plug cap. For 240 Volt applications use only ULListed Detachable power supply cord with NEMA config-uration 6015P type (tandem blades) plug cap.IC Compliance NoticeThis Class B digital apparatus meets all requirements ofthe Canadian Interference-Causing EquipmentRegulations of ICES-003.Cet appareil numérique de classe B respecte toutes lesexigences du Règlement ICES-003 sur les équipementsproduisant des interférences au Canada.MPR II ComplianceThis monitor complies with SWEDAC (MPR II) re c o m m e n d a-tions for reduced electric and magnetic fields.European NoticeProducts with the CE Marking comply with both the EMCDirective (89/336/EEC), (92/31/EEC), (93/68/EEC) and theLow Voltage Directive (73/23/EEC) issued by theCommission of the European Community.Compliance with these directives implies conformity tothe following European Norms:• EN55022 (CISPR 22) – Radio Frequency Interference• EN50082-1 : 1992 – Electromagnetic Immunity• EN60555-2 (IEC555-2) – Power Line Harmonics• EN60555-3 (IEC555-3) – Voltage Fluctuations• EN60950 (IEC950) – Product Safety.CSH7839-E 10/8/98 10:30 AM Page 19
3U.S.A. :Samsung Electronics America (SEA)One Samsung Place Ledgewood, NJ 07852Tel. : 1-800-SAMSUNG (1-800-726-7864)Fax-on-Demand for product information : 1-800-229-2239CANADA : Samsung Electronics Canada Inc.7037 Financial Drive Mississauga, Ontario L5N 6R3Tel. : 1-800-SAMSUNG (1-800-726-7864)Fax. : (905) 542-1199GERMANY :Samsung Electronics GmbH Samsung-HausAm Kronberger Hang 6/65824 Schwalbach/Ts.Tel. : 06196-66-1134Fax. : 06196-66-1133AUSTRALIA :Samsung Electronics Australia Pty Ltd.Unit G, 10-16 South Street, Rydalmere, N.S.W. 2116P.O. BOX 368Tel. : (02) 638 5200ITALIA :Samsung Electronics Italia SpAVia C. Donat Cattin, 5-20063 Cernusco sul Naviglio (Mi)Tel. : 167-010740PANAMA :Servicios Samsung (Zona Libre), S.A.50 and 61 Streets Sta, Cecilia Bdl. Don Camilo, Panama CityTel. : (507) 264-0195 or 269-5571Fax : (507) 269-5568MEXICO : Samsung Electronics Mexico, S.A. DE C. V. Mina No. 200, Esq. GavilanCol. Guadalupe Del Moral Iztapalapa,Mexico, D.F. C.P. 09300Tel.: (525) 686-0800Fax : (525) 686-5094ESPAÑA :Samsung Electrónics Comercial Ibérica, S.A.Ciencies, 55-65 (Polígono Pedrosa) 08908Hospitalet de Llobregat (Barcelona)Tel. : (93) 261 67 00 Fax. : (93) 261 67 50UK :Samsung Electronics (UK) Ltd.Samsung House, 225 Hook Rise South Surbiton, Surrey KT6 7LDTel. : (0181) 391 0168Fax. : (0181) 397 9949<European Service Center & National Service>Stafford Park 12 Telford, Shropshire, TF3 3BJTel. : (01952) 292 262Fax. : (01952) 292 033THAILAND :Samsung Service Center729-729/1 JSP Tower Rachadapisek RD.,Bangpongpang, Yannawa, Bangkok 10120Tel : (662) 2954508-14Fax : (662) 2954267SOUTH AFRICA :Samsung Electronics South AfricaSomerset Office Park 5 Libertas RoadBryanston, South AfricaTel : (27)-11-463-5678Fax : (27)-11-463-5215BRASIL :Samsung Eletrônica da Amazonia Ltda.R. Prof. Manoelito de Ornellas, 303-2ºAndarChácara Sto. Antônio • cep : 04719-040São Paulo • SPTel. : (011) 541-8500Fax : (011) 523-3995, 522-0726Printed on recyclable paperCODE NO. : BN68-60???0A ( Rev. 0.1 )CSH7839-E 10/8/98 10:30 AM Page 20
