revised installation manual Aug.2, 2012

COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 1 of 37 CY-WDCB7UR installation manual Proprietary Information All information contained in this document is confidential and proprietary to Hanshin IT. No license, expressed or implied, under any patent, copyright or trade secret right is granted or implied by the conveyance of this document. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise without the prior written permission of Hanshin IT. Copyright © 2012 Hanshin IT. All rights reserved. Document Title CY-WDCB7UR Installation manual Samsung P/N BN59-01157A Hanshin IT P/N HS6621 Rev 2.6 Latest Revision Number V0.9 Latest Revised Date 04/23/2012 Confidential Revision No.: V0.9 Authors: DC Kim Project Leader: DC Kim Project Code: SS-UWB-201101 Release Date: 04/23/2012
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 2 of 37 CONTENT 1. SCOPE ............................................................................................................................................................................................. 8 1.1 DOCUMENT ...................................................................................................................................................................... 8 2. How to install the CY-WDCB7UR? ..................................................................................................................................... 8 2.1 UWB RF module applications ................................................................................................................................... 8 2.2 Interface signals .............................................................................................................................................................. 8 2.3 Installation ......................................................................................................................................................................... 8 3. HARDWARE SPECIFICATIONS ........................................................................................................................................... 10 3.1 GENERAL ......................................................................................................................................................................... 10 3.2 PRODUCT CHACTERISTICS ..................................................................................................................................... 10 3.3 ENVIRONMENT ............................................................................................................................................................ 11 3.3.1 Temperature ................................................................................................................................................... 11 3.3.2 Humidity ........................................................................................................................................................... 11 3.4 PRODUCT PHOTOGRAPH ....................................................................................................................................... 12 4. HARDWARE REQUIREMENTS ............................................................................................................................................ 13 4.1 FUNCTIONAL BLOCK DIAGRAM .......................................................................................................................... 13 4.2 AL6301/AL5100 CHIPSET ARCHITECTURE ....................................................................................................... 14 4.3 IO CONNECTOR PIN DEFINITION ....................................................................................................................... 15 4.4 Manufacturing Test Block Diagram .................................................................................................................... 16 4.4.1 PT Block Diagram ......................................................................................................................................... 16 4.4.2 FT Block Diagram ......................................................................................................................................... 16
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 3 of 37 4.5 PRODUCT TEST ITEMS & SPEC ............................................................................................................................ 17 4.5.1 Transmission Section .................................................................................................................................. 17 4.5.2 Receiver Section ............................................................................................................................................ 17 4.6 PERFORMANCE TEST RESULTS ............................................................................................................................. 18 4.6.1 Current Consumption ................................................................................................................................. 18 4.6.2 Indoor Range Throughput ....................................................................................................................... 18 5. DIMENSION INFORMATION .............................................................................................................................................. 19 5.1 PCB DIMENSION ......................................................................................................................................................... 19 5.2 SHIELD CASE DIMENSION ...................................................................................................................................... 20 5.3 ASSEMBLY DIMENSION ........................................................................................................................................... 22 6. PACKAGE DIMENSION ......................................................................................................................................................... 23 6.1 LABEL DIMENSION ..................................................................................................................................................... 23 6.2 LABEL STICK .................................................................................................................................................................. 23 7. ANTENNA SPECIFICATIONS ............................................................................................................................................... 24 7.1 Summaries ...................................................................................................................................................................... 24 7.1.1 Function and Features ............................................................................................................................... 24 7.2 Specification .................................................................................................................................................................. 24 7.2.1 Applicable Boundary ................................................................................................................................... 24 7.2.2 Electrical Specification ................................................................................................................................ 24 7.3 Results of Antenna Measurement ....................................................................................................................... 26 7.3.1 Antenna Return Loss .................................................................................................................................. 26
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 4 of 37 7.3.2 Antenna VSWR .............................................................................................................................................. 27 7.3.3 Antenna Radiation Pattern ....................................................................................................................... 27 7.3.4 Antenna Peak Gain ...................................................................................................................................... 28 7.4 Drawing ........................................................................................................................................................................... 30 7.4.1 Antenna Drawing .......................................................................................................................................... 30 8. PACKAGE DIMENSION ......................................................................................................................................................... 32 8.1 ANTI SHIELDING BAG ............................................................................................................................................... 32 8.2 CARTON .......................................................................................................................................................................... 32 8.3 PAD ................................................................................................................................................................................... 33 8.4 TRAY ................................................................................................................................................................................. 33 8.5 CARTON ASSY DRAWING (TRAY STACK DRAWING) ................................................................................. 34 9. HANSHIN IT CONTACT INFORMATION ....................................................................................................................... 35 10. IC Statement..................................................................................................................................................................... 35
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 5 of 37 Revision History Revision Originator Description Date 0.9 DC Kim Initial Released. 04/23/12
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 6 of 37
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 7 of 37 FCC information The following information must be included in the User Manual for the Final End Product (Host Product): This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device is authorized under Title 47 CFR 15.519 (the FCC Rules and Regulations). The operation of this device is subject to the following restriction: Changes or modifications made to this equipment not expressly approved by SAMSUNG or parties authorized by SAMSUNG could void the user's authority to operate the device under the FCC Equipment Authorization. This includes changes or substitutions of the antennas which are furnished with the device. UWB devices may not be employed for the operation of toys. Operation onboard an aircraft, a ship or satellite is prohibited. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following Contains FCC ID: A3LCYWDCB7UR This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.

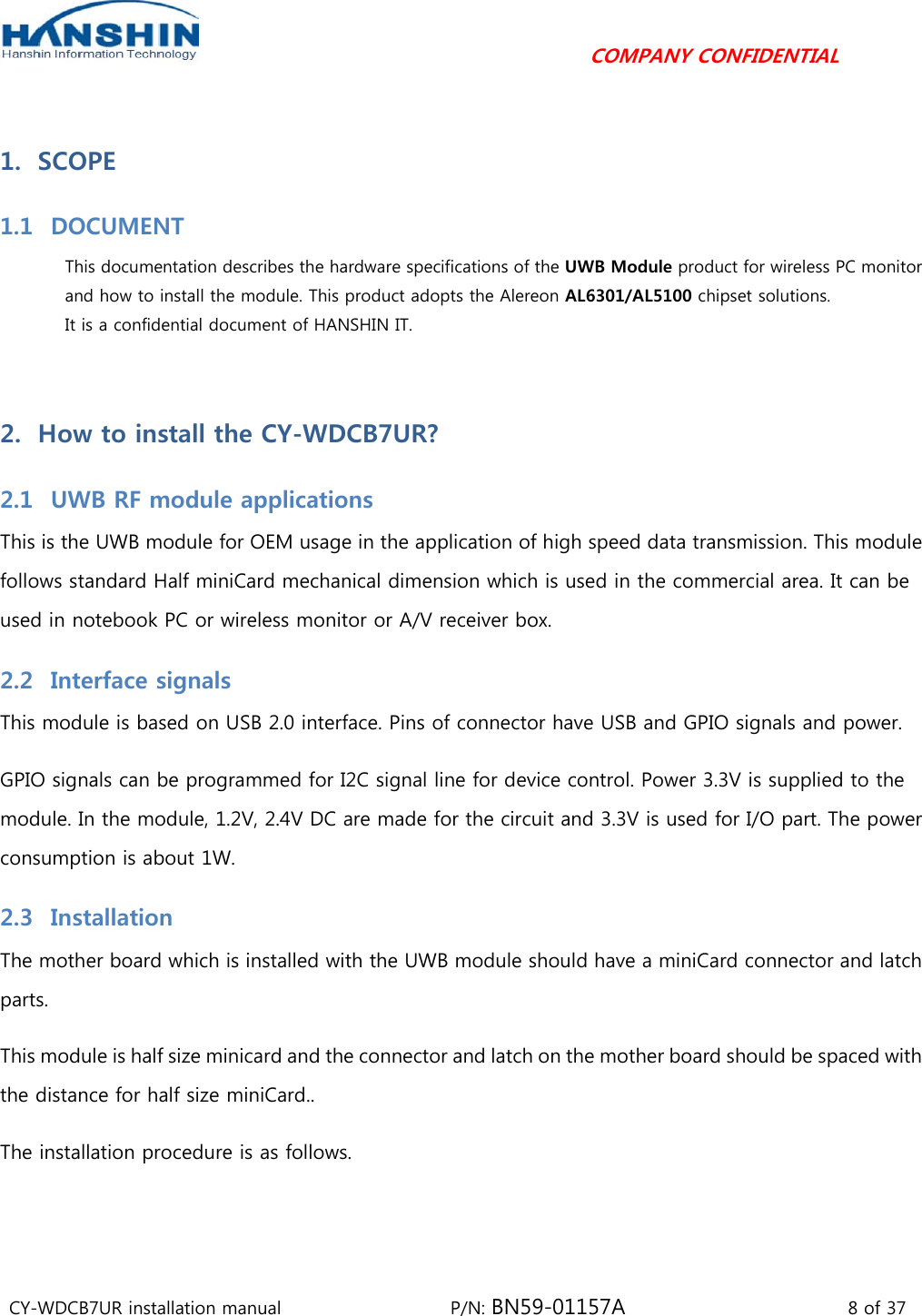

COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 8 of 37 1. SCOPE 1.1 DOCUMENT This documentation describes the hardware specifications of the UWB Module product for wireless PC monitor and how to install the module. This product adopts the Alereon AL6301/AL5100 chipset solutions. It is a confidential document of HANSHIN IT. 2. How to install the CY-WDCB7UR? 2.1 UWB RF module applications This is the UWB module for OEM usage in the application of high speed data transmission. This module follows standard Half miniCard mechanical dimension which is used in the commercial area. It can be used in notebook PC or wireless monitor or A/V receiver box. 2.2 Interface signals This module is based on USB 2.0 interface. Pins of connector have USB and GPIO signals and power. GPIO signals can be programmed for I2C signal line for device control. Power 3.3V is supplied to the module. In the module, 1.2V, 2.4V DC are made for the circuit and 3.3V is used for I/O part. The power consumption is about 1W. 2.3 Installation The mother board which is installed with the UWB module should have a miniCard connector and latch parts. This module is half size minicard and the connector and latch on the mother board should be spaced with the distance for half size miniCard.. The installation procedure is as follows.
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 9 of 37 Prepare the module and align the module to the miniCard connector as the picture. If the alignment is done, insert the module into the connector, press down the top center of module. Then you can hear the sound of locking by latch part.
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 10 of 37 3. HARDWARE SPECIFICATIONS 3.1 GENERAL Wireless circuit compatible with IEEE 802.15.3a standard and provide maximum speeds up to 480 Mbps. 3.2 PRODUCT CHACTERISTICS The CY-WDCB7UR is designed for PC monitor UWB module product. It provides the fast data transportation between user and PC monitor via wireless network. The device is intended for use in a wide range of system types with extensive communication and connectivity requirements. Radio technology: Compliance with 802.15.3a standards Operating frequency: 3.16GHz ~8.97GHz, BG1, BG3, BG6 Modulation Schemes: Multiband OFDM Data rate(Mbps) 53.3, 80, 106.7, 160, 200, 320, 400, 480 in BG1, BG3, BG6. This is the picture which is installed with the module. Check that the latch’s clip is locked properly.
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 11 of 37 3.3 ENVIRONMENT 3.3.1 Temperature Operating Temperature Conditions The product shall be capable of continuous reliable operation when operating in ambient temperature of 0℃ to +60℃. Non-Operating Temperature Conditions Neither subassemblies shall be damaged nor shall the operational performance be degraded when restored to the operating temperature when exposed to storage temperature in the range of -10℃ to +75℃. 3.3.2 Humidity Operating Humidity Conditions The product shall be capable of continuous reliable operation when subjected to relative humidity in the range of 10% and 85% non-condensing. Non-Operating Humidity conditions The product shall not be damaged nor shall the performance be degraded after exposure to relative humidity ranging from 5% to 90% non-condensing.
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 12 of 37 3.4 PRODUCT PHOTOGRAPH PCB TOP and BOTTOM SIDE
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 13 of 37 4. HARDWARE REQUIREMENTS 4.1 FUNCTIONAL BLOCK DIAGRAM The hardware design of CY-WDCB7UR is based on AL6301/AL5100 reference circuit.
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 14 of 37 4.2 AL6301/AL5100 CHIPSET ARCHITECTURE
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 15 of 37 4.3 IO CONNECTOR PIN DEFINITION HS6621(Rev2.5) Half_MiniCard Edge Connector Signal Assignments Function Pin# Pin# Function NC 1 2 3.3V NC 3 4 GND NC 5 6 NC NC 7 8 NC GND 9 10 NC NC 11 12 NC NC 13 14 NC GND 15 16 USB VBUS NC 17 18 GND NC 19 20 W_Disable# GND 21 22 NC NC 23 24 3.3V NC 25 26 GND GND 27 28 NC GND 29 30 NC UART_RX 31 32 Assoc. VBUS UART_TX 33 34 GND GND 35 36 USB D- NC 37 38 USB D+ NC 39 40 GND AL_GPIO_2 41 42 Dock_LED(AL_GPIO_0) AL_GPIO_4 43 44 Security_LED(AL_GPIO_1) AL_GPIO_5 45 46 Data_LED(AL_GPIO_3) AL_GPIO_7 47 48 NC Host_Connect_LED(AL_GPIO_6) 49 50 GND NC 51 52 3.3V
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 16 of 37 4.4 Manufacturing Test Block Diagram 4.4.1 PT Block Diagram 4.4.2 FT Block Diagram
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 17 of 37 4.5 PRODUCT TEST ITEMS & SPEC 4.5.1 Transmission Section 4.5.2 Receiver Section
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 18 of 37 4.6 PERFORMANCE TEST RESULTS 4.6.1 Current Consumption Maximum Current Consumption (mA) Mode Stand-by BG1 BG3 BG6 Transmit Receive Transmit Receive Transmit Receive Current 160~280 185 210 185 220 187 223 4.6.2 Indoor Range Throughput
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 19 of 37 5. DIMENSION INFORMATION 5.1 PCB DIMENSION PCB Dimension (W x L): 30 x 26.8mm, Thickness 1.0mm ±0.1mm

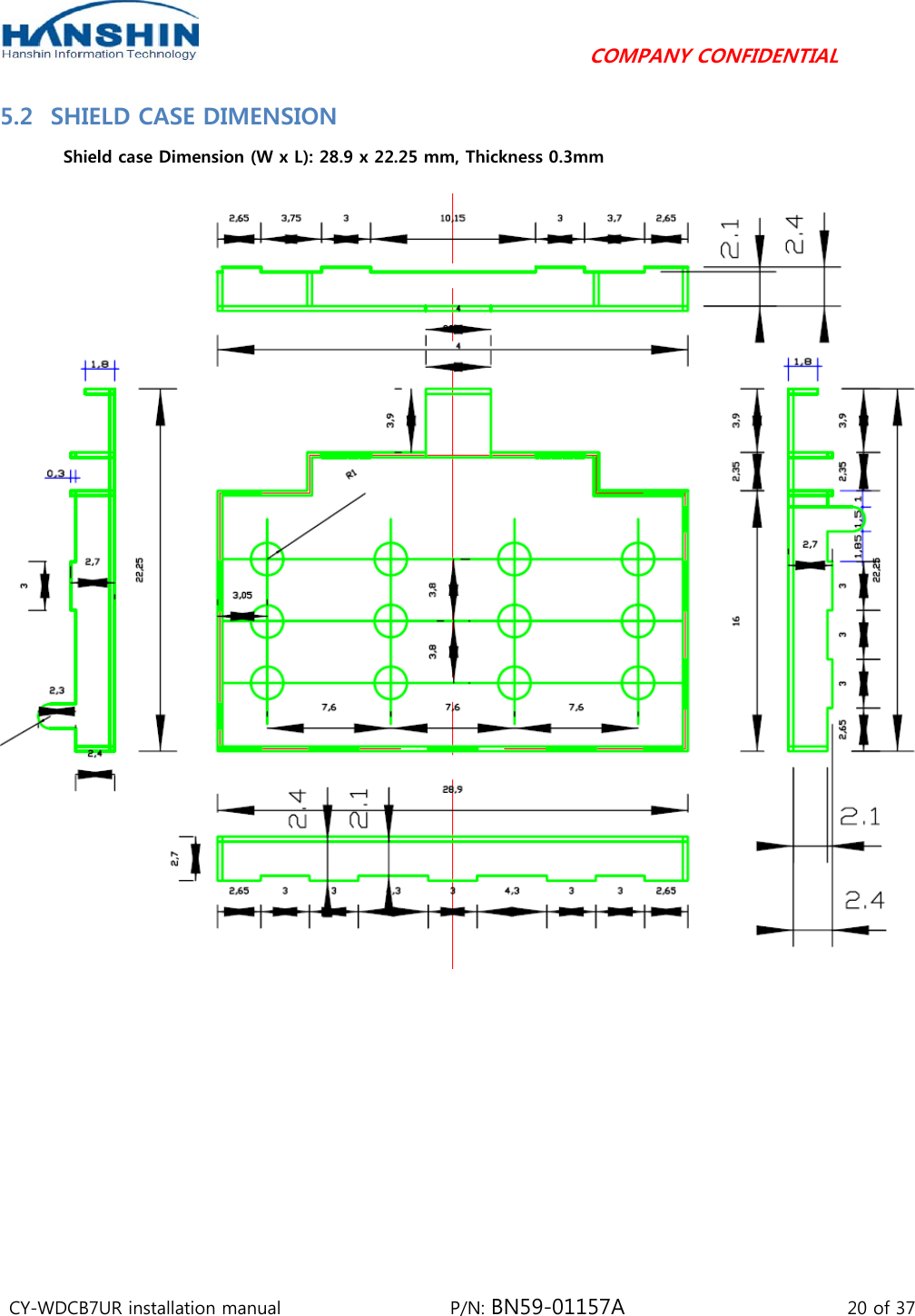

COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 20 of 37 5.2 SHIELD CASE DIMENSION Shield case Dimension (W x L): 28.9 x 22.25 mm, Thickness 0.3mm
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 21 of 37
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 22 of 37 5.3 ASSEMBLY DIMENSION Array number : 3 x 2 pcs Cutting type : Routing Array Size : 118.0mm X 55.6mm
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 23 of 37 6. PACKAGE DIMENSION 6.1 LABEL DIMENSION Label, pasted on the bottom of cover Material: PP MATIC/S692N/GB 6.2 LABEL STICK Regulation Label
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 24 of 37 7. ANTENNA SPECIFICATIONS 7.1 Summaries 7.1.1 Function and Features This specification of approval is explained information of UWB(Ultra Wide Band) Antenna (BWT-UWB/HSM-L001/IN) including general information, general specification, result of examination, examination procedure and assembling. 7.2 Specification 7.2.1 Applicable Boundary This specification data is applicable to define the patch antenna’s specification of Ultra Wide Band Antenna for Video data transmitting and receiving. 7.2.2 Electrical Specification Model BWT-UWB/HSM-L001/IN Type Micro-strip Patch Type Characteristic Electrical Char. Frequency Range 3.1GHz ~ 10.6GHz Polarization Linear (Vertical) Gain 3.1 dBi (max.) V. S. W. R 1 : 3.3 Power Capability ≤5 Watt Impedance 50 
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 25 of 37 Physical Char. Radiation Element Material Copper Dimension 13  36  0.6 mm Weight 0.5 g Input Connector MHF(F)
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 26 of 37 7.3 Results of Antenna Measurement 7.3.1 Antenna Return Loss
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 27 of 37 7.3.2 Antenna VSWR 7.3.3 Antenna Radiation Pattern Picture 1. 3.168GHz~4.752GHz (Vertical) Picture 2. 3.168GHz~4.752GHz (Horizontal)
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 28 of 37 Picture 3. 6.336GHz~7.920GHz (Vertical) Picture 4. 6.336GHz~7.920GHz (Horizontal) Picture 5. 7.392 GHz~8.976GHz (Vertical) Picture 6. 7.392 GHz~8.976GHz (Horizontal) 7.3.4 Antenna Peak Gain Band Group Peak Gain BWT-UWB/HSM-L001/IN
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 29 of 37 Band Group Frequency (GHz) Gain(dBi) BG 1 3.168 2.22 3.960 2.31 4.752 2.15 BG 3 6.336 2.17 7.128 1.95 7.920 2.65 BG 6 7.392 3.10 8.184 2.81 8.976 2.78
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 30 of 37 7.4 Drawing 7.4.1 Antenna Drawing 5.2 Cable Drawing
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 31 of 37 13421234AABCDBCDMHF CABLE ASS`YYear. Month. DayApprovalDepartmentDrawingDesignCheckerApprovalMakeDepartmentScale Unit Weight 2011.12. 26Checker12ProductNumberCoaxial CableConnectorProduct NameDrawing NameDrawing NumberPart ListTCB-068AG/80(GRAY 1.32)MHF-I.PEX UWB Ant CableMHF(F)-62-3-2-2

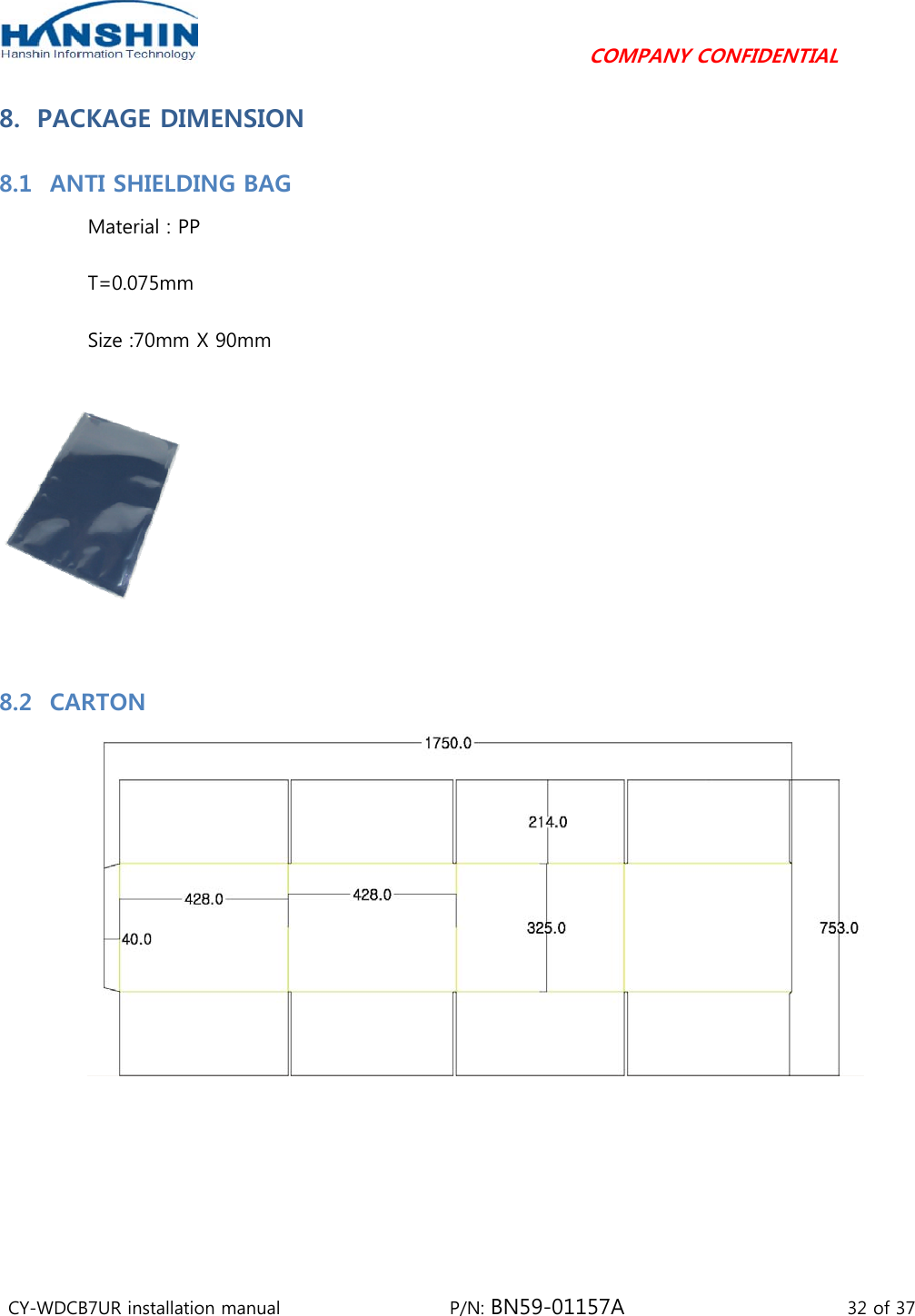

COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 32 of 37 8. PACKAGE DIMENSION 8.1 ANTI SHIELDING BAG Material : PP T=0.075mm Size :70mm X 90mm 8.2 CARTON
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 33 of 37 8.3 PAD 8.4 TRAY
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 34 of 37 8.5 CARTON ASSY DRAWING (TRAY STACK DRAWING)
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 35 of 37 9. HANSHIN IT CONTACT INFORMATION Headquarter Address #201 IT Venture Town, 694 Tamnip-dong, Yusung-gu, Daejeon, Korea Headquarter Telephone Number +82-42-9338507 Factory Address #209 IT Venture Town, 694 Tamnip-dong, Yusung-gu, Daejeon, Korea Factory Telephone Number +82-42-9338507(Ext.26) 10. IC Statement This UWB RF module apparatus complies with RSS-GEN. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. RF exposure This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. The module is designed for use in host systems, and installed with a minimum of 0.29 mm separation between the antenna and persons when the device is operating. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
COMPANY CONFIDENTIAL CY-WDCB7UR installation manual P/N: BN59-01157A 36 of 37 LABEL OF THE END PRODUCT The final end product must be labeled in a visible area with the following "Contains IC: 649E-CYWDCB7UR".
