Samsung Electronics Co DELL5002 2.4 GHz WLAN Module User Manual

Samsung Electronics Co Ltd 2.4 GHz WLAN Module Users Manual

User Manual

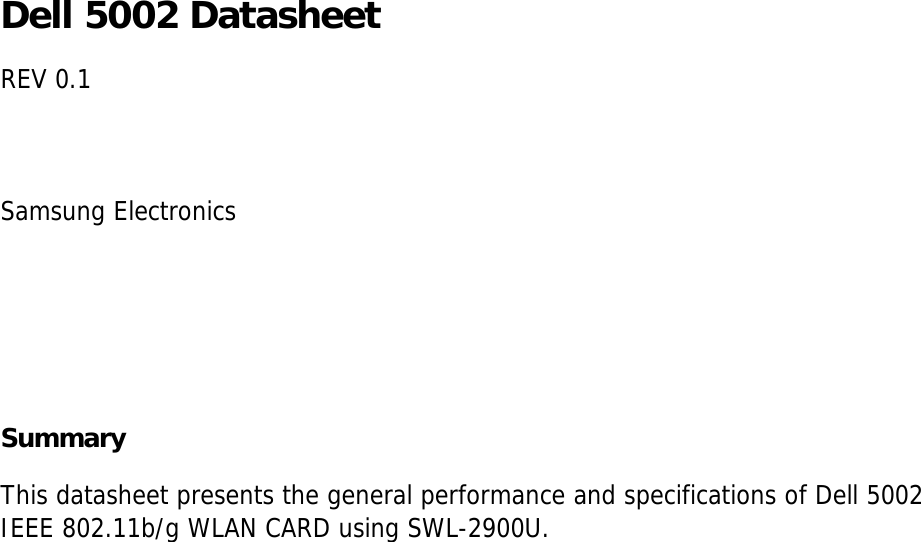

Dell 5002 DatasheetREV 0.1Samsung ElectronicsSummaryThis datasheet presents the general performance and specifications of Dell 5002IEEE 802.11b/g WLAN CARD using SWL-2900U.

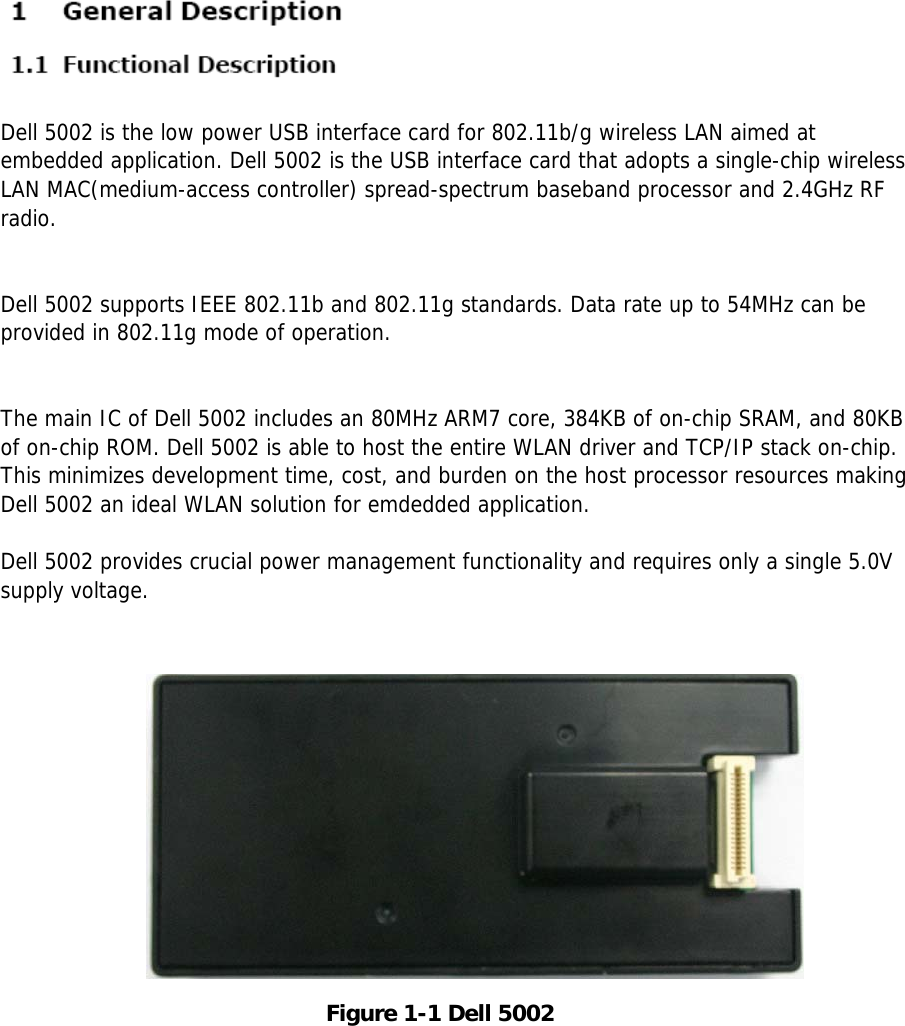

ML-NWA30LFigure 1-1 Dell 5002Dell 5002 is the low power USB interface card for 802.11b/g wireless LAN aimed atembedded application. Dell 5002 is the USB interface card that adopts a single-chip wirelessLAN MAC(medium-access controller) spread-spectrum baseband processor and 2.4GHz RFradio.Dell 5002 supports IEEE 802.11b and 802.11g standards. Data rate up to 54MHz can beprovided in 802.11g mode of operation.The main IC of Dell 5002 includes an 80MHz ARM7 core, 384KB of on-chip SRAM, and 80KBof on-chip ROM. Dell 5002 is able to host the entire WLAN driver and TCP/IP stack on-chip.This minimizes development time, cost, and burden on the host processor resources makingDell 5002 an ideal WLAN solution for emdedded application.Dell 5002 provides crucial power management functionality and requires only a single 5.0Vsupply voltage.

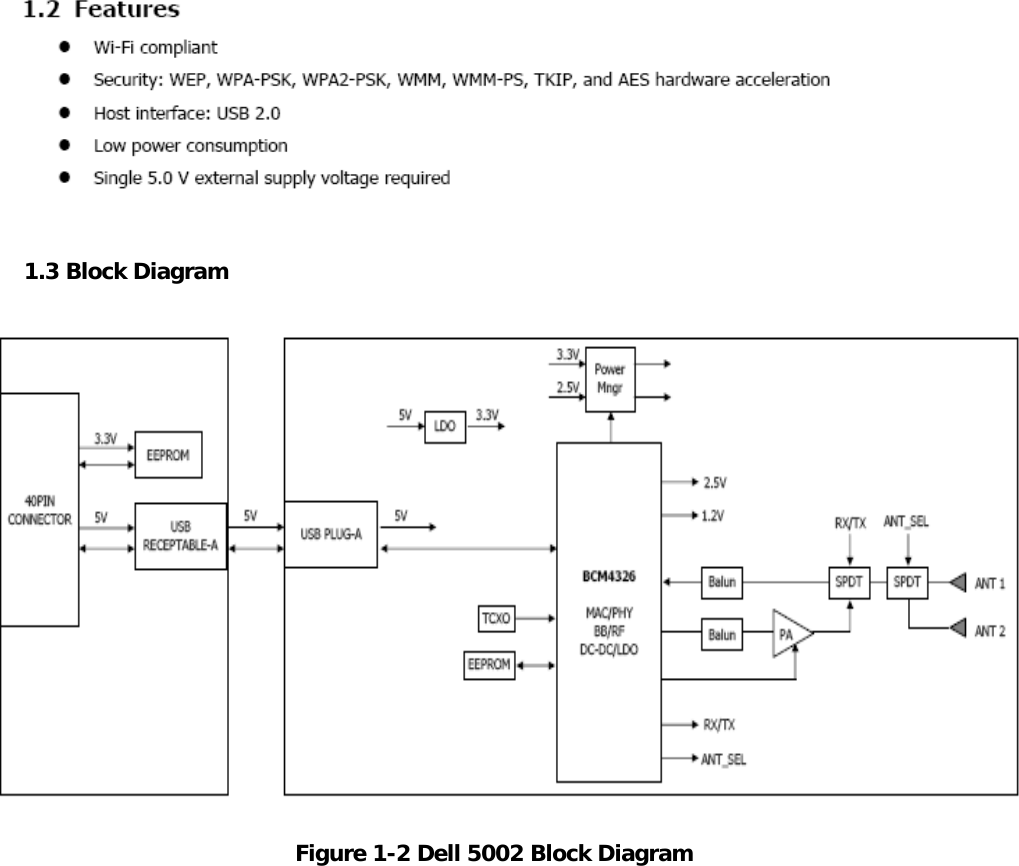

Figure 1-2 Dell 5002 Block Diagram1.3 Block Diagram
Figure 2-1 Dell 5002 Mechanical DimensionFigure 2-2 Dell 5002 PictureW x L x H = 51mm x 108mm x 18mm
pin #1 pin #20pin #21 pin #40Table 2-1 CN1 PIN DescriptionFigure 2-3 Dell 5002 CN1 Connector PIN AssignmentHost Interface : Molex 5084616-1, 40pin, Straight, SMT* SIZE : 6.5 x 21.5 x 11.5 mm

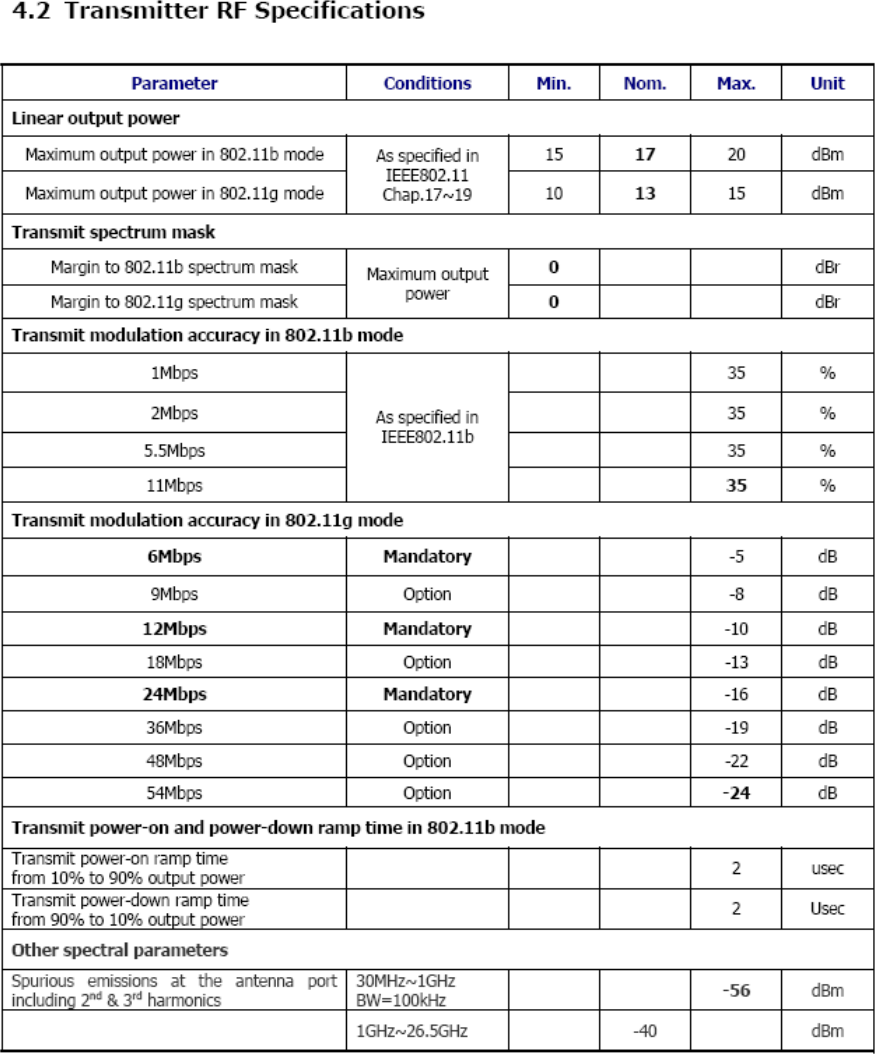

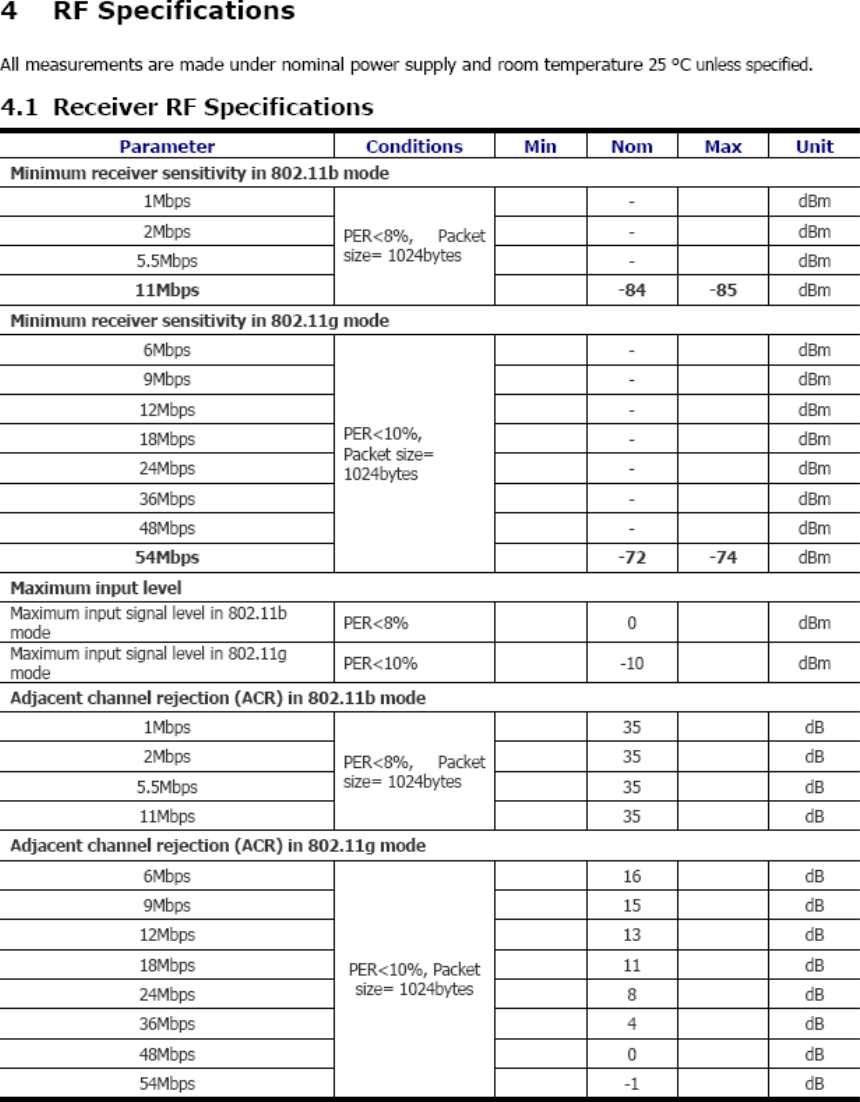

+35
In the case of measurement with Case, Antenna specificaiton is like below.
0.1 2008.02.18 First released
FCC Compliance Ì FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ì Caution Any changes or modifications NOT explicitly APPROVED by Samsung Electronics Co., Ltd. could cause the DELL5002 module to cease to comply with FCC rules part 15, and thus void the user's authority to operate the equipment. Ì RF-exposure statement These modular transmitters, Dell5002, comply with FCC radiation exposure limits set forth for an uncontrolled environment. The Dell5002 should be installed and operated with minimum distance 20cm between the antenna and the body of the user or nearby persons. The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the users manual of the end product which integrate this module. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as the 2 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. Ì Antenna These modular transmitters are for OEM integrations only. The end-user product will be installed in such a manner that only the authorized antennas are used. Ì Label and manual requirements for the End Product For an end product using the Dell5002 there must be a label containing, at least, the following information: FCC ID for model Dell5002 The label must be affixed on an exterior surface of the end product such that it will be visible upon inspection in compliance with the modular approval guidelines developed by the FCC. This device contains FCC ID: A3LDELL5002
Where the Dell5002 will be installed in final products larger than 8cm x 10cm following statements has to be placed ONTO the device. "This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation." In case where the final product will be installed in locations where the end-consumer is not able to see the FCC ID and/or this statement, the FCC ID and the statement shall also be included in the end-product manual. The users manual for end users must include the following information in a prominent location "IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter."
EU Compliance Ì Regulatory compliance of the Dell5002 The Dell5002 are made for OEM integrations only. The European regulations applying to the Dell5002 is the R&TTE Directive 1999/5/EC. Dell5002 meets the following requirements of the R&TTE Directive. R&TTE Directive article Test category Harmonized standard Article 3.1(a) Protection of health and safety EN 60950-1, EN 50385 Article 3.1(b) EMC EN 301 489-1/-17 Article 3.2 Effective use of the spectrum EN 300 328 The conformity assessment for the Dell5002 were completed in accordance with the R&TTE Directive Annex IV procedures, and the EC Declaration of Conformity is attached to this manual. Ì Cautions regarding regulatory compliance when integrating the Dell5002 The person integrating the Dell5002 becomes the manufacturer of the final product and is therefore responsible for demonstrating compliance of the product with the essential requirements of the R&TTE Directive. In all cases assessment of the final product must be made against the Essential requirements of the R&TTE Directive Article 3.1(a) and (b), safety and EMC respectively, and any relevant Article 3.3 requirements This device is intended only for OEM integrators under the following conditions: 1. This appliance and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. 2. A minimum separation distance of 20 cm must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements of the Council recommendation 1999/519/EC of 12 July 1999. As long as the 2 conditions above are met, no further evaluation under Article 3.2 of the R&TTE Directive and do not require further involvement of an R&TTE Directive Notified Body for the final product. In all other cases, or if the manufacturer of the final product is in doubt then the equipment integrating the radio module must be assessed against Article 3.2 of the R&TTE Directive. Please note that this product, Dell5002, uses radio frequency bands not harmonized throughout the Community. This product is classified as Class 2 radio equipment for which some Member States apply restrictions on placing on the market and in use. Any parties putting Class 2 radio equipment on the market must notify the relevant national spectrum management authority of their intention, and the radio equipment must be given a Class Identifier (alert symbol). Ì Antenna This product, Dell5002, is for OEM integrations only. The end-user product will be installed in such a manner that only the authorized antennas are used.

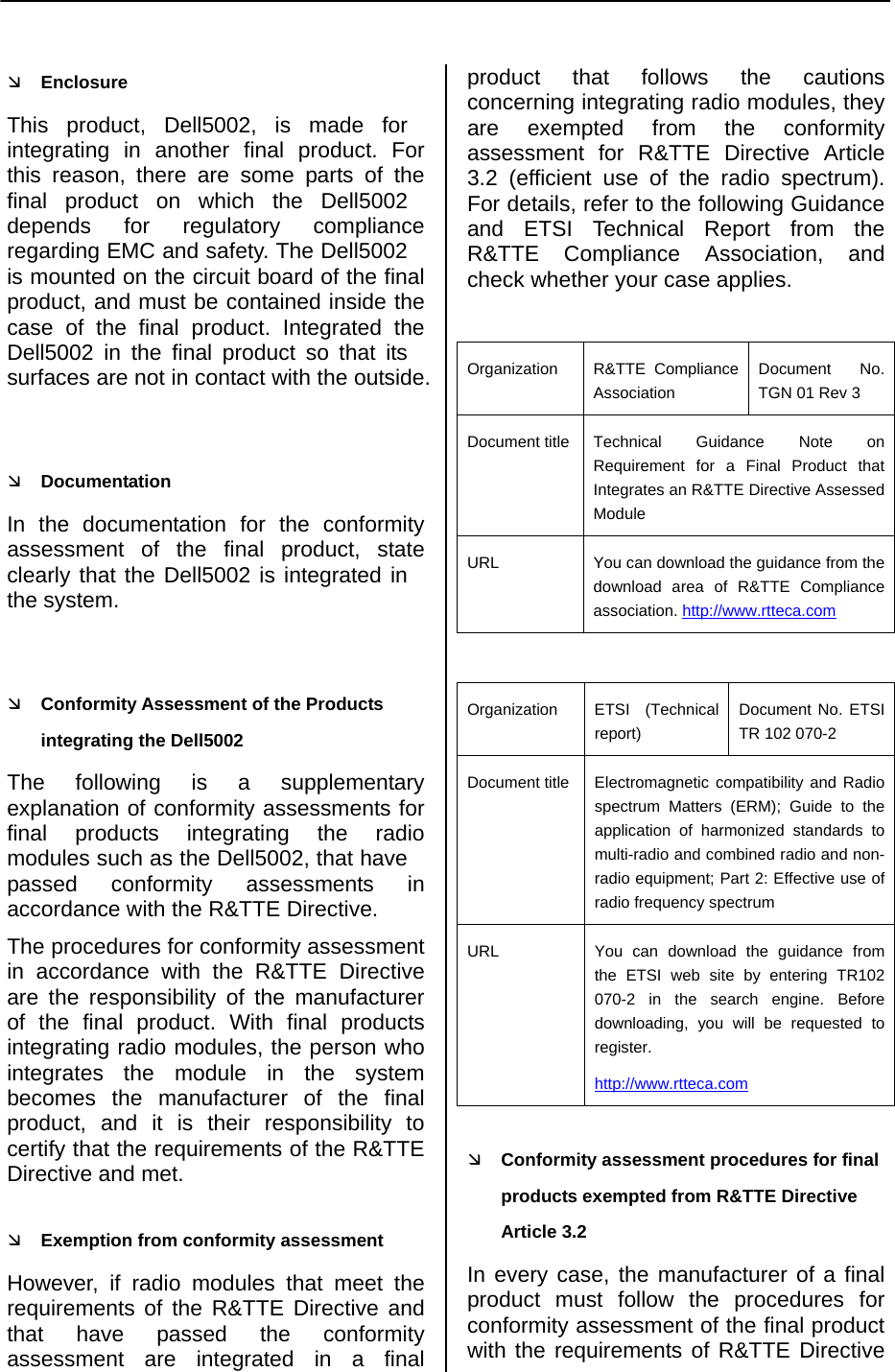

Ì Enclosure This product, Dell5002, is made for integrating in another final product. For this reason, there are some parts of the final product on which the Dell5002 depends for regulatory compliance regarding EMC and safety. The Dell5002 is mounted on the circuit board of the final product, and must be contained inside the case of the final product. Integrated the Dell5002 in the final product so that its surfaces are not in contact with the outside. Ì Documentation In the documentation for the conformity assessment of the final product, state clearly that the Dell5002 is integrated in the system. Ì Conformity Assessment of the Products integrating the Dell5002 The following is a supplementary explanation of conformity assessments for final products integrating the radio modules such as the Dell5002, that have passed conformity assessments in accordance with the R&TTE Directive. The procedures for conformity assessment in accordance with the R&TTE Directive are the responsibility of the manufacturer of the final product. With final products integrating radio modules, the person who integrates the module in the system becomes the manufacturer of the final product, and it is their responsibility to certify that the requirements of the R&TTE Directive and met. Ì Exemption from conformity assessment However, if radio modules that meet the requirements of the R&TTE Directive and that have passed the conformity assessment are integrated in a final product that follows the cautions concerning integrating radio modules, they are exempted from the conformity assessment for R&TTE Directive Article 3.2 (efficient use of the radio spectrum). For details, refer to the following Guidance and ETSI Technical Report from the R&TTE Compliance Association, and check whether your case applies. Organization R&TTE Compliance Association Document No. TGN 01 Rev 3 Document title Technical Guidance Note on Requirement for a Final Product that Integrates an R&TTE Directive Assessed Module URL You can download the guidance from the download area of R&TTE Compliance association. http://www.rtteca.com Organization ETSI (Technical report) Document No. ETSI TR 102 070-2 Document title Electromagnetic compatibility and Radio spectrum Matters (ERM); Guide to the application of harmonized standards to multi-radio and combined radio and non-radio equipment; Part 2: Effective use of radio frequency spectrum URL You can download the guidance from the ETSI web site by entering TR102 070-2 in the search engine. Before downloading, you will be requested to register. http://www.rtteca.com Ì Conformity assessment procedures for final products exempted from R&TTE Directive Article 3.2 In every case, the manufacturer of a final product must follow the procedures for conformity assessment of the final product with the requirements of R&TTE Directive
Article 3.1(a) and (b), for safety and EMC. The conformity assessment for Article 3.2 is carried out in accordance with the following: 1) Attach the EN 300 328 test report of the assessed radio module and the EC Declaration of Conformity to the conformity assessment of the final product (The Declaration of Conformity is attached to the manual). 2) Specify on the conformity assessment of the end product that the assessed radio module was integrated in the system without any changes, in accordance with the installation directions of the manufacturer. Ì Notification of the final product Please note that this product, Dell5002, uses radio frequency bands not harmonized throughout the Community. The notification required by R&TTE Directive Article 6(4) is necessary. It is the responsibility of the manufacturer of the final product to notify the relevant national spectrum management authority of the intention to place the final product on the market. Ì CE marking It is necessary to attach the CE mark to the final product to indicate that it conforms with all the directives that apply to the final product. It must be given a Class Identifier (alert symbol) in addition to the CE mark. Ì Exemption clause Samsung Electronics Co., Ltd. does not guarantee the accuracy of the information above. In case of doubt or uncertainty, we recommend that you check with the authorities or official certification organizations of the relevant countries.
EC Declaration of Conformity We, Samsung Electronics Co., Ltd. of Samsung Electronics Co., Ltd. #259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, 730-030 Korea of Samsung Electronics(Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech IDZ, Shandong Province, China declare under our sole responsibility that the product WLAN Module model " Dell5002 " to which this declaration relates is in conformity with R&TTE Directive 1999/5/EC By application of the following standards Article 3.1(a) Health EN 50385:2002 Article 3.1(a) Safety EN 60950-1:2001 Article 3.1(b) EMC EN 301 489-1 V1.7.1(2006-10), EN 301 489-17 V1.2.1(2002-08) Article 3.2 Radio EN 300 328 V1.7.1 (2006-10) Notified Body UL Apex Co., Ltd. 4383-326, Asama-cho, Ise-shi, Mie 516-0021, JAPAN EU Identification Number: 1731 Documentary evidence to demonstrate conformity Description Report or Certificate No. Issue Date Issued by Health Declaration of Conformity issued bySamsung Electronics Co., Ltd. Safety SK Tech Co., LTD. EMC SK Tech Co., LTD. Radio SK Tech Co., LTD. Manufacturer Samsung Electronics Co., Ltd. #259, Gongdan-Dong, Gumi-City Gyungbuk, Korea 730-030 (Sang youp Hyoun) / 17th ,January ,2008
