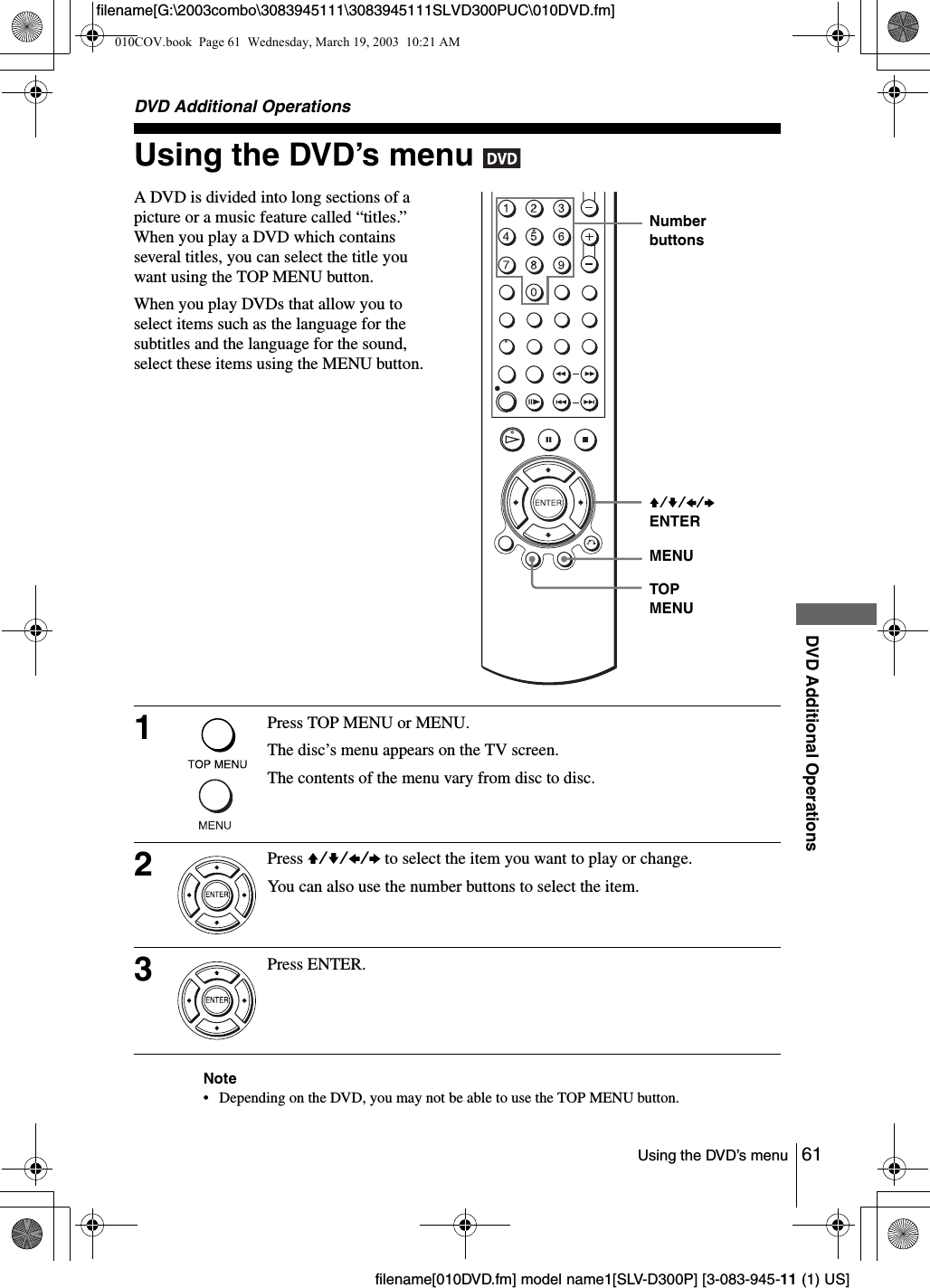

61Using the DVD’s menuDVD Additional Operationsfilename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[G:\2003combo\3083945111\3083945111SLVD300PUC\010DVD.fm]DVD Additional OperationsUsing the DVD’s menu Note• Depending on the DVD, you may not be able to use the TOP MENU button.A DVD is divided into long sections of a picture or a music feature called “titles.” When you play a DVD which contains several titles, you can select the title you want using the TOP MENU button.When you play DVDs that allow you to select items such as the language for the subtitles and the language for the sound, select these items using the MENU button.1Press TOP MENU or MENU.The disc’s menu appears on the TV screen.The contents of the menu vary from disc to disc.2Press V/v/B/b to select the item you want to play or change.You can also use the number buttons to select the item.3Press ENTER.Number buttonsV/v/B/b ENTERMENUTOP MENU010COV.book Page 61 Wednesday, March 19, 2003 10:21 AM

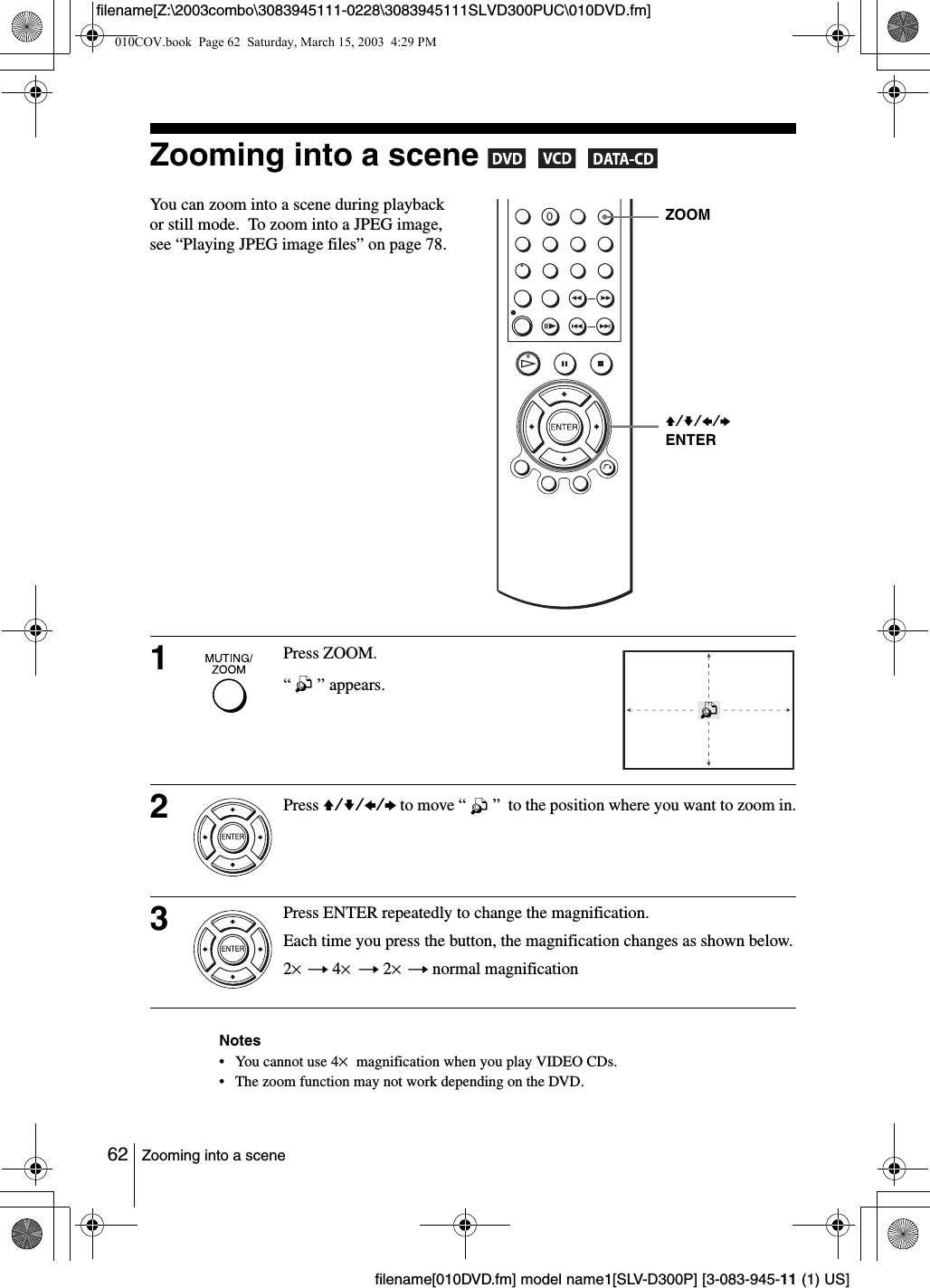

62 Zooming into a scenefilename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm]Zooming into a scene Notes• You cannot use 4× magnification when you play VIDEO CDs. • The zoom function may not work depending on the DVD.You can zoom into a scene during playback or still mode. To zoom into a JPEG image, see “Playing JPEG image files” on page 78.1Press ZOOM.“ ” appears.2Press V/v/B/b to move “ ” to the position where you want to zoom in.3Press ENTER repeatedly to change the magnification.Each time you press the button, the magnification changes as shown below.2× t 4× t 2× t normal magnificationZOOMV/v/B/b ENTER010COV.book Page 62 Saturday, March 15, 2003 4:29 PM

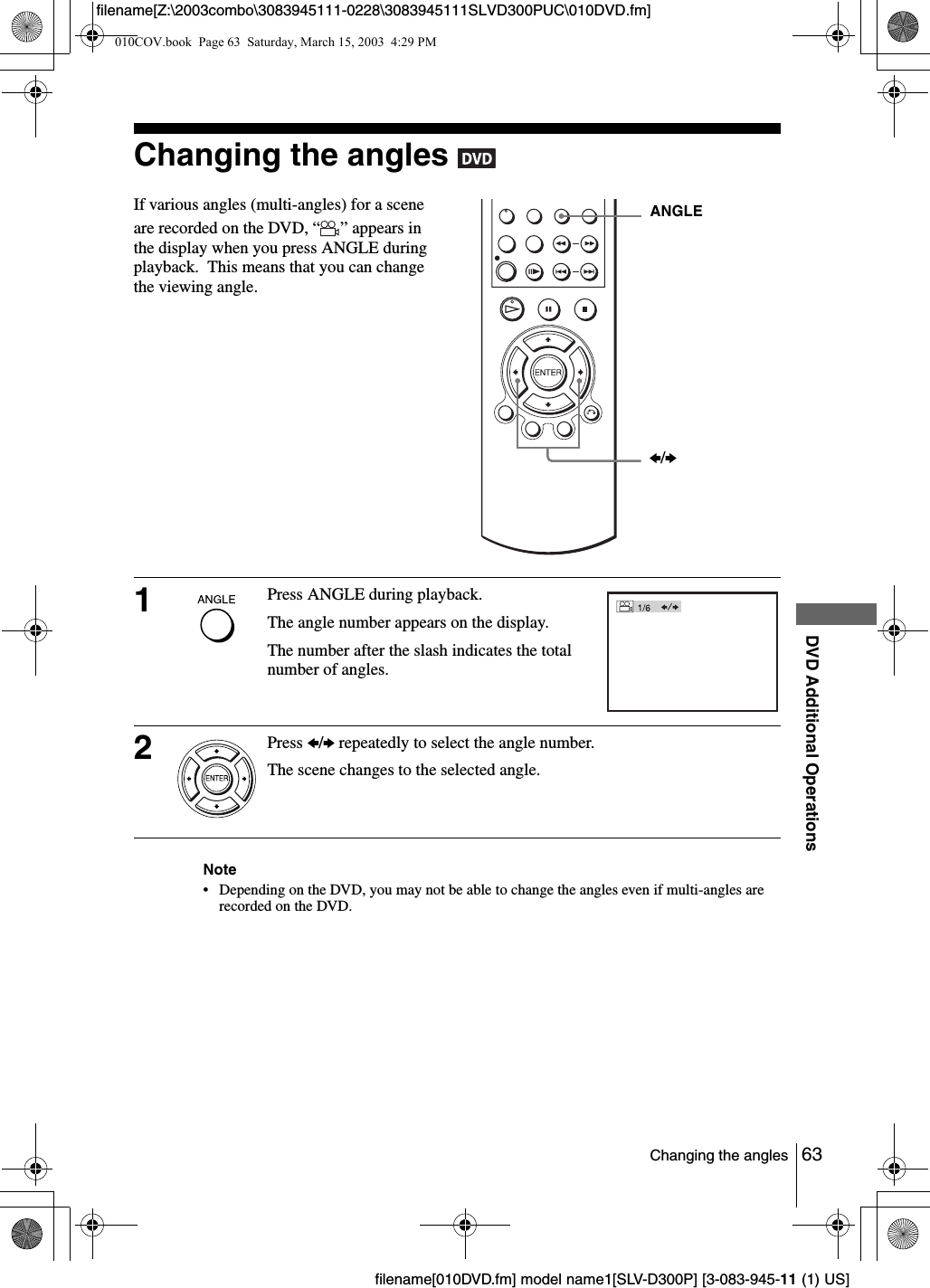

63Changing the anglesDVD Additional Operationsfilename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm]Changing the angles Note• Depending on the DVD, you may not be able to change the angles even if multi-angles are recorded on the DVD.If various angles (multi-angles) for a scene are recorded on the DVD, “ ” appears in the display when you press ANGLE during playback. This means that you can change the viewing angle.1Press ANGLE during playback.The angle number appears on the display.The number after the slash indicates the total number of angles.2Press B/b repeatedly to select the angle number.The scene changes to the selected angle.ANGLEB/b010COV.book Page 63 Saturday, March 15, 2003 4:29 PM

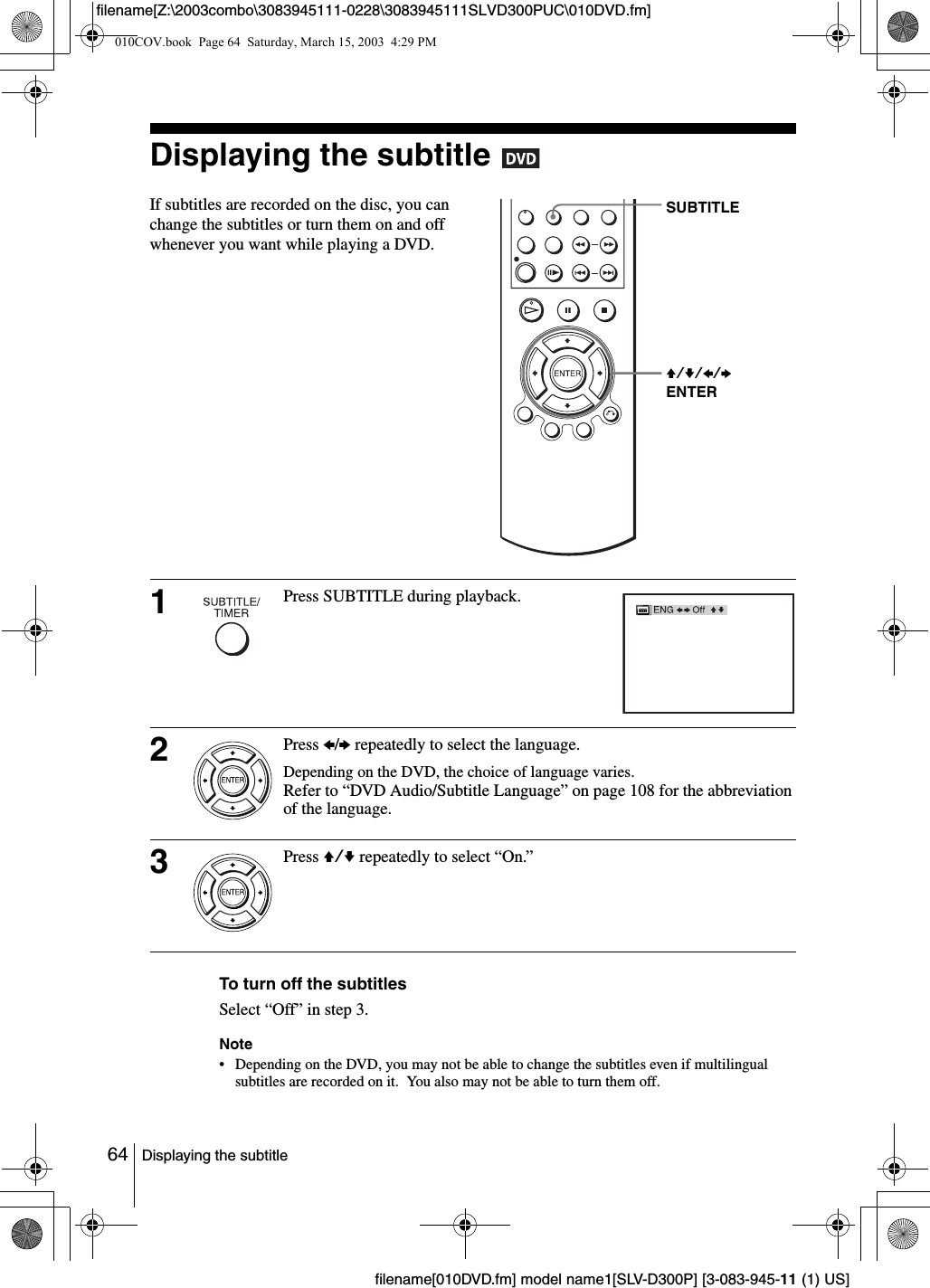

64 Displaying the subtitlefilename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm]Displaying the subtitle To turn off the subtitlesSelect “Off” in step 3.Note• Depending on the DVD, you may not be able to change the subtitles even if multilingual subtitles are recorded on it. You also may not be able to turn them off.If subtitles are recorded on the disc, you can change the subtitles or turn them on and off whenever you want while playing a DVD.1Press SUBTITLE during playback.2Press B/b repeatedly to select the language.Depending on the DVD, the choice of language varies.Refer to “DVD Audio/Subtitle Language” on page 108 for the abbreviation of the language.3Press V/v repeatedly to select “On.”SUBTITLEV/v/B/b ENTER010COV.book Page 64 Saturday, March 15, 2003 4:29 PM

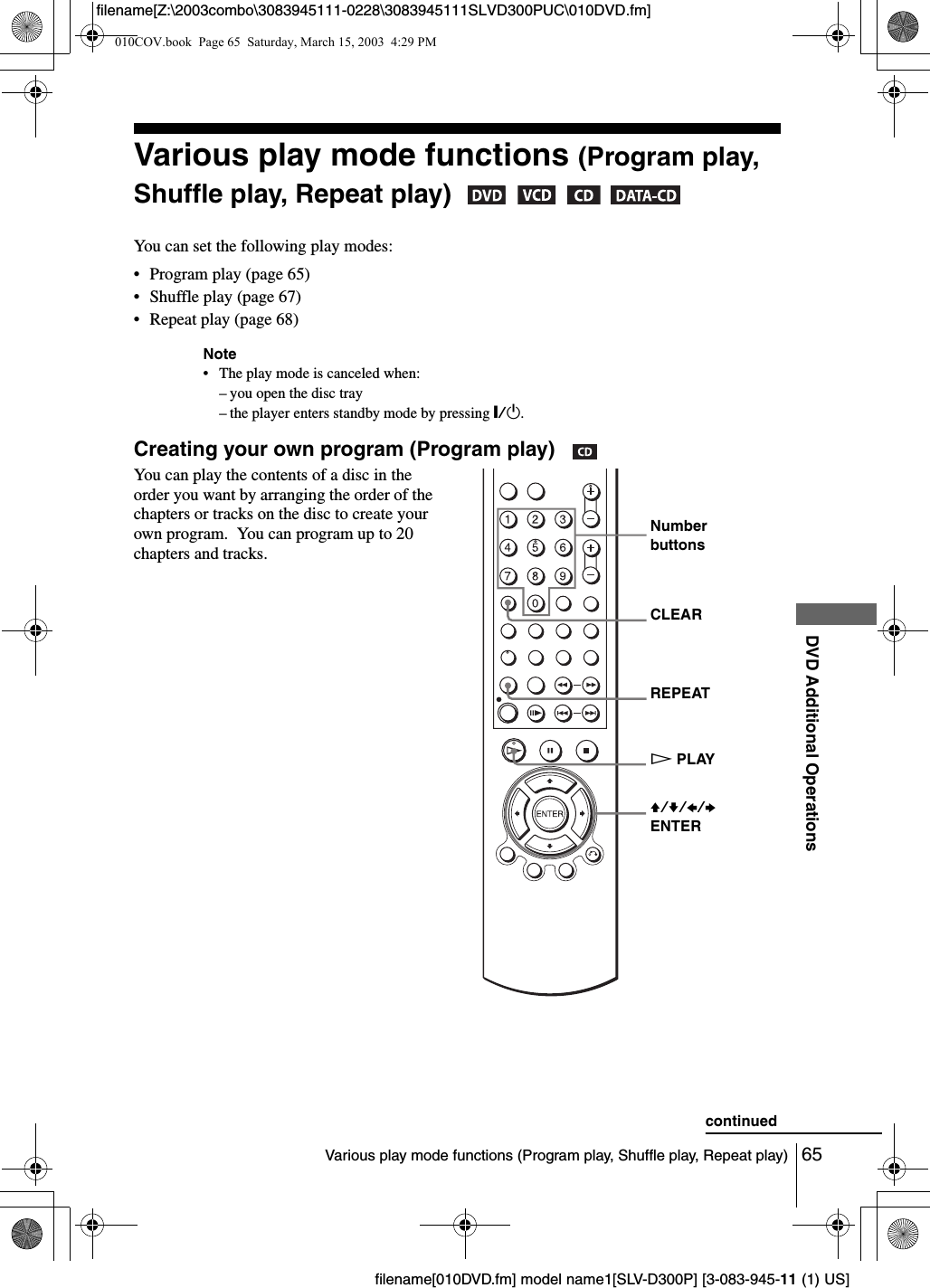

65Various play mode functions (Program play, Shuffle play, Repeat play)DVD Additional Operationsfilename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm]Various play mode functions (Program play, Shuffle play, Repeat play) You can set the following play modes:• Program play (page 65)• Shuffle play (page 67)• Repeat play (page 68)Note• The play mode is canceled when:– you open the disc tray– the player enters standby mode by pressing [/1.Creating your own program (Program play) You can play the contents of a disc in the order you want by arranging the order of the chapters or tracks on the disc to create your own program. You can program up to 20 chapters and tracks.HPLAYNumber buttonsV/v/B/bENTERCLEARREPEATcontinued010COV.book Page 65 Saturday, March 15, 2003 4:29 PM

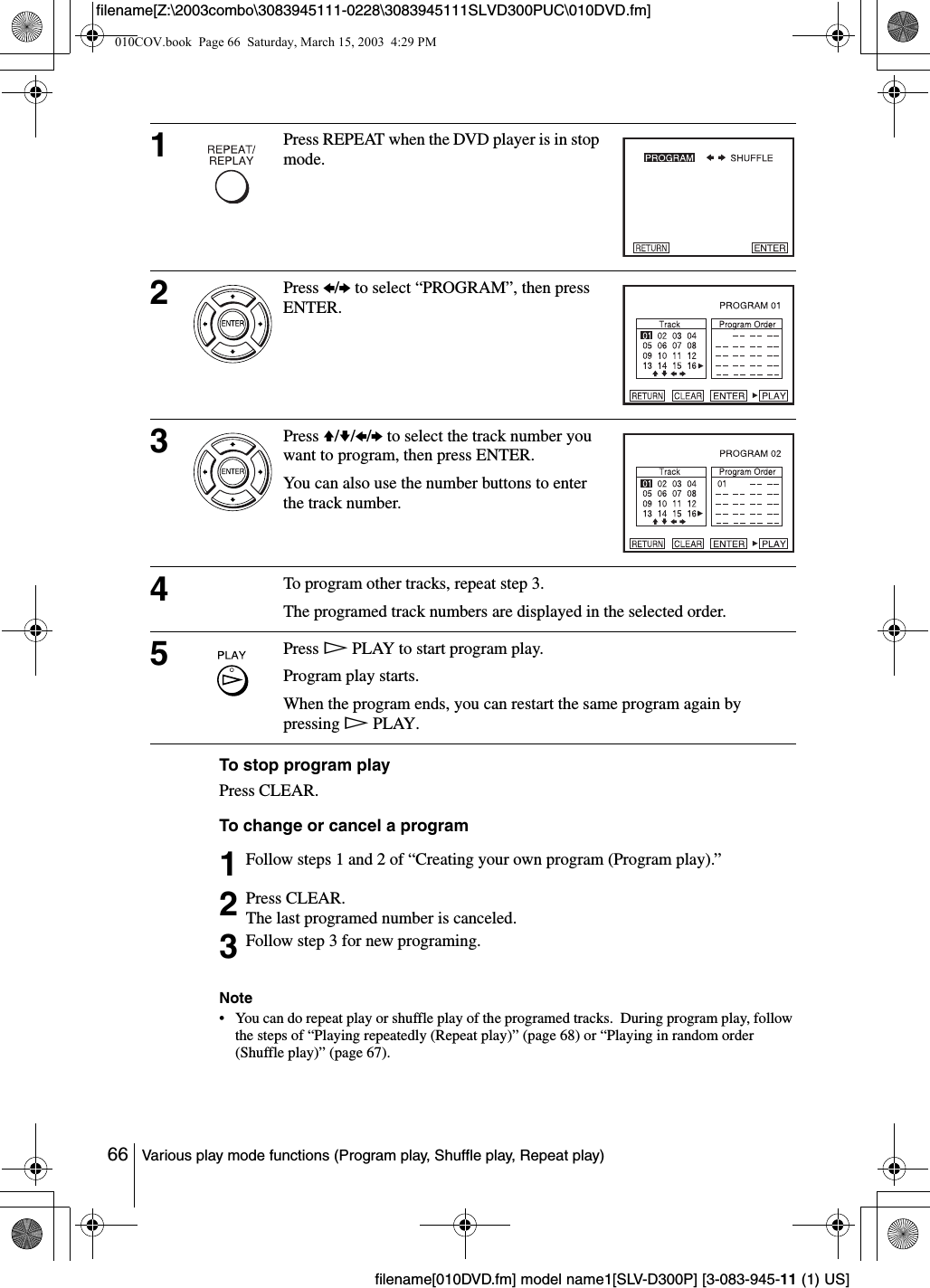

66 Various play mode functions (Program play, Shuffle play, Repeat play)filename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm]To stop program playPress CLEAR.To change or cancel a programNote• You can do repeat play or shuffle play of the programed tracks. During program play, follow the steps of “Playing repeatedly (Repeat play)” (page 68) or “Playing in random order (Shuffle play)” (page 67).1Press REPEAT when the DVD player is in stop mode. 2Press B/b to select “PROGRAM”, then press ENTER.3Press V/v/B/b to select the track number you want to program, then press ENTER.You can also use the number buttons to enter the track number.4To program other tracks, repeat step 3.The programed track numbers are displayed in the selected order.5Press HPLAY to start program play.Program play starts.When the program ends, you can restart the same program again by pressing HPLAY.1Follow steps 1 and 2 of “Creating your own program (Program play).”2Press CLEAR. The last programed number is canceled.3Follow step 3 for new programing.010COV.book Page 66 Saturday, March 15, 2003 4:29 PM

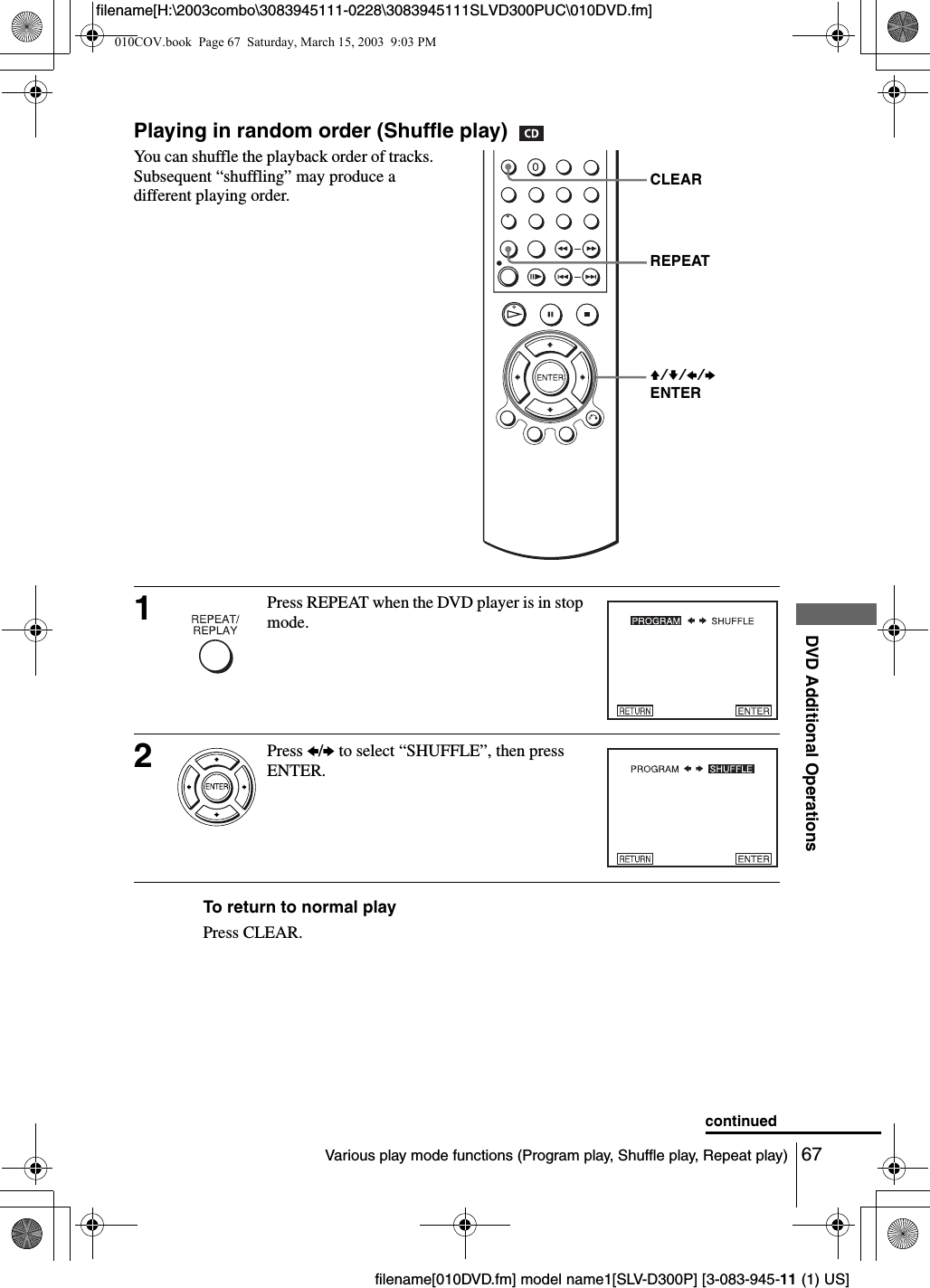

67Various play mode functions (Program play, Shuffle play, Repeat play)DVD Additional Operationsfilename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[H:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm]Playing in random order (Shuffle play) To return to normal playPress CLEAR.You can shuffle the playback order of tracks. Subsequent “shuffling” may produce a different playing order.1Press REPEAT when the DVD player is in stop mode.2Press B/b to select “SHUFFLE”, then press ENTER.V/v/B/bENTERREPEATCLEARcontinued010COV.book Page 67 Saturday, March 15, 2003 9:03 PM
68 Various play mode functions (Program play, Shuffle play, Repeat play)filename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm]Playing repeatedly (Repeat play) To return to normal playSelect “Off” or press CLEAR in step 2.You can play all of the titles or tracks on a disc or a single title, chapter, or track repeatedly.1Press REPEAT during playback. 2Press REPEAT or B/b repeatedly to select the item to be repeated.When playing a DVD• Chapter: repeats the current chapter.• Title: repeats the current title on a disc.When playing a VIDEO CD or CD• Track: repeats the current track.• Disc: repeats all of the tracks.When playing a DATA CD (MP3 audio)• Track: repeats the current track.REPEATCLEARB/b010COV.book Page 68 Saturday, March 15, 2003 4:29 PM

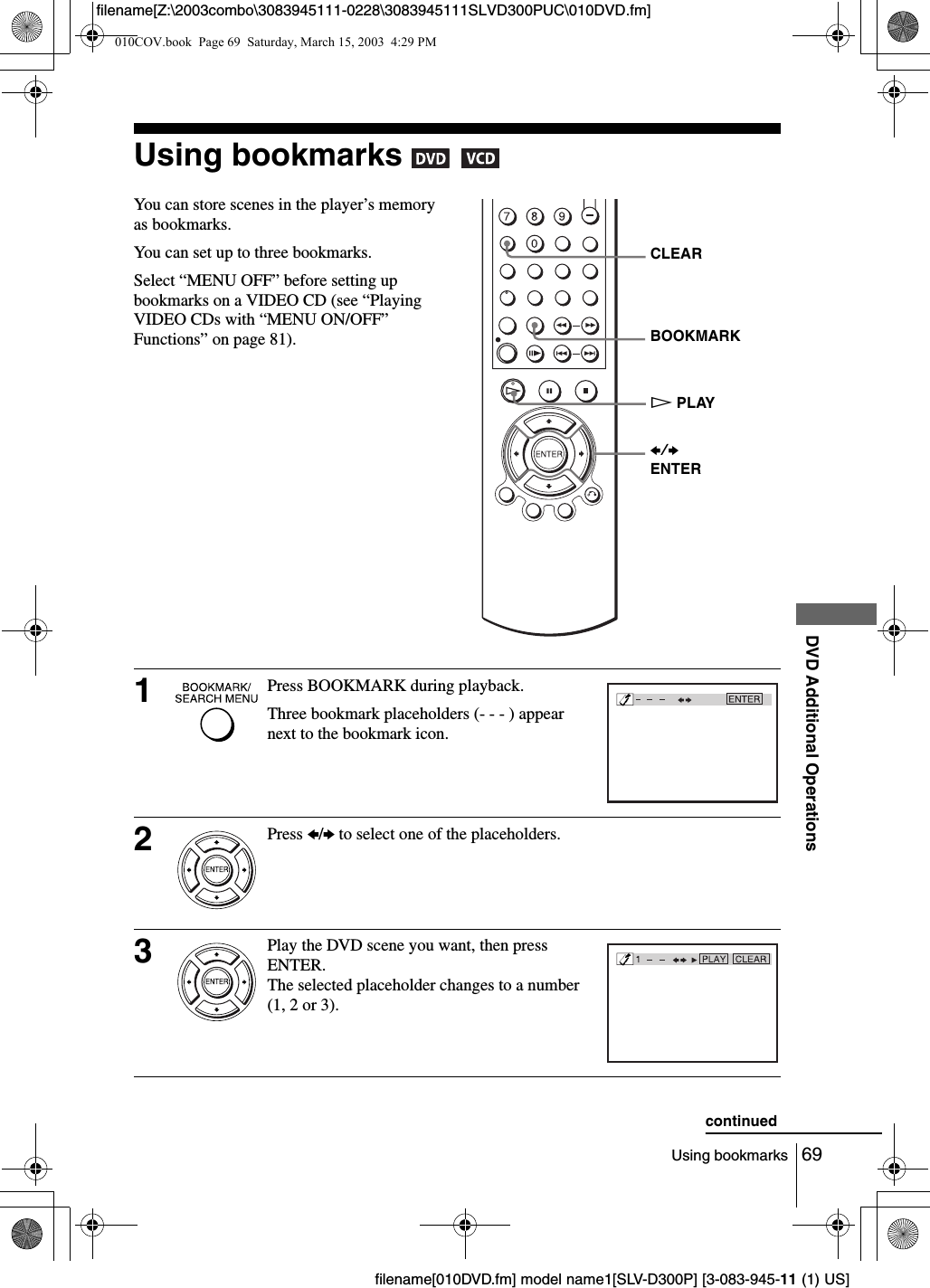

69Using bookmarksDVD Additional Operationsfilename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm]Using bookmarks You can store scenes in the player’s memory as bookmarks.You can set up to three bookmarks. Select “MENU OFF” before setting up bookmarks on a VIDEO CD (see “Playing VIDEO CDs with “MENU ON/OFF” Functions” on page 81).1Press BOOKMARK during playback. Three bookmark placeholders (- - - ) appear next to the bookmark icon.2Press B/b to select one of the placeholders.3Play the DVD scene you want, then press ENTER. The selected placeholder changes to a number (1, 2 or 3).B/bENTERBOOKMARKCLEARHPLAYcontinued010COV.book Page 69 Saturday, March 15, 2003 4:29 PM

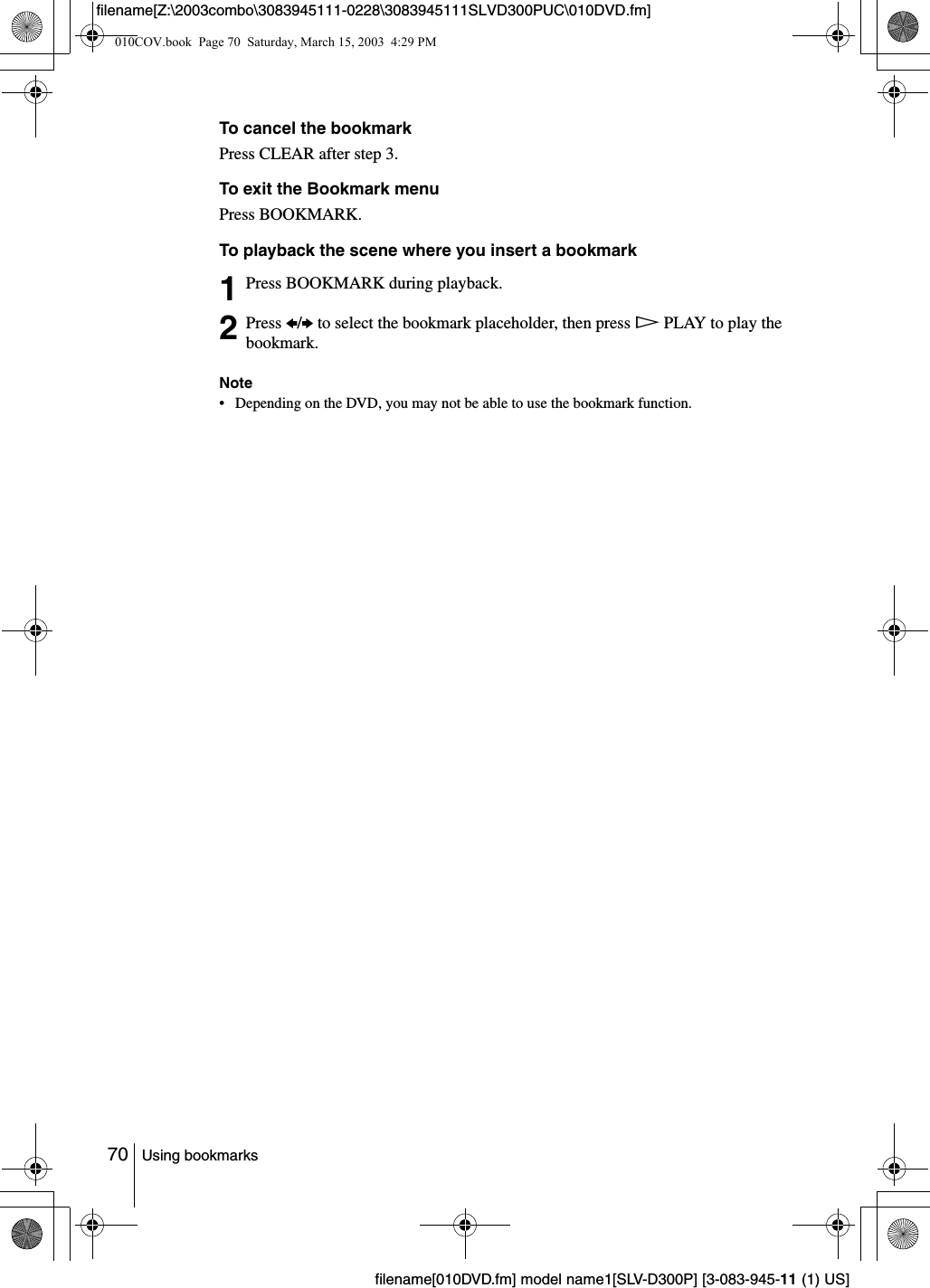

70 Using bookmarksfilename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm]To cancel the bookmarkPress CLEAR after step 3.To exit the Bookmark menuPress BOOKMARK.To playback the scene where you insert a bookmarkNote• Depending on the DVD, you may not be able to use the bookmark function.1Press BOOKMARK during playback.2Press B/b to select the bookmark placeholder, then press HPLAY to play the bookmark.010COV.book Page 70 Saturday, March 15, 2003 4:29 PM

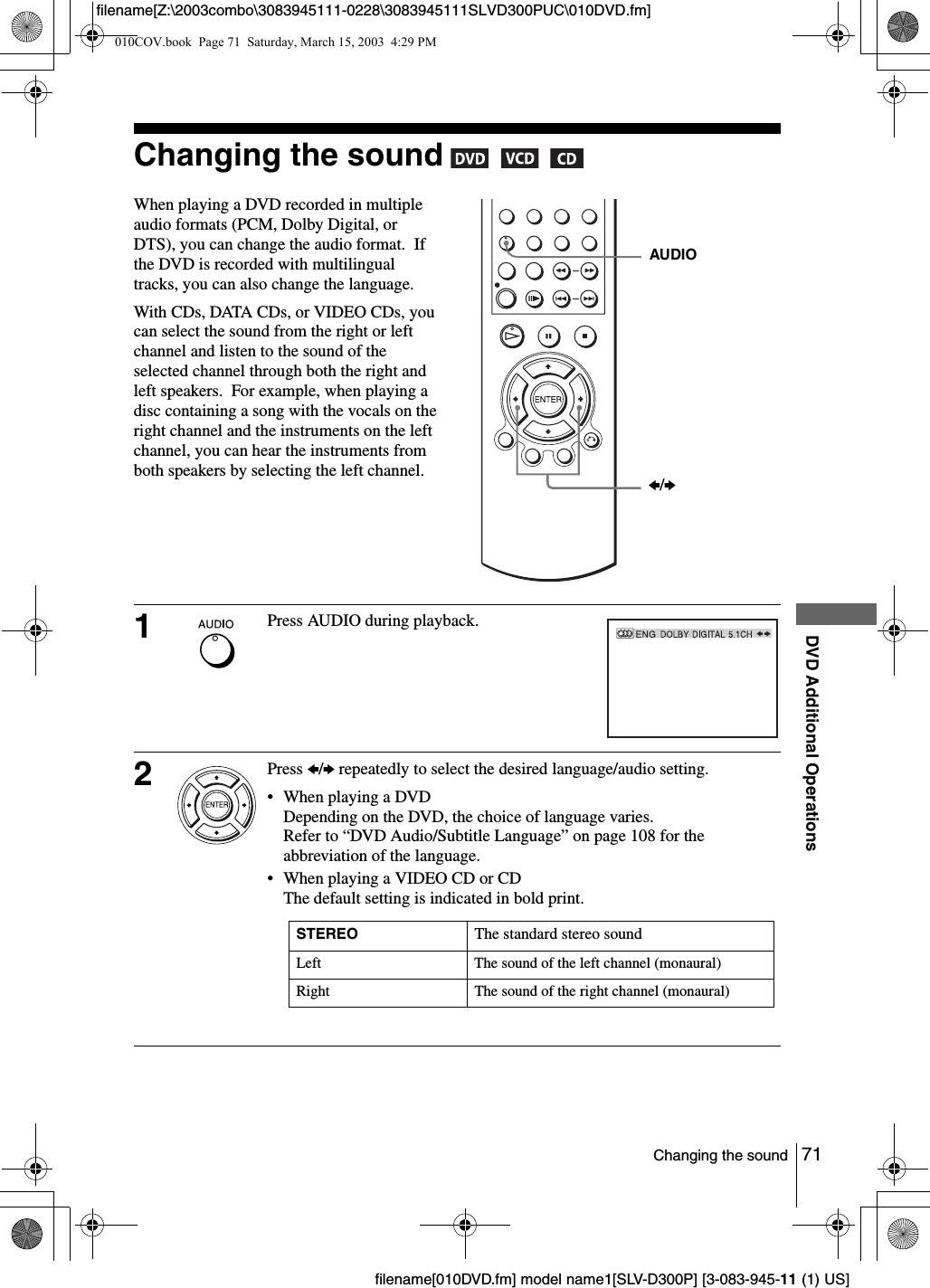

71Changing the soundDVD Additional Operationsfilename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm]Changing the sound When playing a DVD recorded in multiple audio formats (PCM, Dolby Digital, or DTS), you can change the audio format. If the DVD is recorded with multilingual tracks, you can also change the language.With CDs, DATA CDs, or VIDEO CDs, you can select the sound from the right or left channel and listen to the sound of the selected channel through both the right and left speakers. For example, when playing a disc containing a song with the vocals on the right channel and the instruments on the left channel, you can hear the instruments from both speakers by selecting the left channel.1Press AUDIO during playback. 2Press B/b repeatedly to select the desired language/audio setting.• When playing a DVDDepending on the DVD, the choice of language varies.Refer to “DVD Audio/Subtitle Language” on page 108 for the abbreviation of the language.• When playing a VIDEO CD or CDThe default setting is indicated in bold print.AUDIOB/bSTEREO The standard stereo soundLeft The sound of the left channel (monaural)Right The sound of the right channel (monaural)010COV.book Page 71 Saturday, March 15, 2003 4:29 PM

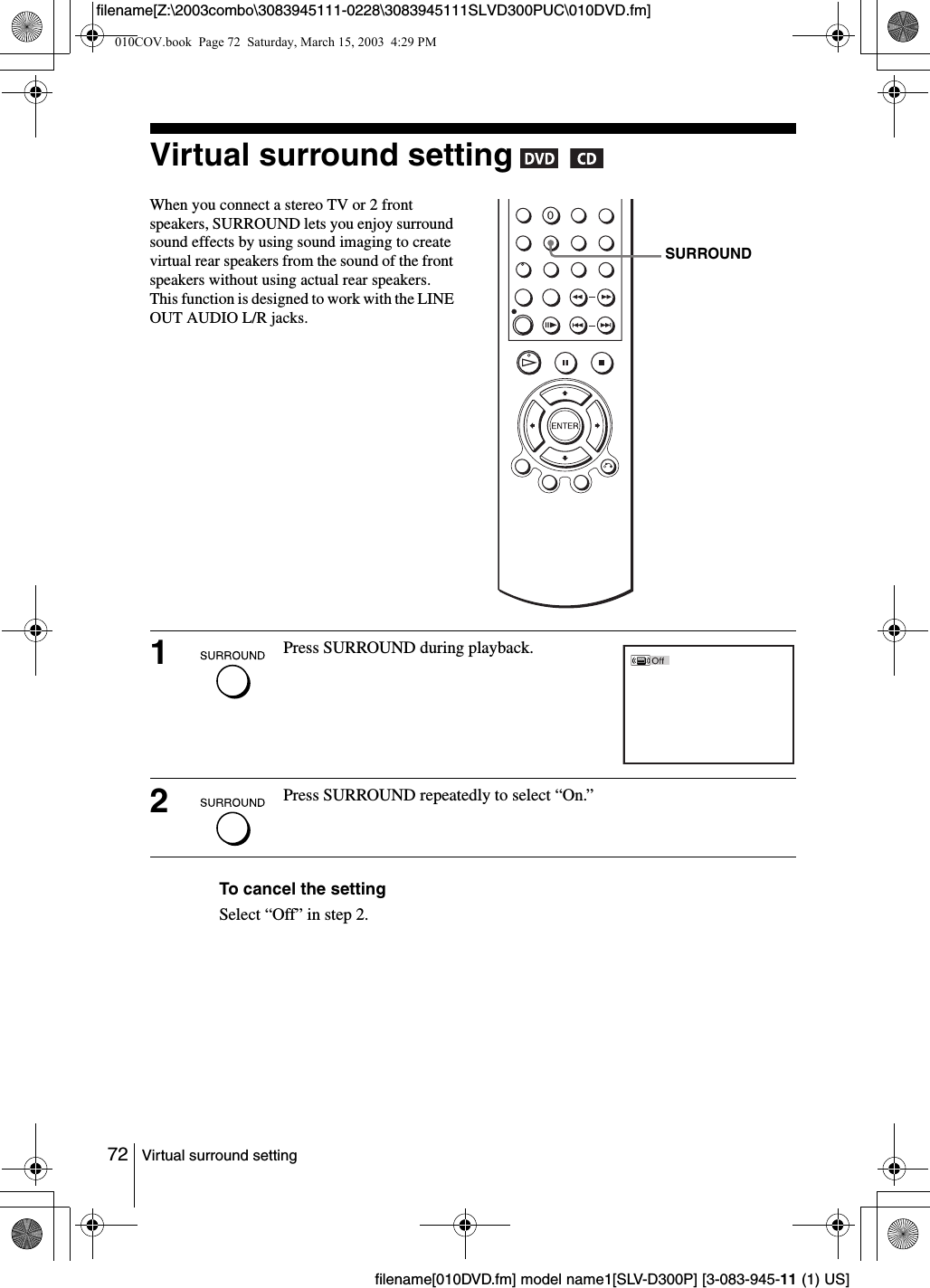

72 Virtual surround settingfilename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm]Virtual surround setting To cancel the settingSelect “Off” in step 2.When you connect a stereo TV or 2 front speakers, SURROUND lets you enjoy surround sound effects by using sound imaging to create virtual rear speakers from the sound of the front speakers without using actual rear speakers. This function is designed to work with the LINE OUT AUDIO L/R jacks.1Press SURROUND during playback. 2Press SURROUND repeatedly to select “On.”SURROUND010COV.book Page 72 Saturday, March 15, 2003 4:29 PM

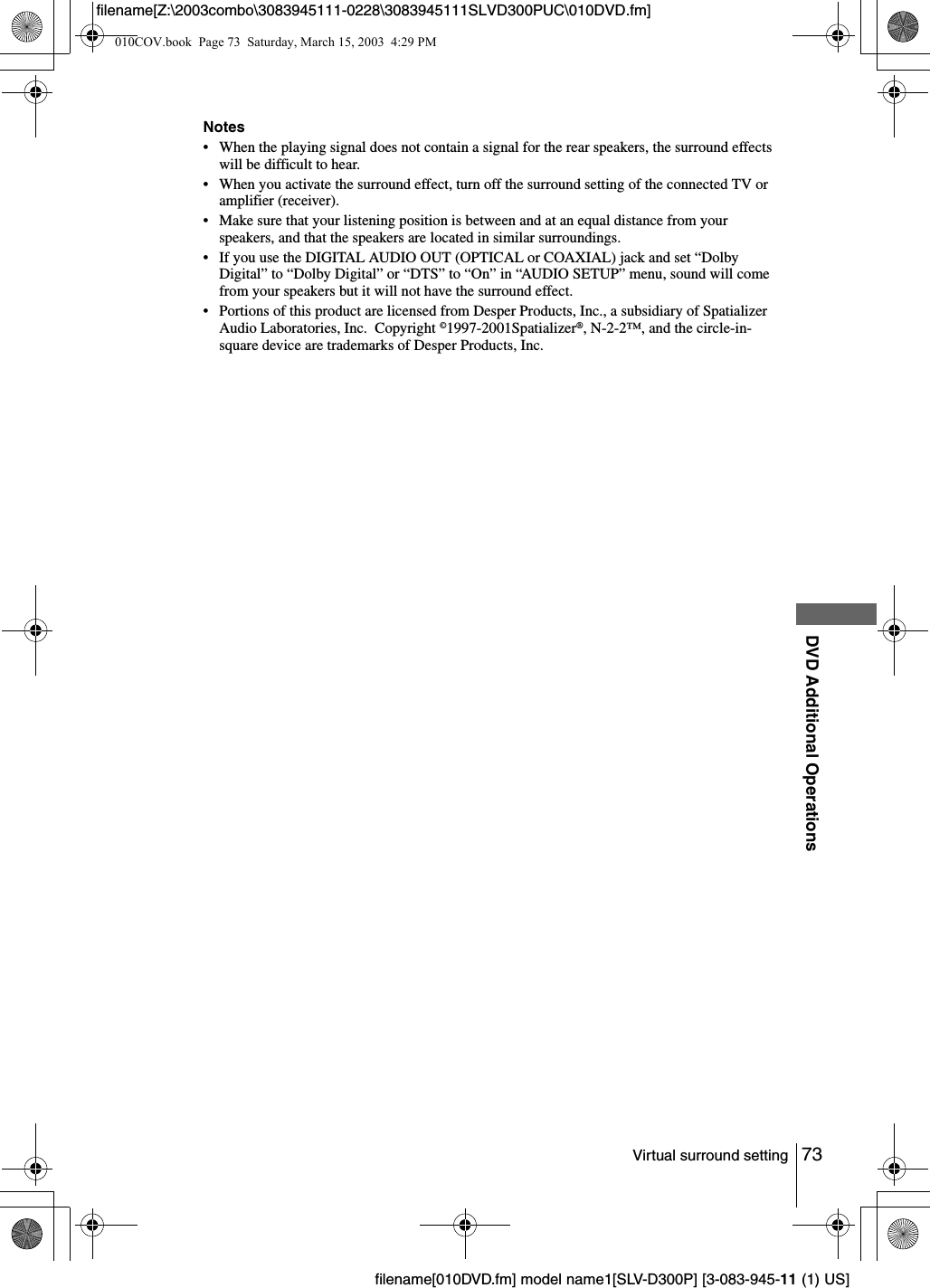

73Virtual surround settingDVD Additional Operationsfilename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm]Notes• When the playing signal does not contain a signal for the rear speakers, the surround effects will be difficult to hear.• When you activate the surround effect, turn off the surround setting of the connected TV or amplifier (receiver).• Make sure that your listening position is between and at an equal distance from your speakers, and that the speakers are located in similar surroundings.• If you use the DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack and set “Dolby Digital” to “Dolby Digital” or “DTS” to “On” in “AUDIO SETUP” menu, sound will come from your speakers but it will not have the surround effect.• Portions of this product are licensed from Desper Products, Inc., a subsidiary of Spatializer Audio Laboratories, Inc. Copyright ©1997-2001Spatializer®, N-2-2™, and the circle-in-square device are trademarks of Desper Products, Inc.010COV.book Page 73 Saturday, March 15, 2003 4:29 PM

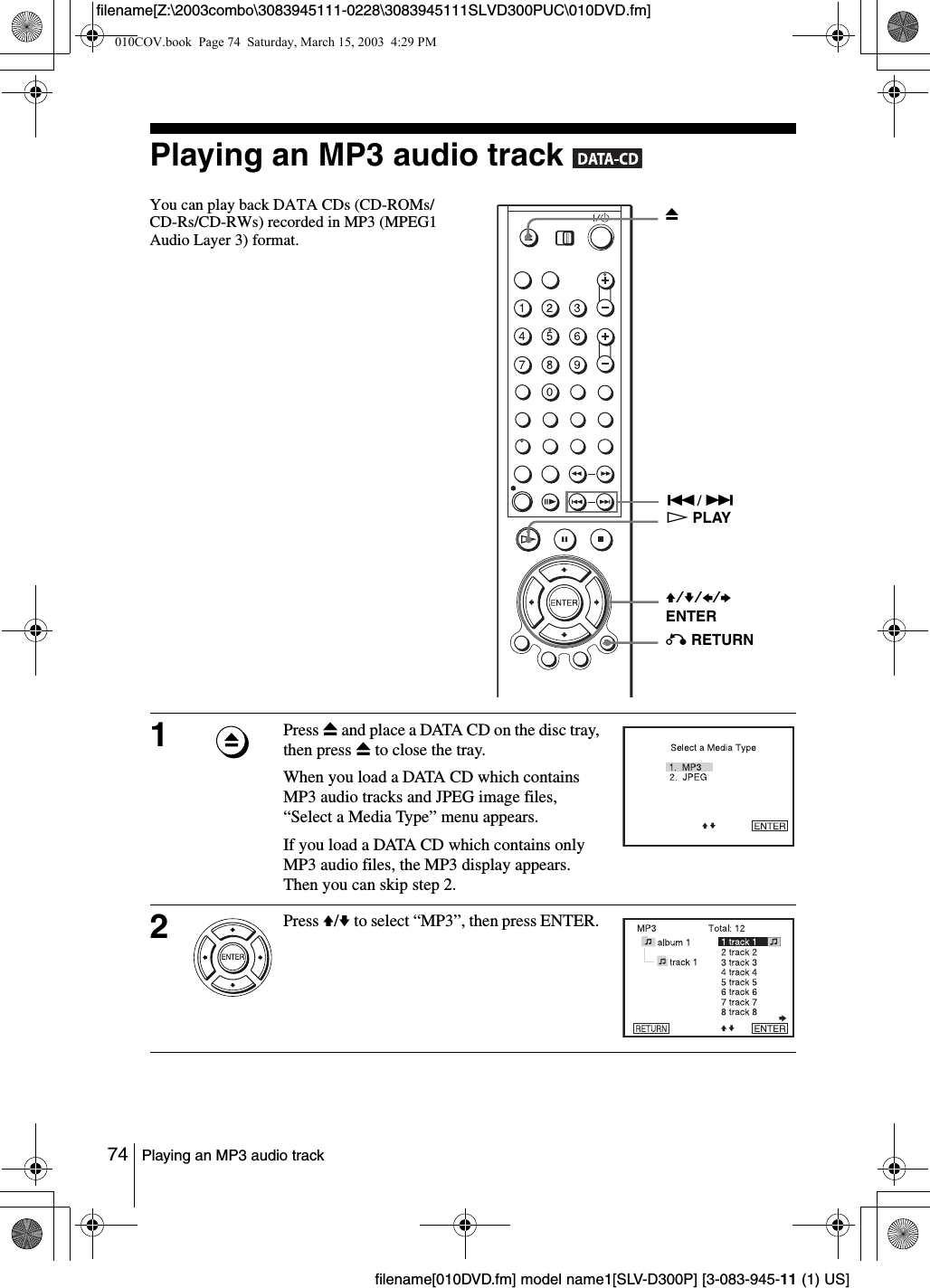

74 Playing an MP3 audio trackfilename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm]Playing an MP3 audio track You can play back DATA CDs (CD-ROMs/CD-Rs/CD-RWs) recorded in MP3 (MPEG1 Audio Layer 3) format.1Press Z and place a DATA CD on the disc tray, then press Z to close the tray.When you load a DATA CD which contains MP3 audio tracks and JPEG image files, “Select a Media Type” menu appears.If you load a DATA CD which contains only MP3 audio files, the MP3 display appears. Then you can skip step 2.2Press V/v to select “MP3”, then press ENTER. V/v/B/b ENTERHPLAYO RETURNZ./ > 010COV.book Page 74 Saturday, March 15, 2003 4:29 PM

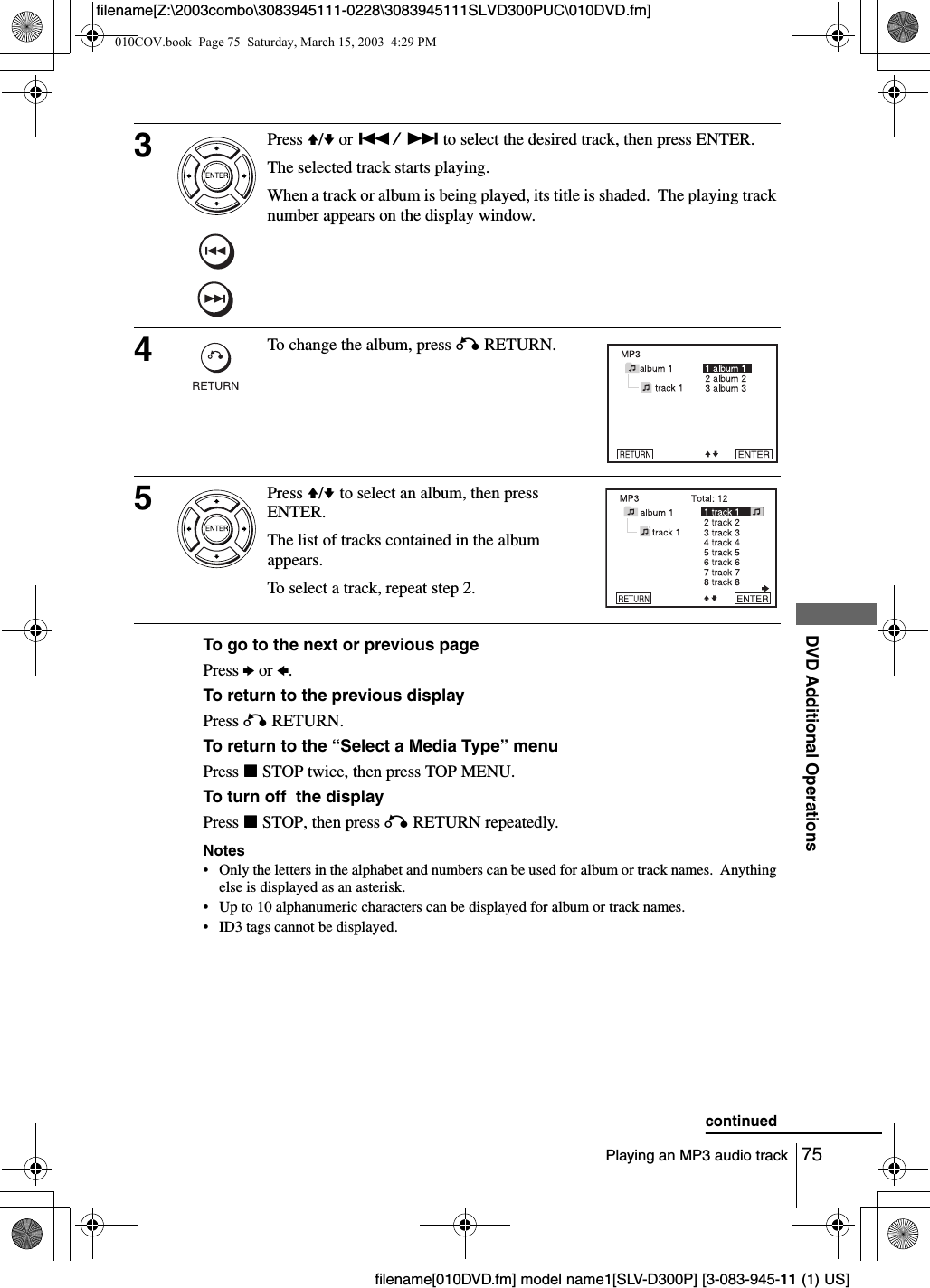

75Playing an MP3 audio trackDVD Additional Operationsfilename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm]To go to the next or previous pagePress b or B.To return to the previous displayPress O RETURN.To return to the “Select a Media Type” menuPress xSTOP twice, then press TOP MENU.To turn off the displayPress xSTOP, then press O RETURN repeatedly.Notes• Only the letters in the alphabet and numbers can be used for album or track names. Anything else is displayed as an asterisk.• Up to 10 alphanumeric characters can be displayed for album or track names.• ID3 tags cannot be displayed.3Press V/v or ./ > to select the desired track, then press ENTER.The selected track starts playing.When a track or album is being played, its title is shaded. The playing track number appears on the display window.4To change the album, press O RETURN.5Press V/v to select an album, then press ENTER.The list of tracks contained in the album appears.To select a track, repeat step 2.continued010COV.book Page 75 Saturday, March 15, 2003 4:29 PM

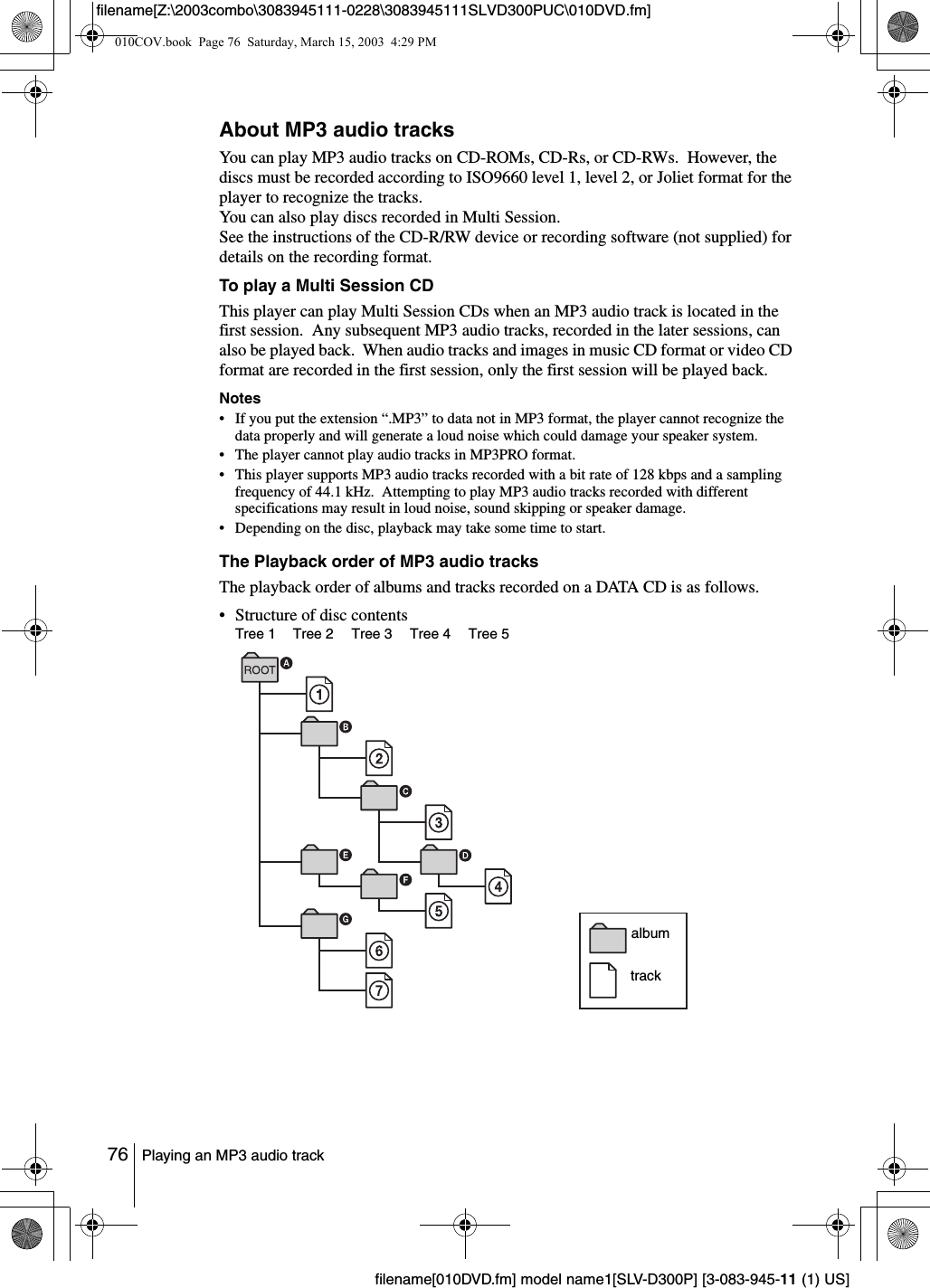

76 Playing an MP3 audio trackfilename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm]About MP3 audio tracksYou can play MP3 audio tracks on CD-ROMs, CD-Rs, or CD-RWs. However, the discs must be recorded according to ISO9660 level 1, level 2, or Joliet format for the player to recognize the tracks.You can also play discs recorded in Multi Session.See the instructions of the CD-R/RW device or recording software (not supplied) for details on the recording format.To play a Multi Session CDThis player can play Multi Session CDs when an MP3 audio track is located in the first session. Any subsequent MP3 audio tracks, recorded in the later sessions, can also be played back. When audio tracks and images in music CD format or video CD format are recorded in the first session, only the first session will be played back.Notes• If you put the extension “.MP3” to data not in MP3 format, the player cannot recognize the data properly and will generate a loud noise which could damage your speaker system.• The player cannot play audio tracks in MP3PRO format.• This player supports MP3 audio tracks recorded with a bit rate of 128 kbps and a sampling frequency of 44.1 kHz. Attempting to play MP3 audio tracks recorded with different specifications may result in loud noise, sound skipping or speaker damage.• Depending on the disc, playback may take some time to start.The Playback order of MP3 audio tracksThe playback order of albums and tracks recorded on a DATA CD is as follows.• Structure of disc contentsTree 1 Tree 2 Tree 3 Tree 4 Tree 5albumtrack010COV.book Page 76 Saturday, March 15, 2003 4:29 PM

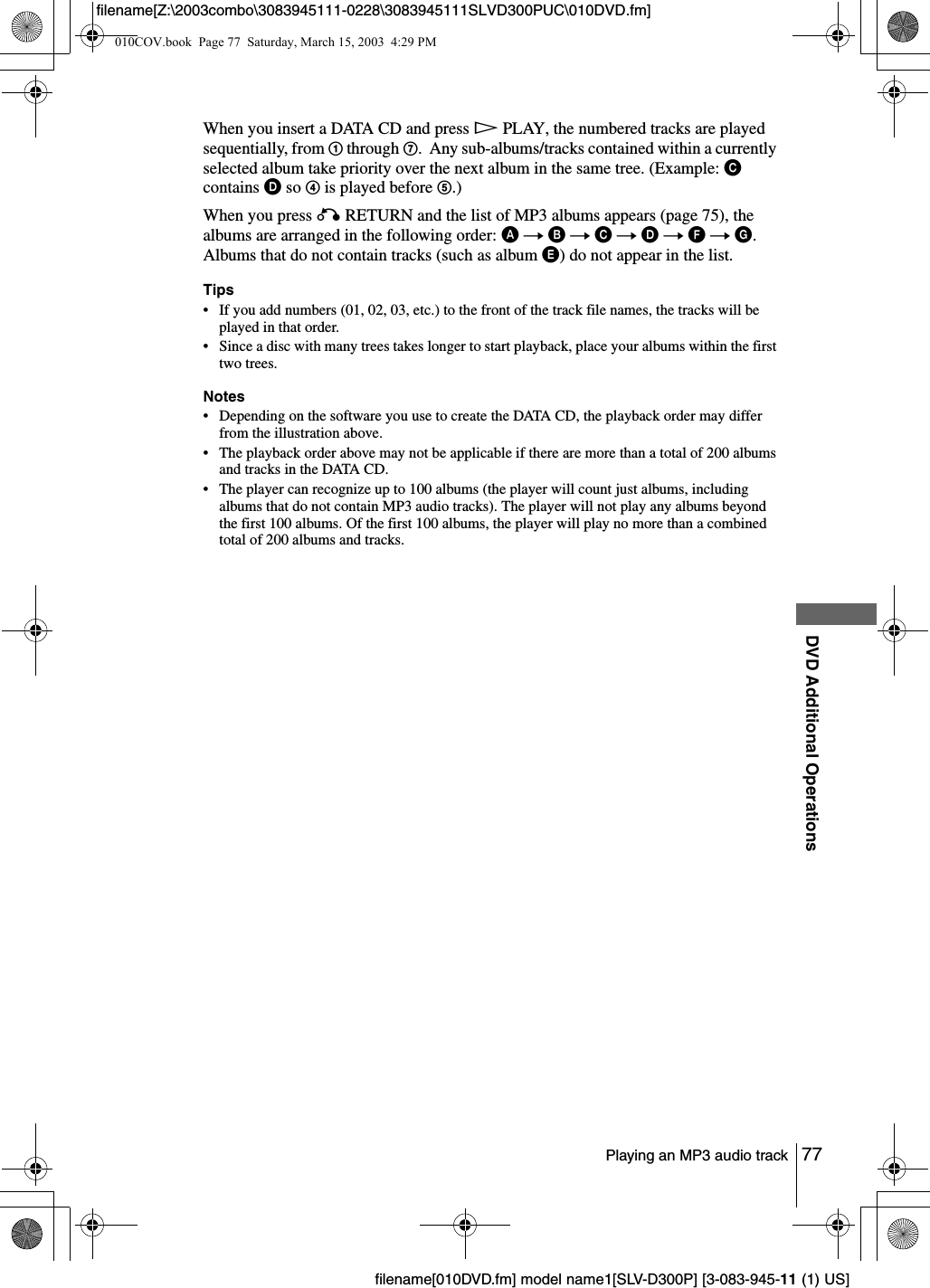

77Playing an MP3 audio trackDVD Additional Operationsfilename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm]When you insert a DATA CD and press HPLAY, the numbered tracks are played sequentially, from 1 through 7. Any sub-albums/tracks contained within a currently selected album take priority over the next album in the same tree. (Example: C contains D so 4 is played before 5.)When you press O RETURN and the list of MP3 albums appears (page 75), the albums are arranged in the following order: A t B t C t D t F t G. Albums that do not contain tracks (such as album E) do not appear in the list.Tips• If you add numbers (01, 02, 03, etc.) to the front of the track file names, the tracks will be played in that order.• Since a disc with many trees takes longer to start playback, place your albums within the first two trees.Notes• Depending on the software you use to create the DATA CD, the playback order may differ from the illustration above.• The playback order above may not be applicable if there are more than a total of 200 albums and tracks in the DATA CD.• The player can recognize up to 100 albums (the player will count just albums, including albums that do not contain MP3 audio tracks). The player will not play any albums beyond the first 100 albums. Of the first 100 albums, the player will play no more than a combined total of 200 albums and tracks.010COV.book Page 77 Saturday, March 15, 2003 4:29 PM

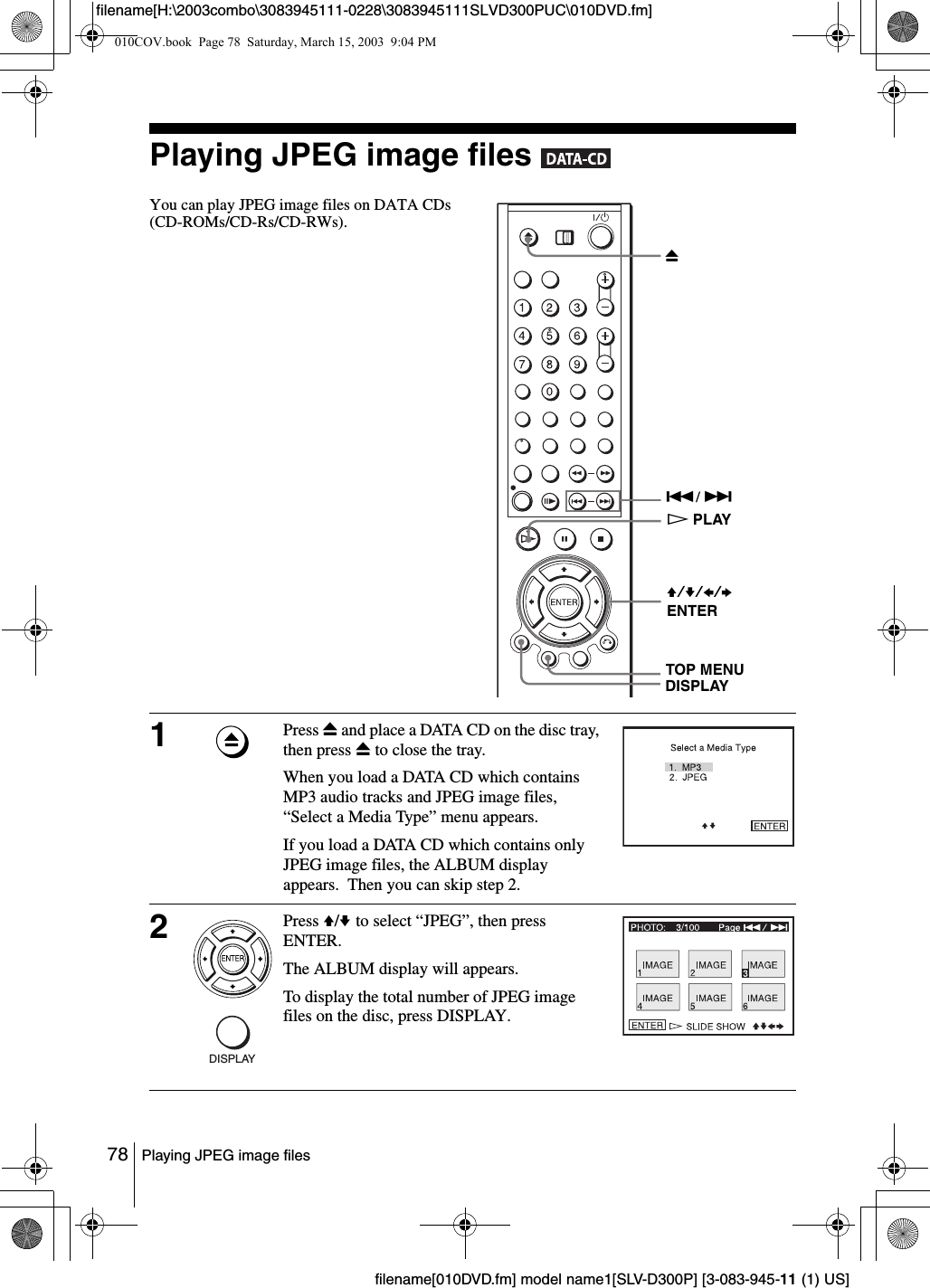

78 Playing JPEG image filesfilename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[H:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm]Playing JPEG image files You can play JPEG image files on DATA CDs (CD-ROMs/CD-Rs/CD-RWs). 1Press Z and place a DATA CD on the disc tray, then press Z to close the tray.When you load a DATA CD which contains MP3 audio tracks and JPEG image files, “Select a Media Type” menu appears.If you load a DATA CD which contains only JPEG image files, the ALBUM display appears. Then you can skip step 2.2Press V/v to select “JPEG”, then press ENTER.The ALBUM display will appears.To display the total number of JPEG image files on the disc, press DISPLAY.V/v/B/b ENTERHPLAYZTOP MENU./ > DISPLAYDISPLAY010COV.book Page 78 Saturday, March 15, 2003 9:04 PM

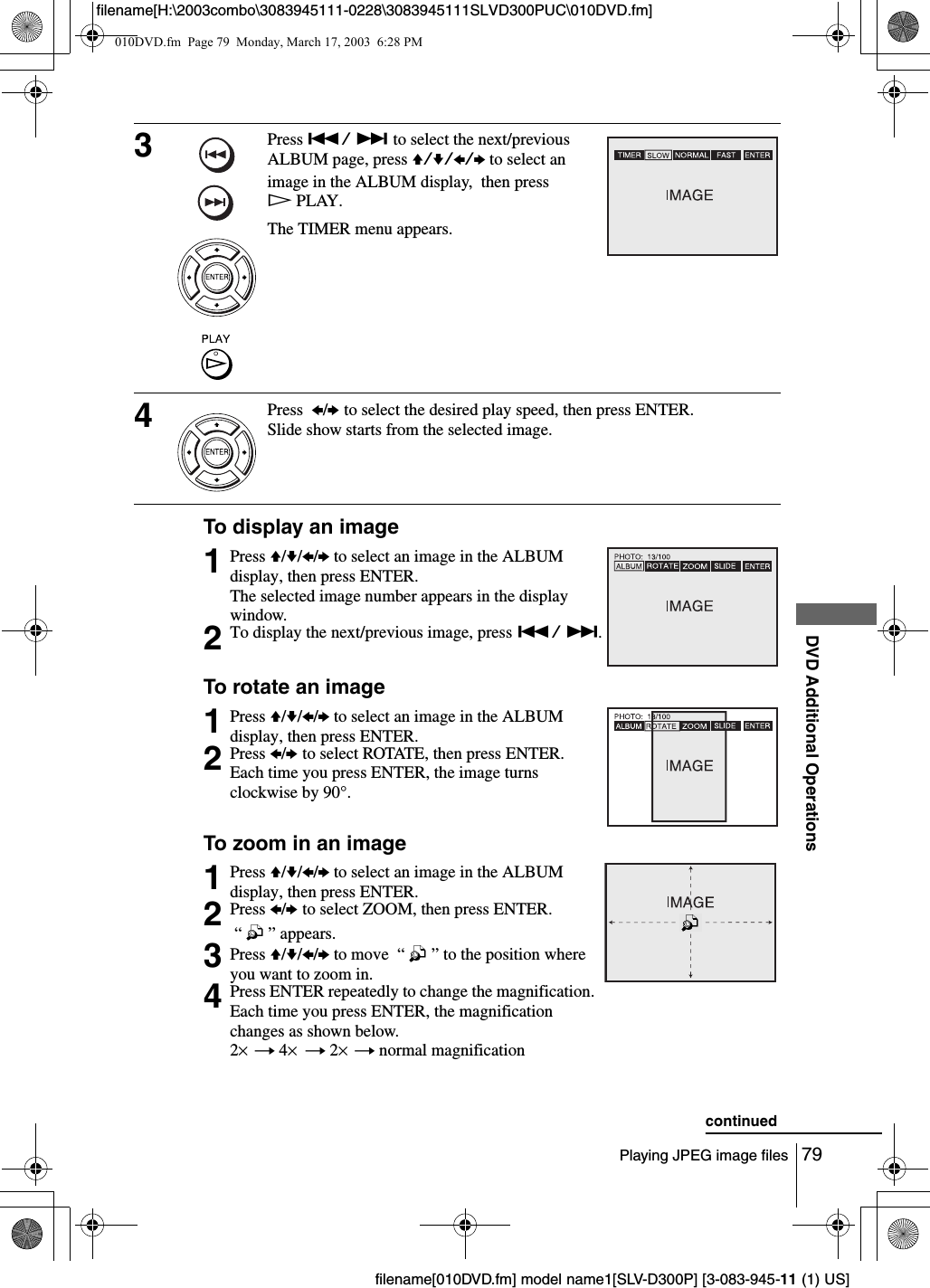

79Playing JPEG image filesDVD Additional Operationsfilename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[H:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm]To display an image To rotate an imageTo zoom in an image3Press ./ > to select the next/previous ALBUM page, press V/v/B/b to select an image in the ALBUM display, then press HPLAY. The TIMER menu appears.4Press B/b to select the desired play speed, then press ENTER.Slide show starts from the selected image.1Press V/v/B/b to select an image in the ALBUM display, then press ENTER.The selected image number appears in the display window.2To display the next/previous image, press ./ >.1Press V/v/B/b to select an image in the ALBUM display, then press ENTER.2Press B/b to select ROTATE, then press ENTER.Each time you press ENTER, the image turns clockwise by 90°.1Press V/v/B/b to select an image in the ALBUM display, then press ENTER.2Press B/b to select ZOOM, then press ENTER. “ ” appears. 3Press V/v/B/b to move “ ” to the position where you want to zoom in.4Press ENTER repeatedly to change the magnification. Each time you press ENTER, the magnification changes as shown below.2× t 4× t 2× t normal magnificationcontinued010DVD.fm Page 79 Monday, March 17, 2003 6:28 PM

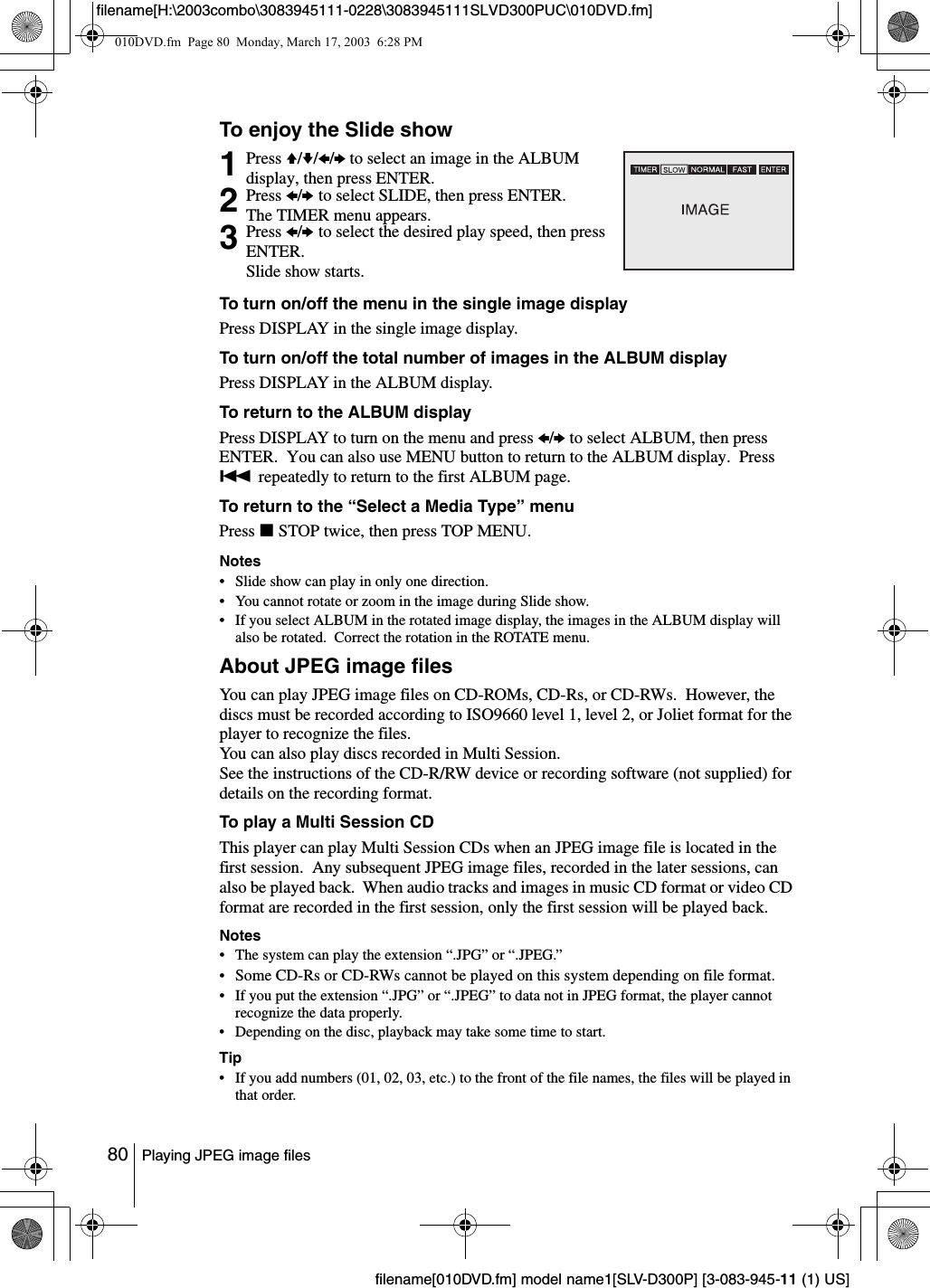

80 Playing JPEG image filesfilename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[H:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm]To enjoy the Slide showTo turn on/off the menu in the single image displayPress DISPLAY in the single image display.To turn on/off the total number of images in the ALBUM displayPress DISPLAY in the ALBUM display.To return to the ALBUM displayPress DISPLAY to turn on the menu and press B/b to select ALBUM, then press ENTER. You can also use MENU button to return to the ALBUM display. Press . repeatedly to return to the first ALBUM page.To return to the “Select a Media Type” menuPress xSTOP twice, then press TOP MENU.Notes• Slide show can play in only one direction.• You cannot rotate or zoom in the image during Slide show.• If you select ALBUM in the rotated image display, the images in the ALBUM display will also be rotated. Correct the rotation in the ROTATE menu.About JPEG image filesYou can play JPEG image files on CD-ROMs, CD-Rs, or CD-RWs. However, the discs must be recorded according to ISO9660 level 1, level 2, or Joliet format for the player to recognize the files.You can also play discs recorded in Multi Session.See the instructions of the CD-R/RW device or recording software (not supplied) for details on the recording format.To play a Multi Session CDThis player can play Multi Session CDs when an JPEG image file is located in the first session. Any subsequent JPEG image files, recorded in the later sessions, can also be played back. When audio tracks and images in music CD format or video CD format are recorded in the first session, only the first session will be played back.Notes• The system can play the extension “.JPG” or “.JPEG.”•Some CD-Rs or CD-RWs cannot be played on this system depending on file format.• If you put the extension “.JPG” or “.JPEG” to data not in JPEG format, the player cannot recognize the data properly.• Depending on the disc, playback may take some time to start.Tip• If you add numbers (01, 02, 03, etc.) to the front of the file names, the files will be played in that order.1Press V/v/B/b to select an image in the ALBUM display, then press ENTER.2Press B/b to select SLIDE, then press ENTER.The TIMER menu appears.3Press B/b to select the desired play speed, then press ENTER.Slide show starts.010DVD.fm Page 80 Monday, March 17, 2003 6:28 PM

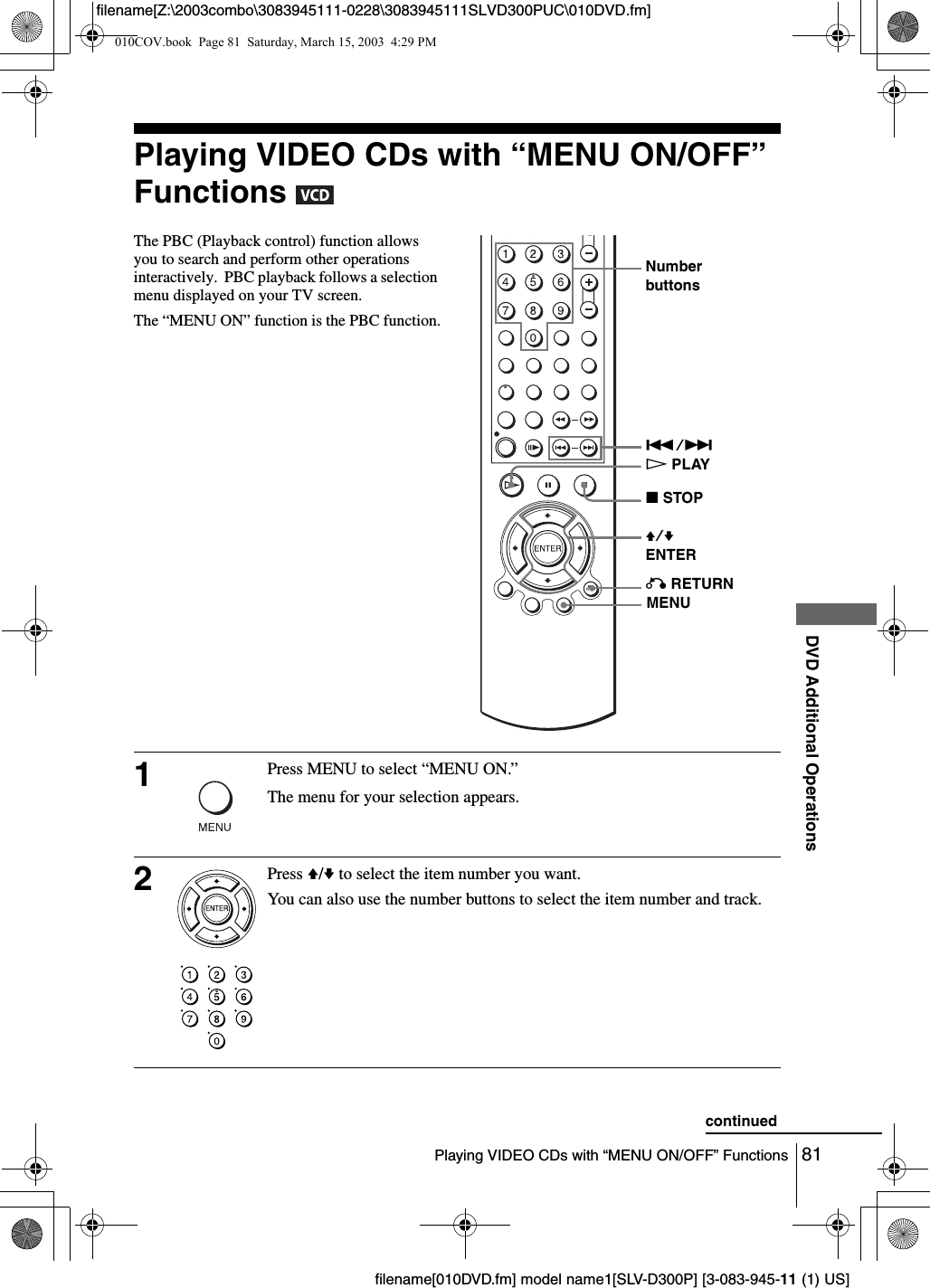

81Playing VIDEO CDs with “MENU ON/OFF” FunctionsDVD Additional Operationsfilename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm]Playing VIDEO CDs with “MENU ON/OFF” Functions The PBC (Playback control) function allows you to search and perform other operations interactively. PBC playback follows a selection menu displayed on your TV screen.The “MENU ON” function is the PBC function.1Press MENU to select “MENU ON.”The menu for your selection appears.2Press V/v to select the item number you want.You can also use the number buttons to select the item number and track.V/vENTERNumber buttonsHPLAYO RETURNxSTOP./>MENUcontinued010COV.book Page 81 Saturday, March 15, 2003 4:29 PM

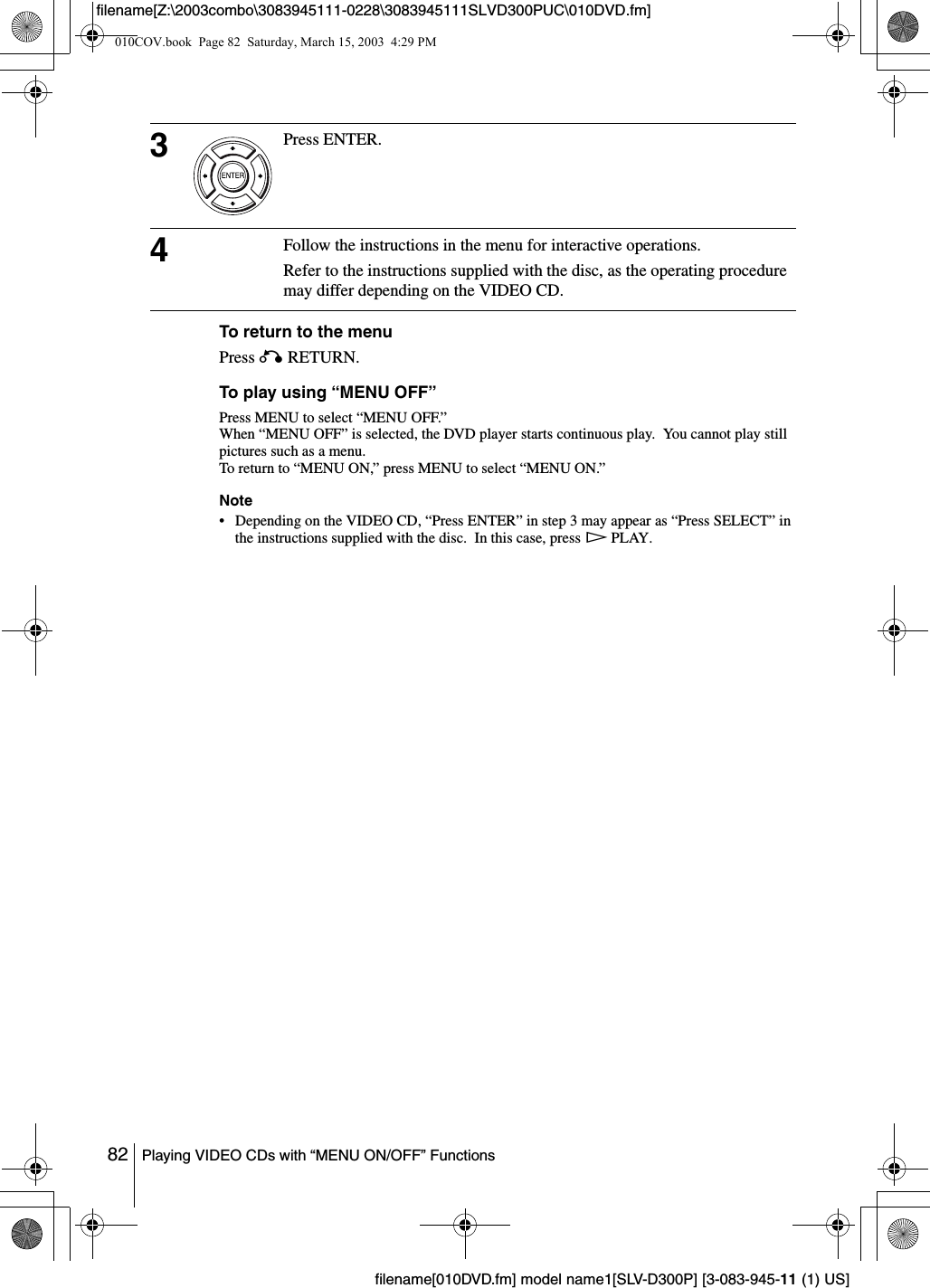

82 Playing VIDEO CDs with “MENU ON/OFF” Functionsfilename[010DVD.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010DVD.fm]To return to the menuPress O RETURN.To play using “MENU OFF”Press MENU to select “MENU OFF.”When “MENU OFF” is selected, the DVD player starts continuous play. You cannot play still pictures such as a menu. To return to “MENU ON,” press MENU to select “MENU ON.”Note• Depending on the VIDEO CD, “Press ENTER” in step 3 may appear as “Press SELECT” in the instructions supplied with the disc. In this case, press H PLAY.3Press ENTER.4Follow the instructions in the menu for interactive operations.Refer to the instructions supplied with the disc, as the operating procedure may differ depending on the VIDEO CD.010COV.book Page 82 Saturday, March 15, 2003 4:29 PM

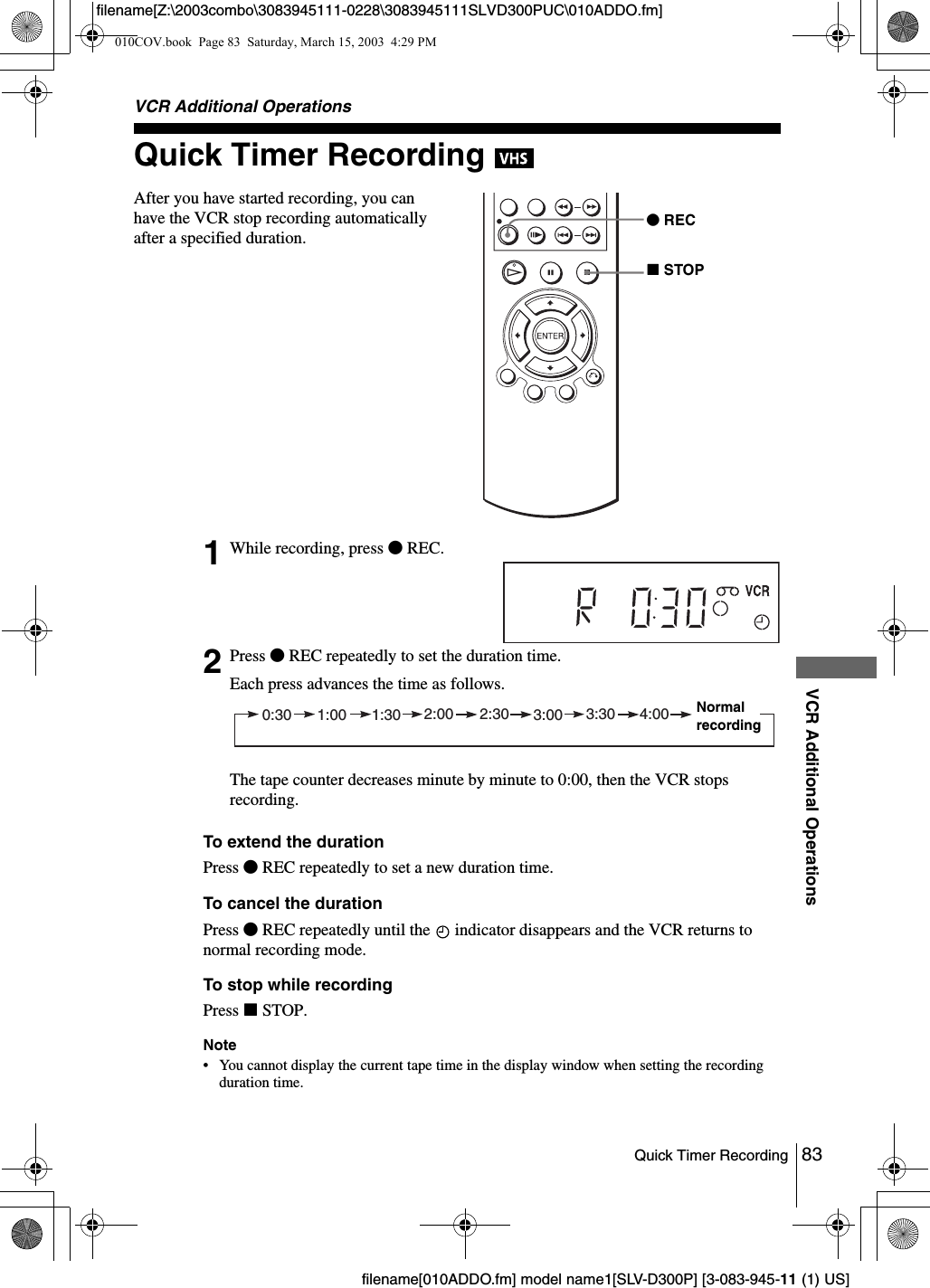

83Quick Timer RecordingVCR Additional Operationsfilename[010ADDO.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDO.fm]VCR Additional OperationsQuick Timer Recording To extend the durationPress zREC repeatedly to set a new duration time.To cancel the durationPress zREC repeatedly until the indicator disappears and the VCR returns to normal recording mode.To stop while recordingPress xSTOP.Note• You cannot display the current tape time in the display window when setting the recording duration time.After you have started recording, you can have the VCR stop recording automatically after a specified duration.1While recording, press zREC.2Press zREC repeatedly to set the duration time.Each press advances the time as follows.The tape counter decreases minute by minute to 0:00, then the VCR stops recording.zRECxSTOP0:30 1:00 1:30 2:00 2:30 3:00 3:30 4:00 Normal recording010COV.book Page 83 Saturday, March 15, 2003 4:29 PM

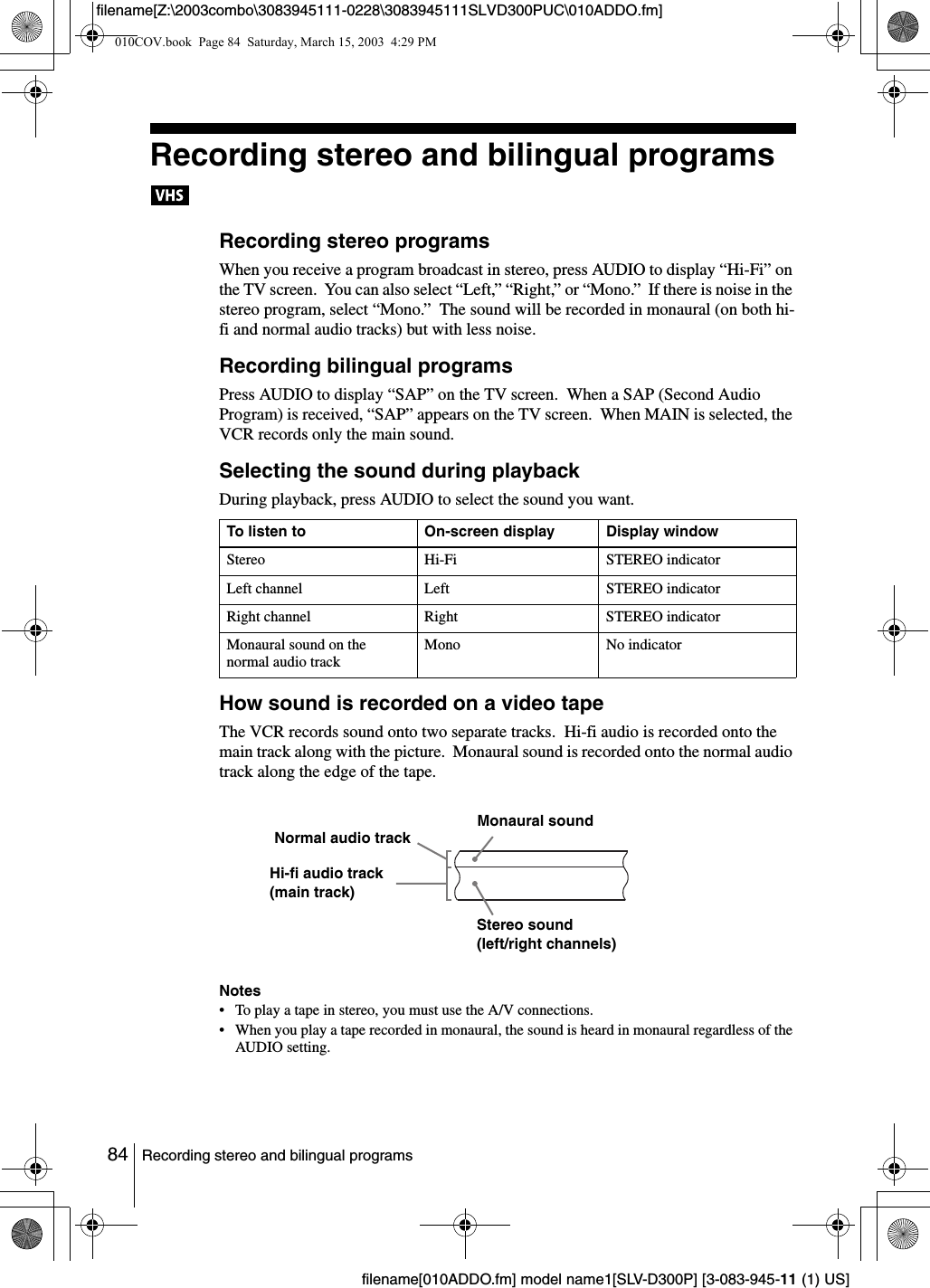

84 Recording stereo and bilingual programsfilename[010ADDO.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDO.fm]Recording stereo and bilingual programs Recording stereo programsWhen you receive a program broadcast in stereo, press AUDIO to display “Hi-Fi” on the TV screen. You can also select “Left,” “Right,” or “Mono.” If there is noise in the stereo program, select “Mono.” The sound will be recorded in monaural (on both hi-fi and normal audio tracks) but with less noise.Recording bilingual programsPress AUDIO to display “SAP” on the TV screen. When a SAP (Second Audio Program) is received, “SAP” appears on the TV screen. When MAIN is selected, the VCR records only the main sound.Selecting the sound during playbackDuring playback, press AUDIO to select the sound you want.How sound is recorded on a video tapeThe VCR records sound onto two separate tracks. Hi-fi audio is recorded onto the main track along with the picture. Monaural sound is recorded onto the normal audio track along the edge of the tape.Notes• To play a tape in stereo, you must use the A/V connections.• When you play a tape recorded in monaural, the sound is heard in monaural regardless of the AUDIO setting.To listen to On-screen display Display windowStereo Hi-Fi STEREO indicatorLeft channel Left STEREO indicatorRight channel Right STEREO indicatorMonaural sound on the normal audio trackMono No indicatorNormal audio trackHi-fi audio track(main track)Monaural soundStereo sound(left/right channels)010COV.book Page 84 Saturday, March 15, 2003 4:29 PM

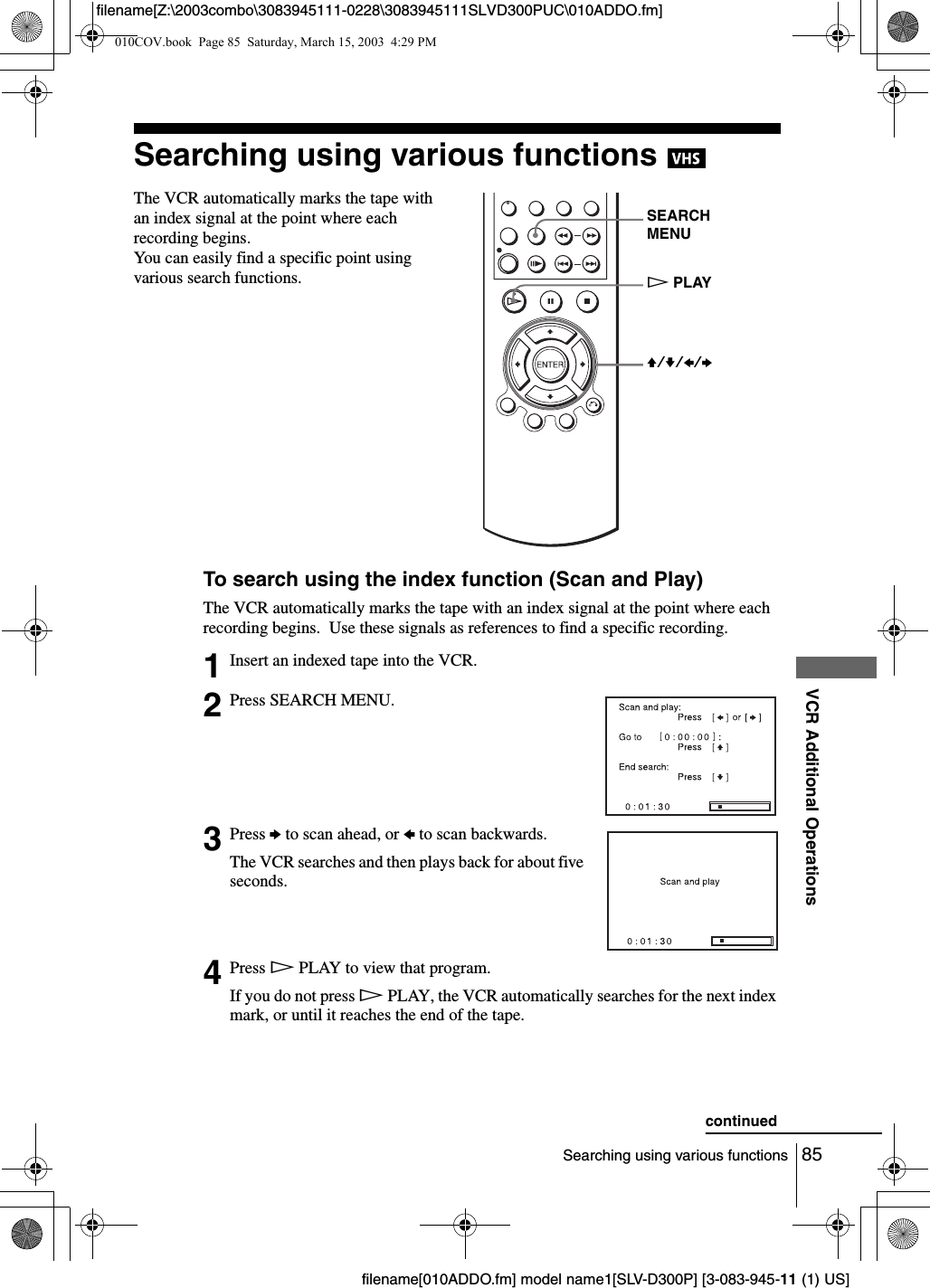

85Searching using various functionsVCR Additional Operationsfilename[010ADDO.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDO.fm]Searching using various functions To search using the index function (Scan and Play)The VCR automatically marks the tape with an index signal at the point where each recording begins. Use these signals as references to find a specific recording.The VCR automatically marks the tape with an index signal at the point where each recording begins. You can easily find a specific point using various search functions. 1Insert an indexed tape into the VCR.2Press SEARCH MENU.3Press b to scan ahead, or B to scan backwards.The VCR searches and then plays back for about five seconds.4Press HPLAY to view that program.If you do not press HPLAY, the VCR automatically searches for the next index mark, or until it reaches the end of the tape.SEARCH MENUV/v/B/bHPLAYcontinued010COV.book Page 85 Saturday, March 15, 2003 4:29 PM

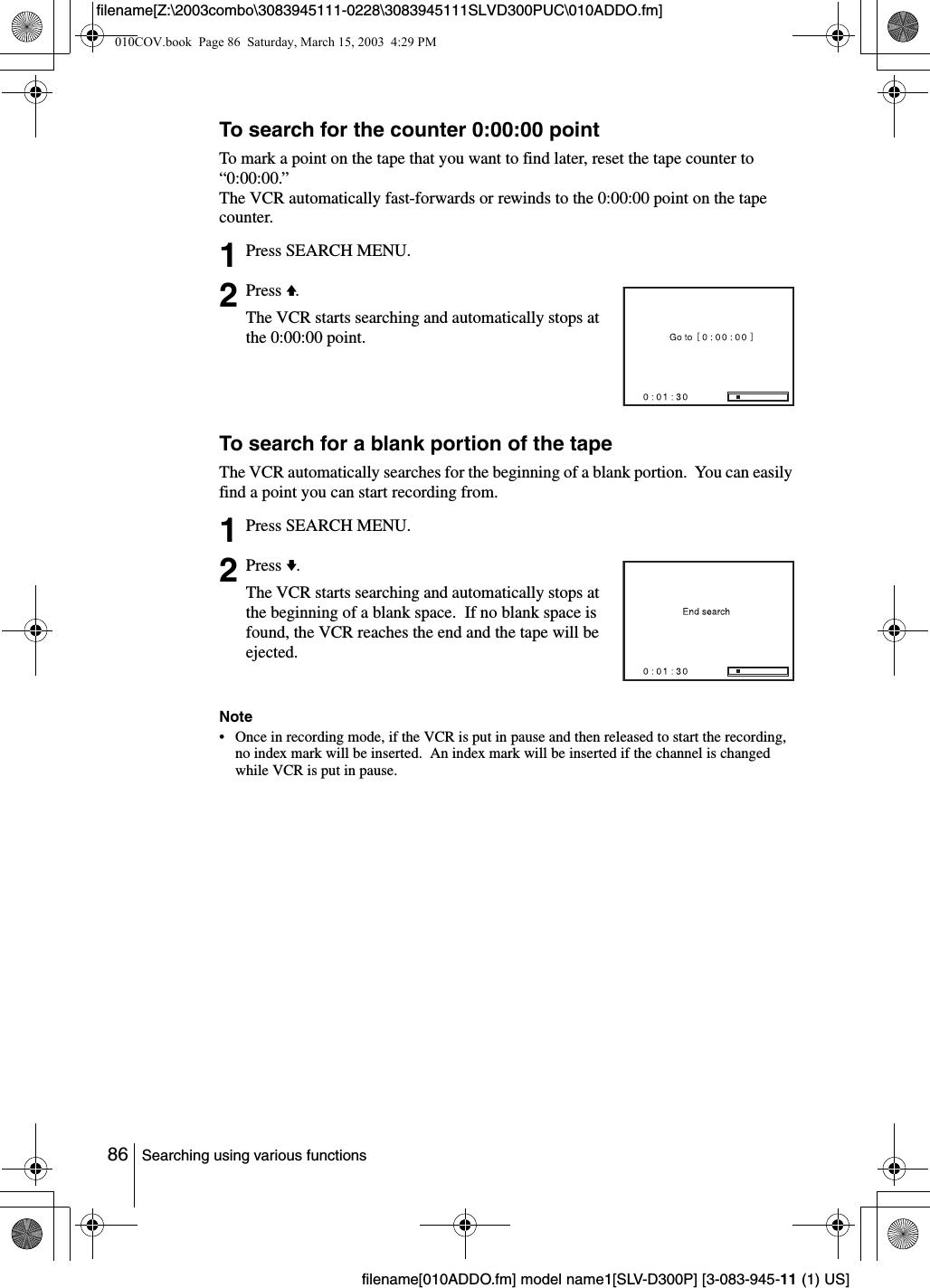

86 Searching using various functionsfilename[010ADDO.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDO.fm]To search for the counter 0:00:00 pointTo mark a point on the tape that you want to find later, reset the tape counter to “0:00:00.”The VCR automatically fast-forwards or rewinds to the 0:00:00 point on the tape counter.To search for a blank portion of the tapeThe VCR automatically searches for the beginning of a blank portion. You can easily find a point you can start recording from.Note• Once in recording mode, if the VCR is put in pause and then released to start the recording, no index mark will be inserted. An index mark will be inserted if the channel is changed while VCR is put in pause.1Press SEARCH MENU.2Press V.The VCR starts searching and automatically stops at the 0:00:00 point.1Press SEARCH MENU.2Press v.The VCR starts searching and automatically stops at the beginning of a blank space. If no blank space is found, the VCR reaches the end and the tape will be ejected.010COV.book Page 86 Saturday, March 15, 2003 4:29 PM

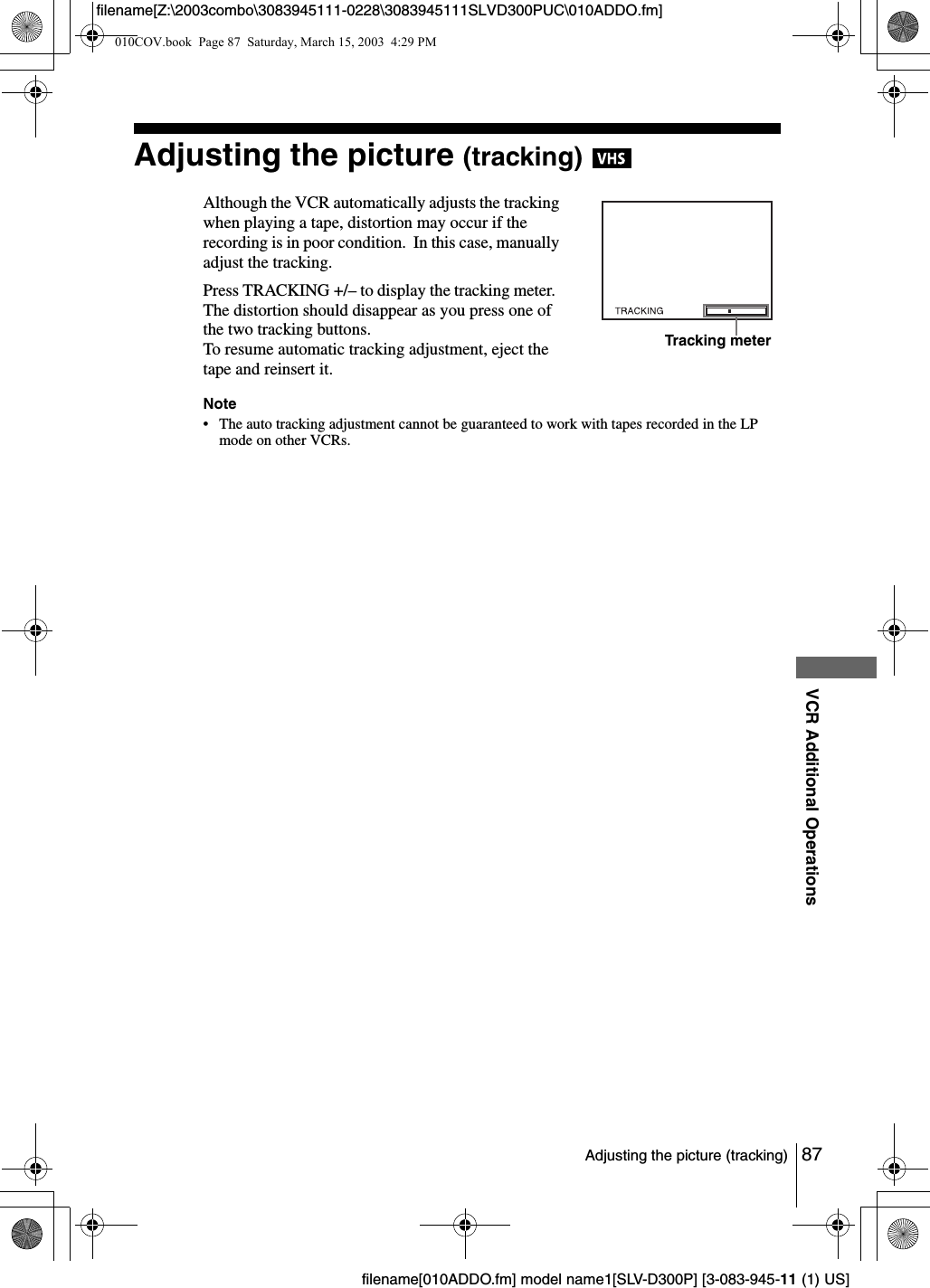

87Adjusting the picture (tracking)VCR Additional Operationsfilename[010ADDO.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDO.fm]Adjusting the picture (tracking) Although the VCR automatically adjusts the tracking when playing a tape, distortion may occur if the recording is in poor condition. In this case, manually adjust the tracking.Press TRACKING +/– to display the tracking meter. The distortion should disappear as you press one of the two tracking buttons. To resume automatic tracking adjustment, eject the tape and reinsert it.Note• The auto tracking adjustment cannot be guaranteed to work with tapes recorded in the LP mode on other VCRs.Tracking meter010COV.book Page 87 Saturday, March 15, 2003 4:29 PM

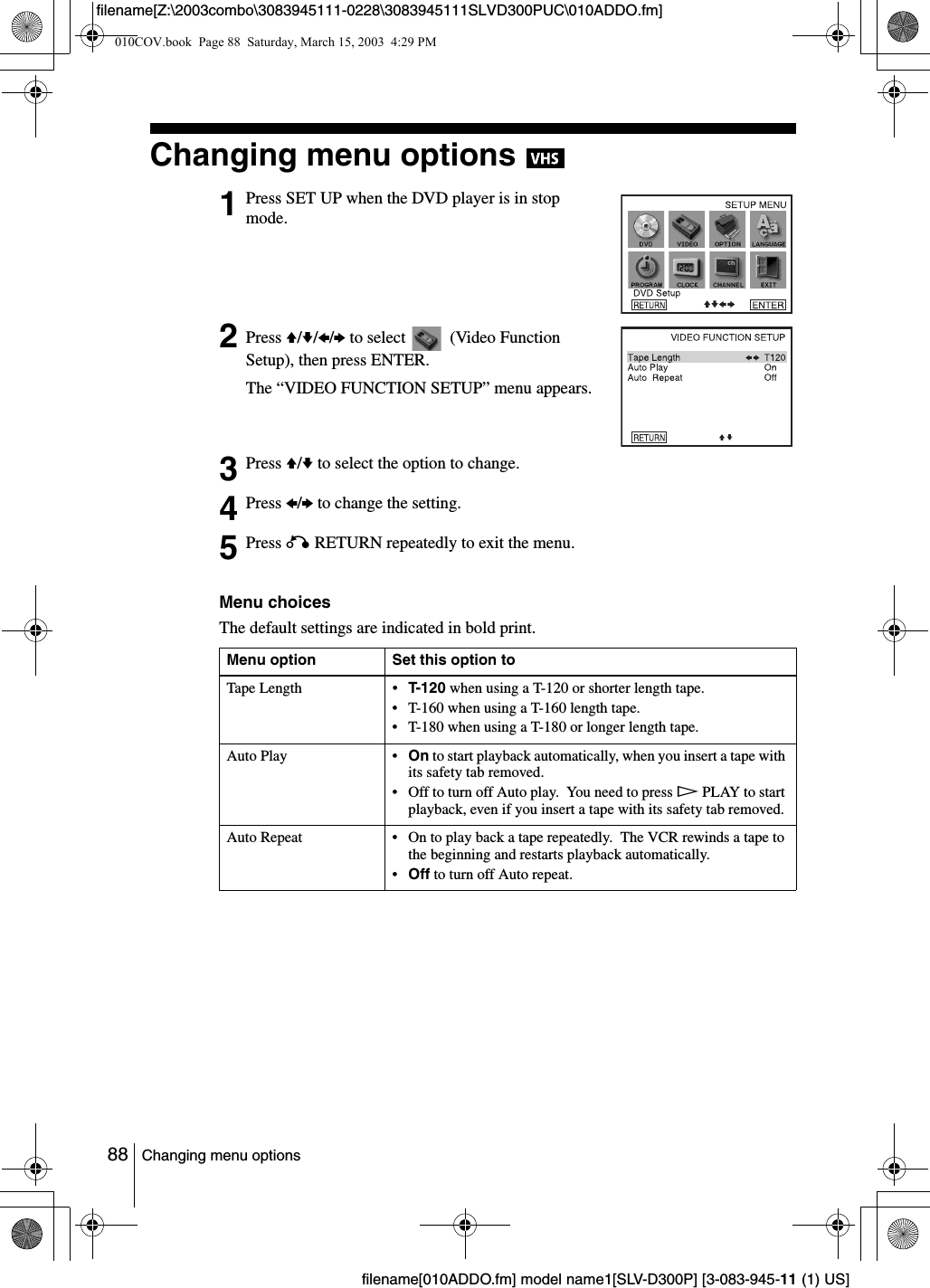

88 Changing menu optionsfilename[010ADDO.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDO.fm]Changing menu options Menu choicesThe default settings are indicated in bold print.1Press SET UP when the DVD player is in stop mode.2Press V/v/B/b to select (Video Function Setup), then press ENTER.The “VIDEO FUNCTION SETUP” menu appears.3Press V/v to select the option to change.4Press B/b to change the setting.5Press O RETURN repeatedly to exit the menu.Menu option Set this option toTape Length • T-120 when using a T-120 or shorter length tape.• T-160 when using a T-160 length tape.• T-180 when using a T-180 or longer length tape.Auto Play • On to start playback automatically, when you insert a tape with its safety tab removed.• Off to turn off Auto play. You need to press HPLAY to start playback, even if you insert a tape with its safety tab removed.Auto Repeat • On to play back a tape repeatedly. The VCR rewinds a tape to the beginning and restarts playback automatically.•Off to turn off Auto repeat.010COV.book Page 88 Saturday, March 15, 2003 4:29 PM

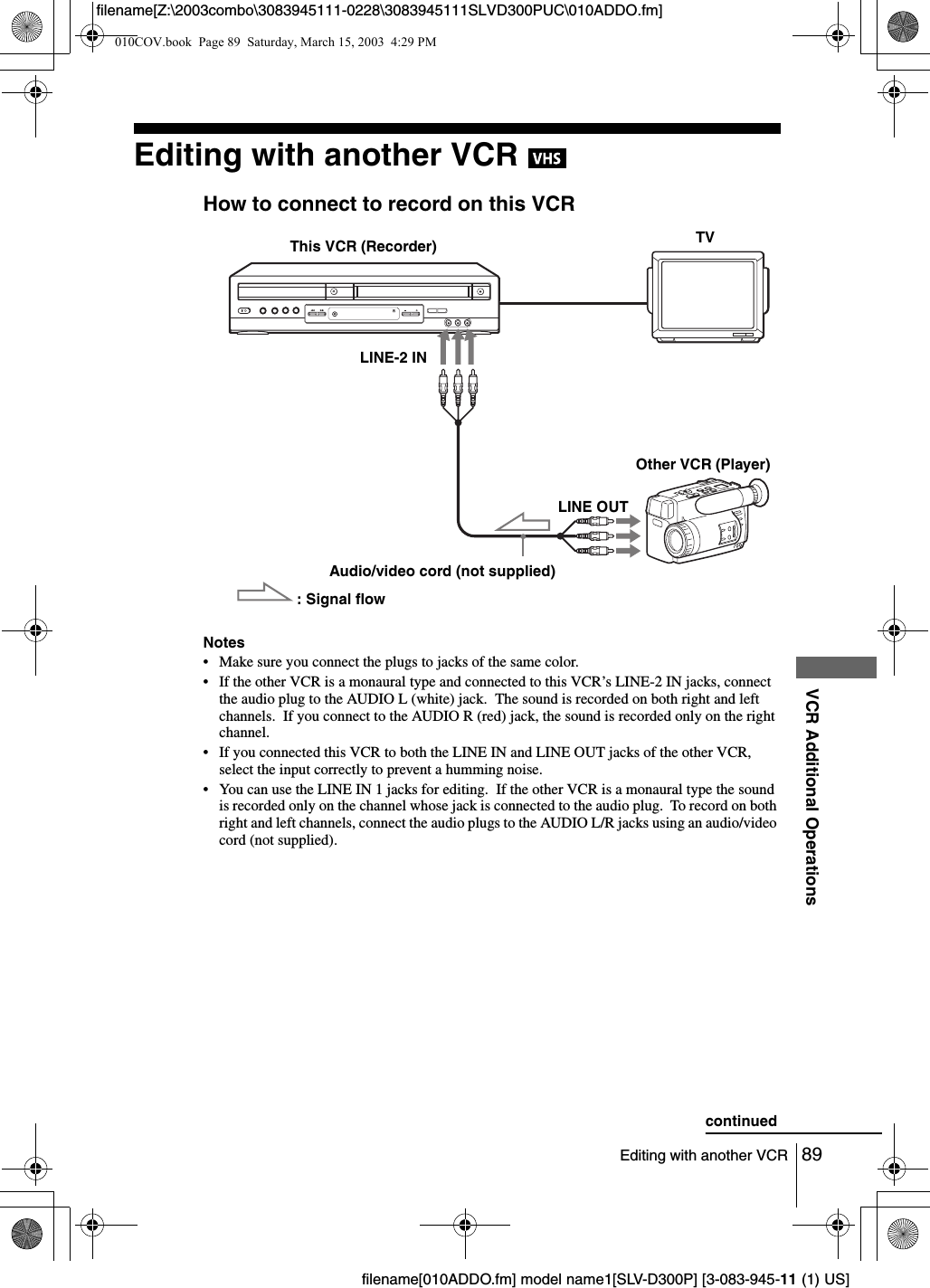

89Editing with another VCRVCR Additional Operationsfilename[010ADDO.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDO.fm]Editing with another VCR How to connect to record on this VCRNotes• Make sure you connect the plugs to jacks of the same color.• If the other VCR is a monaural type and connected to this VCR’s LINE-2 IN jacks, connect the audio plug to the AUDIO L (white) jack. The sound is recorded on both right and left channels. If you connect to the AUDIO R (red) jack, the sound is recorded only on the right channel.• If you connected this VCR to both the LINE IN and LINE OUT jacks of the other VCR, select the input correctly to prevent a humming noise.• You can use the LINE IN 1 jacks for editing. If the other VCR is a monaural type the sound is recorded only on the channel whose jack is connected to the audio plug. To record on both right and left channels, connect the audio plugs to the AUDIO L/R jacks using an audio/video cord (not supplied).This VCR (Recorder)Other VCR (Player)LINE OUT: Signal flowLINE-2 INTVAudio/video cord (not supplied)continued010COV.book Page 89 Saturday, March 15, 2003 4:29 PM
90 Editing with another VCRfilename[010ADDO.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDO.fm]Operation (when recording on this VCR)To stop editingPress the xSTOP buttons on both VCRs.Tip• To cut out unwanted scenes while editing, press XPAUSE on this VCR when an unwanted scene begins. When it ends, press XPAUSE again to resume recording.Before you start editing• Turn on the VCR and the TV and set it to the video channel.• Press INPUT SELECT or CH +/– to display “LINE 1” or “LINE 2” in the display window.• Press SP/EP to select the tape speed, SP or EP.1Insert a source tape with its safety tab removed into the other (playback) VCR. Search for the point to start playback and set it to playback pause.2Insert a tape into this (recording) VCR. Search for the point to start recording and press XPAUSE.3Press zREC on this VCR to set it to recording pause.4To start editing, press the XPAUSE buttons on both VCRs at the same time.zRECXPAUSE010COV.book Page 90 Saturday, March 15, 2003 4:29 PM

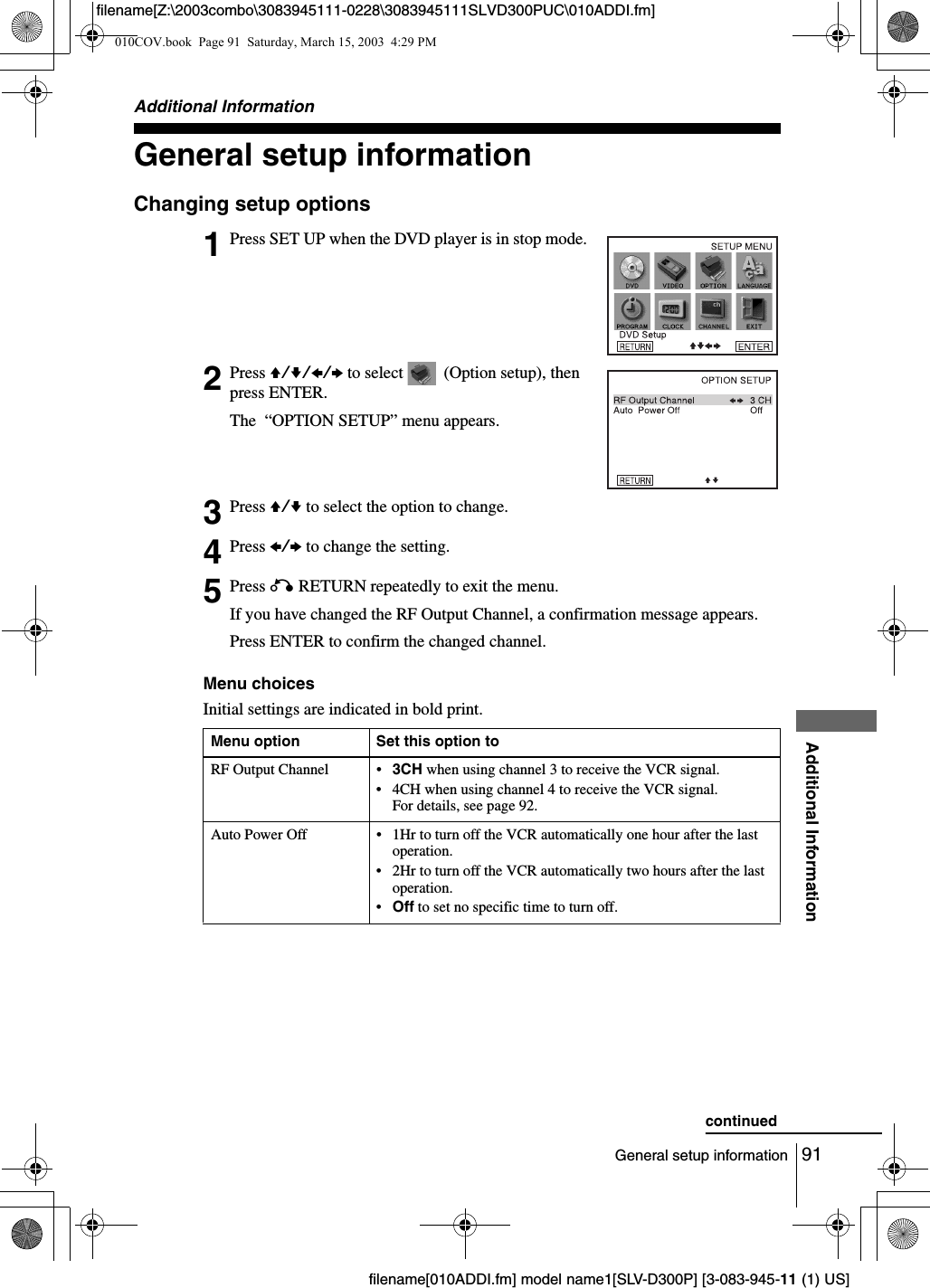

91General setup informationAdditional Informationfilename[010ADDI.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDI.fm]Additional InformationGeneral setup informationChanging setup optionsMenu choicesInitial settings are indicated in bold print.1Press SET UP when the DVD player is in stop mode.2Press V/v/B/b to select (Option setup), then press ENTER.The “OPTION SETUP” menu appears.3Press V/v to select the option to change.4Press B/b to change the setting.5Press O RETURN repeatedly to exit the menu.If you have changed the RF Output Channel, a confirmation message appears.Press ENTER to confirm the changed channel.Menu option Set this option toRF Output Channel • 3CH when using channel 3 to receive the VCR signal.• 4CH when using channel 4 to receive the VCR signal.For details, see page 92.Auto Power Off • 1Hr to turn off the VCR automatically one hour after the last operation.• 2Hr to turn off the VCR automatically two hours after the last operation.•Off to set no specific time to turn off.continued010COV.book Page 91 Saturday, March 15, 2003 4:29 PM

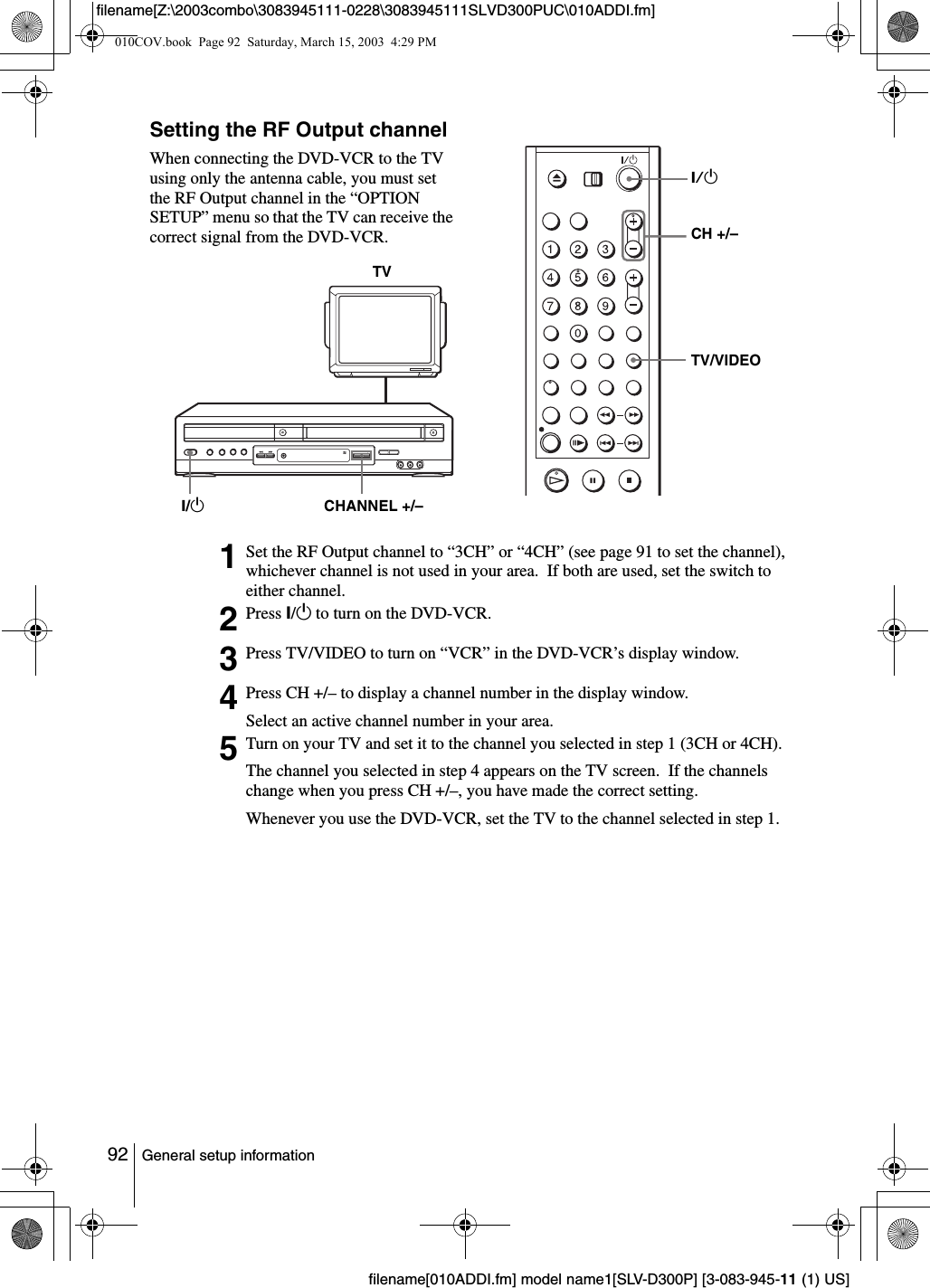

92 General setup informationfilename[010ADDI.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDI.fm]Setting the RF Output channelWhen connecting the DVD-VCR to the TV using only the antenna cable, you must set the RF Output channel in the “OPTION SETUP” menu so that the TV can receive the correct signal from the DVD-VCR.1Set the RF Output channel to “3CH” or “4CH” (see page 91 to set the channel), whichever channel is not used in your area. If both are used, set the switch to either channel.2Press ?/1 to turn on the DVD-VCR.3Press TV/VIDEO to turn on “VCR” in the DVD-VCR’s display window.4Press CH +/– to display a channel number in the display window.Select an active channel number in your area.5Turn on your TV and set it to the channel you selected in step 1 (3CH or 4CH).The channel you selected in step 4 appears on the TV screen. If the channels change when you press CH +/–, you have made the correct setting.Whenever you use the DVD-VCR, set the TV to the channel selected in step 1.TVCHANNEL +/–?/1 TV/VIDEOCH +/–?/1010COV.book Page 92 Saturday, March 15, 2003 4:29 PM
93General setup informationAdditional Informationfilename[010ADDI.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDI.fm]Attaching the external antenna connectorAttaching a UHF/VHF band mixerWhen using a 300-ohm twin lead cable for a VHF/UHF antenna, use an antenna connector (not supplied) to connect the antenna to the DVD-VCR.1Loosen the screws on the antenna connector.2Wind the twin leads around the screws on the antenna connector.3Retighten the screws.When using both a 75-ohm coaxial cable and a 300-ohm twin lead cable for a VHF/UHF antenna, use a UHF/VHF band separator/mixer (not supplied) to connect the antenna to the DVD-VCR.1Loosen the screws on the mixer.2Wind the twin leads around the screws on the mixer.3Retighten the screws.4Connect the 75-ohm coaxial cable to the mixer.300-ohm twin lead cableAntenna connector (not supplied)300-ohm twin lead cableUHF/VHF band separator/mixer (not supplied)75-ohm coaxial cable010COV.book Page 93 Saturday, March 15, 2003 4:29 PM

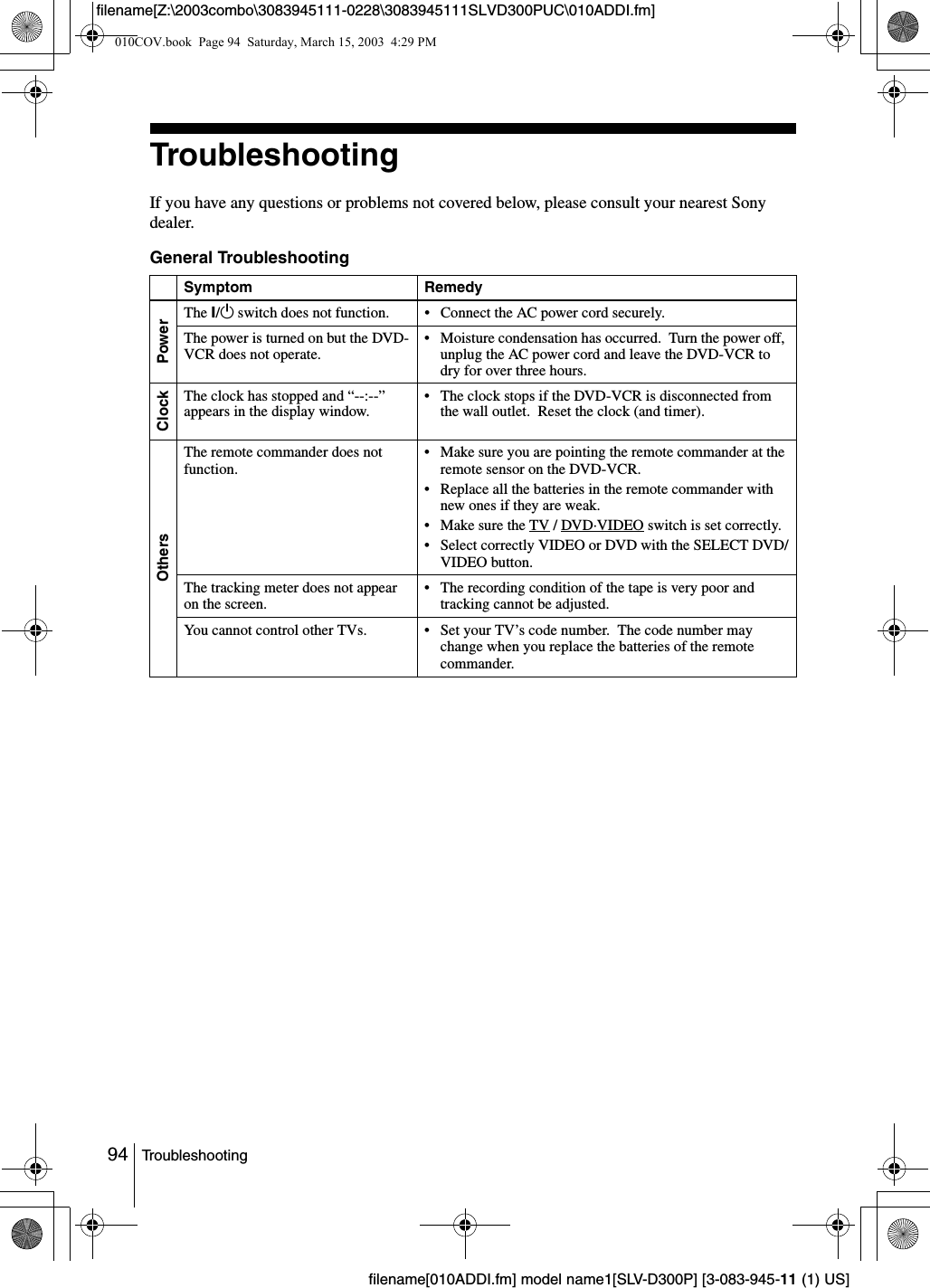

94 Troubleshootingfilename[010ADDI.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDI.fm]TroubleshootingIf you have any questions or problems not covered below, please consult your nearest Sony dealer.General TroubleshootingSymptom RemedyPowerThe ?/1 switch does not function. • Connect the AC power cord securely.The power is turned on but the DVD-VCR does not operate. • Moisture condensation has occurred. Turn the power off, unplug the AC power cord and leave the DVD-VCR to dry for over three hours.ClockThe clock has stopped and “--:--” appears in the display window. • The clock stops if the DVD-VCR is disconnected from the wall outlet. Reset the clock (and timer).OthersThe remote commander does not function.• Make sure you are pointing the remote commander at the remote sensor on the DVD-VCR.• Replace all the batteries in the remote commander with new ones if they are weak.• Make sure the TV / DVD·VIDEO switch is set correctly.• Select correctly VIDEO or DVD with the SELECT DVD/VIDEO button.The tracking meter does not appear on the screen.• The recording condition of the tape is very poor and tracking cannot be adjusted.You cannot control other TVs. • Set your TV’s code number. The code number may change when you replace the batteries of the remote commander.010COV.book Page 94 Saturday, March 15, 2003 4:29 PM

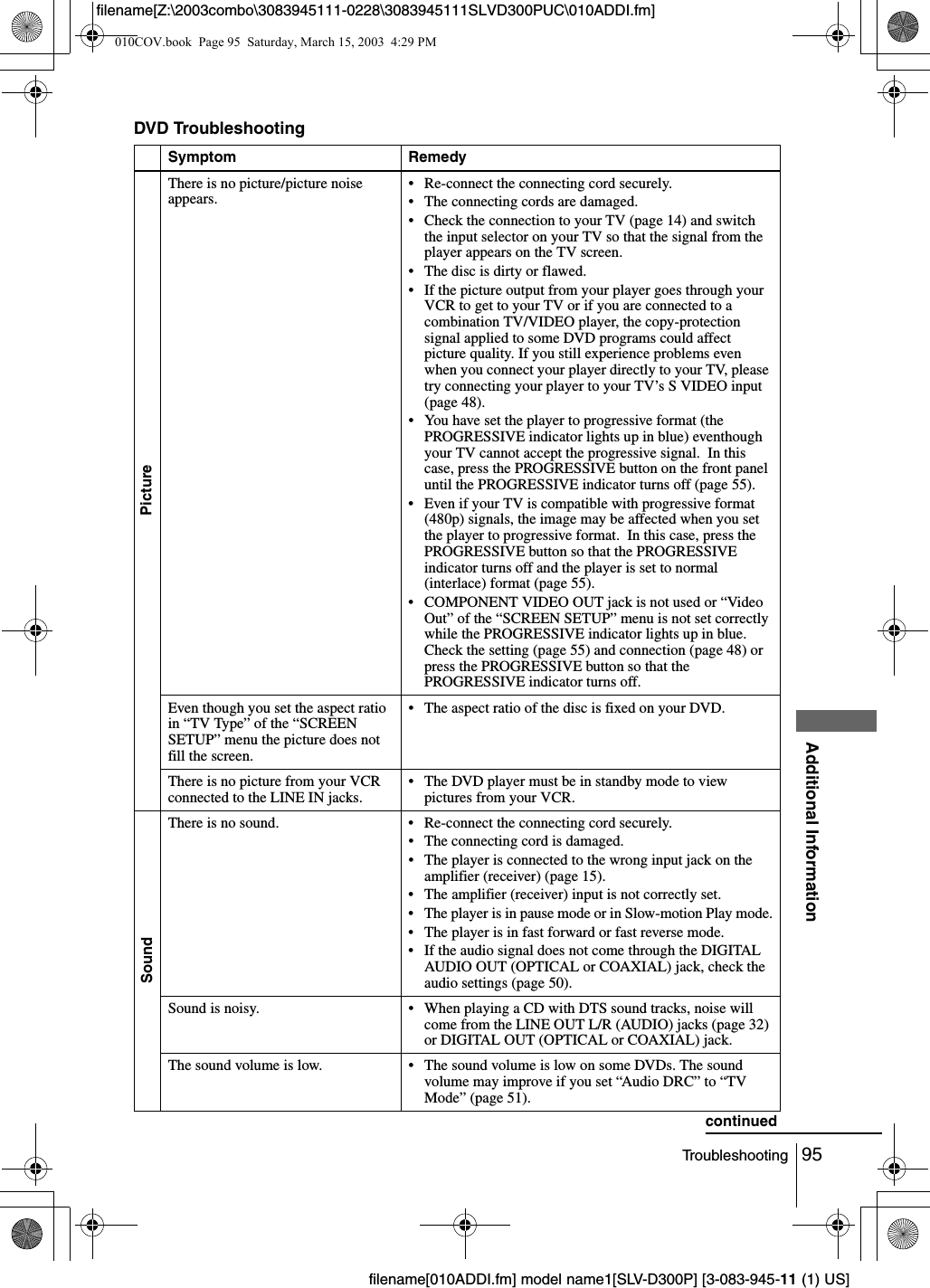

95TroubleshootingAdditional Informationfilename[010ADDI.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDI.fm]DVD TroubleshootingSymptom RemedyPictureThere is no picture/picture noise appears. • Re-connect the connecting cord securely.• The connecting cords are damaged.• Check the connection to your TV (page 14) and switch the input selector on your TV so that the signal from the player appears on the TV screen.• The disc is dirty or flawed.• If the picture output from your player goes through your VCR to get to your TV or if you are connected to a combination TV/VIDEO player, the copy-protection signal applied to some DVD programs could affect picture quality. If you still experience problems even when you connect your player directly to your TV, please try connecting your player to your TV’s S VIDEO input (page 48).• You have set the player to progressive format (the PROGRESSIVE indicator lights up in blue) eventhough your TV cannot accept the progressive signal. In this case, press the PROGRESSIVE button on the front panel until the PROGRESSIVE indicator turns off (page 55).• Even if your TV is compatible with progressive format (480p) signals, the image may be affected when you set the player to progressive format. In this case, press the PROGRESSIVE button so that the PROGRESSIVE indicator turns off and the player is set to normal (interlace) format (page 55).• COMPONENT VIDEO OUT jack is not used or “Video Out” of the “SCREEN SETUP” menu is not set correctly while the PROGRESSIVE indicator lights up in blue. Check the setting (page 55) and connection (page 48) or press the PROGRESSIVE button so that the PROGRESSIVE indicator turns off. Even though you set the aspect ratio in “TV Type” of the “SCREEN SETUP” menu the picture does not fill the screen.• The aspect ratio of the disc is fixed on your DVD.There is no picture from your VCR connected to the LINE IN jacks. • The DVD player must be in standby mode to view pictures from your VCR.SoundThere is no sound. • Re-connect the connecting cord securely.• The connecting cord is damaged.• The player is connected to the wrong input jack on the amplifier (receiver) (page 15).• The amplifier (receiver) input is not correctly set.• The player is in pause mode or in Slow-motion Play mode.• The player is in fast forward or fast reverse mode.• If the audio signal does not come through the DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack, check the audio settings (page 50).Sound is noisy. • When playing a CD with DTS sound tracks, noise will come from the LINE OUT L/R (AUDIO) jacks (page 32) or DIGITAL OUT (OPTICAL or COAXIAL) jack.The sound volume is low. • The sound volume is low on some DVDs. The sound volume may improve if you set “Audio DRC” to “TV Mode” (page 51).continued010COV.book Page 95 Saturday, March 15, 2003 4:29 PM

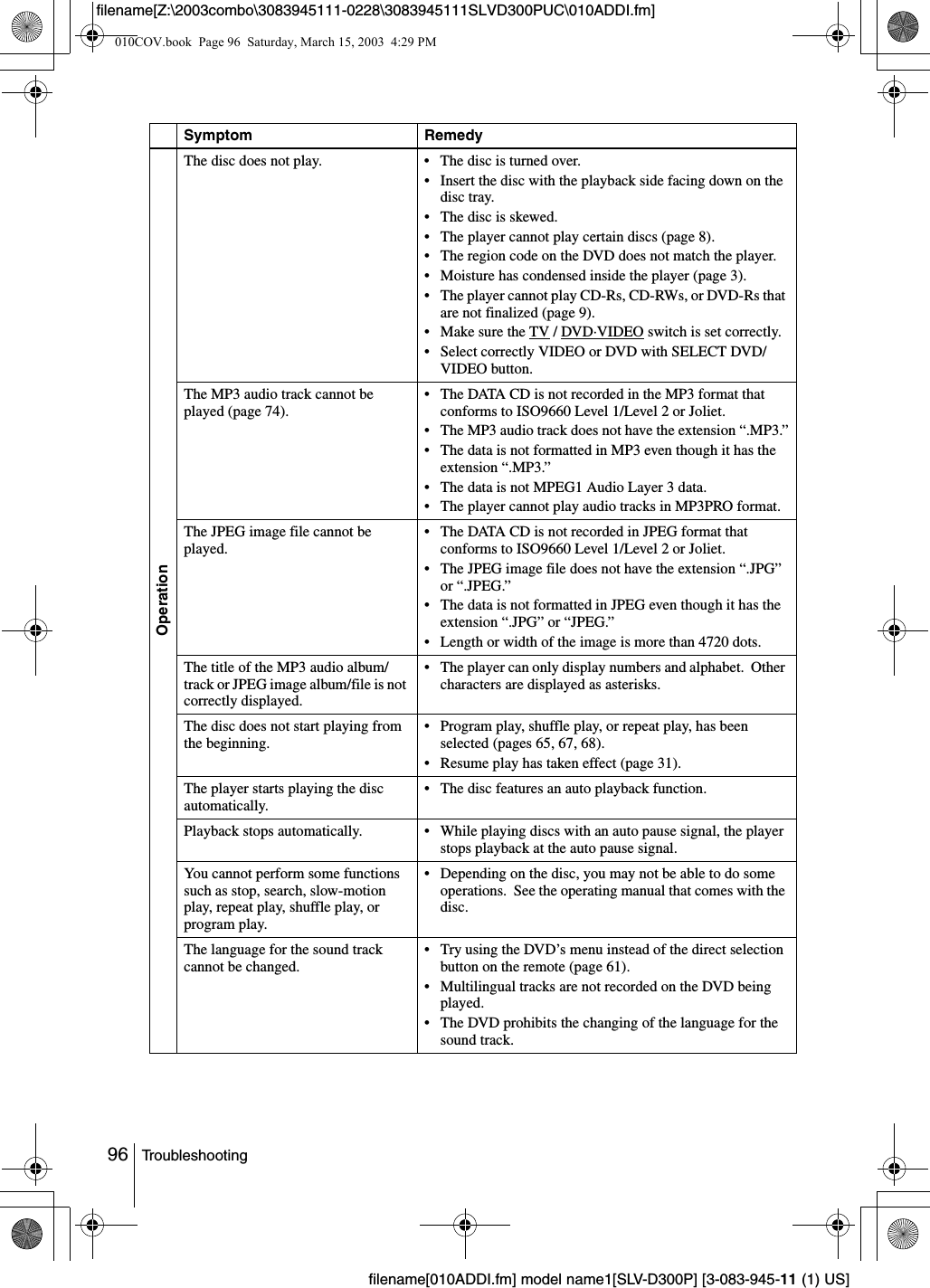

96 Troubleshootingfilename[010ADDI.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDI.fm]OperationThe disc does not play. • The disc is turned over.• Insert the disc with the playback side facing down on the disc tray.• The disc is skewed.• The player cannot play certain discs (page 8).• The region code on the DVD does not match the player.• Moisture has condensed inside the player (page 3).• The player cannot play CD-Rs, CD-RWs, or DVD-Rs that are not finalized (page 9).• Make sure the TV / DVD·VIDEO switch is set correctly.• Select correctly VIDEO or DVD with SELECT DVD/VIDEO button.The MP3 audio track cannot be played (page 74).• The DATA CD is not recorded in the MP3 format that conforms to ISO9660 Level 1/Level 2 or Joliet.• The MP3 audio track does not have the extension “.MP3.”• The data is not formatted in MP3 even though it has the extension “.MP3.”• The data is not MPEG1 Audio Layer 3 data.• The player cannot play audio tracks in MP3PRO format.The JPEG image file cannot be played.• The DATA CD is not recorded in JPEG format that conforms to ISO9660 Level 1/Level 2 or Joliet.• The JPEG image file does not have the extension “.JPG” or “.JPEG.”• The data is not formatted in JPEG even though it has the extension “.JPG” or “JPEG.”• Length or width of the image is more than 4720 dots.The title of the MP3 audio album/ track or JPEG image album/file is not correctly displayed.• The player can only display numbers and alphabet. Other characters are displayed as asterisks.The disc does not start playing from the beginning.• Program play, shuffle play, or repeat play, has been selected (pages 65, 67, 68).• Resume play has taken effect (page 31).The player starts playing the disc automatically.• The disc features an auto playback function.Playback stops automatically. • While playing discs with an auto pause signal, the player stops playback at the auto pause signal.You cannot perform some functions such as stop, search, slow-motion play, repeat play, shuffle play, or program play.• Depending on the disc, you may not be able to do some operations. See the operating manual that comes with the disc.The language for the sound track cannot be changed.• Try using the DVD’s menu instead of the direct selection button on the remote (page 61).• Multilingual tracks are not recorded on the DVD being played.• The DVD prohibits the changing of the language for the sound track.Symptom Remedy010COV.book Page 96 Saturday, March 15, 2003 4:29 PM

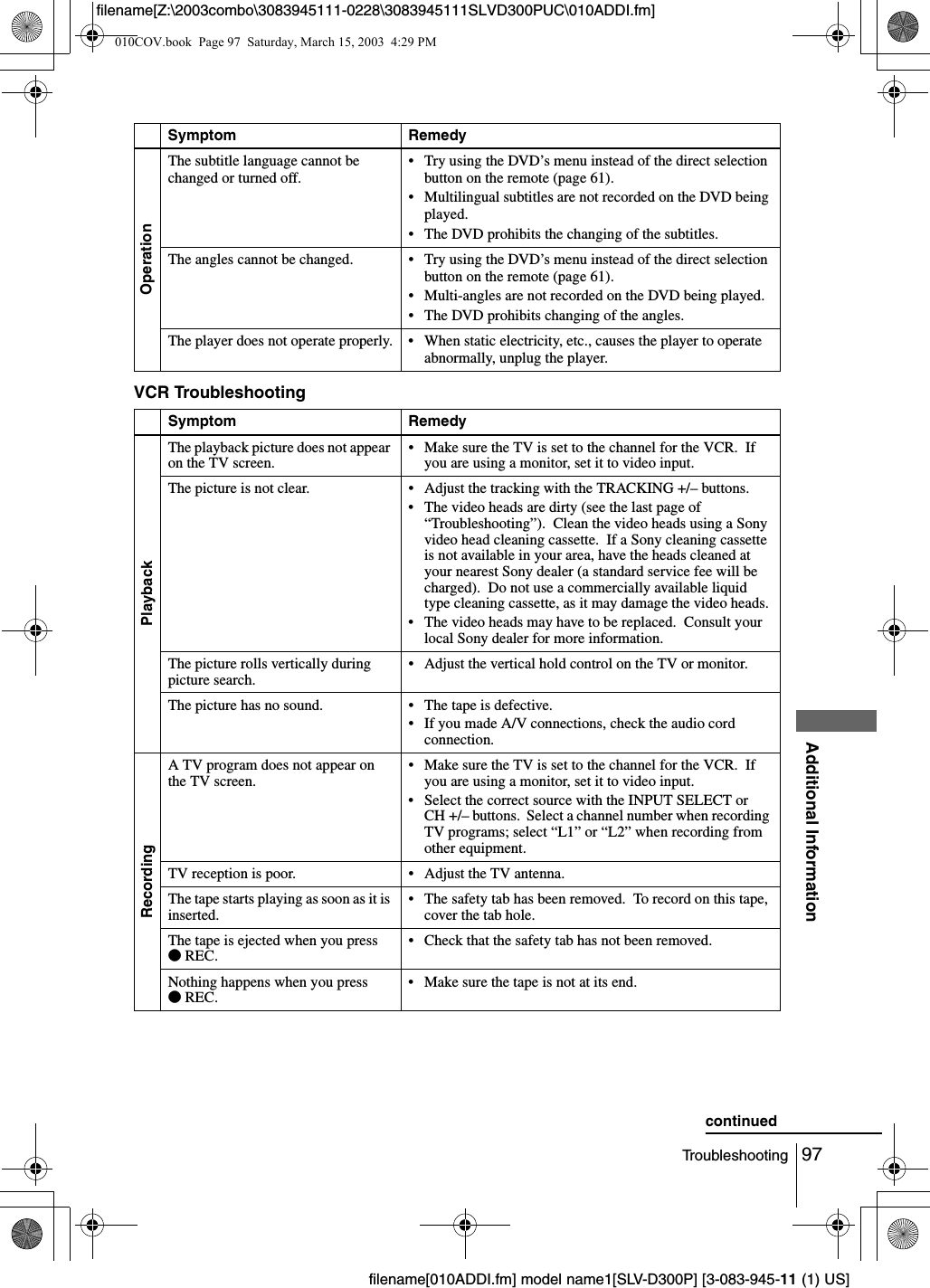

97TroubleshootingAdditional Informationfilename[010ADDI.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDI.fm]VCR TroubleshootingOperationThe subtitle language cannot be changed or turned off.• Try using the DVD’s menu instead of the direct selection button on the remote (page 61).• Multilingual subtitles are not recorded on the DVD being played.• The DVD prohibits the changing of the subtitles.The angles cannot be changed. • Try using the DVD’s menu instead of the direct selection button on the remote (page 61).• Multi-angles are not recorded on the DVD being played. • The DVD prohibits changing of the angles.The player does not operate properly. • When static electricity, etc., causes the player to operate abnormally, unplug the player.Symptom RemedyPlaybackThe playback picture does not appear on the TV screen. • Make sure the TV is set to the channel for the VCR. If you are using a monitor, set it to video input.The picture is not clear. • Adjust the tracking with the TRACKING +/– buttons.• The video heads are dirty (see the last page of “Troubleshooting”). Clean the video heads using a Sony video head cleaning cassette. If a Sony cleaning cassette is not available in your area, have the heads cleaned at your nearest Sony dealer (a standard service fee will be charged). Do not use a commercially available liquid type cleaning cassette, as it may damage the video heads. • The video heads may have to be replaced. Consult your local Sony dealer for more information.The picture rolls vertically during picture search. • Adjust the vertical hold control on the TV or monitor.The picture has no sound. • The tape is defective.• If you made A/V connections, check the audio cord connection.RecordingA TV program does not appear on the TV screen. • Make sure the TV is set to the channel for the VCR. If you are using a monitor, set it to video input.• Select the correct source with the INPUT SELECT or CH +/– buttons. Select a channel number when recording TV programs; select “L1” or “L2” when recording from other equipment.TV reception is poor. • Adjust the TV antenna.The tape starts playing as soon as it is inserted. • The safety tab has been removed. To record on this tape, cover the tab hole.The tape is ejected when you press zREC. • Check that the safety tab has not been removed.Nothing happens when you press zREC. • Make sure the tape is not at its end.Symptom Remedycontinued010COV.book Page 97 Saturday, March 15, 2003 4:29 PM

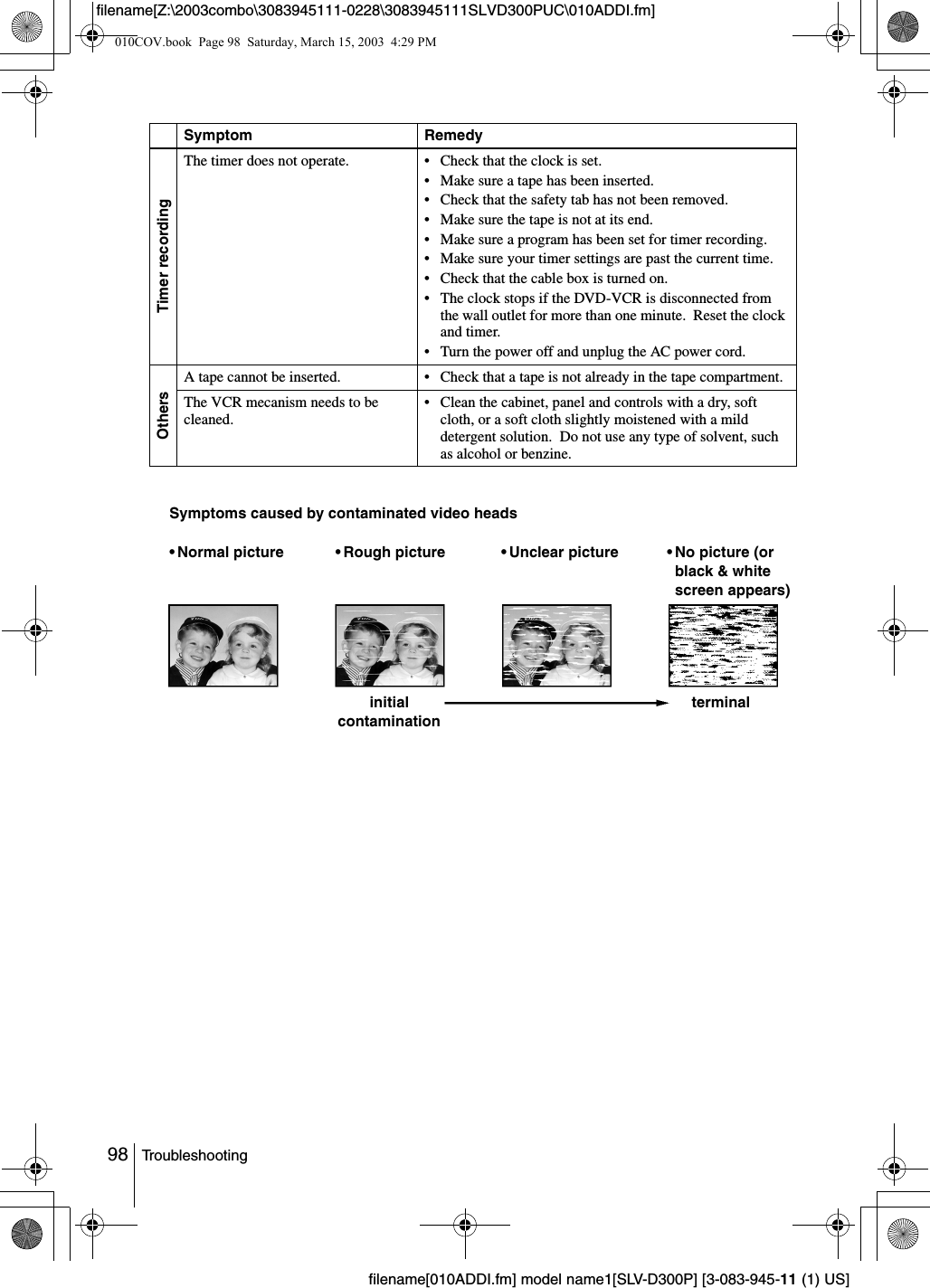

98 Troubleshootingfilename[010ADDI.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDI.fm]Timer recordingThe timer does not operate. • Check that the clock is set.• Make sure a tape has been inserted.• Check that the safety tab has not been removed.• Make sure the tape is not at its end.• Make sure a program has been set for timer recording.• Make sure your timer settings are past the current time.• Check that the cable box is turned on.• The clock stops if the DVD-VCR is disconnected from the wall outlet for more than one minute. Reset the clock and timer.• Turn the power off and unplug the AC power cord.OthersA tape cannot be inserted. • Check that a tape is not already in the tape compartment.The VCR mecanism needs to be cleaned.• Clean the cabinet, panel and controls with a dry, soft cloth, or a soft cloth slightly moistened with a mild detergent solution. Do not use any type of solvent, such as alcohol or benzine.Symptom RemedySymptoms caused by contaminated video heads• Normal picture • Unclear picture• Rough pictureinitial contaminationterminal• No picture (or black & white screen appears)010COV.book Page 98 Saturday, March 15, 2003 4:29 PM

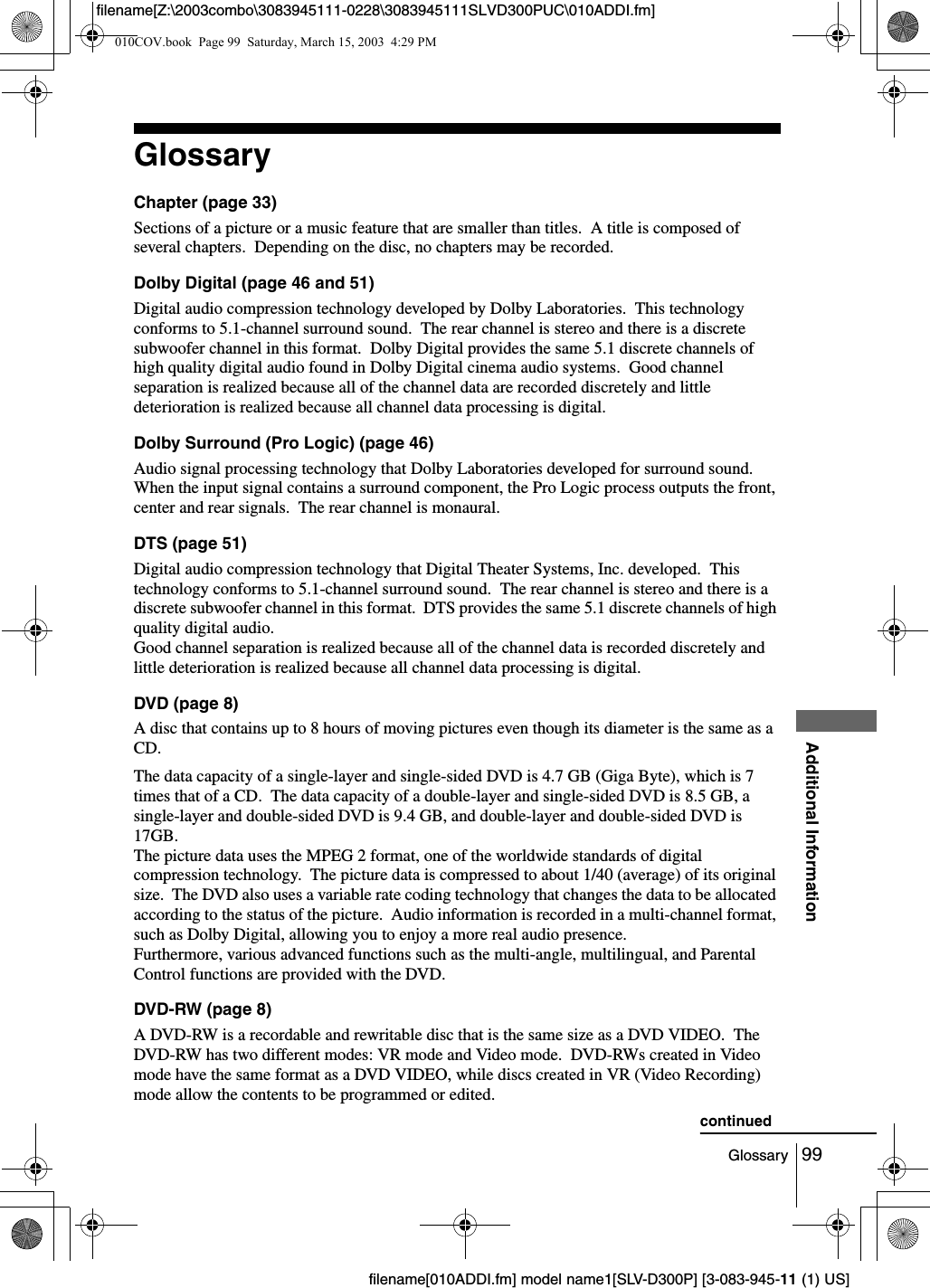

99GlossaryAdditional Informationfilename[010ADDI.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDI.fm]GlossaryChapter (page 33)Sections of a picture or a music feature that are smaller than titles. A title is composed of several chapters. Depending on the disc, no chapters may be recorded.Dolby Digital (page 46 and 51)Digital audio compression technology developed by Dolby Laboratories. This technology conforms to 5.1-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. Dolby Digital provides the same 5.1 discrete channels of high quality digital audio found in Dolby Digital cinema audio systems. Good channel separation is realized because all of the channel data are recorded discretely and little deterioration is realized because all channel data processing is digital.Dolby Surround (Pro Logic) (page 46)Audio signal processing technology that Dolby Laboratories developed for surround sound. When the input signal contains a surround component, the Pro Logic process outputs the front, center and rear signals. The rear channel is monaural.DTS (page 51)Digital audio compression technology that Digital Theater Systems, Inc. developed. This technology conforms to 5.1-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. DTS provides the same 5.1 discrete channels of high quality digital audio.Good channel separation is realized because all of the channel data is recorded discretely and little deterioration is realized because all channel data processing is digital.DVD (page 8)A disc that contains up to 8 hours of moving pictures even though its diameter is the same as a CD.The data capacity of a single-layer and single-sided DVD is 4.7 GB (Giga Byte), which is 7 times that of a CD. The data capacity of a double-layer and single-sided DVD is 8.5 GB, a single-layer and double-sided DVD is 9.4 GB, and double-layer and double-sided DVD is 17GB. The picture data uses the MPEG 2 format, one of the worldwide standards of digital compression technology. The picture data is compressed to about 1/40 (average) of its original size. The DVD also uses a variable rate coding technology that changes the data to be allocated according to the status of the picture. Audio information is recorded in a multi-channel format, such as Dolby Digital, allowing you to enjoy a more real audio presence.Furthermore, various advanced functions such as the multi-angle, multilingual, and Parental Control functions are provided with the DVD.DVD-RW (page 8)A DVD-RW is a recordable and rewritable disc that is the same size as a DVD VIDEO. The DVD-RW has two different modes: VR mode and Video mode. DVD-RWs created in Video mode have the same format as a DVD VIDEO, while discs created in VR (Video Recording) mode allow the contents to be programmed or edited.continued010COV.book Page 99 Saturday, March 15, 2003 4:29 PM

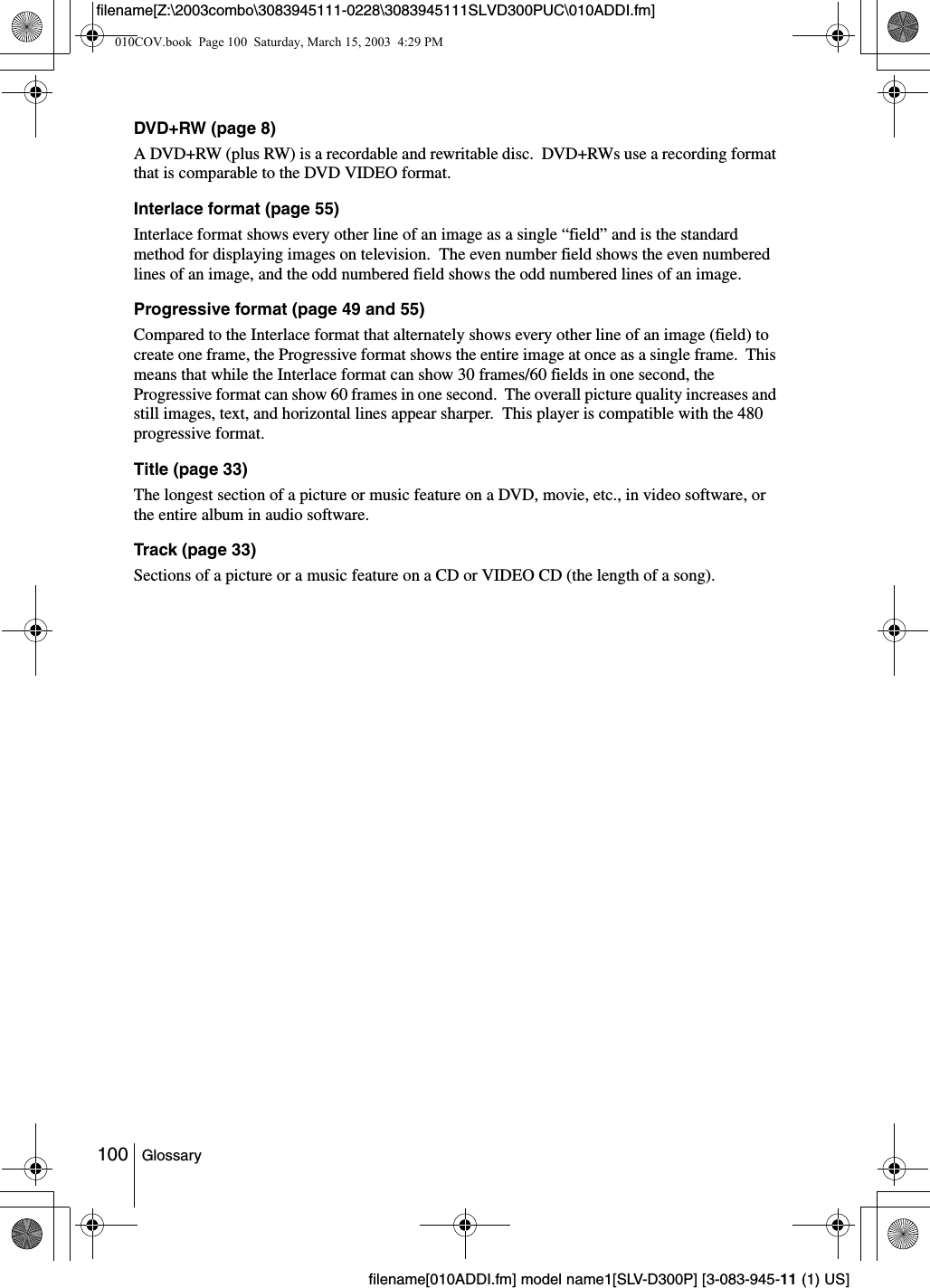

100 Glossaryfilename[010ADDI.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDI.fm]DVD+RW (page 8)A DVD+RW (plus RW) is a recordable and rewritable disc. DVD+RWs use a recording format that is comparable to the DVD VIDEO format. Interlace format (page 55)Interlace format shows every other line of an image as a single “field” and is the standard method for displaying images on television. The even number field shows the even numbered lines of an image, and the odd numbered field shows the odd numbered lines of an image.Progressive format (page 49 and 55)Compared to the Interlace format that alternately shows every other line of an image (field) to create one frame, the Progressive format shows the entire image at once as a single frame. This means that while the Interlace format can show 30 frames/60 fields in one second, the Progressive format can show 60 frames in one second. The overall picture quality increases and still images, text, and horizontal lines appear sharper. This player is compatible with the 480 progressive format.Title (page 33)The longest section of a picture or music feature on a DVD, movie, etc., in video software, or the entire album in audio software.Track (page 33)Sections of a picture or a music feature on a CD or VIDEO CD (the length of a song).010COV.book Page 100 Saturday, March 15, 2003 4:29 PM

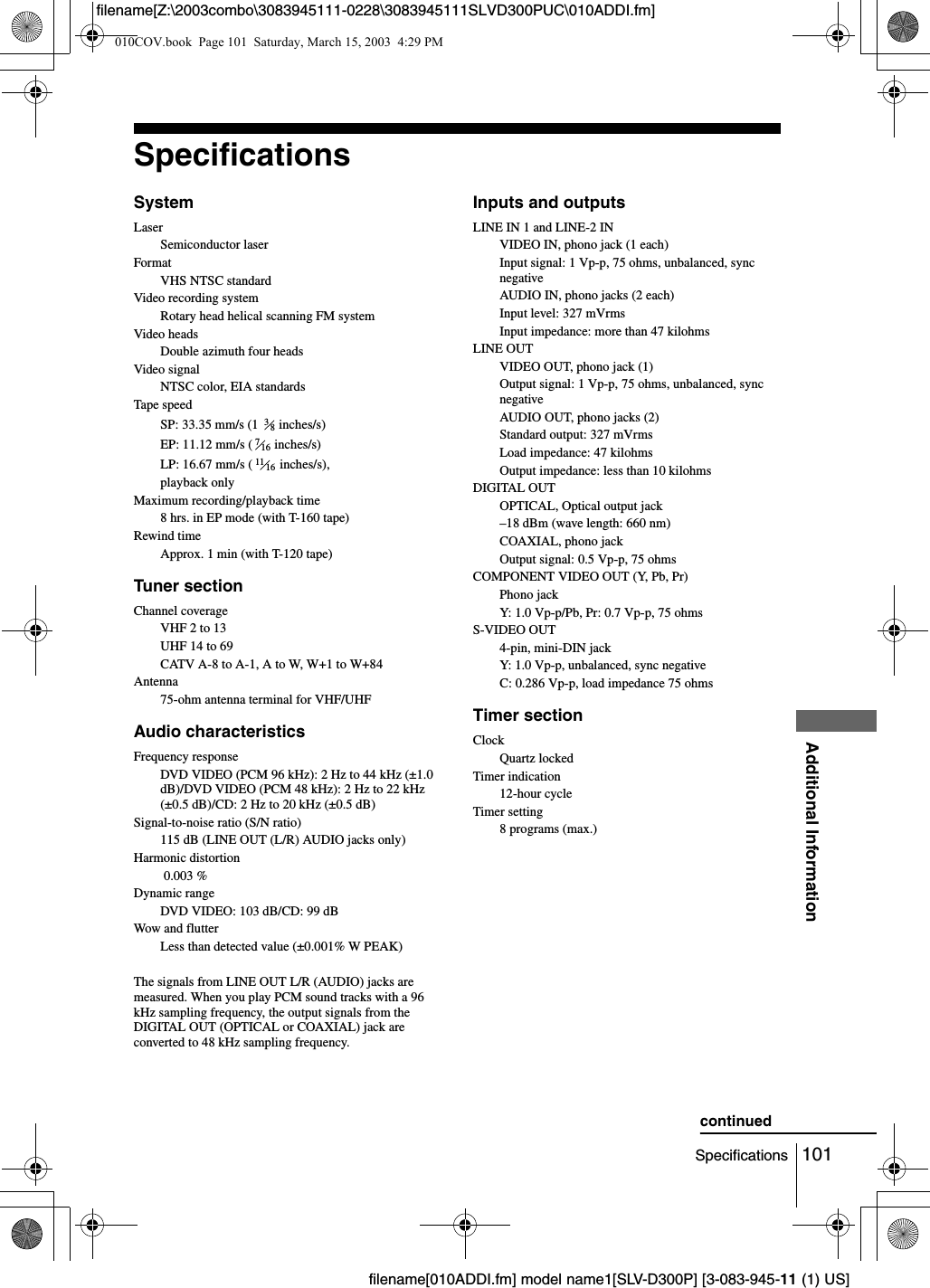

101SpecificationsAdditional Informationfilename[010ADDI.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDI.fm]SpecificationsSystemLaserSemiconductor laserFormatVHS NTSC standardVideo recording systemRotary head helical scanning FM systemVideo headsDouble azimuth four headsVideo signalNTSC color, EIA standardsTape speedSP: 33.35 mm/s (1 inches/s)EP: 11.12 mm/s ( inches/s)LP: 16.67 mm/s ( inches/s),playback onlyMaximum recording/playback time8 hrs. in EP mode (with T-160 tape)Rewind timeApprox. 1 min (with T-120 tape)Tuner sectionChannel coverageVHF 2 to 13UHF 14 to 69CATV A-8 to A-1, A to W, W+1 to W+84Antenna75-ohm antenna terminal for VHF/UHFAudio characteristicsFrequency response DVD VIDEO (PCM 96 kHz): 2 Hz to 44 kHz (±1.0 dB)/DVD VIDEO (PCM 48 kHz): 2 Hz to 22 kHz (±0.5 dB)/CD: 2 Hz to 20 kHz (±0.5 dB)Signal-to-noise ratio (S/N ratio)115 dB (LINE OUT (L/R) AUDIO jacks only)Harmonic distortion 0.003 %Dynamic rangeDVD VIDEO: 103 dB/CD: 99 dBWow and flutterLess than detected value (±0.001% W PEAK)The signals from LINE OUT L/R (AUDIO) jacks are measured. When you play PCM sound tracks with a 96 kHz sampling frequency, the output signals from the DIGITAL OUT (OPTICAL or COAXIAL) jack are converted to 48 kHz sampling frequency.Inputs and outputsLINE IN 1 and LINE-2 INVIDEO IN, phono jack (1 each)Input signal: 1 Vp-p, 75 ohms, unbalanced, sync negativeAUDIO IN, phono jacks (2 each)Input level: 327 mVrmsInput impedance: more than 47 kilohmsLINE OUTVIDEO OUT, phono jack (1)Output signal: 1 Vp-p, 75 ohms, unbalanced, sync negativeAUDIO OUT, phono jacks (2)Standard output: 327 mVrmsLoad impedance: 47 kilohmsOutput impedance: less than 10 kilohmsDIGITAL OUTOPTICAL, Optical output jack–18 dBm (wave length: 660 nm)COAXIAL, phono jackOutput signal: 0.5 Vp-p, 75 ohmsCOMPONENT VIDEO OUT (Y, Pb, Pr)Phono jackY: 1.0 Vp-p/Pb, Pr: 0.7 Vp-p, 75 ohmsS-VIDEO OUT4-pin, mini-DIN jackY: 1.0 Vp-p, unbalanced, sync negativeC: 0.286 Vp-p, load impedance 75 ohmsTimer sectionClockQuartz lockedTimer indication12-hour cycleTimer setting8 programs (max.)3871611 16continued010COV.book Page 101 Saturday, March 15, 2003 4:29 PM

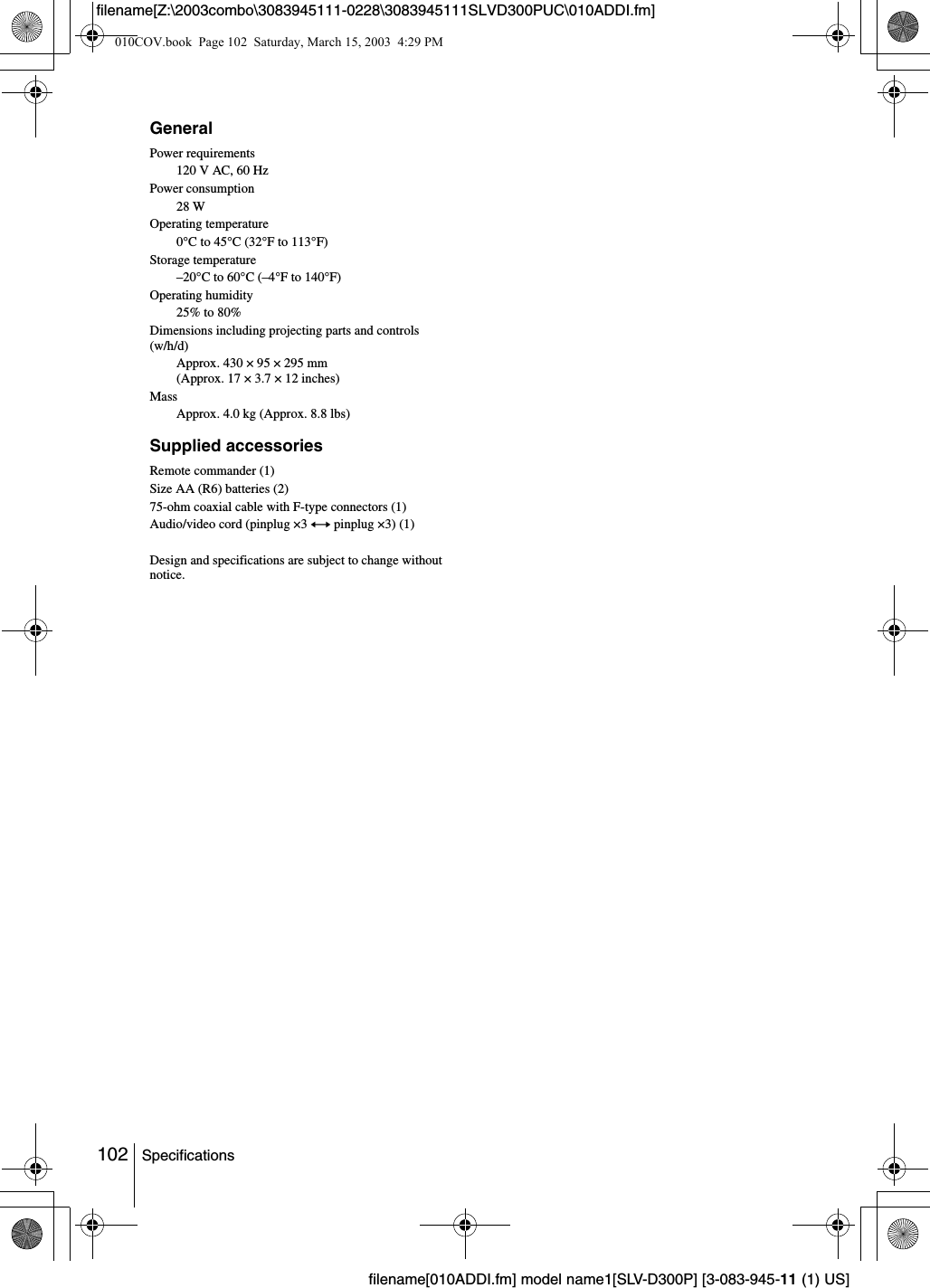

102 Specificationsfilename[010ADDI.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDI.fm]GeneralPower requirements120 V AC, 60 HzPower consumption28 WOperating temperature0°C to 45°C (32°F to 113°F)Storage temperature–20°C to 60°C (–4°F to 140°F)Operating humidity25% to 80%Dimensions including projecting parts and controls (w/h/d)Approx. 430 × 95 × 295 mm(Approx. 17 × 3.7 × 12 inches) MassApprox. 4.0 kg (Approx. 8.8 lbs)Supplied accessoriesRemote commander (1)Size AA (R6) batteries (2)75-ohm coaxial cable with F-type connectors (1)Audio/video cord (pinplug ×3 y pinplug ×3) (1)Design and specifications are subject to change without notice.010COV.book Page 102 Saturday, March 15, 2003 4:29 PM

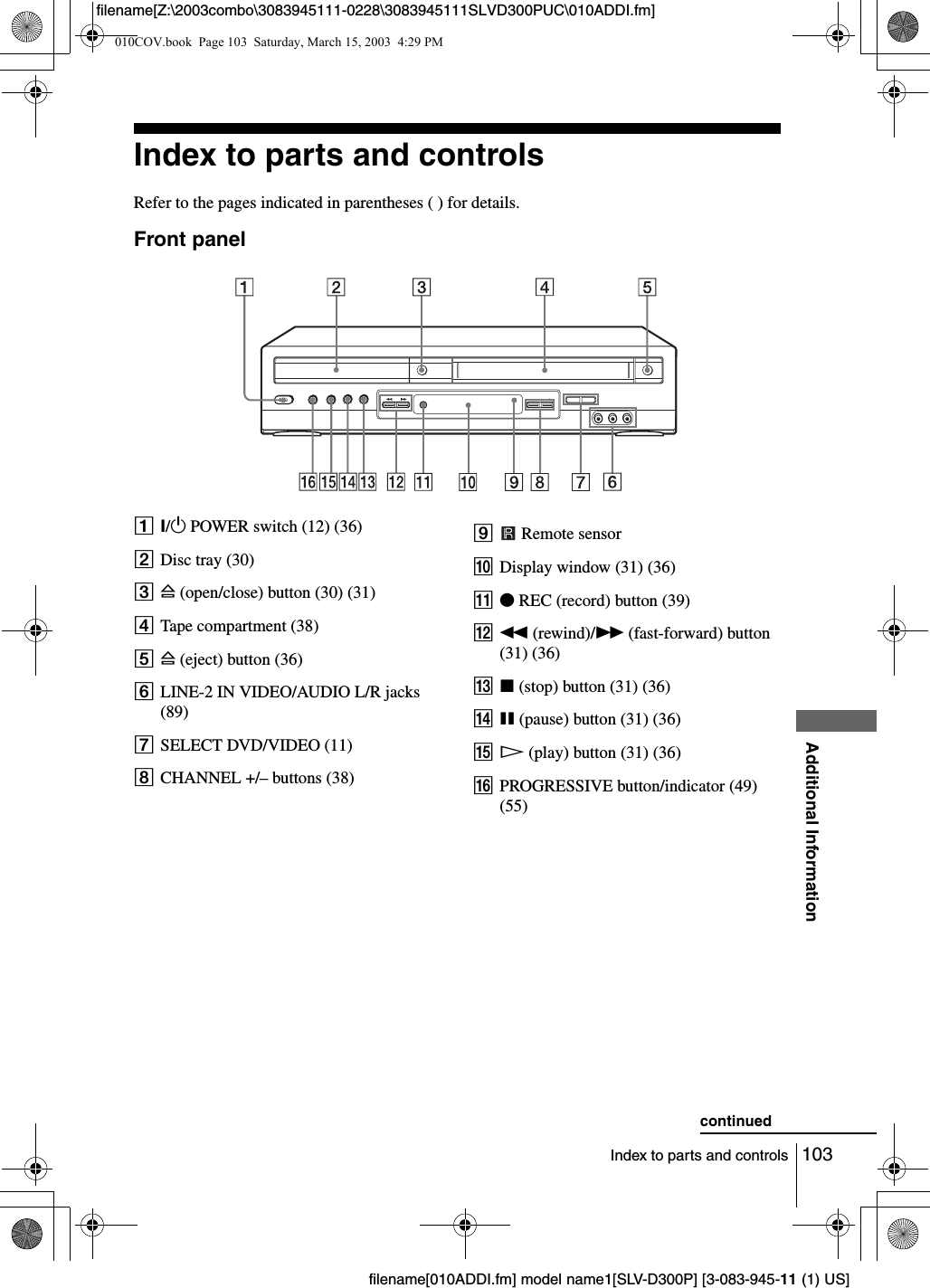

103Index to parts and controlsAdditional Informationfilename[010ADDI.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDI.fm]Index to parts and controlsRefer to the pages indicated in parentheses ( ) for details.Front panelA?/1 POWER switch (12) (36)BDisc tray (30)CA(open/close) button (30) (31)DTape compartment (38)EA(eject) button (36)FLINE-2 IN VIDEO/AUDIO L/R jacks (89)GSELECT DVD/VIDEO (11)HCHANNEL +/– buttons (38)IRemote sensorJDisplay window (31) (36)KzREC (record) button (39)Lm (rewind)/M (fast-forward) button (31) (36)Mx(stop) button (31) (36)NX(pause) button (31) (36)OH(play) button (31) (36)PPROGRESSIVE button/indicator (49) (55)continued010COV.book Page 103 Saturday, March 15, 2003 4:29 PM

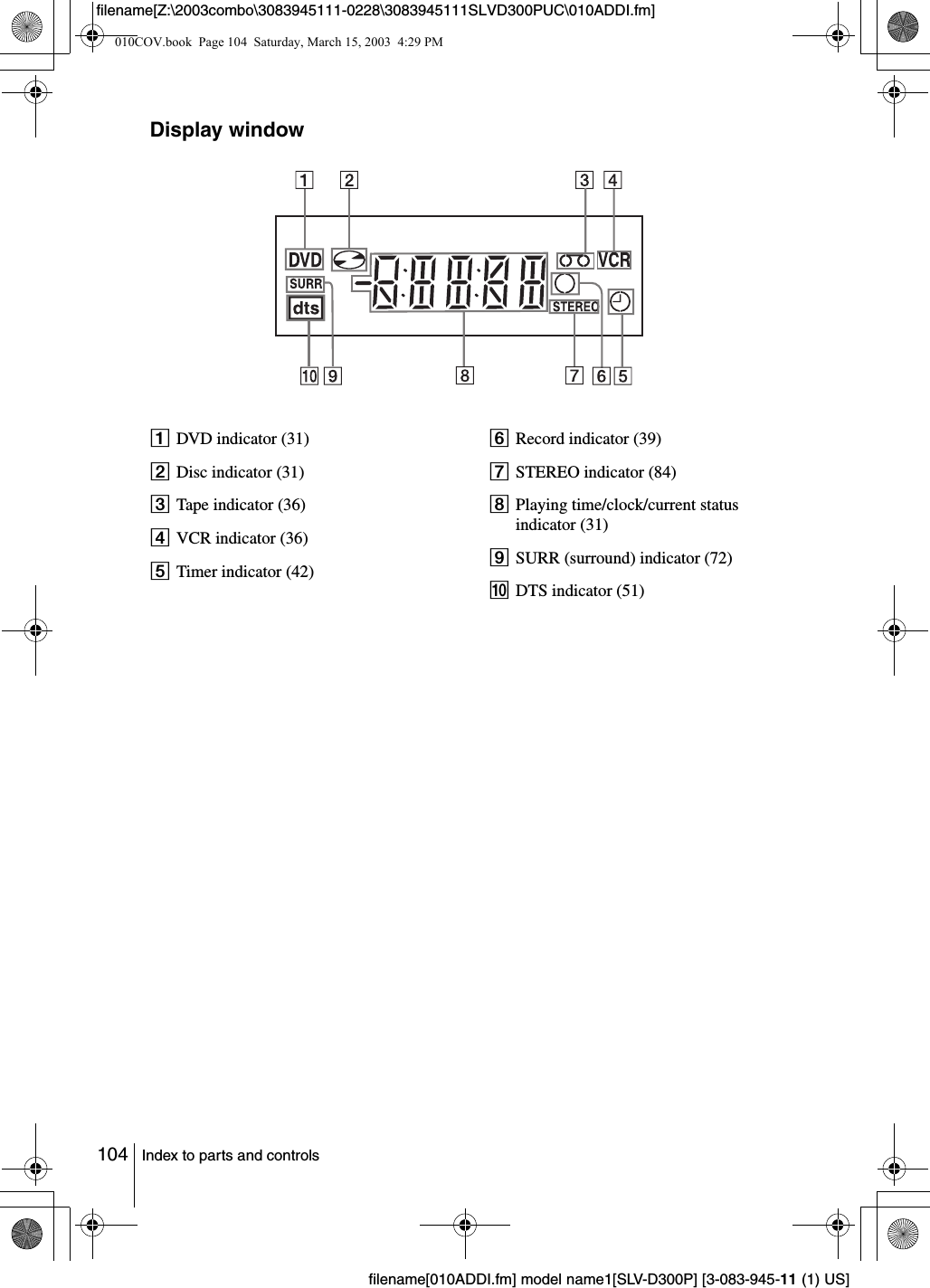

104 Index to parts and controlsfilename[010ADDI.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDI.fm]Display windowADVD indicator (31)BDisc indicator (31)CTape indicator (36)DVCR indicator (36)ETimer indicator (42)FRecord indicator (39)GSTEREO indicator (84)HPlaying time/clock/current status indicator (31)ISURR (surround) indicator (72)JDTS indicator (51)010COV.book Page 104 Saturday, March 15, 2003 4:29 PM

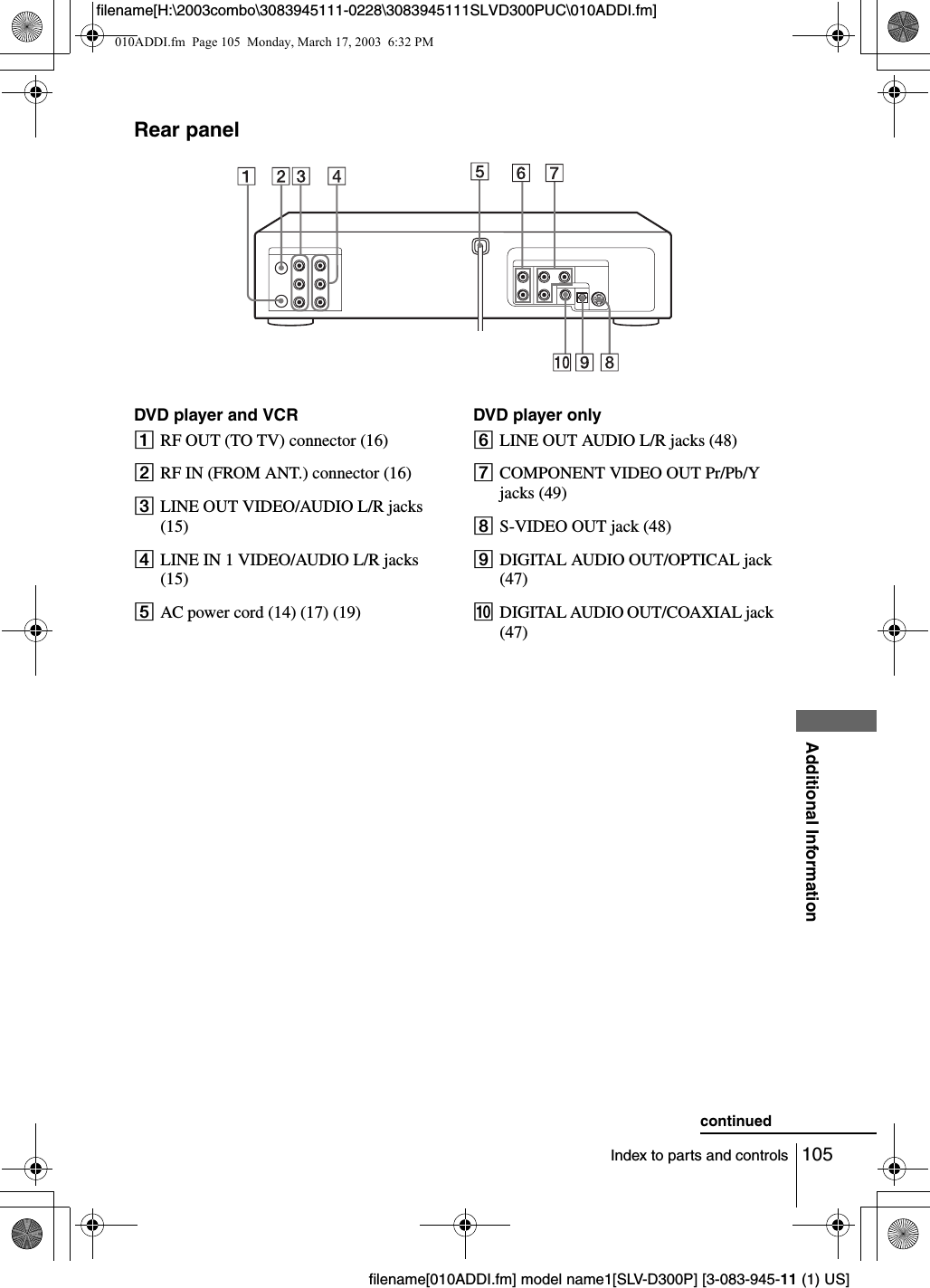

105Index to parts and controlsAdditional Informationfilename[010ADDI.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[H:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDI.fm]Rear panelDVD player and VCRARF OUT (TO TV) connector (16)BRF IN (FROM ANT.) connector (16)CLINE OUT VIDEO/AUDIO L/R jacks (15)DLINE IN 1 VIDEO/AUDIO L/R jacks (15)EAC power cord (14) (17) (19)DVD player onlyFLINE OUT AUDIO L/R jacks (48)GCOMPONENT VIDEO OUT Pr/Pb/Y jacks (49)HS-VIDEO OUT jack (48)IDIGITAL AUDIO OUT/OPTICAL jack (47)JDIGITAL AUDIO OUT/COAXIAL jack (47)continued010ADDI.fm Page 105 Monday, March 17, 2003 6:32 PM

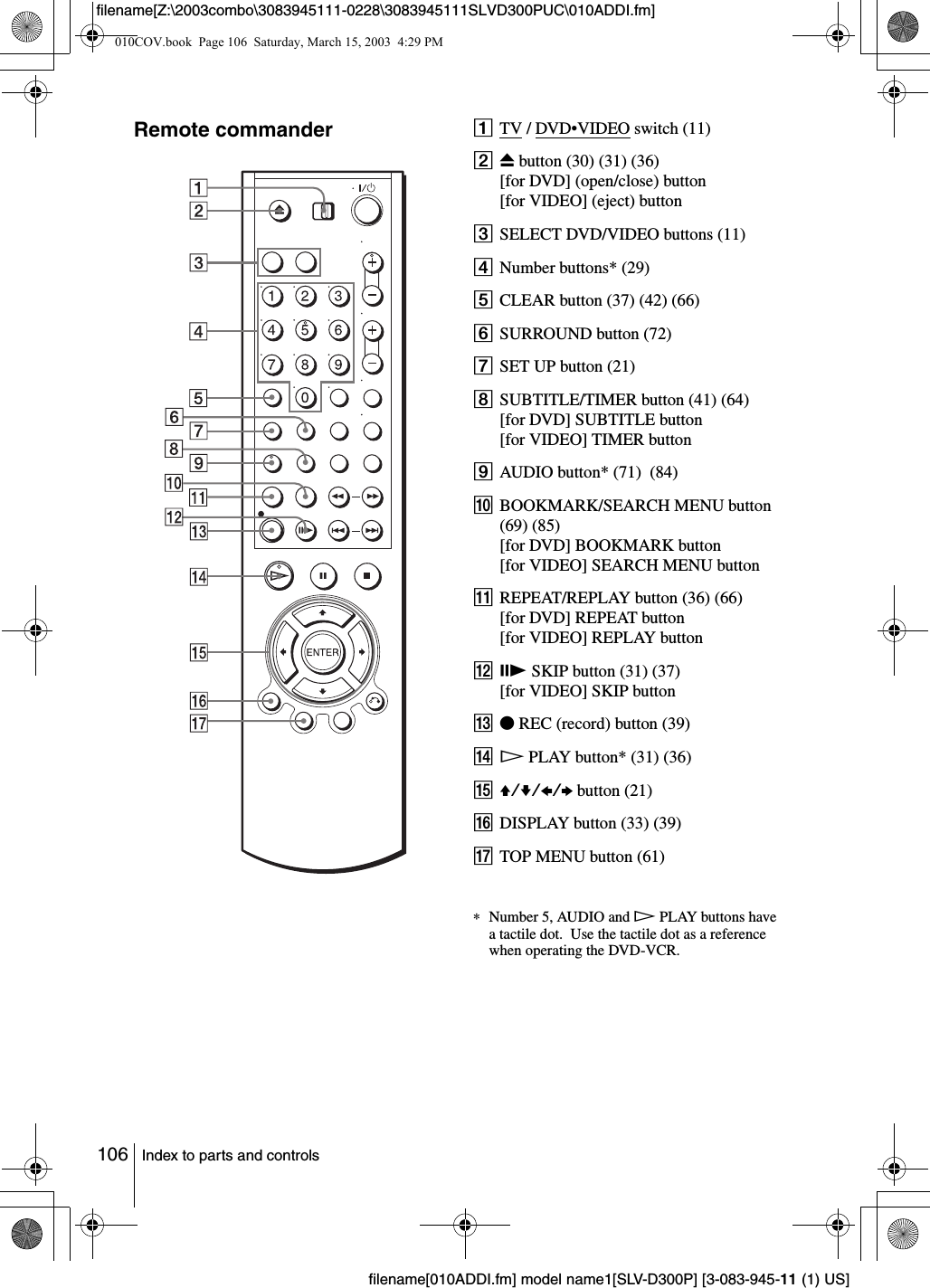

106 Index to parts and controlsfilename[010ADDI.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDI.fm]Remote commander ATV / DVD•VIDEO switch (11)BZ button (30) (31) (36)[for DVD] (open/close) button[for VIDEO] (eject) buttonCSELECT DVD/VIDEO buttons (11)DNumber buttons* (29)ECLEAR button (37) (42) (66)FSURROUND button (72)GSET UP button (21)HSUBTITLE/TIMER button (41) (64)[for DVD] SUBTITLE button[for VIDEO] TIMER buttonIAUDIO button* (71) (84)JBOOKMARK/SEARCH MENU button (69) (85)[for DVD] BOOKMARK button[for VIDEO] SEARCH MENU button KREPEAT/REPLAY button (36) (66)[for DVD] REPEAT button[for VIDEO] REPLAY buttonLCSKIP button (31) (37)[for VIDEO] SKIP buttonMzREC (record) button (39)NHPLAY button* (31) (36)OV/v/B/b button (21)PDISPLAY button (33) (39)QTOP MENU button (61)∗Number 5, AUDIO and HPLAY buttons have a tactile dot. Use the tactile dot as a reference when operating the DVD-VCR.010COV.book Page 106 Saturday, March 15, 2003 4:29 PM

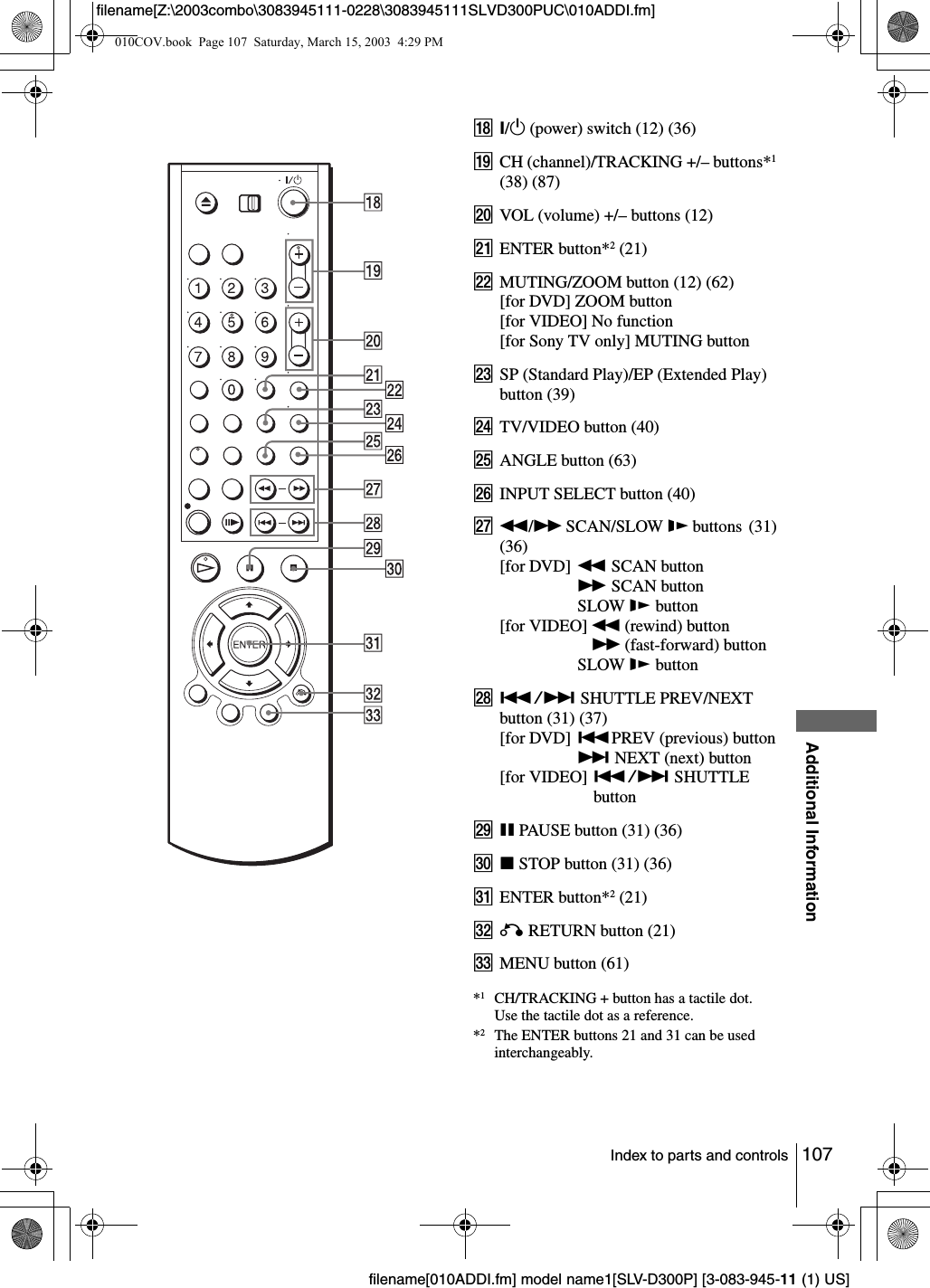

107Index to parts and controlsAdditional Informationfilename[010ADDI.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDI.fm]R?/1 (power) switch (12) (36)SCH (channel)/TRACKING +/– buttons*1 (38) (87)TVOL (volume) +/– buttons (12)UENTER button*2 (21)VMUTING/ZOOM button (12) (62)[for DVD] ZOOM button[for VIDEO] No function [for Sony TV only] MUTING buttonWSP (Standard Play)/EP (Extended Play) button (39)XTV/VIDEO button (40)YANGLE button (63)ZINPUT SELECT button (40)wj m/M SCAN/SLOW y buttons (31) (36)[for DVD] m SCAN buttonM SCAN buttonSLOW y button[for VIDEO] m (rewind) buttonM (fast-forward) buttonSLOW y buttonwk ./> SHUTTLE PREV/NEXT button (31) (37)[for DVD] .PREV (previous) button> NEXT (next) button[for VIDEO] ./> SHUTTLE buttonwl XPAUSE button (31) (36)e; xSTOP button (31) (36)ea ENTER button*2 (21)es O RETURN button (21)ed MENU button (61)*1CH/TRACKING + button has a tactile dot. Use the tactile dot as a reference.*2The ENTER buttons 21 and 31 can be used interchangeably.010COV.book Page 107 Saturday, March 15, 2003 4:29 PM

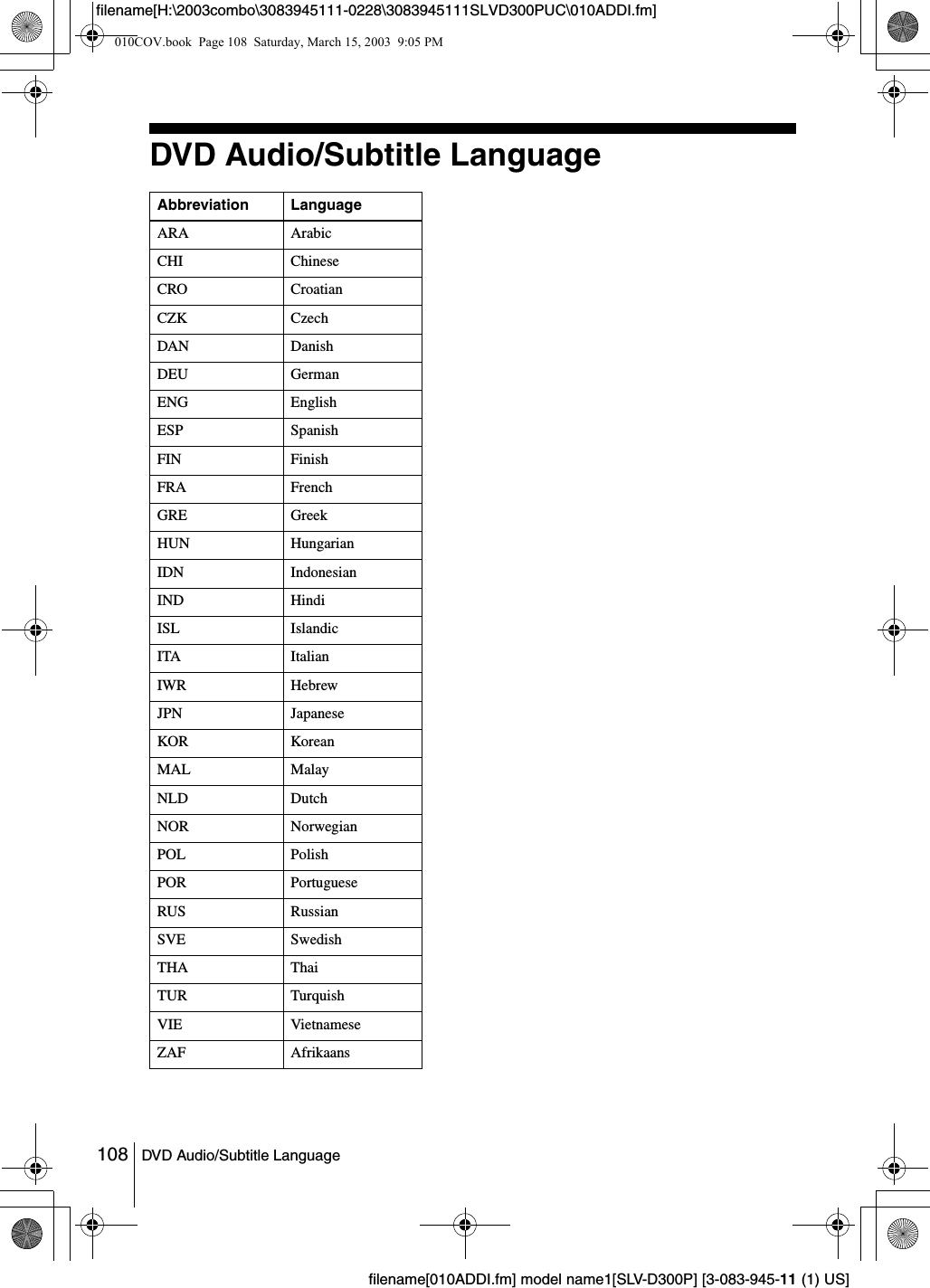

108 DVD Audio/Subtitle Languagefilename[010ADDI.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[H:\2003combo\3083945111-0228\3083945111SLVD300PUC\010ADDI.fm]DVD Audio/Subtitle LanguageAbbreviation LanguageARA ArabicCHI ChineseCRO CroatianCZK CzechDAN DanishDEU GermanENG EnglishESP SpanishFIN FinishFRA FrenchGRE GreekHUN HungarianIDN IndonesianIND HindiISL IslandicITA ItalianIWR HebrewJPN JapaneseKOR KoreanMAL MalayNLD DutchNOR NorwegianPOL PolishPOR PortugueseRUS RussianSVE SwedishTHA ThaiTUR TurquishVIE VietnameseZAF Afrikaans010COV.book Page 108 Saturday, March 15, 2003 9:05 PM

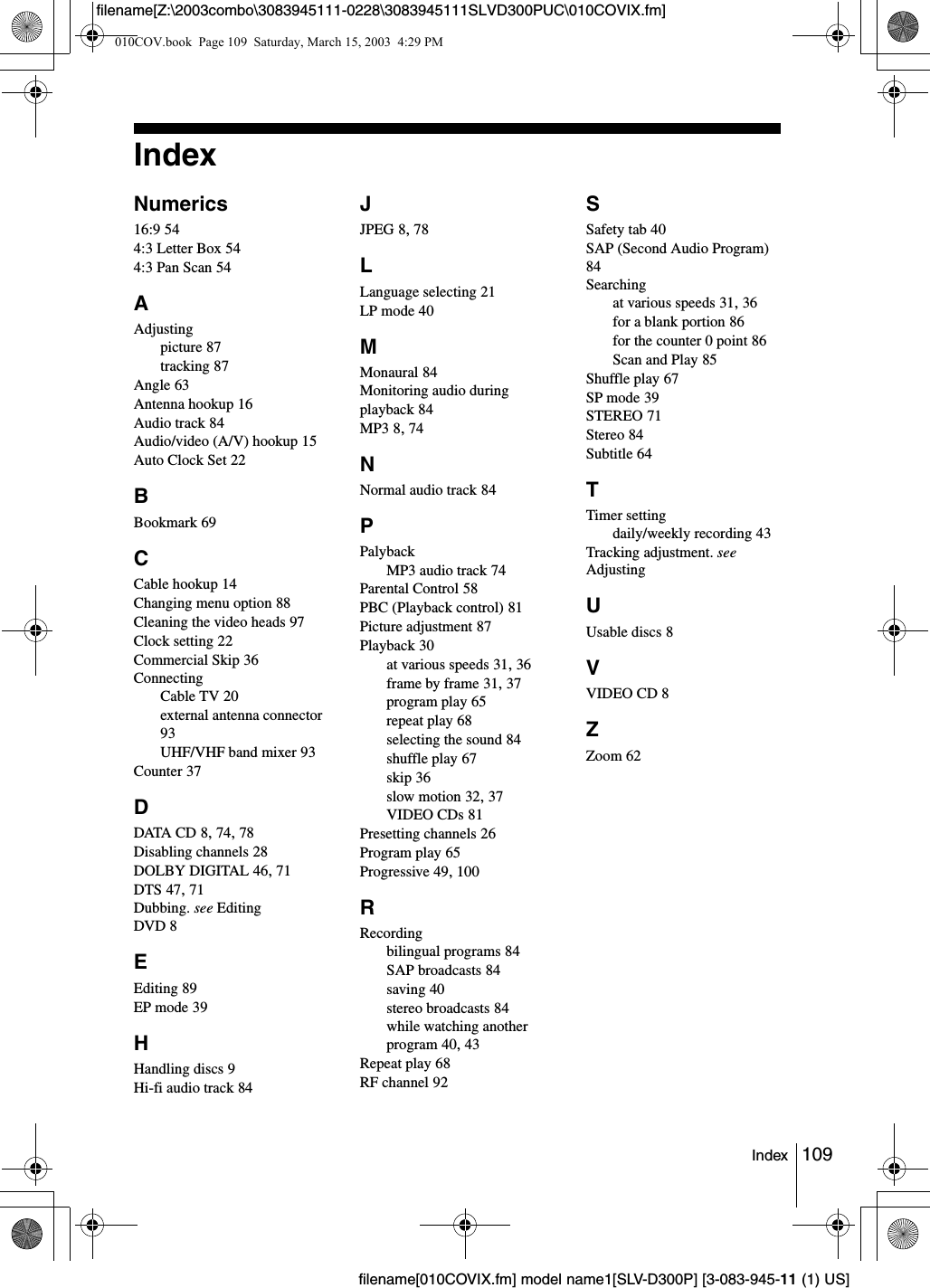

109Indexfilename[010COVIX.fm] model name1[SLV-D300P] [3-083-945-11 (1) US]filename[Z:\2003combo\3083945111-0228\3083945111SLVD300PUC\010COVIX.fm]IndexNumerics16:9 544:3 Letter Box 544:3 Pan Scan 54AAdjustingpicture 87tracking 87Angle 63Antenna hookup 16Audio track 84Audio/video (A/V) hookup 15Auto Clock Set 22BBookmark 69CCable hookup 14Changing menu option 88Cleaning the video heads 97Clock setting 22Commercial Skip 36ConnectingCable TV 20external antenna connector 93UHF/VHF band mixer 93Counter 37DDATA CD 8, 74, 78Disabling channels 28DOLBY DIGITAL 46, 71DTS 47, 71Dubbing. see EditingDVD 8EEditing 89EP mode 39HHandling discs 9Hi-fi audio track 84JJPEG 8, 78LLanguage selecting 21LP mode 40MMonaural 84Monitoring audio during playback 84MP3 8, 74NNormal audio track 84PPalybackMP3 audio track 74Parental Control 58PBC (Playback control) 81Picture adjustment 87Playback 30at various speeds 31, 36frame by frame 31, 37program play 65repeat play 68selecting the sound 84shuffle play 67skip 36slow motion 32, 37VIDEO CDs 81Presetting channels 26Program play 65Progressive 49, 100RRecordingbilingual programs 84SAP broadcasts 84saving 40stereo broadcasts 84while watching another program 40, 43Repeat play 68RF channel 92SSafety tab 40SAP (Second Audio Program) 84Searchingat various speeds 31, 36for a blank portion 86for the counter 0 point 86Scan and Play 85Shuffle play 67SP mode 39STEREO 71Stereo 84Subtitle 64TTimer settingdaily/weekly recording 43Tracking adjustment. see AdjustingUUsable discs 8VVIDEO CD 8ZZoom 62010COV.book Page 109 Saturday, March 15, 2003 4:29 PM
