Samsung Electronics Co DIVA500P DVD Player / Video Cassette Recorder User Manual SLV D500P

Samsung Electronics Co Ltd DVD Player / Video Cassette Recorder SLV D500P

1. Users Manual 1
2. Users Manual 2

Users Manual 1

$filename[010COV.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010COV.fm]3-083-946-11 (1) USDVD Player/Video Cassette RecorderOperating InstructionsFor customers in the USAIf you have any questions about your Sony DVD-VCR, you may call Sony Customer Information Services Company at 1-800-VHS-SONY (847-7669).For all other Sony product questions, please call Sony Customer Information Services Company at 1-800-222-SONY (7669). Or write to: Sony Customer Information Services Company 12451 Gateway Boulevard Ft. Myers, FL 33913For Customers in CanadaIf this product is not working properly, please call 1-877-602-2008 for Peace of Mind Warranty Replacement service.For other product related questions please contact our Customer Information Service Center at 1-877-899-7669 or write to us at: Customer Information Service 115 Gordon Baker Road, Toronto, Ontario, M2H 3R6SLV-D500P © 2003 Sony Corporation010COV.book Page 1 Thursday, April 24, 2003 12:37 PM$

$filename[010WAR.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]2WARNINGfilename[C:\3083946111SLVD500PUC0424\010WAR.fm]WARNINGTo prevent fire or shock hazard, do not expose the unit to rain or moisture.To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.CAUTIONThe use of optical instruments with this product will increase eye hazard. As the laser beam used in this DVD player is harmful to eyes, do not attempt to disassemble the cabinet.Refer servicing to qualified personnel only.USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.CAUTIONTO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.For customers in the U.S.AOwner’s RecordThe model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.Model No. SLV-D500PSerial No.______________CAUTIONYou are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.NoteThis equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:– Reorient or relocate the receiving antenna.– Increase the separation between the equipment and receiver.– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.– Consult the dealer or an experienced radio/TV technician for help.Welcome!Thank you for purchasing this Sony DVD Player/Video Cassette Recorder. Before operating this player, please read this manual thoroughly and retain it for future reference.General Precautions• Operate the unit only on 120 V AC, 60 Hz.• This unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.• Unplug the unit from the wall outlet if you do not intend to use it for an extended period of time. To disconnect the cord, pull it out by the plug, never by the cord.• If the unit is brought directly from a cold to a warm location, moisture may condense inside the unit and cause damage to the video head and tape. When you first install the unit, or when you move it from a cold to a warm location, wait for about three hours before operating the unit.• Do not install the unit in an inclined position. It is designed to be operated in a horizontal position only.• Keep the unit and cassettes away from equipment with strong magnets, such as microwave ovens or large loudspeakers.• Do not place heavy objects on the unit.010WAR.fm Page 2 Monday, May 5, 2003 5:53 PM$

$3Important Safety Instructionsfilename[010WAR.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010WAR.fm]Important Safety Instructions1 Read these instructions.2 Keep these instructions.3 Heed all warnings.4 Follow all instructions.5 Do not use this apparatus near water.6 Clean only with dry cloth.7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.11 Only use attachments/accessories specified by the manufacturer.12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.13 Unplug this apparatus during lightning storms or when unused for long periods of time.14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.DVD PrecautionsOn safety• Caution – The use of optical instruments with this product will increase eye hazard.• To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.• Should any solid object or liquid fall into the cabinet, unplug the player and have it checked by qualified personnel before operating it any further.On operation• If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about half an hour until the moisture evaporates.• When you move the player, take out any discs. If you don’t, the disc may be damaged.On adjusting volume when playing DVDDo not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level section is played.On cleaning discsDo not use a commercially available cleaning disc. It may cause a malfunction.IMPORTANT NOTICECaution: This player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Projection televisions are especially susceptible to this.010COV.book Page 3 Thursday, April 24, 2003 12:37 PM$

$4Table of contentsfilename[010COVTOC.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010COVTOC.fm]Table of contents2WARNING2Welcome!2General Precautions3Important Safety Instructions3DVD Precautions6About this manual6This player can play the following discs7Notes about discsGetting Started8Step 1 : Unpacking9Step 2 : Setting up the remote commander12 Step 3 : Basic hookups19 Step 4 : Selecting a language20 Step 5 : Setting the clock24 Step 6 : Presetting channels28 Step 7 : Setting up the VCR Plus+® system Basic Operations31 Playing discs34 Guide to the on-screen display36 Playing a tape 39 Recording TV programs 42 Recording TV programs using the timer 45 Recording TV programs using the Dial Timer 50 Recording TV programs using the VCR Plus+® system 53 Checking/changing/canceling timer settings Advanced Hookups55 A/V Receiver hookup 57 S-Video/Component Video hookup DVD Settings and Adjustments59 Audio Setup 62 Screen Setup 65 Setting the display or sound track language67 Parental Control (limiting playback by children) DVD Additional Operations70 Using the DVD’s menu 71 Zooming into a scene72 Changing the angles 73 Displaying the subtitle 74 Various play mode functions (Program play, Shuffle play, Repeat play) 78 Using bookmarks010COV.book Page 4 Thursday, April 24, 2003 12:37 PM$

$5Table of contentsfilename[010COVTOC.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010COVTOC.fm]80 Changing the sound81 Virtual surround setting83 Playing an MP3 audio track 87 Playing JPEG image files 90 Playing VIDEO CDs with “MENU ON/OFF” FunctionsVCR Additional Operations92 Quick Timer Recording 93 Recording stereo and bilingual programs 94 Searching using various functions 96 Adjusting the picture (tracking) 97 Changing menu options 98 Editing with another VCR Additional Information100 General setup information103 Troubleshooting108 Glossary110 Specifications112 Index to parts and controls117 DVD Audio/Subtitle Language118 Index* VCR Plus+ and PlusCode are registered trademarks of Gemstar Development Corporation.The VCR Plus+ system is manufactured under license from Gemstar Development Corporation.CautionFor use of the VCRTelevision programs, films, video tapes and other materials may be copyrighted.Unauthorized recording of such material may be contrary to the provisions of the copyright laws. Also, use of this recorder with cable television transmission may require authorization from the cable television transmission and/or program owner.For use of the DVD playerThis product incorporates copyright protection technology that is protected by method claims of certain U.S. patents, other intellectual property rights owned by Macrovision Corporation, and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.010COV.book Page 5 Thursday, April 24, 2003 12:37 PM$

$filename[010PRE.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]6About this manualfilename[C:\3083946111SLVD500PUC0424\010PRE.fm]About this manual• The meaning of the icons used in this manual is described below:* MP3 (MPEG 1 Audio Layer 3) is a standard format defined by ISO/MPEG which compresses audio data.This player can play the following discsThe “DVD VIDEO” logo is a trademark.Region codeYour player has a region code printed on the back of the unit and only will play DVD VIDEO discs (playback only) labeled with identical region codes. This system is used to protect copyrights.DVDs labeled will also play on this player.If you try to play any other DVD, the message “Playback prohibited by area limitations.” will appear on the TV screen. Depending on the DVD, no region code indication may be labeled even though playing the DVD is prohibited by area restrictions.Example of discs that the player cannot playThe player cannot play the following discs:• All CD-ROMs (including PHOTO CDs)/CD-Rs/CD-RWs other than those recorded in the following formats:– music CD format– video CD format– MP3 or JPEG format that conforms to ISO9660* Level 1/Level 2, or its extended format, Joliet• Data part of CD-Extras• DVD-RWs in VR mode• DVD-ROMs• DVD Audio discs• HD layer on Super Audio CDs* A logical format of files and folders on CD-ROMs, defined by ISO (International Standard Organization).Also, the player cannot play the following discs:• A DVD with a different region code.• A disc recorded in a color system other than NTSC, such as PAL or SECAM (this player conforms to the NTSC color system).• A disc that has a non-standard shape (e.g., card, heart).• A disc with paper or stickers on it.• A disc that has the adhesive of cellophane tape or a sticker still left on it.Icon MeaningFunctions available for DVD VIDEOs and DVD-RWs/DVD-Rs in video mode or DVD+RWs/DVD+RsFunctions available for VIDEO CDs, Super VCDs or CD-Rs/CD-RWs in video CD format or Super VCD formatFunctions available for DATA CDs (CD-ROMs/CD-Rs/CD-RWs containing MP3* audio tracks or JPEG files)Functions available for music CDs or CD-Rs/CD-RWs in music CD formatFunctions available for VHS VIDEOsFormat of discsDVD VIDEOVIDEO CDMusic CDALLSLV–DXXXX 00V 00Hz00W NO. 0-000-000-00XRegion code010PRE.fm Page 6 Monday, May 5, 2003 5:48 PM$

$7Notes about discsfilename[010PRE.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010PRE.fm]NoteSome DVD-RWs/DVD-Rs, DVD+RWs/DVD+Rs or CD-Rs/CD-RWs cannot be played on this player due to the recording quality or physical condition of the disc, or the characteristics of the recording device.Furthermore, the disc will not play if it has not been correctly finalized. For more information, see the operating instructions for the recording device.Note that discs created in the Packet Write format cannot be played.Note on playback operations of DVDs and VIDEO CDsSome playback operations of DVDs and VIDEO CDs may be intentionally set by software producers. Since this player plays DVDs and VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVDs or VIDEO CDs.Music discs encoded with copyright protection technologiesThis product is designed to playback discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product.Notes about discs• To keep the disc clean, handle the disc by its edge. Do not touch the surface.• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car.• After playing, store the disc in its case.• Clean the disc with a cleaning cloth.Wipe the disc from the center out.Do not use solvents such as benzine, thinner, commercially available cleaners, or anti-static spray intended for vinyl LPs.010COV.book Page 7 Thursday, April 24, 2003 12:37 PM$

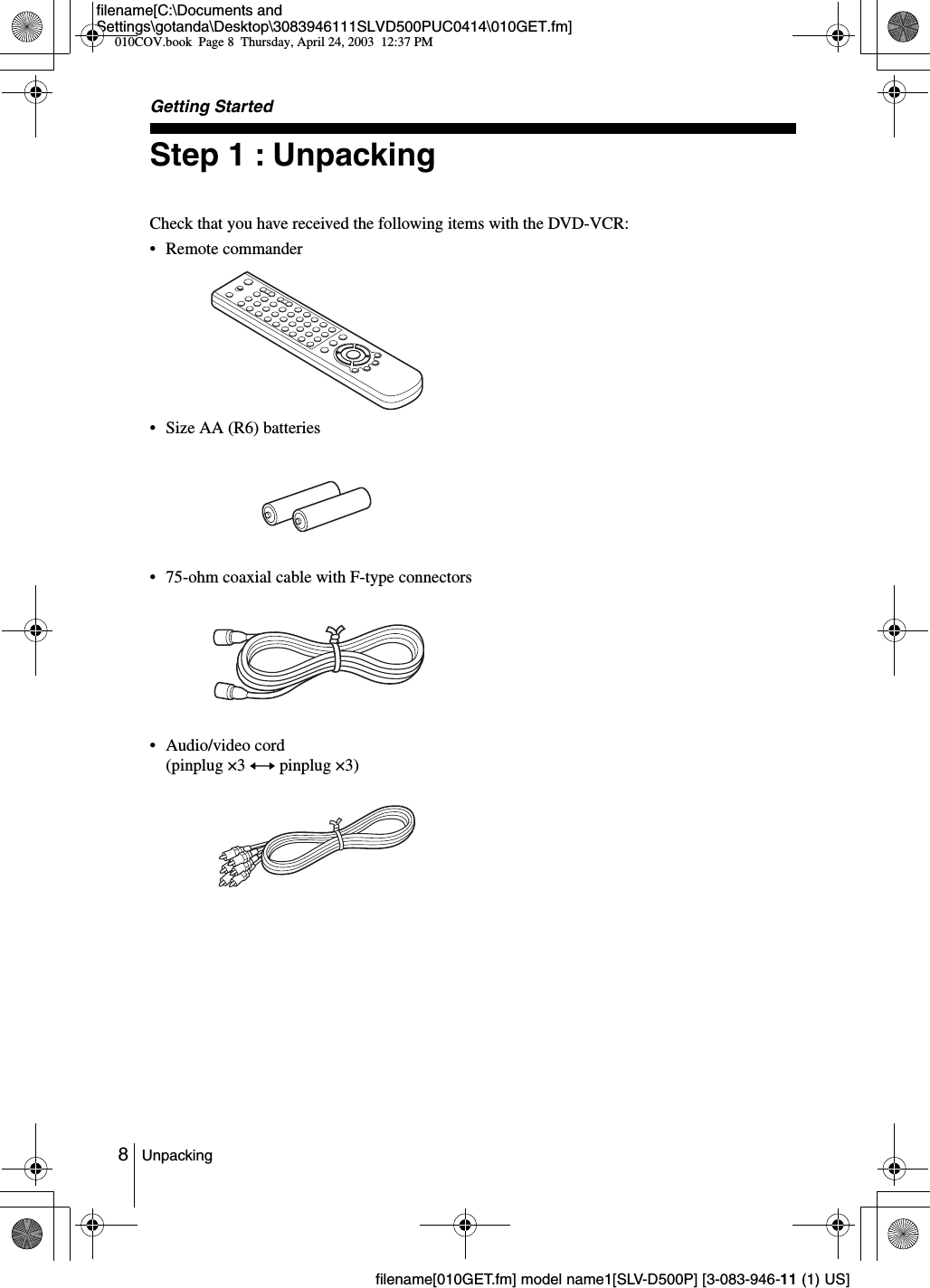

$8Unpackingfilename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]Getting StartedStep 1 : UnpackingCheck that you have received the following items with the DVD-VCR:• Remote commander• Size AA (R6) batteries• 75-ohm coaxial cable with F-type connectors• Audio/video cord (pinplug ×3 y pinplug ×3)010COV.book Page 8 Thursday, April 24, 2003 12:37 PM$

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]Getting Started9Setting up the remote commanderfilename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]Step 2 : Setting up the remote commanderNotes• With normal use, the batteries should last about three to six months.• If you do not use the remote commander for an extended period of time, remove the batteries to avoid possible damage from battery leakage.• Do not use a new battery with an old one.• Do not use different types of batteries.• Do not leave the remote commander in an extremely hot or humid place.• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.• Do not expose the remote sensor to direct light from the sun or lighting apparatus. Doing so may cause a malfunction.Inserting the batteriesInsert two size AA (R6) batteries by matching the + and – on the batteries to the diagram inside the battery compartment.Insert the negative (–) end first, then push in and down until the positive (+) end clicks into position.Using the remote commanderYou can use this remote commander to operate this DVD-VCR and a Sony TV. Buttons on the remote commander marked with an orange dot (•) can be used to operate your Sony TV. If the TV does not have the symbol near the remote sensor, this remote commander will not operate the TV.To operate Set TV / DVD·VIDEO tothe DVD player DVD·VIDEO, then press SELECT DVD and point at the remote sensor at the DVD-VCRthe VCR DVD·VIDEO, then press SELECT VIDEO and point at the remote sensor at the DVD-VCRyour TV TV and point at the remote sensor at your TVTV /DVD·VIDEORemote sensorcontinuedSELECT VIDEOSELECT DVD010COV.book Page 9 Thursday, April 24, 2003 12:37 PM$

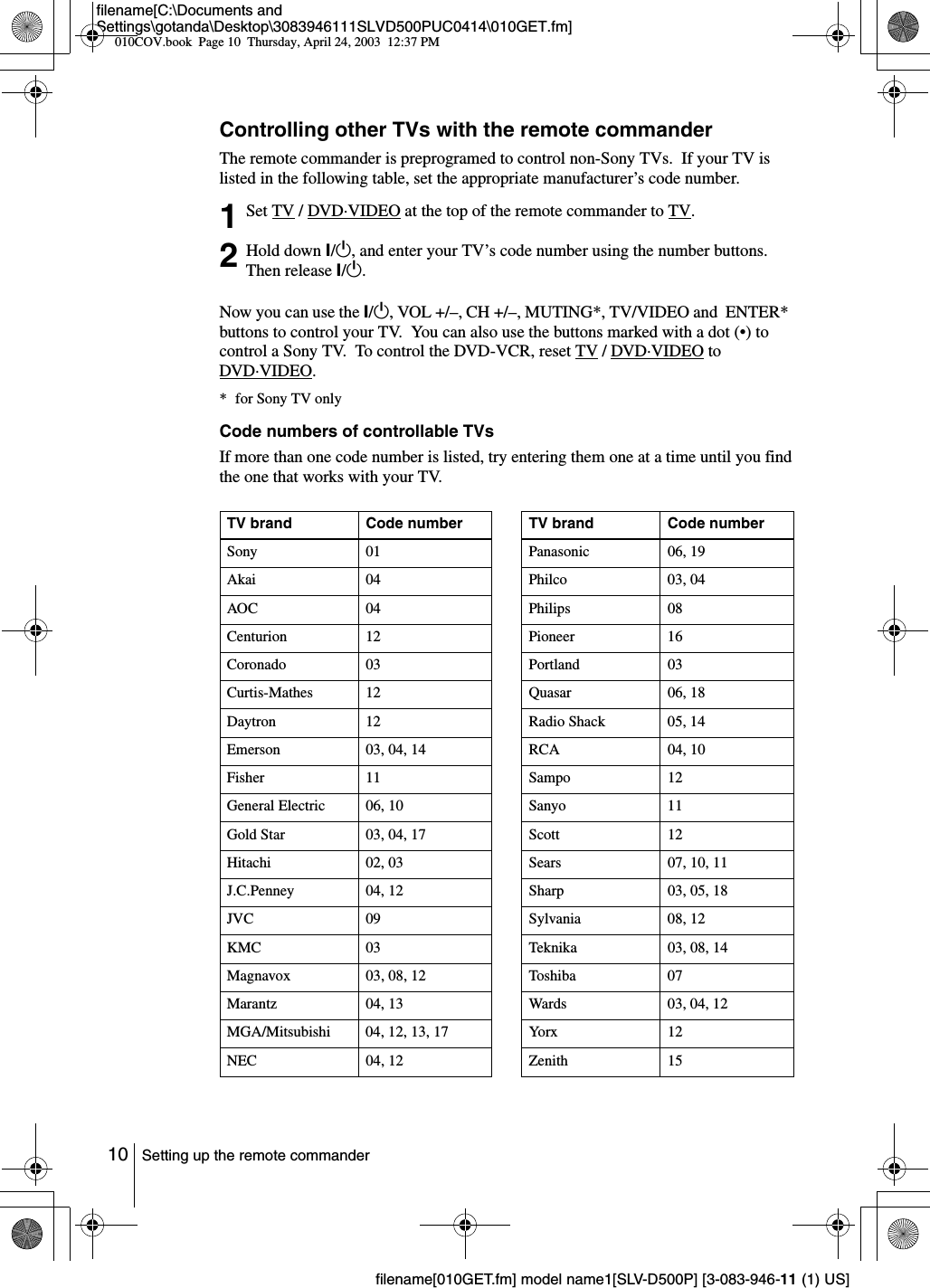

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]10 Setting up the remote commanderfilename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]Controlling other TVs with the remote commanderThe remote commander is preprogramed to control non-Sony TVs. If your TV is listed in the following table, set the appropriate manufacturer’s code number.Now you can use the ?/1, VOL +/–, CH +/–, MUTING*, TV/VIDEO and ENTER* buttons to control your TV. You can also use the buttons marked with a dot (•) to control a Sony TV. To control the DVD-VCR, reset TV / DVD·VIDEO to DVD·VIDEO.* for Sony TV onlyCode numbers of controllable TVsIf more than one code number is listed, try entering them one at a time until you find the one that works with your TV.1Set TV / DVD·VIDEO at the top of the remote commander to TV.2Hold down ?/1, and enter your TV’s code number using the number buttons. Then release ?/1.TV brand Code numberSony 01Akai 04AOC 04Centurion 12Coronado 03Curtis-Mathes 12Daytron 12Emerson 03, 04, 14Fisher 11General Electric 06, 10Gold Star 03, 04, 17Hitachi 02, 03J.C.Penney 04, 12JVC 09KMC 03Magnavox 03, 08, 12Marantz 04, 13MGA/Mitsubishi 04, 12, 13, 17NEC 04, 12Panasonic 06, 19Philco 03, 04Philips 08Pioneer 16Portland 03Quasar 06, 18Radio Shack 05, 14RCA 04, 10Sampo 12Sanyo 11Scott 12Sears 07, 10, 11Sharp 03, 05, 18Sylvania 08, 12Teknika 03, 08, 14Toshiba 07Wards 03, 04, 12Yorx 12Zenith 15TV brand Code number010COV.book Page 10 Thursday, April 24, 2003 12:37 PM$

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]Getting Started11Setting up the remote commanderfilename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]Notes• If you enter a new code number, the code number previously entered will be erased.• If the TV uses a different remote control system from the one programed to work with the DVD-VCR, you cannot control your TV with the remote commander.• When you replace the batteries of the remote commander, the code number may change. Set the appropriate code number every time you replace the batteries.010COV.book Page 11 Thursday, April 24, 2003 12:37 PM$

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]12 Basic hookupsfilename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]Step 3 : Basic hookupsBefore you get started• Be sure to disconnect the AC power cord of each component before connecting.• Turn off the power to all equipment.• Do not connect the AC power cords until all of the connections are completed. If you connect the AC power cord before the connections are completed, you may not be able to use the Plug and Play function.• Be sure you make connections firmly. Loose connections may cause picture distortion.• If your TV does not match any of the examples provided, see your nearest Sony dealer or qualified technician.Selecting the best hookup optionThere are many ways in which your DVD-VCR can be hooked up. To hook up your DVD-VCR so that it works best for you, first scan through the table below. Then use the accompanying diagrams and procedures on the following pages to set up your DVD-VCR.If your TV has audio/video inputs, refer to page 13 for audio/video (A/V) hookup. Then follow one of the hookups below. If your TV does not have A/V inputs, go directly to one of the hookups below. After you have completed the connections, follow the instructions for setup.After you have completed the setup, you are ready to use your DVD-VCR. Procedures differ depending on the hookup you used.CautionConnections between the DVD-VCR’s VHF/UHF connector and the antenna terminals of the TV receiver should be made only as shown in the following instructions. Failure to do so may result in operation that violates the regulations of the Federal Communications Commission regarding the use and operation of RF devices. Never connect the output of the DVD-VCR to an antenna or make simultaneous (parallel) antenna and DVD-VCR connections at the antenna terminals of your receiver.Note to CATV system installer (in USA)This reminder is provided to call the CATV system installer’s attention to Article 820- 40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.If you have Use Refer toAntenna only, no cable TV Hookup 1 (Plug and Play) Pages 14 and 15No cable box or cable box with only a few scrambled channelsHookup 2 (Plug and Play) Pages 16 and 17Cable box with many scrambled channelsHookup 3 Page 18010COV.book Page 12 Thursday, April 24, 2003 12:37 PM$

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]Getting Started13Basic hookupsfilename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]Audio/video (A/V) hookupIf your TV has audio/video (A/V) input jacks, you will get better picture and sound if you hook up your DVD-VCR using these connections. If your TV does not have A/V inputs, see the following pages for antenna or cable hookups. Note that “Advanced Hookups” (page 55) explains additional hookup methods that will optimize the picture and sound for a true “hometheater” experience.If you are not planning to use your DVD-VCR to record programs, you only need to make the connections shown on this page. If you want to record regular or cable TV programs, complete these connections first, and then go to the following pages for antenna or cable hookups.A Use this hookup if your TV has stereo jacksBUse this hookup if your TV does not have stereo jacksNotes• To play a tape/disc in stereo, you must use the A/V connection.• If you do not have a stereo receiver, connect the white LINE OUT/AUDIO L jack to the AUDIO IN jack on your TV.Audio/video cord (supplied)TVAudio cord (not supplied)Stereo receiverDVD-VCRVideo cord (not supplied)TVAudio cord (not supplied)Stereo receiverDVD-VCRcontinued010COV.book Page 13 Thursday, April 24, 2003 12:37 PM$

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]14 Basic hookupsfilename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]Hookup 1 (Plug and Play)Antenna hookupMake the following connections if you are using an antenna (if you do not have cable TV).AUse this hookup if you are using:• VHF/UHF antenna (you get channels 2–13 and channels 14 and higher)• UHF-only antenna (you get channels 14 and higher)• Separate VHF and UHF antennasBUse this hookup if you are using a VHF-only antenna (you get channels 2–13 only)If you cannot connect your antenna cable to the DVD-VCR directlyIf your antenna cable is a flat cable (300-ohm twin lead cable), attach an external antenna connector (not supplied) so you can connect the cable to the RF IN connector. If you have separate cables for VHF and UHF antennas, you should use a U/V band mixer (not supplied) (page 102).orARear of TV VHF/UHFBVHFCVHForMatch the type of connector on your TV: A, B, or C.UHFUHFDVD-VCRorARear of TV VHF/UHFBVHFCVHForMatch the type of connector on your TV: A, B, or C.UHFUHFDVD-VCR For connector typesB and C, no UHF connection is required.010COV.book Page 14 Thursday, April 24, 2003 12:37 PM$

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]Getting Started15Basic hookupsfilename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]Hookup 1 : DVD-VCR setupNotes• If you connect the AC power cord before the antenna connections are completed, the channels may be incorrectly set. If this happens, see “Step 6 : Presetting channels” on page 24.• Do not press any buttons on the DVD-VCR or remote commander during Auto preset.• Auto preset starts automatically only when you plug in the AC power cord for the first time after you purchase the DVD-VCR.• Auto preset can be performed by pressing xSTOP on the unit continuously for 5 seconds or more with the DVD-VCR power turned off.Plug the DVD-VCR into an AC outlet.The DVD-VCR automatically presets the DVD-VCR’s clock and TV channels when the DVD-VCR is plugged into the AC outlet.The DVD-VCR starts presetting the clock and channels.When Auto preset is completed, the current time appears in the display window.You have now completed DVD-VCR setup.To change the on-screen display language to French or Spanish, see “Step 4 : Selecting a language” on page 19.The clock is set using a time signal provided by some TV channels. If the clock is incorrect, or “--:--” appears in the display window, see “Using Manual Clock Set” on page 22.To add or disable channels manually, see “Presetting/disabling channels manually” on page 26.AC power cordto AC outletcontinued010COV.book Page 15 Thursday, April 24, 2003 12:37 PM$

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]16 Basic hookupsfilename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]Hookup 2 (Plug and Play)You have no cable box, or a cable box with only a few scrambled channelsRecommended useUse this hookup if you do not have a cable box. Also use this hookup if your cable system scrambles only a few channels.What you can do with this hookup• Record any unscrambled channel by selecting the channel on the VCRWhat you cannot do• Record scrambled channels that require a cable boxRear of TV VHF/UHFVHFUHFDVD-VCRMatch the type of connector on your TV: A, B, or C.For connector types B and C, no UHF connection is required.BCororCable boxAVHFUHFWallConnect this cable directly to your TV if you do not have a cable box.010COV.book Page 16 Thursday, April 24, 2003 12:37 PM$

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]Getting Started17Basic hookupsfilename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]Hookup 2 : DVD-VCR setupNotes• If you connect the AC power cord before the antenna connections are completed, the channels may be incorrectly set. If this happens, see “Step 6 : Presetting channels” on page 24.• Do not press any buttons on the DVD-VCR or remote commander during Auto preset.• Auto preset starts automatically only when you plug in the AC power cord for the first time after you purchase the DVD-VCR.• Auto preset can be performed by pressing xSTOP on the unit continuously for 5 seconds or more with the DVD-VCR power turned off.Plug the DVD-VCR into an AC outlet.The DVD-VCR automatically presets the DVD-VCR’s clock and TV channels when the DVD-VCR is plugged into the AC outlet.The DVD-VCR starts presetting the clock and channels.When Auto preset is completed, the current time appears in the display window.You have now completed DVD-VCR setup.To change the on-screen display language to French or Spanish, see “Step 4 : Selecting a language” on page 19.The clock is set using a time signal provided by some TV channels. If the clock is incorrect, or “--:--” appears in the display window, see “Using Manual Clock Set” on page 22.To add or disable channels manually, see “Presetting/disabling channels manually” on page 26.AC power cordto AC outletcontinued010COV.book Page 17 Thursday, April 24, 2003 12:37 PM$

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]18 Basic hookupsfilename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]Hookup 3Connecting a cable box with many scrambled channelsRecommended useUse this hookup if your cable system scrambles all or most channels.What you can do with this hookup• Record any channel by selecting the channel on the cable boxWhat you cannot do• Record with the cable box turned off• Record one channel while watching another channelAfter you have completed hookup…After you have completed hookup, plug the DVD-VCR into an AC outlet and see “Step 4 : Selecting a language” on page 19.Rear of TV VHF/UHFVHFUHFDVD-VCRMatch the type of connector on your TV: A, B, or C.For connector types B and C, no UHF connection is required.BCororCable boxAVHFUHFWallto AC outletAC power cord010COV.book Page 18 Thursday, April 24, 2003 12:37 PM$

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]Getting Started19Selecting a languagefilename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]Step 4 : Selecting a languageYou can change the on-screen display language.Before you start…• Turn on the DVD-VCR and your TV.• To control the DVD-VCR, set TV / DVD·VIDEO to DVD·VIDEO on the remote (page 9).• Set the “RF Output Channel” to “3CH” or “4CH” in “OPTION SETUP” menu (page 100). If your TV is connected to the DVD-VCR using A/V connections, set the TV to video input.• If the DVD player is in play mode, you cannot display the “SETUP MENU.” Stop the DVD playback.1Press SET UP.The “SETUP MENU” appears.2Press V/v/B/b to select (Language/Idioma/Langue), then press ENTER.The “LANGUAGE/IDIOMA/LANGUE” menu appears.3Press V/v to select the desired language, English, Spanish or French, then press ENTER.4Press O RETURN to exit the menu.V/v/B/bENTERSET UPO RETURN010COV.book Page 19 Thursday, April 24, 2003 12:37 PM$

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]20 Setting the clockfilename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]Step 5 : Setting the clockUsing the Auto Clock Set featureSome TV and cable channels transmit time signals with their broadcasts. Your DVD-VCR can pick up this time signal to automatically set the clock.The Auto Clock Set feature works only if a channel in your area is broadcasting a time signal. If broadcasters in your area are not yet sending time signals, set the time manually (page 22).Before you start…• Turn on the DVD-VCR and your TV. When using a cable box, turn it on.• To control the DVD-VCR, set TV / DVD·VIDEO to DVD·VIDEO on the remote (page 9).• Set the “RF Output Channel” to “3CH” or “4CH” in “OPTION SETUP” menu (page 100). If your TV is connected to the DVD-VCR using A/V connections, set the TV to video input.• If the DVD player is in play mode, you cannot display the “SETUP MENU.” Stop the DVD playback.1Press SET UP.The “SETUP MENU” appears.2Press V/v/B/b to select (Clock Set/Adjust), then press ENTER.The “CLOCK SET/ADJUST” menu appears.V/v/B/bENTERSET UPO RETURN010COV.book Page 20 Thursday, April 24, 2003 12:37 PM$

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]Getting Started21Setting the clockfilename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]3Press V/v to select “Auto”, then press ENTER.4Press V/v to select the item you want. Then press B/b to make the setting.• For “Clock data CH”Leave the setting to “Auto” to have the DVD-VCR automatically search for a channel that carries a time signal. Press B/b to select a channel that carries a time signal. Use this option if you know of a channel that carries a time signal. Most PBS member stations broadcast a time signal. For the fastest response, select your local PBS station.• For “Time zone”Select the time zone of your area, or select “Auto” to have the DVD-VCR automatically set your time zone.The options are:Auto y Atl. (Atlantic) y East (Eastern) y Cen. (Central) y Mtn. (Mountain) y Pac. (Pacific) y Alas (Alaska) y Haw. (Hawaii) y Auto• For “Daylight saving”Select “Yes” or “No” (standard time), or “Auto” to have the DVD-VCR automatically set the daylight saving time.5Press O RETURN repeatedly to exit the menu.6To activate the Auto Clock Set function, turn off the DVD-VCR.continued010COV.book Page 21 Thursday, April 24, 2003 12:37 PM$

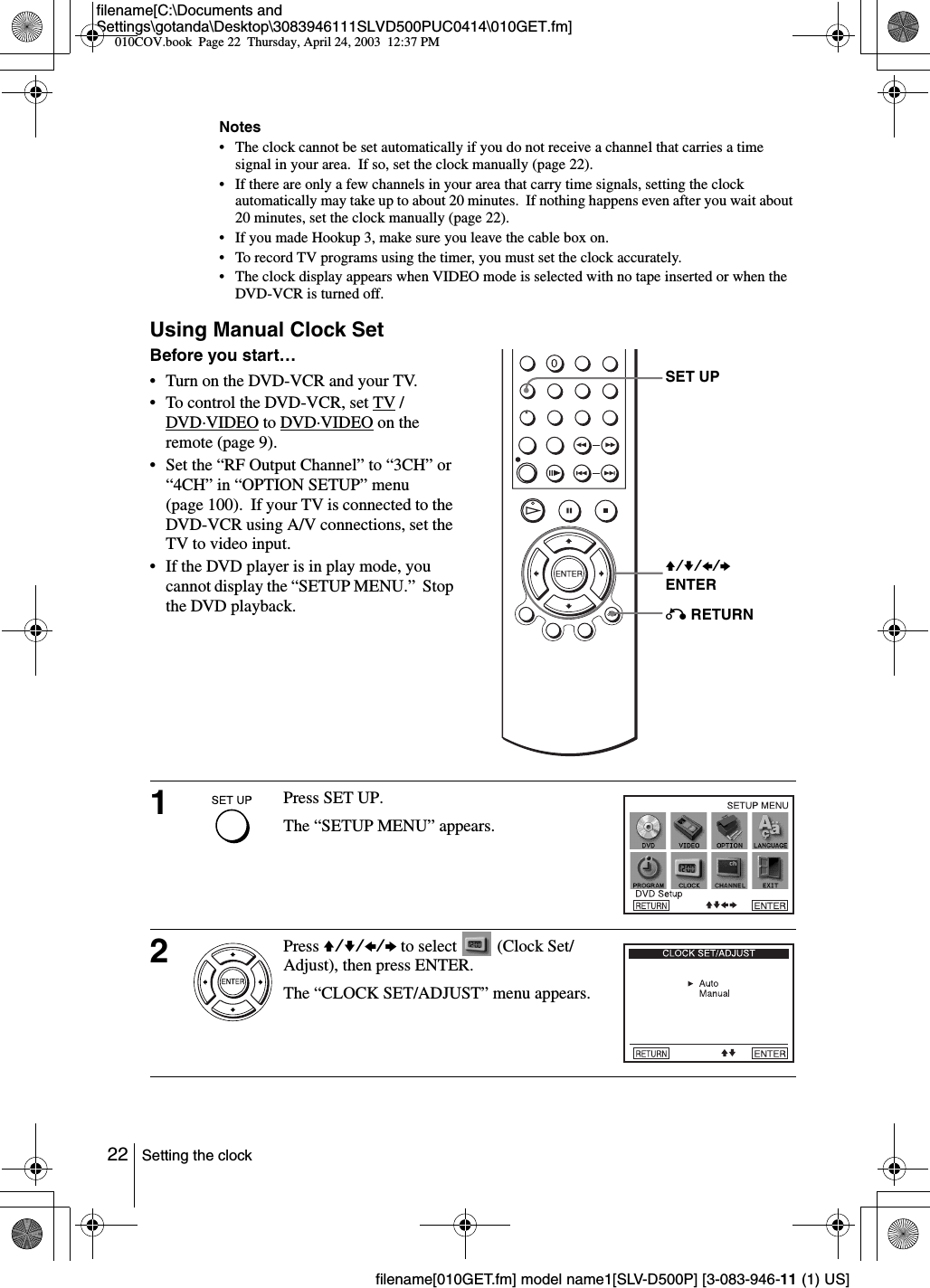

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]22 Setting the clockfilename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]Notes• The clock cannot be set automatically if you do not receive a channel that carries a time signal in your area. If so, set the clock manually (page 22).• If there are only a few channels in your area that carry time signals, setting the clock automatically may take up to about 20 minutes. If nothing happens even after you wait about 20 minutes, set the clock manually (page 22).• If you made Hookup 3, make sure you leave the cable box on.• To record TV programs using the timer, you must set the clock accurately.• The clock display appears when VIDEO mode is selected with no tape inserted or when the DVD-VCR is turned off.Using Manual Clock SetBefore you start…• Turn on the DVD-VCR and your TV.• To control the DVD-VCR, set TV / DVD·VIDEO to DVD·VIDEO on the remote (page 9).• Set the “RF Output Channel” to “3CH” or “4CH” in “OPTION SETUP” menu (page 100). If your TV is connected to the DVD-VCR using A/V connections, set the TV to video input.• If the DVD player is in play mode, you cannot display the “SETUP MENU.” Stop the DVD playback.1Press SET UP.The “SETUP MENU” appears.2Press V/v/B/b to select (Clock Set/Adjust), then press ENTER.The “CLOCK SET/ADJUST” menu appears.V/v/B/bENTERSET UPO RETURN010COV.book Page 22 Thursday, April 24, 2003 12:37 PM$

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]Getting Started23Setting the clockfilename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]Notes• To record TV programs using the timer, you must set the clock accurately.• The clock display appears when VIDEO mode is selected with no tape inserted or when the DVD-VCR is turned off.3Press V/v to select “Manual,” then press ENTER.4Press V/v to set the hour.5Press b to select the minutes and press V/v to set the minutes.6Set the month, day, and year in the same way as the minutes.The day of the week is set automatically.7Press O RETURN to save the clock setting.010COV.book Page 23 Thursday, April 24, 2003 12:37 PM$

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]24 Presetting channelsfilename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]Step 6 : Presetting channelsThis DVD-VCR is capable of receiving VHF channels 2 to 13, UHF channels 14 to 69 and unscrambled CATV channels 1 to 125. First, we recommend that you preset the receivable channels in your area using automatic presetting methods. Then, if there are any unwanted channels, disable them manually. If you have already decided which channels you wish to preset, set them directly using manual presetting methods (page 26).Presetting all receivable channels automaticallyBefore you start…• Turn on the DVD-VCR and your TV. When using a cable box, turn it on.• To control the DVD-VCR, set TV / DVD·VIDEO to DVD·VIDEO on the remote (page 9).• Set the “RF Output Channel” to “3CH” or “4CH” in “OPTION SETUP” menu (page 100). If your TV is connected to the DVD-VCR using A/V connections, set the TV to video input.• If the DVD player is in play mode, you cannot display the “SETUP MENU.” Stop the DVD playback.1Press SET UP.The “SETUP MENU” appears.2Press V/v/B/b to select (Channel Setup), then press ENTER.The “CHANNEL SETUP” menu appears.V/v/B/bENTERSET UP010COV.book Page 24 Thursday, April 24, 2003 12:37 PM$

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]Getting Started25Presetting channelsfilename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]3Press V/v to select “Ant/Cable.”4• To preset cable TV channels:Press B/b to select “Cable TV.”• To preset VHF and UHF channels:Press B/b to select “Antenna.”5Press V/v to select “Auto channel memory,” then press ENTER.All receivable channels are preset in numerical sequence. When no more receivable channels can be found, presetting stops and the picture from the lowest numbered channel is displayed on the TV screen.continued010COV.book Page 25 Thursday, April 24, 2003 12:37 PM$

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]26 Presetting channelsfilename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]Presetting/disabling channels manuallyBefore you start…• Turn on the DVD-VCR and your TV. When using a cable box, turn it on.• To control the DVD-VCR, set TV / DVD·VIDEO to DVD·VIDEO on the remote (page 9).• Set the “RF Output Channel” to “3CH” or “4CH” in “OPTION SETUP” menu (page 100). If your TV is connected to the DVD-VCR using A/V connections, set the TV to video input.• If the DVD player is in play mode, you cannot display the “SETUP MENU.” Stop the DVD playback.1Press SET UP.The “SETUP MENU” appears.2Press V/v/B/b to select (Channel Setup) then press ENTER.The “CHANNEL SETUP” menu appears.3Press V/v to select “Channel add/delete,” then press ENTER.SET UPCH +/–Number buttonsV/v/B/bENTER010COV.book Page 26 Thursday, April 24, 2003 12:37 PM$

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]Getting Started27Presetting channelsfilename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]4To preset/disable a channel:1Press CH +/– or number buttons to enter the channel number.2Press B/b to select ADD (in memory) or DELETE (deleted).3Press ENTER.5Press O RETURN repeatedly to exit the menu.Channel to be presetChannel to be disabled010COV.book Page 27 Thursday, April 24, 2003 12:37 PM$

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]28 Setting up the VCR Plus+® systemfilename[C:\3083946111SLVD500PUC0424\010GET.fm]Step 7 : Setting up the VCR Plus+® system How the VCR Plus+ system worksWhenever you want to record a TV program, all you need to do is look up the “PlusCode” number, a number assigned to each program published in the TV section of most newspapers, cable TV listings, and even TV GUIDE magazine. Then, just enter the PlusCode number of the program you want and the VCR is automatically programed to record that show. It’s that simple.How to set up your VCRSetting up your VCR involves coordinating the TV channel number (the number you turn to on your TV or VCR to watch a program) with the guide channel (the number that is assigned to that channel in your program guide).To find the guide channel numbers, look at the “Channel Line-up Chart” in the program guide for your area that features VCR PlusCode numbers. It usually looks like the example to the right.To set the guide channels, use the Channel Line-up Chart to check that the guide channel numbers match the TV channel your VCR receives. For example, if HBO is listed in the Channel Line-up Chart as channel 33, and your VCR receives HBO on channel 5, you need to coordinate these numbers using the following procedure. If the guide and TV channel numbers are the same, you can skip this procedure.5:306:30PlusCode142CNN2345SCIENCE AND TECHNOLOGY(1hr. 15min.) 73457DRAMAWS 9974SPORTMOVIE Musical (2hrs.) 33044Golf (1hr. 25min.) 42060Comedy (2hrs.) 17390SAMPLECABLE TVAMCBRVCNNCSPDISDSCESNFAMHBOLIFMAXMTVNIKSCSCASHOTBSTMCTNNTNTUSAVCR Plus+GUIDE CH355442285337344733464548385970414358495244American Movie ClassicsBravo (program grid only)Cable News NetworkC-SPANThe Disney ChannelThe Discovery ChannelESPNThe Family ChannelHome Box OfficeLifetimeCinemaxMusic TelevisionNickelodeonSports ChannelSports Channel AmericaShowtimeTBS SuperStationThe Movie ChannelThe Nashville NetworkTurner Network TelevisionUSA NetworkCABLECH16172021222534355272931383945174449505130Example of “PlusCode”Example of “Channel Line-up Chart”010GET.fm Page 28 Tuesday, May 6, 2003 9:50 AM$

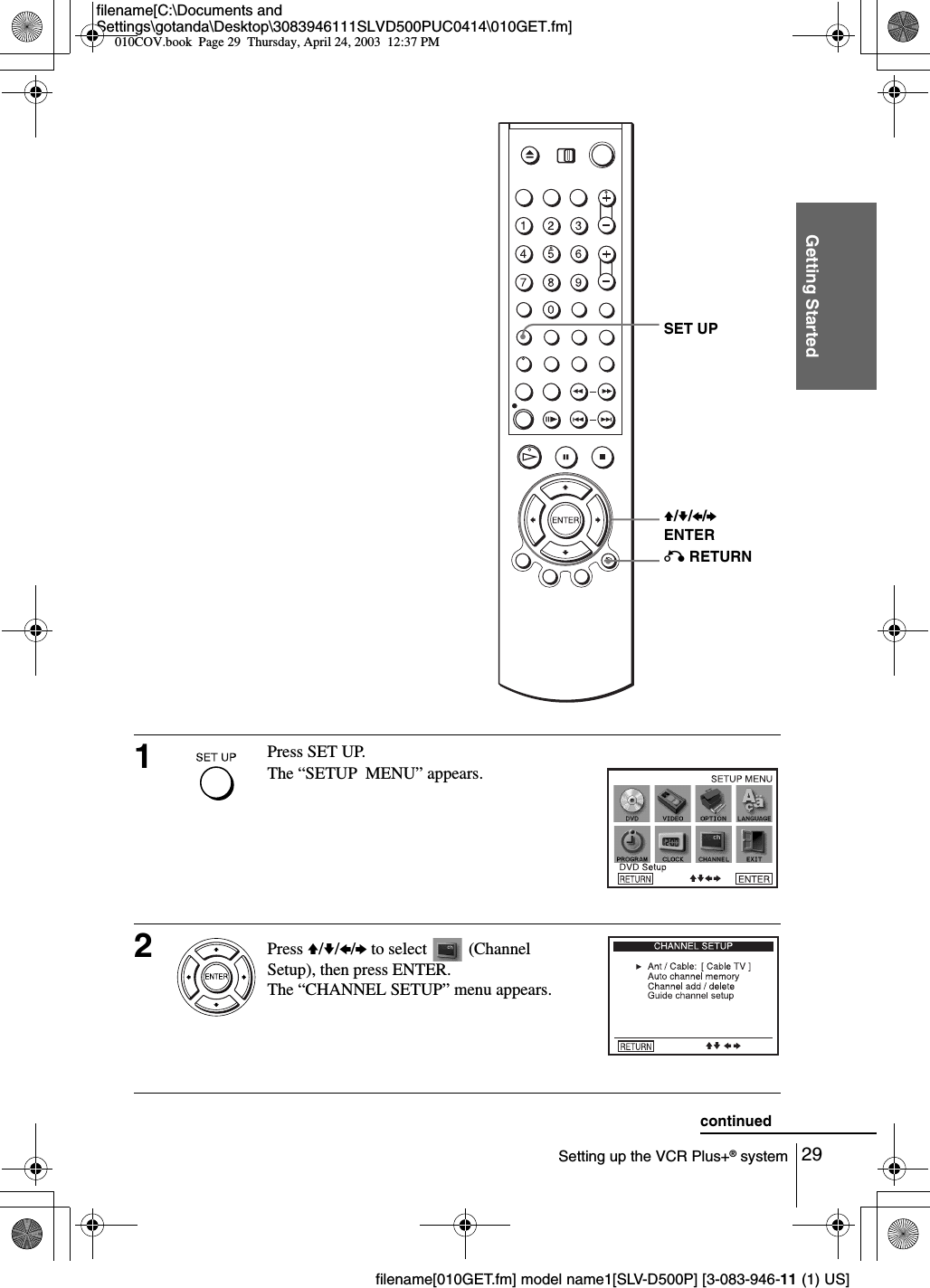

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]Getting Started29Setting up the VCR Plus+® systemfilename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]1Press SET UP.The “SETUP MENU” appears. 2Press V/v/B/b to select (Channel Setup), then press ENTER. The “CHANNEL SETUP” menu appears.SET UPO RETURNV/v/B/bENTERcontinued010COV.book Page 29 Thursday, April 24, 2003 12:37 PM$

$filename[010GET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]30 Setting up the VCR Plus+® systemfilename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010GET.fm]3Press V/v to select “Guide channel setup,” then press ENTER.4The upper row shows VCR Plus+ guide channels and the lower row shows TV channels or cable box out put channels. Press B/b to select the channel number that does not match the guide channel.5• If you made Hookup 1 (page 14) or 2 (page 16): Enter the actual number on your TV (and VCR), then press V/v.• If you made Hookup 3 (page 18): Enter the cable box output channel (usually 2, 3, or 4), then press V/v.6Repeat steps 4 and 5 for each channel number that does not match.7Press O RETURN to confirm the setting.8Press O RETURN repeatedly to exit the menu.010COV.book Page 30 Thursday, April 24, 2003 12:37 PM$

$31Playing discsBasic Operationsfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\3083946111SLVD500PUC0424\010BAS.fm]Basic OperationsPlaying discs Depending on the disc, some operations may be different or restricted. Refer to the operating instructions supplied with your disc.Before you start ...• Turn on the DVD-VCR and your TV. • Switch the input selector on your TV so that the signal from the player appears on the TV screen.•Set TV / DVD·VIDEO to DVD·VIDEO, then press SELECT DVD to control the DVD player (page 9).1Press Z to open the disc tray and place a disc on the disc tray.ZHPLAYXPAUSEm/MxSTOP?/1./ > C SKIPwith the playback side facing downcontinued010BAS.fm Page 31 Tuesday, May 6, 2003 9:51 AM$

$32 Playing discsfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\3083946111SLVD500PUC0424\010BAS.fm]Additional tasks* If you pause the DVD player for more than 5 minutes, the DVD player will automatically stop.To Resume playback for the current disc (Resume Play)The DVD player remembers the point where you stopped the disc even if the DVD player enters standby mode by pressing ?/1.To locate a point quickly by playing a disc in fast forward or fast reverse in continuous play mode (DVD, VIDEO CD and CD only)Press m or M. For DVD or Video CD, each time you press the button, the playback speed changes as follows. ×2 t ×4 t ×8 t ×16 t ×32 t ×128 (DVD only)Release the button at the desired speed.For CD, the searching speed does not change (×8 play).When you find the point you want, press HPLAY.2Press HPLAY.The disc tray closes and the DVD player starts playback.The display window shows the playback time*. Depending on the disc, a menu may appear on the TV screen. For DVDs, see page 70. For VIDEO CDs, see page 90.* “– – – – –” appears when no disc is loaded.To PressStop play xSTOPPause play* XPAUS E Resume play after pause HPLAYAdvance by frame in pause mode C SKIPGo to the next chapter, track, or scene in continuous play mode> on the remoteGo back to the previous chapter, track, or scene in continuous play mode. on the remoteStop play and remove the disc Z1While playing a disc, press xSTOP to stop playback.2Press HPLAY.The DVD player starts playback from the point where you stopped the disc in Step 1.Hour Minute Second010BAS.fm Page 32 Tuesday, May 6, 2003 9:51 AM$

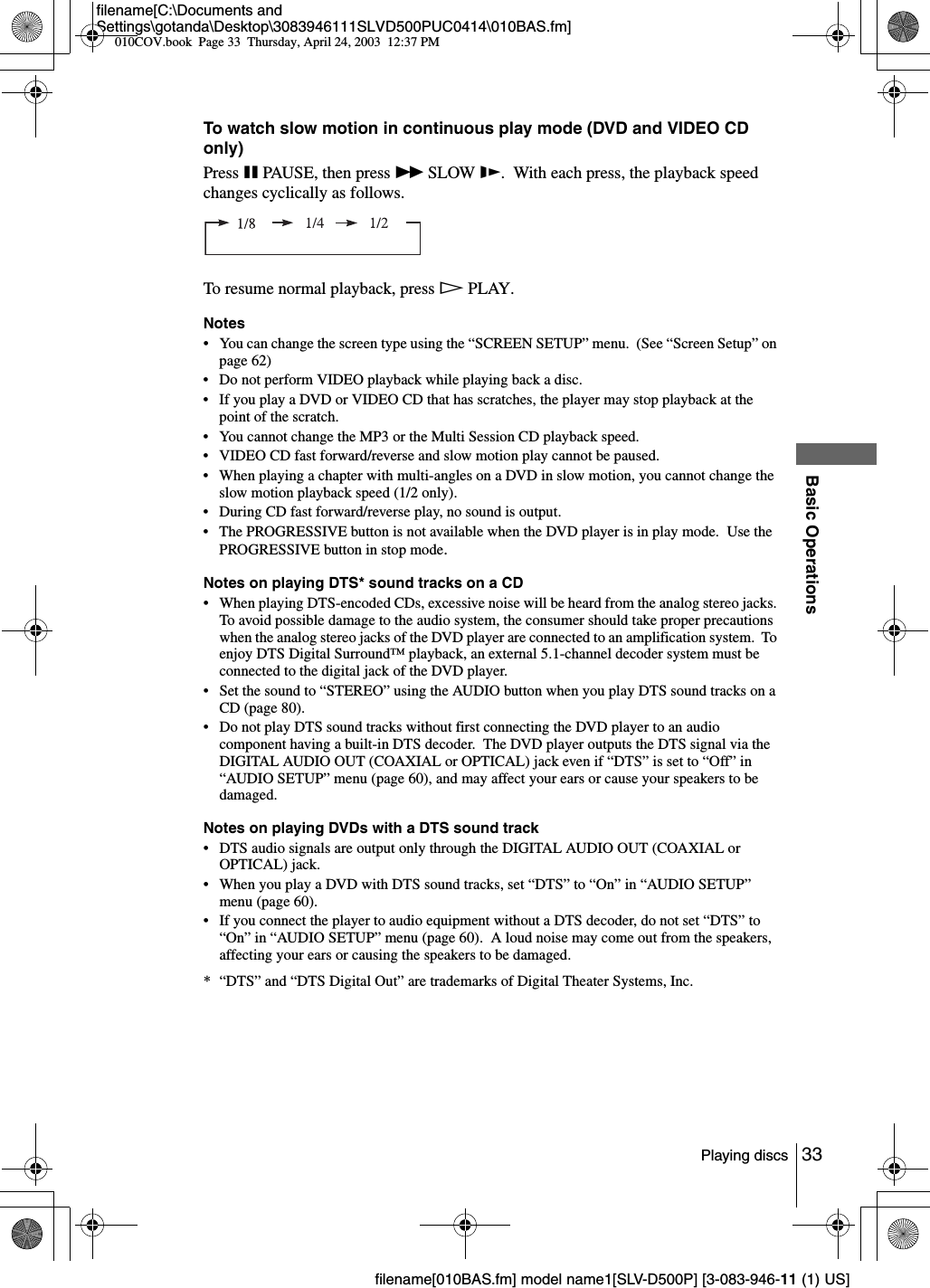

$33Playing discsBasic Operationsfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010BAS.fm]To watch slow motion in continuous play mode (DVD and VIDEO CD only)Press XPAUSE, then press M SLOW y. With each press, the playback speed changes cyclically as follows.To resume normal playback, press HPLAY.Notes• You can change the screen type using the “SCREEN SETUP” menu. (See “Screen Setup” on page 62)• Do not perform VIDEO playback while playing back a disc.• If you play a DVD or VIDEO CD that has scratches, the player may stop playback at the point of the scratch.• You cannot change the MP3 or the Multi Session CD playback speed.• VIDEO CD fast forward/reverse and slow motion play cannot be paused.• When playing a chapter with multi-angles on a DVD in slow motion, you cannot change the slow motion playback speed (1/2 only).• During CD fast forward/reverse play, no sound is output.• The PROGRESSIVE button is not available when the DVD player is in play mode. Use the PROGRESSIVE button in stop mode.Notes on playing DTS* sound tracks on a CD• When playing DTS-encoded CDs, excessive noise will be heard from the analog stereo jacks. To avoid possible damage to the audio system, the consumer should take proper precautions when the analog stereo jacks of the DVD player are connected to an amplification system. To enjoy DTS Digital Surround™ playback, an external 5.1-channel decoder system must be connected to the digital jack of the DVD player.• Set the sound to “STEREO” using the AUDIO button when you play DTS sound tracks on a CD (page 80).• Do not play DTS sound tracks without first connecting the DVD player to an audio component having a built-in DTS decoder. The DVD player outputs the DTS signal via the DIGITAL AUDIO OUT (COAXIAL or OPTICAL) jack even if “DTS” is set to “Off” in “AUDIO SETUP” menu (page 60), and may affect your ears or cause your speakers to be damaged.Notes on playing DVDs with a DTS sound track• DTS audio signals are output only through the DIGITAL AUDIO OUT (COAXIAL or OPTICAL) jack.• When you play a DVD with DTS sound tracks, set “DTS” to “On” in “AUDIO SETUP” menu (page 60).• If you connect the player to audio equipment without a DTS decoder, do not set “DTS” to “On” in “AUDIO SETUP” menu (page 60). A loud noise may come out from the speakers, affecting your ears or causing the speakers to be damaged.* “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc. 010COV.book Page 33 Thursday, April 24, 2003 12:37 PM$

$34 Guide to the on-screen displayfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\3083946111SLVD500PUC0424\010BAS.fm]Guide to the on-screen display Press DISPLAY. The following information appears; type of disc, current title/track, chapter, counter position, voice language, subtitle language and surround setting. Refer to “DVD Audio/Subtitle Language” on page 117 for the abbreviation of the language. You can playback the desired title/track, chapter or counter position using this menu.To playback the desired title/track or chapter The title/track or chapter icon will appear on the DVD playback screen followed by the current title/track or chapter number and the counter positon.You can check disc information during playback.The displayed contents differ according to the type of disc being played.1Press V/v to select the desired item.2Press B/b to change the item. 3Press ENTER to start playback.4Press DISPLAY or O RETURN to turn off the menu.DISPLAYV/v/B/b ENTERO RETURNType of discCurrent title/track numberCurrent chapter numberCounter positionVoice languageSubtitle language Surround setting010BAS.fm Page 34 Monday, May 5, 2003 5:48 PM$

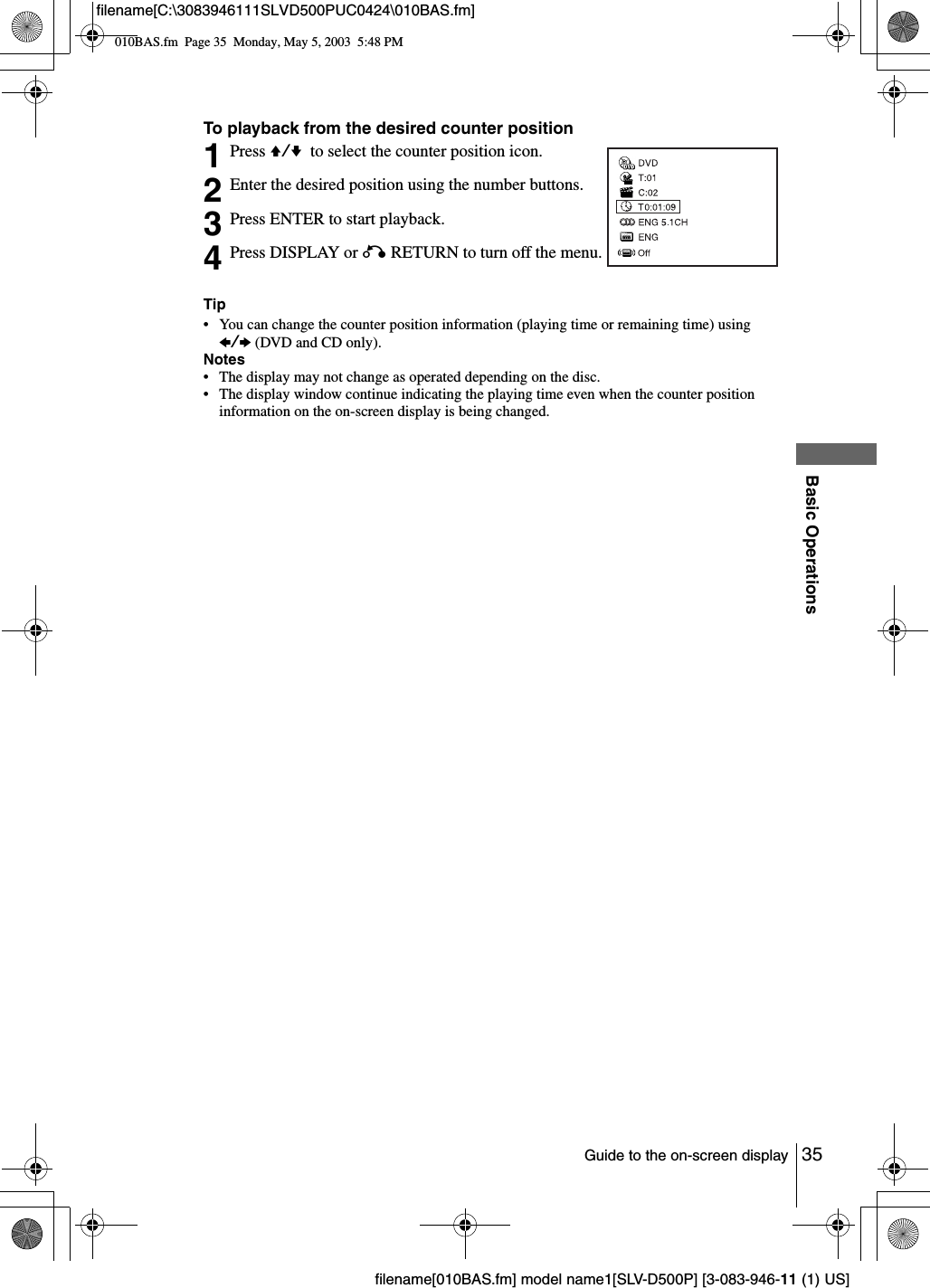

$35Guide to the on-screen displayBasic Operationsfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\3083946111SLVD500PUC0424\010BAS.fm]To playback from the desired counter position Tip• You can change the counter position information (playing time or remaining time) using B/b (DVD and CD only).Notes• The display may not change as operated depending on the disc.• The display window continue indicating the playing time even when the counter position information on the on-screen display is being changed.1Press V/v to select the counter position icon.2Enter the desired position using the number buttons.3Press ENTER to start playback.4Press DISPLAY or O RETURN to turn off the menu.010BAS.fm Page 35 Monday, May 5, 2003 5:48 PM$

$36 Playing a tapefilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010BAS.fm]Playing a tape Before you start ...• Turn on the DVD-VCR and your TV. • Switch the input selector on your TV so that the signal from the player appears on the TV screen.•Set TV / DVD·VIDEO to DVD·VIDEO, then press SELECT VIDEO to control the VCR (page 9).1Insert a tape.The VCR starts playing automatically if you insert a tape with its safety tab removed.ZDISPLAYHPLAYC SKIPXPAUSEMSLOWy xSTOPmREPLAY?/1TRACKING +/–CLEAR./ > 010COV.book Page 36 Thursday, April 24, 2003 12:37 PM$

$37Playing a tapeBasic Operationsfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010BAS.fm]Additional tasks* If you pause the VCR for more than 5 minutes, the VCR will automatically resume play.To play a recently watched sceneYou can immediately rewind and playback the scene you want to watch again.During playback, press REPLAY. The VCR rewinds the tape about 10 seconds in the SP mode (about 15 seconds in the EP mode) on the counter for each press of the button, and restarts playback.To skip playbackYou can skip a scene that you do not want to watch (such as a commercial) and restart playback.During playback, press C SKIP. The VCR skips the tape 30 seconds on the counter each time the button is pressed (up to four times) and playback is resumed.To turn off the power while rewinding (Rewind Shut Off)Press ?/1 while the tape is rewinding. The power will turn off but the tape will keep rewinding until it reaches the end.To play/search at various speeds2Press HPLAY.The display window shows the playback time.When the tape reaches the end, it will rewind automatically.To PressStop play xSTOPPause play* XPAUSEResume play after pause XPAUSE or HPLAYFast-forward the tape M during stopRewind the tape m during stopEject the tape ZPlayback options OperationView the picture during fast-forward or rewindDuring fast-forward, hold down M. During rewind, hold down m.Play at high speed • During playback, briefly press M or m. The tape continues to play at 5 times normal speed.• During playback, hold down M or m. The tape continues to play at 5 times normal speed. When you release the button, normal playback resumes.Hour Minute Secondcontinued010COV.book Page 37 Thursday, April 24, 2003 12:37 PM$

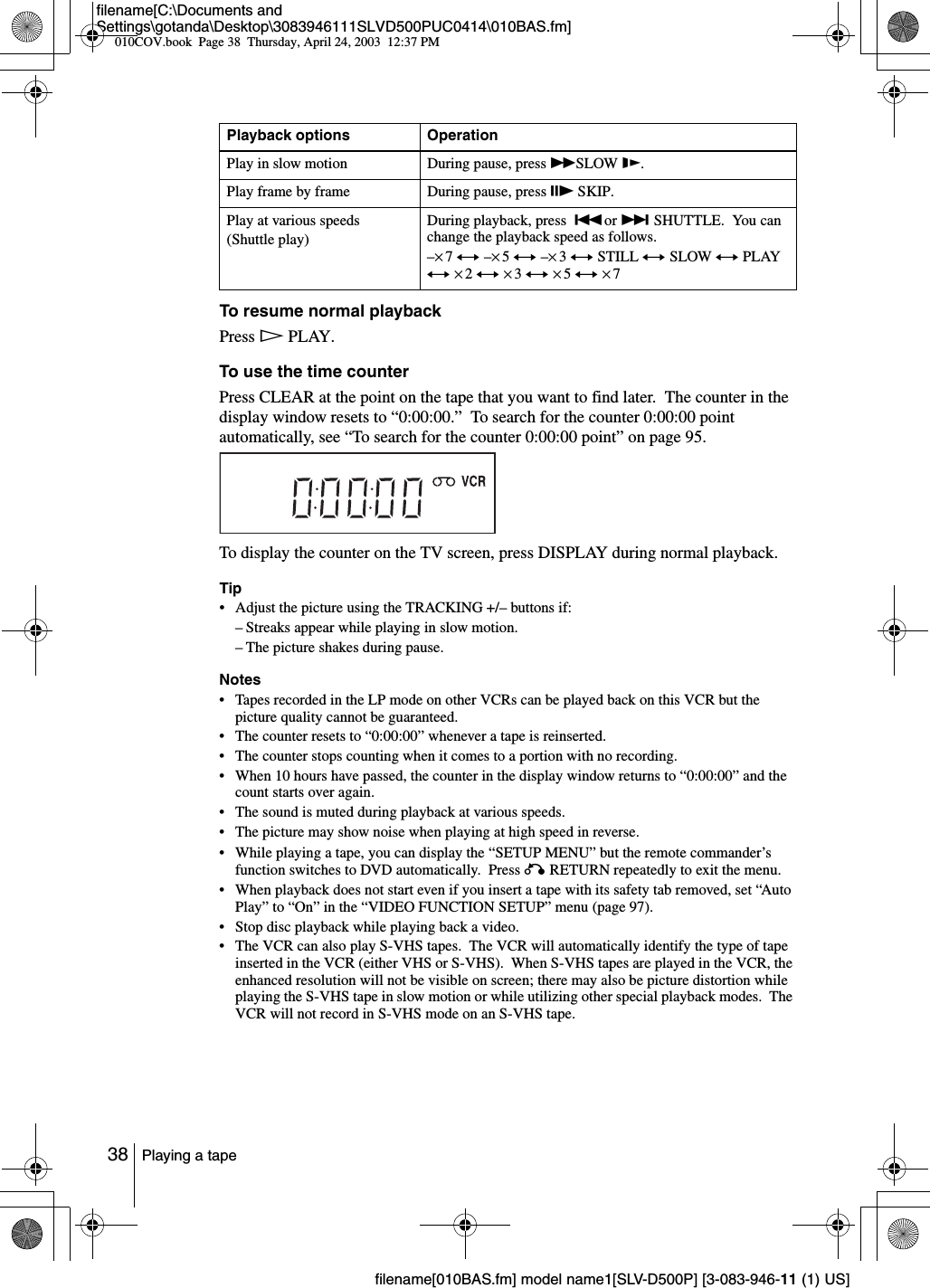

$38 Playing a tapefilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010BAS.fm]To resume normal playbackPress HPLAY.To use the time counterPress CLEAR at the point on the tape that you want to find later. The counter in the display window resets to “0:00:00.” To search for the counter 0:00:00 point automatically, see “To search for the counter 0:00:00 point” on page 95.To display the counter on the TV screen, press DISPLAY during normal playback.Tip• Adjust the picture using the TRACKING +/– buttons if:– Streaks appear while playing in slow motion.– The picture shakes during pause.Notes• Tapes recorded in the LP mode on other VCRs can be played back on this VCR but the picture quality cannot be guaranteed.• The counter resets to “0:00:00” whenever a tape is reinserted.• The counter stops counting when it comes to a portion with no recording.• When 10 hours have passed, the counter in the display window returns to “0:00:00” and the count starts over again.• The sound is muted during playback at various speeds.• The picture may show noise when playing at high speed in reverse.• While playing a tape, you can display the “SETUP MENU” but the remote commander’s function switches to DVD automatically. Press O RETURN repeatedly to exit the menu.• When playback does not start even if you insert a tape with its safety tab removed, set “Auto Play” to “On” in the “VIDEO FUNCTION SETUP” menu (page 97).• Stop disc playback while playing back a video.• The VCR can also play S-VHS tapes. The VCR will automatically identify the type of tape inserted in the VCR (either VHS or S-VHS). When S-VHS tapes are played in the VCR, the enhanced resolution will not be visible on screen; there may also be picture distortion while playing the S-VHS tape in slow motion or while utilizing other special playback modes. The VCR will not record in S-VHS mode on an S-VHS tape.Play in slow motion During pause, press MSLOW y.Play frame by frame During pause, press C SKIP.Play at various speeds(Shuttle play)During playback, press .or > SHUTTLE. You can change the playback speed as follows.–×7 y –×5 y –×3 y STILL y SLOW y PLAY y ×2 y ×3 y ×5 y ×7Playback options Operation010COV.book Page 38 Thursday, April 24, 2003 12:37 PM$

$39Recording TV programsBasic Operationsfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010BAS.fm]Recording TV programs Before you start ...• Turn on the DVD-VCR and your TV. • Switch the input selector on your TV so that the signal from the player appears on the TV screen.•Set TV / DVD·VIDEO to DVD·VIDEO, then press SELECT VIDEO to control the VCR (page 9).• To record from a cable box, turn it on.• Make sure the tape is longer than the total recording time.1Insert a tape with its safety tab in place. 2Press CH +/– to select the channel or line input video source you want to record.CH +/–zRECSP/EPDISPLAYTV/VIDEOENTERINPUT SELECTxSTOPHPLAY?/1Zcontinued010COV.book Page 39 Thursday, April 24, 2003 12:37 PM$

$40 Recording TV programsfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010BAS.fm]To stop recordingPress xSTOP.To check the remaining tape lengthPress DISPLAY to display the time counter. With the display on, press DISPLAY again to check the remaining time. The white bar indicates the current location in relation to the entire tape length. The remaining time also appears. Press DISPLAY to turn off the indicators.To check the remaining tape length of a tape, set “Tape Length” in the “VIDEO FUNCTION SETUP” menu correctly (page 97).Maximum Recording Time3Press SP/EP to select the tape speed, SP or EP.EP (Extended Play) provides recording time three times as long as SP (Standard Play). However, SP produces better picture and audio quality.4Press zREC to start recording.“REC” appears in the display window.Tape Length SP EPT-120 2 hrs 6 hrsT-160 2 hrs 40 mins 8 hrsT-180 3 hrs 9 hrsTime counter Remaining tape length010COV.book Page 40 Thursday, April 24, 2003 12:37 PM$

$41Recording TV programsBasic Operationsfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010BAS.fm]To watch another TV program while recordingTo watch a DVD while recordingTo save a recordingTo prevent accidental erasure, break off the safety tab as illustrated. To record on the tape again, cover the tab hole with adhesive tape.Tips• To select a channel, you can use the number buttons on the remote commander. Enter the channel number, then press ENTER.• You can select a video source from the LINE IN 1 or LINE-2 IN jacks using the INPUT SELECT button.• The display appears on the TV screen indicating information about the tape, but the information will not be recorded on the tape.• If you do not want to watch TV while recording, you can turn off the TV. When using a cable box, make sure to leave it on.Notes• The remaining tape length may not be indicated accurately for short tapes such as T-20 or T-30, or tapes recorded in the LP mode.• It may take up to one minute for the VCR to calculate and display the remaining tape length after you press DISPLAY.• You cannot record a DVD to a VCR tape.• To watch a TV program during video recording, stop disc playback.1Press TV/VIDEO to display “TV” in the display window.2If your TV is connected to the VCR using A/V connections, set the TV to the TV’s antenna input; if not, skip this step.3Select another channel on the TV.1Press SELECT DVD to control the DVD player.2Press Z and place the disc on the disc tray.3Press HPLAY. The disc tray closes and the DVD player starts playback. The TV screen will automatically change to the DVD playback screen.Safety tab010COV.book Page 41 Thursday, April 24, 2003 12:37 PM$

$42 Recording TV programs using the timerfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010BAS.fm]Recording TV programs using the timer You can preset up to eight programs at a time.Before you start…• Check that the DVD-VCR clock is set to the correct time.• Turn on the DVD-VCR and your TV. • Switch the input selector on your TV so that the signal from the player appears on the TV screen.•Set TV / DVD·VIDEO to DVD·VIDEO, then press SELECT VIDEO to control the VCR (page 9).• When using a cable box, turn it on.• Insert a tape with its safety tab in place. Make sure the tape is longer than the total recording time.• If the DVD player is in play mode, you cannot display the “SETUP MENU.” Stop the DVD playback.1Press SET UP. The “SETUP MENU” appears.You can also use the TIMER button in VIDEO mode, then you can skip step 2.SET UPINPUT SELECTV/v/B/bENTER?/1xSTOPO RETURNCLEARTIMER010COV.book Page 42 Thursday, April 24, 2003 12:37 PM$

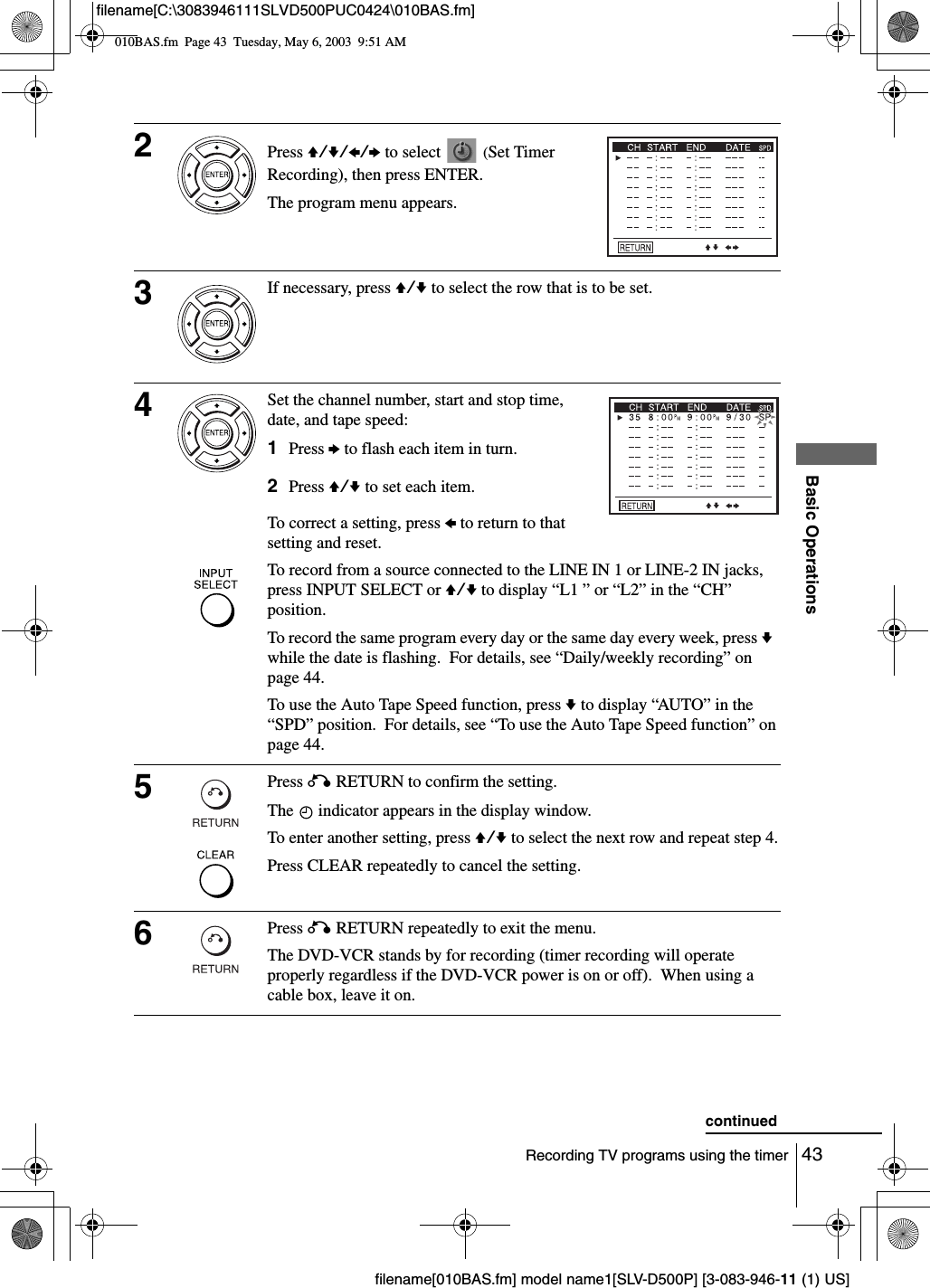

$43Recording TV programs using the timerBasic Operationsfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\3083946111SLVD500PUC0424\010BAS.fm]2Press V/v/B/b to select (Set Timer Recording), then press ENTER.The program menu appears.3If necessary, press V/v to select the row that is to be set.4Set the channel number, start and stop time, date, and tape speed:1Press b to flash each item in turn.2Press V/v to set each item.To correct a setting, press B to return to that setting and reset.To record from a source connected to the LINE IN 1 or LINE-2 IN jacks, press INPUT SELECT or V/v to display “L1 ” or “L2” in the “CH” position.To record the same program every day or the same day every week, press v while the date is flashing. For details, see “Daily/weekly recording” on page 44.To use the Auto Tape Speed function, press v to display “AUTO” in the “SPD” position. For details, see “To use the Auto Tape Speed function” on page 44.5Press O RETURN to confirm the setting.The indicator appears in the display window.To enter another setting, press V/v to select the next row and repeat step 4.Press CLEAR repeatedly to cancel the setting.6Press O RETURN repeatedly to exit the menu.The DVD-VCR stands by for recording (timer recording will operate properly regardless if the DVD-VCR power is on or off). When using a cable box, leave it on.continued010BAS.fm Page 43 Tuesday, May 6, 2003 9:51 AM$

$44 Recording TV programs using the timerfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010BAS.fm]To stop recordingTo stop the DVD-VCR while recording, press SELECT VIDEO and then press xSTOP.Daily/weekly recordingIn step 4 above, press v to select the recording pattern. Each time you press v, the indication changes as shown below. Press V to change the indication in reverse order.MO~FR t SUN’S t MON’S t ..... t SAT’S t 1 month later t (dates count down) t the current dateTo use the Auto Tape Speed functionWhen you are recording a program in the AUTO mode and the remaining tape becomes shorter than the recording time, the tape speed is automatically changed to the EP mode. Note that some noise will appear on the picture when the tape speed is changed. If you want to keep the tape speed, select SP. To operate this function, set “Tape Length” in “VIDEO FUNCTION SETUP” menu correctly (page 97).To watch another TV program after setting the timerTo watch a DVD after setting the timerTips• To set the channel, you can also use V/v.• If the indicator appears, the timer settings overlap. To check, change or cancel the program setting, repeat the steps of “Recording TV programs using the timer” on page 42.• If the indicator appears, this means that the VCR is currently recording this program.• You can also do the following tasks while the VCR is recording:– Reset the counter (page 38).– Display tape information on the TV screen (page 40).1Press TV/VIDEO to display “TV” in the display window.2If your TV is connected to the VCR using A/V connections, set the TV to the TV’s antenna input; if not, skip this step.3Select another channel on the TV.1Press SELECT DVD to control the DVD player.2Press Z and place the disc on the disc tray.3Press HPLAY. The disc tray closes and the DVD player starts playback. The TV screen will automatically change to the DVD playback screen.010COV.book Page 44 Thursday, April 24, 2003 12:37 PM$

$45Recording TV programs using the Dial TimerBasic Operationsfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\3083946111SLVD500PUC0424\010BAS.fm]Recording TV programs using the Dial Timer The Dial Timer function allows you to make timer recordings of programs without turning on your TV. Set the recording timer to record up to eight programs that will be broadcast within a month using the DIAL TIMER. The recording start time and recording stop time can be set at one minute intervals.Before you start….• Turn on the DVD-VCR. • When using a cable box, turn it on.• Insert a tape with its safety tab in place. Make sure the tape is longer than the total recording time.1Press DIAL TIMER.DATE indicator appears and the current date flashes in the display window.If the date and time are not set, MONTH indicator will appear. To set the date and time, see “To set the clock” on page 48.2Turn DIAL TIMER to set the recording date.CHANNEL +/–?/1 POWERDIAL TIMERXPAUSExSTOPcontinued010BAS.fm Page 45 Monday, May 5, 2003 5:49 PM$

$46 Recording TV programs using the Dial Timerfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010BAS.fm]3Press DIAL TIMER to set the start time.“START” and the next quarter hour increment appear alternately in the display window.4Turn DIAL TIMER to set the recording start time.You can set the recording start time in 15 minute intervals or adjust the time in one minute intervals by pressing the CHANNEL +/– buttons on the unit.5Press DIAL TIMER to set the stop time.“STOP” and the next quarter hour increment appear alternately in the display window.6Turn DIAL TIMER to set the recording stop time.You can set the recording stop time in 15 minute intervals or adjust the time in one minute intervals by pressing the CHANNEL +/– buttons on the unit.010COV.book Page 46 Thursday, April 24, 2003 12:37 PM$

$47Recording TV programs using the Dial TimerBasic Operationsfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\3083946111SLVD500PUC0424\010BAS.fm]To return to the previous stepTo return to the previous step, press the CHANNEL + and – buttons on the unit at the same time during any of the Dial Timer settings.7Press DIAL TIMER.“Current channel” flashes in the display window.8Turn DIAL TIMER to set the channel number.To record from a source connected to the LINE IN 1 or LINE-2 IN jacks, turn DIAL TIMER or press INPUT SELECT to display “L1” or “L2.”9Press DIAL TIMER.“Current tape speed” flashes in the display window.10 Turn DIAL TIMER to set the tape speed.11 Press DIAL TIMER to complete the setting.“OK” appears in the display window for about five seconds.The timer indicator appears in the display window and the VCR stands by for recording. When using a cable box, leave it on.continued010BAS.fm Page 47 Monday, May 5, 2003 5:49 PM$

$48 Recording TV programs using the Dial Timerfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\3083946111SLVD500PUC0424\010BAS.fm]To set the clockTips• To cancel a Dial Timer setting, press any button other than DIAL TIMER or CHANNEL +/– on the unit or any button on the remote while you are making the setting.• To check, change, or cancel the program setting, see “Checking/changing/canceling timer settings” on page 53.Notes• If eight programs have already been set using the VCR Plus+ system or the manual timer setting, “FULL” appears in the display window for about five seconds.• If you set the clock using the Auto Clock Set feature, the clock will adjust itself to the incoming time signal regardless of adjustments made with the Dial Timer. Be sure you have set Auto Clock Set correctly.• If you are setting the clock for the first time or “0:– –” appears in the display window, you cannot set the clock to February 29th using the Dial Timer. Please use the Auto Clock Set feature to set the VCR to this day.• The timer indicator flashes in the display window when you complete the setting in step 9 on page 47 with no tape inserted.• When the setting time is incorrect, “Error” appears in the display window in step 9. Set the timer again from step 1.1Hold down DIAL TIMER so that MONTH indicator appears in the display window. However, if the clock has already been set, the current setting appears.2Turn DIAL TIMER to set the month.3Press DIAL TIMER. DAY indicator appears in the display window.4Turn and press DIAL TIMER to set the day and then the year. After you set the year, “AM” and “12:– –” appear alternately in the display window.5Turn and press DIAL TIMER to set the hour and minute.6When you have finished setting the time, press DIAL TIMER to start the clock.010BAS.fm Page 48 Tuesday, May 6, 2003 9:52 AM$

$49Recording TV programs using the Dial TimerBasic Operationsfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010BAS.fm]About the Demonstration ModeThe Dial Timer function has a Demonstration Mode that allows the user, such as a salesperson, to enter more than eight examples of timer settings when demonstrating the use of the Dial Timer. It cancels the FULL notice which appears if eight programs have already been set. Do not use the Demonstration Mode for making timer recordings. Doing so may cause the settings to be inaccurate.To activate the Demonstration ModePress XPAUSE on the unit while turning the DIAL TIMER. “DEMO” appears in the display window for a few seconds.To cancel the Demonstration ModeTurn the power off and unplug the AC power cord. Although the Demonstration Mode is canceled, the timer settings entered while using the Demonstration Mode will remain. Be sure to manually cancel the timer settings before you use the Dial Timer or any other timer method after reconnecting the AC power cord (page 53).010COV.book Page 49 Thursday, April 24, 2003 12:37 PM$

$50 Recording TV programs using the VCR Plus+® systemfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010BAS.fm]Recording TV programs using the VCR Plus+® system Just enter the PlusCode number listed in the TV program guide. The date, time and channel number of that program are set automatically. You can preset up to eight programs together with the DIAL TIMER and manual timer settings at one time.Before you start…• Check that the DVD-VCR clock is set to the correct time.• Turn on the DVD-VCR and your TV. • Switch the input selector on your TV so that the signal from the player appears on the TV screen.•Set TV / DVD·VIDEO to DVD·VIDEO, then press SELECT VIDEO to control the VCR (page 9).• When using a cable box, turn it on.• Insert a tape with its safety tab in place. Make sure the tape is longer than the total recording time.• If the DVD player is in play mode, you cannot display the “SETUP MENU.” Stop the DVD playback.VCR Plus+M/m/</,ENTERNumber buttons?/1O RETURN010COV.book Page 50 Thursday, April 24, 2003 12:37 PM$

$51Recording TV programs using the VCR Plus+® systemBasic Operationsfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[\\Win-78\got78\2003 ComboUC 500\3083946111SLVD500PUC0424\010BAS.fm]1Press the VCR Plus+ button.2Press V/v to select “Enter code.”3Press the number buttons to enter the PlusCode number.To correct a setting, press B to return to that setting and reset.4Press V/v to select “Mode.”5Press B/b to select ONCE, MO~FR, or Weekly:6Press V/v to select “Speed.”To record SelectOnly once ONCEEveryday Monday to Friday MO~FROnce a week Weeklycontinued010BAS.fm Page 51 Tuesday, May 6, 2003 6:13 PM$

$52 Recording TV programs using the VCR Plus+® systemfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[\\Win-78\got78\2003 ComboUC 500\3083946111SLVD500PUC0424\010BAS.fm]To stop recordingTo stop the VCR while recording, press xSTOP.To use the DVD-VCR after setting the timerTo use the DVD-VCR before a timer recording begins, just press ?/1. The timer indicator disappears from the display window and the DVD-VCR switches on. Remember to press ?/1 to reset the VCR to the timer recording standby mode after using the VCR.You can also do the following tasks while the VCR is recording:• Reset the counter (page 38).• Display tape information on the TV screen (page 40).• Check the timer settings (page 53).• Watch another TV program (page 41).Tip• To check, change or cancel the program setting, see “Checking/changing/canceling timer settings” on page 53.Note• If the VCR does not accept the PlusCode number, this means that:– The PlusCode number is incorrect.– ONCE, MO~FR, or Weekly was selected incorrectly. You cannot select MO~FR or Weekly for a program that airs more than seven days ahead.Correctly set the PlusCode number again from step 2.• When the PlusCode number is incorrect, “Invalid Code” will appear in the display.7Press B/b to select the tape speed, Auto, SP, or EP.8Press ENTER to confirm the setting.To enter another setting, repeat steps 1 to 7.9Press O RETURN to exit the menu.10 Press ?/1 to turn off the VCR.The timer indicator appears in the display window and the VCR stands by for recording. When using a cable box, leave it on.010BAS.fm Page 52 Tuesday, May 6, 2003 6:47 PM$

$53Checking/changing/canceling timer settingsBasic Operationsfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010BAS.fm]Checking/changing/canceling timer settings 1Press SET UP when the DVD player is in stop mode.The “SETUP MENU” appears.You can also use the TIMER button in VIDEO mode, then you can skip step 2.SET UPV/v/B/bENTER?/1O RETURNCLEARTIMERcontinued010COV.book Page 53 Thursday, April 24, 2003 12:37 PM$

$54 Checking/changing/canceling timer settingsfilename[010BAS.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010BAS.fm]When the timer settings overlapThe program that starts first has priority and the second program starts recording only after the first program has finished. If the programs start at the same time, the program listed first in the menu has priority.2Press V/v/B/b to select “Set Timer Recording”, then press ENTER.• If you want to change a setting, go on to the next step.• If you do not need to change the settings, press O RETURN repeatedly to exit the menu, then turn off the VCR to return to recording standby.3Press V/v to select setting you want to change or cancel.• To change the setting, press B/b to flash the item you want to change, and press V/v to change it.• To cancel the setting, press CLEAR.4Press O RETURN to confirm the setting.The indicator appears in the display window.5Press O RETURN repeatedly to exit the menu.The DVD-VCR stands by for recording (you do not have to turn off the DVD-VCR). When using a cable box, leave it on.Will be cut offProgram 1Program 2010COV.book Page 54 Thursday, April 24, 2003 12:37 PM$

$55A/V Receiver hookupAdvanced Hookupsfilename[010ADV.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010ADV.fm]Advanced HookupsA/V Receiver hookup AUse this hookup if your A/V receiver has a Dolby* Surround (Pro Logic) decoder and 3 to 6 speakersYou can enjoy the Dolby Surround effects only when playing Dolby Surround audio or multi-channel audio (Dolby Digital) discs. ∗Manufactured under license from Dolby Laboratories. “Dolby,” “Pro Logic,” and the double-D symbol are trademarks of Dolby Laboratories.Note• When connecting 6 speakers, replace the monaural rear speaker with a center speaker, 2 rear speakers and a subwoofer.DVD-VCRFront (R)Front (L)Rear (R)Subwooferl: Signal flowRear (L)Amplifier (receiver) with Dolby Surround decoderCenter Rear (mono)Stereo audio cord (not supplied)[Speakers](red)(white)[Speakers]to audio input(white)(red)to LINE OUT L/R (AUDIO)continued010COV.book Page 55 Thursday, April 24, 2003 12:37 PM$

$56 A/V Receiver hookupfilename[010ADV.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\3083946111SLVD500PUC0424\010ADV.fm]BUse this hookup if your A/V reciever has a Dolby Digital or DTS* decoder, a digital input jack and 6 speakersThis connection will allow you to use the Dolby Digital or DTS decoder function of your AV amplifier (receiver). You are not able to enjoy the surround sound effects of this player. You must make connections using and .∗“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.Note• After you have completed the connection, be sure to set “Dolby Digital” to “Dolby Digital” and “DTS” to “On” in “AUDIO SETUP” menu (page 60). Otherwise, no sound or a loud noise will come from the speakers.B-1 B-2Front (R)Front (L)Rear (R) AV amplifier (receiver) having a decoderSubwoofer Center[Speakers]DVD-VCR[Speakers]Rear (L)to coaxial or optical digital inputandCoaxial digital cord (not supplied)l: Signal flowStereo audio cord (not supplied)(red)(white)to audio input(white)(red)to LINE OUT L/R (AUDIO)or to DIGITAL OUT (COAXIAL or OPTICAL)Optical digital cord (not supplied)Remove jack cap before connecting010ADV.fm Page 56 Tuesday, May 6, 2003 9:52 AM$

$57S-Video/Component Video hookupAdvanced Hookupsfilename[010ADV.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010ADV.fm]S-Video/Component Video hookup Make audio connections using the LINE OUT AUDIO L/R jacks or DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jacks on the right side of the DVD-VCR when you use S-VIDEO/Component Video hookup.AUse this hookup if your TV has an S VIDEO input jackConnect an S VIDEO cord (not supplied). You will enjoy high quality images.Notes• Set “Video Out” to “S-Video” in the “SCREEN SETUP” menu (page 64) to view pictures from the S VIDEO jack.• The connection using S VIDEO OUT jack is only for the DVD player.l : Signal flow (DVD only)TV or AV amplifierTVS VIDEO cord (not supplied)DVD-VCRAudio cord (not supplied)Coaxial digital cord (not supplied)Optical digital cord (not supplied) Remove jack cap before connectingororto coaxial or optical digital inputto audio inputcontinued010COV.book Page 57 Thursday, April 24, 2003 12:37 PM$

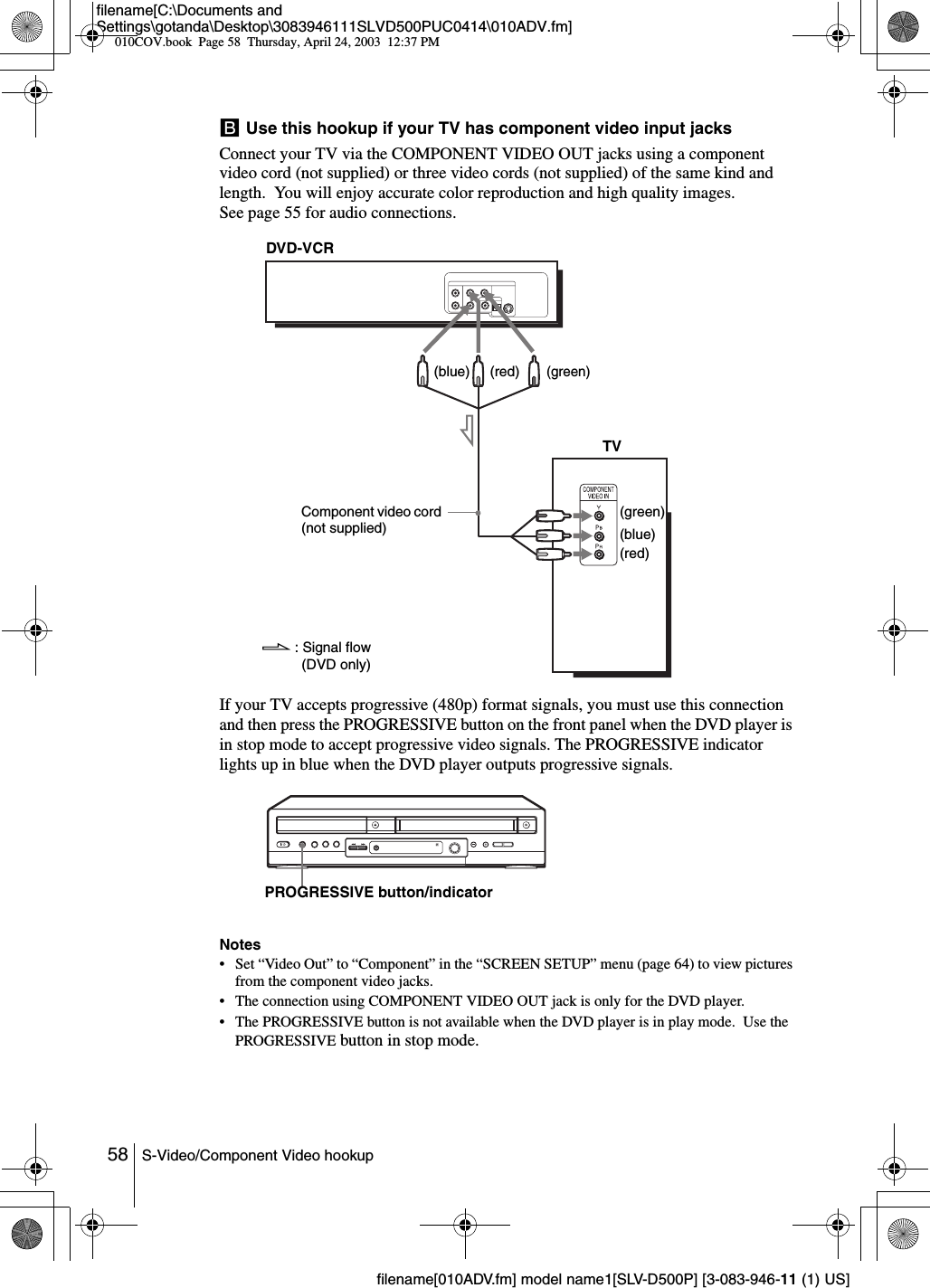

$58 S-Video/Component Video hookupfilename[010ADV.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010ADV.fm]BUse this hookup if your TV has component video input jacksConnect your TV via the COMPONENT VIDEO OUT jacks using a component video cord (not supplied) or three video cords (not supplied) of the same kind and length. You will enjoy accurate color reproduction and high quality images.See page 55 for audio connections.If your TV accepts progressive (480p) format signals, you must use this connection and then press the PROGRESSIVE button on the front panel when the DVD player is in stop mode to accept progressive video signals. The PROGRESSIVE indicator lights up in blue when the DVD player outputs progressive signals.Notes• Set “Video Out” to “Component” in the “SCREEN SETUP” menu (page 64) to view pictures from the component video jacks.• The connection using COMPONENT VIDEO OUT jack is only for the DVD player.• The PROGRESSIVE button is not available when the DVD player is in play mode. Use the PROGRESSIVE button in stop mode.l : Signal flow (DVD only) Component video cord (not supplied)TV(green)(red)(green)(blue) (red)DVD-VCR(blue)PROGRESSIVE button/indicator010COV.book Page 58 Thursday, April 24, 2003 12:37 PM$

$59Audio SetupDVD Settings and Adjustmentsfilename[010SET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010SET.fm]DVD Settings and AdjustmentsAudio Setup “Audio Setup” allows you to set the sound according to the playback and connection conditions.1Press SET UP when the DVD player is in stop mode.The “SETUP MENU” appears.2Press V/v/B/b to select (DVD Setup), then press ENTER.The “DVD SETUP” menu appears.3Press V/v to select “Audio Setup,” then press ENTER.V/v/B/bENTERSET UPO RETURNcontinued010COV.book Page 59 Thursday, April 24, 2003 12:37 PM$

$60 Audio Setupfilename[010SET.fm] model name1[SLV-D500P] [3-083-946-11 (1) US]filename[C:\Documents and Settings\gotanda\Desktop\3083946111SLVD500PUC0414\010SET.fm]Menu choices• Dolby Digital (DVD only)Selects the type of Dolby Digital signal. The default setting is indicated in bold print. • DTS (DVD only)Selects whether or not to output DTS signals. The default setting is indicated in bold print.• Audio DRC (Dynamic Range Control) (DVD only)Makes the sound clear when the volume is turned down when playing a DVD that conforms to “Audio DRC.” This affects the output from the following jacks:– LINE OUT AUDIO L/R jacks– DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack only when “Dolby Digital” is set to “D-PCM”. The default setting is indicated in bold print.4Press V/v to select the setup item from the displayed list:“Dolby Digital,” “DTS,” or “Audio DRC.” 5Press B/b to select an item, then press O RETURN to confirm the setting.6Press O RETURN repeatedly to exit the menu.D-PCM Select this when the player is connected to an audio component lacking a built-in Dolby Digital decoder. Dolby Digital Select this when the player is connected to an audio component with a built-in Dolby Digital decoder.Off Select this when the player is connected to an audio component lacking a built-in DTS decoder.On Select this when the player is connected to an audio component with a built-in DTS decoder.Standard Normally select this position.TV Mode Makes the low sounds clear even if you turn the volume down.010COV.book Page 60 Thursday, April 24, 2003 12:37 PM$
