Users Manual 2

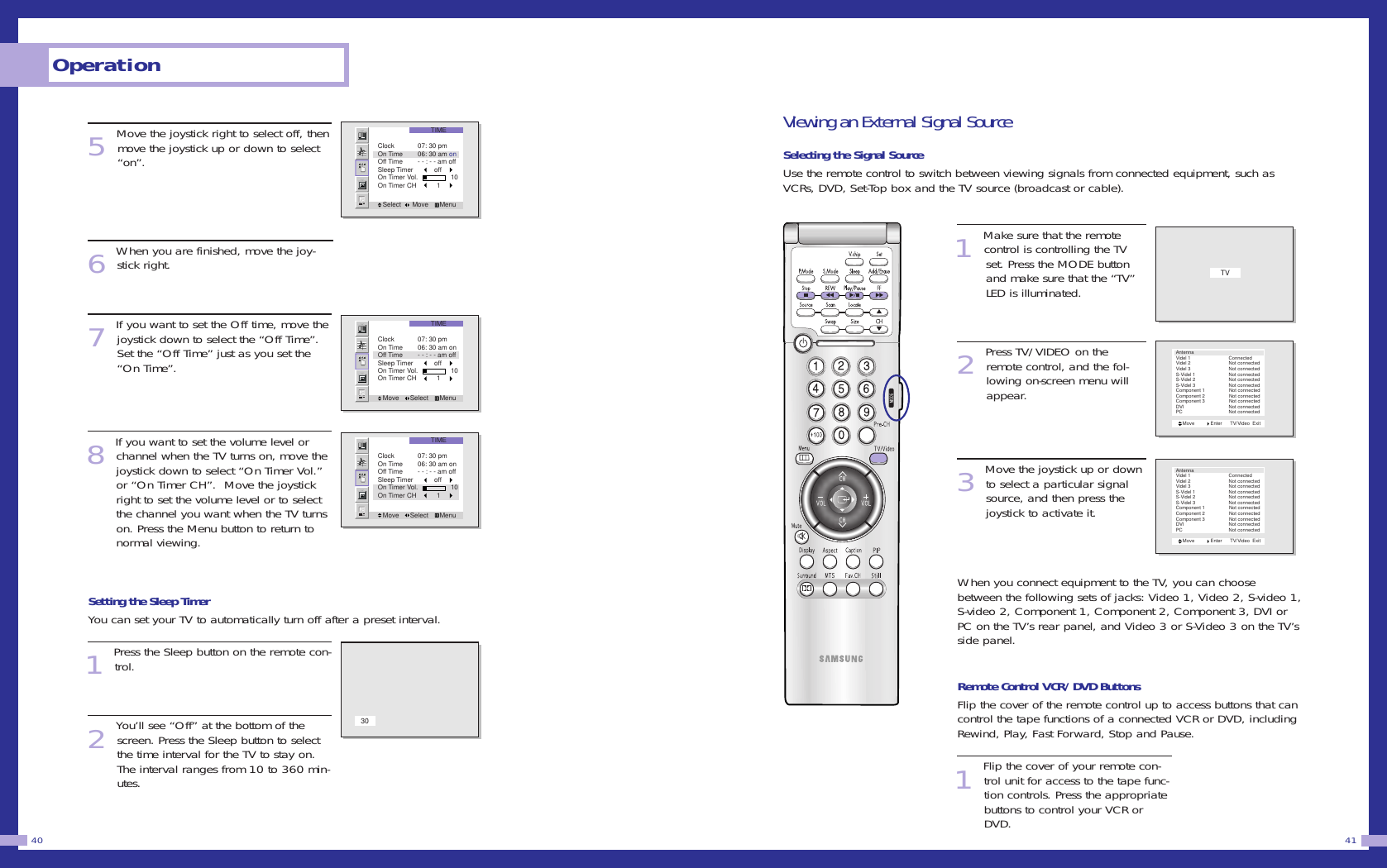

Viewing an External Signal SourceSelecting the Signal SourceUse the remote control to switch between viewing signals from connected equipment, such asVCRs, DVD, Set-Top box and the TV source (broadcast or cable). 1Make sure that the remotecontrol is controlling the TV set. Press the MODE button and make sure that the “TV” LED is illuminated.2Press TV/VIDEO on theremote control, and the fol-lowing on-screen menu willappear. 3Move the joystick up or downto select a particular signalsource, and then press thejoystick to activate it. When you connect equipment to the TV, you can choosebetween the following sets of jacks: Video 1, Video 2, S-video 1,S-video 2, Component 1, Component 2, Component 3, DVI orPC on the TV’s rear panel, and Video 3 or S-Video 3 on the TV’sside panel.Remote Control VCR/DVD ButtonsFlip the cover of the remote control up to access buttons that cancontrol the tape functions of a connected VCR or DVD, includingRewind, Play, Fast Forward, Stop and Pause. 1Flip the cover of your remote con-trol unit for access to the tape func-tion controls. Press the appropriatebuttons to control your VCR orDVD. 415Move the joystick right to select off, thenmove the joystick up or down to select“on”.6When you are finished, move the joy-stick right.7If you want to set the Off time, move thejoystick down to select the “Off Time”.Set the “Off Time” just as you set the“On Time”.8If you want to set the volume level orchannel when the TV turns on, move thejoystick down to select “On Timer Vol.”or “On Timer CH”. Move the joystickright to set the volume level or to selectthe channel you want when the TV turnson. Press the Menu button to return tonormal viewing.Setting the Sleep TimerYou can set your TV to automatically turn off after a preset interval. 1Press the Sleep button on the remote con-trol.2You’ll see “Off” at the bottom of thescreen. Press the Sleep button to selectthe time interval for the TV to stay on.The interval ranges from 10 to 360 min-utes. Operation40TIMESelect Move MenuClock 07: 30 pmOn Time 06: 30 am onOff Time - - : - - am offSleep Timer offOn Timer Vol. 10On Timer CH 1TIMEMove Select MenuClock 07: 30 pmOn Time 06: 30 am onOff Time - - : - - am offSleep Timer offOn Timer Vol. 10On Timer CH 1TIMEMove Select MenuClock 07: 30 pmOn Time 06: 30 am onOff Time - - : - - am offSleep Timer offOn Timer Vol. 10On Timer CH 130TVMove Enter TV/Video ExitAntennaVidel 1 ConnectedVidel 2 Not connectedVidel 3 Not connectedS-Videl 1 Not connectedS-Videl 2 Not connectedS-Videl 3 Not connectedComponent 1 Not connectedComponent 2 Not connectedComponent 3 Not connectedDVI Not connectedPC Not connectedMove Enter TV/Video ExitAntennaVidel 1 ConnectedVidel 2 Not connectedVidel 3 Not connectedS-Videl 1 Not connectedS-Videl 2 Not connectedS-Videl 3 Not connectedComponent 1 Not connectedComponent 2 Not connectedComponent 3 Not connectedDVI Not connectedPC Not connected

Special FeaturesSAMSUNG

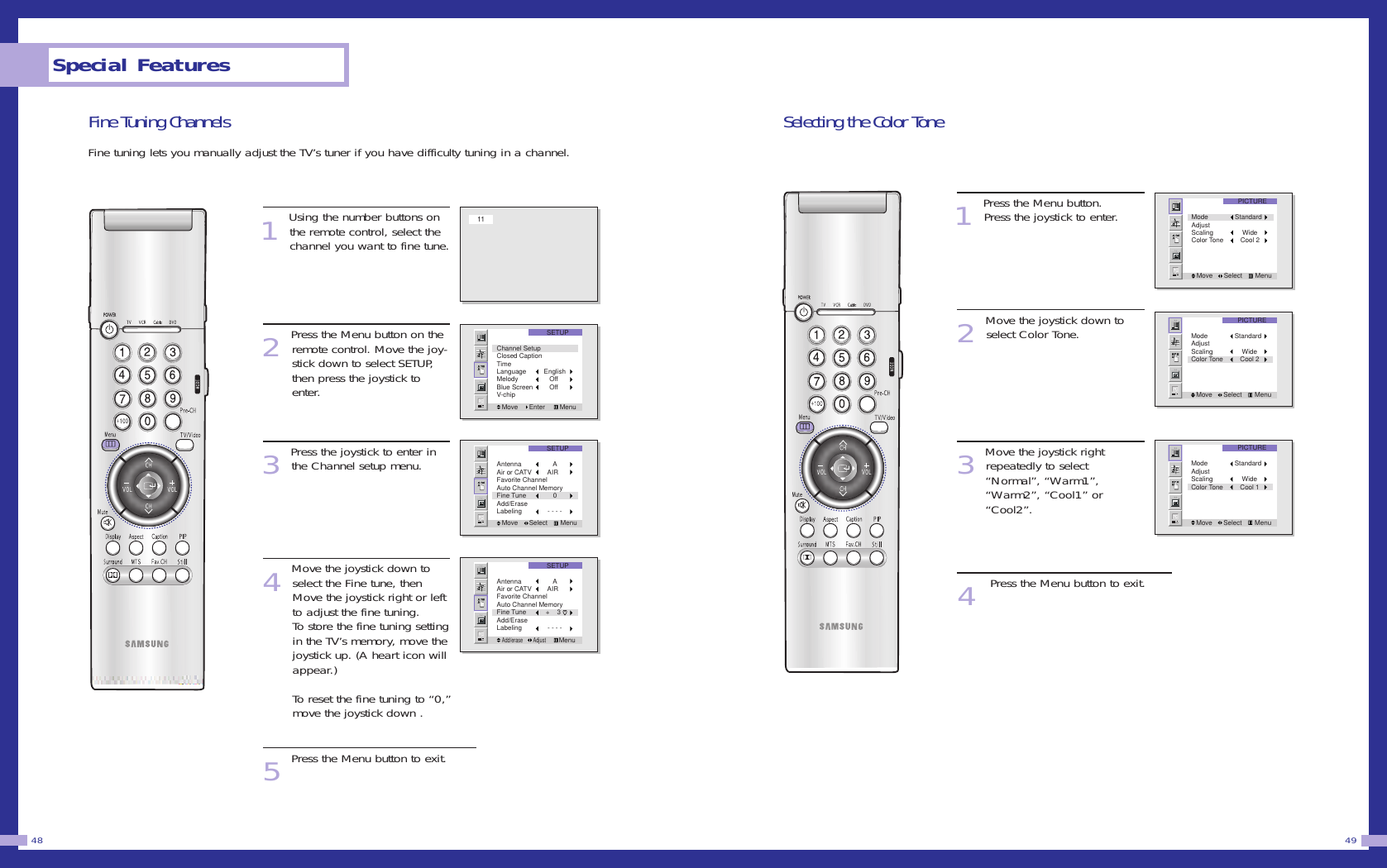

Selecting the Color Tone1Press the Menu button. Press the joystick to enter. 2Move the joystick down toselect Color Tone.3Move the joystick right repeatedly to select “Normal”, “Warm1”, “Warm2”, “Cool1” or “Cool2”.4Press the Menu button to exit.49Fine Tuning ChannelsFine tuning lets you manually adjust the TV’s tuner if you have difficulty tuning in a channel. 1Using the number buttons onthe remote control, select thechannel you want to fine tune.2Press the Menu button on theremote control. Move the joy-stick down to select SETUP,then press the joystick toenter.3Press the joystick to enter inthe Channel setup menu.4Move the joystick down toselect the Fine tune, thenMove the joystick right or leftto adjust the fine tuning.To store the fine tuning settingin the TV’s memory, move thejoystick up. (A heart icon willappear.) To reset the fine tuning to “0,”move the joystick down .5Press the Menu button to exit.Special Features48PICTUREMove Select MenuMode StandardAdjustScaling WideColor Tone Cool 2PICTUREMove Select MenuMode StandardAdjustScaling WideColor Tone Cool 2PICTUREMove Select MenuMode StandardAdjustScaling WideColor Tone Cool 111SETUPMove Enter MenuChannel SetupClosed CaptionTimeLanguage EnglishMelody OffBlue Screen OffV-chipSETUPMove Select MenuAntenna AAir or CATV AIRFavorite Channel Auto Channel MemoryFine Tune 0Add/EraseLabeling - - - -SETUPAdd/erase Adjust MenuAntenna AAir or CATV AIRFavorite Channel Auto Channel MemoryFine Tune + 3Add/EraseLabeling - - - -

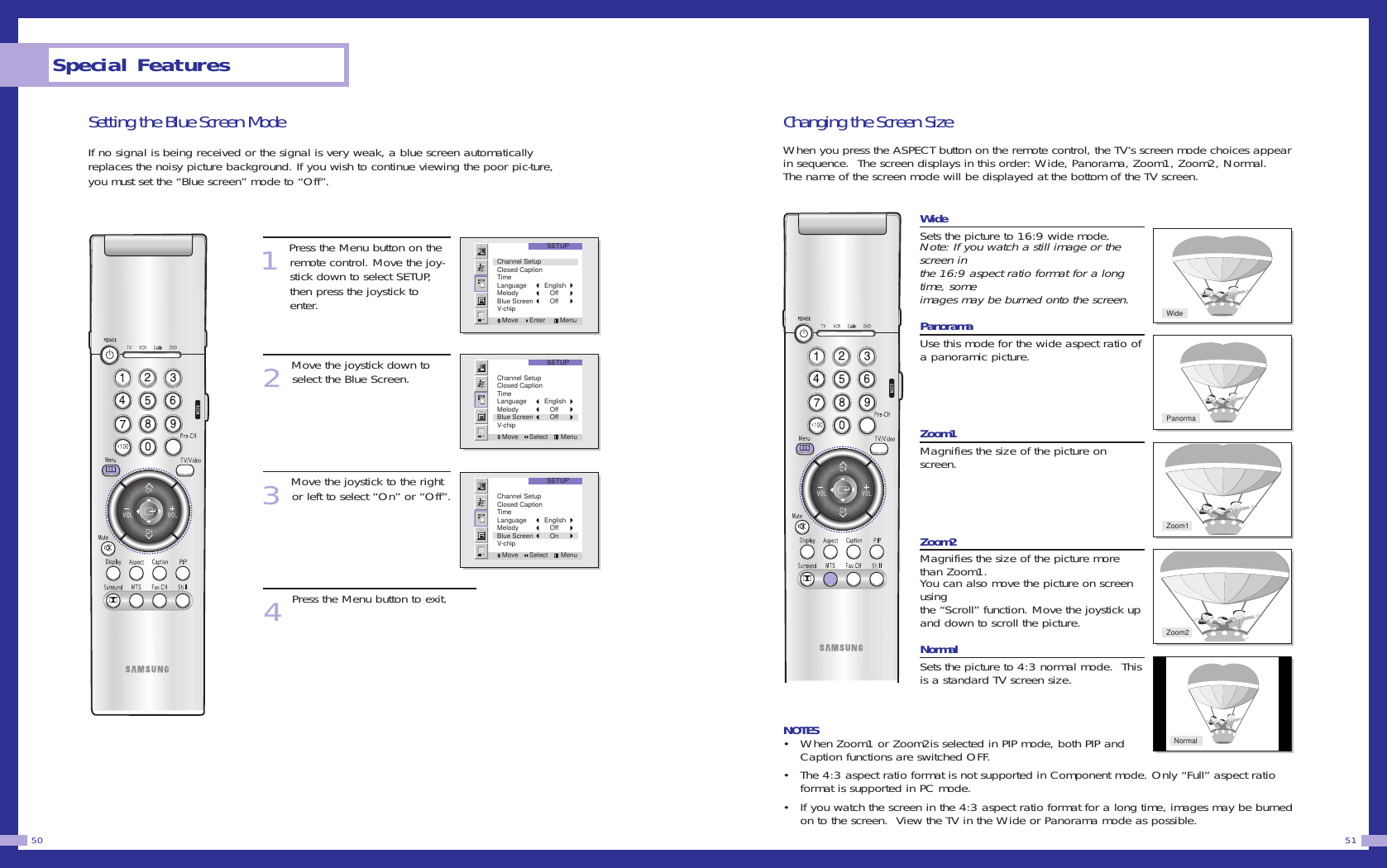

Changing the Screen SizeWhen you press the ASPECT button on the remote control, the TV’s screen mode choices appearin sequence. The screen displays in this order: Wide, Panorama, Zoom1, Zoom2, Normal. The name of the screen mode will be displayed at the bottom of the TV screen.WideSets the picture to 16:9 wide mode. Note: If you watch a still image or thescreen inthe 16:9 aspect ratio format for a longtime, someimages may be burned onto the screen.PanoramaUse this mode for the wide aspect ratio ofa panoramic picture. Zoom1Magnifies the size of the picture onscreen.Zoom2Magnifies the size of the picture morethan Zoom1. You can also move the picture on screenusingthe “Scroll” function. Move the joystick upand down to scroll the picture.NormalSets the picture to 4:3 normal mode. Thisis a standard TV screen size.NOTES• When Zoom1 or Zoom2is selected in PIP mode, both PIP andCaption functions are switched OFF.• The 4:3 aspect ratio format is not supported in Component mode. Only “Full” aspect ratioformat is supported in PC mode.• If you watch the screen in the 4:3 aspect ratio format for a long time, images may be burnedon to the screen. View the TV in the Wide or Panorama mode as possible.51Setting the Blue Screen ModeIf no signal is being received or the signal is very weak, a blue screen automaticallyreplaces the noisy picture background. If you wish to continue viewing the poor pic-ture,you must set the “Blue screen” mode to “Off”.1Press the Menu button on theremote control. Move the joy-stick down to select SETUP,then press the joystick toenter.2Move the joystick down toselect the Blue Screen.3Move the joystick to the rightor left to select “On” or “Off”.4Press the Menu button to exit.Special Features50SETUPMove Enter MenuChannel SetupClosed CaptionTimeLanguage EnglishMelody OffBlue Screen OffV-chipSETUPMove Select MenuChannel SetupClosed CaptionTimeLanguage EnglishMelody OffBlue Screen OffV-chipSETUPMove Select MenuChannel SetupClosed CaptionTimeLanguage EnglishMelody OffBlue Screen OnV-chipWidePanormaZoom1Zoom2Normal

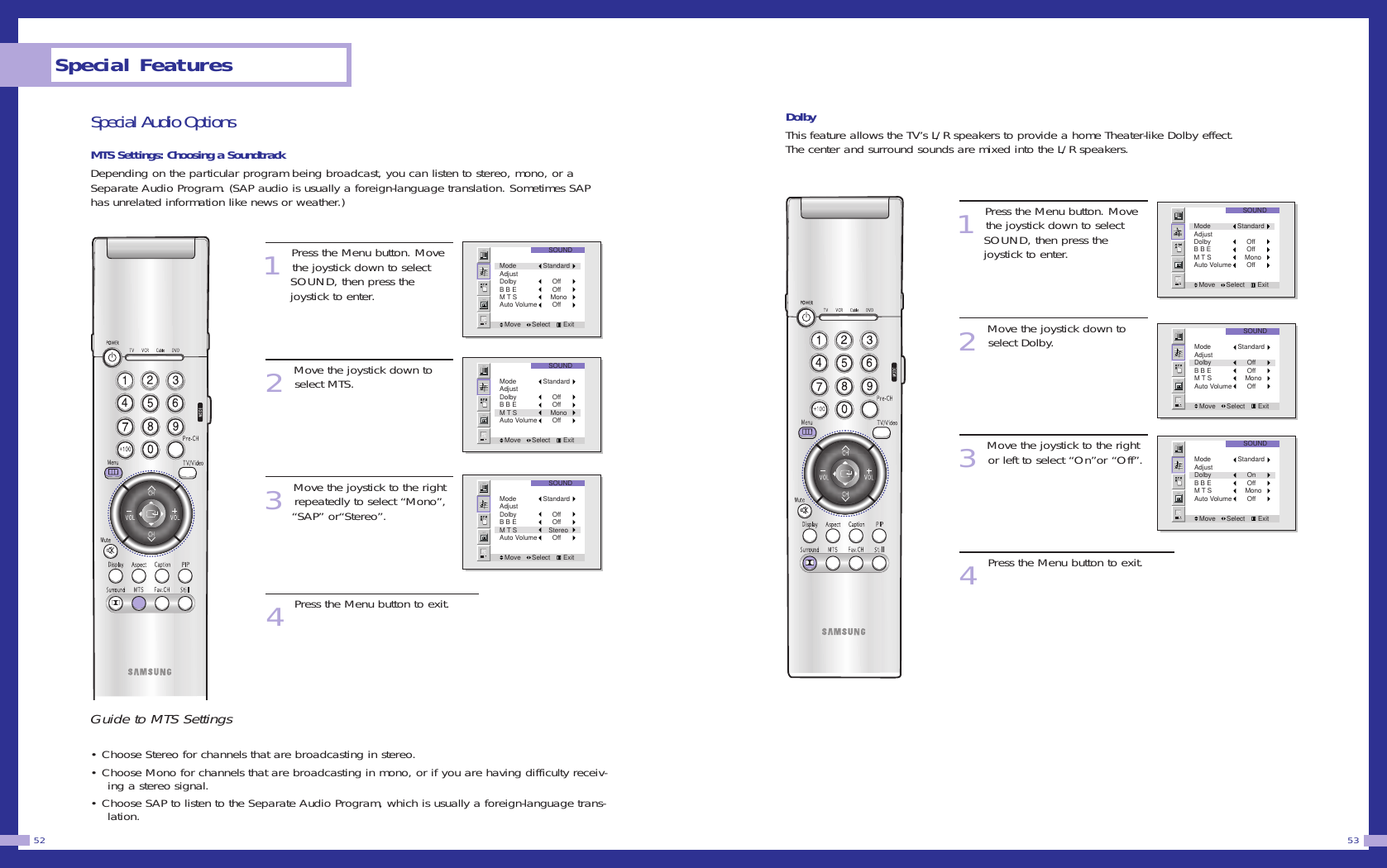

Special Audio OptionsMTS Settings: Choosing a SoundtrackDepending on the particular program being broadcast, you can listen to stereo, mono, or aSeparate Audio Program. (SAP audio is usually a foreign-language translation. Sometimes SAPhas unrelated information like news or weather.)1Press the Menu button. Movethe joystick down to select SOUND, then press the joystick to enter.2Move the joystick down toselect MTS.3Move the joystick to the rightrepeatedly to select “Mono”, “SAP” or“Stereo”.4Press the Menu button to exit.Guide to MTS Settings• Choose Stereo for channels that are broadcasting in stereo.• Choose Mono for channels that are broadcasting in mono, or if you are having difficulty receiv-ing a stereo signal.• Choose SAP to listen to the Separate Audio Program, which is usually a foreign-language trans-lation.DolbyThis feature allows the TV’s L/R speakers to provide a home Theater-like Dolby effect.The center and surround sounds are mixed into the L/R speakers.1Press the Menu button. Movethe joystick down to select SOUND, then press the joystick to enter.2Move the joystick down toselect Dolby.3Move the joystick to the rightor left to select “On”or “Off”.4Press the Menu button to exit.53Special Features52SOUNDMove Select ExitMode StandardAdjustDolby OffB B E OffM T S MonoAuto Volume OffSOUNDMove Select ExitMode StandardAdjustDolby OffB B E OffM T S MonoAuto Volume OffSOUNDMove Select ExitMode StandardAdjustDolby OnB B E OffM T S MonoAuto Volume OffSOUNDMove Select ExitMode StandardAdjustDolby OffB B E OffM T S MonoAuto Volume OffSOUNDMove Select ExitMode StandardAdjustDolby OffB B E OffM T S MonoAuto Volume OffSOUNDMove Select ExitMode StandardAdjustDolby OffB B E OffM T S StereoAuto Volume Off

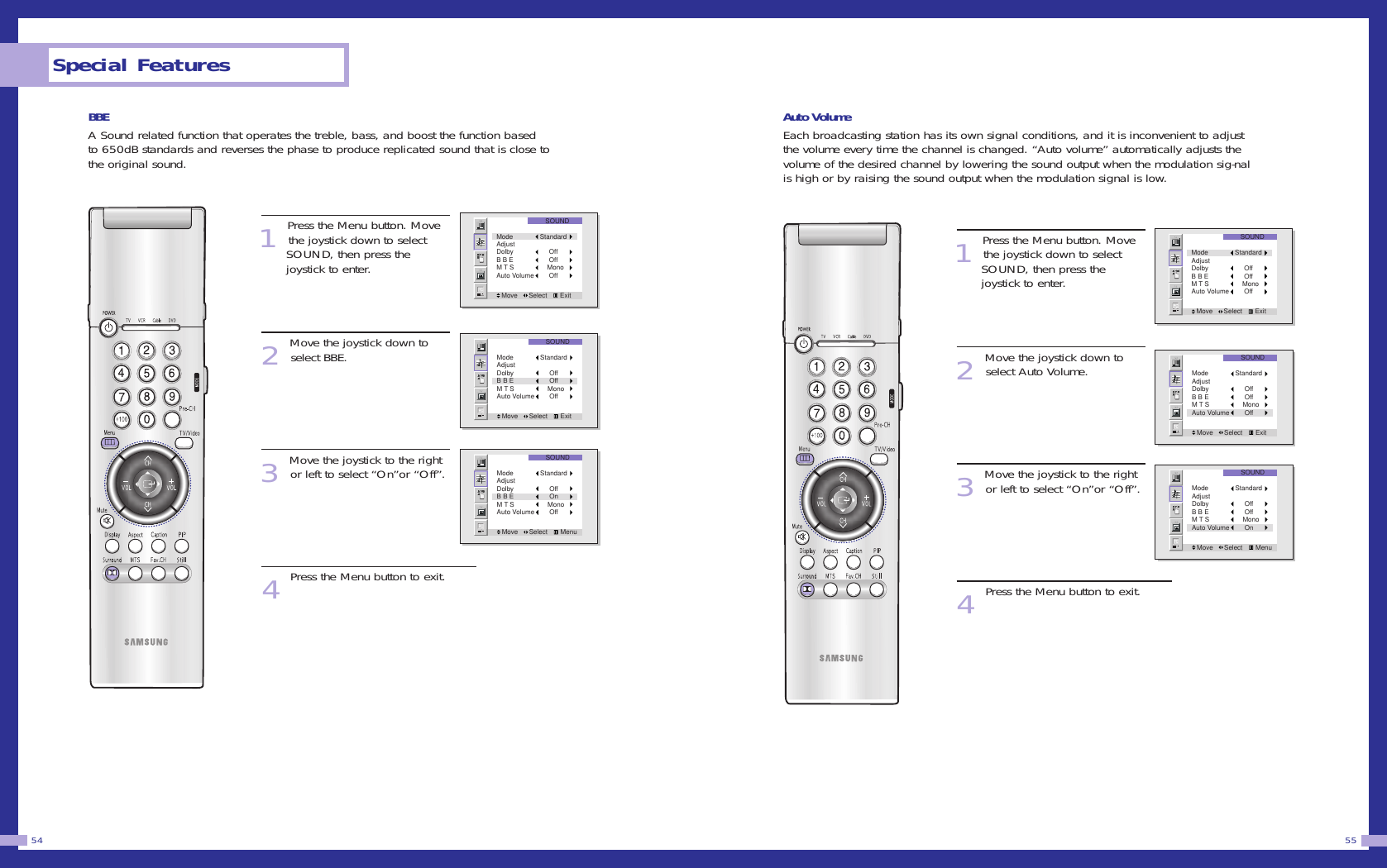

Auto VolumeEach broadcasting station has its own signal conditions, and it is inconvenient to adjustthe volume every time the channel is changed. “Auto volume” automatically adjusts thevolume of the desired channel by lowering the sound output when the modulation sig-nalis high or by raising the sound output when the modulation signal is low.1Press the Menu button. Movethe joystick down to select SOUND, then press the joystick to enter.2Move the joystick down toselect Auto Volume.3Move the joystick to the rightor left to select “On”or “Off”.4Press the Menu button to exit.55BBEA Sound related function that operates the treble, bass, and boost the function basedto 650dB standards and reverses the phase to produce replicated sound that is close tothe original sound.1Press the Menu button. Movethe joystick down to select SOUND, then press the joystick to enter.2Move the joystick down toselect BBE.3Move the joystick to the rightor left to select “On”or “Off”.4Press the Menu button to exit.Special Features54SOUNDMove Select ExitMode StandardAdjustDolby OffB B E OffM T S MonoAuto Volume OffSOUNDMove Select ExitMode StandardAdjustDolby OffB B E OffM T S MonoAuto Volume OffSOUNDMove Select MenuMode StandardAdjustDolby OffB B E OffM T S MonoAuto Volume OnSOUNDMove Select ExitMode StandardAdjustDolby OffB B E OffM T S MonoAuto Volume OffSOUNDMove Select ExitMode StandardAdjustDolby OffB B E OffM T S MonoAuto Volume OffSOUNDMove Select MenuMode StandardAdjustDolby OffB B E OnM T S MonoAuto Volume Off

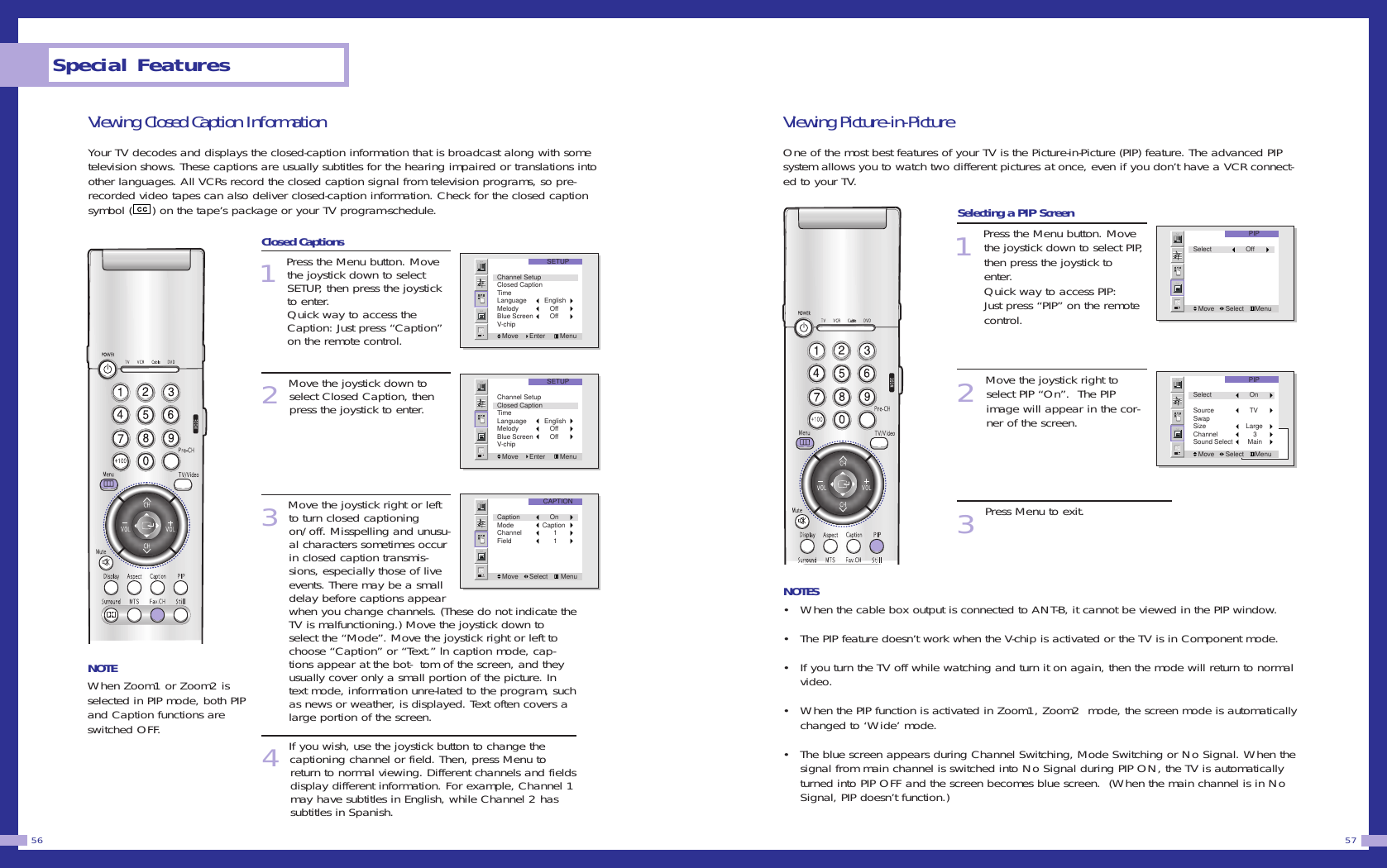

Viewing Picture-in-PictureOne of the most best features of your TV is the Picture-in-Picture (PIP) feature. The advanced PIPsystem allows you to watch two different pictures at once, even if you don’t have a VCR connect-ed to your TV.Selecting a PIP Screen1Press the Menu button. Movethe joystick down to select PIP,then press the joystick toenter.Quick way to access PIP: Just press “PIP” on the remotecontrol. 2Move the joystick right toselect PIP “On”. The PIPimage will appear in the cor-ner of the screen. 3Press Menu to exit.NOTES• When the cable box output is connected to ANT-B, it cannot be viewed in the PIP window.• The PIP feature doesn’t work when the V-chip is activated or the TV is in Component mode. • If you turn the TV off while watching and turn it on again, then the mode will return to normalvideo.• When the PIP function is activated in Zoom1, Zoom2 mode, the screen mode is automaticallychanged to ‘Wide’ mode.• The blue screen appears during Channel Switching, Mode Switching or No Signal. When thesignal from main channel is switched into No Signal during PIP ON, the TV is automaticallyturned into PIP OFF and the screen becomes blue screen. (When the main channel is in NoSignal, PIP doesn’t function.) 57Viewing Closed Caption InformationYour TV decodes and displays the closed-caption information that is broadcast along with sometelevision shows. These captions are usually subtitles for the hearing impaired or translations intoother languages. All VCRs record the closed caption signal from television programs, so pre-recorded video tapes can also deliver closed-caption information. Check for the closed captionsymbol ( ) on the tape’s package or your TV program-schedule.Closed Captions1Press the Menu button. Movethe joystick down to selectSETUP, then press the joystickto enter.Quick way to access theCaption: Just press “Caption”on the remote control.2Move the joystick down toselect Closed Caption, thenpress the joystick to enter.3Move the joystick right or leftto turn closed captioningon/off. Misspelling and unusu-al characters sometimes occurin closed caption transmis-sions, especially those of liveevents. There may be a smalldelay before captions appearwhen you change channels. (These do not indicate theTV is malfunctioning.) Move the joystick down toselect the “Mode”. Move the joystick right or left tochoose “Caption” or “Text.” ln caption mode, cap-tions appear at the bot- tom of the screen, and theyusually cover only a small portion of the picture. Intext mode, information unre-lated to the program, suchas news or weather, is displayed. Text often covers alarge portion of the screen.4If you wish, use the joystick button to change the captioning channel or field. Then, press Menu to return to normal viewing. Different channels and fieldsdisplay different information. For example, Channel 1may have subtitles in English, while Channel 2 has subtitles in Spanish.Special Features56SETUPMove Enter MenuChannel SetupClosed CaptionTimeLanguage EnglishMelody OffBlue Screen OffV-chipSETUPMove Enter MenuChannel SetupClosed CaptionTimeLanguage EnglishMelody OffBlue Screen OffV-chipCAPTIONMove Select MenuCaption OnMode CaptionChannel 1Field 1NOTEWhen Zoom1 or Zoom2 isselected in PIP mode, both PIPand Caption functions areswitched OFF.PIPMove Select MenuSelect OffPIPMove Select MenuSelect OnSource TVSwapSize LargeChannel 3Sound Select Main

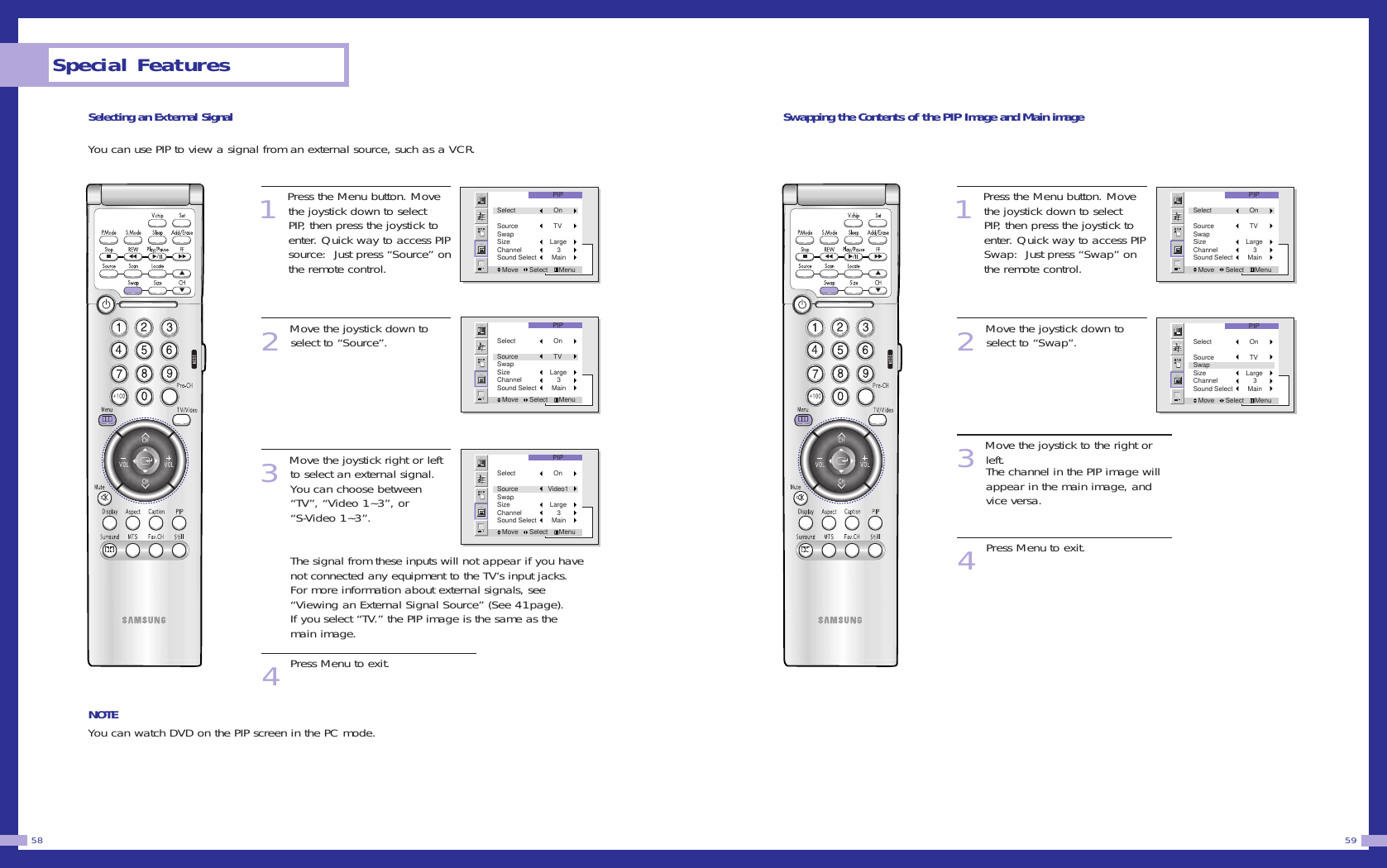

Swapping the Contents of the PIP Image and Main image1Press the Menu button. Movethe joystick down to selectPIP, then press the joystick toenter. Quick way to access PIPSwap: Just press “Swap” onthe remote control. 2Move the joystick down toselect to “Swap”.3Move the joystick to the right orleft.The channel in the PIP image willappear in the main image, andvice versa.4Press Menu to exit.59Selecting an External SignalYou can use PIP to view a signal from an external source, such as a VCR.1Press the Menu button. Movethe joystick down to selectPIP, then press the joystick toenter. Quick way to access PIPsource: Just press “Source” onthe remote control. 2Move the joystick down toselect to “Source”.3Move the joystick right or leftto select an external signal.You can choose between“TV”, “Video 1~3”, or “S-Video 1~3”. The signal from these inputs will not appear if you havenot connected any equipment to the TV’s input jacks.For more information about external signals, see“Viewing an External Signal Source” (See 41page).If you select “TV.” the PIP image is the same as themain image.4Press Menu to exit.NOTEYou can watch DVD on the PIP screen in the PC mode.Special Features58PIPMove Select MenuSelect OnSource TVSwapSize LargeChannel 3Sound Select MainPIPMove Select MenuSelect OnSource TVSwapSize LargeChannel 3Sound Select MainPIPMove Select MenuSelect OnSource TVSwapSize LargeChannel 3Sound Select MainPIPMove Select MenuSelect OnSource TVSwapSize LargeChannel 3Sound Select MainPIPMove Select MenuSelect OnSource Video1SwapSize LargeChannel 3Sound Select Main

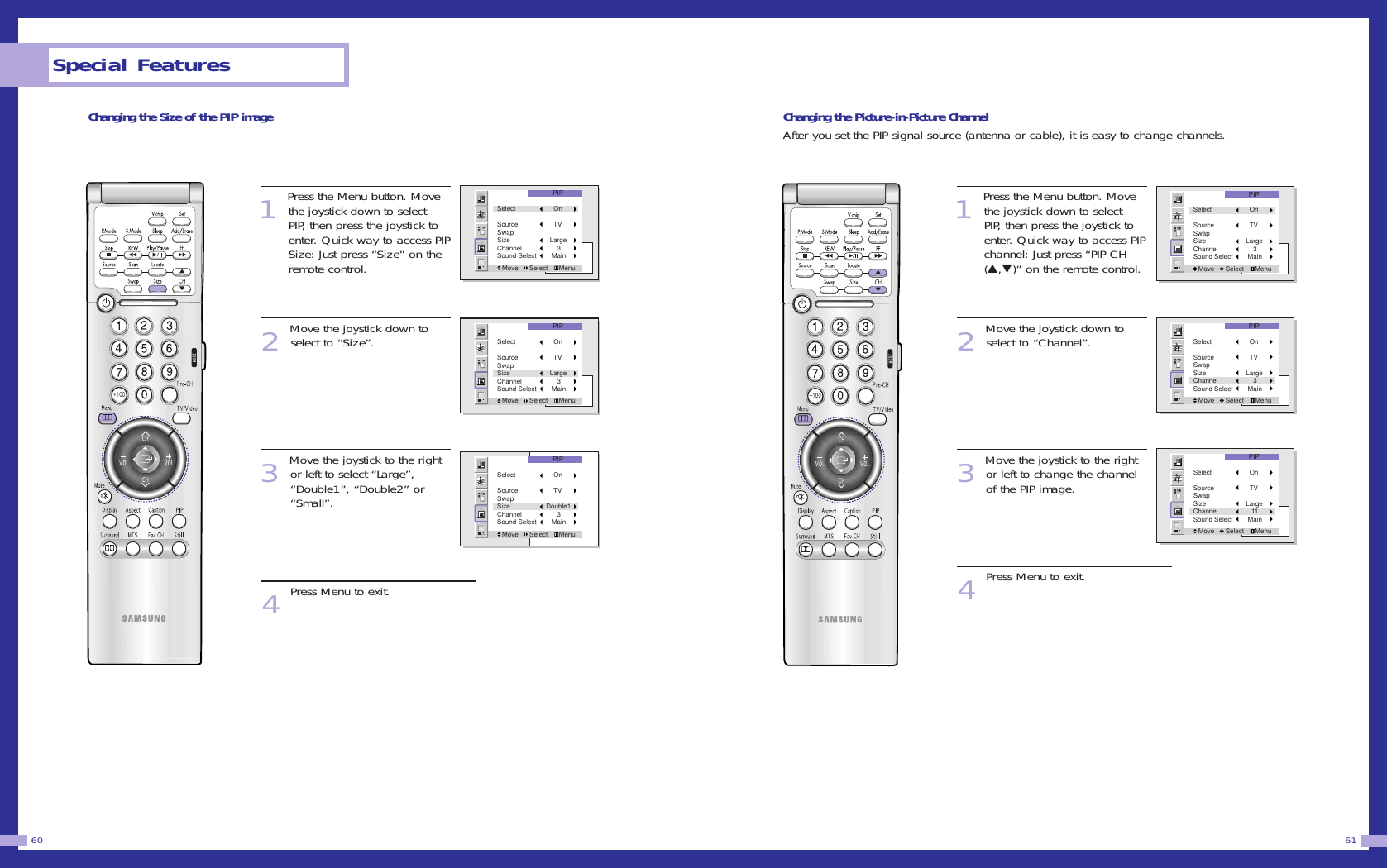

Changing the Picture-in-Picture ChannelAfter you set the PIP signal source (antenna or cable), it is easy to change channels.1Press the Menu button. Movethe joystick down to selectPIP, then press the joystick toenter. Quick way to access PIPchannel: Just press “PIP CH(▲,▼)” on the remote control. 2Move the joystick down toselect to “Channel”.3Move the joystick to the rightor left to change the channelof the PIP image. 4Press Menu to exit.61Changing the Size of the PIP image1Press the Menu button. Movethe joystick down to selectPIP, then press the joystick toenter. Quick way to access PIPSize: Just press “Size” on theremote control. 2Move the joystick down toselect to “Size”.3Move the joystick to the rightor left to select “Large”,“Double1”, “Double2” or“Small”.4Press Menu to exit.Special Features60PIPMove Select MenuSelect OnSource TVSwapSize LargeChannel 3Sound Select MainPIPMove Select MenuSelect OnSource TVSwapSize LargeChannel 3Sound Select MainPIPMove Select MenuSelect OnSource TVSwapSize LargeChannel 3Sound Select MainPIPMove Select MenuSelect OnSource TVSwapSize LargeChannel 11Sound Select MainPIPMove Select MenuSelect OnSource TVSwapSize LargeChannel 3Sound Select MainPIPMove Select MenuSelect OnSource TVSwapSize Double1Channel 3Sound Select Main

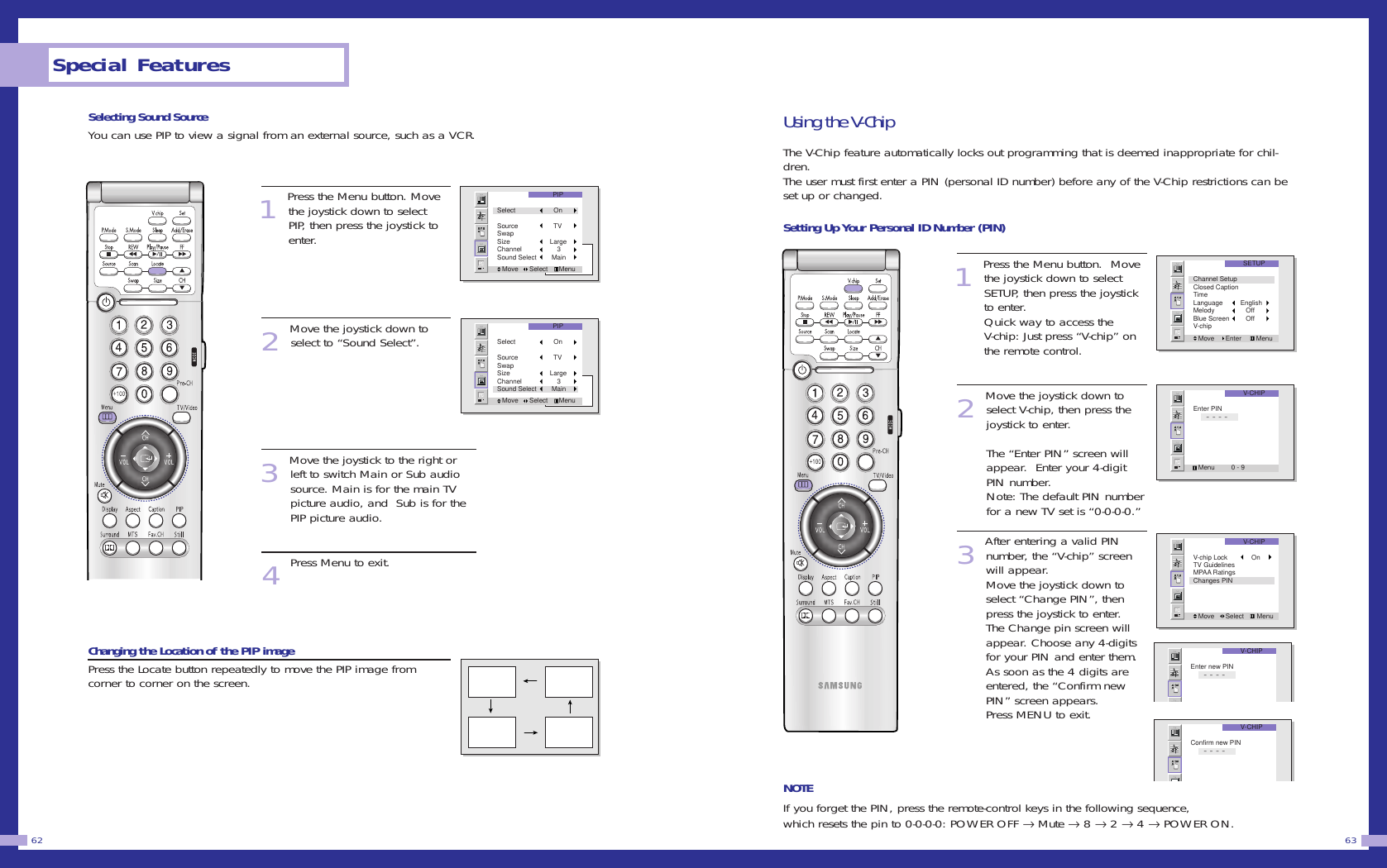

Using the V-ChipThe V-Chip feature automatically locks out programming that is deemed inappropriate for chil-dren.The user must first enter a PIN (personal ID number) before any of the V-Chip restrictions can beset up or changed. Setting Up Your Personal ID Number (PIN)1Press the Menu button. Movethe joystick down to selectSETUP, then press the joystickto enter.Quick way to access theV-chip: Just press “V-chip” onthe remote control. 2Move the joystick down toselect V-chip, then press thejoystick to enter. The “Enter PIN” screen willappear. Enter your 4-digitPIN number.Note: The default PIN numberfor a new TV set is “0-0-0-0.”3After entering a valid PINnumber, the “V-chip” screenwill appear. Move the joystick down toselect “Change PIN”, thenpress the joystick to enter.The Change pin screen willappear. Choose any 4-digitsfor your PIN and enter them.As soon as the 4 digits areentered, the “Confirm newPIN” screen appears. Press MENU to exit.NOTEIf you forget the PIN, press the remote-control keys in the following sequence, which resets the pin to 0-0-0-0: POWER OFF → Mute → 8 → 2 → 4 → POWER ON. 63Selecting Sound SourceYou can use PIP to view a signal from an external source, such as a VCR.1Press the Menu button. Movethe joystick down to selectPIP, then press the joystick toenter. 2Move the joystick down toselect to “Sound Select”.3Move the joystick to the right orleft to switch Main or Sub audiosource. Main is for the main TVpicture audio, and Sub is for thePIP picture audio. 4Press Menu to exit.Changing the Location of the PIP imagePress the Locate button repeatedly to move the PIP image from corner to corner on the screen.Special Features62PIPMove Select MenuSelect OnSource TVSwapSize LargeChannel 3Sound Select Main SETUPMove Enter MenuChannel SetupClosed CaptionTimeLanguage EnglishMelody OffBlue Screen OffV-chipV-CHIPMenu 0 - 9Enter PIN - - - -V-CHIPMove Select MenuV-chip Lock OnTV GuidelinesMPAA RatingsChanges PINV-CHIPEnter new PIN - - - -V-CHIPConfirm new PIN - - - -PIPMove Select MenuSelect OnSource TVSwapSize LargeChannel 3Sound Select Main

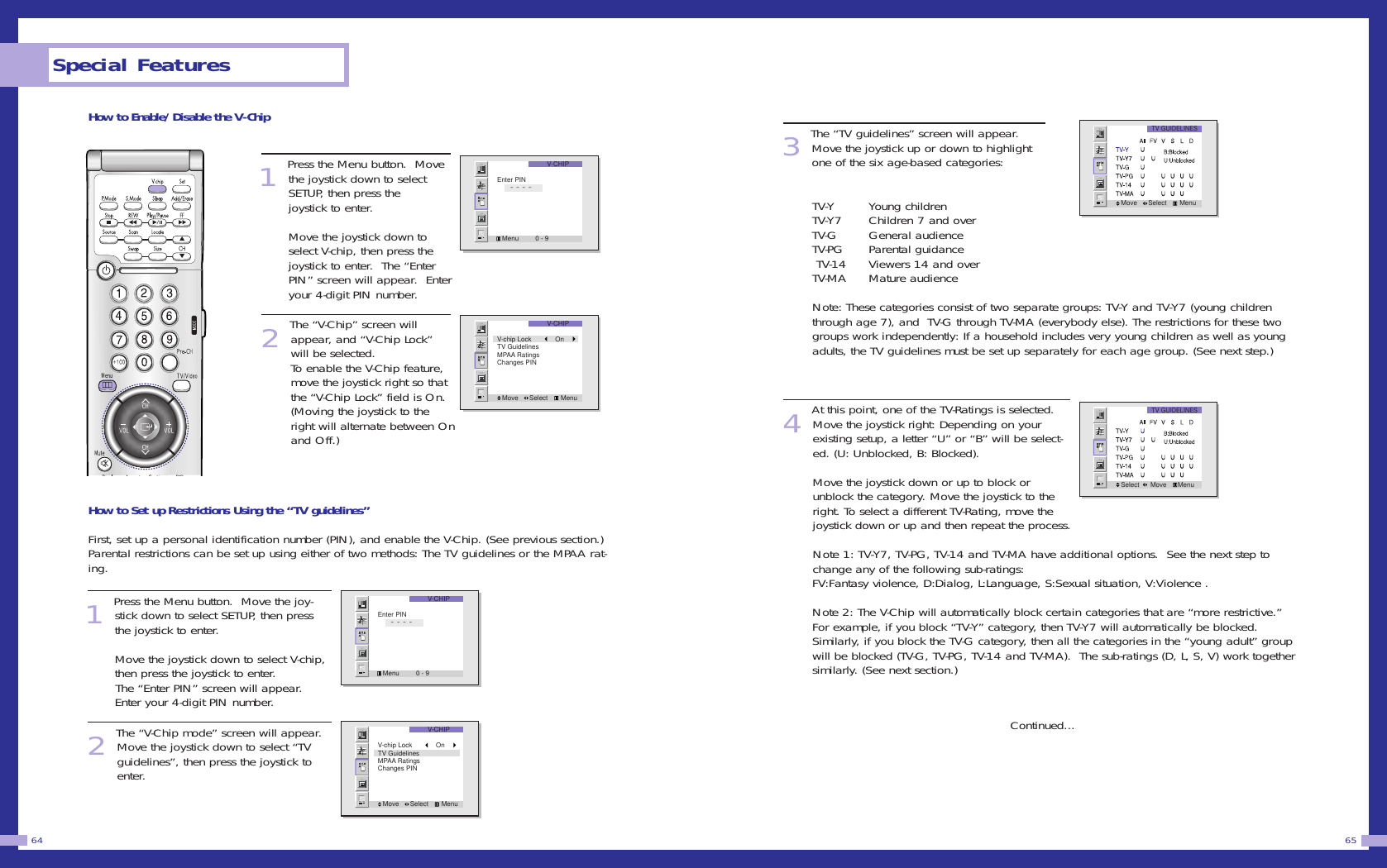

3The “TV guidelines” screen will appear.Move the joystick up or down to highlightone of the six age-based categories:TV-Y Young children TV-Y7 Children 7 and over TV-G General audience TV-PG Parental guidance TV-14 Viewers 14 and over TV-MA Mature audience Note: These categories consist of two separate groups: TV-Y and TV-Y7 (young childrenthrough age 7), and TV-G through TV-MA (everybody else). The restrictions for these twogroups work independently: If a household includes very young children as well as youngadults, the TV guidelines must be set up separately for each age group. (See next step.) 4At this point, one of the TV-Ratings is selected. Move the joystick right: Depending on yourexisting setup, a letter “U” or “B” will be select-ed. (U: Unblocked, B: Blocked). Move the joystick down or up to block orunblock the category. Move the joystick to theright. To select a different TV-Rating, move thejoystick down or up and then repeat the process. Note 1: TV-Y7, TV-PG, TV-14 and TV-MA have additional options. See the next step tochange any of the following sub-ratings: FV:Fantasy violence, D:Dialog, L:Language, S:Sexual situation, V:Violence . Note 2: The V-Chip will automatically block certain categories that are “more restrictive.”For example, if you block “TV-Y” category, then TV-Y7 will automatically be blocked.Similarly, if you block the TV-G category, then all the categories in the “young adult” groupwill be blocked (TV-G, TV-PG, TV-14 and TV-MA). The sub-ratings (D, L, S, V) work togethersimilarly. (See next section.)Continued...65How to Enable/Disable the V-Chip1 Press the Menu button. Movethe joystick down to selectSETUP, then press thejoystick to enter. Move the joystick down toselect V-chip, then press thejoystick to enter. The “EnterPIN” screen will appear. Enteryour 4-digit PIN number. 2 The “V-Chip” screen willappear, and “V-Chip Lock”will be selected.To enable the V-Chip feature,move the joystick right so thatthe “V-Chip Lock” field is On.(Moving the joystick to theright will alternate between Onand Off.)How to Set up Restrictions Using the “TV guidelines”First, set up a personal identification number (PIN), and enable the V-Chip. (See previous section.)Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rat-ing.1 Press the Menu button. Move the joy-stick down to select SETUP, then pressthe joystick to enter. Move the joystick down to select V-chip,then press the joystick to enter. The “Enter PIN” screen will appear.Enter your 4-digit PIN number. 2 The “V-Chip mode” screen will appear.Move the joystick down to select “TVguidelines”, then press the joystick toenter.Special Features64V-CHIPMenu 0 - 9Enter PIN - - - -V-CHIPMove Select MenuV-chip Lock OnTV GuidelinesMPAA RatingsChanges PINV-CHIPMenu 0 - 9Enter PIN - - - -V-CHIPMove Select MenuV-chip Lock OnTV GuidelinesMPAA RatingsChanges PINTV GUIDELINESMove Select MenuTV GUIDELINESSelect Move Menu

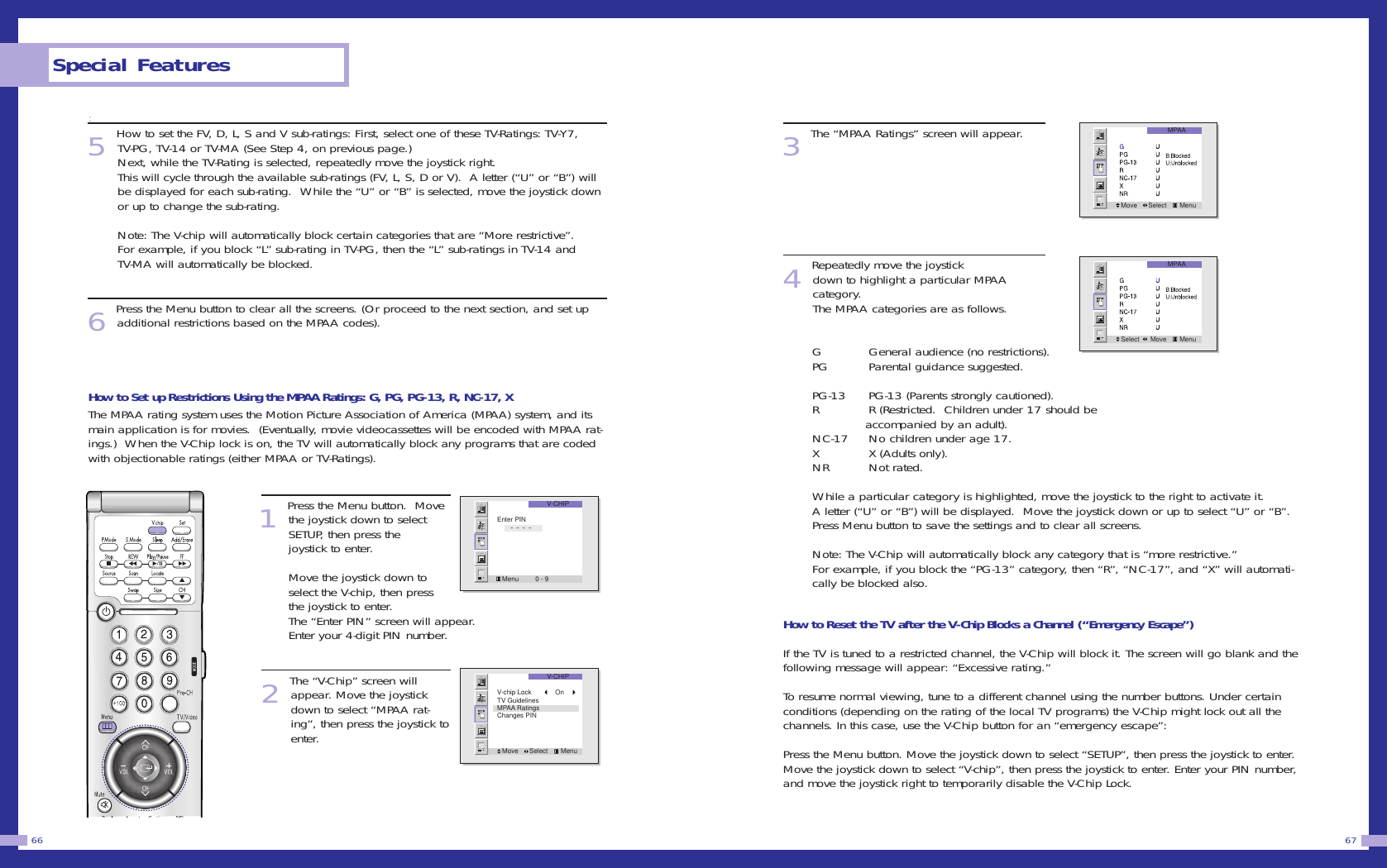

3The “MPAA Ratings” screen will appear.4Repeatedly move the joystickdown to highlight a particular MPAA category. The MPAA categories are as follows.G General audience (no restrictions). PG Parental guidance suggested.PG-13 PG-13 (Parents strongly cautioned). R R (Restricted. Children under 17 should be accompanied by an adult). NC-17 No children under age 17. X X (Adults only). NR Not rated. While a particular category is highlighted, move the joystick to the right to activate it. A letter (“U” or “B”) will be displayed. Move the joystick down or up to select “U” or “B”.Press Menu button to save the settings and to clear all screens. Note: The V-Chip will automatically block any category that is “more restrictive.”For example, if you block the “PG-13” category, then “R”, “NC-17”, and “X” will automati-cally be blocked also. How to Reset the TV after the V-Chip Blocks a Channel (“Emergency Escape”)If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and thefollowing message will appear: “Excessive rating.”To resume normal viewing, tune to a different channel using the number buttons. Under certainconditions (depending on the rating of the local TV programs) the V-Chip might lock out all thechannels. In this case, use the V-Chip button for an “emergency escape”:Press the Menu button. Move the joystick down to select “SETUP”, then press the joystick to enter.Move the joystick down to select “V-chip”, then press the joystick to enter. Enter your PIN number,and move the joystick right to temporarily disable the V-Chip Lock.67:5 How to set the FV, D, L, S and V sub-ratings: First, select one of these TV-Ratings: TV-Y7,TV-PG, TV-14 or TV-MA (See Step 4, on previous page.)Next, while the TV-Rating is selected, repeatedly move the joystick right. This will cycle through the available sub-ratings (FV, L, S, D or V). A letter (“U” or “B”) willbe displayed for each sub-rating. While the “U” or “B” is selected, move the joystick downor up to change the sub-rating. Note: The V-chip will automatically block certain categories that are “More restrictive”.For example, if you block “L” sub-rating in TV-PG, then the “L” sub-ratings in TV-14 andTV-MA will automatically be blocked. 6 Press the Menu button to clear all the screens. (Or proceed to the next section, and set upadditional restrictions based on the MPAA codes).How to Set up Restrictions Using the MPAA Ratings: G, PG, PG-13, R, NC-17, XThe MPAA rating system uses the Motion Picture Association of America (MPAA) system, and itsmain application is for movies. (Eventually, movie videocassettes will be encoded with MPAA rat-ings.) When the V-Chip lock is on, the TV will automatically block any programs that are codedwith objectionable ratings (either MPAA or TV-Ratings). 1 Press the Menu button. Movethe joystick down to selectSETUP, then press thejoystick to enter. Move the joystick down toselect the V-chip, then pressthe joystick to enter. The “Enter PIN” screen will appear.Enter your 4-digit PIN number. 2 The “V-Chip” screen willappear. Move the joystickdown to select “MPAA rat-ing”, then press the joystick toenter.Special Features66V-CHIPMenu 0 - 9Enter PIN - - - -V-CHIPMove Select MenuV-chip Lock OnTV GuidelinesMPAA RatingsChanges PINMPAAMove Select MenuMPAASelect Move Menu

PC DisplaySAMSUNG

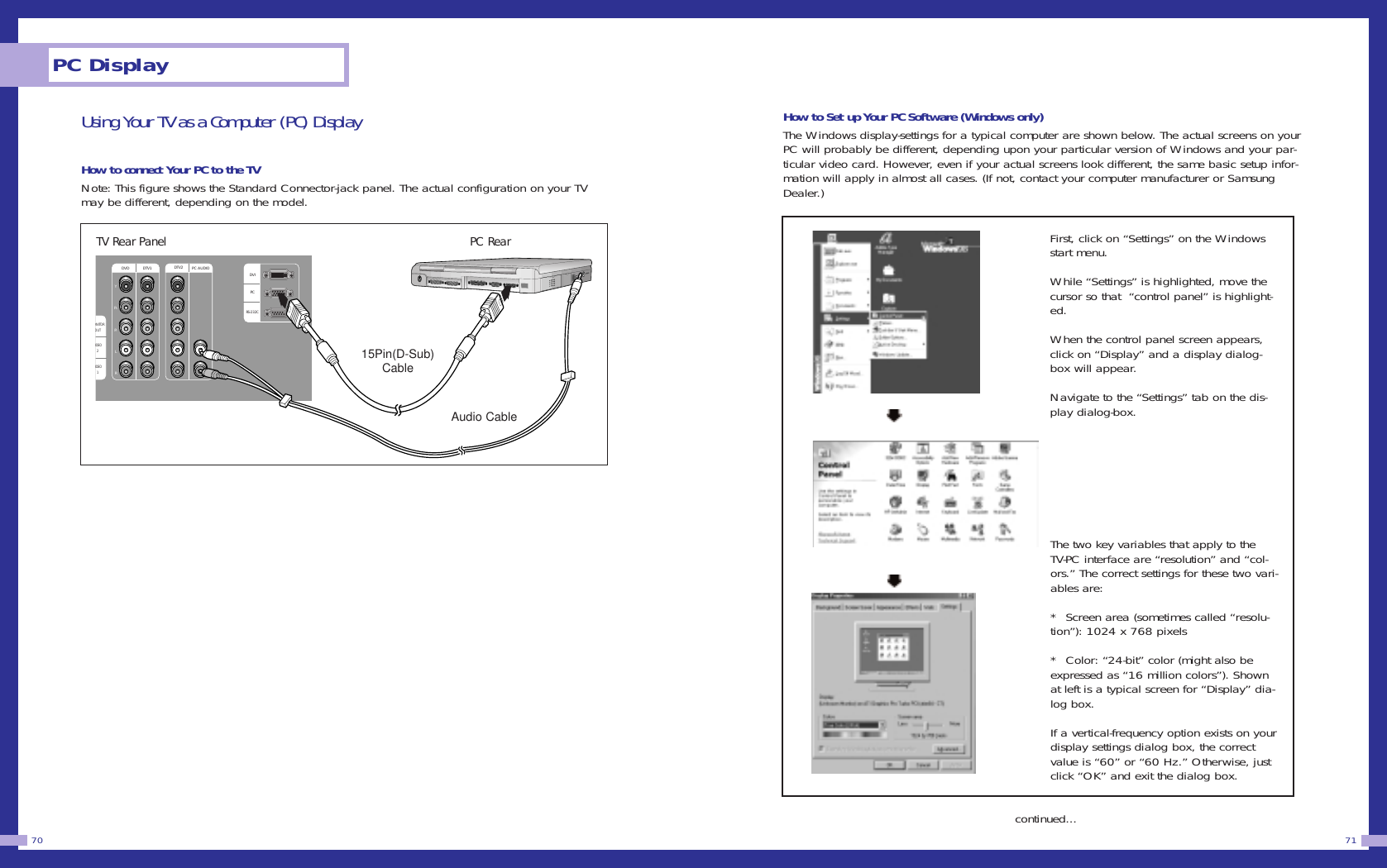

PC Display70 71Using Your TV as a Computer (PC) DisplayHow to connect Your PC to the TVNote: This figure shows the Standard Connector-jack panel. The actual configuration on your TVmay be different, depending on the model.How to Set up Your PC Software (Windows only)The Windows display-settings for a typical computer are shown below. The actual screens on yourPC will probably be different, depending upon your particular version of Windows and your par-ticular video card. However, even if your actual screens look different, the same basic setup infor-mation will apply in almost all cases. (If not, contact your computer manufacturer or SamsungDealer.)continued...TV Rear Panel PC RearDVDYPbPrLRLRDTV1ONITOROUTIDEO2IDEO1DTV2 PC AUDIO DVIPCRS-232C15Pin(D-Sub)CableAudio CableFirst, click on “Settings” on the Windowsstart menu.While “Settings” is highlighted, move thecursor so that “control panel” is highlight-ed. When the control panel screen appears,click on “Display” and a display dialog-box will appear. Navigate to the “Settings” tab on the dis-play dialog-box. The two key variables that apply to theTV-PC interface are “resolution” and “col-ors.” The correct settings for these two vari-ables are:* Screen area (sometimes called “resolu-tion”): 1024 x 768 pixels* Color: “24-bit” color (might also beexpressed as “16 million colors”). Shownat left is a typical screen for “Display” dia-log box. If a vertical-frequency option exists on yourdisplay settings dialog box, the correctvalue is “60” or “60 Hz.” Otherwise, justclick “OK” and exit the dialog box.

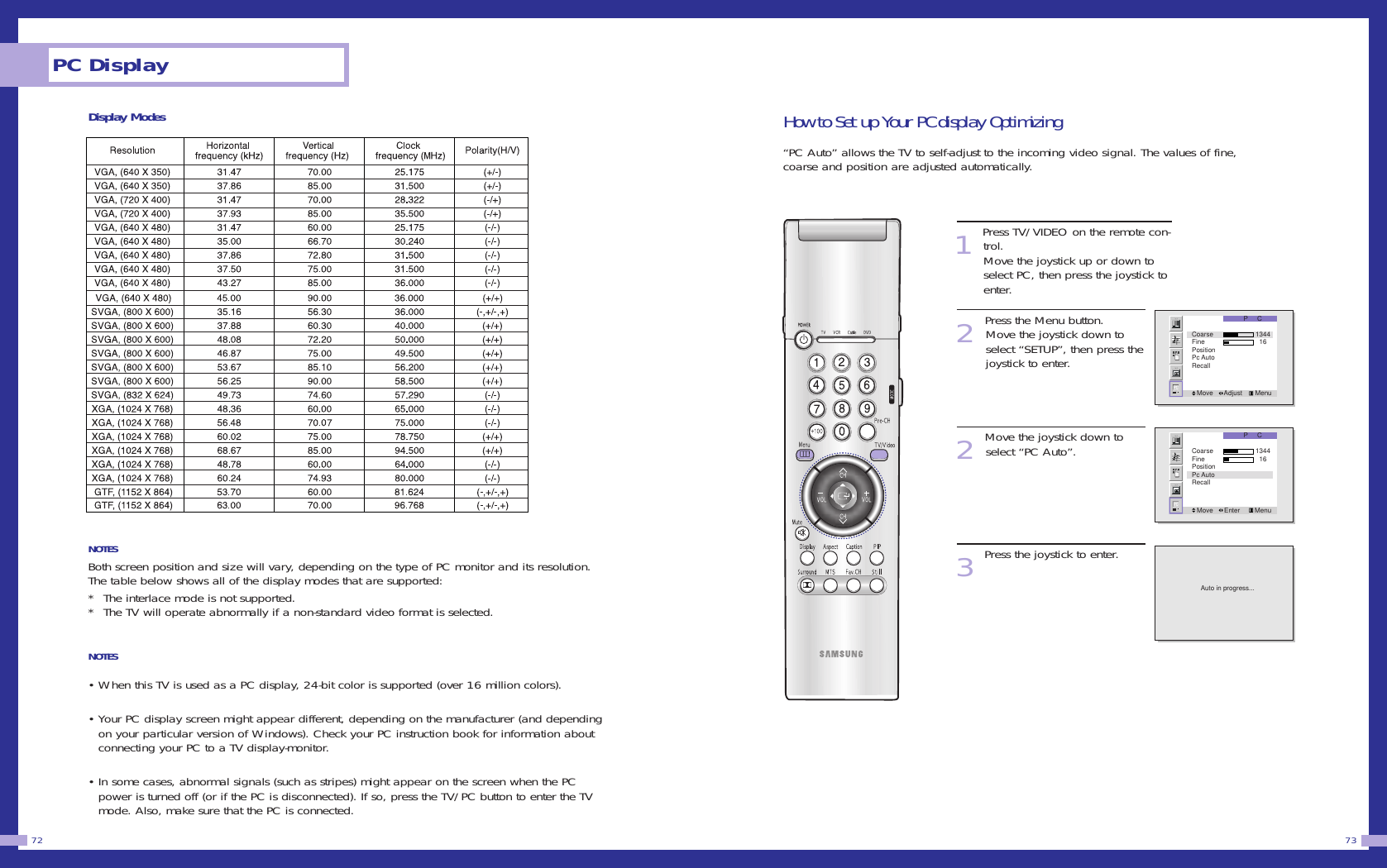

73PC Display72Display ModesNOTESBoth screen position and size will vary, depending on the type of PC monitor and its resolution.The table below shows all of the display modes that are supported:* The interlace mode is not supported.* The TV will operate abnormally if a non-standard video format is selected.NOTES • When this TV is used as a PC display, 24-bit color is supported (over 16 million colors).• Your PC display screen might appear different, depending on the manufacturer (and dependingon your particular version of Windows). Check your PC instruction book for information aboutconnecting your PC to a TV display-monitor.• In some cases, abnormal signals (such as stripes) might appear on the screen when the PCpower is turned off (or if the PC is disconnected). If so, press the TV/PC button to enter the TVmode. Also, make sure that the PC is connected.How to Set up Your PC display Optimizing“PC Auto” allows the TV to self-adjust to the incoming video signal. The values of fine,coarse and position are adjusted automatically.1Press TV/VIDEO on the remote con-trol. Move the joystick up or down toselect PC, then press the joystick toenter. 2Press the Menu button. Move the joystick down to select “SETUP”, then press thejoystick to enter.2Move the joystick down toselect “PC Auto”. 3Press the joystick to enter.P CMove Adjust MenuCoarse 1344Fine 16PositionPc AutoRecallP CMove Enter MenuCoarse 1344Fine 16PositionPc AutoRecallAuto in progress...

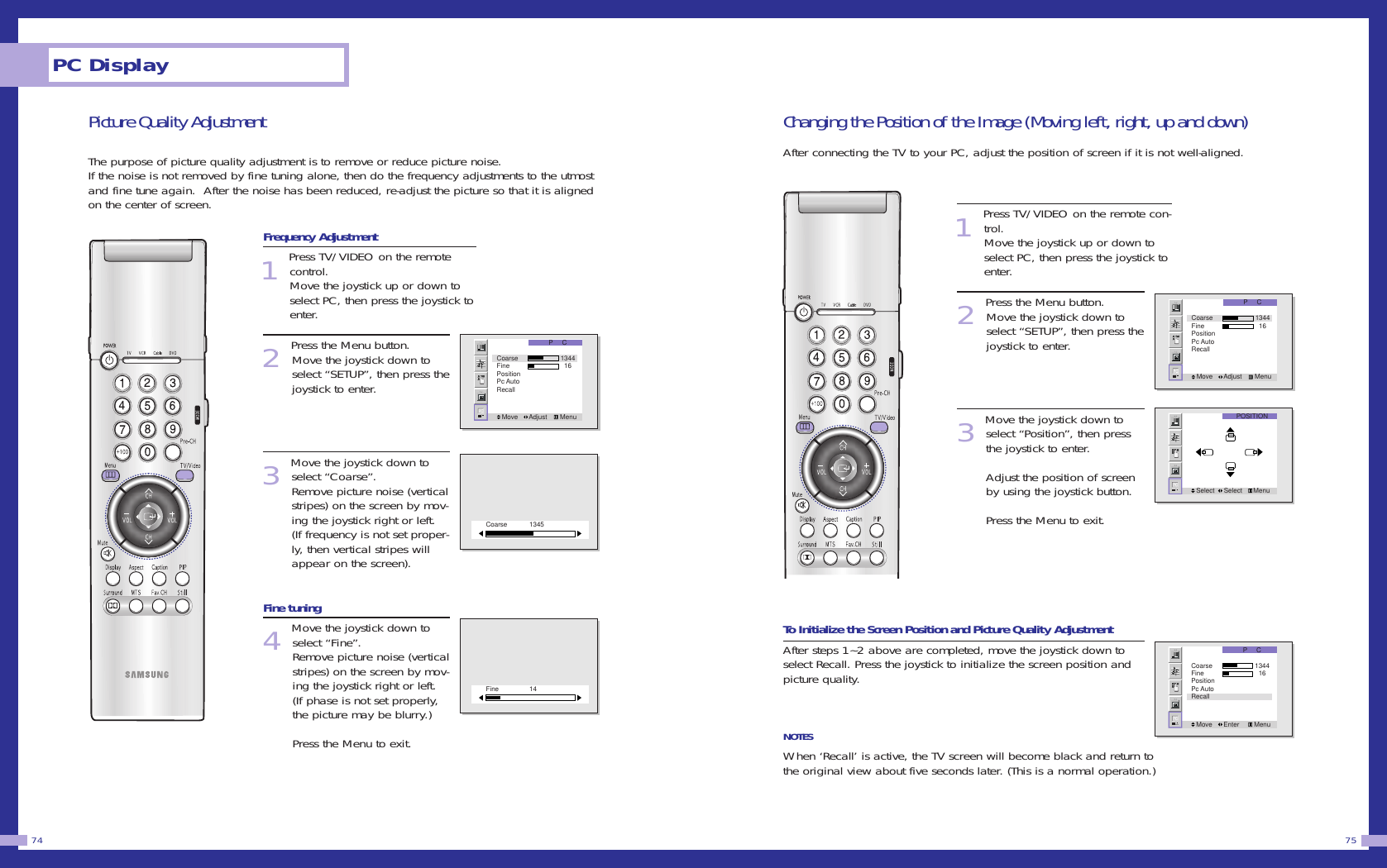

Changing the Position of the Image (Moving left, right, up and down)After connecting the TV to your PC, adjust the position of screen if it is not well-aligned.1Press TV/VIDEO on the remote con-trol. Move the joystick up or down toselect PC, then press the joystick toenter. 2Press the Menu button. Move the joystick down to select “SETUP”, then press thejoystick to enter.3Move the joystick down toselect “Position”, then pressthe joystick to enter.Adjust the position of screenby using the joystick button.Press the Menu to exit. To Initialize the Screen Position and Picture Quality AdjustmentAfter steps 1~2 above are completed, move the joystick down toselect Recall. Press the joystick to initialize the screen position andpicture quality. NOTESWhen ‘Recall’ is active, the TV screen will become black and return tothe original view about five seconds later. (This is a normal operation.)75Picture Quality AdjustmentThe purpose of picture quality adjustment is to remove or reduce picture noise.If the noise is not removed by fine tuning alone, then do the frequency adjustments to the utmostand fine tune again. After the noise has been reduced, re-adjust the picture so that it is alignedon the center of screen.Frequency Adjustment1Press TV/VIDEO on the remotecontrol. Move the joystick up or down toselect PC, then press the joystick toenter. 2Press the Menu button. Move the joystick down to select “SETUP”, then press thejoystick to enter.3Move the joystick down toselect “Coarse”. Remove picture noise (verticalstripes) on the screen by mov-ing the joystick right or left. (If frequency is not set proper-ly, then vertical stripes willappear on the screen). Fine tuning4Move the joystick down toselect “Fine”. Remove picture noise (verticalstripes) on the screen by mov-ing the joystick right or left. (If phase is not set properly,the picture may be blurry.) Press the Menu to exit. PC Display74P CMove Adjust MenuCoarse 1344Fine 16PositionPc AutoRecallP CMove Enter MenuCoarse 1344Fine 16PositionPc AutoRecallPOSITIONSelect Select MenuP CMove Adjust MenuCoarse 1344Fine 16PositionPc AutoRecallCoarse 1345Fine 14

AppendixSAMSUNG

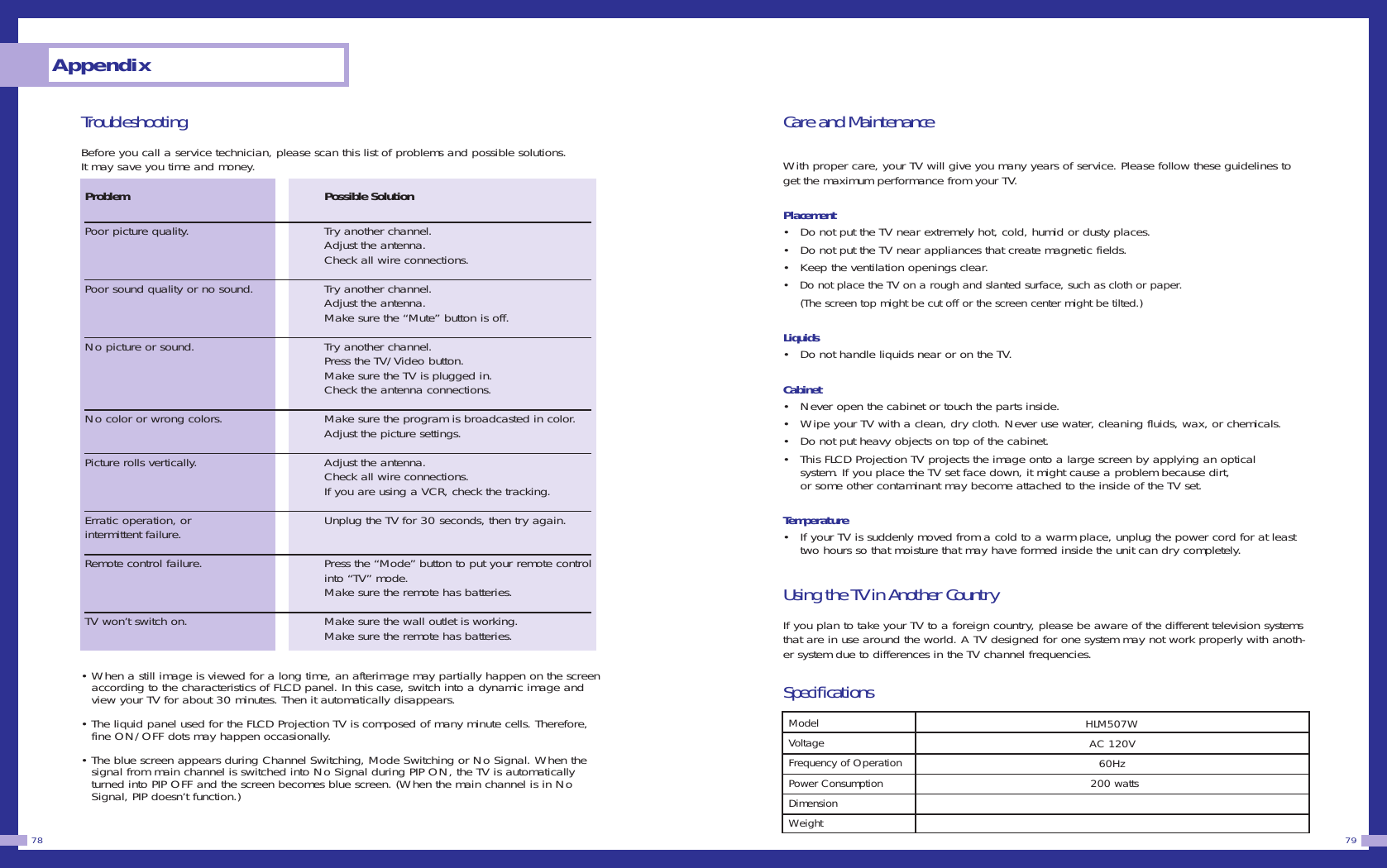

Appendix78 79Troubleshooting Before you call a service technician, please scan this list of problems and possible solutions. It may save you time and money. • When a still image is viewed for a long time, an afterimage may partially happen on the screenaccording to the characteristics of FLCD panel. In this case, switch into a dynamic image andview your TV for about 30 minutes. Then it automatically disappears.• The liquid panel used for the FLCD Projection TV is composed of many minute cells. Therefore,fine ON/OFF dots may happen occasionally.• The blue screen appears during Channel Switching, Mode Switching or No Signal. When thesignal from main channel is switched into No Signal during PIP ON, the TV is automaticallyturned into PIP OFF and the screen becomes blue screen. (When the main channel is in NoSignal, PIP doesn’t function.)Care and MaintenanceWith proper care, your TV will give you many years of service. Please follow these guidelines toget the maximum performance from your TV.Placement• Do not put the TV near extremely hot, cold, humid or dusty places.• Do not put the TV near appliances that create magnetic fields.• Keep the ventilation openings clear.• Do not place the TV on a rough and slanted surface, such as cloth or paper.(The screen top might be cut off or the screen center might be tilted.)Liquids• Do not handle liquids near or on the TV. Cabinet• Never open the cabinet or touch the parts inside.• Wipe your TV with a clean, dry cloth. Never use water, cleaning fluids, wax, or chemicals.• Do not put heavy objects on top of the cabinet.•This FLCD Projection TV projects the image onto a large screen by applying an optical system. If you place the TV set face down, it might cause a problem because dirt, or some other contaminant may become attached to the inside of the TV set. Temperature•If your TV is suddenly moved from a cold to a warm place, unplug the power cord for at leasttwo hours so that moisture that may have formed inside the unit can dry completely.Using the TV in Another CountryIf you plan to take your TV to a foreign country, please be aware of the different television systemsthat are in use around the world. A TV designed for one system may not work properly with anoth-er system due to differences in the TV channel frequencies.SpecificationsProblem Possible SolutionPoor picture quality. Try another channel.Adjust the antenna.Check all wire connections.Poor sound quality or no sound. Try another channel.Adjust the antenna.Make sure the “Mute” button is off.No picture or sound. Try another channel.Press the TV/Video button.Make sure the TV is plugged in.Check the antenna connections.No color or wrong colors. Make sure the program is broadcasted in color.Adjust the picture settings.Picture rolls vertically. Adjust the antenna.Check all wire connections.If you are using a VCR, check the tracking.Erratic operation, or Unplug the TV for 30 seconds, then try again.intermittent failure.Remote control failure. Press the “Mode” button to put your remote controlinto “TV” mode. Make sure the remote has batteries.TV won’t switch on. Make sure the wall outlet is working.Make sure the remote has batteries.ModelVoltageFrequency of OperationPower ConsumptionDimensionWeightHLM507WAC 120V 60Hz200 watts

81Appendix80Rear Panel Air Vent It is important to clean the panel that covers the rear vent of your projection TV every six monthsto keep the unit from overheating. (The TV illustration shown does not necessary match the design of your TV set.)1Turn the TV off and unplugit.2Remove the screw andtake off the cover.3Remove the dust from thevent cover using a vacuumcleaner (with nozzle attachment).4Replace the cover and thescrew.Memo

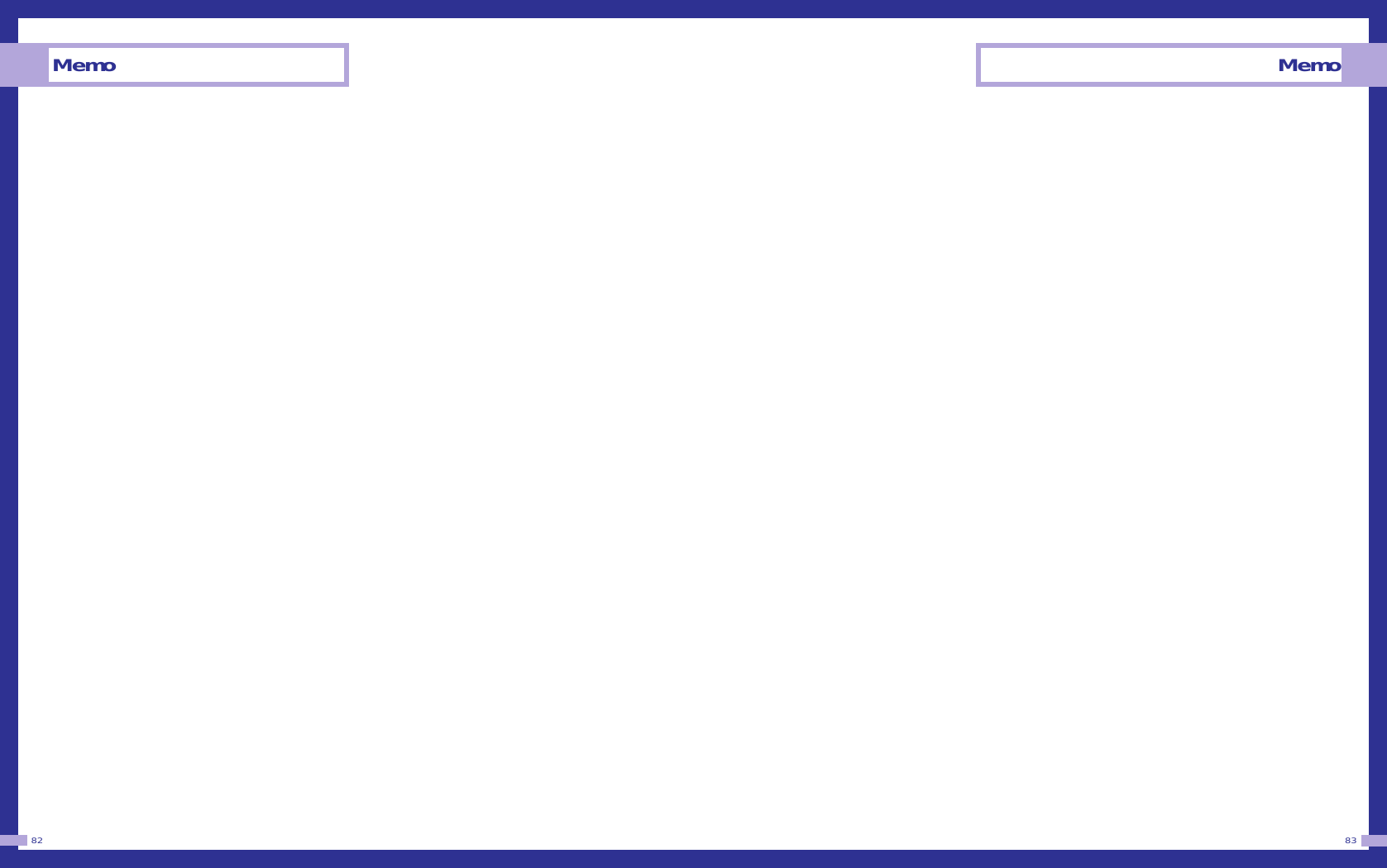

83Memo82Memo
