Samsung Electronics Co DVDVR330 DVD Recorder / Video Cassette Recorder User Manual 1

Samsung Electronics Co Ltd DVD Recorder / Video Cassette Recorder Users Manual 1

Contents

Users Manual 1

Instruction ManualDVD-VR330www.samsung.comAK68-00995A-00English00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 1
Getting Started2- EnglishWarningTO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOTREMOVE THE COVER(OR BACK).NO USER-SERVICEABLE PARTS ARE INSIDE. REFERSERVICING TO QUALIFIED SERVICE PERSONNEL.This symbol indicates “dangerous voltage”inside the product that presents a risk ofelectric shock or personal injury.This symbol indicates important instructionsaccompanying the product.Do not install this equipment in a confined space suchas a bookcase or similar unit.WARNING : To prevent damage which may result in fire orelectric shock hazard, do not expose this appli-ance to rain or moisture.CAUTION : This DVD Recorder & VCR USES AN INVISI-BLE LASER BEAM WHICH CAN CAUSEHAZARDOUS RADIATION EXPOSURE IFDIRECTED.BE SURE TO OPERATE RECORDER COR-RECTLY AS INSTRUCTED.CAUTIONTHIS PRODUCT UTILIZES A LASER.USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THANTHOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.CAUTIONSCaution: To prevent electric shock, match wide blade ofplug to wide slot, fully insert.Attention: Pour éviter les chocs électriques, introduíre lalame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu aufond.This product satisfies FCC regulations when shieldedcables and connectors are used to connect the unit toother equipment. To prevent electromagnetic interferencewith electric appliances, such as radios and televisions, useshielded cables and connectors for connections.FCC NOTE (for U.S.A):This equipment has been tested and found to complywith the limits for a Class B digital device, pursuant toPart 15 of the FCC Rules. These limits are designed toprovide reasonable protection against harmful interfer-ence in a residential installation. This equipment gener-ates, uses and can radiate radio frequency energy and,if not installed and used in accordance with the instruc-tions, may cause harmful interference to radio communi-cations. However, there is no guarantee that interfer-ence will not occur in a particular installation. If thisequipment does cause harmful interference to radio ortelevision reception, which can be determined by turningthe equipment off and on, the user is encouraged to tryto correct the interference by one or more of the follow-ing measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment andreceiver.• Connect the equipment into an outlet on a circuit differ-ent from that to which the receiver is connected.• Consult the dealer or an experienced radio/TV techni-cian for help.Caution: FCC regulations state that any unauthorizedchanges or modifications to this equipmentmay void the user’s authority to operate it.This unit can be used only where the power supply is AC 120V, 60Hz. It cannot be used else-where.This DVD Recorder & VCR is designed and manufactured to respond to the RegionManagement Information.If the Region number of a DVD disc does not corre-spond to the Region number of this , the DVDRecorder & VCR cannot play the disc.This device is protected by U.S. PatentNos.4,631,603;4,577,216;4,819,098;4,907,093; and6,516,132. This product incorporates copyright pro-tection technology that is protected by U.S. patentsand other intellectual property rights. Use of thiscopyright protection technology must beauthorized by Macrovision,and is intended for homeand other limited viewing uses only unless otherwiseauthorized by Macrovision. Reverse engineering or disassembly is prohibited.This product is covered by one or more of the following U.S. patents:5,034,830 5,060,200 5,457,669 5,561,6495,691,858 5,705,762 5,987,417 6,043,9126,222,983 6,272,096 6,377,524 6,377,5316,385,587 6,389,569 6,389,570 6,408,4086,466,532 6,473,736 6,477,501 6,480,8296,556,520 6,556,521 6,556,522 6,594,2086,674,697 6,674,957 6,721,493 6,728,4746,741,535 09/610381 09/610695Note00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 2
Getting StartedEnglish - 3Important Safety InstructionsRead these operating instructions carefully before usingthe unit. Follow all the safety instructions listed below.Keep these operating instructions handy for future refer-ence.1) Read these instructions.2) Keep these instructions.3) Heed all warnings.4) Follow all instructions.5) Do not use this apparatus near water.6) Clean only with dry cloth.7) Do not block any ventilation openings, Install inaccordance with the manufacturer's instructions.8) Do not install near any heat sources such as radi-ators, heat registers, stoves, or other apparatus(including amplifiers) that produce heat.9) Do not defeat the safety purpose of the polarizedor grounding- type plug. A polarized plug has twoblades with one wider than the other. A groundingtype plug has two blades and a third groundingprong. The wide blade or the third prong are pro-vided for your safety. if the provided plug does notfit into your outlet, consult an electrician forreplacement of the obsolete outlet.10) Protect the power cord from being walked on orpinched particularly at plugs, convenience recep-tacles, and the point where they exit from theapparatus.11) Only use attachments/accessories specified bythe manufacturer.12) Use only with the cart, stand, tripod, bracket, ortable specified by the manufacturer, or sold withthe apparatus. When a cart is used, use cautionwhen moving the cart/apparatus combination toavoid injury from tip-over.13) Unplug this apparatus during lightning storms orwhen unused for long periods of time.14) Refer all servicing to qualified service personnel.Servicing is required when the apparatus hasbeen damaged in any way, such as power-sup-ply cord or plug is damaged, liquid has beenspilled or objects have fallen into the apparatus,the apparatus has been exposed to rain or mois-ture, does not operate normally, or has beendropped.Handling Cautions• Before connecting other components to thisrecorder, be sure to turn them all off.• Do not move the recorder while a disc is beingplayed, or the disc may be scratched or broken,and the recorder’s internal parts may be damaged.• Do not put a flower vase filled with water or anysmall metal objects on the recorder.• Be careful not to put your hand into the disc tray.• Do not place anything other than the disc in thedisc tray.Precaution• Exterior interference such as lightning and static elec-tricity can affect normal operation of this recorder. Ifthis occurs, turn the DVD Recorder & VCR off and onagain with the POWER button, or disconnect and thenreconnect the AC power cord to the AC power outlet.The recorder will operate normally.• Be sure to remove the disc and turn off the recorder afteruse.• Disconnect the AC power cord from the AC outletwhen you don’t intend to use the recorder for longperiods of time.• Clean the disc by wiping in a straight line from theinside to the outside of the disc.Maintenance of CabinetFor safety reasons, be sure to disconnect the AC powercord from the AC outlet.• Do not use benzene, thinner, or other solvents for cleaning.• Wipe the cabinet with a soft cloth.Disc Handling•Use discs with regular shapes.If an irregular disc (a disc witha special shape) is used, thisDVD Recorder & VCR may bedamaged.Holding discs• Avoid touching the surface of a discwhere recording is performed.DVD-RAM, DVD-RW and DVD-R• Clean with an optional DVD-RAM/PDdisc cleaner.Do not use cleaners or cloths for CDsto clean DVD-RAM/DVD-RW/DVD-Rdiscs.DVD-Video, CD• Wipe off dirt or contamination on the disc with a softcloth.Cautions on handling discs• Do not write on the printed side with a ball-point penor pencil.• Do not use record cleaning sprays or antistatic. Also,do not use volatile chemicals, such as benzene orthinner.00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 3
Getting Started• Only JPEG files with the ".jpg", ".JPG" extension can beused.• The unit can handle a maximum of 1000 files and folders.• Maximum size of progressive JPEG is 3M pixels.• MOTION JPEG is not supported.• Use a 700MB(80 minutes) CD-R/-RW disc.If possible, do not use a 800MB(90 minutes) or above disc,as the disc may not play back.• If the CD-R/-RW disc was not recorded as a closed session,you may experience a delay in the early play-back time, andall recorded files may not play.• Some CD-R/-RW discs may not be playable with this unit,depending on the device which was used to burn them.For contents recorded on CD-R/-RW media from CDs foryour personal use, playability may vary depending on con-tents and discs.DVD-R Disc Playback and Recording• Once a DVD-R recorded in Video Mode is finalized, itbecomes DVD-Video.• You can record onto the available space on the disc andperform editing functions such as giving titles to discs andprograms and erasing programs before finalizing.• When programming is erased from a DVD-R, that spacedoes not become available. Once an area on a DVD-R isrecorded on, that area is no longer available for recording,whether the recording is erased or not.• It takes about 30 seconds for the unit to complete recordingmanagement information after recording finishes.• This product optimizes the DVD-R for each recording.Optimizing is carried out when you start recording afterinserting the disc or turning on the unit. Recording onto thedisc may become impossible if optimizing is carried out toomany times.• Playback may be impossible in some cases due to the con-dition of recording.• This unit can play back DVD-R discs recorded and finalizedwith a Samsung DVD video recorder. It may not be able toplay some DVD-R discs depending on the disc and the con-dition of the recording.DVD-RW Disc Playback and Recording• Recording and playback can be performed on DVD-RWdiscs in both Video and VR Modes.• Once a DVD-RW recorded in VR Mode is finalized, you can-not perform additional recording.• Once a DVD-RW recorded in Video Mode is finalized, itbecomes DVD-Video.• In both modes, playback can be performed before and afterfinalization, but additional recording, deleting and editing cannot be performed after finalization. • If you want to record the disc in VR Mode and then record inV Mode, be sure to execute Format. Be careful when exe-cuting Format because all the recorded data may be lost.• A DVD-RW blank disc is initialized to VR Mode when first ini-tialized.• Do not apply labels or stickers to discs. (Do not usediscs fixed with exposed tape adhesive or leftoverpeeled-off stickers.)• Do not use scratch-proof protectors or covers.• Do not use discs printed with label printers availableon the market.• Do not load warped or cracked discs.Disc StorageBe careful not to harm the disc because the data onthese discs is highly vulnerable to the environment.• Do not keep under direct sunlight.• Keep in a cool ventilated area.• Store vertically.• Keep in a clean protection jacket.• If you move your DVD Recorder & VCR suddenly froma cold place to a warm place, condensation may gen-erate on the operating parts and lens and causeabnormal disc playback. In this case, do not connectthe plug to the power outlet and wait for two hours.Then insert the disc and try to play back again. It willwork properly when condensation has evaporated.Disc SpecificationsDVD-Video• A digital versatile disc (DVD) can contain up to 135-minutes of images, 8 audio languages and 32 subtitlelanguages. It is equipped with MPEG-2 picture com-pression and Dolby 3D surround, allowing you toenjoy vivid and clear theater quality images in thecomfort of your own home.• When switching from the first layer to the second layerof a double-layered DVD Video disc, there may bemomentary distortion in the image and sound.This is not a malfunction of the unit.• Once a DVD-RW/-R recorded in Video Mode is final-ized, it becomes DVD-Video.Audio CD•An audio disc on which 44.1kHz PCM Audio is record-ed.• Plays CD-DA format audio CD-R and CD-RW discs.This unit may not be able to play some CD-R or CD-RW discs due to the condition of the recording.CD-R/-RW• Only CD-R discs with MP3 files recorded withISO9660 or JOLIET format can be played back• Only MP3 files with the "mp3" or "MP3" extension canbe used.• For MP3 files recorded with a VBR(Variable BitRates), from 32 Kbps to 320 Kbps, the sound may cutin out.• Playable bitrate range is from 56Kbps to 320Kbps.• The unit can handle a maximum of 1000 files and fold-ers.MP3 CD-R/-RWJPEG CD-R/-RWUsing CD-R/-RW4- English00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 4

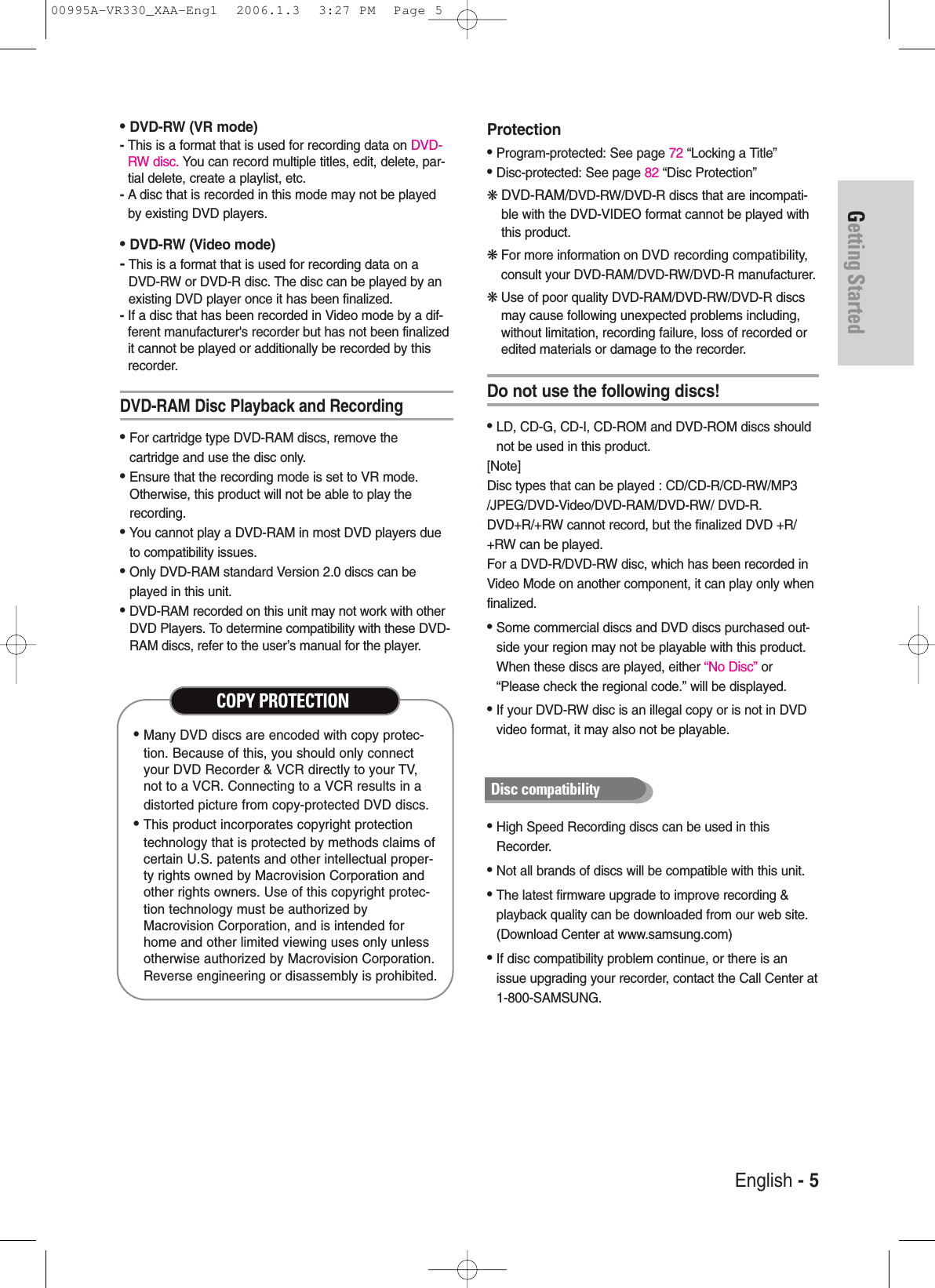

Getting StartedEnglish - 5• DVD-RW (VR mode)- This is a format that is used for recording data on DVD-RW disc. You can record multiple titles, edit, delete, par-tial delete, create a playlist, etc.- A disc that is recorded in this mode may not be playedby existing DVD players.• DVD-RW (Video mode)-This is a format that is used for recording data on aDVD-RW or DVD-R disc. The disc can be played by anexisting DVD player once it has been finalized.- If a disc that has been recorded in Video mode by a dif-ferent manufacturer's recorder but has not been finalizedit cannot be played or additionally be recorded by thisrecorder.DVD-RAM Disc Playback and Recording• For cartridge type DVD-RAM discs, remove the cartridge and use the disc only.• Ensure that the recording mode is set to VR mode.Otherwise, this product will not be able to play therecording.• You cannot play a DVD-RAM in most DVD players dueto compatibility issues.• Only DVD-RAM standard Version 2.0 discs can beplayed in this unit.• DVD-RAM recorded on this unit may not work with otherDVD Players. To determine compatibility with these DVD-RAM discs, refer to the user’s manual for the player.• Many DVD discs are encoded with copy protec-tion. Because of this, you should only connectyour DVD Recorder & VCR directly to your TV,not to a VCR. Connecting to a VCR results in adistorted picture from copy-protected DVD discs.• This product incorporates copyright protectiontechnology that is protected by methods claims ofcertain U.S. patents and other intellectual proper-ty rights owned by Macrovision Corporation andother rights owners. Use of this copyright protec-tion technology must be authorized byMacrovision Corporation, and is intended forhome and other limited viewing uses only unlessotherwise authorized by Macrovision Corporation.Reverse engineering or disassembly is prohibited.COPY PROTECTIONProtection• Program-protected: See page 72 “Locking a Title”• Disc-protected: See page 82 “Disc Protection”❋DVD-RAM/DVD-RW/DVD-R discs that are incompati-ble with the DVD-VIDEO format cannot be played withthis product.❋For more information on DVD recording compatibility,consult your DVD-RAM/DVD-RW/DVD-R manufacturer.❋Use of poor quality DVD-RAM/DVD-RW/DVD-R discsmay cause following unexpected problems including,without limitation, recording failure, loss of recorded oredited materials or damage to the recorder.Do not use the following discs!• LD, CD-G, CD-I, CD-ROM and DVD-ROM discs shouldnot be used in this product.[Note] Disc types that can be played : CD/CD-R/CD-RW/MP3/JPEG/DVD-Video/DVD-RAM/DVD-RW/ DVD-R. DVD+R/+RW cannot record, but the finalized DVD +R/+RW can be played. For a DVD-R/DVD-RW disc, which has been recorded inVideo Mode on another component, it can play only whenfinalized. • Some commercial discs and DVD discs purchased out-side your region may not be playable with this product.When these discs are played, either “No Disc” or“Please check the regional code.” will be displayed. • If your DVD-RW disc is an illegal copy or is not in DVDvideo format, it may also not be playable.• High Speed Recording discs can be used in thisRecorder.• Not all brands of discs will be compatible with this unit.• The latest firmware upgrade to improve recording &playback quality can be downloaded from our web site.(Download Center at www.samsung.com)• If disc compatibility problem continue, or there is anissue upgrading your recorder, contact the Call Center at1-800-SAMSUNG.Disc compatibility00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 5
Getting Started6- EnglishContentsGetting StartedGetting StartedWarning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2Precaution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . .3Handling Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3Maintenance of Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . .3Disc Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3Disc Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4Disc Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4General Features . . . . . . . . . . . . . . . . . . . . . . . . . . .8Before Reading the User’s Manual . . . . . . . . . . . . .8How to use the DVD Recorder & VCR . . . . . . . . . . .9Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11Front Panel Display . . . . . . . . . . . . . . . . . . . . . . . . . . . .11Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12Tour of the Remote Control . . . . . . . . . . . . . . . . . . . . . .13Connecting & Setting UpConnecting & Setting UpQuick Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . .14Step 1 : Connecting the Antenna Cable . . . . . . . . . .15Antenna + DVD Recorder & VCR + TV : No Cable box . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15Antenna +Cable box + DVD Recorder & VCR + TV : Cable box with many scrambled channels . . . . . . . . . . . . . . . . . . . . . . . . . . . .16Antenna + DVD Recorder & VCR + Cable box +TV : Cable box with a few scrambled channels . . . . . . . . . . . . . . . . . . . . . . . . . . . .17Step 2 : Connecting the Video Cable . . . . . . . . . . . .18Connecting to a Video input jack . . . . . . . . . . . . . . . . . .18Connecting to an S-video input jack . . . . . . . . . . . . . . . .19Connecting to Component video inputjacks(Y,PB,PR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20Step 3 : Connecting the Audio Cable . . . . . . . . . . .21Connecting to your TV . . . . . . . . . . . . . . . . . . . . . . . .21Connecting to a stereo amplifier with analog input jacks . . . . . . . . . . . . . . . . . . . . . . . . . . .22Connecting to an AV amplifier with adigital input jack . . . . . . . . . . . . . . . . . . . . . . . . . . . .23Step 4 : Connecting External Devices . . . . . . . . . .24Connecting a VCR, Set-Top Box(STB) or DVD player to the AV IN 1 jacks . . . . . . . . . . . . . . .24Connecting a Camcorder to theAV IN 2 jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25Connecting a Camcorder to the DV IN jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26Step 5 : Connecting the Power Cord . . . . . . . . . . .27Step 6 : Preparing the Remote Control . . . . . . . . .27Setting the Remote Control . . . . . . . . . . . . . . . . . . . . .28System SetupSystem SetupOn-Screen Menu Navigation . . . . . . . . . . . . . . . . .29Auto Clock Set . . . . . . . . . . . . . . . . . . . . . . . . . . .30Manual Clock Set . . . . . . . . . . . . . . . . . . . . . . . . .31Channel Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32Auto Channel Memory . . . . . . . . . . . . . . . . . . . . . .32Channel Add/Delete . . . . . . . . . . . . . . . . . . . . . . .33RF Output Channel . . . . . . . . . . . . . . . . . . . . . . . .33Setting Up the Language Options . . . . . . . . . . . . .34 Setting Up the Audio Options . . . . . . . . . . . . . . . .35Setting Up the Display (Video) Options . . . . . . . . .36Setting Up the Parental Control . . . . . . . . . . . . . . .37VCR Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38Video Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39DVD EP Mode Time . . . . . . . . . . . . . . . . . . . . . . .40Automatic Chapter Creator . . . . . . . . . . . . . . . . . .40Quick Recording . . . . . . . . . . . . . . . . . . . . . . . . . . .41PlaybackPlaybackDVD PlaybackBefore Playing . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 Playing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . .43Using the Disc Menu and Title Menu . . . . . . . . . . .44Using the Search & Skip Functions . . . . . . . . . . . .44Slow Motion Play / Step Motion Play . . . . . . . . . . .4500995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 6
Getting StartedEnglish - 7About ANYKEY . . . . . . . . . . . . . . . . . . . . . . . . . . .45Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . .46Selecting the Subtitle & Audio Language . . . . . . . .47Changing the Camera Angle . . . . . . . . . . . . . . . . .48Zooming-In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48Using the Bookmarks . . . . . . . . . . . . . . . . . . . . . .49Using the Markers . . . . . . . . . . . . . . . . . . . . . . . . .50Playing back an Audio CD (CD-DA) . . . . . . . . . . . .51Playing back an MP3 CD . . . . . . . . . . . . . . . . . . . .52Repeat Playback of an Audio/MP3 CD . . . . . . . . .53Play Option Mode . . . . . . . . . . . . . . . . . . . . . . . . .53To Program Tracks . . . . . . . . . . . . . . . . . . . . . . . . .54Playing a Picture CD . . . . . . . . . . . . . . . . . . . . . . .54VCR PlaybackPlaying the VCR . . . . . . . . . . . . . . . . . . . . . . . . . . .55Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55Special VCR Playback Features . . . . . . . . . . . . . .56S-VHS Playback . . . . . . . . . . . . . . . . . . . . . . . . . .56Variable Search System . . . . . . . . . . . . . . . . . . . . .56RecordingRecordingDVD RecordingBefore Recording . . . . . . . . . . . . . . . . . . . . . . . . .58Recordable discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58Recording Formats . . . . . . . . . . . . . . . . . . . . . . . . . . .59Recording Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59Unrecordable video . . . . . . . . . . . . . . . . . . . . . . . . . . .59Recording the Current Channel you are watching . .60Recording from External Devices . . . . . . . . . . . . . .61Recording through a DV Input jack . . . . . . . . . . . .61Making a One Touch Recording(OTR) . . . . . . . . . .62Making a Timer Recording . . . . . . . . . . . . . . . . . . .62Editing the Scheduled Record List . . . . . . . . . . . . .64Deleting the Scheduled Record List . . . . . . . . . . . .64VCR RecordingBasic VCR Recording . . . . . . . . . . . . . . . . . . . . . .65Check Remaining Time . . . . . . . . . . . . . . . . . . . . .66Special Recording Features . . . . . . . . . . . . . . . . .66 Copy to DVD or VCR . . . . . . . . . . . . . . . . . . . . . . .66 EditingEditingPlaying the Title List . . . . . . . . . . . . . . . . . . . . . . . .69 Basic Editing (Title List) . . . . . . . . . . . . . . . . . . . . .71Renaming(Labeling) a Title . . . . . . . . . . . . . . . . . . . . .71Locking(Protecting) a Title . . . . . . . . . . . . . . . . . . . . . .72 Deleting a Title . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72Deleting a Section of a Title . . . . . . . . . . . . . . . . . . . .73Advanced Editing (Playlist) . . . . . . . . . . . . . . . . . . .74Creating a Playlist . . . . . . . . . . . . . . . . . . . . . . . . . . . .74Playing Titles in the Playlist . . . . . . . . . . . . . . . . . . . . .75Renaming a Playlist Title . . . . . . . . . . . . . . . . . . . . . . .76Editing a Scene for the Playlist . . . . . . . . . . . . . . . . . .77Copying a Playlist Title to the VCR . . . . . . . . . . . . . . .80Deleting a Playlist Title from the Playlist . . . . . . . . . . .80Disc Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . .81Editing the Disc Name . . . . . . . . . . . . . . . . . . . . . .81Disc Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82 Formatting a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . .82 Finalizing a disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83Delete All Title Lists . . . . . . . . . . . . . . . . . . . . . . . . . . .84Unfinalizing a disc (V/VR mode) . . . . . . . . . . . . . . . . .85ReferenceReferenceTroubleshooting(DVD-VIDEO/DVD-RAM/DVD-RW/DVD-R) . . . . .87Troubleshooting(DVD) . . . . . . . . . . . . . . . . . . . . . .88Troubleshooting(VCR) . . . . . . . . . . . . . . . . . . . . . .89Problems and Solutions(Display error message) . . . . . . . . . . . . . . . . . . . . .90Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .9200995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 7
Getting Started8- EnglishBefore Reading theUser’s ManualAbout the use of this user’s manual1) Be sure to be familiar with Safety Instructions beforeusing this product. (See pages 2~5)2) If a problem occurs, check the Troubleshooting. (See pages 87~89)©2006 Samsung Electronics Co.All rights reserved; No part or whole of this user’smanual may be reproduced or copied without the priorwritten permission of Samsung Electronics Co.Make sure to check the following terms before readingthe user’s manual.General FeaturesThe DVD-VR330 allows you to record and play highquality digital video on DVD-RAM/DVD-RW/DVD-Rdiscs. You can record and edit digital video on DVD-RAM/DVD-RW/DVD-R discs as if they were VCR tapes. High quality digital audio and video recording and playbackRecord up to about 16-hour images with a double side 9.4GB DVD-RAM disc, and up to about 8-hour images with a4.7 GB DVD-RAM/DVD-RW/DVD-R disc, depending on therecording mode.Creating DVD video titles using DVD-RW/DVD-R discsWith the DVD-VR330, you can create your own DVD videotitles on 4.7 GB DVD-RW/DVD-R discs.A Variety of Recording OptionsSelect an appropriate recording mode between XP, SP, LPand EP to meet your recording needs. (See page 60.) • XP mode - High quality, about 1 hour• SP mode - Standard quality, about 2 hours• LP mode - Low quality, about 4 hours• EP mode - Lower quality, about 6 or 8 hoursCopying digital camcorder content using DV input jackRecord digital camcorder images onto DVD-RAM/DVD-RW/DVD-R discs or video tape using the DV inputjack (IEEE 1394-4pin). (See page 61.)High quality progressive scanProgressive scanning provides high resolution and flickerfree video. The 10-bit 54-MHz DAC, 2D Y/C Separating cir-cuitry and Time Base Corrector processor technology pro-vide you with the highest image playback and recordingquality. (See page 20.)Component progressive scan output video is available inboth DVD and VCR modes. A variety of functions with easy-to-use userinterfaceIntegrated menu system and messaging functionality allowyou to perform the desired operations easily and conve-niently. With a DVD-RAM/DVD-RW(VR mode) disc, youcan edit recorded images, create playlist, and edit video inspecific sequence according to your needs.CopyrightIcons that will be used in manualIcon Term DefinitionThis involves a function available DVD in DVD or DVD-R/DVD-RW discs that have been recorded and finalized in Video Mode.This involves a function available RAM in DVD-RAM.This involves a function available RW in DVD-RW.This involves a function available Rin DVD-R.CD This involves a function available in a data CD (CD-R or CD-RW).This involves a function availableJPEG in CD-R/-RW or DVD-R/-RW/-RAM discs. This involves a function availableMP3 in CD-R/-RW or DVD-R/-RW/-RAM discs. This involves a case where a Caution function does not operate or settings may be cancelled.This involves tips or instructions NOTE on the page that help eachfunction operate. One-TouchA function that can be operatedbuttonby using only one button.ANYKEY A function that can be operated button by using ANYKEY button.00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 8
Getting StartedEnglish - 9How to use the DVDRecorder & VCRStep 1 Select the disc typeStep 2Format the disc to start recordingThis unit can record on the following types of discs.If you want to repeatedly record on the same disc oryou want to edit the disc after recording, select arewritable DVD-RW or DVD-RAM type disc. If youwant to save a recording without any changes,choose a non-rewritable DVD-R.Unlike a VCR, the recorder automatically starts format-ting when an unused disc is inserted. This is requiredfor the preparation of recording on a disc.Using a DVD-RAMThis type of disc can be formatted in DVD-VideoRecording format (VR mode). You can edit recordedimages and create a playlist in a specific sequenceaccording to your requirements.Using a DVD-RWThis type of disc can be formatted in either DVD-Videoformat (Video mode) or DVD-Video Recording format(VR mode). For an unused disc, a message that askswhether to format in VR Mode or not is displayed. Youcan play a video mode disc on various DVD compo-nents. A VR mode disc allows more varied editing.Using a DVD-RThis type of disc can be formatted in DVD Video for-mat. After formatting is complete, you can record onthe disc. You can play this type of disc on various DVDcomponents only when they have been finalized.■ You can only use either the VR or Videomode on a DVD-RW, but not both at thesame time.■ You can change the DVD-RW format toanother format by reinitializing. It should be noted that the disc's data willbe lost when changing formats.NoteStep 3 RecordingStep 4 PlayingStep 5Editing a recorded discYou can select the title you want to play in a dis-played menu and then immediately start playback.A DVD consists of sections called titles, and subsections called chapters.During recording, a title is created between twopoints where you start and stop recording. Chapterswill be created automatically when you finalizerecording on DVD-R / DVD-RW discs in Video mode.The chapter’s length (interval between chapters)varies according to the recording mode.There are two different recording methods: DirectRecording and Timer Recording. Timer recording isclassified as a Date : Once, Daily or Weekly.Recording mode : XP (high quality mode), SP (stan-dard quality mode), LP (long recording mode), andEP (extended mode).Editing on discs is easier than conventional videotapes. The recorder supports many different edit func-tions, possible only with DVDs.With a simple and easy edit menu, you can operatevarious edit functions, such as delete, copy, rename,lock, etc., on a recorded title.Creating a playlist (DVD-RAM/-RW in VR mode)With this recorder, you can create a new playlist onthe same disc and edit it without the change of theoriginal recording.00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 9
Getting Started10 - EnglishStep 6Finalizing & Playing onother DVD componentsTo play your DVD on other DVD components, finaliz-ing may be necessary. First, finish all editing andrecording operations, then finalize the disc.When using a DVD-RW disc in VR ModeAlthough finalizing is generally unnecessary whenplaying the disc on a VR Mode compatible compo-nent, a finalized disc should be used for playback. When using a DVD-RW disc in Video ModeThe disc should be finalized first to enable playbackon anything other than this recorder. No more editingor recording can be made on the disc once it hasbeen finalized. When using a DVD-R discYou should finalize the disc to play it on a componentother than this recorder. You cannot edit or record onthe disc once it has been finalized.00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 10
Getting StartedEnglish - 11Front Panel 1 2 3 410 11 14 151. DVD DECK 2. DVD OPEN/CLOSE BUTTON3. VCR DECK 4. VCR EJECT BUTTON5. POWER BUTTON 6. VIDEO INPUT JACK (AV 2 IN)7. AUDIO L, R INPUT JACKS (AV 2 IN)8. DV INPUT JACK9. P.SCAN BUTTON10. FRONT PANEL DISPLAY11. DVD/VCR SELECT BUTTON12. COPY BUTTON 13. CHANNEL / BUTTONS14. RECORD BUTTON15. PLAY/STILL, REW/SKIP, F.F/SKIP, STOPBUTTONSDescriptionFront Panel Display1 32 4 5 687 9101. DVD is activated.2. DVD-RAM is activated.3. DVD-R or DVD-RW is activated.4. Progressive Scan mode is activated.5. Record function is activated.6. VCR is activated.7. DVD or CD media is loaded.8. The time, counter position or current deckstatus is indicated.9. When you set a Timer recording,this indicator appears.10. VHS videotape is loaded.56 8712 13900995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 11
Getting Started12 - EnglishRear Panel 1. VIDEO INPUT JACK (AV IN 1)2. VIDEO OUT JACK (AV OUT)3. AUDIO OUT JACKS(COMPONENT OUT) 4. S-VIDEO IN/OUT JACKS5. ANT IN JACK6. ANT OUT (TO TV) JACK 7. AUDIO INPUT JACKS (AV IN 1)8. AUDIO OUT JACKS (AV OUT)9. DIGITAL AUDIO OUT JACK (OPTICAL) 10. DIGITAL AUDIO OUT JACK (COAXIAL)11. VIDEO OUT JACKS (COMPONENT OUT) 10 1142 36 7 8591FanThe fan always revolves when the power is on. Ensure a minimum of 4” clear space on all sides of the fanwhen installing the product.UnpackingAccessoriesCheck for the supplied accessories below.• Audio/Video Cable• RF Cable for TV• Remote Control• Batteries for Remote Control (AAA Size)• User’s Manual • Quick Guide00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 12
Getting StartedEnglish - 13Tour of the Remote Control 11. INFO. ButtonPress this to display current setting or disc status.12. TITLE LIST (DISC MENU) ButtonPress this to enter the TITLE LIST/Disc menu.13. SUBTITLE ButtonPress this to switch the DVD’s subtitle language.14. ANYKEY ButtonPress this to view the status of the disc that is beingplayed.15. REC ButtonPress this to make a recording on VCR, DVD-RAM/-RW/-R discs.16. DVD COPY ButtonPress this when you copy from the VCR to theDVD.17. REC SPEED ButtonPress this to set the desired recording time and picture quality.18. VCR ButtonPress this when you use a VCR.19. INPUT SEL. ButtonPress this to select AV input signal in external inputmode. (Tuner, AV input, DV input)20. OPEN/CLOSE ButtonPress this to open and close the disc tray.21. TV POWER Button22. TV/VCR Button23. MARKER ButtonPress this to bookmark or mark a position whileplaying a disc.24. RETURN ButtonReturns to a previous menu.25. AUDIO/TV MUTE ButtonPress this to access various audio functions. This operates as sound mute. (TV mode)26. CANCEL Button27. PLAY LIST(TITLE MENU) ButtonPress this to enter the Edit playlist/Title menu.28. ANGLE ButtonPress this to access various camera angles on a disc (if the disc contains multiple camera angles).29. ZOOM ButtonZooms in on screen.30. TIMER REC ButtonPress this when you use Timer Recording.31. VCR COPY ButtonPress this when you copy from the DVD to the VCR.32. REC PAUSE ButtonPress this to pause during recording.1. DVD ButtonPress this when you use a DVD.2. TV ButtonPress this to operate TV.3. POWER Button4. NUMBER Button5. 100+ ButtonPress this to select channel 100 or higher.6. F.ADV/SKIP Button7. Playback-related ButtonsForward/Rewind, Search, Skip, Stop, Play/Pause8. TV Control Buttons• VOLUME ButtonTV volume adjustment• CHANNEL ButtonPress this to select a TV channel.• TRK ButtonPress this to remove the white line.9. MENU ButtonPress this to bring up the DVD Recorder & VCR’ssetup menu.10. ENTER/DIRECTION Buttons(UP/DOWN or LEFT/RIGHT Buttons)This button functions as a toggle switch.12345678910111213141516171819202122238242526272829303132❚Key Lock FunctionIf you do not want others to operate the DVD Recorder &VCR (for example if you have programmed a timer recording)you can set the equipment to lock out all button controls.• Press and hold the INFO. button on the remote control for 5seconds. The display will show “SAFE” when the feature is activated.• To resume normal mode, press and hold the INFO. buttonagain for 5 seconds. “SAFE” will disappear and the DVD Recorder & VCR willoperate normally.00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 13

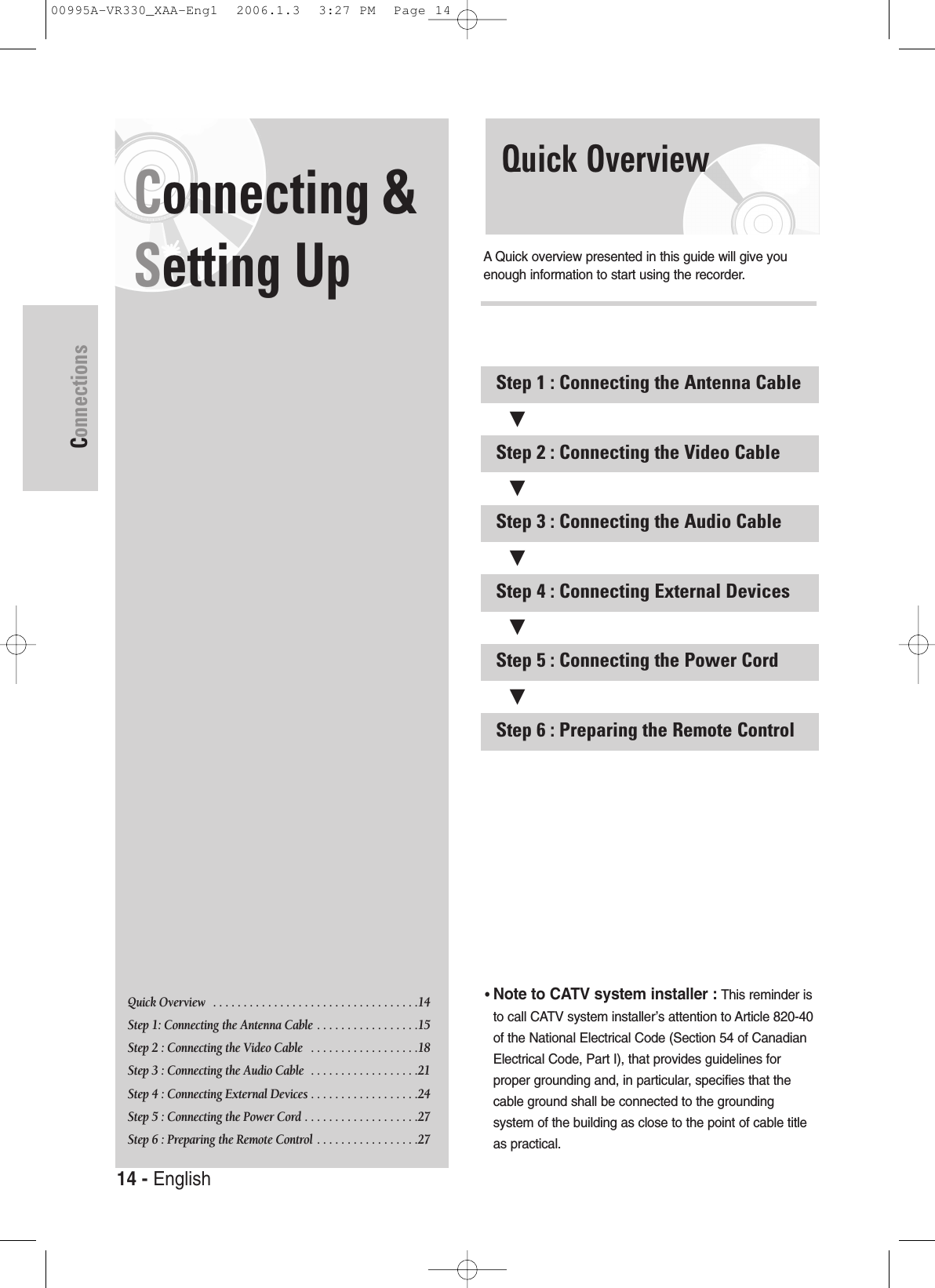

Connections14 - EnglishConnecting &Setting UpQuick OverviewA Quick overview presented in this guide will give youenough information to start using the recorder.Step 1 : Connecting the Antenna CableStep 2 : Connecting the Video CableStep 3 : Connecting the Audio CableStep 4 : Connecting External DevicesStep 5 : Connecting the Power CordStep 6 : Preparing the Remote Control†††††Quick Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14Step 1: Connecting the Antenna Cable . . . . . . . . . . . . . . . . .15Step 2 : Connecting the Video Cable . . . . . . . . . . . . . . . . . .18Step 3 : Connecting the Audio Cable . . . . . . . . . . . . . . . . . .21Step 4 : Connecting External Devices . . . . . . . . . . . . . . . . . .24Step 5 : Connecting the Power Cord . . . . . . . . . . . . . . . . . . .27Step 6 : Preparing the Remote Control . . . . . . . . . . . . . . . . .27• Note to CATV system installer :This reminder isto call CATV system installer’s attention to Article 820-40of the National Electrical Code (Section 54 of CanadianElectrical Code, Part I), that provides guidelines for proper grounding and, in particular, specifies that thecable ground shall be connected to the grounding system of the building as close to the point of cable titleas practical.00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 14

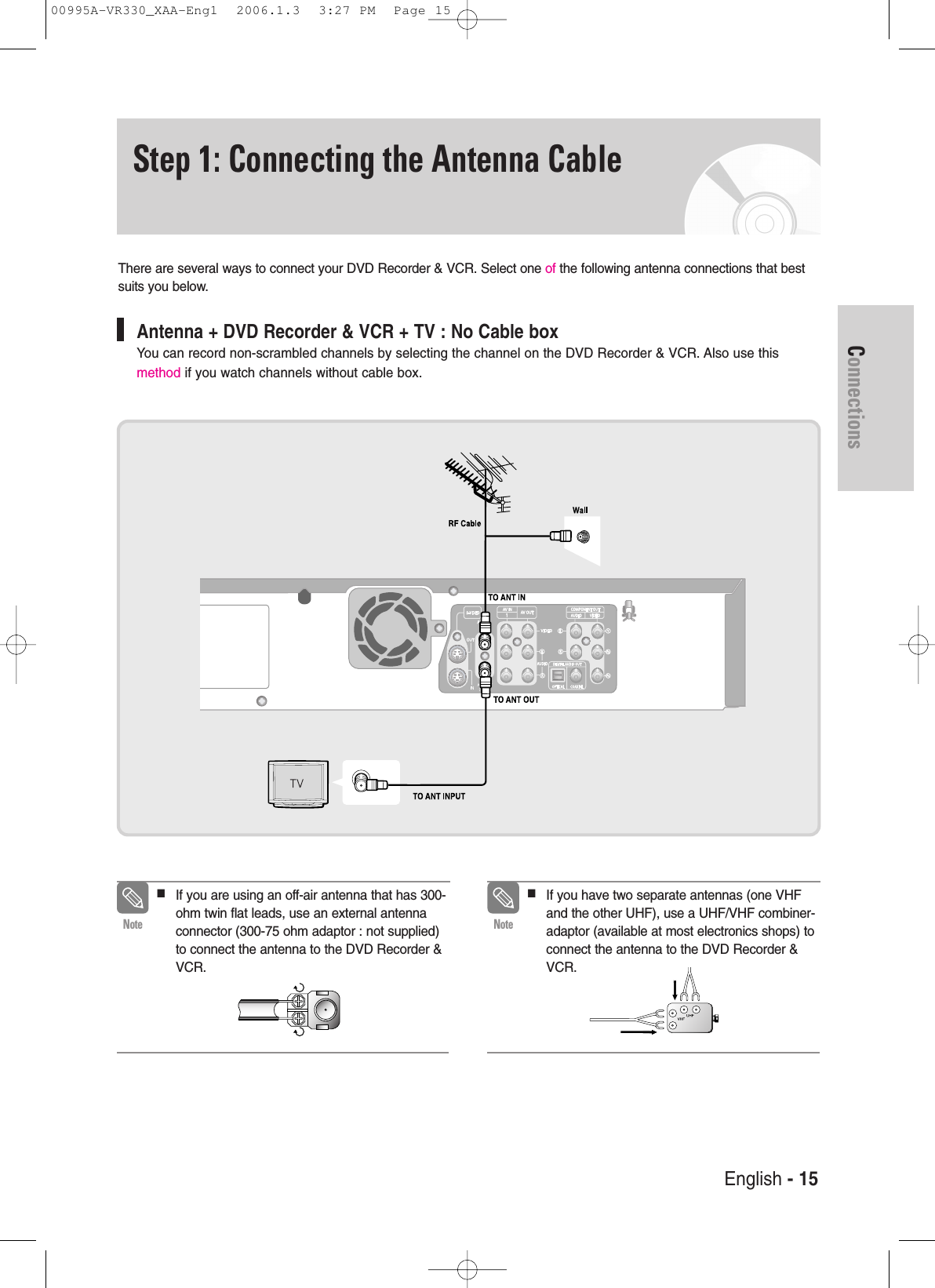

ConnectionsEnglish - 15Step 1: Connecting the Antenna CableThere are several ways to connect your DVD Recorder & VCR. Select one of the following antenna connections that bestsuits you below.Antenna + DVD Recorder & VCR + TV : No Cable boxYou can record non-scrambled channels by selecting the channel on the DVD Recorder & VCR. Also use thismethod if you watch channels without cable box.■If you are using an off-air antenna that has 300-ohm twin flat leads, use an external antennaconnector (300-75 ohm adaptor : not supplied)to connect the antenna to the DVD Recorder &VCR.Note■If you have two separate antennas (one VHFand the other UHF), use a UHF/VHF combiner-adaptor (available at most electronics shops) toconnect the antenna to the DVD Recorder &VCR.Note00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 15
Connections16 - EnglishAntenna + Cable box + DVD Recorder & VCR + TV : Cable box with many scrambled channelsYou can record channels by selecting the channel on the cable box. You cannot record one channel while watchinganother channel. Be sure that the cable box is turned on.00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 16
ConnectionsEnglish - 17Antenna + DVD Recorder & VCR + Cable box + TV : Cable box with a few scrambled channelsYou can record non-scrambled channels by selecting the channel on the cable box. You cannot record scrambledchannels that require a cable box. 00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 17
Connections18 - EnglishStep 2 : Connecting the Video CableThere are several ways to connect your DVD Recorder & VCR. Select one of the video connections on the following pages.The VHF/UHF RF OUT jack of this product sends only signals received through the antenna. It does not output audio/videosignals. You must use one of the following audio/video connections on this unit.INPUTRLAUDIOWhiteRedVIDEOYellowAudio/VideoCableConnecting to a Video input jackConnect a video(yellow) cable between the VIDEO(yellow) OUT jack on DVD Recorder & VCR and VIDEO(yellow)IN jack on the TV (or AV amplifier).• You will enjoy regular quality images.• Connect audio cables(white and red) between theAUDIO OUT jacks on the DVD Recorder & VCR andAUDIO IN jacks on TV(or AV amplifier).(See pages 21 ~ 23)00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 18
English - 19Connections■S-Video and Component video output are avail-able only if your TV supports S-Video input orComponent video input, respectively. If S-Videoor Component video output does not work,check the TV connections and the TV inputselection settings. NoteINPUTS-VIDEOS-Video Cable(not supplied)Connecting to an S-Video input jackConnect an S-Video cable(not supplied) between the S-VIDEO OUT jack on DVD Recorder & VCR and S-VIDEOIN jack on your TV (or AV amplifier). • You will enjoy high quality images. S-Video separatesthe picture element into black and white (Y) and color(C) signals to present clearer images than regularvideo input mode. • Connect audio cables(white and red) between theAUDIO OUT jacks on the DVD Recorder & VCR andAUDIO IN jacks on TV(or AV amplifier). (See pages 21 ~ 23)00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 19
20 - EnglishConnectionsComponent Cable(not supplied)COMPONENTPRPBYgreenblueredgreenblueredConnecting to Component video input jacks (Y,PB,PR)Connect Component video cables (not supplied) between the COMPONENT OUT (Y,PB,PR) jacks onDVD Recorder & VCR and COMPONENT IN (Y,PB,PR) jacks on your TV (or AV amplifier).• You will enjoy high quality accurate color reproductionimages. Component video separates the picture element into black and White(Y), blue(PB), red(PR) sig-nals to present most clear and clean images. • Connect audio cables(white and red) between theAUDIO OUT jacks on the DVD Recorder & VCR andAUDIO IN jacks on TV(or AV amplifier). (See pages 21 ~ 23)• Progressive scan- If the your TV supports Progressive Scan, you canenjoy higher quality video by pressing the P.SCAN button. (The component cable has to be connected.)1. With the unit in stop mode, press the P.SCAN but-ton on the front of the DVD Recorder & VCR.2. The message ‘Press “Yes” to confirm Progressivescan mode. Otherwise press “No”’ will appear. Press the œ √buttons to select Yes, and thenpress the ENTER button.■Compared to standard interlaced video, progres-sive scan doubles the amount of video lines fed toyour TV, resulting in a more stable, flicker-free,and clear image than interlaced video. The pro-gressive scan video output jack is used in pro-gressive output mode. This is only available withTVs that support progressive scan.■Progressive Scan Output (480p) Consumersshould note that not all high definition televisionsets are fully compatible with this product and maycause artifacts to be displayed in the picture. Ifyou experience 480p progressive scan pictureproblems, it is recommended that you switch theconnection to the ‘standard definition’output. Ifthere are questions regarding TV set compatibilitywith this model, please contact our customer service center at 1-800-SAMSUNG.■Do not press the P.SCAN button if your TV doesnot support Progressive scan mode.Nothing will be displayed on the screen. Torelease the Progressive scan mode, press theP.SCAN button on the front panel .Note00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 20
English - 21ConnectionsStep 3 : Connecting the Audio CableThere are several ways to connect your DVD Recorder & VCR. Select one of the Audio connections on the following pages. INPUTAUDIORLRedWhiteVIDEOYellowAudio CableConnecting to your TVThis connection will use your TV’s speakers.00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 21
22 - EnglishConnectionsINPUTANALOG AUDIORLRed WhiteAudio CableConnecting to a stereo amplifier with analog input jacksIf your stereo amplifier only has AUDIO INPUT jacks(L and R), use the AUDIO OUT jacks.Front(L)speaker Front(R)speaker00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 22

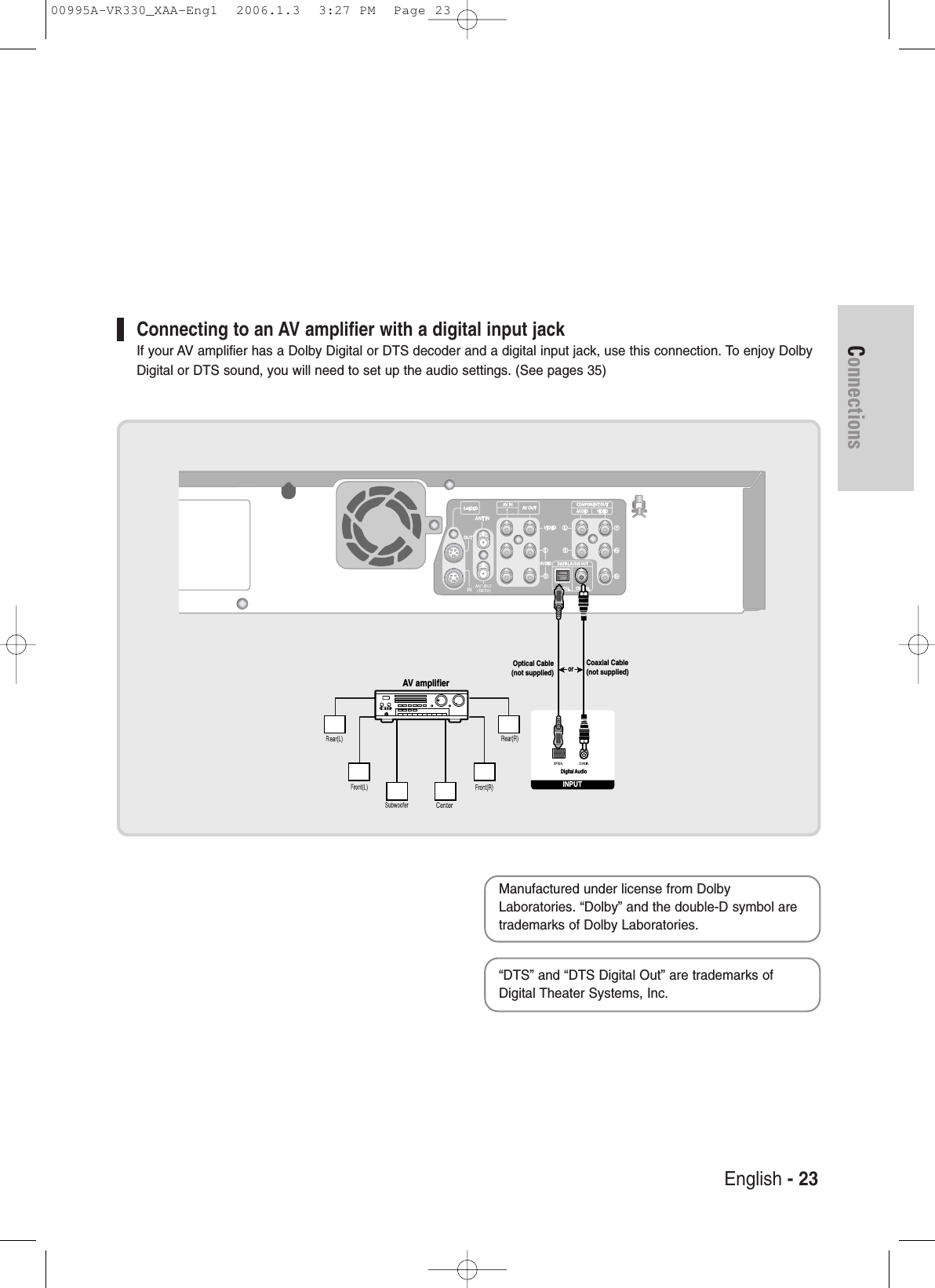

English - 23ConnectionsINPUTDigital AudioOptical Cable(not supplied)orCoaxial Cable(not supplied)AV amplifierConnecting to an AV amplifier with a digital input jackIf your AV amplifier has a Dolby Digital or DTS decoder and a digital input jack, use this connection. To enjoy DolbyDigital or DTS sound, you will need to set up the audio settings. (See pages 35)Manufactured under license from DolbyLaboratories. “Dolby” and the double-D symbol aretrademarks of Dolby Laboratories.“DTS” and “DTS Digital Out” are trademarks ofDigital Theater Systems, Inc.00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 23

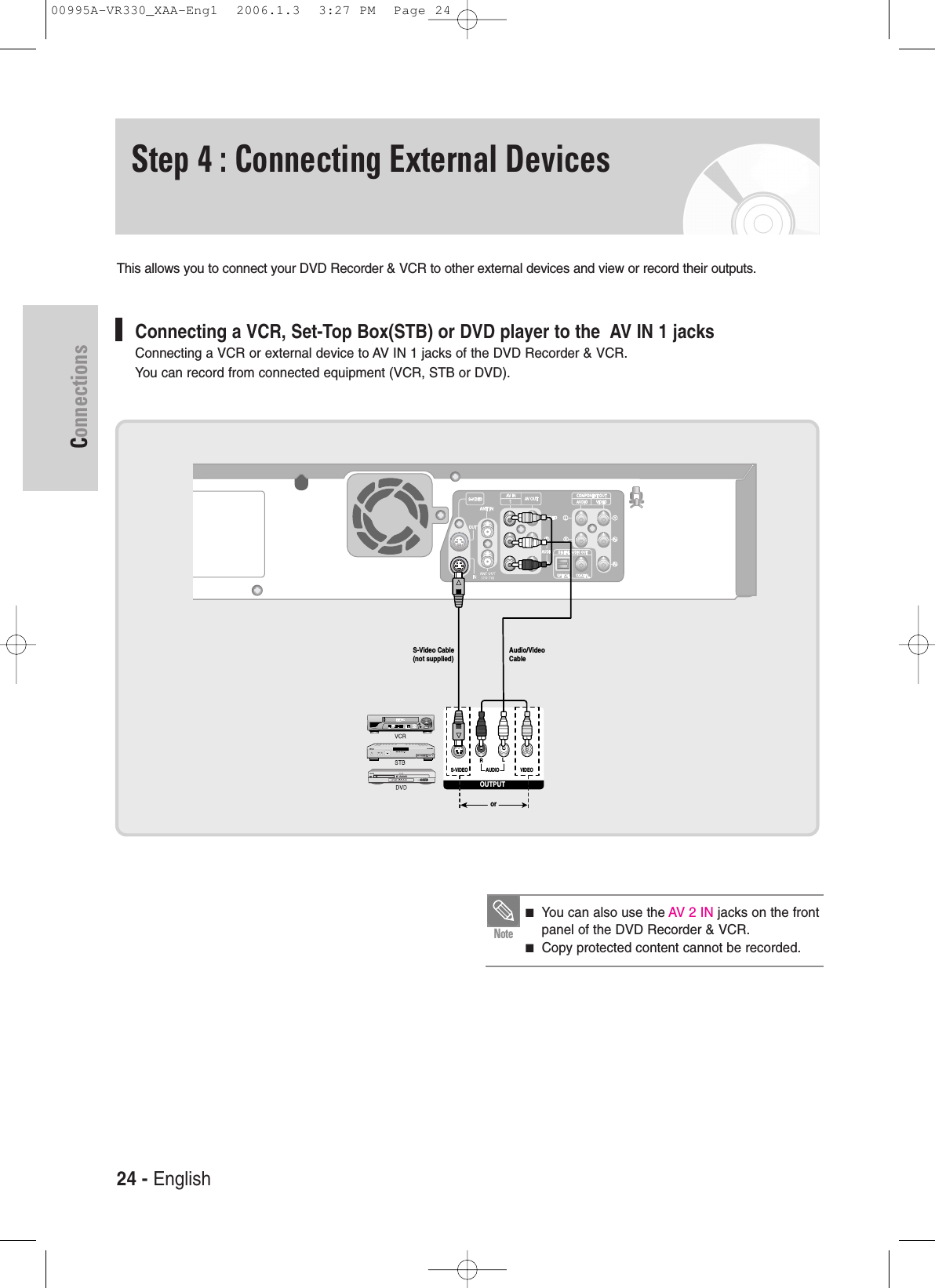

24 - EnglishConnectionsStep 4 : Connecting External DevicesThis allows you to connect your DVD Recorder & VCR to other external devices and view or record their outputs.AUDIO VIDEOS-VIDEORLS-Video Cable(not supplied)Audio/VideoCableOUTPUTorConnecting a VCR, Set-Top Box(STB) or DVD player to the AV IN 1 jacksConnecting a VCR or external device to AV IN 1 jacks of the DVD Recorder & VCR.You can record from connected equipment (VCR, STB or DVD).■You can also use the AV 2 IN jacks on the frontpanel of the DVD Recorder & VCR.■Copy protected content cannot be recorded.Note00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 24
English - 25ConnectionsAUDIOVIDEORLOUTPUTAudio/VideoCableCamcorderConnecting a Camcorder to the AV 2 IN jacksYou can also use the AV 2 IN jacks on the front panel of the DVD Recorder & VCR. You can record from connectedequipment, such as a camcorder. When an input source is inserted into AV 2 IN while viewing TV, the input will beswitched to AV 2 IN automatically.00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 25

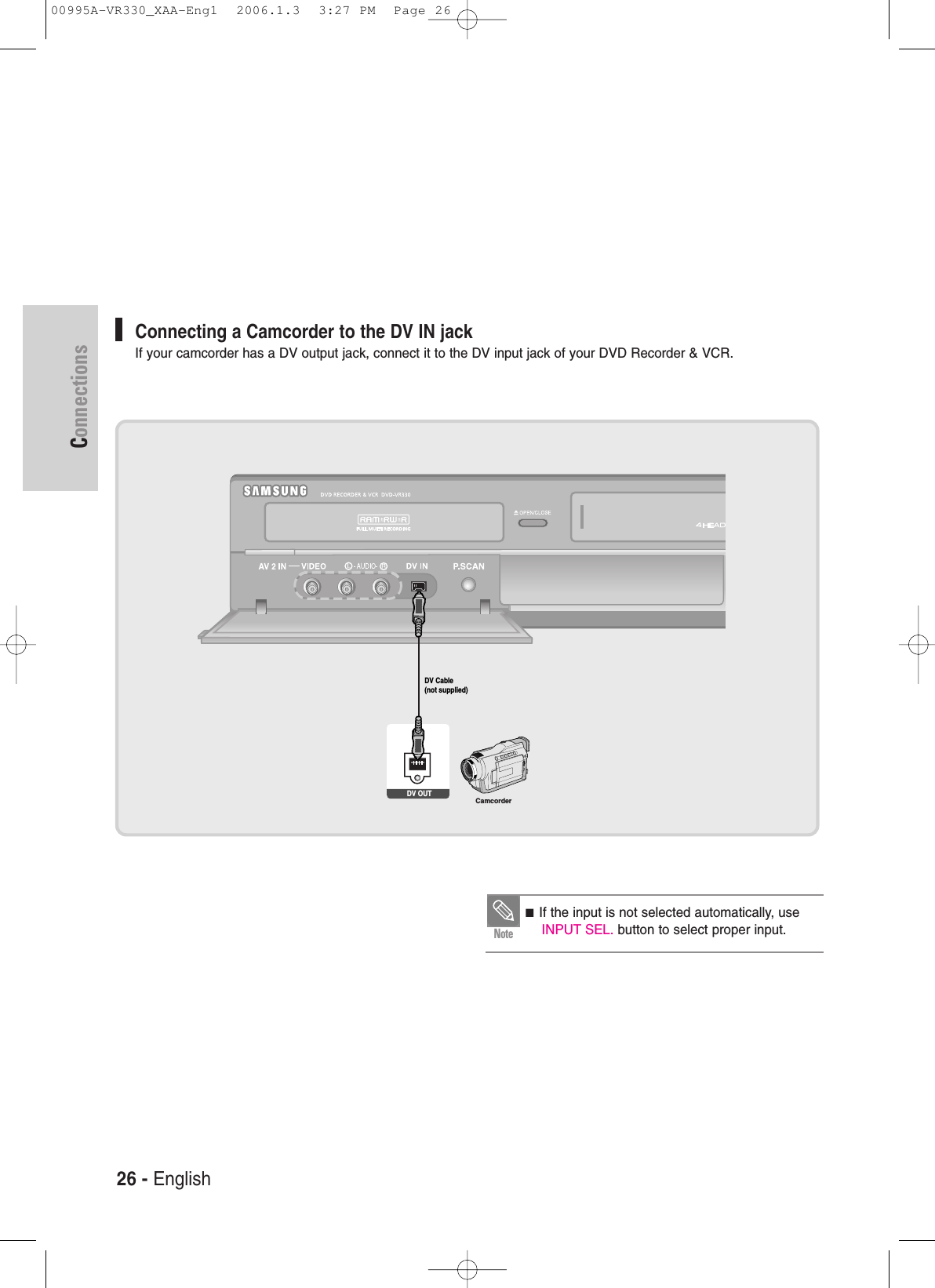

26 - EnglishConnectionsDV OUTDV Cable(not supplied)CamcorderConnecting a Camcorder to the DV IN jackIf your camcorder has a DV output jack, connect it to the DV input jack of your DVD Recorder & VCR.■If the input is not selected automatically, useINPUT SEL. button to select proper input.Note00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 26

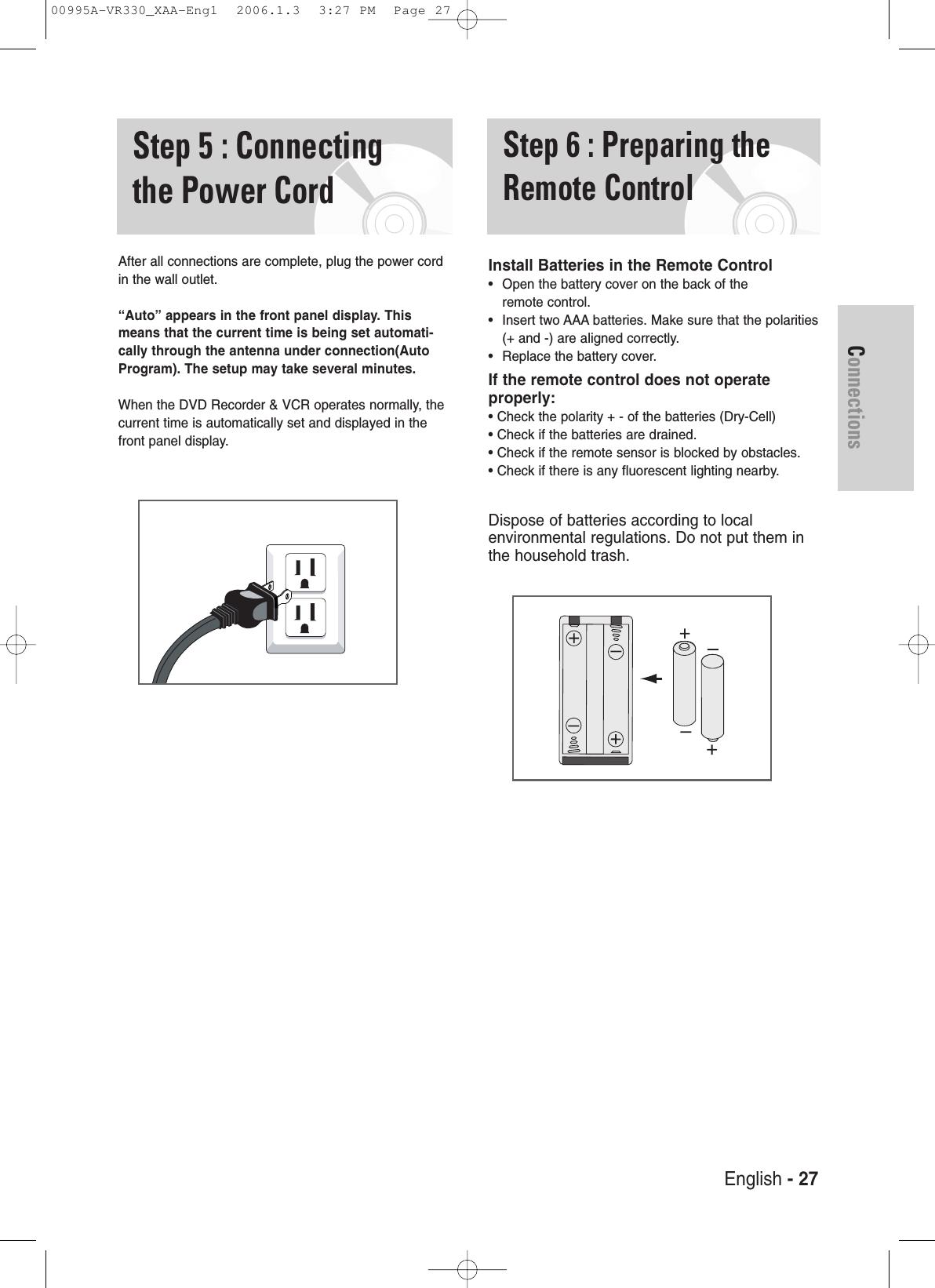

English - 27ConnectionsAfter all connections are complete, plug the power cordin the wall outlet.“Auto” appears in the front panel display. Thismeans that the current time is being set automati-cally through the antenna under connection(AutoProgram). The setup may take several minutes.When the DVD Recorder & VCR operates normally, thecurrent time is automatically set and displayed in thefront panel display.Step 5 : Connectingthe Power CordInstall Batteries in the Remote Control•Open the battery cover on the back of the remote control.•Insert two AAA batteries. Make sure that the polarities(+ and -) are aligned correctly.•Replace the battery cover.If the remote control does not operate properly:• Check the polarity + - of the batteries (Dry-Cell)• Check if the batteries are drained.• Check if the remote sensor is blocked by obstacles.• Check if there is any fluorescent lighting nearby.Dispose of batteries according to local environmental regulations. Do not put them inthe household trash.Step 6 : Preparing theRemote Control00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 27
28 - EnglishConnectionsTo determine whether your television is compatible, follow the instructions below.1. Switch your television on.2. Point the remote control towards the television.3. Press the TV button and enter the two-figure codecorresponding to the brand of your television, bypressing the appropriate number button.Result: If your television is compatible with the remotecontrol, it will switch off.It is now programmed to operate with the remotecontrol.You can then control the television using the following buttons.Brand Codes SAMSUNG01,14,15,23,31DAEWOO 19EMERSON 21GRADIENTE 30HITACHI 10JVC 11LG 06,08,18LOEWE 28MAGNAVOX 04MITSUBISHI 13Brand CodesNEWSAN 27NOBLEX 25PANASONIC 12,24RCA 07,29SANYO 05,20SHARP 02,16,22SONY 03TELEFUNKEN 26TOSHIBA 09ZENITH 17Button FunctionTV POWER Used to switch the television on and off.INPUT SEL. Used to select an external source.VOL+/-Used to adjust the volume of the television.CH/TRK (/)Used to select the desired channel.TV MUTE Used to toggle the sound on and off.0~9 Used to input number directly.100+ Used to select channels over 100.■ If several codes are indicated for your television brand, try each one in turn until youfind one that works. If you replace the remotecontrol’s batteries, you must set the brand codeagain.NoteThe various functions may not necessarily workon all televisions. If you encounter problems,operate the television directly.NoteSetting the Remote ControlYou can control part of another manufacturer’s TVfunctions with this remote control.• Control function buttons involve : TV POWER, INPUT SEL., VOL+/-, CH/TRK ( / ), TV MUTE,0~9, 100+. 00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 28

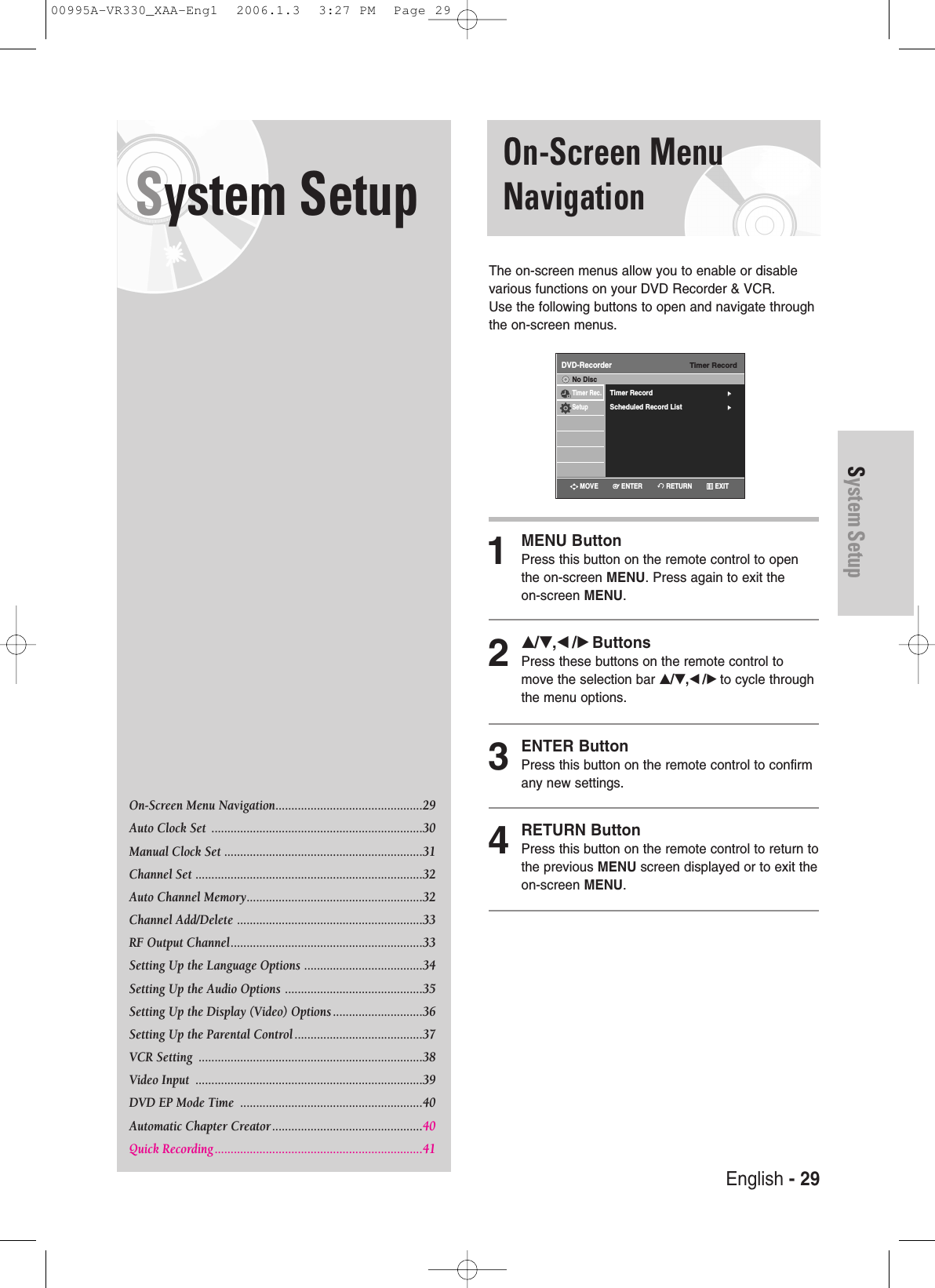

English - 29System SetupSystem Setup On-Screen MenuNavigationThe on-screen menus allow you to enable or disablevarious functions on your DVD Recorder & VCR. Use the following buttons to open and navigate throughthe on-screen menus.1MENU ButtonPress this button on the remote control to openthe on-screen MENU. Press again to exit the on-screen MENU.2…/†,œ /√ ButtonsPress these buttons on the remote control tomove the selection bar …/†,œ /√to cycle throughthe menu options.3ENTER ButtonPress this button on the remote control to confirmany new settings.4RETURN ButtonPress this button on the remote control to return tothe previous MENU screen displayed or to exit theon-screen MENU.On-Screen Menu Navigation..............................................29Auto Clock Set ..................................................................30Manual Clock Set ..............................................................31Channel Set .......................................................................32Auto Channel Memory.......................................................32Channel Add/Delete ..........................................................33RF Output Channel............................................................33Setting Up the Language Options .....................................34 Setting Up the Audio Options ...........................................35Setting Up the Display (Video) Options ............................36Setting Up the Parental Control ........................................37VCR Setting ......................................................................38Video Input .......................................................................39DVD EP Mode Time .........................................................40Automatic Chapter Creator ...............................................40Quick Recording.................................................................41Timer RecordDVD-RecorderTimer Record√√Scheduled Record List√√No DiscTimer Rec.SetupRETURNENTERMOVE EXIT00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 29
System SetupAuto Clock SetThis menu is used to set the current time. You need toset the time to use timer recording. 1With the unit in Stop mode/No Disc mode, pressthe MENU button.2Press the …† buttons to select Setup, then pressthe ENTER or √button. 3Press the …† buttons to select Clock Set, thenpress the ENTER or √button.4Press the …† buttons to select Auto Clock Set,then press the ENTER or √button.5Press the …† buttons to select the sub menu(Clock Data CH, Time Zone or Daylight Saving),then press the ENTER or √button.Clock Data CHPress the …† buttons to select a channel that carries a time signal,then press the ENTER button. Select Auto to set the channel automatically.Time ZonePress the …† buttons to select the time zone of your area, then press the ENTER or √button. Select Automatic to set the time zone automatically.NoteYou must have the antenna connected to setthe Auto Clock. See pages 15~17 for AntennaConnections.The Clock will be automatically set when youturn off the recorder.■ If your clock is set to the wrong time zone ordaylight saving, you can adjust these settingswithout turning off the Auto Clock Set function.Note30 - EnglishSetupDVD-RecorderNo DiscTimer Rec.SetupSystem √√Clock Set √√Channel Set √√Language √√Audio √√Video √√Parental Control √√Clock SetDVD-RecorderNo DiscTimer Rec.SetupAuto Clock Set √√Manual Clock Set √√Auto Clock SetDVD-RecorderNo DiscTimer Rec.SetupClock Data CH : Automatic √√Time Zone : Automatic √√Daylight Saving : Automatic √√Clock Data CHDVD-RecorderNo DiscTimer Rec.SetupSelect channel : AutoAuto Clock SetDVD-RecorderClock Data CHTime ZoneDaylight SavingNo DiscTimer Rec.SetupAutomaticAtlanticEasternCentralMountainPacificAlaskaHawaiiRETURNENTERRETURNENTERMOVE EXITRETURNENTERMOVE EXITRETURNENTERMOVE EXITRETURNENTERMOVE EXITTimer RecordDVD-RecorderTimer Record√√Scheduled Record List√√No DiscTimer Rec.SetupRETURNENTERMOVE EXITRETURNENTERMOVE EXIT00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 30
English - 31System Setup3Press the …† buttons to select Clock Set, thenpress the ENTER or √button.4Press the …† buttons to select Manual ClockSet, then press the ENTER or √button.5Press the …†œ √ buttons to select the Current Dateand Current Time, then press the ENTER button.When the current time is stored in memory andthen the set is powered off, the current time willappear in the front panel display.…† : Sets the valueYou can set the value using the number (0~9) buttons.œ √: Moves to itemsDaylight SavingPress the …† buttons to select Yes or No, thenpress the ENTER or √button. Select Automatic to set the daylight saving automatically.Manual Clock SetIf Auto Setup fails to set the DVD Recorder & VCR’s inter-nal clock by locating a local TV station, follow these stepsto set the date and time manually. 1With the unit in Stop mode/No Disc mode, pressthe MENU button.2Press the …† buttons to select Setup, then pressthe ENTER or √button. For accurate Timer Recording, your DVD Recorder& VCR's internal clock must be set correctly. NoteAuto Clock SetDVD-RecorderClock Data CH : Automatic √√Time Zone : Automatic √√Daylight Saving : Automatic √√No DiscTimer Rec.SetupAutomaticYesNoManual Clock SetDVD-RecorderNo DiscTimer Rec.SetupMonth Day Year Hour Minute AM/PMPress numeric keys or …† keys.SUN01 01 2006 12 00 AMClock SetDVD-RecorderNo DiscTimer Rec.SetupAuto Clock Set √√Manual Clock Set √√SetupDVD-RecorderNo DiscTimer Rec.SetupSystem √√Clock Set √√Channel Set √√Language √√Audio √√Video √√Parental Control √√RETURNENTERMOVE EXITTimer RecordDVD-RecorderTimer Record√√Scheduled Record List√√No DiscTimer Rec.SetupRETURNENTERMOVE EXITRETURNENTERMOVE EXITRETURNENTERMOVE EXITRETURNENTERMOVE EXIT00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 31
32 - EnglishSystem SetupChannel SetThis feature allows you to manually set the DVDRecorder & VCR’s tuner band to Antenna or Cable,whichever you connected to the Antenna In jack duringinitial setup.• Use this setting only if Auto Setup detected the incorrect tuner band, i.e. channels are coming in onthe wrong channel numbers.1With the unit in Stop mode/No Disc mode, pressthe MENU button.2Press the …† buttons to select Setup, then pressthe ENTER or √button. 3Press the …† buttons to select Channel Set,then press ENTER or √button.4Press the …† buttons to select Antenna/CableTV, then press the ENTER or √button.Select the Antenna or Cable TV(Signal Source)that matches the antenna connection you selectedon pages 15~17.• Antenna - Select this if the DVD Recorder &VCR is connected to an indoor or outdoorVHF/UHF antenna.• Cable TV - Select this if the DVD Recorder &VCR is connected to a cable TV.Auto Channel MemoryAuto Channel Memory will automatically seek and storeall active channels in your area.1With the unit in Stop mode/No Disc mode, pressthe MENU button.2Press the …† buttons to select Setup, then pressthe ENTER or √button. 3Press the …† buttons to select Channel Set,then press the ENTER or √button.Channel SetDVD-RecorderNo DiscTimer Rec.SetupAntenna/Cable TV : Cable TV √√Auto Channel Memory √√Channel Add/Delete √√RF Output Channel : CH3 √√Channel SetDVD-RecorderNo DiscTimer Rec.SetupAntenna/Cable TV : Cable TV √√Auto Channel Memory √√Channel Add/Delete √√RF Output Channel : CH3 √√AntennaCable TVChannel SetDVD-RecorderNo DiscTimer Rec.SetupAntenna/Cable TV : Cable TV √√Auto Channel Memory √√Channel Add/Delete √√RF Output Channel : CH3 √√SetupDVD-RecorderNo DiscTimer Rec.SetupSystem √√Clock Set √√Channel Set √√Language √√Audio √√Video √√Parental Control √√RETURNENTERMOVE EXITTimer RecordDVD-RecorderTimer Record√√Scheduled Record List√√No DiscTimer Rec.SetupRETURNENTERMOVE EXITRETURNENTERMOVE EXITRETURNENTERMOVE EXITRETURNENTERMOVE EXIT00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 32

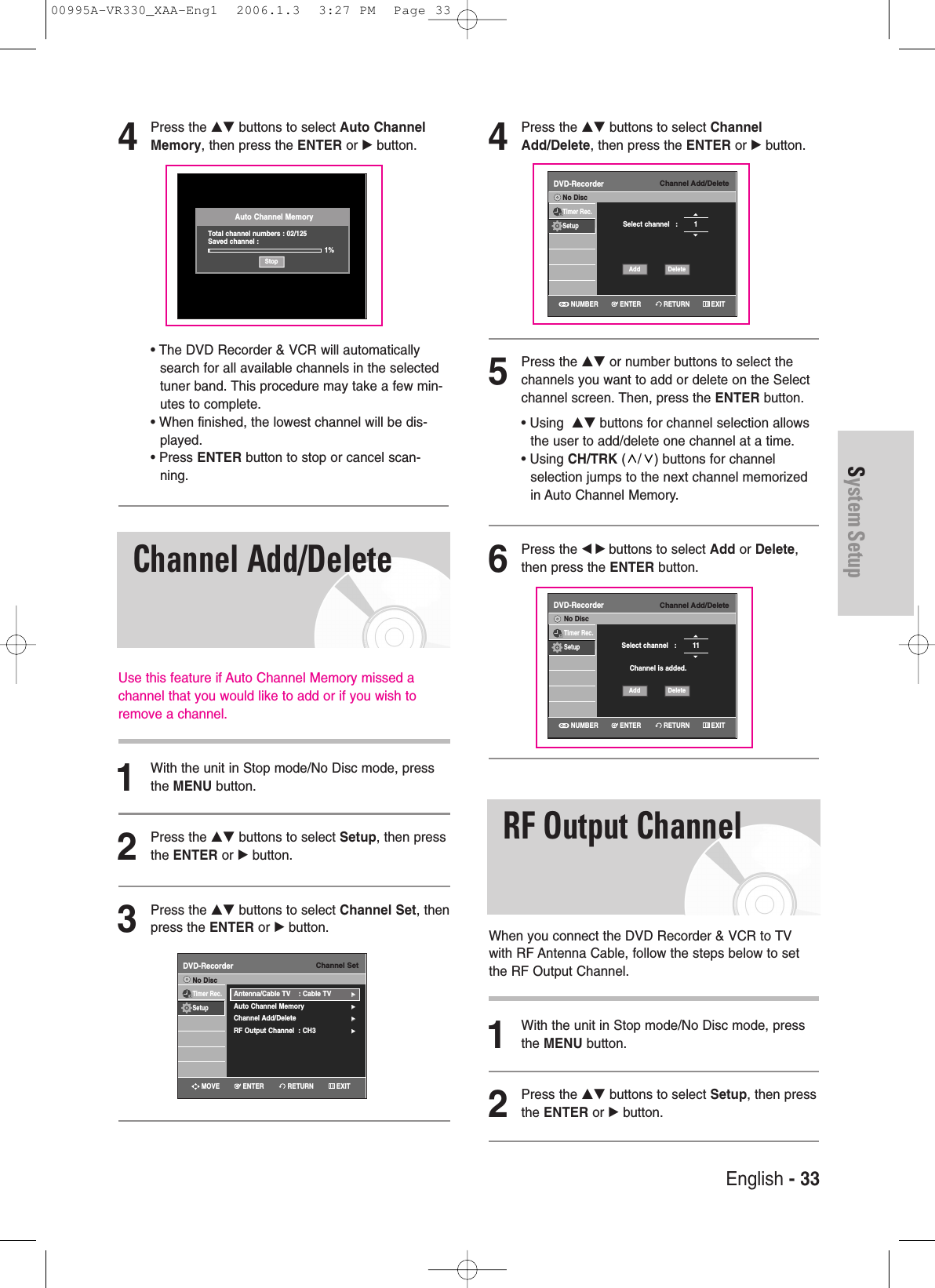

English - 33System SetupChannel Add/Delete4Press the …† buttons to select ChannelAdd/Delete, then press the ENTER or √button.5Press the …† or number buttons to select thechannels you want to add or delete on the Selectchannel screen. Then, press the ENTER button.• Using …† buttons for channel selection allowsthe user to add/delete one channel at a time.• Using CH/TRK ( / ) buttons for channel selection jumps to the next channel memorizedin Auto Channel Memory.6Press the œ √ buttons to select Add or Delete,then press the ENTER button.4Press the …† buttons to select Auto ChannelMemory, then press the ENTER or √button.• The DVD Recorder & VCR will automaticallysearch for all available channels in the selectedtuner band. This procedure may take a few min-utes to complete.• When finished, the lowest channel will be dis-played.•Press ENTER button to stop or cancel scan-ning. Use this feature if Auto Channel Memory missed achannel that you would like to add or if you wish toremove a channel.1With the unit in Stop mode/No Disc mode, pressthe MENU button.2Press the …† buttons to select Setup, then pressthe ENTER or √button. 3Press the …† buttons to select Channel Set, thenpress the ENTER or √button.Total channel numbers : 02/125Saved channel :Auto Channel MemoryStopChannel Add/DeleteDVD-RecorderNo DiscTimer Rec.SetupSelect channel : 1DeleteAddChannel SetDVD-RecorderNo DiscTimer Rec.SetupAntenna/Cable TV : Cable TV √√Auto Channel Memory √√Channel Add/Delete √√RF Output Channel : CH3 √√Channel Add/DeleteDVD-RecorderNo DiscTimer Rec.SetupSelect channel : 11DeleteAddChannel is added.RETURNENTERMOVE EXITRETURNENTERNUMBER EXIT1%RETURNENTERNUMBER EXITWhen you connect the DVD Recorder & VCR to TVwith RF Antenna Cable, follow the steps below to setthe RF Output Channel.1With the unit in Stop mode/No Disc mode, pressthe MENU button.2Press the …† buttons to select Setup, then pressthe ENTER or √button. RF Output Channel00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 33

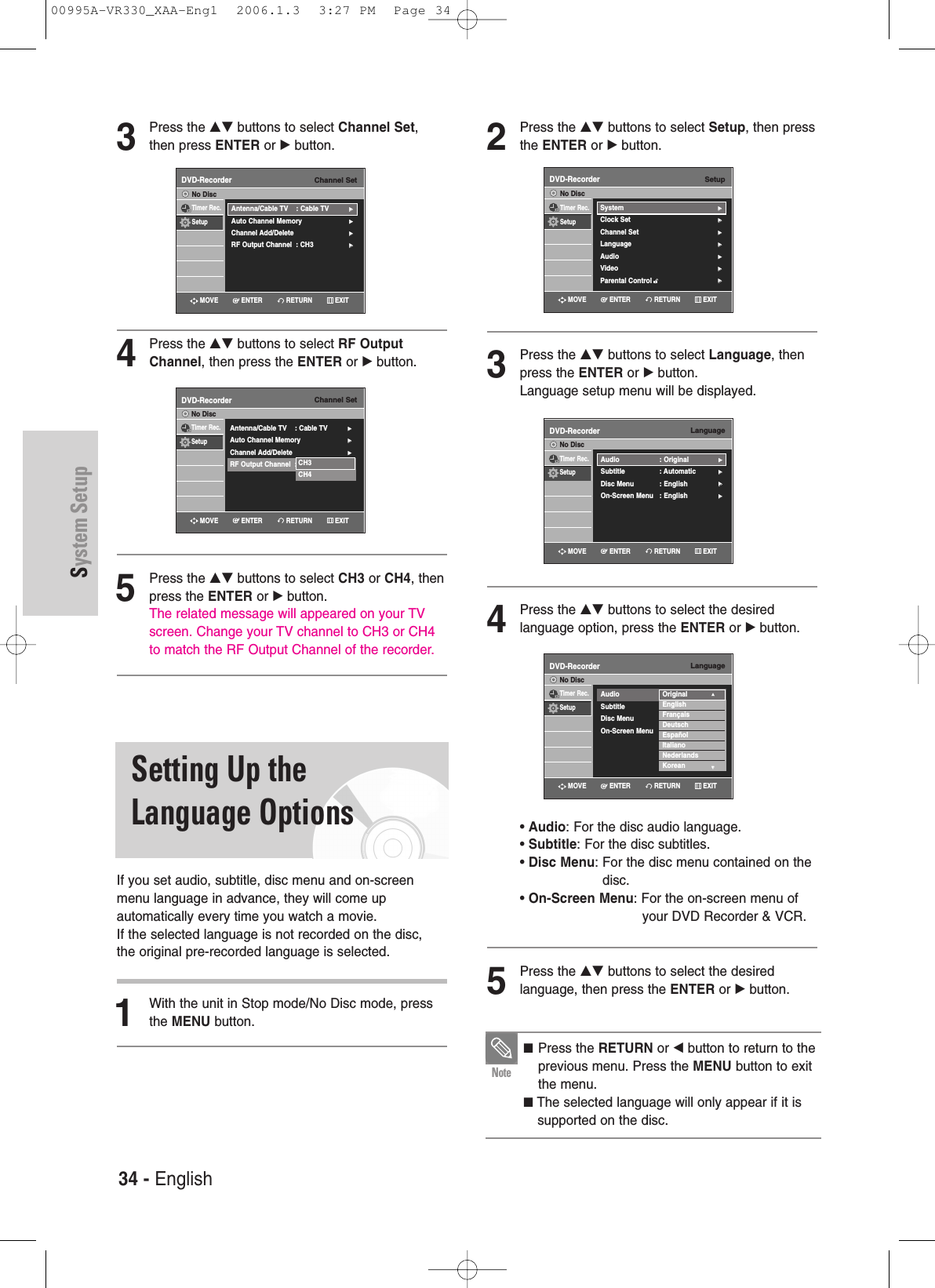

34 - EnglishSystem Setup3Press the …† buttons to select Channel Set,then press ENTER or √button.4Press the …† buttons to select RF OutputChannel, then press the ENTER or √button.5Press the …† buttons to select CH3 or CH4, thenpress the ENTER or √button.The related message will appeared on your TVscreen. Change your TV channel to CH3 or CH4to match the RF Output Channel of the recorder.Setting Up theLanguage Options2Press the …† buttons to select Setup, then pressthe ENTER or √button. 3Press the …† buttons to select Language, thenpress the ENTER or √button.Language setup menu will be displayed.4Press the …† buttons to select the desired language option, press the ENTER or √button.• Audio: For the disc audio language.• Subtitle: For the disc subtitles.• Disc Menu: For the disc menu contained on the disc.• On-Screen Menu: For the on-screen menu of your DVD Recorder & VCR.5Press the …† buttons to select the desired language, then press the ENTER or √button.If you set audio, subtitle, disc menu and on-screenmenu language in advance, they will come up automatically every time you watch a movie.If the selected language is not recorded on the disc, the original pre-recorded language is selected.1With the unit in Stop mode/No Disc mode, pressthe MENU button. ■ Press the RETURN or œbutton to return to theprevious menu. Press the MENU button to exitthe menu.■ The selected language will only appear if it is supported on the disc.NoteChannel SetDVD-RecorderNo DiscTimer Rec.SetupAntenna/Cable TV : Cable TV √√Auto Channel Memory √√Channel Add/Delete √√RF Output Channel : CH3 √√Channel SetDVD-RecorderNo DiscTimer Rec.SetupAntenna/Cable TV : Cable TV √√Auto Channel Memory √√Channel Add/Delete √√RF Output Channel : CH3 √√CH3CH4LanguageDVD-RecorderNo DiscTimer Rec.SetupAudio : Original √√Subtitle : Automatic √√Disc Menu : English √√On-Screen Menu : English √√SetupDVD-RecorderNo DiscTimer Rec.SetupSystem √√Clock Set √√Channel Set √√Language √√Audio √√Video √√Parental Control √√RETURNENTERMOVE EXITRETURNENTERMOVE EXITRETURNENTERMOVE EXITRETURNENTERMOVE EXITLanguageDVD-RecorderNo DiscTimer Rec.SetupAudio : Original √√Subtitle : Automatic √√Disc Menu : English √√On-Screen Menu : English √√RETURNENTERMOVE EXITOriginal ……EnglishFrançaisDeutschEspañolItalianoNederlandsKorean ††00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 34
English - 35System SetupSetting Up the AudioOptionsAllows you to setup the audio device and sound staussettings depending on the audio system in use.1With the unit in Stop mode/No Disc mode, pressthe MENU button.2Press the …† buttons to select Setup, then pressthe ENTER or √button. 3Press the …† buttons to select Audio, then pressthe ENTER or √ button.Audio setup menu will be displayed.4Press the …† buttons to select the desired audiooption, then press the ENTER or √button.5Press the …† buttons to select the desired item,then press the ENTER or √button.Note■Press the RETURN or œbutton to return to theprevious menu. Press the MENU button to exit the menu.AudioDVD-RecorderNo DiscTimer Rec.SetupDigital Output : PCM √√DTS : Off √√Dynamic Compressiom : On √√Quick View with Audio : On √√SetupDVD-RecorderNo DiscTimer Rec.SetupSystem √√Clock Set √√Channel Set √√Language √√Audio √√Video √√Parental Control √√RETURNENTERMOVE EXITRETURNENTERMOVE EXITDigital Output1. PCM : Converts to PCM(2CH) 48kHz audio.Select PCM when using the Analog AudioOutputs.2. Bitstream : Converts to Dolby Digital Bitstream(5.1CH). Select Bitstream when usingthe Digital Audio Outputs.DTS1. Off : Doesn’t output digital signal.2. On : Outputs DTS Bitstream via digital outputonly. Select DTS when connecting to a DTSDecoder.Dynamic CompressionThis is only active when a Dolby Digital signal isdetected.1. Off : You can enjoy the movie with the standard Dynamic Range.2. On : When the Movie soundtracks are played at low volume or from small speakers, the system can apply appropriate compressionto make low-level content more intelligibleand prevent dramatic passages from gettingtoo loud.Quick View with AudioThis function enables you to hear the DVD soundduring fast playback (1.5X speed) or slow playback(X1/2).1. On : Enables to hear the sound during fast play-back (1.5X speed) or slow playback(X1/2).2. Off : Disables to hear the sound during fast play-back (1.5X speed) or slow playback(X1/2).Be sure to select the correct Digital Output orno audio will be heard.When DTS soundtrack is played, sound is notoutput from Analog Audio Output.NoteNote00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 35
36 - EnglishSystem SetupSetting Up theDisplay(Video) OptionsThis function allows you to setup the TV screen settings.1With the unit in Stop mode/No Disc mode, pressthe MENU button.2Press the …† buttons to select Setup, then pressthe ENTER or √button. 3Press the …† buttons to select Video, then pressthe ENTER or √button.Video option menu will be displayed.4Press the …† buttons to select the desired videooption, then press the ENTER or √button.5Press the …† buttons to select the desired item,then press the ENTER or √button.Press the RETURN or œbutton to return to theprevious menu. Press the MENU button to exit the menu.NoteTV AspectDepending on the type of television you have, you may want to adjust the screen setting. (aspect ratio)• 4:3 Letter Box : Select when you want to see thetotal 16:9 ratio screen DVD sup-plies, even though you have a TVwith a 4:3 ratio screen. Blackbars will appear at the top andbottom of the screen.• 4:3 Pan & Scan : Select this for a conventionalsize TV when you want to seethe central portion of the 16:9screen. (Extreme left and rightside of movie picture will be cutoff.)• 16:9 Wide : You can view the full 16:9 picture onyour wide-screen TV. Input LevelAdjusts the level of the input signal.• Darker :If you feel the screen is too light and you want to make the sceen darker.• Lighter :If you feel the screen is too dark and you want to make the sceen lighter.Black LevelAdjusts the black level of the screen.• 7.5 IRE : This will enhance the black level forincreased brightness/contrast when viewing DVDs.Select this when you want to make thescreen lighter.• 0 IRE : This is the standard NTSC reference blacklevel for consistent brightness/contrastacross all sources.Select this when you want to make thescreen darker.3D Noise Reduction• Off : Normal• On :Select to remove noise from the screen.This function depends on disc type. It may notwork for some disc types.IRE: Short for the Institute of Radio Engineers. An IRE unit is a relative unit of measureequaling 1/140th of the peak-to peak (p-p)video amplitude. NoteVideoDVD-RecorderNo DiscTimer Rec.SetupTV Aspect : 16:9 Wide √√Input Level : Darker √√Black Level : 7.5 IRE √√3D Noise Reduction : Off √√SetupDVD-RecorderNo DiscTimer Rec.SetupSystem √√Clock Set √√Channel Set √√Language √√Audio √√Video √√Parental Control √√RETURNENTERMOVE EXITRETURNENTERMOVE EXIT00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 36
System SetupSetting Up the ParentalControlThe Parental Control function works in conjunction withDVDs that have been assigned a rating - which helpsyou control the types of DVDs that your family watches.There are up to 8 rating levels on a disc.1With the unit in Stop mode/No Disc mode, pressthe MENU button on the remote control.2Press the …† buttons to select Setup, then pressthe ENTER or √button. 3Press the …† buttons to select Parental Control,then press the ENTER or √button.4Create a 4-digit password using the 0 to 9 buttonson the remote control.Parental ControlDVD-RecorderNo DiscTimer Rec.SetupCreate the passwordParental ControlDVD-RecorderNo DiscTimer Rec.SetupConfirm the passwordSetupDVD-RecorderNo DiscTimer Rec.SetupSystem √√Clock Set √√Channel Set √√Language √√Audio √√Video √√Parental Control √√RETURNENTERMOVE EXITRETURNENTERNUMBER EXITRETURNENTERNUMBER EXITEnglish - 375The Re-enter Password screen appears to confirmthe password. Enter your password again, andthen press the ENTER or √button.6Press the …† buttons to select On, then pressthe ENTER or √button.The Parental Control screen appears.About the Rating Level1Press the …† buttons to select Rating Level,then press the ENTER or √button.2Press the …† buttons to select the rating levelyou want, then press the ENTER or √button.For example, if you select up to Level 6, discs thatcontain Level 7, 8 will not play. A larger numberindicates that the program is intended for adultuse only.Press the RETURN or œbutton to return to theprevious menu. Press the MENU button to exit themenu.Refer to Troubleshooting if you forget your pass-word. (See page 87)NoteParental ControlDVD-RecorderNo DiscTimer Rec.SetupPassword :Off √√OffOnParental ControlDVD-RecorderNo DiscTimer Rec.SetupPassword : On√√Rating Level : Level 1 Kids√√Change Password√√Parental ControlDVD-RecorderNo DiscTimer Rec.SetupPassword :On√√Rating Level : Level 1 Kids√√Change Password√√Level 8 AdultsLevel 7Level 6Level 5Level 4Level 3Level 2Level 1 KidsRETURNENTERMOVE EXITRETURNENTERMOVE EXITRETURNENTERMOVE EXIT00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 37
38 - EnglishSystem SetupVCR SettingIf you want your videotapes to play automatically whenyou insert them, turn on Auto Play.1With the unit in Stop mode/No Disc mode, pressthe MENU button.2Press the …† buttons to select Setup, then pressthe ENTER or √button. 3Press the …† buttons to select System, thenpress the ENTER or √ button.4Press the …† buttons to select VCR, then pressthe ENTER or √button.Only tapes of which the Record Safety Tab areremoved will play automatically when inserted.NoteAbout the Change Password1Press the …† buttons to select Change Password,then press the ENTER or √ button.2Enter the 4-digit password using the number buttonson the remote control.The ‘Confirm the password’message will be displayed.3Enter your password again.Press the RETURN or œbutton to return to theprevious menu. Press the MENU button to exit the menu.NoteParental ControlDVD-RecorderNo DiscTimer Rec.SetupPassword : On√√Rating Level : Level 1 Kids√√Change Password√√SystemDVD-RecorderNo DiscTimer Rec.SetupVCR √√Video Input : AV 1 √√DVD EP Mode Time: 6 Hours √√Chapter Creator : Off √√Quick Recording : Off √√VCRDVD-RecorderNo DiscTimer Rec.SetupTape Length : T120 √√Auto Play : On √√Auto Repeat : Off √√SetupDVD-RecorderNo DiscTimer Rec.SetupSystem √√Clock Set √√Channel Set √√Language √√Audio √√Video √√Parental Control √√RETURNENTERMOVE EXITRETURNENTERMOVE EXITChange PasswordDVD-RecorderNo DiscTimer Rec.SetupEnter the passwordChange PasswordDVD-RecorderNo DiscTimer Rec.SetupConfirm the passwordRETURNENTERMOVE EXITRETURNENTERMOVE EXITRETURNENTERNUMBER EXITRETURNENTERNUMBER EXIT00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 38
English - 39System Setup5Press the …† buttons to select the desired VCRoption, then press the ENTER or √ button.6Press the …† buttons to select the desired item,then press the ENTER or √ button.Tape LengthThis information is usually printed on the tape box.The menu cycles through: T-120, T-160 or T-180.Once the type of cassette is set, the VCR can dis-play the amount of time remaining on the tape whenyou press the INFO. button.Auto Play• Off : Auto play is disabled.• On : The VCR will automatically begin playing avideo tape when it is inserted, as long as thesafety tab of the cassette has been removed.Auto RepeatIt sets the VCR to play a tape repeatedly (unless atape control is activated :Stop, Fast Forward orRewind).VCRDVD-RecorderNo DiscTimer Rec.SetupTape Length T120 √√Auto Play On √√Auto Repeat Off √√T120T160T180DVD-RecorderNo DiscTimer Rec.SetupTape Length : T120 √√Auto Play : On √√Auto Repeat : Off √√OffOnVCRDVD-RecorderNo DiscTimer Rec.SetupTape Length : T120 √√Auto Play : On √√Auto Repeat : Off √√OffOnVCRRETURNENTERMOVE EXITRETURNENTERMOVE EXITRETURNENTERMOVE EXITVideo InputIf you watch video through AV IN 1, you can choose AV 1(Composite) or S-video.1With the unit in Stop mode/No Disc mode, pressthe MENU button.2Press the …† buttons to select Setup, then pressthe ENTER or √button. 3Press the …† buttons to select System, thenpress the ENTER or √ button.4Press the …† buttons to select Video Input, thenpress the ENTER or √button.5Press the …† buttons to select AV 1 or S-Video, then press the ENTER or √ button.SystemDVD-RecorderNo DiscTimer Rec.SetupVCR √√Video Input : AV 1 √√DVD EP Mode Time: 6 Hours √√Chapter Creator : Off √√Quick Recording : Off √√SystemDVD-RecorderNo DiscTimer Rec.SetupVCR √√Video Input : AV 1 √√DVD EP Mode Time: 6 Hours √√Chapter Creator : Off √√Quick Recording : Off √√AV 1S-VideoSetupDVD-RecorderNo DiscTimer Rec.SetupSystem √√Clock Set √√Channel Set √√Language √√Audio √√Video √√Parental Control √√RETURNENTERMOVE EXITRETURNENTERMOVE EXITRETURNENTERMOVE EXIT00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 39

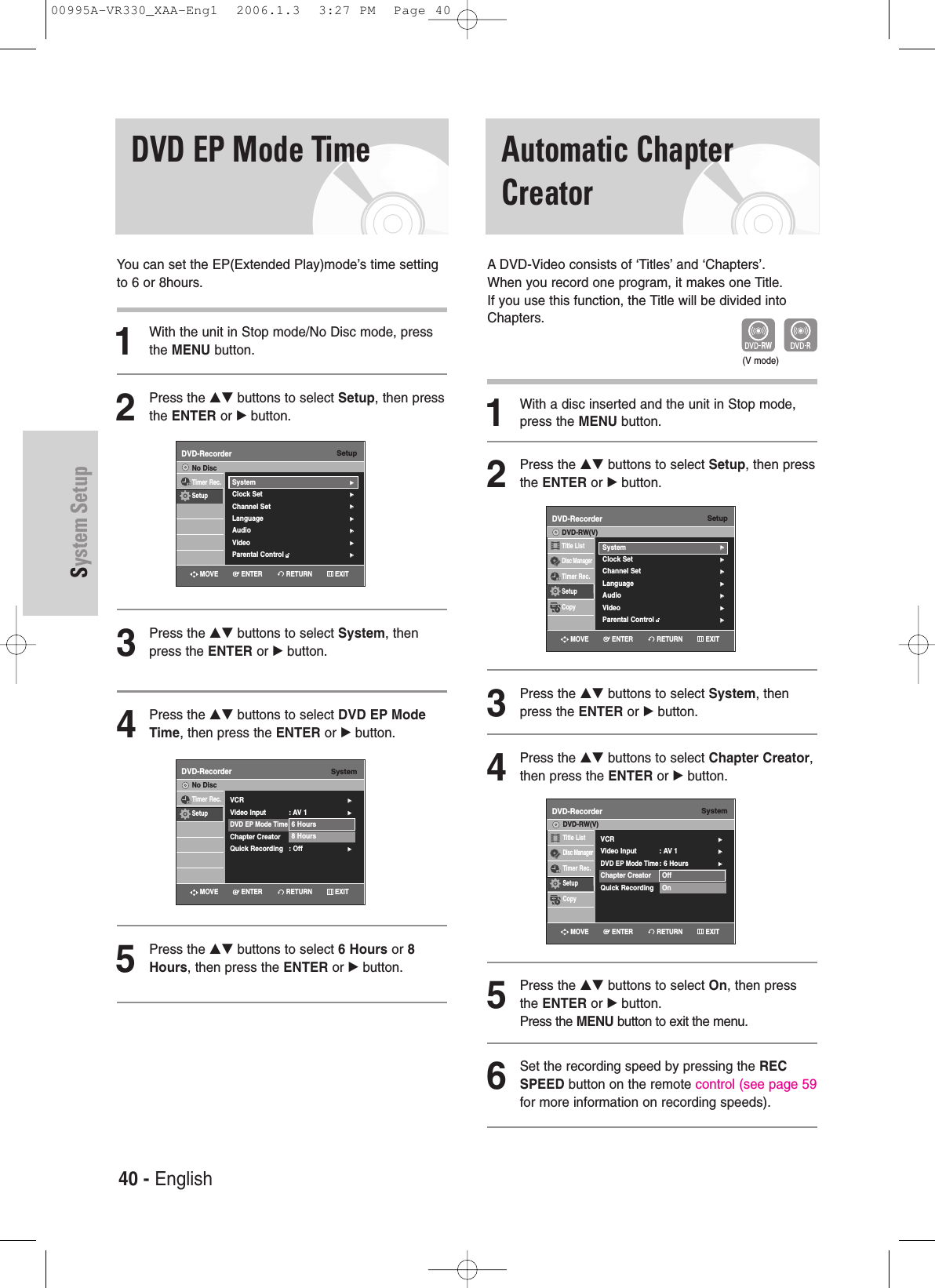

40 - EnglishSystem SetupA DVD-Video consists of ‘Titles’and ‘Chapters’.When you record one program, it makes one Title.If you use this function, the Title will be divided intoChapters.1With a disc inserted and the unit in Stop mode,press the MENU button.2Press the …† buttons to select Setup, then pressthe ENTER or √button. 3Press the …† buttons to select System, thenpress the ENTER or √button.4Press the …† buttons to select Chapter Creator,then press the ENTER or √ button.5Press the …† buttons to select On, then pressthe ENTER or √ button.Press the MENU button to exit the menu.6Set the recording speed by pressing the RECSPEED button on the remote control (see page 59for more information on recording speeds).Automatic Chapter CreatorYou can set the EP(Extended Play)mode’s time settingto 6 or 8hours.1With the unit in Stop mode/No Disc mode, pressthe MENU button.2Press the …† buttons to select Setup, then pressthe ENTER or √button. 3Press the …† buttons to select System, thenpress the ENTER or √button.4Press the …† buttons to select DVD EP ModeTime, then press the ENTER or √ button.5Press the …† buttons to select 6 Hours or 8Hours, then press the ENTER or √ button.DVD EP Mode Time(V mode)SystemDVD-RecorderNo DiscTimer Rec.SetupVCR √√Video Input : AV 1 √√DVD EP Mode Time: 6 Hours √√Chapter Creator : Off √√Quick Recording : Off √√6 Hours8 HoursSetupDVD-RecorderDVD-RW(V)Title ListDisc ManagerTimer Rec.SetupCopySystem √√Clock Set √√Channel Set √√Language √√Audio √√Video √√Parental Control √√SystemDVD-RecorderDVD-RW(V)Title ListDisc ManagerTimer Rec.SetupCopyVCR √√Video Input : AV 1 √√DVD EP Mode Time: 6 Hours √√Chapter Creator : Off √√Quick Recording : Off √√OffOnSetupDVD-RecorderNo DiscTimer Rec.SetupSystem √√Clock Set √√Channel Set √√Language √√Audio √√Video √√Parental Control √√RETURNENTERMOVE EXITRETURNENTERMOVE EXITRETURNENTERMOVE EXITRETURNENTERMOVE EXIT00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 40
System Setup7Press the REC button to start recording.The message "Do you want to create the chaptermenu after this recording?" is displayed.8Press the œ√buttons to select Yes and pressthe ENTER button and recording begins.In XP and SP mode, you must record at least 5minutes to create a chapter. In LP and EP mode,15 minutes.9Press the STOP button to stop recording.10To display the created titles, finalize the disc (see page 84) and then press the TITLE MENUbutton. The title menu will be displayed.11To display the created chapters, select thedesired Title and then press the DISC MENUbutton. The chapter menu for the selected Titlewill be displayed.On DVD-RW discs, additional chapters andtitles can be added to a finalized disc by unfinalizing and recording again.On DVD-Rdiscs, once finalized, no additional chapters ortitles can be recorded.NoteThe Automatic Chapter Creator function doesnot work during Timer Recording or when youturn the power off.DVD-R discs cannot be unfinalized.CAUTIONNoYesDo you want to create the chapter menuafter this recording?1/1Previous123Top Next1/1JAN/01/200612:00 AM CH1JAN/01/200612:30 AM CH1JAN/01/200601:00 AM CH1Previous Top NextJAN/01/200601:30 AM CH1Quick RecordingIf this function is set to on, both the DVD Recorder &VCR and the TV will power on at the same time, whichenables you to immediatedly record a desired channel.1With the unit in Stop mode/No Disc mode, press theMENU button.2Press the …†buttons to select Setup, then press theENTER or √button.3Press the …†buttons to Select System, then pressthe ENTER or √button.4Press the …†buttons to select Quick Recording,then press the ENTER or √button. 5Press the …† buttons to Select On, then press theENTER or √button. • On : The TV screen will immediately turn on whenthe DVD Recorder & VCR is powered on.• Off : The TV screen will turn on after 4 to 5 secondsas the DVD Recorder & VCR recognizes theinserted disk when it is powered on.SystemDVD-RecorderNo DiscTimer Rec.SetupVCR √√Video Input : AV 1 √√DVD EP Mode Time: 6 Hours √√Chapter Creator : Off √√Quick Recording : Off √√OffOnSetupDVD-RecorderNo DiscTimer Rec.SetupSystem √√Clock Set √√Channel Set √√Language √√Audio √√Video √√Parental Control √√RETURNENTERMOVE EXITRETURNENTERMOVE EXITEnglish - 4100995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 41
42 - EnglishPlaybackPlaybackThis section introduces basic functions of play-back by disc type.Before PlayingRead the following information before playing a disc.Region code (DVD-Video only)Both the DVD Recorder & VCR and the discs arecoded by region. These regional codes mustmatch in order for the disc to play. If the codes donot match, the disc will not play. The RegionNumber for this DVD Recorder & VCR isdescribed on the rear panel of the DVD Recorder& VCR.Disc types that can be playedDiscs that cannot be played•DVD-Video with a region number other than “1” or“ALL”•3.9 GB DVD-R Disc for Authoring.•DVD-RAM not recorded following the VideoRecording Standard•Unfinalized DVD-R,unfinalized DVD-RW(V mode)•PAL discs•DVD-RAM/DVD-ROM/DVD+R/DVD+RW/PD/MV-Disc/DivX Video Disc, etc•Video CD/CVD/SVCD/CD-ROM/CDV/CD-G/CD-IDolby Digital DTS Digital AudioStereo MP3NTSC broadcast sys-tem in U.S.A, Canada,Korea, Japan,etc.◆DVD PlaybackBefore Playing ...................................................................42 Playing a Disc ...................................................................43Using the Disc Menu and Title Menu ...............................44Using the Search & Skip Functions ..................................44Slow Motion Play / Step Motion Play ...............................45About ANYKEY .................................................................45Repeat Playback ................................................................46Selecting the Subtitle & Audio Language.........................47 Changing the Camera Angle.............................................48Zooming-In .......................................................................48Using the Bookmarks .......................................................49Using the Markers ...........................................................50Playing back an Audio CD (CD-DA)................................51Playing back an MP3 CD..................................................52Repeat Playback of an Audio/MP3 CD .............................53Play Option Mode..............................................................53To Program Tracks ............................................................54Playing a Picture CD.........................................................54◆VCR PlaybackPlaying the VCR................................................................55Tracking.............................................................................55Special VCR Playback Features ........................................56S-VHS Playback ...............................................................56Variable Search System.....................................................56Disc Types Disc Logo Recorded content Disc Shape Max. Playing TimeSingle sided(5”) 240DVD-VIDEO AUDIO + VIDEO Double sided(5”) 480Single sided(3.5”)80Double sided(3.5”) 160AUDIO-CD AUDIO Single sided(5”)74Single sided(3.5”)20JPEG Images Single sided(5”)-Single sided(3.5”)-MP3 Audio Single sided(5”)-Single sided(3.5”)-1 (XP: Excellent Quality)Single-sided2 (SP: Standard Quality)5” (4.7GB)4 (LP: Long Playback)DVD-RAM AUDIO + VIDEO6 or 8 (EP:Extended)2 (XP: Excellent Quality)Double-sided4 (SP: Standard Quality)5” (9.4GB)8 (LP: Long Playback)12 or 16 (EP:Extended)1 (XP: Excellent Quality)DVD-RW AUDIO + VIDEO 5” (4.7GB)2 (SP: Standard Quality)4 (LP: Long Playback)6 or 8 (EP:Extended)1 (XP: Excellent Quality)DVD-R AUDIO + VIDEO 5” (4.7GB)2 (SP: Standard Quality)4 (LP: Long Playback)6 or 8 (EP:Extended)JPEG CD-R/-RWMP3 CD-R/-RW00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 42
English - 43PlaybackPlaying a DiscThis DVD Recorder & VCR can only operatewith discs that are compatible with DVD-RAMStandard Version 2.0.Playback and/or recording may not work forsome types of discs or when specific opera-tions, such as angle change and aspect ratioadjustment, are being performed. Informationabout the disc is written in detail on the box.Please refer to this if necessary.Do not allow the disc to become dirty orscratched, fingerprints, dirt, dust, scratches anddeposits of cigarette smoke on the recordingsurface may make it impossible to use the discfor recording.DVD-RAM/-RW/-R discs may not be able toplay on some DVD players, depending on theplayer, disc and the condition of the recording.Discs with PAL programs recorded on themcannot be recorded using this product.NoteDo not move your DVD Recorder & VCR whileplaying, as this may cause damage to the disc.Make sure to press the OPEN/CLOSE button toopen or close the disc tray.Do not push the disc tray while it is beingopened or closed, as this may cause a productmalfunction.Do not place foreign materials on or in the disctray.Some functions may perform differently or bedisabled depending on the disc type. If thisoccurs, refer to the instructions written on thedisc case.Be especially careful that children's fingers arenot caught between the disc tray and the traychassis when it closes.After turning power on, it will take a few seconds until the DVD Recorder & VCR oper-ates.CAUTION1Press the OPEN/CLOSE button.2Place a disc gently into the tray with the disc’slabel facing up.3Press OPEN/CLOSE button to close the disc tray.• Your DVD Recorder & VCR closes the disc tray and plays the disc automatically.• The recorder does not play discs automaticallyafter being powered on initially.• When the recorder is powered on and a disc isin the tray, the unit will be activated and wait instop status. Press the PLAY button to start play-back.• If you insert an MP3 Disc, your DVD Recorder &VCR will display the file list on the screen andstart playing.• If you insert a JPEG Disc, folders and files aredisplayed in the thumbnail picture.4Press the STOP button to stop playback.When you stop playing the disc, the DVDRecorder & VCR remembers where you stopped.When you press PLAY button again, it will pick upwhere you left off. (unless the disc is removed orthe DVD Recorder & VCR is unplugged, or if youpress the STOP button twice.) This function isonly applicable to DVD-VIDEO, DVD-RAM, DVD-RW, DVD-R or Audio CDs (CD-DA).Note00995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 43
44 - EnglishPlaybackUsing the Search & SkipFunctionsSearching through a Chapter or TrackDuring the playback, press the SEARCH œœ or √√button on the remote control. Each time you pressthe SEARCH button, the playback speed willchange as follows.• You can scan the program in reverse order.To return to normal speed playback, press the√√ll button.Skipping Chapters or TracksDuring the playback, press the lœœ or √√lbuttonon the remote control.• If you press the lœœœœbuttonIf you press the lœœ button, it moves to the begin-ning of the chapter, track or marker(DVD-RAM,DVD-RW(VR mode) ). Pressing the button onceagain within 3 seconds returns to the beginning ofthe previous chapter, track or marker(DVD-RAM,DVD-RW(VR mode) ).• If you press the √√√√lbuttonIf you press the √√lbutton, it moves to the nextchapter, track or marker(DVD-RAM,DVD-RW(VR mode) )Skipping ahead 30 secondsDuring the playback, press F.ADV/SKIP button toskip ahead exactly 30 seconds.Using the Disc Menuand Title MenuSome discs contain a dedicated menu system thatallows you to select special functions for title, chapters,audio track, subtitles, film previews, information on characters, etc.For DVD-VIDEO disc1Press the DISC MENU button to enter the discmenu of the disc.• Move to the setup menu related to playback opera-tion.• You can select audio language and subtitle etc.,provided by the disc.2Press the TITLE MENU button to move to the titlemenu of the disc.• Use this button if the disc contains more than onetitle. Some discs may not support the title menufunctionality.For DVD-RAM/DVD-RW/DVD-R disc1Press the TITLE LIST button to display title list.Title List : Title List shows a list to help youselect a title. Since the title list con-sists of the information on video thatis actually recorded, if a title is delet-ed, that title cannot be played again.Playlist : This refers to a unit of playback,which is made by selecting adesired scene in the entire Title List.When one playlist is played, onlythe scene selected by the user willplay and then stop. Since only theinformation necessary for playing adesired scene is included in aplaylist, even if that playlist is delet-ed, the original recording will not bedeleted.NoteNo sound is heard during Scan(Search) mode,except CDs (CD-DA). But if ‘Quick View withAudio’function is set to on, you can hear thesound during FF1(1.5X speed) playback in disc.NoteDVD-VIDEO/DVD-RAM/DVD-RWDVD-RAUDIO CD(CD-DA)FF1/FR1➝FF2/FR2➝FF3/FR3➝FF4/FR4➝FF5/FR5➝FF6/FR6➝ X2 ➝ X4 ➝X800995A-VR330_XAA-Eng1 2006.1.3 3:27 PM Page 44
English - 45PlaybackSlow Motion Play/Step Motion PlaySlow Motion Play (DVD-VIDEO / DVD-RAM/ DVD-RW / DVD-R)During pause mode, press the SEARCH œœ or √√button on the remote control for more than 1 sec-ond.• Each time you press the √√ button :l√X 1/2 ➝l√X 1/4 ➝l√X 1/8• Each time you press the œœ button :œlX 1/2 ➝œlX 1/4 ➝œlX 1/8 To return to normal speed playback, press the √llbutton.Step Motion Play (DVD-VIDEO / DVD-RAM/ DVD-RW / DVD-R)During pause mode, press the F.ADV button on theremote control.• Each time the button is pressed, a new frame willappear.To return to normal speed playback, press the √llbutton. No sound is heard during Step or Slow mode.But if ‘Quick View with Audio’function is set toon, You can hear the sound during forwardslow(1/2) motion playback.NoteAbout ANYKEYThe ANYKEY functions allows you to easily search fora desired scene by accessing title, chapter or time. You can also change the subtitle and audio settings andset some features including Repeat, Angle and Zoom.Moving to a scene directly usingthe ANYKEY• If you want to move to a title or a chapter to find adesired scene.1Press the ANYKEY button during playback.2Press the ……††buttons to select Title, Chapter.3Press the œœ √√buttons or number (0~9) buttons toselect the desired scene. Then, press the ENTER button.DVD-VideoTitleChapterTimeSubtitleAudioRepeatAngleZoom1/21/2800:00:01ENG ENG D 5.1CHOff1/1OffCHANGEMOVE00995A-VR330_XAA-Eng1 2006.1.3 3:28 PM Page 45
Playback• If you want to move to a desired time to help you finda scene.1Press the ANYKEY button during playback.2Press the ……††buttons to select Time.3Enter the time in the sequence of hours, minutes,and seconds using the number buttons, thenpress the ENTER button.This may not work for some discs. When anAudio CD(CD-DA) or an MP3 disc is insert-ed, according to the disc type, the informa-tion display may not be appear.The Time Search function does not operatein some discs.To make the screen disappear, press theANYKEY button again.Note3Select repeat mode using œœ √√button.Press the ENTER button.• To make the screen disappear, press theANYKEY or RETURN button. DVD-RAM/DVD-RW(VR mode), unfinalizedDVD-R and unfinalized DVD-RW (Videomode) do not repeat a chapter.NoteDVD-VideoTitleChapterTimeSubtitleAudioRepeatAngleZoom1/21/2800:00:01ENGENG D 5.1CHOff1/1OffRepeat PlaybackPlaying Repeatedly(Repeat Playback)1Press the ANYKEY button during playback.2Press the ……††buttons to select Repeat. Playing a Certain section Repeatedly (A-B Repeat Playback)1Press the ANYKEY button during playback.2Press the …† buttons to select Repeat. 3Press the œœ √√button to select A-B, then press theENTER button.4Press the ENTER button at the point where you wantthe repeat play to start (A) and press it again at thepoint where you want the repeat play to stop (B).Repeat playback of the A-B section starts.- To return to normal playback -5Press the CANCEL button to return to normal playback.If you set point (B) before five seconds haslapsed, the prohibition mark ( ) will appear.CDs do not support the Repeat A-B function.NoteRepeat A-B A-BMOVE NUMBER0~9DVD-VideoTitleChapterTimeSubtitleAudioRepeatAngleZoom1/21/2800:00:01ENG ENG D 5.1CHOff1/1OffCHANGEMOVEDVD-VideoTitleChapterTimeSubtitleAudioRepeatAngleZoom1/21/2800:00:01ENG ENG D 5.1CHOff1/1OffCHANGEMOVE46 - English00995A-VR330_XAA-Eng1 2006.1.3 3:28 PM Page 46

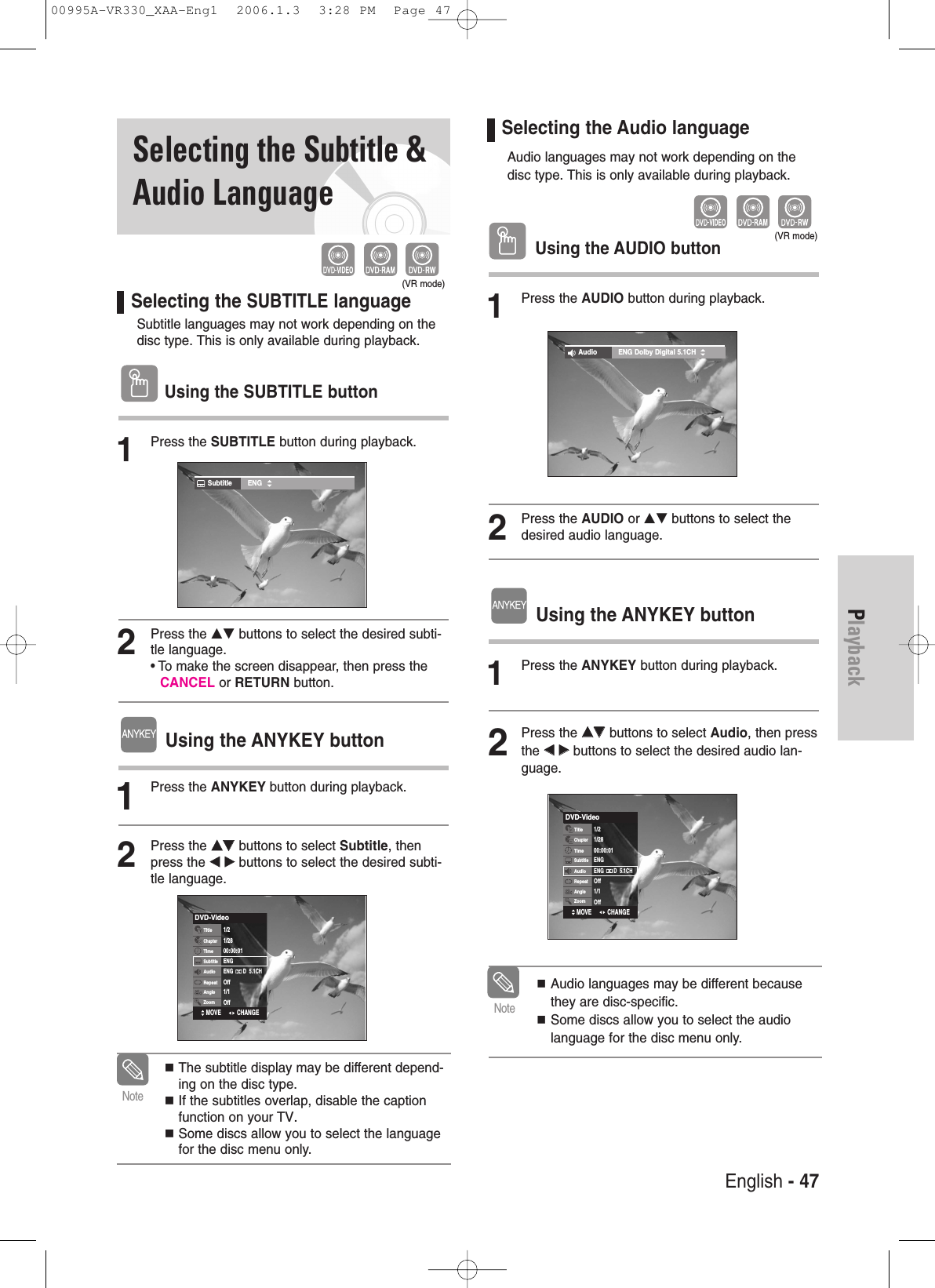

English - 47PlaybackSelecting the Subtitle &Audio LanguageSelecting the SUBTITLElanguageSubtitle languages may not work depending on the disc type. This is only available during playback.Using the SUBTITLE button1Press the SUBTITLE button during playback.2Press the …† buttons to select the desired subti-tle language. • To make the screen disappear, then press theCANCEL or RETURN button. Using the ANYKEY button1Press the ANYKEY button during playback.2Press the ……††buttons to select Subtitle, thenpress the œœ √√buttons to select the desired subti-tle language.(VR mode)Subtitle ENGThe subtitle display may be different depend-ing on the disc type.If the subtitles overlap, disable the captionfunction on your TV.Some discs allow you to select the languagefor the disc menu only.NoteSelecting the Audio languageAudio languages may not work depending on thedisc type. This is only available during playback.Using the AUDIO button1Press the AUDIO button during playback.2Press the AUDIO or …† buttons to select thedesired audio language. Using the ANYKEY button 1Press the ANYKEY button during playback.2Press the ……††buttons to select Audio, then pressthe œœ √√buttons to select the desired audio lan-guage.Audio languages may be different becausethey are disc-specific.Some discs allow you to select the audiolanguage for the disc menu only.NoteAudio ENG Dolby Digital 5.1CH(VR mode)DVD-VideoTitleChapterTimeSubtitleAudioRepeatAngleZoom1/21/2800:00:01ENG ENG D 5.1CHOff1/1OffCHANGEMOVEDVD-VideoTitleChapterTimeSubtitleAudioRepeatAngleZoom1/21/2800:00:01ENG ENG D 5.1CHOff1/1OffCHANGEMOVE00995A-VR330_XAA-Eng1 2006.1.3 3:28 PM Page 47
48 - EnglishPlaybackUsing the ANGLE button1Press the ANGLE button, during playback.2Press the …† button to select the desired angle.Using the ANYKEY button1Press the ANYKEY button during playback.2Press the …† buttons to select Angle, then pressthe œ √ buttons or number (0~9) buttons to selectthe desired angle scene.If a DVD-VIDEO contains multiple angles of a particularscene, you can use the Angle function. If the disc con-tains multiple angles, the ANGLE appears on thescreen.Changing the CameraAngleThis function is disc-dependent, and may notwork all DVDs.This function does not work when a DVD has notbeen recorded with a multi-camera angle system.NoteAngle 1/31Press the ANYKEY button during playback.2Press the …† buttons to select Zoom, then pressthe ENTER button. ( ) will be displayed.3Press …†, œ √ buttons to move to the area youwant to enlarge.4Press the ENTER button.Each time the ENTER button is pressed, thepicture is enlarged up to 4X(four times thenormal size).Zooming-InWhen recording is done in the EP mode, theZoom function will not be supported.(except when the recording has been donein V mode) You can also select Zoom function directlyusing ZOOM button on the remote control.NoteDVD-VideoTitleChapterTimeSubtitleAudioRepeatAngleZoom1/21/2800:00:01ENG ENG D 5.1CHOff1/1OffCHANGEMOVEDVD-VideoTitleChapterTimeSubtitleAudioRepeatAngleZoom1/21/2800:00:01ENG ENG D 5.1CHOff1/1OffCHANGEMOVEDVD-VIDEO/DVD-RAM/DVD-RW/ DVD-R normal size ➝ 2X ➝ 4X ➝ 2X➝ normal size00995A-VR330_XAA-Eng2 2006.1.3 3:38 PM Page 48

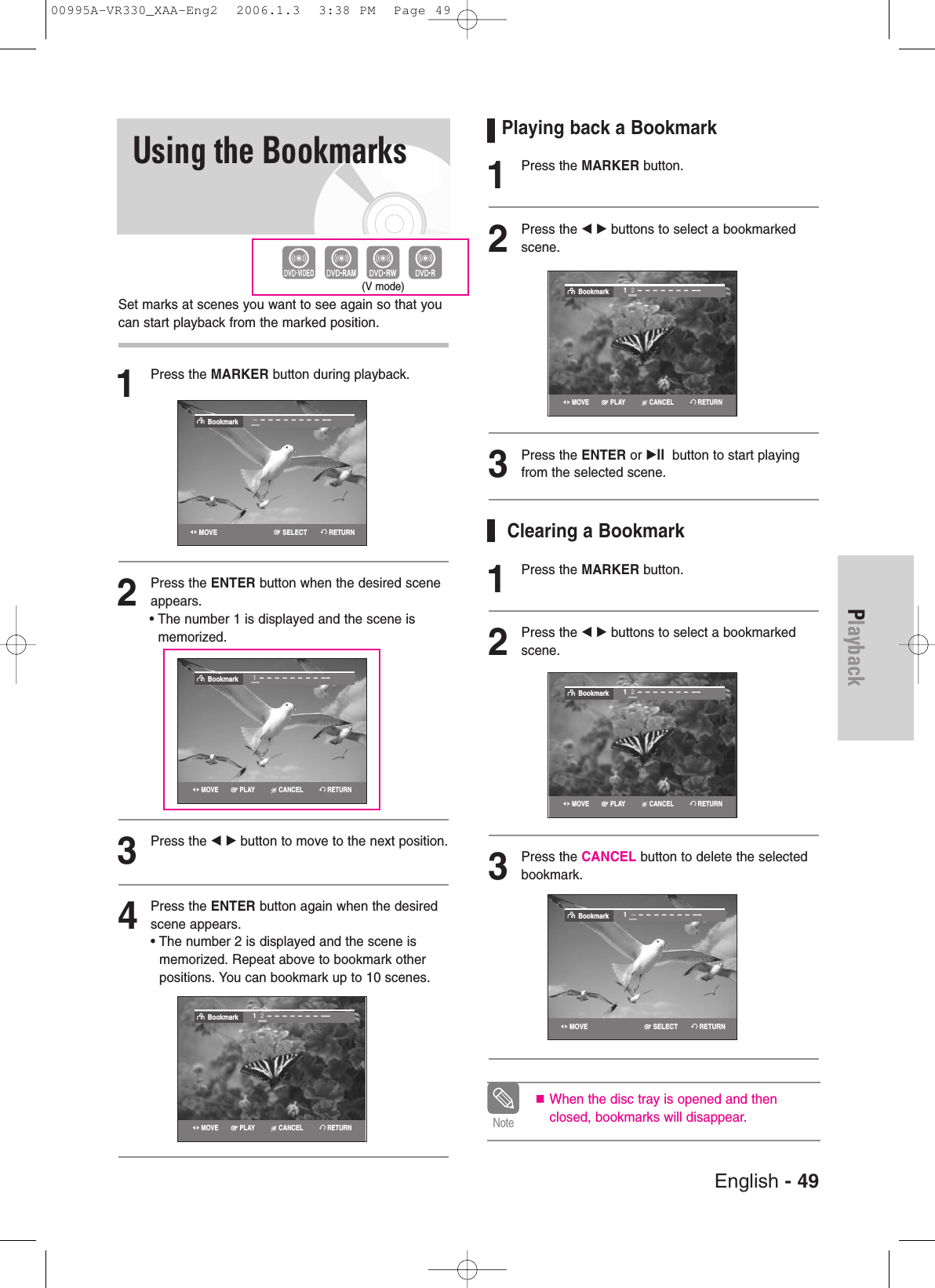

English - 49PlaybackPlaying back a Bookmark1Press the MARKER button.2Press the œ √ buttons to select a bookmarkedscene.3Press the ENTER or √llbutton to start playingfrom the selected scene.Clearing a Bookmark1Press the MARKER button.2Press the œ √ buttons to select a bookmarkedscene.3Press the CANCEL button to delete the selected bookmark.Bookmark12---------Bookmark1----------Using the BookmarksSet marks at scenes you want to see again so that youcan start playback from the marked position.1Press the MARKER button during playback.2Press the ENTER button when the desired sceneappears.• The number 1 is displayed and the scene ismemorized.3Press the œ √ button to move to the next position.4Press the ENTER button again when the desiredscene appears.• The number 2 is displayed and the scene ismemorized. Repeat above to bookmark otherpositions. You can bookmark up to 10 scenes.(V mode)Bookmark12---------When the disc tray is opened and thenclosed, bookmarks will disappear. NoteBookmark12---------Bookmark1----------CANCELPLAYMOVE RETURNBookmark-----------RETURNSELECTMOVECANCELPLAYMOVE RETURNRETURNSELECTMOVECANCELPLAYMOVE RETURNCANCELPLAYMOVE RETURN00995A-VR330_XAA-Eng2 2006.1.3 3:38 PM Page 49

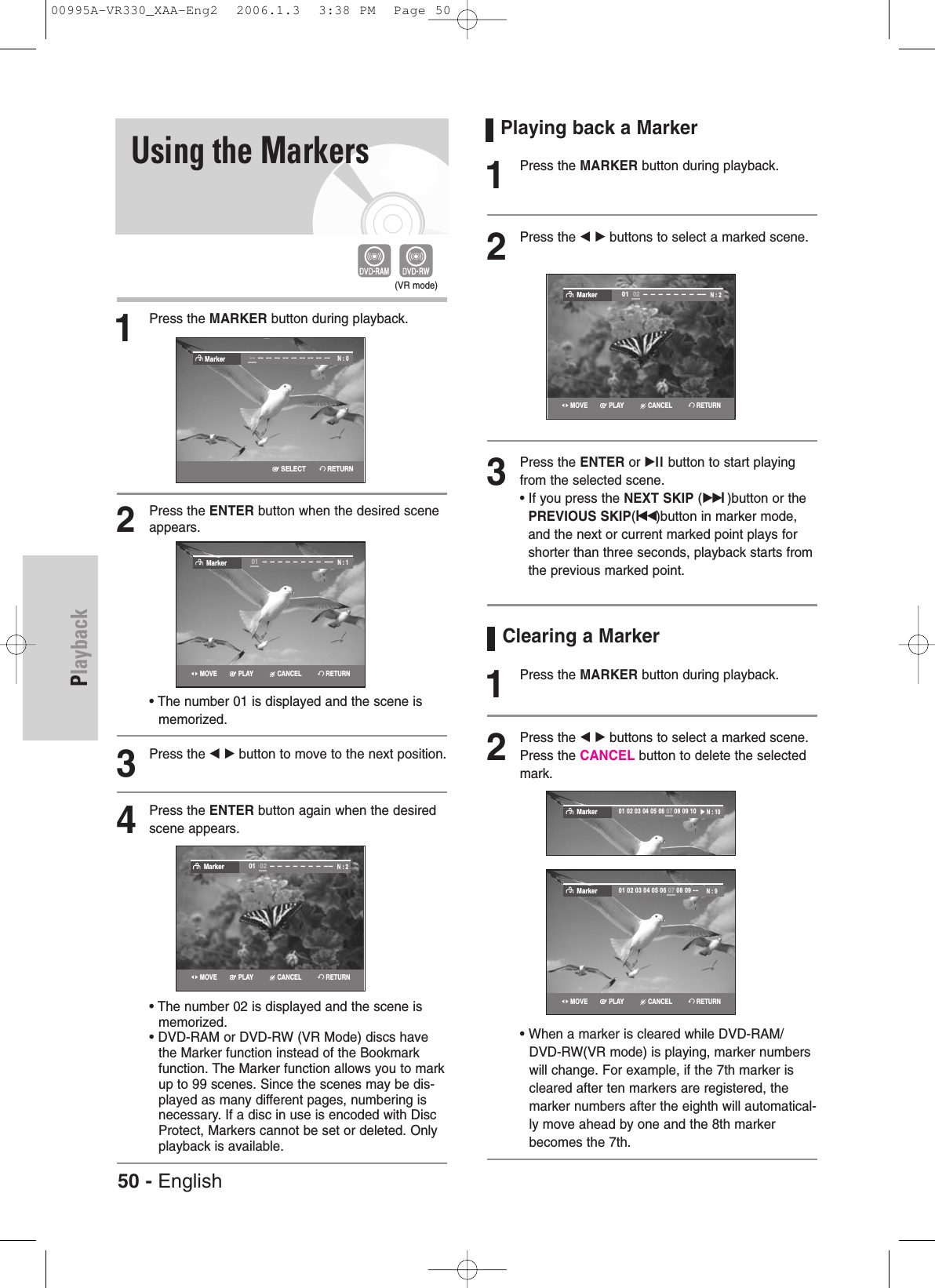

50 - EnglishPlaybackUsing the Markers1Press the MARKER button during playback.2Press the ENTER button when the desired sceneappears.• The number 01 is displayed and the scene ismemorized.3Press the œ √ button to move to the next position.4Press the ENTER button again when the desiredscene appears.• The number 02 is displayed and the scene ismemorized. • DVD-RAM or DVD-RW (VR Mode) discs havethe Marker function instead of the Bookmarkfunction. The Marker function allows you to markup to 99 scenes. Since the scenes may be dis-played as many different pages, numbering isnecessary. If a disc in use is encoded with DiscProtect, Markers cannot be set or deleted. Onlyplayback is available.(VR mode)Marker01---------- N : 1Marker01 02--------- N : 2Marker-- -- -- -- -- -- -- -- -- --N : 0Playing back a Marker1Press the MARKER button during playback.2Press the œ √ buttons to select a marked scene.3Press the ENTER or √ll button to start playingfrom the selected scene.• If you press the NEXT SKIP (√√l)button or thePREVIOUS SKIP(lœœ)button in marker mode,and the next or current marked point plays forshorter than three seconds, playback starts fromthe previous marked point.Clearing a Marker1Press the MARKER button during playback.2Press the œ √ buttons to select a marked scene.Press the CANCEL button to delete the selected mark.• When a marker is cleared while DVD-RAM/DVD-RW(VR mode) is playing, marker numberswill change. For example, if the 7th marker iscleared after ten markers are registered, themarker numbers after the eighth will automatical-ly move ahead by one and the 8th markerbecomes the 7th.Marker01 02--------- N : 2Marker01 02 03 04 05 06 07 08 09 10√√N : 10Marker01 02 03 04 05 06 07 08 09--N : 9RETURNSELECTCANCELPLAYMOVE RETURNCANCELPLAYMOVE RETURNCANCELPLAYMOVE RETURNCANCELPLAYMOVE RETURN00995A-VR330_XAA-Eng2 2006.1.3 3:38 PM Page 50
