Users Manual 1
Instruction Manual
DVD-VR345
www.samsung.com
AK68-00995G-00
English
00995G-VR345-XAA-Eng1-13 2006.4.10 2:49 PM Page 1
2- English
Getting Started

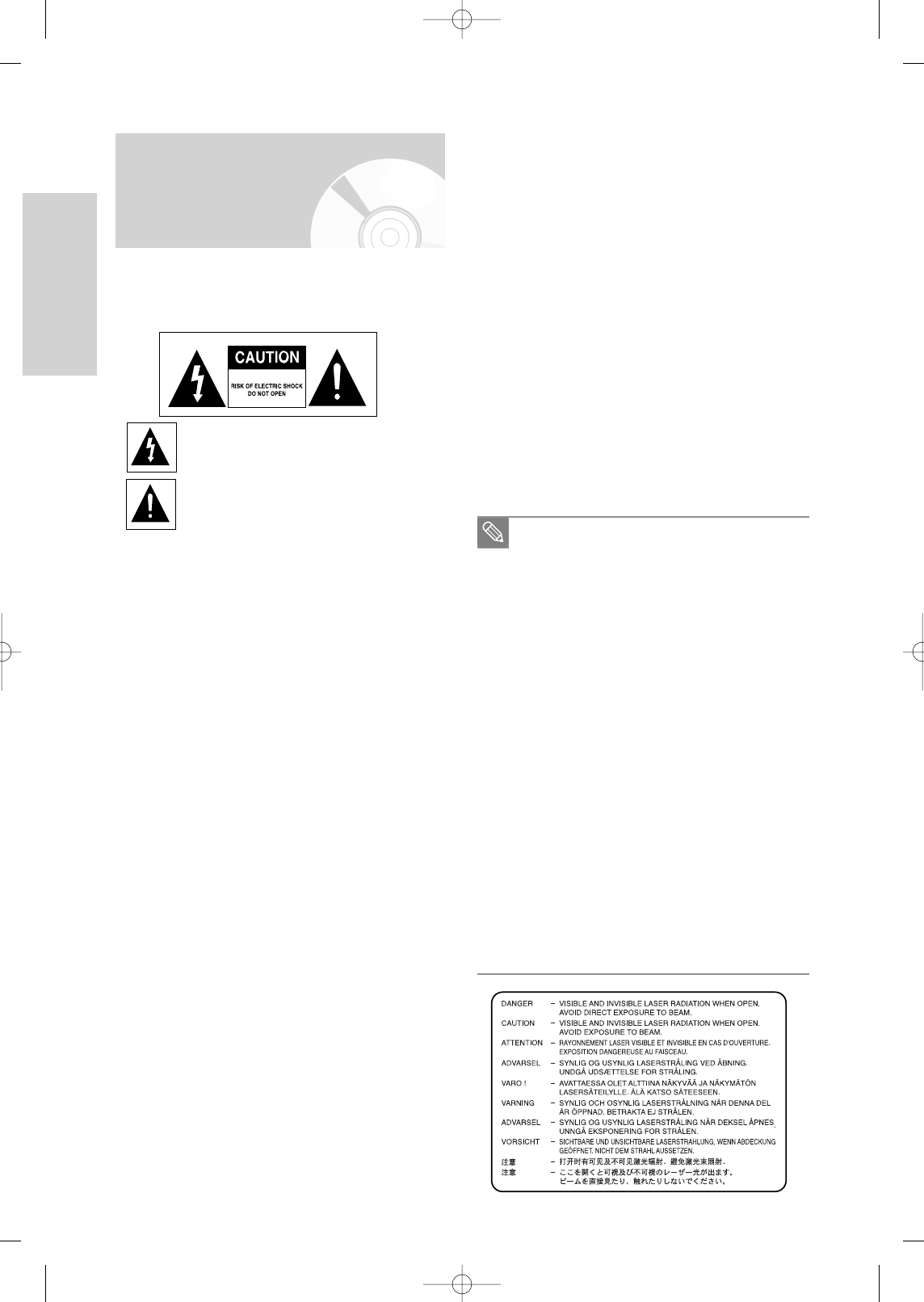

Warning
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE THE COVER(OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important instructions
accompanying the product.
Do not install this equipment in a confined space such
as a bookcase or similar unit.
WARNING : To prevent damage which may result in fire or
electric shock hazard, do not expose this appli-
ance to rain or moisture.
CAUTION : This DVD Recorder & VCR USES AN INVISI-
BLE LASER BEAM WHICH CAN CAUSE
HAZARDOUS RADIATION EXPOSURE IF
DIRECTED.
BE SURE TO OPERATE RECORDER COR-
RECTLY AS INSTRUCTED.
CAUTION
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
CAUTIONS
Caution: To prevent electric shock, match wide blade of
plug to wide slot, fully insert.
Attention: Pour éviter les chocs électriques, introduíre la
lame la plus large de la fiche dans la borne
correspondante de la prise et pousser jusqu au
fond.
This product satisfies FCC regulations when shielded
cables and connectors are used to connect the unit to
other equipment. To prevent electromagnetic interference
with electric appliances, such as radios and televisions, use
shielded cables and connectors for connections.
FCC NOTE (for U.S.A):
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interfer-
ence in a residential installation. This equipment gener-
ates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communi-
cations. However, there is no guarantee that interfer-
ence will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the follow-
ing measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit differ-
ent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV techni-
cian for help.
Caution: FCC regulations state that any unauthorized
changes or modifications to this equipment
may void the user’s authority to operate it.
This unit can be used only where the power
supply is AC 120V, 60Hz. It cannot be used else-
where.
This DVD Recorder & VCR is designed and
manufactured to respond to the Region
Management Information.
If the Region number of a DVD disc does not corre-
spond to the Region number of this , the DVD
Recorder & VCR cannot play the disc.
This device is protected by U.S. Patent
Nos.4,631,603;4,577,216;4,819,098;4,907,093; and
6,516,132. This product incorporates copyright pro-
tection technology that is protected by U.S. patents
and other intellectual property rights. Use of this
copyright protection technology must be
authorized by Macrovision,and is intended for home
and other limited viewing uses only unless otherwise
authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
This product is covered by one or more of the
following U.S. patents:
5,034,830 5,060,200 5,457,669 5,561,649
5,691,858 5,705,762 5,987,417 6,043,912
6,222,983 6,272,096 6,377,524 6,377,531
6,385,587 6,389,569 6,389,570 6,408,408
6,466,532 6,473,736 6,477,501 6,480,829
6,556,520 6,556,521 6,556,522 6,594,208
6,674,697 6,674,957 6,721,493 6,728,474
6,741,535 09/610381 09/610695
Note
00995G-VR345-XAA-Eng1-13 2006.4.10 2:49 PM Page 2
English - 3
Getting Started
Important Safety Instructions
Read these operating instructions carefully before using
the unit. Follow all the safety instructions listed below.
Keep these operating instructions handy for future refer-
ence.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, Install in
accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radi-
ators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized
or grounding- type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are pro-
vided for your safety. if the provided plug does not
fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protect the power cord from being walked on or
pinched particularly at plugs, convenience recep-
tacles, and the point where they exit from the
apparatus.
11) Only use attachments/accessories specified by
the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or
when unused for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-sup-
ply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or mois-
ture, does not operate normally, or has been
dropped.
Handling Cautions
• Before connecting other components to this
recorder, be sure to turn them all off.
• Do not move the recorder while a disc is being
played, or the disc may be scratched or broken,
and the recorder’s internal parts may be damaged.
• Do not put a flower vase filled with water or any
small metal objects on the recorder.
• Be careful not to put your hand into the disc tray.
• Do not place anything other than the disc in the
disc tray.
Precaution
•
Exterior interference such as lightning and static elec-
tricity can affect normal operation of this recorder. If
this occurs, turn the DVD Recorder & VCR off and on
again with the POWER button, or disconnect and then
reconnect the AC power cord to the AC power outlet.
The recorder will operate normally.
• Be sure to remove the disc and turn off the recorder after
use.
•
Disconnect the AC power cord from the AC outlet
when you don’t intend to use the recorder for long
periods of time.
•
Clean the disc by wiping in a straight line from the
inside to the outside of the disc.
Maintenance of Cabinet
For safety reasons, be sure to disconnect the AC power
cord from the AC outlet.
•
Do not use benzene, thinner, or other solvents for
cleaning.
•
Wipe the cabinet with a soft cloth.

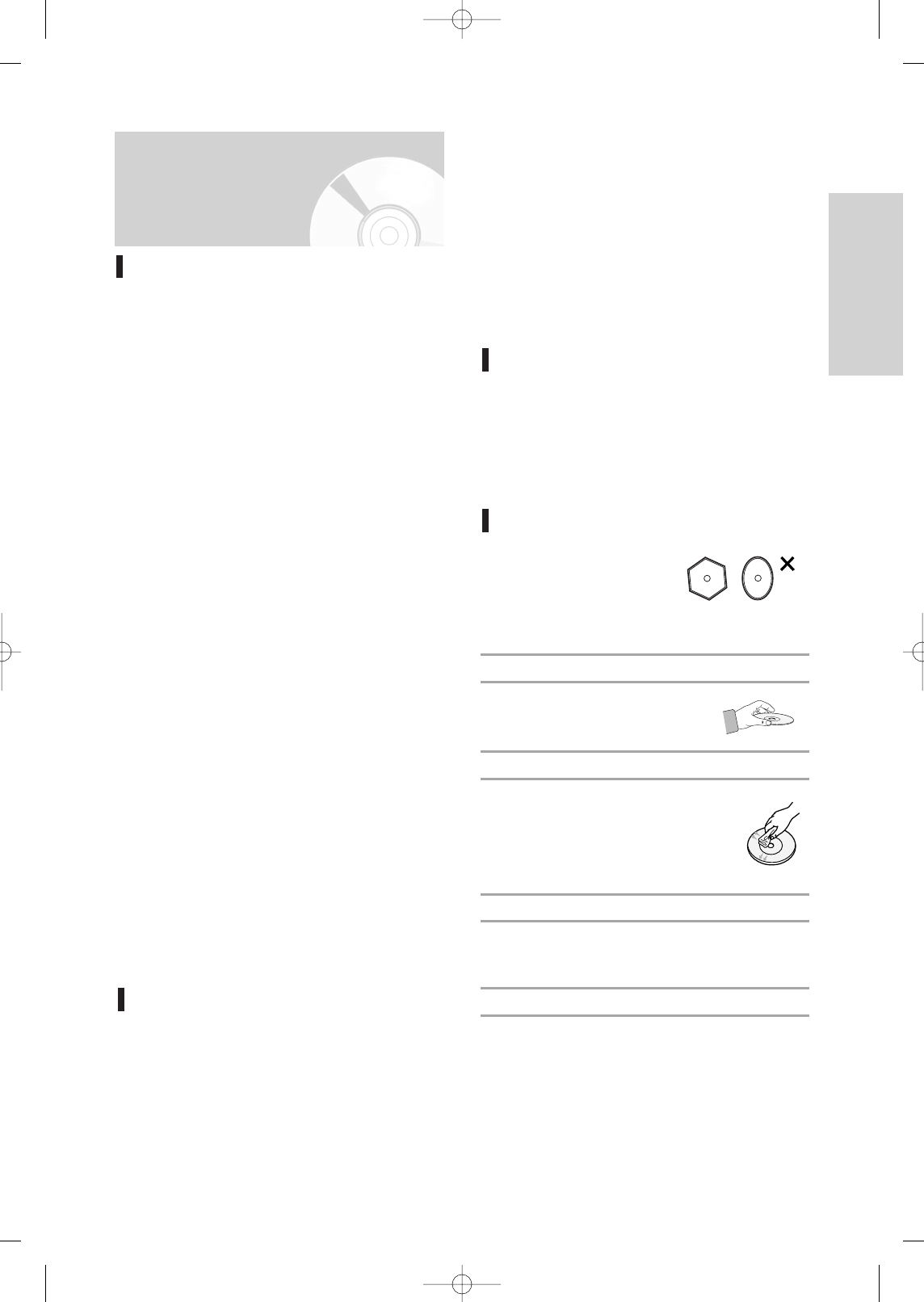

Disc Handling
•
Use discs with regular shapes.
If an irregular disc (a disc with
a special shape) is used, this
DVD Recorder & VCR may be
damaged.
Holding discs
•
Avoid touching the surface of a disc
where recording is performed.
DVD-RAM, DVD±RW and DVD±R
•
Clean with an optional DVD-RAM/PD
disc cleaner.
Do not use cleaners or cloths for CDs
to clean DVD-RAM/DVD±RW/DVD±R
discs.
DVD-Video, CD
•
Wipe off dirt or contamination on the disc with a soft
cloth.
Cautions on handling discs
•
Do not write on the printed side with a ball-point pen
or pencil.
•
Do not use record cleaning sprays or antistatic. Also,
do not use volatile chemicals, such as benzene or
thinner.
•
Do not apply labels or stickers to discs. (Do not use
discs fixed with exposed tape adhesive or leftover
peeled-off stickers.)
00995G-VR345-XAA-Eng1-13 2006.4.10 2:49 PM Page 3
4- English
Getting Started
•
Only JPEG files with the ".jpg", ".JPG" extension can be
used.
•
The unit can handle a maximum of 1000 files and folders.
•
Maximum size of progressive JPEG is 3M pixels.
•
MOTION JPEG is not supported.
•
DVD-RAM/±RW/±R discs that contain JPEG files can be
played back.
• Disc : CD-R/-RW, DVD-RAM, DVD±R/ DVD±RW,
• MPEG4 File with following extensions can be
played. : .avi, .divx, .AVI, .DIVX
• MPEG4 Codec format : DivX 3.11 DivX 4.x DivX 5.x
• Available Audio Format : “MP3”, “MPEG”,
“PCM”,“AC3”, “DTS”
• Supported subtitle file formats: .smi, .srt, .sub,
.psb,.txt
•
Use a 700MB(80 minutes) CD-R/-RW disc.
If possible, do not use a 800MB(90 minutes) or above
disc, as the disc may not play back.
•
If the CD-R/-RW disc was not recorded as a closed ses-
sion, you may experience a delay in the early play-back
time, and all recorded files may not play.
•
Some CD-R/-RW discs may not be playable with this unit,
depending on the device which was used to burn them.
For contents recorded on CD-R/-RW media from CDs for
your personal use, playability may vary depending on con-
tents and discs.
DVD±R Disc Playback and Recording
•
Once a DVD±R recorded is finalized, it is playable in a
standard DVD player.
•
You can record onto the available space on the disc and
perform editing functions such as giving titles to discs and
programs and erasing programs before finalizing.
•
When programming is erased from a DVD±R, that space
does not become available. Once an area on a DVD±R is
recorded on, that area is no longer available for recording,
whether the recording is erased or not.
•
It takes about 30 seconds for the unit to complete record-
ing management information after recording finishes.
•
This product optimizes the DVD±R for each recording.
Optimizing is carried out when you start recording after
inserting the disc or turning on the unit. Recording onto
the disc may become impossible if optimizing is carried
out too many times.
•
Playback may be impossible in some cases due to the
condition of recording.
•
This unit can play back DVD±R discs recorded and final-
ized with a Samsung DVD video recorder. It may not be
able to play some DVD±R discs depending on the disc
and the condition of the recording.
•
Do not use scratch-proof protectors or covers.
•
Do not use discs printed with label printers available
on the market.
•
Do not load warped or cracked discs.
Disc Storage
Be careful not to harm the disc because the data on
these discs is highly vulnerable to the environment.
•
Do not keep under direct sunlight.
•
Keep in a cool ventilated area.
•
Store vertically.
•
Keep in a clean protection jacket.
•
If you move your DVD Recorder & VCR suddenly from
a cold place to a warm place, condensation may gen-
erate on the operating parts and lens and cause
abnormal disc playback. In this case, do not connect
the plug to the power outlet and wait for two hours.
Then insert the disc and try to play back again. It will
work properly when condensation has evaporated.

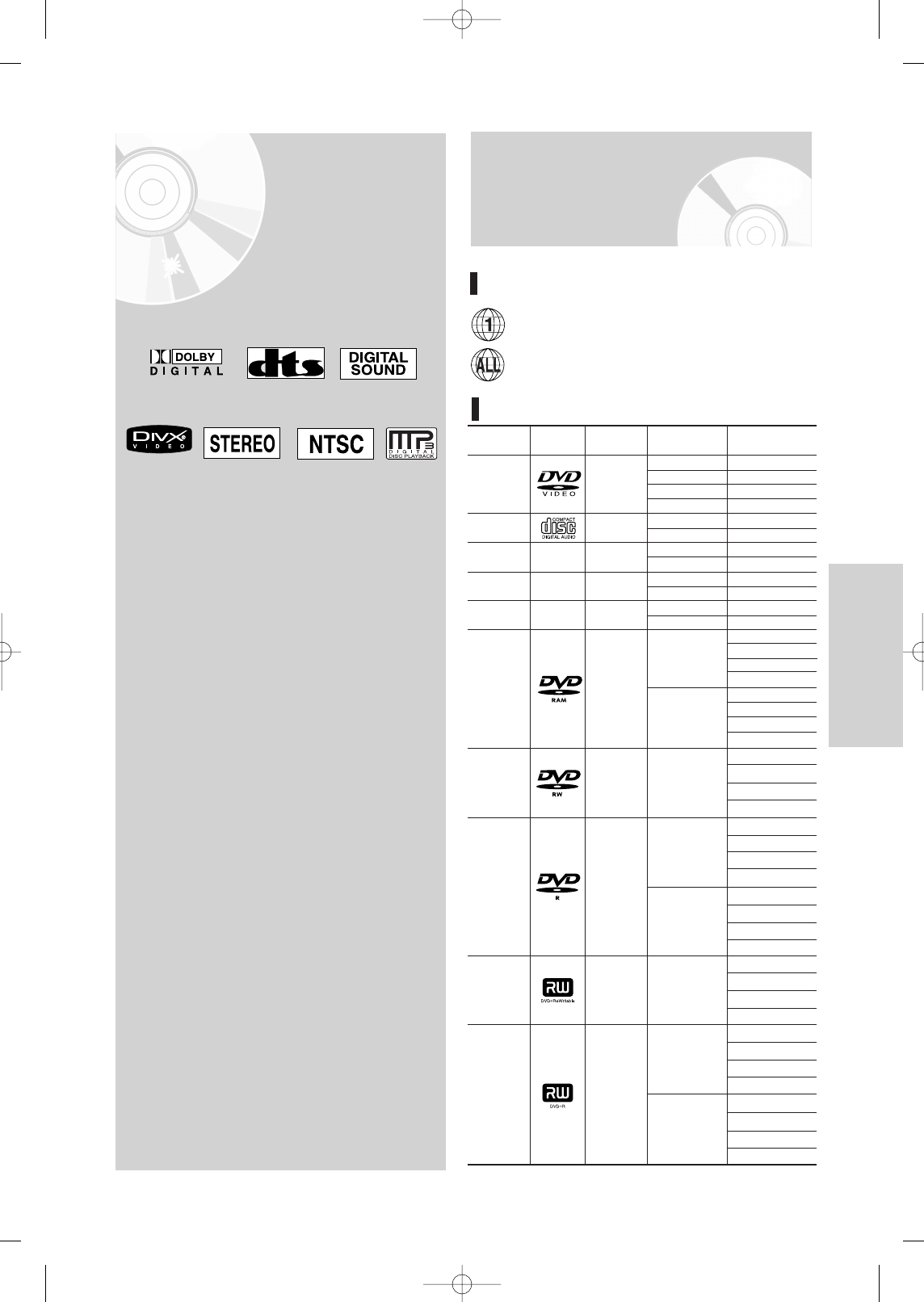

Disc Specifications
DVD-Video
•
A digital versatile disc (DVD) can contain up to 135-
minutes of images, 8 audio languages and 32 subtitle
languages. It is equipped with MPEG-2 picture com-
pression and Dolby 3D surround, allowing you to
enjoy vivid and clear theater quality images in the
comfort of your own home.
•
When switching from the first layer to the second layer
of a double-layered DVD Video disc, there may be
momentary distortion in the image and sound.
This is not a malfunction of the unit.
•
Once a DVD±R/DVD-RW(V) recorded is finalized, it is
playable in a standard DVD player.
Audio CD
•
An audio disc on which 44.1kHz PCM Audio is recorded.
•
Plays CD-DA format audio CD-R and CD-RW discs. This
unit may not be able to play some CD-R or CD-RW discs
due to the condition of the recording.
CD-R/-RW
•
Only CD-R discs with MP3 files recorded with
ISO9660 or JOLIET format can be played back
•
Only MP3 files with the "mp3" or "MP3" extension can
be used.
•
For MP3 files recorded with a VBR(Variable Bit
Rates), from 80 Kbps to 320 Kbps, the sound may cut
in out.
•
Playable bitrate range is from 56Kbps to 320Kbps.
•
The unit can handle a maximum of 1000 files and fold-
ers.
•
DVD-RAM/±RW/±R discs that contain MP3 files can
be played back.
MP3 CD-R/-RW
JPEG CD-R/-RW
Using MPEG4 disc
Using CD-R/-RW
00995G-VR345-XAA-Eng1-13 2006.4.10 2:49 PM Page 4
English - 5
Getting Started
DVD-RW Disc Playback and Recording
•
Recording and playback can be performed on DVD-
RW discs in both Video and VR Modes.
•
Once a DVD-RW recorded in VR Mode or Video mode
is finalized, you cannot perform additional recording.
•
Once a DVD-RW recorded in Video Mode is finalized,
it becomes DVD-Video.
•
In both modes, playback can be performed before and after
finalization, but additional recording, deleting and editing can
not be performed after finalization.
•
If you want to record the disc in VR Mode and then record in
V Mode, be sure to execute format. Be careful when execut-
ing Format because all the recorded data may be lost.
•
For an unused disc, a message that asks whether to initialize
a disc or not. If you select “Yes”, disc will be formatted in VR
mode.
• DVD-RW (VR mode)
- This is a format that is used for recording data on DVD-
RW disc. You can record multiple titles, edit, delete, par-
tial delete, create a playlist, etc.
- A disc that is recorded in this mode may not be played
by existing DVD players.
• DVD-RW (Video mode)
-
This is a format that is used for recording data on a
DVD-RW or DVD-R disc. The disc can be played by an
existing DVD player once it has been finalized.
- If a disc that has been recorded in Video mode by a dif-
ferent manufacturer's recorder but has not been finalized
it cannot be played or additionally be recorded by this
recorder.
DVD+RW Disc Playback and Recording
•
With DVD+RW discs, there is no difference between
DVD-Video format (Video mode) and DVD-Video
Recording format (VR mode).
• You can make your own chapters on DVD+RWs and edit
them using the Chapter Edit menu.
• Finalizing is generally unnecessary when using a
DVD+RW disc.
DVD-RAM Disc Playback and Recording
•
For cartridge type DVD-RAM discs, remove the
cartridge and use the disc only.
•
Ensure that the recording mode is set to VR mode.
Otherwise, this product will not be able to play the
recording.
•
You cannot play a DVD-RAM in most DVD players due
to compatibility issues.
•
Only DVD-RAM standard Version 2.0 discs can be
played in this unit.
•
DVD-RAM recorded on this unit may not work with other
DVD Players. To determine compatibility with these
DVD-RAM discs, refer to the user’s manual for the player.
Protection
•
Program-protection: See page 79 “Locking a Title”
•
Disc-protection: See page 92 “Disc Protection”
❋DVD-RAM/
DVD±RW/DVD±R discs that are incompati-
ble with the DVD-VIDEO format cannot be played with
this product.
❋
For more information on DVD recording compatibility,
consult your DVD-RAM/DVD±RW/DVD±R manufacturer.
❋
Use of poor quality DVD-RAM/DVD±RW/DVD±R discs
may cause following unexpected problems including,
without limitation, recording failure, loss of recorded or
edited materials or damage to the recorder.
Do not use the following discs!
•
LD, CD-G, CD-I, CD-ROM and DVD-ROM discs should
not be used in this product.
[Note]
•
Some commercial discs and DVD discs purchased out-
side your region may not be playable with this product.
When these discs are played, either “No Disc” or “The
disc cannot be played. Please check the regional code
of the disc.” will be displayed.
•
If your DVD-RAM/DVD±RW/DVD±R disc is an illegal
copy or is not in DVD video format, it may also not be
playable.
•
A 8X speed DVD+RW or greater disc can be played, but
maximum recording speed is 4x.
•
Not all brands of discs will be compatible with this unit.
•
The latest firmware upgrade to improve recording &
playback quality can be downloaded from our web site.
(Download Center at www.samsung.com)
•
If disc compatibility problems continue, or there is an
issue upgrading your recorder, contact the Call Center at
1-800-SAMSUNG.
Disc compatibility
•
Many DVD discs are encoded with copy protec-
tion. Because of this, you should only connect
your DVD Recorder & VCR directly to your TV,
not to a VCR. Connecting to a VCR results in a
distorted picture from copy-protected DVD discs.
•
This product incorporates copyright protection
technology that is protected by methods claims of
certain U.S. patents and other intellectual proper-
ty rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protec-
tion technology must be authorized by
Macrovision Corporation, and is intended for
home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
COPY PROTECTION
00995G-VR345-XAA-Eng1-13 2006.4.10 2:49 PM Page 5
6- English
Getting Started
Contents
Getting Started
Getting Started
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Precaution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . .3
Handling Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Maintenance of Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . .3
Disc Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Disc Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Disc Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
General Features . . . . . . . . . . . . . . . . . . . . . . . . . . .8

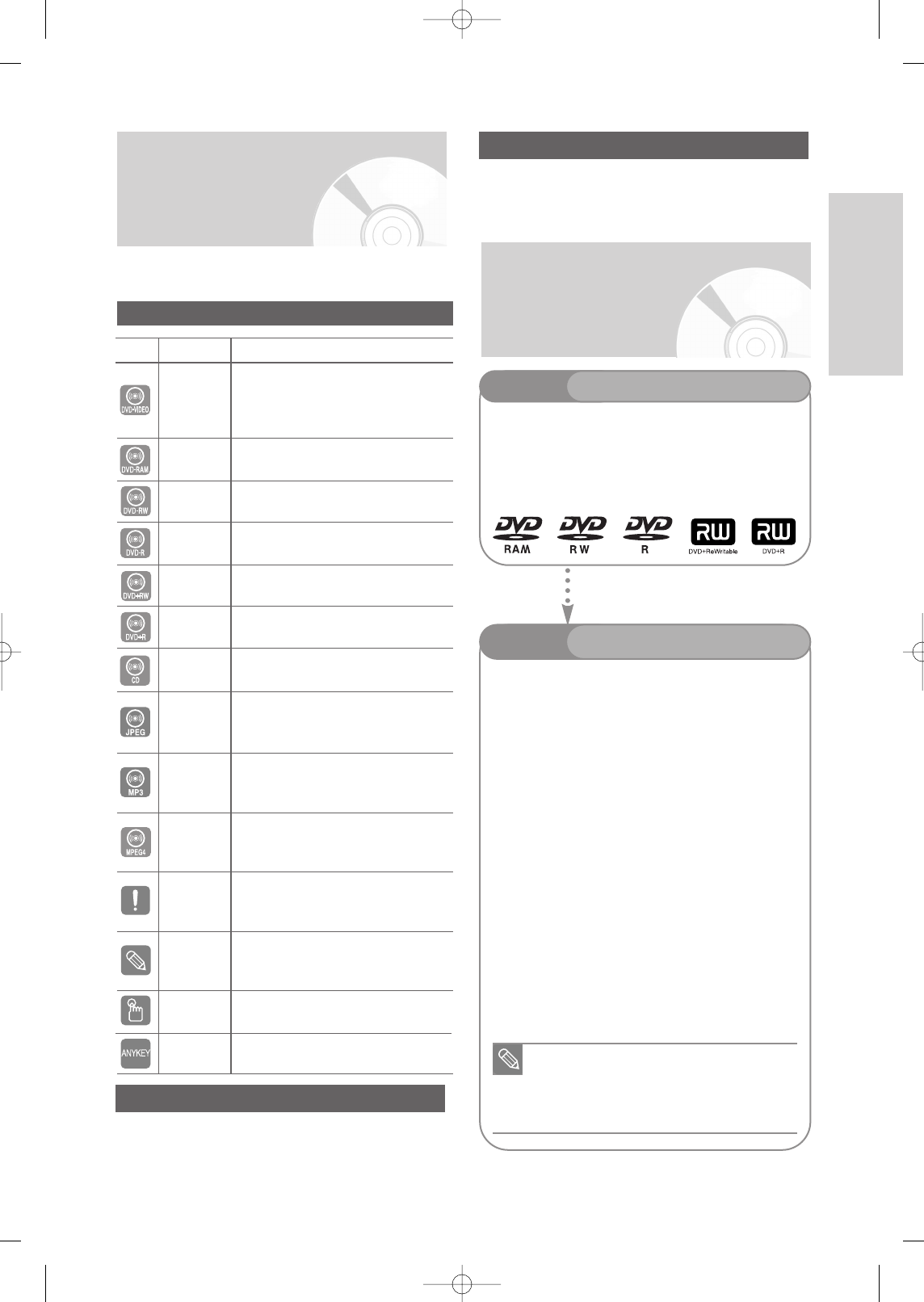

Before Reading the User’s Manual . . . . . . . . . . . . .9
How to use the DVD Recorder & VCR . . . . . . . . . . .9
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

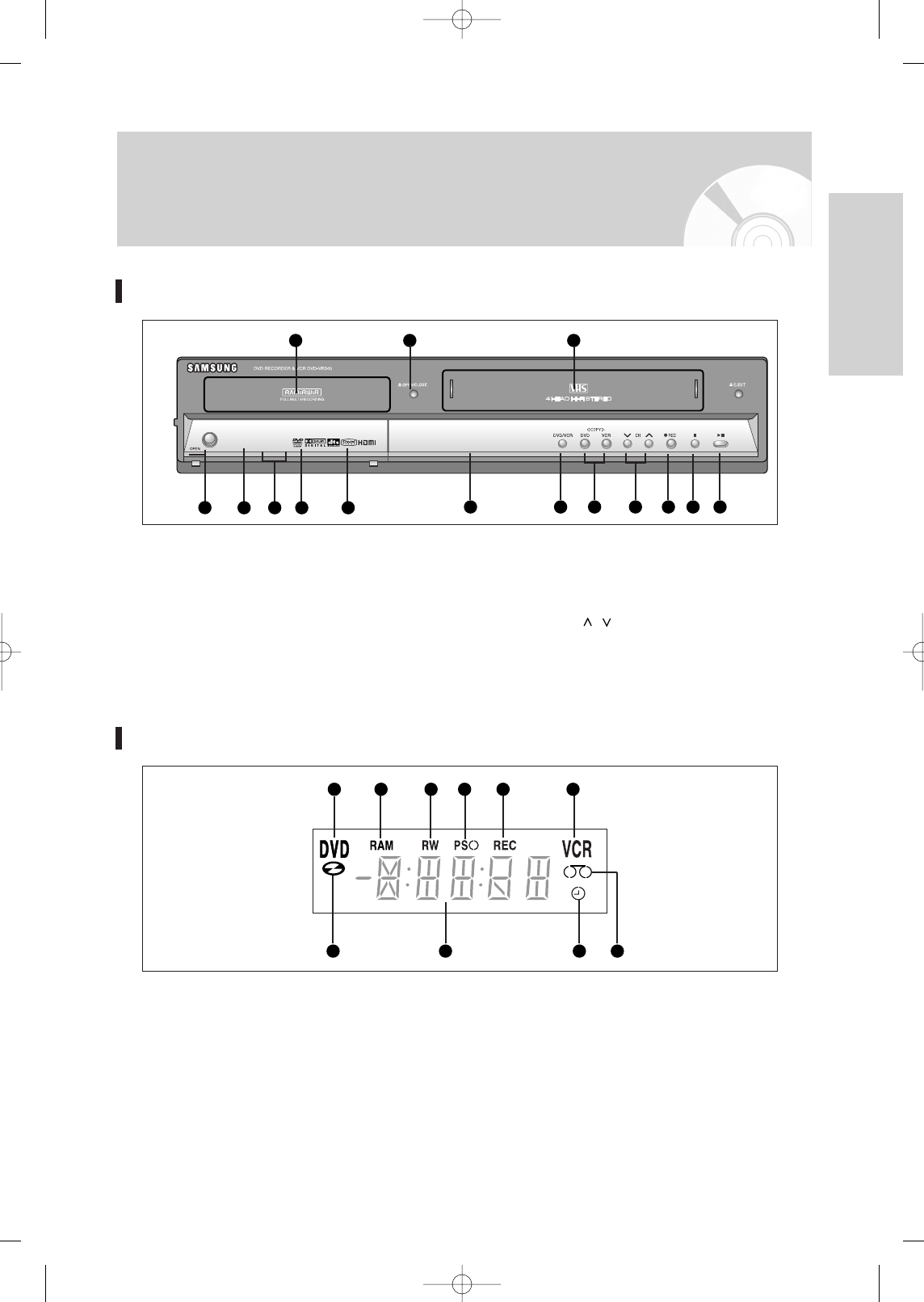

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Front Panel Display . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
2
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2

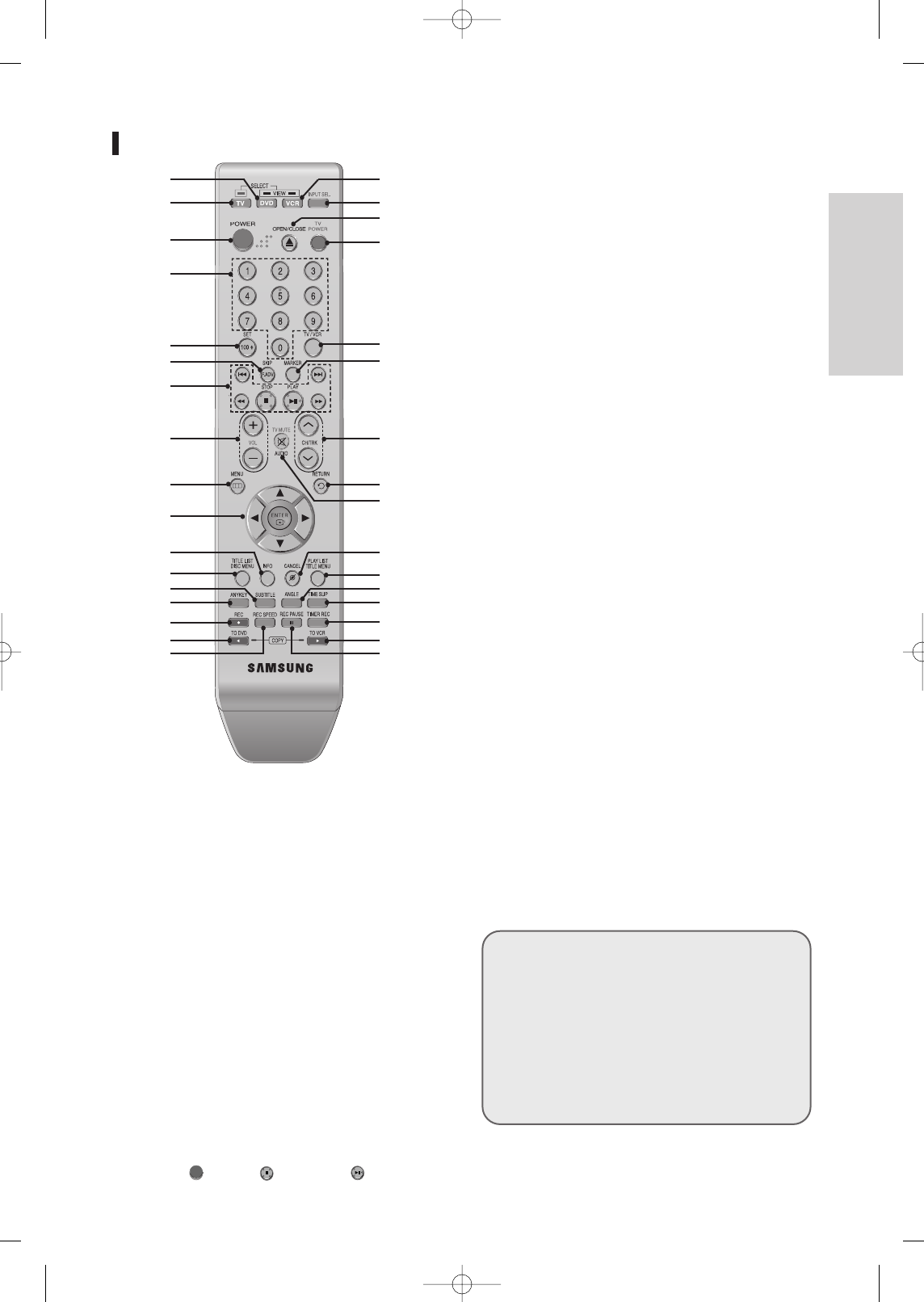

Tour of the Remote Control . . . . . . . . . . . . . . . . . . . . . .13
Connecting & Setting Up
Connecting & Setting Up
Quick Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Step 1 : Connecting the Antenna Cable . . . . . . . . . .15
Antenna + DVD Recorder & VCR + TV :
No Cable box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

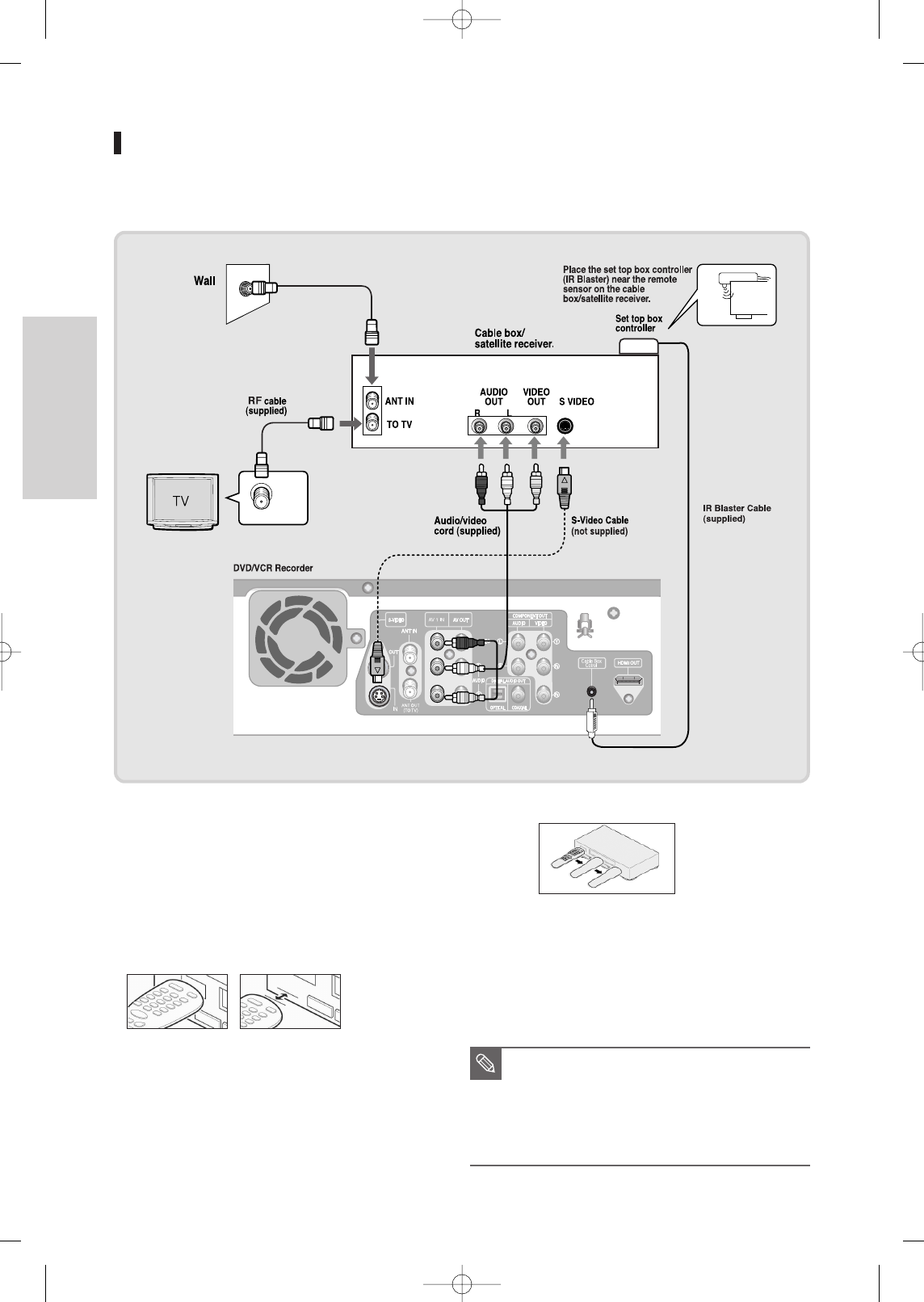

Antenna + Set Top Box Controller + DVD Recorder &
VCR + TV : Cable box with a video/audio output or
a satellite receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Antenna + Cable box + DVD Recorder & VCR + TV :
Cable box with an antenna output only . . . . . . . . . . . . .17
Step 2 : Connecting the Video Cable . . . . . . . . . . . .18

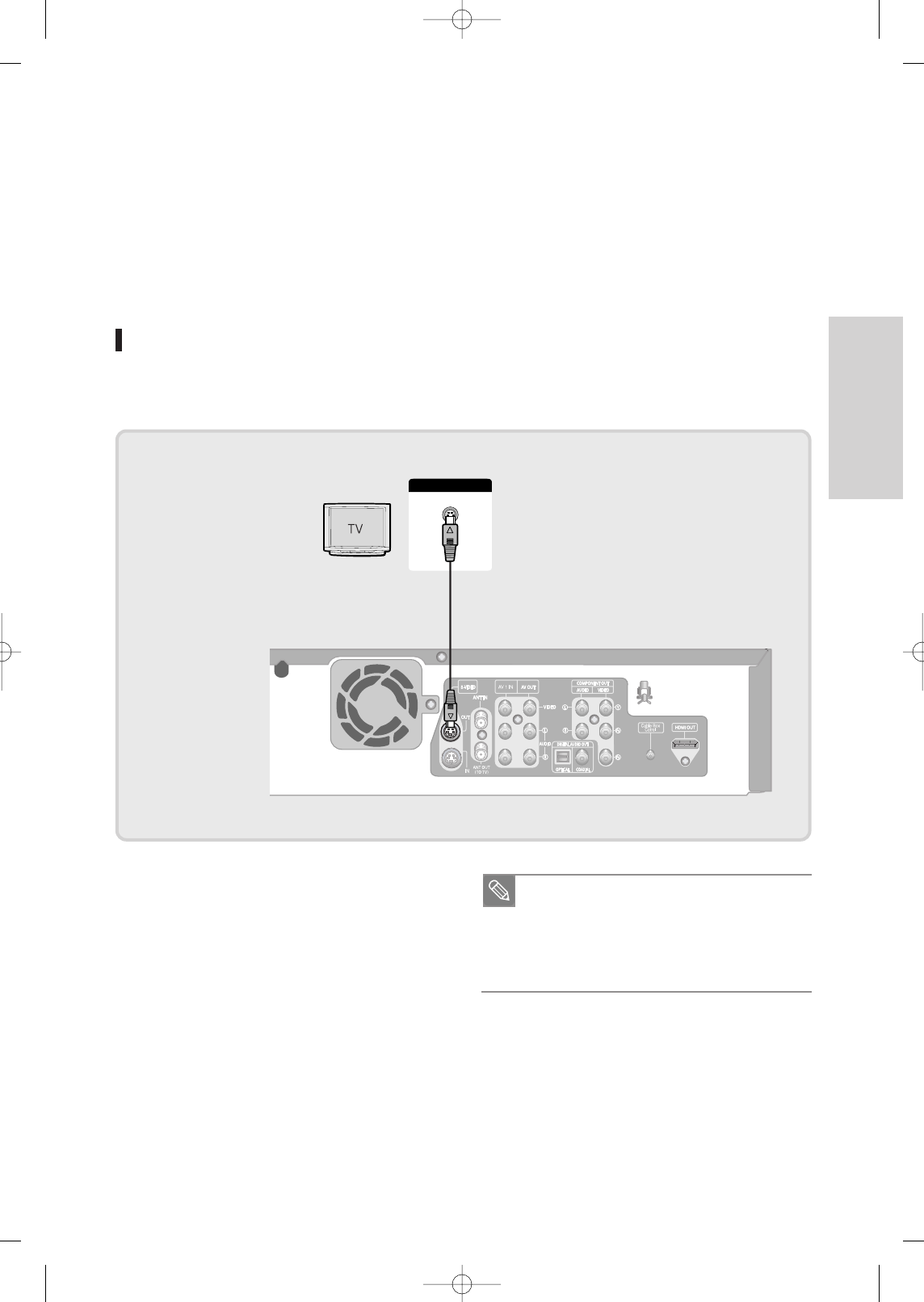

Connecting to a Video input jack . . . . . . . . . . . . . . . . . .18
Connecting to an S-video input jack . . . . . . . . . . . . . . . .19
Connecting to Component video input jacks (Y,PB,PR) . .20
Step 3 : Connecting the Audio Cable . . . . . . . . . . .21
Connecting to your TV . . . . . . . . . . . . . . . . . . . . . . . .21
Connecting to a stereo amplifier with
analog input jacks . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Connecting to an AV amplifier with a
digital input jack . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Step 4 : Connecting HDMI/ DVI to a TV . . . . . . . .24
Connecting to a TV with HDMI Jack . . . . . . . . . . . . . .24

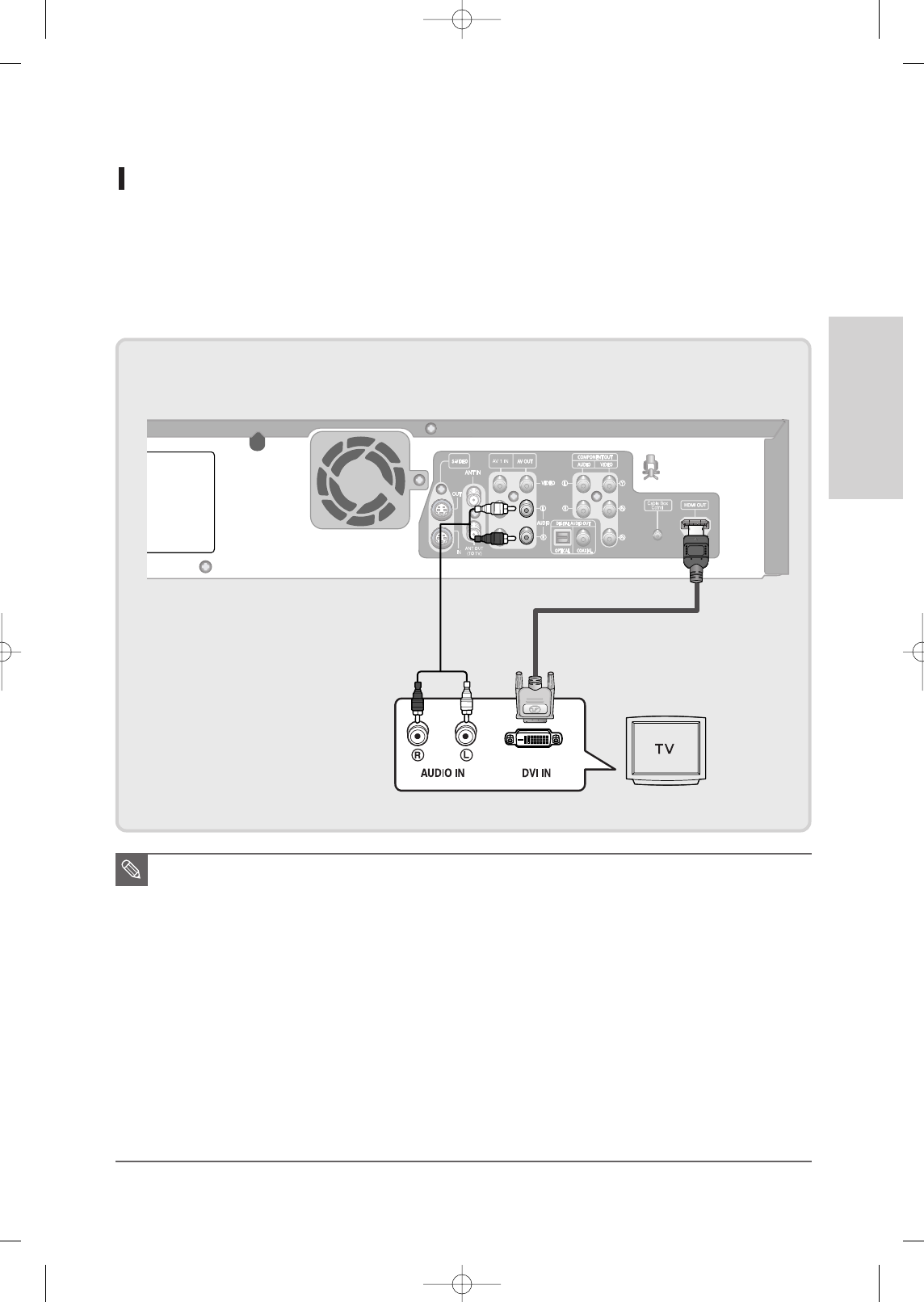

Connecting to a TV with DVI Jack . . . . . . . . . . . . . . .25
Step 5 : Connecting External Devices . . . . . . . . . .26

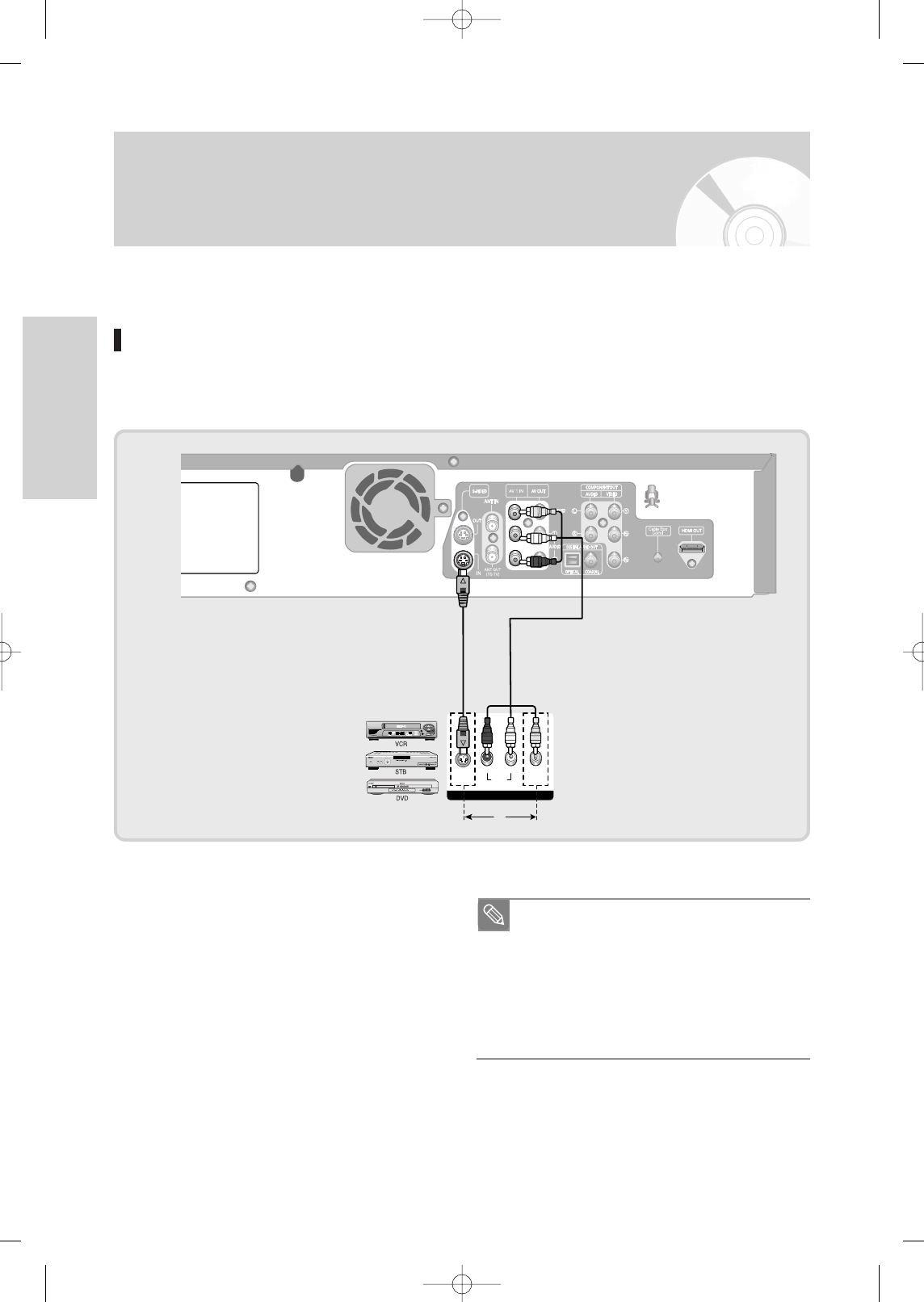

Connecting a VCR, Set-Top Box(STB) or
DVD player to the AV 1 IN or S-VIDEO IN jacks . . . . .26

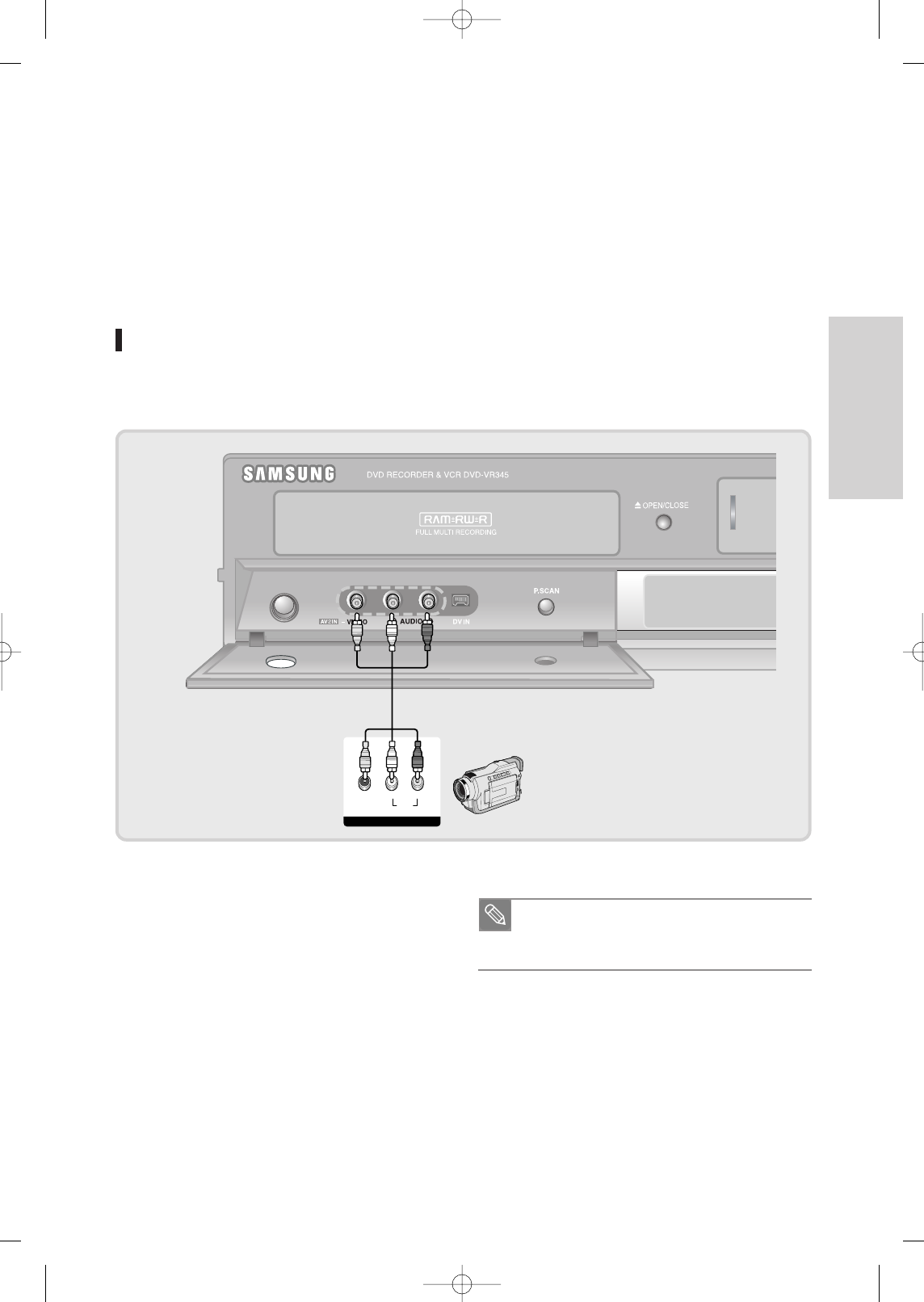

Connecting a Camcorder to the AV 2 IN jacks . . . . . .27
Connecting a Camcorder to the DV IN jack . . . . . . . .28

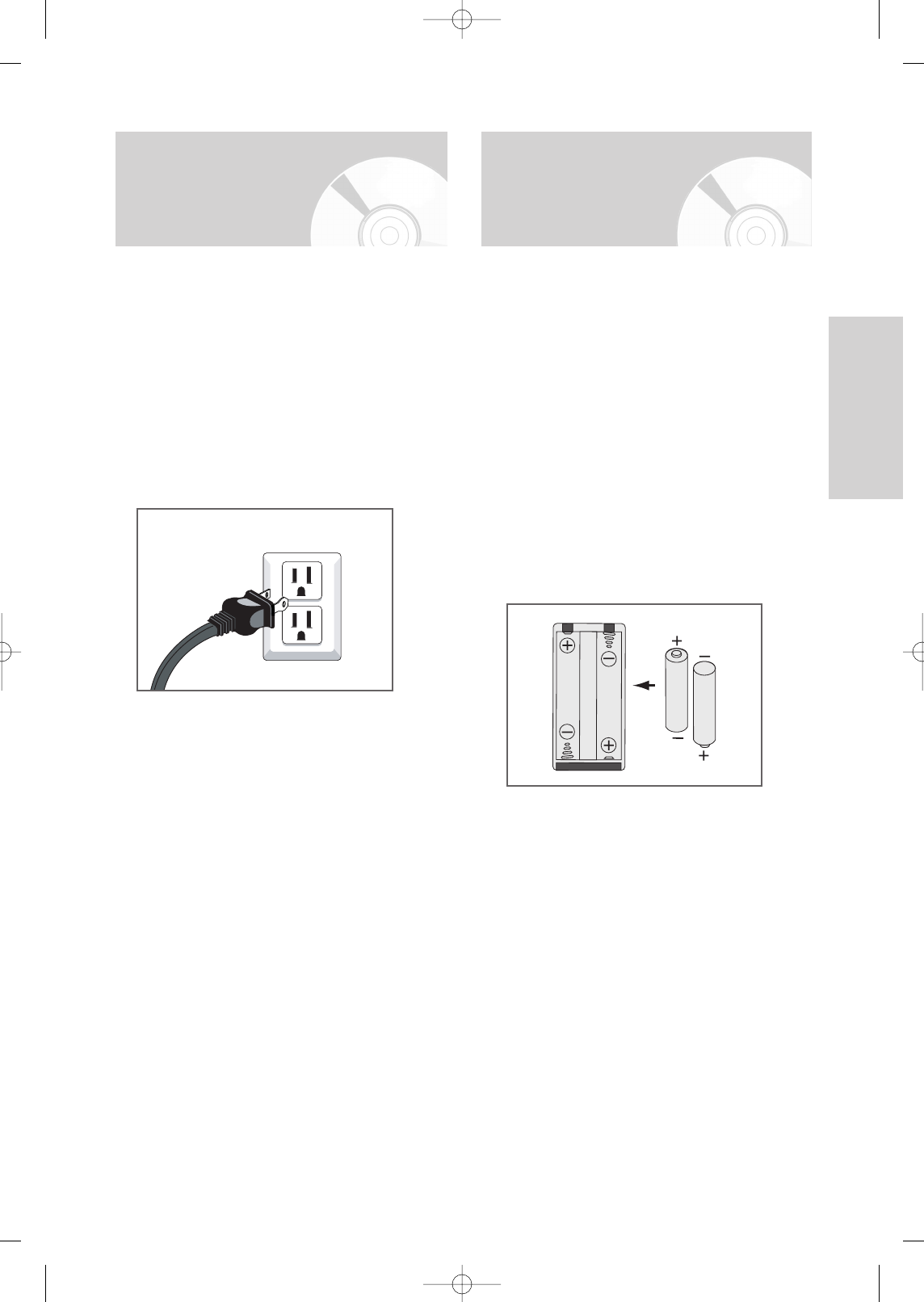

Step 6 : Connecting the Power Cord . . . . . . . . . . .29
Step 7 : Preparing the Remote Control . . . . . . . . .29
Setting the Remote Control . . . . . . . . . . . . . . . . . . . . .30
System Setup
System Setup
On-Screen Menu Navigation . . . . . . . . . . . . . . . . .31
Auto Clock Set . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Manual Clock Set . . . . . . . . . . . . . . . . . . . . . . . . .33
Channel Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Auto Channel Memory . . . . . . . . . . . . . . . . . . . . . .34
Channel Add/Delete . . . . . . . . . . . . . . . . . . . . . . .35
RF Output Channel . . . . . . . . . . . . . . . . . . . . . . . .35
Setting Up the Language Options . . . . . . . . . . . . .36
Setting Up the Audio Options . . . . . . . . . . . . . . . .37
Setting Up the Display(Video) Options . . . . . . . . . .38
DivX(R) Registration . . . . . . . . . . . . . . . . . . . . . . . .39
Setting Up the Parental Control . . . . . . . . . . . . . . .39
VCR Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
System Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Video Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
DVD EP Mode Time . . . . . . . . . . . . . . . . . . . . . . .44
Automatic Chapter Creator . . . . . . . . . . . . . . . . . .45
Quick Recording . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Playback
Playback
DVD Playback
Before Playing . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Playing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
00995G-VR345-XAA-Eng1-13 2006.4.10 2:49 PM Page 6
English - 7
Getting Started
Using the Disc Menu and Title Menu . . . . . . . . . . .49
Using the Search & Skip Functions . . . . . . . . . . . .49
Slow Motion Play / Step Motion Play . . . . . . . . . . .50
About ANYKEY . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . .51
Selecting the Subtitle & Audio Language . . . . . . . .52
Changing the Camera Angle . . . . . . . . . . . . . . . . .53
Zooming-In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Using the Bookmarks . . . . . . . . . . . . . . . . . . . . . .54
Using the Markers . . . . . . . . . . . . . . . . . . . . . . . . .55
Playing back an Audio CD (CD-DA) . . . . . . . . . . . .56
Playing back an MP3 Disc . . . . . . . . . . . . . . . . . . .57
Repeat Playback of an Audio/MP3 Disc . . . . . . . .58
Play Option Mode . . . . . . . . . . . . . . . . . . . . . . . . .58
To Program Tracks . . . . . . . . . . . . . . . . . . . . . . . . .59
Playing a Picture Disc . . . . . . . . . . . . . . . . . . . . . .59
Playing an MPEG4 Disc . . . . . . . . . . . . . . . . . . . . .60
VCR Playback
Playing the VCR . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Special VCR Playback Features . . . . . . . . . . . . . .62
S-VHS Playback . . . . . . . . . . . . . . . . . . . . . . . . . .62
Variable Search System . . . . . . . . . . . . . . . . . . . . .62
Recording
Recording
DVD Recording
Before Recording . . . . . . . . . . . . . . . . . . . . . . . . .64
Recordable discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64
Recording Formats . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Recording Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Unrecordable video . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Recording the Current Channel you are watching
. .66
Watching the Images Being Recorded
(Time Slip) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67
Recording from External Devices . . . . . . . . . . . . . .67
Recording through a DV Input jack . . . . . . . . . . . .68
Making a One Touch Recording(OTR) . . . . . . . . . .68
Making a Timer Recording . . . . . . . . . . . . . . . . . . .69
Editing the Scheduled Record List . . . . . . . . . . . . .70
Deleting the Scheduled Record List . . . . . . . . . . . .71
VCR Recording
Basic VCR Recording . . . . . . . . . . . . . . . . . . . . . .72
Check Remaining Time . . . . . . . . . . . . . . . . . . . . .72
Special Recording Features . . . . . . . . . . . . . . . . .72
Copy to DVD or VCR . . . . . . . . . . . . . . . . . . . . . . .73
Editing
Editing
Playing the Title List . . . . . . . . . . . . . . . . . . . . . . . .76
Basic Editing (Title List) . . . . . . . . . . . . . . . . . . . . .78
Renaming(Labeling) a Title . . . . . . . . . . . . . . . . . . . . .78
Locking(Protecting) a Title . . . . . . . . . . . . . . . . . . . . . .79
Deleting a Title . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
Deleting a Section of a Title . . . . . . . . . . . . . . . . . . . .80
Editing a Chapter . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Dividing a Title . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
Advanced Editing (Playlist) . . . . . . . . . . . . . . . . . . .85
Creating a Playlist . . . . . . . . . . . . . . . . . . . . . . . . . . . .85
Playing Titles in the Playlist . . . . . . . . . . . . . . . . . . . . .86
Renaming a Playlist Title . . . . . . . . . . . . . . . . . . . . . . .86
Editing a Scene for the Playlist . . . . . . . . . . . . . . . . . .87
Copying a Playlist Title to the VCR . . . . . . . . . . . . . . .90
Deleting a Playlist Title from the Playlist . . . . . . . . . . .91
Disc Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
Editing the Disc Name . . . . . . . . . . . . . . . . . . . . . .91
Disc Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Formatting a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Finalizing a disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Unfinalizing a disc (V/VR mode) . . . . . . . . . . . . . . . . .94
Delete All Title Lists . . . . . . . . . . . . . . . . . . . . . . . . . . .95
Edit Compatible . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96
Reference
Reference
Troubleshooting
(DVD-VIDEO/DVD-RAM/DVD±RW/DVD±R) . . . . .98
Troubleshooting (DVD) . . . . . . . . . . . . . . . . . . . . . .99
Troubleshooting (VCR) . . . . . . . . . . . . . . . . . . . . .100
Cable Box/Satellite Receiver Brand Code Table . .101
Problems and Solutions (Display error message)
. .104
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . .106
00995G-VR345-XAA-Eng1-13 2006.4.10 2:49 PM Page 7
8- English
Getting Started
General Features
The DVD-VR345 allows you to record and play high quality
digital video on DVD-RAM/DVD±RW/DVD±R discs. You
can record and edit digital video on DVD-RAM/DVD±RW/
DVD±R discs as if they were VCR tapes.
High quality digital audio and video recording and
playback
You can record up to approximately 16-hours of video on a
double side 9.4 GB DVD-RAM disc,up to 15-hours on a
dual-layer 8.5GB DVD±R disc, and up to 8-hours on a 4.7
GB DVD-RAM/DVD±RW/DVD±R disc, depending on the
recording mode.
Creating DVD video titles using DVD±RW/DVD±R discs
With the DVD-VR345, you can create your own DVD video
titles on 4.7 GB DVD±RW/DVD±R or 8.5GB DVD±R discs.
A Variety of Recording Options
Select an appropriate recording mode between XP, SP, LP
and EP to meet your recording needs. (See page 65.)
• XP mode - High quality, about 1 hour
• SP mode - Standard quality, about 2 hours
• LP mode - Low quality, about 4 hours
• EP mode - Lower quality, about 6 or 8 hours
- The dual layer DVD±Rs have approximately double the
capacity of single layer DVD±Rs. (See page 47.)
Copying digital camcorder content using DV input jack
Record digital camcorder images onto DVD-RAM/DVD
±RW/DVD±R discs or video tape using the DV input jack
(IEEE 1394-4pin). (See page 66.)
High quality progressive scan
Progressive scanning provides high resolution and flicker
free video. The 10-bit 54-MHz DAC, 2D Y/C Separating cir-
cuitry and Time Base Corrector processor technology pro-
vide you with the highest image playback and recording
quality. (See page 20.)
Component progressive scan output video is available in
both DVD and VCR modes.
A variety of functions with easy-to-use user interface
Integrated menu system and messaging functionality allow
you to perform the desired operations easily and conve-
niently. With a DVD-RAM/DVD-RW(VR mode) disc, you
can edit recorded images, create playlist, and edit video in
specific sequence according to your needs.
MPEG4 playback
This DVD Recorder can play MPEG4 formats within an
avi file.
DivX Trademark
DivX, DivX Certified, and associated
logos are trademarks of DivXNetworks,
Inc and are used under license.
HDMI (High Definition Multimedia Interface)
HDMI reduces picture noise by allowing a pure digital
video/audio signal path from the DVD Recorder & VCR to
your TV.
00995G-VR345-XAA-Eng1-13 2006.4.10 2:49 PM Page 8
English - 9
Getting Started
Before Reading the
User’s Manual
About the use of this user’s manual
1) Be sure to be familiar with Safety Instructions before
using this product. (See pages 2~5)
2) If a problem occurs, check the Troubleshooting.
(See pages 98~100)
Make sure to check the following terms before reading
the user’s manual.
Icons that will be used in manual
©2006 Samsung Electronics Co.
All rights reserved; No part or whole of this user’s
manual may be reproduced or copied without the prior
written permission of Samsung Electronics Co.
Copyright
How to use the DVD
Recorder & VCR
Step 1 Select the disc type
This unit can record on the following types of discs.
If you want to repeatedly record on the same disc or
you want to edit the disc after recording, select a
rewritable DVD±RW or DVD-RAM type disc. If you
want to save a recording without any changes,
choose a non-rewritable DVD±R.
Step 2
Format the disc to start recording
Unlike a VCR, the recorder automatically starts format-
ting when an unused disc is inserted. This is required
for the preparation of recording on a disc.
Using a DVD-RAM
This type of disc can be formatted in DVD-Video
Recording format (VR mode). You can edit recorded
images and create a playlist in a specific sequence
according to your requirements.
Using a DVD±RW/+R
•
When an unused DVD±RW/+R disc is first inserted,
the message "Uninitialized Disc. Do you want to ini-
tialize this disc?" will be displayed.
If you select Yes, initializing will be start. DVD-RW
discs can be formatted in either DVD-Video format
(Video mode) or DVD-Video Recording format (VR
mode)
•
With DVD+RW discs, there is no difference between
DVD-Video format (Video mode) and DVD-Video
Recording format (VR mode).
Using a DVD-R
Initializing disc is unnecessary and only V mode
Recording is supported.You can play this type of disc
on various DVD components only when they have
been finalized.
■
You can only use either the VR or Video mode
on a DVD-RW, but not both at the same time.
■
You can format a DVD-RW to V or VR mode
using disc manager.
It should be noted that the disc's data will be
lost when changing formats.
Note
Icon Term Definition
This involves a function available
DVD in DVD or DVD-R/DVD-RW(V)/+R
discs that have been recorded
and finalized.
This involves a function available
RAM in DVD-RAM.
This involves a function available
-RW in DVD-RW.
This involves a function available
-R in DVD-R.
This involves a function available
+RW in DVD+RW.
This involves a function available
+R in DVD+R.
CD This involves a function available
in a data CD (CD-R or CD-RW).
This involves a JPEG function
JPEG available in CD-R/-RW or
DVD±R/±RW/-RAM discs.
This involves an MP3 function
MP3 available in CD-R/-RW or
DVD±R/±RW/-RAM discs.
MPEG4
This involves an MPEG4
function available in
DVD±R/±RW/-RAM discs.
This involves a case where a
Caution function does not operate or
settings may be cancelled.
This involves tips or instructions
NOTE on the page that help each
function operate.
One-Touch
A function that can be operated
button
by using only one button.
ANYKEY A function that can be operated
button by using ANYKEY button.
00995G-VR345-XAA-Eng1-13 2006.4.10 2:49 PM Page 9
10 - English
Getting Started
Step 6
Finalizing & Playing on
other DVD components
To play your DVD on other DVD players, finalizing
may be necessary. First, finish all editing and record-
ing operations, then finalize the disc.
When using a DVD-RW disc in VR Mode
Although finalizing is generally unnecessary when
playing the disc on a VR Mode compatible compo-
nent, a finalized disc should be used for playback.
When using a DVD-RW disc in Video Mode
The disc should be finalized first to enable playback
on anything other than this recorder. No more editing
or recording can be made on the disc once it has
been finalized.
When using a DVD±R disc
You should finalize the disc to play it on a component
other than this recorder. You cannot edit or record on
the disc once it has been finalized.
Step 3 Recording
Step 4 Playing
Step 5
Editing a recorded disc
You can select the title you want to play in a displayed
menu and then immediately start playback.
A DVD consists of sections called titles, and sub sec-
tions called chapters.
During recording, a title is created between two points
where you start and stop recording. Chapters will be
created automatically when you finalize recording on
DVD-R / DVD-RW discs in Video mode.
You can make your own chapters on DVD+RWs and
edit them using the Chapter Edit menu.
The chapter’s length (interval between chapters) varies
according to the recording mode.
There are two different recording methods: Direct
Recording and Timer Recording. Timer recording is
classified as a Date : Once, Daily or Weekly.
Recording mode : XP (high quality mode), SP (stan-
dard quality mode), LP (long recording mode), and
EP (extended mode).
Editing on discs is easier than conventional video
tapes. The recorder supports many different edit func-
tions, possible only with DVDs.
With a simple and easy edit menu, you can operate
various edit functions, such as delete, copy, rename,
lock, etc., on a recorded title.
Creating a playlist (DVD-RAM/-RW in VR mode)
With this recorder, you can create a new playlist on
the same disc and edit it without changing the
original recording.
00995G-VR345-XAA-Eng1-13 2006.4.10 2:49 PM Page 10
English - 11
Getting Started
Front Panel
1 2 3
1110 14 15 16
1. DVD DECK
2. DVD OPEN/CLOSE BUTTON
3. VCR DECK
4. VCR EJECT BUTTON
5. POWER BUTTON
6. VIDEO INPUT JACK (AV 2 IN)
7. AUDIO L, R INPUT JACKS (AV 2 IN)
8. DV INPUT JACK
9. P.SCAN BUTTON
10. FRONT PANEL DISPLAY
11. DVD/VCR SELECT BUTTON
12. COPY BUTTON
13. CHANNEL / BUTTONS
14. RECORD BUTTON
15. STOP BUTTONS
16. PLAY/STILL BUTTONS
Description
Front Panel Display
1 32 4 5 6
87 9
10
1. DVD is activated.
2. DVD-RAM is activated.
3. DVD(±)R or DVD(±)RW is actived.
4. Progressive Scan mode is activated.
5. Record function is activated.
6. VCR is activated.
7. DVD or CD media is loaded.
8. The time, counter position or current deck
status is indicated.
9. When you set a Timer recording,
this indicator appears.
10. VHS videotape is loaded.
56 87
12 13
9
00995G-VR345-XAA-Eng1-13 2006.4.10 2:49 PM Page 11
12 - English
Getting Started
Rear Panel
1. VIDEO INPUT JACK (AV 1 IN)
2. VIDEO OUT JACK (AV OUT)
3. AUDIO OUT JACKS
(COMPONENT OUT)
4. S-VIDEO IN/OUT JACKS
5. ANT IN JACK
6. ANT OUT (TO TV) JACK
7. AUDIO INPUT JACKS (AV 1 IN)
8. AUDIO OUT JACKS (AV OUT)
9. DIGITAL AUDIO OUT JACK (OPTICAL)
10. DIGITAL AUDIO OUT JACK (COAXIAL)
11. VIDEO OUT JACKS (COMPONENT OUT)
12. Cable Box Control OUT
Connection of the IR Blaster for a cable
box.
13. HDMI OUT
Connects the input of external equipment
using an HDMI cable.
10 11 1312
4
2 3
6 7 8
59
1
Fan
The fan always revolves when the power is on.
Ensure a minimum of 4” clear space on all sides of the fan
when installing the product.
Unpacking
Accessories
Check for the supplied accessories below.
Batteries for Remote
Control (AAA Size)
(AC43-12002H)
Remote Control
(AK59-00053R) User’s Manual
(AK68-00995G)
Audio/Video Cable
(AC39-00073A)
RF Cable for TV
(AC39-42001J) IR Blaster Cable
(AC39-00055A)
Quick Guide
(AK68-00997F)
00995G-VR345-XAA-Eng1-13 2006.4.10 2:49 PM Page 12
English - 13
Getting Started
12. TITLE LIST/DISC MENU Button
Press this to enter the TITLE LIST/Disc menu.
13. SUBTITLE Button
Press this to switch the DVD’s subtitle language.
14. ANYKEY Button
Press this to set the status of the disc that is being
played.
15. REC Button
Press this to make a recording on VCR, DVD-RAM/
±RW/±R discs.
16. TO DVD COPY Button
Press this when you copy from the VCR to the
DVD.
17. REC SPEED Button
Press this to set the desired recording time and
picture quality.
18. VCR Button
Press this when you use a VCR.
19. INPUT SEL. Button
Press this to select AV input signal in external input
mode. (Tuner, AV input, DV input)
20. OPEN/CLOSE Button
Press this to open and close the disc tray.
21. TV POWER Button
22. TV/VCR Button
23. MARKER Button
Press this to bookmark or mark a position while
playing a disc.
24. CH/TRK Button
Press this to select a TV channel/Adjust tape
tracking.
25. RETURN Button
Returns to a previous menu.
26. AUDIO/TV MUTE Button
Press this to access various audio functions.
This also operates as sound mute. (TV mode)
27. CANCEL Button
28. PLAY LIST/TITLE MENU Button
Press this to enter the Edit playlist/Title menu.
29. ANGLE Button
Press this to access various camera angles on a
disc (if the disc contains multiple camera angles).
30. TIME SLIP Button
(See page 67)
31. TIMER REC Button
Press this when you use Timer Recording.
32. TO VCR COPY Button
Press this when you copy from the DVD to the VCR.
33. REC PAUSE Button
Press this to pause during recording.
1. DVD Button
Press this when you use a DVD.
2. TV Button
Press this to operate your TV.
3. POWER Button
4. NUMBER Button
5. 100+/SET Button
Press this to select channel 100 or higher.
Press this to change the set top box channels.
(For some set top box brands)
6. F.ADV/SKIP Button
7. Playback-related Buttons
Forward/Rewind, Search, Skip, Stop, Play/Pause
8. VOL (Volume) Button
TV volume adjustment
9. MENU Button
Press this to bring up the DVD Recorder & VCR’s
setup menu.
10. ENTER/DIRECTION Buttons
(UP/DOWN or LEFT/RIGHT Buttons)
This button functions as a toggle switch.
11. INFO Button
Press this to display current setting or disc status.

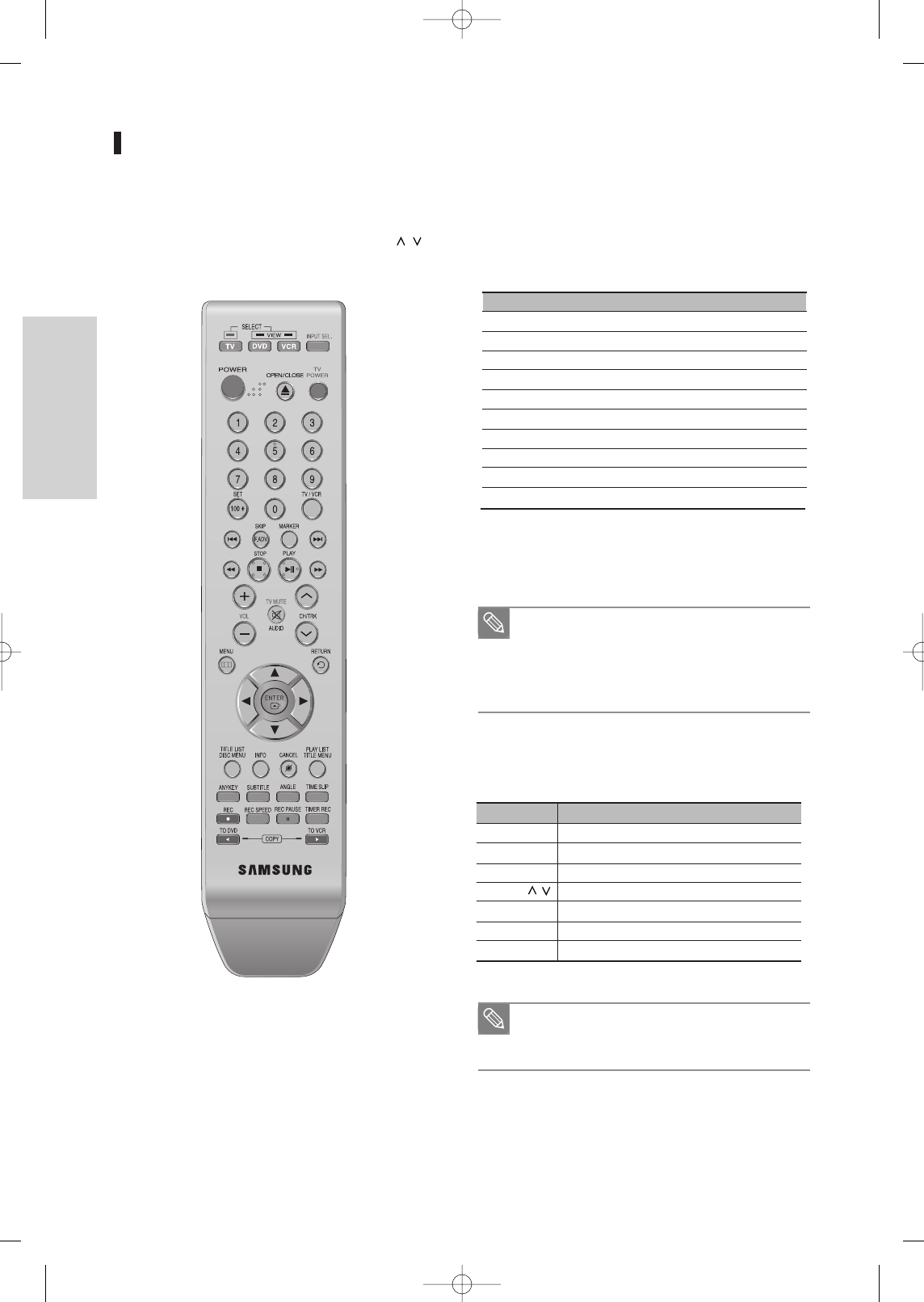

Tour of the Remote Control
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
❚Key Lock Function
If you do not want others to operate the DVD Recorder &
VCR (for example if you have programmed a timer recording)
you can set the equipment to lock out all button controls.
• Press and hold the INFO button on the remote control for 5
seconds.
The display will show “SAFE” when the feature is activated.
• To resume normal mode, press and hold the INFO button
again for 5 seconds.
“SAFE” will disappear and the DVD Recorder & VCR will
operate normally.
❋This is a special remote control for the visually impaired, and has Braille points on the
POWER( ), STOP( ) and PLAY( ) buttons.
00995G-VR345-XAA-Eng1-13 2006.4.10 2:49 PM Page 13
14 - English
Connections
Connecting &
Setting Up
Quick Overview
A Quick overview presented in this guide will give you
enough information to start using the recorder.
Step 1 : Connecting the Antenna Cable
Step 2 : Connecting the Video Cable
Step 3 : Connecting the Audio Cable
Step 5 : Connecting External Devices
Step 6 : Connecting the Power Cord
Step 7 : Preparing the Remote Control
†
†
†
†
†
†
Quick Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Step 1: Connecting the Antenna Cable . . . . . . . . . . . . . . . . .15
Step 2 : Connecting the Video Cable . . . . . . . . . . . . . . . . . .18
Step 3 : Connecting the Audio Cable . . . . . . . . . . . . . . . . . .21
Step 4 : Connecting HDMI/ DVI to a TV . . . . . . . . . . . . . . .24
Step 5 : Connecting External Devices . . . . . . . . . . . . . . . . . .26
Step 6 : Connecting the Power Cord . . . . . . . . . . . . . . . . . . .29
Step 7 : Preparing the Remote Control . . . . . . . . . . . . . . . . .29
•
Note to CATV system installer :
This reminder is
to call CATV system installer’s attention to Article 820-40
of the National Electrical Code (Section 54 of Canadian
Electrical Code, Part I), that provides guidelines for
proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding
system of the building as close to the point of cable title
as practical.
Step 4 : Connecting HDMI/ DVI to a TV
00995G-VR345-XAA-Eng14-30 2006.4.10 2:50 PM Page 14
English - 15
Connections
Step 1: Connecting the Antenna Cable
There are several ways to connect your DVD Recorder & VCR. Select the antenna connection that best suits you below.
Antenna + DVD Recorder & VCR + TV : No Cable box
You can record non-scrambled channels by selecting the channel on the DVD Recorder & VCR. Also use this
method if you watch channels without a cable box.
■
If you are using an off-air antenna that has 300-
ohm twin flat leads, use an external antenna
connector (300-75 ohm adaptor : not supplied)
to connect the antenna to the DVD Recorder &
VCR.
Note
■
If you have two separate antennas (one VHF
and the other UHF), use a UHF/VHF combiner-
adaptor (available at most electronics shops) to
connect the antenna to the DVD Recorder &
VCR.
Note
00995G-VR345-XAA-Eng14-30 2006.4.10 2:50 PM Page 15
16 - English
Connections
Antenna + Set Top Box Controller + DVD Recorder & VCR + TV : Cable box with a
video/audio output or a satellite receiver
You can record channels by selecting the channel on the cable box. You cannot record one channel while watching
another channel. Be sure that the cable box is turned on.
TO AV 1 IN or
TO AV 2 IN(on the front panel)
1. Find and Connect the included Cable Box Control (IR Blaster)
cable into the Cable Box Control jack of the DVD Recorder.
2. Find the Cable Box IR Sensor
A. Turn the Cable box Off.
B. Hold the Cable box’s remote so that it touches
the front of the Cable Box device (see Figure 1).
C. Move the Cable Box's remote across the front of the
Cable Box while pressing the remote's power button On
and Off (Figure 2).
(Press and release the power button each time you move
the remote; holding down the button will not work.)
D.
When the cable box powers On, you have found the sensor.
E. Remember the location of the sensor.
3.
Place the IR Blaster cable under or over the cable box,
approximately 1 inch in front of the sensor you located in step
2. Use double-sided tape to secure the Set-top box controller (IR
Blaster) to the cable box
Figure 2
Correct
Figure 1
Incorrect
■ You must select a cable box brand from the table on
pages 101~103.
If you do not know the brand name, please contact your
cable provider.
■ After setting up your cable box with the DVD recorder
through the IR Blaster cable, you need to set up the Set
Top Box Control menu. (See pages 42~43)
NOTE
00995G-VR345-XAA-Eng14-30 2006.4.10 2:50 PM Page 16
English - 17
Connections
Antenna + Cable box + DVD Recorder & VCR + TV : Cable box with an antenna out-
put only
You can record non-scrambled channels by selecting the channel on the DVD Recorder & VCR. You cannot record
scrambled channels that require a cable box.
00995G-VR345-XAA-Eng14-30 2006.4.10 2:50 PM Page 17
18 - English
Connections
Step 2 : Connecting the Video Cable
There are several ways to connect your DVD Recorder & VCR. Select one of the video connections on the following pages.
You must use one of the following audio/video connections on this unit.
INPUT
R
L
AUDIO
White
Red
VIDEO
Yellow
Audio/Video
Cable
Connecting to a Video input jack
Connect a video(yellow) cable between the VIDEO(yellow) OUT jack on DVD Recorder & VCR and VIDEO(yellow)
IN jack on the TV.
• You will enjoy regular quality images.
• Connect audio cables(white and red) between the
AUDIO OUT jacks on the DVD Recorder & VCR and
AUDIO IN jacks on TV(or AV amplifier).
(See pages 21 ~ 23)
00995G-VR345-XAA-Eng14-30 2006.4.10 2:50 PM Page 18
English - 19
Connections
■
S-Video and Component video output are
available only if your TV supports S-Video
input or Component video input, respectively.
If S-Video or Component video output does
not work, check the TV connections and the
TV input selection settings.
Note
S-Video Cable
(not supplied)
INPUT
S-VIDEO
Connecting to an S-Video input jack
Connect an S-Video cable(not supplied) between the S-VIDEO OUT jack on DVD Recorder & VCR and S-VIDEO
IN jack on your TV.
• You will enjoy high quality images. S-Video separates
the picture element into black and white (Y) and color
(C) signals to present clearer images than regular
video input mode.
• Connect audio cables(white and red) between the
AUDIO OUT jacks on the DVD Recorder & VCR and
AUDIO IN jacks on TV(or AV amplifier).
(See pages 21 ~ 23)
00995G-VR345-XAA-Eng14-30 2006.4.10 2:50 PM Page 19
20 - English
Connections
Component Cable
(not supplied)
COMPONENT
P
R
P
B
Y
green
blue
red
green
blue
red
Connecting to Component video input jacks (Y,PB,PR)
Connect Component video cables (not supplied) between the COMPONENT OUT (Y,P
B
,P
R
) jacks on
DVD Recorder & VCR and COMPONENT IN (Y,P
B
,P
R
) jacks on your TV.
• You will enjoy high quality accurate color reproduction
images. Component video separates the picture
element into black and White(Y), blue(P
B
), red(P
R
)
signals to present clear and clean images.
• Connect audio cables(white and red) between the
Component AUDIO OUT jacks on the DVD Recorder &
VCR and Component AUDIO IN jacks on TV(or AV
amplifier). (See pages 21 ~ 23)
• Progressive scan
- If the your TV supports Progressive Scan, you can
enjoy higher quality video by pressing the P.SCAN
button. (The component cable has to be connected.)
1. With the unit in stop mode, press the P.SCAN but-
ton on the front of the DVD Recorder & VCR.
2. The message ‘Press “Yes” to confirm Progressive
scan mode. Otherwise press “No”’ will appear.
Press the
œ √
buttons to select Yes, and then
press the ENTER button.
■
Compared to standard interlaced video, progressive
scan doubles the amount of video lines fed to your
TV, resulting in a more stable, flicker-free, and clear
image than interlaced video. The progressive scan
video output jack is used in progressive output mode.
This is only available with TVs that support progres-
sive scan.
■
Progressive Scan Output (480p)
Consumers should note that not all high definition
television sets are fully compatible with this product
and may cause artifacts to be displayed in the picture.
If you experience 480p progressive scan picture
problems, it is recommended that you switch the con-
nection to the ‘standard definition’ output. If there are
questions regarding TV set compatibility with this
model, please contact our customer service center at
1-800-SAMSUNG.
■
The Component jacks will not output video resolutions
above 480p. To view 720p and 1080i, connect the DVD-
VR 345 to your TV with an HDMI-HDMI cable. With
HDMI connected, press the P.SCAN button to alternate
between all available resolutions. (See page 39)
Note
00995G-VR345-XAA-Eng14-30 2006.4.10 2:50 PM Page 20
English - 21
Connections
Step 3 : Connecting the Audio Cable
Select one of the Audio connections on the following pages.
INPUT
AUDIO
R
L
Red
White
VIDEO
Yellow
Audio/Video
Cable
Connecting to your TV
This connection will use your TV’s speakers.
00995G-VR345-XAA-Eng14-30 2006.4.10 2:50 PM Page 21
22 - English
Connections
Audio/Video
Cable
INPUT
ANALOG AUDIO
RL
Red White
Connecting to a stereo amplifier with analog input jacks
If your stereo amplifier only has AUDIO INPUT jacks(L and R), use the AUDIO OUT jacks.
00995G-VR345-XAA-Eng14-30 2006.4.10 2:50 PM Page 22
English - 23
Connections
Optical Cable
(not supplied)
Coaxial Cable
(not supplied)
INPUT
Digital Audio
or
AV amplifier
Connecting to an AV amplifier with a digital input jack
If your AV amplifier has a Dolby Digital or DTS decoder and a digital input jack, use this connection.
To enjoy Dolby Digital or DTS sound, you will need to set up the audio settings. (See page 37)
Manufactured under license from Dolby
Laboratories. “Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
“DTS” and “DTS Digital Out” are trademarks of DTS,
Inc.
00995G-VR345-XAA-Eng14-30 2006.4.10 2:50 PM Page 23
24 - English
Connections
Step 4 : Connecting HDMI/DVI to a TV
Connecting to a TV with HDMI Jack
Using an HDMI- HDMI cable(not included) connect the HDMI OUT jack on the rear of the DVD Recorder to the HDMI
IN jack of your TV.
Press the input selector on your TV remote control until the HDMI signal from the DVD Recorder appears on your TV
screen.
■ To hear audio on your TV when using HDMI, set the
digital audio output to PCM (2 channel).(See page 37)
■ Depending on the HDMI device(TV/HDMI Receiver)
you use, audio may not be supported. If TV does
not support Dolby digital/DTS, Audio output is not
available when you set Digital output as Bitstream
or select DTS On in Audio setup menu. In this case,
set the digital audio output to PCM or DTS Off.
Caution
00995G-VR345-XAA-Eng14-30 2006.4.10 2:50 PM Page 24
English - 25
Connections
Connecting to a TV with DVI Jack
Using an HDMI-DVI cable (not included), connect the HDMI OUT terminal on the rear of the DVD Recorder to the DVI
IN terminal of your TV.
Using the audio cables, connect the AUDIO (red and white) OUT terminals on the rear of the DVD Recorder to the
AUDIO (red and white) IN terminals of your TV. Turn on the DVD Recorder and TV.
Press the input selector on your TV remote control until the DVI signal from the DVD Recorder appears on your TV
screen.
Audio/Video
Cable
Red White
■ To change HDMI output resolution, see page 39.
■ HDMI (High Definition Multimedia Interface)
HDMI is an interface to enable the digital transmission of
video and audio data with just a single connector. Since
HDMI is based on DVI, it is completely compatible with
DVI. The only difference between HDMI and DVI is that
HDMI supports multi-channel audio.
Using HDMI, the DVD recorder transmits a digital video
and audio signal and displays a vivid picture on a TV hav-
ing anHDMI input jack.
■ HDMI connection description
HDMI connector - Both uncompressed video data and digi-
tal audio data (LPCM or Bit Stream data).
- Even though the DVD recorder records analog audio and
video, with HDMI the analog signal is converted to digital,
and a pure digital signal is sent to the TV .
- If TV does not support HDCP (High-bandwidth Digital
Content Protection), snow noise appears on the screen.
■ Why does Samsung use HDMI?
Analog TVs require an analog video/audio signal.
However, when playing a DVD, the data transmitted to a
TV is digital. Therefore either a digital-to-analog converter
(in the DVD Recorder) or an analog-to-digital converter (in
the TV) is required. During this conversion, the picture
quality is degraded due to noise and signal loss. HDMI
technology is superior because it requires no D/A conver-
sion and is a pure digital signal from the DVD recorder to
your TV.
■ What is the HDCP?
HDCP (High-bandwidth Digital Content Protection) is a
system for protecting DVD content outputted via HDMI
from being copied. It provides a secure digital link between
a video source (PC, DVD. etc) and a display device (TV,
projector. etc). Content is encrypted at the source device
to prevent unauthorized copies from being made.
NOTE
00995G-VR345-XAA-Eng14-30 2006.4.10 2:50 PM Page 25
26 - English
Connections
Step 5 : Connecting External Devices
This allows you to connect your DVD Recorder & VCR to other external devices and view or record their outputs.
AUDIO VIDEOS-VIDEO
RL
S-Video Cable
(not supplied)
Audio/Video
Cable
OUTPUT
or
Connecting a VCR, Set-Top Box(STB) or DVD player to the AV 1 IN or S-VIDEO IN jacks
Connecting a VCR or external device to AV 1 IN jacks of the DVD Recorder & VCR. If desired, you can connect an
S-Video cable to the S-Video In jack instead of connecting the Video (yellow) cable. You can record from connected
equipment (VCR, STB or DVD).
■You can also use the AV 2 IN jacks on the
front panel of the DVD Recorder & VCR.
■Press the INPUT SEL. button to select the
AV1 or S-Video input.
■Copy protected content cannot be recorded.
■Depending on your input connection, you
must choose AV 1 (Composite) or S-video.
(See page 44)
Note
00995G-VR345-XAA-Eng14-30 2006.4.10 2:50 PM Page 26
English - 27
Connections
Camcorder
AUDIOVIDEO
R
L
OUTPUT
Audio/Video
Cable
Connecting a Camcorder to the AV 2 IN jacks
You can also use the AV 2 IN jacks on the front panel of the DVD Recorder & VCR. You can record from connected
equipment, such as a camcorder. When an input source is inserted into AV 2 IN while viewing TV, the input will be
switched to AV 2 IN automatically.
■If the AV 2 In input source is not selected
automatically, press the INPUT SEL. button
to select the AV 2 input.
Note
00995G-VR345-XAA-Eng14-30 2006.4.10 2:50 PM Page 27
28 - English
Connections
Camcorder
DV Cable
(not supplied)
DV OUT
Connecting a Camcorder to the DV IN jack
If your camcorder has a DV output jack, connect it to the DV input jack of your DVD Recorder & VCR.
■
If the input is not selected automatically, use
INPUT SEL. button to select proper input.
Note
00995G-VR345-XAA-Eng14-30 2006.4.10 2:50 PM Page 28
English - 29
Connections
After all connections are complete, plug the power cord
in the wall outlet.
“Auto” appears in the front panel display. This
means that the current time is being set automati-
cally through the antenna under connection(Auto
Program). The setup may take several minutes.
When the DVD Recorder & VCR operates normally, the
current time is automatically set and displayed in the
front panel display.
Step 6 : Connecting
the Power Cord

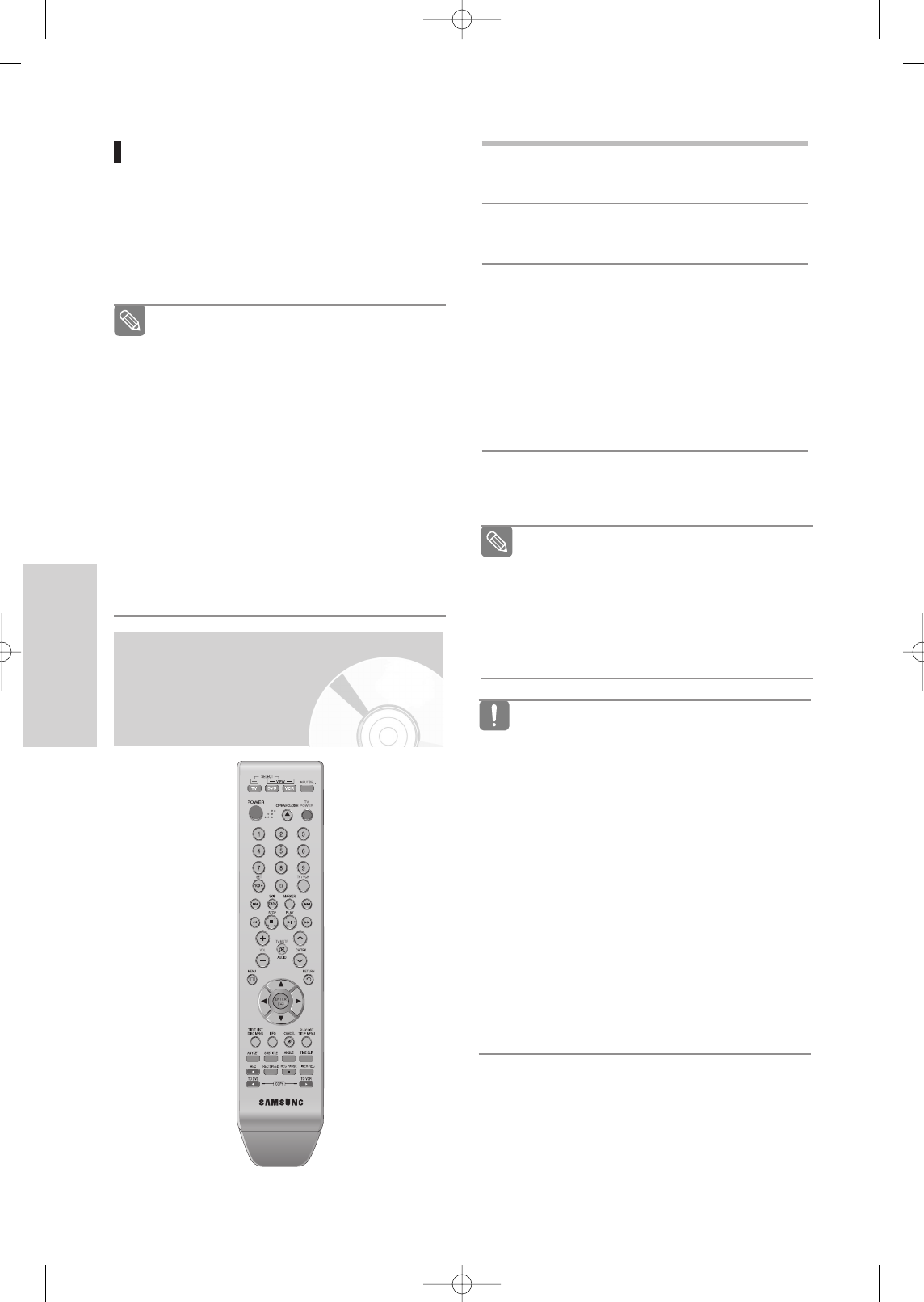

Install Batteries in the Remote Control
• Open the battery cover on the back of the
remote control.
• Insert two AAA batteries. Make sure that the polarities
(+ and -) are aligned correctly.
• Replace the battery cover.
If the remote control does not operate
properly:
• Check the polarity + - of the batteries (Dry-Cell)
• Check if the batteries are drained.
• Check if the remote sensor is blocked by obstacles.
• Check if there is any fluorescent lighting nearby.
Dispose of batteries according to local
environmental regulations. Do not put them in
the household trash.
Step 7 : Preparing the
Remote Control
00995G-VR345-XAA-Eng14-30 2006.4.10 2:50 PM Page 29
30 - English
Connections
To determine whether your television is
compatible, follow the instructions below.
1. Switch your television on.
2. Point the remote control towards the television.
3. Press and hold the TV button and enter the two-figure
code simultaneously corresponding to the brand of
your television by pressing the appropriate number
buttons.
Result: If your television is compatible with the remote
control, it will switch off.
It is now programmed to operate with the remote
control.
You can then control the television using the
following buttons.
Brand Codes
SAMSUNG
01,14,15,23,31
DAEWOO 19
EMERSON 21
GRADIENTE 30
HITACHI 10
JVC 11
LG 06,08,18
LOEWE 28
MAGNAVOX 04
MITSUBISHI 13
Brand Codes
NEWSAN 27
NOBLEX 25
PANASONIC 12,24
RCA 07,29
SANYO 05,20
SHARP 02,16,22
SONY 03
TELEFUNKEN 26
TOSHIBA 09
ZENITH 17
Button Function
TV POWER Used to switch the television on and off.
INPUT SEL. Used to select an external source.
VOL
+
/
-
Used to adjust the volume of the television.
CH/TRK
(/)
Used to select the desired channel.
TV MUTE Used to toggle the sound on and off.
0~9 Used to input number directly.
100+ Used to select channels over 100.
■
If several codes are indicated for your
television brand, try each one in turn until you
find one that works. If you replace the remote
control’s batteries, you must set the brand code
again.
Note
The various functions may not be able to be
controlled on all televisions. If you encounter
problems, operate the television directly.
Note
Setting the Remote Control
You can control part of another manufacturer’s TV
functions with this remote control.
• Buttons that can be controlled on your TV :
TV POWER, INPUT SEL., VOL
+
/
-
, CH/TRK ( / ),
TV MUTE, 0~9, 100+.
00995G-VR345-XAA-Eng14-30 2006.4.10 2:50 PM Page 30
English - 31
System Setup
System Setup On-Screen Menu
Navigation
The on-screen menus allow you to enable or disable
various functions on your DVD Recorder & VCR.
Use the following buttons to open and navigate through
the on-screen menus.
1
MENU Button
Press this button on the remote control to open
the on-screen MENU. Press again to exit the
on-screen MENU.
2
…/†,œ /√ Buttons
Press these buttons on the remote control to
move the selection bar …/†,œ /√to cycle through
the menu options.
3
ENTER Button
Press this button on the remote control to confirm
any new settings.
4
RETURN Button
Press this button on the remote control to return to
the previous MENU screen displayed or to exit the
on-screen MENU.
On-Screen Menu Navigation..............................................31
Auto Clock Set ..................................................................32
Manual Clock Set ..............................................................33
Channel Set .......................................................................34
Auto Channel Memory.......................................................34
Channel Add/Delete ..........................................................35
RF Output Channel............................................................35
Setting Up the Language Options .....................................36
Setting Up the Audio Options ...........................................37
Setting Up the Display (Video) Options ............................38
DivX(R) Registration .........................................................39
Setting Up the Parental Control ........................................39
VCR Setting ......................................................................41
System Setting....................................................................42
Video Input .......................................................................44
DVD EP Mode Time .........................................................44
Automatic Chapter Creator ...............................................45
Quick Recording.................................................................46
Timer Record
DVD-Recorder
Timer Record
√√
Scheduled Record List
√√
No Disc
Timer Rec.
Setup
RETURNENTERMOVE EXIT
00995G-VR345-XAA-Eng31-46 2006.4.10 2:51 PM Page 31

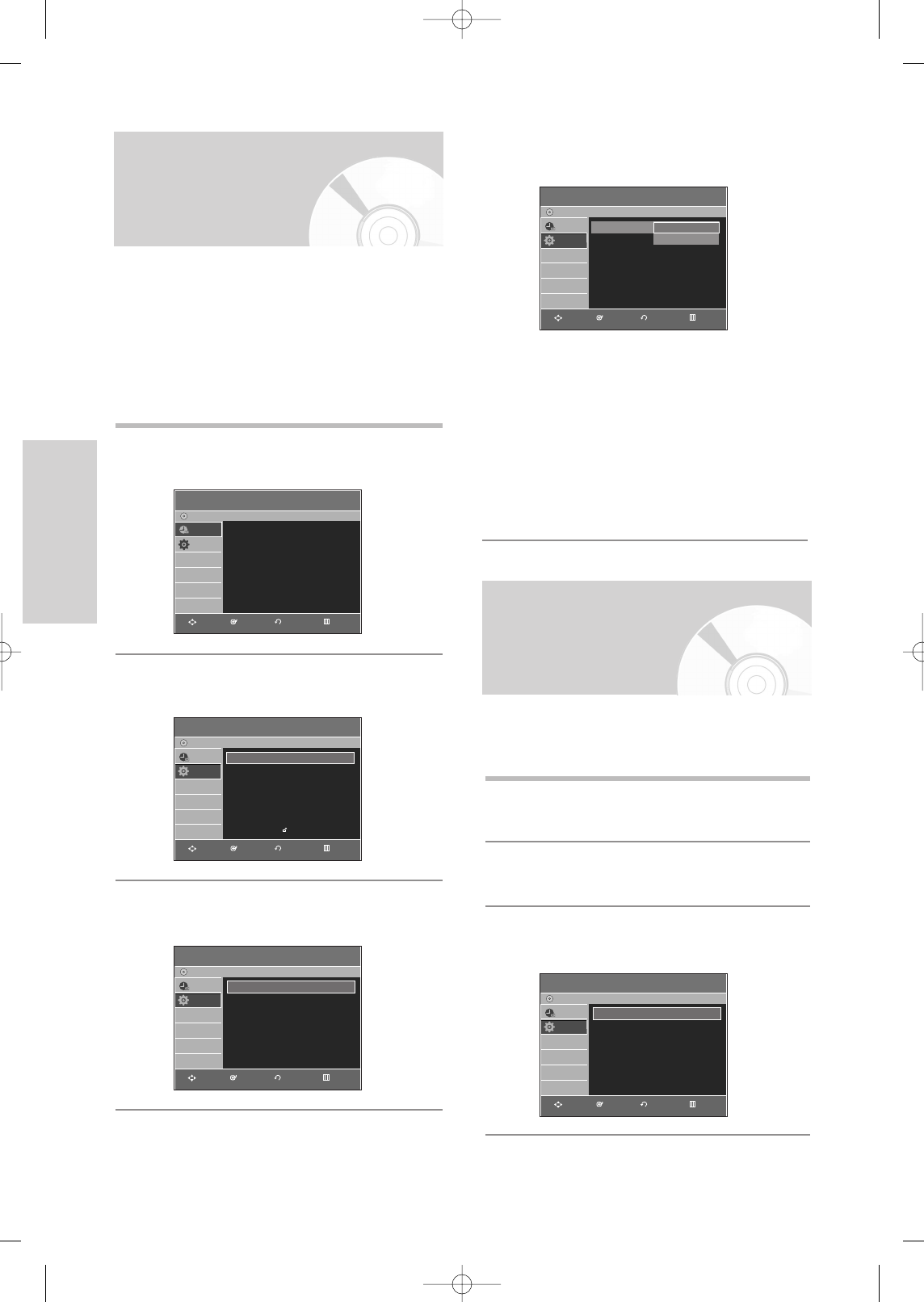

32 - English
System Setup

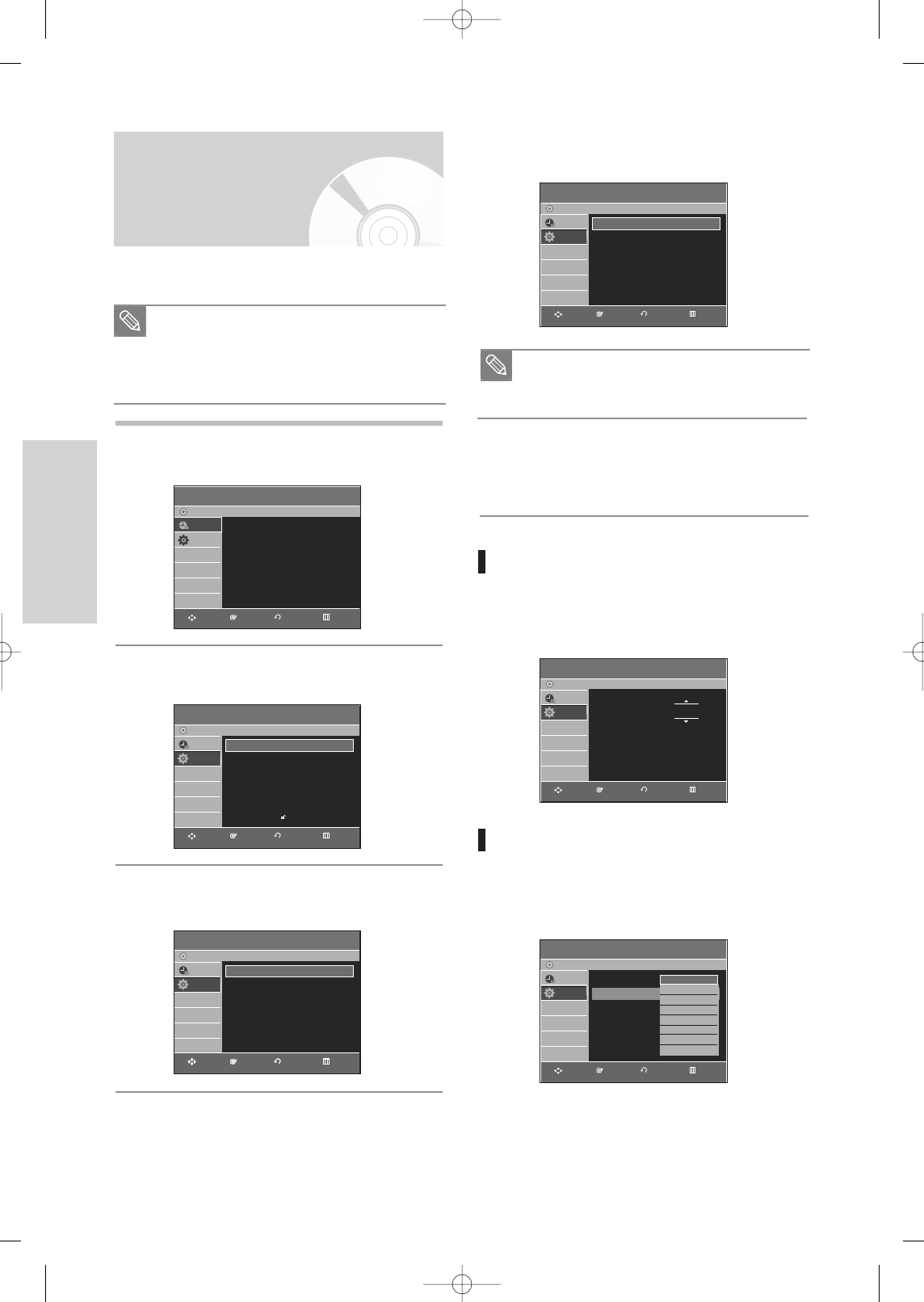

Auto Clock Set
This menu is used to set the current time. You need to
set the time to use timer recording.
1
With the unit in Stop mode/No Disc mode, press
the MENU button.
2
Press the …† buttons to select Setup, then press
the ENTER or √button.
3
Press the …† buttons to select Clock Set, then
press the ENTER or √button.
4
Press the …† buttons to select Auto Clock Set,
then press the ENTER or √button.
5
Press the …† buttons to select the sub menu
(Clock Data CH, Time Zone or Daylight Saving),
then press the
ENTER or √
button.
Clock Data CH
Press the …† buttons to select a channel that
carries a time signal,
then press the
ENTER
button.
Select Auto to set the channel automatically.
Time Zone
Press the …† buttons to select the time zone of
your area,
then press the
ENTER or √
button.
Select Automatic to set the time zone automatically.
Note
You must have the antenna connected to set
the Auto Clock. See pages 15~17 for Antenna
Connections.
The Clock will be automatically set when you
turn off the recorder.
■
If your clock is set to the wrong time zone or
daylight saving, you can adjust these settings
without turning off the Auto Clock Set function.
Note
Setup
DVD-Recorder
No Disc
Timer Rec.
Setup
System √√
Clock Set √√
Channel Set √√
Language √√
Audio √√
Video √√
Parental Control √√
Clock Set
DVD-Recorder
No Disc
Timer Rec.
Setup
Auto Clock Set √√
Manual Clock Set √√
Auto Clock Set
DVD-Recorder
No Disc
Timer Rec.
Setup
Clock Data CH : Automatic √√
Time Zone : Automatic √√
Daylight Saving : Automatic √√
Clock Data CH
DVD-Recorder
No Disc
Timer Rec.
Setup
Select channel : Auto
Auto Clock Set
DVD-Recorder
Clock Data CH
Time Zone
Daylight Saving
No Disc
Timer Rec.
Setup
Automatic
Atlantic
Eastern
Central
Mountain
Pacific
Alaska
Hawaii
RETURNENTER
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
Timer Record
DVD-Recorder
Timer Record
√√
Scheduled Record List
√√
No Disc
Timer Rec.
Setup
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
00995G-VR345-XAA-Eng31-46 2006.4.10 2:51 PM Page 32
English - 33
System Setup
3
Press the …† buttons to select Clock Set, then
press the ENTER or √button.
4
Press the …† buttons to select Manual Clock
Set, then press the ENTER or √button.
5
Press the …†œ √ buttons to select the Current Date
and Time, then press the ENTER button.
When the current time is stored in memory and
then the set is powered off, the current time will
appear in the front panel display.
…† : Sets the value
You can set the value using the number (0~9)
buttons.
œ √: Moves to items
Daylight Saving
Press the …† buttons to select Yes or No, then
press the ENTER or √button.
Select Automatic to set the daylight saving
automatically.
Manual Clock Set
If Auto Setup fails to set the DVD Recorder & VCR’s inter-
nal clock by locating a local TV station, follow these steps
to set the date and time manually.
1
With the unit in Stop mode/No Disc mode, press
the MENU button.
2
Press the …† buttons to select Setup, then press
the ENTER or √button.
For accurate Timer Recording, your DVD Recorder
& VCR's internal clock must be set correctly.
Note
Auto Clock Set
DVD-Recorder
Clock Data CH : Automatic √√
Time Zone : Automatic √√
Daylight Saving : Automatic √√
No Disc
Timer Rec.
Setup
Automatic
Yes
No
Manual Clock Set
DVD-Recorder
No Disc
Timer Rec.
Setup
Month Day Year Hour Minute AM/PM
Press numeric keys or
…†
keys.
SUN
01 01 2006 12 00 AM
Clock Set
DVD-Recorder
No Disc
Timer Rec.
Setup
Auto Clock Set √√
Manual Clock Set √√
Setup
DVD-Recorder
No Disc
Timer Rec.
Setup
System √√
Clock Set √√
Channel Set √√
Language √√
Audio √√
Video √√
Parental Control √√
RETURNENTERMOVE EXIT
Timer Record
DVD-Recorder
Timer Record
√√
Scheduled Record List
√√
No Disc
Timer Rec.
Setup
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
00995G-VR345-XAA-Eng31-46 2006.4.10 2:51 PM Page 33
34 - English
System Setup
Channel Set
This feature allows you to manually set the DVD
Recorder & VCR’s tuner band to Antenna or Cable,
whichever you connected to the Antenna In jack during
initial setup.
• Use this setting only if Auto Setup detected the
incorrect tuner band, i.e. channels are coming in on
the wrong channel numbers.
1
With the unit in Stop mode/No Disc mode, press
the MENU button.
2
Press the …† buttons to select Setup, then press
the ENTER or √button.
3
Press the …† buttons to select Channel Set,
then press ENTER or √button.
4
Press the …† buttons to select Antenna/Cable
TV, then press the ENTER or √button.
Select the Antenna or Cable TV(Signal Source)
that matches the antenna connection you selected
on pages 15~17.
• Antenna - Select this if the DVD Recorder &
VCR is connected to an indoor or outdoor
VHF/UHF antenna. (See pages 15, 17)
• Cable TV - Select this if the DVD Recorder &
VCR is connected to a cable TV. (See page 16)
Auto Channel Memory
Auto Channel Memory will automatically seek and store
all active channels in your area.
1
With the unit in Stop mode/No Disc mode, press
the MENU button.
2
Press the …† buttons to select Setup, then press
the ENTER or √button.
3
Press the …† buttons to select Channel Set,
then press the ENTER or √button.
Channel Set
DVD-Recorder
No Disc
Timer Rec.
Setup
Antenna/Cable TV : Antenna √√
Auto Channel Memory √√
Channel Add/Delete √√
RF Output Channel : CH3 √√
Channel Set
DVD-Recorder
No Disc
Timer Rec.
Setup
Antenna/Cable TV : Cable TV √√
Auto Channel Memory √√
Channel Add/Delete √√
RF Output Channel : CH3 √√
Antenna
Cable TV
Channel Set
DVD-Recorder
No Disc
Timer Rec.
Setup
Antenna/Cable TV : Antenna √√
Auto Channel Memory √√
Channel Add/Delete √√
RF Output Channel : CH3 √√
Setup
DVD-Recorder
No Disc
Timer Rec.
Setup
System √√
Clock Set √√
Channel Set √√
Language √√
Audio √√
Video √√
Parental Control √√
RETURNENTERMOVE EXIT
Timer Record
DVD-Recorder
Timer Record
√√
Scheduled Record List
√√
No Disc
Timer Rec.
Setup
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
00995G-VR345-XAA-Eng31-46 2006.4.10 2:51 PM Page 34
English - 35
System Setup
Channel Add/Delete
4
Press the …† buttons to select Channel
Add/Delete, then press the ENTER or √button.
5
Press the …† or number buttons to select the
channels you want to add or delete on the Select
channel screen. Then, press the ENTER button.
• Using CH/TRK ( / ) buttons for channel selection
allows the user to add/delete one channel at a time.
• Using …† buttons for channel selection jumps to
the next channel memorized in Auto Channel
Memory.
6
Press the œ √ buttons to select Add or Delete,
then press the ENTER button.
4
Press the …† buttons to select Auto Channel
Memory, then press the ENTER or √button.
• The DVD Recorder & VCR will automatically
search for all available channels in the selected
tuner band. This procedure may take a few
minutes to complete.
• When finished, the lowest channel will be dis-
played.
• If you want to stop or cancel scanning, press the
ENTER button. Then select ‘YES’.
Use this feature if Auto Channel Memory missed a
channel that you would like to add or if you wish to
remove a channel.
1
With the unit in Stop mode/No Disc mode, press
the MENU button.
2
Press the …† buttons to select Setup, then press
the ENTER or √button.
3
Press the …† buttons to select Channel Set, then
press the ENTER or √button.
Total channel numbers : 02/125
Saved channel :
Auto Channel Memory
Stop
1%
When you connect the DVD Recorder & VCR to your
TV with the RF Antenna Cable, follow the steps below
to set the RF Output Channel.
1
With the unit in Stop mode/No Disc mode, press
the MENU button.
2
Press the …† buttons to select Setup, then press
the ENTER or √button.
RF Output Channel
Channel Add/Delete
DVD-Recorder
No Disc
Timer Rec.
Setup
Select channel : 11
Delete
Add
Channel is added.
RETURNENTERNUMBER EXIT
Channel Add/Delete
DVD-Recorder
No Disc
Timer Rec.
Setup
Select channel : 1
Delete
Add
RETURNENTERNUMBER EXIT
Channel Set
DVD-Recorder
No Disc
Timer Rec.
Setup
Antenna/Cable TV : Antenna √√
Auto Channel Memory √√
Channel Add/Delete √√
RF Output Channel : CH3 √√
RETURNENTERMOVE EXIT
00995G-VR345-XAA-Eng31-46 2006.4.10 2:51 PM Page 35

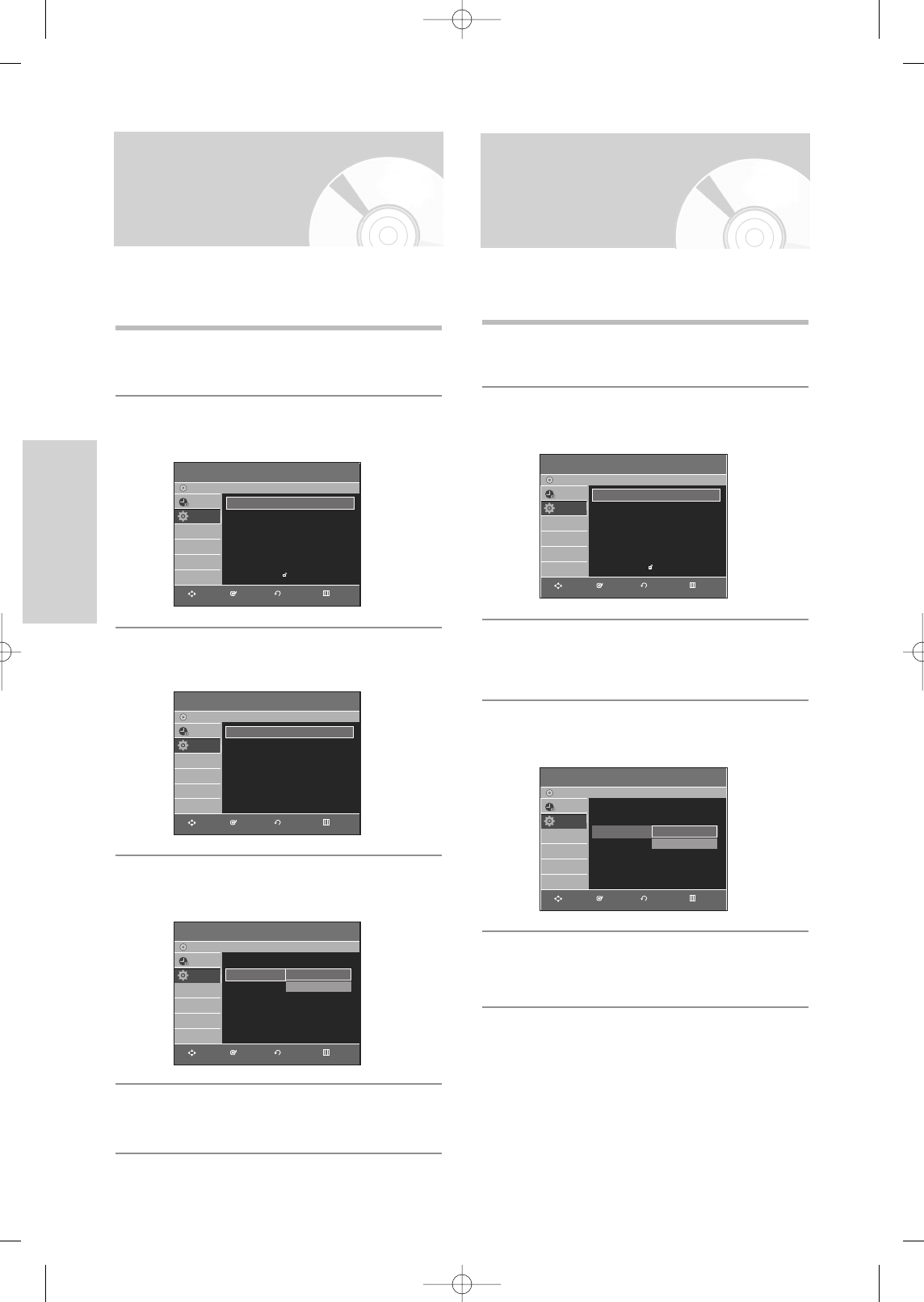

36 - English
System Setup
3
Press the …† buttons to select Channel Set,
then press ENTER or √button.
4
Press the …† buttons to select RF Output
Channel, then press the ENTER or √button.
5
Press the …† buttons to select CH3 or CH4, then
press the ENTER or √button.
The message "Please tune your TV to channel 3
(4)" will appear on the screen. Change your TV
channel to CH3 or CH4 to match the RF Output
Channel of the DVD Recorder & VCR.
Setting Up the
Language Options
2
Press the …† buttons to select Setup, then press
the ENTER or √button.
3
Press the …† buttons to select Language, then
press the ENTER or √button.
Language setup menu will be displayed.
4
Press the …† buttons to select the desired
language option, press the ENTER or √button.
• Audio: For the disc audio language.
• Subtitle: For the disc subtitles.
• Disc Menu: For the disc menu contained on the
disc.
• On-Screen Menu: For the on-screen menu of
your DVD Recorder & VCR.
5
Press the …† buttons to select the desired
language, then press the ENTER or √button.
If you set audio, subtitle, disc menu and on-screen
menu language in advance, they will come up
automatically every time you watch a movie.
If the selected language is not recorded on the disc,
the original pre-recorded language is selected.
1
With the unit in Stop mode/No Disc mode, press
the MENU button.
■
Press the RETURN or œbutton to return to the
previous menu. Press the MENU button to exit
the menu.
■
The selected language will only appear if it is
supported on the disc.
Note
Language
DVD-Recorder
No Disc
Timer Rec.
Setup
Audio : Original √√
Subtitle : Automatic √√
Disc Menu : English √√
On-Screen Menu : English √√
Setup
DVD-Recorder
No Disc
Timer Rec.
Setup
System √√
Clock Set √√
Channel Set √√
Language √√
Audio √√
Video √√
Parental Control √√
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
Language
DVD-Recorder
No Disc
Timer Rec.
Setup
Audio : Original √√
Subtitle : Automatic √√
Disc Menu : English √√
On-Screen Menu : English √√
RETURNENTERMOVE EXIT
Original ……
English
Français
Deutsch
Español
Italiano
Nederlands
Korean ††
Channel Set
DVD-Recorder
No Disc
Timer Rec.
Setup
Antenna/Cable TV : Antenna √√
Auto Channel Memory √√
Channel Add/Delete √√
RF Output Channel : CH3 √√
CH3
CH4
RETURNENTERMOVE EXIT
Channel Set
DVD-Recorder
No Disc
Timer Rec.
Setup
Antenna/Cable TV : Antenna √√
Auto Channel Memory √√
Channel Add/Delete √√
RF Output Channel : CH3 √√
RETURNENTERMOVE EXIT
00995G-VR345-XAA-Eng31-46 2006.4.10 2:51 PM Page 36
English - 37
System Setup
Setting Up the Audio
Options
Allows you to setup the audio device and sound status
settings depending on the audio system in use.
1
With the unit in Stop mode/No Disc mode, press
the MENU button.
2
Press the …† buttons to select Setup, then press
the ENTER or √button.
3
Press the …† buttons to select Audio, then press
the ENTER or √ button.
Audio setup menu will be displayed.
4
Press the …† buttons to select the desired audio
option, then press the ENTER or √button.
5
Press the …† buttons to select the desired item,
then press the ENTER or √button.
Note
■
Press the RETURN or œbutton to return to the
previous menu.
Press the MENU button to exit the menu.
Audio
DVD-Recorder
No Disc
Timer Rec.
Setup
Digital Output : PCM √√
DTS : Off √√
Dynamic Compressiom : On √√
Setup
DVD-Recorder
No Disc
Timer Rec.
Setup
System √√
Clock Set √√
Channel Set √√
Language √√
Audio √√
Video √√
Parental Control √√
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
Digital Output
1. PCM : Converts to PCM(2CH) 48kHz audio.
Select PCM when using the Analog Audio
Outputs.
2. Bitstream : Converts to Dolby Digital Bitstream.
Select Bitstream when using the
Digital Audio Outputs.
DTS
1. Off : Doesn’t output digital signal.
2. On : Outputs DTS Bitstream via digital output
only. Select DTS when connecting to a DTS
Decoder.
Dynamic Compression
This is only active when a Dolby Digital signal is
detected.
1. On : When the Movie soundtracks are played at
low volume or from small speakers, the
system can apply appropriate compression
to make low-level content more intelligible
and prevent dramatic passages from getting
too loud.
2. Off : You can enjoy the movie with the standard
Dynamic Range.
Be sure to select the correct Digital Output or
no audio will be heard.
When DTS soundtrack is played, sound is not
output from Analog Audio Output.
Note
Note
00995G-VR345-XAA-Eng31-46 2006.4.10 2:51 PM Page 37

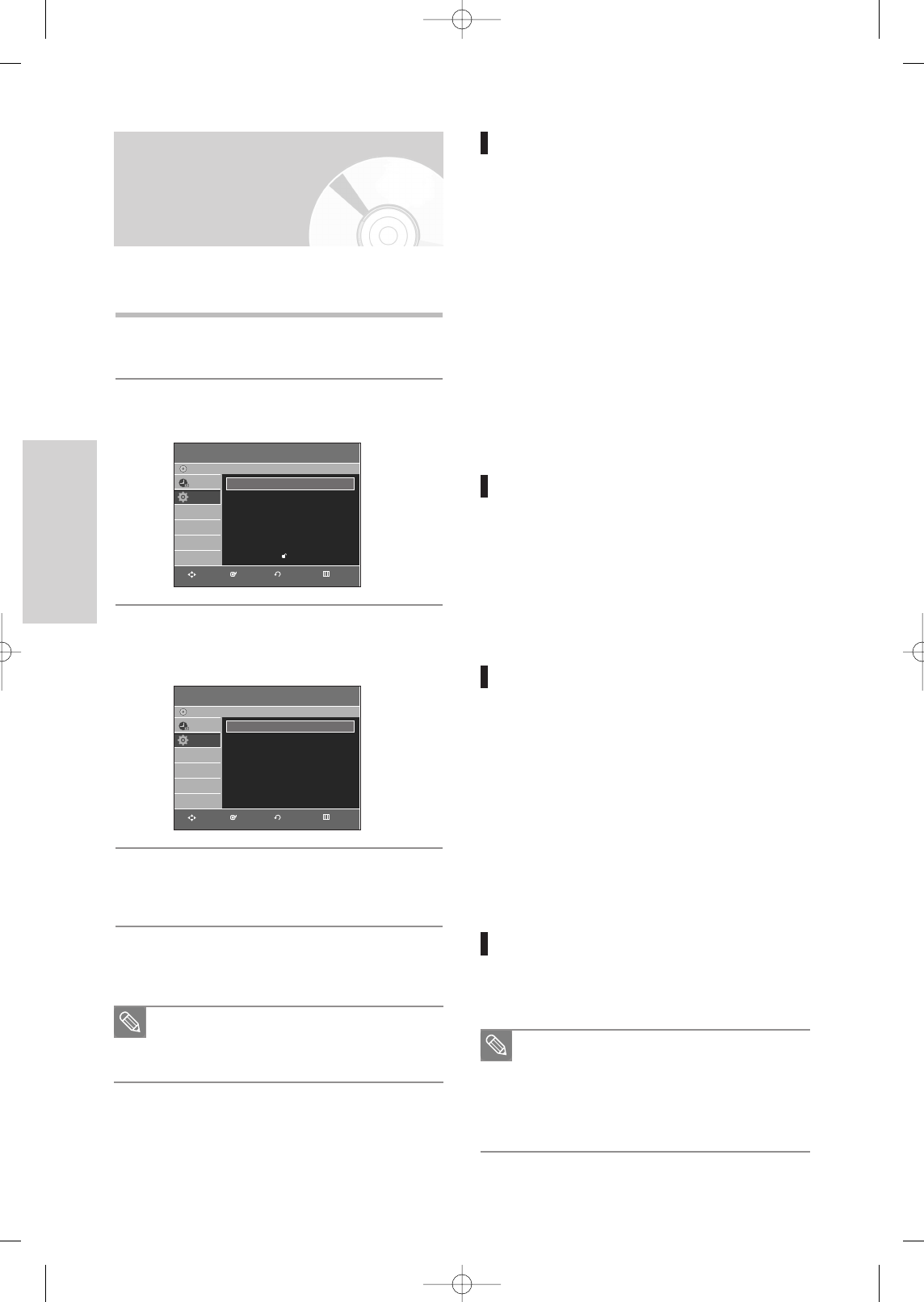

38 - English
System Setup
Setting Up the
Display(Video) Options
This function allows you to setup the TV screen
settings.
1
With the unit in Stop mode/No Disc mode, press
the MENU button.
2
Press the …† buttons to select Setup, then press
the ENTER or √button.
3
Press the …† buttons to select Video, then press
the ENTER or √button.
Video option menu will be displayed.
4
Press the …† buttons to select the desired video
option, then press the ENTER or √button.
5
Press the …† buttons to select the desired item,
then press the ENTER or √button.
Press the RETURN or œbutton to return to the
previous menu.
Press the MENU button to exit the menu
.
TV Aspect
Depending on the type of television you have, you
may want to adjust the screen setting. (aspect ratio)
• 4:3 Letter Box : Select when you want to see the
total 16:9 ratio screen DVD sup-
plies, even though you have a TV
with a 4:3 ratio screen. Black
bars will appear at the top and
bottom of the screen.
• 4:3 Pan & Scan : Select this for a conventional
size TV when you want to see
the central portion of the 16:9
screen. (Extreme left and right
side of movie picture will be cut
off.)
• 16:9 Wide : You can view the full 16:9 picture on
your wide-screen TV.
Input Level
Adjusts the level of the input signal.
• Darker :
If you feel the screen is too light
and you want to make the screen
darker.
• Lighter :
If you feel the screen is too dark
and you want to make the screen
lighter.
Black Level
Adjusts the black level of the screen.
• 7.5 IRE : This will enhance the black level for
increased brightness/contrast when
viewing DVDs.
Select this when you want to make the
screen lighter.
• 0 IRE : This is the standard NTSC reference black
level for consistent brightness/contrast
across all sources.
Select this when you want to make the
screen darker.
3D Noise Reduction
• Off : Normal
• On : Select to remove noise from the screen.
This function depends on disc type. It may not
work for some disc types.
IRE: Short for the Institute of Radio Engineers.
An IRE unit is a relative unit of measure
equaling 1/140th of the peak-to peak (p-p)
video amplitude.
Note
Setup
DVD-Recorder
No Disc
Timer Rec.
Setup
System √√
Clock Set √√
Channel Set √√
Language √√
Audio √√
Video √√
Parental Control √√
RETURNENTERMOVE EXIT
Video
DVD-Recorder
No Disc
Timer Rec.
Setup
TV Aspect : 16:9 Wide √√
Input Level : Darker √√
Black Level : 7.5 IRE √√
3D Noise Reduction : Off √√
HDMI/DVI Resolution
: 480P
√√
DivX(R) Registration √√
RETURNENTERMOVE EXIT
00995G-VR345-XAA-Eng31-46 2006.4.10 2:51 PM Page 38

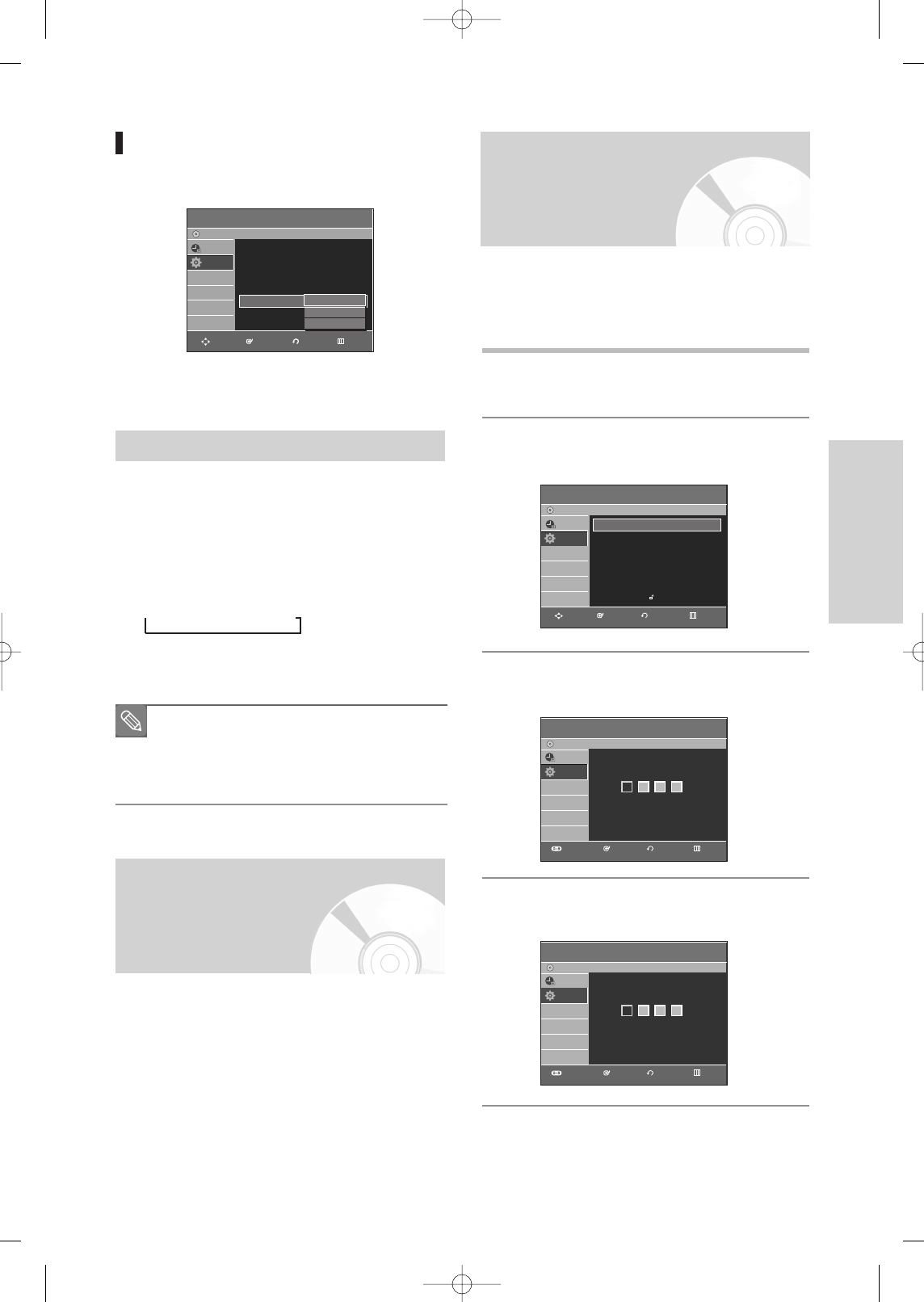

English - 39
System Setup
Setting Up the Parental
Control
The Parental Control function works in conjunction with
DVDs that have been assigned a rating - which helps
you control the types of DVDs that your family watches.
There are up to 8 rating levels on a disc.
1
With the unit in Stop mode/No Disc mode, press
the MENU button on the remote control.
2
Press the …† buttons to select Setup, then press
the ENTER or √button.
3
Press the …† buttons to select Parental Control,
then press the ENTER or √button.
4
Create a 4-digit password using the 0 to 9 buttons
on the remote control.
Parental Control
DVD-Recorder
No Disc
Timer Rec.
Setup
Create the password
Parental Control
DVD-Recorder
No Disc
Timer Rec.
Setup
Confirm the password
Setup
DVD-Recorder
No Disc
Timer Rec.
Setup
System √√
Clock Set √√
Channel Set √√
Language √√
Audio √√
Video √√
Parental Control √√
RETURNENTERMOVE EXIT
RETURNENTERNUMBER EXIT
RETURNENTERNUMBER EXIT
HDMI/DVI Resolution
This setting is used when the unit is connected by
HDMI or DVI to Display devices (TV, Monitor, etc).
• 480p : 720 x 480
• 720p : 1280 x 720
• 1080i : 1920 x 1080
Connect the DVD-R345 to your TV via HDMI or DVI.
Set your TV's input to HDMI or DVI.
• Press the P.SCAN button while the unit is in stop
mode to select the output resolution.
- If your TV is connected the HDMI or DVI cable, the
output resolution mode changes in the following
sequence each time you press the P.SCAN button:
➞
480p
➞
720p
➞
1080i
- If your TV is connected via AV or component
cables(without HDMI/DVI cable), the output resolu-
tion mode toggles between 480p/480i.
Please use the Registration code to register your DVD
Recorder with the DivX(R) Video On Demand format.
To learn more, visit www.divx.com/vod
Video
DVD-Recorder
No Disc
Timer Rec.
Setup
RETURNENTERMOVE EXIT
TV Aspect
: 16:9 Wide √√
Input Level : Darker
√√
Black Level : 7.5 IRE
√√
3D Noise Reduction
: Off
√√
HDMI/DVI Resolution
: 480P
√√
DivX(R) Registration √√
480P
720P
1080i
DivX(R) Registration
Output selection
■ Even if HDMI/DVI cable is connected to
your TV, the AV connection outputs only
480i and the Component connection out-
puts only 480p irrespective of the on-
screen display.
Note
00995G-VR345-XAA-Eng31-46 2006.4.10 2:51 PM Page 39
40 - English

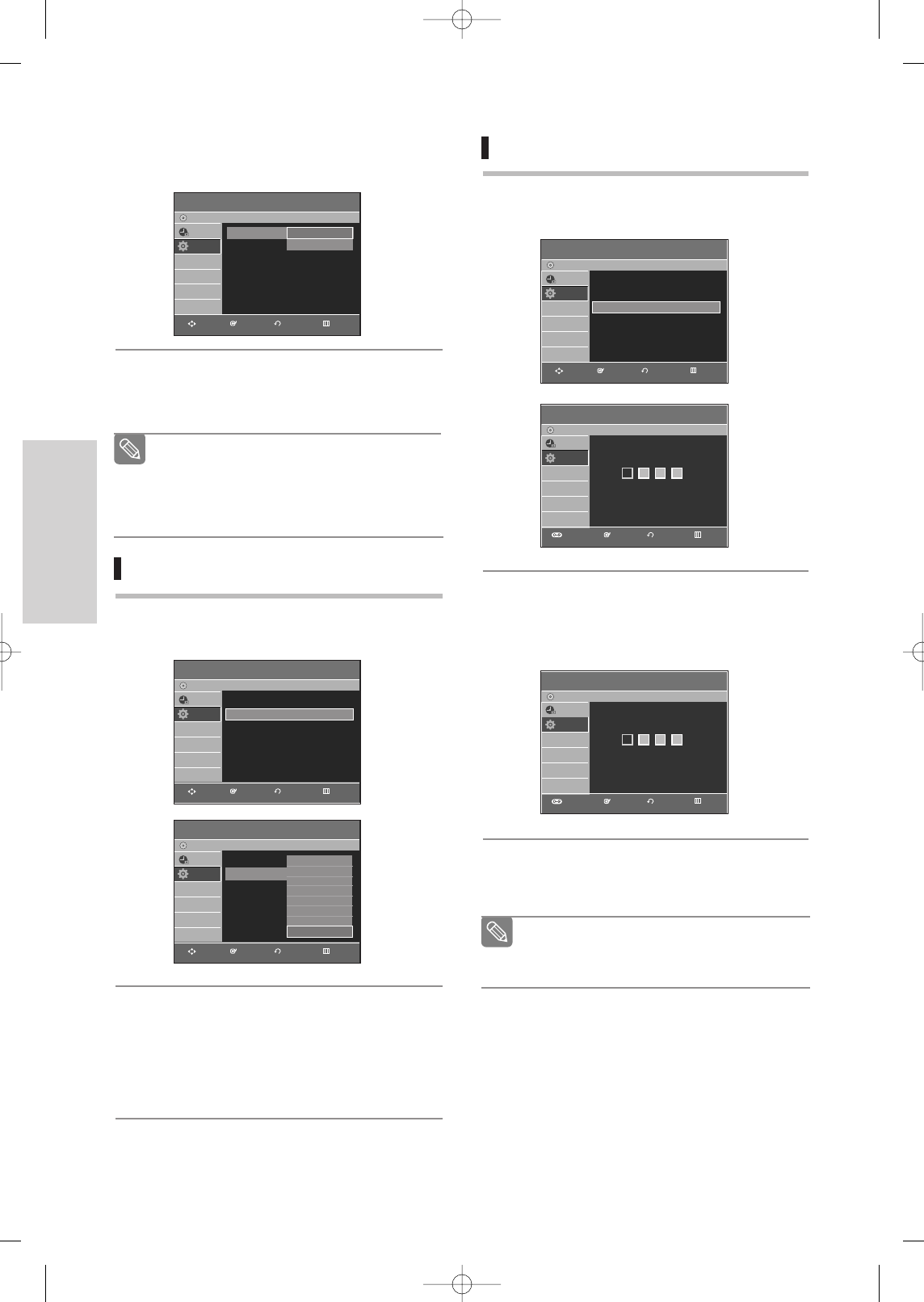

System Setup
5
The Re-enter Password screen appears to confirm
the password. Enter your password again, and
then press the ENTER or √button.
6
Press the …† buttons to select On, then press
the ENTER or √button.
The Parental Control screen appears.
About the Rating Level
1
Press the …† buttons to select Rating Level,
then press the ENTER or √button.
2
Press the …† buttons to select the rating level
you want, then press the ENTER or √button.
For example, if you select up to Level 6, discs that
contain Level 7, 8 will not play. A larger number
indicates that the program is intended for adult
use only.
Press the RETURN or œbutton to return to the
previous menu. Press the MENU button to exit the
menu.
Refer to Troubleshooting if you forget your pass-
word. (See page 98)
Note
Parental Control
DVD-Recorder
No Disc
Timer Rec.
Setup
Password :Off √√
Off
On
Parental Control
DVD-Recorder
No Disc
Timer Rec.
Setup
Password : On
√√
Rating Level : Level 1 Kids
√√
Change Password
√√
Parental Control
DVD-Recorder
No Disc
Timer Rec.
Setup
Password :On
√√
Rating Level : Level 1 Kids
√√
Change Password
√√
Level 8 Adults
Level 7
Level 6
Level 5
Level 4
Level 3
Level 2
Level 1 Kids
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
About the Change Password
1
Press the …† buttons to select Change Password,
then press the ENTER or √ button.
2
Enter the 4-digit password using the number buttons
on the remote control.
The ‘Confirm the password’ message will be
displayed.
3
Enter your password again.
Press the RETURN or œbutton to return to the
previous menu.
Press the MENU button to exit the menu.
Note
Parental Control
DVD-Recorder
No Disc
Timer Rec.
Setup
Password : On
√√
Rating Level : Level 1 Kids
√√
Change Password
√√
RETURNENTERMOVE EXIT
Change Password
DVD-Recorder
No Disc
Timer Rec.
Setup
Enter the password
Change Password
DVD-Recorder
No Disc
Timer Rec.
Setup
Confirm the password
RETURNENTERNUMBER EXIT
RETURNENTERNUMBER EXIT
00995G-VR345-XAA-Eng31-46 2006.4.10 2:51 PM Page 40
English - 41
System Setup
5
Press the …† buttons to select the desired VCR
option, then press the ENTER or √ button.
6
Press the …† buttons to select the desired item,
then press the ENTER or √ button.
Tape Length
This information is usually printed on the tape box.
The menu cycles through: T-120, T-160 or T-180.
Once the type of cassette is set, the VCR can dis-
play the amount of time remaining on the tape
when you press the INFO button.
Auto Play
If you want your videotapes to play automatically
when you insert them, turn on Auto Play.
• Off : Auto play is disabled.
• On : The VCR will automatically begin playing a
video tape when it is inserted, as long as the
safety tab of the cassette has been removed.
Auto Repeat
It sets the VCR to play a tape repeatedly (unless a
tape control is activated :Stop, Fast Forward or
Rewind).
VCR
DVD-Recorder
No Disc
Timer Rec.
Setup
Tape Length T120 √√
Auto Play On √√
Auto Repeat Off √√
T120
T160
T180
DVD-Recorder
No Disc
Timer Rec.
Setup
Tape Length : T120 √√
Auto Play : On √√
Auto Repeat : Off √√
Off
On
VCR
DVD-Recorder
No Disc
Timer Rec.
Setup
Tape Length : T120 √√
Auto Play : On √√
Auto Repeat : Off √√
Off
On
VCR
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT

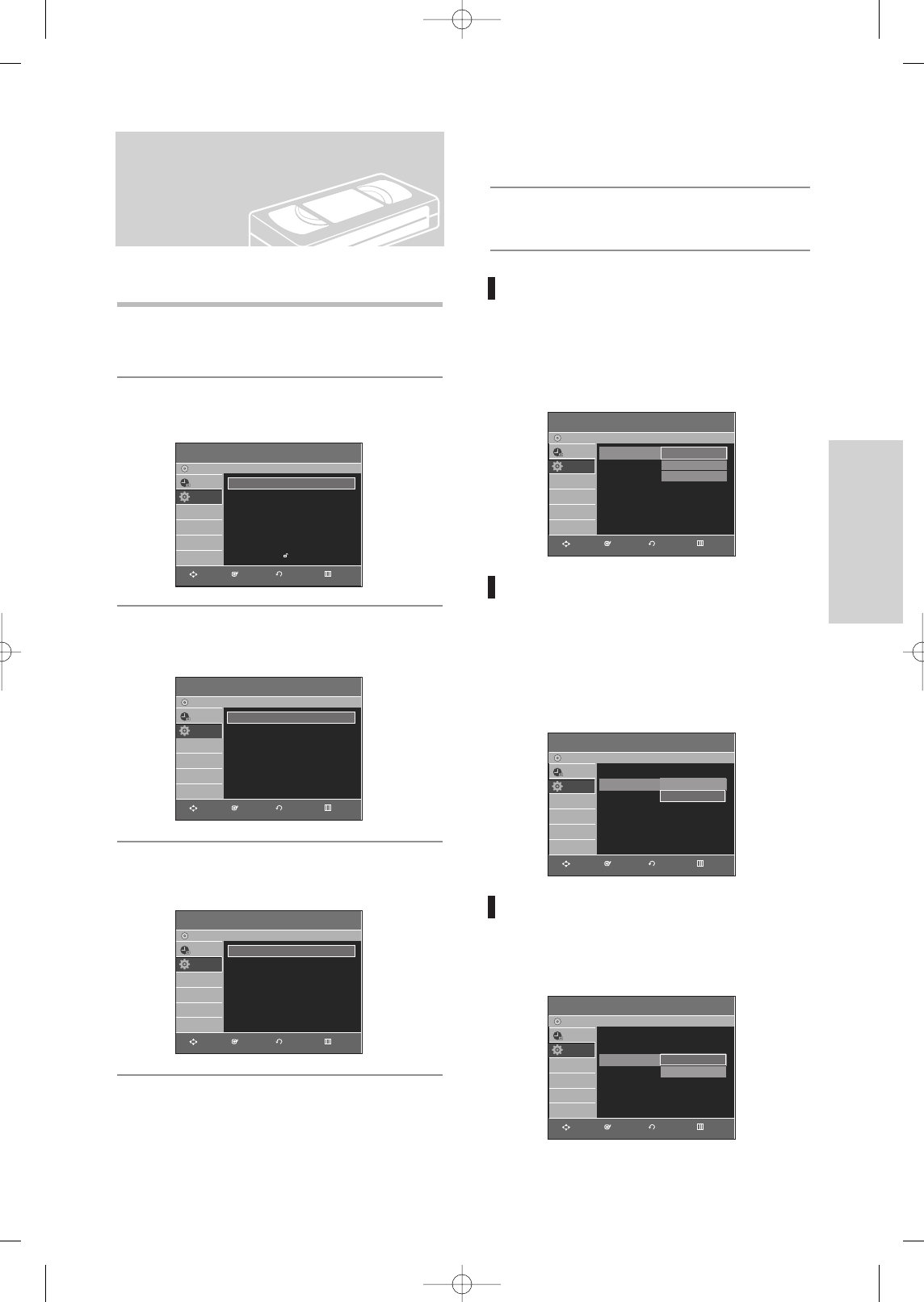

VCR Setting
This function allows you to set up the VCR.
1
With the unit in Stop mode/No Disc mode, press
the MENU button.
2
Press the …† buttons to select Setup, then press
the ENTER or √button.
3
Press the …† buttons to select System, then
press the ENTER or √ button.
4
Press the …† buttons to select VCR, then press
the ENTER or √button.
VCR
DVD-Recorder
No Disc
Timer Rec.
Setup
Tape Length : T120 √√
Auto Play : On √√
Auto Repeat : Off √√
Setup
DVD-Recorder
No Disc
Timer Rec.
Setup
System √√
Clock Set √√
Channel Set √√
Language √√
Audio √√
Video √√
Parental Control √√
RETURNENTERMOVE EXIT
System
DVD-Recorder
No Disc
Timer Rec.
Setup
VCR √√
Set Top Box Control √√
Video Input : AV 1 √√
DVD EP Mode Time
: 6 Hours √√
Chapter Creator : Off √√
Quick Recording : Off √√
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
00995G-VR345-XAA-Eng31-46 2006.4.10 2:51 PM Page 41
42 - English
System Setup
4
Press the …† buttons to select Set Top Box
Control, then press the ENTER or √button.
Set Top Box Control menu will be displayed.
5
Press the …† buttons to select the sub
menu(Brand Code,Connection, CH Digit Lock,
Mode for SET button, Control and Set Top Box
Test), then press the ENTER or √button.
Brand Code
Enter the brand code of your cable box or satellite receiver
using the number buttons, then press the ENTER button.
(See "Cable Box/Satellite Receiver Brand Code Table"
on pages 101~103.)
Connection
Select the sub item (CH3, CH4, AV1 or AV2) using the
…† buttons, then press the ENTER button.
If you connect your cable box or satellite receiver to
the recorder's audio/video input. (page16)
•AV1 :
Select this when the cable box or satellite receiver is
connected to the DVD recorder's AV 1 IN jacks.
• AV2 :
Select this when the cable box or satellite receiver is
connected to the DVD recorder's AV 2 IN jacks.
If you connect your cable box or satellite receiver to
the recorder's antenna input. (page17)
• CH3 or CH4 : Select the output channel from CH3 or
CH4 when the cable box or satellite
receiver is connected to the DVD
recorder's VHF/UHF IN jack.
Set Top Box Control
If you have the cable box/satellite receiver connected
as shown on pages 16-17, you can control the set top
box after setting up this menu.
1
With the unit in Stop mode/No Disc mode, press
the MENU button.
2
Press the …† buttons to select Setup, then press
the ENTER or √ button.
3
Press the …† buttons to select System, then
press the ENTER or √button.
System menu will be displayed.
See the instruction supplied with your cable box to
confirm the cable box's antenna output channel.
Note
System Setting
System
DVD-Recorder
No Disc
Timer Rec.
Setup
VCR √√
Set Top Box Control √√
Video Input : AV 1 √√
DVD EP Mode Time
: 6 Hours √√
Chapter Creator : Off √√
Quick Recording : Off √√
Timer Record
DVD-Recorder
Timer Record
√√
Scheduled Record List
√√
No Disc
Timer Rec.
Setup
Setup
DVD-Recorder
No Disc
Timer Rec.
Setup
System
√√
Clock Set
√√
Channel Set
√√
Language
√√
Audio
√√
Video
√√
Parental Control
√√
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
Set Top Box Control
DVD-Recorder
No Disc
Timer Rec.
Setup
Brand Code : 0000 √√
Connection : CH3 √√
CH Digit Lock : Off √√
Mode for SET button : Off √√
Control : Off √√
Set Top Box Test √√
RETURNENTERMOVE EXIT
Set Top Box Control
DVD-Recorder
No Disc
Timer Rec.
Setup
RETURNENTERMOVE EXIT
Set Top Box Control
DVD-Recorder
No Disc
Timer Rec.
Setup
RETURNENTERMOVE EXIT
Enter the brand code of your set top box.
00 00
Brand Code : 0000 √√
Connection CH3 √√
CH Digit Lock : Off √√
Mode for SET button : Off √√
Control : Off √√
Set Top Box Test √√
CH3
CH4
AV1
AV2
00995G-VR345-XAA-Eng31-46 2006.4.10 2:51 PM Page 42
English - 43

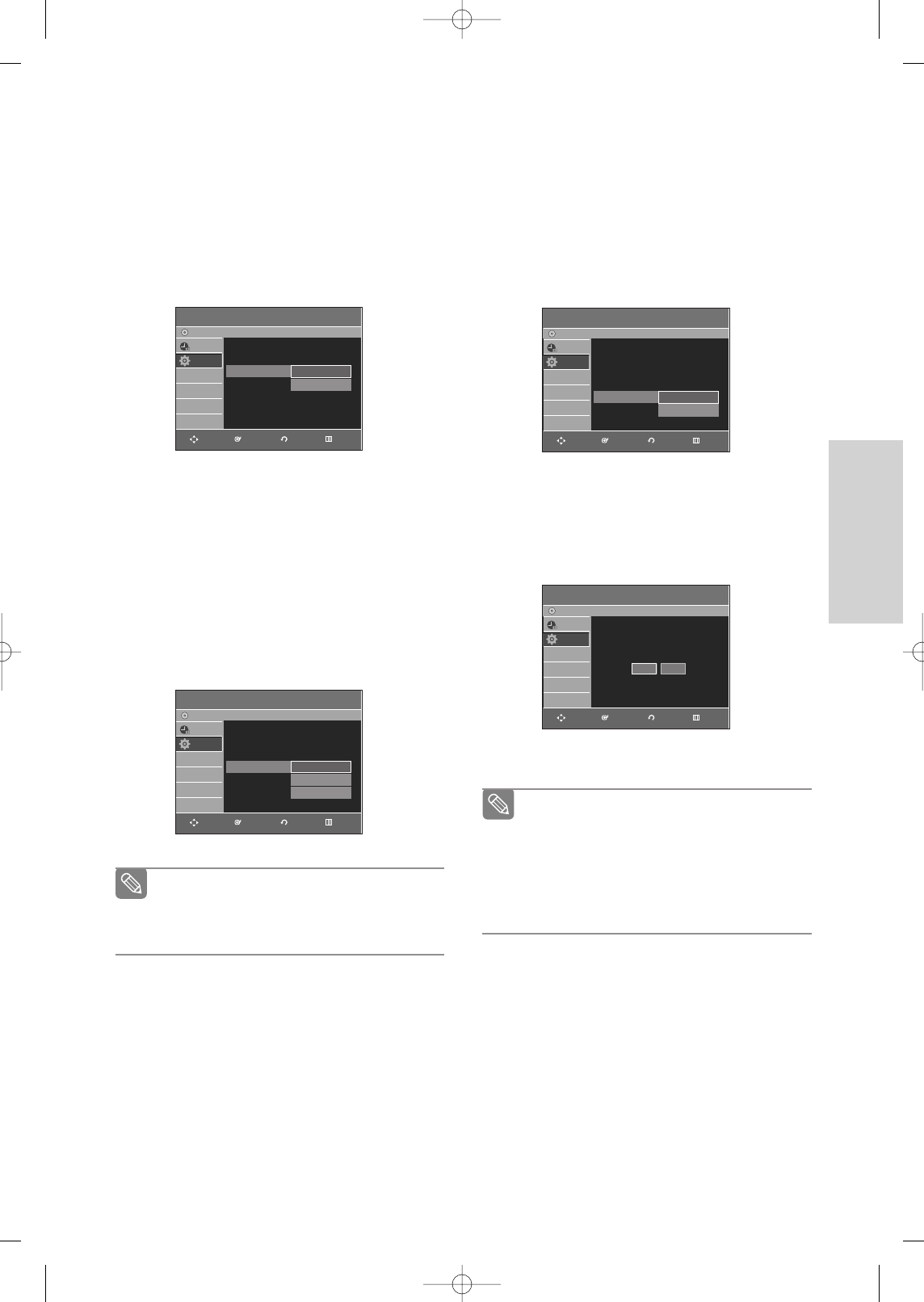

System Setup
CH Digit Lock
Select the sub item(Off or Lock to two digits) using
the …† buttons, then press the ENTER button.
• Off : Select this when your cable box or satellite
receiver only accepts a three or more digit chan-
nel numbers. Normally select this.
• Lock to two digits : Select this when your cable box
or satellite receiver only accepts
a two digit channel number.
Mode for SET button
Some Set-top boxes require you to press SET after
pressing the channel number. If your STB operates this
way, follow the instructions below to set Mode 1 or 2.
Select the sub item(Off, Mode 1 or Mode 2) using the
…† buttons, then press the ENTER button.
• Off : No code is sent when the SET button is
pressed. Normally select this.
• Mode 1 or Mode 2 : Sends the channel number you
entered.
Control
Select the sub item(Off or On) using the …† buttons,
then press the ENTER button.
• Off : Turns off the cable box or satellite receiver con-
trol function.
Select this if you do not want to use the supplied
set top box controller (IR Blaster).
• On : Turns on the cable box or satellite receiver con-
trol function.
Set Top Box Test
Select Set Top Box Test using the …† buttons, then
press the ENTER or œ√button. System menu will be
displayed.
If you cannot get the recorder to control your
cable box/satellite receiver, check the connection
and position of the IR Blaster cable.(pages 16~17)
If your cable box or satellite receiver still does not
operate with this recorder, contact your cable
company to see if they can provide you with a
compatible cable box or satellite receiver.
Note
If "Mode 1" does not work, try "Mode 2."
If your cable box or satellite receiver does not
respond to either setting, contact the manufactur-
er of the cable box or satellite receiver.
Note
Set Top Box Control
DVD-Recorder
No Disc
Timer Rec.
Setup
RETURNENTERMOVE EXIT
Brand Code : 0000 √√
Connection : CH3 √√
CH Digit Lock : Off √√
Mode for SET button : Off √√
Control : Off √√
Set Top Box Test √√
Off
Mode 1
Mode 2
Set Top Box Control
DVD-Recorder
No Disc
Timer Rec.
Setup
RETURNENTERMOVE EXIT
Brand Code : 0000 √√
Connection : CH3 √√
CH Digit Lock : Off √√
Mode for SET button : Off √√
Control : Off √√
Set Top Box Test √√
Off
Lock to two digits
Set Top Box Control
DVD-Recorder
No Disc
Timer Rec.
Setup
RETURNENTERMOVE EXIT
Brand Code : 0000 √√
Connection : CH3 √√
CH Digit Lock : Off √√
Mode for SET button : Off √√
Control : Off √√
Set Top Box Test √√
Off
On
Set Top Box Control
DVD-Recorder
No Disc
Timer Rec.
Setup
RETURNENTERMOVE EXIT
Is your Set Top Box now tuned to channel 28?
NoYes
00995G-VR345-XAA-Eng31-46 2006.4.10 2:51 PM Page 43
44 - English
System Setup
Video Input
You can watch video from an external component
through the AV 1(Composite) or S-video input jacks.
1
With the unit in Stop mode/No Disc mode, press
the MENU button.
2
Press the …† buttons to select Setup, then press
the ENTER or √button.
3
Press the …† buttons to select System, then
press the ENTER or √ button.
4
Press the …† buttons to select Video Input, then
press the ENTER or √ button.
5
Press the …† buttons to select AV 1 or
S-Video, then press the ENTER or √ button.
System
DVD-Recorder
No Disc
Timer Rec.
Setup
VCR √√
Video Input : AV 1 √√
DVD EP Mode Time
: 6 Hours √√
Chapter Creator : Off √√
Quick Recording : Off √√
System
DVD-Recorder
No Disc
Timer Rec.
Setup
VCR √√
Video Input : AV 1 √√
DVD EP Mode Time
: 6 Hours √√
Chapter Creator : Off √√
Quick Recording : Off √√
AV 1
S-Video
Setup
DVD-Recorder
No Disc
Timer Rec.
Setup
System √√
Clock Set √√
Channel Set √√
Language √√
Audio √√
Video √√
Parental Control √√
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
You can set the EP(Extended Play)mode’s time setting to
6 or 8 hours.
1
With the unit in Stop mode/No Disc mode, press
the MENU button.
2
Press the …† buttons to select Setup, then press
the ENTER or √button.
3
Press the …† buttons to select System, then
press the ENTER or √button.
4
Press the …† buttons to select DVD EP Mode
Time, then press the ENTER or √ button.
5
Press the …† buttons to select 6 Hours or
8 Hours, then press the ENTER or √ button.
DVD EP Mode Time
System
DVD-Recorder
No Disc
Timer Rec.
Setup
VCR √√
Video Input : AV 1 √√
DVD EP Mode Time
: 6 Hours √√
Chapter Creator : Off √√
Quick Recording : Off √√
6 Hours
8 Hours
Setup
DVD-Recorder
No Disc
Timer Rec.
Setup
System √√
Clock Set √√
Channel Set √√
Language √√
Audio √√
Video √√
Parental Control √√
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
00995G-VR345-XAA-Eng31-46 2006.4.10 2:51 PM Page 44
English - 45
System Setup
7
Press the REC button to start recording.
The message "Do you want to create the chapter
menu after this recording?" is displayed.
8
Press the œ√buttons to select Yes and press
the ENTER button and recording begins.
In XP and SP mode, you must record at least 5
minutes to create a chapter. In LP and EP mode,
15 minutes.
9
Press the STOP button to stop recording.
10
To display the created titles, finalize the disc
(see pages 93~94) and then press the TITLE
MENU button. The title menu will be displayed.
11
To display the created chapters, select the
desired Title and then press the DISC MENU
button. The chapter menu for the selected Title
will be displayed.
On DVD-RW discs, additional chapters and
titles can be added to a finalized disc by
unfinalizing and recording again.On DVD-R
discs, once finalized, no additional chapters or
titles can be recorded.
Note
The Automatic Chapter Creator function does
not work during Timer Recording or when you
turn the power off.
DVD-R discs cannot be unfinalized.
CAUTION
No
Yes
Do you want to create the chapter menu
after this recording?
1/1
Previous
123
Top Next
1/1
JAN/01/2006
12:00 AM CH1
JAN/01/2006
12:30 AM CH1
JAN/01/2006
01:00 AM CH1
Previous Top Next
JAN/01/2006
01:30 AM CH1
A DVD-Video consists of ‘Titles’ and ‘Chapters’.
When you record one program, it makes one Title.
If you use this function, the Title will be divided into
Chapters.
1
With the unit in Stop mode/No Disc mode, press
the MENU button.
2
Press the …† buttons to select Setup, then press
the ENTER or √button.
3
Press the …† buttons to select System, then
press the ENTER or √button.
4
Press the …† buttons to select Chapter Creator,
then press the ENTER or √ button.
5
Press the …† buttons to select On, then press
the ENTER or √ button.
Press the MENU button to exit the menu.
6
Set the recording speed by pressing the REC
SPEED button on the remote (see page 65 for
more information on recording speeds).
Automatic Chapter
Creator
Setup
DVD-Recorder
DVD-RW(V)
Title List
Disc Manager
Timer Rec.
Setup
Copy
System √√
Clock Set √√
Channel Set √√
Language √√
Audio √√
Video √√
Parental Control √√
System
DVD-Recorder
DVD-RW(V)
Title List
Disc Manager
Timer Rec.
Setup
Copy
VCR √√
Video Input : AV 1 √√
DVD EP Mode Time
: 6 Hours √√
Chapter Creator : Off √√
Quick Recording : Off √√
Off
On
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
(V mode)
00995G-VR345-XAA-Eng31-46 2006.4.10 2:51 PM Page 45
46 - English
System Setup
Quick Recording
It takes about 10 seconds for a disc to load (initialize)
every time you turn on the unit. To bypass this initializa-
tion process, you can set the Quick Recording feature
to On. This enables you to record immediately without
having to wait for the disc to load.
1
With the unit in Stop mode/No Disc mode, press the
MENU button.
2
Press the
…†
buttons to select Setup, then press the
ENTER or
√
button.
3
Press the
…†
buttons to select System, then press
the ENTER or
√
button.
4
Press the
…†
buttons to select Quick Recording,
then press the ENTER or
√
button.
5
Press the
…†
buttons to select On, then press the
ENTER or
√
button.
System
DVD-Recorder
No Disc
Timer Rec.
Setup
VCR √√
Video Input : AV 1 √√
DVD EP Mode Time
: 6 Hours √√
Chapter Creator : Off √√
Quick Recording : Off √√
Off
On
Setup
DVD-Recorder
No Disc
Timer Rec.
Setup
System √√
Clock Set √√
Channel Set √√
Language √√
Audio √√
Video √√
Parental Control √√
RETURNENTERMOVE EXIT
RETURNENTERMOVE EXIT
The Quick Recording is set to Off as default.
If this function is set to on, power consumption
will be increased when the unit is powered off.
Note
System
DVD-Recorder
No Disc
Timer Rec.
Setup
VCR √√
Video Input : AV 1 √√
DVD EP Mode Time
: 6 Hours √√
Chapter Creator : Off √√
Quick Recording : Off √√
RETURNENTERMOVE EXIT
00995G-VR345-XAA-Eng31-46 2006.4.10 2:51 PM Page 46
English - 47
Playback
Playback
This section introduces basic functions of play-
back by disc type.
Before Playing
Read the following information before playing a disc.
Region code (DVD-Video only)
Both the DVD Recorder & VCR and the discs are
coded by region. These regional codes must match in
order for the disc to play. If the codes do not match,
the disc will not play. The Region Number for this
DVD Recorder & VCR is described on the rear panel
of the DVD Recorder & VCR.
Disc types that can be played
Dolby Digital DTS Digital Audio
StereoDivX MP3
NTSC broadcast sys-
tem in U.S.A, Canada,
Korea, Japan,etc.
◆
DVD Playback
Before Playing ...................................................................47
Playing a Disc ...................................................................48
Using the Disc Menu and Title Menu ...............................49
Using the Search & Skip Functions ..................................49
Slow Motion Play / Step Motion Play ...............................50
About ANYKEY .................................................................50
Repeat Playback ................................................................51
Selecting the Subtitle & Audio Language.........................52
Changing the Camera Angle.............................................53
Zooming-In .......................................................................53
Using the Bookmarks .......................................................54
Using the Markers ...........................................................55
Playing back an Audio CD (CD-DA)................................56
Playing back an MP3 Disc ................................................57
Repeat Playback of an Audio/MP3 Disc............................58
Play Option Mode..............................................................58
To Program Tracks ............................................................59
Playing a Picture Disc .......................................................59
Playing an MPEG4 Disc....................................................60
◆
VCR Playback
Playing the VCR................................................................61
Tracking.............................................................................61
Special VCR Playback Features ........................................62
S-VHS Playback ...............................................................62
Variable Search System.....................................................62
Disc Types Disc Logo Recorded Disc Shape Max. Playing Time
content or minute. or minute
Single sided(5”) 240
DVD-VIDEO
VIDEO
Double sided(5”) 480
AUDIO
Single sided(3.5”) 80
Double sided(3.5”) 160
AUDIO-CD
AUDIO
Single sided(5”) 74
Single sided(3.5”) 20
JPEG Images
Single sided(5”) -
Single sided(3.5”) -
MP3 Audio
Single sided(5”) -
Single sided(3.5”) -
MPEG4 Movie Single sided(5”) -
Single sided(3.5”) -
1 hr (XP: Excellent Quality)
Single sided(5”)
2 hrs (SP: Standard Quality)
(4.7GB)
4 hrs (LP: Long Playback)
DVD-RAM
VIDEO
6 hrs or 8 hrs (EP:Extended)
AUDIO
2 hrs (XP: Excellent Quality)
Double sided(5”)
4 hrs (SP: Standard Quality)
(9.4GB)
8 hrs (LP: Long Playback)
12 or 16 hrs (EP:Extended)
1 hr (XP: Excellent Quality)
DVD-RW
VIDEO
2 hrs (SP: Standard Quality)
AUDIO 5” (4.7GB)
4 hrs (LP: Long Playback)
6 or 8 hrs (EP:Extended)
1 hr (XP: Excellent Quality)
Single layer(5”)
2 hrs (SP: Standard Quality)
(4.7GB)
4 hrs (LP: Long Playback)
DVD-R
VIDEO
6 or 8 hrs (EP:Extended)
AUDIO
2 hrs (XP: Excellent Quality)
Dual layer(5”)
4 hrs (SP: Standard Quality)
(8.5GB)
8 hrs (LP: Long Playback)
11 or 15 hrs (EP:Extended)
1 hr (XP: Excellent Quality)
DVD+RW
VIDEO
2 hrs (SP: Standard Quality)
AUDIO 5” (4.7GB)
4 hrs (LP: Long Playback)
6 or 8 hrs (EP:Extended)
1 hrs (XP: Excellent Quality)
Single layer(5”)
2 hrs (SP: Standard Quality)
(4.7GB)
4 hrs (LP: Long Playback)
DVD+R
VIDEO
6 or 8 hrs (EP:Extended)
AUDIO
2 hrs (XP: Excellent Quality)
Dual layer(5”)
4 hrs (SP: Standard Quality)
(8.5GB)
8 hrs (LP: Long Playback)
11 or 15 hrs (EP:Extended)
JPEG
MP3
MPEG4
00995G-VR345-XAA-Eng47-75 2006.4.10 2:53 PM Page 47
48 - English
Playback
Playing a Disc
This DVD Recorder & VCR can only operate with
discs that are compatible with DVD-RAM Standard
Version 2.0.
Playback and/or recording may not work for some
types of discs or when specific operations, such as
angle change and aspect ratio adjustment, are
being performed. Information about the disc is
written in detail on the box. Please refer to this if
necessary.
Do not allow the disc to become dirty or scratched.
Fingerprints, dirt, dust, scratches and deposits of
cigarette smoke on the recording surface may
make it impossible to use the disc for recording.
DVD-RAM/
±RW/±R discs may not be able to play
on some DVD players, depending on the player,
disc and the condition of the recording.
Discs with PAL programs recorded on them can-
not be played using this product.
Discs that cannot be played
• DVD-Video with a region number other than “1” or “ALL”
• 3.9 GB DVD-R Disc for Authoring.
• A DVD±R/DVD-RW(V) disc which has been recorded and
not finalized in a different manufacturer's recorder.
• PAL discs
•
DVD-ROM/PD/MV-Disc, etc.
• Video CD/CVD/SVCD/CD-ROM/CDV/CD-G/CD-I
Note
Do not move your DVD Recorder & VCR while
playing, as this may cause damage to the disc.
Make sure to press the OPEN/CLOSE button
to open or close the disc tray.
Do not push the disc tray while it is being
opened or closed, as this may cause a product
malfunction.
Do not place foreign materials on or in the disc
tray.
Some functions may perform differently or be
disabled depending on the disc type. If this
occurs, refer to the instructions written on the
disc case.
Be especially careful that children's fingers are
not caught between the disc tray and the tray
chassis when it closes.
After turning power on, it will take a few
seconds until the DVD Recorder & VCR
operates.
CAUTION
1
Press the OPEN/CLOSE button.
2
Place a disc gently into the tray with the disc’s
label facing up.
3
Press OPEN/CLOSE button to close the disc tray.
• Your DVD Recorder & VCR closes the disc
tray and plays the disc automatically.
• The recorder does not play discs automatically
after being powered on initially.
• When the recorder is powered on and a disc is
in the tray, the unit will be activated and wait in
stop status. Press the PLAY button to start play-
back.
4
Press the STOP button to stop playback.
When you stop playing the disc, the DVD
Recorder & VCR remembers where you stopped.
When you press PLAY button again, it will pick up
where you left off. (unless the disc is removed or
the DVD Recorder & VCR is unplugged, or if you
press the STOP button twice.) This function is
only applicable to DVD-VIDEO, DVD-RAM,
DVD±RW, DVD±R or Audio CDs (CD-DA).
Note
00995G-VR345-XAA-Eng47-75 2006.4.10 2:53 PM Page 48
English - 49
Playback
Using the Search & Skip
Functions
Searching through a Chapter or Track
During playback, press the SEARCH œœ or √√
button on the remote control. Each time you press
the SEARCH button, the playback speed will
change as follows.
• You can scan the program in reverse order.
To return to normal speed playback, press the
√√ll button.
Skipping Chapters or Tracks
During playback, press the
l
œœ or √√
l
button on
the remote control.
• If you press the lœœœœbutton
If you press the
l
œœ button, it moves to the begin-
ning of the chapter, track or marker(DVD-RAM,
DVD-RW(VR mode) ). Pressing the button once
again within 3 seconds returns to the beginning of
the previous chapter, track or marker(DVD-RAM,
DVD-RW(VR mode) ).
• If you press the √√√√lbutton
If you press the √√
l
button, it moves to the next
chapter, track or marker(DVD-RAM,DVD-RW
(VR mode) )
Skipping ahead 30 seconds
During the playback, press F.ADV/SKIP button to
skip ahead exactly 30 seconds.
Using the Disc Menu
and Title Menu
Some discs contain a dedicated menu system that
allows you to select special functions for title, chapters,
audio track, subtitles, film previews, information on
characters, etc.
For DVD-VIDEO disc
1
Press the DISC MENU button to enter the disc
menu of the disc.
• Move to the setup menu related to playback opera-
tion.
• You can select audio language and subtitle etc.,
provided by the disc.
2
Press the TITLE MENU button to move to the title
menu of the disc.
• Use this button if the disc contains more than one
title. Some discs may not support the title menu
functionality.
For DVD-RAM/DVD±RW/DVD±R disc
1
Press the TITLE LIST button to display title list.
Title List :
The Title List is simply a list of
titles on a disc. If a title is deleted,
that title cannot be played again.
Playlist (DVD-RAM/-RW(VR)) :
A playlist is a custom-made list of titles.
When one playlist is played, only the titles
within the playlist will play and then stop.
Even if that playlist is deleted, the original
recording will not be deleted.
Note
No sound is heard during Scan(Search) mode,
except on CDs (CD-DA). (You can hear the
sound during forward search (Fast 1).)
No sound is heard during scanning in all
MPEG4 modes.
Depending on the disc type, the sound quality
may lower during Fast 1 mode.
Note
DVD-VIDEO/
DVD-RAM/DVD±RW
DVD±R
MPEG4
AUDIO CD(CD-DA)
√√
Fast 1/
œœ
Fast 1
➝ √√
Fast 2/
œœ
Fast 2
➝
√√
Fast 3/
œœ
Fast 3
➝ √√
Fast 4/
œœ
Fast 4
➝
√√
Fast 5/
œœ
Fast 5
➝ √√
Fast 6/
œœ
Fast 6
√√
Fast 1
➝ √√
Fast 2
➝ √√
Fast 3
➝
X2
➝
X4
➝
X8
00995G-VR345-XAA-Eng47-75 2006.4.10 2:53 PM Page 49
50 - English
Playback
Slow Motion Play/
Step Motion Play
Slow Motion Play (DVD-VIDEO / DVD-RAM
/ DVD±RW / DVD±R)
During pause mode, press the SEARCH œœ or √√
button on the remote control for more than 1 sec-
ond.
• Each time you press the √√ button :
l
√Slow 1 ➝
l
√Slow 2 ➝
l
√Slow 3
• Each time you press the œœ button :
œ
l
Slow 1 ➝œ
l
Slow 2 ➝œ
l
Slow 3
To return to normal speed playback, press the
√
ll
button.
Step Motion Play (DVD-VIDEO / DVD-RAM
/ DVD±RW / DVD±R)
During pause mode, press the F.ADV button on the
remote control.
• Each time the button is pressed, a new frame will
appear.
To return to normal speed playback, press the
√
ll
button.
No sound is heard during Step or Slow mode.
Step motion operates only in the forward
direction on MPEG 4 discs.
Note
Slow motion operates only in the forward
direction on MPEG 4 discs.
Note
About ANYKEY
The ANYKEY functions allows you to easily search for
a desired scene by accessing title, chapter or time.
You can also change the subtitle and audio settings and
set some features including Repeat, Angle and Zoom.
Moving to a scene directly using
the ANYKEY
• If you want to move to a title or a chapter to find a
desired scene.
1
Press the ANYKEY button during playback.
2
Press the
……††
buttons to select Title, Chapter.
3
Press the
œœ √√
buttons or number (0~9) buttons to
select the desired scene.
Then, press the ENTER button.
DVD-VIDEO
Title
Chapter
Time
Subtitle
Audio
Repeat
Angle
Zoom
1/2
1/28
00:00:01
ENG
ENG D 5.1CH
Off
1/1
Off
CHANGEMOVE
00995G-VR345-XAA-Eng47-75 2006.4.10 2:53 PM Page 50
English - 51
Playback
• If you want to move to a desired time to help you find
a scene.
1
Press the ANYKEY button during playback.
2
Press the
……††
buttons to select Time.
3
Enter the time in the sequence of hours, minutes,
and seconds using the number buttons, then
press the ENTER button.
This may not work for some discs. When an
Audio CD(CD-DA) or an MP3 disc is inserted,
depending on the disc type, the information
display may not be appear.
The Time Search function does not operate in
some discs.
To make the screen disappear, press the
ANYKEY button again.
Note
3
Select repeat mode using
œœ √√
button.
Press the ENTER button.
•
To make the screen disappear, press the
ANYKEY or RETURN button.
DVD-RAM/DVD-RW(VR mode), unfinalized
DVD±R and unfinalized DVD-RW (Video
mode) do not repeat a chapter.
Note
DVD-VIDEO
Title
Chapter
Time
Subtitle
Audio
Repeat
Angle
Zoom
1/2
1/28
00:00:01
ENG
ENG D 5.1CH
Off
1/1
Off

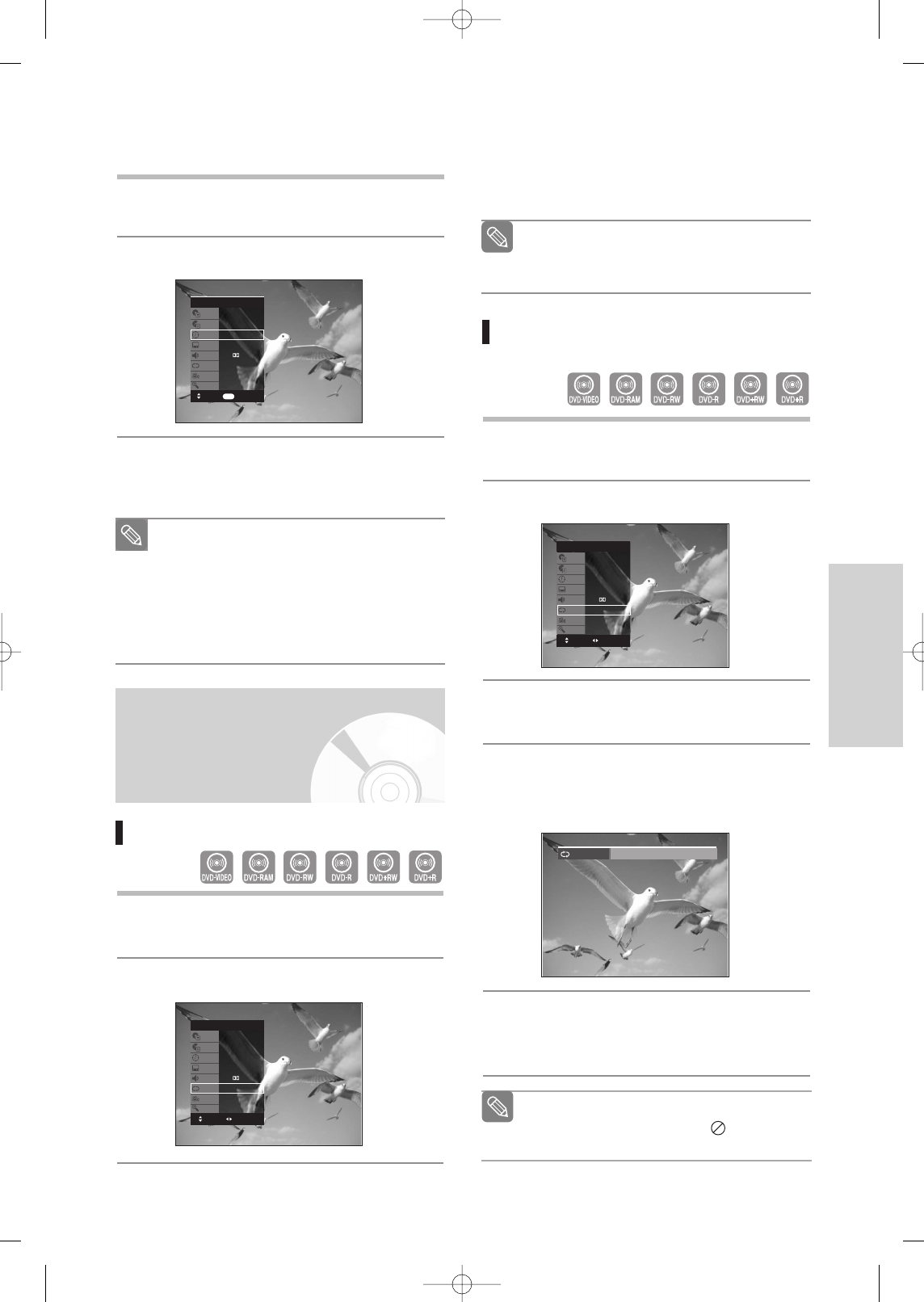

Repeat Playback
Playing Repeatedly(Repeat Playback)
1
Press the ANYKEY button during playback.
2
Press the
……††
buttons to select Repeat.
Playing a Certain section Repeatedly
(A-B Repeat Playback)
1
Press the ANYKEY button during playback.
2
Press the
…†
buttons to select Repeat.
3
Press the
œœ √√
button to select A-B, then press the
ENTER button.
4
Press the ENTER button at the point where you want
repeat play to start (A) and press it again at the point
where you want the repeat play to stop (B).
Repeat playback of the A-B section starts.
- To return to normal playback -
5
Press the CANCEL button to return to normal
playback.
If you set point (B) before five seconds has
lapsed, the prohibition mark ( ) will appear.
CDs do not support the Repeat A-B function.
Note
Repeat A-B A-B
MOVE NUMBER
0~9
DVD-VIDEO
Title
Chapter
Time
Subtitle
Audio
Repeat
Angle
Zoom
1/2
1/28
00:00:01
ENG
ENG D 5.1CH
Off
1/1
Off
CHANGEMOVE
DVD-VIDEO
Title
Chapter
Time
Subtitle
Audio
Repeat
Angle
Zoom
1/2
1/28
00:00:01
ENG
ENG D 5.1CH
Off
1/1
Off
CHANGEMOVE
00995G-VR345-XAA-Eng47-75 2006.4.10 2:53 PM Page 51
52 - English
Playback
Selecting the Subtitle &
Audio Language
Selecting the
SUBTITLE
language
Subtitle languages may not work depending on the
disc type. This is only available during playback.
Using the SUBTITLE button
1
Press the SUBTITLE button during playback.
2
Press the …† buttons to select the desired subti-
tle language.
•
To make the screen disappear, press the
CANCEL or RETURN button.
Using the ANYKEY button
1
Press the ANYKEY button during playback.
2
Press the ……††buttons to select Subtitle, then
press the œœ √√buttons to select the desired subti-
tle language.
Subtitle ENG
The subtitle display may be different depend-
ing on the disc type.
If the subtitles overlap, disable the caption
function on your TV
.
Some discs allow you to select the language
for the disc menu only.
Note
Selecting the Audio language
Audio languages may not work depending on the
disc type. This is only available during playback.
Using the AUDIO button
1
Press the AUDIO button during playback.
2
Press the AUDIO or …† buttons to select the
desired audio language.
Using the ANYKEY button
1
Press the ANYKEY button during playback.
2
Press the ……††buttons to select Audio, then press
the œœ √√buttons to select the desired audio lan-
guage.
Audio languages may be different because
they are disc-specific.
Some discs allow you to select the audio
language for the disc menu only.
Note
Audio ENG Dolby Digital 5.1CH
DVD-VIDEO
Title
Chapter
Time
Subtitle
Audio
Repeat
Angle
Zoom
1/2
1/28
00:00:01
ENG
ENG D 5.1CH
Off
1/1
Off
CHANGEMOVE
DVD-VIDEO
Title
Chapter
Time
Subtitle
Audio
Repeat
Angle
Zoom
1/2
1/28
00:00:01
ENG
ENG D 5.1CH
Off
1/1
Off
CHANGEMOVE
00995G-VR345-XAA-Eng47-75 2006.4.10 2:53 PM Page 52
English - 53
Playback

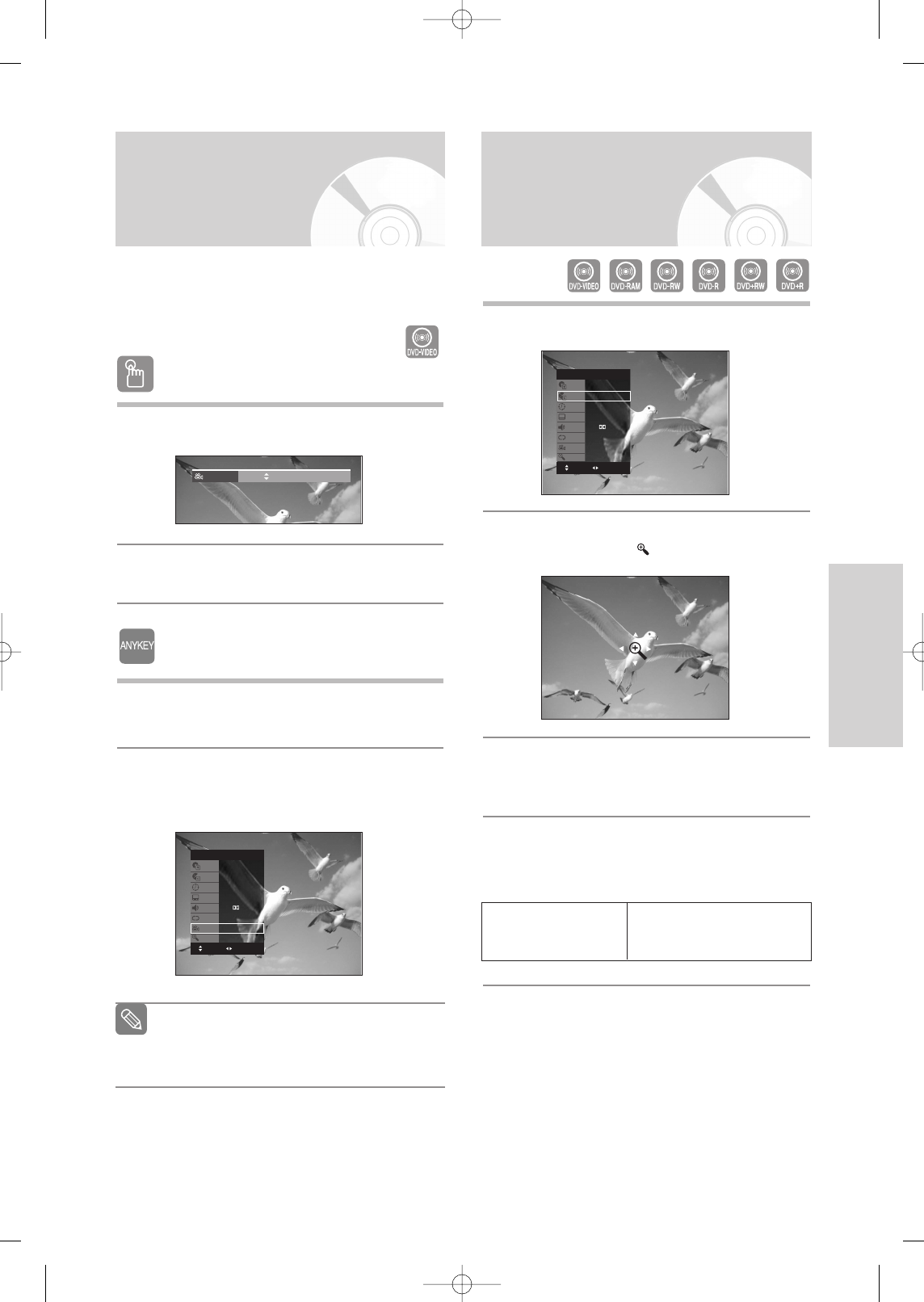

Using the ANGLE button
1
Press the ANGLE button, during playback.
2
Press the …† button to select the desired angle.
Using the ANYKEY button
1
Press the ANYKEY button during playback.
2
Press the …† buttons to select Angle, then press
the œ √ buttons or number (0~9) buttons to select
the desired angle scene.
If a DVD-VIDEO contains multiple angles of a particular
scene, you can use the Angle function. If the disc con-
tains multiple angles, ANGLE appears on the screen.
Changing the Camera
Angle
This function is disc-dependent, and may not
work all DVDs.
This function does not work when a DVD has not
been recorded with a multi-camera angle system.
Note
Angle 1/3
1
Press the ANYKEY button during playback.
2
Press the …† buttons to select Zoom, then press
the ENTER button. ( ) will be displayed.
3
Press …†, œ √ buttons to move to the area you
want to enlarge.
4
Press the ENTER button.
Each time the ENTER button is pressed, the picture
is enlarged up to 4X (four times the normal size).
Zooming-In
DVD-VIDEO
Title
Chapter
Time
Subtitle
Audio
Repeat
Angle
Zoom
1/2
1/28
00:00:01
ENG
ENG D 5.1CH
Off
1/1
Off
CHANGEMOVE
DVD-VIDEO
Title
Chapter
Time
Subtitle
Audio
Repeat
Angle
Zoom
1/2
1/28
00:00:01
ENG
ENG D 5.1CH
Off
1/1
Off
CHANGEMOVE
DVD-VIDEO/
DVD-RAM/DVD±RW/
DVD±R
normal size ➝ 2X ➝ 4X ➝ 2X
➝ normal size
00995G-VR345-XAA-Eng47-75 2006.4.10 2:53 PM Page 53
54 - English
Playback

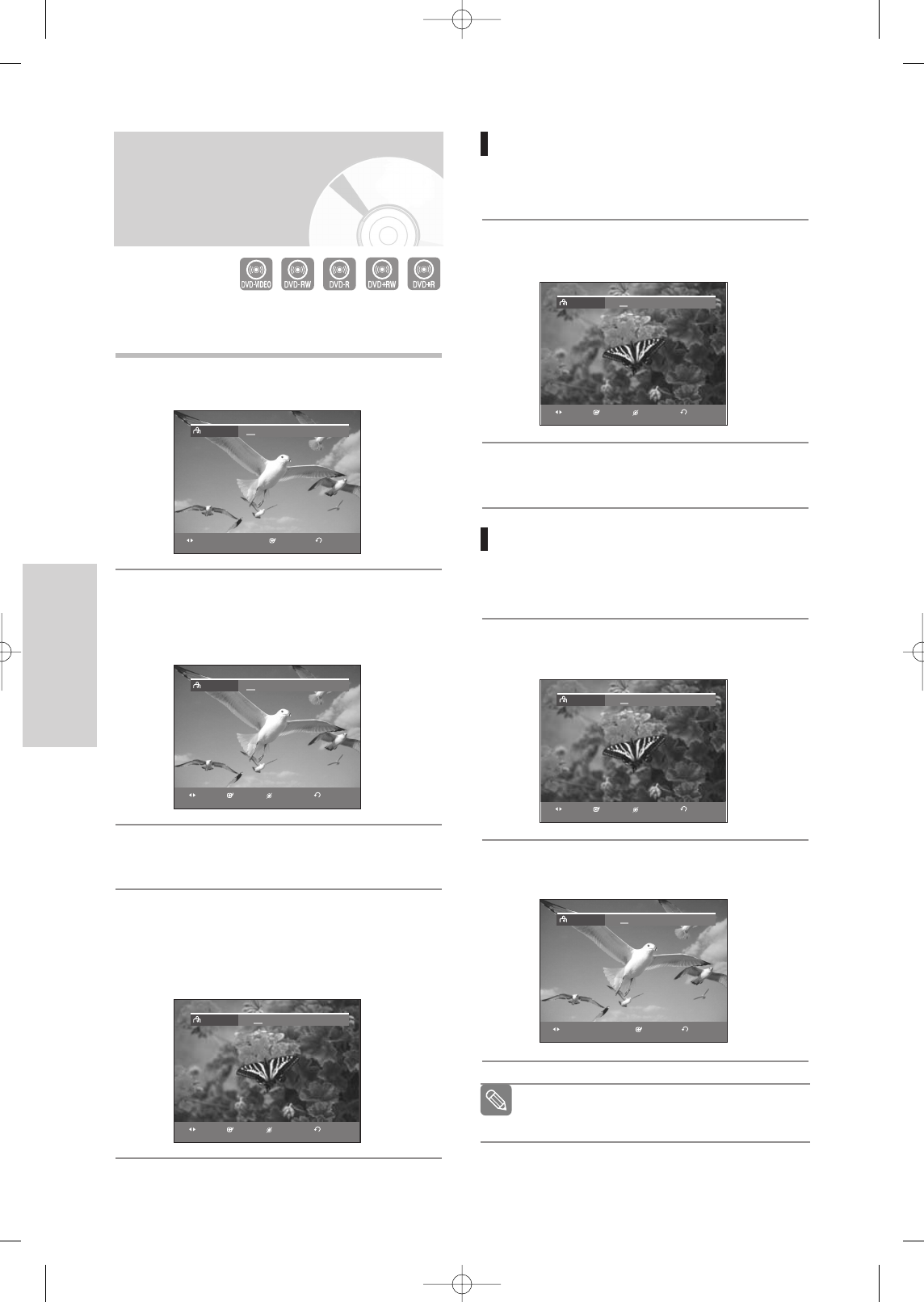

Playing back a Bookmark
1
Press the MARKER button.
2
Press the œ √ buttons to select a bookmarked
scene.
3
Press the ENTER or √
ll
button to start playing
from the selected scene.
Clearing a Bookmark
1
Press the MARKER button.
2
Press the œ √ buttons to select a bookmarked
scene.
3
Press the CANCEL button to delete the selected
bookmark.
Bookmark
12
---------
Bookmark
1
----------
Using the Bookmarks
Set marks at scenes you want to see again so that you
can start playback from the marked position.
1
Press the MARKER button during playback.
2
Press the ENTER button when the desired scene
appears.
• The number 1 is displayed and the scene is
memorized.
3
Press the œ √ button to move to the next position.
4
Press the ENTER button again when the desired
scene appears.
• The number 2 is displayed and the scene is
memorized. Repeat above to bookmark other
positions. You can bookmark up to 10 scenes.
Bookmark
12
---------
When the disc tray is opened and then
closed, bookmarks will disappear.
Note
Bookmark
12
---------
Bookmark
1
----------
CANCELPLAYMOVE RETURN
Bookmark
-----------
RETURNSELECTMOVE
CANCELPLAYMOVE RETURN
RETURNSELECTMOVE
CANCELPLAYMOVE RETURN
CANCELPLAYMOVE RETURN
(V mode)
00995G-VR345-XAA-Eng47-75 2006.4.10 2:53 PM Page 54
