User manual
Gamepad
Type E. AXXXXX
09/2013. Rev. 1.0www.samsung.com
This manual’s images and content may differ from the
product.

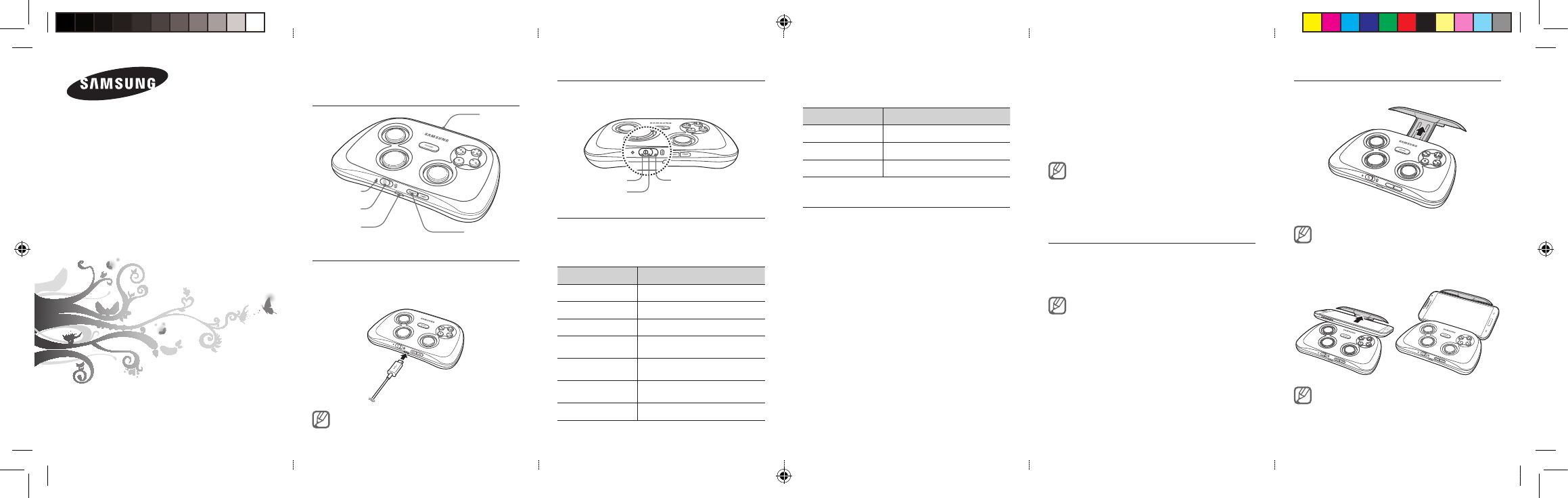

Overview
Charging the device
Use a charger to charge the battery before using the
device for the first time. Connect the device and the
charger, and then plug the charger into an electric
socket.
The charger and the charging cable are sold
separately.
Turning the device on or off
Slide the power switch to turn the device on or off, or
enter Pairing mode.
Checking the indicator light
Monitor the device’s condition by checking the indicator
light.
Device status
Status Indicator light
Turned off Turns off.
Turned on Flashes blue four times.
In Pairing mode Turns blue for 3 minutes.
Bluetooth
Connected Flashes blue three times.
Bluetooth
Disconnected Flashes blue times.
Battery power
is low Flashes red continuously.
While charging Turns red.
Battery status
Press and hold the select button when the device is
turned on.
Status Indicator light
Above 80% Flashes blue five times.
20%-80% Flashes yellow five times.
Below 20% Flashes red five times.
Pairing and connecting the device
When using a new smartphone, you need to pair it
with the device. Once pairing is complete, the device
attempts to reconnect each time you turn it on.
Option 1: Manual Pairing
1 Slide the power switch all the way to the right for 3
seconds to enter Pairing mode.
• The indicator light turns blue for 3 minutes.
2 Activate the Bluetooth feature on the smartphone,
scan for the device, and then select the device
name “Samsung Game Pad EI-GP20” from the list
of available devices. For more details, refer to the
mobile device’s user manual.
Option 2: Pairing via NFC
1 Activate the NFC and Bluetooth feature on the
smartphone. Make sure to unlock the smartphone
before using the NFC feature.
2 Turn the device on, and then the device’s back, the
NFC logo, to the smartphone’s NFC antenna until
NFC pairing completes.
• Some of NFC-enabled devices may not support
this feature.
• To locate the mobile device’s NFC antenna and
activate NFC, refer to the mobile device’s user
manual.
Reconnecting and disconnecting
Reconnecting
If the connection is lost while in use, press any button or
use the Bluetooth menu on the smartphone.
Make sure the device is turned on, and the
smartphone’s Bluetooth feature is activated.
Disconnecting
Turn off the device or use the Bluetooth menu on the
smartphone.
Attaching a smartphone to the device
1 Pull out the holder from the device.
Do not pull out the holder excessively. Doing so may
damage the device.
2 Slide the smartphone into the holder until it is fixed
firmly as shown in the image below.
The device is suitable for 4”-6.3” Samsung
smartphones.
Off
On
Pairing mode
Power switch
Charging jack
Indicator light
Holder
Select button
EI-GP20_UM_E_Eng.indd 1 2013-09-03 오후 5:12:28

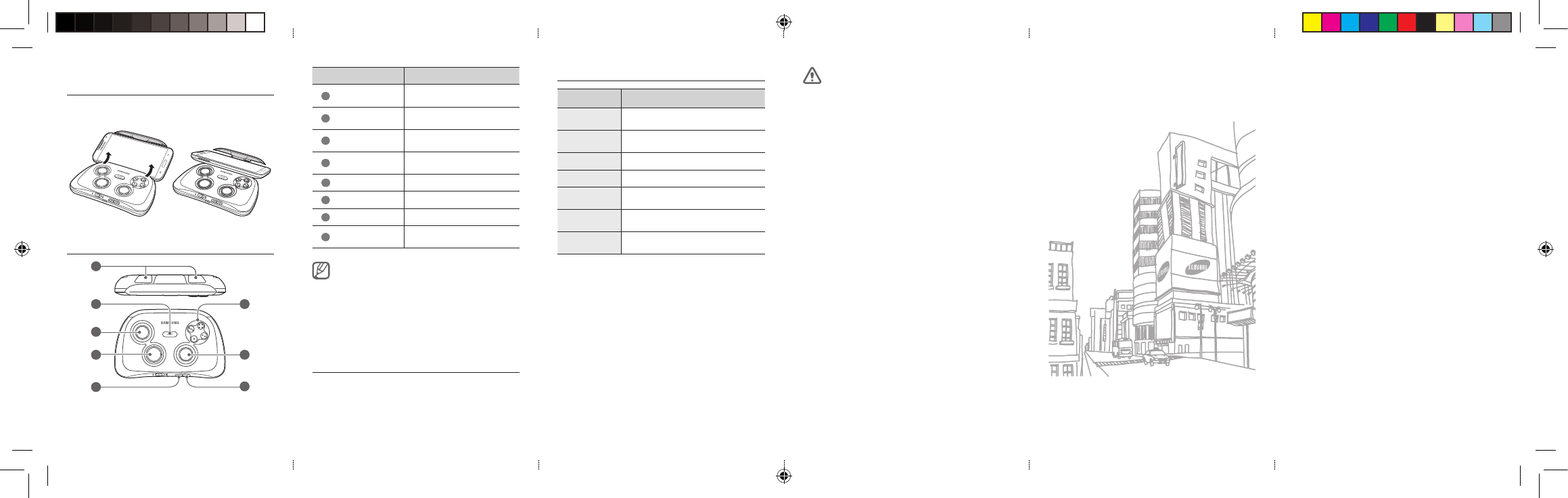

Removing the smartphone from the
device
Push the smartphone to upper side of the device, and lift
it as show in the image below.
Buttons layout
2
7
3
5
1
4
6
8
Buttons feature
1
Trigger button Perform the actions defined
by the game.
2
G button Return to the Mobile
Console* screen.
3
Analog stick (L) Perform detailed directional
control.
4
D-pad Perform four-way
directional control.
5
Select button Select in-game menus.
6
Start button Start or pause the game.
7
Analog stick (R) Perform aim or gaze control.
8
Action button Perform the actions defined
by the game.
• * Pressing G button opens Samsung Apps
application if Mobile Console is not installed on
the device.
• The content of this manual is based on Android
version 4.3 smartphones. The buttons may work
differently depending on the game or Android
version.
Rejecting a incoming call while playing
games
Press the G button to reject a incoming call while you are
playing games.
Specifications
Item Specifications and description
Bluetooth
Version 3.0
Support
profiles
Human Interface Device profile,
Device Identification profile
Size (mm) 137.78 x 86.47 x 31.80
Weight 190 g
Operating
temperatures 5°C-35°C
Transmit
power 0.25-2.5 mW
Operating
range Up to 10 metres
Safety information
To prevent injury to yourself and others or damage to
your device, read the safety information about your
device before using the device
Do not touch the power cord with wet hands or
disconnect the charger by pulling the cord
Do not drop or cause an impact to the device
Do not insert the device or supplied accessories into the
eyes, ears, or mouth
Do not store your device near or in heaters, microwaves,
hot cooking equipment, or high pressure containers
Do not use your device outdoor during a thunderstorm
Do not store your device in very hot or very cold areas. It
is recommended to use your device at temperatures from
5 °C to 35 °C
Do not store your device near magnetic fields
Do not use or store your device in areas with high
concentrations of dust or airborne materials
Keep your device dry. Do not turn on your device if it is
wet. If your device is already on, turn it off and remove
the battery immediately (if the device will not turn off or
you cannot remove the battery, leave it as-is). Then, dry
the device with a towel and take it to a service center
Do not use the device for anything other than its
intended use
Any changes or modifications to your device can void
your manufacturer’s warranty. If your device needs
servicing, take your device to a Samsung Service Center
FCC
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
Users are not permitted to make changes or modify the
device in any way.
Changes or modifications not expressly approved by
Samsung will void the user’s authority to operate the
equipment.
FCC RF Radiation Exposure Statement: FCC RF Radiation
Exposure Statement: This equipment complies with FCC RF
Radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-
located or operating in conjunction with any other antenna
or transmitter.
This equipment should be installed and operated with a
minimum distance of 50 mm between the radiator and
your body.
RF du FCC d'exposition aux radiations: Cet équipement est
conforme à l'exposition de la FCC rayonnements RF limites
établies pour un environnement non contrôlé. L’antenne
pour ce transmetteur ne doit pas être même endroit avec
d’autres émetteur sauf conformément à la FCC procédures
de produits Multi-émetteur.
Cet équipement doit être installé et utilisé avec une distance
minimale de 50 mm entre le radiateur et votre corps.
EI-GP20_UM_E_Eng.indd 2 2013-09-03 오후 5:12:29
Part 15.105 (B) :
Note : This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications, However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.
Modifications not expressly approved by the manufacturer
could void your authority to operate the equipment under
FCC rules.
EI-GP20_UM_E_Eng.indd 2 2013-09-03 오후 5:12:29
IC Statement:
This device complies with Industry Canada licence-exempt
RSS standard(s).
Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must
accept any interference, including interference that may
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et (2)
l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
Recycling Direct
To dispose electronics properly, follow the recycling process
regulated in your area or go to Samsung website to find the
nearest recycling location:
www.samsung.com/recyclingdirect
Or call, (877) 278 – 0799.
Samsung Telecommunications America, LLC
1301 E. Lookout Drive
Richardson, Texas 75082
Phone: 1-800-SAMSUNG
Phone: 1-888-987-HELP (4357)
