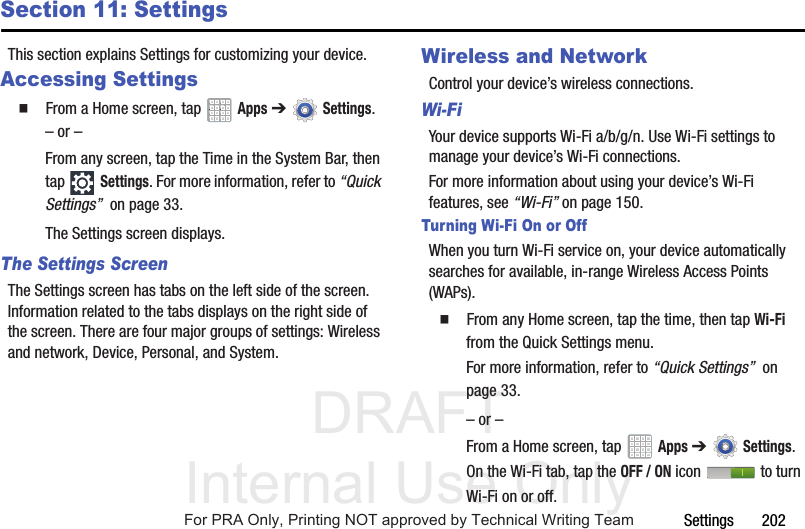

DRAFT Internal Use OnlySettings 202Section 11: SettingsThis section explains Settings for customizing your device.Accessing Settings From a Home screen, tap Apps ➔Settings.– or –From any screen, tap the Time in the System Bar, then tap Settings. For more information, refer to “Quick Settings” on page 33.The Settings screen displays.The Settings ScreenThe Settings screen has tabs on the left side of the screen. Information related to the tabs displays on the right side of the screen. There are four major groups of settings: Wireless and network, Device, Personal, and System.Wireless and NetworkControl your device’s wireless connections.Wi-FiYour device supports Wi-Fi a/b/g/n. Use Wi-Fi settings to manage your device’s Wi-Fi connections.For more information about using your device’s Wi-Fi features, see “Wi-Fi” on page 150.Turning Wi-Fi On or OffWhen you turn Wi-Fi service on, your device automatically searches for available, in-range Wireless Access Points (WAPs). From any Home screen, tap the time, then tap Wi-Fi from the Quick Settings menu.For more information, refer to “Quick Settings” on page 33.– or –From a Home screen, tap Apps ➔Settings. On the Wi-Fi tab, tap the OFF / ON icon to turn Wi-Fi on or off.For PRA Only, Printing NOT approved by Technical Writing Team

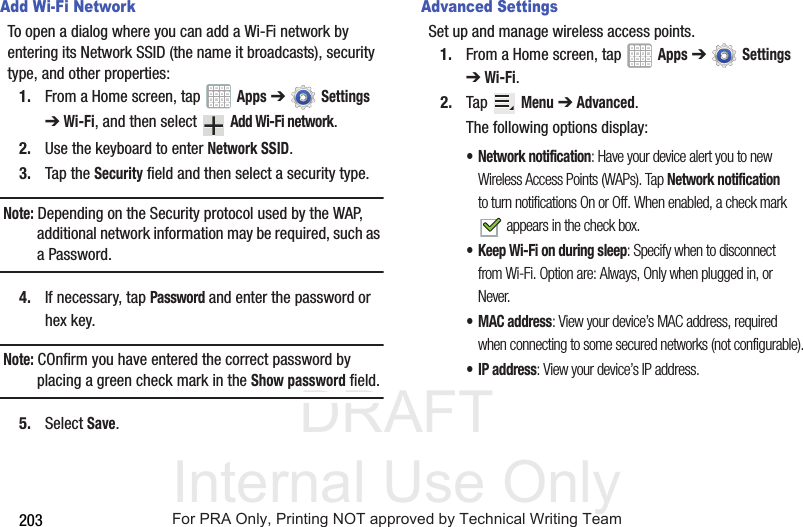

DRAFT Internal Use Only203Add Wi-Fi NetworkTo open a dialog where you can add a Wi-Fi network by entering its Network SSID (the name it broadcasts), security type, and other properties:1. From a Home screen, tap Apps ➔ Settings ➔ Wi-Fi, and then select Add Wi-Fi network.2. Use the keyboard to enter Network SSID.3. Tap the Security field and then select a security type.Note: Depending on the Security protocol used by the WAP, additional network information may be required, such as a Password.4. If necessary, tap Password and enter the password or hex key.Note: COnfirm you have entered the correct password by placing a green check mark in the Show password field.5. Select Save.Advanced SettingsSet up and manage wireless access points.1. From a Home screen, tap Apps ➔ Settings ➔ Wi-Fi.2. Tap Menu ➔ Advanced.The following options display:• Network notification: Have your device alert you to new Wireless Access Points (WAPs). Tap Network notification to turn notifications On or Off. When enabled, a check mark appears in the check box.• Keep Wi-Fi on during sleep: Specify when to disconnect from Wi-Fi. Option are: Always, Only when plugged in, or Never.•MAC address: View your device’s MAC address, required when connecting to some secured networks (not configurable).•IP address: View your device’s IP address.For PRA Only, Printing NOT approved by Technical Writing Team

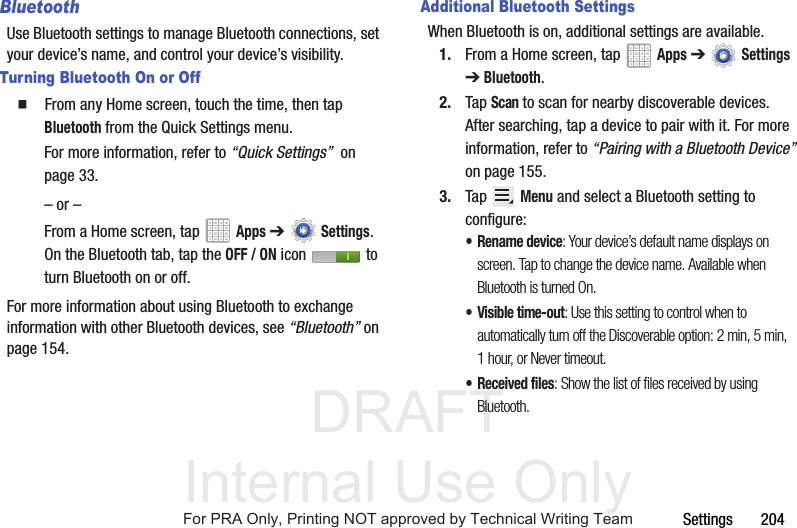

DRAFT Internal Use OnlySettings 204BluetoothUse Bluetooth settings to manage Bluetooth connections, set your device’s name, and control your device’s visibility.Turning Bluetooth On or Off From any Home screen, touch the time, then tap Bluetooth from the Quick Settings menu.For more information, refer to “Quick Settings” on page 33.– or –From a Home screen, tap Apps ➔Settings. On the Bluetooth tab, tap the OFF / ON icon to turn Bluetooth on or off.For more information about using Bluetooth to exchange information with other Bluetooth devices, see “Bluetooth” on page 154.Additional Bluetooth SettingsWhen Bluetooth is on, additional settings are available.1. From a Home screen, tap Apps ➔ Settings ➔ Bluetooth.2. Tap Scan to scan for nearby discoverable devices. After searching, tap a device to pair with it. For more information, refer to “Pairing with a Bluetooth Device” on page 155.3. Tap Menu and select a Bluetooth setting to configure:• Rename device: Your device’s default name displays on screen. Tap to change the device name. Available when Bluetooth is turned On.• Visible time-out: Use this setting to control when to automatically turn off the Discoverable option: 2 min, 5 min, 1 hour, or Never timeout.• Received files: Show the list of files received by using Bluetooth.For PRA Only, Printing NOT approved by Technical Writing Team

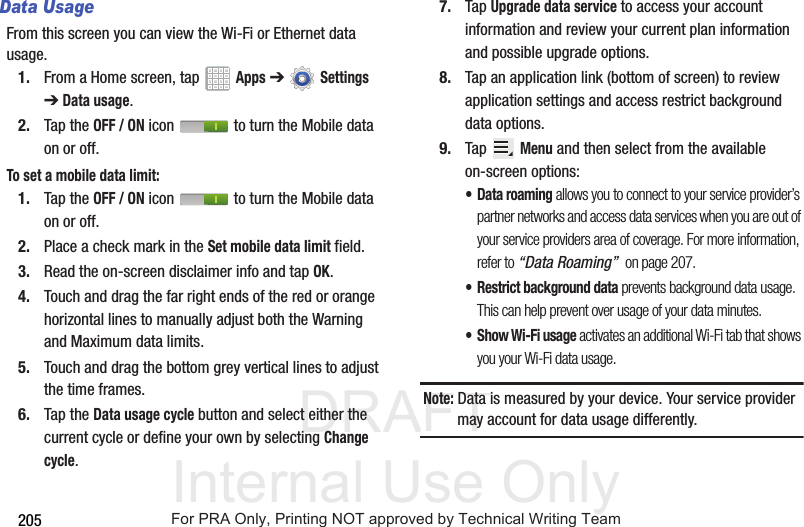

DRAFT Internal Use Only205Data UsageFrom this screen you can view the Wi-Fi or Ethernet data usage.1. From a Home screen, tap Apps ➔ Settings ➔ Data usage.2. Tap the OFF / ON icon to turn the Mobile data on or off.To set a mobile data limit:1. Tap the OFF / ON icon to turn the Mobile data on or off.2. Place a check mark in the Set mobile data limit field.3. Read the on-screen disclaimer info and tap OK. 4. Touch and drag the far right ends of the red or orange horizontal lines to manually adjust both the Warning and Maximum data limits.5. Touch and drag the bottom grey vertical lines to adjust the time frames.6. Tap the Data usage cycle button and select either the current cycle or define your own by selecting Change cycle.7. Tap Upgrade data service to access your account information and review your current plan information and possible upgrade options.8. Tap an application link (bottom of screen) to review application settings and access restrict background data options.9. Tap Menu and then select from the available on-screen options:• Data roaming allows you to connect to your service provider’s partner networks and access data services when you are out of your service providers area of coverage. For more information, refer to “Data Roaming” on page 207.• Restrict background data prevents background data usage. This can help prevent over usage of your data minutes.•Show Wi-Fi usage activates an additional Wi-Fi tab that shows you your Wi-Fi data usage.Note: Data is measured by your device. Your service provider may account for data usage differently.For PRA Only, Printing NOT approved by Technical Writing Team

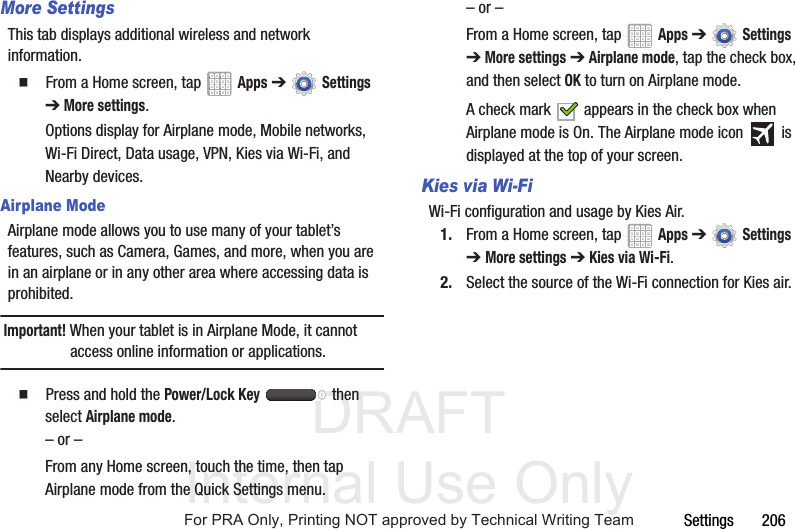

DRAFT Internal Use OnlySettings 206More SettingsThis tab displays additional wireless and network information. From a Home screen, tap Apps ➔ Settings ➔ More settings.Options display for Airplane mode, Mobile networks, Wi-Fi Direct, Data usage, VPN, Kies via Wi-Fi, and Nearby devices.Airplane ModeAirplane mode allows you to use many of your tablet’s features, such as Camera, Games, and more, when you are in an airplane or in any other area where accessing data is prohibited.Important! When your tablet is in Airplane Mode, it cannot access online information or applications. Press and hold the Power/Lock Key then select Airplane mode.– or –From any Home screen, touch the time, then tap Airplane mode from the Quick Settings menu. – or –From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Airplane mode, tap the check box, and then select OK to turn on Airplane mode.A check mark appears in the check box when Airplane mode is On. The Airplane mode icon is displayed at the top of your screen.Kies via Wi-FiWi-Fi configuration and usage by Kies Air.1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Kies via Wi-Fi.2. Select the source of the Wi-Fi connection for Kies air.For PRA Only, Printing NOT approved by Technical Writing Team

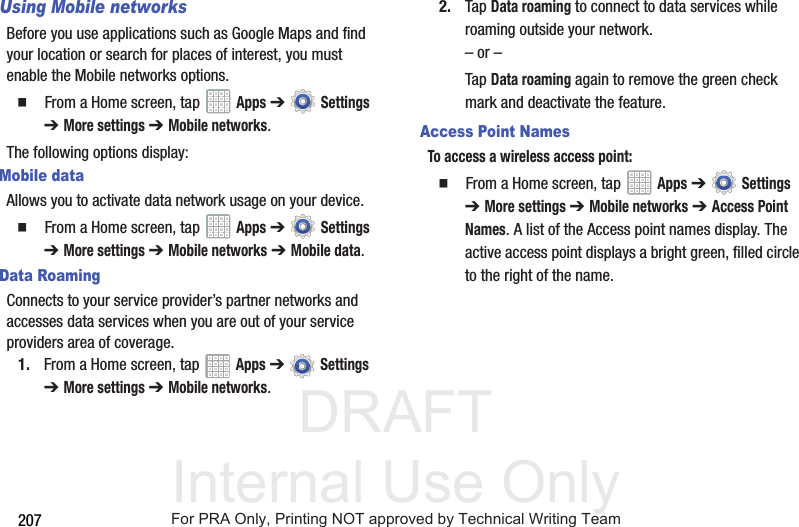

DRAFT Internal Use Only207Using Mobile networksBefore you use applications such as Google Maps and find your location or search for places of interest, you must enable the Mobile networks options. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Mobile networks.The following options display:Mobile dataAllows you to activate data network usage on your device. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Mobile networks ➔ Mobile data.Data RoamingConnects to your service provider’s partner networks and accesses data services when you are out of your service providers area of coverage.1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Mobile networks.2. Tap Data roaming to connect to data services while roaming outside your network. – or –Tap Data roaming again to remove the green check mark and deactivate the feature.Access Point NamesTo access a wireless access point: From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Mobile networks ➔ Access Point Names. A list of the Access point names display. The active access point displays a bright green, filled circle to the right of the name.For PRA Only, Printing NOT approved by Technical Writing Team

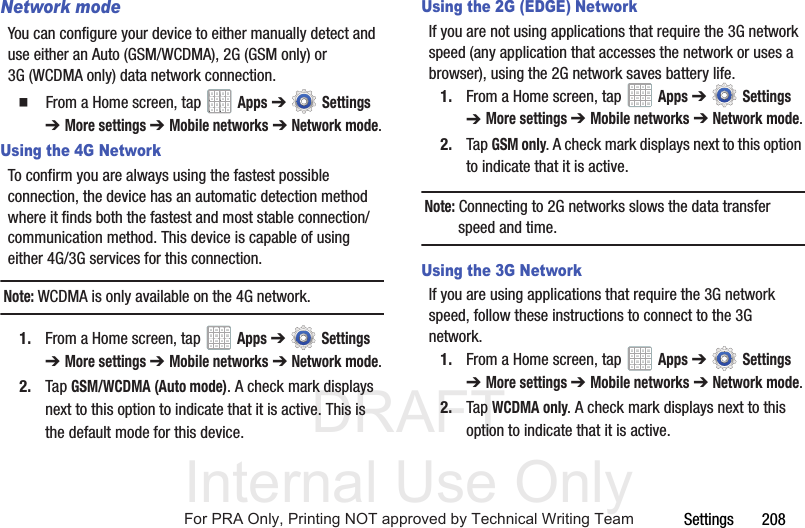

DRAFT Internal Use OnlySettings 208Network modeYou can configure your device to either manually detect and use either an Auto (GSM/WCDMA), 2G (GSM only) or 3G (WCDMA only) data network connection. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Mobile networks ➔ Network mode.Using the 4G NetworkTo confirm you are always using the fastest possible connection, the device has an automatic detection method where it finds both the fastest and most stable connection/communication method. This device is capable of using either 4G/3G services for this connection.Note: WCDMA is only available on the 4G network.1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Mobile networks ➔ Network mode.2. Tap GSM/WCDMA (Auto mode). A check mark displays next to this option to indicate that it is active. This is the default mode for this device.Using the 2G (EDGE) NetworkIf you are not using applications that require the 3G network speed (any application that accesses the network or uses a browser), using the 2G network saves battery life.1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Mobile networks ➔ Network mode.2. Tap GSM only. A check mark displays next to this option to indicate that it is active.Note: Connecting to 2G networks slows the data transfer speed and time.Using the 3G NetworkIf you are using applications that require the 3G network speed, follow these instructions to connect to the 3G network.1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Mobile networks ➔ Network mode.2. Tap WCDMA only. A check mark displays next to this option to indicate that it is active.For PRA Only, Printing NOT approved by Technical Writing Team

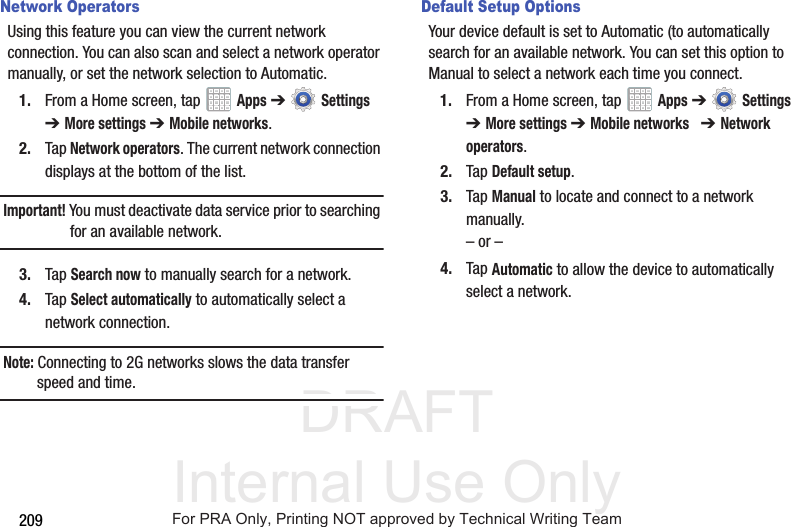

DRAFT Internal Use Only209Network OperatorsUsing this feature you can view the current network connection. You can also scan and select a network operator manually, or set the network selection to Automatic.1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Mobile networks.2. Tap Network operators. The current network connection displays at the bottom of the list.Important! You must deactivate data service prior to searching for an available network.3. Tap Search now to manually search for a network.4. Tap Select automatically to automatically select a network connection.Note: Connecting to 2G networks slows the data transfer speed and time.Default Setup OptionsYour device default is set to Automatic (to automatically search for an available network. You can set this option to Manual to select a network each time you connect.1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Mobile networks ➔ Network operators.2. Tap Default setup.3. Tap Manual to locate and connect to a network manually.– or –4. Tap Automatic to allow the device to automatically select a network.For PRA Only, Printing NOT approved by Technical Writing Team

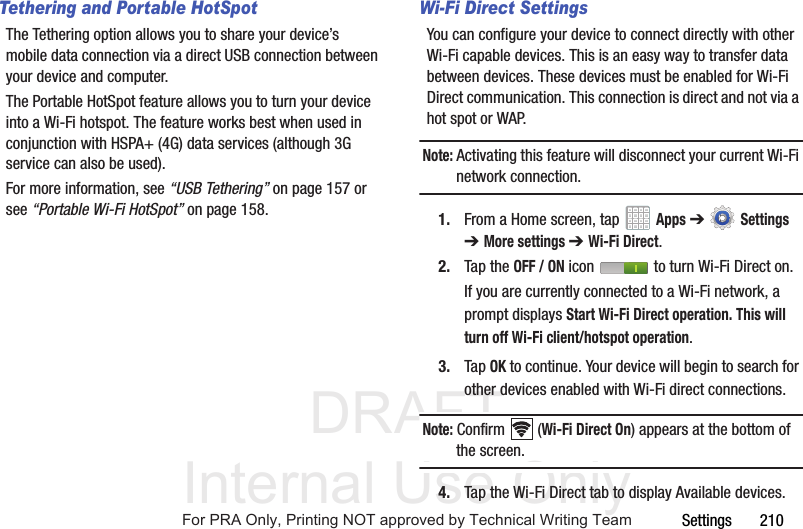

DRAFT Internal Use OnlySettings 210Tethering and Portable HotSpotThe Tethering option allows you to share your device’s mobile data connection via a direct USB connection between your device and computer. The Portable HotSpot feature allows you to turn your device into a Wi-Fi hotspot. The feature works best when used in conjunction with HSPA+ (4G) data services (although 3G service can also be used).For more information, see “USB Tethering” on page 157 or see “Portable Wi-Fi HotSpot” on page 158.Wi-Fi Direct SettingsYou can configure your device to connect directly with other Wi-Fi capable devices. This is an easy way to transfer data between devices. These devices must be enabled for Wi-Fi Direct communication. This connection is direct and not via a hot spot or WAP.Note: Activating this feature will disconnect your current Wi-Fi network connection.1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Wi-Fi Direct.2. Tap the OFF / ON icon to turn Wi-Fi Direct on.If you are currently connected to a Wi-Fi network, a prompt displays Start Wi-Fi Direct operation. This will turn off Wi-Fi client/hotspot operation.3. Tap OK to continue. Your device will begin to search for other devices enabled with Wi-Fi direct connections.Note: Confirm (Wi-Fi Direct On) appears at the bottom of the screen.4. Tap the Wi-Fi Direct tab to display Available devices.For PRA Only, Printing NOT approved by Technical Writing Team

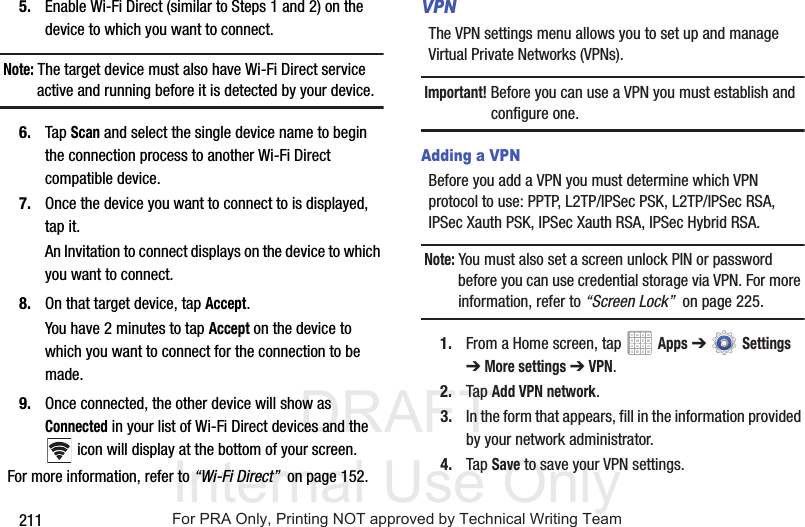

DRAFT Internal Use Only2115. Enable Wi-Fi Direct (similar to Steps 1 and 2) on the device to which you want to connect.Note: The target device must also have Wi-Fi Direct service active and running before it is detected by your device.6. Tap Scan and select the single device name to begin the connection process to another Wi-Fi Direct compatible device.7. Once the device you want to connect to is displayed, tap it.An Invitation to connect displays on the device to which you want to connect.8. On that target device, tap Accept.You have 2 minutes to tap Accept on the device to which you want to connect for the connection to be made.9. Once connected, the other device will show as Connected in your list of Wi-Fi Direct devices and the icon will display at the bottom of your screen.For more information, refer to “Wi-Fi Direct” on page 152.VPNThe VPN settings menu allows you to set up and manage Virtual Private Networks (VPNs).Important! Before you can use a VPN you must establish and configure one.Adding a VPNBefore you add a VPN you must determine which VPN protocol to use: PPTP, L2TP/IPSec PSK, L2TP/IPSec RSA, IPSec Xauth PSK, IPSec Xauth RSA, IPSec Hybrid RSA.Note: You must also set a screen unlock PIN or password before you can use credential storage via VPN. For more information, refer to “Screen Lock” on page 225.1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ VPN.2. Tap Add VPN network.3. In the form that appears, fill in the information provided by your network administrator.4. Tap Save to save your VPN settings.For PRA Only, Printing NOT approved by Technical Writing Team

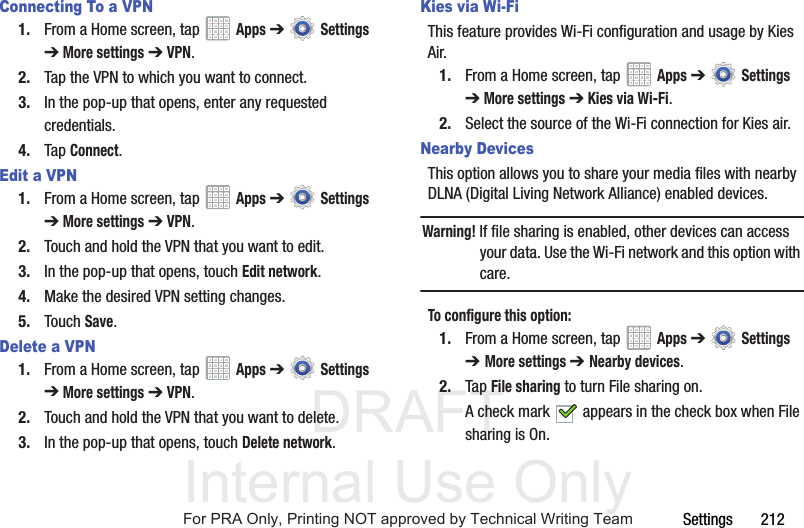

DRAFT Internal Use OnlySettings 212Connecting To a VPN1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ VPN.2. Tap the VPN to which you want to connect. 3. In the pop-up that opens, enter any requested credentials.4. Tap Connect.Edit a VPN1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ VPN.2. Touch and hold the VPN that you want to edit.3. In the pop-up that opens, touch Edit network. 4. Make the desired VPN setting changes. 5. Touch Save. Delete a VPN1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ VPN.2. Touch and hold the VPN that you want to delete.3. In the pop-up that opens, touch Delete network.Kies via Wi-FiThis feature provides Wi-Fi configuration and usage by Kies Air.1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Kies via Wi-Fi.2. Select the source of the Wi-Fi connection for Kies air.Nearby DevicesThis option allows you to share your media files with nearby DLNA (Digital Living Network Alliance) enabled devices.Warning! If file sharing is enabled, other devices can access your data. Use the Wi-Fi network and this option with care.To configure this option:1. From a Home screen, tap Apps ➔ Settings ➔ More settings ➔ Nearby devices.2. Tap File sharing to turn File sharing on.A check mark appears in the check box when File sharing is On.For PRA Only, Printing NOT approved by Technical Writing Team

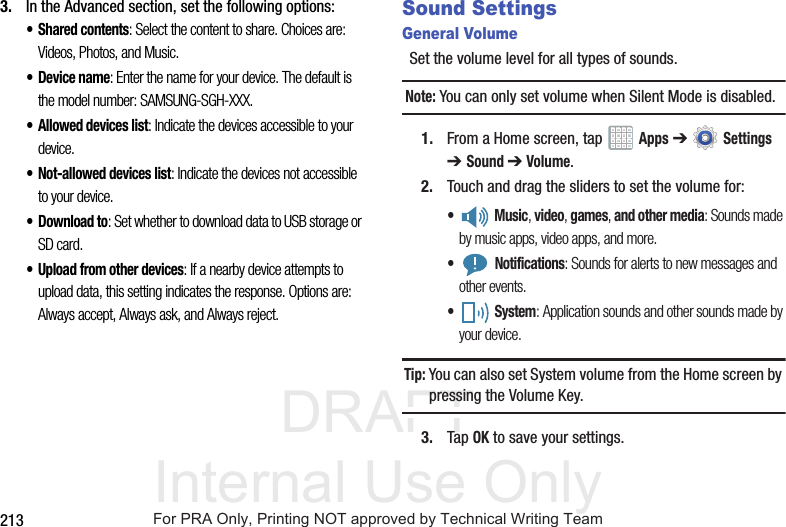

DRAFT Internal Use Only2133. In the Advanced section, set the following options:• Shared contents: Select the content to share. Choices are: Videos, Photos, and Music.• Device name: Enter the name for your device. The default is the model number: SAMSUNG-SGH-XXX.• Allowed devices list: Indicate the devices accessible to your device.• Not-allowed devices list: Indicate the devices not accessible to your device.•Download to: Set whether to download data to USB storage or SD card.• Upload from other devices: If a nearby device attempts to upload data, this setting indicates the response. Options are: Always accept, Always ask, and Always reject.Sound SettingsGeneral VolumeSet the volume level for all types of sounds.Note: You can only set volume when Silent Mode is disabled.1. From a Home screen, tap Apps ➔ Settings ➔Sound ➔ Volume.2. Touch and drag the sliders to set the volume for:• Music, video, games, and other media: Sounds made by music apps, video apps, and more.• Notifications: Sounds for alerts to new messages and other events.• System: Application sounds and other sounds made by your device.Tip: You can also set System volume from the Home screen by pressing the Volume Key.3. Tap OK to save your settings.For PRA Only, Printing NOT approved by Technical Writing Team

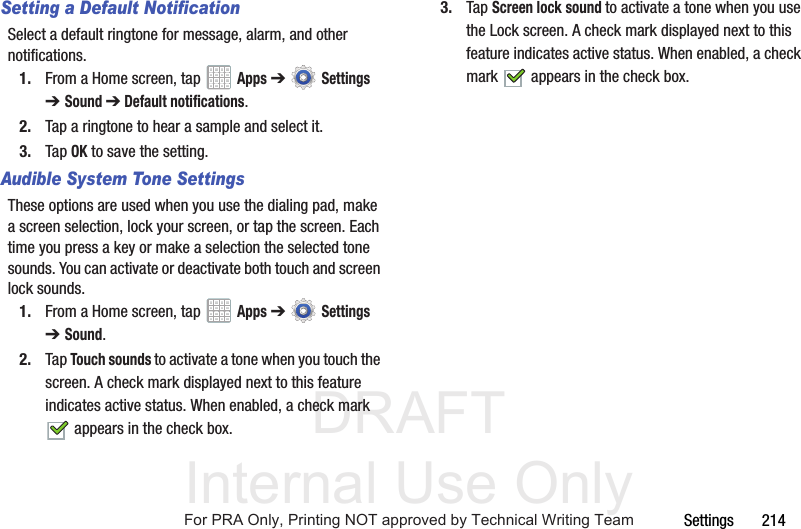

DRAFT Internal Use OnlySettings 214Setting a Default NotificationSelect a default ringtone for message, alarm, and other notifications.1. From a Home screen, tap Apps ➔ Settings ➔Sound ➔ Default notifications.2. Tap a ringtone to hear a sample and select it.3. Tap OK to save the setting.Audible System Tone SettingsThese options are used when you use the dialing pad, make a screen selection, lock your screen, or tap the screen. Each time you press a key or make a selection the selected tone sounds. You can activate or deactivate both touch and screen lock sounds.1. From a Home screen, tap Apps ➔ Settings ➔Sound.2. Tap Touch sounds to activate a tone when you touch the screen. A check mark displayed next to this feature indicates active status. When enabled, a check mark appears in the check box.3. Tap Screen lock sound to activate a tone when you use the Lock screen. A check mark displayed next to this feature indicates active status. When enabled, a check mark appears in the check box.For PRA Only, Printing NOT approved by Technical Writing Team

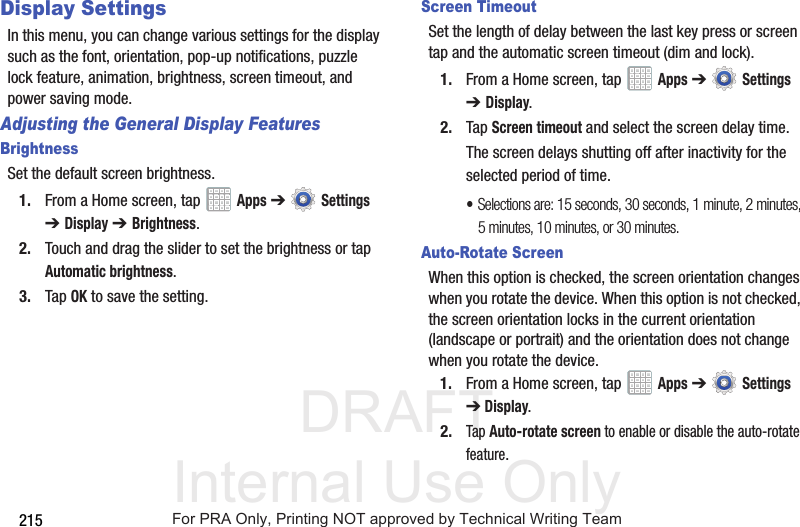

DRAFT Internal Use Only215Display SettingsIn this menu, you can change various settings for the display such as the font, orientation, pop-up notifications, puzzle lock feature, animation, brightness, screen timeout, and power saving mode.Adjusting the General Display FeaturesBrightnessSet the default screen brightness.1. From a Home screen, tap Apps ➔ Settings ➔Display ➔ Brightness.2. Touch and drag the slider to set the brightness or tap Automatic brightness.3. Tap OK to save the setting.Screen TimeoutSet the length of delay between the last key press or screen tap and the automatic screen timeout (dim and lock).1. From a Home screen, tap Apps ➔ Settings ➔Display.2. Tap Screen timeout and select the screen delay time.The screen delays shutting off after inactivity for the selected period of time.•Selections are: 15 seconds, 30 seconds, 1 minute, 2 minutes, 5 minutes, 10 minutes, or 30 minutes.Auto-Rotate ScreenWhen this option is checked, the screen orientation changes when you rotate the device. When this option is not checked, the screen orientation locks in the current orientation (landscape or portrait) and the orientation does not change when you rotate the device.1. From a Home screen, tap Apps ➔ Settings ➔Display.2.Tap Auto-rotate screen to enable or disable the auto-rotate feature.For PRA Only, Printing NOT approved by Technical Writing Team

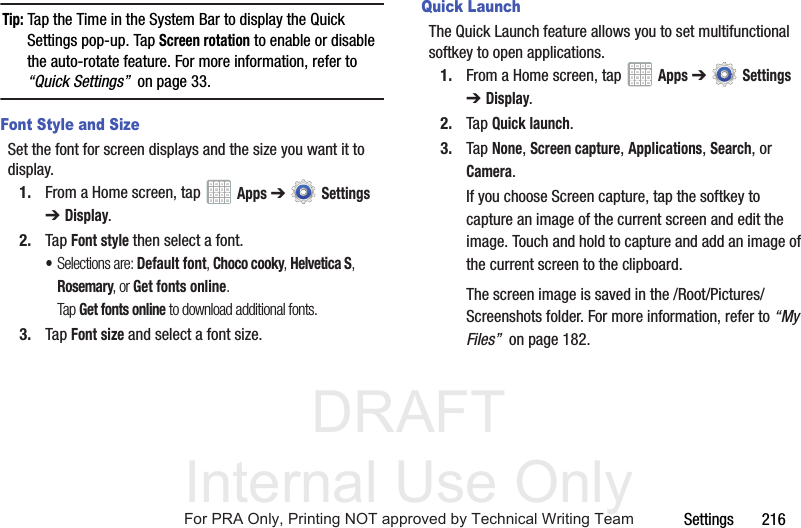

DRAFT Internal Use OnlySettings 216Tip: Tap the Time in the System Bar to display the Quick Settings pop-up. Tap Screen rotation to enable or disable the auto-rotate feature. For more information, refer to “Quick Settings” on page 33.Font Style and SizeSet the font for screen displays and the size you want it to display.1. From a Home screen, tap Apps ➔ Settings ➔Display.2. Tap Font style then select a font.•Selections are: Default font, Choco cooky, Helvetica S, Rosemary, or Get fonts online. Tap Get fonts online to download additional fonts.3. Tap Font size and select a font size.Quick LaunchThe Quick Launch feature allows you to set multifunctional softkey to open applications.1. From a Home screen, tap Apps ➔ Settings ➔Display.2. Tap Quick launch.3. Tap None, Screen capture, Applications, Search, or Camera.If you choose Screen capture, tap the softkey to capture an image of the current screen and edit the image. Touch and hold to capture and add an image of the current screen to the clipboard.The screen image is saved in the /Root/Pictures/Screenshots folder. For more information, refer to “My Files” on page 182.For PRA Only, Printing NOT approved by Technical Writing Team

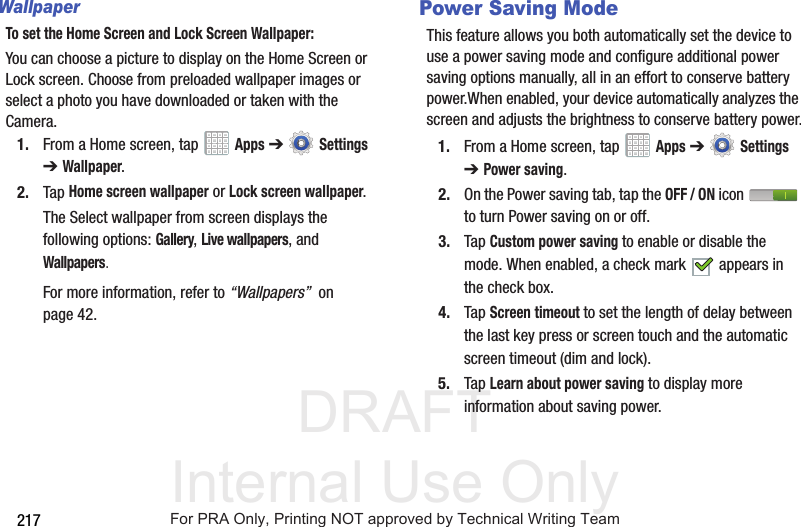

DRAFT Internal Use Only217WallpaperTo set the Home Screen and Lock Screen Wallpaper:You can choose a picture to display on the Home Screen or Lock screen. Choose from preloaded wallpaper images or select a photo you have downloaded or taken with the Camera.1. From a Home screen, tap Apps ➔ Settings ➔Wallpaper.2. Tap Home screen wallpaper or Lock screen wallpaper.The Select wallpaper from screen displays the following options: Gallery, Live wallpapers, and Wallpapers.For more information, refer to “Wallpapers” on page 42.Power Saving ModeThis feature allows you both automatically set the device to use a power saving mode and configure additional power saving options manually, all in an effort to conserve battery power.When enabled, your device automatically analyzes the screen and adjusts the brightness to conserve battery power.1. From a Home screen, tap Apps ➔ Settings ➔Power saving.2. On the Power saving tab, tap the OFF / ON icon to turn Power saving on or off.3. Tap Custom power saving to enable or disable the mode. When enabled, a check mark appears in the check box.4. Tap Screen timeout to set the length of delay between the last key press or screen touch and the automatic screen timeout (dim and lock).5. Tap Learn about power saving to display more information about saving power.For PRA Only, Printing NOT approved by Technical Writing Team

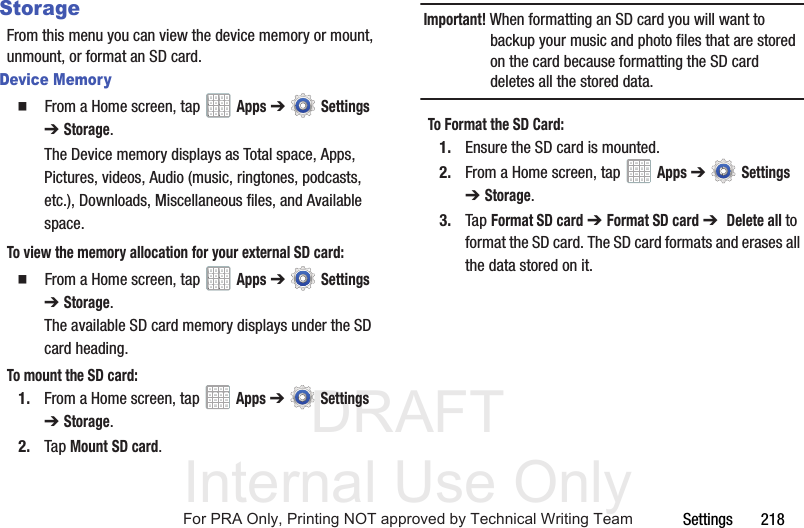

DRAFT Internal Use OnlySettings 218StorageFrom this menu you can view the device memory or mount, unmount, or format an SD card.Device Memory From a Home screen, tap Apps ➔ Settings ➔Storage.The Device memory displays as Total space, Apps, Pictures, videos, Audio (music, ringtones, podcasts, etc.), Downloads, Miscellaneous files, and Available space.To view the memory allocation for your external SD card: From a Home screen, tap Apps ➔ Settings ➔Storage. The available SD card memory displays under the SD card heading.To mount the SD card:1. From a Home screen, tap Apps ➔ Settings ➔Storage.2. Tap Mount SD card.Important! When formatting an SD card you will want to backup your music and photo files that are stored on the card because formatting the SD card deletes all the stored data.To Format the SD Card:1. Ensure the SD card is mounted. 2. From a Home screen, tap Apps ➔ Settings ➔Storage.3. Tap Format SD card ➔ Format SD card ➔ Delete all to format the SD card. The SD card formats and erases all the data stored on it.For PRA Only, Printing NOT approved by Technical Writing Team

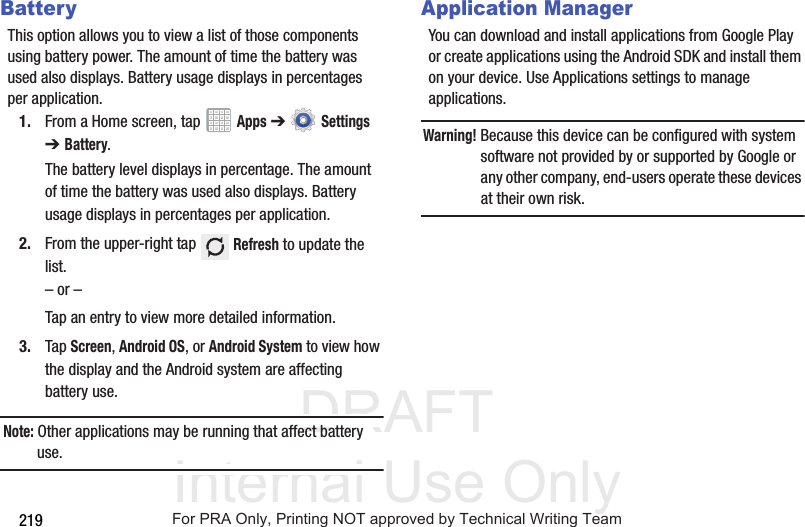

DRAFT Internal Use Only219BatteryThis option allows you to view a list of those components using battery power. The amount of time the battery was used also displays. Battery usage displays in percentages per application.1. From a Home screen, tap Apps ➔ Settings ➔Battery.The battery level displays in percentage. The amount of time the battery was used also displays. Battery usage displays in percentages per application.2. From the upper-right tap Refresh to update the list.– or –Tap an entry to view more detailed information.3. Tap Screen, Android OS, or Android System to view how the display and the Android system are affecting battery use.Note: Other applications may be running that affect battery use.Application ManagerYou can download and install applications from Google Play or create applications using the Android SDK and install them on your device. Use Applications settings to manage applications.Warning! Because this device can be configured with system software not provided by or supported by Google or any other company, end-users operate these devices at their own risk.For PRA Only, Printing NOT approved by Technical Writing Team

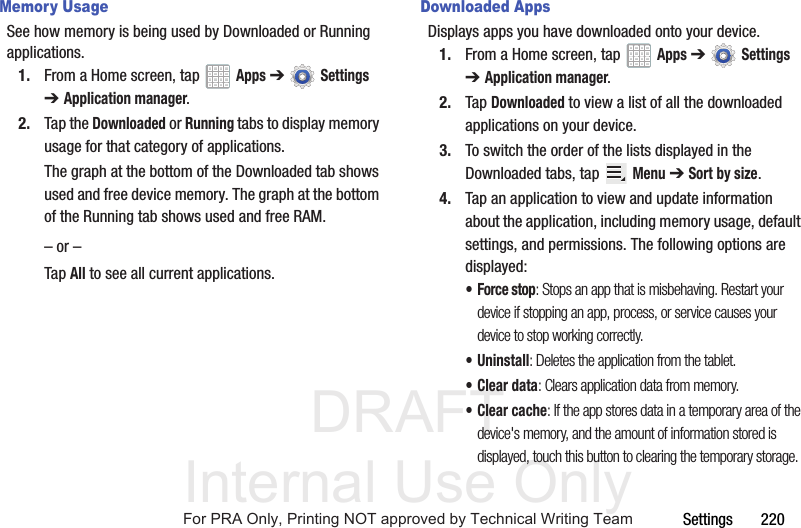

DRAFT Internal Use OnlySettings 220Memory UsageSee how memory is being used by Downloaded or Running applications.1. From a Home screen, tap Apps ➔ Settings ➔Application manager.2. Tap the Downloaded or Running tabs to display memory usage for that category of applications.The graph at the bottom of the Downloaded tab shows used and free device memory. The graph at the bottom of the Running tab shows used and free RAM.– or –Tap All to see all current applications.Downloaded AppsDisplays apps you have downloaded onto your device.1. From a Home screen, tap Apps ➔ Settings ➔Application manager.2. Tap Downloaded to view a list of all the downloaded applications on your device.3. To switch the order of the lists displayed in the Downloaded tabs, tap Menu ➔ Sort by size.4. Tap an application to view and update information about the application, including memory usage, default settings, and permissions. The following options are displayed:• Force stop: Stops an app that is misbehaving. Restart your device if stopping an app, process, or service causes your device to stop working correctly.• Uninstall: Deletes the application from the tablet.•Clear data: Clears application data from memory.•Clear cache: If the app stores data in a temporary area of the device's memory, and the amount of information stored is displayed, touch this button to clearing the temporary storage.For PRA Only, Printing NOT approved by Technical Writing Team

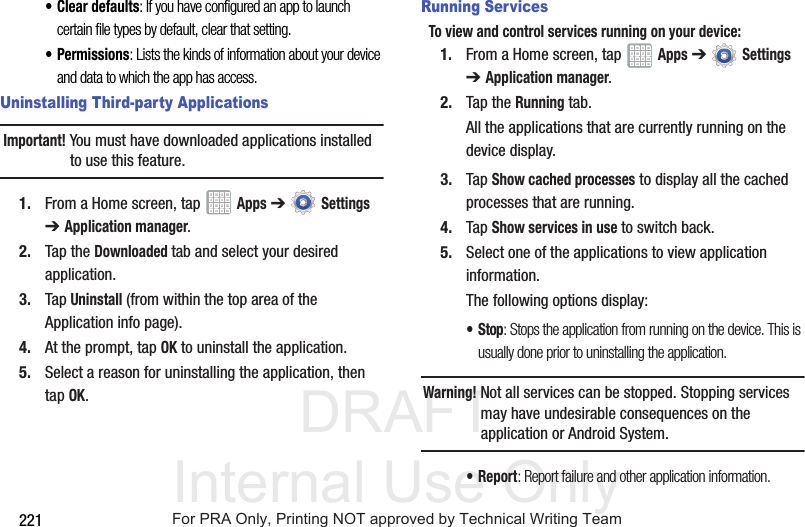

DRAFT Internal Use Only221• Clear defaults: If you have configured an app to launch certain file types by default, clear that setting.•Permissions: Lists the kinds of information about your device and data to which the app has access.Uninstalling Third-party ApplicationsImportant! You must have downloaded applications installed to use this feature.1. From a Home screen, tap Apps ➔ Settings ➔Application manager.2. Tap the Downloaded tab and select your desired application.3. Tap Uninstall (from within the top area of the Application info page).4. At the prompt, tap OK to uninstall the application.5. Select a reason for uninstalling the application, then tap OK.Running ServicesTo view and control services running on your device:1. From a Home screen, tap Apps ➔ Settings ➔Application manager.2. Tap the Running tab.All the applications that are currently running on the device display.3. Tap Show cached processes to display all the cached processes that are running. 4. Tap Show services in use to switch back.5. Select one of the applications to view application information.The following options display:•Stop: Stops the application from running on the device. This is usually done prior to uninstalling the application.Warning! Not all services can be stopped. Stopping services may have undesirable consequences on the application or Android System.•Report: Report failure and other application information.For PRA Only, Printing NOT approved by Technical Writing Team

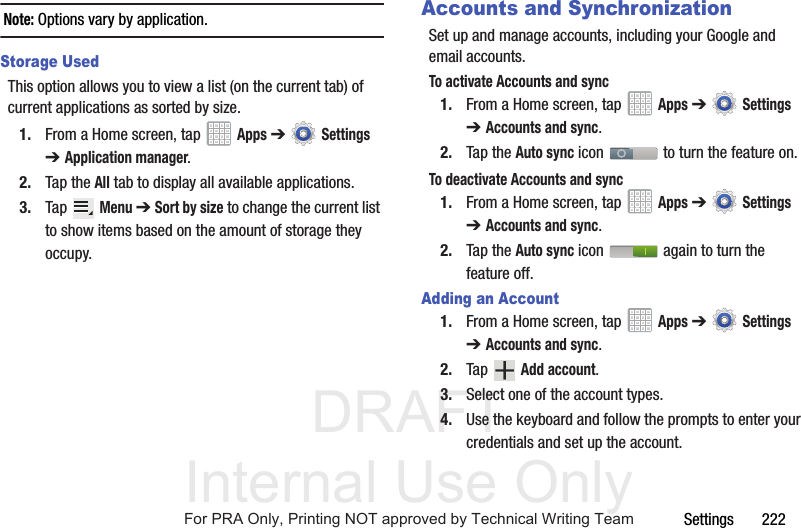

DRAFT Internal Use OnlySettings 222Note: Options vary by application.Storage UsedThis option allows you to view a list (on the current tab) of current applications as sorted by size.1. From a Home screen, tap Apps ➔ Settings ➔Application manager.2. Tap the All tab to display all available applications.3. Tap Menu ➔ Sort by size to change the current list to show items based on the amount of storage they occupy.Accounts and SynchronizationSet up and manage accounts, including your Google and email accounts.To activate Accounts and sync1. From a Home screen, tap Apps ➔ Settings ➔Accounts and sync. 2. Tap the Auto sync icon to turn the feature on.To deactivate Accounts and sync1. From a Home screen, tap Apps ➔ Settings ➔Accounts and sync. 2. Tap the Auto sync icon again to turn the feature off.Adding an Account1. From a Home screen, tap Apps ➔ Settings ➔Accounts and sync.2. Tap Add account.3. Select one of the account types.4. Use the keyboard and follow the prompts to enter your credentials and set up the account.For PRA Only, Printing NOT approved by Technical Writing Team

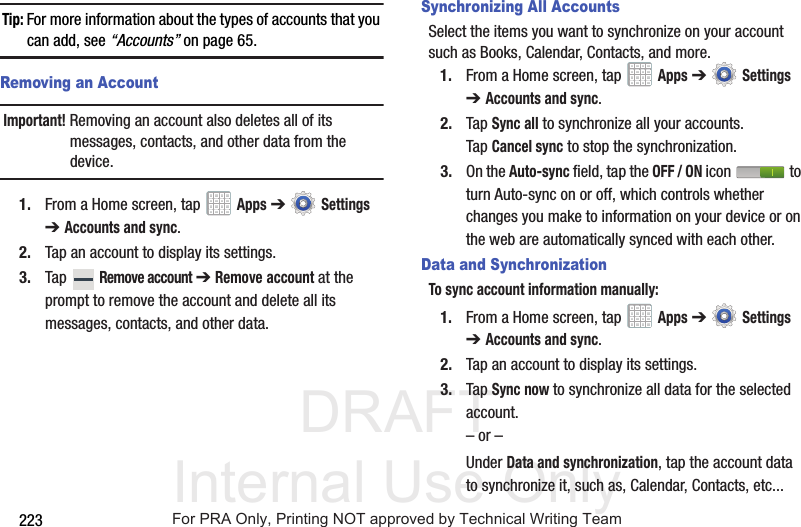

DRAFT Internal Use Only223Tip: For more information about the types of accounts that you can add, see “Accounts” on page 65.Removing an AccountImportant! Removing an account also deletes all of its messages, contacts, and other data from the device.1. From a Home screen, tap Apps ➔ Settings ➔Accounts and sync.2. Tap an account to display its settings.3. Tap Remove account ➔ Remove account at the prompt to remove the account and delete all its messages, contacts, and other data.Synchronizing All AccountsSelect the items you want to synchronize on your account such as Books, Calendar, Contacts, and more.1. From a Home screen, tap Apps ➔ Settings ➔Accounts and sync.2. Tap Sync all to synchronize all your accounts. Tap Cancel sync to stop the synchronization.3. On the Auto-sync field, tap the OFF / ON icon to turn Auto-sync on or off, which controls whether changes you make to information on your device or on the web are automatically synced with each other.Data and SynchronizationTo sync account information manually:1. From a Home screen, tap Apps ➔ Settings ➔Accounts and sync.2. Tap an account to display its settings.3. Tap Sync now to synchronize all data for the selected account.– or –Under Data and synchronization, tap the account data to synchronize it, such as, Calendar, Contacts, etc...For PRA Only, Printing NOT approved by Technical Writing Team
DRAFT Internal Use OnlySettings 224Location ServicesYou value your privacy. So, by default, your device only acquires your location when you allow it. To use Location-Based Services, you must first enable location services on your device.Use Wireless NetworksBefore you use applications such as Google Maps and find your location or search for places of interest, you must enable the Use wireless networks option or enable the GPS satellites.1. From a Home screen, tap Apps ➔ Settings ➔Location services.2. Tap Use wireless networks to enable location information using the wireless network.Use GPS Satellites1. From a Home screen, tap Apps ➔ Settings ➔Location services.2. Tap Use GPS satellites to enable the GPS satellite.Location and Google Search1. From a Home screen, tap Apps ➔ Settings ➔Location services.2. Touch Location and Google search to use your location data for improved Google Search results and other Google services.SecurityThis menu contains features that allows you to configure the device’s security parameters.Screen Unlock Pattern OverviewTo secure data and limit access, set the device to require a screen unlock pattern each time you turn on the device, or every time the device wakes up from sleep mode (when the screen automatically turns off).The Screen lock menu allows to choose from a variety of locking features such as: Swipe, Face Unlock, Pattern, PIN, Password, and None.For PRA Only, Printing NOT approved by Technical Writing Team

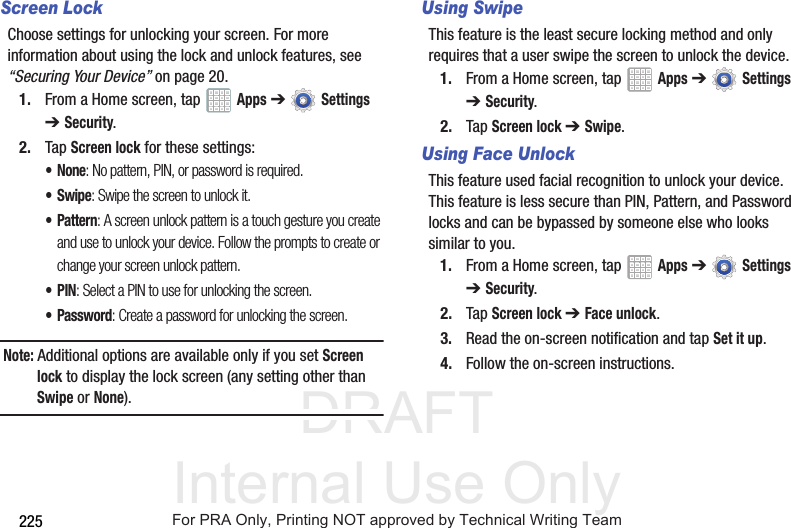

DRAFT Internal Use Only225Screen LockChoose settings for unlocking your screen. For more information about using the lock and unlock features, see “Securing Your Device” on page 20.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Screen lock for these settings:•None: No pattern, PIN, or password is required.•Swipe: Swipe the screen to unlock it.• Pattern: A screen unlock pattern is a touch gesture you create and use to unlock your device. Follow the prompts to create or change your screen unlock pattern.•PIN: Select a PIN to use for unlocking the screen.• Password: Create a password for unlocking the screen.Note: Additional options are available only if you set Screen lock to display the lock screen (any setting other than Swipe or None).Using SwipeThis feature is the least secure locking method and only requires that a user swipe the screen to unlock the device.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Screen lock ➔ Swipe.Using Face UnlockThis feature used facial recognition to unlock your device. This feature is less secure than PIN, Pattern, and Password locks and can be bypassed by someone else who looks similar to you.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Screen lock ➔ Face unlock.3. Read the on-screen notification and tap Set it up.4. Follow the on-screen instructions.For PRA Only, Printing NOT approved by Technical Writing Team

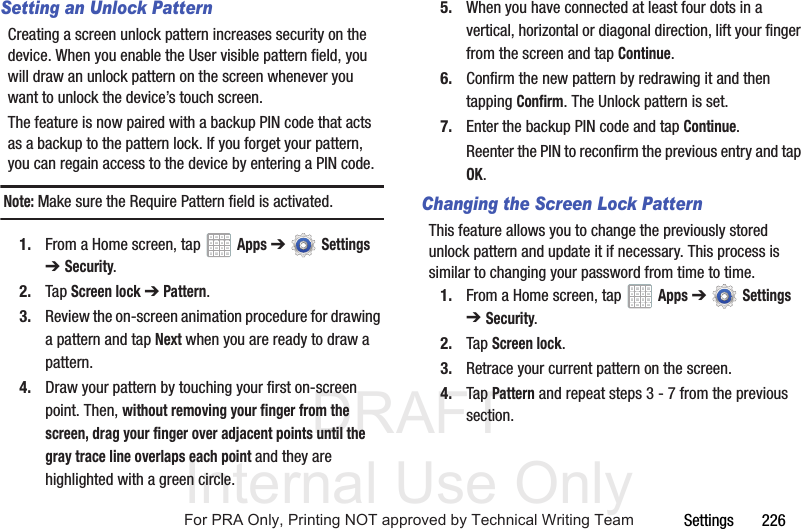

DRAFT Internal Use OnlySettings 226Setting an Unlock PatternCreating a screen unlock pattern increases security on the device. When you enable the User visible pattern field, you will draw an unlock pattern on the screen whenever you want to unlock the device’s touch screen. The feature is now paired with a backup PIN code that acts as a backup to the pattern lock. If you forget your pattern, you can regain access to the device by entering a PIN code.Note: Make sure the Require Pattern field is activated.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Screen lock ➔ Pattern.3. Review the on-screen animation procedure for drawing a pattern and tap Next when you are ready to draw a pattern.4. Draw your pattern by touching your first on-screen point. Then, without removing your finger from the screen, drag your finger over adjacent points until the gray trace line overlaps each point and they are highlighted with a green circle.5. When you have connected at least four dots in a vertical, horizontal or diagonal direction, lift your finger from the screen and tap Continue.6. Confirm the new pattern by redrawing it and then tapping Confirm. The Unlock pattern is set.7. Enter the backup PIN code and tap Continue.Reenter the PIN to reconfirm the previous entry and tap OK.Changing the Screen Lock PatternThis feature allows you to change the previously stored unlock pattern and update it if necessary. This process is similar to changing your password from time to time.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Screen lock.3. Retrace your current pattern on the screen.4. Tap Pattern and repeat steps 3 - 7 from the previous section.For PRA Only, Printing NOT approved by Technical Writing Team

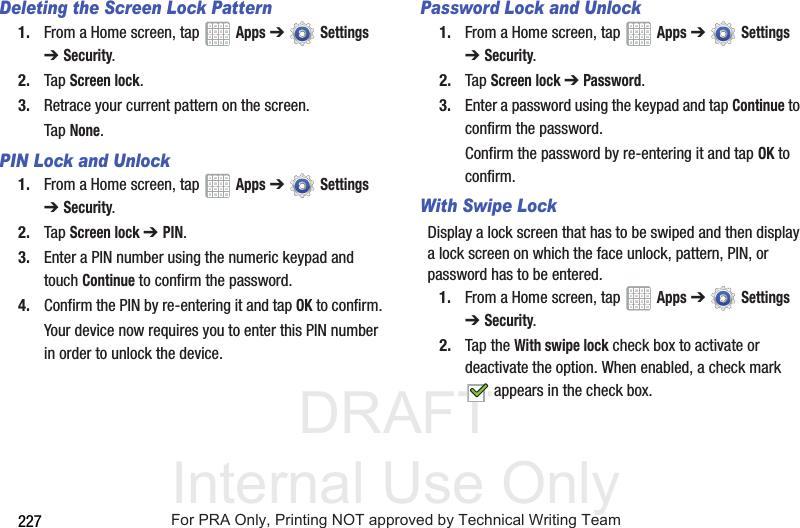

DRAFT Internal Use Only227Deleting the Screen Lock Pattern1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Screen lock.3. Retrace your current pattern on the screen.Tap None.PIN Lock and Unlock1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Screen lock ➔ PIN.3. Enter a PIN number using the numeric keypad and touch Continue to confirm the password.4. Confirm the PIN by re-entering it and tap OK to confirm.Your device now requires you to enter this PIN number in order to unlock the device.Password Lock and Unlock1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Screen lock ➔ Password.3. Enter a password using the keypad and tap Continue to confirm the password.Confirm the password by re-entering it and tap OK to confirm.With Swipe LockDisplay a lock screen that has to be swiped and then display a lock screen on which the face unlock, pattern, PIN, or password has to be entered.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap the With swipe lock check box to activate or deactivate the option. When enabled, a check mark appears in the check box.For PRA Only, Printing NOT approved by Technical Writing Team

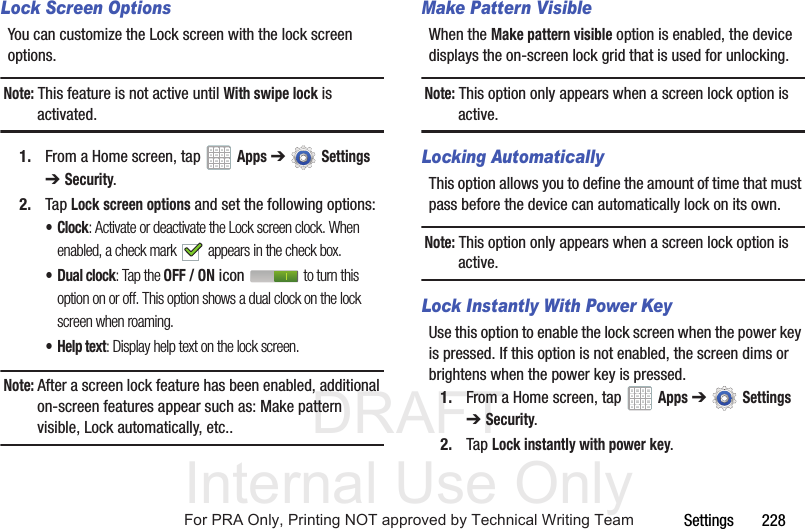

DRAFT Internal Use OnlySettings 228Lock Screen OptionsYou can customize the Lock screen with the lock screen options.Note: This feature is not active until With swipe lock is activated.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Lock screen options and set the following options:•Clock: Activate or deactivate the Lock screen clock. When enabled, a check mark appears in the check box.•Dual clock: Tap the OFF / ON icon to turn this option on or off. This option shows a dual clock on the lock screen when roaming.•Help text: Display help text on the lock screen.Note: After a screen lock feature has been enabled, additional on-screen features appear such as: Make pattern visible, Lock automatically, etc..Make Pattern VisibleWhen the Make pattern visible option is enabled, the device displays the on-screen lock grid that is used for unlocking.Note: This option only appears when a screen lock option is active.Locking AutomaticallyThis option allows you to define the amount of time that must pass before the device can automatically lock on its own.Note: This option only appears when a screen lock option is active.Lock Instantly With Power KeyUse this option to enable the lock screen when the power key is pressed. If this option is not enabled, the screen dims or brightens when the power key is pressed.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Lock instantly with power key.For PRA Only, Printing NOT approved by Technical Writing Team

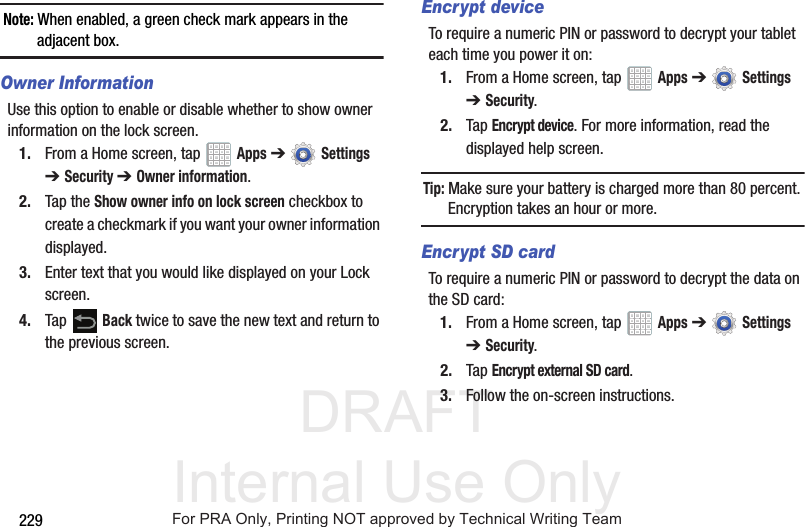

DRAFT Internal Use Only229Note: When enabled, a green check mark appears in the adjacent box.Owner InformationUse this option to enable or disable whether to show owner information on the lock screen.1. From a Home screen, tap Apps ➔ Settings ➔Security ➔ Owner information.2. Tap the Show owner info on lock screen checkbox to create a checkmark if you want your owner information displayed.3. Enter text that you would like displayed on your Lock screen.4. Tap Back twice to save the new text and return to the previous screen.Encrypt deviceTo require a numeric PIN or password to decrypt your tablet each time you power it on:1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Encrypt device. For more information, read the displayed help screen.Tip: Make sure your battery is charged more than 80 percent. Encryption takes an hour or more.Encrypt SD cardTo require a numeric PIN or password to decrypt the data on the SD card:1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Encrypt external SD card. 3. Follow the on-screen instructions.For PRA Only, Printing NOT approved by Technical Writing Team
DRAFT Internal Use OnlySettings 230Setting up SIM Card LockPrevent another user from using your SIM card to make unauthorized calls or from accessing information stored on your SIM card by protecting the information using a PIN code.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Set up SIM card lock.3. Tap Lock SIM card, enter your SIM PIN code, then tap OK.Note: You must activate Lock SIM card before you can change your SIM PIN code.To change an existing SIM Card PIN:1. Tap Change SIM PIN.2. Enter the old SIM PIN code and tap OK.3. Enter the new SIM PIN code and tap OK.4. Re-type the new SIM PIN code and tap OK.Password SettingsWhen you create a device password you can also configure the device to display the password as you type it instead of using an asterisk (*).1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Make passwords visible to activate this feature.When enabled, a check mark appears in the check box.Device AdministrationTo add or remove device administrators:1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Device administrators to begin configuring this setting.3. Select an administrator device and follow the prompts.For PRA Only, Printing NOT approved by Technical Writing Team

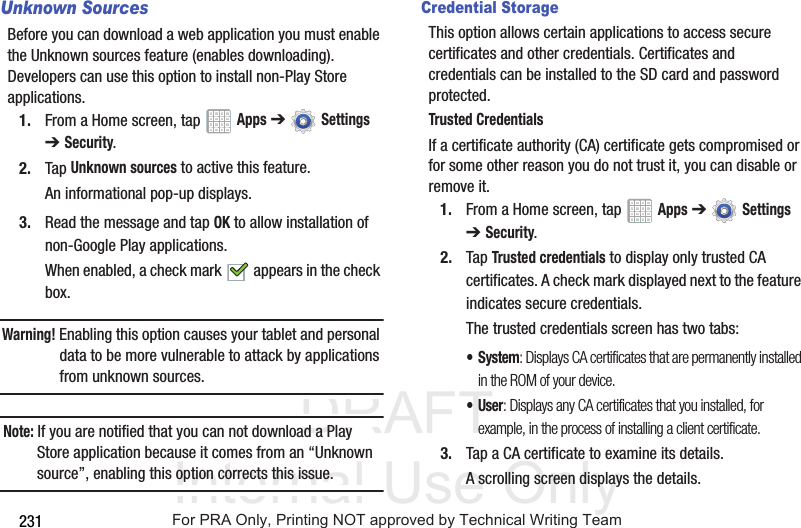

DRAFT Internal Use Only231Unknown SourcesBefore you can download a web application you must enable the Unknown sources feature (enables downloading). Developers can use this option to install non-Play Store applications.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Unknown sources to active this feature.An informational pop-up displays.3. Read the message and tap OK to allow installation of non-Google Play applications.When enabled, a check mark appears in the check box.Warning! Enabling this option causes your tablet and personal data to be more vulnerable to attack by applications from unknown sources.Note: If you are notified that you can not download a Play Store application because it comes from an “Unknown source”, enabling this option corrects this issue.Credential StorageThis option allows certain applications to access secure certificates and other credentials. Certificates and credentials can be installed to the SD card and password protected.Trusted CredentialsIf a certificate authority (CA) certificate gets compromised or for some other reason you do not trust it, you can disable or remove it.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Trusted credentials to display only trusted CA certificates. A check mark displayed next to the feature indicates secure credentials.The trusted credentials screen has two tabs:• System: Displays CA certificates that are permanently installed in the ROM of your device.•User: Displays any CA certificates that you installed, for example, in the process of installing a client certificate.3. Tap a CA certificate to examine its details.A scrolling screen displays the details.For PRA Only, Printing NOT approved by Technical Writing Team

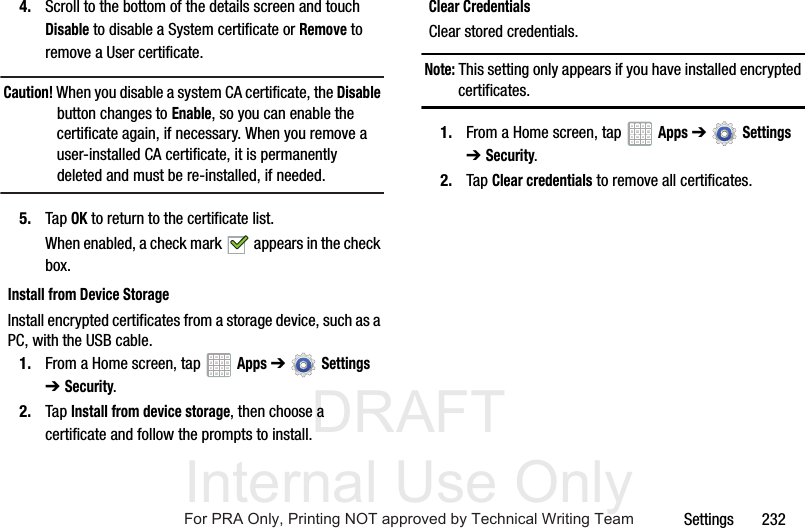

DRAFT Internal Use OnlySettings 2324. Scroll to the bottom of the details screen and touch Disable to disable a System certificate or Remove to remove a User certificate.Caution! When you disable a system CA certificate, the Disable button changes to Enable, so you can enable the certificate again, if necessary. When you remove a user-installed CA certificate, it is permanently deleted and must be re-installed, if needed.5. Tap OK to return to the certificate list.When enabled, a check mark appears in the check box.Install from Device StorageInstall encrypted certificates from a storage device, such as a PC, with the USB cable.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Install from device storage, then choose a certificate and follow the prompts to install.Clear CredentialsClear stored credentials.Note: This setting only appears if you have installed encrypted certificates.1. From a Home screen, tap Apps ➔ Settings ➔Security.2. Tap Clear credentials to remove all certificates.For PRA Only, Printing NOT approved by Technical Writing Team

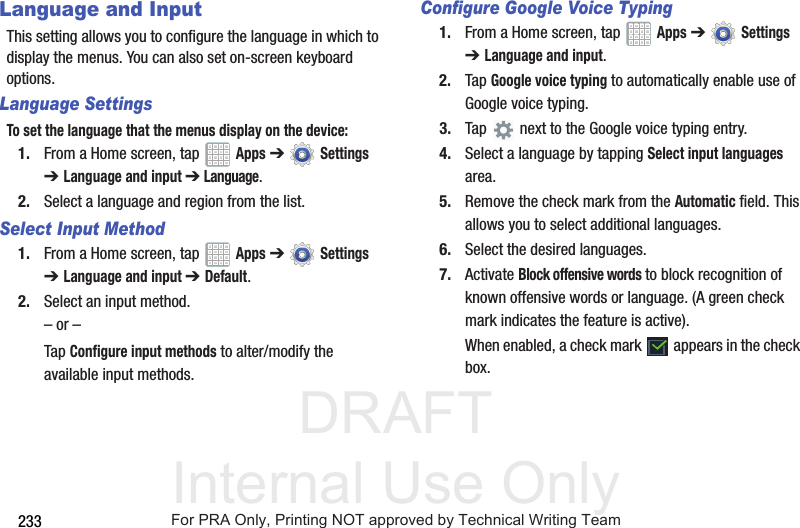

DRAFT Internal Use Only233Language and InputThis setting allows you to configure the language in which to display the menus. You can also set on-screen keyboard options.Language SettingsTo set the language that the menus display on the device:1. From a Home screen, tap Apps ➔ Settings ➔Language and input ➔ Language.2. Select a language and region from the list.Select Input Method1. From a Home screen, tap Apps ➔ Settings ➔Language and input ➔Default.2. Select an input method.– or –Tap Configure input methods to alter/modify the available input methods.Configure Google Voice Typing1. From a Home screen, tap Apps ➔ Settings ➔Language and input.2. Tap Google voice typing to automatically enable use of Google voice typing.3. Tap next to the Google voice typing entry.4. Select a language by tapping Select input languages area.5. Remove the check mark from the Automatic field. This allows you to select additional languages.6. Select the desired languages.7. Activate Block offensive words to block recognition of known offensive words or language. (A green check mark indicates the feature is active).When enabled, a check mark appears in the check box.For PRA Only, Printing NOT approved by Technical Writing Team

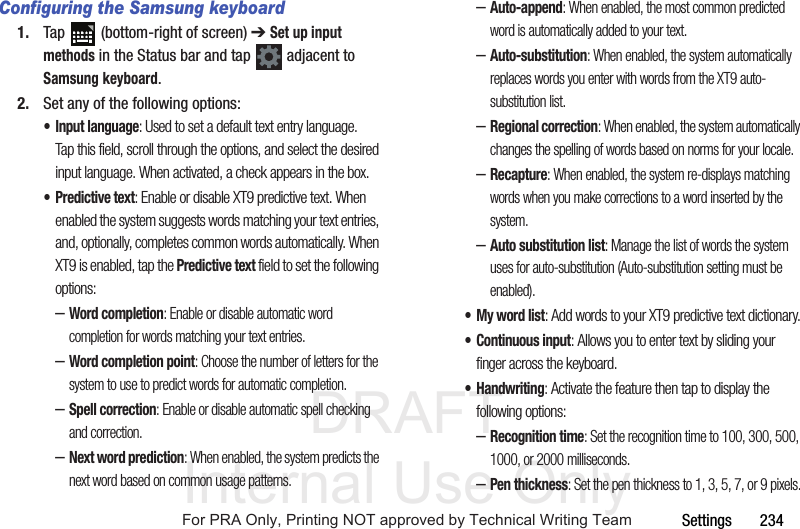

DRAFT Internal Use OnlySettings 234Configuring the Samsung keyboard1. Tap (bottom-right of screen) ➔ Set up input methods in the Status bar and tap adjacent to Samsung keyboard. 2. Set any of the following options:• Input language: Used to set a default text entry language. Tap this field, scroll through the options, and select the desired input language. When activated, a check appears in the box.• Predictive text: Enable or disable XT9 predictive text. When enabled the system suggests words matching your text entries, and, optionally, completes common words automatically. When XT9 is enabled, tap the Predictive text field to set the following options:–Word completion: Enable or disable automatic word completion for words matching your text entries.–Word completion point: Choose the number of letters for the system to use to predict words for automatic completion.–Spell correction: Enable or disable automatic spell checking and correction.–Next word prediction: When enabled, the system predicts the next word based on common usage patterns.–Auto-append: When enabled, the most common predicted word is automatically added to your text.–Auto-substitution: When enabled, the system automatically replaces words you enter with words from the XT9 auto-substitution list.–Regional correction: When enabled, the system automatically changes the spelling of words based on norms for your locale.–Recapture: When enabled, the system re-displays matching words when you make corrections to a word inserted by the system.–Auto substitution list: Manage the list of words the system uses for auto-substitution (Auto-substitution setting must be enabled).•My word list: Add words to your XT9 predictive text dictionary.• Continuous input: Allows you to enter text by sliding your finger across the keyboard.• Handwriting: Activate the feature then tap to display the following options:–Recognition time: Set the recognition time to 100, 300, 500, 1000, or 2000 milliseconds.–Pen thickness: Set the pen thickness to 1, 3, 5, 7, or 9 pixels.For PRA Only, Printing NOT approved by Technical Writing Team
DRAFT Internal Use Only235–Pen color: Choose a pen color.–Recognition type: Set the recognition after each stroke or after completion.–Gesture guide: Displays examples of the various gestures that can be used to edit handwriting.–Tutorial: Help for using Handwriting recognition.–About: Displays information about the handwriting software.• Voice input: Enable or disable the Voice input feature. When enabled, you can choose to enter text by speaking the words, using Google’s networked speech recognition feature.• Auto capitalization: Enable or disable auto-capitalization. When enabled, the system automatically capitalizes words in your text based on common usage, such as at the beginning of sentences.• Auto-punctuate: Enable or disable automatic insertion of a “full stop” (period and space to end a sentence) by touching the space bar twice.• Character preview: Check to display an automatic preview of the current character selection within the text string. This is helpful when multiple characters are available within one key.• Key-tap sound: Check to play a brief sound each time you touch a key on the on-screen keyboard.•Tutorial: Displays help for using the Samsung keyboard and XT9 predictive text.• Reset settings: Reset keyboard settings except XT9 my words and auto-substitution. Configuring the Swype Keypad1. Tap (bottom-right of screen) ➔ Set up input methods in the Status bar and tap adjacent to Swype. •For more information, refer to “Language and Input” on page 233.2. Tap How to Swype to view an on-screen manual for Swype. Displays Swype help information. Tap a topic to view the information.3. Tap Preferences to alter these settings:• Sound on keypresses: turns on sounds generated by the Swype application.• Show helpful tips: turns on a flashing indicator for quick help.•Auto-spacing: When enabled, inserts spaces automatically when you pause entering text.For PRA Only, Printing NOT approved by Technical Writing Team

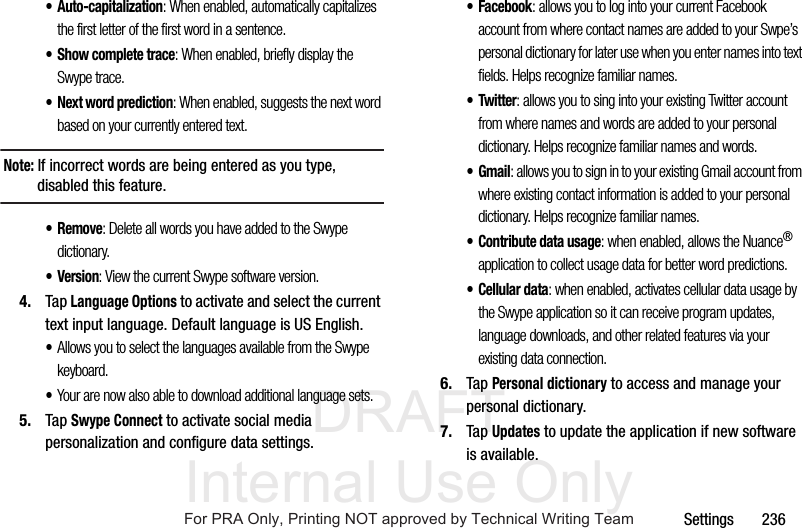

DRAFT Internal Use OnlySettings 236•Auto-capitalization: When enabled, automatically capitalizes the first letter of the first word in a sentence.• Show complete trace: When enabled, briefly display the Swype trace.• Next word prediction: When enabled, suggests the next word based on your currently entered text.Note: If incorrect words are being entered as you type, disabled this feature.•Remove: Delete all words you have added to the Swype dictionary.•Version: View the current Swype software version.4. Tap Language Options to activate and select the current text input language. Default language is US English.•Allows you to select the languages available from the Swype keyboard. •Your are now also able to download additional language sets.5. Tap Swype Connect to activate social media personalization and configure data settings.• Facebook: allows you to log into your current Facebook account from where contact names are added to your Swpe’s personal dictionary for later use when you enter names into text fields. Helps recognize familiar names.•Twitter: allows you to sing into your existing Twitter account from where names and words are added to your personal dictionary. Helps recognize familiar names and words.•Gmail: allows you to sign in to your existing Gmail account from where existing contact information is added to your personal dictionary. Helps recognize familiar names.• Contribute data usage: when enabled, allows the Nuance® application to collect usage data for better word predictions.• Cellular data: when enabled, activates cellular data usage by the Swype application so it can receive program updates, language downloads, and other related features via your existing data connection.6. Tap Personal dictionary to access and manage your personal dictionary.7. Tap Updates to update the application if new software is available.For PRA Only, Printing NOT approved by Technical Writing Team

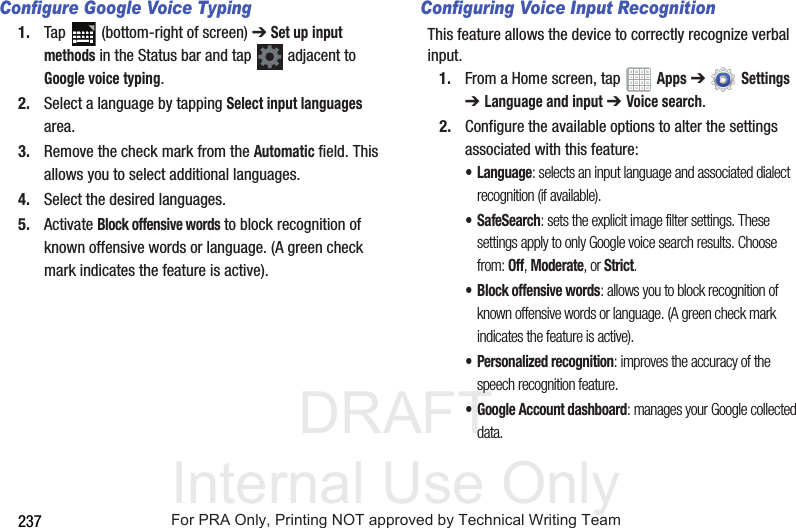

DRAFT Internal Use Only237Configure Google Voice Typing1. Tap (bottom-right of screen) ➔ Set up input methods in the Status bar and tap adjacent to Google voice typing. 2. Select a language by tapping Select input languages area.3. Remove the check mark from the Automatic field. This allows you to select additional languages.4. Select the desired languages.5. Activate Block offensive words to block recognition of known offensive words or language. (A green check mark indicates the feature is active).Configuring Voice Input RecognitionThis feature allows the device to correctly recognize verbal input.1. From a Home screen, tap Apps ➔ Settings ➔Language and input ➔ Voice search.2. Configure the available options to alter the settings associated with this feature:• Language: selects an input language and associated dialect recognition (if available).• SafeSearch: sets the explicit image filter settings. These settings apply to only Google voice search results. Choose from: Off, Moderate, or Strict.• Block offensive words: allows you to block recognition of known offensive words or language. (A green check mark indicates the feature is active).• Personalized recognition: improves the accuracy of the speech recognition feature.• Google Account dashboard: manages your Google collected data.For PRA Only, Printing NOT approved by Technical Writing Team

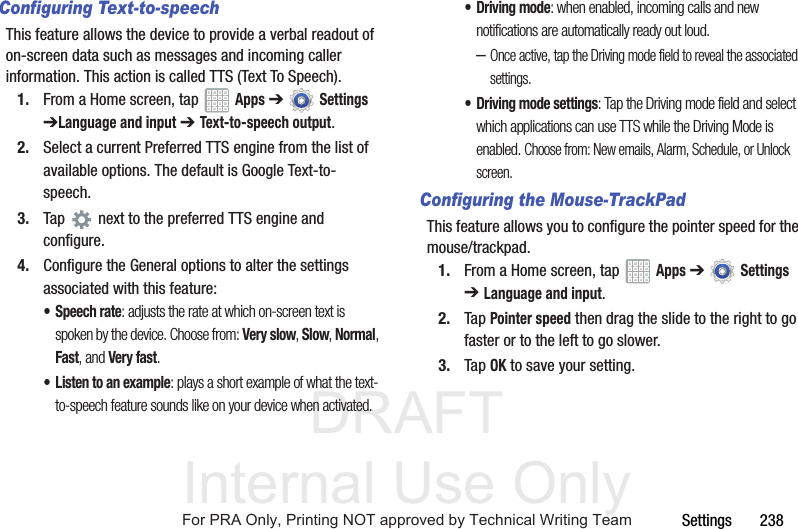

DRAFT Internal Use OnlySettings 238Configuring Text-to-speechThis feature allows the device to provide a verbal readout of on-screen data such as messages and incoming caller information. This action is called TTS (Text To Speech).1. From a Home screen, tap Apps ➔ Settings ➔Language and input ➔ Text-to-speech output.2. Select a current Preferred TTS engine from the list of available options. The default is Google Text-to-speech.3. Tap next to the preferred TTS engine and configure.4. Configure the General options to alter the settings associated with this feature:• Speech rate: adjusts the rate at which on-screen text is spoken by the device. Choose from: Very slow, Slow, Normal, Fast, and Very fast.• Listen to an example: plays a short example of what the text-to-speech feature sounds like on your device when activated.• Driving mode: when enabled, incoming calls and new notifications are automatically ready out loud. –Once active, tap the Driving mode field to reveal the associated settings.• Driving mode settings: Tap the Driving mode field and select which applications can use TTS while the Driving Mode is enabled. Choose from: New emails, Alarm, Schedule, or Unlock screen. Configuring the Mouse-TrackPadThis feature allows you to configure the pointer speed for the mouse/trackpad.1. From a Home screen, tap Apps ➔ Settings ➔Language and input.2. Tap Pointer speed then drag the slide to the right to go faster or to the left to go slower.3. Tap OK to save your setting.For PRA Only, Printing NOT approved by Technical Writing Team

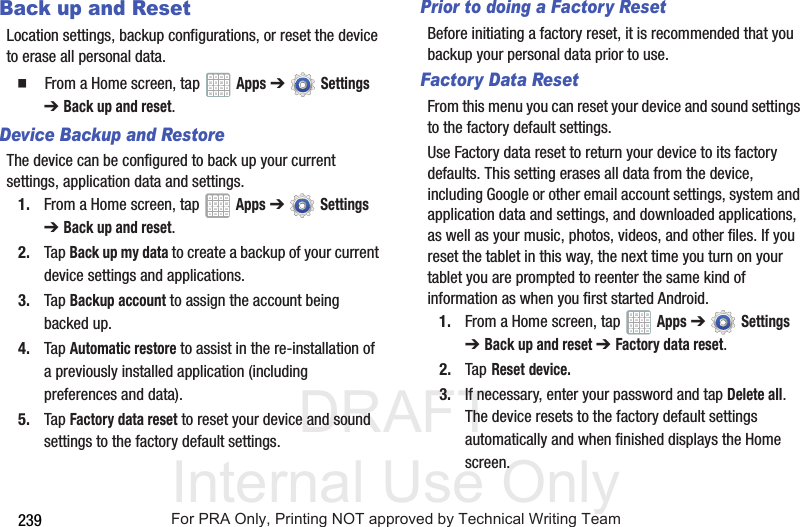

DRAFT Internal Use Only239Back up and ResetLocation settings, backup configurations, or reset the device to erase all personal data. From a Home screen, tap Apps ➔ Settings ➔ Back up and reset.Device Backup and RestoreThe device can be configured to back up your current settings, application data and settings.1. From a Home screen, tap Apps ➔ Settings ➔Back up and reset.2. Tap Back up my data to create a backup of your current device settings and applications.3. Tap Backup account to assign the account being backed up.4. Tap Automatic restore to assist in the re-installation of a previously installed application (including preferences and data).5. Tap Factory data reset to reset your device and sound settings to the factory default settings. Prior to doing a Factory ResetBefore initiating a factory reset, it is recommended that you backup your personal data prior to use. Factory Data ResetFrom this menu you can reset your device and sound settings to the factory default settings.Use Factory data reset to return your device to its factory defaults. This setting erases all data from the device, including Google or other email account settings, system and application data and settings, and downloaded applications, as well as your music, photos, videos, and other files. If you reset the tablet in this way, the next time you turn on your tablet you are prompted to reenter the same kind of information as when you first started Android.1. From a Home screen, tap Apps ➔ Settings ➔Back up and reset ➔Factory data reset.2. Tap Reset device.3. If necessary, enter your password and tap Delete all.The device resets to the factory default settings automatically and when finished displays the Home screen.For PRA Only, Printing NOT approved by Technical Writing Team

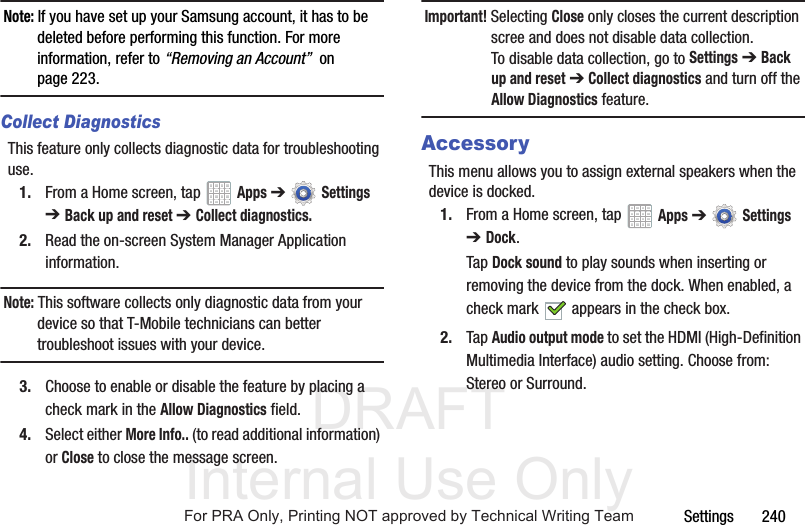

DRAFT Internal Use OnlySettings 240Note: If you have set up your Samsung account, it has to be deleted before performing this function. For more information, refer to “Removing an Account” on page 223.Collect DiagnosticsThis feature only collects diagnostic data for troubleshooting use.1. From a Home screen, tap Apps ➔ Settings ➔ Back up and reset ➔ Collect diagnostics.2. Read the on-screen System Manager Application information. Note: This software collects only diagnostic data from your device so that T-Mobile technicians can better troubleshoot issues with your device.3. Choose to enable or disable the feature by placing a check mark in the Allow Diagnostics field.4. Select either More Info.. (to read additional information) or Close to close the message screen.Important! Selecting Close only closes the current description scree and does not disable data collection.To disable data collection, go to Settings ➔ Back up and reset ➔ Collect diagnostics and turn off the Allow Diagnostics feature. AccessoryThis menu allows you to assign external speakers when the device is docked.1. From a Home screen, tap Apps ➔ Settings ➔Dock.Tap Dock sound to play sounds when inserting or removing the device from the dock. When enabled, a check mark appears in the check box.2. Tap Audio output mode to set the HDMI (High-Definition Multimedia Interface) audio setting. Choose from: Stereo or Surround.For PRA Only, Printing NOT approved by Technical Writing Team
DRAFT Internal Use Only241Date and TimeBy default, your device receives date and time information from the wireless network. When you are outside network coverage, you may want to set date and time information manually using the Date & time settings.1. From a Home screen, tap Apps ➔ Settings ➔Date and time.2. Tap Automatic date and time to allow the network set the date and time.Important! Deactivate Automatic date and time to manually set the rest of the options.3. Tap Automatic time zone to allow the network set the time zone information automatically. Configure the following settings:•Set date: Enter the current date (only available when the Automatic setting is disabled).•Set time: Enter the current time (only available when the Automatic setting is disabled).• Select time zone: Choose your local time zone (only available when the Automatic setting is disabled).• Use 24-hour format: Set the format for time displays.• Select date format: Set the format for date displays.AccessibilityAccessibility services are special features to make using the device easier for those with certain physical disabilities. Use the Accessibility settings to activate these services.Note: You can download accessibility applications from Google Play and manage their use here.System1. From a Home screen, tap Apps ➔ Settings ➔Accessibility.2. Configure the following settings:• Auto-rotate screen: Automatically rotates the screen from landscape to portrait orientation and vice versa.• Speak passwords: Speaks passwords to enter them.• Accessibility shortcut: Add a shortcut to Accessibility settings that displays when you press and hold the Power key.• Screen timeout: Select the screen delay time The screen delays shutting off after inactivity for the selected period of time.For PRA Only, Printing NOT approved by Technical Writing Team

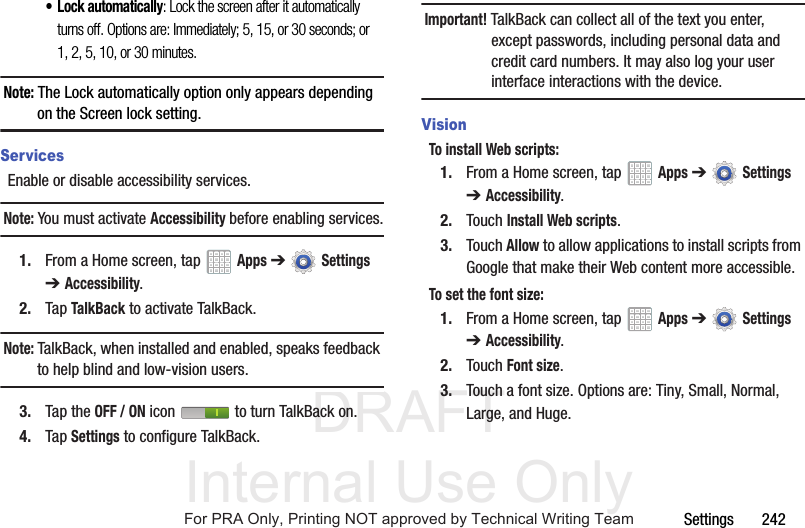

DRAFT Internal Use OnlySettings 242• Lock automatically: Lock the screen after it automatically turns off. Options are: Immediately; 5, 15, or 30 seconds; or 1, 2, 5, 10, or 30 minutes.Note: The Lock automatically option only appears depending on the Screen lock setting.ServicesEnable or disable accessibility services.Note: You must activate Accessibility before enabling services.1. From a Home screen, tap Apps ➔ Settings ➔Accessibility.2. Tap TalkBack to activate TalkBack.Note: TalkBack, when installed and enabled, speaks feedback to help blind and low-vision users.3. Tap the OFF / ON icon to turn TalkBack on.4. Tap Settings to configure TalkBack.Important! TalkBack can collect all of the text you enter, except passwords, including personal data and credit card numbers. It may also log your user interface interactions with the device.VisionTo install Web scripts:1. From a Home screen, tap Apps ➔ Settings ➔Accessibility.2. Touch Install Web scripts.3. Touch Allow to allow applications to install scripts from Google that make their Web content more accessible.To set the font size:1. From a Home screen, tap Apps ➔ Settings ➔Accessibility.2. Touch Font size.3. Touch a font size. Options are: Tiny, Small, Normal, Large, and Huge.For PRA Only, Printing NOT approved by Technical Writing Team

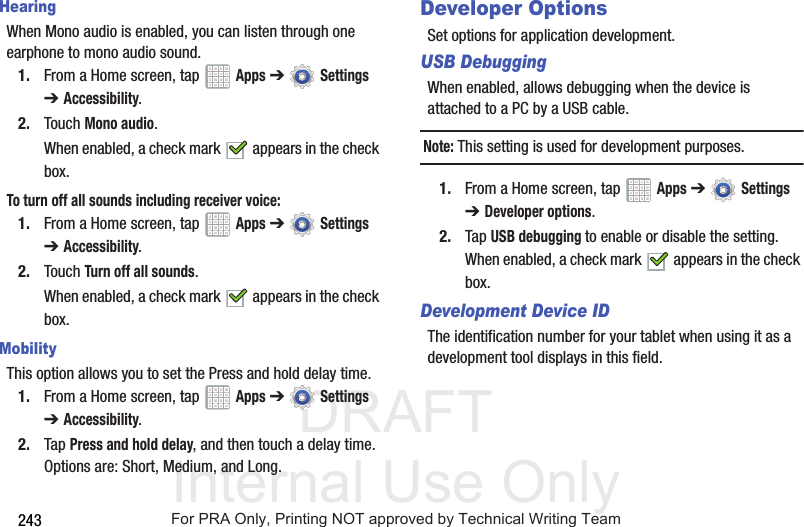

DRAFT Internal Use Only243HearingWhen Mono audio is enabled, you can listen through one earphone to mono audio sound.1. From a Home screen, tap Apps ➔ Settings ➔Accessibility.2. Touch Mono audio.When enabled, a check mark appears in the check box.To turn off all sounds including receiver voice:1. From a Home screen, tap Apps ➔ Settings ➔Accessibility.2. Touch Turn off all sounds.When enabled, a check mark appears in the check box.MobilityThis option allows you to set the Press and hold delay time.1. From a Home screen, tap Apps ➔ Settings ➔Accessibility.2. Tap Press and hold delay, and then touch a delay time. Options are: Short, Medium, and Long.Developer OptionsSet options for application development.USB DebuggingWhen enabled, allows debugging when the device is attached to a PC by a USB cable.Note: This setting is used for development purposes.1. From a Home screen, tap Apps ➔ Settings ➔ Developer options.2. Tap USB debugging to enable or disable the setting. When enabled, a check mark appears in the check box.Development Device IDThe identification number for your tablet when using it as a development tool displays in this field.For PRA Only, Printing NOT approved by Technical Writing Team

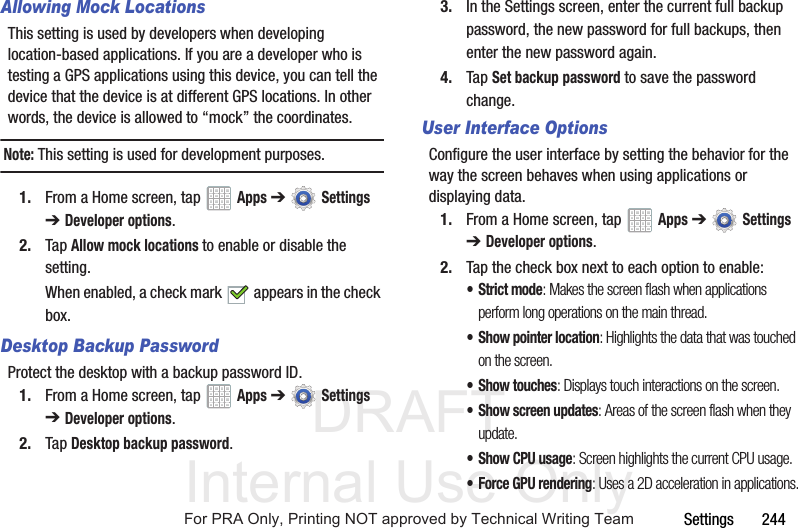

DRAFT Internal Use OnlySettings 244Allowing Mock LocationsThis setting is used by developers when developing location-based applications. If you are a developer who is testing a GPS applications using this device, you can tell the device that the device is at different GPS locations. In other words, the device is allowed to “mock” the coordinates.Note: This setting is used for development purposes.1. From a Home screen, tap Apps ➔ Settings ➔ Developer options.2. Tap Allow mock locations to enable or disable the setting. When enabled, a check mark appears in the check box.Desktop Backup PasswordProtect the desktop with a backup password ID.1. From a Home screen, tap Apps ➔ Settings ➔ Developer options.2. Tap Desktop backup password.3. In the Settings screen, enter the current full backup password, the new password for full backups, then enter the new password again.4. Tap Set backup password to save the password change.User Interface OptionsConfigure the user interface by setting the behavior for the way the screen behaves when using applications or displaying data.1. From a Home screen, tap Apps ➔ Settings ➔ Developer options.2. Tap the check box next to each option to enable:• Strict mode: Makes the screen flash when applications perform long operations on the main thread.• Show pointer location: Highlights the data that was touched on the screen.• Show touches: Displays touch interactions on the screen.• Show screen updates: Areas of the screen flash when they update.• Show CPU usage: Screen highlights the current CPU usage.• Force GPU rendering: Uses a 2D acceleration in applications.For PRA Only, Printing NOT approved by Technical Writing Team
DRAFT Internal Use Only245• Window animation scale: Configure the scale for animation (ranges from off to 10x).• Transition animation scale: Configure the scale for transitioning when using animation (ranges from off to 10x).Application Options1. From a Home screen, tap Apps ➔ Settings ➔ Developer options.2. Tap Do not keep activities to destroy every activity as soon as the application is closed.3. Tap Limit background processes to set the number of processes that can run in the background. Options are: Standard limit, No background processes, and 1 to 4 processes at most.4. Tap Show all ANRs to display a prompt when applications running in the background are not responding.About DeviceView information about your device, including status, legal information, hardware and software versions, and battery use.1. From a Home screen, tap Apps ➔ Settings ➔ About device.2. Tap items to view details:• Software update: Connect to the network and download new software. For more information, refer to “Software Update” on page 246.• Status: displays the Battery status, the Battery level (percentage), the Network connection, Signal strength, Mobile network type, Service state, Roaming status, Mobile network state, MDN, ERI, IMEI number, IMEI SV, IP address, Wi-Fi MAC address, Bluetooth address, Serial number, Up time, and Device status.• Legal information: Display Open source licenses, Google legal, and License settings information.For PRA Only, Printing NOT approved by Technical Writing Team

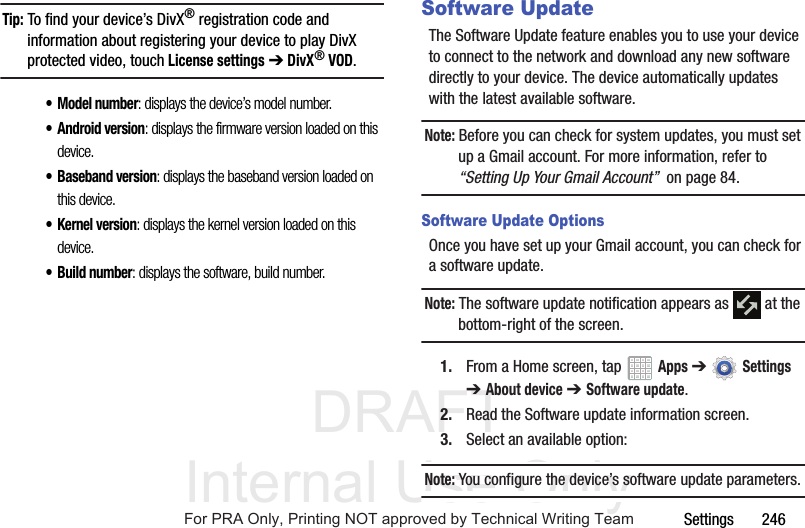

DRAFT Internal Use OnlySettings 246Tip: To find your device’s DivX® registration code and information about registering your device to play DivX protected video, touch License settings ➔ DivX® VOD.• Model number: displays the device’s model number.• Android version: displays the firmware version loaded on this device.• Baseband version: displays the baseband version loaded on this device.• Kernel version: displays the kernel version loaded on this device.• Build number: displays the software, build number.Software UpdateThe Software Update feature enables you to use your device to connect to the network and download any new software directly to your device. The device automatically updates with the latest available software.Note: Before you can check for system updates, you must set up a Gmail account. For more information, refer to “Setting Up Your Gmail Account” on page 84.Software Update OptionsOnce you have set up your Gmail account, you can check for a software update.Note: The software update notification appears as at the bottom-right of the screen.1. From a Home screen, tap Apps ➔ Settings ➔About device ➔ Software update.2. Read the Software update information screen.3. Select an available option:Note: You configure the device’s software update parameters.For PRA Only, Printing NOT approved by Technical Writing Team

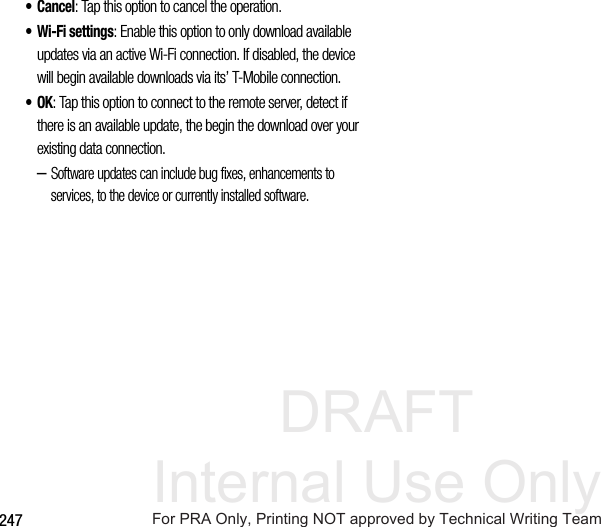

DRAFT Internal Use Only247• Cancel: Tap this option to cancel the operation.• Wi-Fi settings: Enable this option to only download available updates via an active Wi-Fi connection. If disabled, the device will begin available downloads via its’ T-Mobile connection.•OK: Tap this option to connect to the remote server, detect if there is an available update, the begin the download over your existing data connection.–Software updates can include bug fixes, enhancements to services, to the device or currently installed software.For PRA Only, Printing NOT approved by Technical Writing Team
