Samsung Electronics Co ET-MP900D S Action Mouse User Manual MP900D UM EU Eng indb

Samsung Electronics Co Ltd S Action Mouse MP900D UM EU Eng indb

User Manual

GH68-XXXXXA Rev.1.0English (EU). 12/2013
www.samsung.comS Action MouseUser Manual

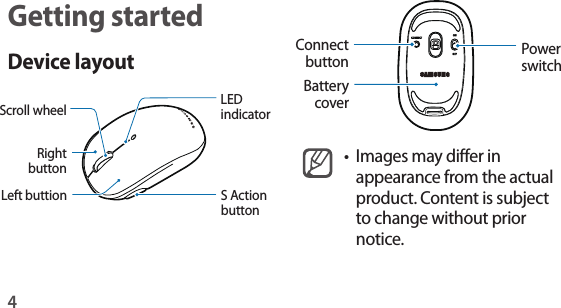

4Getting startedDevice layoutRight buttonLeft buttion S Action buttonScroll wheel LED indicatorConnect button Power switchBattery cover• Images may differ in appearance from the actual product. Content is subject to change without prior notice.
Getting started5Turning the device on or offSlide the power switch to ON to turn on the device. When the device is turned on, the notification light flashes blue.TBDSlide the power switch to OFF to turn off the device.• The device is only compatible with some Samsung devices operated by Google Android. This user manual focuses on the features available after connecting the device to other device.• Some features may not be available depending on the connected device.
Getting started62 Replace the battery and be sure that the polarities (+/-) of the batteries are correct.Do not recharge the batteries (AA type) supplied with the product. 3 Replace the battery cover.To close the cover, attach the upper part of the battery cover and press firmly on each part in order.Changing the batteryReplace the battery when the notification light flashes red.1 Remove the battery cover.Put your fingernails in to the indentation at the end of the battery cover and pull out the cover.Be careful not to damage your fingernails when you remove the back cover.
Getting started71 Press and hold the Connect button for more than 3 seconds.The notification light flashes red and blue.2 On the Bluetooth-enabled device, access the Bluetooth setup mode and search for Bluetooth devices.3 From the search results, select the device name.When pairing is complete, the device's name appears in the device list.Connecting to other devicesYou can connect the device to other Bluetooth-enabled devices, such as smartphones or computers.You can connect to an other Bluetooth-enabled device only after disconnecting a previously connected device.
Getting started8• If the mouse is not used for 10 minutes, the mouse hibernates. In this case, click a mouse button to wake it up. Then, you can use the mouse after a moment.• If the Bluetooth connection fails or the other device cannot search for the device, remove the device's information from the other device's list, and then try again.• If the mouse doesn’t work properly, restart the system, or try to pair both devices again.

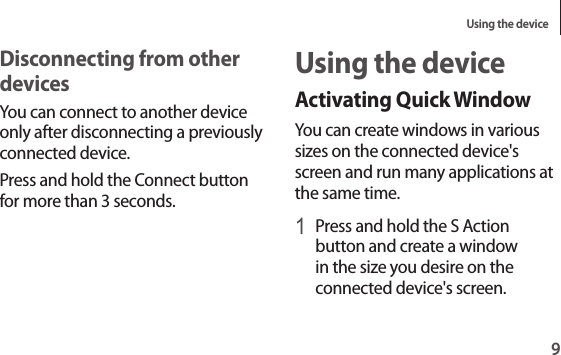

Using the device9Using the deviceActivating Quick WindowYou can create windows in various sizes on the connected device's screen and run many applications at the same time.1 Press and hold the S Action button and create a window in the size you desire on the connected device's screen.Disconnecting from other devicesYou can connect to another device only after disconnecting a previously connected device.Press and hold the Connect button for more than 3 seconds.
Using the device10Using the S Action featuresOpening a list of recently-used applicationsPress and hold the S Action button and drag the device to the right.TBD2 Select one of the applications from the list of available applications appeared on the connected device.
Using the device11Zooming in or out the current text or imagesPress and hold the S Action button and scroll the Scroll wheel up or down.Closing the running applicationPress and hold the S Action button and drag the device down.
Using the device12Using the scroll wheel• Press to return to the Home screen.• Press and hold to launch Google search.• Press twice to launch S Voice.TBD
Appendix13The wireless connection range may vary depending on the environment the device is used in.AppendixSpecifications and featuresDimensions (mm) 57.5 X 97.6 X 33.6Weight (±1 g) 80.8Operating Voltage 1.5 VDCInput Power 35 mWInput Voltage 1.5 VDC
