Samsung Electronics Co EVNXF2 Digital Camera User Manual EV NXF2 Part 1

Samsung Electronics Co Ltd Digital Camera EV NXF2 Part 1

Contents

User Manual_EV-NXF2_Part 1

USER MANUALENG This user manual includes detailed usage instructions for your camera. Please read this manual thoroughly.
1Copyright informationCamera specications or contents of this manual may be changed without prior notice due to upgrade of camera functions.You are not allowed to reuse or distribute any part of this manual without prior permission.We recommend using your camera within the country where you purchase it.Use this camera responsibly and adhere to all laws and regulations concerning its use.PlanetFirst represents Samsung Electronics' commitment to sustainable development and social responsibility through eco-driven business and management activities.Microsoft Windows and the Windows logo are registered trademarks of the Microsoft Corporation.Mac and Apple App Store are registered trademarks of the Apple Corporation.Google Play Store is a registered trademark of Google, Inc.Adobe, the Adobe logo, Photoshop, and Lightroom are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.microSD™, microSDHC™, and microSDXC™ are registered trademarks of the SD Association.HDMI, the HDMI logo, and the term "High Denition Multimedia Interface" are trademarks or registered trademarks of HDMI Licensing LLC.Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance.Trademarks and trade names used in this manual are the property of their respective owners.
2Health and safety informationPrevent damage to subjects’ eyesight.Do not use the ash in close proximity (closer than 1 m/3 ft) to people or animals. If you use the ash too close to your subject’s eyes, this can cause temporary or permanent eyesight damage.Keep your camera away from small children and pets.Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.Do not expose the camera to direct sunlight or high temperatures for an extended period of time.Prolonged exposure to sunlight or extreme temperatures can cause permanent damage to your camera’s internal components.Avoid covering the camera or charger with blankets or clothes.The camera may overheat, which may distort the camera or cause a re.Do not handle the power supply cord or the charger during a thunderstorm.This may result in an electric shock.Always comply with the following precautions and usage tips to avoid dangerous situations and ensure peak performance of your camera. Warning—situations that could cause injury to yourself or othersDo not disassemble or attempt to repair your camera.You can damage the camera and expose yourself to the risk of an electric shock.Do not use your camera near ammable or explosive gases and liquids.This may cause a re or explosion.Do not insert ammable materials into the camera or store these materials near the camera.This may cause a re or electric shock.Do not handle your camera with wet hands.This may result in an electric shock.
3Health and safety informationIf liquid or foreign objects enter your camera, immediately disconnect all power sources, such as the battery or charger, and then contact a Samsung service center.Comply with any regulations that restrict the use of a camera in a certain area.Avoid interference with other electronic devices.Turn o the camera when in an aircraft. Your camera can cause interference with aircraft equipment. Follow all airline regulations and turn o your camera when directed by airline personnel.Turn o the camera near medical equipment. Your camera can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel.Avoid interference with pacemakers.Maintain a safe distance between this camera and all pacemakers to avoid potential interference, as recommended by the manufacturer and research groups. If you have any reason to suspect that your camera is interfering with a pacemaker or other medical device, turn o the camera immediately and contact the manufacturer of the pacemaker or medical device for guidance. Caution—situations that could cause damage to your camera or other equipmentRemove the batteries from your camera when storing it for an extended period of time.Installed batteries may leak or corrode over time and cause serious damage to your camera.Use only authentic, manufacturer-recommended, Lithium-ion replacement batteries. Do not damage or heat the battery.Inauthentic, damaged, or heated batteries may cause a re or personal injury.Use only Samsung-approved batteries, chargers, cables, and accessories.Using unauthorized batteries, chargers, cables, or accessories can cause batteries to explode, damage your camera, or cause injury.Samsung is not responsible for damage or injuries caused by unapproved batteries, chargers, cables, or accessories.Use the battery only for its intended purpose.Misusing the battery may cause a re or electric shock.
4Health and safety informationDo not touch the ash while it res.The ash is very hot when red and may burn your skin.When you use the AC charger, turn o the camera before you disconnect the power to the AC charger.Failing to do so may result in re or electric shock.Disconnect the charger from the wall socket when not in use.Failing to do so may result in re or electric shock.Do not use a damaged power supply cord, plug, or loose outlet when you charge batteries.This may cause a re or electric shock.Do not allow the AC charger to come in contact with the +/- terminals on the battery.This may cause a re or electric shock.Do not drop or subject the camera to strong impacts.Doing so may damage the screen or external or internal components.Exercise caution when you connect cables and install batteries and memory cards.If you force the connectors, improperly connect cables, or improperly install batteries and memory cards, you can damage ports, connectors, and accessories.Keep cards with magnetic strips away from the camera case.Information stored on the card may be damaged or erased.Never use a damaged battery or memory card.This may result in electric shock or camera malfunction or cause a re.Do not place the camera in or near magnetic elds.Doing so may cause the camera to malfunction. Do not use the camera if the screen is damaged. If the glass or acrylic parts are broken, visit a Samsung service center to have the camera repaired.
5Health and safety informationCheck that the camera is operating properly before use.The manufacturer takes no responsibility for any loss of les or damage that may result from camera malfunction or improper use.You must plug the small end of the USB cable into your camera.If the cable is reversed, it may damage your les. The manufacturer is not responsible for any loss of data.Do not expose the lens to direct sunlight.This may discolor the image sensor or cause it to malfunction.If the camera overheats, remove the battery and allow it to cool down.Prolonged usage of the camera may overheat the battery and raise the internal temperature of the camera. If the camera stops operating, remove the battery and allow it to cool down.High internal temperatures may result in noise in your photos. This is normal and does not aect your camera’s overall performance.Avoid interference with other electronic devices.Your camera emits radio frequency (RF) signals that may interfere with unshielded or improperly shielded electronic equipment, such as pacemakers, hearing aids, medical devices, and other electronic devices in homes or vehicles. Consult the manufacturers of your electronic devices to solve any interference problems you experience. To prevent unwanted interference, use only Samsung-approved devices or accessories.Use your camera in the normal position.Avoid contact with your camera’s internal antenna.Data transference and your responsibilitiesData transferred via WLAN could be leaked, so avoid transferring sensitive data in public areas or on open networks. The camera manufacturer is not liable for any data transfers that infringe on copyrights, trademarks, intellectual property laws, or public decency ordinances.
6Icons used in this manualIcon FunctionAdditional informationSafety warnings and precautions[ ]Camera buttons. For example, [Shutter] represents the shutter button.( )Page number of related informationĺThe order of options or menus you must select to perform a step; for example: Select b ĺ Quality (represents select b, and then Quality). *AnnotationThis manual is explained based on NX-M lenses. When you attach NX lenses using the mount adapter, some shooting options or functions may not be supported.
7ContentsChapter 1My CameraGetting started ............................................................................................ 27Unpacking.................................................................................................................... 27Camera layout .............................................................................................. 28Using the DIRECT LINK button ............................................................................. 30Setting the DIRECT LINK button ............................................................................. 30Using the display ....................................................................................................... 31Using the Self shot mode.......................................................................................... 31Inserting the battery and memory card ................................................. 32Removing the battery and memory card ......................................................... 34Using the memory card adapter .......................................................................... 34Charging the battery and turning on your camera .............................. 35Charging the battery................................................................................................ 35Turning on your camera ......................................................................................... 35Performing the initial setup ...................................................................... 36Selecting functions (options) ................................................................... 38Selecting with buttons ............................................................................................ 38Selecting by touch .................................................................................................... 38Using m ................................................................................................................. 39E.g. Selecting the photo size in P mode .............................................................. 39Using the Smart panel ............................................................................................. 40E.g. Adjust the exposure value in P mode .......................................................... 40Selecting a mode ......................................................................................... 41Accessing a Mode screen ....................................................................................... 41Mode description ...................................................................................................... 41TipsConcepts in PhotographyShooting postures....................................................................................... 13Holding the camera ..................................................................................................... 13Standing photography ............................................................................................... 14Crouching photography ............................................................................................ 14Aperture ........................................................................................................ 15Aperture value and the depth of eld .................................................................. 16Shutter speed ............................................................................................... 17ISO sensitivity .............................................................................................. 18How the aperture setting, shutter speed, and ISO sensitivity control exposure ......................................................................................... 19Correlation between focal length, angle, and perspective ................ 20Depth of eld ............................................................................................... 20What controls out-of-focus eects? ....................................................................... 21DOF preview ................................................................................................................... 22Composition ................................................................................................. 23Rule of Thirds .................................................................................................................. 23Photos with two subjects .......................................................................................... 24Flash ............................................................................................................... 25Flash guide number ..................................................................................................... 25
8ContentsDisplay icons ................................................................................................ 43In Shooting mode ..................................................................................................... 43Capturing photos ........................................................................................................ 43Recording videos ......................................................................................................... 44About the level gauge ............................................................................................... 44In Playback mode ...................................................................................................... 45Viewing photos ............................................................................................................ 45Playing videos ............................................................................................................... 45Changing the information displayed ................................................................. 46Lenses ............................................................................................................ 47Lens layout ................................................................................................................... 47Locking or unlocking the lens ................................................................................. 48Lens markings ............................................................................................................ 49Accessories ................................................................................................... 50External ash layout ................................................................................................. 50Connecting the external ash ................................................................................. 51Mount adapter layout .............................................................................................. 52Attaching the mount adapter ................................................................................. 52Removing the mount adapter ................................................................................ 53Shooting modes .......................................................................................... 54Auto mode ................................................................................................................... 54Smart mode................................................................................................................. 56Using the Beauty Face mode ................................................................................... 56Using the Best Face mode ........................................................................................ 57Capturing panoramic photos .................................................................................. 58Program mode ........................................................................................................... 59Program Shift ................................................................................................................ 60Minimum shutter speed ............................................................................................ 60Aperture Priority mode ........................................................................................... 61Shutter Priority mode .............................................................................................. 62Manual mode.............................................................................................................. 63Using Framing Mode .................................................................................................. 63Using the Bulb function ............................................................................................ 64Recording a video ..................................................................................................... 65Available functions by shooting mode ............................................................. 66Chapter 2Shooting FunctionsSize and Resolution .................................................................................... 69Photo size ..................................................................................................................... 69Quality ........................................................................................................................... 70ISO sensitivity .............................................................................................. 71White Balance .............................................................................................. 72Customizing preset White Balance options ....................................................... 73Picture Wizard (photo styles) .................................................................... 74
9ContentsAF mode ........................................................................................................ 75Single AF ....................................................................................................................... 75Continuous AF ............................................................................................................ 76Manual focus ............................................................................................................... 76AF area ........................................................................................................... 77Selection AF ................................................................................................................ 77Multi AF ......................................................................................................................... 78Face Detection ............................................................................................. 79Normal........................................................................................................................... 79Smile Shot .................................................................................................................... 80Wink Shot ..................................................................................................................... 80Touch AF ........................................................................................................ 81Touch AF ....................................................................................................................... 81AF Point ......................................................................................................................... 81Tracking AF .................................................................................................................. 81One touch shot .......................................................................................................... 82MF Assist ....................................................................................................... 83Optical Image Stabilization (OIS) ............................................................. 84Drive (shooting method) ........................................................................... 85Single ............................................................................................................................. 85Continuous Normal .................................................................................................. 86Burst ............................................................................................................................... 86Timer .............................................................................................................................. 87Auto Exposure Bracketing (AE Bracket) ............................................................. 87White Balance Bracketing (WB Bracket) ............................................................ 88Picture Wizard Bracketing (P Wiz Bracket) ........................................................ 88Depth Bracketing ..................................................................................................... 89Flash ............................................................................................................... 90Reducing the red-eye eect .................................................................................. 91Adjusting the ash intensity ................................................................................. 91Metering ........................................................................................................ 92Multi ............................................................................................................................... 92Center-weighted ....................................................................................................... 93Spot ................................................................................................................................ 93Measuring the exposure value of the focus area ........................................... 94Dynamic Range ........................................................................................... 95Smart Filter ................................................................................................... 96Exposure compensation ............................................................................ 97Exposure lock ............................................................................................... 98Video functions ........................................................................................... 99Movie size..................................................................................................................... 99When Video Out is set to NTSC ............................................................................... 99When Video Out is set to PAL .................................................................................. 99Movie quality ........................................................................................................... 100Multi Motion ............................................................................................................ 100Fader ........................................................................................................................... 101Voice ............................................................................................................................ 101
10ContentsChapter 3Playback/EditingSearching and managing les ................................................................ 103Viewing photos ....................................................................................................... 103Viewing image thumbnails ................................................................................. 103Viewing les by category .................................................................................... 104Viewing les as a folder ........................................................................................ 104Protecting les ........................................................................................................ 105Deleting les ............................................................................................................ 106Deleting a single le ................................................................................................. 106Deleting multiple les .............................................................................................. 106Deleting all les .......................................................................................................... 106Viewing photos .......................................................................................... 107Enlarging a photo .................................................................................................. 107Viewing a slide show ............................................................................................. 107Auto rotating ........................................................................................................... 108Playing videos ............................................................................................ 109Scanning backward or forward ......................................................................... 109Adjusting the brightness of a video ................................................................ 110Adjusting the volume of a video ...................................................................... 110Trimming a video during playback .................................................................. 111Capturing an image during playback ............................................................. 111Editing photos ........................................................................................... 112Cropping a photo ................................................................................................... 112Rotating a photo .................................................................................................... 113Resizing photos....................................................................................................... 113Adjusting your photos .......................................................................................... 114Retouching faces .................................................................................................... 115Applying Smart Filter eects .............................................................................. 116Chapter 4Wireless networkConnecting to a WLAN and conguring network settings ............... 118Connecting to a WLAN ......................................................................................... 118Setting network options ......................................................................................... 119Manually setting the IP address ........................................................................... 119Using the login browser....................................................................................... 120Network connection tips ..................................................................................... 121Entering text ............................................................................................................ 122Using the NFC Feature (Tag & Go) ......................................................... 123Using NFC features in Shooting mode ........................................................... 123Using NFC features in Playback mode (Photo Beam)................................ 123Using NFC features in Wi-Fi mode .................................................................... 123Saving les to a smart phone automatically ....................................... 124Sending photos or videos to a smart phone ....................................... 126
11ContentsChapter 5Camera settings menuUser settings ............................................................................................... 146ISO Customizing ..................................................................................................... 146ISO Expansion ............................................................................................................. 146ISO Step ......................................................................................................................... 146Auto ISO Range .......................................................................................................... 146Noise Reduction ..................................................................................................... 147Bracket Settings ...................................................................................................... 147Color Space ............................................................................................................... 148Distortion Correct .................................................................................................. 149Touch Operation ..................................................................................................... 149iFn Customizing ...................................................................................................... 149User Display .............................................................................................................. 150Key Mapping ............................................................................................................ 151Live view NFC........................................................................................................... 151MobileLink/NFC Image Size .............................................................................. 151Grid Line .................................................................................................................... 151AF Lamp ..................................................................................................................... 152Auto Self-Shot ......................................................................................................... 152Lens Button Speed Settings ............................................................................... 152Setting ......................................................................................................... 153Sending photos or videos to multiple smart phones ........................ 128Using a smart phone as a remote shutter release .............................. 130Using the Baby Monitor ........................................................................... 132Adjusting the noise level for alarm activation ............................................. 133Using Auto Backup to send photos or videos ..................................... 134Installing the program for Auto Backup on your PC.................................. 134Sending photos or videos to a PC .................................................................... 134Sending photos or videos via email ...................................................... 136Changing email settings ...................................................................................... 136Storing your information ........................................................................................ 136Setting an email password ..................................................................................... 137Changing the email password .............................................................................. 138Sending photos or videos via email ................................................................ 138Using photo or video sharing services ................................................. 140Accessing a sharing service ................................................................................ 140Uploading photos or videos............................................................................... 141Using Samsung Link to send les .......................................................... 142Uploading photos to an online storage ......................................................... 142Viewing photos or videos on devices that support Samsung Link ...... 143
12ContentsUsing or storing the camera ............................................................................... 167Inappropriate places to use or store the camera ........................................... 167Using on beaches or shores ................................................................................... 167Storing for extended period of time ................................................................... 167Using the camera with caution in humid environments ............................ 168Other cautions ............................................................................................................ 168About memory card .............................................................................................. 169Supported memory card ........................................................................................ 169Memory card capacity ............................................................................................. 170Cautions when using memory cards .................................................................. 171About the battery .................................................................................................. 172Battery specications ............................................................................................... 172Battery life .................................................................................................................... 174Low battery message ............................................................................................... 174Notes about using the battery .............................................................................. 174Cautions about using the battery ........................................................................ 175Notes about charging the battery ....................................................................... 175Notes about charging with a computer connected...................................... 176Handle and dispose of batteries and chargers with care ............................ 176Updating the rmware ............................................................................. 177Before contacting a service center ........................................................ 178Camera specications .............................................................................. 181Glossary ....................................................................................................... 186Optional accessories ................................................................................. 192Index ............................................................................................................ 193FCC notice ................................................................................................... 196Chapter 6Connecting to external devicesViewing les on an HDTV ........................................................................ 157Transferring les to your computer ....................................................... 158Transferring les to your Windows OS computer ....................................... 158Connecting the camera as a removable disk ................................................... 158Disconnecting the camera (for Windows XP) .................................................. 159Transferring les to your Mac OS ...................................................................... 159Using programs on a PC........................................................................... 161Installing programs from the provided CD ................................................... 161Available programs when using i-Launcher .................................................... 161Using i-Launcher .................................................................................................... 162Requirements for Windows OS ............................................................................. 162Requirements for Mac OS ....................................................................................... 162Opening i-Launcher .................................................................................................. 162Downloading the rmware .................................................................................... 163Downloading the PC Auto Backup program ................................................... 163Installing Adobe Photoshop Lightroom ........................................................ 163Using Adobe Photoshop Lightroom ............................................................... 163Chapter 7AppendixError messages .......................................................................................... 165Maintaining the camera........................................................................... 166Cleaning the camera ............................................................................................. 166Camera lens and display ......................................................................................... 166Image sensor ............................................................................................................... 166Camera body ............................................................................................................... 166
13Concepts in PhotographyHolding the cameraHold the camera and place your index nger on the shutter button. For larger lenses, place your left hand under the lens for support.Shooting posturesA correct posture for stabilizing the camera is necessary for taking a good photo. Even if you hold a camera correctly, the wrong posture can cause the camera to shake. Stand up straight and remain still to maintain a steady base for your camera. When shooting with a slow shutter speed, hold your breath to minimize body movement.
14Concepts in PhotographyStanding photographyCompose your shot, stand up straight with your feet shoulder-length apart, and keep your elbows pointed down.Crouching photographyCompose your shot, crouch with one knee touching the ground, and keep a straight posture.
15Concepts in PhotographyApertureThe aperture is one of the three factors that determine the exposure. The aperture housing contains thin, metal plates that open and close to let light through the aperture and into the camera. The size of the aperture is related to the amount of light: a larger aperture allows more light and a smaller aperture allows less light.Aperture sizesMinimum aperture Medium aperture Maximum apertureAperture opened slightly Aperture opened wideThe size of the aperture is represented by a value known as an "F-number." The f-number represents the focal length divided by the diameter of the lens. For example, if a lens with a 50 mm focal length has an f-number of F2, the diameter of the aperture is 25 mm. (50 mm/25 mm = F2) The smaller the f-number, the greater the size of the aperture.The opening in the aperture is described as the Exposure Value (EV). Increasing the Exposure Value (+1 EV) means the amount of light doubles. Decreasing the Exposure Value (-1 EV) means the amount of light halves. You can also use the exposure compensation feature to ne-tune the amount of light by subdividing exposure values into 1/2, 1/3 EV, and so on.+1 EVF1.4 F2 F2.8 F4 F5.6 F8-1 EVExposure Value Steps
16Concepts in PhotographyAperture value and the depth of eldYou can blur or sharpen the background of a photo by controlling the aperture. It is closely related to the depth of eld (DOF), which can be expressed as small or large.A photo with a large DOF A photo with a small DOFThe aperture housing contains several blades. These blades move together and control the amount of light passing through the center of the aperture. The number of blades also aects the shape of light when shooting night scenes. If an aperture has an even number of blades, light divides into an equal number of sections. If the number of blades is odd, the number of sections is double the number of blades.For example, an aperture with 8 blades divides light into 8 sections and an aperture with 7 blades into 14 sections.7 blades 8 blades
17Concepts in PhotographyShutter speedShutter speed refers to the amount of time it takes to open and close the shutter. It controls the amount of light which passes through the aperture before it reaches the image sensor.Usually, the shutter speed is manually adjustable. The measurement of the shutter speed is known as the "Exposure Value" (EV), which is marked in intervals of 1 s, 1/2 s, 1/4 s, 1/8 s, 1/15 s, 1/1,000 s, 1/2,000 s, and so on.Exposure+1 EV-1 EV1 s 1/2 s 1/4 s 1/8 s 1/15 s 1/30 sShutter speedTherefore, the faster the shutter speed, the less light will be let in. Likewise, the slower the shutter speed, the more light will be let in.The photos below illustrate that a slow shutter speed allows more time for light to enter the camera. This adds a motion blurring eect to moving objects. On the other hand, a fast shutter speed allows less time to let light in and the photo more easily freezes subjects in motion.0.8 s 0.004 s
18Concepts in PhotographyISO sensitivityThe exposure of an image is determined by the sensitivity of the camera. This sensitivity is based on international lm standards, known as ISO standards. On digital cameras, this sensitivity rating is used to represent the sensitivity of the digital mechanism that captures the image.ISO sensitivity doubles as the number doubles. For example, an ISO 200 setting is capable of capturing images at twice the speed of an ISO 100 setting. However, higher ISO settings can result in "noise"—small specks, spots, and other phenomena in a photo that give the shot a noisy or dirty appearance. As a general rule, it is best to use a low ISO setting to prevent noise in your photos, unless you are shooting in darkened environments or at night.Changes in the quality and brightness according to ISO sensitivityBecause a low ISO sensitivity means the camera will be less sensitive to light, you need more light to have an optimal exposure. When using a low ISO sensitivity, open the aperture more or reduce the shutter speed to allow more light to enter the camera. For example, on a sunny day when light is abundant, a low ISO sensitivity does not require a slow shutter speed. However, in a dark place or at night, a low ISO sensitivity will result in a blurry photo. Therefore, it is recommended to increase the ISO sensitivity by a moderate amount.A photo captured with a tripod and high ISO sensitivityA blurred photo with a low ISO sensitivity

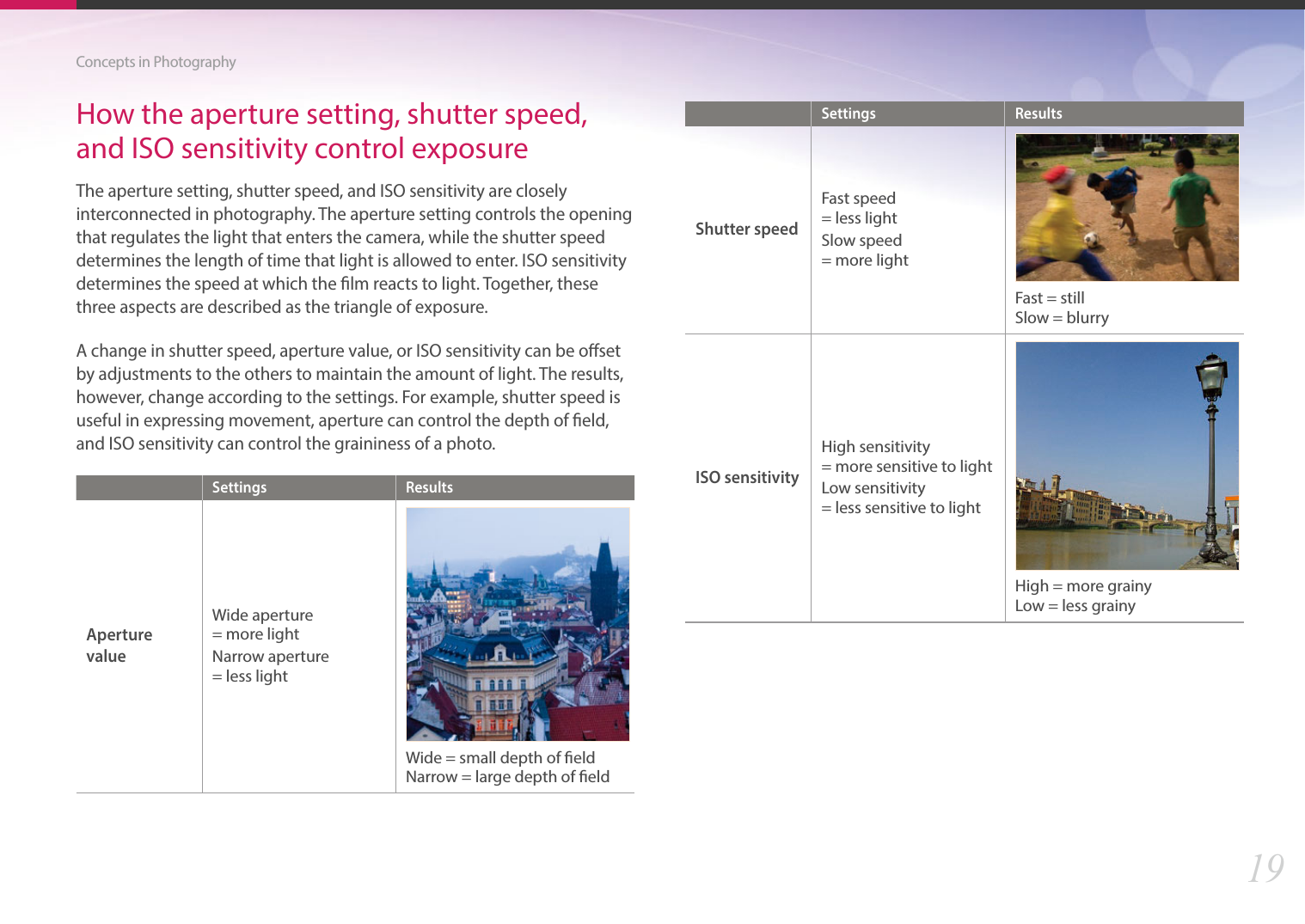

19Concepts in PhotographyHow the aperture setting, shutter speed, and ISO sensitivity control exposureThe aperture setting, shutter speed, and ISO sensitivity are closely interconnected in photography. The aperture setting controls the opening that regulates the light that enters the camera, while the shutter speed determines the length of time that light is allowed to enter. ISO sensitivity determines the speed at which the lm reacts to light. Together, these three aspects are described as the triangle of exposure.A change in shutter speed, aperture value, or ISO sensitivity can be oset by adjustments to the others to maintain the amount of light. The results, however, change according to the settings. For example, shutter speed is useful in expressing movement, aperture can control the depth of eld, and ISO sensitivity can control the graininess of a photo.Settings ResultsAperture valueWide aperture = more lightNarrow aperture = less lightWide = small depth of eld Narrow = large depth of eldSettings ResultsShutter speedFast speed = less lightSlow speed = more lightFast = still Slow = blurryISO sensitivityHigh sensitivity = more sensitive to lightLow sensitivity = less sensitive to lightHigh = more grainy Low = less grainy
20Concepts in PhotographyCorrelation between focal length, angle, and perspectiveFocal length, which is measured in millimeters, is the distance between the middle of the lens to its focal point. It aects the angle and perspective of captured images. A short focal length translates into a wide angle, which allows you to capture a wide shot. A long focal length translates into a narrow angle, which allows you to capture telephoto shots.9 mm angle 27 mm angleDepth of eldPortraits or still-life photos mostly acclaimed by people are the ones on which the background is out of focus so the subject looks pronounced. Depending on the focused areas, a photo can be blurred or sharpened. This is called 'a low DOF' or 'a high DOF'.The depth of eld is the focused area around the subject. Therefore, a small DOF signies that the focused area is narrow and a large DOF means the focused area is wide.A photo with a small DOF, which stresses the subject and makes the rest of it blurred, can be obtained by capturing a photo close to the subject or selecting a low aperture value. Conversely, a photo with a large DOF which shows all the elements on the photo sharply focused can be achieved by capturing a photo far from the subject or selecting a high aperture value. Small Depth of Field Large Depth of Field
21Concepts in PhotographyWhat controls out-of-focus eects?DOF depends on aperture valueThe wider the aperture is (namely the lower the aperture value), the lower the DOF becomes. Under the condition where the focal length is equal, a low aperture value leads to a photo with a low DOF.27 mm F3.5 27 mm F11DOF depends on focal lengthThe longer the focal length is, the lower the DOF gets.9 mm angle27 mm angle
22Concepts in PhotographyDOF depends on the distance between the subject and the cameraThe shorter the distance between the subject and the camera is, the lower the DOF gets. Therefore, taking a photo close to a subject can result in a photo of low DOF.A photo captured far from the subjectA photo captured close to the subject DOF previewYou can press the Custom button to get an idea of what your shot will look like before shooting. The camera adjusts the aperture to the predened settings and shows the results on the screen. Set the function of the Custom button to Optical Preview. (p. 151)
23Concepts in PhotographyCompositionIt is fun to capture a photo of the beauty of world with a camera. No matter how the world is beautiful, however, a poor composition cannot capture the beauty of it.When it comes to composition, it is very important to prioritize subjects. Composition in photography means arranging objects in a photo. Usually, abiding by the rule of thirds leads to a good composition.Rule of ThirdsTo use the rule of thirds, divide the image into a 3x3 pattern of equal rectangles.To compose photos that best emphasize the subject, make sure the subject is located at one of the corners of the center rectangle.Using the rule of thirds will create photos with stable and compelling compositions. Below are a few examples.
24Concepts in PhotographyPhotos with two subjectsIf your subject is in one corner of the photo, it creates an unbalanced composition. You can stabilize the photo by capturing a second subject in the opposite corner to balance the weight of the photo.Subject 1Subject 2Subject 1Subject 2Unstable StableWhen taking landscape photos, centering the horizon will create an unbalanced eect. Give more weight to the photo by moving the horizon up or down.Subject 1Subject 2Subject 1Subject 2Unstable Stable
25Concepts in PhotographyFlashLight is one of the most important components in photography. It is not easy, however, to have an enough amount of light anytime and anywhere. Making use of a ash allows you to optimize light settings and create a variety of eects.Flash, also known as strobe or speed light, helps to create adequate exposure in low-light conditions. It is also useful in light-abundant situations. For example, ash can be used in compensating the exposure of a subject’s shadow or capturing clearly both the subject and the background in backlit conditions.Before correction After correctionFlash guide numberThe model number of a ash refers to the ash’s power, and the maximum amount of light created is represented by a value known as a "guide number". The bigger the guide number, the more light is emitted from the ash. The guide number is achieved by multiplying the distance from the ash to the subject and the aperture value when the ISO sensitivity is set to 100.Guide number = Flash to Subject Distance X Aperture valueAperture value = Guide number/Flash to Subject DistanceFlash to Subject Distance = Guide number/Aperture valueTherefore, if you know the guide number of a ash, you can estimate an optimum ash to subject distance when setting the ash manually. For example, if a ash has a guide number of GN 20 and is 4 meters away from the subject, the optimal aperture value is F5.0.
Chapter 1My CameraLearn about your camera’s layout, display icons, lens, optional accessories, and basic functions.
My Camera27Getting startedUnpackingCheck your product box for the following items.Camera AC adapter/USB cable Rechargeable battery StrapSoftware CD-ROM (User manual included)Adobe Photoshop Lightroom DVD-ROM Quick Start Guide Quick Reference GuideThe illustrations may dier from your actual items. The items may dier depending on your region.You can purchase optional accessories at a retailer or a Samsung service center. Samsung is not responsible for any problems caused by using unauthorized accessories. For information about accessories, refer to page 192.
My Camera28Camera layoutNo. Name1 Shutter button2 Power button3 DIRECT LINK buttonStart a preset Wi-Fi function. (p. 30)4 External ash port cover5 Microphone6 Lens mount index7 Internal antenna* Avoid contact with the internal antenna while using a wireless network.8 Lens release button9 Image sensor* Do not touch the image sensor.10 Lens mount11 NFC tag12 AF-assist light/Timer lamp13 Built-in ash123456911 10 871312
My Camera > Camera layout29No. Name1 Speaker2 Eyelet for camera strap3 Video recording buttonStart recording a video.4 Status lampIndicate the status of the camera. Blinking: When saving a photo, shooting a video, sending data to a computer, connecting to WLAN, or sending a photo. Steady: When there is no data transfer or charging the battery. 5 f buttonSelect a shooting mode.6 D button In Shooting mode: Change the information on the display. In other situations: Move up.7 F button In Shooting mode: Select an AF mode. In other situations: Move right.8 o button In the Menu screen: Save the selected options. In Shooting mode: Allow you to select a focus area manually in some shooting modes.No. Name9 Delete/Custom button In Shooting mode: Perform the assigned function. (p. 151) In Playback mode: Delete les.10I button In Shooting mode: Adjust the shutter speed, aperture value, exposure compensation, or ISO sensitivity. In Playback mode: View thumbnails. In other situations: Move down.11Playback buttonEnter Playback mode to view pictures or videos.12C button In Shooting mode: Select a shooting method or set the timer. In other situations: Move left.13 m buttonAccess options or menus.14Display (touch screen) To take a self-portrait while looking at yourself on the screen, ip the screen up. (p. 31) Touch the screen to select a menu or an option. (p. 38)3214567891014 111213
My Camera > Camera layout30No. Name1 Tripod mount2 Battery lock3 Memory card slot4 USB and shutter release portConnect the camera to a computer or shutter release. Use a shutter release cable with a tripod to minimize camera movement.5 HDMI port6 Battery slot7 Battery coverUsing the DIRECT LINK buttonYou can turn on the Wi-Fi feature conveniently by pressing [DIRECT LINK]. Press [DIRECT LINK] again to return to the previous mode.Setting the DIRECT LINK buttonYou can select a Wi-Fi function to launch when you press [DIRECT LINK]. (p. 151)To set a DIRECT LINK option, In Shooting mode, press [m] ĺ d ĺ Key Mapping ĺDIRECT LINKĺ an option.1567432
My Camera > Camera layout31Using the displayYou can take a self-portrait while looking at yourself on the display by ipping the display up.Using the Self shot modeWhen the camera is o and you enabled the Self shot option (p. 152), ipping the display upward turns the camera on and enters Self shot mode.In Self shot mode, the timer (3 seconds), one-touch shot, face detection, and beauty face functions are automatically activated. 1 Flip the display upward.180˚2 Touch .3 Drag the sliders or touch the +/- icons to adjust the softness and brightness of the skin tone.4 Press [o] or touch Set.5 Touch the frame area on the display, or press [Shutter].After 3 seconds, the camera automatically releases the shutter.When the camera is o, ipping the display upward automatically turns the camera on.Keep the display closed when the camera is not in use.Flip the display only within the angle allowed. Failing to do so may damage your camera.When the camera is not held and the display is ipped upward, use a tripod. Otherwise, it may cause damage to your camera.Do not ip the display up when an external ash is mounted on the camera. Otherwise, it may cause damage to your camera.
My Camera32Inserting the battery and memory cardLearn how to insert or remove the battery and an optional memory card into the camera.1 Insert your nger into the groove and open the battery cover.Be careful not to damage your ngernails when you open the battery cover.2 Insert a memory card into the slot with the gold-colored contacts facing up.Insert the memory card fully until it locks into space.3 Slide the battery lock to the left.4 Insert the battery with the gold-colored contacts facing right.Hold the battery cover open with your nger.
My Camera > Inserting the battery and memory card335 Close the battery lock and slide it to the right.6 Close the battery cover.7 Press the battery cover rmly to ensure that it closes tightly.
My Camera > Inserting the battery and memory card34Removing the battery and memory cardRechargeable batteryBattery lockSlide the battery lock to the left to release the battery. Memory cardPush the card gently until it disengages from the camera, and then pull it out of the slot. Using the memory card adapterTo read data with a PC or memory card reader, insert the memory card into a memory card adapter.Do not bend or pull the battery lock. Doing so may damage the lock.While the status lamp of the camera is blinking, do not remove the memory card or battery. Doing so may damage the data stored on the memory card or your camera.
My Camera35Charging the battery and turning on your cameraCharging the batteryBefore you use the camera for the rst time, you must charge the battery. Plug the small end of the USB cable into your camera, and then plug the other end of the USB cable into the AC adapter.Status lamp Red light on: Charging Green light on: Fully charged Red light blinking: Charging ErrorUse only the AC adapter and USB cable supplied with your camera. If you use another AC adapter, the camera battery may not charge or work properly.Turning on your cameraTo turn on or o the camera, press [ ].The initial setup screen appears when you turn on the camera for the rst time. (p. 36)For some lenses, when you turn on the camera, the lens moves automatically. Do not press or force the lens, as it may damage the lens.
My Camera36Performing the initial setupWhen you turn on your camera for the rst time, the initial setup screen appears. The language is preset for the country or region where the camera is sold. You can change the language as desired. You can also select an item by touching it on the screen.1 Press [I] to select Time Zone, and then press [o].2 Press [D/I] to select a time zone, and then press [o].Back SetTime Zone[GMT +00:00] London[GMT -01:00] Cape Verde[GMT -02:00] Mid-Atlantic[GMT -03:00] Buenos Aires, Sao Paulo[GMT -03:30] Newfoundland3 Press [I] to select Date/Time Set, and then press [o].4 Press [C/F] to select an item (Year/Month/Day/Hour/Minute/Summer time).5 Press [D/I] to set the option, and then press [o].Back SetYear Hour Min DSTMonth DayDate/Time SetThe screen may dier depending on the language you selected.6 Press [I] to select Date Type, and then press [o].7 Press [D/I] to select a date type, and then press [o].Back SetDate TypeYYYY/MM/DDMM/DD/YYYYDD/MM/YYYY
My Camera > Performing the initial setup378 Press [I] to select Time Type, and then press [o].9 Press [D/I] to select a time type, and then press [o].Back SetTime Type12 Hr24 Hr10 Press [m] to nish the initial setup.
My Camera38Selecting functions (options)Selecting with buttonsPress [D/I/C/F] to move, and then press [o] to select an option.Selecting by touchDo not use sharp objects, such as pens or pencils, to touch the screen. You can damage the screen.Dragging: Touch and hold an area on the screen, and then drag your nger.Touching: Touch an icon to select a menu or an option.Flicking: Gently ick your nger across the screen.
My Camera > Selecting functions (options)39When you touch or drag the screen, discolorations may occur. This is not a malfunction, but a characteristic of the touch screen. Touch or drag lightly to minimize the discolorations.The touch screen may not work properly if you use the camera in extremely humid environments.The touch screen may not work properly if you apply screen protection lm or other accessories to the screen.Depending on the viewing angle, the screen may appear dim. Adjust the brightness or viewing angle to improve the resolution.Using mPress [m] or touch on the screen, and then change shooting options or settings.E.g. Selecting the photo size in P mode1 On the Mode screen, select Program.2 Press [m] or touch .3 Press [D/I] to move to b, and then press [o].You can also touch b on the screen.4 Press [D/I] to move to Photo Size, and then press [o].You can also drag the option list, and then touch an option.AutoSharePhoto SizeQualityISOMinimum Shutter SpeedBack Select

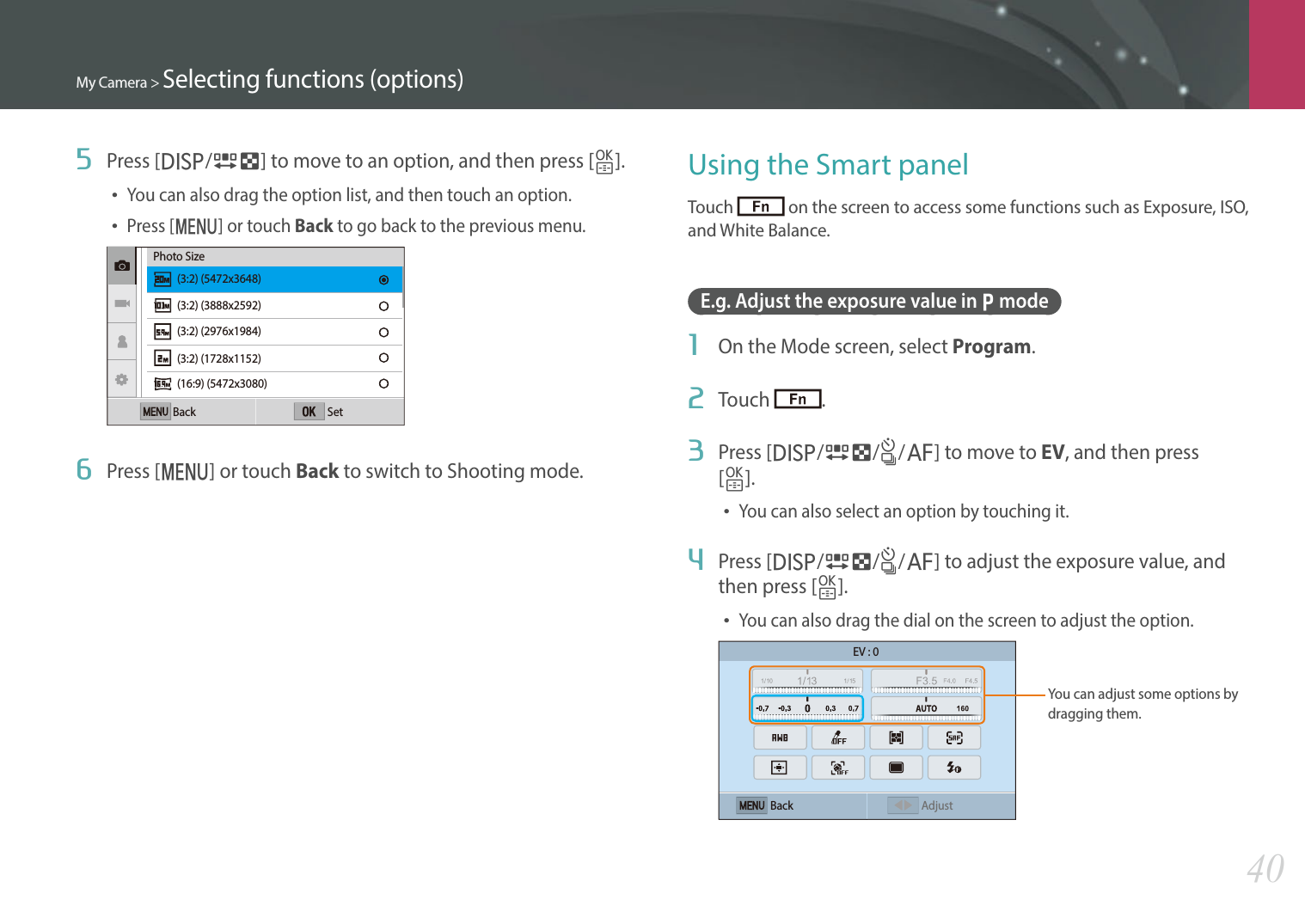

My Camera > Selecting functions (options)405 Press [D/I] to move to an option, and then press [o].You can also drag the option list, and then touch an option.Press [m] or touch Back to go back to the previous menu.(3:2) (5472x3648)(3:2) (3888x2592)(3:2) (2976x1984)(3:2) (1728x1152)(16:9) (5472x3080)Photo SizeBack Set6 Press [m] or touch Back to switch to Shooting mode.Using the Smart panelTouch on the screen to access some functions such as Exposure, ISO, and White Balance.E.g. Adjust the exposure value in P mode1 On the Mode screen, select Program.2 Touch .3 Press [D/I/C/F] to move to EV, and then press [o].You can also select an option by touching it.4 Press [D/I/C/F] to adjust the exposure value, and then press [o].You can also drag the dial on the screen to adjust the option.EV : 0AdjustBackYou can adjust some options by dragging them.
My Camera41Selecting a modeSelect various modes and functions on the Mode screen.Accessing a Mode screenIn Shooting or Playback mode, press [f]. Press [f] again to return to the previous mode.Auto SmartManualShutter PriorityBack SetProgram Aperture PriorityWi-FiTouch an icon to select a mode or function. You can also press [D/I/C/F] to move a mode or function, and then press [o] to select it.Mode descriptionMode Description AutoCapture a photo with a scene mode selected automatically by the camera. (p. 54) SmartCapture a photo with options that are preset for a specic scene. (p. 56) ProgramCapture a photo with settings you have adjusted manually except the shutter speed and aperture value. (p. 59) Aperture PrioritySet the aperture value manually while the camera automatically selects an appropriate shutter speed. (p. 61) Shutter PrioritySet the shutter speed manually while the camera automatically selects an appropriate aperture value. (p. 62) ManualAdjust both the aperture value and the shutter speed manually. (p. 63)
My Camera > Selecting a mode42Mode Description Wi-Fi MobileLink: Send photos or videos to a smart phone. (p. 126) Remote Viewnder: Use a smart phone as a remote shutter release and see a preview on your smart phone of an image from your camera. (p. 130) Group Share: Send photos or videos to multiple smart phones. (p. 128) Baby Monitor: Connect the camera to a smart phone and monitor a location. (p. 132) Auto Backup: Send photos or videos that you captured with the camera to a PC wirelessly. (p. 134) Email: Send photos or videos stored on the camera via email. (p. 136) SNS & Cloud: Upload photos or videos to le sharing websites. (p. 140) Samsung Link: Upload photos to Samsung Link online storage or view les on other Samsung Link supported devices. (p. 142)
My Camera43Display iconsCapturing photos1231. Shooting informationIcon DescriptionShooting modeCurrent dateCurrent timeAuto exposure lock (p. 98)Available number of photosMemory card insertedMemory card not inserted* : Fully charged : Partially charged (Red): Empty (recharge the battery) : Charging Icon DescriptionAuto focus frameSpot metering areaCamera shakeLevel gauge (p. 44)Histogram (p. 150)FocusShutter speedAperture valueExposure adjustment valueISO sensitivity (p. 71)* Photos that were captured without inserting a memory card cannot be transferred to a memory card or a computer.2. Shooting optionsIcon DescriptionPhoto sizeDrive modeFlash (p. 90)Flash intensity adjustmentMetering (p. 92)AF mode (p. 75)Focus areaIcon DescriptionFace detectionWhite Balance (p. 72)White Balance micro adjustmentOptical Image Stabilization (OIS) (p. 84)RAW leDynamic Range (p. 95)3. Shooting options (Touch)Icon DescriptionChange Smart mode**Mobile Connection***Touch AF optionsShooting optionsSmart panel** This icon appears only when you select Smart mode. *** You can directly select a Wi-Fi function that connects to a smart phone.The icons displayed will change according to the mode you select or the options you set.In Shooting mode
My Camera > Display icons442. Shooting optionsIcon DescriptionVideo sizeAF mode (p. 75)Metering (p. 92)White Balance (p. 72)White Balance micro adjustment Optical Image Stabilization (OIS) (p. 84)Fader (p. 101)Voice recording o (p. 101)The icons displayed will change according to the mode you select or the options you set.About the level gaugeThe level gauge helps you align the camera with the horizontal and vertical lines on the display. If the level gauge is not level, calibrate the level gauge using the Horizontal Calibration function. (p. 153) VerticalHorizontalŸ LevelŸ UnlevelYou cannot use the level gauge when you shoot in portrait orientation.Recording videos121. Shooting informationIcon DescriptionShooting modeCancel Touch AF. (Touch) Current recording time/Available recording timeMemory card inserted : Fully charged : Partially charged (Red): Empty (recharge the battery) : Charging Exposure valueISO sensitivity (p. 71)
My Camera > Display icons45In Playback modeViewing photosInformationModeF NoShutterISOMeteringFlashFocal LengthWhite BalanceEVPhoto SizeDateIcon DescriptionCurrent le/The total number of lesFolder number-File numberRAW leProtected leContinuously captured photos (they will appear as a folder) (p. 104)Playback/Editing/Setting menu (Touch)Share a le. (Touch)View image thumbnails. (Touch)123No. Description1 Captured photo2 RGB histogram (p. 150)3 Shooting mode, Metering, Flash, White Balance, Aperture value, Shutter speed, ISO, Focal length, Exposure value, Photo size, DatePlaying videosStopIcon DescriptionCurrent le/The total number of lesPlayback speedFolder number-File numberMulti MotionCurrent playback timeVideo length View previous le/Scan backward. (Each time you touch the scan backward icon, you change the scan speed in this order: 2X, 4X, 8X.) Pause or resume playback. View next le/Scan forward. (Each time you touch the scan forward icon, you change the scan speed in this order: 2X, 4X, 8X.)Adjust the volume or mute the sound.
My Camera > Display icons46Changing the information displayedPress [D] repeatedly to change the display type.Mode Display typeShooting Basic shooting information (Shooting mode, Shutter speed, Aperture value, Exposure value, ISO sensitivity, etc.) Basic shooting information + Shooting option buttons (MENU, Fn, Mobile Connection, Touch AF) + Level gauge Basic shooting information + Shooting option buttons + Current shooting options information (Photo size, Drive mode, Flash, Metering, AF mode, etc.) Basic shooting information + Shooting option buttons + Current shooting options information + Histogram + Date and timePlayback Basic information Display all information about the current le. Display all information about the current le including RGB histogram. No information (when connected to an HDTV or an HDMI- enabled monitor)
My Camera47LensesYou can purchase optional NX-M lenses.Learn about the functions of each lens and select one that suits your needs and preferences.Lens layoutSAMSUNG NX-M 9 mm F3.5 ED lens (example)321No. Description1 Lens2 Lens mount index3 Lens contacts
My Camera > Lenses48SAMSUNG NX-M 9-27 mm F3.5-5.6 ED OIS lens (example)53124No. Description1 Zoom lock index2 Lens3 Zoom ring4 Lens mount index5 Lens contactsLocking or unlocking the lensTo lock the lens, rotate and pull the zoom ring gently away from the camera body. Align the zoom lock indexes as shown in the illustration.To unlock the lens, rotate the zoom ring as shown in the illustration.You cannot capture a photo when the lens is locked.
My Camera > Lenses49Lens markingsFind out what the numbers on the lens signify.SAMSUNG NX-M 9-27 mm F3.5-5.6 ED OIS lens (example)43 5122No. Description1 Aperture valueA range of supported aperture values. For example, 1:3.5–5.6 means the maximum aperture value range from 3.5 to 5.6.2 Focal lengthThe distance from the middle of the lens to its focal point (in millimeters). This gure is expressed in a range: minimum focal length to maximum focal length of the lens.Longer focal lengths result in narrower angles of view and the subject is magnied. Shorter focal lengths result in wider angles of view.3 EDED stands for Extra-low Dispersion. Extra-low dispersion glass is eective in minimizing chromatic aberration (a distortion that occurs when a lens fails to focus all colors to the same convergence point).4 OIS (p. 84)Optical Image Stabilization. Lenses with this feature can detect camera shake and eectively cancel out the movement inside the camera.5 ØThe lens diameter. When you attach a lter to the lens, make sure that the diameters of the lens and the lter are the same.
My Camera50AccessoriesUse accessories such as external ash that can supply a constant amount of light. You can also use the mount adapter to attach NX lenses.For more information about optional accessories, refer to the manual for each accessory.The illustrations may dier from the actual items.You can purchase Samsung-approved accessories at a retailer or a Samsung service center. Samsung is not responsible for damage caused by using another manufacturer's accessories.External ash layoutSEF7A (example) (optional)1432No. Description1 Flash fastening dial2 Lamp3 Flash connection4 Flash port
My Camera > Accessories51Connecting the external ash1 Open the external ash port cover.2 Mount the ash by inserting it rmly into the external ash port.Hold the external ash port cover open with your nger.3 Lock the ash into place by turning the ash fastening dial as shown in the illustration.The available options may dier depending on the shooting mode.There is an interval between two bursts of the ash. Do not move until the ash res a second time.Do not remove the ash forcefully. Doing so may damage the ash and camera.Use only Samsung-approved ashes. Using incompatible ashes may damage your camera.
My Camera > Accessories52Attaching the mount adapter1 Remove the mount adapter caps and body cap.2 Align the indexes (white) on the camera and the mount adapter. Then, rotate the mount adapter as shown in the illustration until you hear a click.Mount adapter layoutSamsung NX mount adapter (example) (optional)1243No. Description1 Lens release button2 NX-M lens mount index3 NX lens mount index4 Tripod mount
My Camera > Accessories532 Press and hold the lens release button on the camera. Then, rotate the lens as shown in the illustration.Flash is not available when using the mount adapter.The Continuous option in Drive is not available when using the mount adapter.Horizontal lines may appear on the photo when you use the mount adapter and the subject is exposed to a uorescent or mercury-vapor light source. To resolve this, select b ĺ Banding Reduction ĺ On. This function may cause the edges of the frame to appear dark.3 Align the indexes (red) on the NX lens and the mount adapter. Then, rotate the lens as shown in the illustration until you hear a click.Removing the mount adapter1 Press and hold the lens release button on the mount adapter. Then rotate the lens as shown in the illustration.
My Camera54Shooting modesTwo simple shooting modes—Auto and Smart mode—help you capture photos with numerous automatic settings. Additional modes allow for greater customization of settings.Auto modeIn Auto mode, the camera recognizes surrounding conditions and automatically adjusts factors that contribute to exposure, including shutter speed, aperture value, metering, White Balance, and exposure compensation. As the camera controls most of the functions, some shooting functions are limited. This mode is useful for capturing quick snapshots with the least amount of adjustment.1 On the Mode screen, select Auto.2 Align your subject in the frame.3 Half-press [Shutter] to focus.The camera selects a scene. An appropriate scene icon appears at the screen.A
My Camera > Shooting modes55Recognizable scenesIcon DescriptionLandscapesScenes with bright white backgroundsLandscapes at nightPortraits at nightLandscapes with backlightingPortraits with backlightingPortraitsClose-up photos of objectsClose-up photos of textSunsetsIndoors, darkPartially litClose-up with spot lightingPortraits with spot lightingIcon DescriptionBlue skiesForested areas typically consist of green-colored subjectsClose-up photos of colorful subjectsCamera is stabilized on a tripod and the subject is not moving for a certain period of time. (when shooting in the dark)Actively moving subjectsFireworks (when using a tripod)4 Press [Shutter] to capture the photo.The camera may detect dierent scenes, even the same subjects, depending on external factors such as camera shake, lighting, or distance to the subject.If the camera does not recognize an appropriate scene mode, it uses the default settings for the Auto mode.Even if it detects a face, the camera may not select a portrait mode depending on the subject's position or lighting.Even if you use a tripod, the camera may not detect the tripod mode ( ) if the subject is moving.The camera consumes more battery power, because it changes settings often to select appropriate scenes.
My Camera > Shooting modes56Smart modeIn Smart mode, you can capture photos with options that are preset for a specic scene.1 On the Mode screen, select Smart.2 Select a scene.Option DescriptionBeauty FaceCapture a portrait using options to make the skin tone softer and brighter.Best FaceCapture multiple photos and replace faces to create the best possible image.Continuous ShotCapture a series of photos of moving subjects.Kids ShotCapture a photo with a funny sound to get a kid's attention.LandscapeCapture still-life scenes and landscapes.MacroCapture small or close-up subjects.FoodCapture a photo of food in more colorful tones.Parties and IndoorsCapture a crisp indoor photos.Action FreezeCapture subjects moving at high speed.Rich TonesCapture a photo with vibrant colors.PanoramaCapture a wide panoramic scene in a single photo.WaterfallCapture scenes with waterfalls.Option DescriptionSilhouetteCapture subjects as dark shapes against a light background.SunsetCapture scenes at sunset, with natural-looking reds and yellows.NightCapture a photo with less blurring and image noise in low light conditions.FireworksCapture scenes with reworks.Light TraceCapture scenes with the light trailing in low-light conditions.3 Half-press [Shutter] to focus, and then press [Shutter] to capture.Using the Beauty Face modeIn Beauty Face mode, you can use options to make the skin tone softer and brighter before capturing a portrait.1 On the Mode screen, select Smart ĺ Beauty Face.2 Press [m] ĺ b ĺ Face Retouch.3 Press [D/I] to select an option.4 Press [C/F] to adjust the option.You can also drag the sliders or touch +/- to adjust the options.
My Camera > Shooting modes575 Press [o].6 Align your subject in the frame, and then half-press [Shutter] to focus.7 Press [Shutter] to capture the photo.Using the Best Face modeIn Best Face mode, you can capture multiple photos and replace faces to create the best possible image. Use this mode to select the best image for each individual when capturing group photos.1 On the Mode screen, select Smart ĺ Best Face.2 Align your subject in the frame, and then half-press [Shutter] to focus.3 Press [Shutter] to capture the photo.The camera captures 5 photos consecutively.The rst photo is set as the background image.The camera automatically detects faces after shooting.4 Touch a face to replace.Back Save5 Touch the best image from the 5 faces that were captured.Repeat steps 4 and 5 to replace the rest of the faces in the photo.The icon will appear on the image that the camera recommends.6 Press [o] to save the photo. Use a tripod to prevent your camera from shaking.The resolution is set to 5.9M or less.
My Camera > Shooting modes58Capturing panoramic photosIn Panorama mode, you can capture a wide panoramic scene in a single photo. Panorama mode captures and combines a series of photos to create a panoramic image. 1 On the Mode screen, select Smart ĺ Panorama.2 Press and hold [Shutter], and then slowly move the camera in the direction you selected.An arrow toward the direction of motion is displayed, and the entire shooting image is displayed in the preview box.When the scenes are aligned, the camera captures the next photo automatically.3 When you are nished, release [Shutter].The camera will automatically save the shots into one photo.If you release [Shutter] while shooting, the panoramic shooting stops and photos that have been captured are saved.The resolution varies depending on the panoramic photo you captured.In Panorama mode, some shooting options are not available.The camera may stop shooting due to the shooting composition or the subject's movement.In Panorama mode, your camera may not capture the entire last scene if you stop moving the camera to improve the photo quality. To capture the entire scene, move your camera slightly beyond the point where you want the scene to end.For best results when capturing panoramic photos, avoid the following:-moving the camera too quickly or too slowly-moving the camera too little to capture the next image-moving the camera at irregular speeds-shaking the camera-shooting in dark places-capturing moving subjects nearby-shooting conditions where the brightness or color of light is changingPhotos taken are automatically saved, and shooting is stopped under the following conditions:-if you change the shooting direction while shooting-if you move the camera too rapidly-if you do not move the camera
My Camera > Shooting modes59Program modeThe camera automatically adjusts shutter speed and aperture value so that an optimal exposure value can be achieved.This mode is useful when you want to capture shots of constant exposure while being able to adjust other settings.1 On the Mode screen, select Program.2 Set the desired options. 3 Half-press [Shutter] to focus, and then press [Shutter] to capture the photo.
My Camera > Shooting modes60Program ShiftProgram Shift function lets you adjust the shutter speed and aperture value while the camera maintains the same exposure. Press [I] to select the shutter speed and aperture value and press [C/F] to adjust the aperture value. The shutter speed will change according to the aperture value.Minimum shutter speedSet the shutter speed not to be slower than the selected speed. However, if an optimal exposure value cannot be achieved because the ISO sensitivity reached the maximum ISO value that is set by Auto ISO Range, shutter speed may be slower than the selected minimum shutter speed.To set the minimum shutter speed, In Shooting mode, press [m] ĺ b ĺ Minimum Shutter Speed ĺ an option.This feature is available only when the ISO sensitivity is set to Auto.This feature is available only in Program or Aperture Priority mode.
My Camera > Shooting modes61Aperture Priority modeIn Aperture Priority mode, the camera automatically calculates shutter speed according to the aperture value you choose. You can adjust the depth of eld (DOF) by changing the aperture value. This mode is useful for taking portraits, owers, or landscape shots.Large Depth of Field Small Depth of Field1 On the Mode screen, select Aperture Priority.2 Press [I] to select the aperture value.3 Press [C/F] to adjust the aperture value.4 Set the desired options. 5 Half-press [Shutter] to focus, and then press [Shutter] to capture the photo.In low-light settings, you may need to increase the ISO sensitivity to prevent blurred photos.To set the minimum shutter speed, in Shooting mode, press [m] ĺ b ĺ Minimum Shutter Speed ĺ an option.You can also touch the aperture value on the screen to adjust it.
My Camera > Shooting modes62Shutter Priority modeIn Shutter Priority mode, the camera automatically adjusts the aperture value according to the shutter speed you choose. This mode is useful for capturing photos of fast-moving subjects or for creating tracer eects in a photo.For example, set the shutter speed to over 1/500 s to freeze the subject. To make the subject appear blurred set the shutter speed to below 1/30 s.Slow shutter speed Fast shutter speed1 On the Mode screen, select Shutter Priority.2 Press [I] to select the shutter speed.3 Press [C/F] to adjust the shutter speed.4 Set the desired options. 5 Half-press [Shutter] to focus, and then press [Shutter] to capture the photo.In order to compensate for the reduced amount of light allowed by fast shutter speeds, open the aperture and let in more light. If your photos are still too dark, increase the ISO value.You can also touch the shutter speed on the screen to adjust it.
My Camera > Shooting modes63Manual modeManual mode lets you adjust the shutter speed and aperture value manually. In this mode, you can fully control the exposure of your photos.This mode is useful in controlled shooting environments, such as a studio, or when it is necessary to ne-tune camera settings. The Manual mode is also recommended for shooting night scenes or reworks.1 On the Mode screen, select Manual.2 Press [I] to select the aperture value or shutter speed.3 Press [C/F] to adjust the aperture value or shutter speed.4 Set the desired options.5 Half-press [Shutter] to focus, and then press [Shutter] to capture the photo.You can also touch the aperture value or shutter speed on the screen to adjust it.Using Framing ModeWhen you adjust the aperture value or shutter speed, the exposure changes according to the settings, so the display may darken. With this function on, the brightness of the display is constant regardless of the settings, so you can better frame your shot.To use Framing Mode,In Shooting mode, press [m] ĺ b ĺ Framing Mode ĺ an option.
My Camera > Shooting modes64Using the Bulb functionUse the Bulb function to shoot night scenes or the night sky. While you are pressing [Shutter], the shutter is left open so you can create moving light eects.To use a bulb,In Shooting mode, press [I] to select the shutter speed ĺ Press [C] repeatedly to set the shutter speed to Bulb ĺPress and hold [Shutter] for the desired time.If you set a high ISO value or open the shutter for a long time, image noise may increase.Drive options, ash, and One touch shot cannot be used with the Bulb function.The Bulb function is available only in Manual mode.Use a tripod and shutter release to prevent your camera from shaking.The longer you open the shutter, the longer it takes to save a photo. Do not turn the camera o while the camera saves a photo. If you use this function for a long time, use a fully charged battery.
My Camera > Shooting modes65H.264 (MPEG-4 part10/AVC) is the latest video coding format established in 2003 collaboratively by ISO-IEC and ITU-T. Since this format uses a high compression rate, more data can be saved in less memory space.If you have the image stabilizer option on when shooting a movie, the camera may record the image stabilizer sound.If you remove the camera lens while recording a movie, the recording will be interrupted. Do not change the lens while recording.If you change the shooting angle of the camera suddenly while shooting a movie, the camera may not be able to record images accurately. Use a tripod to minimize camera shake.The camera supports only the Multi AF function when recording a video. You cannot use any other focus area setting functions.When the size of a movie le exceeds 4 GB, the camera automatically stops recording even if the maximum recording time (29 minutes and 59 seconds) has not been reached.If you use a slow writing memory card, the recording of your movie can be interrupted because the card cannot process data at the rate the video is being shot. If this occurs, replace the card with a faster memory card or reduce the video size (for example, from 1280X720 to 640X480).When formatting a memory card, always format using the camera. If you format on another camera or a PC, you can lose les on the card or cause a change in the capacity of the card.While recording a video in the same ISO sensitivity, the screen may be darker than taking a photo. Adjust the ISO sensitivity.When you record a video in Program, Aperture Priority, or Shutter Priority mode, ISO is automatically set to Auto.Recording a videoIn Shooting mode, you can record Full HD videos (1920X1080) by pressing (Video recording). The camera lets you record a video up to 29 minutes and 59 seconds in length at 30 fps, and saves the les in MP4 (H.264) format. The sound is recorded via the camera's microphone.Select Fader to fade in or out a scene. You can also select Voice or other options to set recording options. (p. 101)1 On the Mode screen, select a shooting mode.This feature may not work in some modes.2 Set the desired options.3 Press (Video recording) to start recording.The camera will retain the shutter speed and aperture value that you have set before starting shooting.4 Press (Video recording) again to stop.You can also press [Shutter] to stop recording.
My Camera > Shooting modes66Available functions by shooting modeFor details about shooting functions, see Chapter 2.Function Auto Smart Program Aperture Priority Shutter Priority ManualFace Retouch (p. 56)-O----Photo Size (p. 69)OOOOOOQuality (p. 70)-OOOOOISO (p. 71)--OOOOWhite Balance (p. 72)--OOOOPicture Wizard (p. 74)--OOOOSmart Filter (p. 96)--OOOOAF Mode (p. 75)-OOOOOAF Area (p. 77)-OOOOOFace Detection (p. 79)--OOOOTouch AF (p. 81)OOOOOOMF Assist (p. 83)OOOOOOLink AE to AF Point (p. 94)--OOOOFraming Mode (p. 63)--OOOOO: You can select options for the function. (Available options vary by shooting mode.)-: The function is set to a certain option by default or the function is not available.
My Camera > Shooting modes67Function Auto Smart Program Aperture Priority Shutter Priority ManualOIS (Anti-Shake) (p. 84)OOOOOODrive (Continuous/Burst/Timer/Bracket) (p. 85)OOOOOOMetering (p. 92)--OOOODynamic Range (p. 95)--OOOOFlash (p. 90)OOOOOOExposure compensation (p. 97)--OOO -Exposure lock (p. 98)--OOO -O: You can select options for the function. (Available options vary by shooting mode.)-: The function is set to a certain option by default or the function is not available.
Chapter 2Shooting FunctionsLearn about the functions you can set in Shooting mode. You can enjoy more customized photos and videos by using the shooting functions.
69Shooting Functions > Size and Resolution69Shooting Functions > Size and ResolutionShooting FunctionsPhoto sizeAs you increase the resolution, your photo or video will include more pixels, so it can be printed on larger paper or displayed on a larger screen. When you use a high resolution, the le size will also increase. Select a low resolution for photos that will be displayed in a digital picture frame or uploaded to the web.To set the size, In Shooting mode, press [m] ĺ b ĺ Photo Size ĺ an option.* DefaultIcon Size Recommended for(3:2) 5472x3648* Printing on A1 paper.(3:2) 3888x2592 Printing on A2 paper.(3:2) 2976x1984 Printing on A3 paper.(3:2) 1728x1152 Printing on A5 paper.(16:9) 5472x3080 Printing on A1 paper or viewing on an HDTV.(16:9) 3712x2088 Printing on A3 paper or viewing on an HDTV.(16:9) 2944x1656 Printing on A4 paper or viewing on an HDTV.(16:9) 1920x1080 Printing on A5 paper or viewing on an HDTV.(1:1) 3648x3648 Printing a square photo on A1 paper.(1:1) 2640x2640 Printing a square photo on A3 paper.(1:1) 2000x2000 Printing a square photo on A4 paper.(1:1) 1024x1024 Attaching to an email. Available options may dier depending on shooting conditions.Size and Resolution
70Shooting Functions > Size and ResolutionQualityThe camera saves photos in either the JPEG or RAW format.Photos captured by a camera are often transformed to the JPEG format and stored in the memory according to the settings of the camera at the time of shooting. RAW les are not transformed to the JPEG format and are stored in the memory without any changes. RAW les have the le extension "SRW". To adjust and calibrate exposures, White Balances, tones, contrasts, and colors of the RAW les, or to convert them into JPEG or TIFF format, use the Adobe Photoshop Lightroom program found on the supplied DVD-ROM.Ensure you have enough space on the memory card to save photos in the RAW format.To set the quality, In Shooting mode, press [m] ĺ b ĺ Quality ĺ an option.* DefaultIcon Format DescriptionJPEGSuper Fine*: Compressed for the best quality. Recommended for printing in large size.JPEGFine: Compressed for better quality. Recommended for printing in normal size.* DefaultIcon Format DescriptionJPEGNormal: Compressed for normal quality. Recommended for printing in small size or uploading to the web.RAWRAW: Save a photo without data loss. Recommended for editing after shooting.RAW+JPEG RAW + S.Fine: Save a photo in both the JPEG (S.Fine quality) and RAW format.RAW+JPEG RAW + Fine: Save a photo in both the JPEG (Fine quality) and RAW format.RAW+JPEG RAW + Normal: Save a photo in both the JPEG (Normal quality) and RAW format.Available options may dier depending on shooting conditions.
71Shooting Functions > ISO sensitivity71Shooting Functions > ISO sensitivityShooting FunctionsThe ISO sensitivity value represents the sensitivity of camera to light. The larger the ISO value, the more sensitive the camera is to light. Consequently, by selecting a higher ISO sensitivity value, you can capture photos in dim or dark places at faster shutter speeds. However, this may increase electronic noise and result in a grainy photo.To set ISO sensitivity, In Shooting mode, press [m] ĺ b ĺ ISO ĺ an option.ExamplesISO 160 ISO 400ISO 800 ISO 3200Increase the ISO value in places where ash use is prohibited. You can capture a clear photo by setting a high ISO value without having to secure more light.Use the Noise Reduction function in order to reduce the visual noise that can appear on photos of a high ISO value. (p. 147)Available options may dier depending on the shooting conditions.You can also touch the ISO value on the screen to adjust it.ISO sensitivity
72Shooting Functions > White Balance72Shooting Functions > White BalanceShooting FunctionsWhite Balance represents the light source that inuences on the color of a photo. The color of a photo depends on the type and quality of the light source. If you want the color of your photo to be realistic, select an appropriate lighting condition to calibrate the White Balance, such as Auto WB, Daylight, Cloudy, Tungsten, or adjust color temperature manually.You can also adjust color for the preset light sources so that the colors of the photo match the actual scene under mixed lighting conditions.To set the White Balance, In Shooting mode, press [m] ĺ b ĺ White Balance ĺ an option.* DefaultIcon DescriptionAuto WB*: Use automatic settings depending on the lighting conditions.Daylight: Select when taking outdoor photos on a sunny day. This option results in photos closest to the natural colors of the scene.Cloudy: Select when taking outdoor photos on a cloudy day or in shadows. Photos captured on cloudy days tend to be more bluish than on sunny days. This option osets that eect.Fluorescent White: Select when shooting under a daylight uorescent lamp, especially for white uorescent light.* DefaultIcon DescriptionNFluorescent NW: Select when shooting under a daylight uorescent lamp, especially for white uorescent light of very white hues.DFluorescent Daylight: Select when shooting under a daylight uorescent lamp, especially for white uorescent light of slightly bluish hue.Tungsten: Select when taking indoor photos under incandescent bulbs or halogen lamps. Incandescent tungsten bulbs tend to have a reddish hue. This option osets that eect.Flash WB: Select when using a ash.Custom Set: Use your pre-dened settings. You can manually set the White Balance by pressing [D], and then shooting a white sheet of paper. Fill the spot metering circle with the paper and set the White Balance.Color Temperature: Manually adjust the color temperature of the light source. Color temperature is a measurement in degrees Kelvin that indicates the specic type of light source. You can get a warmer photo with a higher value, and a cooler photo with a lower value. Press [D], and then adjust the color temperature.Available options may dier depending on shooting conditions.White Balance
73Shooting Functions > White BalanceCustomizing preset White Balance optionsYou can also customize preset White Balance options.To customize preset options,In Shooting mode, press [m] ĺ b ĺ White Balance ĺ an option ĺ [D] ĺ press [D/I/C/F]. White Balance : DaylightBack Set ResetYou can also touch an area on the screen.ExamplesAuto WB DaylightFluorescent Daylight Tungsten
74Shooting Functions > Picture Wizard (photo styles)74Shooting Functions > Picture Wizard (photo styles)Shooting FunctionsPicture Wizard lets you apply dierent photo styles to your photo to create various looks and emotional moods. You can also create and save your own photo styles by adjusting color, saturation, sharpness, and contrast for each style.There is no rule for which style is suitable in which conditions. Experiment with dierent styles and nd your own settings.To set a photo style, In Shooting mode, press [m] ĺ b ĺ Picture Wizard ĺ an option.ExamplesStandard Vivid PortraitLandscape Forest RetroCool Calm ClassicYou can also adjust the value of the preset style settings. Select a Picture Wizard option, press [D], and then adjust color, saturation, sharpness, or contrast.To customize your own picture wizard, select , , or , and then adjust the color, saturation, sharpness, and contrast.Picture Wizard options cannot be set with Smart Filter options at the same time.Picture Wizard (photo styles)
75Shooting Functions > AF mode75Shooting Functions > AF modeShooting FunctionsAF modeLearn how to adjust the camera’s focus according to the subjects.You can select a focusing mode appropriate to the subject among Single Auto Focus, Continuous Auto Focus, and Manual Focus. The AF function is activated when you press [Shutter] halfway. In the MF mode, you have to press [C/F] to focus manually.In most cases, you can have a focus by selecting Single AF. Fast moving subjects or subjects with small shading dierences to the background are dicult to focus. Select an appropriate focusing mode for such instances.To set the auto focus mode, In Shooting mode, press [F] ĺ an option.You can also set the option by pressing [m] ĺ b ĺ AF Mode ĺ an option in Shooting mode.The available options may dier depending on the lens in use.Single AFSingle AF is appropriate for shooting a still subject. When you press [Shutter] halfway, the focus xes in the focus area. The area turns green when the focus is achieved.
76Shooting Functions > AF modeContinuous AFWhile you are pressing [Shutter] halfway, the camera continues to automatic focusing. Once the focus area is xed on the subject, the subject is always in focus even when moving. This mode is recommended for shooting a person on a bicycle, a running dog, or a car racing scene.Manual focusYou can manually focus on a subject by pressing [C/F] on the camera. The MF Assist function lets you easily achieve a focus. While you are adjusting the focus, the focus area is magnied. This mode is recommended for shooting an object similar in color to the background, a night scene, or reworks.After capturing a photo with manual focus, press [o] ĺ [C/F] to manually adjust the focus again.If you use this function, you cannot set Touch AF, Face Detection, AF Area, and Link AE to AF Point options.While you are adjusting the focus, the manual focus scale () appears.
77Shooting Functions > AF area77Shooting Functions > AF areaShooting FunctionsThe AF area function changes the positions of the focus area.Generally, cameras focus on the nearest subject. When there are a lot of subjects, however, unwanted subjects can be in focus. In order to prevent unwanted subjects from being in focus, change the focus area so that a desired subject is in focus. You can get a clearer and sharper photo by selecting an appropriate focus area.To set the auto focus area, In Shooting mode, press [m] ĺb ĺ AF Area ĺ an option.Available options may dier depending on shooting conditions.Selection AFYou can set the focus on an area you want. Apply an out-of-focus eect to make the subject more distinguishable.The focus on the photo below was repositioned and resized so that it ts the subject’s face. To resize or move the focus area, in Shooting mode, press [o]. Touch an area to focus on it or press [D/I/C/F] to move the focus area, and pinch your ngers together or spread them apart to resize the focus area.AF area
78Shooting Functions > AF areaMulti AFThe camera displays a green rectangle in places where focus is set correctly. The photo is divided into two or more areas, and the camera obtains focus points of each area. It is recommended for scenery photos.When you press [Shutter] halfway, the camera displays the focus areas as shown in the photo below.
79Shooting Functions > Face Detection79Shooting Functions > Face DetectionShooting FunctionsFace DetectionUse Face Detection options to capture a self portrait or a smiling face.To use the face detection function, In Shooting mode, press [m] ĺb ĺ Face Detection ĺ an option.When your camera detects a face, it tracks the detected face automatically.When you use the Face Detection AF option, the camera focuses on the area with the white frame automatically. Depending on the Picture Wizard options, Face Detection may not be eective. When you set manual focus, Face Detection may not be available.Face Detection may not be eective when:-the subject is far from the camera-it is too bright or too dark-the subject is not facing the camera-the subject is wearing sunglasses or a mask -the subject’s facial expression changes drastically -the subject is backlit or the lighting conditions are unstable When you set Face Detection options, the AF area is automatically set to Multi AF. Depending on the Face Detection options you selected, some shooting options may not be available.NormalThe camera focuses on human faces preferentially. Faces of up to 10 people can be detected. This setting is recommended for shooting a group of people.When you press [Shutter] halfway, the camera focuses on faces as shown in the photo below. In cases of shooting a group of people, the camera displays the focus on the nearest person’s face in white and the rest of the people’s faces in gray.
80Shooting Functions > Face DetectionWink ShotThe camera automatically releases the shutter 2 seconds after it detects a winking face.Wink for more than 1 second for better detection.Wink detection may fail when:-the camera is below eye level-the subject appears dark due to backlighting-the subject is wearing glasses-the subject is far from the cameraSmile ShotThe camera automatically releases the shutter when it detects a smiling face.When your subject smiles broadly, your camera can detect the smile more easily.
81Shooting Functions > Touch AF81Shooting Functions > Touch AFShooting FunctionsTracking AFTracking AF allows you to track and automatically focus on your subject, even when the subject is moving or when you change the shooting composition. White frame: Your camera is tracking the subject.Green frame: Your subject is in focus when you half-press [Shutter].Red frame: Your camera failed to focus. Select or focus on an area that you touch on the screen. Additionally, focus on the subject and capture a photo by touching on the screen.To set Touch AF, In Shooting mode, press [m] ĺb ĺTouch AF ĺ an option.Available options may dier depending on the shooting conditions.You can also touch on the screen and select an option in Shooting mode.Touch AFTouch AF allows you to select and focus on the focus area that you touch on the screen.AF PointThe focus area will correspond to the area you touch on the screen and the focus will not be achieved.Touch AF
82Shooting Functions > Touch AFOne touch shotYou can capture a photo with the touch of your nger. As you touch a subject, the camera focuses on the subject automatically and captures a photo.If you do not select a focus area, the Auto Focus function does not work.Tracking a subject may fail when: -the subject is too small-the subject moves irregularly -the subject is backlit or you are shooting in a dark place -colors or patterns on the subject and the background are the same -the subject includes horizontal patterns, such as blinds -the camera shakes excessively-you capture photos continuously When tracking fails, the feature will be reset.If the camera fails to track the subject, the focus area will be reset.If the camera fails to focus, the focus frame will change to red and the focus will be reset.
83Shooting Functions > MF Assist83Shooting Functions > MF AssistShooting FunctionsIn the manual focus mode, you have to press [C/F] to focus. When you use the MF Assist function, you can achieve a clearer focus because the focus area is magnied. This function is only available on a lens that supports manual focus.To set the manual focus assist, In Shooting mode, press [m] ĺ b ĺ MF Assist ĺ an option.* DefaultOption DescriptionODo not use the MF Assist function.Enlarge x5*The focus area is magnied by 5 times when you adjust the focus.Enlarge x8The focus area is magnied by 8 times when you adjust the focus.MF Assist
84Shooting Functions > Optical Image Stabilization (OIS)84Shooting Functions > Optical Image Stabilization (OISSS))Shooting FunctionsUse the Optical Image Stabilization (OIS) function to minimize camera shake. OIS may not be available with some lenses.Camera shake tends to occur in dark places or when shooting indoors. In such cases, the camera uses slower shutter speeds in order to increase the amount of light taken in, which can result in a blurry photo. You can prevent this situation by using the OIS function.To set OIS options, In Shooting mode, press [m] ĺb ĺ OIS (Anti-Shake) ĺ an option.* DefaultIcon DescriptionMode 1*: The OIS function is applied only when you press [Shutter] in full or half.Mode 2: The OIS function is on.O: The OIS function is o. Optical Image Stabilization (OIS)Without OIS correction With OIS correctionOIS may not function properly when: -you move your camera to follow a moving subject -there is too much camera shake -the shutter speed is slow (for example, when you select Night in Smart mode) -the battery is low-you capture a close-up shotIf you use the OIS function with a tripod, your images may be blurred by the vibration of the OIS sensor. Deactivate the OIS function when you use a tripod.If the camera is hit or dropped, the display will be blurry. If this occurs, turn o the camera, and then turn it on again.Use the OIS function only when needed because the function consumes more battery power.This option may not be available with some lenses.
85Shooting Functions > Drive (shooting method)85Shooting Functions > Drive (shooting method)Shooting FunctionsYou can set the shooting method, such as Continuous, Burst, Timer or Bracketing.Select Single to capture one photo at a time. Select Continuous Normal or Burst to shoot fast moving subjects. Select AE Bracket, WB Bracket, P Wiz Bracket, or Depth Bracket to adjust exposure, White Balance, apply picture Wizard eects, or capture photos with dierent depths of eld. You can also select Timer to capture a photo automatically after a specied time.To change the shooting method, In Shooting mode, press [C] ĺ an option.You can also set the option by pressing [m] ĺ b ĺ Drive ĺ a shooting method in Shooting mode.Available options may dier depending on shooting conditions.SingleCapture one photo whenever you press [Shutter]. Recommended for general conditions.Drive (shooting method)
86Shooting Functions > Drive (shooting method)Continuous NormalContinuously capture photos while you are pressing [Shutter]. You can capture up to 6 photos per second.BurstConsecutively capture up to 10 shots per second (3 seconds), 15 shots per second (2 seconds), or 30 shots per second (1 second) when you press [Shutter] once. It is recommended for shooting the rapid motion of fast moving subjects such as racing cars.To set the number of shots, in Shooting mode, press [C] ĺ Burst, and then press [D].The photo size is set to 5M. It may take longer to save a photo. You cannot use the ash with this option.Shutter speed must be faster than 1/30 second.Photos captured with this option may be slightly enlarged when saving.You cannot set an ISO option higher than ISO 3200.This option cannot be used with the RAW le format and is not available when the photo quality is set to RAW.
87Shooting Functions > Drive (shooting method)TimerCapture a photo after a specied time. You can set the Timer for 2 to 30 seconds.Press [Shutter] to stop capturing.To set the timer details, in Shooting mode, press [C] ĺ Timer, and then press [D].Auto Exposure Bracketing (AE Bracket)When you press [Shutter], the camera captures 3 consecutive photos: the original, one a step darker, and one a step lighter. Use a tripod to prevent blurry photos as the camera captures three photos continuously. You can adjust the settings in Bracket Settings menu.Exposure -2OriginalExposure +2To set the bracketing details, press [m] ĺ d ĺ Bracket Settings ĺ an option.
88Shooting Functions > Drive (shooting method)White Balance Bracketing (WB Bracket)When you press [Shutter], the camera captures 3 consecutive photos: the original and two more with dierent White Balance settings. The original photo is captured when you press [Shutter]. The other two are automatically adjusted according to the White Balance you have set. You can adjust the settings in Bracket Settings menu.WB-2OriginalWB+2To set the bracketing details, press [m] ĺ d ĺ Bracket Settings ĺ an option. This option cannot be used with the RAW le format and is not available when the photo quality is set to RAW. Picture Wizard Bracketing (P Wiz Bracket)When you press [Shutter], the camera captures three consecutive photos, each with a dierent Picture Wizard setting. The camera captures a photo and applies the three Picture Wizard options you have set to the image captured. You can select three dierent settings in Bracket Settings menu.VividStandardRetroTo set the bracketing details, press [m] ĺ d ĺ Bracket Settings ĺ an option. This option cannot be used with the RAW le format and is not available when the photo quality is set to RAW.
89Shooting Functions > Drive (shooting method)Depth Bracketing When you press [Shutter], the camera captures three consecutive photos, each with a dierent depth of eld by adjusting the aperture value. Use a tripod to prevent blurry photos as the camera captures three photos continuously. You can adjust the settings in Bracket Settings menu. To set the bracketing details, press [m] ĺ d ĺ Bracket Settings ĺ an option. This feature is available only in Program or Aperture Priority mode.If the aperture value is set to its maximum or minimum, two photos will be captured with the maximum or minimum aperture value.
90Shooting Functions > Flash90Shooting Functions > FlashShooting FunctionsIn order to capture a realistic photo of a subject, the amount of light should be constant. When the light source varies, you can use a ash and supply a constant amount of light. Select appropriate settings according to a light source and a subject.To set ash options, In Shooting mode, press [m] ĺ b ĺ Flash ĺan option.Icon DescriptionO: Do not use the ash.ASmart Flash: The camera automatically adjusts the brightness of the ash according to the amount of light in the surrounding environment.AAuto: The ash automatically res in dark places.Auto Red-eye: The ash automatically res and reduces red-eyes.Fill in: The ash res whenever you capture a photo. (Brightness is automatically adjusted.)Fill-in Red: The ash res whenever you capture a photo and reduces red-eyes.1st Curtain: The ash res immediately after the shutter opens. The camera captures a photo of a subject earlier in an action sequence clearly. Ball moving directionIcon Description2nd Curtain: The ash res just before the shutter closes. The camera captures a photo of a subject later in an action sequence clearly. Ball moving directionThe available options may dier depending on shooting conditions.There is an interval between two bursts of the ash. Do not move until the ash res a second time.If you select O, the ash does not re even when an external ash is attached.For some lenses, the lens may block the light from the internal ash. If this occurs, use an optional external ash.If you attach a lens other than the one provided, using a lens mount adapter, no ashes will re.Use only Samsung-approved ashes. Using incompatible external ashes may damage your camera. Flash
91Shooting Functions > FlashReducing the red-eye eectIf the ash res when you capture a photo of a person in the dark, a red glow may appear in the eyes. To reduce the red-eye eect, select Auto Red-eye or Fill-in Red.Without red-eye reduction With red-eye reductionIf the subject is too far from the camera or moves when the rst ash res, red-eyes may not be reduced.Adjusting the ash intensityWhen the ash is on, adjust the ash intensity ±2 levels.To set the ash intensity, In Shooting mode, touch ĺ Flash ĺ move to a desired option ĺ press [D] ĺ [C/F].Back SetFlash : Fill inYou can also drag the slider or touch +/- to adjust the intensity.Adjusting the flash intensity may not be eective when:-the subject is too close to the camera-you set a high ISO sensitivity-the exposure value is too big or too smallIn some shooting modes, you cannot use this function.If the subject is too close when you use the ash, some light may be blocked, resulting in a dark photo. Ensure that the subject is within the recommended range, which varies by lens.
92Shooting Functions > Metering92Shooting Functions > MeteringShooting FunctionsThe metering mode refers to the way in which a camera measures the quantity of light.The camera measures the amount of light in a scene, and in many of its modes, uses the measurement to adjust various settings. For example, if a subject looks darker than its actual color, the camera captures an overexposed photo of it. If a subject looks lighter than its actual color, the camera captures an underexposed photo of it.The brightness and overall mood of the photo can also be aected by how the camera measures the amount of light. Select an appropriate setting for a shooting condition.To set a metering option, In Shooting mode, press [m] ĺ b ĺ Metering ĺ an option.MultiThe Multi mode calculates the amount of light in multiple areas. When light is sucient or insucient, the camera adjusts the exposure by averaging the overall brightness of the scene. This mode is suitable for general photos.Metering
93Shooting Functions > MeteringCenter-weightedThe Center-weighted mode calculates a broader area than the Spot mode does. It sums up the amount of light in the center portion of the shot (60–80%) and that of the rest of the shot (20–40%). It is recommended for situations where there is a slight dierence in brightness between a subject and a background or an area of the subject is large compared to the overall composition of the photo.SpotThe Spot mode calculates the amount of light in the center. When you capture a photo in conditions where there is a strong backlight behind a subject, the camera adjusts the exposure so as to shoot a subject correctly. For example, when you select the Multi mode in a strong backlight condition, the camera calculates that the overall amount of light is abundant, which results in a darker photo. The Spot mode can prevent this situation as it calculates the amount of light in a designated area.The subject is in bright color while the background is dark. The Spot mode is recommended for a situation like this where a huge dierence in the exposure exists between a subject and a background.
94Shooting Functions > MeteringMeasuring the exposure value of the focus area When this function is turned on, the camera automatically sets an optimal exposure by calculating the brightness of the focus area. This function is only available when you select Spot metering or Multi metering, and Selection AF.To set this function, In Shooting mode, press [m] ĺ b ĺ Link AE to AF Point ĺ an option.
95Shooting Functions > Dynamic Range95Shooting Functions > Dynamic RangeShooting FunctionsThis function automatically corrects the loss of bright detail that can occur due to shading dierences in the photo.To set Dynamic Range options, In Shooting mode, press [m] ĺ b ĺ Dynamic Range ĺ an option.Without Dynamic Range eect With Dynamic Range eect* DefaultIcon DescriptionO*: Do not use Dynamic Range.Smart Range+: Correct the loss of bright detail.HDR: Capture 3 photos with dierent exposures, and then combine them to create a single image automatically.You cannot set an ISO option higher than ISO 3200.Dynamic Range options cannot be set with drive options other than Single or Timer.Dynamic Range options cannot be set with Smart Filter or Picture Wizard options at the same time.Dynamic Range options cannot be set with the Bulb function.Dynamic Range
96Shooting Functions > Smart Filter96Shooting Functions > Smart FilterShooting FunctionsSmart Filter lets you apply special eects to your photos or videos. You can select various lter options to create special eects that are dicult to be achieved with normal lenses.To set Smart Filter options,In Shooting mode, press [m] ĺ b ĺ Smart Filter ĺ an option.* DefaultOption DescriptionO*No eectVignettingApply the retro-looking colors, high contrast, and strong vignette eect of Lomo cameras.MiniatureApply a tilt-shift eect to make the subject appear in miniature.SketchApply a pen sketch eect.Fish EyeDistort close objects to imitate the visual eect of a sheye lens.Smart Filter options cannot be set with Picture Wizard options at the same time.Smart Filter
97Shooting Functions > Exposure compensation97Shooting Functions > Exposure compensationShooting FunctionsThe camera automatically sets the exposure by measuring the levels of light from the photo’s composition and the position of a subject. If the exposure set by the camera is higher or lower than you expected, you can adjust the exposure value manually. The exposure value is adjustable in ±3 increments. The camera displays the exposure warning in red for each step beyond ±3 range.To adjust the exposure value, touch the exposure level indicator on the screen or touch ĺ EV and adjust the exposure value. You can also press [I] to select the exposure value and press [C/F] to adjust it.You can check the exposure value by the position of the exposure level indicator.Exposure level indicatorIncreased exposure (brighter)Decreased exposure (darker) Exposure warning Standard exposure index-2Original+2Exposure compensation
98Shooting Functions > Exposure lock98Shooting Functions > Exposure lockShooting FunctionsWhen you cannot achieve an appropriate exposure because of a strong brightness contrast, lock the exposure and then capture a photo.To lock the exposure, adjust the photo’s composition on which you want to calculate the exposure, and then press the Custom button. (when the function of the Custom button is set to AEL) (p. 151)After locking the exposure, aim the lens where you desire, and then press [Shutter].Exposure lock
99Shooting Functions > Video functions99Shooting Functions > Video functionsShooting FunctionsThe functions available for video are explained below.Movie sizeSet the movie size.To set movie size options, In Shooting mode, press [m] ĺ g ĺ Movie Size ĺ an option.When Video Out is set to NTSC* DefaultIcon Size Recommended for*1920X1080 (30 fps) (16:9) View on a Full HDTV. 1280X720 (30 fps) (16:9) View on an HDTV.640X480 (30 fps) (4:3) View on a TV.320X240 (30 fps) (4:3) Post on a website using the wireless network (30 seconds maximum).When Video Out is set to PAL* DefaultIcon Size Recommended for*1920X1080 (25 fps) (16:9) View on a Full HDTV. 1280X720 (25 fps) (16:9) View on an HDTV.640X480 (25 fps) (4:3) View on a TV.320X240 (25 fps) (4:3) Post on a website using the wireless network (30 seconds maximum).Video functions
100Shooting Functions > Video functionsMovie qualitySet the Movie quality.To set movie quality options, In Shooting mode, press [m] ĺ g ĺ Movie Quality ĺ an option.* DefaultIcon Extension DescriptionMP4 (H.264) Normal: Record videos in normal quality.MP4 (H.264) HQ*: Record videos in high quality.Multi MotionSet the playing speed of a video.To set playing speed options,In Shooting mode, press [m] ĺg ĺMulti Motion ĺ an option.* DefaultIcon Descriptionx0.25: Record a video to view it at 1/4 normal speed during playback. (Available only with 640x480 or 320x240)x1*: Record a video to view it at normal speed during playback.x5: Record a video to view it at 5X normal speed during playback.x10: Record a video to view it at 10X normal speed during playback.x20: Record a video to view it at 20X normal speed during playback.If you select an option other than x1, the sound recording function and the Distortion Correct function will not be supported.The available options may dier depending on shooting conditions.
101Shooting Functions > Video functionsVoiceSometimes, a muted video is more appealing than the one with sound. Turn the voice o to record a muted video. To set voice options, In Shooting mode, press [m] ĺ g ĺ Voice ĺ an option.FaderYou can fade in or fade out a scene using the fader function on the camera without having to do it on a PC. Set the fade in option to gradually fade in at the start of the scene. Set the fade out option to gradually fade out the scene. Use the function appropriately and add dramatic eects on your videos.To set fader options, In Shooting mode, press [m] ĺ g ĺFader ĺ an option.* DefaultIcon DescriptionO*: Fader function not used.In: Scene gradually fades in.Out: Scene gradually fades out.In-Out: The fader function is applied at the start and end of the scene.When you use the fader function, it may take longer to save a le.
