Samsung Electronics Co EX2F Digital Camera User Manual

Samsung Electronics Co Ltd Digital Camera

User Manual

Playback/Editing 101Viewing photos or videos in Playback modeDeleting multiple filesYou can select multiple files, and then delete them at once.1 In Playback mode, press [l].2 When the pop-up message appears, select Multiple Delete.• You can also delete multiple files in Playback mode by pressing [m], and then selecting O  Delete  Select.3 Scroll to each file you want to delete, and then press [o].• Press [o] again to cancel your selection.4 Press [l].5 When the pop-up message appears, select Yes.Deleting filesSelect files to delete in Playback mode.Deleting a single fileYou can select one file, and then delete it.1 In Playback mode, select a file, and then press [l].2 When the pop-up message appears, select Yes.• When viewing files in Smart Album or thumbnails view, press [l] to delete a file.• While viewing files as a folder, press [l] to delete all photos in the folder.• To delete a specific photo in a folder, open the folder, select a file, and then press [l].
Playback/Editing 102Viewing photos or videos in Playback modeViewing photosEnlarge part of a photo or view photos as a slide show.Enlarging a photoIn Playback mode, rotate [Zoom] to the right to enlarge a portion of the photo. Rotate [Zoom] to the left to zoom out.Enlarged areaTrimDeleting all filesYou can select all files, and then delete them at once.1 In Playback mode, press [m].2 Select O  Delete  All.3 When the pop-up message appears, select Yes.• All unprotected files are deleted.
Playback/Editing 103Viewing photos or videos in Playback modeViewing panoramic photosView photos captured in Panorama mode.1 In Playback mode, rotate the navigation button or press [F/t] to scroll to a desired panoramic photo.• The entire panoramic photo appears on the screen.2 Press [o].• The camera automatically scrolls through the photo from left to right for a horizontal panoramic photo and from top to bottom for a vertical panoramic photo. The camera then switches to Playback mode.• While playing back a panoramic photo, press [o] to pause or resume.• After you have paused the playback of a panoramic photo, press [D/c/F/t] to move the photo horizontally or vertically, depending on the direction you moved when capturing the photo.3 Press [m] to return to Playback mode.• The camera automatically scrolls through the panoramic photo only if the longest side of the photo is two or more times longer than the shortest side.• On your camera’s display, a photo captured in 3D Panorama mode appears as a 2D panoramic photo. To see the 3D effect, connect your camera to a 3D TV or 3D monitor. (p. 114)To DescriptionMove the enlarged area Press [D/c/F/t].Trim the enlarged photoPress [o], and then select Yes. (The trimmed photo will be saved as a new file. The original photo is retained in its original form.)When you view photos that were captured by another camera, the zoom ratio may differ.
Playback/Editing 104Viewing photos or videos in Playback modePlaying a slide showApply effects and audio to a slide show of your photos. The slide show function does not work for videos. 1 In Playback mode, press [m].2 Select .3 Select a slide show effect option.• Skip to step 4 to start a slide show with no effects.* DefaultOption DescriptionStart Set whether or not to repeat the slide show. (Play, Repeat)ImagesSet the photos you want to view as a slide show.• All*: View all photos in a slide show.• Date: View photos captured on a specific date in a slide show.• Select: View selected photos in a slide show.Interval• Set the interval between photos. (1 sec*, 3 sec, 5 sec, 10 sec)• You must set the Effect option to Off to set the interval.* DefaultOption DescriptionEffect• Set a scene change effect between photos. (Off*, Calm, Shine, Relax, Lively, Sweet)• Select Off to cancel effects.• When you use the Effect option, the interval between photos will be set to 3 seconds.Music Set background audio.4 Select Start  Play.• Select Repeat to loop the slide show.5 View the slide show.• Press [o] to pause the slide show.• Press [o] again to resume the slide show.• Press [o], and then press [F/t] to stop the slide show and return to Playback mode.• Rotate [Zoom] to the left or right to adjust the volume level.
Playback/Editing 105Viewing photos or videos in Playback modeTrimming a video1 While viewing a video, press [o] at the point where you want the trimming to begin.2 Rotate [Zoom] to the right, and then press [o].3 Press [o] at the point where you want the trimming to end.4 Rotate [Zoom] to the right.5 When the pop-up message appears, select Yes.• The original video should be at least 10 seconds long.• The camera will save the edited video as a new file and leave the original video intact.Playing a videoIn Playback mode, you can view a video, and then capture or trim parts of the playing video. You can save the captured or trimmed segments as new files.1 In Playback mode, select a video, and then press [o].2 View the video.Current playback time/Video lengthPause StopTo DescriptionScan backwardPress [F]. Each time you press [F], you change the scan speed in this order: 2X, 4X, 8X.Pause or resume playback Press [o].Scan forwardPress [t]. Each time you press [t], you change the scan speed in this order: 2X, 4X, 8X. Adjust the volume level Rotate [Zoom] to the left or right.
Playback/Editing 106Viewing photos or videos in Playback modeCapturing an image from video1 While viewing a video, press [o] at the point where you want to capture an image.2 Press [c].• The resolution of the captured image will be the same as the original video.• The captured image is saved as a new file.
Playback/Editing 107Editing a photoLearn how to edit photos.• The camera will save edited photos as new files.• When you edit photos, the camera will automatically convert them to a lower resolution. Photos that you rotate or resize manually are not automatically converted to a lower resolution.Rotating a photo1 In Playback mode, select a photo, and then press [m].2 Select e  Rotate.3 Select an option.Back SetRotate : Right 90˚The camera will overwrite the original file.Resizing photosChange the size of a photo and save it as a new file.1 In Playback mode, select a photo, and then press [m].2 Select e  Resize.3 Select an option.Back SetResizeRotateSmart FilterImage Adjust2592X19441984X14881024X768Available resize options differ depending on the original size of the photo.
Playback/Editing 108Editing a photoApplying Smart Filter effectsApply special effects to your photos.1 In Playback mode, select a photo, and then press [m].2 Select e  Smart Filter.3 Select an effect.Back SetSmart Filter : NormalIcon DescriptionNormal: No effectMiniature: Apply a tilt-shift effect to make the subject appear in miniature.Vignetting: Apply the retro-looking colors, high contrast, and strong vignette effect of Lomo cameras.Ink Painting: Apply a watercolor painting effect.Icon DescriptionOil Painting: Apply an oil painting effect.Cartoon: Apply a cartoon painting effect.Cross Filter: Add lines that radiate outward from bright objects to imitate the visual effect of a cross filter.Sketch: Apply a pen sketch effect.Soft Focus: Hide facial imperfections or apply dreamy effects.Fish-eye: Distort close objects to imitate the visual effect of a fisheye lens.Old Film: Apply a vintage film effect.Half Tone Dot: Apply a halftone effect.Classic: Apply a black and white effect.Retro: Apply a sepia tone effect.Zooming Shot: Blur the edges of a photo to emphasize the subjects in the center.
Playback/Editing 109Editing a photoRetouching faces1 In Playback mode, select a photo, and then press [m].2 Select e  Image Adjust  Face Retouch.3 Press [c].4 Rotate the navigation button or press [F/t] to adjust the skin tone.• As the number increases, the skin tone becomes brighter.5 Press [o] to save your settings.Adjusting your photosLearn how to correct red-eye, adjust the skin tone, and adjust the brightness, contrast, or saturation. The camera will save an edited photo as a new file, but may convert it to a lower resolution. Removing red-eye1 In Playback mode, select a photo, and then press [m].2 Select e  Image Adjust  Red-eye Fix.3 Press [o] to save your settings.
Playback/Editing 110Editing a photoAdjusting brightness, contrast, or saturation1 In Playback mode, select a photo, and then press [m]. 2 Select e  Image Adjust.3 Select an adjusting option.Icon DescriptionBrightnessContrastSaturation 4 Press [c].5 Rotate the navigation button or press [F/t] to adjust the option.6 Press [o] to save your settings.Adding noise to the photo1 In Playback mode, select a photo, and then press [m].2 Select e  Image Adjust  Add Noise.3 Press [o] to save.Creating a print order (DPOF)Select photos to print and save print options in the Digital Print Order Format (DPOF). This information is saved in the MISC folder on your memory card for convenient printing on DPOF-compatible printers.1 In Playback mode, press [m].2 Select O  DPOF  Standard  Select.• Select All to print all photos.
Playback/Editing 111Editing a photo3 Scroll to a photo you want to print, rotate [Zoom] to the left or right to select the number of copies, and then press [f].• If you select All, press [D/c] to select the number of copies, and then press [o].4 Press [m].5 Select O  DPOF  Size  Select.• Select All to choose the print size for all photos.6 Scroll to a photo you want to print, rotate [Zoom] to the left or right to select the print size, and then press [f].• If you select All, press [D/c] to select the print size, and then press [o].Printing photos as thumbnailsPrint photos as thumbnails to check all the photos at once.1 In Playback mode, press [m].2 Select O  DPOF  Index.3 When the pop-up message appears, select Yes.• You can take the memory card to a print shop that supports DPOF (Digital Print Order Format) or you can print photos directly through a DPOF-compatible printer at home.• Photos with dimensions that are wider than the paper may be cut off on the left and right edges. Ensure that your photo dimensions are compatible with the paper you select.• If you specify the print size, you can print photos only with DPOF 1.1-compatible printers.
Playback/Editing 112Viewing files on a TV, HDTV, or 3D TVPlay back photos or videos by connecting your camera to a TV with the A/V cable.6 Turn on your TV, and then select the A/V video source with the TV remote control.7 Turn on your camera.• The camera automatically enters into Playback mode when you connect it to a TV.8 View photos or play videos using the camera buttons.• Depending on the TV model, you may see some digital noise or part of an image may not appear.• Images may not be centered on the TV screen depending on your TV settings.1 In Shooting or Playback mode, press [m].2 Select n  Video Out.3 Select the video signal output for your country or region. (p. 155)4 Turn off your camera and TV.5 Connect your camera to your TV with the A/V cable.VideoAudio
Playback/Editing 113Viewing files on a TV, HDTV, or 3D TV6 Turn on your camera.• If you have an Anynet+ compatible Samsung HDTV and you have turned on your camera’s Anynet+ function, the HDTV turns on automatically and displays the camera screen, while the camera automatically enters Playback mode.• If Anynet+ is off in your camera or your TV does not have Anynet+, the TV does not turn on automatically. Turn the TV on manually.7 View files using the buttons on your camera or, if the TV has Anynet+, the remote control of your HDTV.• If your HDTV supports the Anynet+(CEC) profile, turn Anynet+ on in the camera’s settings menu (p. 155) to control the camera and TV with the TV’s remote control.• Anynet+ lets you control all connected Samsung A/V devices with the TV remote control.• The time it takes for the camera to connect to your HDTV may vary with the type of SD, SDHC, or SDXC card you use. A faster SD, SDHC, or SDXC card will not necessarily result in a faster HDMI transfer, because the main function of the card is to improve the transfer rate during shooting.Viewing files on an HDTVYou can view high-quality and uncompressed photos or videos on an HDTV using the optional HDMI cable. HDMI (High Definition Multimedia Interface) is supported by most HDTVs.1 In Shooting or Playback mode, press [m].2 Select n  HDMI Size.3 Select an HDMI resolution. (p. 155)4 Turn off your camera and HDTV.5 Connect your camera to your HDTV with the optional HDMI cable.
Playback/Editing 114Viewing files on a TV, HDTV, or 3D TVViewing files on a 3D TVYou can view photos captured in 3D Photo or 3D Panorama mode on a 3D TV.1 In Shooting or Playback mode, press [m].2 Select n  HDMI Size.3 Select an HDMI resolution. (p. 155)4 Turn off your camera and 3D TV.5 Connect your camera to your 3D TV with the optional HDMI cable.6 Turn on your camera.• If you have an Anynet+ compatible Samsung 3D TV and you have turned on your camera's Anynet+ function, the 3D TV turns on automatically and displays the camera screen, while the camera automatically enters Playback mode.• If Anynet+ is off in your camera or your TV does not have Anynet+, the TV does not turn on automatically. Turn the TV on manually.7 Press [c] to switch to 3D TV Mode.• Press [c] again to switch to 2D TV Mode.8 Turn on your TV's 3D function.• Refer to your TV's user manual for more details.9 View 3D photos with the buttons on your camera or, if the TV has Anynet+, the remote control of your 3D TV.• You cannot view an MPO file in 3D on TVs that do not support the file format.• Use proper 3D glasses when you view an MPO file on a 3D TV.Do not view the 3D images captured by your camera on a 3D TV or 3D monitor for an extended period of time. It may cause unpleasant symptoms, such as eyestrain, fatigue, nausea, and dizziness.
Playback/Editing 115Viewing files on a TV, HDTV, or 3D TV3 Turn on the camera.• The computer recognizes the camera automatically.If you set the USB option to Select, select Computer in the pop-up window.4 On your computer, select My Computer  Removable Disk  DCIM 100PHOTO.5 Drag or save files to your computer.Transferring files to your Windows computerTransferring files by connecting the camera as a removable diskConnect the camera to your computer as a removable disk.1 Turn off the camera.2 Connect the camera to your computer with the USB cable.You must plug the small end of the USB cable into your camera. If the cable is reversed, it may damage your files. The manufacturer is not responsible for any loss of data.
Playback/Editing 116Viewing files on a TV, HDTV, or 3D TVDisconnecting the camera (for Windows XP)With Windows Vista and Windows 7, the methods for disconnecting the camera are similar.1 If the status lamp on your camera is blinking, wait until it stops.2 Click on the tool bar at the bottom right of your computer screen.3 Click the pop-up message.4 Click the message box that indicates the camera can be removed safely.5 Remove the USB cable.The camera may not disconnect safely while Intelli-studio is running. End the program before disconnecting the camera.
Playback/Editing 117Using the provided programs on your PCYou can edit digital photos and videos in a variety of ways using the provided image editing programs. Programs contained on the CD are compatible only with Windows.Programs contained on the CDProgram RequirementsIntelli-studio Edit photos and videos.PC Auto Backup Send the recorded files to a connected PC via Wi-Fi.Creative Movie Maker Easily make movies from captured still images and videos.Samsung RAW Converter Edit RAW format files.• You can download Map Download Manager, PC Auto Backup, and Creative Movie Maker by connecting to Intelli-studio.• If your computer does not meet the requirements, videos may not play correctly or it may take longer to edit videos. See page 120.• Install DirectX 9.0c or above before you use Intelli-studio.The manufacturer is not responsible for any damage that results from using unqualified computers, such as a computer you assembled yourself.Installing software1 Insert the installation CD in a compatible CD-ROM drive.2 When the setup screen is appears, click Samsung Digital Camera Installer to start installation.3 Select a program to install, and then click Install.4 Follow the on-screen instructions.5 Click Exit to complete the installation, and then restart your computer.
Playback/Editing 118Using the provided programs on your PC• The requirements are recommendation only. Intelli-studio may not work properly even when the computer meets the requirements, depending on the condition of your computer.• If your computer does not meet the requirements, videos may not play correctly or it may take longer to edit videos.• Install DirectX 9.0c or above before you use Intelli-studio.• Your computer must be running Windows XP, Windows Vista, or Windows 7 for you to connect the camera as a removable disk.The manufacturer is not responsible for any damage that results from using unqualified computers such as a computer you assembled yourself.Using Intelli-studioTransfer files to your Windows computer, edit them with Intelli-studio, and upload them to the web.RequirementsItem RequirementsCPU Intel® Core 2 Duo 1.66 GHz or higher/ AMD Athlon™ X2 Dual-Core 2.2 GHz or higher RAM Minimum 512 MB RAM (1 GB or more recommended)OS* Windows XP SP2, Windows Vista, or Windows 7 (32-bit editions)Hard disk capacity 250 MB or more (1 GB and above recommended)Others• CD-ROM drive• 1024 X 768 pixels, 16-bit color display compatible monitor (1280 X 1024 pixels, 32-bit color display recommended)• USB 2.0 port• nVIDIA Geforce 7600GT or higher/ ATI X1600 series or higher• Microsoft DirectX 9.0c or higher* The programs may not work properly on 64-bit editions of Windows XP, Windows Vista, and Windows 7.
Playback/Editing 119Using the provided programs on your PCUsing Intelli-studioIntelli-studio is a built-in program that allows you to play back and edit files. For details, select Help  Help from the program toolbar.• You can update the firmware of your camera by selecting Web Support  Upgrade firmware for the connected device from the program toolbar.• If you install Intelli-studio on your computer, the program will launch more quickly. To install the program, select Tool  Install Intelli-studio on PC.• You cannot edit files directly on the camera. Transfer files to a folder on your computer before editing.• Intelli-studio supports the following formats: - Videos: MP4 (Video: H.264, Audio: AAC), WMV (WMV 7/8/9), AVI (MJPEG) - Photos: JPG, GIF, BMP, PNG, TIFF543690!8%@#$127
Playback/Editing 120Using the provided programs on your PCTransferring files with Intelli-studioIntelli-studio will start automatically when you connect the camera to your computer with the USB cable.The battery will charge while the camera is connected to a computer with the USB cable.1 Turn off the camera.2 Connect the camera to your computer with the USB cable.You must plug the small end of the USB cable into your camera. If the cable is reversed, it may damage your files. The manufacturer is not responsible for any loss of data.No. Description1Open menus.2Display files in the selected folder.3Switch to the Photo edit mode.4Switch to the Video edit mode.5Switch to the Sharing mode (to send files by email or upload files to websites, such as Flickr or YouTube).6Enlarge or reduce the thumbnails in the list.7Select a file type.8View files in the selected folder on your computer.9Show or hide files on the connected camera.0View files in the selected folder on the camera.!View files as thumbnails or on a map.@Browse folders stored on the camera.#Browse folders stored on your computer.$Move to the previous or next folder.%Print files, view files on a map, store files in My Folder, or register faces.
Playback/Editing 121Using the provided programs on your PC3 Turn on the camera.• When the Intelli-studio installation pop-up appears on the computer screen, follow the on-screen instructions to complete the installation.• When you connect the camera to a computer with Intelli-studio installed, the program will launch automatically.If you set the USB option to Select, select Computer in the pop-up window.4 Select a destination folder on your computer, and then select Yes.• New files stored on the camera will automatically transfer to the selected folder.• If your camera has no new files, the pop-up window for saving new files will not appear.For Windows Vista and Windows 7, select Run iLinker.exe from the Auto Play window to start Intelli-studio. If Run iLinker.exe does not appear on the computer, click  Computer  Intelli-studio, and then follow the on-screen instructions to complete the Intelli-studio installation.
Playback/Editing 122Viewing files on a TV, HDTV, or 3D TV2 Turn on the camera.• The computer recognizes the camera automatically and displays a removable disk icon.If you set the USB option to Select, select Computer in the pop-up window.3 Double-click the removable disk icon.4 Drag or save files to your computer.Transferring files to your Mac computerWhen you connect the camera to a Macintosh computer, the computer will automatically recognize the device. You can transfer files directly from the camera to the computer without installing any programs.Mac OS 10.4 or later is supported.1 Connect your camera to a Macintosh computer with the USB cable.You must plug the small end of the USB cable into your camera. If the cable is reversed, it may damage your files. The manufacturer is not responsible for any loss of data.
Playback/Editing 123Viewing files on a TV, HDTV, or 3D TV• When using a laptop, the software may operate slowly due to the low-power settings even if the laptop meets the recommended specifications.• Depending on the 3D performance of your graphics card, the processing speed and resolution of the movie may vary.• Files that have not beenrecorded with a Samsung camera or camcorder may not play smoothly.• To install and use CMM, you should have the latest version of Intelli-studio installed. You can download the latest version of Intelli-studio by selecting Web Support  Update Intelli-studio  Start Update in the Intelli-studio toolbar.• Creative Movie Maker can be used only with the Windows OS.Using Creative Movie Maker1 Install Creative Movie Maker from the provided CD. (p. 124)2 Connect the camera to your PC with a USB cable. 3 Copy the captured still image or video files to the PC.4 Create the desired movie with Creative Movie Maker.Creative Movie Maker (CMM)Creative Movie Maker (CMM) allows you to make movies from captured still images and recorded videos with an easy-to-use interface. It provides background features, such as themes, music, and resolution, so that you can customize your movies.RequirementsTo edit multiple videos and still images more smoothly, higher system requirements may be needed.Item RequirementsOS Windows XP SP3 / Vista / 7CPU Intel® Pentium 4, AMD Athlon FX or higherRAM 1 GB or moreVideo card 250 MB or more (1 GB and above recommended)Hard disk capacityGPU supporting OpenGL 2.0 or higher (nVIDIA Geforce 7600GT or higher/ ATI X1600 series or higher)Others• 1024 X 768, 32bit color or higher• USB 2.0 port• Microsoft DirectX 9.0c or higher• OpenGL 2.0 or higher
Playback/Editing 124Viewing files on a TV, HDTV, or 3D TVUsing Creative Movie MakerFor details, select Help  Help from the program toolbar.172839456No. Description1Open menus.2Open/Save a project.3Steps to create a Creative Movie.4Creation Box5Add images and videos.No. Description6PC Browser7Project name8Delete9Next step
Playback/Editing 125Viewing files on a TV, HDTV, or 3D TVUsing Samsung RAW ConverterPhotos captured by a camera are often transformed to jpeg formats and stored in the memory according to the settings of the camera at the time of shooting. RAW files are not transformed to jpeg formats and are stored in the memory without any changes. With Samsung RAW Converter, you can calibrate exposures, white balances, tones, contrasts, and colors of photos.• You can download the Samsung RAW Converter program for Macintosh from the Samsung website.• The Samsung RAW Converter program supplied on the CD-ROM is compatible only with Windows XP and Vista.Opening Samsung RAW ConverterOn your computer, select Start  All Programs  Samsung RAW Converter  Samsung RAW Converter.
Playback/Editing 126Viewing files on a TV, HDTV, or 3D TVNo. Description3Editing tools4Open/Close the fine adjustment window for the editing toolsUsing the Samsung RAW Converter InterfaceFor details about using Samsung RAW Converter, click Help  Open software manual.4 3 2 1 No. Description1Menu2Toolbar
Playback/Editing 127Viewing files on a TV, HDTV, or 3D TVOriginal image p Mode, Aperture: f=8, Shutter Speed: 1/15 sec, ISO=100Changed image after correcting the exposure• You can view the brightness of the image from the histogram window.Original image Changed image after correcting the exposureEditing RAW format filesIf you edit the RAW format files with the Samsung RAW Converter, you can maintain high image quality. You can also edit JPEG and TIFF format files.To adjust the exposure of of an image1 Select File  Open file and open a file.2 From the editing tools, select .3 Adjust the exposure with the scroll bar.
Playback/Editing 128Viewing files on a TV, HDTV, or 3D TVOriginal image p Mode, Aperture: f=8, Shutter Speed: 1/15 sec, ISO=100Changed image after correcting the contrastTo adjust the tone of an image1 Select File  Open file and open a file.2 From the editing tools, select .3 Adjust the tone with the scroll bar.
Playback/Editing 129Viewing files on a TV, HDTV, or 3D TVSaving RAW files as JPEG/TIFF formats1 Select File  Open file and open a file.2 Select File  Development.3 Select a file format (JPEG or TIFF) and select Save.
Connecting to a WLAN and configuring network settings ………………………… 131Connecting to a WLAN ………………… 131Using the login browser ………………… 132Network connection tips ……………… 133Entering text …………………………… 134Using photo or video sharing websites ………………………………… 135Accessing a website …………………… 135Uploading photos or videos …………… 135Sending photos or videos via email …… 137Changing email settings ……………… 137Sending photos or videos via email …… 138Sending photos or videos to a smart phone ……………………………… 140Using a smart phone as a remote shutter release …………………………… 141Uploading photos to a cloud server …… 143Using Auto Backup to send photos or videos …………………………………… 144Installing the program for Auto Backup on your PC …………………………… 144Sending photos or videos to a PC …… 144Viewing photos or videos on a TV Link-enabled TV ……………………… 146Sending photos using Wi-Fi Direct …… 148About the Wake on LAN (WOL) feature …………………………………… 149Wireless networkLearn how to connect to wireless local area networks (WLANs) and use functions.
Wireless network 131Connecting to a WLAN and configuring network settingsLearn to connect via an access point (AP) when you are in a range of a WLAN. You can also configure network settings.Icon DescriptionSecured APWPS APSignal strengthPress [t] to open AP setting options• When you select a secured AP, a pop-up window appears. Enter the required passwords to connect to the WLAN. For information about entering text, refer to "Entering text". (p. 134)• When a login page appears, refer to "Using the login browser". (p. 132)• When you select an unsecured AP, the camera will connect to the WLAN.• If you select a WPS profile supported AP, select WPS PIN, and then enter a PIN on the AP device. You can also connect to a WPS profile supported AP by selecting WPS PBC on the camera, and then pushing the WPS button on the AP device. Connecting to a WLAN1 Rotate the mode dial to w.2 Select , , , , or .3 Press [m], and then select AP Setting.• In some modes, press [m] or follow the on-screen instructions until the AP Setting screen appears.• The camera automatically searches for available AP devices.4 Select an AP.AP SettingSamsung 2Samsung 1Samsung 3Samsung 4Samsung 5Back Select• Select WPS PBC to connect to a WPS AP.• Select Refresh to refresh connectable APs.• Select Add wireless network to add an AP manually.
Wireless network 132Connecting to a WLAN and configuring network settingsUsing the login browserYou can enter your login information via the login browser when connecting to some APs, sharing sites, or cloud servers.Button Description[D/c/F/t]Move to an item or scroll the page. [o] Select an item. [m]Access the following options:• Previous Page: Move to the previous page.• Next Page: Move to the next page.• Reload: Reload the page.• Stop: Stop loading the page.• Exit: Close the login browser.[l] Close the login browser.• You cannot select some items depending on the page you connected to. This does not indicate a malfunction.• The login browser may not close automatically after you log into some pages. If this occurs, close the login browser by pressing [l], and then proceed with the desired operation.• It may take longer to load the login page due to the page size or network speed. If this occurs, wait until the login information input window appears.Setting network options1 In the AP Setting screen, move to an AP, and then press [t].2 Select each option, and then enter the required information.Option DescriptionAuthentication Select a network authentication type.Data Encryption Select an encryption type.Network Password Enter the network password.IP Setting Set the IP address manually.Manually setting the IP address1 In the AP Setting screen, move to an AP, and then press [t].2 Select IP Setting  Manual.3 Select each option, and then enter the required information.Option DescriptionIP Enter the static IP address.Subnet Mask Enter the subnet mask.Gateway Enter the gateway.DNS Server Enter the DNS address.
Wireless network 133Connecting to a WLAN and configuring network settings• If you cannot connect to a WLAN, try another AP from the available AP list.• You can also connect to free WLANs in some foreign countries.• A login page may appear when you select free WLANs provided by some network service providers. Enter your ID and password to connect to the WLAN. For information about registering or the service, contact the network service providers.• Be cautious when you enter personal information for an AP connection. Do not enter any payment or credit card information on your camera. The manufacturer is not liable for any problem caused by entering such information.• Available network connections may differ by country.• The WLAN feature of your camera must comply with radio transmission laws in your region. To ensure compliance, use the WLAN feature only in the country where you purchased the camera.• The process for adjusting network settings may differ, depending on network conditions.• Do not access a network that you are not authorized to use.• Before you connect to a network, ensure your battery is fully charged.• When a DHCP server is not available you must make an autoip. txt file and copy it to the inserted memory card to connect to the network using Auto IP.Network connection tips• The quality of the network connection will be determined by the AP.• The further the distance between your camera and the AP, the longer it will take to connect to the network.• If a nearby device is using the same radio frequency signal as your camera, it may interrupt your connection.• If your AP name is not in English, the camera may not be able to locate the device or the name may appear incorrectly.• For network settings or a password, contact your network administrator or network service provider.• If a WLAN requires authentication from the service provider, you may not be able to connect to it. To connect the WLAN, contact your network service provider.• Depending on the encryption type, the number of digits in the password may differ.• A WLAN connection may not be possible in all surroundings.• The camera may display a WLAN enabled printer on the AP List. You cannot connect to a network via a printer.• You cannot connect your camera to a network and a TV simultaneously. Also, you cannot view photos or videos on a TV while connected to a network.• Connecting to a network may incur additional charges. Costs will vary based on the conditions of your contract.
Wireless network 134Connecting to a WLAN and configuring network settingsEntering textLearn how to enter text. The icons in the table below let you move the cursor, change the case, etc. Press [D/c/F/t] to move to a desired key, and then press [o] to enter the key.Back BackspaceIcon DescriptionDelete the last letter.Move the cursor.In ABC mode, change the case.Enter ".com".Switch to Symbol mode.Icon DescriptionSwitch to ABC mode.Enter a space.oSave the displayed text.View the entering text guide.• You can use only the English alphabet, regardless of the display language.• To move to o directly, press [P].• You can enter up to 64 characters.
Wireless network 135Using photo or video sharing websitesUpload your photos or videos to file sharing websites. Available websites will be displayed on your camera.Uploading photos or videos1 Access the website with your camera.2 Scroll to the files you want to upload, and then press [o].• You can select up to 20 files. The total size must be 10 MB or less.3 Select o.• If you connected to the Facebook, select o  Send.• If you connected to the Facebook, you can enter your comments by selecting the Comment box. For information about entering text, refer to "Entering text". (p. 134)Accessing a website1 Rotate the mode dial to w.2 Select .3 Select a website.• The camera will automatically attempt to connect to a WLAN via the most recently connected AP device. • If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 131)4 Enter your ID and password, and then select Login.• For information about entering text, refer to "Entering text". (p. 134)• To select an ID from the list, select  an ID.• If you have previously logged in to the website, you may be logged in automatically.You must have an existing account on the file sharing website to use this feature.
Wireless network 136Using photo or video sharing websites• The maximum photo resolution you can upload is 2M, and the longest video you can upload is 30 seconds at resolution or a video recorded using . If the selected photo resolution is higher than 2M, it will be automatically resized to a lower resolution. You can upload 10MB(total) or smaller photos or videos to social networking services.• The method of uploading photos or videos may differ depending on the selected website.• If you cannot access a website because of firewall or user authentication settings, contact your network administrator or network service provider.• Uploaded photos or videos may be automatically titled with the date they were captured.• The speed of your internet connection may affect how quickly photos upload or web pages open.• When there are no files in the camera memory, you cannot use this feature.• You can also upload photos or videos to file sharing websites in Playback mode by pressing [m], and then selecting Share(Wi-Fi)  a desired website.
Wireless network 137Sending photos or videos via emailYou can change settings in the email menu, and send photos or videos stored on the camera via email.6 Select the Email box, enter your email address, and then select o.7 Select OK to save your changes.• To delete your information, select Reset.Setting an email password1 Rotate the mode dial to w.2 Select .3 Press [m].4 Select Setting Password  On.• To deactivate the password, select Off.5 When the pop-up appears, press [o].• The pop-up disappears automatically even if you do not press [o].6 Enter a 4-digit password.7 Enter the password again.8 When the pop-up appears, press [o].• The pop-up disappears automatically even if you do not press [o].Changing email settingsIn the email menu, you can change settings for storing your information. You can also set or change the email password. For information about entering text, refer to "Entering text". (p. 134)Storing your information1 Rotate the mode dial to w.2 Select .3 Press [m].4 Select Sender Setting.5 Select the Name box, enter your name, and then select o.NameEmailBackOK ResetSender Setting
Wireless network 138Sending photos or videos via emailIf you lost your password, you can reset it by selecting Reset on the password setting screen. When you reset the information, previously saved user’s setting information, email address, and recently sent email list will be deleted.Changing the email password1 Rotate the mode dial to w.2 Select .3 Press [m].4 Select Change Password.5 Enter your current 4-digit password.6 Enter a new 4-digit password.7 Enter the new password again.8 When the pop-up appears, press [o].• The pop-up disappears automatically even if you do not press [o].Sending photos or videos via emailYou can send photos or videos stored on the camera via email. For information about entering text, refer to "Entering text". (p. 134)1 Rotate the mode dial to w.2 Select .• The camera will automatically attempt to connect to a WLAN via the most recently connected AP device and send the email.• If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 131)3 Select the Name(Email) box, enter your email address, and then select o.• If you have previously saved your information, it will be inserted automatically. (p. 137)4 Select the Receiver box, enter an email address, and then select o.• To use an address from the list of previous recipients, select  an address.• Select to add additional recipients. You can input up to 30 recipients.• Select to delete an address from the list.
Wireless network 139Sending photos or videos via email• Even if a photo appears to have transferred successfully, errors with the recipient’s email account may cause the photo to be rejected or recognized as spam.• You may not be able to send an email if no network connection is available or if your email account settings are incorrect.• The maximum photo resolution you can send is 2M and the longest video you can upload is 30 seconds at resolution or a video recorded using . If the selected photo resolution is higher than 2M, it will be automatically resized to a lower resolution. You can send 7MB (total) or smaller of photos and videos via email.• If you cannot send an email because of firewall or user authentication settings, contact your network administrator or network service provider.• When there are no files in the camera memory, you cannot use this feature.• You can also send an email in Playback mode by pressing [m], and then selecting  Email.5 Select o.6 Scroll to files to send, and then press [o].• You can select up to 20 files. The total size must be 10 MB or less.7 Select o.8 Select the Comment box, enter your comments, and then select o.9 Select Send.
Wireless network 140Sending photos or videos to a smart phoneThe camera connects to a smart phone that supports the MobileLink feature via a WLAN. You can easily send photos or videos to your smart phone.• The MobileLink feature is supported by Galaxy S smart phones with the Android 2.2 OS or higher. If your smart phone uses the Android 2.1 OS, upgrade your smart phone to Android 2.2 or higher. This feature is also supported by the 7 and 10.1 inch Galaxy Tab. This feature may be supported by other devices with Android 2.2 or higher, but Samsung makes no guarantee of its functionality.• You should install the Samsung MobileLink application on your phone or device before using this feature. You can download the application from Samsung Apps or Android market.• When there are no files in the camera memory, you cannot use this feature.• You can view up to 1,000 files and send up to 100 files at a time.4 On the smart phone, turn on the Samsung MobileLink application.• Read the on-screen instructions carefully to select and connect to your camera.• The smart phone can connect to only one camera at a time.5 On the camera, select OK.6 On the smart phone, select files to send from the camera to the smart phone.7 On the smart phone, select Copy.• The camera will send the files.1 On the camera, rotate the mode dial to w.2 On the camera, select .• If the pop-up message that prompts you to download the application appears, select OK.3 On the camera, select NETWORK_MSG_A_5 or NETWORK_MSG_A_6 to select files to share with the smart phone.• Only the selected files will be displayed on the smart phone.• If you selected NETWORK_MSG_A_6, select NETWORK_BUTTON_SHARE on the camera after selecting files to share.
Wireless network 141Using a smart phone as a remote shutter releaseThe camera connects to a smart phone via a WLAN. Use the smart phone as a remote shutter release with the Remote Viewfinder feature. The captured photo will display on the smart phone.• The Remote Viewfinder feature is supported by Galaxy S smart phones with the Android 2.2 OS or higher. If your smart phone uses the Android 2.1 OS, upgrade your smart phone to Android 2.2 or higher. This feature is also supported by the 7 and 10.1 inch Galaxy Tab. This feature may be supported by other devices with Android 2.2 or higher, but Samsung makes no guarantee of its functionality.• You should install the Remote Viewfinder application on your phone or device before using this feature. You can download the application from Samsung Apps or Android market.4 On the smart phone, set the following shooting options.Icon DescriptionFlash optionTimer optionPhoto size• While using this feature, some buttons are not available on your camera.• The zoom button and the shutter button on your smart phone will not function when using this feature.• Remote Viewfinder mode supports the and photo sizes only.1 On the camera, rotate the mode dial to w.2 On the camera, select .• If the pop-up message that prompts you to download the application appears, select OK.3 On the smart phone, turn on the Remote Viewfinder application.• Read the on-screen instructions carefully to select and connect to your camera.• The smart phone can connect to only one camera at a time.
Wireless network 142Using a smart phone as a remote shutter release5 On the smart phone, touch and hold to focus.• The focus is automatically set to multi-AF.6 Release to capture the photo.• The photo will be saved in your camera.• Touch the photo in the bottom of the screen to save it to the smart phone. The photo will be resized to 640 X 360.• When you use this feature, the ideal distance between the camera and the smart phone may vary, depending on your surroundings.• The smart phone must be within 23 ft/7 m of the camera to use this feature.• It will take some time to capture the photo after you release on the smart phone.• The Remote Viewfinder function will deactivate when: - there is an incoming call on the smart phone - either the camera or the smart phone turn off - the memory is full - either device loses its connection to the WLAN - the Wi-Fi connection is poor or unstable
Wireless network 143Uploading photos to a cloud serverYou can upload your photos to SkyDrive. To upload photos, you must visit the Microsoft website and register before connecting your camera.4 Login with your ID and password.• For information about entering text, refer to "Entering text". (p. 134)• If you connected to SkyDrive, refer to "Using the login browser". (p. 132)5 Scroll to the photos you want to upload, and then press [o].6 Select o.• You can also upload photos to a cloud server in Playback mode by pressing [m], and then selectig  a cloud server.• When there are no photos in the camera memory, you cannot use this feature.1 Rotate the mode dial to w.2 Select .3 Select SkyDrive.• If the pop-up message that prompts you to create an account appears, select OK.• The camera will attempt to connect to a WLAN via the most recently connected AP.• If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 131)
Wireless network 144Using Auto Backup to send photos or videos You can send photos or videos that you captured with the camera to a PC wirelessly. The Auto Backup feature works only with the Windows OS.Sending photos or videos to a PC1 Rotate the mode dial to w.2 Select .• If the guide message appears, press [o].3 Press [m] to set options.• To turn off your PC automatically after the transfer is complete, select Shut down PC after backup  On.4 Press [o] to start the backup.• To cancel sending, press [o].• You cannot select individual files to backup. This function backs up only new files on the camera.• The backup's progress will be shown on the PC monitor.• When the transfer is completed, the camera will turn off automatically in approximately 30 seconds. Select Cancel to return to the previous screen and prevent the camera from turning off automatically.Installing the program for Auto Backup on your PC1 Install Intelli-studio and on the PC. (p. 120)2 Connect the camera to the PC with the USB cable.• The camera stores information about the PC, so that the camera can send files to the PC.Before installing the program, ensure that the PC is connected to a network. If no internet connection is available, you must install the program from the provided CD.
Wireless network 145Using Auto Backup to send photos or videos • If the PC supports the Wake on LAN (WOL) feature, you can turn on the PC automatically by searching for the PC from your camera. (p. 149)• When you connect the camera to the WLAN, select the AP that is connected to the PC.• The camera will search for available access points even if you are connecting to the same access point again.• If you turn off the camera or remove the battery while sending files, the file transfer will be interrupted.• While you are using this feature, only [POWER] and [o] is available on your camera.• You can connect only one camera to the PC at a time for sending files.• The backup may be canceled due to network conditions.• Photos or videos can be sent to a PC one time only. Files cannot be sent again even if you reconnect your camera to another PC.• When there are no files in the camera memory, you cannot use this feature.• You must turn off Windows Firewall and any other firewalls before using this feature.• You can send up to 1,000 files.• On the PC software, the server name must be entered in the Latin alphabet and can contain no more than 48 characters.
Wireless network 146Viewing photos or videos on a TV Link-enabled TVTV Link is a technology for sharing media files between a camera and TV connected to the same AP device. With this technology, you can view your photos or videos on a widescreen TV.4 On the TV, search for the camera and browse the shared photos or videos.• For information about searching for the camera and browsing the photos or videos on the TV, refer to the TV user manual.• Videos may not play smoothly depending on the type of TV or network condition. If this happens, re-record the video in or quality and play it again. If videos do not play smoothly on your TV over the wireless connection, try connecting the camera to the TV with an A/V cable.AP1 Rotate the mode dial to w.2 Select .• If the guide message appears, press [o].• The camera will automatically attempt to connect to a WLAN via the most recently connected AP device. • If the camera has not previously been connected to a WLAN, it will search for available AP devices. (p. 131)3 Connect your TV to a wireless network via an AP device.• Refer to your TV’s user manual for more information.
Wireless network 147Viewing photos or videos on a TV Link-enabled TV• You can share up to 1,000 photos or videos.• On a TV screen, you can view only photos or videos captured with your camera.• The range of the wireless connection between your camera and a TV may vary depending on the specifications of the AP.• If the camera is connected to 2 TVs, playback may be slower.• Photos or videos will be shared in their original sizes.• You can use this feature only with TV Link-enabled TVs.• Shared photos or videos will not be stored on the TV, but they can be stored in the camera to meet the TV's specifications.• Transferring photos or videos to the TV may take some time depending on the network connection, the number of files to be shared, or sizes of the files.• If you power off the camera abnormally while viewing photos or videos on a TV (for example, by removing the battery), the TV considers the camera to still be connected.• The order of photos or videos on the camera may be different than on the TV.• Depending on the number of photos or videos you want to share, it may take some time to load your photos or videos and complete the initial set-up process.• While viewing photos or videos on the TV, continuously using the TV remote or performing additional operations on the TV may prevent this feature from working properly.• If you reorder or sort files on the camera while viewing them on a TV, you must repeat the initial set-up process to update the list of files on the TV.• When there are no files in the camera memory, you cannot use this feature.
Wireless network 148Sending photos using Wi-Fi DirectWhen the camera connects via a WLAN to a device that supports the Wi-Fi Direct function, you can send photos to the device. This feature may not be supported on some devices.5 On the device, allow the camera to connect to the device.• The photo will be sent to the device.• When there are no photos in the camera memory, you cannot use this feature.• If you cancel the connection attempt before it is complete, the camera may not be able to reconnect to the device. In this case, update your device with the latest firmware.1 On the device, turn on the Wi-Fi Direct option.2 On the camera, in Playback mode, scroll to a photo.3 Press [m], and then select Share(Wi-Fi)  Wi-Fi Direct.• When in the single image view, you can send only one photo at a time.• When in thumbnails view, you can select multiple photos by scrolling to thumbnails, and then pressing [o]. Select o when you are finished selecting photos.4 Select the device from the camera’s list of Wi-Fi Direct devices.• Ensure that the device's Wi-Fi Direct option is turned on.• You can also select your camera from the device's list of Wi-Fi Direct devices.
Wireless network 149About the Wake on LAN (WOL) featureWith the WOL feature, you can automatically turn on or wake up a PC with your camera. This feature has been available for Samsung desktop PCs for the last 5 years (not available for all-in-one PCs).Any changes to your PC’s BIOS settings other than the ones described below may damage your PC. The manufacturer is not responsible for damage caused by your changing your PC’s BIOS settings. Setting the PC to wake up from sleep mode1 Click Start, and then open the Control Panel.2 Configure the network connection.• Windows 7: Click Network and Internet  Network and Sharing Center  Change adapter settings.• Windows Vista: Click Network and Internet  Network and Sharing Center  Manage network connections.• Windows XP: Click Network and Internet Connection  Network Connection.3 Right click Local Area, and then click Properties.4 Click Configure  the Power manage tab  Allow this device to wake the computer.5 Click OK.6 Restart the PC.
Wireless network 150About the Wake on LAN (WOL) feature Setting the PC to turn on1 Turn on the PC, and then press F2 while the PC is booting.• The BIOS setting menu will appear.2 Select Advanced tab  Power management Setup.3 Select Resume on PME  Enabled.4 Press F10 to save your changes, and then continue booting.5 Click Start, and then open the Control Panel.6 Configure the network connection.• Windows 7: Click Network and Internet  Network and Sharing Center  Change adapter settings.• Windows Vista: Click Network and Internet  Network and Sharing Center  Manage network connections.• Windows XP: Click Network and Internet Connection  Network Connection.7 Select the drivers for the network adapter.8 Click the Advanced tab, and then set the WOL menus.• You cannot use this feature across a firewall or if a security program has been installed.• To turn on the PC with the WOL feature, the PC must have an active connection to the LAN. Ensure that the indicator light on the PC’s LAN port is on indicating that the LAN connection is active.• Depending on your PC model, the camera may only be able to wake the PC.• Depending on your PC’s OS or drivers, the names of the WOL setting menu may vary. - examples of setting menu names: Enable PME, Wake on LAN, etc. - examples of setting menu values: Enable, Magic packet, etc.
Settings menu ………………………………………… 152Accessing the settings menu ……………………… 152Using the settings menu …………………………… 153SettingsRefer to options to configure your camera’s settings.
Settings 152Settings menuLearn to configure your camera's settings.3 Select an option.Back SetVolumeStart SoundShutter SoundBeep SoundAF SoundOffLowMediumHighOn4 Press [m] to return to the previous screen.Accessing the settings menu1 In Shooting or Playback mode, press [m].2 Select n  an item.Exit MoveMediumOffOnOnOnVolumeStart SoundShutter SoundBeep SoundAF Sound
Settings 153Settings menuUsing the settings menu* DefaultItem DescriptionVolume Set the volume of all sounds. (Off, Low, Medium*, High)Start Sound Set to emit a sound when you turn on your camera. (Off*, On)Shutter Sound Set to emit a sound when you press the shutter button. (Off, On*)Beep Sound Set to emit a sound when you press the buttons or switch modes. (Off, On*)AF Sound Set to emit a sound when you half-press the shutter button. (Off, On*)Function DescriptionDisplay a brief description of an option a menu. (Off, On*)Grid Line Select a guide to help you compose a scene. (Off*, 3 X 3, 2 X 2, Cross, Diagonal)Date/Time DisplaySet whether or not to display the date and time on the camera's display. (Off*, On)Display BrightnessAdjust the brightness of the screen. (Auto*, Dark, Normal, Bright)Normal is fixed in Playback mode even if you have selected Auto. * DefaultItem DescriptionQuick ViewSet the duration for reviewing a captured image before returning to the Shooting mode. (Off, 1 sec*, 3 sec)Power SaveIf you perform no operations for 30 seconds, the camera automatically switches to Power save mode. (Off, On*)• In Power save mode, press any button other than [POWER] to resume using the camera.• Even if you do not set the Power save mode, the screen will dim 30 seconds after the last operation to save power.Device InformationSee the Mac address and serial number of your camera.Language Set a language for the display text.Time ZoneSet the time zone for your location. When you travel to another country, select Visit, and then select the appropriate time zone. (Home*, Visit)Date/Time Set Set the date and time.Date TypeSet a date format. (YYYY/MM/DD*, MM/DD/YYYY, DD/MM/YYYY)The default date type may differ depending on the language selected.
Settings 154Settings menu* DefaultItem DescriptionFile No.Specify how to name files.• Reset: Set the file number to start from 0001 when you insert a new memory card, format a memory card, or delete all files.• Series*: Set the file number to resume from the previous file number when you insert a new memory card, format a memory card, or delete all files.• The default name of the first folder is 100PHOTO and the default name of the first file is SAM_0001.• The file number increases one at a time from SAM_0001 to SAM_9999.• The folder number increases one at a time from 100PHOTO to 999PHOTO.• The maximum number of files that can be stored in one folder is EX2_FILENO_MAXIMUM.• The camera defines file names according to the Design rule for Camera File system (DCF) standard. If you intentionally change file names, the camera may not play back the files.* DefaultItem DescriptionAuto Power OffSet the camera to automatically turn off when you perform no operations for a specified period. (Off, 1 min, 3 min*, 5 min, 10 min)• Your settings will not change when you replace the battery.• The camera will not automatically turn off when the camera is connected to a computer or printer, and when you are playing a slide show or videos.Smart Link (Wi-Fi Button)Set a Wi-Fi function to launch when you press [t]. (MobileLink*, Remote Viewfinder, Social Sharing, Email, SkyDrive, Auto Backup, TV Link)AF Lamp Set a light to automatically turn on in dark places to help you focus. (Off, On*)EX2_CONVERSION_LENSSet to use optional conversion lens. (Off*, On)
Settings 155Settings menu* DefaultItem DescriptionFormatFormat the memory card. Formatting will delete all files, including protected files. (No, Yes)Errors can occur if you use a memory card formatted by another brand of camera, a memory card reader, or a computer. Please format memory cards in the camera before using them to capture photos.ResetReset menus and shooting options. Date and time, language, and video output settings will not be reset. (No, Yes)Anynet+ (HDMI-CEC)Turn on to control the camera with a TV remote control when you connect it to an HDTV that supports the Anynet+(CEC) profile.• Off: View files without using an HDTV remote control.• On*: Control the camera with an HDTV remote control.* DefaultItem DescriptionHDMI SizeSet the resolution of photos when the camera plays back files on an HDTV via the HDMI cable. (NTSC: 1080i*, 720p, 480p/ PAL: 1080i*, 720p, 576p)• If the HDTV does not support the selected resolution, the HDTV automatically selects the next lower resolution.• If you select 480p or 576p, the playback menus and Smart Album will not be available when you connect the camera to a TV.Video OutSet the video signal output for your region.• NTSC: USA, Canada, Japan, Korea, Taiwan, Mexico• PAL (supports only BDGHI): Australia, Austria, Belgium, China, Denmark, England, Finland, Germany, Italy, Kuwait, Malaysia, Netherlands, New Zealand, Norway, Singapore, Spain, Sweden, Switzerland, Thailand
Error messages ……………………………………… 157Camera maintenance ………………………………… 159Cleaning your camera ……………………………… 159Using or storing the camera ………………………… 160About memory cards ……………………………… 162About the battery …………………………………… 165Using optional accessories ………………………… 169Using optional flash units …………………………… 169Using an optional optical viewfinder ………………… 169Using an optional conversion lens …………………… 170Using the shutter release …………………………… 171Using the zoom microphone ………………………… 171Before contacting a service center ………………… 172Camera specifications ……………………………… 175Glossary ……………………………………………… 179FCC notice …………………………………………… 184Declaration sentence in official languages ………… 187Index …………………………………………………… 189AppendixGet information about error messages, specifications, and maintenance.
Appendix 157Error messagesWhen the following error messages appear, try these remedies.Error message Suggested remediesConnection failed.• The camera cannot connect to the network using the selected access point. Select another AP and try again.• The camera has failed to connect to the other camera. Try connecting again.File system not supported.Your camera does not support the FAT file structure of the inserted memory card. Format the memory card on the camera.Card not supported.The inserted memory card is not supported by your camera. Insert a SD, SDHC, or SDXC memory card.File Error Delete the damaged file or contact a service center.Memory Full Delete unnecessary files or insert a new memory card.Transfer failed.• The camera has failed to send a photo to the other camera. Try sending again.• The camera has failed to send an email or transfer a photo to a TV Link device. Check the network connection and try again.Error message Suggested remediesCard Error• Turn off your camera, and then turn it on again.• Remove your memory card, and then insert it again.• Format your memory card.Low Battery Insert a charged battery or recharge the battery.Invalid password.The password for transferring files to another camera is wrong. Enter the correct password again.Photo reception failed.The camera has failed to receive a photo from the sending camera. Ask the other person to send the file again.No Image File Capture photos or insert a memory card that contains some photos.Photo transfer failed.Network connection disconnected while transferring photos. Try turning on the TV Link feature again.Device disconnected.Network connection disconnected while transferring photos. Select a TV Link device again.
Appendix 158Error messagesError message Suggested remediesInitialization failed.• Turn on TV Link enabled devices on the network.• The camera has failed to locate a TV Linkenabled device.Card LockedYou can lock an SD, SDHC, or SDXC card to prevent files from being deleted. Unlock the card when shooting.DCF Full ErrorFile names do not match the DCF standard. Transfer the files from the memory card to your computer and format the card. Then, open the Settings menu and select File No.  Reset. (p. 154)
Appendix 159Camera maintenanceCamera bodyWipe gently with a soft, dry cloth.• Never use benzene, thinners, or alcohol to clean the device. These solutions can damage the camera or cause it to malfunction.• Do not press on the lens cover or use a blower brush on the lens cover.Cleaning your cameraCamera lens and displayUse a blower brush to remove dust and wipe the lens gently with a soft cloth. If any dust remains, apply lens cleaning liquid to a piece of lens cleaning paper and wipe gently.
Appendix 160Camera maintenanceUsing on beaches or shores• Protect your camera from sand and dirt when you use it on beaches or in similar areas.• Your camera is not waterproof. Do not handle the battery, adapter, or memory card with wet hands. Operating the camera with wet hands may cause damage to your camera.Storing for extended period of time• When you store the camera for an extended period, place it in a sealed container with an absorbent material, such as silica gel.• Remove the batteries from your camera when storing it for an extended period. Installed batteries may leak or corrode over time and cause serious damage to your camera.• Over time, unused batteries will discharge and must be recharged before use.• The present date and time can be initialized when the camera is turned on after the camera and battery have been separated for over 40 hours.Using or storing the cameraInappropriate places to use or store the camera• Avoid exposing the camera to very cold or very hot temperatures.• Avoid using your camera in areas with extremely high humidity, or where the humidity changes drastically.• Avoid exposing the camera to direct sunlight and storing it in hot, poorly-ventilated areas, such as in a car during summer time.• Protect your camera and the display from impact, rough handling, and excessive vibration to avoid serious damage.• Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated areas to prevent damage to moving parts and internal components.• Do not use your camera near fuels, combustibles, or flammable chemicals. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the camera or its accessories.• Do not store the camera where there are mothballs.
Appendix 161Camera maintenance• Never place cameras, batteries, chargers, or accessories near, on, or in heating devices, such as microwave ovens, stoves, or radiators. These devices may be deformed and can overheat and cause a fire or explosion.• Do not expose the lens to direct sunlight, as this may discolor the image sensor or cause it to malfunction.• Protect the lens from fingerprints and scratches. Clean the lens with a soft, clean, debris-free lens cloth.• The camera may turn off if struck or dropped. This is to protect the memory card. Turn on the camera to use it again.• While you use the camera, it may heat up. This is normal and should not affect your camera’s lifespan or performance.• When you use the camera in low temperatures, it may take some time to turn on, the color of the display may be changed temporarily, or after-images may appear. These conditions are not malfunctions and they will correct themselves when the camera is returned to milder temperatures.• Paint or metal on the outside of the camera may cause allergies, itchy skin, eczema, or swelling for people with sensitive skin. If you experience any of these symptoms, stop using the camera immediately and consult a doctor.• Do not insert foreign objects into any of your camera’s compartments, slots, or access points. Damage due to improper use may not be covered by your warranty.• Do not allow unqualified personnel to service the camera or attempt to service the camera yourself. Any damage that results from unqualified service is not covered by your warranty.Using the camera with caution in humid environmentsWhen you transfer the camera from a cold environment to a warm one, condensation can form on the lens or internal components of the camera. In this situation, turn off the camera and wait for at least 1 hour. If condensation forms on the memory card, remove the memory card from the camera and wait until all moisture has evaporated before reinserting it.Other cautions• Do not swing your camera by the strap. This may cause injury to yourself or others or damage to your camera.• Do not paint your camera, as paint can clog moving parts and prevent proper operation.• Turn off the camera when not using it.• Your camera contains delicate parts. Avoid impacts to the camera.• Protect the display from external force by keeping it in the case when not in use. Protect the camera from scratches by keeping it away from sand, sharp implements, or loose change.• Do not use the camera if the screen is cracked or broken. Broken glass or acrylic could cause injury to your hands and face. Take the camera to a Samsung service center to have it repaired.
Appendix 162Camera maintenanceAbout memory cardsSupported memory cardsYour camera supports SD, SDHC, or SDXC memory cards.TerminalWrite-protect switchLabel (front)You can prevent files from being deleted by using the write-protect switch on an SD, SDHC, or SDXC card. Slide the switch down to lock or slide it up to unlock. Unlock the card when capturing photos and videos.Memory cardMemory card adapterTo use micro memory cards with this product, a PC, or a memory card reader, insert the card into an adapter.Memory card capacityThe memory capacity may differ depending on shooting scenes or shooting conditions. These capacities are based on a 2 GB SD card:PhotoSize Super Fine Fine Normal277 313 503254 349 558286 392 623335 457 721333 456 719512 691 1,060819 1,081 1,5881,095 1,418 2,0092,165 2,610 3,284
Appendix 163Camera maintenanceVideoSize 480fps 240fps 120fps 30fps 1920 X 1080 ---Approx. 19' 05" 1280 X 720 ---Approx. 29' 38" 640 X 480 ---Approx. 57' 16" For Sharing ---Approx. 716' 50" 640 X 480 --Approx. 24' 52" - 384 X 288 -Approx. 32' 49" -- 192 X 144Approx. 26' 02" ---* The figures above are measured without using the zoom function. Available recording time may vary if you use the zoom. Several videos were recorded in succession to determine the total recording time.Size RAW RAW + S.Fine RAW + Fine RAW + Normal73 51 59 6974 54 61 7176 57 64 7378 60 67 7578 60 67 7583 69 74 8087 77 81 8589 81 84 8791 87 88 90
Appendix 164Camera maintenance• Prevent memory cards from making contact with liquids, dirt, or foreign substances. If dirty, wipe the memory card clean with a soft cloth before you insert the memory card in your camera.• Do not allow liquids, dirt, or foreign substances to come in contact with memory cards or the memory card slot. Doing so may cause memory cards or the camera to malfunction.• When you carry a memory card, use a case to protect the card from electrostatic discharges.• Transfer important data to other media, such as a hard disk, CD, or DVD.• When you use the camera for an extended period, the memory card may become warm. This is normal and does not indicate a malfunction.The manufacturer is not responsible for any loss of data.Cautions when using memory cards• Avoid exposing memory cards to very cold or very hot temperatures (below 0 °C/32 °F or above 40 °C/104 °F). Extreme temperatures can cause memory cards to malfunction.• Insert a memory card in the correct direction. Inserting a memory card in the wrong direction may damage your camera and memory card.• Do not use memory cards that have been formatted by other cameras or by a computer. Reformat the memory card with your camera.• Turn off the camera when you insert or remove the memory card.• Do not remove the memory card or turn off your camera while the lamp is blinking, as this may damage your data.• When the lifespan of a memory card has expired, you cannot store any more photos on the card. Use a new memory card.• Do not bend, drop, or subject memory cards to heavy impact or pressure.• Avoid using or storing memory cards near strong magnetic fields.• Avoid using or keeping memory cards in areas with high temperature, high humidity, or corrosive substances.
Appendix 165Camera maintenanceBattery lifeAverage shooting time/Number of photosTest conditions (when the battery is fully charged)PhotosApproximately XXX min/Approximately XXX photosThe battery life was measured under the following conditions: in p mode, in darkness, resolution, Fine quality, OIS on.1. Set the flash option to Fill in, take a single shot, and zoom in or out.2. Set the flash option to Off, take a single shot, and zoom in or out.3. Perform steps 1 and 2, waiting 30 seconds between each step. Repeat the process for 5 minutes, and then turn off the camera for 1 minute.4. Repeat steps 1 to 3.Videos Approximately XXX minRecord videos at resolution and 30 FPS.• The figures above are measured by Samsung’s standards. Your results may differ, depending on your actual usage.• Several videos were recorded in succession to determine the total recording time.• When using network functions, the battery will be depleted more quickly.About the batteryUse only Samsung-approved batteries.Battery specificationsSpecification DescriptionModel SLB-10AType Lithium-ion batteryCell capacity 1030 mAhVoltage XXX VCharging time* (when the camera is switched off) Approximately 240 min* Charging the battery by connecting it to a computer may take longer.
Appendix 166Camera maintenanceLow battery messageWhen the battery has fully discharged, the battery icon will turn red and the "Low Battery" message will appear.Notes about using the battery• Avoid exposing batteries to very cold or very hot temperatures (below 0 °C/32 °F or above 40 °C/104 °F). Extreme temperatures can reduce the charging capacity of your batteries.• When you use the camera for an extended period, the area around the battery chamber may become warm. This does not affect the normal use of the camera.• Do not pull the power supply cord to disconnect the plug from the power outlet, as this may cause a fire or electric shock.• In temperatures below 0 °C/32 °F, battery capacity and battery life may decrease.• Battery capacity may decrease in low temperatures but will return to normal in milder temperatures.Cautions about using the batteryProtect batteries, chargers, and memory cards from damagePrevent batteries from making contact with metal objects, as this can create a connection between the + and – terminals of your battery and lead to temporary or permanent battery damage and may cause a fire or electric shock.Notes about charging the battery• If the indicator light is off, make sure that the battery is inserted correctly.• If the camera is on while charging, the battery may not fully charge. Turn off the camera before charging the battery.• Do not use your camera when you charge the battery. This may cause a fire or electric shock.• Do not pull the power supply cord to disconnect the plug from the power outlet, as this may cause a fire or electric shock.• Let the battery charge for at least 10 minutes before turning on the camera.• If you connect the camera to an external power source while the battery is depleted, using some high energy-consuming functions will cause the camera to turn off. To use the camera normally, recharge the battery.
Appendix 167Camera maintenance• If you reconnect the power cable when the battery is fully charged, the status lamp turns on for approximately 30 minutes.• Using the flash or recording videos depletes the battery quickly. Charge the battery until the red status lamp turns off.• If the status lamp blinks in red, reconnect the cable, or remove the battery and insert it again.• If you charge the battery when the cable is overheated or the temperature is too high, the status lamp may blink in red. Charging will start when the battery cools down.• Overcharging batteries may shorten battery life. After charging is finished, disconnect the cable from your camera.• Do not bend or place heavy objects on the AC cable. Doing so may damage the cable.Notes about charging with a computer connected• Use only the provided USB cable.• The battery may not charge when: -you use a USB hub -other USB devices are connected to your computer -you connect the cable to the port on the front side of your computer -the USB port of your computer does not support the power output standard (5 V, 500 mA) Handling and disposing of batteries and chargers with care• Never dispose of batteries in a fire. Follow all local regulations when you dispose of used batteries.• Never place batteries or cameras on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when they are overheated.
Appendix 168Camera maintenance• Do not disassemble or puncture the battery with any sharp object.• Avoid exposing the battery to high pressure or crushing forces.• Avoid exposing the battery to major impacts, such as dropping it from high places.• Do not expose the battery to temperatures of 60 °C (140 °F) or above.• Do not allow the battery to come in contact with moisture or liquids.• Do not expose the battery to sources of excessive heat such as sunshine, fire or the like. Disposal guidelines• Dispose of the battery with care.• Do not dispose of the battery in a fire.• Disposal regulations may differ by country or region.Dispose of the battery in accordance with all local and federal regulations.Guidelines for charging the batteryCharge the battery only by the method described in this user manual. The battery can ignite or explode if not charged properly.Personal injury or death can occur if the battery is handled carelessly or improperly. For your safety, follow these instructions for proper battery handling:• The battery can ignite or explode if not handled properly. If you notice any deformities, cracks, or other abnormalities in the battery, immediately discontinue use of the battery and contact a service center.• Use only authentic, manufacturer-recommend battery chargers and adapters and charge the battery only by the methods described in this user manual.• Do not place the battery near heating devices or expose it to excessively warm environments, such as the inside of an enclosed car in the summertime.• Do not place the battery in a microwave oven.• Avoid storing or using the battery in hot, humid places, such as spas or shower enclosures. • Do not rest the device on flammable surfaces, such as bedding, carpets, or electric blankets for a prolonged period. • When the device is switched on, do not leave it in any confined space for a prolonged period.• Do not allow battery terminals to come in contact with metallic objects, such as necklaces, coins, keys, or watches.• Use only authentic, manufacturer-recommended, Lithium-ion replacement batteries.
Appendix 169Using optional accessoriesUsing an optional optical viewfinderAttach an optional optical viewfinder to the camera accessory shoe. Remove the accessory shoe cover and mount the optical viewfinder on the accessory shoe.Using optional flash unitsAttach an optional flash unit to the camera accessory shoe. Remove the accessory shoe cover and mount the flash unit on the accessory shoe.• For details about the flash unit, see the manual provided with the flash unit.• Your camera is compatible with the following types of flash units: SEF220A, SEF42A• When the optional flash unit is attached, do not pop the default flash up.
Appendix 170Using optional accessories2 Mount the conversion lens by turning it clockwise until it locks into place.3 In Shooting or Playback mode, press [m].4 Select n  Conversion lens  On.• After setting to use the conversion lens, the optical and digital zooms are not available.• If you do not set Conversion lens to On after attaching the conversion lens, rotating [Zoom] left or right will turn your camera off.Using an optional conversion lensYou can increase your camera’s range and depth of field by attaching an optional conversion lens designed only for Samsung cameras.1 Remove the stock camera ring by turning it counter-clockwise.
Appendix 171Using optional accessoriesUsing the shutter releaseUse an optional shutter release to minimizes camera shake and allow you to capture clearer photos at slower shutter speeds. For details about the shutter release, see the manual provided with the shutter release.Using the zoom microphoneUse an optional zoom microphone to reduce noise surroundings. For details about the zoom microphone, see the manual provided with the zoom microphone.
Appendix 172Before contacting a service centerIf you are having trouble with your camera, try these troubleshooting procedures before you contact a service center. If you have attempted the suggested remedy and are still having problems with your device, contact your local dealer or service center.When you leave your camera at a service center, be sure to also leave the other components that may have contributed to the malfunction, such as the memory card and battery.Situation Suggested remediesCannot capture photos• There is no space on the memory card. Delete unnecessary files or insert a new card.• Format the memory card. • The memory card is defective. Get a new memory card.• Make sure that the camera is switched on.• Charge the battery.• Make sure that the battery is inserted correctly.The camera freezes Remove the battery and insert it again.The camera heats upWhile you use the camera, it may heat up. This is normal and should not affect your camera’s lifespan or performance.The flash does not work• The flash option may be set to Off. (p. 69)• You cannot use the flash in some modes.Situation Suggested remediesCannot turn on the camera• Ensure that the battery is inserted.• Ensure that the battery is inserted correctly. (p. 22)• Charge the battery.The power turns off suddenly• Charge the battery.• Your camera may be in Power save mode. (p. 153)• The camera may turn off to prevent the memory card from being damaged due to an impact. Turn on your camera again.The camera is losing battery power quickly• The battery may lose power more quickly in low temperatures (below 0 °C/32 °F). Keep the battery warm by putting it into your pocket.• Using the flash or recording videos depletes the battery quickly. Recharge if needed.• Batteries are consumable parts that must be replaced over time. Get a new battery if the battery life is diminishing quickly.
Appendix 173Before contacting a service centerSituation Suggested remediesThe flash fires unexpectedlyThe flash may fire due to static electricity. The camera is not malfunctioning. The date and time are incorrectSet the date and time in the display settings.(p. 153)The display or buttons do not work Remove the battery, and then insert it again.The camera display responds poorlyIf you use your camera at very low temperatures, it may cause the camera screen to malfunction or discolor. For better performance of your camera screen, use your camera in moderate temperatures.The memory card has an error• Turn off your camera, and then turn it on again.• Remove your memory card, and then insert it again.• Format your memory card.See “Cautions when using memory cards” for more detail. (p. 164)Cannot play back filesIf you change the name of a file, your camera may not play the file (the name of the file should meet the DCF standard). If you encounter this situation, play back the files on your computer.Situation Suggested remediesThe photo is blurry• Make sure that the focus option you set is suitable for close-up shots. (p. 72)• Make sure that the lens is clean. If not, clean the lens. (p. 159)• Make sure that the subject is within range of the flash. (p. 176)The colors in the photo do not match the actual sceneAn incorrect White Balance can create unrealistic color. Select the proper White Balance option to suit the light source. (p. 84)The photo is too brightYour photo is overexposed.• Turn off the flash. (p. 69)• Adjust the ISO sensitivity. (p. 71)• Adjust the exposure value. (p. 82)The photo is too darkYour photo is underexposed.• Turn on the flash. (p. 69)• Adjust the ISO sensitivity. (p. 71)• Adjust the exposure value. (p. 82)The TV does not display your photos• Make sure that the camera is correctly connected to the TV with the A/V cable.• Make sure that your memory card contains photos.
Appendix 174Before contacting a service centerSituation Suggested remediesYour computer does not recognize your camera• Make sure that the USB cable is connected correctly.• Make sure that your camera is switched on.• Make sure that you are using a supported operating system.Your computer disconnects the camera while transferring filesThe file transmission may be interrupted by static electricity. Disconnect the USB cable and connect it again.Your computer cannot play videosVideos may not play on some video player programs. To play video files captured with your camera, install and use the Intelli-studio program on your computer. (p. 120)Intelli-studio is not functioning properly• End Intelli-studio and restart the program.• You cannot use Intelli-studio on Macintosh computers.• Depending on your computer's specifications and environment, the program may not launch automatically. In this case, click Start  My Computer  Intelli-studio  iStudio.exe on your computer.Situation Suggested remediesYour TV or computer cannot display photos and videos that are stored on an SDXC memory card.SDXC memory cards use the exFAT file system. Ensure that the external device is compatible with the exFAT file system before connecting the camera to the device.Your computer does not recognize an SDXC memory card.SDXC memory cards use the exFAT file system. To use SDXC memory cards on a Windows XP computer, download and update the exFAT file system driver from the Microsoft website.Cannot set the DPOF for RAW files You cannot set the DPOF for RAW files. Cannot lock the exposure value by pressing [L]You cannot lock the exposure value in some shooting modes.External flash or zoom microphone does not workEnsure that the external device is properly mounted and turned on.
Appendix 175Camera specificationsRangeWide (W) Tele (T)Normal (AF) 40 cm-infinity 100 cm-infinityMacro 1–40 cm 40–100 cmAuto Macro 1 cm-infinity 40 cm-infinityManual Focus 1 cm-infinity 40 cm-infinityShutter speed• Auto: 1/8-1/2,000 sec.• Program: 1-1/2,000 sec.• Manual: 16-1/2,000 sec.• Night: 8-1/2,000 sec.ExposureControl Program AE, Shutter AE, Aperture Priority AE, Manual ExposureMetering Multi, Spot, Center-weighted, Face DetectionCompensation ±2EV (1/3 EV Step)ISO equivalent• 1 Step: Auto, ISO 80, ISO 100, ISO 200, ISO 400, ISO 800, ISO 1600, ISO 3200, ISO 6400*, ISO 12800*• 1/3 Step: ISO 80, ISO 100, ISO 125, ISO 160, ISO 200, ISO 250, ISO 320, ISO 400, ISO 500, ISO 640, ISO 800, ISO 1000, ISO 1250, ISO 1600, ISO 2000, ISO 2500, ISO 3200, ISO 6400*, ISO 12800** Available only when ISO Extend is activated.Image sensorType 1/1.7 (Approximately 10.9 mm) CMOSEffective pixels Approximately 12.4 mega-pixelsTotal pixels Approximately 12.76 mega-pixelsLensFocal length Schneider-KREUZNACH Lens f = 5.2–17.2 mm (35 mm film equivalent: 24–80 mm) F-stop range F1.4 (W)–F2.7 (T)Digital zoom Still image mode: 1.0–3.0X (Smart zoom: 4.4)DisplayType TFT LCDFeature 3.0" (7.62 cm) VGA, RotatingFocusingTypeTTL auto focus (Multi AF, Center AF, Selection AF, Manual Focus, Face Detection AF, Tracking AF, Smart Face Recognition AF)
Appendix 176Camera specificationsFlashMode Auto, Red-eye, Fill in, Slow Sync, Off, Red-eye FixRange• Wide: 0.3–3.5 m (ISO Auto)• Tele: 0.5–1.9 m (ISO Auto)Recharging time Approximately 4 sec.Shake reductionDUAL IS [Optical Image Stabilization (OIS) + Digital Image Stabilization (DIS)]EffectPhoto Shooting mode• Smart Filter: Normal, Miniature, Vignetting, Soft Focus, Old Film, Half Tone Dot, Sketch, Fish-eye, Classic, Retro, Oil Painting, Cartoon, Ink Painting, Cross Filter, Zooming Shot• Image Adjust: Contrast, Sharpness, SaturationVideo Shooting modeSmart Filter: Normal, Palette Effect 1, Palette Effect 2, Palette Effect 3, Palette Effect 4, Miniature, Vignetting, Half Tone Dot, Sketch, Fish-eye, Classic, RetroWhite BalanceAuto WB, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom Set, Color Temp.Date ImprintingDate & Time, Date, OffShootingPhotos• Modes: Smart Auto (Portrait, Night Portrait, Backlight Portrait, Night, Backlight, Landscape, White, Natural Green, Blue Sky, Sunset, Macro, Macro text, Macro Color, Tripod, Action, Fireworks, Candle, Spotlight, Spotlight (Macro), Spotlight (Portrait)), Program, Aperture Priority, Shutter Priority, Manual, DUAL IS, Scene (3D Photo, HDR, Magic Frame, Beauty Shot, Night, Landscape, Text, Sunset, Dawn, Backlight, Beach & Snow, Zooming Shot), Panorama (Live Panorama, Action Panorama, 3D Panorama)• Burst: Single, High-speed (10fps, 5fps, 3fps), Precapture, Bracket (WB, AE), Timer• Timer: 10 Sec, 2 Sec• ND Filter effect : On, OffVideos• Modes: Smart Scene Detection (Landscape, Blue Sky, Natural Green, Sunset), Movie, Magic Plus (Picture in Picture, Movie Filter)• Format: MP4 (H.264) (Max recording time: XXX min)• Size: 1920X1080, 1280X720, 640X480, 320 X 240• High-speed: 192 X 144, 384 X 288, 640 X 480• Sound Alive: Sound Alive On, Sound Alive Off, Mute• Image Stabilizer: Off, OIS, DUAL IS• Video editing (embedded): Pause during recording, Still image capture
Appendix 177Camera specificationsPlaybackPhotos• Type: Single image, Thumbnails, Multi Slide Show with Music and Effect, Movie clip, Smart Album*, Creative Movie Maker* Smart Album category: Type, Date, Week, Face• Edit: Resize, Rotate, Image Adjust, Smart Filter, Trim• Effect: Image Adjust (Red-eye Fix, Face Retouch, Brightness, Contrast, Saturation, Add Noise), Smart Filter (Normal, Miniature, Vignetting, Soft Focus, Old Film, Half Tone Dot, Sketch, Fish-eye, Classic, Retro, Oil Painting, Cartoon, Ink Painting, Cross Filter, Zooming Shot)Videos Edit: Creative Movie Maker, Still image capture, Time trimmingStorageMediaExternal memory (Optional): SD card (1-2 GB guaranteed), SDHC card (up to 32 GB guaranteed), SDXC card (up to 64 GB guaranteed)File format• Still Image: JPEG (DCF), EXIF 2.21, DPOF 1.1, PictBridge 1.0• Movie Clip: MP4 (Video: MPEG-4.AVC/H.264, Audio: AAC)Image sizeFor 2 GB SD: Number of photosSuper Fine Fine Normal4000 X 3000 277 313 5034000 X 2672 254 349 5584000 X 2248 286 392 6233264 X 2448 335 457 7212832 X 2832 333 456 7192592 X 1944 512 691 1,0601984 X 1488 819 1,081 1,5881920 X 1080 1,095 1,418 2,0091024 X 768 2,165 2,610 3,284RAW RAW + S.FineRAW + FineRAW + Normal4000 X 3000 73 51 59 694000 X 2672 74 54 61 714000 X 2248 76 57 64 733264 X 2448 78 60 67 752832 X 2832 78 60 67 752592 X 1944 83 69 74 801984 X 1488 87 77 81 851920 X 1080 89 81 84 871024 X 768 91 87 88 90These figures are measured under Samsung’s standard conditions. Your results may vary depending on the shooting conditions and camera settings.
Appendix 178Camera specificationsWireless networkSocial Sharing, Auto Backup, Remote Viewfinder, Allshare play, TV Link, Samsung Mobile Link, Email, Cloud, Wi-Fi DirectInterfaceDigital output connector USB 2.0Audio input/output Internal speaker (Mono), Microphone (Stereo)Video output• A/V: NTSC, PAL (selectable)• HDMI 1.4: NTSC, PAL (selectable)DC power input connector 4.2 VPower sourceRechargeable battery Lithium-ion battery (SLB-10A, 1030 mAh)Connector type Micro USB (7 pin)The power source may differ depending on your region.Dimensions (W X H X D)111.9 X 62.0 X 28.9 mm (without protrusions)Weight294.3 g (without battery and memory card)Operating Temperature0–40 °C °C (32-104 °F)Operating Humidity5–85 %SoftwareIntelli-studio, Creative Movie Maker, Samsung Raw ConverterSpecifications may change without notice to improve performance.
Appendix 179GlossaryDCF (Design rule for Camera File system)A specification to define a file format and file system for digital cameras created by the Japan Electronics and Information Technology Industries Association (JEITA).Depth of fieldThe distance between the nearest and farthest points that can be acceptably focused in a photograph. Depth of field varies with lens aperture, focal length, and distance from the camera to the subject. Selecting a smaller aperture, for example, will increase the depth of field and blur the background of a composition.Digital zoomA feature that artificially increases the amount of zoom available with a zoom lens (Optical zoom). When using the Digital zoom, the image quality will deteriorate as the magnification increases.DPOF (Digital Print Order Format)A format for writing printing information, such as selected images and number of prints, on a memory card. DPOF-compatible printers, sometimes available at photo shops, can read the information from the card for convenient printing.AEB (Auto Exposure Bracket)This feature automatically captures several images at different exposures to help you capture a properly-exposed image. AF (Auto Focus)A system that automatically focuses the camera lens on the subject. Your camera uses the contrast to focus automatically.ApertureThe aperture controls the amount of light that reaches the camera’s sensor.Camera shake (Blur)If the camera is moved while the shutter is open, the entire image may appear blurred. This occurs more often when the shutter speed is slow. Prevent camera shake by raising the sensitivity, using the flash, or using a faster shutter speed. Alternately, use a tripod, the DIS or OIS function to stabilize the camera.CompositionComposition in photography means arranging objects in a photo. Usually, abiding by the rule of thirds leads to a good composition.
Appendix 180GlossaryFocal lengthThe distance from the middle of the lens to its focal point (in millimeters). Longer focal lengths result in narrower angles of view and the subject is magnified. Shorter focal lengths result in wider angles of view.HistogramA graphical representation of the brightness of an image. The horizontal axis represents the brightness and the vertical axis represents the number of pixels. High points at the left (too dark) and right (too bright) on the histogram indicate a photo that is improperly exposed.H.264/MPEG-4A high-compression video format established by international standard organizations ISO-IEC and ITU-T and developed by the Joint Video Team (JVT). This codec is capable of providing good video quality at low bit rates.Image sensorThe physical part of a digital camera that contains a photosite for each pixel in the image. Each photosite records the brightness of the light that strikes it during an exposure. Common sensor types are CCD (Charge-coupled Device) and CMOS (Complementary Metal Oxide Semiconductor).EV (Exposure Value)All the combinations of the camera’s shutter speed and lens aperture that result in the same exposure.EV CompensationThis feature allows you to quickly adjust the exposure value measured by the camera, in limited increments, to improve the exposure of your photos. Set the EV compensation to -1.0 EV to adjust the value one step darker and 1.0 EV to one step brighter.Exif (Exchangeable Image File Format)A specification to define an image file format for digital cameras created by the Japan Electronic Industries Development Association (JEIDA).ExposureThe amount of light allowed to reach the camera’s sensor. Exposure is controlled by a combination of the shutter speed, the aperture value, and ISO sensitivity.FlashA speed light that helps to create adequate exposure in low-light conditions.
Appendix 181GlossaryMeteringThe metering refers to the way in which the camera measures the quantity of light to set the exposure.MJPEG (Motion JPEG)A video format which is compressed as a JPEG image.MPO (Multi Picture Object)An image file format that contains multiple images in a file. An MPO file provides a 3D effect on MPO-compatible displays, such as 3D TVs or 3D monitors.NoiseMisinterpreted pixels in a digital image that may appear as misplaced or random, bright pixels. Noise usually occurs when photos are shot with a high sensitivity or when a sensitivity is automatically set in a dark place.OIS (Optical Image Stabilization)This feature compensates in real-time for shaking and vibrating while shooting. There is no image degradation compared to Digital Image Stabilization feature.Optical zoomThis is a general zoom which can enlarge images with a lens and does not deteriorate quality of images.ISO sensitivityThe sensitivity of the camera to light, based on the equivalent film speed used in a film camera. At higher ISO sensitivity settings, the camera uses a higher shutter speed, which can reduce blur caused by camera shake and low light. However, images with high sensitivity are more susceptible to noise.JPEG (Joint Photographic Experts Group)A lossy method of compression for digital images. JPEG images are compressed to reduce their overall file size with minimal deterioration of the image resolution.LCD (Liquid Crystal Display)A visual display commonly used in consumer electronics. This display needs a separate backlight, such as CCFL or LED, to reproduce colors.MacroThis feature allows you to capture close-up photos of very small objects. When using the macro feature, the camera can maintain a sharp focus on small objects at a near life-size ratio (1:1).
Appendix 182GlossaryVignettingA reduction of an image’s brightness or saturation at the periphery (outer edges) compared to the center of the image. Vignetting can draw interest to subjects positioned in the center of an image.White balance (color balance)An adjustment of the intensities of colors (typically the primary colors red, green, and blue), in an image. The goal of adjusting the white balance, or color balance, is to correctly render the colors in an image.QualityAn expression of the rate of compression used in a digital image. Higher quality images have a lower rate of compression, which usually results in a larger file size.ResolutionThe number of pixels present in a digital image. High resolution images contain more pixels and typically show more detail than low resolution images.Shutter speedShutter speed refers to the amount of time it takes to open and close the shutter, and it is an important factor in the brightness of a photo, as it controls the amount of light which passes through the aperture before it reaches the image sensor. A fast shutter speed allows less time to let light in and the photo becomes darker and more easily freezes subjects in motion.Smart zoomSmart zoom lets you zoom in with less degradation of picture quality than the optical zoom and digital zoom.

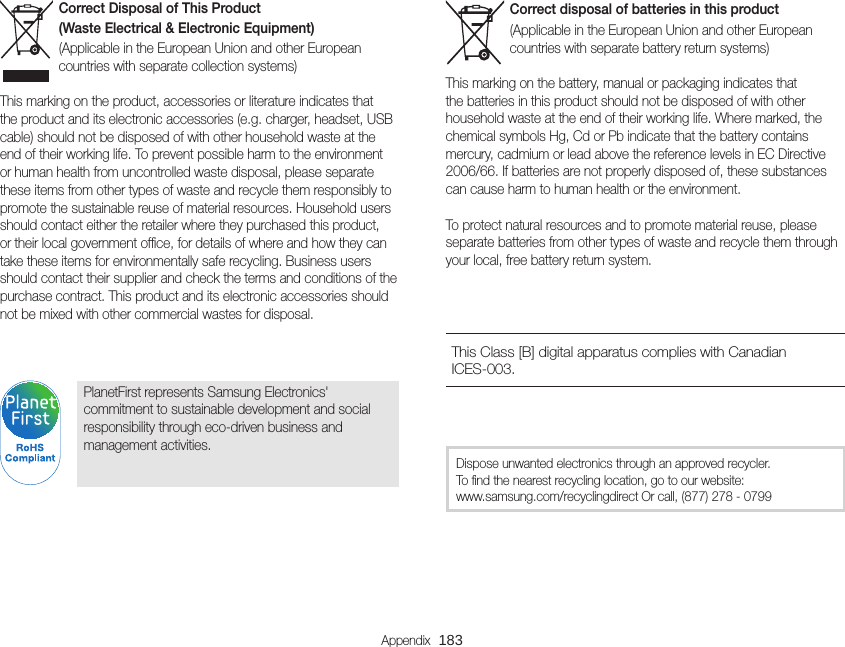

Appendix 183Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.PlanetFirst represents Samsung Electronics' commitment to sustainable development and social responsibility through eco-driven business and management activities. Correct disposal of batteries in this product (Applicable in the European Union and other European countries with separate battery return systems)This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.This Class [B] digital apparatus complies with Canadian ICES-003.Dispose unwanted electronics through an approved recycler. To find the nearest recycling location, go to our website: www.samsung.com/recyclingdirect Or call, (877) 278 - 0799
Appendix 184FCC noticeCaution:Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:- Reorientate, or relocate, the receiving antenna.- Increase the distance between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.• Declaration of Conformity Trade Name : Samsung Electronics America, Inc. Model No. : Samsung EX2FResponsible Party : Samsung Electronics America, Inc.Address : 85 Challenger Road, Ridgefield Park, NJ 07660Telephone No. : 1-800-SAMSUNG (726-7864) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID:A3LEX2FThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.RF exposure statements:This device is for handheld operation only. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
Appendix 185CAUTIONRISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.Caution: Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment.IC: 649E-EX2FComplies with IDA Standards DA100790Approved by PTA, year 2011TA-2011/1257 APPROVEDNo.: ESD-1105767CThis equipment may be operated in all EU countries.In France, this equipment may only be used indoors.938NO-L-14041/01/2011/ETA/2011 1577/2011/WRLOLe présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Appendix 186Declaration of Conformityand the Eco-Design Directive (2009/125/EC) implemented by Regulations (EC) No 278/2009 for external power supplies. Representative in the EUSamsung Electronics Euro QA Lab. Blackbushe Business Park Saxony Way, Yateley, Hampshire GU46 6GG, UK(YEAR TO BEGIN AFFIXING CE MARKING 2011)21 October, 2011(Place and date of issue)Joong-Hoon Choi / Lab. Manager(Name and signature of authorized person)* This is not the address of Samsung Service Centre. For the address or the phone number of Samsung Service Centre, see the warranty card or contact the retailer where you purchased your product. Product detailsFor the followingProduct : DIGITAL CAMERAModel(s) : EX2F Declaration & Applicable standardsWe hereby declare that the product(s) above is(are) in compliance with the essential requirements and other provisions of the R&TTE Directive (1999/5/EC), the Low Voltage Directive (2006/95/EC) and the Electromagnetic Compatibility Directive (2004/108/EC) by application of:EN 60950-1:2006+A1:2010 EN 55024:1998+A1:2001+A2:2003EN 55022:2006+A1 :2007 EN 61000-3-2:2006 +A1:2009 +A2:2009EN 61000-3-3:2008 EN 300 328 v1.7.1EN 301 489-1 v1.8.1 EN 301 489-17 V2.1.1EN62311 :2008
Appendix 187Declaration sentence in official languagesNation DeclarationCeskySamsung Electronics tímto prohlašuje, že tento digitální fotoaparát je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES.Dansk Samsung Electronics erklærer herved, at digitale kameraer overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.Deutsch Hiermit erklärt Samsung Electronic, dass sich die Digitalkamera in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.Eesti Käesolevaga kinnitab Samsung Electronics digitaalkaamera vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.English Hereby, Samsung Electronics declares that this digital camera is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.Español Por medio de la presente Samsung Electronics declara que la cámara digital cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.Ελληνική ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ η Samsung Electronics ΔΗΛΩΝΕΙ ΟΤΙ η ψηφιακή φωτογραφική μηχανή ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.Français Par la présente Samsung Electronic déclare que l'appareil photo numérique est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.Italiano Con la presente Samsung Electronicsdichiara che questa fotocamera digitale è conforme ai requisiti essenziali e alle altre disposizioni stabilite dalla Direttiva 1999/5/CE.Latviski Ar šo Samsung Electronics deklarē, ka digitālā kamera atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.LietuviųŠiuo Samsung Electronics deklaruoja, kad šis skaitmeninis fotoaparatas, atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.Nederlands Hierbij verklaart Samsung Electronics dat de digitale camera in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG.
Appendix 188Declaration sentence in official languagesNation DeclarationMalti Hawnhekk, Samsung Electronics, tiddikjara li din il-kamera diġitali hi konformi mar-rekwiżiti essenzjali u ma' dispożizzjonijiet rilevanti oħrajn ta' Direttiva 1999/5/KE.Magyar A Samsung Electronics kijelenti, hogy ez a digitális fényképezőgép megfelel az 1999/5/EK irányelv alapvetõ követelményeinek és egyéb vonatkozó elõírásainak.Polski Niniejszym firma Samsung Electronics oświadcza, że ten aparat cyfrowy jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/WE.Português Samsung Electronics declara que esta câmera digital está conforme os requisitos essenciais e outras disposições da Directiva 1999/5/CE.Slovensko Samsung Electronics izjavlja, da je ta digitalni fotoaparat v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES.Slovensky Samsung Electronics týmto vyhlasuje, že tento digitálny fotoaparát spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.Suomi Samsung Electronics vakuuttaa täten että tämä digitaalikamera on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.Svenska Härmed intygar Samsung Electronicsatt dessa digitalkameror står i överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.Български С настоящото Samsung Electronics декларира, че този цифров фотоапарат е в съответствие със съществените изисквания и другите приложими разпоредби на Директива 1999/5/ЕК.RomânăPrin prezenta, Samsung Electronics, declară că această cameră foto digitală este în conformitate cu cerinţele esenţiale şi alte prevederi relevante ale Directivei 1999/5/CE.Norsk Samsung Electronicserklærer herved at dette digitalkameraet er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.Türkiye Bu belge ile, Samsung Electronics bu dijital kameranın 1999/5/EC Yönetmeliginin temel gerekliliklerine ve ilgili hükümlerine uygun olduğunu beyan eder.Íslenska Hér með lýsir Samsung Electronics því yfir að þessi stafræna myndavél sé í samræmi við grunnkröfur og önnur ákvæði tilskipunar 1999/5/EB.
Appendix 189IndexAAF-assist lightLocation 16Settings 154AF Lamp 154AF Sound 153Anynet+ 155Aperture Priority mode 45Aperture value 44Auto Backup 144A/V port 17BBatteryCaution 166Charging 23Inserting 22Beauty Shot mode 49Blink Detection 78BrightnessPlayback mode 110Shooting mode 82Burst modesBracket 88High-speed 87Precapture 88CCamera maintenance 159Camera specifications 175Capturing an image from video 106Charging 23CleaningCamera body 159Display 159Lens 159Connecting to a computerMac 122Windows 118ContrastPlayback mode 110Shooting mode 93DDate/Time Set 153Deleting files 101Digital Print Order Format (DOF) 110Digital zoom 35Disconnecting the camera 116Display brightness 153Display type 32EEditing photos 107Editing videosCapturing 106Trimming 105Enlarging 102Error messages 157Exposure 82FFace Detection 77FlashAuto 69Fill in 69Intensity 70Off 69Red-eye 69Red-eye Fix 69Slow Sync 69
Appendix 190IndexFocus areaCenter AF 76Multi AF 76Selection AF 76Tracking AF 76Formatting 155Function button 18GGrid Line 153HHalf-press shutter 38HDMI Size 155HDR mode 57HDTV 113IIconsPlayback mode 96Shooting mode 26Image AdjustmentAdd Noise 110BrightnessPlayback mode 110Shooting mode 82ContrastPlayback mode 110Shooting mode 93Red-eye 109SaturationPlayback mode 110Shooting mode 93Sharpness 93Image quality 66Image Stabilization 37Intelli-studio 119ISO sensitivity 71LLanguage settings 153MMacroAuto Macro 73Macro 73Manual Focus 73Magic Frame mode 53Magic Plus modeArtistic Brush 56Picture in Picture 54Manual mode 47Memory cardCaution 164Insert 22Menu button 18MeteringCenter-weighted 84Multi 84Spot 84Movie mode 60My starCancelling 98Ranking 97Registering 80OOptional accessories 15PPanorama3D Panorama 50Action Panorama 52Live Panorama 50Playback button 18Playback mode 96Power button 16Power save mode 153Program mode 43Protecting files 100
Appendix 191TThumbnails 100TimerShooting mode 67Timer lamp 16Time settings 24Time zone settings 24, 153Transferring filesAuto Backup 144Email 137Mac 122Windows 118Tripod mount 16TV Link 146UUnpacking 15USB port 17Shutter Priority mode 46Slide show 104Smart Album 99Smart Auto mode 41Smart Face Recognition 79Smart FilterPlayback mode 108Smart Scene Detection mode 63Smart zoom 36Smile Shot 78Sound settings 33Status lamp 17SSaturationPlayback mode 110Shooting mode 93Scene mode 48Self portrait 77Service center 172Sharpness 93Shooting portraitsBeauty Shot mode 49Blink Detection 78Face Detection 77Red-eye 69Red-eye fix 69Self portrait 77Smart Face Recognition 79Smile Shot 78Shutter button 16QQuick view 153RRed-eyePlayback mode 109Shooting mode 68Remote Viewfinder 141Reset 155ResolutionPlayback mode 107Shooting mode 65Retouching facesPlayback mode 109Shooting mode 49Rotating 107Index
Appendix 192VVideoPlayback mode 105Shooting mode 60Video out 155Viewing filesFolder 98Slide show 104Smart Album 99Thumbnails 100TV 112WWebsiteAccessing 135Uploading photos or videos 135White Balance 84Wireless network 131ZZoomUsing the zoom 35Zoom button 17Zoom sound settings 6033D Photo mode 503D TV 114Index
Please refer to the warranty that came with your product or visit our website, www.samsung.com, for after-sales service or inquiries.
