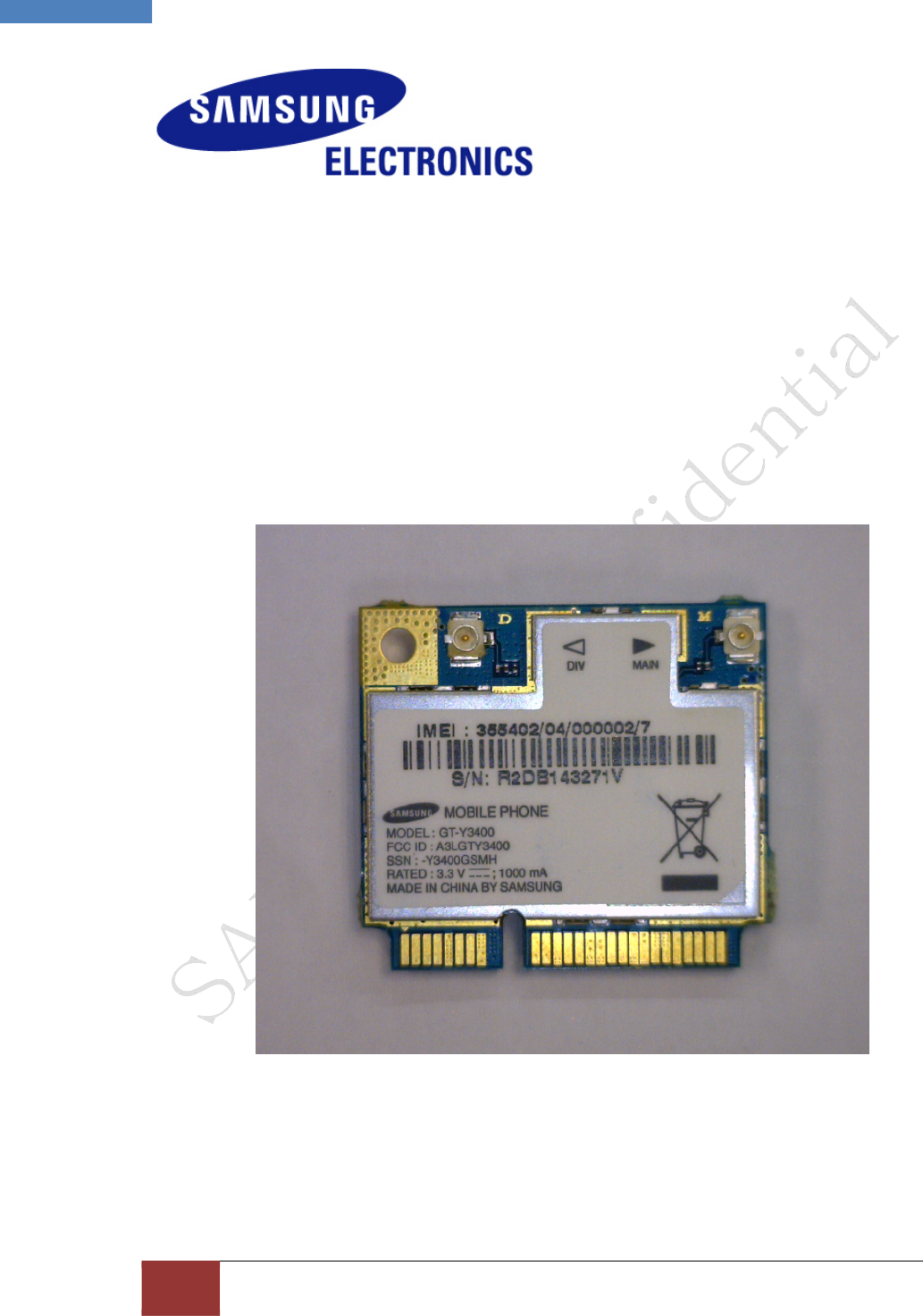

1 GT-Y3400 Installation Guide and User Manual
GT-Y3400
Installation Guide
and User Manual
07.Feb, 2011
SAMSUNG ELECTRONICS.LTD.
2 SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization | Samsung Electronics
2 GT-Y3400 Installation Guide and User Manual
Table of contents
1 Introduction............................................................................................................................................... 3
1.1 Overview ............................................................................................................................................ 3
1.1.1 Product description ............................................................................................................. 3
1.1.2 Key features and specifications .................................................................................... 4
2. Mechanical specifications ............................................................................................................... 5
2.1 Specifications .................................................................................................................................. 5
2.1.1 Mechanical dimensions ..................................................................................................... 5
2.1.2 Mini PCI Express interface ............................................................................................... 5
2.1.3 Antenna connectors ............................................................................................................ 7
2.1.4 Connector location ............................................................................................................... 8
2.1.5 Conducted RF measurement .......................................................................................... 9
2.1.6 RFx information ..................................................................................................................... 9
3 SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization | Samsung Electronics
3 GT-Y3300 Installation Guide and User Manual
1 Introduction
1.1 Overview
This manual is intended to be a complete technical reference and integration guide for the GT-
Y3400 module product.
1.1.1 Product description
The GT-Y3400 module described in this manual are PCI Express Mini Cards support WWAN
(UMTS/HSPA+/HSUPA & GSM/GRPS/EDGE) connectivity to SAMSUNG notebooks.
The module is manufactured and installed by SAMSUNG. It includes diversity receiver and

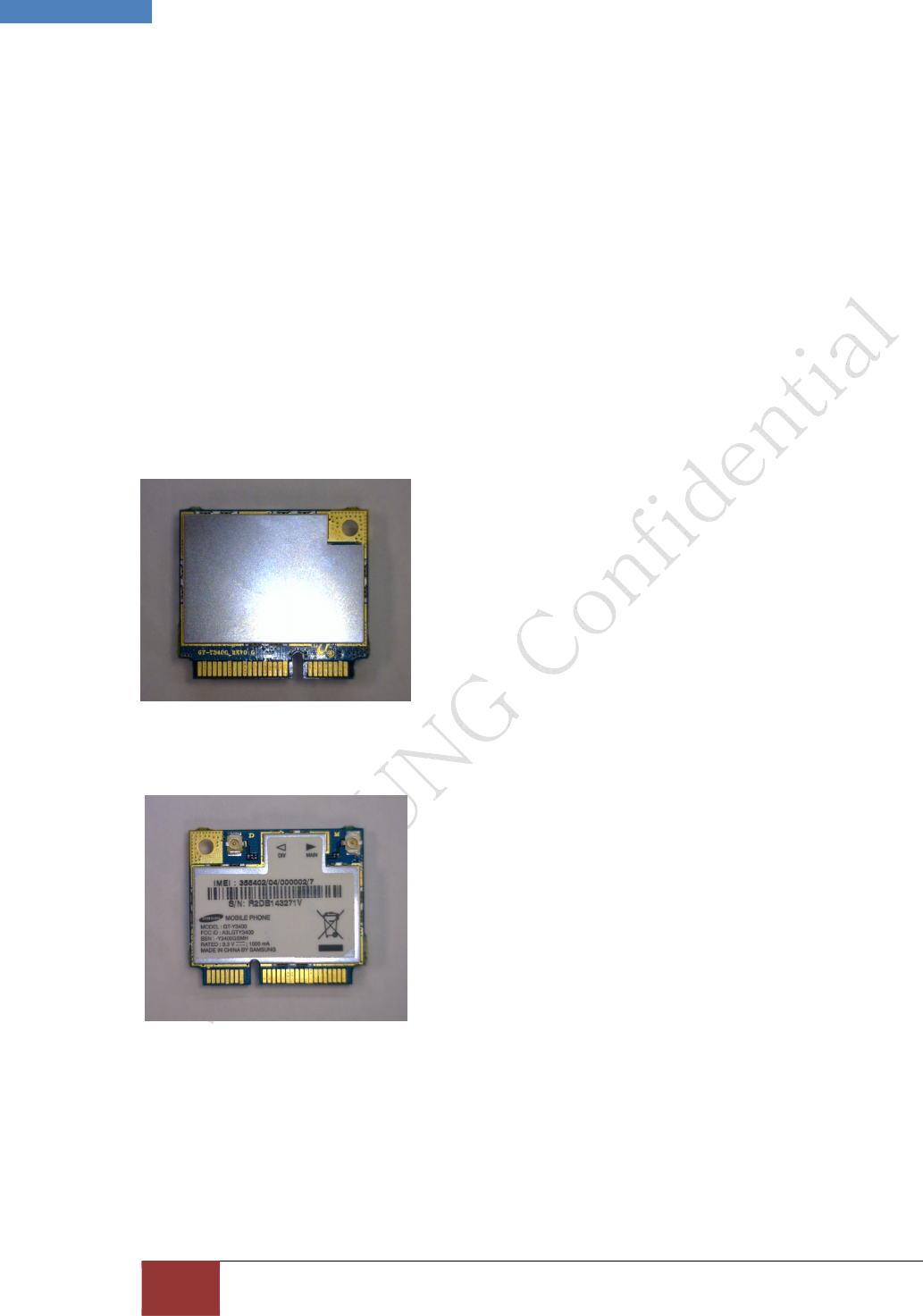

equalization. The following table shows photos of the module.
Bottom view
Figure 1.Bottom view of the GT-Y3400 module
Top view
Figure 2.Top view of the GT-Y3400 module
4 SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization | Samsung Electronics
4 GT-Y3400 Installation Guide and User Manual
1.1.2 Key features and specifications
RF subsystem -2G GPRS / EDGE / 3GPP WCDMA HSPA+/HSUPA
Platform -ICERA Platform
Band 2G ( 850/900/1800/1900), 3G (BAND1/BAND2/BAND5/BAND8)
Size (mm) - 30.0 x 26.8 x 4.72 mm
Weight (g) -5.5g
Modem -ICERA ICE8060T
Memory -MCP 1Gb/512Mb (Nand/SDRAM)
RF -ICERA ICE8260B
General
Features
Mini PCI Express Card for Samsung Mini PC. (Half Type)
GSM/GPRS/EDGE/UMTS/HSPA+ & HSUPA Support.
Main Power is 3.3V and Rated Power Consumption is 900mA.
UART, USB2.0 and Nexus IF Support (ICERA IF)
Modem - High data rate (HSUPA 5.76Mbps, HSPA+ 21Mbps)
- Dual antenna Rx diversity
Micro
processor
- Embedded DXP Processor
- Support Multi-mode EDGE,WCDMA,HSPA etc.
Interface
- High–speed USB functionality (2.0)
- USIM controller
- General Purpose I/O pins, UARTs.
5 SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization | Samsung Electronics
5 GT-Y3400 Installation Guide and User Manual
2. Mechanical specifications
2.1 Specifications
2.1.1 Mechanical dimensions

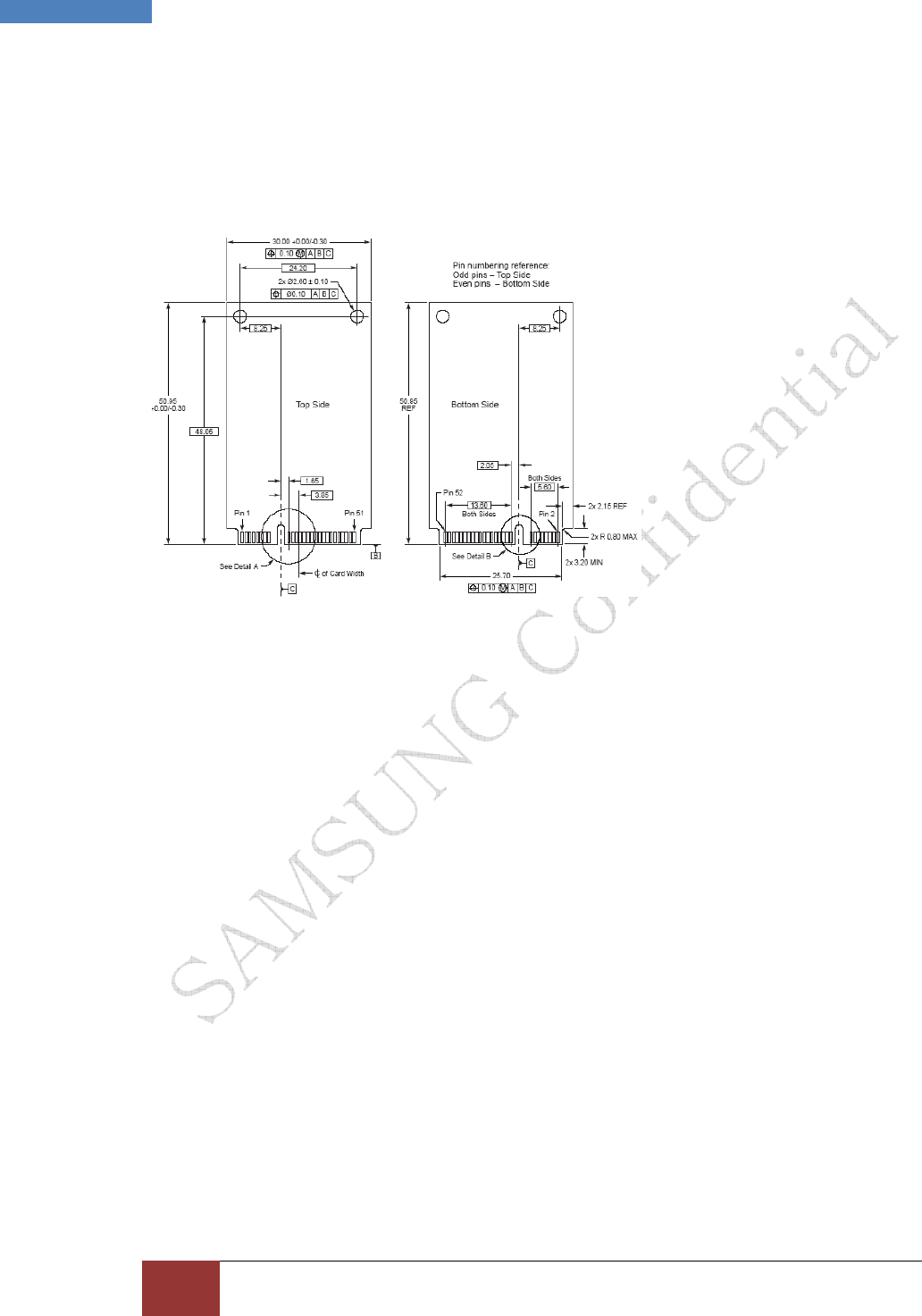

Mechanical drawings of the GT-Y3400 module following one.
Figure 3.Mechanical dimensions of the GT-Y3400 module
2.1.2 Mini PCI Express interface
The card edge connector of the GT-Y3400 module complies with the PCI Express Mini Card
specification and mates with a 52 pin Mini PCI Express connector.
This specification defines an implementation for small form factor PCI Express cards. The
specification uses a qualified sub-set of the same signal protocol, electrical definitions, and
configuration definitions as the PCI Express Base Specification, Revision 1.1. Where this
specification does not explicitly define PCI Express characteristics, the PCI Express Base
Specification governs.
The primary differences between a PCI Express add-in card (as defined by the PCI Express
Card Electromechanical Specification) and a PCI Express Mini Card add-in card is a unique
card form factor optimized for mobile computing platforms and a card-system interconnection
optimized for communication applications. Specifically, PCI Express Mini Card add-in cards are
smaller and have smaller connectors than standard PCI Express add-in cards.

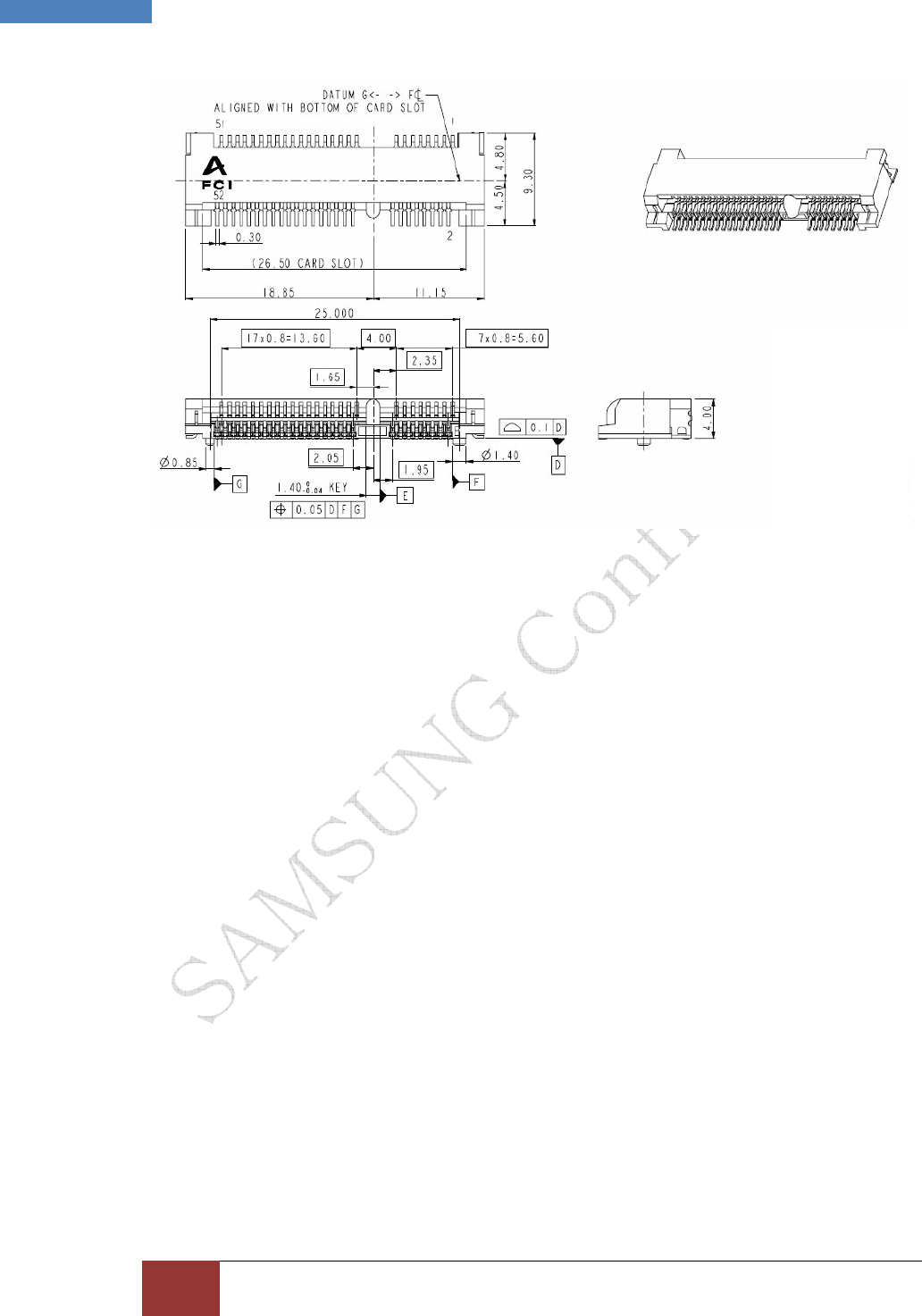

Figure 4 shows a 52 pin PCI Express Mini Card connector.
6 SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization | Samsung Electronics
6 GT-Y3400 Installation Guide and User Manual
Figure 4. 52 pin Mini PCI Express connector

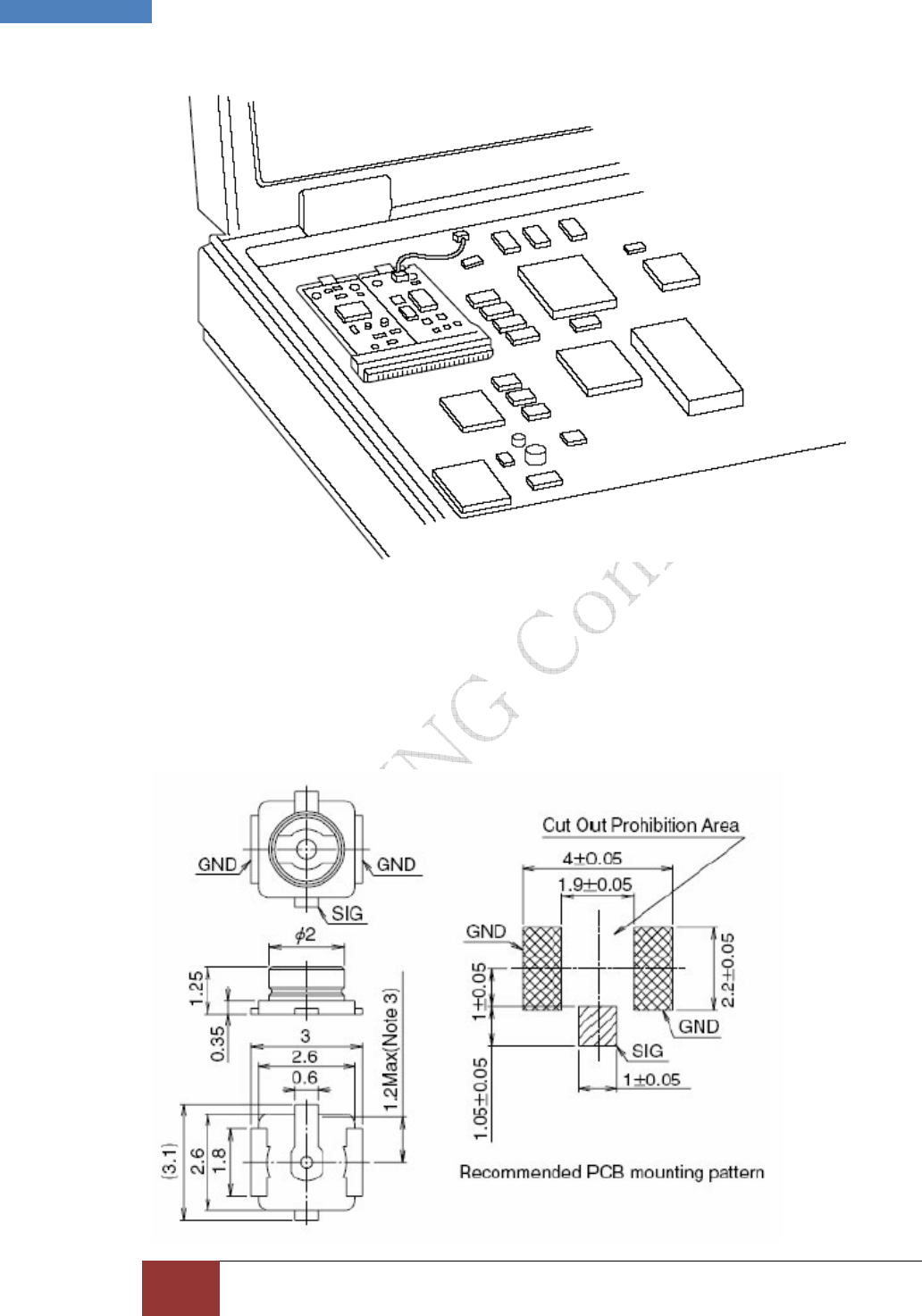

Figure 5 shows a conceptual drawing of this form factor as it may be installed in a mobile
platform. Figure 5 does not reflect the actual dimensions and physical characteristics as those
details are specified elsewhere in this specification. However, it is representative of the general
concept of this specification to use a single system connector to support all necessary system
interfaces by means of a common edge connector. Communications media interfaces may be
provided via separate I/O connectors and RF connectors each with independent cables as
illustrated in Figure 5.
7 SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization | Samsung Electronics
7 GT-Y3400 Installation Guide and User Manual
Figure 5. PCI Express Mini Card Add-in Card Installed in a Mobile Platform
2.1.3 Antenna connectors
The SMD connectors used for the antenna connections on the GT-Y3400 module are delivered
by
Hirose Ltd.
