user manual book of A3LHG48NC678_v1 _part2

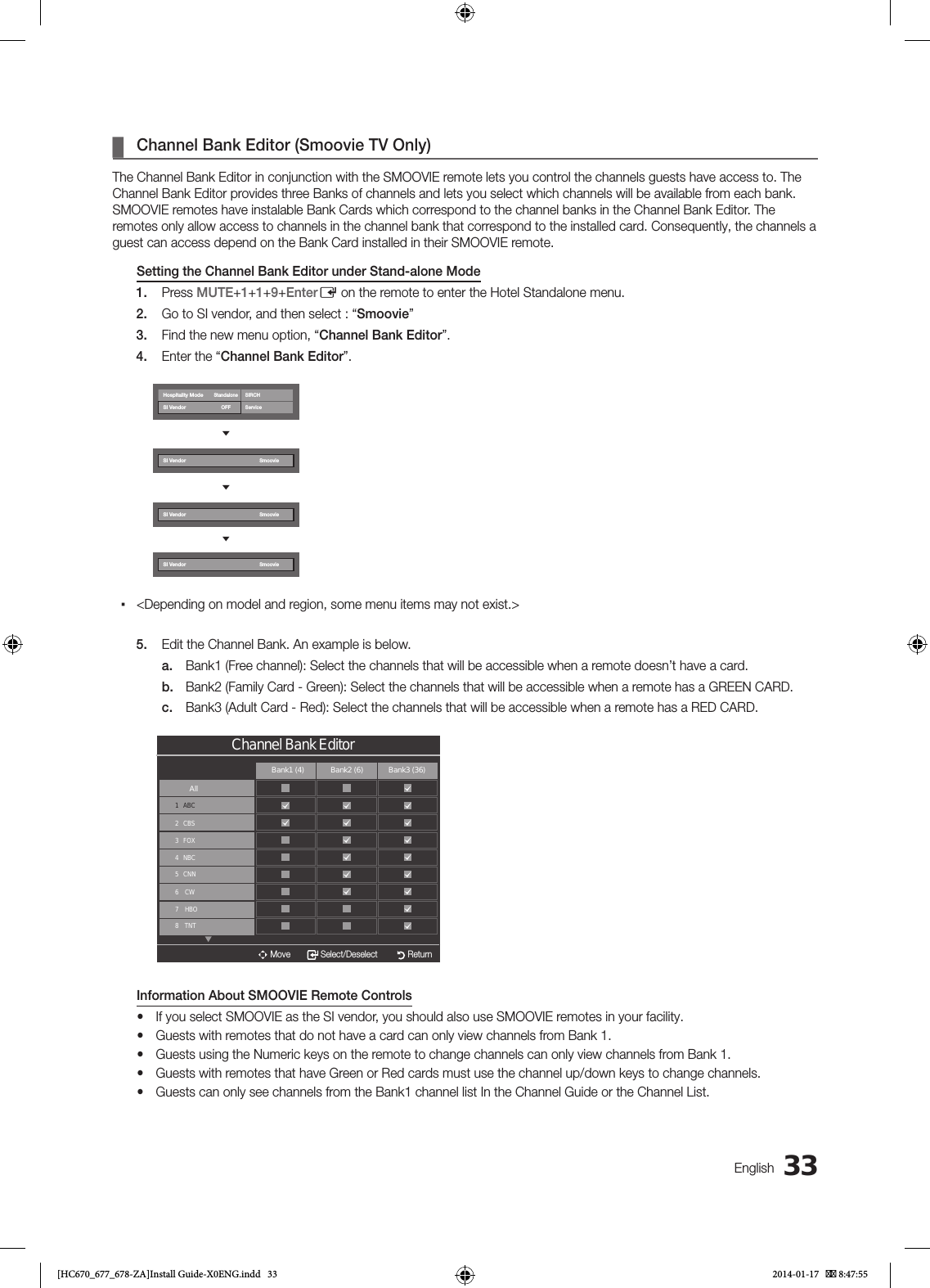

![33English ¦Channel Bank Editor (Smoovie TV Only)The Channel Bank Editor in conjunction with the SMOOVIE remote lets you control the channels guests have access to. The Channel Bank Editor provides three Banks of channels and lets you select which channels will be available from each bank. SMOOVIE remotes have instalable Bank Cards which correspond to the channel banks in the Channel Bank Editor. The remotes only allow access to channels in the channel bank that correspond to the installed card. Consequently, the channels a guest can access depend on the Bank Card installed in their SMOOVIE remote.Setting the Channel Bank Editor under Stand-alone Mode1. Press MUTE+1+1+9+EnterE on the remote to enter the Hotel Standalone menu.2. Go to SI vendor, and then select : “Smoovie”3. Find the new menu option, “Channel Bank Editor”.4. Enter the “Channel Bank Editor”.Hospitality ModeStandaloneSIRCHSI VendorOFF ServicedSI VendorSmooviedSI VendorSmooviedSI VendorSmoovie ▪<Depending on model and region, some menu items may not exist.>5. Edit the Channel Bank. An example is below.a. Bank1 (Free channel): Select the channels that will be accessible when a remote doesn’t have a card.b. Bank2 (Family Card - Green): Select the channels that will be accessible when a remote has a GREEN CARD.c. Bank3 (Adult Card - Red): Select the channels that will be accessible when a remote has a RED CARD.Information About SMOOVIE Remote Controls yIf you select SMOOVIE as the SI vendor, you should also use SMOOVIE remotes in your facility. yGuests with remotes that do not have a card can only view channels from Bank 1. yGuests using the Numeric keys on the remote to change channels can only view channels from Bank 1. yGuests with remotes that have Green or Red cards must use the channel up/down keys to change channels. yGuests can only see channels from the Bank1 channel list In the Channel Guide or the Channel List.Channel Bank Editor Move Select/Deselect Return All1 ABC2 CBS3 FOX4 NBC5 CNN6 CW7 HBO8 TNTBank1 (4) Bank2 (6)Bank3 (36)[HC670_677_678-ZA]Install Guide-X0ENG.indd 33 2014-01-17 8:47:55](https://usermanual.wiki/Samsung-Electronics-Co/HG48NC678.user-manual-book-of-A3LHG48NC678-v1-part2/User-Guide-2230283-Page-1.png)

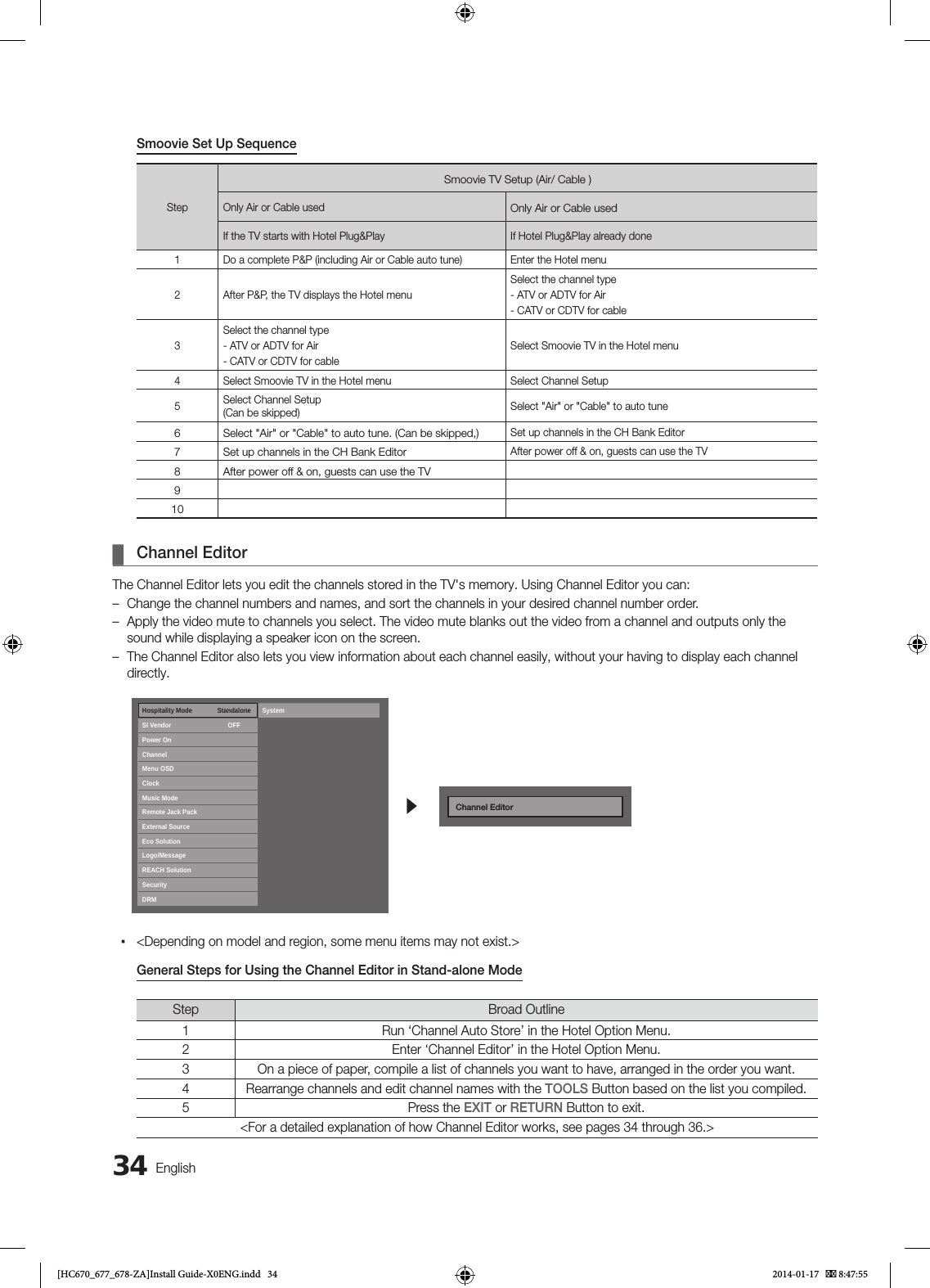

![34EnglishSmoovie Set Up SequenceStepSmoovie TV Setup (Air/ Cable )Only Air or Cable usedOnly Air or Cable usedIf the TV starts with Hotel Plug&Play If Hotel Plug&Play already done1 Do a complete P&P (including Air or Cable auto tune) Enter the Hotel menu2 After P&P, the TV displays the Hotel menuSelect the channel type- ATV or ADTV for Air- CATV or CDTV for cable3Select the channel type- ATV or ADTV for Air- CATV or CDTV for cableSelect Smoovie TV in the Hotel menu4 Select Smoovie TV in the Hotel menu Select Channel Setup5Select Channel Setup (Can be skipped) Select "Air" or "Cable" to auto tune6 Select "Air" or "Cable" to auto tune. (Can be skipped,)Set up channels in the CH Bank Editor7 Set up channels in the CH Bank EditorAfter power off & on, guests can use the TV8 After power off & on, guests can use the TV910 ¦Channel EditorThe Channel Editor lets you edit the channels stored in the TV's memory. Using Channel Editor you can: – Change the channel numbers and names, and sort the channels in your desired channel number order. – Apply the video mute to channels you select. The video mute blanks out the video from a channel and outputs only the sound while displaying a speaker icon on the screen. – The Channel Editor also lets you view information about each channel easily, without your having to display each channel directly.Hospitality Mode Standalone SystemSI Vendor OFFPower OnChannelMenu OSDClockMusic ModeRemote Jack PackExternal SourceEco SolutionLogo/MessageREACH SolutionSecurityDRMrChannel Editor ▪<Depending on model and region, some menu items may not exist.>General Steps for Using the Channel Editor in Stand-alone ModeStep Broad Outline1 Run ‘Channel Auto Store’ in the Hotel Option Menu.2 Enter ‘Channel Editor’ in the Hotel Option Menu.3 On a piece of paper, compile a list of channels you want to have, arranged in the order you want.4 Rearrange channels and edit channel names with the TOOLS Button based on the list you compiled.5 Press the EXIT or RETURN Button to exit.<For a detailed explanation of how Channel Editor works, see pages 34 through 36.>[HC670_677_678-ZA]Install Guide-X0ENG.indd 34 2014-01-17 8:47:55](https://usermanual.wiki/Samsung-Electronics-Co/HG48NC678.user-manual-book-of-A3LHG48NC678-v1-part2/User-Guide-2230283-Page-2.png)

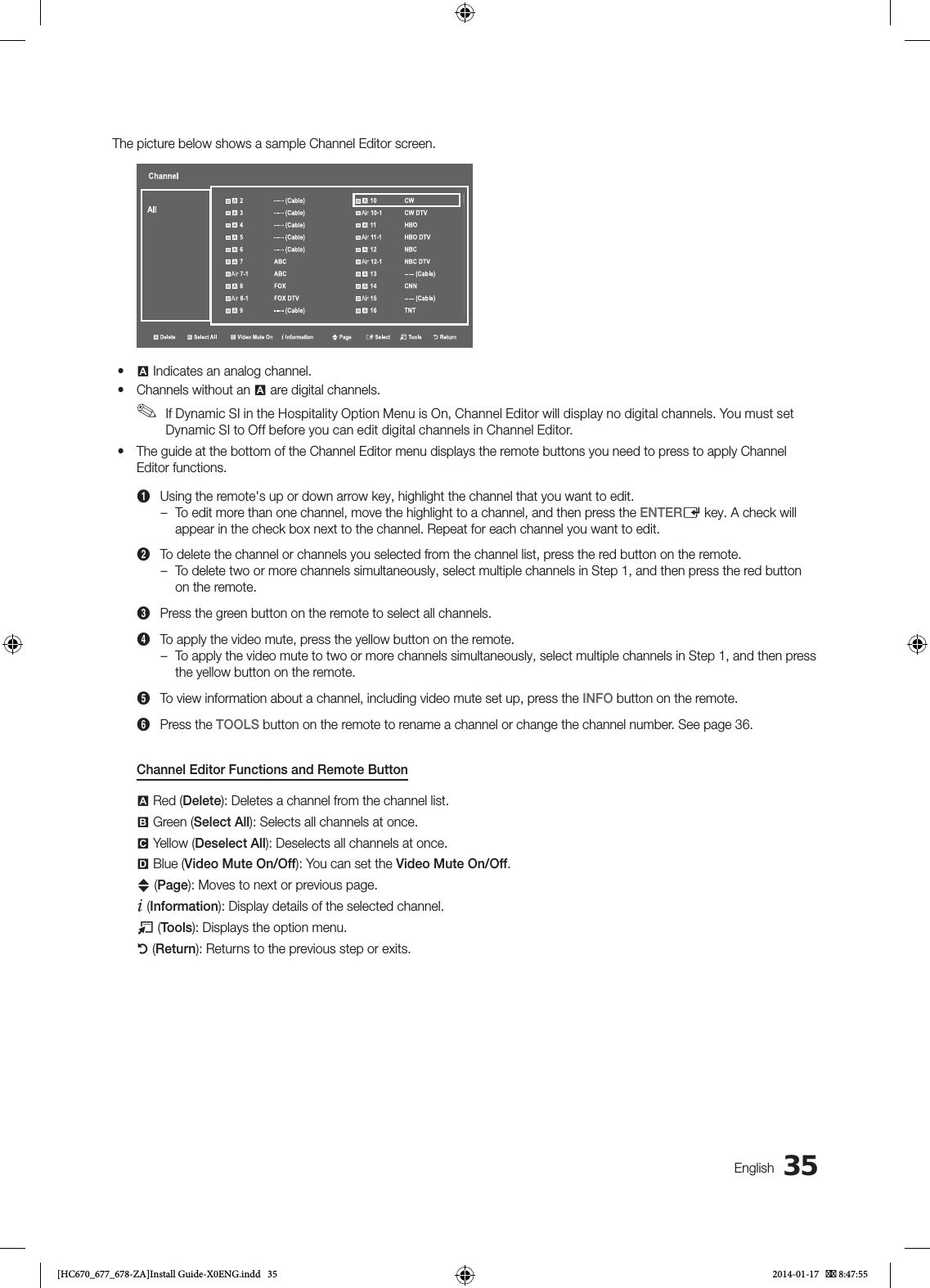

![35EnglishThe picture below shows a sample Channel Editor screen.Channela Deleteb Select All} Video Mute On` InformationU PageE SelectT ToolsR Return a 2 ----- (Cable) a 10 CW a 3 ----- (Cable) Air 10-1 CW DTV a 4 ----- (Cable) a 11 HBO a 5 ----- (Cable) Air 11-1 HBO DTV a 6 ----- (Cable) a 12 NBC a 7ABC Air 12-1 NBC DTV Air 7-1 ABC a 13 ----- (Cable) a 8FOX a 14 CNN Air 8-1FOX DTV Air 15 ----- (Cable) a 9 ----- (Cable) a 16 TNTAll ya Indicates an analog channel. yChannels without an a are digital channels. ✎If Dynamic SI in the Hospitality Option Menu is On, Channel Editor will display no digital channels. You must set Dynamic SI to Off before you can edit digital channels in Channel Editor. yThe guide at the bottom of the Channel Editor menu displays the remote buttons you need to press to apply Channel Editor functions.1 Using the remote's up or down arrow key, highlight the channel that you want to edit. – To edit more than one channel, move the highlight to a channel, and then press the ENTERE key. A check will appear in the check box next to the channel. Repeat for each channel you want to edit.2 To delete the channel or channels you selected from the channel list, press the red button on the remote. – To delete two or more channels simultaneously, select multiple channels in Step 1, and then press the red button on the remote.3 Press the green button on the remote to select all channels.4 To apply the video mute, press the yellow button on the remote. – To apply the video mute to two or more channels simultaneously, select multiple channels in Step 1, and then press the yellow button on the remote.5 To view information about a channel, including video mute set up, press the INFO button on the remote.6 Press the TOOLS button on the remote to rename a channel or change the channel number. See page 36.Channel Editor Functions and Remote Buttona Red (Delete): Deletes a channel from the channel list.b Green (Select All): Selects all channels at once.{ Yellow (Deselect All): Deselects all channels at once.} Blue (Video Mute On/Off): You can set the Video Mute On/Off.U (Page): Moves to next or previous page.` (Information): Display details of the selected channel.T (Tools): Displays the option menu.R (Return): Returns to the previous step or exits.[HC670_677_678-ZA]Install Guide-X0ENG.indd 35 2014-01-17 8:47:55](https://usermanual.wiki/Samsung-Electronics-Co/HG48NC678.user-manual-book-of-A3LHG48NC678-v1-part2/User-Guide-2230283-Page-3.png)

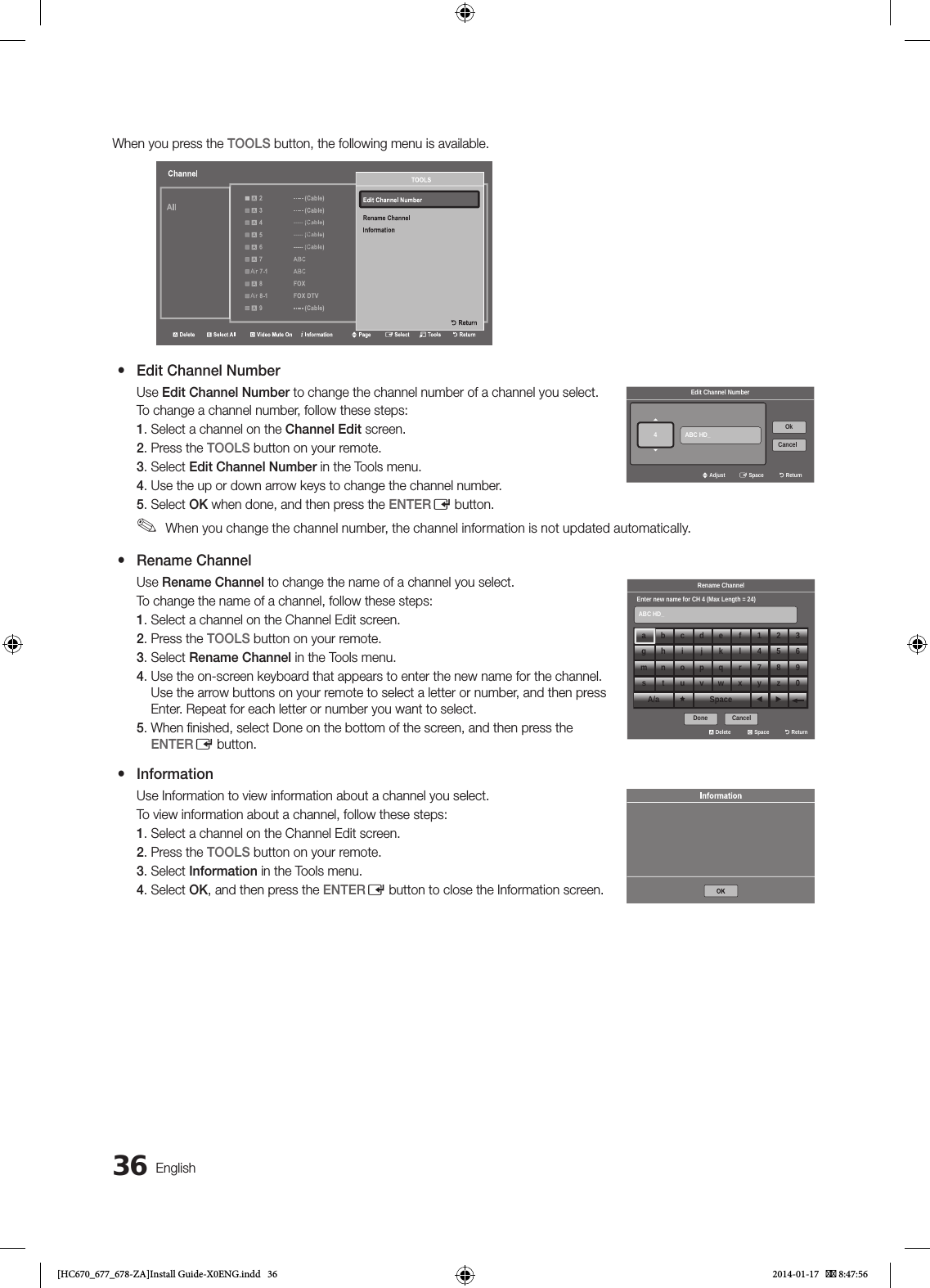

![36EnglishWhen you press the TOOLS button, the following menu is available. a 10 CW Air 10-1 CW DTV a 11 HBO Air 11-1 HBO DTV a 12 NBC Air 12-1 NBC DTV a 13 ----- (Cable) a 14 CNN Air 15 ----- (Cable) a 16 TNTChannela Deleteb Select All} Video Mute On` InformationU PageE SelectT ToolsR ReturnTOOLSRename ChannelEdit Channel NumberInformationR Return yEdit Channel NumberUse Edit Channel Number to change the channel number of a channel you select.To change a channel number, follow these steps:1. Select a channel on the Channel Edit screen.2. Press the TOOLS button on your remote.3. Select Edit Channel Number in the Tools menu.4. Use the up or down arrow keys to change the channel number.5. Select OK when done, and then press the ENTERE button. ✎When you change the channel number, the channel information is not updated automatically. yRename ChannelUse Rename Channel to change the name of a channel you select.To change the name of a channel, follow these steps:1. Select a channel on the Channel Edit screen.2. Press the TOOLS button on your remote.3. Select Rename Channel in the Tools menu.4. Use the on-screen keyboard that appears to enter the new name for the channel. Use the arrow buttons on your remote to select a letter or number, and then press Enter. Repeat for each letter or number you want to select.5. When fi nished, select Done on the bottom of the screen, and then press the ENTERE button. yInformationUse Information to view information about a channel you select.To view information about a channel, follow these steps:1. Select a channel on the Channel Edit screen.2. Press the TOOLS button on your remote.3. Select Information in the Tools menu.4. Select OK, and then press the ENTERE button to close the Information screen.Edit Channel NumberABC HD_U AdjustE SpaceR ReturnOkCancel4Rename ChannelEnter new name for CH 4 (Max Length = 24)ABC HD_a Delete{ SpaceR ReturnDone Cancelabcdef123g h i j k l 456mnopq r 789s t u v w x yz0A/a Space ◄ ►Edit Channel NumberABC HD_U AdjustE SpaceR ReturnOkCancel4Rename ChannelEnter new name for CH 4 (Max Length = 24)ABC HD_a Delete{ SpaceR ReturnDone Cancelabcdef123g h i j k l 456mnopq r 789s t u v w x yz0A/a Space ◄ ►Edit Channel NumberABC HD_U AdjustE SpaceR ReturnOkCancel4Rename ChannelEnter new name for CH 4 (Max Length = 24)ABC HD_a Delete{ SpaceR ReturnDone Cancelabcdef123g h i j k l 456mnopq r 789s t u v w x yz0A/a Space ◄ ►[HC670_677_678-ZA]Install Guide-X0ENG.indd 36 2014-01-17 8:47:56](https://usermanual.wiki/Samsung-Electronics-Co/HG48NC678.user-manual-book-of-A3LHG48NC678-v1-part2/User-Guide-2230283-Page-4.png)

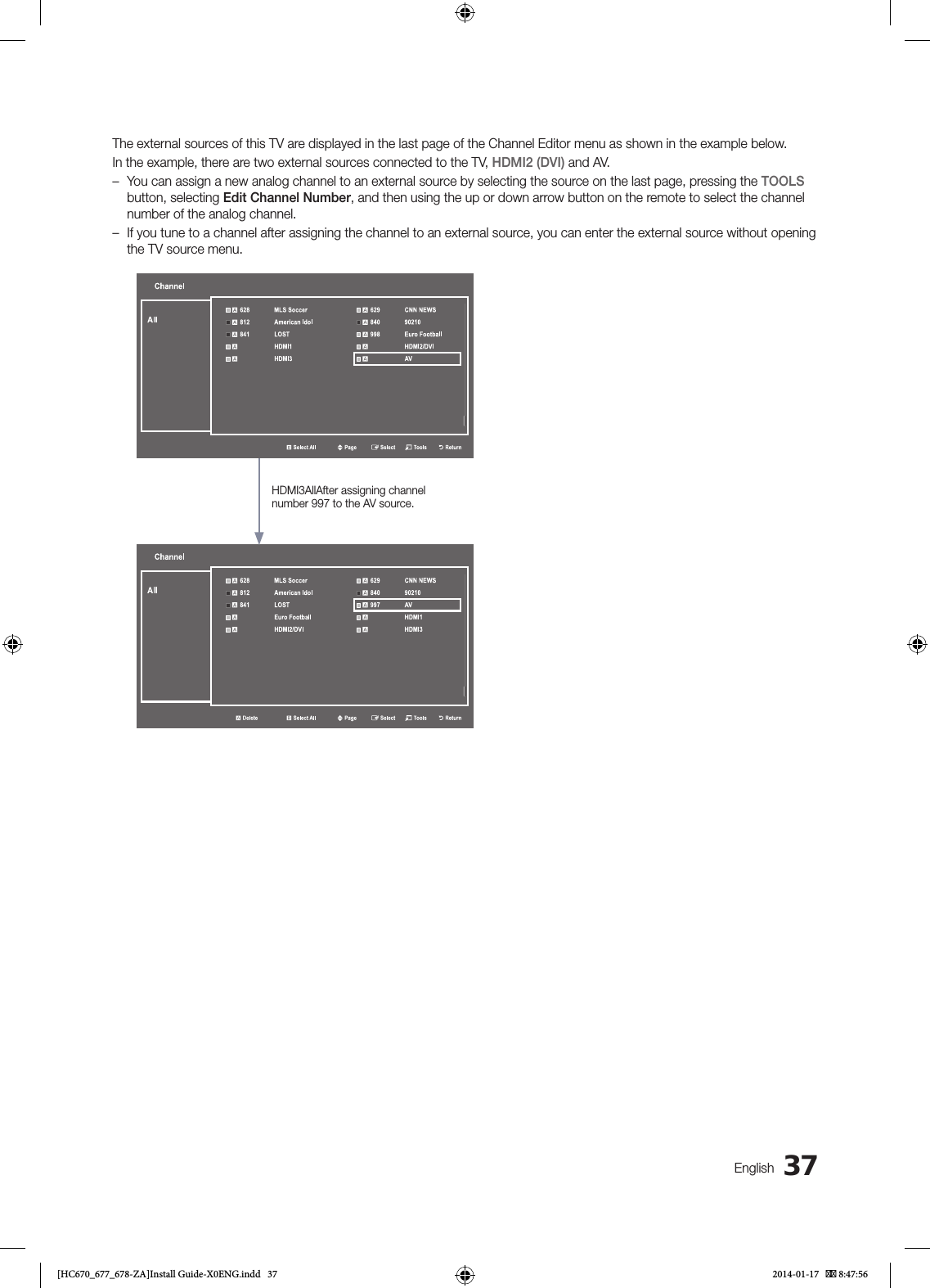

![37EnglishThe external sources of this TV are displayed in the last page of the Channel Editor menu as shown in the example below.In the example, there are two external sources connected to the TV, HDMI2 (DVI) and AV. – You can assign a new analog channel to an external source by selecting the source on the last page, pressing the TOOLS button, selecting Edit Channel Number, and then using the up or down arrow button on the remote to select the channel number of the analog channel. – If you tune to a channel after assigning the channel to an external source, you can enter the external source without opening the TV source menu.Channelb Select AllU PageE SelectT ToolsR Return a 628 MLS Soccer a 629 CNN NEWS a 812 American Idol a 840 90210 a 841 LOST a 998 Euro Football a HDMI1 aHDMI2/DVI a HDMI3 a AVAllChannela Deleteb Select AllU PageE SelectT ToolsR Return a 628 MLS Soccer a 629 CNN NEWS a 812 American Idol a 840 90210 a 841 LOST a 997AV a Euro Football aHDMI1 a HDMI2/DVI a HDMI3AllHDMI3AllAfter assigning channel number 997 to the AV source.[HC670_677_678-ZA]Install Guide-X0ENG.indd 37 2014-01-17 8:47:56](https://usermanual.wiki/Samsung-Electronics-Co/HG48NC678.user-manual-book-of-A3LHG48NC678-v1-part2/User-Guide-2230283-Page-5.png)

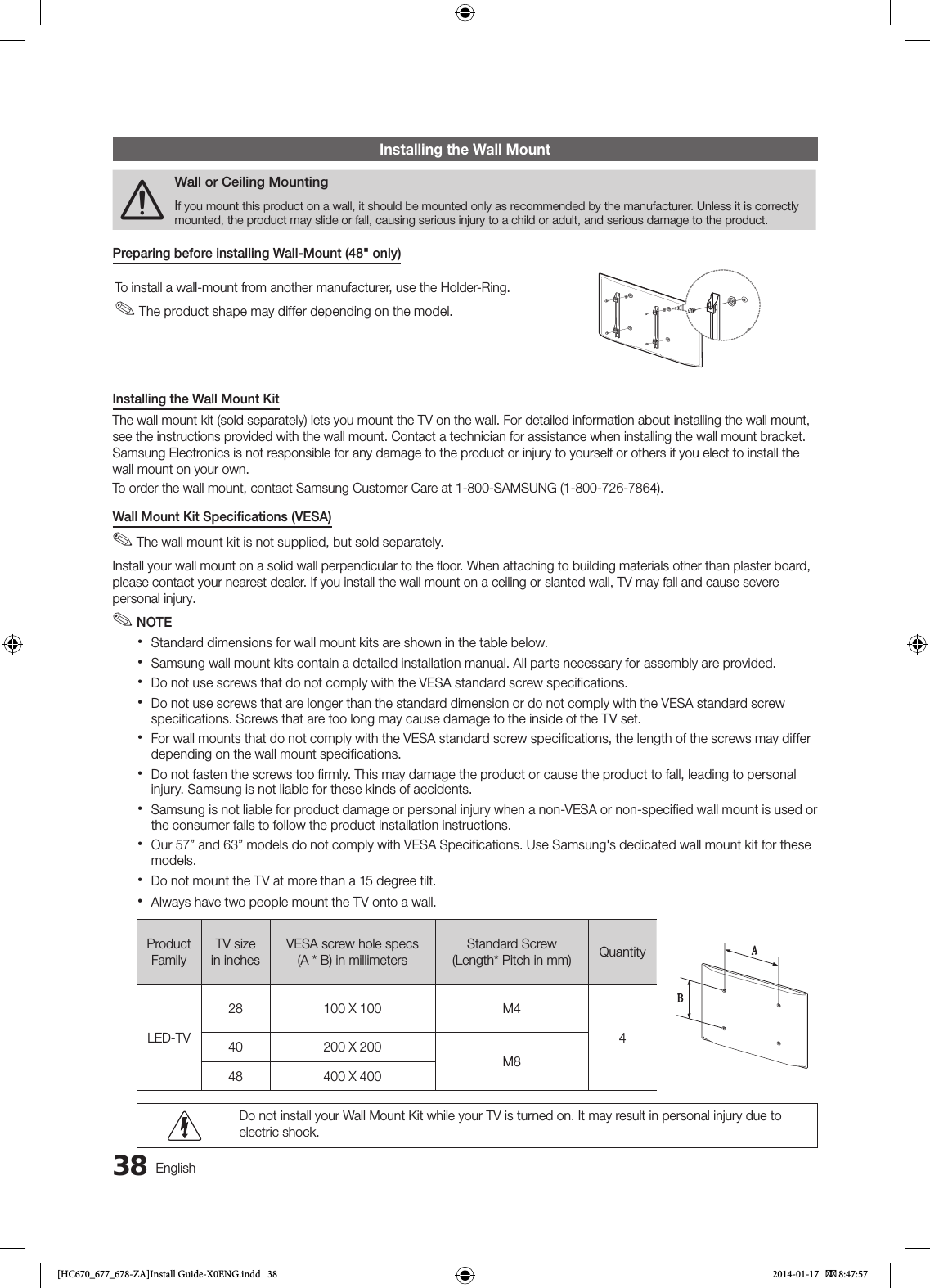

![38EnglishInstalling the Wall Mount[Wall or Ceiling MountingIf you mount this product on a wall, it should be mounted only as recommended by the manufacturer. Unless it is correctly mounted, the product may slide or fall, causing serious injury to a child or adult, and serious damage to the product.Preparing before installing Wall-Mount (48" only)To install a wall-mount from another manufacturer, use the Holder-Ring. ✎The product shape may differ depending on the model.Installing the Wall Mount KitThe wall mount kit (sold separately) lets you mount the TV on the wall. For detailed information about installing the wall mount, see the instructions provided with the wall mount. Contact a technician for assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the wall mount on your own.To order the wall mount, contact Samsung Customer Care at 1-800-SAMSUNG (1-800-726-7864).Wall Mount Kit Specifications (VESA) ✎The wall mount kit is not supplied, but sold separately.Install your wall mount on a solid wall perpendicular to the floor. When attaching to building materials other than plaster board, please contact your nearest dealer. If you install the wall mount on a ceiling or slanted wall, TV may fall and cause severe personal injury. ✎NOTE xStandard dimensions for wall mount kits are shown in the table below. xSamsung wall mount kits contain a detailed installation manual. All parts necessary for assembly are provided. xDo not use screws that do not comply with the VESA standard screw specifications. xDo not use screws that are longer than the standard dimension or do not comply with the VESA standard screw specifications. Screws that are too long may cause damage to the inside of the TV set. xFor wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on the wall mount specifications. xDo not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents. xSamsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions. xOur 57” and 63” models do not comply with VESA Specifications. Use Samsung's dedicated wall mount kit for these models. xDo not mount the TV at more than a 15 degree tilt. xAlways have two people mount the TV onto a wall.Product FamilyTV size in inches VESA screw hole specs (A * B) in millimetersStandard Screw (Length* Pitch in mm) QuantityLED-TV28 100 X 100 M4440 200 X 200M848 400 X 400Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.[HC670_677_678-ZA]Install Guide-X0ENG.indd 38 2014-01-17 8:47:57](https://usermanual.wiki/Samsung-Electronics-Co/HG48NC678.user-manual-book-of-A3LHG48NC678-v1-part2/User-Guide-2230283-Page-6.png)

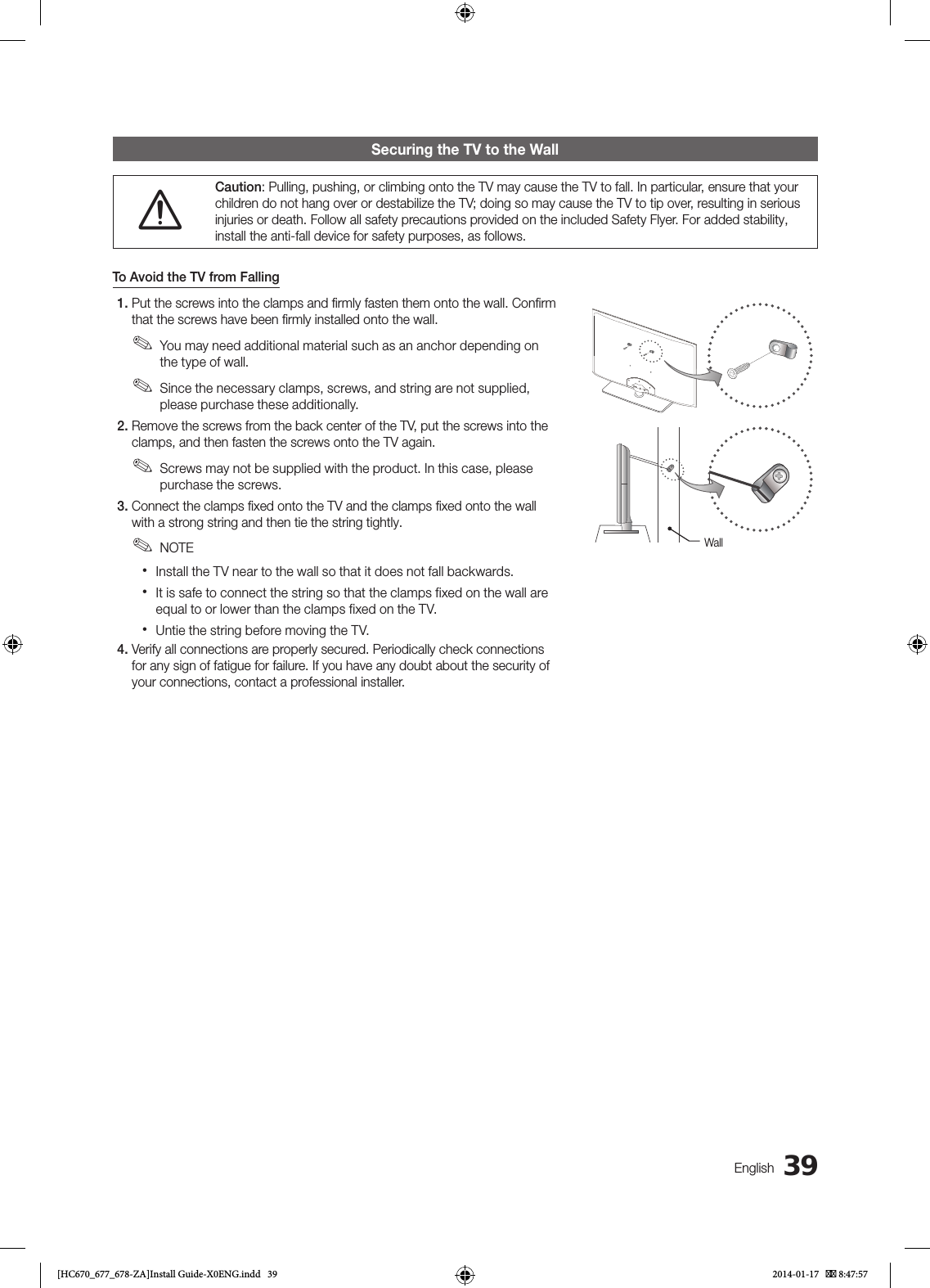

![39EnglishSecuring the TV to the Wall[Caution: Pulling, pushing, or climbing onto the TV may cause the TV to fall. In particular, ensure that your children do not hang over or destabilize the TV; doing so may cause the TV to tip over, resulting in serious injuries or death. Follow all safety precautions provided on the included Safety Flyer. For added stability, install the anti-fall device for safety purposes, as follows.To Avoid the TV from Falling1. Put the screws into the clamps and firmly fasten them onto the wall. Confirm that the screws have been firmly installed onto the wall. ✎You may need additional material such as an anchor depending on the type of wall. ✎Since the necessary clamps, screws, and string are not supplied, please purchase these additionally.2. Remove the screws from the back center of the TV, put the screws into the clamps, and then fasten the screws onto the TV again. ✎Screws may not be supplied with the product. In this case, please purchase the screws.3. Connect the clamps fixed onto the TV and the clamps fixed onto the wall with a strong string and then tie the string tightly. ✎NOTE xInstall the TV near to the wall so that it does not fall backwards. xIt is safe to connect the string so that the clamps fixed on the wall are equal to or lower than the clamps fixed on the TV. xUntie the string before moving the TV.4. Verify all connections are properly secured. Periodically check connections for any sign of fatigue for failure. If you have any doubt about the security of your connections, contact a professional installer.Wall[HC670_677_678-ZA]Install Guide-X0ENG.indd 39 2014-01-17 8:47:57](https://usermanual.wiki/Samsung-Electronics-Co/HG48NC678.user-manual-book-of-A3LHG48NC678-v1-part2/User-Guide-2230283-Page-7.png)

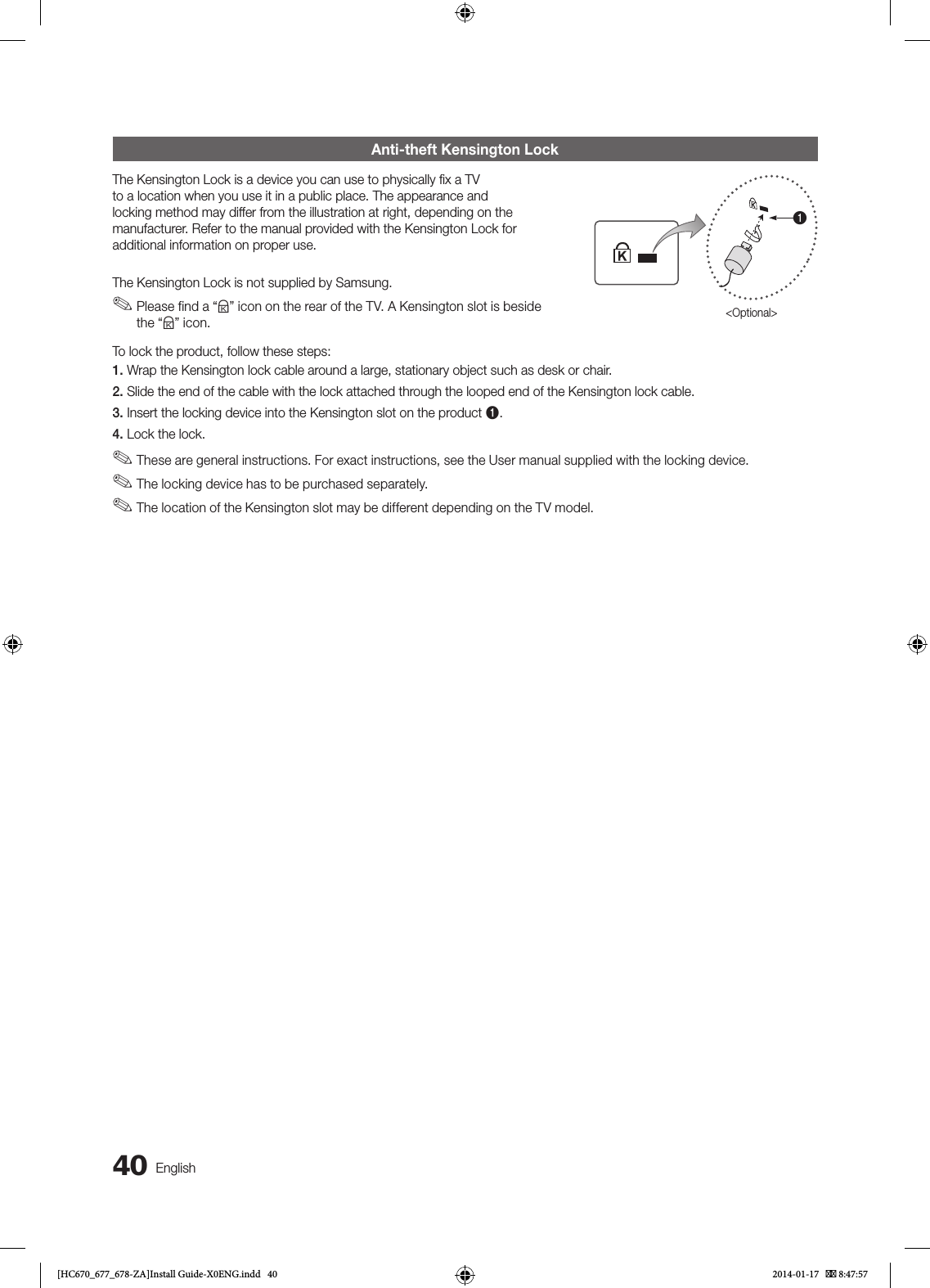

![40EnglishAnti-theft Kensington LockThe Kensington Lock is a device you can use to physically fix a TV to a location when you use it in a public place. The appearance and locking method may differ from the illustration at right, depending on the manufacturer. Refer to the manual provided with the Kensington Lock for additional information on proper use.The Kensington Lock is not supplied by Samsung. ✎Please find a “K” icon on the rear of the TV. A Kensington slot is beside the “K” icon.1<Optional>To lock the product, follow these steps:1. Wrap the Kensington lock cable around a large, stationary object such as desk or chair.2. Slide the end of the cable with the lock attached through the looped end of the Kensington lock cable.3. Insert the locking device into the Kensington slot on the product 1.4. Lock the lock. ✎These are general instructions. For exact instructions, see the User manual supplied with the locking device. ✎The locking device has to be purchased separately. ✎The location of the Kensington slot may be different depending on the TV model.[HC670_677_678-ZA]Install Guide-X0ENG.indd 40 2014-01-17 8:47:57](https://usermanual.wiki/Samsung-Electronics-Co/HG48NC678.user-manual-book-of-A3LHG48NC678-v1-part2/User-Guide-2230283-Page-8.png)

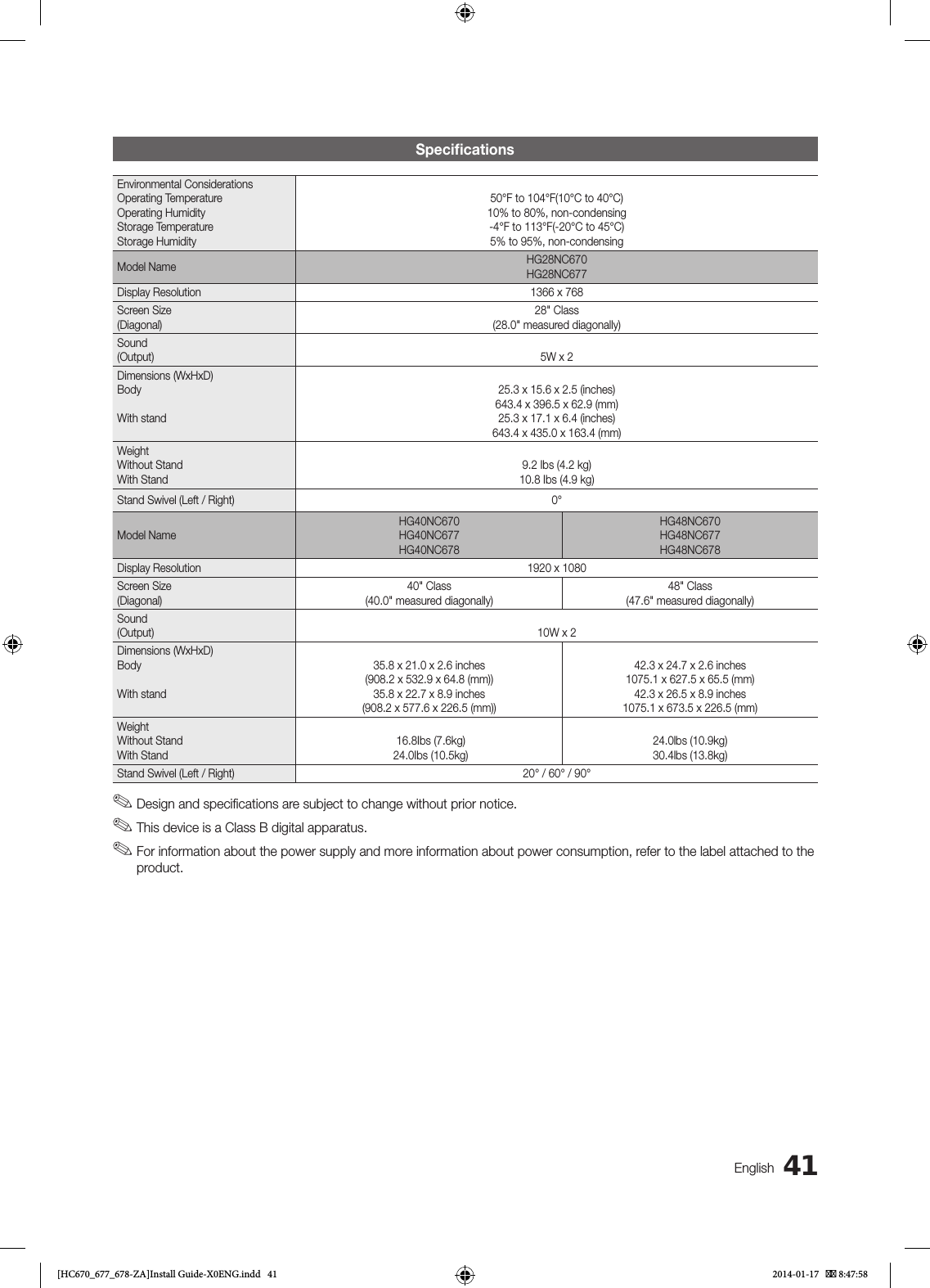

![41EnglishSpecificationsEnvironmental ConsiderationsOperating TemperatureOperating HumidityStorage TemperatureStorage Humidity50°F to 104°F(10°C to 40°C)10% to 80%, non-condensing-4°F to 113°F(-20°C to 45°C)5% to 95%, non-condensingModel Name HG28NC670HG28NC677Display Resolution 1366 x 768Screen Size (Diagonal)28" Class(28.0" measured diagonally)Sound(Output) 5W x 2Dimensions (WxHxD)BodyWith stand25.3 x 15.6 x 2.5 (inches)643.4 x 396.5 x 62.9 (mm)25.3 x 17.1 x 6.4 (inches)643.4 x 435.0 x 163.4 (mm)WeightWithout StandWith Stand9.2 Ibs (4.2 kg)10.8 Ibs (4.9 kg)Stand Swivel (Left / Right) 0°Model NameHG40NC670HG40NC677HG40NC678HG48NC670HG48NC677HG48NC678Display Resolution 1920 x 1080Screen Size (Diagonal)40" Class(40.0" measured diagonally)48" Class(47.6" measured diagonally)Sound (Output) 10W x 2Dimensions (WxHxD)BodyWith stand35.8 x 21.0 x 2.6 inches(908.2 x 532.9 x 64.8 (mm))35.8 x 22.7 x 8.9 inches(908.2 x 577.6 x 226.5 (mm))42.3 x 24.7 x 2.6 inches1075.1 x 627.5 x 65.5 (mm)42.3 x 26.5 x 8.9 inches1075.1 x 673.5 x 226.5 (mm)WeightWithout StandWith Stand 16.8Ibs (7.6kg) 24.0Ibs (10.5kg)24.0lbs (10.9kg)30.4lbs (13.8kg)Stand Swivel (Left / Right) 20° / 60° / 90° ✎Design and specifications are subject to change without prior notice. ✎This device is a Class B digital apparatus. ✎For information about the power supply and more information about power consumption, refer to the label attached to the product. [HC670_677_678-ZA]Install Guide-X0ENG.indd 41 2014-01-17 8:47:58](https://usermanual.wiki/Samsung-Electronics-Co/HG48NC678.user-manual-book-of-A3LHG48NC678-v1-part2/User-Guide-2230283-Page-9.png)

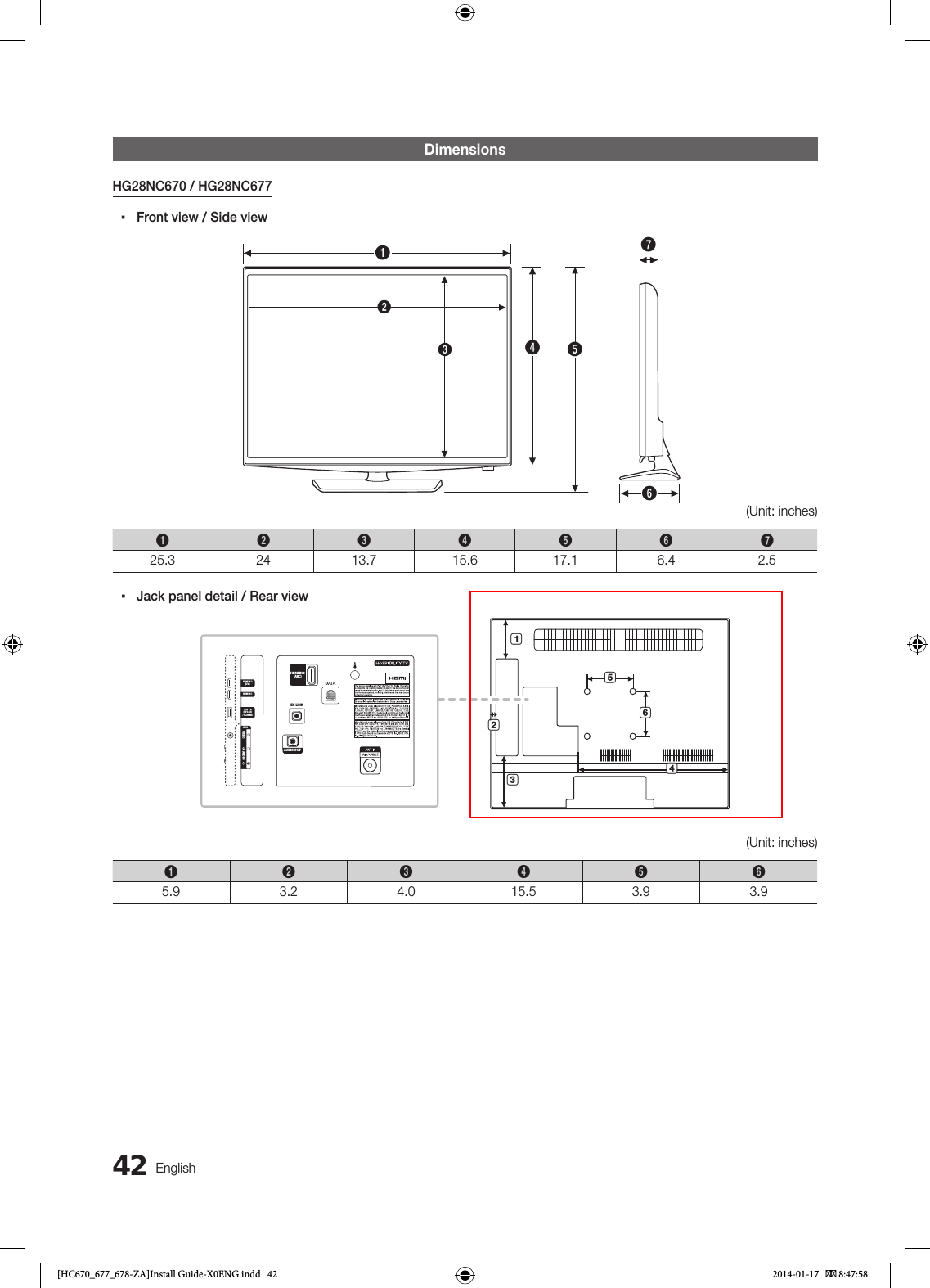

![42EnglishDimensionsHG28NC670 / HG28NC677 ▪Front view / Side view1457623 (Unit: inches)123456725.3 24 13.7 15.6 17.1 6.4 2.5 ▪Jack panel detail / Rear view246531(5V 0.5A)/ CLONINGHDMI IN 1HDMI IN 2(DVI)AV INAUDIOVIDEOHDMI IN 3(ARC)EX-LINKAUDIO OUT(Unit: inches)1 2 3 4 5 65.9 3.2 4.0 15.5 3.9 3.9[HC670_677_678-ZA]Install Guide-X0ENG.indd 42 2014-01-17 8:47:58](https://usermanual.wiki/Samsung-Electronics-Co/HG48NC678.user-manual-book-of-A3LHG48NC678-v1-part2/User-Guide-2230283-Page-10.png)

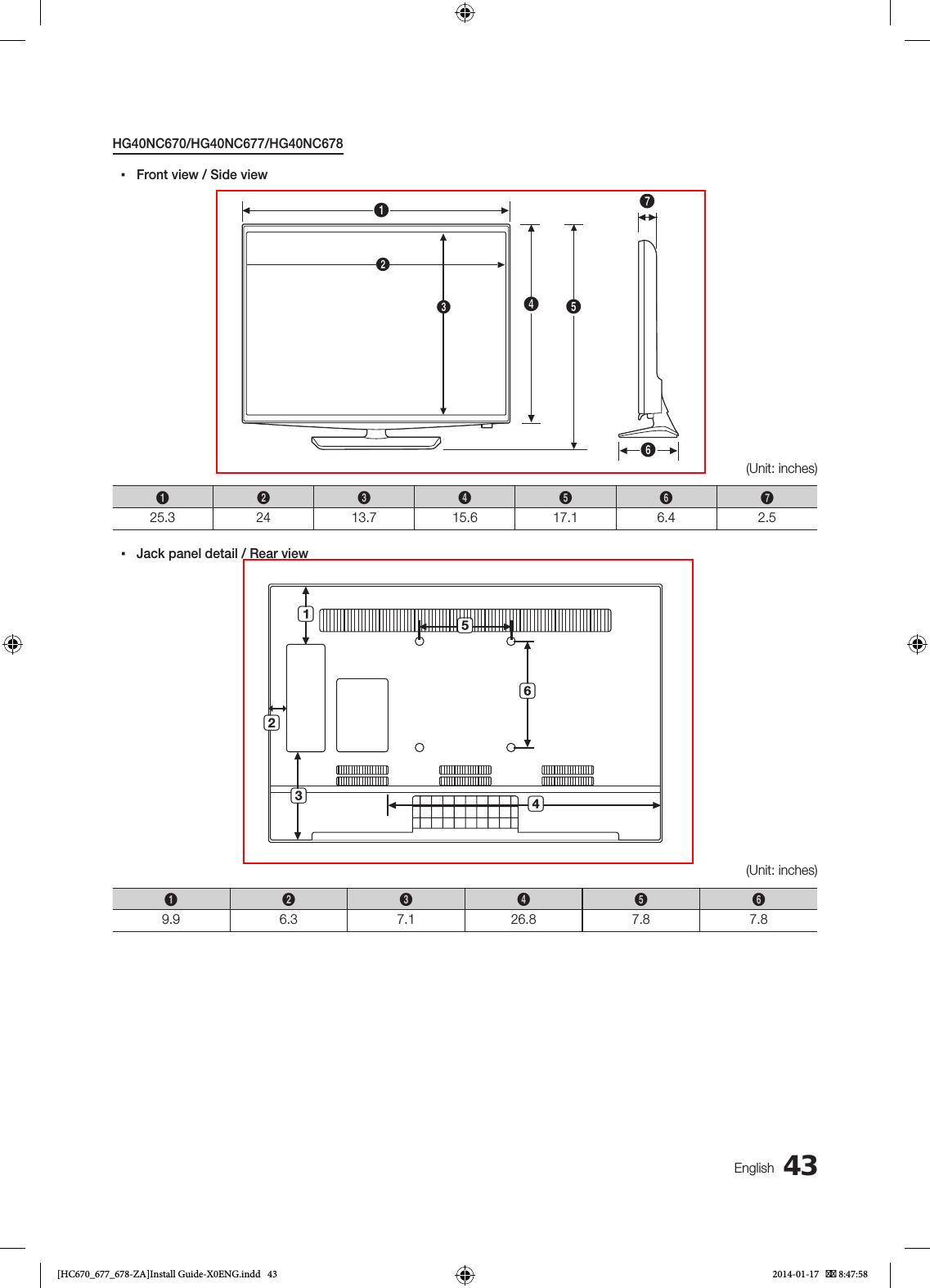

![43EnglishHG40NC670/HG40NC677/HG40NC678 ▪Front view / Side view1457623 (Unit: inches)123456725.3 24 13.7 15.6 17.1 6.4 2.5 ▪Jack panel detail / Rear view246531(Unit: inches)1 2 3 4 5 69.9 6.3 7.1 26.8 7.8 7.8[HC670_677_678-ZA]Install Guide-X0ENG.indd 43 2014-01-17 8:47:58](https://usermanual.wiki/Samsung-Electronics-Co/HG48NC678.user-manual-book-of-A3LHG48NC678-v1-part2/User-Guide-2230283-Page-11.png)

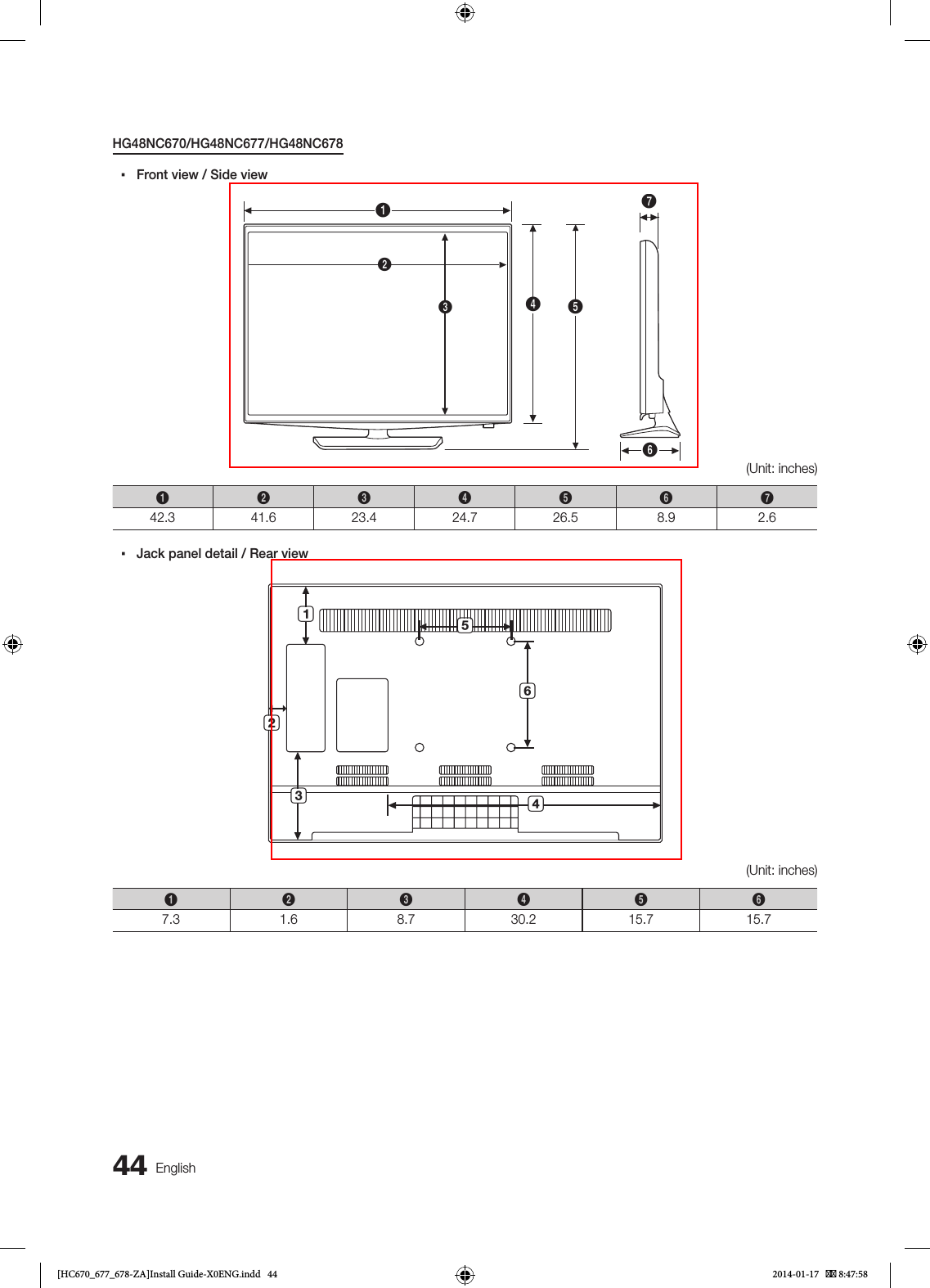

![44EnglishHG48NC670/HG48NC677/HG48NC678 ▪Front view / Side view1457623 (Unit: inches)123456742.3 41.6 23.4 24.7 26.5 8.9 2.6 ▪Jack panel detail / Rear view246531(Unit: inches)1 2 3 4 5 67.3 1.6 8.7 30.2 15.7 15.7[HC670_677_678-ZA]Install Guide-X0ENG.indd 44 2014-01-17 8:47:58](https://usermanual.wiki/Samsung-Electronics-Co/HG48NC678.user-manual-book-of-A3LHG48NC678-v1-part2/User-Guide-2230283-Page-12.png)

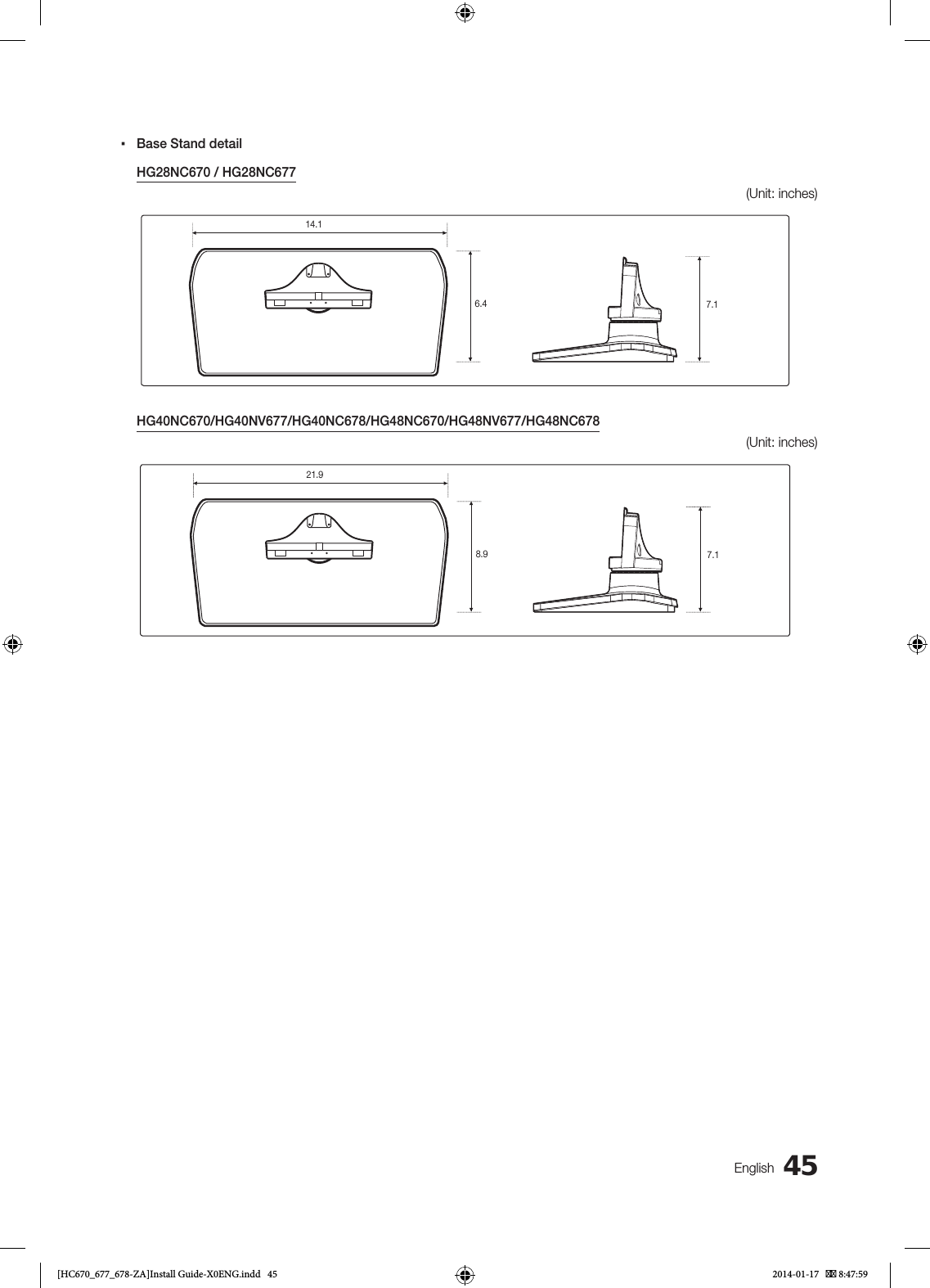

![45English ▪Base Stand detailHG28NC670 / HG28NC677(Unit: inches)6.4 7.114.18.9 7.121.96.4 7.114.18.9 7.121.9 HG40NC670/HG40NV677/HG40NC678/HG48NC670/HG48NV677/HG48NC678(Unit: inches)6.4 7.114.18.9 7.121.96.4 7.114.18.9 7.121.9 [HC670_677_678-ZA]Install Guide-X0ENG.indd 45 2014-01-17 8:47:59](https://usermanual.wiki/Samsung-Electronics-Co/HG48NC678.user-manual-book-of-A3LHG48NC678-v1-part2/User-Guide-2230283-Page-13.png)

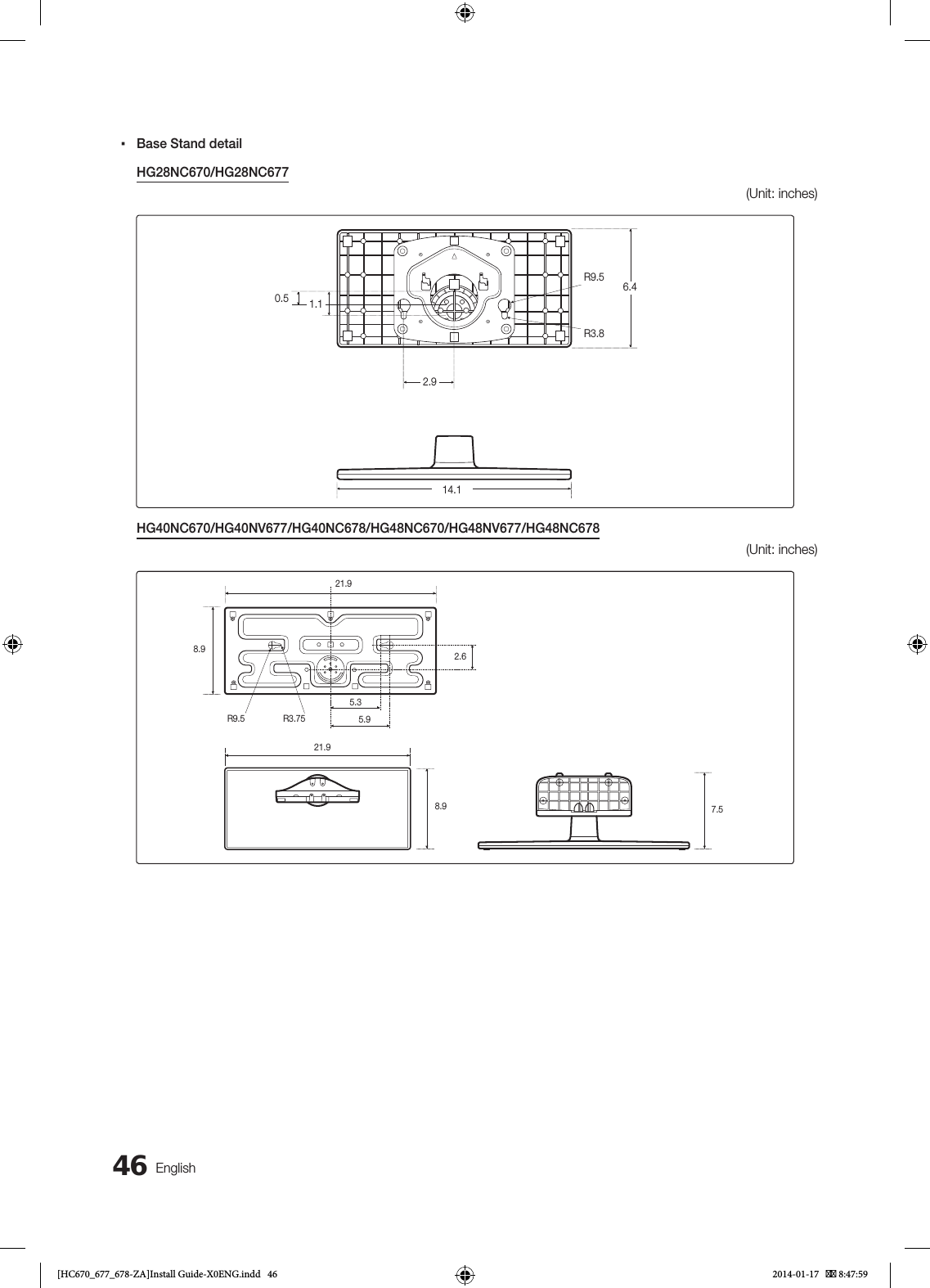

![46English ▪Base Stand detailHG28NC670/HG28NC677(Unit: inches)0.5 1.114.12.96.4R9.5R3.88.9 7.521.921.98.9R9.5 R3.75 5.95.32.6 HG40NC670/HG40NV677/HG40NC678/HG48NC670/HG48NV677/HG48NC678(Unit: inches)0.5 1.114.12.96.4R9.5R3.88.9 7.521.921.98.9R9.5 R3.75 5.95.32.6 [HC670_677_678-ZA]Install Guide-X0ENG.indd 46 2014-01-17 8:47:59](https://usermanual.wiki/Samsung-Electronics-Co/HG48NC678.user-manual-book-of-A3LHG48NC678-v1-part2/User-Guide-2230283-Page-14.png)

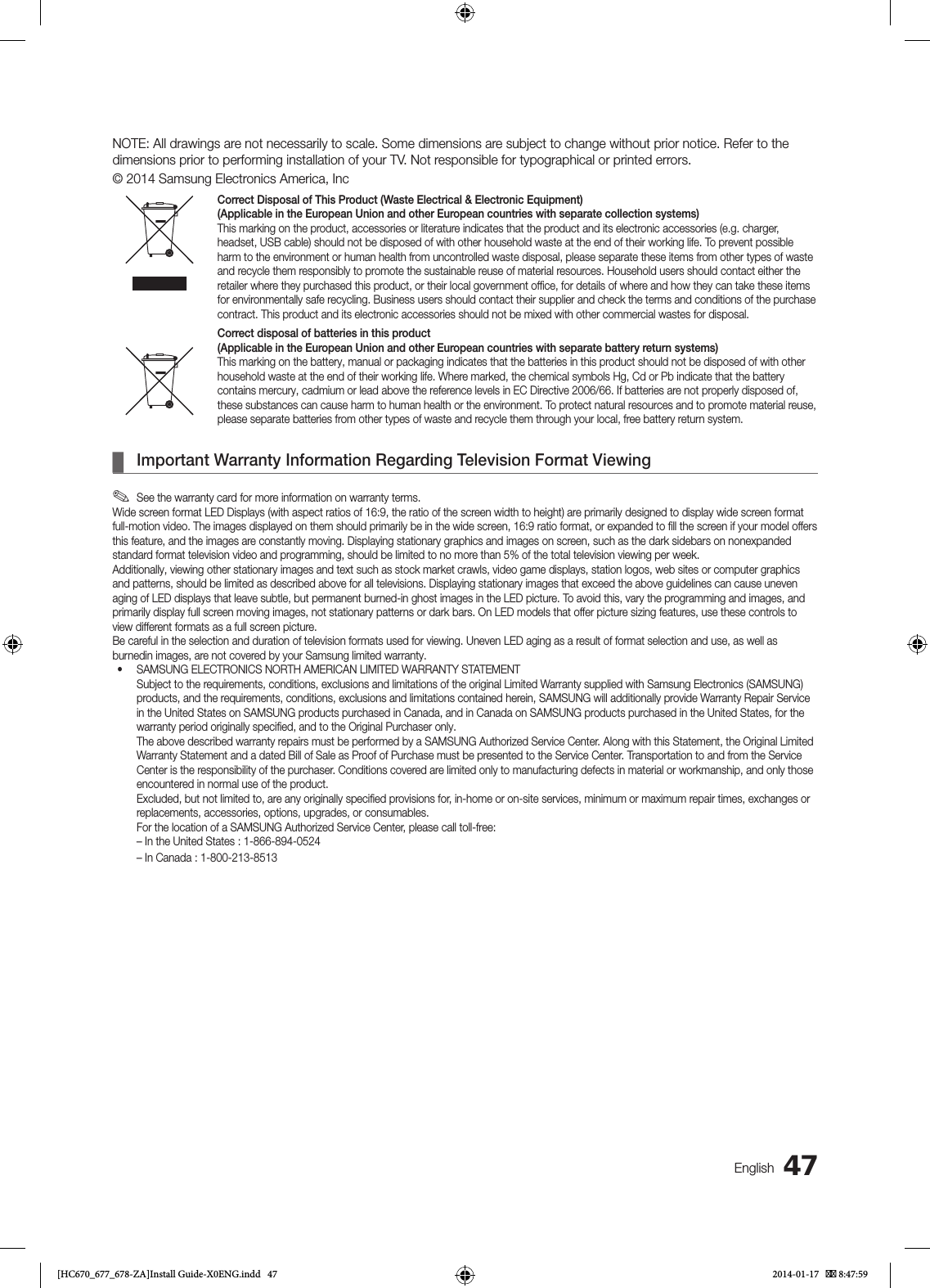

![47EnglishNOTE: All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice. Refer to the dimensions prior to performing installation of your TV. Not responsible for typographical or printed errors.© 2014 Samsung Electronics America, IncCorrect Disposal of This Product (Waste Electrical & Electronic Equipment)(Applicable in the European Union and other European countries with separate collection systems)This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.Correct disposal of batteries in this product(Applicable in the European Union and other European countries with separate battery return systems)This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system. ¦Important Warranty Information Regarding Television Format Viewing ✎See the warranty card for more information on warranty terms.Wide screen format LED Displays (with aspect ratios of 16:9, the ratio of the screen width to height) are primarily designed to display wide screen format full-motion video. The images displayed on them should primarily be in the wide screen, 16:9 ratio format, or expanded to fill the screen if your model offers this feature, and the images are constantly moving. Displaying stationary graphics and images on screen, such as the dark sidebars on nonexpanded standard format television video and programming, should be limited to no more than 5% of the total television viewing per week.Additionally, viewing other stationary images and text such as stock market crawls, video game displays, station logos, web sites or computer graphicsand patterns, should be limited as described above for all televisions. Displaying stationary images that exceed the above guidelines can cause uneven aging of LED displays that leave subtle, but permanent burned-in ghost images in the LED picture. To avoid this, vary the programming and images, and primarily display full screen moving images, not stationary patterns or dark bars. On LED models that offer picture sizing features, use these controls to view different formats as a full screen picture.Be careful in the selection and duration of television formats used for viewing. Uneven LED aging as a result of format selection and use, as well as burnedin images, are not covered by your Samsung limited warranty.• SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT Subject to the requirements, conditions, exclusions and limitations of the original Limited Warranty supplied with Samsung Electronics (SAMSUNG) products, and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG will additionally provide Warranty Repair Service in the United States on SAMSUNG products purchased in Canada, and in Canada on SAMSUNG products purchased in the United States, for the warranty period originally specified, and to the Original Purchaser only. The above described warranty repairs must be performed by a SAMSUNG Authorized Service Center. Along with this Statement, the Original Limited Warranty Statement and a dated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportation to and from the Service Center is the responsibility of the purchaser. Conditions covered are limited only to manufacturing defects in material or workmanship, and only those encountered in normal use of the product. Excluded, but not limited to, are any originally specified provisions for, in-home or on-site services, minimum or maximum repair times, exchanges or replacements, accessories, options, upgrades, or consumables. For the location of a SAMSUNG Authorized Service Center, please call toll-free: – In the United States : 1-866-894-0524 – In Canada : 1-800-213-8513[HC670_677_678-ZA]Install Guide-X0ENG.indd 47 2014-01-17 8:47:59](https://usermanual.wiki/Samsung-Electronics-Co/HG48NC678.user-manual-book-of-A3LHG48NC678-v1-part2/User-Guide-2230283-Page-15.png)

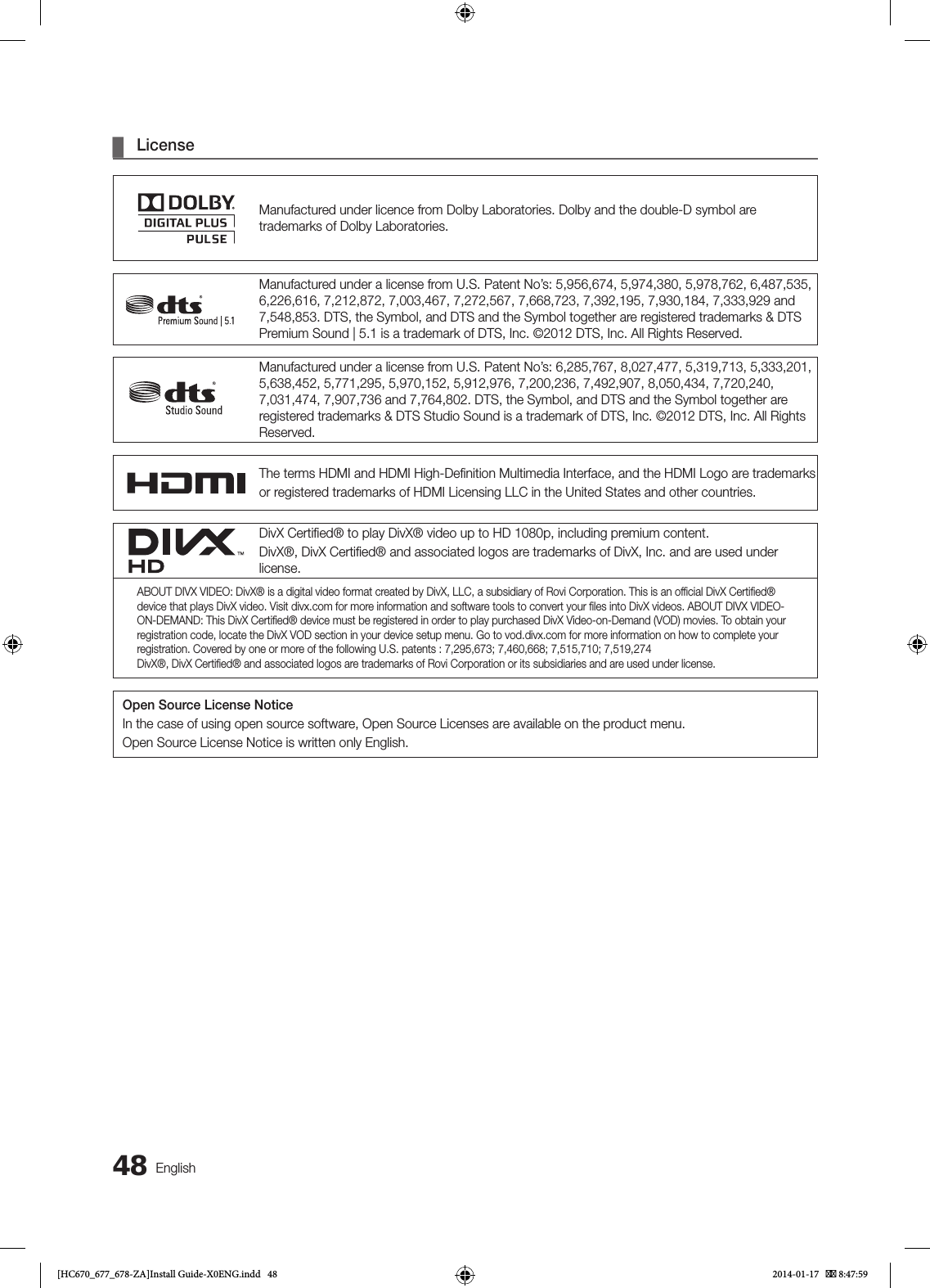

![48English ¦LicenseManufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.Manufactured under a license from U.S. Patent No’s: 5,956,674, 5,974,380, 5,978,762, 6,487,535, 6,226,616, 7,212,872, 7,003,467, 7,272,567, 7,668,723, 7,392,195, 7,930,184, 7,333,929 and 7,548,853. DTS, the Symbol, and DTS and the Symbol together are registered trademarks & DTS Premium Sound | 5.1 is a trademark of DTS, Inc. ©2012 DTS, Inc. All Rights Reserved.Manufactured under a license from U.S. Patent No’s: 6,285,767, 8,027,477, 5,319,713, 5,333,201, 5,638,452, 5,771,295, 5,970,152, 5,912,976, 7,200,236, 7,492,907, 8,050,434, 7,720,240, 7,031,474, 7,907,736 and 7,764,802. DTS, the Symbol, and DTS and the Symbol together are registered trademarks & DTS Studio Sound is a trademark of DTS, Inc. ©2012 DTS, Inc. All Rights Reserved.The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarksor registered trademarks of HDMI Licensing LLC in the United States and other countries.DivX Certified® to play DivX® video up to HD 1080p, including premium content.DivX®, DivX Certified® and associated logos are trademarks of DivX, Inc. and are used under license.ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.Open Source License NoticeIn the case of using open source software, Open Source Licenses are available on the product menu.Open Source License Notice is written only English.[HC670_677_678-ZA]Install Guide-X0ENG.indd 48 2014-01-17 8:47:59](https://usermanual.wiki/Samsung-Electronics-Co/HG48NC678.user-manual-book-of-A3LHG48NC678-v1-part2/User-Guide-2230283-Page-16.png)

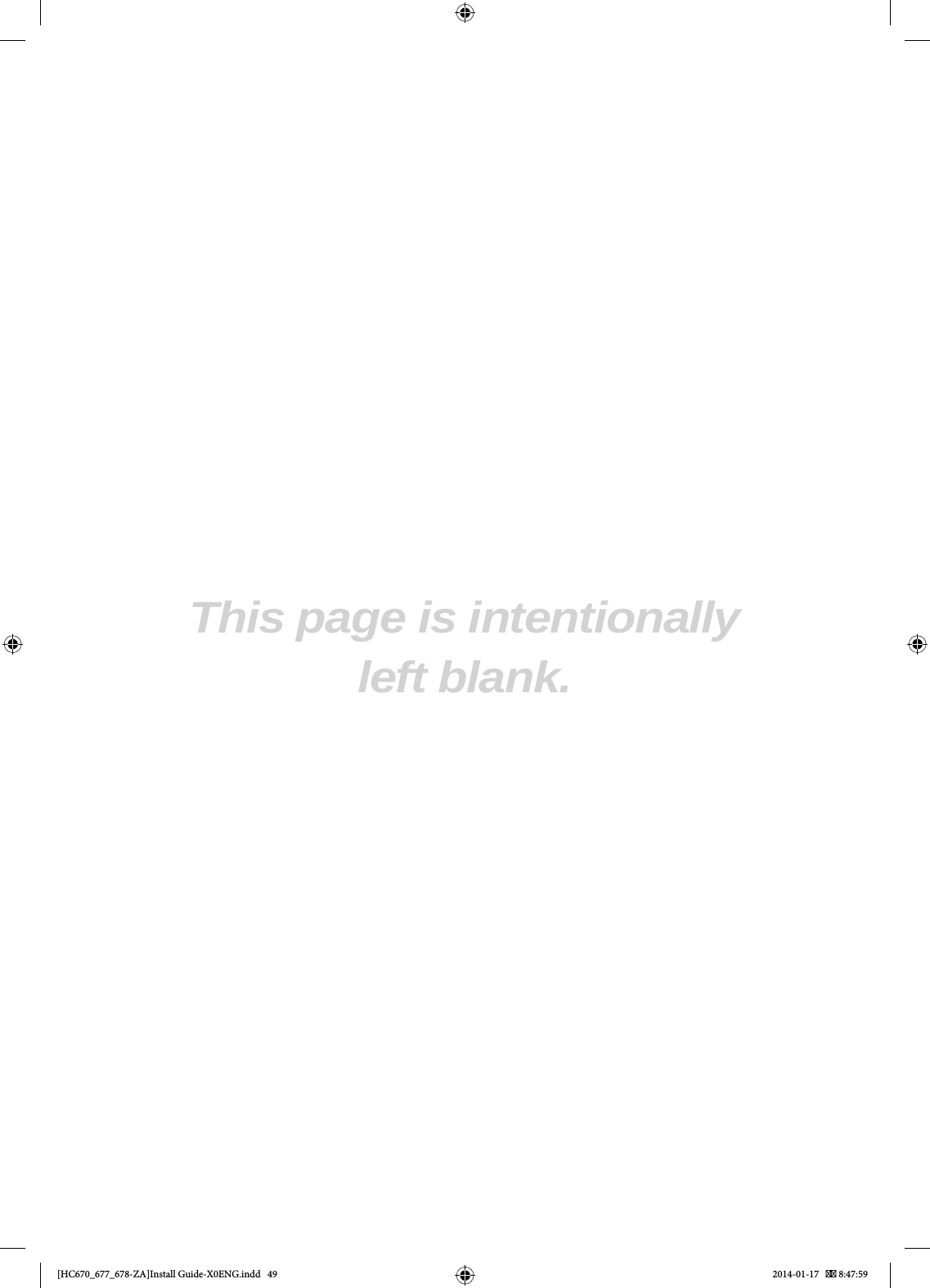

![This page is intentionally left blank.[HC670_677_678-ZA]Install Guide-X0ENG.indd 49 2014-01-17 8:47:59](https://usermanual.wiki/Samsung-Electronics-Co/HG48NC678.user-manual-book-of-A3LHG48NC678-v1-part2/User-Guide-2230283-Page-17.png)
![Contact SAMSUNG WORLDWIDEIf you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Samsung Hospitality Hotline: 866-894-0524Web site: http://www.samsung.com/us/business[HC670_677_678-ZA]Install Guide-X0ENG.indd 50 2014-01-17 8:48:00](https://usermanual.wiki/Samsung-Electronics-Co/HG48NC678.user-manual-book-of-A3LHG48NC678-v1-part2/User-Guide-2230283-Page-18.png)
