LED TVInstallation manual imagine the possibilitiesThank you for purchasing this Samsung product. To receive more complete service, please register your product atwww.samsung.com/registerModel Serial No. [HC670_677_678-ZA]Install Guide-X0ENG.indd 1 2014-01-17  8:47:43
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice.IntroductionThis TV B2B (Business to Business) model is designed for hotels or the other hospitality businesses, supports a variety of special functions, and lets you limit some user (guest) controls.Operational ModesThis TV has two modes : Interactive and Stand-alone mode.• Interactive mode : In this mode, the TV communicates with and is fully or partially controlled by a connected Set Back Box (SBB) or Set Top Box (STB) provided by a hospitality SI (System Integration) vendor. When the TV is initially plugged in, it sends a command that attempts to identify the SSB or STB connected to it. If the TV identifies the SBB or STB and the SBB or STB identifies the TV, the TV gives full control to the SBB or STB.• Stand-alone mode : In this mode, this TV works alone without an external SBB or the STB.The TV has a Hotel (Hospitality) Menu that lets you easily set its various hospitality functions. Please see pages 17 to 21.The Menu also lets you activate or de-activate some TV and hospitality functions so you can create your optimal hospitality configuration.Still image warningAvoid displaying still images (such as jpeg picture files) or still image elements (such as TV channel logos, panorama or 4:3 format images, stock or news bars or crawls) on the screen. Displaying still pictures continually can cause uneven screen wear, which will affect image quality. To reduce the chance that this effect will occur, please follow the recommendations below:• Avoid displaying the same TV channel for long periods.• Always try to display a full screen image.• Reduce brightness and contrast to help to prevent the occurrence of after-images.• Frequently use all TV features designed to reduce image retention and screen burn-in. Refer to the proper user manual section for details.Ensuring Proper VentilationWhen you install the TV, maintain a distances of at least 4 inches between the TV and other object (walls, cabinet sides, etc.) to ensure proper ventilation.Failing to maintain proper ventilation may result in a fire or problems with the product caused by an increase in its internal temperature. ✎When using a stand or wall-mount, use parts provided by Samsung Electronics only. ✎Using parts provided by another manufacturer may cause difficulties with the product or result in injury caused by the product falling.Installation with a stand. Installation with a wall-mount.4 inches4 inches4 inches4 inches4 inches4 inches4 inchesAdditional Information ✎The appearance of the TV and its accessories may differ from the illustrations in this manual, depending on the TV. ✎Be careful when the you touch the TV. Some parts can be hot.[HC670_677_678-ZA]Install Guide-X0ENG.indd 2 2014-01-17  8:47:43

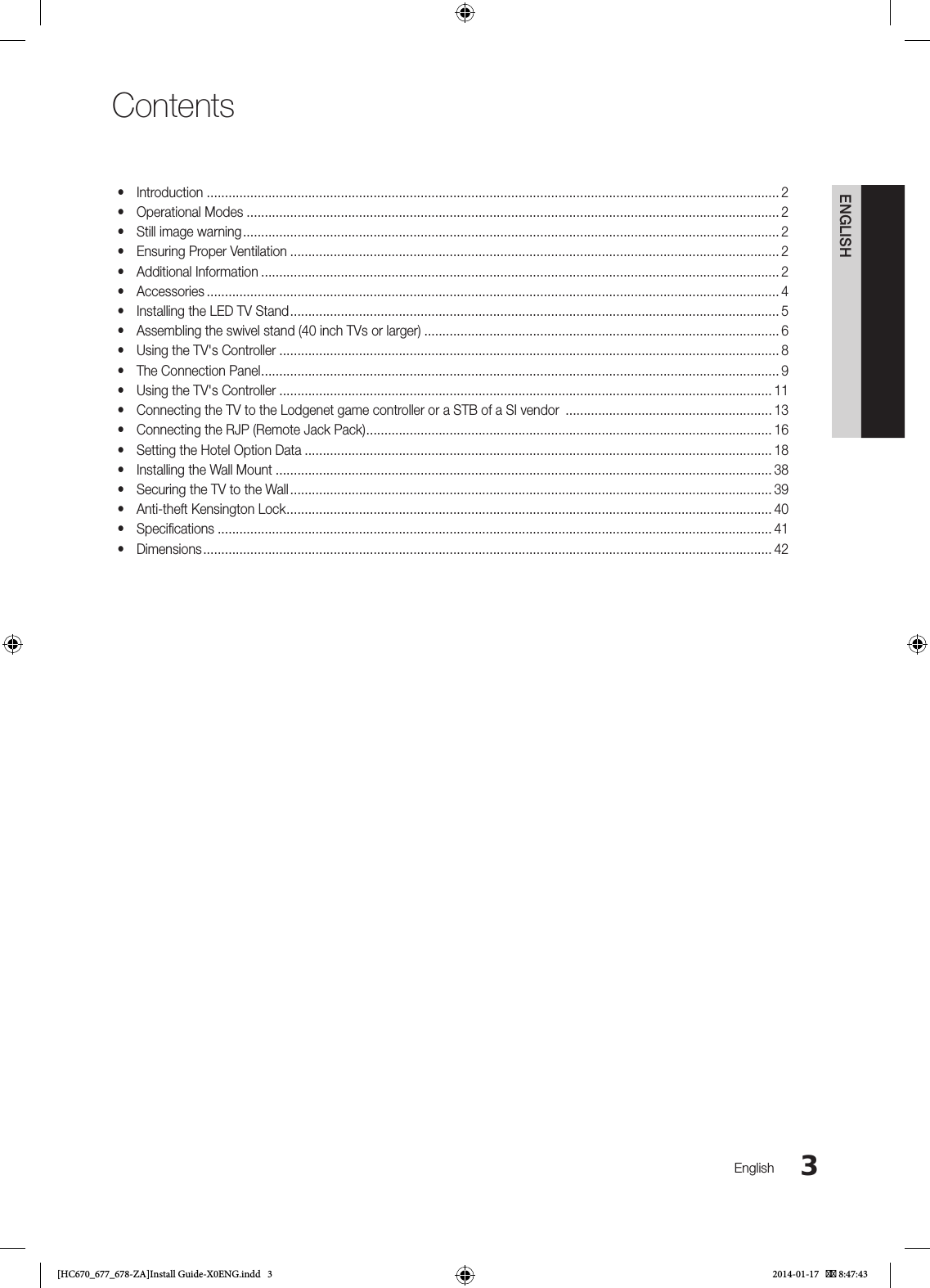

3ContentsENGLISHEnglish yIntroduction .............................................................................................................................................................. 2 yOperational Modes ................................................................................................................................................... 2 yStill image warning .................................................................................................................................................... 2 yEnsuring Proper Ventilation ....................................................................................................................................... 2 yAdditional Information ............................................................................................................................................... 2 yAccessories .............................................................................................................................................................. 4 yInstalling the LED TV Stand ....................................................................................................................................... 5 yAssembling the swivel stand (40 inch TVs or larger) .................................................................................................. 6 yUsing the TV's Controller .......................................................................................................................................... 8 yThe Connection Panel ............................................................................................................................................... 9 yUsing the TV's Controller ........................................................................................................................................ 11 yConnecting the TV to the Lodgenet game controller or a STB of a SI vendor ......................................................... 13 yConnecting the RJP (Remote Jack Pack) ................................................................................................................ 16 ySetting the Hotel Option Data ................................................................................................................................. 18 yInstalling the Wall Mount ......................................................................................................................................... 38 ySecuring the TV to the Wall ..................................................................................................................................... 39 yAnti-theft Kensington Lock ...................................................................................................................................... 40 ySpecifications ......................................................................................................................................................... 41 yDimensions ............................................................................................................................................................. 42[HC670_677_678-ZA]Install Guide-X0ENG.indd 3 2014-01-17  8:47:43
4EnglishAccessories ✎Please make sure the following items are included with your LED TV. If any items are missing, contact your dealer. ✎The items’ color and shape may vary, depending on the model. ✎The parts for the stand are listed under Stand Components on the following page.List of Parts yRemote Control (AA59-00817A) & Batteries (AAA x 2) yPower Cord ySafety Guide / Quick Setup Guide (Not available in all locations) yData Cable (depending on the model) yHotel Mount Kit (BN96-23066A) yHolder-Wire stand yAssembling the Holder Wire Stand[HC670_677_678-ZA]Install Guide-X0ENG.indd 4 2014-01-17  8:47:44

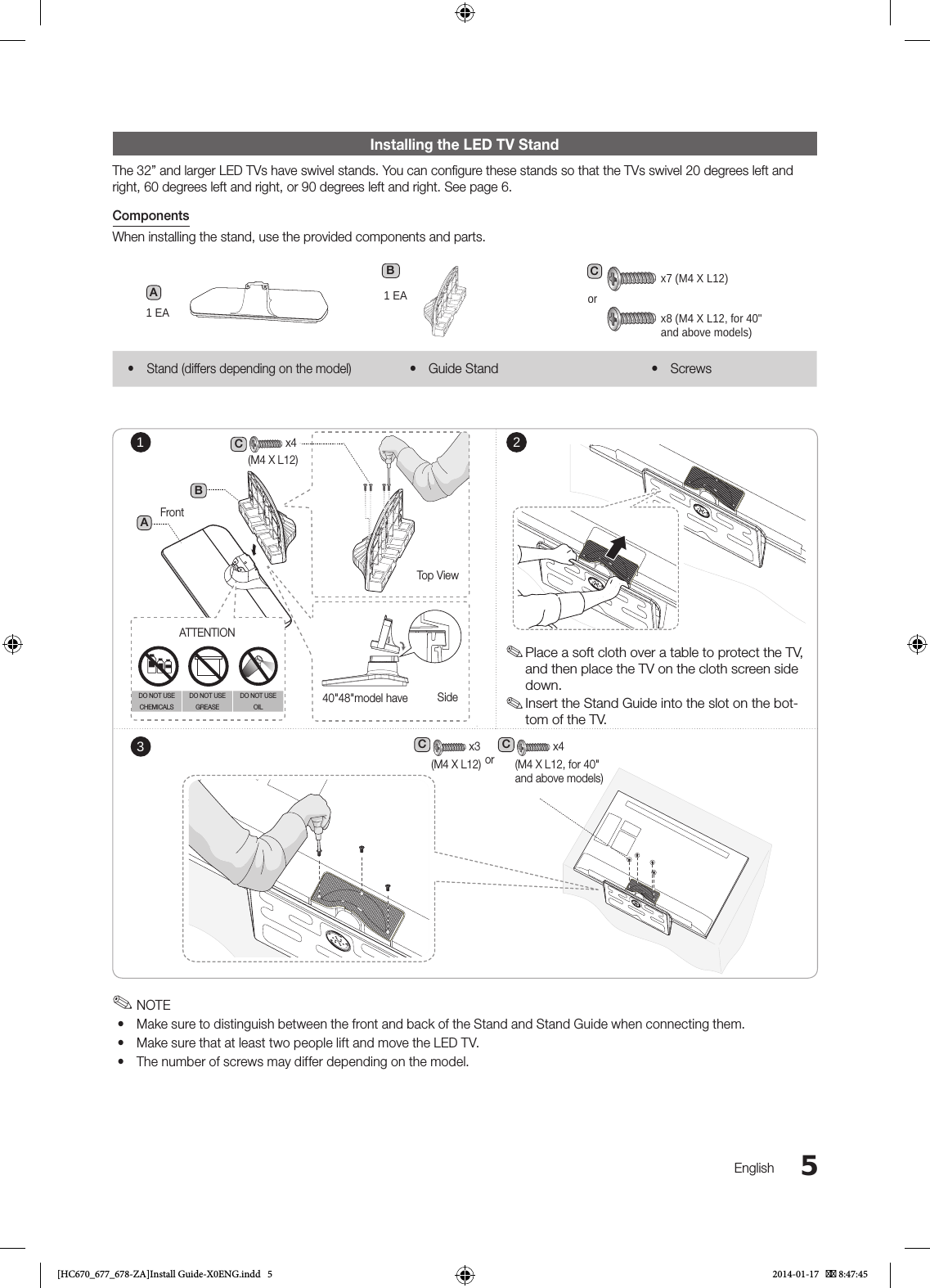

5EnglishInstalling the LED TV StandThe 32” and larger LED TVs have swivel stands. You can configure these stands so that the TVs swivel 20 degrees left and right, 60 degrees left and right, or 90 degrees left and right. See page 6.ComponentsWhen installing the stand, use the provided components and parts.A1 EAB1 EACx7 (M4 X L12)x8 (M4 X L12, for 40" and above models) yStand (differs depending on the model) yGuide Stand yScrews ✎NOTE yMake sure to distinguish between the front and back of the Stand and Stand Guide when connecting them. yMake sure that at least two people lift and move the LED TV. yThe number of screws may differ depending on the model.or1 23ABCx4(M4 X L12)SideFrontDO NOT USECHEMICALSDO NOT USEGREASEDO NOT USEOILATTENTION ✎Place a soft cloth over a table to protect the TV, and then place the TV on the cloth screen side down. ✎Insert the Stand Guide into the slot on the bot-tom of the TV.Top ViewC Cx3 x4(M4 X L12) (M4 X L12, for 40" and above models)or40"48"model have [HC670_677_678-ZA]Install Guide-X0ENG.indd 5 2014-01-17  8:47:45
6EnglishAssembling the swivel stand (40 inch TVs or larger)The 40” and larger LED TVs have swivel stands. You can configure these stands so that the TVs swivel 20 degrees left and right, 60 degrees left and right, or 90 degrees left and right using the BRACKET HOLDER SWIVEL. ¦20° swivelTo configure the TV so that it swivels 20° left and right, insert the prong on the bottom of the stand through the curved hole in the Bracket Holder Swivel marked 20°. Then, fix the Bracket Holder Swivel to the stand using the three supplied screws as shown to the left. ¦60° swivelTo configure the TV so that it swivels 60° left and right, insert the prong on the bottom of the stand through the curved hole in the Bracket Holder Swivel marked 60°. Then, fix the Bracket Holder Swivel to the stand using the three supplied screws as shown to the left. ¦90° swivelTo configure the TV so that it swivels 90° left and right, remove the Bracket Holder Swivel, and then screw the three supplied screws into the stand as shown to the left.[HC670_677_678-ZA]Install Guide-X0ENG.indd 6 2014-01-17  8:47:46
7English ¦Hotel Mount KitBolt + NutShort Bolt (2EA) Long Bolt (2EA) Nut (2EA) Washer (2EA)Affix the stand to a flat surface such as a dresser top, desk top, or entertainment center as shown.[WARNING: To prevent injury, you must attach this TV securely to the floor, a table, a dresser top, etc. with the Hotel Mount Kit as described in these instructions.TopBottom[HC670_677_678-ZA]Install Guide-X0ENG.indd 7 2014-01-17  8:47:47
8EnglishUsing the TV's ControllerThe TV’s Controller, a small joy stick like button on the rear right side of the TV, lets you control the TV without the remote control.TV ControllerThe image is drawn as if you are facing the front side of the TV.Power offFunction menuRemote control sensorReturnSelecting the Media PlaySelecting the MenuSelect a source. ✎The product color and shape may vary depending on the model. ✎To exit the menu, press the Controller for more than 1 second. ✎When selecting a function by moving the controller backwards/forwards/left/right, be sure not to press up on the controller. If you press up first, it will not operate correctly.Standby modeYour TV enters Standby mode when you turn it off and continues to consume a small amount of electric power. To be safe and to decrease power consumption, do not leave your TV in standby mode for long periods of time (when you are away on vacation, for example). It is best to unplug the power cord.[HC670_677_678-ZA]Install Guide-X0ENG.indd 8 2014-01-17  8:47:47

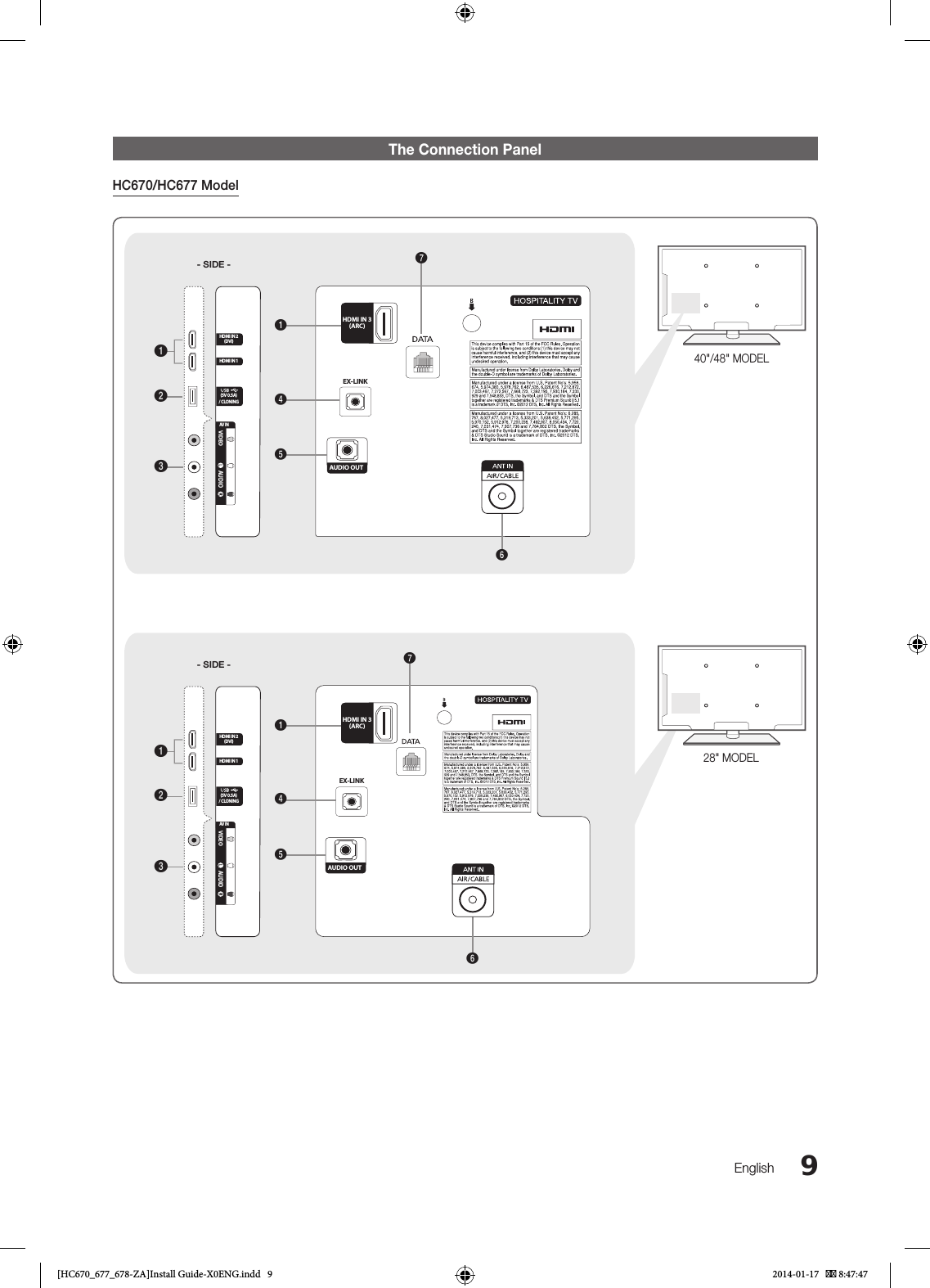

9EnglishThe Connection PanelHC670/HC677 Model- SIDE -2(5V 0.5A)/ CLONING3HDMI IN 1HDMI IN 2(DVI)1HDMI IN 3(ARC)EX-LINK14AUDIO OUT57AV INAUDIOVIDEO- SIDE -2(5V 0.5A)/ CLONING3HDMI IN 1HDMI IN 2(DVI)1HDMI IN 3(ARC)EX-LINK14AUDIO OUT5AV INAUDIOVIDEO76640"/48" MODEL28" MODEL[HC670_677_678-ZA]Install Guide-X0ENG.indd 9 2014-01-17  8:47:47
10EnglishHC678 Model- SIDE -2(5V 0.5A)/ CLONING3HDMI IN 1HDMI IN 2(DVI)1HDMI IN 3(ARC)14AUDIO OUT5AV INAUDIOVIDEO8HDMI IN 3(ARC)GAMECONTROLDATAEX-LINK6 ✎Whenever you connect an external device to your TV, make sure that the TV and the device are turned off. ✎When connecting an external device, match the color of the connection terminal to the cable.1 HDMI IN 1, 2 (DVI), 3 (ARC) : Connects to the HDMI jack of a device with an HDMI output. ✎No separate sound connection is needed for an HDMI to HDMI connection. HDMI connections carry both audio and video. ✎Use the HDMI IN 2 jack for a DVI connection to an external device. Use a DVI to HDMI cable or DVI-HDMI adapter (DVI to HDMI) for the video connection and the DVI AUDIO IN jack for audio. Some DVI or HDMI devices may not or should not need a DVI AUDIO IN connection for audio.2 USB / CLONING – Connector for software upgrades and Media Play, etc. – Service connection.3 VIDEO / L-AUDIO-R – Connect a VIDEO cable to an appropriate external A/V device such a VCR, DVD, or Camcorder. – Connect audio cables to "L-AUDIO-R" on your TV and the other ends to corresponding audio out jacks on the A/V device.4 EX-LINK : Connect this jack to the jack on the optional RJP (Remote Jack Pack). The RJP allows you to connect external devices (Camcoders, PCs, DVD players, etc) easily.5 AUDIO OUT : Connects to the audio input jacks on an Amplifier/Home Theater.6 ANT IN or AIR/CABLE – To view television channels correctly, the TV must receive a signal from one of the following sources: – An outdoor antenna / A cable television system / A satellite receiver.7 DATA – Used to support data communication between the TV and the external SBB or STB. – Connects using an RJ-12 type of plug.8 GAME CONTROL DATA – Used to connect the Lodgenet game controller in the Lodgenet system or support data communication between the TV and the external SBB or STB. – Connects using an RJ-12 type of plug.[HC670_677_678-ZA]Install Guide-X0ENG.indd 10 2014-01-17  8:47:48

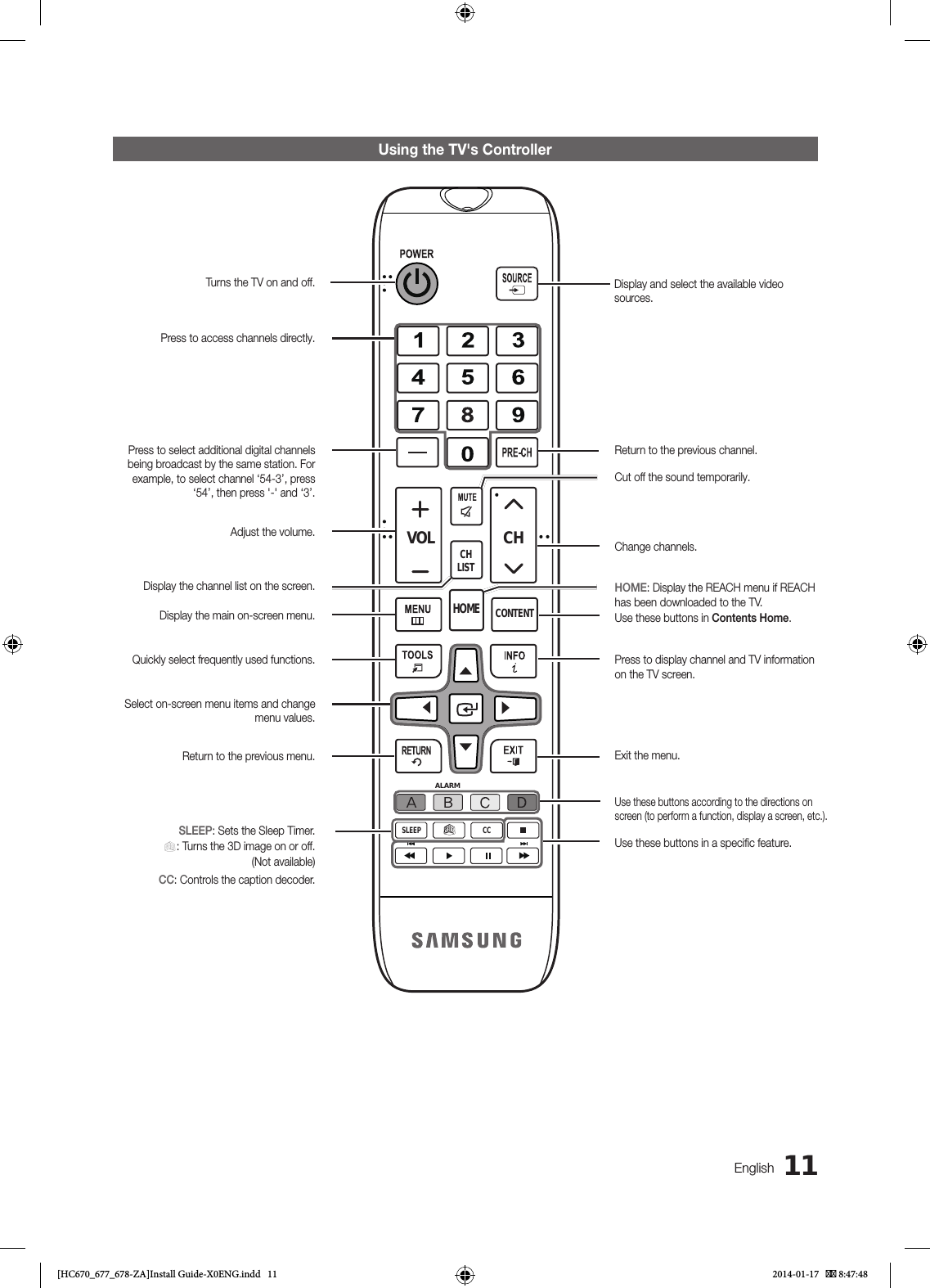

11EnglishUsing the TV's ControllerHOMECONTENTCHLISTALARMSLEEP CCCHVOL¢Turns the TV on and off. Display and select the available video sources.Return to the previous channel.Change channels.Use these buttons in Contents Home. Exit the menu.Press to display channel and TV information on the TV screen.SLEEP: Sets the Sleep Timer.X: Turns the 3D image on or off. (Not available) CC: Controls the caption decoder. Cut off the sound temporarily.Press to access channels directly.Adjust the volume.Display the channel list on the screen.Display the main on-screen menu.HOME: Display the REACH menu if REACH has been downloaded to the TV.Quickly select frequently used functions.Return to the previous menu.Use these buttons in a specific feature.Select on-screen menu items and change menu values.Press to select additional digital channels being broadcast by the same station. For example, to select channel ‘54-3’, press ‘54’, then press '-' and ‘3’.Use these buttons according to the directions on screen (to perform a function, display a screen, etc.).[HC670_677_678-ZA]Install Guide-X0ENG.indd 11 2014-01-17  8:47:48
12EnglishInstalling the batteries (Battery size: AAA)Rear of the Remote ✎After you have installed the batteries, use a screwdriver to screw in the screw that holds the battery cover closed.Installing Batteries into the Remote (battery size: AAA)Match the polarity of the batteries to the symbol in the batter compartment. ✎NOTE •Use the remote control within 23~33 feet of the TV. •Bright light may affect the performance of the remote control. Avoid using near fluorescent lights or neon signs. •The color and shape of the remote may vary depending on the model.[HC670_677_678-ZA]Install Guide-X0ENG.indd 12 2014-01-17  8:47:48
13EnglishConnecting the TV to the Lodgenet game controller or a STB of a SI vendor HC670/HC677 MODELN 3)TV Rear PanelData CableETH MODEM1. Connect the DATA jack of the TV to the ETH MODEM jack of the STB (SBB) with the Data cable. ✎The "ETH MODEM" jack name that you connect the Data Cable to may differ depending on the SBB or STB type.HC678 MODELGAMECONTROLDATAGAMECONTROLDATAGAMECONTROLDATAGAMECONTROLDATAGAMECONTROLDATAGAMECONTROLDATAETH MODEMTV Rear PanelData Cable1. Connect the LodgeNet game controller to the TV's GAME CONTROLLER/DATA jack of the TV.2. Connect the GAME CONTROLLER/DATA jack of the TV to the ETH MODEM jack of the STB (SBB) with the data cable. ✎The “ETH MODEM” jack name that you connect the Data Cable to may differ depending on the SBB or STB type.TV Rear PanelorData CableData CableGame Controller[HC670_677_678-ZA]Install Guide-X0ENG.indd 13 2014-01-17  8:47:49

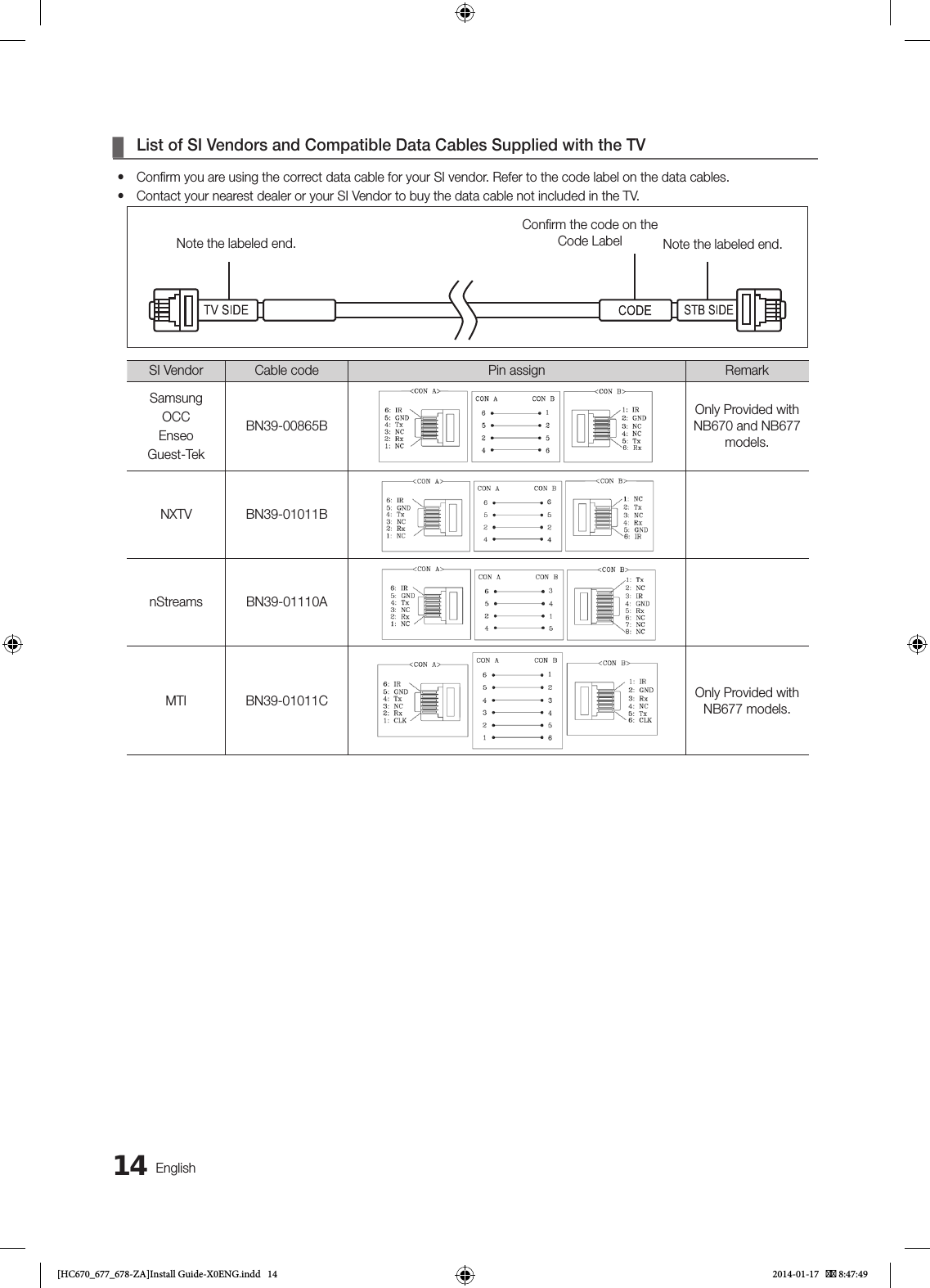

14English ¦List of SI Vendors and Compatible Data Cables Supplied with the TV yConfirm you are using the correct data cable for your SI vendor. Refer to the code label on the data cables. yContact your nearest dealer or your SI Vendor to buy the data cable not included in the TV.Confirm the code on the Code LabelNote the labeled end. Note the labeled end.SI Vendor Cable code Pin assign RemarkSamsung OCCEnseoGuest-TekBN39-00865BOnly Provided with NB670 and NB677 models.NXTV BN39-01011BnStreams BN39-01110AMTI BN39-01011C Only Provided with NB677 models.[HC670_677_678-ZA]Install Guide-X0ENG.indd 14 2014-01-17  8:47:49
15English ¦Connecting the Audio Output to an Audio AmplifierEX-LINKEX-LINKAUDIO OUTAUDIO INTV Rear PanelAudio Amplifier1 Stereo cable1. Connect the AUDIO OUT port of the TV to the Audio In port of an audio amplifier with a stereo cable.[HC670_677_678-ZA]Install Guide-X0ENG.indd 15 2014-01-17  8:47:49
16EnglishConnecting the RJP (Remote Jack Pack)Connect the input jacks on the TV to the RJP. The RJP lets guests connect audio and video sources to the TV.HC670/HC677 ModelHC678 ModelTV Rear Panel(5V 0.5A)/ CLONINGHDMI IN 1HDMI IN 2(DVI)HDMI IN 3(ARC)AV INAUDIOVIDEIOEX-LINKAUDIO OUT(5V 0.5A)/ CLONINGHDMI IN 1HDMI IN 2(DVI)()HDMI IN 33(ARC)AV INAUDIOVIDEIOEX-LINKAUDIO OUTUSB HDMI S-VIDEO RCA AUDIO/PCRS/232HDMI IN 1HDMI IN 2(DVI)AV INAUDIOVIDEOHDMI IN 3(ARC)EX-LINKAUDIO OUT2 Video / Audio Cable1 PC Audio cableRJP Rear43 HDMI CableTV Rear Panel(5V 0.5A)/ CLONINGHDMI IN 1HDMI IN 2(DVI)AV INAUDIOVIDEIOHDMI IN 3(ARC)EX-LINKAUDIO OUT(5V 0.5A)/ CLONINGHDMI IN 1HDMI IN 2(DVI)()AV INAUDIOVIDEIOHDMI IN 33(ARC)EX-LINKAUDIO OUTUSB HDMI S-VIDEO RCA AUDIO/PCRS/232HDMI IN 1HDMI IN 2(DVI)AV INAUDIOVIDEOEX-LINKAUDIO OUT2 Video / Audio Cable1 PC Audio cableRJP Rear43 HDMI Cable[HC670_677_678-ZA]Install Guide-X0ENG.indd 16 2014-01-17  8:47:50
17English1. Connect the AUDIO OUT port of the TV to the PC/AUDIO port of the RJP.2. Connect the AV IN VIDEO/L-AUDIO-R ports of the TV to the RCA port of the RJP.3. Connect one of the HDMI IN ports of the TV to the HDMI port of the RJP.4. Connect the EX-LINK port of the TV to the RS/232 port of the RJP. ✎This Samsung TV is compatible with the Tele Adapt TA-7610 RJP only. yRJP (Remote Jack Pack): The RJP is a hardware module that has different Audio Video inputs (A/V, Audio, PC and HDMI) and corresponding outputs. The corresponding outputs are connected from the RJP to the TV. The RJP communicates with the TV via RS232. The RJP communicates with the TV by sending messages regarding Active/Inactive sources. – A group of hotel menu items let you assign numbered priorities to the jacks of the RJP. (See page 19). 1 is the highest priority and 3 is the lowest. When a guest connects external sources to the RJP jacks, the TV will automatically switch between sources based on the priority you have assigned them in the Menu. For example, lets say AV is set to 1 and HDMI to 2. If a guest has attached a device to the HDMI jack, and then plugs a device into the AV jack, the TV automatically switches to the device plugged into the AV jack (the jack with the higher priority). Note that a guest can also switch between devices manually by pushing a button on the RJP. ✎When you set up the RJP, connect the RJP to HDMI 1, 2, or 3 or AV 1 or 2. yTo reset the RJP to its factory default state, press the AV and HDMI buttons simultaneously for 10 seconds. When all button LEDs blink 5 times, the RJP reset is complete. yThe RJP will automatically turn off any LEDs after 5 minutes to avoid unnecessary light pollution in the hotel room. The LEDs that were turned off will turn on again if the guest touches any of the buttons and the 5 minute timer will restart. If the guest then touches another source button, the TV will change to the selected source and the corresponding LED will be lit. yAfter an RJP Reset or a TV Power OFF/ON, it takes approximately 10 seconds to establish communications between the TV and the RJP. yThe following table shows the approximate time in seconds it takes to switch from the TV to an input source, based on assigned or default priorities. ✎Scenario 1 : When no inputs are connected.Source To ConnectAV 2 SecPC 0.7 SecHDMI 3.9 Sec ✎Scenario 2: When two or more inputs are connected to the RJP and one of the input sources is disconnected and then reconnected.Source Disconnect To Connect TotalAV 4.5 Sec 2 Sec 6.5 SecPC 0.7 Sec 0.7 Sec 1.4 SecHDMI 3.9 Sec 3.9 Sec 7.8 Sec ✎An example: If the RJP has all its live sources (AV, PC, and HDMI) connected, AV has been assigned the highest priority, the RJP is in HDMI mode, and a guest removes and reconnects the AV source, the minimum time required to switch to the AV source is 6.5 seconds. yTo play audio devices (Ipods, MP3 devices, etc.) through the RJP, you must turn Music Mode AV in the menu on. (See page 20) yMusic mode in the TA-7610 RJP is supported by the AV jack only. HDMI Music mode is available for the Guestlink RJP only.[HC670_677_678-ZA]Install Guide-X0ENG.indd 17 2014-01-17  8:47:50
18EnglishSetting the Hotel Option DataTo let you control how the TV functions when in Hotel mode, the TV has two Hotel mode menus, the Stand-alone mode menu and the Interactive mode menu. The menu items that differ between the menus are listed below.Menu items in the Stand-alone mode only: – SI Vendor : Smoovie – REACH Server and its submenus.Menu items in the Interactive mode only: – SI Vendor: Samsung and other vendors.All other items appear in both menusTo access the menus, press MUTE → 1 → 1 → 9 → ENTERE on your Samsung remote.After a menu appears, follow these general directions to navigate and change values: – Use the Up and Down arrow buttons on the Samsung remote to move from menu item to menu item. – Press the Enter or Left or Right arrow buttons to select a menu item. The screen displays that menu item only. – Press the Left or Right arrow button to change a value. The Right arrow button increases numerical values. The Left arrow button decreases numerical values. – When the screen is displaying one menu item, you can press the Up or Down arrow button to display the next or previous menu item. – Press the RETURN or MENU button to exit the current menu item and go to a higher menu level or the Main menu. – To exit a Hotel mode menu, turn off the TV, and then turn it on again. Any changes you made are saved except changes to SI Vendor. For changes to SI Vendor, you must turn the TV off, wait until the Standby light glows steadily, then unplug the TV, wait for the Standby light to go off, and then plug the TV in again. Hospitality Mode Standalone SystemSI Vendor OFFPower OnChannelMenu OSDClockMusic ModeRemote Jack PackExternal SourceEco SolutionLogo/MessageREACH SolutionSecurityDRMAbove: The Hotel mode menu.To change menus, follow these steps: 1. Highlight the Hospitality Mode menu item in the top left corner of the menu.2. Press the left or right arrow button on the Samsung remote. Only the Hospitality Mode menu item is displayed.3. Press the left or right arrow button to change the Hospitality Mode item from Standalone to Interactive or from Interactive to Standalone.4. Press the Return or Menu button on the remote. The entire menu re-appears with your selection displayed in the Hospitality Mode field. ✎After you have set the values in one TV, you can clone those values to multiple TVs. See USB Cloning on page 25.[HC670_677_678-ZA]Install Guide-X0ENG.indd 18 2014-01-17  8:47:50
19English ¦Menu ItemsTo Enter this menu: Press the MUTE → 1 → 1 → 9 → ENTERE buttons in order.To exit from this menu : Power Off (or Power Off and unplug if you have changed SI Vendor), and then turn on again. Any changes you made are saved.Menu Item initial Value DescriptionHospitalityMode Hospitality Mode StandaloneSelect the Hospitality mode. yStandalone mode: TV works alone, without an SI STB or SBB yInteractive mode: TV works with an SI STB or SBB SI Vendor SI Vendor OFF yInteractive mode : Samsung / OCC / MTI / Nstreams / NXTV / Enseo / Cardinal / Guestek / Seachange / EBL yStand-alone mode : OFF / SmooviePower OnPower On Channel Last SavedSet the default values that will be applied when the TV is turned on. yUser Defined : Lets you set Power On Channel and Channel Type manually. See Power On Channel and Channel Type below. yLast Saved : If you select this item, when the TV is turned on, it displays the channel it was displaying when it was turned off.Power On Channel Num … When the TV is turned on, it switches automatically to this channel.Power On Channel Type … ySelect channel band : AIR (analog air band), DTV (digital air band), CATV (analog cable band), CDTV (digital cable band)Power On Volume Last Saved yUser Defined : Lets you set the Power On Volume manually. See Power On Volume below. yLast Saved : When the TV is turned on, it returns to the volume that had been set when the power had been turned off.Power On Volume Num … The TV turns on with this Volume Level in Stand Alone Hospitality mode.Min Volume 0 The minimum Volume Level the user can set in Stand Alone Hospitality mode.Max Volume 100 The maximum Volume Level the user in Stand Alone Hospitality mode.Power On Source TV Select the input source the TV displays when turns on.Power On Option Last OptionDetermines the TV's state when power returns after a power failure or after you have unplugged the TV and then plugged it in again. yLAST OPT : Returns to its last Power state. If it was in Stand-by, it returns to Stand-by. If it was on, it turns on. yPower On : When the power returns, the TV turns on. yStandby : When the power returns, the TV enters the Standby mode.ChannelChannel Setup Gives you direct, immediate access to some of the Channel menu functions on the user Channel menu such as Auto Program, Antenna selection, etc.Channel EditorThe Channel Editor lets you edit the channels stored in the TV's memory. Using Channel Editor you can: •Changethechannelnumbersandnames,andsortthechannelsinyourdesired channel number order. •Applythevideomutetochannelsyouselect.Thevideomuteblanksoutthe video from a channel and outputs only the sound while displaying a speaker icon on the screen. The Channel Editor also lets you view information about each channel easily, without your having to display each channel directly.Dynamic SI ON yOn : Check the DTV Program channel number. (If Dynamic SI is On, it is not availale to edit DTV channels in Channel Editor.) yOff : Does not check the DTV Program channel number. (If Dynamic SI is Off, it is available to edit DTV channels in Channel Editor, but additional DTV channel program number update is not supported.)[HC670_677_678-ZA]Install Guide-X0ENG.indd 19 2014-01-17  8:47:50
20EnglishMenu Item initial Value DescriptionMenu OSDPicture Menu Lock OFF Enable or disable the Picture Menu.Menu Display ON yOn : The Main Menu is displayed. yOff : The Main Menu is not displayed.Panel Button Lock UnlockTurning the front panel (local key) operations on/off. yUnlock : Unlocks all panel keys. yLock : Locks all panel keys. yOnlyPower : Locks all panel keys except the Power panel key. yMenu/Source : Locks the Menu and Source panel keys.Home Menu Display …OFF:The Home Menu is not displayed.ON:The Home Menu is displayed.Home Menu Editor yHome Menu is displayed.Home Menu Auto Start ON OFF:The Home Menu is Auto Start. ON:The Home Menu is not Auto Start.Clock Local Time ManualSelect the way to update clock data.Use clock data from a DTV channel to set the clock automatically or set the clock manually when the TV is in stand-alone mode.Music ModeMusic Mode AV OFFAllows music output from an mp3/audio player connected to an AV Input Source on the TV. When on, you can hear sound from the player through the TV whether there is a video signal or not. Also mutes the video so the TV does not display a picture when a guest is playing music. The TV's backlight, however, remains on.Music Mode Backlight OFF When set to Off, the TV's backlight is turned off entirely when a guest uses the Music mode. To save energy, set to Off.Remote Jack PackPriority AV 1 If the jack priority is set, the corresponding source is automatically set when a jack is inserted according to the jack priorityPriority HDMI 2 If the jack priority is set, the corresponding source is automatically set when a jack is inserted according to the jack priority.AV Option AV Select RJP AV Source (Source selection depends on Model).HDMI Option HDMI 1 Select which HDMI source of the TV is connected to the RJP jack. (HDMI1/HDMI2/HDMI3)HDMI Music Mode OFFAllows music output from an mp3/audio player connected to an HDMI Input Source. When on, you can hear sound from the player through an HDMI input of the RJP whether there is a video signal or not. (This option is only compatible with the Guest link RJP.)External SourceUSB Pop-up Screen DefaultWhen a USB device is connected to the TV : yDefault : A popup window appears. yAutomatic : Opens the USB contents menu automatically. yDisable : Neither the popup window nor the menu appears.External Source Banner ONIf set to On, the TV displays the External Source Banner (information) when you change the TV source to another external input, press the Info key, or turn the TV on. yOn : The External Source information is displayed on the TV screen. yOff : The External Source information is not displayed on the TV screen.Auto source OFF yOn : When an external input source is connected to the TV, the TV identifies the input source, and then automatically switches to that input source. yOff : Auto Source function is Off.Anynet+Return SourcePower On SrcSelect the return TV source after stopping an Anynet+(HDMI-CEC) connection. (This fuction is especially useful for the Guestlink RJP.)[HC670_677_678-ZA]Install Guide-X0ENG.indd 20 2014-01-17  8:47:50
21EnglishMenu Item initial Value DescriptionEco Solution Energy Saving OffAdjusts the brightness of the TV to reduce power consumption. yOff: Turns off the energy saving function. yLow: Sets the TV to low energy saving mode. yMedium: Sets the TV to medium energy saving mode. yHigh: Sets the TV to high energy saving mode. Logo/MessageWelcome Message OFF Displays a the Welcome Message for 5 seconds when the TV turns On. Edit Welcome Message Edits the Welcome Message.Hospitality Logo OFFTurns the Hospitality logo feature On or Off, If On, when the TV is turned on, the Logo is displayed, before the signal from the initial source, for the amount of time set in "Logo Display Time".Hospitality Logo DL …Downloads the Hospitality logo.Hospitality logo file requirements: yBMP or AVI files only. yMax file size : BMP - 960 X 540. AVI - 30MB. yThe file can only be named samsung.bmp or samsung.avi.Logo Display Time … Hospitality Logo Display Time (3/5/7 seconds).CloningClone TV to USB … Clone the current TV options to a USB memory device.Clone USB to TV … Clone the saved TV options on a USB memory device to the TV.Setting Auto Intialize OFFIf you set Setting Auto Initialize to On, and the TV's power is turned off and on, the guest side menu items are restored to their cloned values. See page 29.REACHServerREACH Server Update Time 1hourLets you set when data such as updated SW, cloning files, and S-LYNC REACH contents is downloaded from the REACH server to the TV : y1hour : Every hour y2hour : Every 2 hours y12:00 am : every 12:00 a.m. y12:00 pm : every 12:00 p.m. y2:00 pm : every 2:00 p.m."REACH Update Immediate OFF yOn : Whenever the TV enters standby mode (the power cord is plugged in and the power is off), the REACH data is updated on the TV. yOff : The REACH data is only updated on the TV at the REACH server update time.REACH Server Channel 87 Assign a DTV channel number to carry the update REACH data. This channel number must be the same as the number set on the Reach server.REACH Server Version 0000 Displays the current REACH data version.REACH Server Group ID All Select the group ID of the REACH server. (Refer to the REACH server manual for more details)REACH OFF On : The S-LYNK REACH menu is displayed.Off : The S-LYNK REACH menu is not displayed.Backgroud TV Sound ONOn : The TV sound of the current TV source is continuously outputted even when the S-LYNK REACH menu is displayed.Off : The TV sound of the current TV source is stopped when the S-LYNK REACH menu is displayed.IPG Room Type Default Selects the IPG room type of the REACH server. (Refer to the REACH server manual for the more information.)TICKER OFF yOn : The TICKER content is displayed. yOff : The TICKER content is not displayed.Applite OFF yOn : The Applite content is displayed. yOff : The Applite content is not displayed.Room Number Setting Setting Room Number.[HC670_677_678-ZA]Install Guide-X0ENG.indd 21 2014-01-17  8:47:51
22EnglishMenu Item initial Value DescriptionSecurityPassword Input Input Password 00000000.(HC678 model none)Password Setting … Set new Password.(HC678 model none)Password Reset … Reset Password to 00000000.(HC678 model none)Security Mode … Security Mode ON or OFF.(HC678 model none)USB … USB Disable or Enable.(HC678 model none)HDMI … HDMI Disable or Enable.(HC678 model none)TTX Security … TTX: manual clock setting (with updating from TTX data).(HC678 model none)DRMDRM Mode Pro:idiomConfigures CAS support. Applies to only the NB673, NB677, and NB678 models.OFF : Turns off CAS support.LYNK DRM : Select to turn on S-LYNK DRM CAS support only.Pro:idiom : Select to turn on Pro:Idim CAS support only.LYNK DRM,PI : Select to have the TV support S-LYNK DRM CAS and Pro:Idiom CAS.PI AES Data 0xD279 Displays the current state of Pro:Idion AESPI AES Log OFFView PI AES Log …ServiceSelf Diagnosis for TVLets you check the state of the TV picture and sound.•PictureTest:Usetocheckforpictureproblems.Iftheproblemappearsinthe test picture, select YES, and then follow the directions on the screen.•SoundTest:Usetocheckforsoundproblems.Iftheproblemoccursduring the test, select YES, and then follow the directions on the screen.Self Diagnosis for HTVLets you check the state of Pro:Idiom and its communication with the SI STB or SBB. If you have any problems with the Pro:idiom encryption channel or the communications with the SI STB or SBB, use this diagnosis function. If Pro:Idiom DTV Channel Key Loss appears to have failed and the Pro:Idim encryption channel has failed to play content, first check the broadcasting systems related to Pro:Idiom encryption. If your broadcasting system does not have a problem, contact Samsung Service. If STB SI Vendor Setting appears to have failed and communication with the SI STB or SBB has failed, first check your SI STB or SBB. If your SI STB or SBB does not have a problem, contact to Samsung Service.SW Upgrade Lets you upgrade the TV SW with a USB memory stick. See Page 32.Service Pattern OFF Lets you check the state of the TV picture by displaying picture test patterns. Press the Menu button to turn off the test patterns and exit.ATV Cable AGC Gain Default Lets you control the AGC gain of the analog cable channels. Don't change the default value unless problems occur.DTV OpenCable AGC Gain Default Lets you control the AGC gain of the digital cable channels. Don't change the default value unless problems occur.Sound Bar Out OFFON: TV speaker sound will be mute. Sound will come out through HDMI. You must connect the Sound Bar to hear the sound.OFF: Sound will come out through TV speakers normally.TV reset Returns all settings on the TV to their factory defaults. ✎REACH (Remote Enhanced Active Control for Hospitality) is a professional, interactive remote controller that lets you deliver TV firmware updates, cloning data, channel mapping changes, S-LYNK REACH contents, and TICKER contents through RF DTV to several hundred hospitality TVs simultaneously. The REACH functions are available only in stand-alone mode. The REACH Server is sold separately. Refer to the REACH server manual enclosed with the REACH server product for more operating information.[HC670_677_678-ZA]Install Guide-X0ENG.indd 22 2014-01-17  8:47:51
23English ¦Using the Football ModeFoodball Mode t ✎MENUm → Applications → Football Mode → ENTEREThis mode provides optimized condition for watching sports games. ya (Zoom): Pause playback and divide the picture into 9 parts. Select a part to zoom it in. Press this button again to resume. ✎If you turn the TV off while watching Football Mode, the Football Mode will be disable. ¦Welcome MessageThe Welcome Message feature displays a custom message on the TV every time it is turned on. – Welcome message settings are in the Hotel Option Menu. – Set Welcome Message to ON to display the message when the TV is powered on.Welcome Message OFFEdit Welcome MessageHospitality Logo OFFHospitality Logo DL ...Logo Display Time ... – You can make the Welcome Message up to 25 characters long and edit it in the Hotel Service menu. – Welcome Message supports the following characters: ✎Capital Letters from A to Z. – You can edit the Welcome Message by using the remote's navigation, color, and Enter buttons in the “Edit Welcome Message” OSD (See the illustration below.) Move Enter Return ab{}Move to LeftMove to RightLeave BlackDoneA B C D E F GH I J K L M NO P Q R S T UV W X Y ZW E L C O M E T O O UR H O T E L _Edit Welcome MessageBelow are the general directions for navigating and changing letters on the Edit Welcome Message screen: – Press the a button on the remote to move to the left in the message. – Press the b button to move to the right. – After you have selected a position in the message, use the arrow buttons on your remote to select a letter in the alphabet below the message. – Press Enter to place a letter into the position you selected. – Press the { button to erase a letter in a position or enter a blank. – Press Return or the } button to exit.[HC670_677_678-ZA]Install Guide-X0ENG.indd 23 2014-01-17  8:47:51
24English ¦Hotel LogoThe Hospitality Logo function displays the Hotel's picture image when the TV is powered on. – Hospitality Logo settings are the Hotel mode menus. – The Logo Download and Logo Display Menu items are enabled when you turn the Hospitality Logo option on. – If there is a logo image stored in memory and the Hospitality Logo option is on, the Hospitality logo is displayed when the TV is turned on. – The Hospitality logo is not displayed when the Hospitality found Logo option is off, even if the logo image has been loaded into the TV.Hospitality Mode Standalone SystemSI Vendor OFFPower OnChannelMenu OSDClockMusic ModeRemote Jack PackExternal SourceEco SolutionLogo/MessageREACH SolutionSecurityDRMr Welcome Message ONEdit Welcome MessageMessageHospitality Logo ONHospitality Logo DL -Logo Display Time - yHospitality Logo – This option lets you choose whether the Hospitality Logo image is displayed or not. – Initial value is OFF. – Can be set to OFF or ON. – When set to ON, the Logo Download and Logo Time Display menu items become accessible. yLogo Download – This option lets you download the logo image to the TV’s memory from a USB device. – A wait message appears while the image is being copied to the TV. – A "completed" message appears when the copy operation finishes successfully. – The word "failed" appears if the copy operation was unsuccessful. – No USB appears if no USB device is connected. – No File appears if there is no file to copy on the USB device or the file is in the wrong format (must be a BMP or AVI file). If No File appears and there is a logo file on the USB device, check the file format. yLogo File Format – The TV supports only BMP and AVI format. – The file name must be samsung.bmp or samsung.avi. – The maximum resolution of the BMP format is 960 x 540. – The maximum file size for AVI format is 30MB. – The TV does not change the size or scale of the image.[HC670_677_678-ZA]Install Guide-X0ENG.indd 24 2014-01-17  8:47:52
25English ¦USB CloningThe USB Cloning function lets you download user-configured settings (Picture, Sound, Input, Channel, Setup, and Hotel Setup) from one TV to a USB device, and then upload these settings from the USB device to other TV sets. This lets you create a standard array of settings and distribute that standard array to all the TVs in your facility. yCloning from TV to USB: Copies stored menu settings from a TV to a USB device.1. Insert a USB drive into the USB port on the rear of the TV2. Enter the hotel option menu by pressing these buttons in order. MUTE → 1 → 1 → 9 → ENTERE3. Press the ▲ or ▼ button to select Clone TV to USB, and then press the ENTERE button.4. The message Clone TV to USB is displayed. Press the ENTERE button.5. The TV displays one of the following messages: ▪In Progress: Copying data to USB. ▪Completed: Copy operation was successful. ▪Failed: Copy operation was not successful. ▪No USB: USB is not connected.The clone folder will be labeled T-NVTF6AKUCB. ✎The cloned values include the values on the Guest side menu (brightness, picture size, contrast, etc.) and the Hotel side menu.(5V 0.5A)/ CLONINGUSBClone TV to USB Clone USB to TV Setting Auto Initialize OFFCloning from USB to TV: Copies menu settings from a USB device to a TV. ✎Shortcut: Turn the TV off, insert the USB device, turn the TV on, and then press the ENTERE button for 5 seconds.To clone data to the TV using the Hotel menu, follow these steps:1. Turn the TV off.2. Insert the USB drive into the USB port on the rear of the TV.3. Turn the TV on.4. Enter the Interactive menu by pressing these buttons in order. MUTE → 1 → 1 → 9 → ENTERE5. Press the ▲ or ▼ button to select “Clone USB to TV”, and then press the ENTERE button.6. The message Clone: USB to TV is displayed. Press the ENTERE button.7. The TV displays one of the following messages:Clone TV to USB Clone USB to TV Setting Auto Initialize OFF ▪In Progress: Copying data to TV. ▪Completed: Copy operation was successful. ▪Failed: Copy operation was not successful. ▪No USB: USB is not connected ▪No File: There is no file to copy on the USB device. If you get a No File message, check the folder on your USB device. The folder name should be T-NVTF6AKUCB. ✎Tables that list the settings that are cloned in the Interactive and Standalone Hotel Menus begin on the next page.[HC670_677_678-ZA]Install Guide-X0ENG.indd 25 2014-01-17  8:47:52
26English ySettings Cloned in the Hotel MenuMenu Item Cloning Support Applicable RegionHospitality Mode Yes AllSI Vendor Yes All except BrazilPower On Channel EN Yes AllPower On Channel Yes AllChannel Type Yes AllPower On Volume EN Yes AllPower On Volume Yes AllMin Volume Yes AllMax Volume Yes AllPower On Source Yes AllPower On Option Yes AllChannel Setup N/A All except HospitalChannel Editor N/A AllChannel Bank Editor N/A Smooovie SI and Hospital Channel Bank Service Level Yes Hospital Models OnlyMixed Channel Map Yes EUDynamic SI Yes US and US HsopitalChannel Rescan Message Yes EU and EU HospitalPan Euro MHEG Yes EU and EU HospitalChannel Auto Store N/A Hospital Models OnlyMychannel En Yes EU and EU HospitalGenre Editor N/A EU and EU HospitalPicture Menu Lock Yes AllMenu Display Yes AllChannel Menu Display Yes ASIA Models onlyPanel Button Lock Yes AllMute On CC Yes US Hsopital OnlySubtitle Auto On Yes EU and EU HospitalSW Clock Yes EU and EU HospitalLocal Time Yes EU and EU HospitalTime Format Yes EU and EU HospitalCLOCK Normal Dim. Yes EUCLOCK Standby Dim. Yes EUMusic Mode AV Yes AllMusic Mode PC Yes AllMusic Mode Comp Yes AllMusic Mode Backlight Yes All7610 Priority AV Yes All7610 Priority PC Yes All7610 Priority HDMI Yes All7610 AV Option Yes All[HC670_677_678-ZA]Install Guide-X0ENG.indd 26 2014-01-17  8:47:52
27EnglishMenu Item Cloning Support Applicable RegionRJP HDMI Option Yes AllHDMI Music Mode Yes US and US HsopitalSound Bar Out Yes AllVideo Out Yes ASIA Models onlyUSB Media Mode Yes US and EU External Source Banner Yes AllAuto Source Yes AllAnynet+ Return Source Yes All Models except HospitalSub Amp Mode Yes All except USSub Amp Volume Yes All except USPillow Speaker Type Yes Hospital Models OnlySpeaker Select Yes Hospital Models OnlyPillow Volume Yes Hospital Models OnlyEnergy Saving Yes AllEnergy Saving Timer Yes EUWelcome Message Yes AllEdit Welcome Message N/A AllHospitality Logo Yes AllHospitality Logo DL N/A AllLogo Display Time Yes AllClone TV to USB N/A AllClone USB to TV N/A AllSetting Auto Initialize Yes AllSIRCH Update Time Yes All except Brazil/ASIA_READYSIRCH Update Immediate Yes All except Brazil/ASIA_READYManual SIRCH N/A All except Brazil/ASIA_READYSIRCH Channel Yes All except Brazil/ASIA_READYSIRCH Version N/A All except Brazil/ASIA_READYSIRCH Group ID No USREACH Yes All except Brazil/ASIA_READYIPG Room Type No GuestekCAS Yes US and US HsopitalPI AES Data N/A US and US HsopitalSelf Diagnosis N/A AllPI AES Log Yes US and US HsopitalView PI AES Log N/A US and US HsopitalSW Upgrade N/A AllService Pattern Yes AllATV Cable AGC Gain Yes US and US HsopitalDTV OpenCable AGC Gain Yes US and US HsopitalTV Reset N/A All[HC670_677_678-ZA]Install Guide-X0ENG.indd 27 2014-01-17  8:47:52

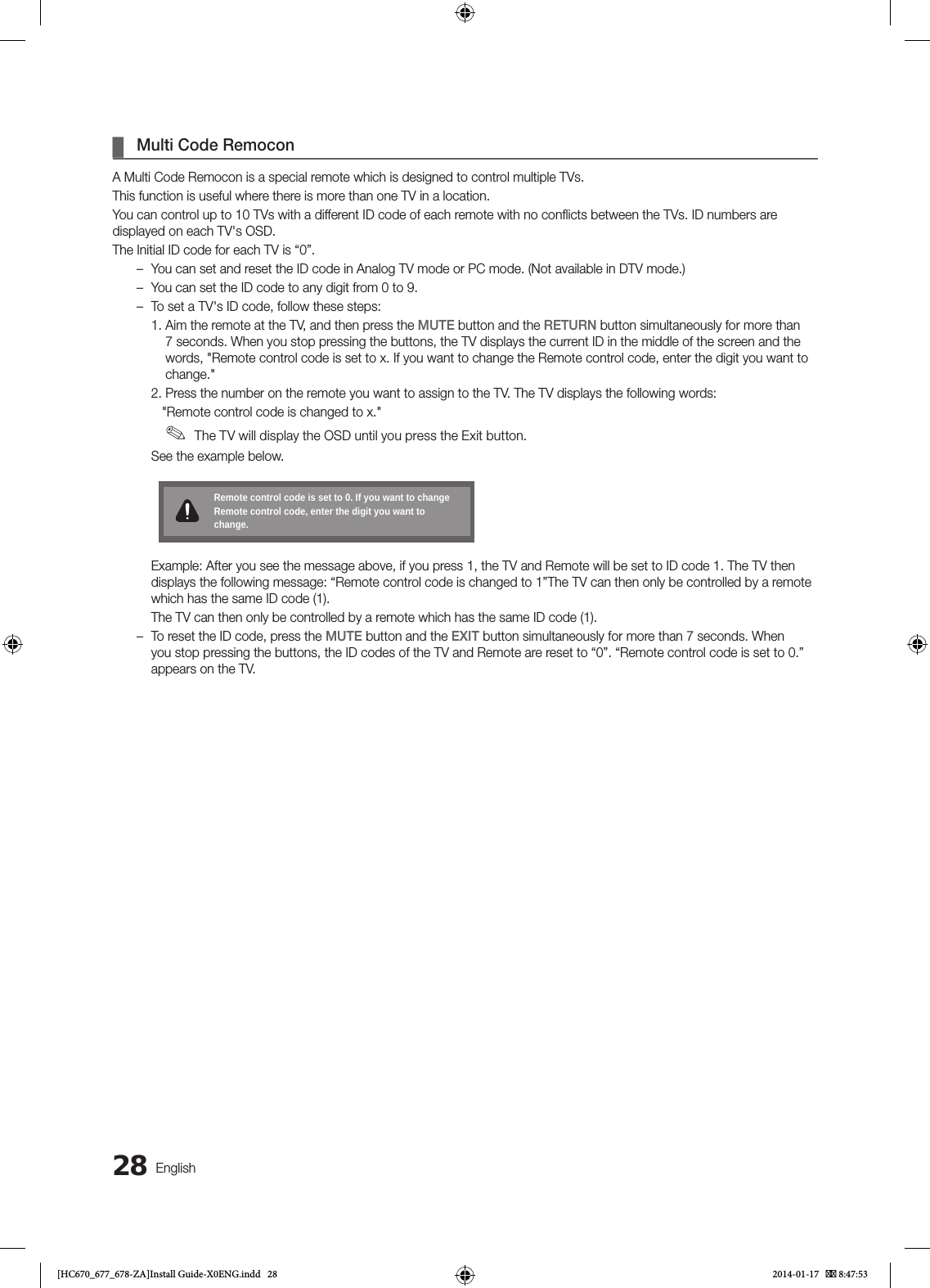

28English ¦Multi Code RemoconA Multi Code Remocon is a special remote which is designed to control multiple TVs.This function is useful where there is more than one TV in a location.You can control up to 10 TVs with a different ID code of each remote with no conflicts between the TVs. ID numbers are displayed on each TV's OSD.The Initial ID code for each TV is “0”. – You can set and reset the ID code in Analog TV mode or PC mode. (Not available in DTV mode.) – You can set the ID code to any digit from 0 to 9. – To set a TV's ID code, follow these steps:1. Aim the remote at the TV, and then press the MUTE button and the RETURN button simultaneously for more than 7 seconds. When you stop pressing the buttons, the TV displays the current ID in the middle of the screen and the words, "Remote control code is set to x. If you want to change the Remote control code, enter the digit you want to change."2. Press the number on the remote you want to assign to the TV. The TV displays the following words: "Remote control code is changed to x." ✎The TV will display the OSD until you press the Exit button.See the example below.Remote control code is set to 0. If you want to change Remote control code, enter the digit you want to change.Example: After you see the message above, if you press 1, the TV and Remote will be set to ID code 1. The TV then displays the following message: “Remote control code is changed to 1”The TV can then only be controlled by a remote which has the same ID code (1).The TV can then only be controlled by a remote which has the same ID code (1). – To reset the ID code, press the MUTE button and the EXIT button simultaneously for more than 7 seconds. When you stop pressing the buttons, the ID codes of the TV and Remote are reset to “0”. “Remote control code is set to 0.” appears on the TV.[HC670_677_678-ZA]Install Guide-X0ENG.indd 28 2014-01-17  8:47:53
29English ¦Setting Auto InitializeWhen you clone settings from one TV to another, you clone both the guest side menu and hotel side menu settings: Picture, Sound, Input, Channel, Setup, and Hotel Setup. This lets you set nearly all of the menu values on your hospitality TVs to the same, standard settings. If you allow guests access to the guest side menus, for example the Picture menu, they can change the settings in those menus so they are no longer standard. If you set the Setting Auto Initialize function to on the TV automatically restores (initializes) any guest-side menu values to the cloned, standard values when the TV is turned off and then turned on again. Note that Setting Auto Initialize works on cloned guest side menu values only. Settings which have not been cloned are ignored.The table below lists the settings that are restored to their cloned values when you set the Setting Auto Initialize function to on.Menu Menu ItemPicture MenuPicture ModeBacklightContrastBrightnessSharpnessColorTint (G/R)Picture SizePicture SizePositionPIPAdvanced SettingsDynamic ContrastBlack ToneFlesh ToneRGB Only ModeColor SpaceWhite BalanceGammaMotion LightingPicture OptionColor ToneDigital Clean ViewMPEG Noise FilterHDMI Black LevelFilm ModeLED Clear MotionPicture OffReset PictureMenu Menu ItemSound MenuSound ModeSound EffectDTS TruSurroundDTS TruDialogEqualizerSpeaker SettingsSpeaker SelectAuto VolumeDigital Audio OutAudio FormatAudio DelayReset SoundSystem MenuMenu LanguageTimeClockSleep TimerWake-up TimerDevice ManagerKeyboard SettingsMouse SettingsEco SolutionEnergy SavingEco SensorNo Signal Power OffAuto Power OffAuto Protection TimeChange PINGeneralGame ModeBD WiseMenu TransparencySound FeedbackBoot LogoAnynet+ (HDMI-CEC)Anynet+ (HDMI-CEC)Auto Turn OffDivx® Video On Demand[HC670_677_678-ZA]Install Guide-X0ENG.indd 29 2014-01-17  8:47:53
30English ¦Hotel Plug & PlayThe Hotel Plug & Play function, which automatically performs the Hotel mode selection, Country Setup, Clock Setup, and Picture mode Setup, runs once when power is first turned ON. Setup also runs automatically after you have executed a Service Reset. (HC678 model none)Self Diagnosis for TVSelf Diagnosis for HTVSW UpdateService PatternATV Cable AGC GainOFFDTV OpenCable AGC GainSound Bar OutOFFDefaultDefaultTV ResetIf you select ChangeIf you select Standalone OnlyIf you select InteractiveTV will enter the RF mode.Press Power OFF to exit.InteractiveHospitality Option Menu appears.If you don't change the country of the Current LocationIf you select SkipIf you select Standalone Plug&PlaySelect your languagePress Power OFF to exit.Select Picture modeSelect Clock Mode, DST, and your Time ZoneSelect the channel band to use for Auto ProgramAfter Searching channels.If you select Factory Reset, the TV resets all values to their factory defaults and then displays the Hotel Plug & Play menu. Go to the first Hotel Plug & Play screen below.The TV is automatically turned off and on.If you change the country of the Current LocationLocal SetChange Locat Set if Located in North America, Latin America and Europe.In other regions, Please press SKIP button move to the next step.Current Localset : USChange SkipLocal SetChange Locat Set if Located in North America, Latin America and Europe.In other regions, Please press SKIP button move to the next step.Current Localset : USChange SkipEasy Set upIntertactive(Hotel Menu)Standalone Setup(Continue Setup)Standalone Only(End Setup)If you select this, thesetup process will becompleted and go tohotel menucSelect your LanguageSelect your language to start the on screen setup. The Language Setting will be applied to Main Menu and not Plug and Play.Press the ▲▼◄► buttons to move the highlight. Press the enter button to select.EnglishEspañolFrançaisagePressthe▲▼◄►cConfigure your TVPicture Mode StandardChoose a picture modethat best suits yourviewing enviroment.Select your information in all of the categories below.TV Setup Complete!Your TV is now ready to useOKAuto ProgramAntenna BothDigital Cable System STDAnalog Cable System STDSelect current connected antenna.To get channels, set the options below then selectScan.ScanAuto ProgramAuto Program is channels for you...Air 21 6%StopDTV Air0AirDTV CableCable000Clock-- : -- --You can adjust your time to set DST, Time Zone and clock mode. Set current date and timeClock Mode AutoDate -- / -- / ----Time -- : -- --DST OffTime Zone EasternAuto ProgramAuto Program is incomplete. 0 channels are memorized.Change Settings Scan AgainDTV Air0AirDTV CableCable000Local SetWarning! TV might not function if Local Set is not correctly configured.When Local set is changed, TV will turn off automatically to apply it.USCountries ListUSAStandalone Hospitality Option Menuappears.[HC670_677_678-ZA]Install Guide-X0ENG.indd 30 2014-01-17  8:47:54
31English yHotel Plug & Play OSD – Initially highlighted: Interactive – If you select the Standalone Only button, the Standalone hotel mode is set by default and the “Standalone mode is set” OSD appears for 3 seconds.TV enters RF mode automatically after displaying the “Standalone mode is set” OSD for 3 seconds. – If you select the Interactive mode, the Interactive Setup Menu is displayed. Press the power off key to exit from the Interactive menu. – If you select the Standalone Plug & Play mode, the “Select Menu Language” OSD appears. yLocalSet – Initially highlighted: US – If you press the Enter key after selecting Change, you can change the country. – If the country is changed, the TV automatically turns off and on. – If you select the Interactive mode, the Interactive Setup Menu is displayed. Press the power off key to exit from the Interactive menu. – If you select the incorrect country, execute TV Reset again after entering the Service section of the Hotel Menu. ySelect Menu Language OSD – If you select Standalone from the “Select Hotel TV Mode” OSD, the “Select Menu Language” OSD appears. – Initially highlighted: English – Display time: OSD time out and operation are the same as Samsung's consumer TV models. – If you press the Enter key, the “Picture Mode” OSD appears yPicture Mode OSD – Initially highlighted: Standard. – The TV displays the Picture Mode OSD where you can choose the Dynamic or a Standard Picture mode. yAuto Search Mode OSD – If you press the Enter key, the TV automatically searches for channels. – The OSD Display time, which starts when the Auto Store operation is completed and continues until the Auto Sort function starts, is 30 seconds. ySet Clock Mode, DST(Daylight saving time), and Time Zone OSD – Initially highlighted:Clock Mode : Auto, DST : Off, Time Zone : Eastern – If the TV will be tuned to digital broadcast channels, and these channels transmit date and time information, set the Clock Mode to Auto. The TV will set the date and time automatically. – If the TV will not be tuned to digital broadcast channels, set the Clock Mode to Manual, and then set the date and time on the TV manually. – Set DST On or Off to apply or not apply daylight saving time to the TV. – Select your time zone on the map that appears.[HC670_677_678-ZA]Install Guide-X0ENG.indd 31 2014-01-17  8:47:54
32English ¦USB Software Upgrade MethodSamsung may offer upgrades to the TV’s SW in the future. Please contact the Samsung Hospitality Hot line at 1-866-894-0524 to receive information about downloading upgrades and using a USB drive to update the SW by connecting the USB drive containing the upgrade to the USB port located on the TV.When the software is upgraded, video and audio settings you have made will return to their default (factory) settings. We recommend you clone the hotel settings so that you can easily reset them after the upgrade.To upgrade the TV's software, follow these steps:1. Insert a USB drive containing the SW upgrade into the USB port on the side of the TV.2. Press the MENU button to display the menu. Press the ▲ or ▼ button to select Support, and then press the ENTERE button.3. Press the ▲ or ▼ button to select SW Upgrade, and then press the ENTERE button. The message "Scanning for USB. This may take more than 1min." is displayed.4. The message "Upgrade version XXXX to version XXXX? The system will be reset after upgrade." is displayed. Press the ◄ or ► to select the OK, and then press the ENTERE button.(5V 0.5A)/ CLONINGUSBPlease be careful to not disconnect the power or remove the USB drive while upgrades are being applied. The TV will turn off and turn on automatically after completing the SW upgrade. Please check the SW version after the upgrades are complete. ¦Sound Bar ySamsung Sound-Bars and Hospitality TVs in 2013 – Samsung Sound-Bars and hospitality TVs support the ARC feature in HDMI 1.4. If you connect a compatible Samsung Sound-Bar to a compatible Samsung hospitality TV using a single HDMI cable, guests can listen to the TV's sound through the Sound-Bar. – The item of Sound bar Out in Hospitality Option Menu makes you control to where the TV sound is outputted when the TV is turned on.If Sound bar Out is On, the TV sound is automatically outputted in the Sound Bar device only whenever TV is turned on.If Sound bar Out is Off, the TV sound is automatically outputted in the TV speaker only whenever TV is turned on. – Models supporting the ARC function are listed below: ySound-Bars: HW-E350/E450/E550 HW-F350/F355/FM35/F450/FM45/FM45C/F550/F551/FM55/FM55C/F750/F751 ySetting the Sound-Bars to Hotel Mode.1. Set the following Hotel menu options: – Hotel option > External Device > Sound Bar Out = On. – Hotel option > Power On > Power On Volume EN = User Defined. – Hotel option > Power On > Power On Volume > Set greater than 0. – Hotel option > Power On > Max Volume > Set greater than 0.2. Connect an HDMI cable from the HDMI OUT jack on the back of the Sound-Bar to the HDMI3 port (supporting ARC) on the hospitality TV.3. After the Sound-Bar is connected to the hospitality TV, when the TV turns on, the Sound-Bar automatically detects the TV, and then automatically switches to Hotel Mode.Sound Bar Hotel mode functional characteristics: yPower On/Off is synchronized with the TV yHDMI_CEC defaults set to On yFunctions through the “HDMI OUT” port only yDisables the "Input mode" key on the VFD to prevent unexpected audio-source changes. yAcquires adjustable Power On and Max Volume settings from the TV’s Hotel option menu. The Sound-Bar's Power On Volume and Max Volume values, however, are ½ of the Power On Volume and Max Volume settings in the TV's Hotel option menu. Example: If the TV's Power On Volume=20 and Max Volume=90, then the Sound Bar's Power On Volume=10 and Max Volume=45.[HC670_677_678-ZA]Install Guide-X0ENG.indd 32 2014-01-17  8:47:54
