Users Manual 1

Samsung Electronics of America, Inc.Service Division400 Valley Road, Suite 201Mount Arlington, NJ 07856TEL: 1-800-SAMSUNG (1-800-726-7864)www.samsungusa.comBP68-00142A-00DLPTVINSTRUCTION MANUALHLN467W//HLN567W/HLN4365W/HLN5065W/HLN437WHLN507W/HLN617WDLPTVBP68-00142A-cover 3/31/03 7:27 AM Page 2
2 3Safety InstructionsWarning! Important Safety InstructionsCAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICINGTO QUALIFIED SERVICE PERSONNEL.This symbol indicates high voltage is present. It is dangerous to make any kind of contactwith any part inside this product.This symbol alerts you that important literature concerning operation and maintenance hasbeen included with this product.CAUTION: FCC/CSA regulations state that any unauthorized changes or modificationsto this equipment may void the user’s authority to operate it.CAUTION: To prevent electric shock, match the wide blade of plug to the wide slot, andfully insert the plug.ATTENTION: Pour eviter les chocs electriques, introduire la lame le plus large de lafiche dans la borne correspondante de la prise et pousser jusqu’au fond.Note to CATV system installer: This reminder is provided to call CATV system installer’sattention to Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that provides guidelines for proper grounding and, in particular,specifies that the cable ground shall be connected to the grounding system of the build-ing as close to the point of cable entry as possible.Important: One Federal Court has held that unauthorized recording of copyrighted TVprograms is an infringement of U.S. copyright laws. Certain Canadian programs mayalso be copyrighted and any unauthorized recording in whole or in part may be in violation of these laws.To prevent damage which may result in fire or electric shock, do not expose this appliance to rain or moisture.CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPENThank You for Choosing SamsungThank you for choosing Samsung! Your new Samsung projection TV represents the latest in television tech-nology. We designed it with easy-to-use on-screen menus and closed captioning capabilities, making itone of the best products in its class. We are proud to offer you a product that will provide convenient, dependable service and enjoyment for years to come.Important Safety InformationAlways be careful when using your TV. To reduce the risk of fire, electrical shock, and other injuries,keep these safety precautions in mind when installing, using, and maintaining your unit.•Read all safety and operating instructions before operating your TV.•Keep the safety and operating instructions for future reference.•Heed all warnings on the TV and in the operating instructions.•Unplug the TV from the wall outlet before cleaning. Use a damp cloth; do not use liquid or aerosol cleaners.•Never add any attachments and/or equipment without approval of the manufacturer. Such additions can increase the risk of fire, electric shock, or other personal injury.•Do not use the TV where contact with water is possible, such as near bath tubs, sinks, washing machines, swimming pools, etc.•Do not place the TV on an unstable cart, stand, tripod, bracket, or table whereit can fall. A falling TV can cause serious injury to a child or adult, and seriousdamage to the appliance. Use only with a cart, stand, tripod, bracket, or tablerecommended by the manufacturer or sold with the TV. Follow themanufacturer’s instructions when mounting the unit, and use a mounting accessory recommended by the manufacturer. Move the TV and cart with care.Quick stops, excessive force, and uneven surfaces can make the unit and cartunsteady and more likely to overturn.•The TV is designed with slots in the cabinet for ventilation to protect it from overheating. Do not blockthese openings with any object, and do not put the TV on a bed, sofa, rug, or other similar surface. Donot put the TV near a radiator or heat register. If you do put the TV on a rack or bookcase, make sure that there is adequate ventilation and that you’ve followed the manufacturer’sinstructions for mounting.•Operate your TV only from the type of power source indicated on the marking label. If you are not sureof the type of power supplied to your home, consult your appliance dealer or local power company.•Use only a grounded or polarized outlet. For your safety, this TV is equipped with a polarized alternat-ing current line plug having one blade wider than the other. This plug will fit into the power outlet onlyone way. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug stilldoes not fit, contact an electrician to replace your outlet. BP68_ A-1 3/27/03 9:36 AM Page 2
SAMSUNGFCC InformationUser InstructionsThe Federal Communications Commission RadioFrequency Interference Statement includes the fol-lowing warning:NOTE: This equipment has been tested and foundto comply with the limits for a Class B digitaldevice, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonableprotection against harmful interference in a resi-dential installation. This equipment generates,uses, and can radiate radio frequency energyand, if not installed and used in accordance withthe instructions, may cause harmful interference toradio communications. However, there is no guar-antee that interference will not occur in a particu-lar installation.If this equipment does cause harmful interferenceto radio or television receptions, which can bedetermined by turning the equipment off and on,the user is encouraged to try to correct the interfer-ence by one or more of the following measures:•Reorient or relocate the receiving antenna.•Increase the separation between the equipmentand receiver.•Connect the equipment into an outlet on a cir-cuit different from that to which the receiver isconnected.•Consult the dealer or an experienced radio/TVtechnician for help.User InformationChanges or modifications not expressly approvedby the party responsible for compliance couldvoid the user’s authority to operate the equipment.If necessary, consult your dealer or an experi-encedradio/television technician for additional sugges-tions. You may find the booklet called How toIdentify and Resolve Radio/TV InterferenceProblems helpful. This booklet was prepared bythe Federal Communications Commission. It isavailable from the U.S. Government PrintingOffice, Washington, DC 20402, Stock Number004-000-00345-4.WarningUser must use shielded signal interface cables tomaintain FCC compliance for the product.Declaration of conformity for products markedwith FCC Logo. This device complies with Part 15of the FCC Rules.Operation is subject to the following two condi-tions: (1) this device may not cause harmful interference,and (2) this device must accept any interferencereceived, including interference that may causeundesired operation.The party responsible for product compliance:SAMSUNG ELECTRONICS CO., LTDAmerica QA Lab of Samsung85 West Tasman DriveSan Jose, CA 95134 USATel) 408-544-5124Fax) 408-544-5191Provided with this monitor is a detachable powersupply cord with IEC320 style terminations. It maybe suitable for connection to any UL Listed person-al computer with similar configuration. Beforemaking the connection, make sure the voltage rat-ing of the computer convenience outlet is the sameas the monitor and that the ampere rating of thecomputer convenience outlet is equal to orexceeds the monitor voltage rating.For 120 Volt applications, use only UL Listeddetachable power cord with NEMA configuration5-15P type (parallel blades) plug cap. For 240Volt applications use only UL Listed Detachablepower supply cord with NEMA configuration6015P type (tandem blades) plug cap.IC Compliance NoticeThis Class B digital apparatus meets all require-ments of the Canadian Interference-CausingEquipment Regulations of ICES-003.Notice de Conformité ICCet appareil numérique de classe B respectetoutes les exigences du Règlement ICES-003 surles équipements produisant des interférences auCanada.5Safety Instructions4•Protect the power cord. Power supply cords should be routed so that they won’t be walked on orpinched by objects placed on or against them. Pay particular attention to cords at plugs, conveniencereceptacles, and the point where they exit from the unit.•Unplug the TV from the wall outlet and disconnect the antenna or cable system during a lightning stormor when left unattended and unused for long periods of time. This will prevent damage to the unit from lightning and power-line surges.•Avoid overhead power lines. An outside antenna system should not be placed in the vicinity of over-head power lines or other electric light or power circuits, or where it can fall into such power lines orcircuits. When installing an outside antenna system, be extremely careful to keep from touching thepower lines or circuits. Contact with such lines can be fatal.•Do not overload the wall outlet or extension cords. Overloading can result in fire or electric shock.•Do not insert anything through the openings in the unit, where they can touch dangerous voltage pointsor damage parts. Never spill liquid of any kind on the TV.•Ground outdoor antennas. If an outside antenna or cable system is connected to the TV, be sure the antenna or cablesystem is grounded so as to provide some protection againstvoltage surges and built-up static charges. Section 810 of theNational Electrical Code, ANSI/NFPA No.70-1984, pro-vides information about proper grounding of the mast and supporting structure, grounding of the lead-in wire to anantenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to groundingelectrodes, and requirements for the grounding electrode.•Do not attempt to service the TV yourself. Refer all servicing to qualified service personnel. Unplug theunit from the wall outlet and refer servicing to qualified service personnel when:- The power-supply cord or plug is damaged- Liquid has been spilled on the unit or if objects have fallen into the unit- The TV has been exposed to rain or water- The TV does not operate normally by following the operating instructions- The TV has been dropped or the cabinet has been damaged- The TV exhibits a distinct degradation in performance- When the LAMP(BULB ONLY) replacement is needed•If you make adjustments yourself, adjust only those controls that are covered by the operating instruc-tions. Adjusting other controls may result in damage and will often require extensive work by a qualifiedtechnician to restore the TV to normal.•When replacement parts are required, be sure the service technician uses replacement parts specifiedby the manufacturer or those that have the same characteristics as the original part. Unauthorized substitutions may result in additional damage to the unit.•Upon completion of any service or repairs to this TV, ask the service technician to perform safety checks to determine that the TV is in a safe operating condition.ANTENNALEAD IN WIREANTENNADISCHARGE UNIT(NEC SECTION 810-20)GROUNDINGCONDUCTORS(NEC SECTION 810-21)GROUND CLAMPSPOWER SERVICE GROUNDINGELECTRODE SYSTEM(NEC ART 250, PART H)GROUND CLAMPELECTRICSERVICEEQUIPMENTNEC — NATIONAL ELECTRICAL CODEEXAMPLE OF ANTENNA GROUNDINGThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference that may cause undesired operation.This television receiver provides display of television closed captioning in accordance with §15.119 ofthe FCC rules.BP68_ A-1 3/27/03 9:36 AM Page 4
Special Features ...............................................................................................48Setting Up Your Remote Control .............................................................................48Remote Control Codes..........................................................................................51Fine Tuning Channels ...........................................................................................52Selecting the Color Tone .......................................................................................53Setting the Film Mode...........................................................................................53DNIeTM (Digital Natural Image engine) ...........................................................54Digital Noise Reduction ........................................................................................55Setting the Blue Screen Mode................................................................................56Changing the Screen Size.....................................................................................57Special Audio Options .........................................................................................59MTS Settings: Choosing a Soundtrack ........................................................59Dolby Virtual ...........................................................................................60BBE ........................................................................................................61Auto Volume............................................................................................62Viewing Closed Caption Information ......................................................................63Viewing Picture-in-Picture.......................................................................................64Selecting a Screen ...................................................................................64Selecting an External Signal ......................................................................65Selecting a Signal Source (Antenna or Cable) for PIP...................................66Swapping the Contents of the PIP and Main image......................................67Changing the Size of the PIP image ...........................................................68Changing the Picture-in-Picture Channel ......................................................69Selecting the Sound Source .......................................................................70Changing the Location of the PIP image......................................................70Using the V-Chip ..................................................................................................71PC Display.......................................................................................................78Using Your TV as a Computer (PC) Display .............................................................78How to connect Your PC to the TV .............................................................78How to Set up Your PC Software (Windows only) ........................................79Display Modes.........................................................................................80How to Set up Your TV as a PC display..................................................................81Picture Quality Adjustment ....................................................................................82Changing the Position of the Image (Moving left, right, up and down) .......................83Changing the Screen Size (PC mode).....................................................................84Appendix.........................................................................................................88Troubleshooting ...................................................................................................88Care and Maintenance.........................................................................................89Using Your TV in Another Country..........................................................................89Specifications ......................................................................................................897Your New Wide TV ..........................................................................................10Replacing the Lamp .............................................................................................10List of Features .....................................................................................................12Checking Parts.....................................................................................................12Side Panel Buttons................................................................................................13Side Panel Jacks ................................................................................................. 13 Front Panel LED Indicators .....................................................................................14Rear Panel Jacks ..................................................................................................15Remote Control ....................................................................................................16Installing Batteries in the Remote Control.....................................................17Connections .....................................................................................................20Connecting VHF and UHF Antennas.......................................................................20Antennas with 300-ohm Flat Twin Leads .....................................................20Antennas with 75-ohm Round Leads...........................................................20Separate VHF and UHF Antennas ..............................................................21Connecting Cable TV and VCR..............................................................................22Cable without a Cable Box .......................................................................22Cable with a Cable Box that Descrambles All Channels ...............................22Connecting a Cable Converter Box............................................................23Connecting a Cable Converter Box and a VCR ...........................................23Connecting a Camcorder......................................................................................24Connecting a DVD Player .....................................................................................25Connecting a DTV Set Top Box ..............................................................................26Operation........................................................................................................30Turning the TV On and Off....................................................................................30Viewing the Menus and Displays ...........................................................................30Selecting the Menu Language................................................................................31Selecting the Antenna Input...................................................................................31Channel Memory .................................................................................................33Changing Channels..............................................................................................34Selecting Your Favorite Channels ...........................................................................35Labeling the Channels ..........................................................................................36Setting The On/Off Melody ..................................................................................36Picture Control .....................................................................................................38Sound Control .....................................................................................................40Setting the Clock..................................................................................................42Setting the Timers.................................................................................................43Viewing an External Signal Source ........................................................................45Table of Contents6BP68_ A-1 3/27/03 9:36 AM Page 6
Your New Wide TVSAMSUNGBP68_ A-1 3/27/03 9:36 AM Page 8
1Use a screwdriver toremove the screw as shown in the picture.2Remove the Lamp cover.3Use a screwdriver toremove the screws securing the Lamp. There are 2 screws: one on the left and one on theright. When the screws have been completely unfastened, they will still be connected to the bodyof the Lamp.4Separate the Lamp fromthe engine by holding thehandle and pulling it out.5To reinstall the Lamp, fol-low these steps in reverseorder.NOTE•Be sure the replacement Lamp is the same model.11Replacing the Lamp •A Projection TV lamp is a consumable item, and should be replaced from time to time for best projec-tor operation. If the screen image becomes dark, or timer, lamp and Temp LEDs flicker off at the sametime, you may have to replace the lamp.•When changing the lamp, you should first verify the type/model, and then use only the correct lampreplacement. The code for lamp regulation and usage is marked on the label. If you remove the lamp,you can identify this replacement code. You should only replace the lamp with the one of the same reg-ulation code.•If you wish to buy a new lamp, please phone your Service Center or a nearby TV dealer, and tell themthe model of your projection unit.•You can identify the lamp type on the left side of TV and the lamp cover.•The TV will be damaged if you use a lamp that is different from the original supplied by the manufac-turer.•Please don't remove the lamp except when replacing with a new one.•Please turn off TV power before changing a lamp and then unplug after waiting 1 minute.•The cooling fan will help cool the lamp so you can safely remove it. The surface of the Lamp is veryhot. Please wait for 30 minutes after turning off your projection TV to handle the lamp.•Please keep the old lamp away from flammable articles and children. Dispose of properly.•Don't allow dirt or dust to accumulate inside the lamp cover or on the Lamp.•A dirty cover or lamp can catch fire, explode and cause electric shock.•Please don't touch the front glass of a new lamp or the glass of the lamp container.•If a new lamp is improperly handled, the quality of the screen image can be affected and the expectedlife span of the lamp can be reduced.•Be sure to tighten the lamp cover on the TV after changing the lamp. Note that the TV will not functionif the lamp cover is not securely attached. Please tighten the holding screw on the lamp cover after ithas been attached to the TV.Your New Wide TV10BP68_ A-1 3/27/03 9:36 AM Page 10
1312Side Panel ButtonsThe buttons on the side panel control your TV’s basic features, including the on-screen menu system. To use the more advanced features, you must use the remote control.Side Panel JacksUse the side panel jacks to connect a component that is used only occasionally (a camcorder or videogame, for example). List of FeaturesYour TV was designed and engineered using the latest technology. It is a full-featured, high-performance unit that exceeds industry standards. In addition, it has these special features:• Easy-to-operate remote control• Easy-to-use on-screen menu system you can access from the side panel or remote control• Automatic timer to turn the TV on and off at any time you choose• Adjustable picture and sound settings and the ability to memorize your favorite settings• Automatic channel tuning for up to 181 channels• A special filter to reduce or eliminate reception problems• Fine tuning control for the sharpest picture possible• A built-in multi-channel sound decoder for stereo and bilingual listening• Built-in, dual channel speakers• A special sleep timer• Picture-in-Picture capability that lets you watch two channels at once• Widescreen TV with adjustable image sizeChecking PartsOnce you have unpacked your TV, check to make sure that you have all the parts shown here.If any piece is missing or broken, call your dealer. Your New Wide TVThisManualTelevisionRemote Control(BP59-00016A)/AAA Batteries(4301-000121)WarrantyCardA/V Cable(AA39-40001B)ŒTV/VIDEOPress to switch between viewing TV programs and signals from connected components.´MENUPress to see the on-screen menu.ˇ▼CHANNEL ▲Press to change channels and move between items on the on-screen menu.¨VOLUME +, –Press to lower or raise the volume and to select items when using the on-screen menu.ˆPOWERPress to turn the TV on and off.ŒVIDEO Input jackConnect the video signal from a camcorder or video game.´AUDIO Input jacksConnect the audio signal from a camcorder or video game.ˇS-VIDEO Input jackConnect an S-video signal from a camcorder or video game.(S-Video 3 jack and Audio L/R input 3 are used in conjunction.)œHLN507WœHLN617WœHLN5065Wœ HLN467WœHLN567Wœ HLN467WœHLN567Wœ HLN437WœHLN507WœHLN4365WœHLN5065WœHLN617Wœ HLN437WœHLN507WœHLN4365WœHLN5065WBP68_ A-1 3/27/03 9:36 AM Page 12
15Your New Wide TV14Front Panel LED Indicators The three lights on the front panel indicate the status of your TV. Indicator Light Key: Light is On: Light is Blinking: Light is Off• It takes about 30 seconds for the TV to warm up, so normal brightness may not appear immediately.• The TV has a fan to keep the inside lamp from overheating. You’ll occasionally hear it working.Timer Lamp Temp IndicationAuto Timer ON/OFF has been setThe set is operating normally .Standby state.The picture will automatically appear in about 25 seconds.Auto Timer ON/OFF has been set and the set is normally operating.Auto Timer ON/OFF has been set and the set will automatically be turned on inabout 25 seconds.A cooling fan inside the set is not operating normally.Lamp cover on rear of the set is not properly shut.Check if the ventilation hole on the rear of the set is blocked, because if theinner temperature is too high, the power will shut off. Lamp may be defective. Please contact a certified technician.Rear Panel JacksUse the rear panel jacks to connect components such as a VCR. You can connect two different components such as two VCRs, Set-Top Box and a DVD player etc., because there are two sets of video input jacks and one set of component video input jacks on the rearpanel of your TV. For more information, please see “Connections”. ŒANTENNA terminalsTwo independent cables or antennas can be connected to these termi-nals. Use ANT-A and ANT-B terminals to receive a signal fromVHF/UHF antennas or your cable system. Use the ANT A-OUT termi-nal to send the signal being received by the ANT-A terminal out toanother component (such as a Cable Set Top Box). The PIP channel can be received only when a signal source is connected to ANT-A.´S-VIDEO INPUT jacksConnects an S-Video signal from an S-VHS VCR or DVD player. ˇVIDEO/AUDIO INPUT jacks(VCR1, VCR2) Connect video/audio signals from external sources, such as a VCR orDVD players.¨ VIDEO/AUDIO MONITOR OUTPUT jacks Sends a video signal from the TV to an external source, such as aVCR.Note: Monitor Out is available only in RF, Video and S-Video modes. ˆComponent1 jacks (Y, Pb, Pr, L, R) Use these jacks to connect the component video/audio signals from aDVD player when using the component video input jacks.Note: Only 480i and 408p formats are supported. ØComponent 2, 3 jacks (Y, Pb, Pr, L, R) Receives the DTV video/audio signals from a set top box.Note: Only 480p, 720p and 1080i formats are supported.∏PC AUDIO INPUT jacks Connect these to the audio-output jacks on your PC.”DVI (Digital Video Interface) jack Receives the digital signals from a set top box or PC etc.’RS-232C jack˝PC VIDEO INPUT jack Connect to the video output port on your PC.BP68_ A-1 3/27/03 9:36 AM Page 14
Installing Batteries in the Remote ControlWith normal use, the batteries in the remote control should last about a year. If you notice a performancedegradation while using the remote, the batteries may need to be replaced. Make sure you replace bothbatteries and do not mix old and new batteries in the remote control. If you won’t be using the remotecontrol for a long time, remove the batteries and store them in a cool dry place. 1Slide the back cover all the way outto open the battery compartment ofthe remote control.2Install two AAA size batteries.Make sure to match the “+” and“–” ends of the batteries with thediagram inside the compartment.3Slide the cover back into place.17Remote ControlYou can use the remote control up to a distance of about 23 feet from the TV. When using the remote,always point it directly at the TV. The remote control can also operate your VCR, cable box, and DVDplayer. Your New Wide TV161. POWERTurns the TV on and off.2. +100Press to select cable channels over 100 onTV.3. MenuDisplays the main on-screen menu.4. CH(Channel) andVOL(Volume)Controls volume, channel selection.5. MutePress to mute the TV sound.6. DisplayPress to display information on the TVscreen.7. AspectPress to change the screen size.8. SurroundPress to hear the Dolby surround effect.9. MTS(MultichannelTelevision Stereo)Press to choose stereo, mono or SeparateAudio Program (SAP broadcast).10. ModeSelects a target device to be controlled bythe Samsung remote control (i.e., TV, VCR,Cable, or DVD).11. Pre-chTunes to the previous channel.12. TV/VideoPress to display all of the available videosources (i.e., TV, VCR, DVD, DTV, PC).13. JoystickUse to highlight on-screen menu items andchange menu values.14. DNIeActivates DNIe (Digital Natural Imageengine).15. PIPActivates picture in picture.16. StillPress to stop the action during a particularscene. Press again to resume normal video.17. Fav.CH (FavoriteChannel)Press to switch between your favorite chan-nels.18. S.ModeAdjust the TV sound by selecting one of thepreset factory settings (or select your per-sonal, customized sound settings.)19. P.ModeAdjust the TV picture by selecting one of thepreset factory settings (or select your per-sonal, customized picture settings.)20. VCR controlsControls VCR tape functions: Rewind, Play,Fast Forward, Stop, Pause.21. PIP controlsSource ; Press to select one of the availablesignal sources for the PIP window.Scan; Press to scan the memorized channels.Locate; Press to move the PIP window toany of the four corners of the TV screen.Swap; Exchanges the video signal that iscurrently displayed on the main screen withthe signal in the PIP window.Size; Press to make the PIP window largeror smaller.CH(PIP); Displays the available channels insequence. (These buttons change channelsin the PIP window only.)22. V.chipPress to set up and activate the parentallocks.23. SetUsed during set up of this remote control,so that it will work compatibly with otherdevices (VCR, cable box, DVD, etc.)24. SleepPress to select a preset time interval forautomatic shutoff.25. Add/ErasePress to add or erase channels in the TV’smemory.Use the Add/Erase button tomemorize/erase the fine tuning after finetuning channels.BP68_ A-1 3/27/03 9:36 AM Page 16
ConnectionsSAMSUNGBP68-00120A-2 3/27/03 8:23 AM Page 18
20 21ConnectionsConnecting VHF and UHF AntennasIf you do not have a cable system, you will need to connect an antenna to your TV. Antennas with 300-ohm Flat Twin LeadsIf your antenna looks like this: it has 300-ohm flat twin leads.1Place the wires from the twinleads under the screws on the300-75 ohm adapter. Use ascrewdriver to tighten thescrews.2Plug the adapter into theANT-A terminal on the backpanel of the TV.Antennas with 75-ohm Round LeadsIf your antenna looks like this: it is an antenna with 75-ohm round leads.1Plug the antenna lead into theANT-A terminal on the backpanel of the TV.Separate VHF and UHF AntennasIf you have two separate antennas for your TV (one VHF and one UHF), you must combine thetwo antenna signals before connecting them to the TV. This requires a combiner attachment, whichyou can buy at an electronics store.1Connect both antennaleads to the combiner. 2Plug the combiner into theANT-A terminal on theback panel of the TV.BP68-00120A-2 3/27/03 8:23 AM Page 20
23Connections22Connecting Cable TV and VCRYou can connect different cable systems to your TV, including cable without a cable box, andcable with a cable box that descrambles some or all channels.Cable without a Cable BoxIf you want to connect cable, and you do not need to use a cable box:1Plug the incoming cableinto the ANT-A antenna ter-minal on the back of theTV.Cable with a Cable Box that Descrambles All Channels1Find the cable that is con-nected to the ANTENNAOUT terminal on yourcable box. This terminalmight be labeled “ANTOUT,” “VHF OUT,” or sim-ply, “OUT.”2Connect the other end ofthis cable to the ANT Aantenna terminal on theback of the TV. Connecting a Cable Converter BoxThis connection allows you to watch cable and premium channels. You should keep your TVselected to ANT-A so that you can use the TV features. When viewing premium channels, selectANT-B and tune the TV to channel 3 or 4 (whichever channel is vacant in your area), then use theconverter box to change channels. You will need two coaxial cables. Note: When you use a converter box withyour TV, there may be features that you cannot program using the remote control, suchas programming your favorite channels andblocking channels.Connecting a Cable Converter Box and a VCRThis connection allows you to watch and record basic and premium cable channels, as well aswatch videotapes. You should keep your TV selected to ANT-A so that you can use the TV’s fea-tures. When viewing premium channels or recording with the VCR, select ANT-B (whichever chan-nel is vacant in your area), then use the converter box to change channels. Caution: If you want to record one channelwhile watching another channel, a splitter(not included) must be added between thecable and ANT-A. One output of the splittergoes to ANT-A and the second output isconnected to IN on the cable converterbox.If you have a mono VCR, connect L/Monoto VCR Audio OUT using only one audiocable.If you have a S-VHS VCR, use the S-videoconnections and remove the video cable.Do not connect the video cable and the S-video cable to video1 simultaneously.When you use a converter box with yourTV there may be features that you can notprogram using the remote control, such asprogramming your favorite channels andblocking channels.BP68-00120A-2 3/27/03 8:23 AM Page 22
Connecting a DVD PlayerThe rear panel jacks on your TV make it easy to connect a DVD player to your TV.Connecting to Y,Pb,Pr1Connect a set of audiocables between theComponent1AUDIO INjacks on the TV and theAUDIO OUT jacks on theDVD player.2To enable Component videoviewing, connect videocables between theComponent1 (Y, Pband Pr)jacks on the TV and Y, Pband Pr(or Y, Cb, Cr) outputjacks on the DVD player.Note: For an explanation ofComponent video, see yourDVD player's owner's man-ual. Connecting to audio and video jacks1Connect a set of audiocables between the AUDIOIN jacks on the TV and theAUDIO OUT jacks on theDVD player.2Connect video cablesbetween the VIDEO OUTjack on the DVD player andthe VIDEO IN jack on theTV.25Connecting a CamcorderThe side panel jacks on your TV make it easy to connect a camcorder to your TV.You can use your camcorder to view tapes without using a VCR.1Locate the A/V output jackson the camcorder. They areusually found on the side orback of the camcorder. 2Connect an audio cablebetween the AUDIO OUT-PUT jack on the camcorderand the AUDIO terminalson the side of the TV. If your camcorder is stereo,you must connect two sepa-rate cables.(The audio cables are usual-ly included with the cam-corder.) 3Connect a video cablebetween the VIDEO OUT-PUT jack on the camcorderand the VIDEO terminal onthe side of the TV. (A videocable is usually includedwith the camcorder.) Towatch a tape, follow yourcamera’s instructions andthe section on “Viewing anExternal Signal Source” inthis manual.Connections24BP68-00120A-2 3/27/03 8:23 AM Page 24

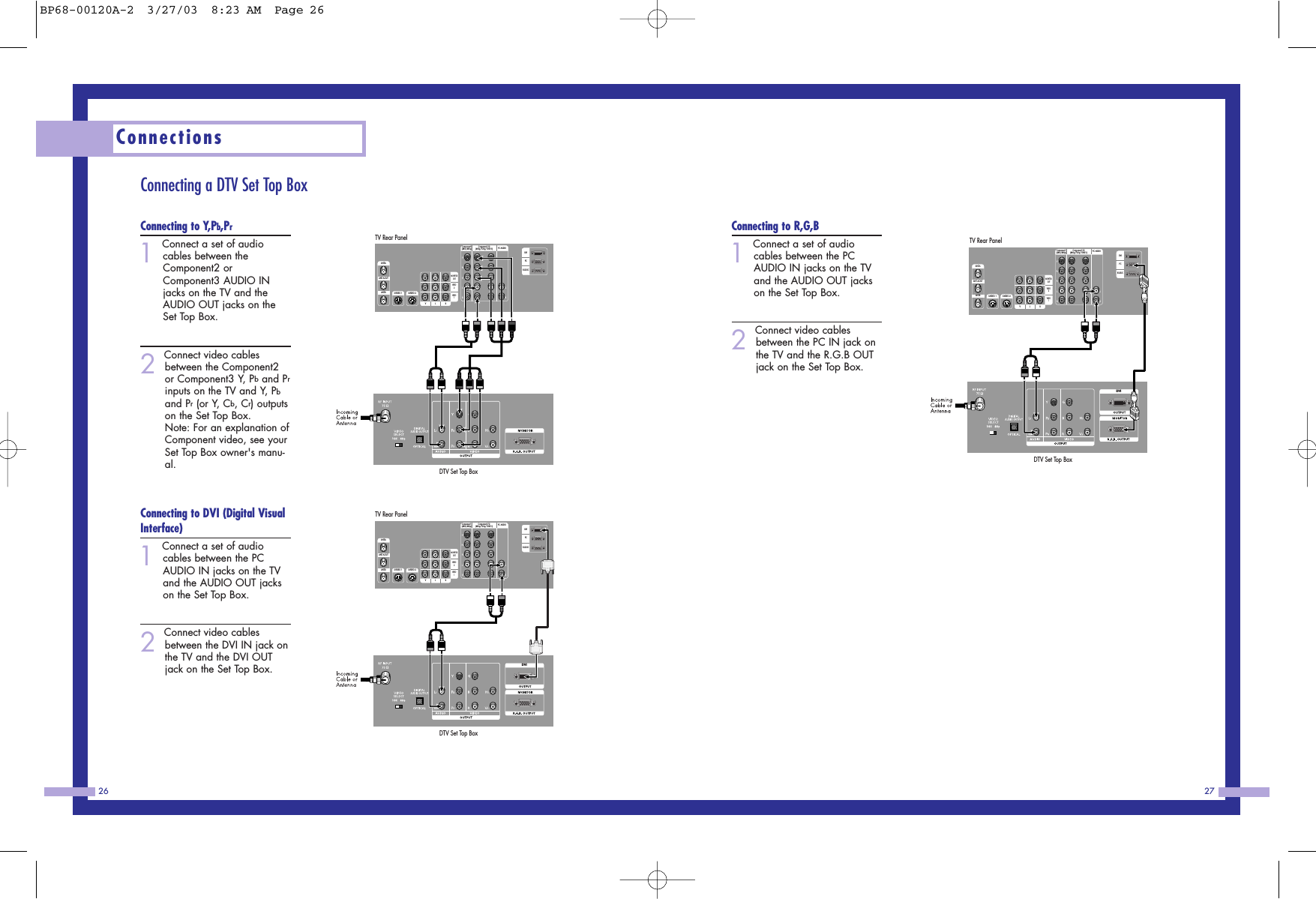

Connecting a DTV Set Top BoxConnecting to Y,Pb,Pr1Connect a set of audiocables between theComponent2 orComponent3 AUDIO INjacks on the TV and theAUDIO OUT jacks on theSet Top Box.2Connect video cablesbetween the Component2or Component3 Y, Pband Prinputs on the TV and Y, Pband Pr(or Y, Cb, Cr) outputson the Set Top Box.Note: For an explanation ofComponent video, see yourSet Top Box owner's manu-al. Connecting to DVI (Digital VisualInterface)1Connect a set of audiocables between the PCAUDIO IN jacks on the TVand the AUDIO OUT jackson the Set Top Box.2Connect video cablesbetween the DVI IN jack onthe TV and the DVI OUTjack on the Set Top Box.27Connections26Component1(480i/480p) Component1/2(480p/720p/10801i)YPbPrLRLRPC AUDIODTV Set Top BoxANT-AANT A-OUTANT-B S-VIDEO 1 S-VIDEO 2VL RMONITOROUTVIDEO2VIDEO1DVIPCRS-232CTV Rear PanelComponent1(480i/480p) Component1/2(480p/720p/10801i)YPbPrLRLRPC AUDIODTV Set Top BoxANT-AANT A-OUTANT-B S-VIDEO 1 S-VIDEO 2VL RMONITOROUTVIDEO2VIDEO1DVIPCRS-232CTV Rear PanelDVIConnecting to R,G,B1Connect a set of audiocables between the PCAUDIO IN jacks on the TVand the AUDIO OUT jackson the Set Top Box.2Connect video cablesbetween the PC IN jack onthe TV and the R.G.B OUTjack on the Set Top Box.Component1(480i/480p) Component1/2(480p/720p/10801i)YPbPrLRLRPC AUDIODTV Set Top BoxANT-AANT A-OUTANT-B S-VIDEO 1 S-VIDEO 2VL RMONITOROUTVIDEO2VIDEO1DVIPCRS-232CTV Rear PanelDVIBP68-00120A-2 3/27/03 8:23 AM Page 26
OperationSAMSUNGBP68-00120A-3 3/27/03 8:24 AM Page 28
Operation30 31Turning the TV On and OffPress the Power button on the remote control or on the side panel to turn your TV on and off. Viewing the Menus and DisplaysThe on-screen menu system allows you to control the settings of your TV. Access the on-screen menusystem by pressing the Menu button on the remote control. Once the on-screen menu appears, usethe joystick button on your remote control to move between menu items, select menu items, andmake adjustments. You can also view the on-screen menu system and make some adjustments usingthe TV’s side panel buttons. Displaying the Menus1With the power on, press theMenu button on the remote con-trol. The main menu appears onthe screen. The Video menu is selected.2Use the joystick (up, down) orCH( , )buttons to move toitems in the menu. Use the joy-stick (right) or VOL(+) buttonsto display, change, or use theselected items. Use the joystick(or √) button to enter itemsin the menu. On-screen menus disappear fromthe screen automatically after aboutthirty seconds, or you can press theMenu button on your remote controlto exit the menu. Displaying Status Information1Press the Display button on theremote control. The TV will dis-play the channel, current time,and the audio signal you arelistening to.Selecting the Menu LanguageChoose a language for the on-screen menus: English, Spanish or French.1Press the Menu button. Move the joystick down toselect SETUP, then press the joystick to enter. 2Move the joystick down toselect ”Language.” 3Move the joystick right or leftto select the language. Press the Menu button on the remote control to exit the menu. Selecting the Antenna InputYou can connect to two different signal sources by choosing the antenna input(ANT A or ANT B).1Press the Menu button. Move the joystick down to selectSETUP, then press the joystick toenter. 2Press the joystick to enter. The chan-nel setup menu will appear. The firstline of the menu is selected. 3Move the joystick right or left toselect “A” or “B”. Press the Menu button on the remote control to exit the menu. BP68-00120A-3 3/27/03 8:25 AM Page 30
