Samsung Electronics Co HLM617W DLP Projection TV User Manual BP68 00120A cover

Samsung Electronics Co Ltd DLP Projection TV BP68 00120A cover

Contents

Users Manual 3

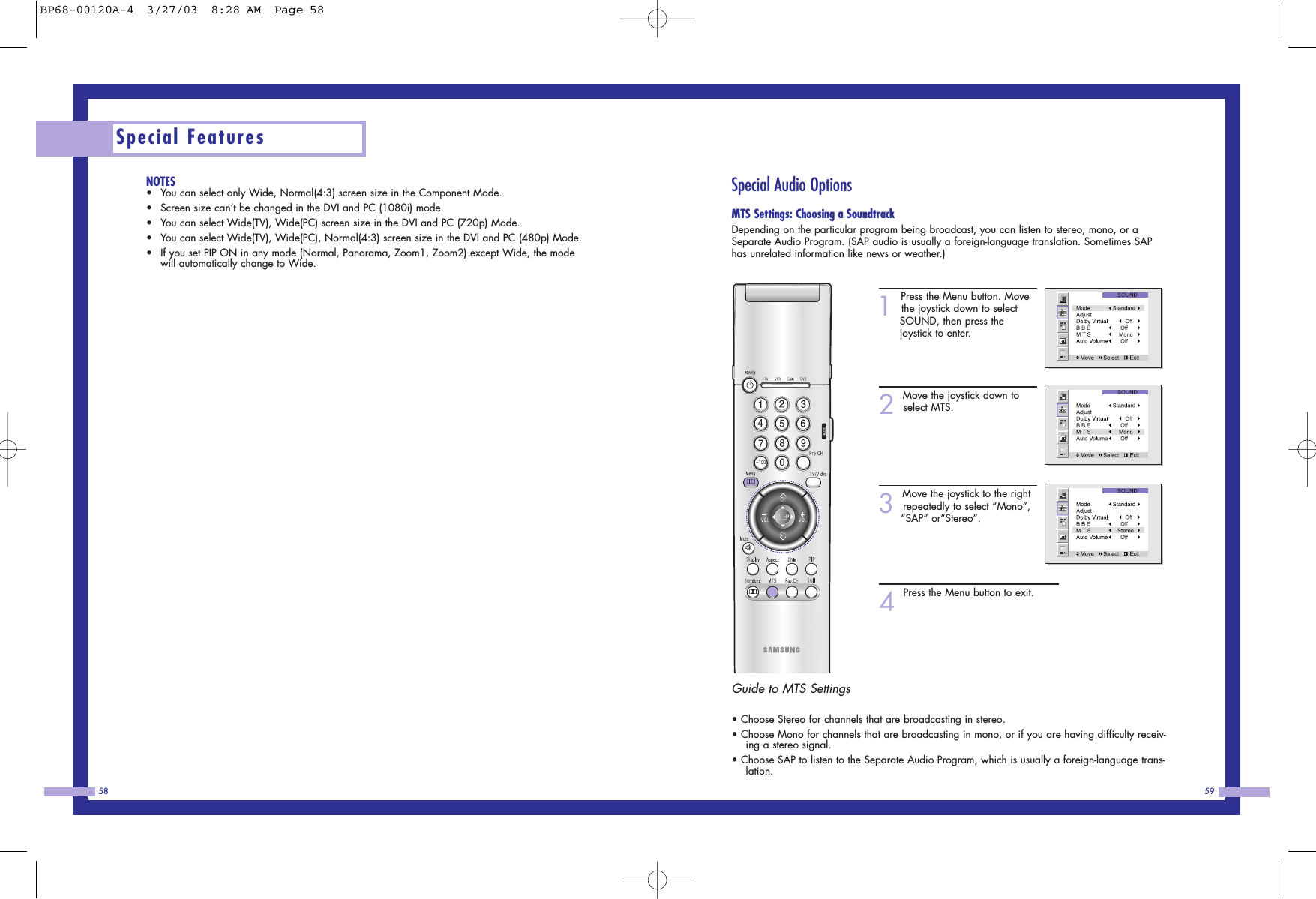

59NOTES•You can select only Wide, Normal(4:3) screen size in the Component Mode.•Screen size can’t be changed in the DVI and PC (1080i) mode.•You can select Wide(TV), Wide(PC) screen size in the DVI and PC (720p) Mode.•You can select Wide(TV), Wide(PC), Normal(4:3) screen size in the DVI and PC (480p) Mode.•If you set PIP ON in any mode (Normal, Panorama, Zoom1, Zoom2) except Wide, the modewill automatically change to Wide.Special Features58Special Audio OptionsMTS Settings: Choosing a SoundtrackDepending on the particular program being broadcast, you can listen to stereo, mono, or aSeparate Audio Program. (SAP audio is usually a foreign-language translation. Sometimes SAPhas unrelated information like news or weather.)1Press the Menu button. Movethe joystick down to select SOUND, then press the joystick to enter.2Move the joystick down toselect MTS.3Move the joystick to the rightrepeatedly to select “Mono”, “SAP” or“Stereo”.4Press the Menu button to exit.Guide to MTS Settings• Choose Stereo for channels that are broadcasting in stereo.• Choose Mono for channels that are broadcasting in mono, or if you are having difficulty receiv-ing a stereo signal.• Choose SAP to listen to the Separate Audio Program, which is usually a foreign-language trans-lation.BP68-00120A-4 3/27/03 8:28 AM Page 58

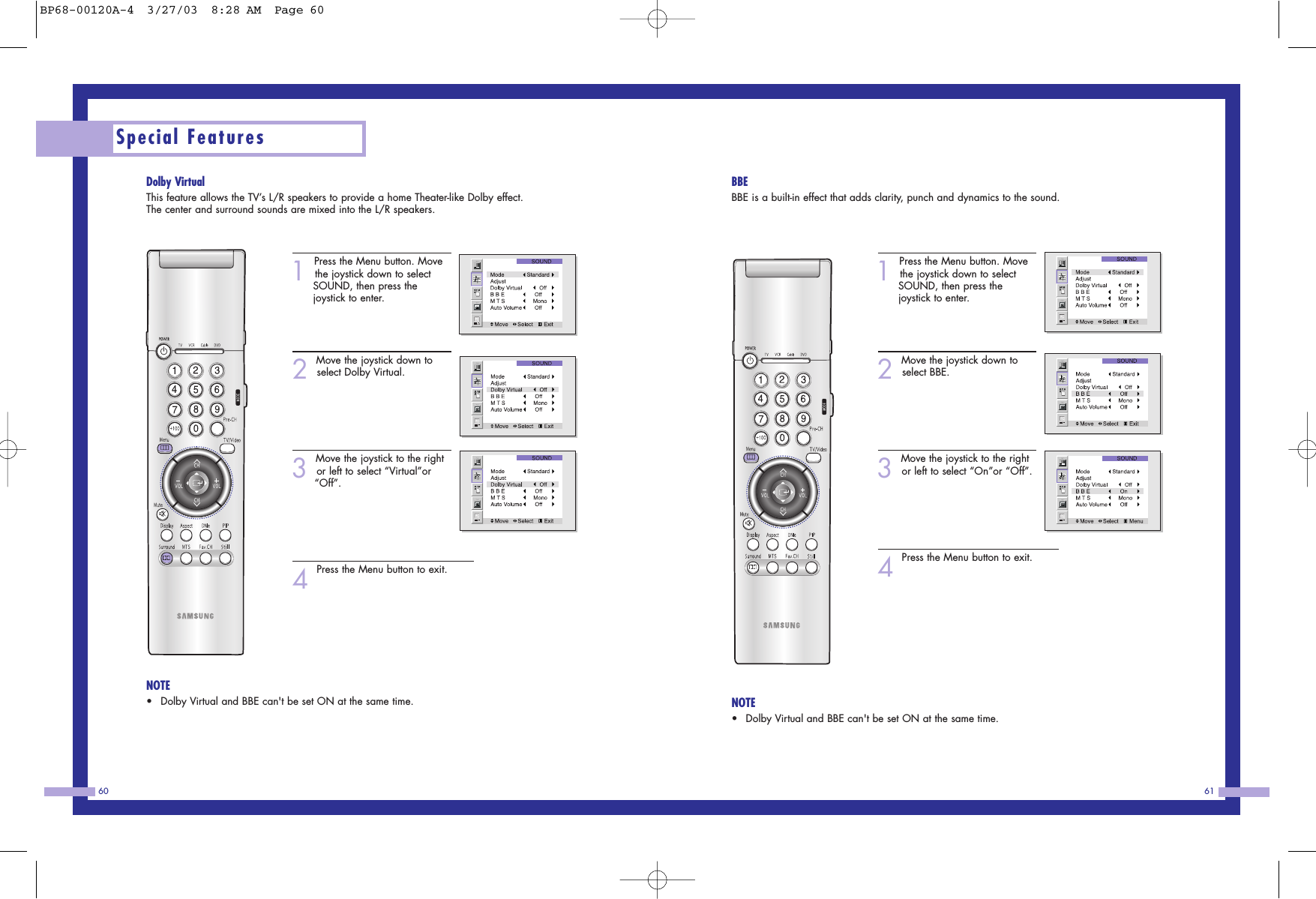

61Special Features60BBEBBE is a built-in effect that adds clarity, punch and dynamics to the sound.1Press the Menu button. Movethe joystick down to select SOUND, then press the joystick to enter.2Move the joystick down toselect BBE.3Move the joystick to the rightor left to select “On”or “Off”.4Press the Menu button to exit.NOTE•Dolby Virtual and BBE can't be set ON at the same time.Dolby VirtualThis feature allows the TV’s L/R speakers to provide a home Theater-like Dolby effect.The center and surround sounds are mixed into the L/R speakers.1Press the Menu button. Movethe joystick down to select SOUND, then press the joystick to enter.2Move the joystick down toselect Dolby Virtual.3Move the joystick to the rightor left to select “Virtual”or “Off”.4Press the Menu button to exit.NOTE•Dolby Virtual and BBE can't be set ON at the same time.BP68-00120A-4 3/27/03 8:28 AM Page 60

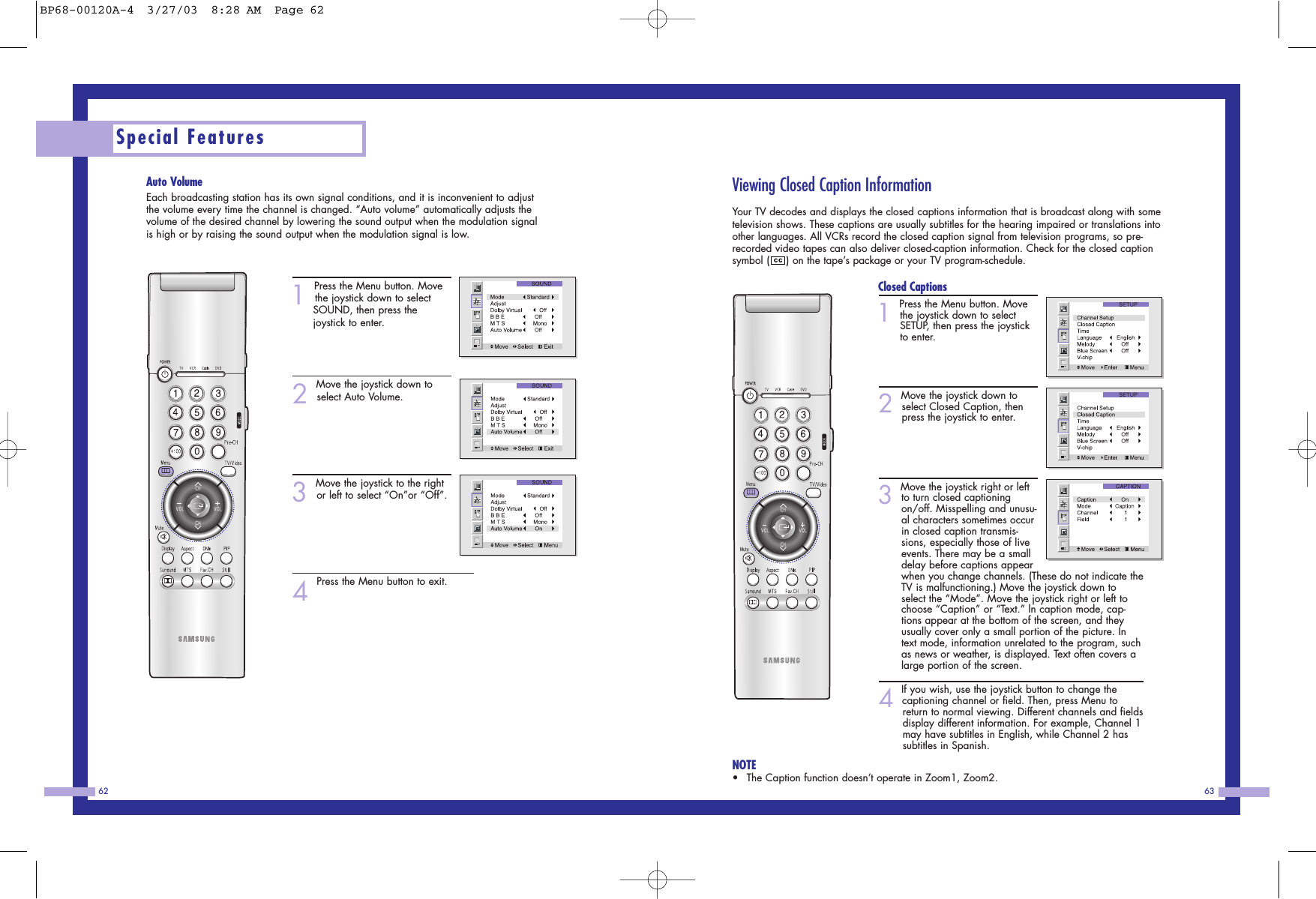

63Special Features62Viewing Closed Caption InformationYour TV decodes and displays the closed captions information that is broadcast along with sometelevision shows. These captions are usually subtitles for the hearing impaired or translations intoother languages. All VCRs record the closed caption signal from television programs, so pre-recorded video tapes can also deliver closed-caption information. Check for the closed captionsymbol ( ) on the tape’s package or your TV program-schedule.Closed Captions1Press the Menu button. Movethe joystick down to selectSETUP, then press the joystickto enter. 2Move the joystick down toselect Closed Caption, thenpress the joystick to enter.3Move the joystick right or leftto turn closed captioningon/off. Misspelling and unusu-al characters sometimes occurin closed caption transmis-sions, especially those of liveevents. There may be a smalldelay before captions appearwhen you change channels. (These do not indicate theTV is malfunctioning.) Move the joystick down toselect the “Mode”. Move the joystick right or left tochoose “Caption” or “Text.” ln caption mode, cap-tions appear at the bottom of the screen, and theyusually cover only a small portion of the picture. Intext mode, information unrelated to the program, suchas news or weather, is displayed. Text often covers alarge portion of the screen.4If you wish, use the joystick button to change the captioning channel or field. Then, press Menu to return to normal viewing. Different channels and fieldsdisplay different information. For example, Channel 1may have subtitles in English, while Channel 2 has subtitles in Spanish.NOTE•The Caption function doesn’t operate in Zoom1, Zoom2.Auto VolumeEach broadcasting station has its own signal conditions, and it is inconvenient to adjustthe volume every time the channel is changed. “Auto volume” automatically adjusts thevolume of the desired channel by lowering the sound output when the modulation signalis high or by raising the sound output when the modulation signal is low.1Press the Menu button. Movethe joystick down to select SOUND, then press the joystick to enter.2Move the joystick down toselect Auto Volume.3Move the joystick to the rightor left to select “On”or “Off”.4Press the Menu button to exit.BP68-00120A-4 3/27/03 8:28 AM Page 62

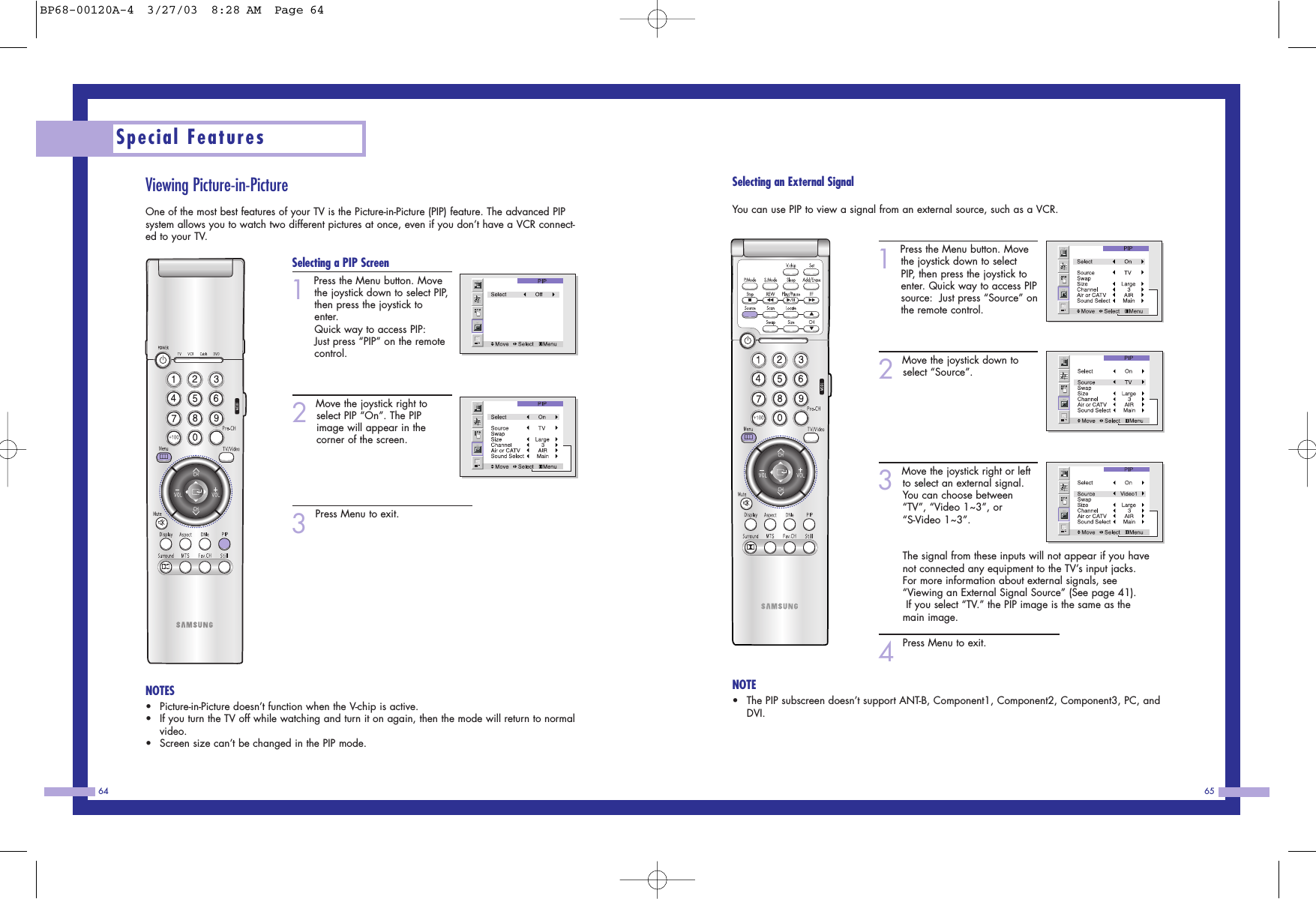

65Special Features64Selecting an External SignalYou can use PIP to view a signal from an external source, such as a VCR.1Press the Menu button. Movethe joystick down to selectPIP, then press the joystick toenter. Quick way to access PIPsource: Just press “Source” onthe remote control. 2Move the joystick down toselect “Source”.3Move the joystick right or leftto select an external signal.You can choose between“TV”, “Video 1~3”, or “S-Video 1~3”. The signal from these inputs will not appear if you havenot connected any equipment to the TV’s input jacks.For more information about external signals, see“Viewing an External Signal Source” (See page 41).If you select “TV.” the PIP image is the same as themain image.4Press Menu to exit.NOTE•The PIP subscreen doesn’t support ANT-B, Component1, Component2, Component3, PC, andDVI. Viewing Picture-in-PictureOne of the most best features of your TV is the Picture-in-Picture (PIP) feature. The advanced PIPsystem allows you to watch two different pictures at once, even if you don’t have a VCR connect-ed to your TV.Selecting a PIP Screen1Press the Menu button. Movethe joystick down to select PIP,then press the joystick toenter.Quick way to access PIP: Just press “PIP” on the remotecontrol. 2Move the joystick right toselect PIP “On”. The PIPimage will appear in the corner of the screen. 3Press Menu to exit.NOTES•Picture-in-Picture doesn’t function when the V-chip is active. •If you turn the TV off while watching and turn it on again, then the mode will return to normalvideo.•Screen size can’t be changed in the PIP mode.BP68-00120A-4 3/27/03 8:28 AM Page 64

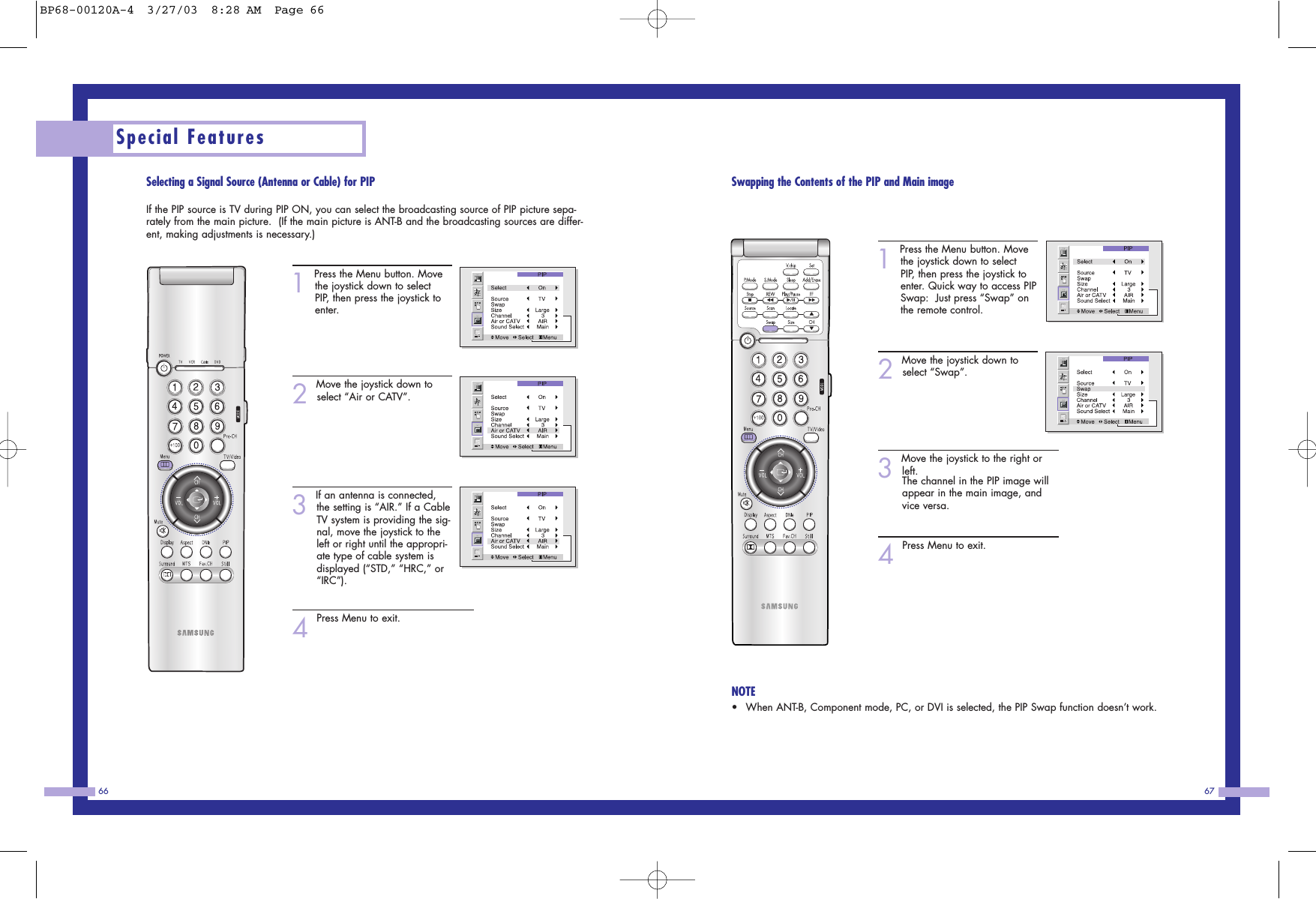

67Special Features66Swapping the Contents of the PIP and Main image1Press the Menu button. Movethe joystick down to selectPIP, then press the joystick toenter. Quick way to access PIPSwap: Just press “Swap” onthe remote control. 2Move the joystick down toselect “Swap”.3Move the joystick to the right orleft.The channel in the PIP image willappear in the main image, andvice versa.4Press Menu to exit.NOTE•When ANT-B, Component mode, PC, or DVI is selected, the PIP Swap function doesn’t work.Selecting a Signal Source (Antenna or Cable) for PIPIf the PIP source is TV during PIP ON, you can select the broadcasting source of PIP picture sepa-rately from the main picture. (If the main picture is ANT-B and the broadcasting sources are differ-ent, making adjustments is necessary.)1Press the Menu button. Movethe joystick down to selectPIP, then press the joystick toenter. 2Move the joystick down toselect “Air or CATV”.3If an antenna is connected,the setting is “AIR.” If a CableTV system is providing the sig-nal, move the joystick to theleft or right until the appropri-ate type of cable system isdisplayed (“STD,” “HRC,” or“IRC”).4Press Menu to exit.BP68-00120A-4 3/27/03 8:28 AM Page 66

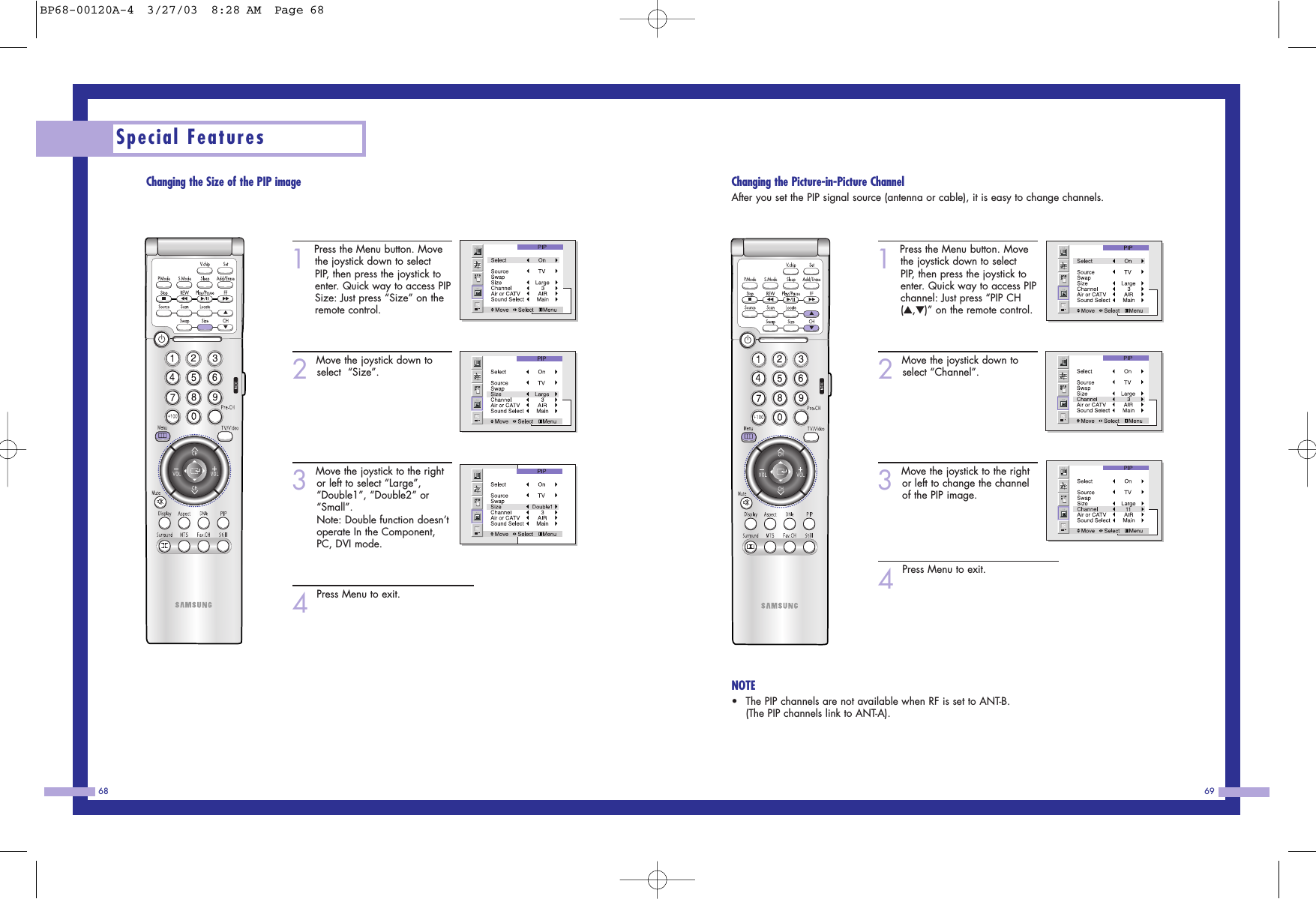

6968Changing the Picture-in-Picture ChannelAfter you set the PIP signal source (antenna or cable), it is easy to change channels.1Press the Menu button. Movethe joystick down to selectPIP, then press the joystick toenter. Quick way to access PIPchannel: Just press “PIP CH(▲,▼)” on the remote control. 2Move the joystick down toselect “Channel”.3Move the joystick to the rightor left to change the channelof the PIP image. 4Press Menu to exit.NOTE•The PIP channels are not available when RF is set to ANT-B. (The PIP channels link to ANT-A).Changing the Size of the PIP image1Press the Menu button. Movethe joystick down to selectPIP, then press the joystick toenter. Quick way to access PIPSize: Just press “Size” on theremote control. 2Move the joystick down toselect “Size”.3Move the joystick to the rightor left to select “Large”,“Double1”, “Double2” or“Small”.Note: Double function doesn’toperate In the Component,PC, DVI mode. 4Press Menu to exit.Special FeaturesBP68-00120A-4 3/27/03 8:28 AM Page 68

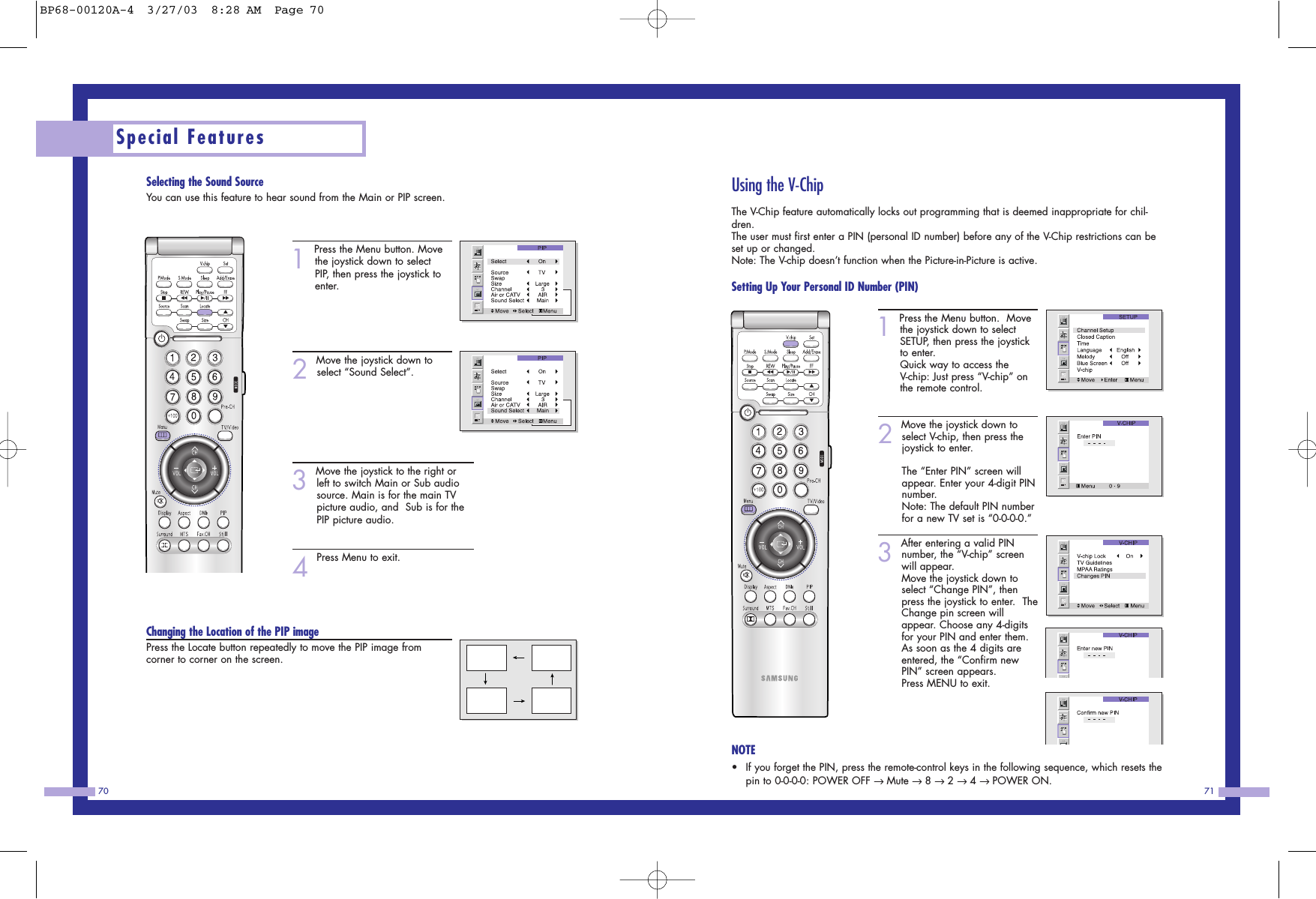

7170Using the V-ChipThe V-Chip feature automatically locks out programming that is deemed inappropriate for chil-dren.The user must first enter a PIN (personal ID number) before any of the V-Chip restrictions can beset up or changed. Note: The V-chip doesn’t function when the Picture-in-Picture is active. Setting Up Your Personal ID Number (PIN)1Press the Menu button. Movethe joystick down to selectSETUP, then press the joystickto enter.Quick way to access theV-chip: Just press “V-chip” onthe remote control. 2Move the joystick down toselect V-chip, then press thejoystick to enter. The “Enter PIN” screen willappear. Enter your 4-digit PINnumber.Note: The default PIN numberfor a new TV set is “0-0-0-0.”3After entering a valid PINnumber, the “V-chip” screenwill appear. Move the joystick down toselect “Change PIN”, thenpress the joystick to enter. TheChange pin screen willappear. Choose any 4-digitsfor your PIN and enter them.As soon as the 4 digits areentered, the “Confirm newPIN” screen appears. Press MENU to exit.NOTE•If you forget the PIN, press the remote-control keys in the following sequence, which resets thepin to 0-0-0-0: POWER OFF → Mute → 8 → 2 → 4 → POWER ON.Selecting the Sound SourceYou can use this feature to hear sound from the Main or PIP screen.1Press the Menu button. Movethe joystick down to selectPIP, then press the joystick toenter. 2Move the joystick down toselect “Sound Select”.3Move the joystick to the right orleft to switch Main or Sub audiosource. Main is for the main TVpicture audio, and Sub is for thePIP picture audio. 4Press Menu to exit.Changing the Location of the PIP imagePress the Locate button repeatedly to move the PIP image from corner to corner on the screen.Special FeaturesBP68-00120A-4 3/27/03 8:28 AM Page 70
73723The “TV guidelines” screen will appear.Move the joystick up or down to highlightone of the six age-based categories:TV-Y Young children TV-Y7 Children 7 and over TV-G General audience TV-PG Parental guidance TV-14 Viewers 14 and over TV-MA Mature audience Note: These categories consist of two separate groups: TV-Y and TV-Y7 (young childrenthrough age 7), and TV-G through TV-MA (everybody else). The restrictions for these twogroups work independently: If a household includes very young children as well as youngadults, the TV guidelines must be set up separately for each age group. (See next step.) 4At this point, one of the TV-Ratings is selected. Move the joystick right: Depending on yourexisting setup, a letter “U” or “B” will be select-ed. (U: Unblocked, B: Blocked). Move the joystick down or up to block orunblock the category. Move the joystick to theright. To select a different TV-Rating, move thejoystick down or up and then repeat the process. Note 1: TV-Y7, TV-PG, TV-14 and TV-MA have additional options. See the next step tochange any of the following sub-ratings: FV:Fantasy violence, D:Dialog, L:Language, S:Sexual situation, V:Violence . Note 2: The V-Chip will automatically block certain categories that are “more restrictive.”For example, if you block “TV-Y” category, then TV-Y7 will automatically be blocked.Similarly, if you block the TV-G category, then all the categories in the “young adult” groupwill be blocked (TV-G, TV-PG, TV-14 and TV-MA). The sub-ratings (D, L, S, V) work togethersimilarly. (See next section.)Continued...How to Enable/Disable the V-Chip1 Press the Menu button. Movethe joystick down to selectSETUP, then press thejoystick to enter. Move the joystick down toselect V-chip, then press thejoystick to enter. The “EnterPIN” screen will appear. Enteryour 4-digit PIN number. 2 The “V-Chip” screen willappear, and “V-Chip Lock”will be selected.To enable the V-Chip feature,move the joystick right so thatthe “V-Chip Lock” field is On.(Moving the joystick to theright or left will alternate betweenOn and Off.)How to Set up Restrictions Using the “TV guidelines”First, set up a personal identification number (PIN), and enable the V-Chip. (See previous section.)Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rat-ing.1 Press the Menu button. Move the joy-stick down to select SETUP, then pressthe joystick to enter. Move the joystick down to select V-chip,then press the joystick to enter. The “Enter PIN” screen will appear.Enter your 4-digit PIN number. 2 The “V-Chip mode” screen will appear.Move the joystick down to select “TVguidelines”, then press the joystick toenter.Special FeaturesBP68-00120A-4 3/27/03 8:28 AM Page 72

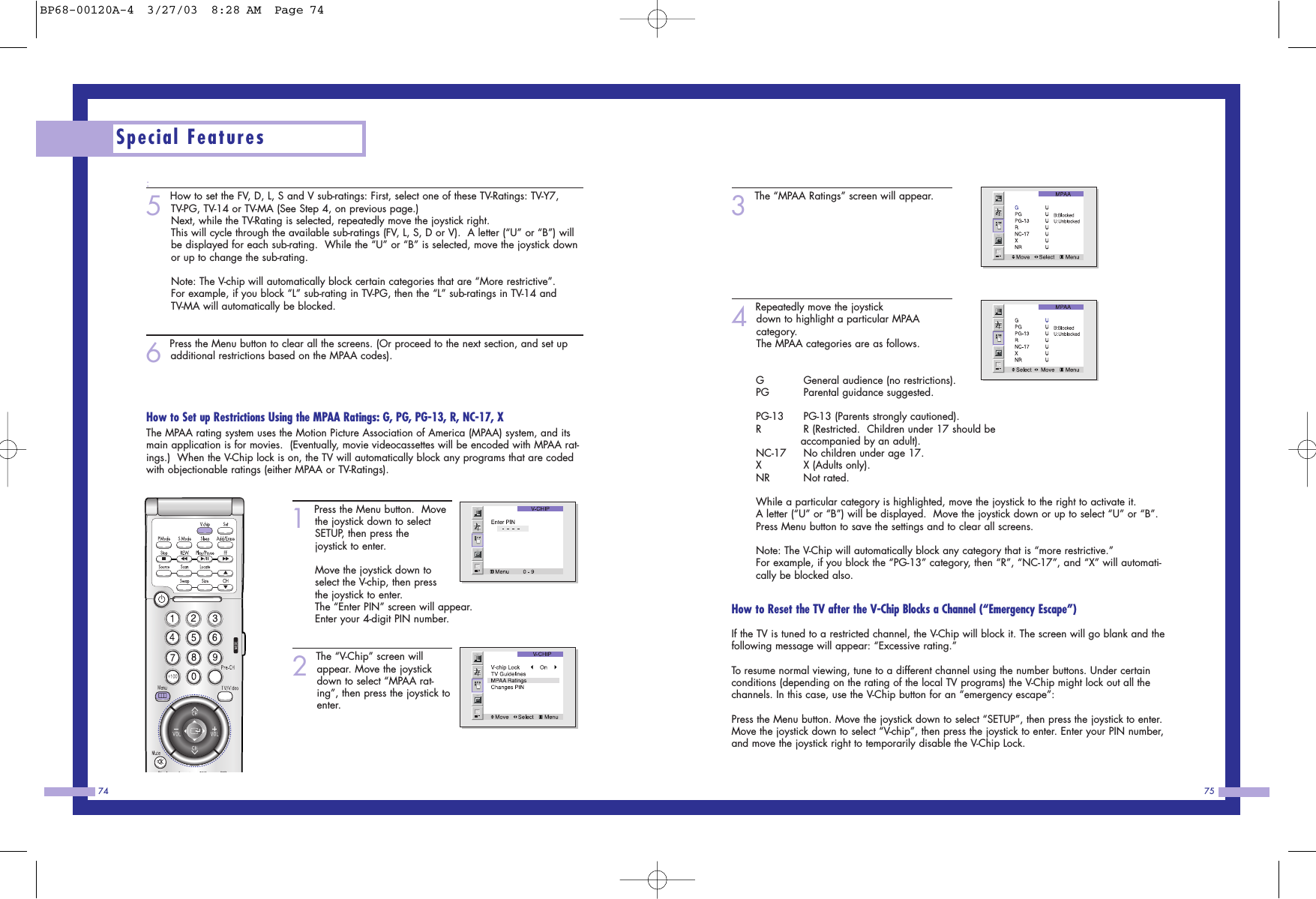

75743The “MPAA Ratings” screen will appear.4Repeatedly move the joystickdown to highlight a particular MPAA category. The MPAA categories are as follows.GGeneral audience (no restrictions). PG Parental guidance suggested.PG-13 PG-13 (Parents strongly cautioned). RR (Restricted. Children under 17 should be accompanied by an adult). NC-17 No children under age 17. XX (Adults only). NR Not rated. While a particular category is highlighted, move the joystick to the right to activate it. A letter (“U” or “B”) will be displayed. Move the joystick down or up to select “U” or “B”.Press Menu button to save the settings and to clear all screens. Note: The V-Chip will automatically block any category that is “more restrictive.”For example, if you block the “PG-13” category, then “R”, “NC-17”, and “X” will automati-cally be blocked also. How to Reset the TV after the V-Chip Blocks a Channel (“Emergency Escape”)If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and thefollowing message will appear: “Excessive rating.”To resume normal viewing, tune to a different channel using the number buttons. Under certainconditions (depending on the rating of the local TV programs) the V-Chip might lock out all thechannels. In this case, use the V-Chip button for an “emergency escape”:Press the Menu button. Move the joystick down to select “SETUP”, then press the joystick to enter.Move the joystick down to select “V-chip”, then press the joystick to enter. Enter your PIN number,and move the joystick right to temporarily disable the V-Chip Lock.:5 How to set the FV, D, L, S and V sub-ratings: First, select one of these TV-Ratings: TV-Y7,TV-PG, TV-14 or TV-MA (See Step 4, on previous page.)Next, while the TV-Rating is selected, repeatedly move the joystick right. This will cycle through the available sub-ratings (FV, L, S, D or V). A letter (“U” or “B”) willbe displayed for each sub-rating. While the “U” or “B” is selected, move the joystick downor up to change the sub-rating. Note: The V-chip will automatically block certain categories that are “More restrictive”.For example, if you block “L” sub-rating in TV-PG, then the “L” sub-ratings in TV-14 andTV-MA will automatically be blocked. 6 Press the Menu button to clear all the screens. (Or proceed to the next section, and set upadditional restrictions based on the MPAA codes).How to Set up Restrictions Using the MPAA Ratings: G, PG, PG-13, R, NC-17, XThe MPAA rating system uses the Motion Picture Association of America (MPAA) system, and itsmain application is for movies. (Eventually, movie videocassettes will be encoded with MPAA rat-ings.) When the V-Chip lock is on, the TV will automatically block any programs that are codedwith objectionable ratings (either MPAA or TV-Ratings). 1 Press the Menu button. Movethe joystick down to selectSETUP, then press thejoystick to enter. Move the joystick down toselect the V-chip, then pressthe joystick to enter. The “Enter PIN” screen will appear.Enter your 4-digit PIN number. 2 The “V-Chip” screen willappear. Move the joystickdown to select “MPAA rat-ing”, then press the joystick toenter.Special FeaturesBP68-00120A-4 3/27/03 8:28 AM Page 74

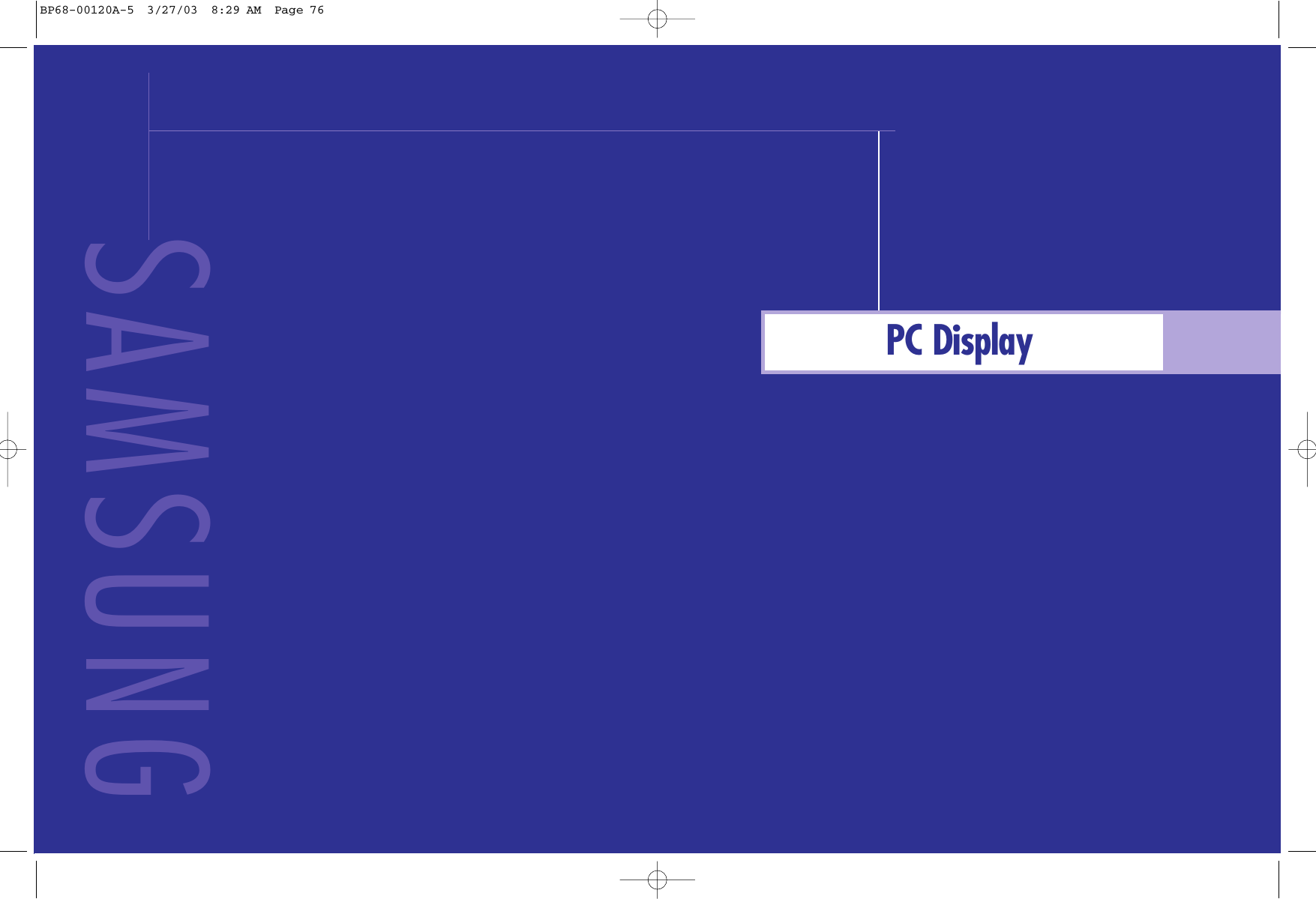

PC DisplaySAMSUNGBP68-00120A-5 3/27/03 8:29 AM Page 76

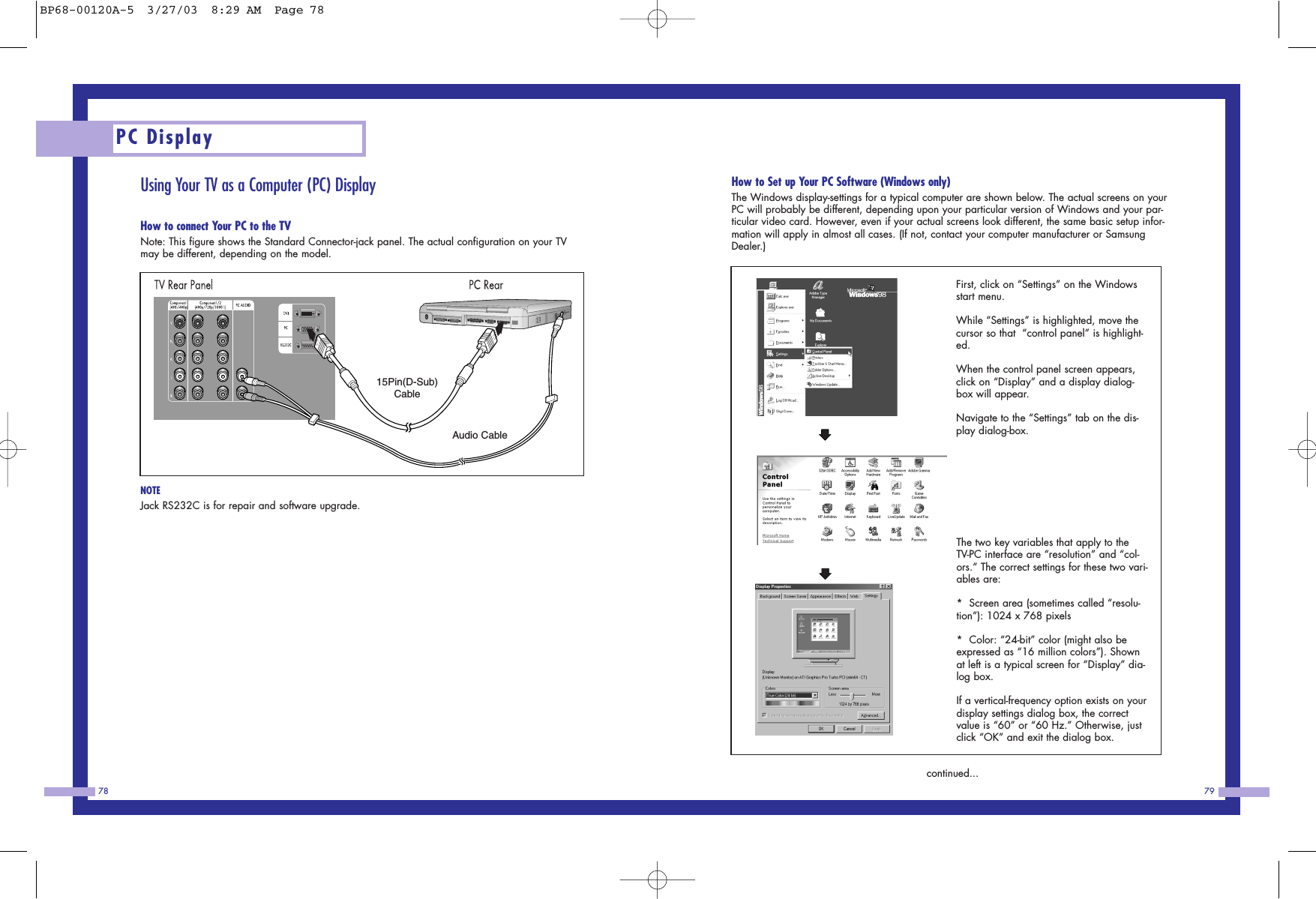

PC Display78 79Using Your TV as a Computer (PC) DisplayHow to connect Your PC to the TVNote: This figure shows the Standard Connector-jack panel. The actual configuration on your TVmay be different, depending on the model.NOTEJack RS232C is for repair and software upgrade.How to Set up Your PC Software (Windows only)The Windows display-settings for a typical computer are shown below. The actual screens on yourPC will probably be different, depending upon your particular version of Windows and your par-ticular video card. However, even if your actual screens look different, the same basic setup infor-mation will apply in almost all cases. (If not, contact your computer manufacturer or SamsungDealer.)continued...15Pin(D-Sub)CableAudio CableFirst, click on “Settings” on the Windowsstart menu.While “Settings” is highlighted, move thecursor so that “control panel” is highlight-ed. When the control panel screen appears,click on “Display” and a display dialog-box will appear. Navigate to the “Settings” tab on the dis-play dialog-box. The two key variables that apply to theTV-PC interface are “resolution” and “col-ors.” The correct settings for these two vari-ables are:* Screen area (sometimes called “resolu-tion”): 1024 x 768 pixels* Color: “24-bit” color (might also beexpressed as “16 million colors”). Shownat left is a typical screen for “Display” dia-log box. If a vertical-frequency option exists on yourdisplay settings dialog box, the correctvalue is “60” or “60 Hz.” Otherwise, justclick “OK” and exit the dialog box.BP68-00120A-5 3/27/03 8:29 AM Page 78

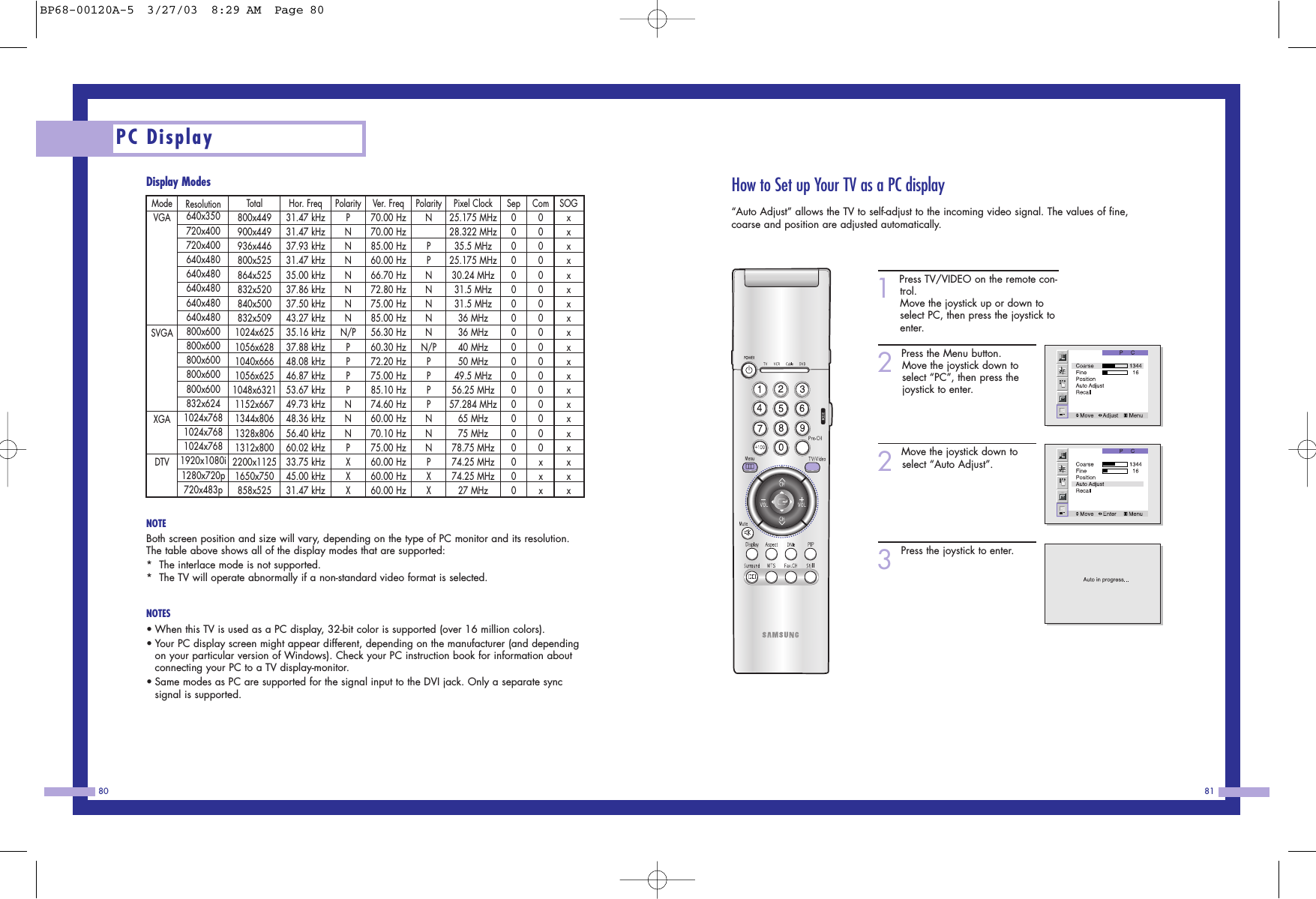

81PC Display80Display ModesNOTEBoth screen position and size will vary, depending on the type of PC monitor and its resolution.The table above shows all of the display modes that are supported:* The interlace mode is not supported.* The TV will operate abnormally if a non-standard video format is selected.NOTES •When this TV is used as a PC display, 32-bit color is supported (over 16 million colors).•Your PC display screen might appear different, depending on the manufacturer (and dependingon your particular version of Windows). Check your PC instruction book for information aboutconnecting your PC to a TV display-monitor.•Same modes as PC are supported for the signal input to the DVI jack. Only a separate sync signal is supported. How to Set up Your TV as a PC display“Auto Adjust” allows the TV to self-adjust to the incoming video signal. The values of fine,coarse and position are adjusted automatically.1Press TV/VIDEO on the remote con-trol. Move the joystick up or down toselect PC, then press the joystick toenter. 2Press the Menu button. Move the joystick down to select “PC”, then press thejoystick to enter.2Move the joystick down toselect “Auto Adjust”. 3Press the joystick to enter.Resolution640x350720x400720x400640x480640x480640x480640x480640x480800x600800x600800x600800x600800x600832x6241024x7681024x7681024x7681920x1080i1280x720p720x483pTotal800x449900x449936x446800x525864x525832x520840x500832x5091024x6251056x6281040x6661056x6251048x63211152x6671344x8061328x8061312x8002200x11251650x750858x525Hor. Freq31.47 kHz31.47 kHz37.93 kHz31.47 kHz35.00 kHz37.86 kHz37.50 kHz43.27 kHz35.16 kHz37.88 kHz48.08 kHz46.87 kHz53.67 kHz49.73 kHz48.36 kHz56.40 kHz60.02 kHz33.75 kHz45.00 kHz31.47 kHzPolarityPNNNNNNNN/PPPPPNNNPXXXVer. Freq70.00 Hz70.00 Hz85.00 Hz60.00 Hz66.70 Hz72.80 Hz75.00 Hz85.00 Hz56.30 Hz60.30 Hz72.20 Hz75.00 Hz85.10 Hz74.60 Hz60.00 Hz70.10 Hz75.00 Hz60.00 Hz60.00 Hz60.00 HzPixel Clock25.175 MHz28.322 MHz35.5 MHz25.175 MHz30.24 MHz31.5 MHz31.5 MHz36 MHz36 MHz40 MHz50 MHz49.5 MHz56.25 MHz57.284 MHz65 MHz75 MHz78.75 MHz74.25 MHz74.25 MHz27 MHzSep00000000000000000000Com00000000000000000xxxSOGxxxxxxxxxxxxxxxxxxxxPolarityNPPNNNNNN/PPPPPNNNPXXModeVGASVGAXGADTVBP68-00120A-5 3/27/03 8:29 AM Page 80

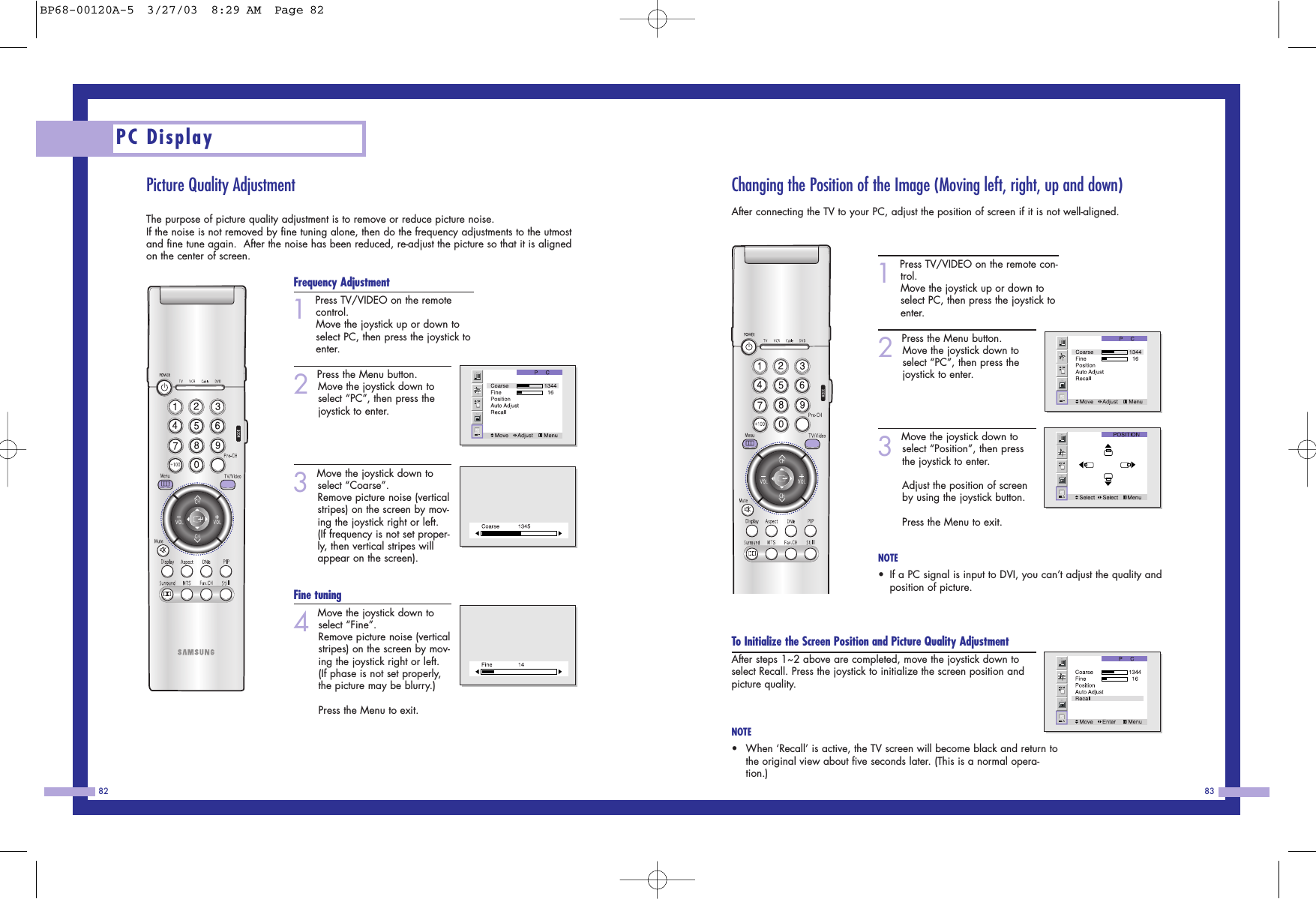

Changing the Position of the Image (Moving left, right, up and down)After connecting the TV to your PC, adjust the position of screen if it is not well-aligned.1Press TV/VIDEO on the remote con-trol. Move the joystick up or down toselect PC, then press the joystick toenter. 2Press the Menu button. Move the joystick down to select “PC”, then press thejoystick to enter.3Move the joystick down toselect “Position”, then pressthe joystick to enter.Adjust the position of screenby using the joystick button.Press the Menu to exit. NOTE•If a PC signal is input to DVI, you can’t adjust the quality andposition of picture. To Initialize the Screen Position and Picture Quality AdjustmentAfter steps 1~2 above are completed, move the joystick down toselect Recall. Press the joystick to initialize the screen position andpicture quality. NOTE•When ‘Recall’ is active, the TV screen will become black and return tothe original view about five seconds later. (This is a normal opera-tion.)83Picture Quality AdjustmentThe purpose of picture quality adjustment is to remove or reduce picture noise.If the noise is not removed by fine tuning alone, then do the frequency adjustments to the utmostand fine tune again. After the noise has been reduced, re-adjust the picture so that it is alignedon the center of screen.Frequency Adjustment1Press TV/VIDEO on the remotecontrol. Move the joystick up or down toselect PC, then press the joystick toenter. 2Press the Menu button. Move the joystick down to select “PC”, then press thejoystick to enter.3Move the joystick down toselect “Coarse”. Remove picture noise (verticalstripes) on the screen by mov-ing the joystick right or left. (If frequency is not set proper-ly, then vertical stripes willappear on the screen). Fine tuning4Move the joystick down toselect “Fine”. Remove picture noise (verticalstripes) on the screen by mov-ing the joystick right or left. (If phase is not set properly,the picture may be blurry.) Press the Menu to exit. PC Display82BP68-00120A-5 3/27/03 8:29 AM Page 82

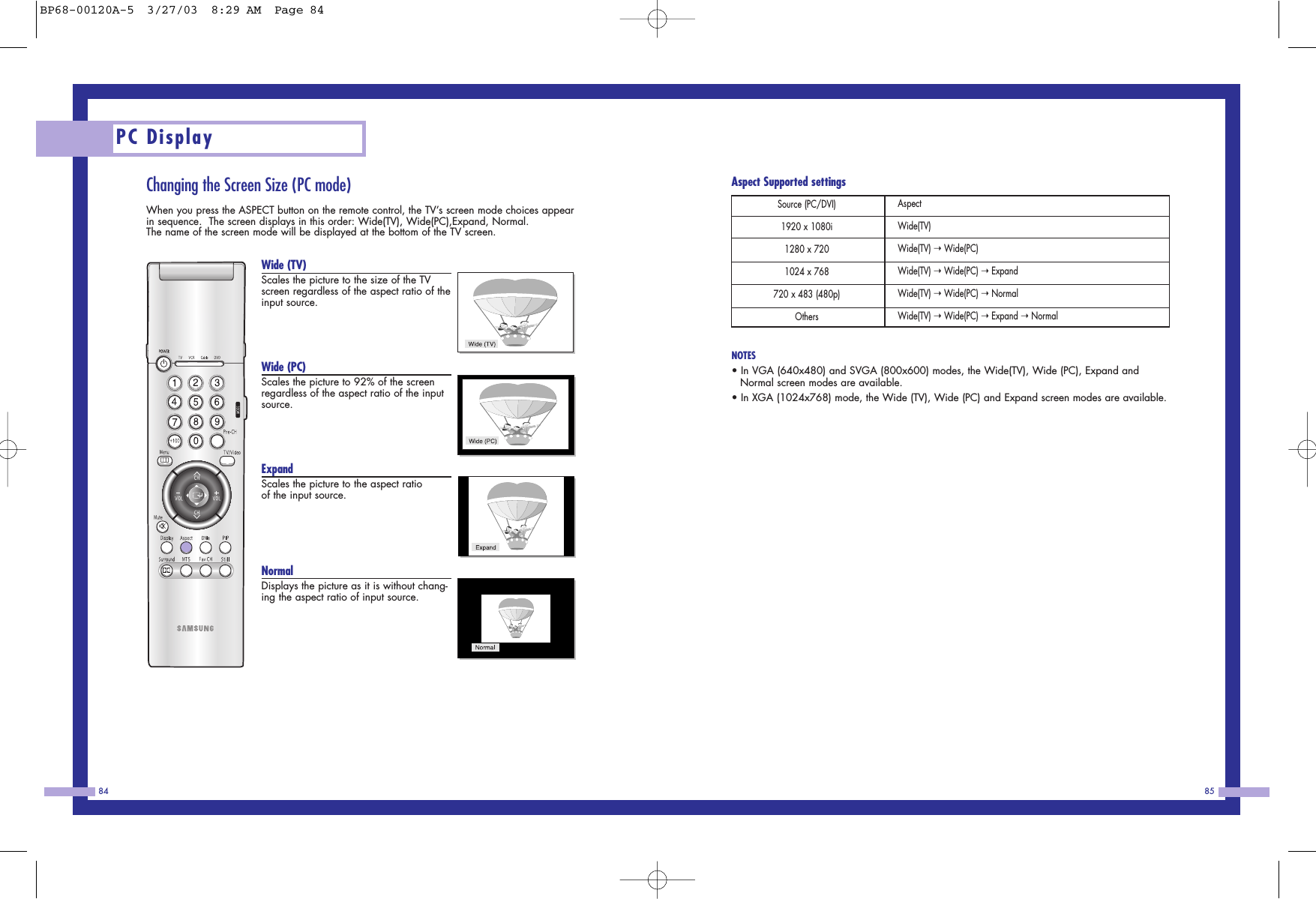

85PC Display84Changing the Screen Size (PC mode)When you press the ASPECT button on the remote control, the TV’s screen mode choices appearin sequence. The screen displays in this order: Wide(TV), Wide(PC),Expand, Normal. The name of the screen mode will be displayed at the bottom of the TV screen.Wide (TV)Scales the picture to the size of the TVscreen regardless of the aspect ratio of theinput source.Wide (PC)Scales the picture to 92% of the screenregardless of the aspect ratio of the inputsource.ExpandScales the picture to the aspect ratioof the input source.NormalDisplays the picture as it is without chang-ing the aspect ratio of input source.Aspect Supported settingsNOTES • In VGA (640x480) and SVGA (800x600) modes, the Wide(TV), Wide (PC), Expand andNormal screen modes are available.• In XGA (1024x768) mode, the Wide (TV), Wide (PC) and Expand screen modes are available.AspectWide(TV)Wide(TV) ➝Wide(PC)Wide(TV) ➝Wide(PC) ➝ExpandWide(TV) ➝Wide(PC) ➝NormalWide(TV) ➝Wide(PC) ➝Expand ➝NormalSource (PC/DVI)1920 x 1080i1280 x 7201024 x 768720 x 483 (480p)OthersBP68-00120A-5 3/27/03 8:29 AM Page 84
AppendixSAMSUNGBP68-00120A-6 3/27/03 8:49 AM Page 86

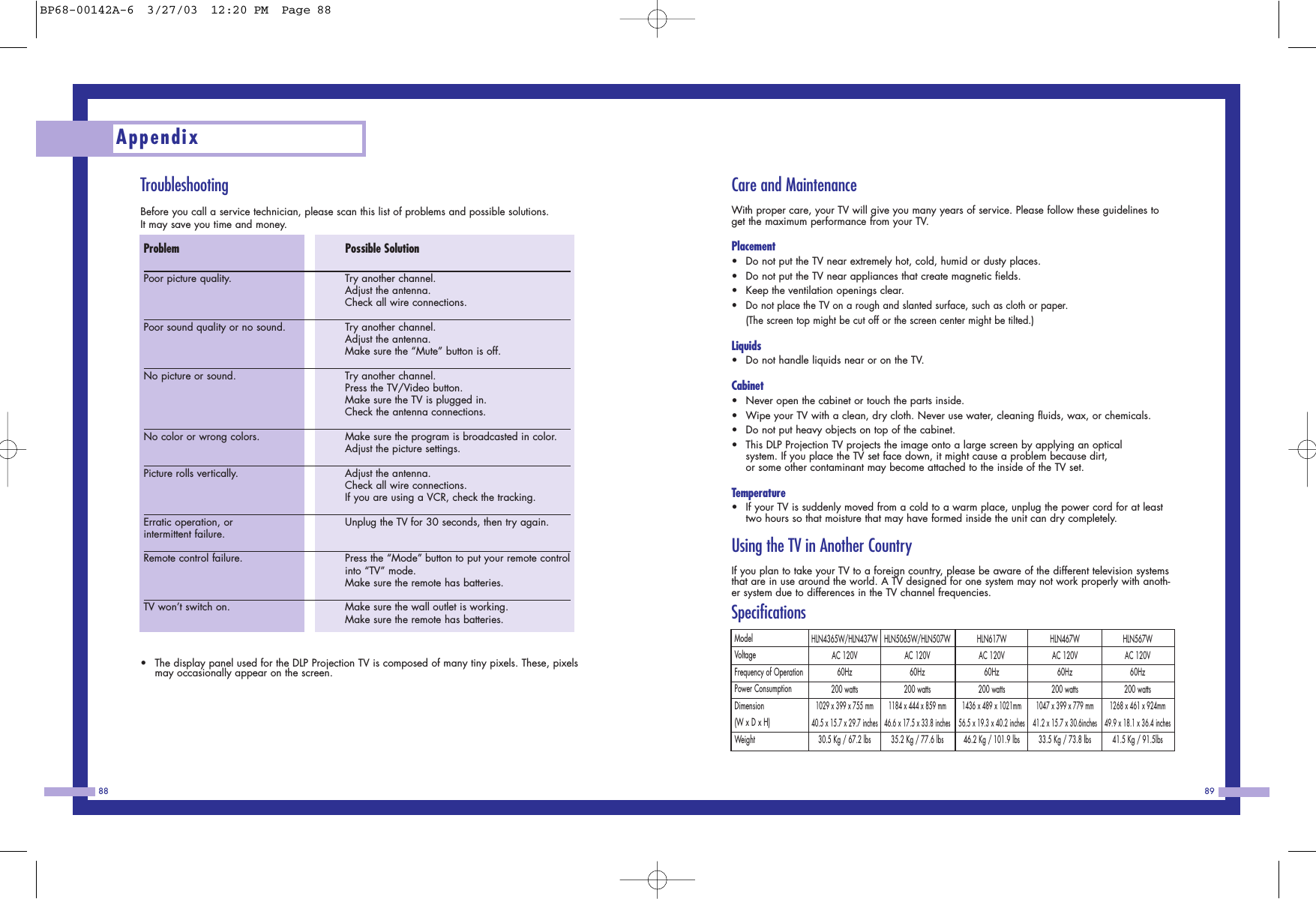

Appendix88 89Troubleshooting Before you call a service technician, please scan this list of problems and possible solutions. It may save you time and money. •The display panel used for the DLP Projection TV is composed of many tiny pixels. These, pixelsmay occasionally appear on the screen.Care and MaintenanceWith proper care, your TV will give you many years of service. Please follow these guidelines toget the maximum performance from your TV.Placement•Do not put the TV near extremely hot, cold, humid or dusty places.•Do not put the TV near appliances that create magnetic fields.•Keep the ventilation openings clear.•Do not place the TV on a rough and slanted surface, such as cloth or paper.(The screen top might be cut off or the screen center might be tilted.)Liquids•Do not handle liquids near or on the TV. Cabinet•Never open the cabinet or touch the parts inside.•Wipe your TV with a clean, dry cloth. Never use water, cleaning fluids, wax, or chemicals.•Do not put heavy objects on top of the cabinet.•This DLP Projection TV projects the image onto a large screen by applying an optical system. If you place the TV set face down, it might cause a problem because dirt, or some other contaminant may become attached to the inside of the TV set. Temperature•If your TV is suddenly moved from a cold to a warm place, unplug the power cord for at leasttwo hours so that moisture that may have formed inside the unit can dry completely.Using the TV in Another CountryIf you plan to take your TV to a foreign country, please be aware of the different television systemsthat are in use around the world. A TV designed for one system may not work properly with anoth-er system due to differences in the TV channel frequencies.SpecificationsProblem Possible SolutionPoor picture quality. Try another channel.Adjust the antenna.Check all wire connections.Poor sound quality or no sound. Try another channel.Adjust the antenna.Make sure the “Mute” button is off.No picture or sound. Try another channel.Press the TV/Video button.Make sure the TV is plugged in.Check the antenna connections.No color or wrong colors. Make sure the program is broadcasted in color.Adjust the picture settings.Picture rolls vertically. Adjust the antenna.Check all wire connections.If you are using a VCR, check the tracking.Erratic operation, or Unplug the TV for 30 seconds, then try again.intermittent failure.Remote control failure. Press the “Mode” button to put your remote controlinto “TV” mode. Make sure the remote has batteries.TV won’t switch on. Make sure the wall outlet is working.Make sure the remote has batteries.ModelVoltageFrequency of OperationPower ConsumptionDimension(W x D x H)WeightHLN4365W/HLN437WAC 120V 60Hz200 watts1029 x 399 x 755 mm40.5 x 15.7 x 29.7 inches30.5 Kg / 67.2 lbsHLN5065W/HLN507WAC 120V 60Hz200 watts1184 x 444 x 859 mm46.6 x 17.5 x 33.8 inches35.2 Kg / 77.6 lbsHLN617WAC 120V 60Hz200 watts1436 x 489 x 1021mm56.5 x 19.3 x 40.2 inches46.2 Kg / 101.9 lbsHLN467WAC 120V 60Hz200 watts1047 x 399 x 779 mm41.2 x 15.7 x 30.6inches33.5 Kg / 73.8 lbsHLN567WAC 120V 60Hz200 watts1268 x 461 x 924mm49.9 x 18.1 x 36.4 inches41.5 Kg / 91.5lbsBP68-00142A-6 3/27/03 12:20 PM Page 88

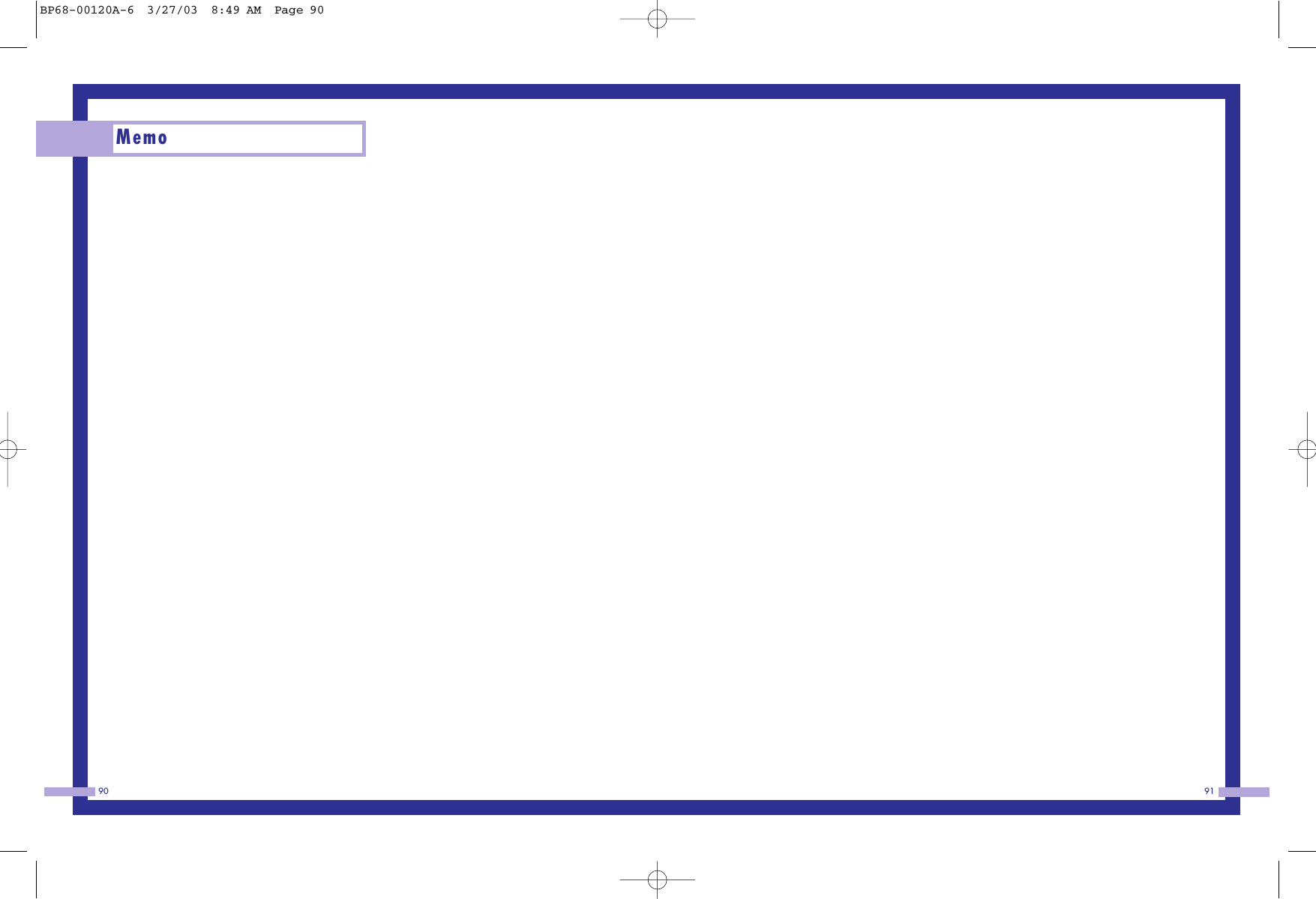

91Memo90BP68-00120A-6 3/27/03 8:49 AM Page 90
