FCC
A3LHM1100
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
The device and its antenna must not be co-located or operating in
conjunction with any other antenna or transmitter. Users are not
permitted to make changes or modify the device
in any way. Changes or modifications not expressly approved by
Samsung will void the user’s authority to operate the equipment.
Industry Canada
IC ID: 649E-HM1100
Operation is subject to the following two conditions: (1) This
device may not cause interference and (2) This device must accept
any interference, including interference that may cause
undesired operation of the device.
English
1
Getting started
Your headset overview ......................................................................... 4
Button functions .................................................................................... 5
Charging the headset ........................................................................... 6
Wearing the headset ............................................................................ 8
Using your headset
Turning the headset on or off................................................................ 9
Pairing and connecting the headset ................................................... 10
Pairing via the Active pairing feature .................................................. 13
Using call functions............................................................................. 14
Appendix
Frequently asked questions................................................................ 18
Warranty and parts replacement ........................................................ 20
Correct disposal of this product .......................................................... 21
Correct disposal of batteries in this product ....................................... 22
Specications ..................................................................................... 23
Contents
English
2
Please read this manual before operating your headset, and keep it for futhure reference.
Images used in this user manual may differ in appearance from the actual product.
Copyright
Copyright © 2010 Samsung Electronics
This user manual is protected under international copyright laws.
No part of this user manual may be reproduced, distributed, translated, or transmitted in
any form or by any means, electronic or mechanical, including photocopying, recording, or
storing in any information storage and retrieval system, without the prior written permission
of Samsung Electronics.
Trademarks
SAMSUNG, and the SAMSUNG logo are registered trademarks of Samsung •
Electronics.
Bluetooth•
®
is a registered trademark of the Bluetooth SIG, Inc. worldwide.
More information about Bluetooth is available at www.bluetooth.com.
All other trademarks and copyrights are the property of their respective owners. •
English
3
Please read all Safety precautions before using your headset to ensure safe and proper use.
Safety precautions
When using your headset while driving, follow local regulations in the region •
you are in.
Never disassemble or modify your headset for any reason. Doing this may •
cause the headset to malfunction or become combustible. Bring the headset to
an authorised service centre to repair it.
Keep your device and all accessories out of the reach of small children or •
animals. Small parts may cause choking or serious injury if swallowed.
Avoid exposing your device to very cold or very hot temperatures (below 0° C or •
above 45° C). Extreme temperatures can cause the deformation of the device
and reduce the charging capacity and life of your device.
Do not allow your device to get wet — liquids can cause serious damage. Do •
not handle your device with wet hands. Water damage to your device can void
your manufacturer’s warranty.
Avoid using your device’s light close to the eyes of children or animals. •
Excessive exposure to sound at high volumes can cause hearing damage. Always
turn the volume down before plugging the earphones into an audio source and use
only the minimum volume setting necessary to hear your conversation or music.
4
Getting started
This section explains what to remember for the proper use of your Bluetooth
headset.

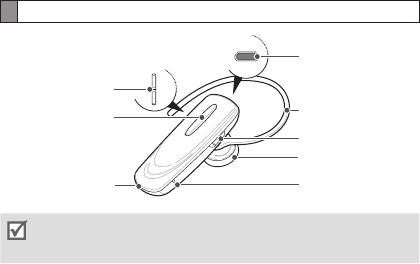

Your headset overview
Make sure you have the following items with your headset: travel adapter, ear •
rubbers, earhook and user manual.
The items supplied with your headset may vary depending on your region.•
Volume button
Talk button Earhook
Power switch
Indicator light
Charger jack
Earpiece
Microphone
English
5
Button functions

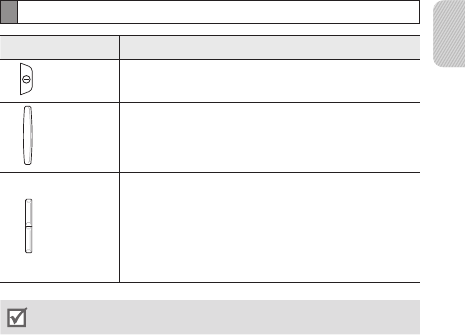

Button Function
Power
switch Slide the switch to turn the headset on or off.
Talk
Press and hold to enter Pairing mode.•
Press to make or answer a call.•
Press to end a call.•
Volume
Press to adjust the volume.•
Press and hold to turn the microphone on or off.•
In Pairing mode, press and hold the Volume up button •
to turn the Multi-point feature on.
In Pairing mode, press and hold the Volume down •
button to turn the Multi-point feature off.
You can hear a beep when the volume level of the headset reaches to the lowest or
highest level.
6
Charging the headset
This headset has a rechargeable internal battery which is non-removable. Ensure
that you fully charge the battery before using the headset for the rst time.

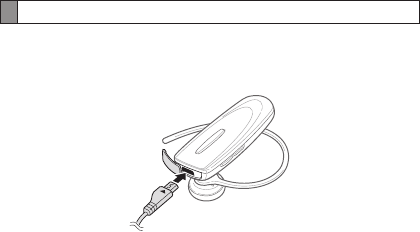

1 Plug the small end of the travel adapter into the charger jack.
2 Plug the large end of the travel adapter into a power outlet.
During charging, the indicator light will turn red. If charging does not begin,
unplug the travel adapter and plug it in again.
3 When the headset is fully charged, the indicator light changes to blue. Unplug
the travel adapter from the power outlet and the headset.
English
7
Use only a Samsung-approved travel adapter. Unauthorised travel adapters may •
cause an explosion or damage to the headset.
The battery will gradually wear out while charging or discharging because it is •
a consumable part.
When a call come in while charging, disconnect your headset from the travel •
adapter and answer the call.
When the battery charge gets low
The headset beeps and the indicator light ashes red. Recharge the battery. If the
headset powers off during a call, the call will be automatically transferred to the
phone.
Checking the battery level
At the same time, press and hold the Volume down and the Talk button. Depending
on the battery level, the indicator light ashes 5 times in one of the following
colours:
Battery level Indicator light colour
Above 80% Blue
80 ~20% Violet
Below 20% Red
8
Wearing the headset

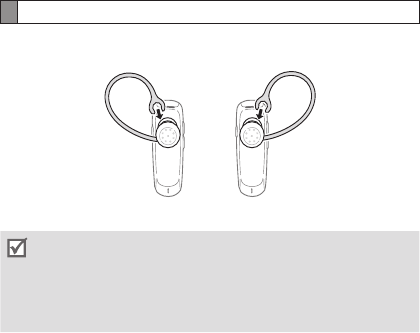

Place the headset on your ear. Depending on what ear you are going to wear the
headset, simply adjust the ear hook accordingly.
Handle the headset properly to improve performance
Do not block the device’s internal antenna. The human body can interfere with a •
Bluetooth signal.
If you usually use your mobile phone with your right hand, wear the headset on •
your right ear.
Avoid coming in contact with the internal antenna of a headset or mobile for a •
better performance.
▲ Left ▲ Right
English
9
Using your headset
This section explains how to turn the headset on, pair and connect to the phone,
and use various functions.
Activated functions and features may differ depending on the phone type.•
Some devices, especially those that are not tested or approved by Bluetooth SIG, •
may be incompatible with your headset.
Turning the headset on or off
To turn the headset on, slide up the power switch. The blue indicator light ashs •
4 times.
To turn the headset off, slide down the power switch. The indicator light turns off •
after the blue indicator light changes to red.
10
Pairing and connecting the headset
Pairing will create a unique and encrypted wireless link between two Bluetooth
enabled devices, such as a Bluetooth phone and a Bluetooth headset.
To use the headset with other Bluetooth devices, the devices must be paired. When
trying to pair the two devices, keep the headset and the phone reasonably close
together. After pairing, you can connect the two devices.
Pairing and connecting the headset with a phone
1 Enter Pairing mode.
Turn on your headset and press and hold the Talk button until the blue •
indicator light stays lit.
If you turn on the headset for the rst time, it proceeds into Pairing mode •
immediately.
2 Activate the Bluetooth feature on your phone and search for the headset (see
your phone’s user manual).
3 Select the headset (HM1100) from the list of devices found by your phone.
4 Enter the Bluetooth PIN (0000, 4 zeros) to pair and connect the headset to your
phone.
English
11
Your headset supports the Simple Pairing feature which allows the headset to be
paired with a phone without requesting a PIN. This feature is available for phones
that are compliant with Bluetooth version 2.1 or higher.
The headset also can be paired via the Active pairing feature, see page 13.
Connecting with two Bluetooth phones
With the Multi-point feature activated, your headset can be connected with two
Bluetooth phones at the same time.
1 After connecting with the rst Bluetooth phone, press and hold the Talk button
until the blue indicator light stays lit.
2 Press and hold the Volume up button to activate the Multi-point feature.
3 Activate the Bluetooth feature on the second Bluetooth phone and search for
the headset (see your phone’s user manual).
4 Select the headset (HM1100) from the list of devices found by the second
Bluetooth phone.
5 Enter the Bluetooth PIN (0000, 4 zeros) to connect the headset to the phone.
6 Reconnect to the headset from the rst Bluetooth phone.
12
When the headset connects to two Bluetooth phones, some phones may not •
connect to the headset as the second Bluetooth phone.
Disconnecting the headset
To disconnect the headset from your phone,
Turn off the headset.•
Use the Bluetooth menu on your phone.•
Reconnecting the headset
You can set the headset automatically to reconnect to the recently connected
phones each time you turn it on.
To reconnect to the two most recently connected phones
Activate the Multi-point feature. Press and hold the Volume up button in Pairing
mode until the blue indicator light ashes twice.
To reconnect to only the most recently connected phone
Deactivate the Multi-point feature. Press and hold the Volume down button in
Pairing mode until the red indicator light ashes twice.
If the headset does not automatically attempt to reconnect,
Press the Talk button.•
Use the Bluetooth menu on your phone.•
English
13
Pairing via the Active pairing feature
With the Active pairing feature, your headset can automatically search for a
Bluetooth phone and try to make a connection with it.
This feature is available for mobile phones, but the phone’s Bluetooth visibility option
must be set to on.
1 Turn on the headset.
2 Press and hold the Talk button to enter Pairing mode.
3 Press and hold the Talk button until the violet indicator light turns on.
The headset will switch to Active Pairing mode, search a Bluetooth phone
within range, and attempt to pair with it.
Ensure the phone you wish to connect to is within range of the headset. Place the •
headset and phone close to each other to avoid pairing with other devices.
The Bluetooth phone you want to connect with must not be paired with other •
devices. If the phone is already connected to another device, end the connection
and restart the Active pairing feature.
This feature may be unavailable depending on the some PDAs.•
14
Using call functions
Available call functions may vary by the phone.
Making a call
Redialling the last number
Press the Talk button to redial the last number of the most recently connected
phone.
Press the Talk button twice to redial the last number of the other phone,
see page 11.
For some phones, pressing the Talk button opens the call log list. Press the Talk
button again to dial the selected number.
Dialling a number by voice
Press and hold the Talk button and say a name. You can dial a number of the rst
phone.
English
15
Answering a call
Press the Talk button to answer a call when you hear incoming call tones.
When two calls from the two connected phones come in, you can answer the call
of the rst phone.
Ending a call
Press the Talk button to end a call
Rejecting a call
Press and hold the Talk button to reject a call when a call comes in.
When two calls from the two connected phones come in, you can reject the call of
the rst phone.
This function is available only on the Hands-Free prole. For more information, see
your phone’s user manual.
16
Using options during a call
You can use the following functions to control your call during a call.
Adjusting the volume
Press the Volume up or down button to adjust the volume.
Muting the microphone
Press and hold the Volume up or down button to turn the microphone off so that
the person with whom you are speaking cannot hear you. When the microphone is
turned off, the headset beeps at regular intervals. Press and hold the Volume up or
down button again to turn the microphone back on.
Transferring a call from the phone to the headset
Press the Talk button to transfer a call from the phone to the headset.
Placing a call on hold
Press and hold the Talkn button to place the current call on hold.
This function is available only on the Hands-Free prole. For more information, see •
your phone’s user manual.
English
17
Answering a second call
Press the Talk button to end the rst call and answer a second call of the same •
phone when you hear call waiting tones.
Press and hold the Talk button to place the rst call on hold and answer a •
second call of the same phone when you hear call waiting tones.
To switch between the current call and the held call, press and hold the Talk •
button.
This function is available only on the Hands-Free prole. For more information, see •
your phone’s user manual.
Answering a new call of the second phone
Press the Talk button to end the rst call and answer a second call of the other •
phone when you hear call waiting tones.
Press and hold the Talk button to place the rst call on hold and answer a •
second call of the other phone when you hear call waiting tones.
To switch between the current call and the held call, press and hold the Talk •
button.
This function is available only on the Hands-Free prole. For more information, see
your phone’s user manual.
18
Appendix
Frequently asked questions
Will my headset work
with laptops, PCs, and
PDAs?
Your headset will work with devices that support
your headset's Bluetooth version and proles.
For specications, see page 23.
Why do I hear static or
interference while on
a call?
Appliances such as cordless phones and wireless
networking equipment may cause interference, which
usually sounds like static. To reduce any interference,
keep the headset away from other devices that use or
produce radio waves.
Will my headset
interfere with my car's
electronics, radio, or
computer?
Your headset produces signicantly less power than
a typical mobile phone. It also only emits signals that
are in compliance with the international Bluetooth
standard. Therefore, you should not expect any
interference with standard consumer-grade electronics
equipment.
English
19
Can other Bluetooth
phone users hear my
conversation?
When you pair your headset to your Bluetooth phone,
you are creating a private link between only these two
Bluetooth devices. The wireless Bluetooth technology
used in your headset is not easily monitored by
third parties because Bluetooth wireless signals are
signicantly lower in radio frequency power than those
produced by a typical mobile phone.
Why do I hear an echo
while on a call?
Adjust the headset volume, or move to another area
and try again.
How do I clean my
headset?
Wipe it with a soft dry cloth.
The headset does not
fully charge.
The headset and the travel adapter may not have
been connected properly.
Separate the headset from the travel adapter,
reconnect, and charge the headset.
20
Warranty and parts replacement
Samsung warrants this product as free of defects in material, design and
workmanship for the period of one year from the original date of purchase.*
If during the period of warranty this product proves defective under normal use and
service you should return the product to the retailer from whom it was originally
purchased or qualied service center. The liability of Samsung and its appointed
maintenance company is limited to the cost of repair and/or replacement of the unit
under warranty.
The warranty is limited to the original purchaser.•
A copy of your receipt or other proof of purchase is required for a proper •
warranty service.
The warranty is void if the serial number, date code label or product label •
is removed, or if the product has been subject to physical abuse, improper
installation, modication, or repair by unauthorized third parties.
Specically exempt from any warranty are limited-life consumable components •
such as batteries and other accessories.
Samsung will not assume any responsibility for any loss or damage incurred •
in shipping. All repair work on Samsung products by unauthorized third parties
voids any warranty.
* Depending on your region, the length of warranty may vary.
English
21
Correct disposal of this product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with
separate collection systems)
This marking on the product, accessories or literature indicates that the
product and its electronic accessories (e.g. charger, headset, USB cable) should
not be disposed of with other household waste at the end of their working life. To
prevent possible harm to the environment or human health from uncontrolled waste
disposal, please separate these items from other types of waste and recycle them
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product, or their local government ofce, for details of where and how they can take
these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions
of the purchase contract. This product and its electronic accessories should not be
mixed with other commercial wastes for disposal.
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with
separate battery return systems)
This marking on the battery, manual or packaging indicates that the
batteries in this product should not be disposed of with other household
waste at the end of their working life. Where marked, the chemical symbols Hg,
Cd or Pb indicate that the battery contains mercury, cadmium or lead above the
reference levels in EC Directive 2006/66. If batteries are not properly disposed of,
these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate
batteries from other types of waste and recycle them through your local, free
battery return system.
The rechargeable battery incorporated in this product is not user replaceable. For
information on its replacement, please contact your service provider.
English
23
Specications
Item Specications and description
Bluetooth version 2.1+EDR
Support prole Headset Prole, Hands-Free Prole
Operating range Up to 33 feet (10 metres)
Standby time Up to 300 hours*
Talk time Up to 7 hours*
Charging time Approximately 2 hours*
* Depending on the phone type and usage, the actual time may vary.
r
24
Declaration of Conformity (R&TTE)
We, Samsung Electronics
declare under our sole responsibility that the product
Bluetooth Headset : HM1100
to which this declaration relates, is in conformity with the following standards and/or other normative documents.
SAFETY EN 60950- 1 : 2006
EMC EN 301 489- 01 V1.8.1 (04-2008)
EN 301 489- 17 V2.1.1 (2009)
RADIO EN 300 328 V1.7.1 (10-2006)
We hereby declare that [all essential radio test suites have been carried out and that] the above named product
is in conformity to all the essential requirements of Directive 1999/5/EC.
which will be made available upon request.
(Representative in the EU)
Samsung Electronics Euro QA Lab.
Blackbushe Business Park, Saxony Way,
Yateley, Hampshire, GU46 6GG, UK*
2010.04.09 Yong-Sang Park / S. Manager
(place and date of issue) (name and signature of authorised person)
* It is not the address of Samsung Service Centre. For the address or the phone number of Samsung Service Centre,
see the warranty card or contact the retailer where you purchased your product.
