Samsung Electronics Co HPN4235 42-inch PDP Monitor User Manual 2

Samsung Electronics Co Ltd 42-inch PDP Monitor Users Manual 2

Contents

Users Manual 2

Turning the PDP On and Off30 31Turning the PDP On and OffPress the Power button on the remote control.The PDP will be turned on and you will be ready to use it’s features.You can also use the POWER( ) button on the front of the PDP.Notes: • If your PDP isn’t turned on when the power button ispressed: Press the MODEbutton to check if the TV modehas been chosen ( ). Viewing the Menus and DisplaysYour PDP has a simple, easy-to-use menu system that appears on the PDP screen. This system makes it con-venient and fast to use features on the PDP. Your PDP also lets you display the status of many of your PDP’sfeatures.Viewing the Menus1 With the power on, press the MENU button on theremote control. The main menu appears on the screen. The Picture menu is selected.2Press the UP/DOWN buttons to move items in the menu.Press the LEFT/RIGHT buttons to display, change, or use the selected items.Press the ENTER ( ) button to enter items in the menu.On screen menus disappear from the screen automatically after about thirty seconds, or you can press the EXIT button on your remote control to exit the menu.PictureModeAdjustColor ToneDNIeMove Enter MenuCustomNormalOnDisplaying Status InformationPress the INFO button on the remote control. The PDP willdisplay the Picture mode, Sound mode, MTS, Signal andCaption.Press the INFO button on the remote control again. The PDP will display the Clock.Picture : CustomSound : CustomMTS : MonoSignal : MonoCaption : OffAnt 607 : 30 am
Memorizing the ChannelsYour PDP can memorize and store all of the available channels for both “off-air” (antenna)and cable channels. After the available channels are memorized, use the CH and CH buttons to scan through the channels. This eliminates the need to change channels by enteringthe channel digits. There are three steps for memorizing channels: selecting a broadcastsource, memorizing the channels (automatic) and adding and deleting channels (manual).32 33Selecting the Video Signal-sourceBefore your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the PDP (i.e., an antenna or a cable system).1 Press the MENU button. Press the UP or DOWNbutton to select “Channel”, then press the ENTER button. 2 Press the LEFT or RIGHT button to select “Ant”,“STD”, “HRC” or “IRC”.•If you are connected to an antenna, leave "Ant" displayed. If you connected cable, press the LEFT or RIGHT button to the display the type of cable system: "STD", "HRC", or "IRC". (If you are not sure which type of cable system youhave, contact your cable company).3 Press the MENU button to exit.Note• STD, HRC and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area.At this point the signal source has been selected. Proceed to “Storing Channels in Memory” (next page).ChannelAnt/ CATVAuto ProgramFine TuneLNACh. ScanMove Select MenuAnt Off 0ChannelAnt/ CATVAuto ProgramFine TuneLNACh. ScanMove Select MenuSTD Off 0Storing Channels in Memory (Automatic Method)1 First, select the correct signal source (Ant, STD, HRC,IRC). See steps on previous page. Press the MENU button. Press the UP or DOWN button to select “Channel”, then press the ENTER button. 2 Press the UP or DOWN button to select “Auto Pro-gram”, then press the ENTER button.3The PDP will begin memorizing all of the available channels. After all the available channels are stored, the Auto program menu reappears. Press the RIGHTbutton to stop.Note• The PDP automatically cycles through all of the available channels and stores them in memory. This takes about one to two minutes. ChannelAnt/ CATVAuto ProgramFine TuneLNACh. ScanMove Select MenuAnt Off 0ChannelAnt / CATVAuto ProgramFine TuneLNACh. ScanMove Enter MenuAnt Off 0Ant 50Auto Program : Stop➤➤Quick way to access the Automatic Channel Setting : Just press the“AUTO PROG.” button on the remote control.

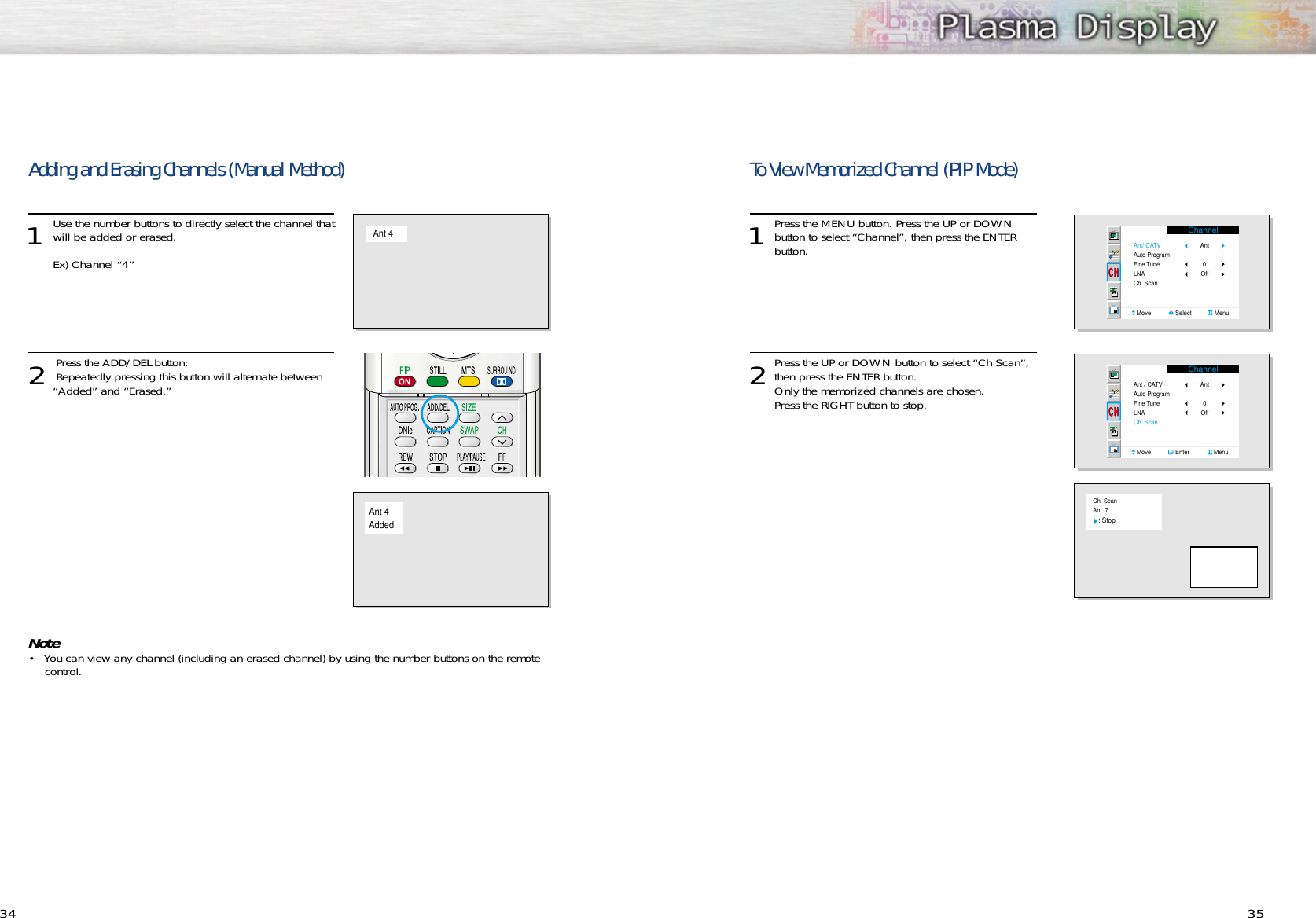

To View Memorized Channel (PIP Mode)1Press the MENU button. Press the UP or DOWNbutton to select “Channel”, then press the ENTER button.2Press the UP or DOWN button to select “Ch Scan”,then press the ENTER button.Only the memorized channels are chosen. Press the RIGHT button to stop.34 35Adding and Erasing Channels (Manual Method)1 Use the number buttons to directly select the channel thatwill be added or erased.Ex) Channel “4”2 Press the ADD/DEL button: Repeatedly pressing this button will alternate between “Added” and “Erased.” Note• You can view any channel (including an erased channel) by using the number buttons on the remotecontrol.Ant 4Ant 4AddedChannelAnt/ CATVAuto ProgramFine TuneLNACh. ScanMove Select MenuAnt Off 0ChannelAnt / CATVAuto ProgramFine TuneLNACh. ScanMove Enter MenuAnt Off 0Ch. ScanAnt 7 : Stop
36 37Setting Up Your Remote ControlThis PDP's remote control can operate almost any VCR, cable box or DVD. After it has been set upproperly, your remote control can operate in four different modes :TV, VCR, Cable or DVD. Pressing the corresponding button on the remote control allows you to switch between these modes,and control whichever piece of equipment you choose.Note :●The remote control may not be compatible with all DVD Players, VCRs, Cable boxes. ●The remote control can operate only on STB made by Samsung.Setting Up the Remote to Operate Your VCR, Cable box or DVD player 1 Turn off your VCR. (or Cable box, DVD player)2Press the MODE button. Mode is changed wheneverMODE button is pressed(New mode is displayed on LED screen).3 Press the SET button on your TV's remote control.4Using the number buttons on your remote control,enter three digits of the VCR (or Cable box, DVD player) code listed on page 38 of this manual for your brand of VCR (or CATV, DVD). Make sure you enter three digits of the code, even if the first digit is a "0".(If more than one code is listed, try the first one.)5Press the Power button on the remote control. Your VCR (or CATV, DVD) should turn on if your remote is set up correctly. If your VCR (or CATV, DVD) does not turn on after setup, repeat steps 2, 3, and 4, but try one of the other codes listed for your brand of VCR (or CATV, DVD). If no other codes are listed, try each code, 000 through 089 (or Cable box: 000 through 077, DVD player: 000 through 008).Notes• When your remote control is in “VCR” mode, the VCR control buttons (Stop, REW, Play/Pause, FF)still operate your VCR.• When your remote control is in “CATV” or “DVD” mode, the VCR control buttons (Stop, REW,Play/Pause, FF) still operate your VCR.Changing ChannelsUsing the Channel ButtonsPress the CH or CH buttons to change channels.When you press the CH or CH buttons, the PDP changes channelsin sequence. You will see all the channels that the PDP has memorized.(The PDP must have memorized at least three channels.) You will not see channels that were either erased or not memorized.Directly Accessing ChannelsPress the number buttons to go directly to a channel. For example, to selectchannel 27, press “2” then “7”. The TV will change channels when youpress the second number.When you use the number buttons, you can directly select channels that wereeither erased or not memorized. To change to single-digit channels (0~9) faster,press “0” before the single digit. (For channel “4” press “0”, then “4”. Using the Pre-CH button to select the previous channelPress the PRE-CH button. The TV will switch to the last channel viewed.To quickly switch between two channels that are far apart, tune to onechannel, then use the number button to select the second channel. Then,use the PRE-CH button to quickly alternate between them.Adjusting the VolumeUsing the Volume ButtonsPress the VOL + or VOL – buttons to increase or decrease the volume. Using MuteUsing the MUTE ButtonsAt any time, you can temporarily cut off the sound using the MUTE button.1 Press the MUTE button and the sound cuts off. The word “Mute” will appear in the lower-left corner of the screen.2 To turn mute off, press the MUTE button again, orsimply press the VOL + or VOL – button.Mute
38PLASMA DISPLAY PANELPicture ControlCustomizing the Picture ................................................................40Using Automatic Picture Settings ....................................................41Selecting the Color Tone................................................................42DNIe (Digital Natural Image engine) ............................................43Viewing the Picture-in-Picture..........................................................44Changing the Screen Size ............................................................50Freezing the Picture ......................................................................51Remote Control CodesVCR CodesCable Box CodesDVD Codes
Customizing the PictureYou can use the on-screen menus to change the Contrast, Brightness, Sharpness, Color, and Tint settings of your PDP. 411 Press the MENU button, then press the ENTER button.2 Press the LEFT or RIGHT button to select “Custom”,“Dynamic”, “Standard” or “Movie” picture setting.• You can select “High”, “Middle”, “Low” or “Custom” in PC/DVI mode.3 Press the MENU button to exit.Using Automatic Picture SettingsYour PDP has automatic picture settings that allow you to adjust the video display easily.PictureModeAdjustColor ToneDNIeMove Select MenuCustomCustomOnPictureModeAdjustColor ToneDNIeMove Select MenuDynamic CustomOn401 Press the MENU button, then press the ENTER button. 2Press the UP or DOWN button to select “Adjust”,then press the ENTER button.You will also see the items “Contrast”, “Brightness”, “Sharpness”, “Color” and “Tint”. 3 Press the UP or DOWN button to select the item youwish to change.4 Press the LEFT or RIGHT button to change the valueof the item.5 Press the MENU button to exit.Note• In the PC/DVI mode, you can’t adjust the Color and Tint.PictureModeAdjustColor ToneDNIeMove Select MenuCustomCustomOnPictureModeAdjustColor ToneDNIeMove Enter MenuCustomNormalOnAdjustContrastBrightnessSharpnessColorTint R 50 G 50Move Adjust Menu8050505082Contrast➤➤Quick way to access the picture setting: Just press the “P.MODE” button under the cover of the remote control.
42Selecting the Color Tone1 Press the MENU button, then press the ENTER button.2 Press the UP or DOWN button to select “ColorTone”, then press the LEFT or RIGHT button to select “Normal”, “Warm1”, “Warm2”, “Cool2” or “Cool1”.• You can select “Custom”, “Color1”, “Color2” or “Color3” in PC mode.• You can select “Color1”, “Color2” or “Color3” in DVI mode.3 Press the MENU button to exit..PictureModeAdjustColor ToneDNIeMove Select MenuCustomCustomOnPictureModeAdjustColor ToneDNIeMove Select MenuCustomNormalOnDNIe (Digital Natural Image engine)Samsung’ s New Technology brings you more detailed images with contrast andwhite enhancement and 3D noise reduction.1 Press the MENU button, then press the ENTER button.2 Press the UP or DOWN button to select “DNIe”,then press the LEFT or RIGHT button to select “On”, “Off” or “Demo”.•On : Switches on the DNIe mode. •Demo : The screen before applying DNIe appears on the right and the screen after applying DNIe appears on the left.•Off : Switches off the DNIe mode.3 Press the MENU button to exit.PictureModeAdjustColor ToneDNIeMove Select MenuCustomCustomOnPictureModeAdjustColor ToneDNIeMove Select MenuCustomNormalOn43➤➤Quick way to select DNIe : Simply press the “DNIe” button underthe cover of the remote control.DNIe DemoDNIe On DNIe Off
4544Selecting an External SignalYou can use PIP to view a signal from an external source, such as a VCR. 1 Press the MENU button. Press the UP or DOWNbutton to select “PIP”, then press the ENTER button. 2 Press the UP or DOWN button to select “Source”.3 Press the LEFT or RIGHT button to cycle through all of the available signal sources:“TV”, “Video”, “S-Video”, “Component 1”, “Component 2”, “PC” and “DVI”.The signal from these inputs will not appear if you have not connected any equipment to the PDP's respective input jacks.4 Press the MENU button to exit.Note• The PIP function operates in Wide screen.• Using Multi-Screen in the Normal, Zoom1 or Zoom2 screen will change the size of the main screen to Wide screen. PIPSelectSourceSwapSizeLocateAnt/CATVChannelMove Select Menu On TVLargeAntAnt 5PIPSelectSourceSwapSizeLocateAnt/CATVChannelMove Select Menu On TVLargeAntAnt 5PIPSelectSourceSwapSizeLocateMove Select MenuOnVideoLargeViewing the Picture-in-PictureSelecting the PIP Screen1 Press the MENU button. Press the UP or DOWNbutton to select “PIP”, then press the ENTER button. 2Press the LEFT or RIGHT button to select “On”. The PIP image will appear in the corner of the screen.•Pressing the LEFT or RIGHT button will alternate between “On” and “Off.” 3 Press the MENU button to exit.PIP Settings PIPSelect Select MenuOffPIPSelectSourceSwapSizeLocateAnt/CATVChannelMove Select Menu On TVLargeAntAnt 5PIP screenMain screen TV Video S-Video Component 1 Component 2 PC DVITVOOOOOOOOXOOOOOOOXOOOOOOOXXXXOOOXXXXOOOXXXXOOOXXXXVideoS-VideoComponent 1Component 2PCDVIO:PIP and Swap Operate X:PIP doesn’t Operate ➤➤Quick way to access the PIP mode: Just press the “PIP” button onthe remote control.
4746Changing the Size of the PIP Window1 Press the MENU button. Press the UP or DOWNbutton to select “PIP”, then press the ENTER button. 2 Press the UP or DOWN button to select “Size”.3Press the LEFT or RIGHT button to select “Small”,“Double” or “Large”.4 Press the MENU button to exit.PIPSelectSourceSwapSizeLocateAnt/CATVChannelMove Select Menu On TVLargeAntAnt 5PIPSelectSourceSwapSizeLocateAnt/CATVChannelMove Select Menu On TVLargeAntAnt 5PIPSelectSourceSwapSizeLocateAnt/CATVChannelMove Select Menu On TVSmallAntAnt 5Swapping the Contents of the PIP Image and Main Image1 Press the MENU button. Press the UP or DOWNbutton to select “PIP”, then press the ENTER button. 2 Press the UP or DOWN button to select “Swap”,then press the ENTER button.•The image in the PIP window will appear on the main screen, and vice versa. 3 Press the MENU button to exit.PIPSelectSourceSwapSizeLocateAnt/CATVChannelMove Select Menu On TVLargeAntAnt 5PIPSelectSourceSwapSizeLocateAnt/CATVChannelMove Enter Menu On TVLargeAntAnt 5➤➤Quick way to access swapping: Just press the “SWAP” button underthe cover of the remote control.➤➤Quick way to access the PIP size: Just press the “SIZE” buttonunder the cover of the remote control.
4948Changing the PIP Channel1 Press the MENU button. Press the UP or DOWNbutton to select “PIP”, then press the ENTER button. 2 Press the UP or DOWN button to select “Ant/CATV”.Press the LEFT or RIGHT button to select “Ant”, “STD”, “HRD” or “IRC”.3 Press the UP or DOWN buttonto select “Channel”.Press the LEFT or RIGHT button to change the channel that appears in the PIP window.4 Press the MENU button to exit.PIPSelectSourceSwapSizeLocateAnt/CATVChannelMove Select Menu On TVLargeAntAnt 5PIPSelectSourceSwapSizeLocateAnt/CATVChannelMove Select Menu On TVLargeSTDSTD 5PIPSelectSourceSwapSizeLocateAnt/CATVChannelMove Select Menu On TVLargeSTDSTD 9Changing the Location of the PIP Image1 Press the MENU button. Press the UP or DOWNbutton to select “PIP”, then press the ENTER button. 2 Press the UP or DOWN button to select “Locate”.3 Press the LEFT or RIGHT button to move the PIPscreen where you want. 4 Press the MENU button to exit.PIPSelectSourceSwapSizeLocateAnt/CATVChannelMove Select Menu On TVLargeAntAnt 5PIPSelectSourceSwapSizeLocateAnt/CATVChannelMove Select Menu On TVLargeAntAnt 5PIPSelectSourceSwapSizeLocateAnt/CATVChannelMove Select Menu On TVLarge AntAnt 5➤➤Quick way to change the PIP channel: Just press the “CH▲“or“CH▼” button under the cover of the remote control.

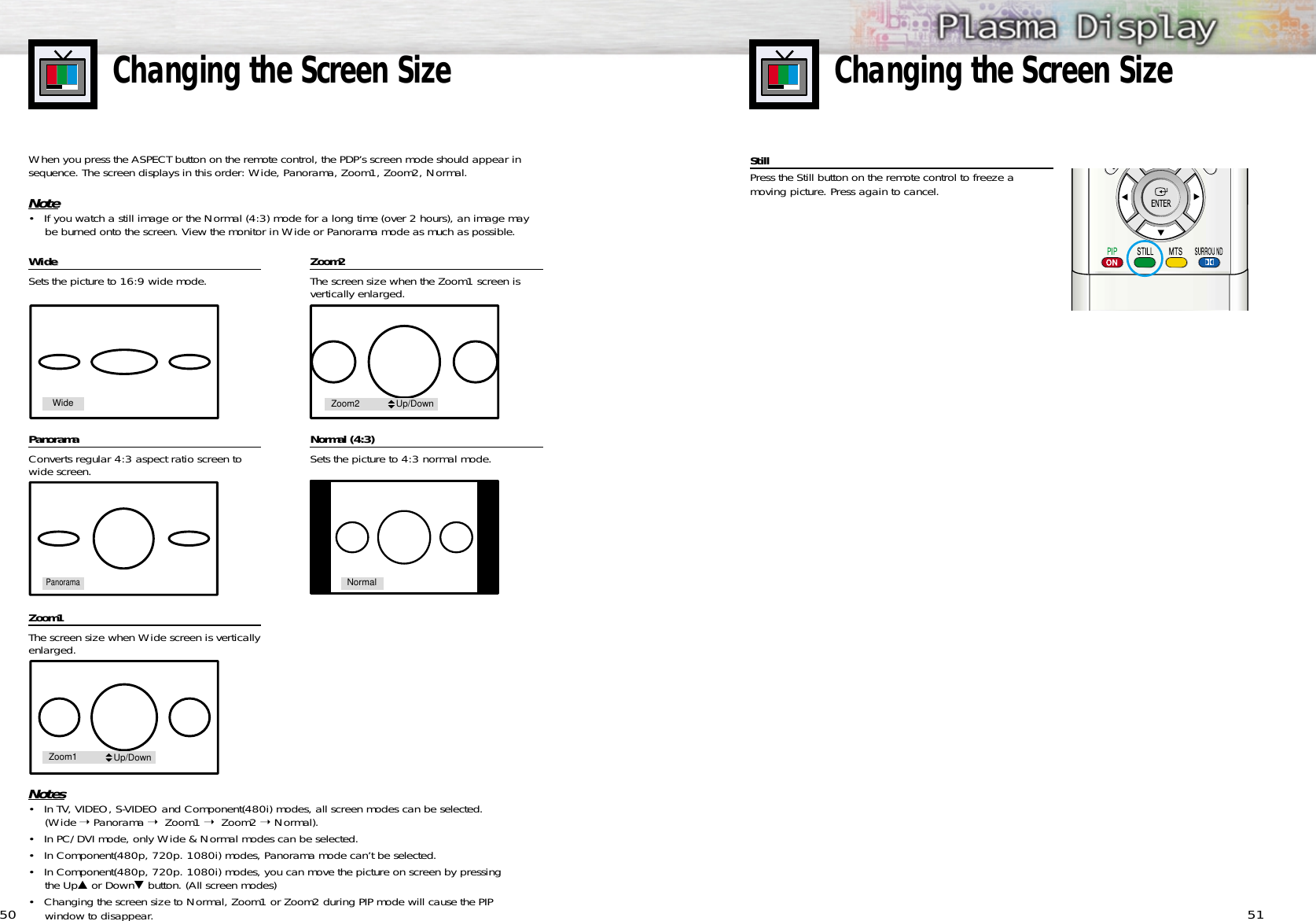

5150Changing the Screen SizeChanging the Screen SizeWWideideSets the picture to 16:9 wide mode.PanoramaConverts regular 4:3 aspect ratio screen towide screen.Zoom1The screen size when Wide screen is verticallyenlarged. Zoom2The screen size when the Zoom1 screen is vertically enlarged. Normal (4:3)Sets the picture to 4:3 normal mode. Notes• In TV, VIDEO, S-VIDEO and Component(480i) modes, all screen modes can be selected.(Wide ➝ Panorama ➝ Zoom1 ➝ Zoom2 ➝ Normal).• In PC/DVI mode, only Wide & Normal modes can be selected.• In Component(480p, 720p. 1080i) modes, Panorama mode can’t be selected.• In Component(480p, 720p. 1080i) modes, you can move the picture on screen by pressing the Up▲or Down▼button. (All screen modes)• Changing the screen size to Normal, Zoom1 or Zoom2 during PIP mode will cause the PIPwindow to disappear. When you press the ASPECT button on the remote control, the PDP’s screen mode should appear insequence. The screen displays in this order: Wide, Panorama, Zoom1, Zoom2, Normal.Note• If you watch a still image or the Normal (4:3) mode for a long time (over 2 hours), an image maybe burned onto the screen. View the monitor in Wide or Panorama mode as much as possible.WidePanoramaNormalZoom1 Up/DownZoom2 Up/DownStillPress the Still button on the remote control to freeze a moving picture. Press again to cancel.
PLASMA DISPLAY PANELSound ControlCustomizing the Sound ................................................................54Using Automatic Sound Settings ....................................................55Choosing a Multi-Channel Sound (MTS)Soundtrack ..........................56Using the Auto Volume..................................................................57Using Dolby Virtual ......................................................................58Using a Subwoofer ......................................................................59
551 Press the MENU button. Press the UP or DOWNbutton to select “Sound”, then press the ENTER button. 2Press the LEFT or RIGHT button to select “Adjust”,“Standard”, “Music”, “Movie” or “Speech” sound setting.3 Press the MENU button to exit.SoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select MenuCustomMonoOffOffSoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select MenuMusic OffOff54Customizing the Sound1 Press the MENU button. Press the UP or DOWNbutton to select “Sound”, then press the ENTER button. 2Press the UP or DOWN button to select “Adjust”,then press the ENTER button. You will also see the items “Bass”, “Treble” and “Balance”. 3Press the UP or DOWN button to select the item you wish to change.4 Press the LEFT or RIGHT button to change the valueof the item.5 Press the MENU button to exit.SoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select MenuCustomMonoOffOffSoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Enter MenuCustom MonoOffOffAdjustBassTrebleBalanceMove Adjust Menu5050R 50L 5082BassUsing Automatic Sound Settings
571 Press the MENU button. Press the UP or DOWNbutton to select “Sound”, then press the ENTER button. 2Press the UP or DOWN button to select “Auto Volume”.3 Press the LEFT or RIGHT button to select “On”. •Pressing the LEFT or RIGHT button will alternate between “On” and “Off.” 4 Press the MENU button to exit.SoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select MenuCustomMonoOffOffSoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select MenuStandardMonoOffOffSoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select MenuStandardMonoOnOff56Choosing a Multi-Channel Sound (MTS)SoundtrackDepending on the particular program being broadcast, you can listen to stereo, mono, or a Separate Audio Program. (SAP audio is usually a foreign-language translation. Sometimes SAP has unrelated information like news or weather.) 1 Press the MENU button. Press the UP or DOWNbutton to select “Sound”, then press the ENTER button. 2Press the UP or DOWN button to select “MTS”.3 Press the LEFT or RIGHT button to select “Mono”,“Stereo” or “SAP”. 4 Press the MENU button to exit.SoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select MenuCustomMonoOffOffSoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select MenuStandardMonoOffOffSoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select MenuStandardStereoOffOff• Choose StereoStereo for channels that are broadcasting in stereo.• Choose MonoMono for channels that are broadcasting in mono, or if you are having difficulty receiving a stereo signal.• Choose SAPSAP to listen to the Separate Audio Program, which is usually a foreign-language translation.Note• The MTS function operates in TV mode only.Using the Auto VolumeEach broadcasting station has its own signal conditions, which can make it necessary toadjust the volume every time the channel is changed. “Auto volume” lets you automaticallyadjust the volume of the desired channel by lowering the sound output when the modula-tion signal is high or by raising the sound output when the modulation signal is low.➤➤Quick way to access the MTS menu: Just press the “MTS” button onthe remote control.
591 Press the MENU button. Press the UP or DOWNbutton to select “Sound”, then press the ENTER button. 2Press the UP or DOWN button to select “Woofer”,then press the ENTER button.3 Press the LEFT or RIGHT button to select “On”. •Pressing the LEFT or RIGHT button will alternate between “On” and “Off.” 4Press the UP or DOWN button to select “Volume”,then press the LEFT or RIGHT button to adjust the value of the item.This sets the volume for the subwoofer.5Press the UP or DOWN button to select “CutoffFreq.”, then press the LEFT or RIGHT button to adjustthe value of the item. This sets the cutoff frequency for the subwoofer.For example, if you set the cutoff frequency at 130Hz, the subwoofer will reproduce frequencies of 130Hz and lower. 6 Press the MENU button to exit.SoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select MenuCustomMonoOffOffSoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Enter MenuStandardMonoOffOffWooferWooferVolumeCutoff Freq.Move Select MenuOn50120HzWooferWooferVolumeCutoff Freq.Move Adjust MenuOn50120Hz65VolumeWooferWooferVolumeCutoff Freq.Move Adjust MenuOn50130Hz58Using Dolby VirtualThis feature allows the PDP’s optional L/R speakers to provide a Home Theater-like Dolbyeffect. The center and surround sounds are mixed into the L/R speakers.1 Press the MENU button. Press the UP or DOWNbutton to select “Sound”, then press the ENTER button. 2Press the UP or DOWN button to select “Dolby Virtual”.3 Press the LEFT or RIGHT button to select “On”. •Pressing the LEFT or RIGHT button will alternate between “On” and “Off.” 4 Press the MENU button to exit.SoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select MenuCustomMonoOffOffSoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select MenuStandardMonoOffOffSoundModeAdjustMTSAuto VolumeDolby VirtualWooferMove Select MenuStandardMonoOffOnUsing a Subwoofer➤➤Quick way to access the Surround: Just press the “SURROUND”button on the remote control.
PLASMA DISPLAY PANELChannel ControlFine Tuning Channels....................................................................62LNA (Low Noise Amplifier)............................................................63

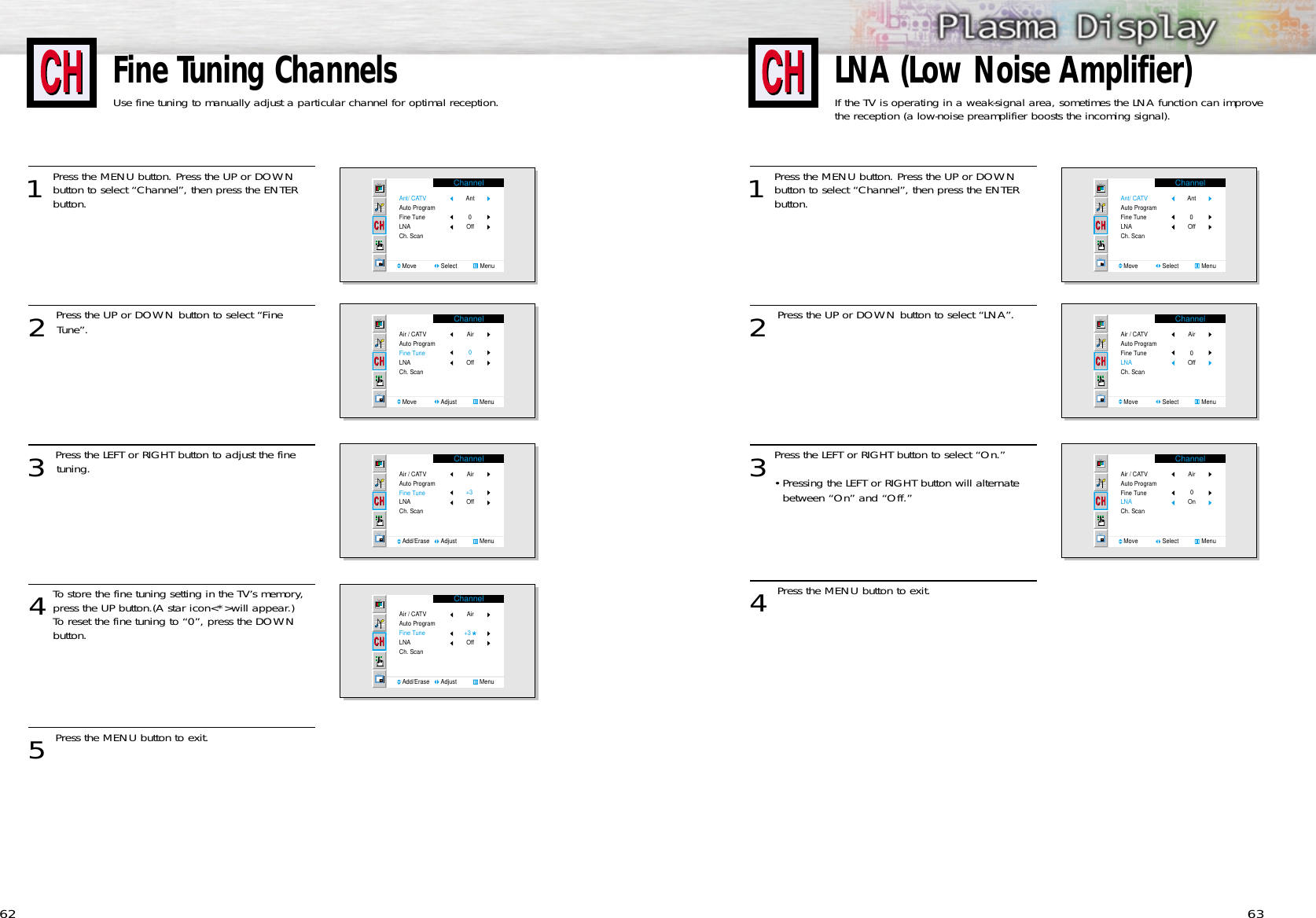

63Fine Tuning ChannelsUse fine tuning to manually adjust a particular channel for optimal reception.621Press the MENU button. Press the UP or DOWNbutton to select “Channel”, then press the ENTER button.2 Press the UP or DOWN button to select “FineTune”.3 Press the LEFT or RIGHT button to adjust the fine tuning.4To store the fine tuning setting in the TV’s memory,press the UP button.(A star icon<*>will appear.)To reset the fine tuning to “0”, press the DOWN button.5 Press the MENU button to exit.ChannelAnt/ CATVAuto ProgramFine TuneLNACh. ScanMove Select MenuAnt Off 0ChannelAir / CATVAuto ProgramFine TuneLNACh. ScanMove Adjust MenuAir Off 0ChannelAir / CATVAuto ProgramFine TuneLNACh. ScanAdd/Erase Adjust MenuAir Off +3ChannelAir / CATVAuto ProgramFine TuneLNACh. ScanAdd/Erase Adjust MenuAir Off +3LNA (Low Noise Amplifier)If the TV is operating in a weak-signal area, sometimes the LNA function can improve the reception (a low-noise preamplifier boosts the incoming signal). 1Press the MENU button. Press the UP or DOWNbutton to select “Channel”, then press the ENTER button.2 Press the UP or DOWN button to select “LNA”.3Press the LEFT or RIGHT button to select “On.”•Pressing the LEFT or RIGHT button will alternate between “On” and “Off.” 4 Press the MENU button to exit.ChannelAnt/ CATVAuto ProgramFine TuneLNACh. ScanMove Select MenuAnt Off 0ChannelAir / CATVAuto ProgramFine TuneLNACh. ScanMove Select MenuAir Off 0ChannelAir / CATVAuto ProgramFine TuneLNACh. ScanMove Select MenuAir On 0
PLASMA DISPLAY PANELConnecting a PC and OperationConnecting to a PC......................................................................66Adjusting the PC Screen................................................................70Changing the Position of the Image................................................71Changing the Size of the Image ....................................................72Information..................................................................................73Picture Quality Adjustment ............................................................74
67Connecting to a PCConnection to a Macintosh computer may require in adapter.66Connect a PC (15pin) cable between the PC Output jack (or DVI jack) on the PC and theRGB IN(or DVI IN) Input jack (15p D-SUB) on the PDP. Connect a Audio cable between the Audio (RGB or DVI) on the PC and the Audio L/R (RGBor DVI) input jacks on the PDP. To watch the PC screen:1. Turn on your PDP, and press the TV/VIDEO button on the remote control.2. Press the UP or DOWN button to select “PC”, then press the ENTER button.3. Turn on PC and check for PC system requirements. (Refer to pages 66 and 67 for PC system requirements.)4. Adjust the PC screen. (Refer to pages 70 and 76.)Connecting a PC to the PDPAudio CablePC CableDVI CablePower Plug12Pin ConfigurationD-Sub CableDVI-D Cable (Digital-Only Connector)• 15Pin Signal Cable (based on protruded pin)Setting up Your PDP (Plug and Play)Our adoption of the new VESAPlug and Play solution eliminates complicated and time consumingsetup. It allows you to install your monitor in a Plug and Play compatible system, without the usualsetup hassles and confusion. Your PC system can easily identify and configure itself for use with yourdisplay. This monitor automatically tells the PC system its Extended Display Identification data (EDID)using Display Data Channel (DDC) protocols. DVI jack(The actual config-uration on your PCmay be different,depending on themodel.)PDPPCorUse the DVI-Dconnection cable.(sold separately)Ferrite Cores
6968How to Set up Your PC Software (Windows only)The Windows display-settings for a typical computer are shown below. However, the actual screenson your PC will probably be different, depending upon your particular version of Windows and yourparticular video card. But even if your actual screens look different, the same, basic set-up informationwill apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)On the windows screen, select in the followingsequence : Start ➝ Settings ➝ Control Panel.When the control panel screen appears, click on“Display” and a display dialog-box will appear.Select the “Settings” tab in the display dialog-box.The two key variables that apply to the PDP-PC interface are “resolution” and “colors”. The correct settings for these two variables are:• Size (sometimes called “resolution”) :640 x 480 pixels.• Color: “24-bit” color (might also be expre-ssed as “16 million colors”)Shown at left is a typical screen for “Display” dialog box. If a vertical-frequency option exists on your display settings dialog box, the correct value is“60” or “60 Hz.” Otherwise, just click “OK” and exit the dialog box.Continued...Notes: Both screen position and size will vary, depending on the type of PC monitor and its resolution. The table below shows all of the display modes that are supported:• The interlace mode is not supported.• The PDP operates abnormally if a non-standard video format is selected.Notes: • When this PDP is used as a PC display, 32-bit color is supported.• Depending on the manufacturer, your PC display screen might appear different.(and depending on your particular version of Windows). Check your PC instruction book for information about connecting your PC to a PDP.• If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5kHZ (horizontal).• In some cases, abnormal signals (such as stripes) might appear on the screen when the PC power is turned off (or if the PC is disconnected). If so, press the Source button to enter the VIDEO mode. Also, make sure that the PC is connected.• Connect only a PC monitor to the monitor output port while viewing the PC screen. (Otherwise, random signals might appear).Video signal Dot X Line640 X 350640 X 400720 X 400640 X 480800 X 6001024 X 76870.08685.08085.08070.08785.03959.94072.80975.00085.00856.25060.31772.18875.00085.06160.00470.06975.02984.99731.46937.86137.86131.46937.92731.46937.86137.50043.26935.15637.87948.07746.87553.67448.36356.47660.02368.677NNPPPNNNNN/PPPPPNNPPPPNNNNNNNN/PPPPPNNPPVertical Frequency (Hz) Horizontal Frequency (KHz) Verticalpolarity HorizontalpolarityIBM PC / AT Compatible
71Adjusting the PC Screen70Adjusting the R.G.BPreset: •Press the TV/VIDEO button, then press the UP or DOWN button to select PC. Press the ENTER button to select PC mode. 1 Press the MENU button, then press the ENTER button.2 Press the UP or DOWN button to select “ColorTone”, then Press the LEFT or RIGHT button to select“Custom”. When “Custom” is selected, the word “Color Adjust” will appear on the screen.3 Press the UP or DOWN button to select “ColorAdjust”, then press the ENTER button.4Press the UP or DOWN button to select the item youwant to change, then press the RIGHT or LEFT button to change the value of the item, using the on-screen gauge as your guide.5 Press the MENU button to exit.PictureModeAdjustColor ToneColor AdjustDNIeMove Select MenuCustomCustomOnPictureModeAdjustColor ToneColor AdjustDNIeMove Select MenuCustomCustomOnPictureModeAdjustColor ToneColor AdjustDNIeMove Enter MenuCustomCustomOnAdjustRedGreenBlue Move Adjust Menu50505082RedChanging the Position of the ImageAfter connecting the PDP to your PC, adjust the position of the screen if it is not well-aligned.Preset: •Press the TV/VIDEO button, then press the UP or DOWN button to select PC. Press the ENTER button to select PC mode. 1 Press the MENU button. Press the UP or DOWNbutton to select “PC”, then press the ENTER button. 2Press the MENU button, then adjust the screen posi-tion by using the UP/DOWN/LEFT/RIGHT button. 3 Press the MENU button to exit.PCPositionAdjustScalingInformationAuto AdjustMove Enter MenuWidePositionMove Move Menu
73Changing the Size of the Image72Preset: •Press the TV/VIDEO button, then press the UP or DOWN button to select PC. Press the ENTER button to select PC mode. 1 Press the MENU button. Press the UP or DOWNbutton to select “PC”, then press the ENTER button. 2 Press the UP or DOWN button to select “Scaling”.3 Press the LEFT or RIGHT button to select “Wide” or “Normal”. 4 Press the MENU button to exit.PCPositionAdjustScalingInformationAuto AdjustMove Enter MenuWidePCPositionAdjustScalingInformationAuto AdjustMove Select MenuWidePCPositionAdjustScalingInformationAuto AdjustMove Select MenuNormalInformationPreset: •Press the TV/VIDEO button, then press the UP or DOWN button to select PC. Press the ENTER button to select PC mode. 1 Press the MENU button. Press the UP or DOWNbutton to select “PC”, then press the ENTER button.2Press the UP or DOWN button to select “Informa-tion”, then press the ENTER button.The vertical, horizontal frequencies and resolution appear.3 Press the MENU button to exit.PCPositionAdjustScalingInformationAuto AdjustMove Enter MenuWidePCPositionAdjustScalingInformationAuto AdjustMove Enter MenuWideInformationResolution : 1024 * 768H-Frequency : 48.52 KHzV-Frequency : 60.21 Hz Menu
75Coarse AdjustmentPreset: •Press the TV/VIDEO button, then press the UP or DOWN button to select PC. Press the ENTER button to select PC mode. 1 Press the MENU button. Press the UP or DOWNbutton to select “PC”, then press the ENTER button. 2 Press the UP or DOWN button to select “Adjust”,then press the ENTER button.3 Press the UP or DOWN button to select “Coarse”.Remove picture noise (vertical stripes) on the screen by pressing the LEFT or RIGHT button. (If Coarse is not set properly, vertical stripes will appear on the screen.)4 Press the MENU button to exit.PCPositionAdjustScalingInformationAuto AdjustMove Enter MenuWidePCPositionAdjustScalingInformationAuto AdjustMove Enter MenuWideAdjustCoraseFineMove Adjust Menu50753Coarse74Picture Quality AdjustmentPicture Automatic Adjustment Preset: •Press the TV/VIDEO button, then press the UP or DOWN button to select PC. Press the ENTER button to select PC mode. 1 Press the MENU button. Press the UP or DOWNbutton to select “PC”, then press the ENTER button. 2 Press the UP or DOWN button to select “AutoAdjust”, then press the ENTER button.3The message “Auto Adjust” appears on the screenand the picture adjustments are automatically activated. 4 Press the MENU button to exit.PCPositionAdjustScalingInformationAuto AdjustMove Enter MenuWidePCPositionAdjustScalingInformationAuto AdjustMove Enter MenuWideAuto Adjust
76PLASMA DISPLAY PANELTime SettingSetting the Clock.......................................................................78Setting the Sleep Timer...............................................................79Setting the Timers......................................................................80Setting the Preferred Channel and Volume Level............................82Fine Tuning (Fine)Preset: • Press the TV/VIDEO button, then press the UP or DOWN button to select PC. Press the ENTER button to select PC mode. 1 Press the MENU button. Press the UP or DOWNbutton to select “PC”, then press the ENTER button. 2 Press the UP or DOWN button to select “Adjust”,then press the ENTER button.3 Press the UP or DOWN button to select “Fine”. Remove picture noise on the screen by pressing the LEFT or RIGHT button. (If Fine is not set properly, noise will appear on the screen.)4 Press the MENU button to exit.PCPositionAdjustScalingInformationAuto AdjustMove Enter MenuWidePCPositionAdjustScalingInformationAuto AdjustMove Enter MenuWideAdjustCoraseFineMove Adjust Menu50753Fine
7978Setting the ClockYou can set your PDP to automatically turn off after a preset interval.1Press the MENU button. Press the UP or DOWNbutton to select “Function”, then press the ENTER button. 2 Press the UP or DOWN button to select “Time”, thenpress the ENTER button.3 Press the UP or DOWN button to select “Sleep”.4Press the LEFT or RIGHT button to select the timeinterval for the PDP to stay on. The interval ranges from 10 to 180 minutes.5 Press the MENU button to exit.Setting the Sleep TimerFunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Select MenuEnglishOffOffOffTimeClockOn TimeOff TimeSleepOn Time VolumeOn Time ChannelMove Select Menu10 : 30 am- - : - - am- - : - - amOffOffOff10 3FunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Enter MenuEnglishOffOffOffTimeClockOn TimeOff TimeSleepOn Time VolumeOn Time ChannelMove Select Menu10 : 30 am- - : - - am- - : - - amOffOff3010 31Press the MENU button. Press the UP or DOWNbutton to select “Function”, then press the ENTER button. 2Press the UP or DOWN button to select “Time”, thenpress the ENTER button.3Press the LEFT or RIGHT button to select hour, thenpress the UP or DOWN button to select the correct hour.4Press the LEFT or RIGHT button to select minute, thenpress the UP or DOWN button to select the correct minute.5 Press the MENU button to exit.Note• Time setting will be reset when you pull out the Power cord if the PDP is ON.(If you want to keep the time setting, turn the PDP off using the POWER button on the remote control or the Front Panel.)FunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Enter MenuEnglishOffOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Select MenuEnglishOffOffOffTimeClockOn TimeOff TimeSleepOn Time VolumeOn time ChannelAdjust Move Menu10 : - - am- - : - - am- - : - - amOffOffOff10 3TimeClockOn TimeOff TimeSleepOn Time VolumeOn time ChannelAdjust Move Menu10 : 30 am- - : - - am- - : - - amOffOffOff10 3➤➤Quick way to access the sleep timer: Just press the “SLEEP” buttonon the remote control.

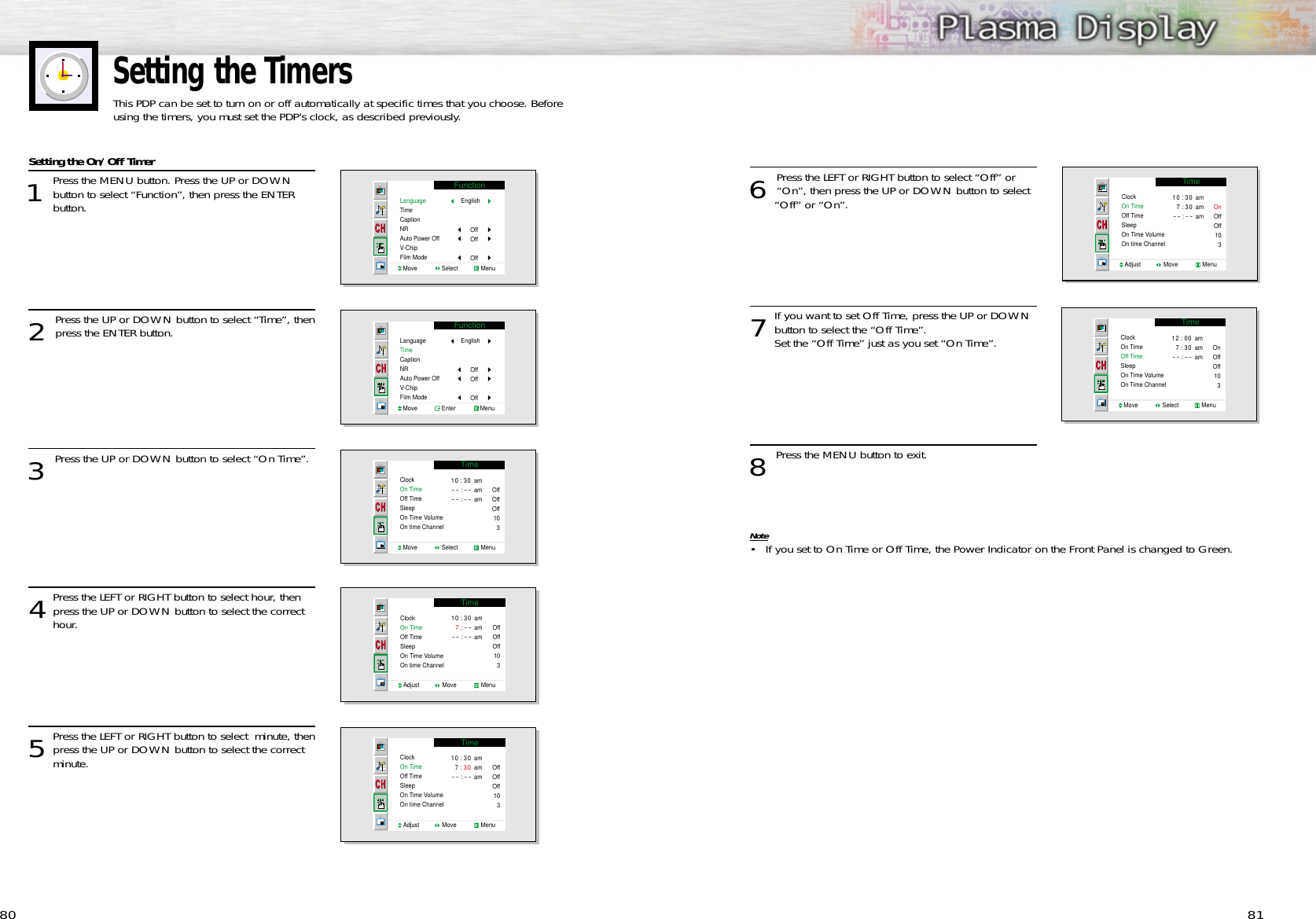

8180Setting the TimersThis PDP can be set to turn on or off automatically at specific times that you choose. Beforeusing the timers, you must set the PDP’s clock, as described previously.6 Press the LEFT or RIGHT button to select “Off” or “On”, then press the UP or DOWN button to select “Off” or “On”.7If you want to set Off Time, press the UP or DOWNbutton to select the “Off Time”.Set the “Off Time” just as you set “On Time”.8 Press the MENU button to exit.Note• If you set to On Time or Off Time, the Power Indicator on the Front Panel is changed to Green.Setting the On/Off Timer1Press the MENU button. Press the UP or DOWNbutton to select “Function”, then press the ENTER button. 2 Press the UP or DOWN button to select “Time”, thenpress the ENTER button.3 Press the UP or DOWN button to select “On Time”.4Press the LEFT or RIGHT button to select hour, thenpress the UP or DOWN button to select the correct hour.5Press the LEFT or RIGHT button to select minute, thenpress the UP or DOWN button to select the correct minute.FunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Select MenuEnglishOffOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Enter MenuEnglishOffOffOffTimeClockOn TimeOff TimeSleepOn Time VolumeOn time ChannelMove Select Menu10 : 30 am- - : - - am- - : - - amOffOffOff10 3TimeClockOn TimeOff TimeSleepOn Time VolumeOn time ChannelAdjust Move Menu10 : 30 am7 : - - am- - : - - amOffOffOff10 3TimeClockOn TimeOff TimeSleepOn Time VolumeOn time ChannelAdjust Move Menu10 : 30 am7 : 30 am- - : - - amOffOffOff10 3TimeClockOn TimeOff TimeSleepOn Time VolumeOn time ChannelAdjust Move Menu10 : 30 am7 : 30 am- - : - - amOnOffOff10 3TimeClockOn TimeOff TimeSleepOn Time VolumeOn Time ChannelMove Select Menu12 : 00 am7 : 30 am- - : - - amOnOffOff10 3
Selecting a Menu Language .....................................................84Viewing Closed Captions.........................................................85Digital Noise Reduction ...........................................................86Setting Auto Power Off ...........................................................87Using the V-Chip .....................................................................88Selecting the Film Mode...........................................................94PLASMA DISPLAY PANELFunction Description82Setting the Preferred Channel and Volume LevelThe preferred channel and volume can be set for when the timer automatically turns on the TV.1Press the MENU button. Press the UP or DOWNbutton to select “Function”, then press the ENTER button. 2 Press the UP or DOWN button to select “Time”, thenpress the ENTER button.3Press the UP or DOWN button to select “On TimeVolume”.Press the LEFT or RIGHT button to adjust volume level.4Press the UP or DOWN button to select “On TimeChannel”. Press the LEFT or RIGHT button to select the channel.FunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Select MenuEnglishOffOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Enter MenuEnglishOffOffOffTimeClockOn TimeOff TimeSleepOn Time VolumeOn Time ChannelMove Select Menu- - : - - am- - : - - am- - : - - amOffOffOff10 3TimeClockOn TimeOff TimeSleepOn Time VolumeOn Time ChannelMove Select Menu- - : - - am- - : - - am- - : - - amOffOffOff10 3

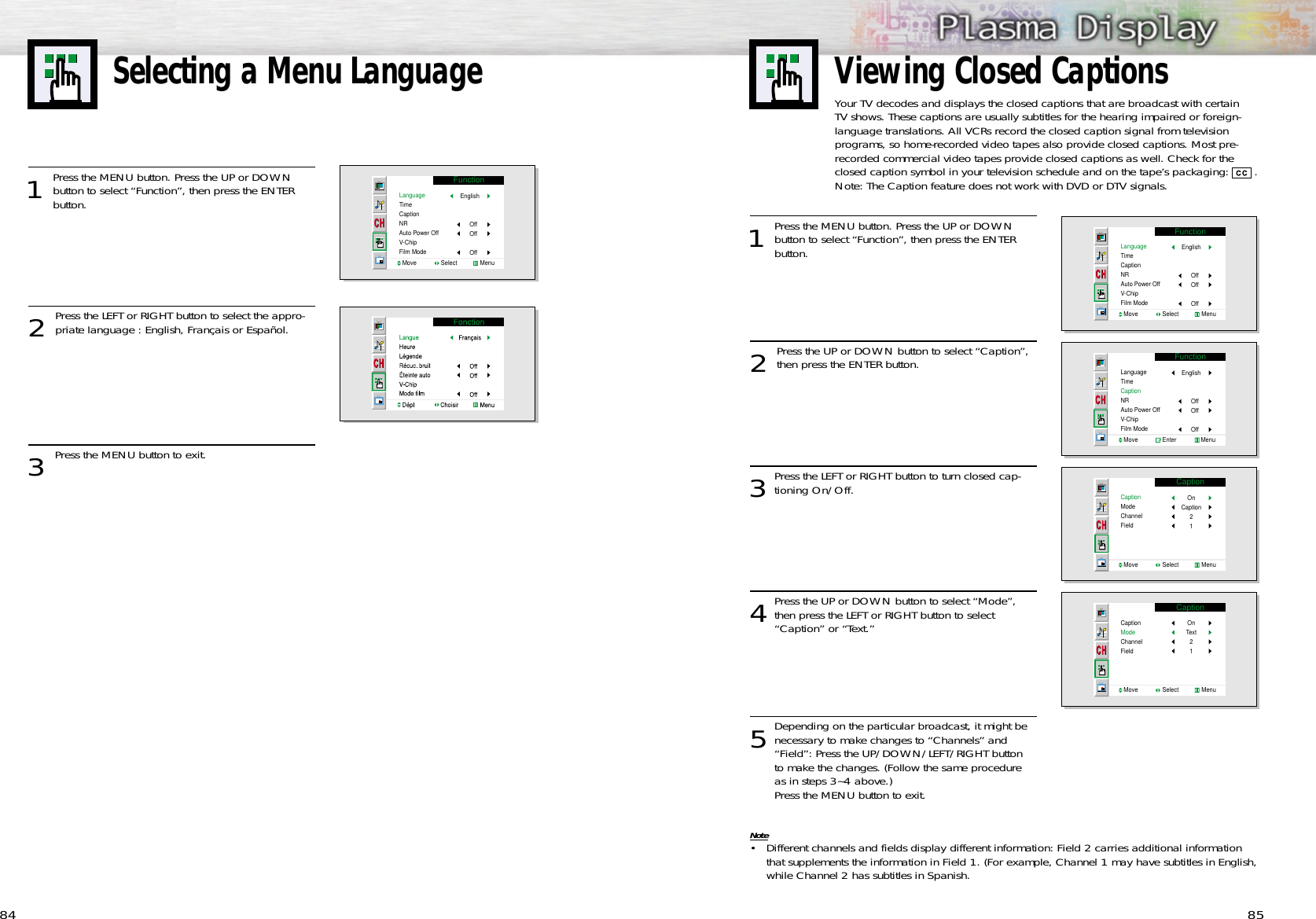

Selecting a Menu Language85841Press the MENU button. Press the UP or DOWNbutton to select “Function”, then press the ENTER button. 2 Press the UP or DOWN button to select “Caption”,then press the ENTER button.3Press the LEFT or RIGHT button to turn closed cap-tioning On/Off.4Press the UP or DOWN button to select “Mode”,then press the LEFT or RIGHT button to select “Caption” or “Text.” 5Depending on the particular broadcast, it might benecessary to make changes to “Channels” and “Field”: Press the UP/DOWN/LEFT/RIGHT button to make the changes. (Follow the same procedure as in steps 3~4 above.)Press the MENU button to exit.Note• Different channels and fields display different information: Field 2 carries additional information that supplements the information in Field 1. (For example, Channel 1 may have subtitles in English,while Channel 2 has subtitles in Spanish. FunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Select MenuEnglishOffOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Enter MenuEnglishOffOffOffCaptionCaptionModeChannelFieldMove Select MenuOnCaption21CaptionCaptionModeChannelFieldMove Select MenuOnText211Press the MENU button. Press the UP or DOWNbutton to select “Function”, then press the ENTER button. 2 Press the LEFT or RIGHT button to select the appro-priate language : English, Français or Español.3 Press the MENU button to exit.FunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Select MenuEnglishOffOffOffViewing Closed CaptionsYour TV decodes and displays the closed captions that are broadcast with certainTV shows. These captions are usually subtitles for the hearing impaired or foreign-language translations. All VCRs record the closed caption signal from television programs, so home-recorded video tapes also provide closed captions. Most pre-recorded commercial video tapes provide closed captions as well. Check for theclosed caption symbol in your television schedule and on the tape’s packaging: . Note: The Caption feature does not work with DVD or DTV signals.
1Press the MENU button. Press the UP or DOWNbutton to select “Function”, then press the ENTER button. 2 Press the UP or DOWN button to select “AutoPower Off”.3Press the LEFT or RIGHT button to select “On”.4 Press the MENU button to exit.Note• If the Off timer is set, Auto Power Off will not function.• The power will be turned off automatically after 15 minutes if the PDP is ON and there is no inputsignal. (For instance, if you select a channel without a signal while in TV mode or when there is noinput signal after selecting an output signal)8786Digital Noise ReductionIf the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.1Press the MENU button. Press the UP or DOWNbutton to select “Function”, then press the ENTER button. 2 Press the UP or DOWN button to select “NR”.3Press the LEFT or RIGHT button to select “On”.4 Press the MENU button to exit.FunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Select MenuEnglishOffOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Select MenuEnglishOffOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Select MenuEnglishOnOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Select MenuEnglishOffOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Select MenuEnglishOffOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Select MenuEnglishOffOnOffSetting Auto Power OffThe PDP can be set to turn off automatically if no buttons are pressed for 3 hours after the PDP turns on via the On timer.
8988Using the V-ChipThe V-Chip feature automatically locks out programs that are deemed inappropriate for children. The user must enter a PIN (personal ID number) before any of the V-Chiprestrictions are set up or changed.Note : When the V-chip feature is activated, the PIP and auto channel program featuresdo not function.Setting Up Your Personal ID Number (PIN)1Press the MENU button. Press the UP or DOWNbutton to select “Function”, then press the ENTER button. 2 Press the UP or DOWN button to select “V-Chip”,then press the ENTER button.3 The message "Enter Pin" will appear. Enter your 4-digit PIN number. Note: The default PIN number of a new TV set is “0-0-0-0.”4The “V-Chip” screen will appear. Press the UP orDOWN button to select “Change Pin,” then press the ENTER button.5The Change pin screen will appear. Choose any 4-digits for your PIN and enter them. As soon as the 4 digits are entered, the “Confirm New Pin” screen appears. Re-enter the same 4 digits. When the Confirm screen disappears, your PIN has been memorized. 6 Press the MENU button to exit.Note• If you forget the PIN, press the remote-control buttons in the following sequence, which resets the pinto 0-0-0-0 : Power Off ➔ Mute ➔8 ➔2 ➔4 ➔Power On.FunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Select MenuEnglishOffOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Enter MenuEnglishOffOnOffV-ChipEnter PinEnter Pin : ----V-ChipV-Chip LockTV GuideLinesMPAA Rating Change PinNoMove Enter MenuV-ChipChange PinEnter New Pin : ----V-ChipConfirm New PinConfirm New Pin : -How to Enable/Disable the V-Chip1Press the MENU button. Press the UP or DOWNbutton to select “Function”, then press the ENTER button. 2 Press the UP or DOWN button to select “V-Chip”,then press the ENTER button.3 The message "Enter Pin" will appear. Enter your 4-digit PIN number. 4The “V-Chip” screen will appear. To enable the V-Chip feature, press the RIGHT buttonso that the “V-Chip Lock” field is Yes. (Pressing the left or right button will alternate between “Yes” and “No”.)5 Press the MENU button to exit.FunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Select MenuEnglishOffOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Enter MenuEnglishOffOnOffV-ChipEnter PinEnter Pin : ----V-ChipV-Chip LockTV GuideLinesMPAA Rating Change PinYesMove Select Menu

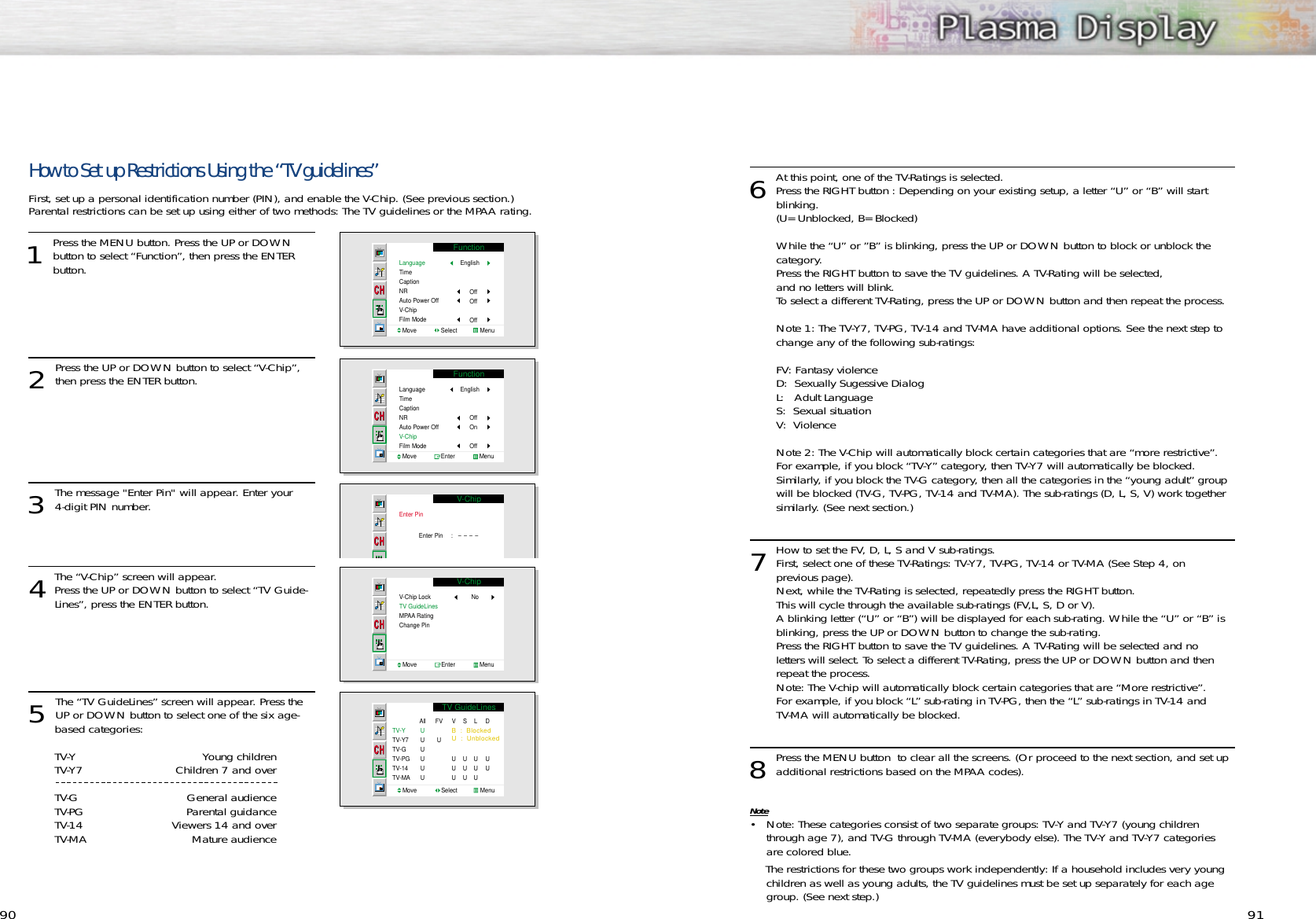

9190How to Set up Restrictions Using the “TV guidelines”First, set up a personal identification number (PIN), and enable the V-Chip. (See previous section.) Parental restrictions can be set up using either of two methods: The TV guidelines or the MPAA rating.1Press the MENU button. Press the UP or DOWNbutton to select “Function”, then press the ENTER button. 2 Press the UP or DOWN button to select “V-Chip”,then press the ENTER button.3 The message "Enter Pin" will appear. Enter your 4-digit PIN number. 4The “V-Chip” screen will appear. Press the UP or DOWN button to select “TV Guide-Lines”, press the ENTER button.5 The “TV GuideLines” screen will appear. Press theUP or DOWN button to select one of the six age-based categories:TV-Y Young childrenTV-Y7 Children 7 and overTV-G General audienceTV-PG Parental guidanceTV-14 Viewers 14 and overTV-MA Mature audienceFunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Select MenuEnglishOffOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Enter MenuEnglishOffOnOffV-ChipEnter PinEnter Pin : ----V-ChipV-Chip LockTV GuideLinesMPAA Rating Change PinNoMove Enter Menu6At this point, one of the TV-Ratings is selected. Press the RIGHT button : Depending on your existing setup, a letter “U” or “B” will start blinking.(U= Unblocked, B= Blocked)While the “U” or ”B” is blinking, press the UP or DOWN button to block or unblock the category.Press the RIGHT button to save the TV guidelines. A TV-Rating will be selected, and no letters will blink. To select a different TV-Rating, press the UP or DOWN button and then repeat the process.Note 1: The TV-Y7, TV-PG, TV-14 and TV-MA have additional options. See the next step to change any of the following sub-ratings:FV: Fantasy violenceD: Sexually Sugessive DialogL: Adult LanguageS: Sexual situationV: ViolenceNote 2: The V-Chip will automatically block certain categories that are “more restrictive”. For example, if you block “TV-Y” category, then TV-Y7 will automatically be blocked. Similarly, if you block the TV-G category, then all the categories in the “young adult” group will be blocked (TV-G, TV-PG, TV-14 and TV-MA). The sub-ratings (D, L, S, V) work together similarly. (See next section.)7How to set the FV, D, L, S and V sub-ratings.First, select one of these TV-Ratings: TV-Y7, TV-PG, TV-14 or TV-MA (See Step 4, on previous page). Next, while the TV-Rating is selected, repeatedly press the RIGHT button. This will cycle through the available sub-ratings (FV,L, S, D or V).A blinking letter (“U” or “B”) will be displayed for each sub-rating. While the “U” or “B” is blinking, press the UP or DOWN button to change the sub-rating.Press the RIGHT button to save the TV guidelines. A TV-Rating will be selected and no letters will select. To select a different TV-Rating, press the UP or DOWN button and then repeat the process.Note: The V-chip will automatically block certain categories that are “More restrictive”. For example, if you block “L” sub-rating in TV-PG, then the “L” sub-ratings in TV-14 and TV-MA will automatically be blocked.8Press the MENU button to clear all the screens. (Or proceed to the next section, and set upadditional restrictions based on the MPAA codes).Note• Note: These categories consist of two separate groups: TV-Y and TV-Y7 (young childrenthrough age 7), and TV-G through TV-MA (everybody else). The TV-Y and TV-Y7 categories are colored blue. The restrictions for these two groups work independently: If a household includes very youngchildren as well as young adults, the TV guidelines must be set up separately for each agegroup. (See next step.)TV GuideLinesB : BlockedU : UnblockedTV-YTV-Y7TV-GTV-PGTV-14TV-MAAllUUUUUUFVUV UUUS UUUL UUUD UU Move Select Menu
9392How to Set up Restrictions using the MPAA Ratings: G, PG, PG-13, R, NC-17, XThe MPAA rating system uses the Motion Picture Association of America (MPAA) system, and its main application isfor movies. When the V-Chip lock is on, the TV will automatically block any programs that are coded with objection-able ratings (either MPAA or TV-Ratings).1Press the MENU button. Press the UP or DOWNbutton to select “Function”, then press the ENTER button. 2 Press the UP or DOWN button to select “V-Chip”,then press the ENTER button.3 The message "Enter Pin" will appear. Enter your 4-digit PIN number. 4The “V-Chip” screen will appear. Press the UP orDOWN buttonto select “MPAA Rating,” press the ENTER button.5The “MPAA Rating” screen will appear. MPAA category.Pressing the UP or DOWN button will cycle through the MPAA categories:While a particular category is selected, press the RIGHT button to activate it. A selected letter (“U” or “B”) will be displayed. Press the UP or DOWN button to select “U” or ”B”.Press the RIGHT button to save the settings.Note: The V-Chip will automatically block any category that is “more restrictive. ”For example, if you block the “PG-13” category, then “R”, “NC-17” and “X” will automatically be blocked also.How to Reset the TV after the V-Chip Blocks a Channel (“Emergency Escape”)If the TV is tuned to a restricted channel, the V-Chip will block it. The screen will go blank and the following message will appear: “Excessive rating.” To resume normal viewing, tune to a different channel using the number buttons. Under certain conditions (depending on the rating of the local TV programs) the V-Chip might lock out all the channels. In this case, use the V.Chip function for an “emergency escape”:1 Press the MENU button. 2Press the UP or DOWN button to select “V-Chip”, then press the ENTER button. 3Enter your PIN number, and press the RIGHT button to temporarily disable the V-ChipLock. FunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Select MenuEnglishOffOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Enter MenuEnglishOffOnOffV-ChipEnter PinEnter Pin : ----V-ChipV-Chip LockTV GuideLinesMPAA Rating Change PinNoMove Enter MenuMPAA RatingGPGPG-13RNC-17XNRUUUUUUUMove Enter MenuB : BlockedU : UnblockedGGeneral audience (no restrictions).PG Parental guidance suggested.PG-13 PG-13 (Parents strongly cautioned).RR (Restricted. Children under 17 should be accompanied by an adult).NC-17 No children under age 17. XX (Adults only).NR Not rated.
94PLASMA DISPLAY PANELAppendixTroubleshooting............................................................................96Care and Maintenance ................................................................97Specifications ..............................................................................98Selecting the Film Mode1 Press the MENU button. Press the UP or DOWNbutton to select “Function”, then press the ENTER button. 2 Press the DOWN button to select Film Mode, then press the RIGHT or LEFT button to select “On” or “Off”.•On: Automatically senses and processes film signals from all sources and adjusts the picture for optimum quality.•Off: Switches off the Film mode.3 Press the MENU button to exit.Note• Film mode is supported in Video, S-Video, Component 480i.FunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Select MenuEnglishOffOffOffFunctionLanguageTimeCaptionNRAuto Power OffV-ChipFilm ModeMove Select MenuEnglishOffOffOn
9796TroubleshootingProblemPoor picture.Your Remote control does notoperate the PDP.The PDP won’t turn on.There is no screen image.The image is too light or too dark. The image is too large or too small.Before you call a service technician, please scan this list of problems and possible solutions. It may save youtime and money.Possible SolutionCheck all wire connections.Press the “Mode” button to put your remote control in the “TV”mode.Check if the power plug is connected. Check to see that both the PDP and the source are plugged inand turned on.Adjust the Brightness or Contrast settings.Adjust the Size settings.With proper care, your PDP will give you many years of service. Please follow these guidelines to getthe maximum performance from your PDP.Identifying Problems• Do not put the PDP near extremely hot, cold, humid or dusty places.• Do not put the PDP near appliances that create magnetic fields.• Keep the ventilation openings clear.• Do not place the PDP on a rough and slanted surface, such as cloth or paper.Liquids• Do not place liquids near or on the PDP.Cabinet• Never open the cabinet or touch the parts inside.• Wipe your PDP with a clean, dry cloth. Never use water, cleaning fluids, wax, or chemicals.• Do not put heavy objects on top of the cabinet.Temperature• If your PDP is suddenly moved from a cold to a warm place, unplug the power cord for at least twohours so that moisture that may have formed inside the unit can dry completely.Care and Maintenance

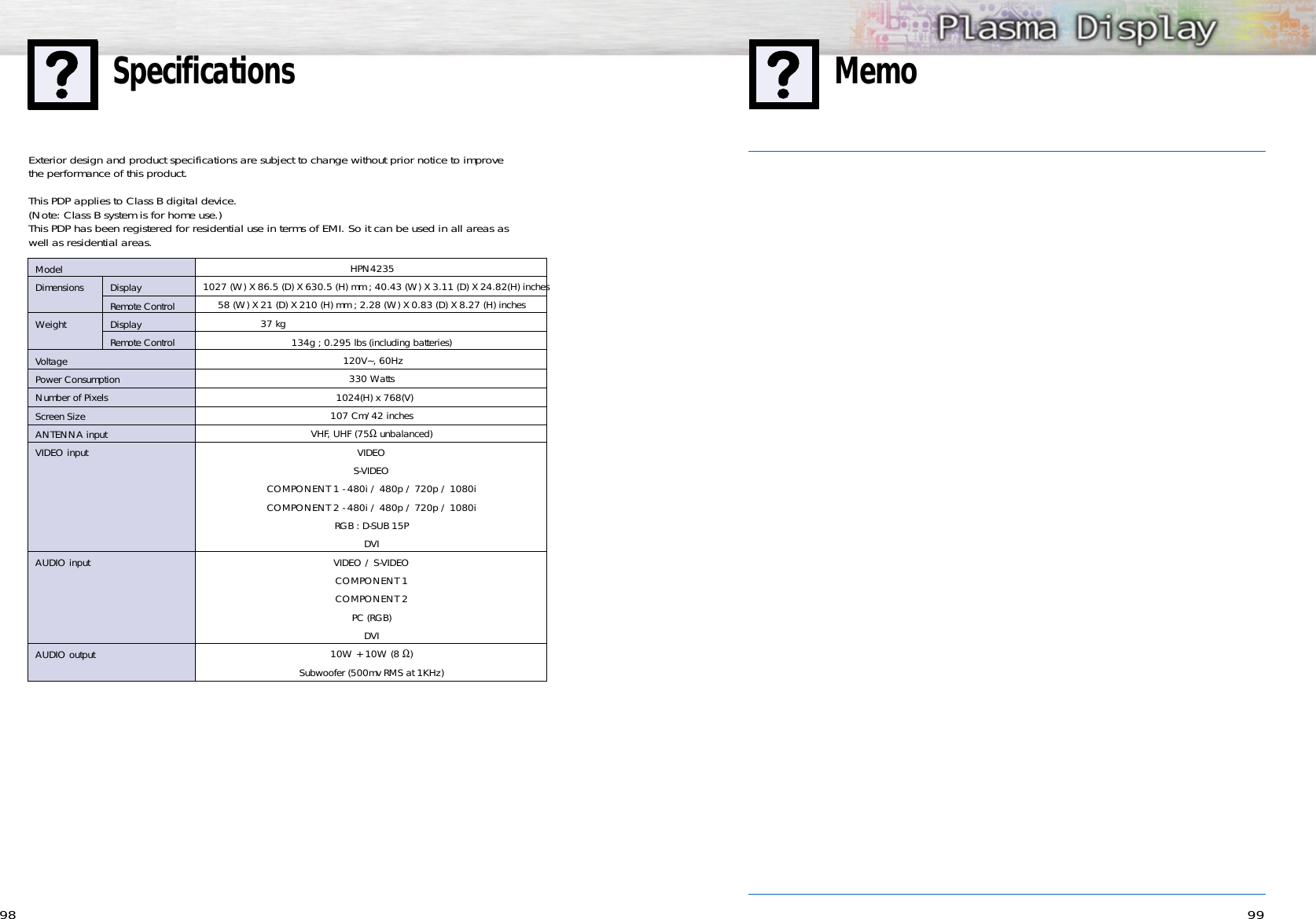

9998MemoSpecificationsHPN42351027 (W) X 86.5 (D) X 630.5 (H) mm ; 40.43 (W) X 3.11 (D) X 24.82(H) inches58 (W) X 21 (D) X 210 (H) mm ; 2.28 (W) X 0.83 (D) X 8.27 (H) inches37 kg 134g ; 0.295 lbs (including batteries) 120V~, 60Hz 330 Watts1024(H) x 768(V) 107 Cm/42 inches VHF, UHF (75Ωunbalanced)VIDEOS-VIDEOCOMPONENT 1 - 480i / 480p / 720p / 1080iCOMPONENT 2 - 480i / 480p / 720p / 1080iRGB : D-SUB 15PDVIVIDEO / S-VIDEOCOMPONENT 1COMPONENT 2PC (RGB)DVI10W + 10W (8 Ω)Subwoofer (500mv RMS at 1KHz)ModelDimensions DisplayRemote ControlWeight DisplayRemote ControlVoltagePower ConsumptionNumber of PixelsScreen SizeANTENNA inputVIDEO inputAUDIO inputAUDIO outputExterior design and product specifications are subject to change without prior notice to improve the performance of this product.This PDP applies to Class B digital device.(Note: Class B system is for home use.)This PDP has been registered for residential use in terms of EMI. So it can be used in all areas as well as residential areas.
