Users Manual 2

17164 After inserting the plastic hangers of the PDP panel into the groove of the wall attach-ment panel(Œ), lift down (´) and tightly hang the PDP panel on the wall attachment panel.Adjusting the angle of the wall attachment panelAdjust the angle you want before installing the wall attachment panel on the wall. Notice Notice : The factory default angle is 5 degrees.Changing the angle to 0 degreePDP panelWall attachmentpanel bracketBracket for hanging the PDP displayBolt "A" for angle adjustmentBracket for wall attachment panelBracket for adjusting the angleof the wall attachment panelBolt"B"for angle adjustmentWall1Loosen the screws for adjusting the wall attachment panel, “A” and “B”.2Remove the bracket for adjusting the angle of the wall attachment panel.3Fit the bracket for hanging the PDP display into the hole on the PDP display.4Fit the screw for adjusting the wall attachment panel into the hole indicated by 0 degree and tighten it again.1Loosen the screw for adjusting the wall attachment panel, “A”.2Fit the bracket for angle adjustment to the hole indicated by 10 degrees on the wall attachment panel.3Fit the screw “A” for adjusting the wall attachment panel to the hole indicated by 0 degree and tighten it again.Factory defaultThe factory default angle of wallattachment panel is 5 degrees.• Change the angle to 15 degrees, 20 degrees and other degreesin the same methods as 10 degrees.Changing the angle to 10 degrees

PLASMA DISPLAY PANELConnectionsConnecting VHF and UHF Antennas ..............................................20Connecting Cable TV....................................................................21Connecting Speakers....................................................................23Connecting a VCR........................................................................24Connecting a Camcorder..............................................................25Connecting a DVD Player..............................................................26Connecting a DTV Receiver ..........................................................27

21Connecting VHF and UHF Antennas20Antennas with 75-ohm Round LeadsIf your antenna looks like this: it has 75-ohm round leads. 1Plug the antenna lead into the VHF/UHF terminal on the PDP.Use the Antenna Cable (BN39-00333A), an accessory included in the product package. Connecting Cable TVYou can connect different cable systems to your PDP, including cable without a cable box, and cable with a cable box that descrambles some or all channels.Cable without a Cable Box1 Plug the incoming cable into the VHF/UHF terminal on the PDP.Use the Antenna Cable (BN39-00333A), an accessory included in the product package. Cable with a Cable Box that Descrambles All Channels.1 Find the cable connected to the ANTENNA OUT terminal on your cable box. This terminalmight be labeled "ANT OUT", "VHF OUT", or simply "OUT".2 Connect the cable to the VHF/UHF terminal on the PDP. Use the Antenna Cable (BN39-00333A), an accessory included in the product package.

22Cable with a Cable Box that Descrambles Some (But Not All) ChannelsTo complete this connection you will need a two-way splitter, a RF (A/B) switch, and four coaxialcables (which you can buy from your Samsung dealer or any electronics store).1Find and disconnect the cable that is con-nected to the ANTENNA IN terminal of your cable box. This terminal might be labeled "ANT IN", "VHF IN", or simply, "IN". Connect this cable to a two-way splitter.2Connect a coaxial cable between an OUT-PUT terminal of the splitter and the IN termi-nal of the cable box.3Connect a coaxial cable between theANTENNA OUT terminal of the cable box and the B-IN terminal of the A/B switch.4Connect a coaxial cable between theANTENNA OUT terminal of the cable box and the B-IN terminal of the A/B switch.5Connect the last coaxial cable between theOUT terminal of the RF (A/B) switch and the VHF/UHF ter-minal on the PDP.After you've made this connection, set the A/B switch to the "A" position for normal viewing. Set the A/B switch to the "B" position to view scrambled channels. (When you set the A/B switch to "B", you will need to tune your Set-Top Box to the cable box's output channel, which is usuallychannel 3 or 4.)23Connecting SpeakersExternal speakers are sold saparately. Check with your dealer.Speaker Audio Cable(BN39-00315A)Connect the speaker audio cable to the external speaker output jack on the PDP matching the“+” and “-” ends of the cable with the diagram on the PDP. How to ConnectFix the bracket onto the guide pole located on the rear of speaker and fasten the screws.After removing the four screws on the rear of PDP.As shown in figure, insert the loop on a speaker into the groove on the PDP.Clamp the speaker and the PDP together and fasten the screws.Connecting PDP and Speakers 1234GuidepoleGuidepole✱External speakers MUST have to a power handling capability of 10 watts minimum (impedance 8 ohm).Speaker AudioCable(BN39-00315A)Subwoofer Speaker(Option)

25Connecting a Camcorder24Connecting a VCR to the Video or S-Video/Audio jackS-Video CableAudio CableVideo CablePower PlugConnect the Video/Audio cables between the AUDIO(L/R)/VIDEO jacks on the PDP andAUDIO/VIDEO OUT jacks on the VCR. (Note: For better video, you can use an S-Video cable.)Videotape Playback:1. Turn on your PDP, and press the SOURCE button on the remote control.2. Move the joystick up or down to select “Video” or “S-Video”, then press the joystick to enter.3. Turn on your VCR, insert a videotape and press the play button.How to ConnectThe ferrite cores are used to attenuate undesired signals. When connecting audio cable (PC, DVI,S-Video, Video) , attach one of these ferrite cores to the cable near the connector.When you connect the audio cable (PC, DVI, S-Video, Video) to theconnectors, first bind round the ferrite core to secure it.Ferrite Cores (3301-001110)Connecting a VCR Audio CableVideo CablePower PlugConnect a Video/Audio cable between the AUDIO(L/R)/VIDEO jacks on the PDP and theVIDEO/AUDIO OUTPUT jacks on the camcorder.Viewing Tapes1. Turn on your PDP, and press the SOURCE button on the remote control.2. Move the joystick up or down to select the “Video”, then press the joystick to enter. 3. Turn on your camcorder and set it to Video Mode. (For details, refer to your camcorder owner's instructions.)4. Set the IN/OUT switch on your camcorder to OUT.5. Insert the tape into the camcorder and press the Play button.How to ConnectViewing camcorder tapesFerrite Cores(3301-001110)Ferrite Cores(3301-001110)PDP VCRPDPCamcorder

27Connecting a DVD Player (480i, 480p)26Playing DVDAudio CableVideo CablePower PlugConnect a Video Cable between the Y, Pb, Pr (COMPONENT1, 2) input jacks on the PDPand Y/PB/PRoutput jacks on the DVD players.Connect a Audio Cable between the AUDIO L/R(COMPONENT1, 2) input jacks on the PDPand the AUDIO OUT jacks on the DVD player.To Play DVD:1. Turn on your PDP, and press the SOURCE button on the remote control.2. Move the joystick up or down to select the “COMPONENT1” or “COMPONENT2”, then press the joystick to enter.3. Turn on your DVD player, insert a DVD disc and press the Play button.• For an explanation of Component video, see your DVD owner’s instructions.How to Connect12PDP DVD PlayerWatching DTVVideo CableAudio CableDVI CableorPower PlugConnect the cable or antenna to the antenna input jack on the DTV.Connect a Video cable between the Y, Pb, Pr (COMPONENT 1, 2) or DVI jack on the PDPand the Y, PB, PR(VIDEO OUTPUT JACKS) on the DTV receiver.Connect an Audio cable between the COMPONENT 1, 2 (L/R AUDIO) or DVI jacks on the PDP and the AUDIO OUTPUT jacks on the DTV.To Watch DTV:1. Turn on your PDP, and press the SOURCE button on the remote control.2. Move the joystick up or down to select the “COMPONENT1 ”, “COMPONENT2” or “DVI”, then press the joystick to enter.3. Turn on your DTV receiver.• For an explanation of Component video, see your DTV receiver owner’s instructions.How to Connect123Connecting a DTV Receiver(480p, 720p, 1080i)Use the DVI-D connection cable. (sold separately)Ferrite Cores(3301-001110)PDPDTV Receiver

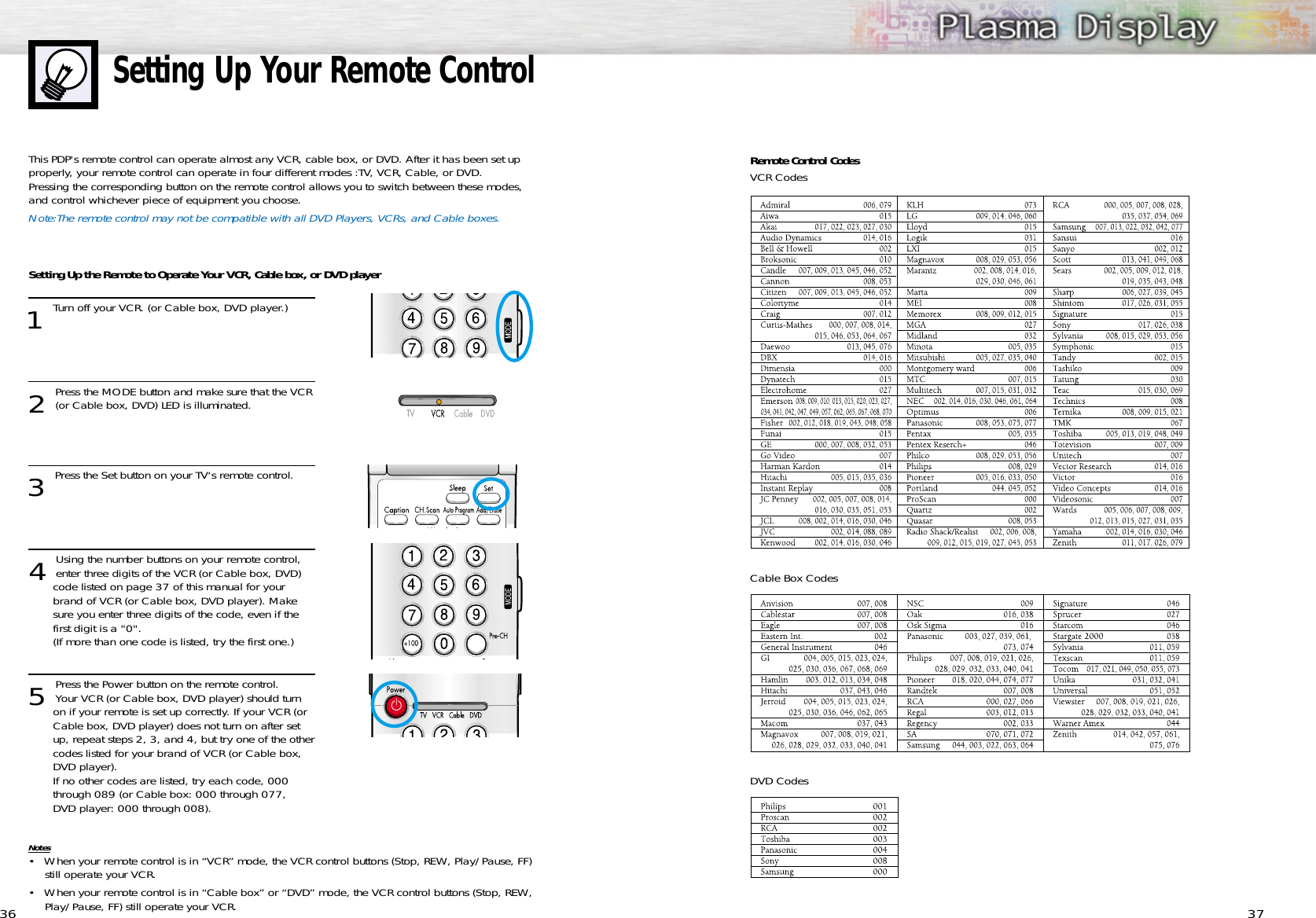

PLASMA DISPLAY PANELOperationTurning the PDP On and Off ..........................................................30Memorizing the Channels..............................................................32Setting Up Your Remote Control ....................................................36

Turning the PDP On and Off30 31Turning the PDP On and OffPress the Power button on the remote control.The PDP will be turned on and you will be ready to use it’s features.You can also use the Power button on the front of the PDP.Notes: • If your PDP isn’t turned on when the power button ispressed: Press the MODE button to check if the TV modehas been chosen ( ). Viewing the Menus and DisplaysYour PDP has a simple, easy-to-use menu system that appears on the PDP screen. This system makes it con-venient and fast to use features on the PDP. Your PDP also lets you display the status of many of your PDP’sfeatures.Viewing the Menus1 With the power on, press the Menu button on theremote control. The main menu appears on the screen. The Picture menu is selected.2 Use the joystick (up, down) button to move items in themenu. Use the joystick (left, right) button to display, change, or use the selected items.Use the joystick ( ) button to enter items in the menu. On screen menus disappear from the screen automatically after about thirty seconds, or you can press the Menu button on your remote control to exit the menu.PictureModeAdjustColor ToneMove Enter ExitCustomNormalDisplaying Status InformationPress the Display button on the remote control. The PDP willdisplay the Picture mode, Sound mode, MTS, Signal andCaption.Picture : CustomSound : CustomMTS : MonoSignal : MonoCaption : OffAnt 6

Memorizing the ChannelsYour PDP can memorize and store all of the available channels for both “off-air” (antenna)and cable channels. After the available channels are memorized, use the CH and CH buttons to scan through the channels. This eliminates the need to change channels by enteringthe channel digits. There are three steps for memorizing channels: selecting a broadcastsource, memorizing the channels (automatic) and adding and deleting channels (manual).32 33Selecting the Video Signal-sourceBefore your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the PDP (i.e., an antenna or a cable system).1 Press the Menu button. Move the joystick up ordown to select “Channel”, then press the joystick to enter. 2 Move the joystick left or right to select “Ant”,“STD”, “HRC” or “IRC”.•If you are connected to an antenna, leave "Ant" displayed. If you connected cable, Move the joystick left or right to the display the type of cable system: "STD", "HRC", or "IRC". (If you are not sure which type of cable system youhave, contact your cable company).3 Press the Menu button to exit.Note• STD, HRC and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area.At this point the signal source has been selected. Proceed to “Storing Channels in Memory” (next page).ChannelAnt/ CATVAuto ProgramFine TuneLNAMove Select ExitAnt Off 0ChannelAnt/ CATVAuto ProgramFine TuneLNAMove Select ExitSTD Off 0Storing Channels in Memory (Automatic Method)1 First, select the correct signal source (Ant, STD, HRC,IRC). See steps on previous page. Press the Menu button. Move the joystick up or down to select the “Channel”, then press the joystick to enter. 2 Move the joystick up or down to select “Auto Program”,then press the joystick to enter.3The PDP will begin memorizing all of the available channels. After all the available channels are stored, the Auto program menu reappears. Move the joystick right to exit.Note• The PDP automatically cycles through all of the available channels and stores them in memory. This takes about one to two minutes. ChannelAnt/ CATVAuto ProgramFine TuneLNAMove Select ExitAnt Off 0ChannelAnt / CATVAuto ProgramFine TuneLNAMove Enter ExitAnt Off 0Ant 50Auto Program : StopQuick way to access the Automatic Channel Setting :Just press the “Auto Program”button on the remote control.!

Changing ChannelsUsing the Channel ButtonsPress the CH or CH buttons to change channels.When you press the CH or CH buttons, the PDP changes channels in sequence. You will see all thechannels that the PDP has memorized. (The PDP must have memorized at least three channels.) You will not see channels that were either erased or not memorized.To View Memorized ChannelPress the CH.Scan button or the Channel button. Only the memorized channels are chosen. Directly Accessing ChannelsPress the number buttons to go directly to a channel. For example, to select channel 27, press “2” then “7”. The TV will change channels when you press the second number.When you use the number buttons, you can directly select channels that were either erased or not memorized. Tochange to single-digit channels (0~9) faster, press “0” before the single digit. (For channel “4” press “0” then “4”. Using the Pre-CH button to select the previous channelPress the Pre-CH button. The TV will switch to the fast channel viewed.To quickly switch between two channels that are far apart, tune to one channel, then use the number buttonto select the second channel. Then, use the Pre-CH button to quickly alternate between them.Adjusting the VolumeUsing the Volume ButtonsPress the VOL + or VOL – buttons to increase or decrease the volume. Using MuteUsing the Mute ButtonsAt any time, you can temporarily cut off the sound using the Mute button.1 Press the Mute button and the sound cuts off. The word “Mute” will appear in the lower-left corner of the screen.2 To turn mute off, press the Mute button again, orsimply press either the VOL + or VOL – button.Mute34 35Adding and Erasing Channels (Manual Method)1 Use the number buttons to directly select the channel thatwill be added or erased.Ex) Channel “4”2 Press the Add/Erase button: Repeatedly pressing this button will alternate between “Added” and “Erased.” Note• You can view any channel (including an erased channel) by using the number buttons on the remotecontrol.Ant 4Ant 4Added
