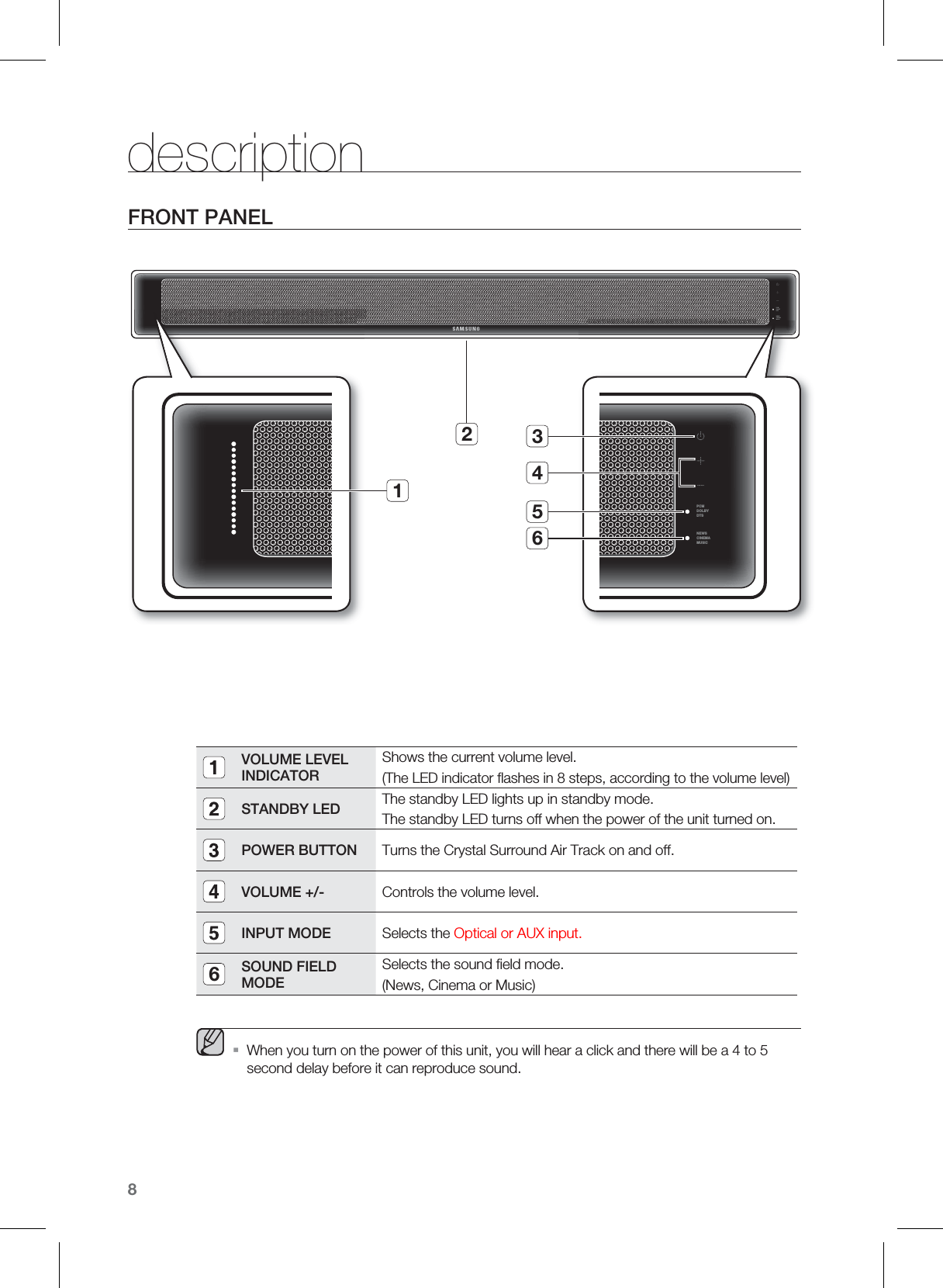

8descriptionFRONT PANELPCMDOLBYDTSNEWSCINEMAMUSICPCMDOLBYDTSNEWSCINEMAMUSIC1VOLUME LEVEL INDICATORShows the current volume level.(The LED indicator fl ashes in 8 steps, according to the volume level)STANDBY LED The standby LED lights up in standby mode.The standby LED turns off when the power of the unit turned on.POWER BUTTON Turns the Crystal Surround Air Track on and off. VOLUME +/- Controls the volume level.INPUT MODE Selects the Optical or AUX input.6SOUND FIELD MODESelects the sound fi eld mode.(News, Cinema or Music) When you turn on the power of this unit, you will hear a click and there will be a 4 to 5 second delay before it can reproduce sound.ƒ35462

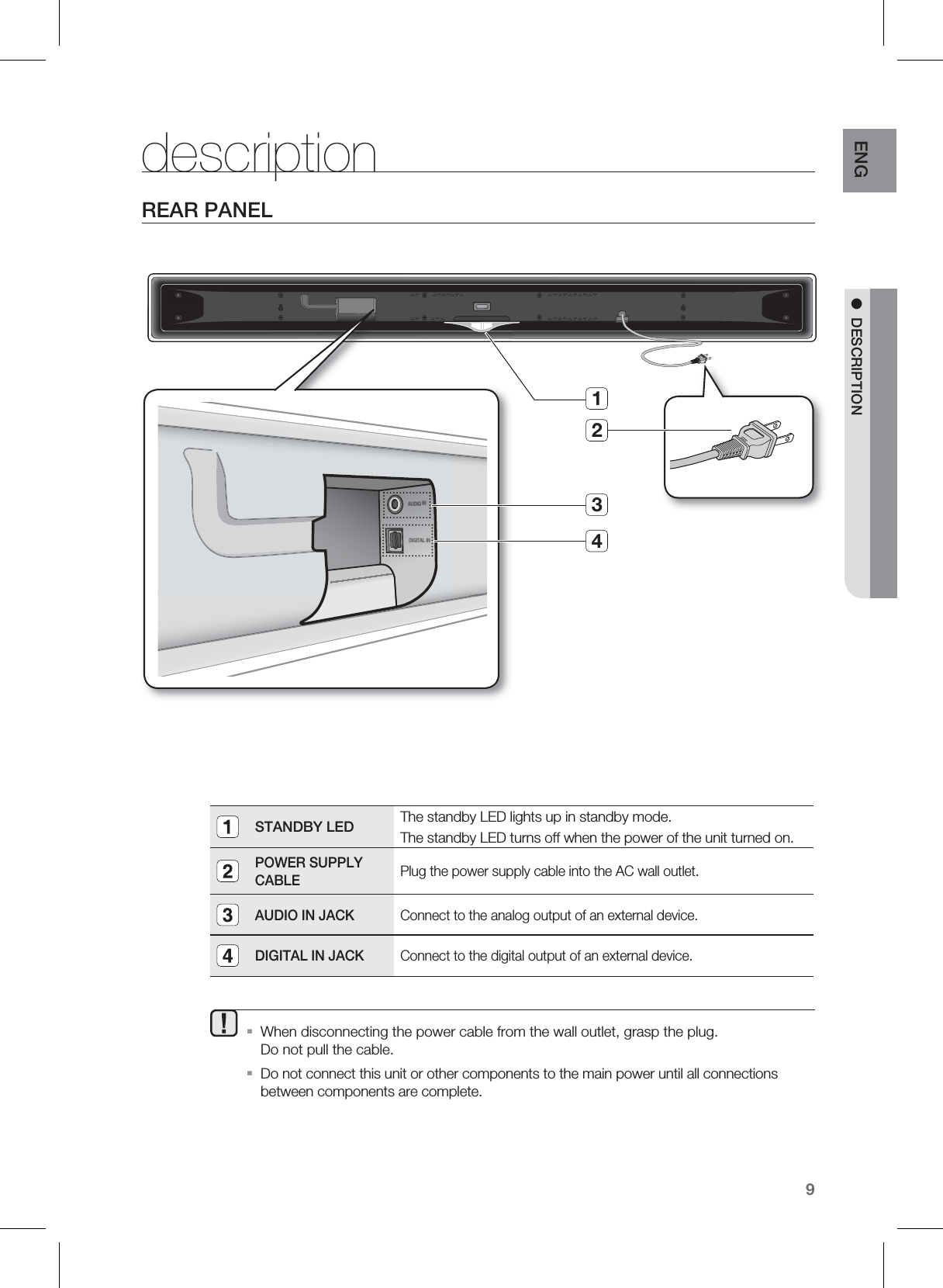

9ENG M DESCRIPTIONREAR PANELSTANDBY LED The standby LED lights up in standby mode.The standby LED turns off when the power of the unit turned on.POWER SUPPLY CABLE Plug the power supply cable into the AC wall outlet.AUDIO IN JACK Connect to the analog output of an external device.DIGITAL IN JACK Connect to the digital output of an external device. When disconnecting the power cable from the wall outlet, grasp the plug. Do not pull the cable.Do not connect this unit or other components to the main power until all connections between components are complete.ƒƒdescriptionDIGITAL INAUDIG IN3421

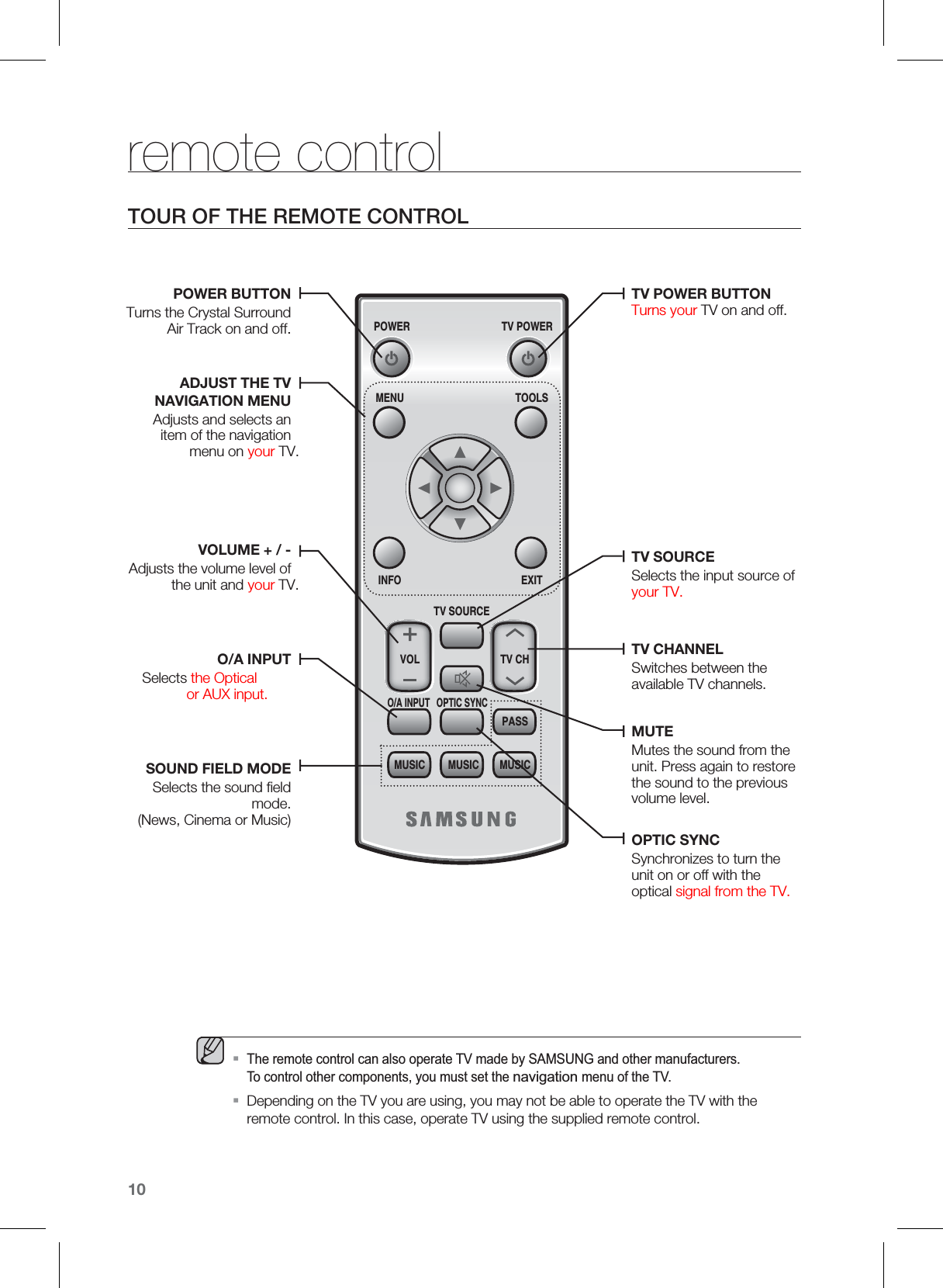

10remote controlTOUR OF THE REMOTE CONTROLPOWER TV POWERMENU TOOLSINFOTV SOURCEOPTIC SYNCO/A INPUTEXITVOL TV CHPASSMUSICMUSICMUSICPOWER BUTTONTurns the Crystal Surround Air Track on and off.ADJUST THE TV NAVIGATION MENUAdjusts and selects an item of the navigation menu on your TV.VOLUME + / -Adjusts the volume level of the unit and your TV. O/A INPUTSelects the Optical or AUX input.SOUND FIELD MODESelects the sound field mode.(News, Cinema or Music)TV POWER BUTTONTurns your TV on and off.TV SOURCESelects the input source of your TV.TV CHANNELSwitches between the available TV channels.MUTEMutes the sound from the unit. Press again to restore the sound to the previous volume level.OPTIC SYNCSynchronizes to turn the unit on or off with the optical signal from the TV. 7KHUHPRWHFRQWUROFDQDOVRRSHUDWH79PDGHE\6$0681*DQGRWKHUPDQXIDFWXUHUV7RFRQWURORWKHUFRPSRQHQWV\RXPXVWVHWWKHQDYLJDWLRQPHQXRIWKH79Depending on the TV you are using, you may not be able to operate the TV with the remote control. In this case, operate TV using the supplied remote control.ƒƒ

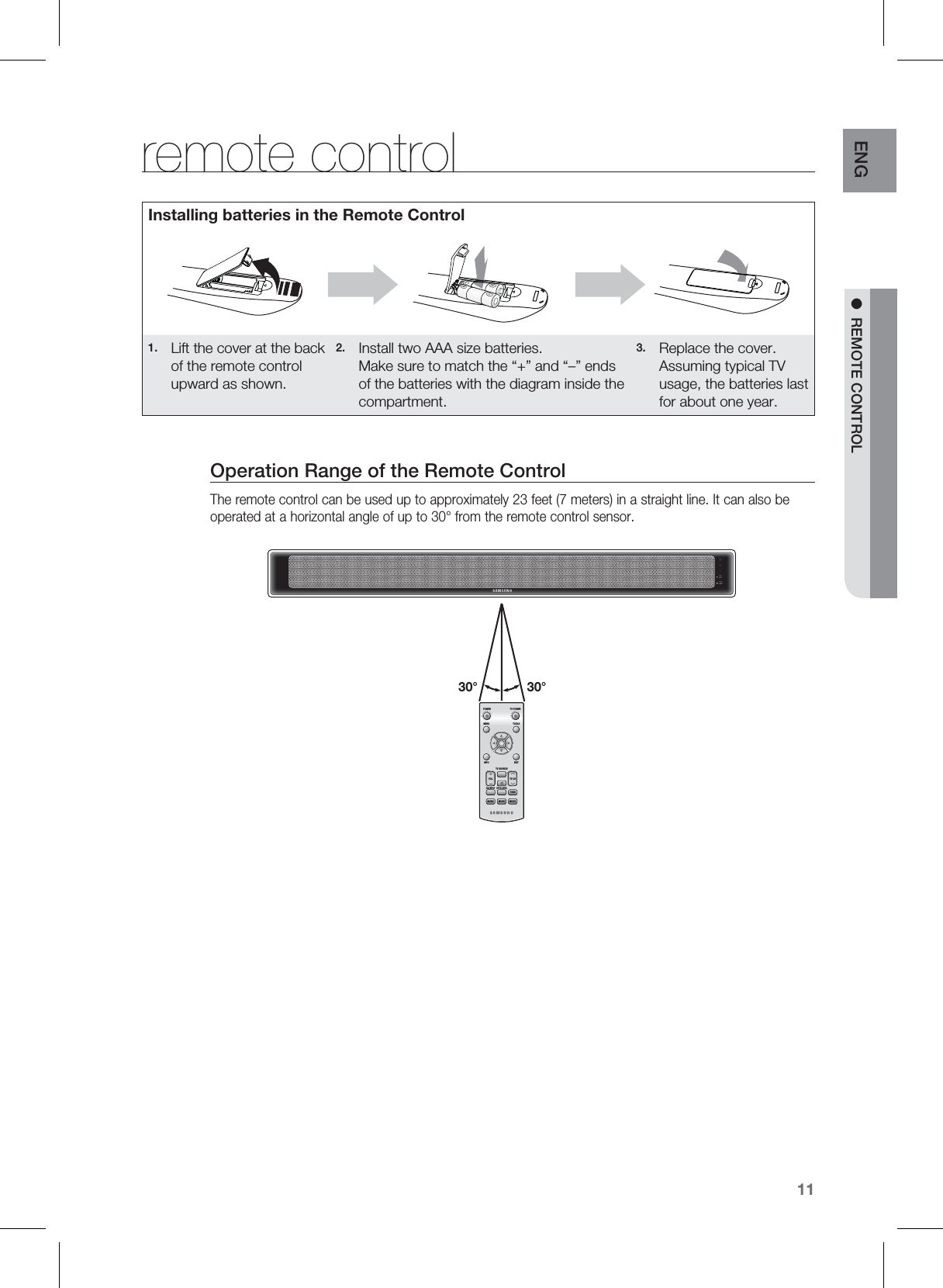

11ENG MREMOTE CONTROLremote controlPCMDOLBYDTSNEWSCINEMAMUSICPOWER TV POWERMENU TOOLSINFOTV SOURCEOPTIC SYNCO/A INPUTEXITVOL TV CHPASSMUSICMUSICMUSIC30°30°Operation Range of the Remote ControlThe remote control can be used up to approximately 23 feet (7 meters) in a straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor.Installing batteries in the Remote Control1. Lift the cover at the back of the remote control upward as shown.2. Install two AAA size batteries. Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment.3. Replace the cover. Assuming typical TV usage, the batteries last for about one year.

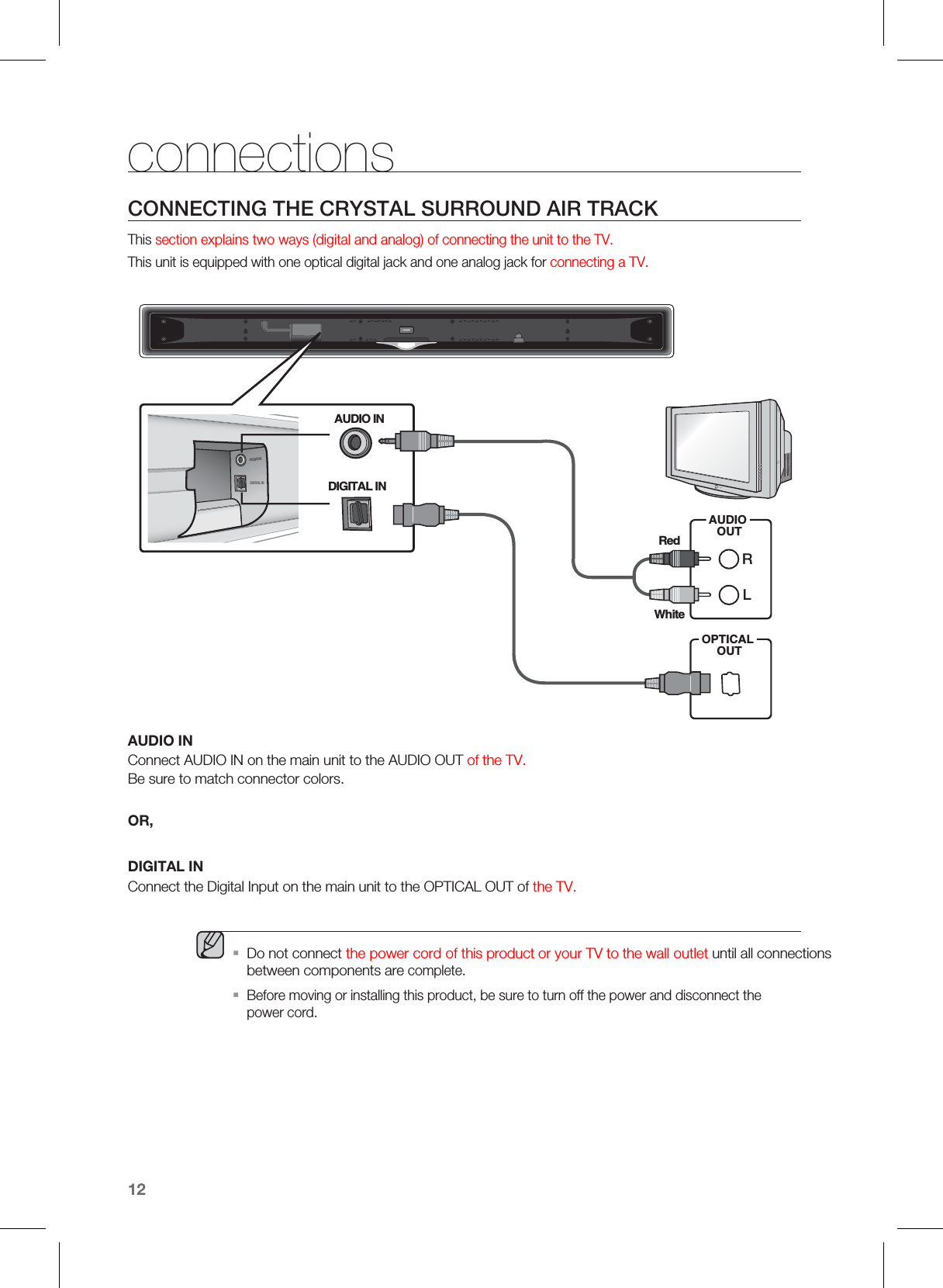

12CONNECTING THE CRYSTAL SURROUND AIR TRACKThis section explains two ways (digital and analog) of connecting the unit to the TV.This unit is equipped with one optical digital jack and one analog jack for connecting a TV.DIGITAL INAUDIGINAUDIO INAUDIOOUTLROPTICALOUTRedWhiteDIGITAL INconnectionsAUDIO INConnect AUDIO IN on the main unit to the AUDIO OUT of the TV.Be sure to match connector colors.OR,DIGITAL INConnect the Digital Input on the main unit to the OPTICAL OUT of the TV. Do not connect the power cord of this product or your TV to the wall outlet until all connections between components are complete.Before moving or installing this product, be sure to turn off the power and disconnect the power cord.ƒƒ

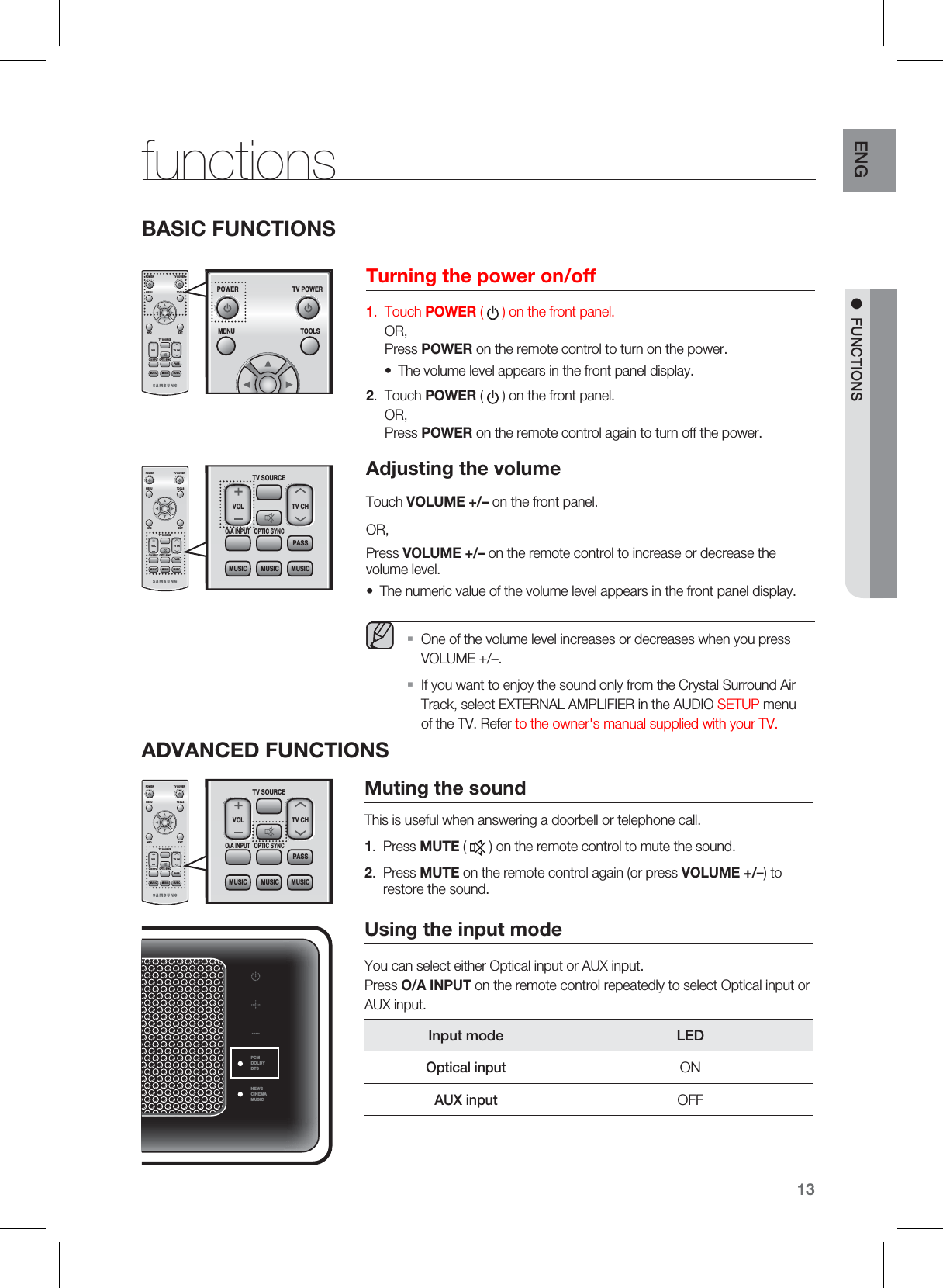

13ENGM FUNCTIONSTurning the power on/off1. Touch POWER ( ) on the front panel. OR, Press POWER on the remote control to turn on the power.The volume level appears in the front panel display.2. Touch POWER ( ) on the front panel. OR, Press POWER on the remote control again to turn off the power.Adjusting the volumeTouch VOLUME +/– on the front panel.OR,Press VOLUME +/– on the remote control to increase or decrease the volume level.The numeric value of the volume level appears in the front panel display. One of the volume level increases or decreases when you press VOLUME +/–.If you want to enjoy the sound only from the Crystal Surround Air Track, select EXTERNAL AMPLIFIER in the AUDIO SETUP menu of the TV. Refer to the owner's manual supplied with your TV.••ƒƒfunctionsMuting the soundThis is useful when answering a doorbell or telephone call.1. Press MUTE ( ) on the remote control to mute the sound.2. Press MUTE on the remote control again (or press VOLUME +/–) to restore the sound.Using the input modeYou can select either Optical input or AUX input. Press O/A INPUT on the remote control repeatedly to select Optical input or AUX input.Input mode LEDOptical inputONAUX inputOFFPCMDOLBYDTSNEWSCINEMAMUSICPOWER TV POWERMENU TOOLSINFOTV SOURCEOPTIC SYNCO/A INPUTEXITVOL TV CHPASSMUSICMUSICMUSICTV SOURCEOPTIC SYNCO/A INPUTVOL TV CHPASSMUSICMUSICMUSICADVANCED FUNCTIONSBASIC FUNCTIONSPOWER TV POWERMENU TOOLSINFOTV SOURCEOPTIC SYNCO/A INPUTEXITVOL TV CHPASSMUSICMUSICMUSICTV SOURCEOPTIC SYNCO/A INPUTVOL TV CHPASSMUSICMUSICMUSICPOWER TV POWERMENU TOOLSINFOTV SOURCEOPTIC SYNCO/A INPUTEXITVOL TV CHPASSMUSICMUSICMUSICPOWER TV POWERMENU TOOLS

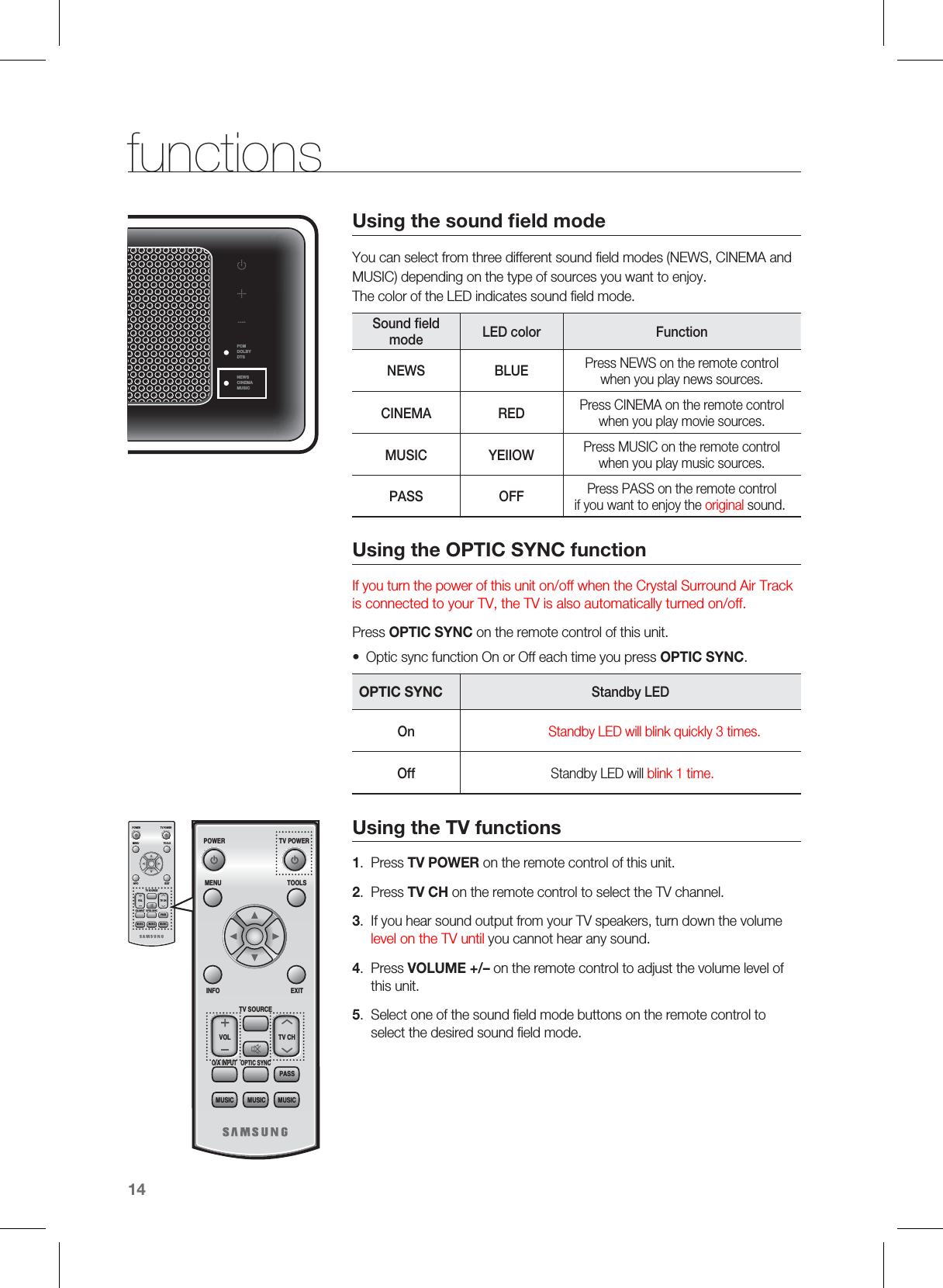

14Using the sound field modeYou can select from three different sound field modes (NEWS, CINEMA and MUSIC) depending on the type of sources you want to enjoy. The color of the LED indicates sound field mode.Sound fieldmode LED color FunctionNEWS BLUE Press NEWS on the remote control when you play news sources.CINEMA RED Press CINEMA on the remote control when you play movie sources.MUSIC YEIIOW Press MUSIC on the remote control when you play music sources.PASS OFF Press PASS on the remote control if you want to enjoy the original sound. Using the OPTIC SYNC functionIf you turn the power of this unit on/off when the Crystal Surround Air Track is connected to your TV, the TV is also automatically turned on/off.Press OPTIC SYNC on the remote control of this unit.Optic sync function On or Off each time you press OPTIC SYNC.OPTIC SYNCStandby LEDOn Standby LED will blink quickly 3 times.Off Standby LED will blink 1 time.Using the TV functions1. Press TV POWER on the remote control of this unit.2. Press TV CH on the remote control to select the TV channel.3. If you hear sound output from your TV speakers, turn down the volume level on the TV until you cannot hear any sound.4. Press VOLUME +/– on the remote control to adjust the volume level of this unit.5. Select one of the sound field mode buttons on the remote control to select the desired sound field mode.•functionsPCMDOLBYDTSNEWSCINEMAMUSICPOWER TV POWERMENU TOOLSINFOTV SOURCEOPTIC SYNCO/A INPUTEXITVOL TV CHPASSMUSICMUSICMUSICPOWER TV POWERMENU TOOLSINFOTV SOURCEOPTIC SYNCO/A INPUTEXITVOL TV CHPASSMUSICMUSICMUSIC

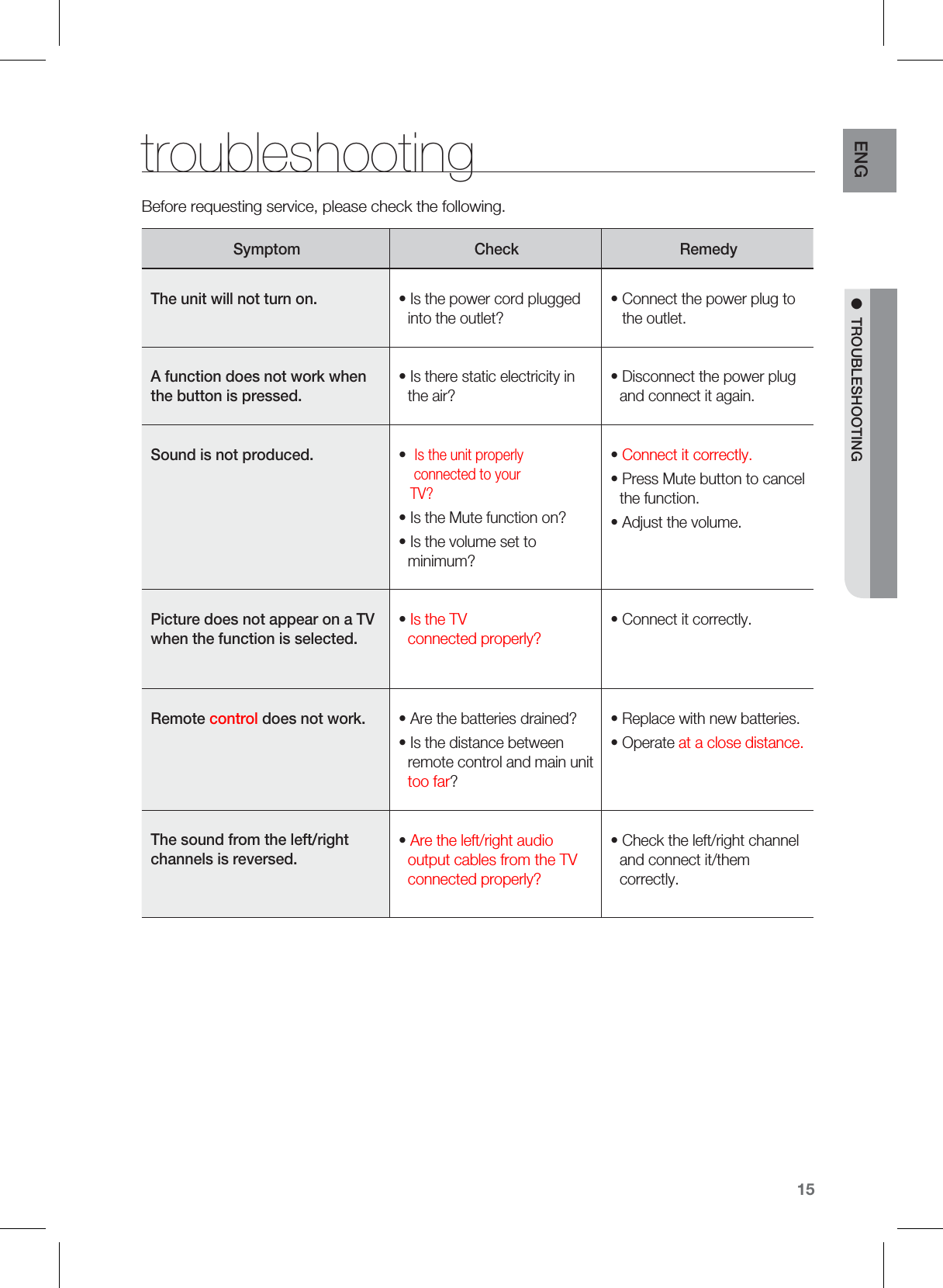

15ENG MTROUBLESHOOTINGBefore requesting service, please check the following.Symptom Check RemedyThe unit will not turn on. • Is the power cord plugged into the outlet?• Connect the power plug to the outlet.A function does not work whenthe button is pressed.• Is there static electricity in the air?• Disconnect the power plug and connect it again.Sound is not produced. • Is the unit properly connected to yourTV?• Is the Mute function on?• Is the volume set to minimum?• Connect it correctly.• Press Mute button to cancel the function.• Adjust the volume.Picture does not appear on a TVwhen the function is selected.• Is the TVconnected properly?• Connect it correctly.Remotecontrol does not work. • Are the batteries drained?• Is the distance between remote control and main unit too far?• Replace with new batteries.• Operate at a close distance.The sound from the left/rightchannels is reversed.• Are the left/right audiooutput cables from the TVconnected properly?• Check the left/right channel and connect it/them correctly.troubleshooting

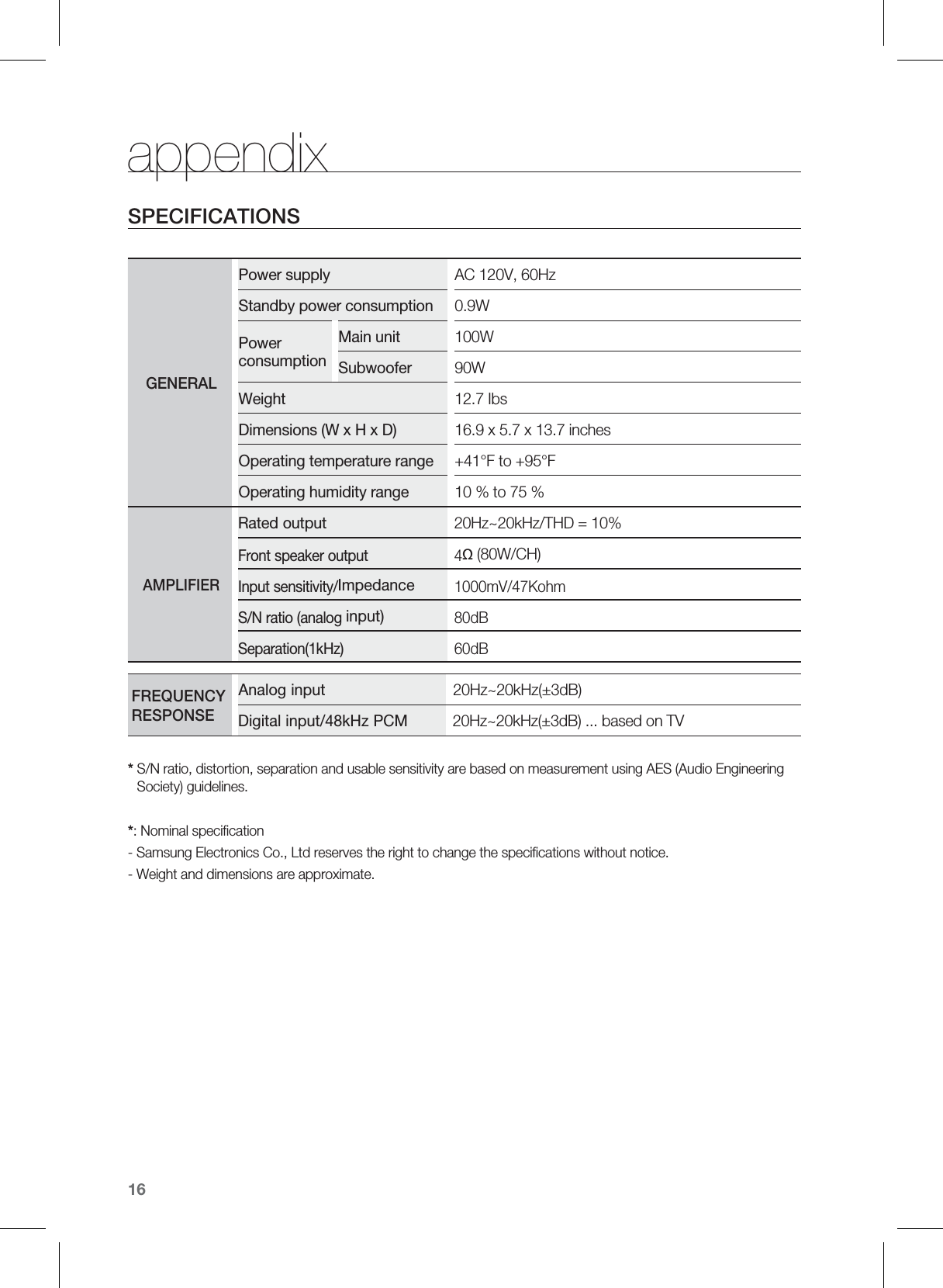

16SPECIFICATIONSGENERALPower supply AC 120V, 60Hz Standby power consumption 0.9WPowerconsumptionMain unit 100WSubwoofer 90WWeight 12.7 IbsDimensions (WxHxD) 16.9 x 5.7 x 13.7 inchesOperating temperature range +41°F to +95°FOperating humidity range 10 % to 75 %AMPLIFIERRated output 20Hz~20kHz/THD = 10%Front speaker output 4ȍ(80W/CH)Input sensitivity/Impedance1000mV/47KohmS/N ratio (analoginput)80dBSeparation(1kHz) 60dBFREQUENCYRESPONSEAnalog input 20Hz~20kHz(±3dB)Digital input/48kHz PCM 20Hz~20kHz(±3dB) ... based on TV*S/N ratio, distortion, separation and usable sensitivity are based on measurement using AES (Audio Engineering Society) guidelines.*: Nominal specification- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.- Weight and dimensions are approximate.appendix

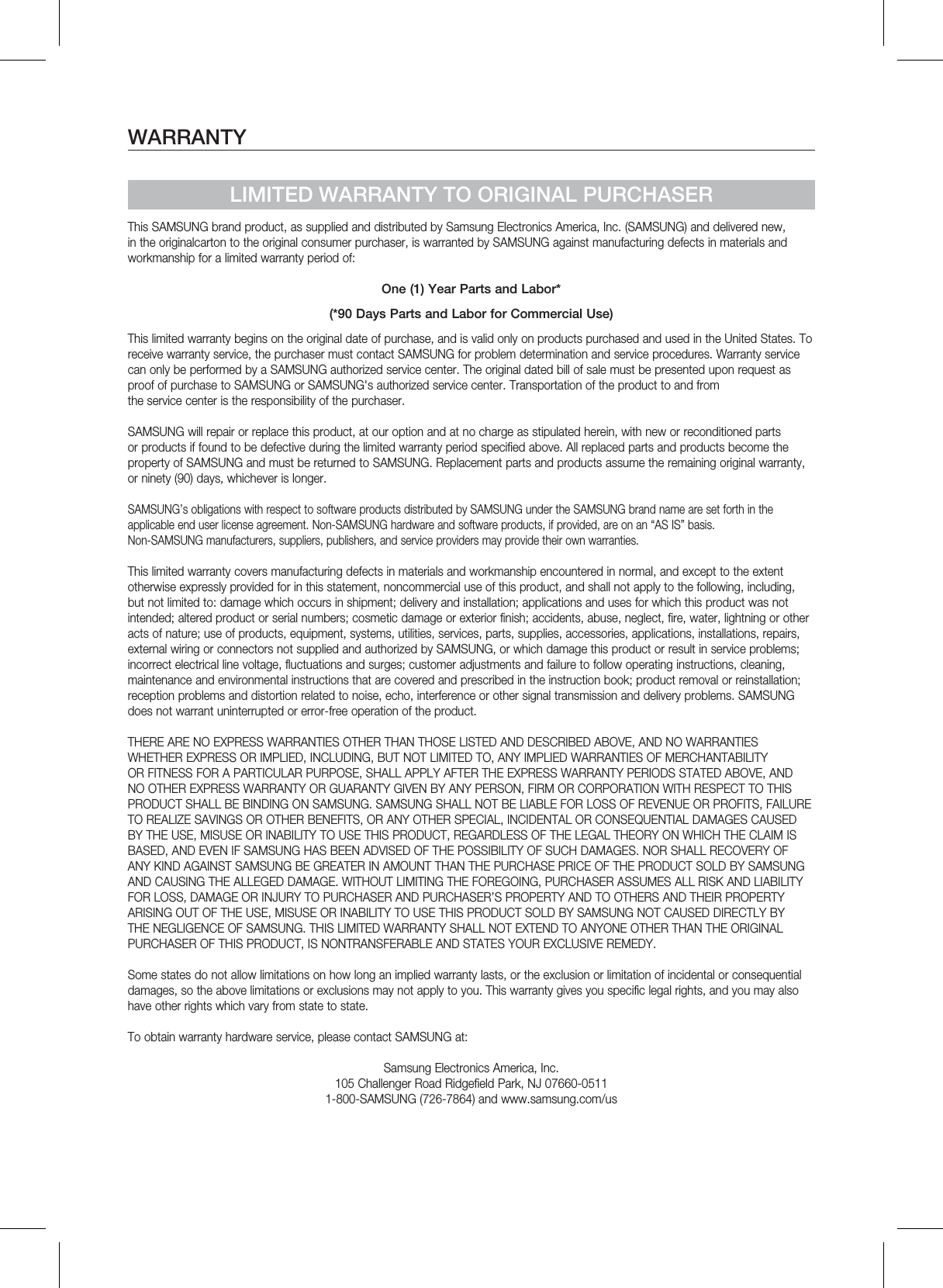

WARRANTYLIMITED WARRANTY TO ORIGINAL PURCHASERThis SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new, in the originalcarton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:One (1) Year Parts and Labor*(*90 Days Parts and Labor for Commercial Use)This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center. Transportation of the product to and from the service center is the responsibility of the purchaser.SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.SAMSUNG’s obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand name are set forth in theapplicable end user license agreement. Non-SAMSUNG hardware and software products, if provided, are on an “AS IS” basis. Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their own warranties.This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent otherwise expressly provided for in this statement, noncommercial use of this product, and shall not apply to the following, including, but not limited to: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied and authorized by SAMSUNG, or which damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal or reinstallation; reception problems and distortion related to noise, echo, interference or other signal transmission and delivery problems. SAMSUNG does not warrant uninterrupted or error-free operation of the product.THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.To obtain warranty hardware service, please contact SAMSUNG at:Samsung Electronics America, Inc.105 Challenger Road Ridgefield Park, NJ 07660-05111-800-SAMSUNG (726-7864) and www.samsung.com/us

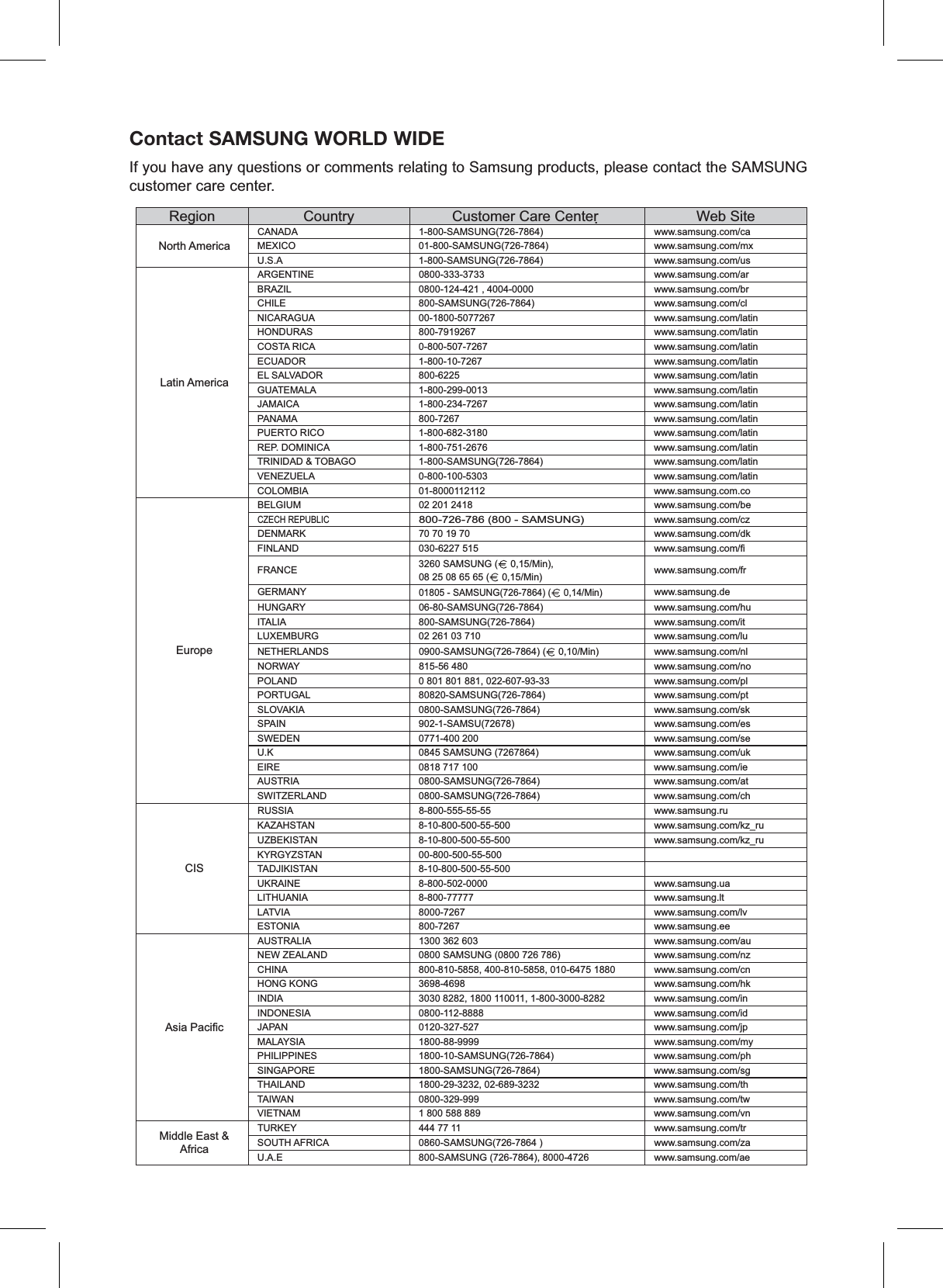

Contact SAMSUNG WORLD WIDE ,I\RXKDYHDQ\TXHVWLRQVRUFRPPHQWVUHODWLQJWR6DPVXQJSURGXFWVSOHDVHFRQWDFWWKH6$0681*FXVWRPHUFDUHFHQWHU5HJLRQ &RXQWU\ &XVWRPHU&DUH&HQWHUҞ :HE6LWH1RUWK$PHULFDCANADA 6$0681* ZZZVDPVXQJFRPFDMEXICO 6$0681* ZZZVDPVXQJFRPP[U.S.A 6$0681* ZZZVDPVXQJFRPXV/DWLQ$PHULFDARGENTINE  ZZZVDPVXQJFRPDUBRAZIL  ZZZVDPVXQJFRPEUCHILE 6$0681* ZZZVDPVXQJFRPFONICARAGUA  ZZZVDPVXQJFRPODWLQHONDURAS  ZZZVDPVXQJFRPODWLQCOSTA RICA  ZZZVDPVXQJFRPODWLQECUADOR  ZZZVDPVXQJFRPODWLQEL SALVADOR  ZZZVDPVXQJFRPODWLQGUATEMALA  ZZZVDPVXQJFRPODWLQJAMAICA  ZZZVDPVXQJFRPODWLQPANAMA  ZZZVDPVXQJFRPODWLQPUERTO RICO  ZZZVDPVXQJFRPODWLQREP. DOMINICA  ZZZVDPVXQJFRPODWLQTRINIDAD & TOBAGO 6$0681* ZZZVDPVXQJFRPODWLQVENEZUELA  ZZZVDPVXQJFRPODWLQCOLOMBIA  ZZZVDPVXQJFRPFR(XURSHBELGIUM  ZZZVDPVXQJFRPEHCZECH REPUBLIC6$0681*ZZZVDPVXQJFRPF]DENMARK  ZZZVDPVXQJFRPGNFINLAND  ZZZVDPVXQJFRP¿FRANCE 6$0681* 0LQ 0LQ ZZZVDPVXQJFRPIUGERMANY6$0681* 0LQZZZVDPVXQJGHHUNGARY 6$0681* ZZZVDPVXQJFRPKXITALIA 6$0681* ZZZVDPVXQJFRPLWLUXEMBURG  ZZZVDPVXQJFRPOXNETHERLANDS6$0681* 0LQ ZZZVDPVXQJFRPQONORWAY  ZZZVDPVXQJFRPQRPOLAND  ZZZVDPVXQJFRPSOPORTUGAL 6$0681* ZZZVDPVXQJFRPSWSLOVAKIA 6$0681* ZZZVDPVXQJFRPVNSPAIN 6$068 ZZZVDPVXQJFRPHVSWEDEN  ZZZVDPVXQJFRPVHU.K 6$0681* ZZZVDPVXQJFRPXNEIRE  ZZZVDPVXQJFRPLHAUSTRIA 6$0681* ZZZVDPVXQJFRPDWSWITZERLAND 6$0681* ZZZVDPVXQJFRPFKCISRUSSIA  ZZZVDPVXQJUXKAZAHSTAN  ZZZVDPVXQJFRPN]BUXUZBEKISTAN  ZZZVDPVXQJFRPN]BUXKYRGYZSTAN TADJIKISTAN UKRAINE  ZZZVDPVXQJXDLITHUANIA  ZZZVDPVXQJOWLATVIA  ZZZVDPVXQJFRPOYESTONIA  ZZZVDPVXQJHH$VLD3DFL¿FAUSTRALIA  ZZZVDPVXQJFRPDXNEW ZEALAND 6$0681* ZZZVDPVXQJFRPQ]CHINA  ZZZVDPVXQJFRPFQHONG KONG  ZZZVDPVXQJFRPKNINDIA  ZZZVDPVXQJFRPLQINDONESIA  ZZZVDPVXQJFRPLGJAPAN  ZZZVDPVXQJFRPMSMALAYSIA  ZZZVDPVXQJFRPP\PHILIPPINES 6$0681* ZZZVDPVXQJFRPSKSINGAPORE 6$0681* ZZZVDPVXQJFRPVJTHAILAND  ZZZVDPVXQJFRPWKTAIWAN  ZZZVDPVXQJFRPWZVIETNAM  ZZZVDPVXQJFRPYQ0LGGOH(DVW$IULFDTURKEY  ZZZVDPVXQJFRPWUSOUTH AFRICA 6$0681* ZZZVDPVXQJFRP]DU.A.E 6$0681*ZZZVDPVXQJFRPDH
