Contents

Users Manual 2

8
description

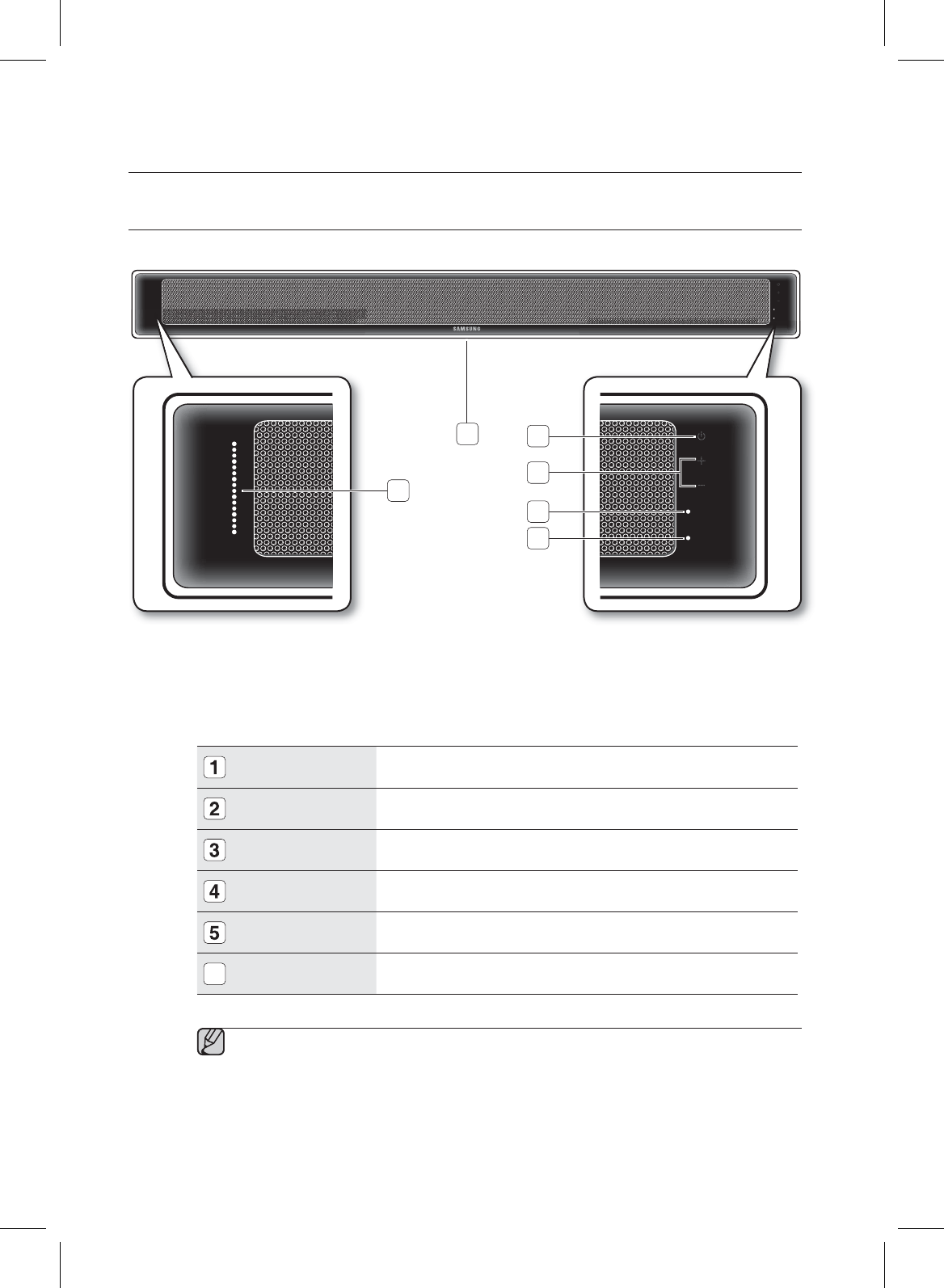

FRONT PANEL
PCM
DOLBY
DTS
NEWS
CINEMA
MUSIC
PCM
DOLBY
DTS
NEWS
CINEMA
MUSIC
1
VOLUME LEVEL
INDICATOR
Shows the current volume level.
(The LED indicator fl ashes in 8 steps, according to the volume level)
STANDBY LED The standby LED lights up in standby mode.
The standby LED turns off when the power of the unit turned on.
POWER BUTTON Turns the Crystal Surround Air Track on and off.
VOLUME +/- Controls the volume level.
INPUT MODE Selects the Optical or AUX input.
6SOUND FIELD
MODE
Selects the sound fi eld mode.
(News, Cinema or Music)
When you turn on the power of this unit, you will hear a click and there will be a 4 to 5
second delay before it can reproduce sound.
ƒ
3
5
4
6
2
9
ENG M DESCRIPTION

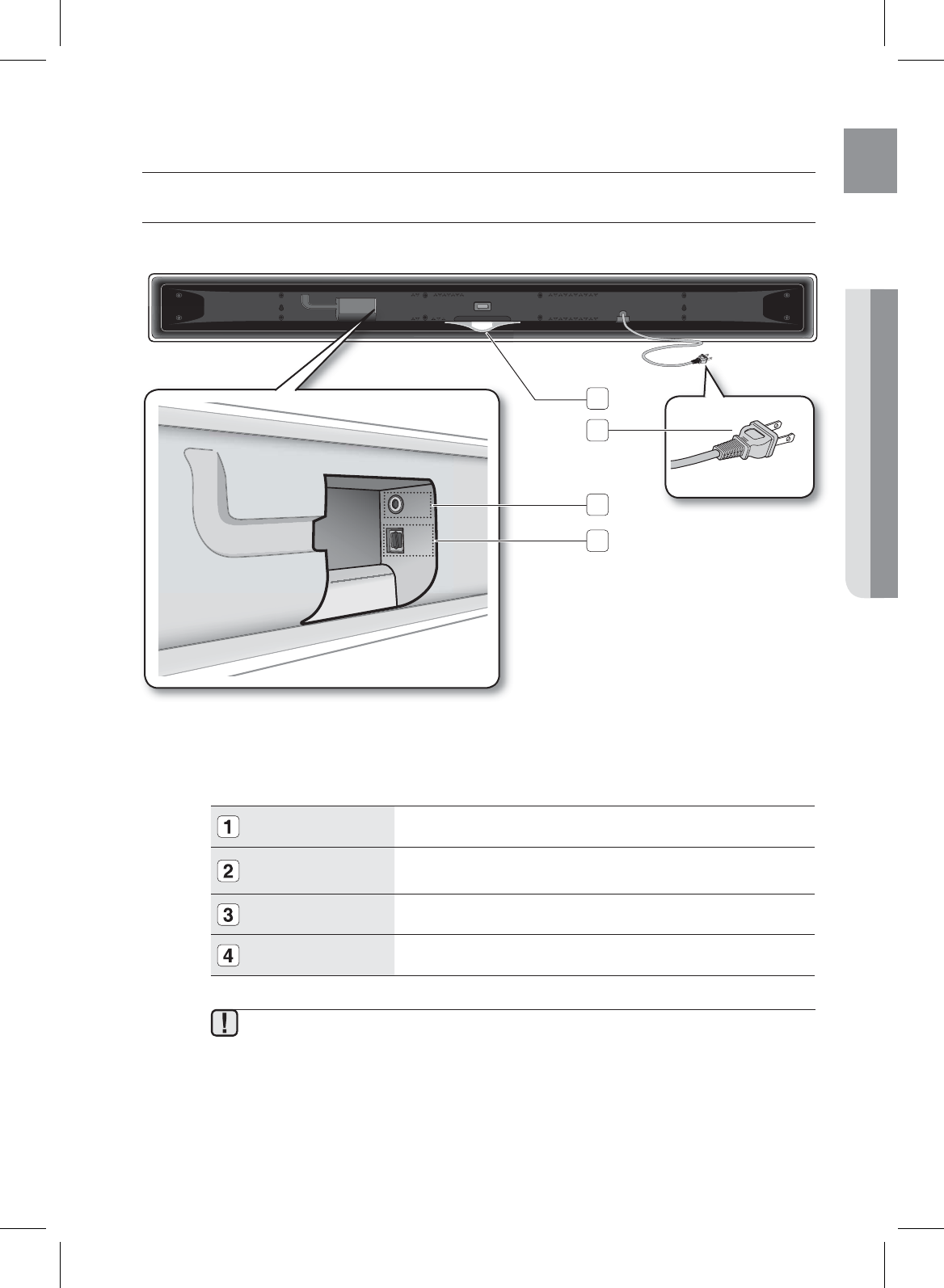

REAR PANEL
STANDBY LED The standby LED lights up in standby mode.
The standby LED turns off when the power of the unit turned on.
POWER SUPPLY
CABLE Plug the power supply cable into the AC wall outlet.
AUDIO IN JACK Connect to the analog output of an external device.
DIGITAL IN JACK Connect to the digital output of an external device.
When disconnecting the power cable from the wall outlet, grasp the plug.
Do not pull the cable.
Do not connect this unit or other components to the main power until all connections
between components are complete.
ƒ
ƒ
description
DIGITAL IN
A
U
D
I
G
IN
3
4
2
1
10
remote control

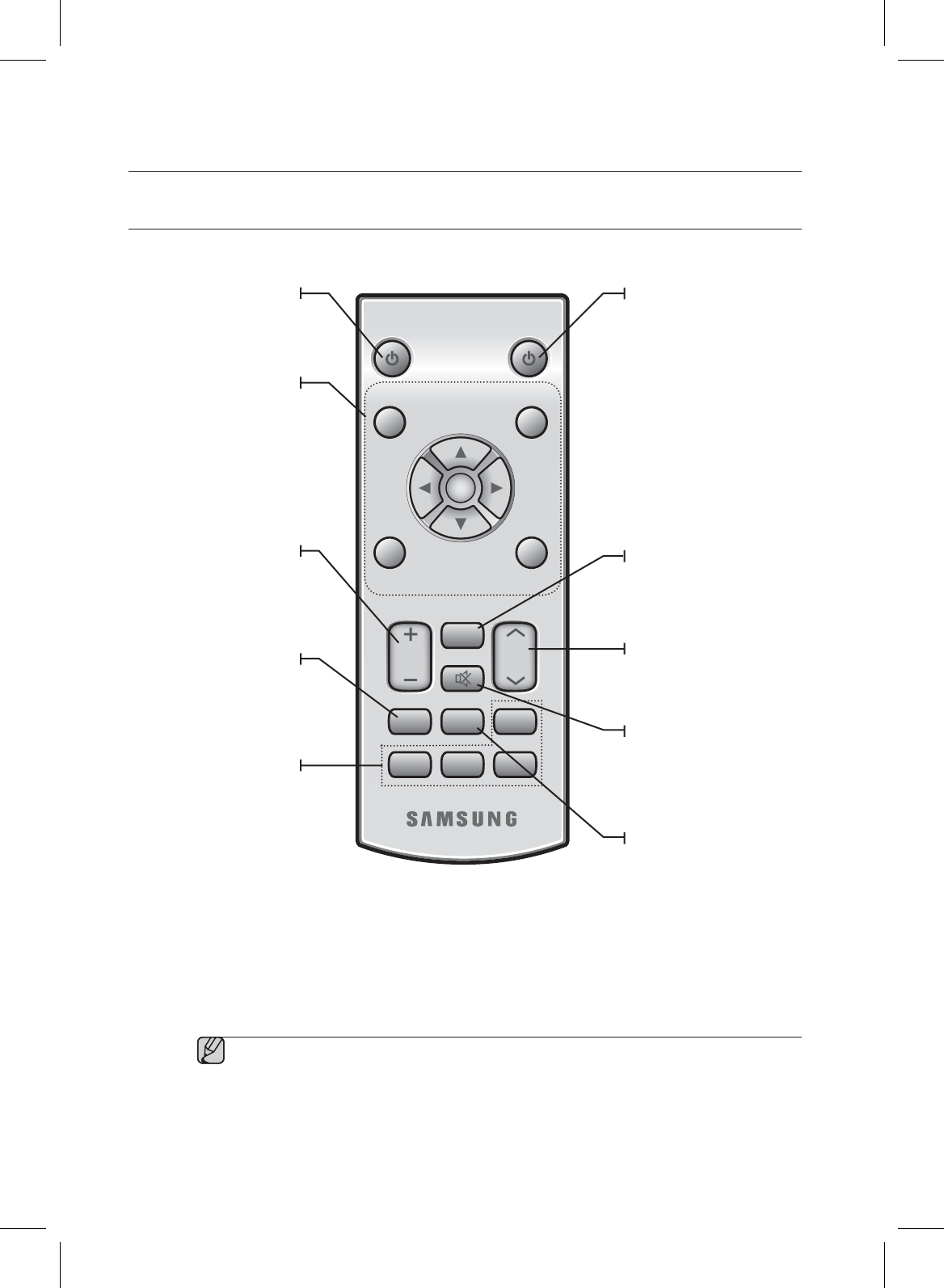

TOUR OF THE REMOTE CONTROL
POWER TV POWER
MENU TOOLS
INFO
TV SOURCE
OPTIC SYNCO/A INPUT
EXIT
VOL TV CH
PASS
MUSICMUSICMUSIC
POWER BUTTON
Turns the Crystal Surround
Air Track on and off.
ADJUST THE TV
NAVIGATION MENU
Adjusts and selects an
item of the navigation
menu on your TV.
VOLUME + / -
Adjusts the volume level of
the unit and your TV.
O/A INPUT
Selects the Optical
or AUX input.
SOUND FIELD MODE
Selects the sound field
mode.
(News, Cinema or Music)
TV POWER BUTTON
Turns your TV on and off.
TV SOURCE
Selects the input source of
your TV.
TV CHANNEL
Switches between the
available TV channels.
MUTE
Mutes the sound from the
unit. Press again to restore
the sound to the previous
volume level.
OPTIC SYNC
Synchronizes to turn the
unit on or off with the
optical signal from the TV.
7KHUHPRWHFRQWUROFDQDOVRRSHUDWH79PDGHE\6$0681*DQGRWKHUPDQXIDFWXUHUV
7RFRQWURORWKHUFRPSRQHQWV\RXPXVWVHWWKH
QDYLJDWLRQ
PHQXRIWKH79
Depending on the TV you are using, you may not be able to operate the TV with the
remote control. In this case, operate TV using the supplied remote control.
ƒ
ƒ
11
ENG MREMOTE CONTROL
remote control
PCM
DOLBY
DTS
NEWS
CINEMA
MUSIC
POWER TV POWER
MENU TOOLS
INFO
TV SOURCE
OPTIC SYNCO/A INPUT
EXIT
VOL TV CH
PASS
MUSICMUSICMUSIC
30°30°

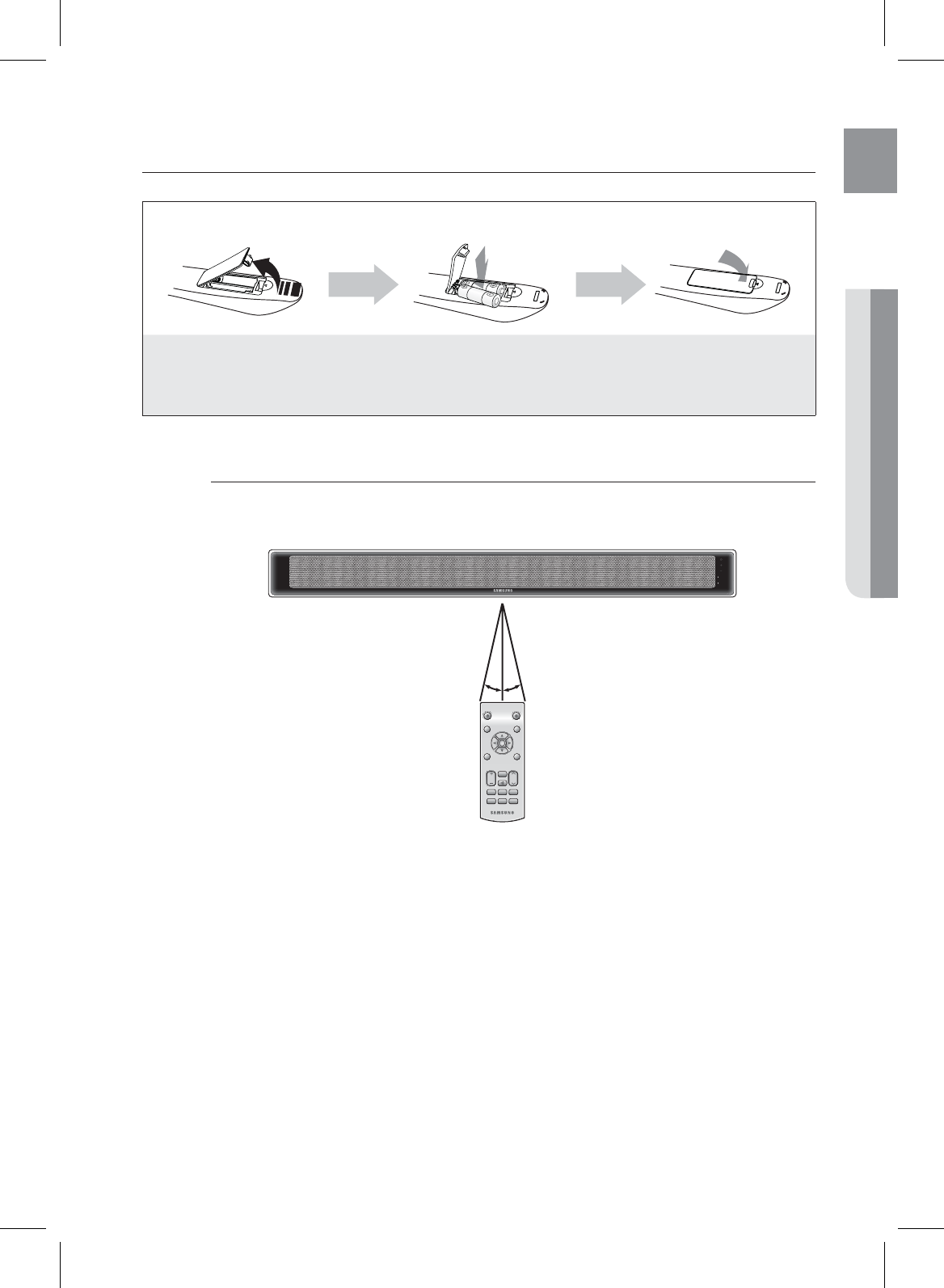

Operation Range of the Remote Control
The remote control can be used up to approximately 23 feet (7 meters) in a straight line. It can also be
operated at a horizontal angle of up to 30° from the remote control sensor.
Installing batteries in the Remote Control
1. Lift the cover at the back
of the remote control
upward as shown.
2. Install two AAA size batteries.
Make sure to match the “+” and “–” ends
of the batteries with the diagram inside the
compartment.
3. Replace the cover.
Assuming typical TV
usage, the batteries last
for about one year.
12

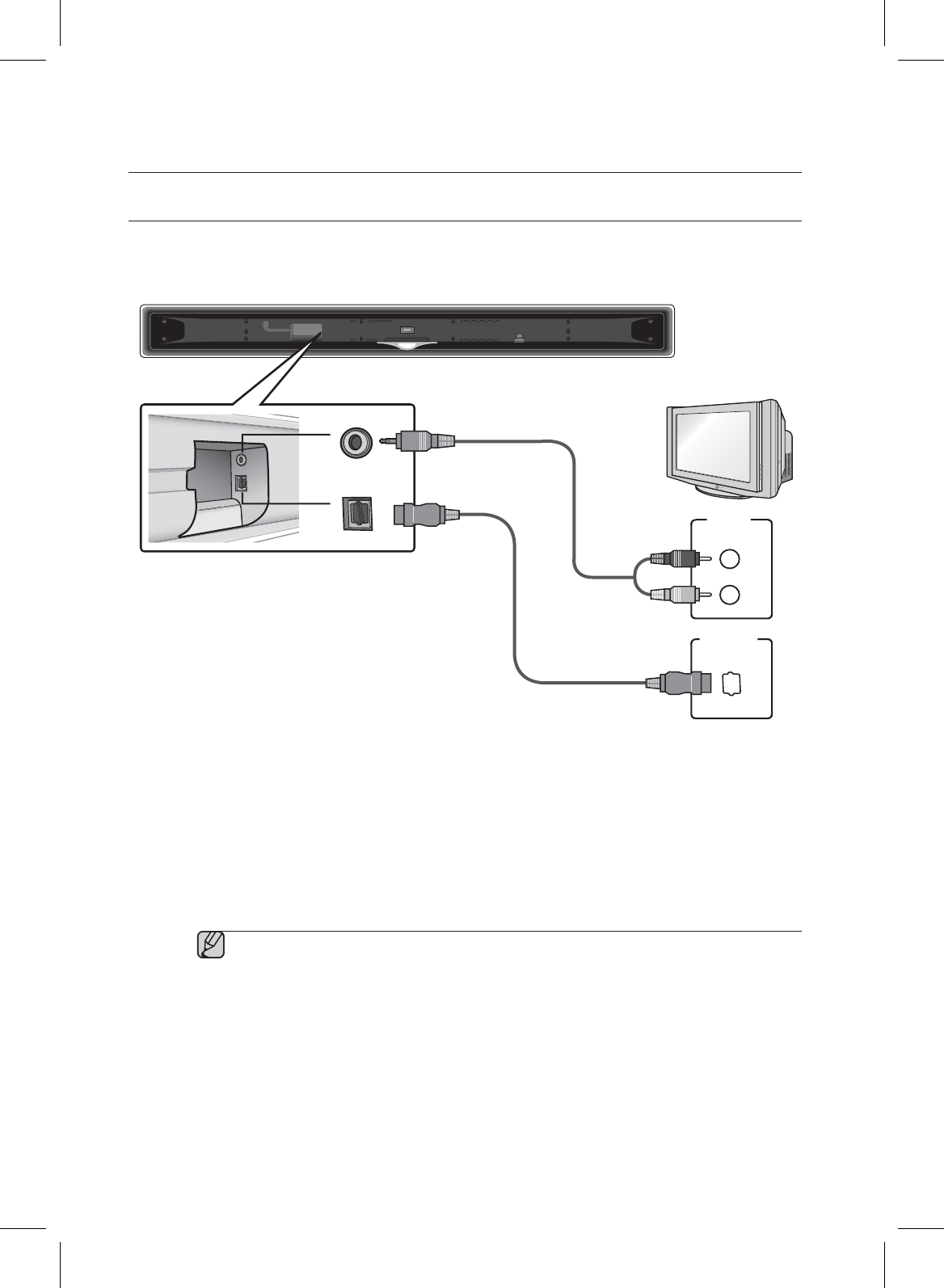

CONNECTING THE CRYSTAL SURROUND AIR TRACK
This section explains two ways (digital and analog) of connecting the unit to the TV.
This unit is equipped with one optical digital jack and one analog jack for connecting a TV.
DIGITAL IN
A
U
DIG
I
N
AUDIO IN
AUDIO
OUT
L
R
OPTICAL
OUT
Red
White
DIGITAL IN
connections
AUDIO IN
Connect AUDIO IN on the main unit to the AUDIO OUT of the TV.
Be sure to match connector colors.
OR,
DIGITAL IN
Connect the Digital Input on the main unit to the OPTICAL OUT of the TV.
Do not connect the power cord of this product or your TV to the wall outlet until all connections
between components are
complete.
Before moving or installing this product, be sure to turn off the power and disconnect the
power cord.
ƒ
ƒ
13
ENG

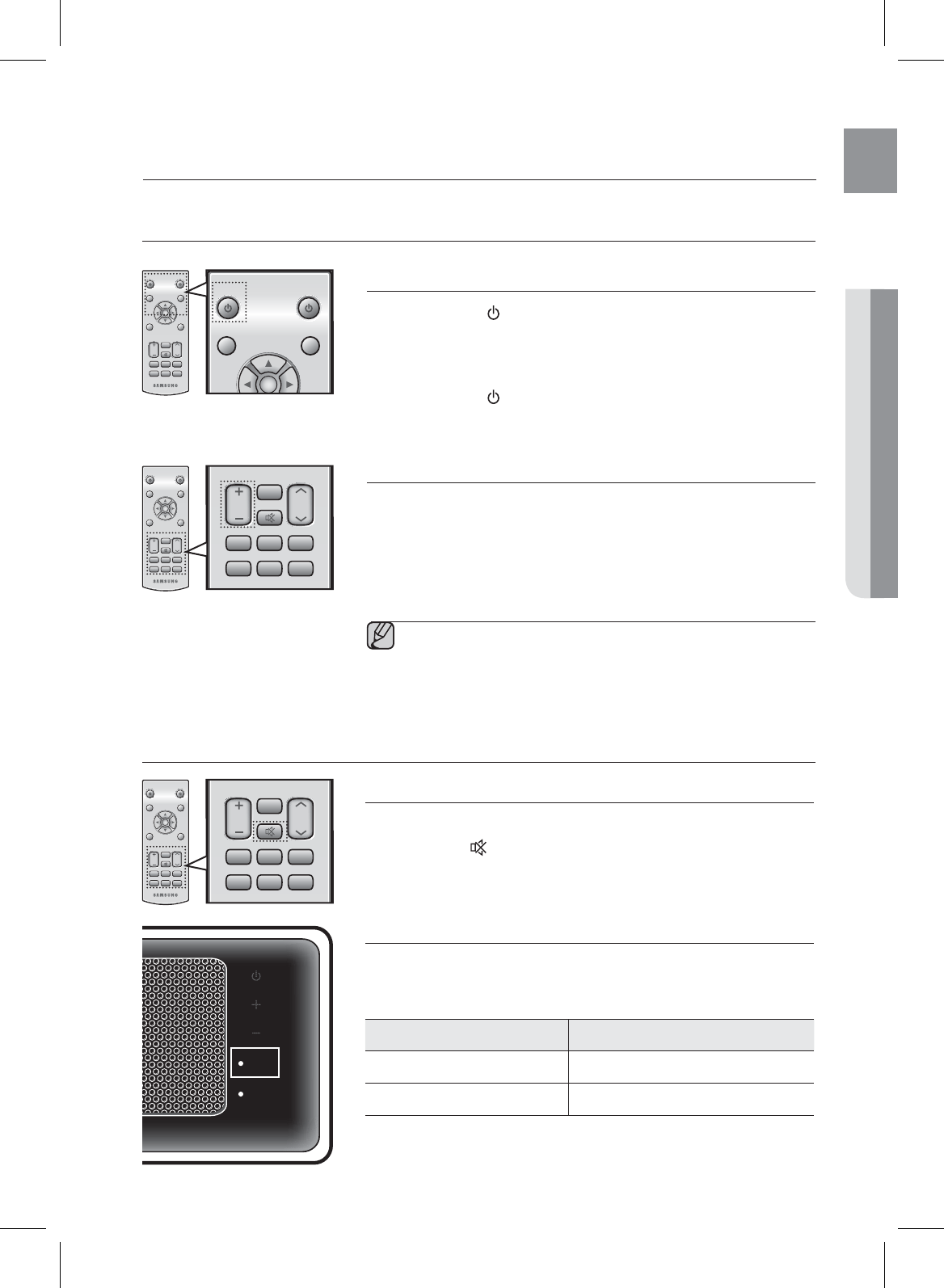

M FUNCTIONS
Turning the power on/off
1. Touch POWER ( ) on the front panel.
OR,
Press POWER on the remote control to turn on the power.
The volume level appears in the front panel display.
2. Touch POWER ( ) on the front panel.
OR,
Press POWER on the remote control again to turn off the power.
Adjusting the volume
Touch VOLUME +/– on the front panel.
OR,
Press VOLUME +/– on the remote control to increase or decrease the
volume level.
The numeric value of the volume level appears in the front panel display.
One of the volume level increases or decreases when you press
VOLUME +/–.
If you want to enjoy the sound only from the Crystal Surround Air
Track, select EXTERNAL AMPLIFIER in the AUDIO SETUP menu
of the TV. Refer to the owner's manual supplied with your TV.
•
•
ƒ
ƒ
functions
Muting the sound
This is useful when answering a doorbell or telephone call.
1. Press MUTE ( ) on the remote control to mute the sound.
2. Press MUTE on the remote control again (or press VOLUME +/–) to
restore the sound.
Using the input mode
You can select either Optical input or AUX input.
Press O/A INPUT on the remote control repeatedly to select Optical input or
AUX input.
Input mode LED
Optical input
ON
AUX input
OFF
PCM
DOLBY
DTS
NEWS
CINEMA
MUSIC
POWER TV POWER
MENU TOOLS
INFO
TV SOURCE
OPTIC SYNCO/A INPUT
EXIT
VOL TV CH
PASS
MUSICMUSICMUSIC
TV SOURCE
OPTIC SYNCO/A INPUT
VOL TV CH
PASS
MUSICMUSICMUSIC
ADVANCED FUNCTIONS
BASIC FUNCTIONS
POWER TV POWER
MENU TOOLS
INFO
TV SOURCE
OPTIC SYNCO/A INPUT
EXIT
VOL TV CH
PASS
MUSICMUSICMUSIC
TV SOURCE
OPTIC SYNCO/A INPUT
VOL TV CH
PASS
MUSICMUSICMUSIC
POWER TV POWER
MENU TOOLS
INFO
TV SOURCE
OPTIC SYNCO/A INPUT
EXIT
VOL TV CH
PASS
MUSICMUSICMUSIC
POWER TV POWER
MENU TOOLS
14

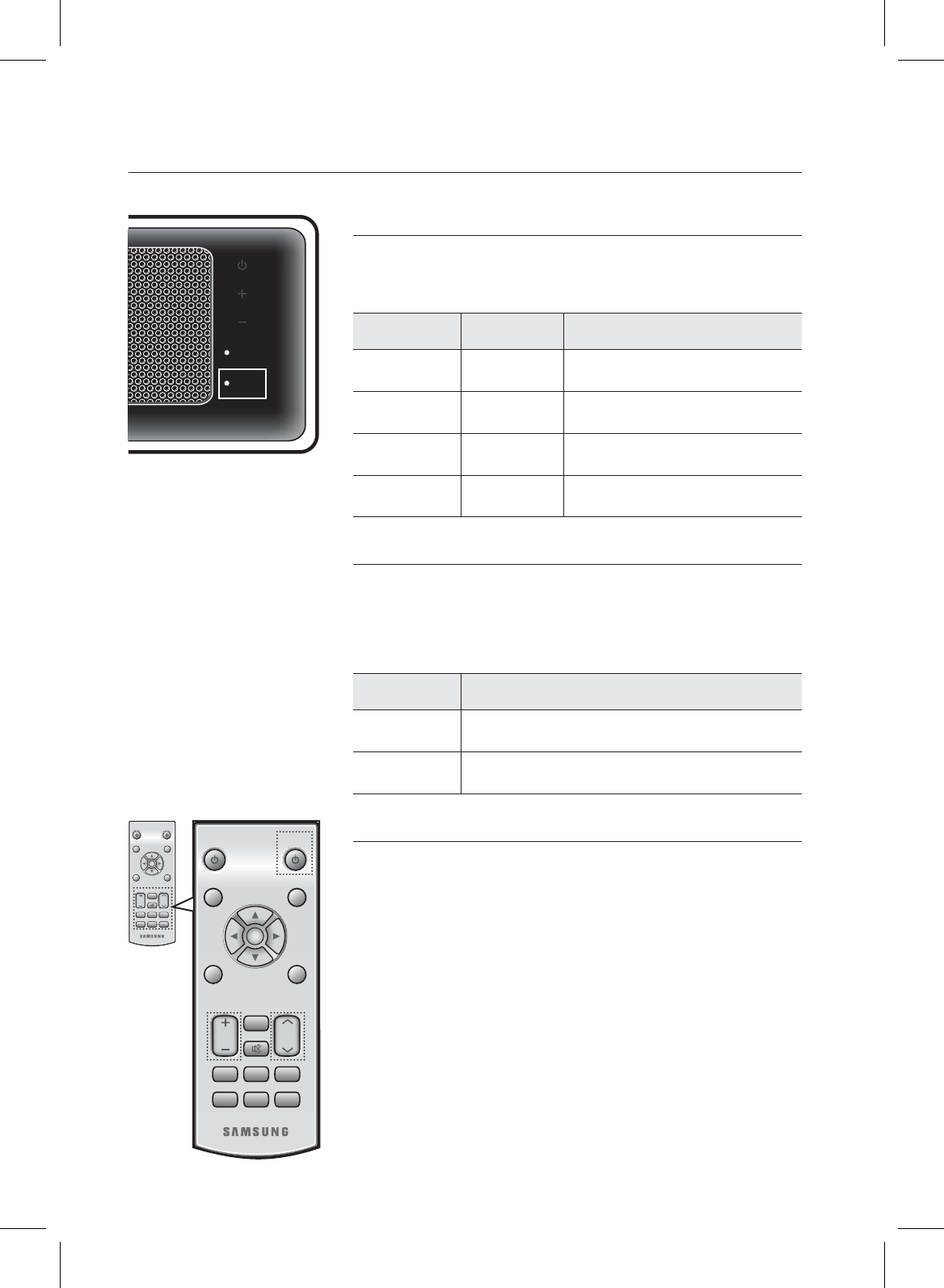

Using the sound field mode
You can select from three different sound field modes (NEWS, CINEMA and
MUSIC) depending on the type of sources you want to enjoy.
The color of the LED indicates sound field mode.
Sound field
mode LED color Function
NEWS BLUE Press NEWS on the remote control
when you play news sources.
CINEMA RED Press CINEMA on the remote control
when you play movie sources.
MUSIC YEIIOW Press MUSIC on the remote control
when you play music sources.
PASS OFF Press PASS on the remote control
if you want to enjoy the original sound.
Using the OPTIC SYNC function
If you turn the power of this unit on/off when the Crystal Surround Air Track
is connected to your TV, the TV is also automatically turned on/off.
Press OPTIC SYNC on the remote control of this unit.
Optic sync function On or Off each time you press OPTIC SYNC.
OPTIC SYNC
Standby LED
On Standby LED will blink quickly 3 times.
Off Standby LED will blink 1 time.
Using the TV functions
1. Press TV POWER on the remote control of this unit.
2. Press TV CH on the remote control to select the TV channel.
3. If you hear sound output from your TV speakers, turn down the volume
level on the TV until you cannot hear any sound.
4. Press VOLUME +/– on the remote control to adjust the volume level of
this unit.
5. Select one of the sound field mode buttons on the remote control to
select the desired sound field mode.
•
functions
PCM
DOLBY
DTS
NEWS
CINEMA
MUSIC
POWER TV POWER
MENU TOOLS
INFO
TV SOURCE
OPTIC SYNCO/A INPUT
EXIT
VOL TV CH
PASS
MUSICMUSICMUSIC
POWER TV POWER
MENU TOOLS
INFO
TV SOURCE
OPTIC SYNCO/A INPUT
EXIT
VOL TV CH
PASS
MUSICMUSICMUSIC
15
ENG MTROUBLESHOOTING
Before requesting service, please check the following.
Symptom Check Remedy
The unit will not turn on. • Is the power cord plugged
into the outlet?
• Connect the power plug to
the outlet.
A function does not work when
the button is pressed.
• Is there static electricity in
the air?
• Disconnect the power plug
and connect it again.
Sound is not produced. •
Is the unit properly
connected to your
TV?
• Is the Mute function on?
• Is the volume set to
minimum?
• Connect it correctly.
• Press Mute button to cancel
the function.
• Adjust the volume.
Picture does not appear on a TV
when the function is selected.
• Is the TV
connected properly?
• Connect it correctly.
Remotecontrol does not work. • Are the batteries drained?
• Is the distance between
remote control and main unit
too far?
• Replace with new batteries.
• Operate at a close distance.
The sound from the left/right
channels is reversed.
• Are the left/right audio
output cables from the TV
connected properly?
• Check the left/right channel
and connect it/them
correctly.
troubleshooting
16
SPECIFICATIONS
GENERAL
Power supply AC 120V, 60Hz
Standby power consumption 0.9W
Power
consumption
Main unit 100W
Subwoofer 90W
Weight 12.7 Ibs
Dimensions (WxHxD) 16.9 x 5.7 x 13.7 inches
Operating temperature range +41°F to +95°F
Operating humidity range 10 % to 75 %
AMPLIFIER
Rated output 20Hz~20kHz/THD = 10%
Front speaker output 4
ȍ
(80W/CH)
Input sensitivity/
Impedance
1000mV/47Kohm
S/N ratio (analog
input)
80dB
Separation(1kHz) 60dB
FREQUENCY
RESPONSE
Analog input 20Hz~20kHz(±3dB)
Digital input/48kHz PCM 20Hz~20kHz(±3dB) ... based on TV
*S/N ratio, distortion, separation and usable sensitivity are based on measurement using AES (Audio Engineering
Society) guidelines.
*: Nominal specification
- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.
appendix
WARRANTY
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new,
in the originalcarton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and
workmanship for a limited warranty period of:
One (1) Year Parts and Labor*
(*90 Days Parts and Labor for Commercial Use)
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To
receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service
can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as
proof of purchase to SAMSUNG or SAMSUNG's authorized service center. Transportation of the product to and from
the service center is the responsibility of the purchaser.
SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts
or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the
property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty,
or ninety (90) days, whichever is longer.
SAMSUNG’s obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand name are set forth in the
applicable end user license agreement. Non-SAMSUNG hardware and software products, if provided, are on an “AS IS” basis.
Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their own warranties.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent
otherwise expressly provided for in this statement, noncommercial use of this product, and shall not apply to the following, including,
but not limited to: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not
intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other
acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs,
external wiring or connectors not supplied and authorized by SAMSUNG, or which damage this product or result in service problems;
incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, cleaning,
maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal or reinstallation;
reception problems and distortion related to noise, echo, interference or other signal transmission and delivery problems. SAMSUNG
does not warrant uninterrupted or error-free operation of the product.
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES
WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND
NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS
PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE
TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED
BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS
BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF
ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG
AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY
FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY
ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY
THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL
PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
To obtain warranty hardware service, please contact SAMSUNG at:
Samsung Electronics America, Inc.
105 Challenger Road Ridgefield Park, NJ 07660-0511
1-800-SAMSUNG (726-7864) and www.samsung.com/us
Contact SAMSUNG WORLD WIDE
,I\RXKDYHDQ\TXHVWLRQVRUFRPPHQWVUHODWLQJWR6DPVXQJSURGXFWVSOHDVHFRQWDFWWKH6$0681*
FXVWRPHUFDUHFHQWHU
5HJLRQ &RXQWU\ &XVWRPHU&DUH&HQWHUҞ :HE6LWH
1RUWK$PHULFD
CANADA 6$0681* ZZZVDPVXQJFRPFD
MEXICO 6$0681* ZZZVDPVXQJFRPP[
U.S.A 6$0681* ZZZVDPVXQJFRPXV
/DWLQ$PHULFD
ARGENTINE  ZZZVDPVXQJFRPDU
BRAZIL  ZZZVDPVXQJFRPEU
CHILE 6$0681* ZZZVDPVXQJFRPFO
NICARAGUA  ZZZVDPVXQJFRPODWLQ
HONDURAS  ZZZVDPVXQJFRPODWLQ
COSTA RICA  ZZZVDPVXQJFRPODWLQ
ECUADOR  ZZZVDPVXQJFRPODWLQ
EL SALVADOR  ZZZVDPVXQJFRPODWLQ
GUATEMALA  ZZZVDPVXQJFRPODWLQ
JAMAICA  ZZZVDPVXQJFRPODWLQ
PANAMA  ZZZVDPVXQJFRPODWLQ
PUERTO RICO  ZZZVDPVXQJFRPODWLQ
REP. DOMINICA  ZZZVDPVXQJFRPODWLQ
TRINIDAD & TOBAGO 6$0681* ZZZVDPVXQJFRPODWLQ
VENEZUELA  ZZZVDPVXQJFRPODWLQ
COLOMBIA  ZZZVDPVXQJFRPFR
(XURSH
BELGIUM  ZZZVDPVXQJFRPEH
CZECH REPUBLIC
6$0681*
ZZZVDPVXQJFRPF]
DENMARK  ZZZVDPVXQJFRPGN
FINLAND  ZZZVDPVXQJFRP¿
FRANCE 6$0681* 0LQ
 0LQ ZZZVDPVXQJFRPIU
GERMANY
6$0681* 0LQ
ZZZVDPVXQJGH
HUNGARY 6$0681* ZZZVDPVXQJFRPKX
ITALIA 6$0681* ZZZVDPVXQJFRPLW
LUXEMBURG  ZZZVDPVXQJFRPOX
NETHERLANDS
6$0681* 0LQ ZZZVDPVXQJFRPQO
NORWAY  ZZZVDPVXQJFRPQR
POLAND  ZZZVDPVXQJFRPSO
PORTUGAL 6$0681* ZZZVDPVXQJFRPSW
SLOVAKIA 6$0681* ZZZVDPVXQJFRPVN
SPAIN 6$068 ZZZVDPVXQJFRPHV
SWEDEN  ZZZVDPVXQJFRPVH
U.K 6$0681* ZZZVDPVXQJFRPXN
EIRE  ZZZVDPVXQJFRPLH
AUSTRIA 6$0681* ZZZVDPVXQJFRPDW
SWITZERLAND 6$0681* ZZZVDPVXQJFRPFK
CIS
RUSSIA  ZZZVDPVXQJUX
KAZAHSTAN  ZZZVDPVXQJFRPN]BUX
UZBEKISTAN  ZZZVDPVXQJFRPN]BUX
KYRGYZSTAN 
TADJIKISTAN 
UKRAINE  ZZZVDPVXQJXD
LITHUANIA  ZZZVDPVXQJOW
LATVIA  ZZZVDPVXQJFRPOY
ESTONIA  ZZZVDPVXQJHH
$VLD3DFL¿F
AUSTRALIA  ZZZVDPVXQJFRPDX
NEW ZEALAND 6$0681* ZZZVDPVXQJFRPQ]
CHINA  ZZZVDPVXQJFRPFQ
HONG KONG  ZZZVDPVXQJFRPKN
INDIA  ZZZVDPVXQJFRPLQ
INDONESIA  ZZZVDPVXQJFRPLG
JAPAN  ZZZVDPVXQJFRPMS
MALAYSIA  ZZZVDPVXQJFRPP\
PHILIPPINES 6$0681* ZZZVDPVXQJFRPSK
SINGAPORE 6$0681* ZZZVDPVXQJFRPVJ
THAILAND  ZZZVDPVXQJFRPWK
TAIWAN  ZZZVDPVXQJFRPWZ
VIETNAM  ZZZVDPVXQJFRPYQ
0LGGOH(DVW
$IULFD
TURKEY  ZZZVDPVXQJFRPWU
SOUTH AFRICA 6$0681* ZZZVDPVXQJFRP]D
U.A.E 6$0681*
ZZZVDPVXQJFRPDH
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT WRITE
IN THE US 1-800-SAMSUNG
(7267864) www.samsung.com/us
Samsung Electronics America, Inc.
105 Challenger Road Ridgefield Park,
NJ 07660-0511

Navigation menu
